Chemokine Receptor-7 (CCR7) Deficiency Leads to Delayed Development of Joint Damage and Functional Deficits in a Murine Model of Osteoarthritis

Abstract

Elevated chemokine receptor Ccr7 is observed in knee osteoarthritis (OA) and associated with severity of symptoms. In this study, we confirmed that CCR7 protein expression is elevated in synovial tissue from OA patients by immunohistochemical staining. We then investigated whether Ccr7 deficiency impacted structural and functional joint degeneration utilizing a murine model of OA. OA-like disease was induced in male C57BL/6 and Ccr7-deficient (Ccr7^−/−) mice by destabilization of the medial meniscus (DMM). Functional deficits were measured by computer integrated monitoring of spontaneous activity every 4 weeks after DMM surgery up 16 weeks. Joint degeneration was evaluated at 6 and 19 weeks post-surgery by histopathology, and subchondral bone changes analyzed by microCT. Results showed reduction in locomotor activities in DMM-operated C57BL/6 mice by 8 weeks, while activity decreases in Ccr7^−/− mice were delayed until 16 weeks. Histopathologic evaluation showed minimal protection from early cartilage degeneration (p = 0.06) and osteophytosis (p = 0.04) in Ccr7^−/− mice 6 weeks post-DMM compared to C57BL/6 controls, but not at 19 weeks. However, subchondral bone mineral density (p = 0.03) and histologic sclerosis (p = 0.02) increased in response to surgery in C57BL/6 mice at 6 weeks, while Ccr7^−/− mice were protected from these changes. Our results are the first to demonstrate a role for Ccr7 in early development of functional deficits and subchondral bone changes in the DMM model. Understanding the mechanism of Ccr7 receptor signaling in the initiation of joint pathology and disability will inform the development of innovative therapies to slow symptomatic OA development after injury. Published 2017. This article is a U.S. Government work and is in the public domain in the USA.

Osteoarthritis (OA) is characterized by pathologic changes throughout the joint including cartilage degeneration, subchondral bone remodeling, osteophytosis, and synovial inflammation.¹ In 2005, 27 million individuals were estimated to be affected in the United States, and this number is growing.² Current management provides only partial symptomatic relief without halting progression of structural changes or joint dysfunction. Total joint replacement (TJR), the only definitive treatment, is reserved for patients with advanced degeneration.

Patients seek treatment for severity of their joint pain, while disease is diagnosed by extent of structural changes (joint space narrowing and osteophytosis) identified on radiographs. However, there is poor correlation between radiographic features of OA, and symptom severity and disability.³ Synovitis, which is not visible on plain radiographs, has been linked to rate of cartilage erosion^4–7 and pain in OA.^4,6,8 Although variable,^9–11 synovitis occurs throughout the course of disease, from early to advanced stages.^4,5 Recent work shows a relationship between synovitis and development of pain sensitization over 2 years.¹² Although these findings suggest that targeting synovitis might reduce pain in knee OA,^12–14 molecular mechanisms driving synovitis in OA are still poorly understood.

To identify potential therapeutic targets associated with synovitis and symptoms, we previously analyzed the synovial transcriptome in patients with early-stage knee OA.⁴ In patients who exhibited synovial cellular infiltration, as evidenced by synovial biopsy, a chemokine signature was identified. This included the chemokine receptor Ccr7 and its two natural ligands (Ccl19 and Ccl21).⁴ Ccr7 is expressed by a variety of cells including lymphocytes,^15,16 dendritic cells,¹⁷ macrophages,¹⁸ and synovial fibroblasts.¹⁹ This receptor and its ligands mediate homing of lymphocytes to secondary lymphoid organs under homeostatic conditions,²⁰ while in chronic inflammation they facilitate migration of leukocytes and endothelial cells.²¹ In two murine OA models, transcriptional up-regulation of Ccl19 and Ccl21 in joint tissues was reported.^22,23 In addition, we reported associations between synovial Ccr7 and Ccl19 mRNA expression and severity of knee symptoms in two separate cohorts of patients.^4,24 In the current study, we investigated Ccr7 protein expression in patients, and tested the effect of Ccr7 deficiency on structural and functional features of disease after destabilization of the medial meniscus (DMM) in mice.

MATERIALS AND METHODS

Human Synovial Specimens

Synovial membrane specimens were collected from the suprapatellar pouch from 14 patients with degenerative meniscal tears, 13 advanced knee OA and eight asymptomatic donors through IRB-approved bio-repositories at Rush University Medical Center (RUMC), Chicago, IL (Table 1). Meniscal tear patients were 21 years or older undergoing arthroscopic partial meniscectomy; inflammatory arthritis and avascular necrosis were excluded. Cartilage integrity was evaluated intra-operatively according to Outerbridge²⁵ (Table 1, and ^4,26). Radiographic OA was assessed by Kellgren–Lawrence (K–L) score.²⁷ Advanced OA patients were undergoing total knee replacement (TKR) with a K–L score of 3–4 on pre-operative knee films. Synovial membrane was also collected within 24-h post-mortem from organ donors with no history of arthritis or joint symptoms (Gift of Hope Organ and Tissue Donor Network, Elmhurst, IL). Gross degenerative changes were evaluated by a pathologist, based on modified Collins grade.²⁸

Table 1.

Characteristics of Patients Contributing Synovial Tissues for CCR7 Analysis

	Asymptomatic Donors	Meniscal Arthroscopy	Advanced Knee OA
N =	8	14	13
Age*	60.0 (27.5–62.5)	42.3 (33.2–47.2)	60.0 (57.0–69.5)a
BMI*	N/A	28.5 (27.8–34.6)	38.0 (31.6–42.6)a
Outerbridge/Collin’s Grade*,**	2 (0.25–3)	2 (2–3)	4 (4–4)a
Kellgren–Lawrence Stage*	N/A	1.5 (0.75–2)	4 (3.5–4)a

N/A, Not available.

^*Median (Interquartile range).

^**Outerbridge grade for meniscal arthroscopy and advanced OA patients, modified Collins grade for asymptomatic donors.

^aAdvanced knee OA compared to meniscal arthroscopy patients: Age p = 0.01, BMI p = 0.03, outerbridge and Kellgren–Lawrence p < 0.0001 (Mann–Whitney).

CCR7 Immunostaining in Human OA and Meniscal Injury

CCR7 expression in human synovial membrane was examined by routine immunohistochemical (IHC) staining using a monoclonal anti-human CCR7 antibody (ab65851, Abcam, Cambridge MA). Staining specificity was confirmed by utilizing an isotype-matched immunoglobulin control (ab125938, Abcam), and was quantified on 10× images (NIS-Elements AR, Nikon Instruments Inc., Melville, NY). Image analysis involved defining five regions of interest (ROIs, each 2.5 × 10 μm² including lining and sub-lining) on a single section per patient. Red thresholds were set uniformly to highlight positively stained areas, and background was set by comparison to isotype matched controls. Area positively stained in each ROI was summed and reported as a fraction of total area analyzed (1.25 × 106 μm2).

Murine Destabilization of the Medial Meniscus (DMM) Model

Mice lacking expression of Ccr7 (B6.129P2(C)-Ccr7™1Rfor/J or Ccr7^−/−)²⁹ were obtained from Jackson Laboratory (Bar Harbor, Maine), and had been backcrossed onto the C57BL/6 background for at least eight generations prior to purchase. C57BL/6 mice (Jackson Laboratory) were used as wild-type (WT), congenic controls. Institutional Animal Care and Use Committees at the University of Pennsylvania and CMC Veteran Affairs Medical Center approved all animal experiments. Mice were housed in a pathogen-free facility with water and food ad libitum and 12:12 light:dark cycle. 10–12-week-old male mice were anesthetized using ketamine and xylazine prior to surgery. Animals were subjected to medial arthrotomy of the right knee, and the anterior medial meniscotibial ligament (MMTL) was severed leading to destabilization of medial meniscus (DMM).³⁰ Sham-operated controls underwent arthrotomy, but the MMTL was left intact. Naive (age-matched un-operated) controls from both strains were also evaluated. If animals displayed any signs of distress post-surgery, they were treated with buprenorphine for up to 72 h. Animals were euthanized by carbon dioxide inhalation at experimental end points. Groups, endpoints, and outcomes measured are presented in Figure 1. Functional disease outcomes were evaluated by longitudinal activity monitoring up to 16 weeks post-surgery. Structural disease outcomes were evaluated by microCT analysis of subchondral bone and histopathologic analysis of cartilage, bone, and synovium at 6 weeks post-DMM (early disease) and 19 weeks post-DMM (late disease). Synovial inflammation was evaluated by gene expression 1, 2, and 4 weeks post-surgery.

Figure 1.

Schematic for the experiments included in this study. Function: Mice underwent activity monitoring on the LABORAS™ platforms pre-operatively, and then underwent DMM or sham surgery, or were left unoperated/näve (n = 7–10 mice per treatment group). Activity was measured every 4 weeks up to 16 weeks post-operatively. Structure: Mice were then sacrificed at 19 weeks post-operatively for micro CT (n = 5) and histology (n = 7–10) of cartilage and bone structure. Additional mice (n = 5 per group) were subjected to DMM or sham (or näve), and then sacrificed 6 weeks post-surgery for structural analysis at an earlier stage of disease. Inflammation: Another set of mice underwent DMM surgery, and then were sacrificed in groups of 20–30 at 1, 2, and 4 weeks post-DMM. The anterior synovium and intra-articular fat pad were dissected together, and then tissues from 4 to 5 mice pooled per sample resulting in 5–6 samples per time point. mRNA was extracted and analyzed as described.

Functional Assessment of Post-Surgical Behavior

Changes in spontaneous behaviors (climbing, locomotion, grooming, rearing, eating, drinking) were assessed using the laboratory animal behavior observation registration and analysis system (LABORAS™, Metris, Netherlands).³⁴ Behavior was measured pre-surgery (time 0), and post-surgery every 4 weeks to 16 weeks (minimum seven mice per group). Two mice per day (one mouse/platform) were analyzed in 16-hour sessions between 4pm and 8am. The first 2 h of data were excluded from final analyses to allow mice to acclimatize to the testing environment. Weight was measured prior to each assessment. Nineteen weeks post-surgery, mice were sacrificed and knee joints dissected. A subgroup of knees (n = 5 per treatment group) were scanned by microCT, and all knees were processed and analyzed histologically as described below.

MicroCT Assessment of Subchondral Bone in the Murine DMM Model

Knee joints (n = 5 per group) obtained post-mortem from mice 19 weeks post-surgery (Fig. 1) were scanned prior to decalcification (VivaCT 40 microCT scanner, Scanco-Medical USA, Wayne, PA. Voxel size = 10.5 μm, energy = 55 kV, intensity = 145 μA, and integration time = 300 ms). To assess subchondral bone structure, the medial epiphysis of the proximal tibia was chosen as the region of interest (ROI) in a three-dimensional reconstructed coronal view. The ROI was manually contoured selecting every 10th slice, including the calcified cartilage and extending to the distal edge of the growth plate (spanning ~100 mm). Ten percent of the medial and lateral width of the MTP was excluded to avoid osteophytes. Slices were spliced together to create a volume of interest in which bone volume fraction (%BV/TV) and bone mineral density (mg HA/cm3) were assessed. Additional groups of five mice from each strain were euthanized at 10–12 weeks of age (time 0, unoperated), and 6 weeks post-surgery for microCT analysis, and compared to 19 weeks.

Histopathologic Evaluation of Structural Joint Pathology

After scanning, knee joints from early (6 weeks), and late (19 weeks) post-surgical time points were processed, embedded, and sectioned for histopathologic assessment (Fig. 1). Cartilage degradation was scored on toluidine-blue stained sections using the modified OARSI score^31,32 by a board-certified veterinary pathologist (Dr. Allison Bendele, Bolder BioPATH Inc., Boulder, CO) blinded to strain and treatment. Briefly, each cartilage surface (medial tibial plateau, medial femoral condyle, lateral tibial plateau, and lateral femoral condyle) was divided into three zones: Inner, middle, and outer thirds. Each zone was assigned a score in the range of 0–5 depending on severity of cartilage erosion, so that the maximal score per surface = 15. Scores for each surface were then summed to obtain a total score (maximum = 60). Osteophyte size was measured using an ocular micrometer at the medial tibial plateau and femoral condyle, and the largest recorded. Subchondral bone sclerosis was scored on the medial tibia (0 = normal to 5 = severe), and synovial hyperplasia and sub-lining inflammation evaluated superior to the medial meniscus using published scales.^32,33

Molecular Assessment of Inflammation

Anterior synovial membrane and fat pad were harvested together from both strains at baseline (10–12 weeks old), 1, 2, and 4 weeks post-DMM (Fig. 1). Tissues were dissected from 20 to 30 mice per time point, and tissues from 4 to 5 mice were pooled together for each sample to obtain adequate mRNA. This resulted in 5–6 samples analyzed per time point. cDNA was synthesized by routine methods, and transcripts quantified using the QX200™ Droplet Digital™ PCR (BioRad, Hercules, CA). Primers specific for CD68 (monocyte/macrophage marker) were utilized for amplification, levels expressed relative to TATA-box binding protein (TBP) transcripts, and the operated side (right) was compared to the unoperated side (left).

Statistical Analysis

Data were summarized by median and interquartile range (IQR). For comparison of patient characteristics (Table 1), Mann–Whitney U-tests were utilized. When comparing multiple groups, non-parametric Kruskal–Wallis ANOVA test was applied, followed by individual pairwise Mann–Whitney U-tests. The Bonferoni correction for multiple comparisons was applied to assess statistical significance. CD68 mRNA levels were compared between operated and contra-lateral control limbs using Wilcoxon’s matched-pair signed rank test. Linear mixed effects models were applied to test whether trends in activity over time differed between strains. Subject-specific random effects were included to account for repeated measures, and the quadratic term of time was included to capture nonlinear trends. Trend differences were assessed by the interactions of strain with time and time squared. Within each strain, the Wilcoxon signed-rank test was used to test differences from baseline activity at each post-operative time. Statistical analyses were performed in Prism 6.0 (GraphPad) and SAS 9.4 (SAS Institute, Cary NC).

RESULTS

CCR7 Expression in Human Synovial Membrane

Presence of CCR7 protein expression was confirmed by IHC staining of synovial biopsies, comparing asymptomatic donors to patients with advanced knee OA and patients undergoing arthroscopic partial meniscectomy for degenerative meniscal pathology. Patient characteristics are presented in Table 1. All but two arthroscopy patients had intra-operative signs of mild-moderate cartilage integrity loss consistent with early-stage OA. These two patients had normal cartilage despite having degenerative meniscal tears. Arthroscopy patients were younger than the other groups and had a lower BMI than those with advanced OA.

Representative CCR7-staining is depicted in Figure 2A. Both arthroscopy and advanced knee OA patients demonstrated CCR7 positivity in the synovial lining layer, endothelium and peri-vascular inflammatory infiltrates when present. Quantitative image analysis (Fig. 2B) demonstrated significantly more staining in meniscal arthroscopy patients than controls (median % area stained, IQR = 11.1%, 5.4–18.4 vs. controls: 0.74%, 0.05–2.22, p = 0.008). Results were unchanged when the two patients in the arthroscopy group with normal cartilage were excluded (11.1%, 5.8–18.4). Advanced OA patients demonstrated intermediate levels of CCR7 (6.42%, 2.36–10.25, p = 0.03, ns with Bonferoni correction). Although this group was also expected to be higher than controls, this difference was not statistically significant perhaps due to small sample size.

Figure 2.

Immunostaining for CCR7 in human synovial tissues. Synovial biopsies obtained from donors and patients were stained using an anti-human CCR7 antibody (Materials and Methods). Representative sections from an asymptomatic donor, early OA patient undergoing meniscal arthroscopy, and an advanced OA patient are shown in A. Isotype control is shown in inset. Staining was quantified using automated image analysis and percent fractional area stained presented in B. Percent area stained was significantly greater in the meniscal arthroscopy patients than in asymptomatic donors.

Spontaneous Behavior in the Two Strains at Baseline and Post-Surgery

Decreases in spontaneous activities have been associated with pain and cartilage degeneration in WT mice post-DMM.³⁵ Therefore, we investigated whether spontaneous activity differed between strains. Activity was measured overnight at 4-week intervals, using the LABORAS® system.³⁴ Body weights over 16 weeks were comparable between strains (data not shown). Baseline behavior was measured 1 week prior to surgical intervention in 32 Ccr7^−/− and 23 WT male mice (Supplemental Fig. S1A). No differences between strains were observed in time spent eating, grooming, rearing, climbing or walking/running (locomotion). Ccr7^−/− mice covered slightly less distance (median, IQR = 134. m, 111.8–147.1, Supplemental Fig. S1B) compared to WT mice (172m, 133.9–198.8, p < 0.005), and spent less time drinking (169.8s, 67.8–260.9) than WT mice (293.5s, 226.1–376.0, p < 0.005) over 14 h. However, average and maximum speeds during locomotion were similar in both strains.

Comparison of Behavior Post-DMM Compared to Controls

Behavior measurements post-DMM were compared to WT and Ccr7^−/− näve and sham controls, at each time interval (Fig. 3; Supplemental Table S1). Significant decreases post-DMM in WT activity compared to controls were first observed 8-weeks (Supplemental Table S1). After DMM surgery, WT mice climbed less than näve controls (DMM: 954.1s, 727.5–1139 vs. naive: 1758s, 1272–2106, p = 0.002), and covered less distance (DMM: 128.9m, 117.4–161.9 vs. naive: 183.3m, 157.3–190.4, p = 0.04 ns with Bonferoni correction) (Fig. 3B and E). In contrast, decreases in activity post-DMM compared to controls were not observed in Ccr7^−/− mice until 16 weeks (Supplemental Table S1). By 16 weeks, decreases were observed in locomotion (Ccr7^−/− DMM: 2492s, 1634–3483 vs. näve: 4289s, 3047–5353, p = 0.02) (Fig. 3I) and distance traveled (Ccr7^−/− DMM 149.4m, 100.1–205.8 vs. näve: 239.5m, 203.7–276.1, p = 0.013) (Fig. 3F).

Figure 3.

Comparison of spontaneous behaviors after DMM surgery compared to control groups in the two strains. Spontaneous activity was measured as described every 4 weeks up to 16 weeks post-DMM in the two strains of mice. Time spent climbing (A–C), distance traveled (D–F), and locomotion (G–I), are depicted compared with sham and näve controls at the 4, 8, and 16 week time points. In wild-type mice, time spent climbing post-DMM was significantly decreased by 8 weeks (B) compared to controls. A decreasing trend was also seen at 8 weeks in distance traveled (E). Reduction in activity post-DMM compared to control groups was not observed in CCR7^−/− mice until 12 weeks (decrease in locomotion, Supplemental Table S1), and was statistically significant by 16 weeks for distance traveled (F) and locomotion (I). Medians, and IQRs are displayed. p values from Mann–Whitney U test compared to controls. n = 7–10 mice per group.

Longitudinal Behavior Changes After DMM Surgery

We next analyzed longitudinal activity in DMM-operated mice to test whether trajectories differed between the two strains. Post-operative climbing activity in DMM operated WT mice trended down by 4 weeks and 8 weeks post-DMM in WT mice (p = 0.2, Fig. 4A). In contrast, Ccr7^−/− mice showed no decreases in climbing behavior post-DMM. Instead, climbing activity significantly increased up to 8 weeks post-surgery and thereafter decreased toward baseline. Similar longitudinal trajectories were seen post-DMM in locomotion (Fig. 4B) and distance traveled (Fig. 4C). No clear differences in longitudinal patterns of eating, drinking, grooming, or speed post-DMM surgery were observed between strains (Supplemental Fig. S2). Linear mixed-effects models were fitted to test whether post-DMM activity trends differed between strains. These models demonstrated that trajectories differed significantly for climbing, locomotion and distance traveled between strains (all p values for the interactions of strain with time and time squared <0.05, Table 2). For each activity, additional models were fit to determine at which time point trends diverged. For climbing and locomotion, the two strains began to show different trajectories by 4 weeks (p = 0.015 and 0.008, respectively), while distance traveled diverged at 8 weeks (p = 0.025).

Figure 4.

Longitudinal activity patterns in wild-type and Ccr7^−/− mice subjected to DMM surgery. Spontaneous activity was measured pre-operatively and every 4 weeks up to 16 weeks post-operatively using LABORAS platforms (details in materials and methods). Median (IQR) time spent climbing (A), in locomotion (B), and distance traveled (C) in 14 h is presented. In wild-type mice, time spent climbing (A) decreased slightly although non-significantly after DMM surgery compared to baseline up to 8 weeks post-operatively. CCR7^−/− mice increased climbing activity compared to baseline up to 8 weeks with decreases thereafter. Similar longitudinal patterns were seen with locomotion (B) and distance travelled (C). (*p < 0.01 compared to pre-op levels in same strain, #p <0.05 for trend difference between strains using linear mixed effects models).

Table 2.

Linear Mixed-Effects Models Testing Longitudinal Activity Trends for Climbing, Locomotion, and Distance Traveled in WT and Ccr7^−/− Mice Over 16 Weeks Post-DMM Surgery

	p Value
Effect	Climbing	Locomotion	Distance Traveled
Time	0.83	0.045	0.30
Time Squared	0.64	0.39	0.97
Strain	0.44	0.62	0.22
Time × Strain	0.0001	0.044	0.011
Time Squared × Strain	0.0002	0.014	0.009

Cartilage Damage in Ccr7^−/− Mice After DMM Surgery

Cartilage pathology was first evaluated 6 weeks post-surgery, a time point corresponding to early stage disease.³⁶ Consistent with other reports,^32,33 cartilage abnormalities at this point were very mild, and were mostly limited to proteoglycan loss and surface fibrillation on the medial side (Fig. 5C and E). All unoperated and sham controls were free of cartilage damage. 6 weeks post-DMM, cartilage scores (summed over all tibial and femoral surfaces) were slightly but not statistically lower in Ccr7^−/− mice (median, IQR: 1.0, 0–3.5) compared to WT controls (4.0, 3.5–7.5, p = 0.06, Fig. 5A). As expected, cartilage damage 19-weeks after DMM surgery was more extensive than at 6 weeks, indicating progression of OA (Fig. 5B and D). At this stage, cartilage damage in DMM-operated Ccr7^−/− mice (17.5, 10.25–31.0) and WT controls (17.0, 11–23.75, p > 0.99) was similar (Fig. 5B and F). Some sham-operated animals from both strains exhibited mild cartilage abnormalities at 19 weeks, albeit significantly less than DMM-operated mice (Fig. 5B, p < 0.02 for both WT and Ccr7^−/−).

Figure 5.

Ccr7 deficient mice show reduced cartilage degeneration at 6 weeks, but not 19 weeks after DMM surgery. Groups of 5–10 mice were subjected to DMM or sham surgery at 10–12 weeks of age, or left unoperated (näve). At 6 weeks and 19 weeks post-surgery, knee joints were dissected and prepared for histologic analysis. Total cartilage degeneration scores in WT (black squares) and Ccr7 knockout mice (red circles) at (A) 6 weeks and (B) 19 weeks post-surgery are shown. **p < 0.025 compared to DMM operated mice of the same strain (Kruskal–Wallis followed by Mann–Whitney U-test). Representative photomicrographs of knee histopathology are depicted in panels C–E. (C) Wild-type at 6 weeks post-DMM, (D) wild-type at 19 weeks post-DMM, (E) Ccr7^−/− at 6 weeks post-DMM, (F) Ccr7^−/− at 19 weeks post-DMM.

Osteophytosis After DMM Surgery in Ccr7^−/− Mice

Osteophytes were observed in DMM-operated mice from both strains, while no osteophytosis occurred in controls. 6 weeks post-DMM, osteophytes in WT mice (Median, IQR: 150 μm, 120–210) were statistically larger than in Ccr7^−/− mice (100 μm, 35–115, p = 0.04) (Fig. 6A). No significant difference between strains was observed 19 weeks post-DMM (Ccr7^−/− 50 μm, 0–180 vs. WT: 135 μm, 78–150, Fig. 6B, p = 0.37). Overall, osteophyte size was highly variable in both strains.

Figure 6.

Histologic bone changes post-DMM in wild-type and Ccr7^−/− mice. Osteophyte size (panels A and B) and subchondral bone sclerosis (panels C and D) were scored as described. Osteophyte size and bone scores in WT and Ccr7^−/− mice (A and C) at 6 weeks post-surgery and (B and D) 19 weeks post-surgery are shown. p-values from Kruskal–Wallis followed by Mann–Whitney U-test. Representative histopathology is shown of the medial tibial plateau from (E) an unoperated WT knee at the 6 week time point (no osteophyte, subchondral bone score of 0) and (F) a DMM-operated WT knee at 6 weeks (osteophyte = 200 micron, subchondral bone score = 5). White arrow = subchondral bony sclerosis, red arrow = marginal osteophyte.

Subchondral Bone Changes After DMM Surgery in Ccr7^−/− Compared to WT Mice

Subchondral bone changes are commonly associated with articular cartilage lesions in OA.^37–39 At 6 weeks (Fig. 6C), subchondral bone sclerosis evaluated histologically³¹ increased in WT mice after DMM (median score, IQR: DMM = 4.0, 2.0–5.0, näve: 0.0, 0–1.5, p = 0.024). Interestingly, a similar increase was observed in sham-operated mice (3.0, 2.0–4.5, p = 0.024). In contrast, subchondral bone scores in Ccr7^−/− mice did not change significantly in response to surgery (DMM: 3.0, 1.5–3.0; sham: 1.0, 0.5–2.0; näve: 2.0, 1.5–3.0, p ≥ 0.2). Bone scores appeared higher in un-operated Ccr7^−/− (2.0, 1.5–3.0) compared to WT (0.0, 0.0–1.5, p = 0.056, ns). By 19 weeks post-surgery (Fig. 6D), no statistical differences were observed in DMM or sham-operated animals compared to un-operated controls in either strain. Between 6 and 19 weeks, median bone scores in unoperated WT mice increased (6 week: 0.0, 0–1.5 vs. 19 week: 4.0, 2.0–4.0, p = 0.024), while scores in unoperated Ccr7^−/− mice were unchanged (6 week: 2.0, 1.5–3.0 vs. 19 week: 1.0, 1.0–3.5, p = 0.42), indicating age-related changes in WT mice.

MicroCT analysis of näve joints at time 0 confirmed differences between strains in subchondral bone (Fig. 7A, B, E, and F). Median bone mineral density in Ccr7^−/− mice (968.5, 924–972.6 mg HA/cm3) was 12.7% higher than in WT mice (859.7, 846.5–892.9 mg HA/cm3, p = 0.004). Six weeks post-DMM, bone mineral density increased in WT mice compared to näve age-matched controls (DMM: 963, 957.2–974.6, näve: 905.1, 864.9–926.2, p = 0.029). Sham surgery resulted in similar increases (p = 0.029). In contrast, Ccr7^−/− mice showed no differences (p = 0.73–0.90) in bone mineral density in any group (Fig. 7B). By 19 weeks there were no differences between groups in WT mice, while bone mineral density trended lower in DMM and sham-operated Ccr7^−/− mice (Ccr7^−/− Sham vs. Näve: 2.02% decrease; p = 0.14, DMM vs. näve: 4.01% decrease; p = 0.39). Percent bone volume fraction (%BV/TV) showed similar trends. Mean %BV/TV was 12.9% higher in Ccr7^−/− versus WT (p = 0.07, ns) at time 0 (Fig. 7C and D). Six weeks post-surgery, %BV/TV increased in both WT DMM and sham groups although this did not reach statistical significance (p = 0.06 for both); there were no further changes by 19 weeks. %BV/TV in Ccr7^−/− mice was not affected by surgery at 6 weeks, but by 19 weeks operated mice appeared to have decreased %BV/TV (Fig. 7D), although this was highly variable (p = ns). WT un-operated mice showed age-related increases in bone mineral density by 12.8% and increases in %BV/TV by 10.5% from time 0 (age 10–12 weeks) to 19 weeks (age 29–31 weeks) (Fig. 7A and C). Un-operated CCR7^−/− mice displayed no significant age-related changes.

Figure 7.

Subchondral bone volume and mineral density measured by microCT in wild-type and Ccr7 deficient mice. MicroCT scans of näve joints at 10–12 weeks of age (time 0), and näve and operated (sham or DMM) joints at 6 and 19 weeks after surgery were performed. n = 5 mice per group (final numbers analyzed are 3–5 per group, as some scans contained artifacts that precluded analysis). Panels A and C describe trends in bone mineral density (BMD) and bone volume fraction (%BV/TV) in wild-type mice. Panels B and D indicate trends in BMD and % BV/TV in Ccr7^−/− mice. Representative 2D microCT slices were chosen from 10 to 12-week-old (time 0) un-operated wild-type (E) and Ccr7^−/− (F) mice.

Synovial Inflammation in WT and Ccr7^−/− Mice After DMM Surgery

Evaluation of synovial hyperplasia showed very mild changes post-DMM (Median, IQR at 6 weeks WT: 1.0, 0.5–1.5, Ccr7^−/−: 1.0, 1.0–1.0, and 19 weeks WT: 0.0, 0.0–1.0, Ccr7^−/−: 0.0, 0.0–1.0), which were not statistically different from controls (Fig. 8A and B). Additionally, we used mRNA analysis of CD68 (a macrophage marker) to evaluate low-grade inflammation in this model. In WT mice, CD68 mRNA levels increased in DMM-operated limbs 1, 2, and 4 weeks post-surgery (4 weeks: 21.11, 16.06–27.66) compared to unoperated limbs (1.63, 0.71–5.81, p = 0.13) (Fig. 8C). Similar increases in CD68 expression were observed post-DMM in Ccr7^−/− mice (4 weeks: 18.30, 12.71–35.34, compared to unoperated limbs 5.77, 4.39–9.33, p = 0.03) (Fig. 8D).

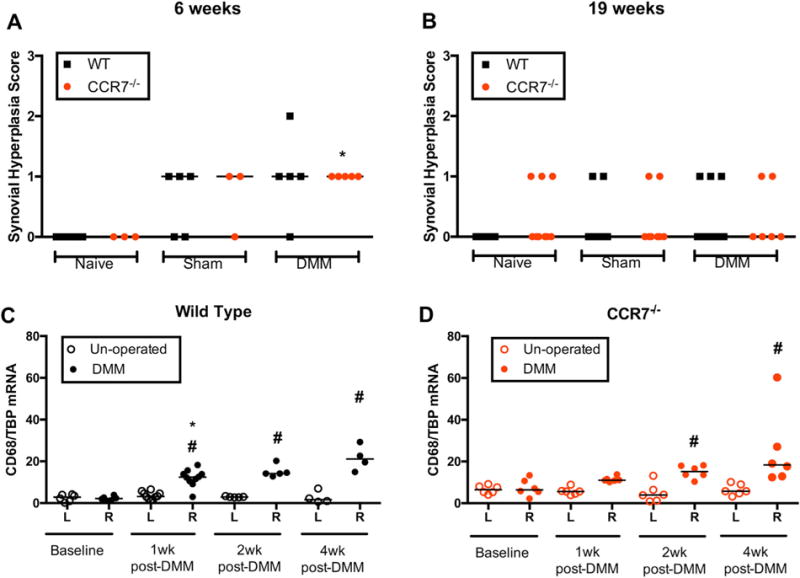

Figure 8.

Synovial response to DMM injury in both strains of mice. Synovial hyperplasia in wild-type (WT) and Ccr7^−/− mice at 6 weeks (A) and 19 weeks (B) post-surgery. Hyperplasia was scored as described just superior to the medial meniscus. No significant differences were observed between groups. Gene expression analysis of CD68 transcript levels in knee synovial capsular tissue up to 4 weeks post-DMM in WT (C) and Ccr7 deficient mice (D). mRNA copy number measured by droplet digital PCR and normalized to number of TBP transcripts. *p < 0.05 compared to left un-operated side, Wilcoxon matched-pairs signed-rank test. #p < 0.017 compared to baseline levels, Mann–Whitney U-test.

DISCUSSION

There are often discrepancies between structural and symptomatic signs of OA.⁴⁰ The paucity of studies evaluating structural and functional outcomes in preclinical models of OA poses a significant limitation to translational efforts in this field.⁴¹ To this end, we have comprehensively characterized joint pathology (cartilage erosion, synovial change, subchondral bone sclerosis, and osteophytosis) and functional manifestations (spontaneous behavior), to test if absence of Ccr7 influences disease after DMM surgery. Ccr7^−/− mice showed 75% less cartilage erosion and 50% smaller osteophytes 6 weeks post-DMM surgery. However, this minimal early protection was not sustained by 19 weeks, and clinical significance of this finding is not clear. Differences in activity deficits, however, were more pronounced and delayed after DMM in the absence of Ccr7, suggesting a role for this receptor in symptom development. Only spontaneous locomotor activities were affected, while biologically driven activities (eating and drinking) were preserved.⁴² Decreased spontaneous activity after DMM surgery is consistent with earlier reports demonstrating these outcomes to be surrogate signs of movement-provoked pain.^35,42 Longitudinal analysis demonstrated that climbing activity decreased in WT mice post-DMM in the early stages of disease (4 weeks) and showed functional relevance (decreased distance traveled) by 8 weeks. In contrast, functionally relevant activity decreases were not observed in Ccr7^−/− mice until 16 weeks after DMM. This delay paralleled delays in cartilage and bone changes, suggesting an association of these outcomes with disease in this model.⁴¹

This study points out the importance of assessing disease features at multiple stages as delay could have been interpreted as protection if evaluated at one time point, and age-related changes would not have been apparent. Therapeutics that delay symptomatic and/or structural progression may be quite useful to offset the need for arthroplasty in younger patients.⁴³ Since instability caused by DMM was not corrected in this model, OA development in Ccr7^−/− mice at later stages could be due to mechanical dysfunction over-riding the initial protection. Our results emphasize the need to elucidate mechanisms relevant to specific phases of disease (i.e., development, progression) to enhance understanding of structure-function correlation.⁴⁴

Analysis of subchondral bone, a major site of remodeling in human OA,⁴⁵ revealed additional insights. Changes to subchondral bone may alter biomechanics of the joint and transmit pathologic mechanical signals to overlying articular cartilage, contributing to degradation.⁴⁶ Both histopathology and microCT revealed increased subchondral bone sclerosis in WT mice that occurred early (6 weeks) in response to DMM as previously published,⁴⁷ but that did not progress by 19 weeks. Unexpectedly, we observed alterations in sham-operated animals not previously reported. Other reports have often compared subchondral bone quality in DMM-operated joints to näve joints or a skin incision without arthrotomy.⁴⁸ Our analysis revealed that subchondral bone remodeling may be a response to arthrotomy in this model, as it occurred independent of other structural signs of disease. This is consistent with findings from the collagenase model of murine OA,⁴⁹ suggesting that subchondral bone changes alone may not be sufficient to drive cartilage pathology in these two models. The expected response to decreased activity (and therefore loading) would be a decrease in bone volume and density,⁵⁰ but WT mice showed an increase in these outcomes after DMM during the time frame that activity decreased. This suggests that the bone response in this model is pathologic and unlikely due to activity changes.

In contrast to WT, Ccr7^−/− mice did not show increases in subchondral bone outcomes 6 weeks post-DMM compared to age-matched näve controls. Furthermore, un-operated WT mice displayed significant increases in subchondral bone measures as a function of age, while lack of Ccr7 diminished any age response. Ccr7^−/− mice started with increased subchondral bone volume and density prior to surgical intervention (time 0), which may explain their decreased response to surgery or age. Ccr7^−/− mice were more active during the early time frame after DMM but their bone density did not increase, again suggesting that changes were not solely a result of activity. The early pathologic response seen in the model was prevented in the absence of Ccr7, which was interesting as there is no known role for Ccr7 signaling in bone remodeling. Ccr7^−/− mice did show signs of bone turnover in response to surgery, but this response was delayed and resulted in net loss rather than gain in bone density and volume (Fig. 7D). Although limited by small numbers of specimens, taken together our results implicate Ccr7 in subchondral bone changes in this model, as well as in the context of aging.

There are several limitations to this study. Only spontaneous activity was measured as a symptomatic outcome in this study. Other methods of assessing weight-bearing pain such as static weight-bearing or gait analysis may be more sensitive to detecting change even before activity levels decline, and might have revealed more substantial strain-related differences. Moreover, reductions in spontaneous activity may be reflective of both movement-related pain and mechanical restriction. However, we chose this assessment due the relevance of activity disruption to clinical disability. Evaluation of osteophyte size was performed on thin-sections, which does not allow determination of osteophyte numbers. Differences in cartilage damage and osteophytosis 6 weeks post-DMM were of small magnitude and could be due to variability in the model. Still, average cartilage scores were 75% lower in deficient mice at 6 weeks, and there were also delays in subchondral bone and functional deficits. As disease in humans reflects both structural joint pathology and symptomatic joint dysfunction that do not always correspond in severity, this study also points to the importance of evaluating multiple disease manifestations in OA models. Our data suggests a stronger role for Ccr7 contributing to bony changes and symptomatic outcomes in this model rather than cartilage damage.

We did not find a significant effect of Ccr7 deficiency on early synovial changes in this model. Synovitis in this model is extremely mild, so testing in other models with a greater inflammatory component may be necessary. Interestingly though, Ccr7^−/− mice had increased subchondral bone volume and density at baseline which could be partially responsible for the early protection in this model. Alternatively, certain chemokine receptors may have a direct influence on nociception.⁴² Understanding the specific molecular pathways that delay structural and symptomatic disease manifestations will be critical to develop pharmacologic agents that can significantly slow OA progression, and relieve OA joint pain and disability.
