Stage Dependence, Cell-Origin Independence, and Prognostic Capacity of Serum Glycan Fucosylation, β1–4 Branching, β1–6 Branching, and α2–6 Sialylation in Cancer

Abstract

Glycans represent a promising but only marginally accessed source of cancer markers. We previously reported the development of a molecularly bottom-up approach to plasma and serum (P/S) glycomics based on glycan linkage analysis that captures features such as α2–6 sialylation, β1–6 branching, and core fucosylation as single analytical signals. Based on the behavior of P/S glycans established to date, we hypothesized that the alteration of P/S glycans observed in cancer would be independent of the tissue in which the tumor originated yet exhibit stage dependence that varied little between cancers classified on the basis of tumor origin. Herein, the diagnostic utility of this bottom-up approach as applied to lung cancer patients (n = 127 stage I; n = 20 stage II; n = 81 stage III; and n = 90 stage IV) as well as prostate (n = 40 stage II), serous ovarian (n = 59 stage III), and pancreatic cancer patients (n = 15 rapid autopsy) compared to certifiably healthy individuals (n = 30), nominally healthy individuals (n = 166), and risk-matched controls (n = 300) is reported. Diagnostic performance in lung cancer was stage-dependent, with markers for terminal (total) fucosylation, α2–6 sialylation, β1–4 branching, β1–6 branching, and outer-arm fucosylation most able to differentiate cases from controls. These markers behaved in a similar stage-dependent manner in other types of cancer as well. Notable differences between certifiably healthy individuals and case-matched controls were observed. These markers were not significantly elevated in liver fibrosis. Using a Cox proportional hazards regression model, the marker for α2–6 sialylation was found to predict both progression and survival in lung cancer patients after adjusting for age, gender, smoking status, and stage. The potential mechanistic role of aberrant P/S glycans in cancer progression is discussed.

Graphical Abstract

INTRODUCTION

Serum glycan composition and structure are well-known to be altered in many different types of cancer.^1–4 In fact, for over a decade now, global blood plasma and serum (P/S) glycomics has held out the promise of new, noninvasive cancer markers derived from a small volume of this easily accessible biofluid.^5,6 Modern analytical methods for quantifying the relative abundance of different glycans in P/S vary widely,^7–9 ranging from multiplexed capillary gel electrophoresis with laser-induced fluorescence (a DNA sequencer-adapted method)^10,11 to hydrophilic interaction liquid chromatography (HILIC)¹² or porous graphitized carbon (PGC)^13,14 chromatography interfaced with electrospray ionization-based mass spectrometers or as a means of prefractionation prior to analysis by MALDI-MS,¹⁵ for which glycans are generally permethylated prior to analysis.^9,16

Nearly all approaches employed in P/S glycomics focus on the analysis of intact glycans, most commonly N-linked glycans (generally to the exclusion of O-linked glycans and glycolipids). Quite commonly, accounts of such studies that are focused on cancer conclude by taking a wide-angle view of all intact glycans that were altered in cancer relative to a healthy or benign disease state and reporting unique glycan features such as core fucosylation, bisecting N-acetylglucosamine (GlcNAc), and α2–6 sialylation that were found to be increased or decreased in cancer.⁶ Often, these features are then directly connected to the activity of specific glycosyltransferases.¹⁷ In 2013, Borges et al.¹⁸ developed a molecularly bottom-up approach to serum glycomics, which, following permethylation of an unfractionated P/S sample, employs the principles of glycan linkage analysis to break down all P/S glycans into monosaccharides in a way that maintains information about which hydroxyl groups of each monosaccharide were connected to other carbohydrate residues in the original glycan polymer^18–20 (Figures 1 and 2). This mode of P/S sample preparation results in a collection of roughly two dozen partially methylated alditol acetates (PMAAs), each of which represents a unique glycan “node” from the original glycan polymers and can readily be quantified by gas chromatography–mass spectrometry (GC–MS). Uniquely, several PMAAs, such as those arising from 2,6-linked mannose, 4,6-linked GlcNAc, and 3,4,6-linked mannose correspond to unique glycan features such as β1–6 branching, core fucosylation, and bisecting GlcNAc, respectively, and capture these unique features as single analytical signals rather than allowing the signal from that feature to be spread across all intact glycans that bear the unique feature (Figure 1). Similarly, many of the PMAAs serve as excellent surrogates for the activities of the glycosyltransferases (GTs) that produced them because only one or two known human GTs are capable of producing that particular glycan monosaccharide linkage pattern.¹⁸ In addition, this unique approach to P/S glycomics simultaneously captures information from all major classes of P/S glycans, including N-, O-, and lipid-linked glycans.¹⁸ The specificity of this approach with regard to producing only those chromatographic peaks for glycan nodes known to be present on a particular preisolated glycoprotein is illustrated within Figure 3 of the paper in which this approach was originally described.¹⁸

Figure 1.

Conceptual overview of the glycan “node” analysis concept, which essentially consists of applying glycan linkage (methylation) analysis to whole biofluids. Intact normal and abnormal glycans including O-glycans, N-glycans, and glycolipids are processed and transformed into partially methylated alditol acetates (PMAAs, Figure 2), each of which corresponds to a particular monosaccharide-and-linkage-specific glycan “node” in the original polymer. As illustrated, analytically pooling together the glycan nodes from among all the aberrant intact glycan structures provides a more-direct surrogate measurement of abnormal glycosyltransferase activity than any individual intact glycan while simultaneously converting unique glycan features such as “core fucosylation”, “α2–6 sialylation”, “bisecting GlcNAc”, and “β1–6 branching” into single analytical signals. Actual extracted ion chromatograms from 9 μL blood plasma samples are shown. Numbers adjacent to monosaccharide residues in glycan structures indicate the position at which the higher residue is linked to the lower residue. This figure was adapted with permission from ref 18. Copyright 2013 American Chemical Society.

Figure 2.

Molecular overview of the glycan “node” analysis procedure. For glycans from blood plasma and other biofluids, O-linked glycans are released during permethylation, while N-linked glycans and glycolipids are released during acid hydrolysis. The unique pattern of methylation and acetylation in the final partially methylated alditol acetates (PMAAs) corresponds to the unique “glycan node” in the original glycan polymer and provides the molecular basis for separation and quantification by GC-MS. Figure adapted with permission from ref 18. Copyright 2013 American Chemical Society.

Figure 3.

Univariate distributions and associated ROC curves for the top five-performing glycan nodes in the large lung cancer set. The letters above the data points in panels a–e indicate statistically significant differences between the six groups shown; any overlap in lettering between groups indicates a lack of significant difference between the groups (Kruskal–Wallis with Dunn’s post hoc test). ROC curves for lung cancer cases (separated by stage) and controls vs certifiably healthy patients are shown in panels f–j; stage I–IV cancer patients vs controls are shown in panels k–o. ROC curve AUCs are provided in parentheses next to the specified stages. “NS” next to ROC curve AUCs indicates that the ROC curve does not show a statistically significant difference between the two groups being compared. Glycan node symbol definitions are the same as in Figure 1.

To date, we have only reported results from pilot studies in which this methodology was applied to (mostly) advanced stages of lung¹⁸ and breast cancer.²⁰ To gain a representative perspective on the potential utility of this approach to detecting a variety of different types of cancer at varying stages, we have now applied it to over 950 clinical P/S samples from 7 different case control studies across all stages of cancer in which the cancer cases were compared to related benign conditions and healthy controls. A study of plasma samples from 428 Stage I–IV lung cancer patients; age-, gender-, and smoking-status-matched controls; and certifiably healthy living kidney donors serves as the backbone for this report, in which plasma from a single donor served as a quality control specimen in every single batch of samples, facilitating comparisons to pancreatic (rapid autopsy), ovarian (Stage III), prostate (Stage II), and a large independent lung cancer (Stage I) case-control study. Based on the behavior of P/S glycans established to date, we hypothesized that the alteration of P/S glycans observed in cancer would be independent of the tissue in which the tumor originated yet exhibit stage dependence that varied little across cancers classified on the basis of tumor origin.

MATERIALS AND METHODS

Materials

Heavy, stable-isotope-labeled D-glucose (U⁻¹³C₆, 99%; 1,2,3,4,5,6,6-D7, 97%–98%) was purchased from Cambridge Isotope Laboratories. N-Acetyl-D-[UL-¹³C₆]glucosamine was obtained from Omicron Biochemicals, Inc. Methanol was purchased from Honeywell Burdick and Jackson. Acetone was obtained from Avantor Performance Materials. Acetonitrile and dichloromethane were acquired from Fisher Scientific. Chloroform, sodium hydroxide beads (20–40 mesh) DMSO, iodomethane (99%, catalog no. I8507), trifluoroacetic acid (TFA), ammonium hydroxide, sodium borohydride, and acetic anhydride were obtained from Sigma-Aldrich. Pierce spin columns (0.9 mL volume) including plugs were purchased from ThermoFisher Scientific (Waltham, MA, catalog no. 69705). GC–MS autosampler vials and Teflon-lined pierceable caps were acquired from ThermoFisher Scientific. GC consumables were purchased from Agilent; MS consumables were obtained from Waters.

Plasma and Serum Samples

A summary of the case-control sample sets employed in this study is provided in Table 1. All specimens were collected in compliance with the Declaration of Helsinki principles. Once collected, they were coded and de-identified to protect patient identities.

Table 1.

Composition of Sample Sets and Their Sub-Cohorts

name of sample set	serum or type of plasma	certifiably healthy	nominally healthya	controlsb	Stage I	Stage II	Stage III	Stage IV	rapid autopsy
living kidney donors	EDTA plasma	30c	–	–	–	–	–	–	–
large lung cancer	heparin plasmad	–	–	199	20	20	81	78	–
liver fibrosis (not cancer)	serum	–	–	13	9	7	2	2	–
Stage I lung adenocarcinoma	serum	–	–	73	107	–	–	–	–
Stage II prostate cancer	serum	–	56	–	–	40	–	–	–
Stage III serous ovarian cancer	serum	–	87	–	–	–	59	–	–
Stage IV lung cancer	serum	–	23	–	–	–	–	12	–
rapid autopsy pancreatic cancer	serum	–	–	15	–	–	–	–	15

^aNominally healthy donors were self-reported as healthy and were only age- and gender-matched to cases.

^bAge- and gender-matched to cases; smoking-status-matched in lung cancer sets; benign nodule positive in the Stage I lung adenocarcinoma set; benign inflammatory condition-matched in the pancreatic cancer set.

^cThese samples were analyzed immediately prior to, but in a separate set of batches from, the large lung cancer set. Results for the quality control specimens analyzed in both sets of batches were not significantly different from one another.

^dHeparin is a glycosaminoglycan, but for reasons explained in the Materials and Methods section, it does not impact the results of glycan node analysis.

Living Kidney Donors

EDTA plasma samples from certifiably healthy living kidney donors were enrolled in the Multidisciplinary Biobank at Mayo Clinic Arizona under a Mayo Clinic Institutional Review Board (IRB)-approved protocol. Patients eligible for enrollment were those seen at Mayo Clinic Arizona who were ≥18 years old, able to provide informed consent, and undergoing evaluation as a potential living kidney donor. Detailed inclusion and exclusion criteria for these patients are provided in the Supporting Information. None of these patients smoked at the time of health screening and blood collection; 27% were former smokers, and 73% never smoked. Specimens were collected over a 2 year period from December 2013 to December 2015. Standard operating protocols and blood collections were performed as previously described.²¹ All specimens were stored at –80 °C prior to shipment to Arizona State University.

Large Lung Cancer Set

Sodium heparin plasma samples for the large lung cancer study were collected at the University of Texas MD Anderson Cancer Center under the supervision of Dr. Xifeng Wu. Heparin is a glycosaminoglycan itself but the vast majority of its monomer units are carboxylated, sulfated, or both. As we have previously described,¹⁸ sulfated and carboxylated glycan monomers cannot be directly detected by the analytical methodology employed in this study. The PMAA from 4-linked GlcNAc could theoretically be produced by the heparin anticoagulant, but empirically, we found in our matched collection studies (described in the Results) that 4-linked GlcNAc from heparin plasma is not significantly different from EDTA plasma or serum. Specimens for lung cancer cases and controls from the University of Texas MD Anderson Cancer Center included in this study are part of an ongoing large lung cancer study that has been recruiting since 1995. This study has received approval from the University of Texas MD Anderson Cancer Center and Kelsey–Seybold institutional review boards. Venous blood was drawn from newly diagnosed and histologically confirmed lung cancer patients (prior to therapy) and age-, gender-, and ethnicity-matched controls at the MD Anderson Cancer Center hospital and the nearby Kelsey–Seybold Clinic, respectively. All blood was drawn and processed under the same SOP. Patients were not necessarily in a fasted state. Blood was centrifuged then aliquoted and placed into a liquid nitrogen tank. After collection, samples were coded and de-identified prior to shipment to Arizona State University for analysis. A more-detailed profile of the clinical characteristics of the patients in this large lung cancer study is provided in Table S1.

Liver Fibrosis (Non-Cancerous)

Serum samples from patients at all stages of liver fibrosis were collected at the Sunnybrook Health Sciences Centre, under the direction of Dr. Lei Fu and Dr. David E. C. Cole. This study was approved by Research Ethics Board, Sunnybrook Health Sciences Centre, Toronto. Patients were recruited between 2007 and 2011. Written informed consent was obtained from each participant. All subjects with various chronic liver diseases were considered eligible if they would have liver biopsy for the diagnosis of liver fibrosis as part of their routine care. Blood specimens were collected, and serum was separated from cells following standard clinical laboratory procedures. Serum aliquots were stored in –70 °C. The specimens were coded and de-identified according to the study protocol.

Stage I Lung Adenocarcinoma

Serum samples from stage I lung adenocarcinoma patients and age-, gender-, and smoking-status-matched controls were collected under NYU IRB approval at the NYU Langone Medical Center by Dr. Harvey Pass. Arterial blood samples were collected from fasting patients undergoing surgery in the time frame from September 2006 to August 2013 to remove one or more lung nodules that were detected during a CT scan. Determination of whether nodules were benign or malignant was made following a pathological exam of the excised nodules. Serum was collected in standard glass serum tubes and allowed to sit upright for 30–60 min to allow clotting. Subsequently, tubes were centrifuged at 1200g for 20 min at room temperature, then aliquoted and placed at –80 °C within 2–3 h of collection. No freeze–thaw cycles occurred prior to shipment to Arizona State University (Borges lab) for analysis.

Stage II Prostate Cancer

Serum samples from stage II prostate cancer patients were obtained from the Cooperative Human Tissue Network (CHTN), an NIH-sponsored biospecimen collection agency. The quality management system of the CHTN is described elsewhere.²² Age-matched control samples from nominally healthy male donors were obtained from ProMedDx (Norton, MA).

Stage III Serous Ovarian Cancer

Serum specimens from stage III serous ovarian cancer patients were collected at Brigham and Women’s Hospital under IRB approval by Dr. Daniel Cramer. Sera were obtained at the time of presentation prior to surgery. Age, gender, and location matched control sera from women without a history of cancer (other than nonmelanoma skin cancer) were obtained from the general population under a standardized serum collection protocol. All serum samples were collected from 2001 to 2010 and were stored at –80 °C prior to analysis. These specimens have previously been described.^23,24

Stage IV Lung Cancer

A set of serum samples from stage IV lung cancer patients and age- and gender-matched nominally healthy control donors that was completely separate from those provided by Dr. Xifeng Wu at the University of Texas MD Anderson Cancer Center was obtained from ProMedDx.

Rapid Autopsy Pancreatic Cancer

Serum specimens from rapid autopsy patients who had recently died from pancreatic cancer were collected by Dr. Michael Hollingsworth at the University of Nebraska Medical Center under IRB approval. These samples have previously been described.²⁵ In brief, specimens were collected within 2–3 h of death. Control serum samples were from patients with benign pancreatic conditions and elevated CA19–9 levels. Samples were coded, de-identified, and kept at –80 °C prior to shipment to Arizona State University.

Additional Biospecimen Details

As described above, all blood samples were processed into P/S immediately following collection and stored at –70 °C or colder until analyzed. Following shipment in dry ice, vial headspace was vented prior to thawing to avoid CO₂-mediated sample acidification.²⁶ The molecular integrity of the sample set that showed the greatest differences between cases and controls (rapid autopsy pancreatic cancer sera) was examined using an assay based on ex vivo protein oxidation that was recently developed by the Borges group.²⁷ The prostate cancer and stage I lung adenocarcinoma sets were spot-checked as well. No samples produced evidence for concern about specimen integrity.

In this study, multiple independent sets of sample were compared to each other. Each case-control set was analyzed blind and in random order. Within each batch, across all sets, a quality control (QC) EDTA plasma sample was included consisting of a 9 uL aliquot of the same bulk plasma sample to verify the reproducibility across batches. Notably, the samples from the certifiably healthy living kidney donors were analyzed in separate batches of samples from those in the large lung cancer set. To justify direct comparison of these two sets of samples, we verified that the average values measured for each glycan node in the two sets of QC sample results were not statistically significantly different. Moreover, if the average value of the QC sample was slightly higher or lower in the large lung cancer set relative to the living kidney donor set a scaling factor based on this difference in QC samples was employed to adjust the living kidney donor data set. For each glycan node, this adjustment brought the living kidney donor data set distribution slightly closer to the control distributions observed in the large lung cancer set, meaning that it was a conservative adjustment. Furthermore, to validate the comparability of results in serum and multiple different types of plasma, the glycan “node” analysis procedure was applied to matched sets of P/S samples from 21 donors. This set consisted of four different types of plasma and a serum sample from each donor. The difference between these four types of plasma was based on the different anticoagulants, which were K₂EDTA, K₃EDTA, sodium EDTA, and 3.8% sodium citrate. In an additional study, six matched-collection aliquots of serum, K₂EDTA plasma, and heparin plasma from a single donor were analyzed and compared to each other to verify the consistency of glycan nodes between the aforementioned types of samples.

Experimental Procedures

The global glycan methylation analysis procedure consisted of five main steps; permethylation, trifluoroacetic acid (TFA) hydrolysis, reduction of sugar aldehydes, acetylation of nascent hydroxyl groups, and final cleanup.^18,19 Each step is described in detail in the following.

Permethylation, Nonreductive Release, and Purification of Glycans

A total of 9 μL of P/S was added into a 1.5 mL eppendorf tube followed by 1 μL of a 10 mM solution of heavy-labeled D-glucose (U⁻¹³C₆, 99%; 1,2,3,4,5,6,6-D7, 97%–98%), and N-acetyl-D-[UL-¹³C₆]glucosamine, which served as internal standards for relative quantification. Then, 270 μL of dimethyl sulfoxide (DMSO) was added to the biological sample and mixed to dissolve completely. Once the sample was fully dissolved, 105 μL of iodomethane was added to the mixture. This solution was then added to a plugged 1 mL spin column, which contained ~0.7 g of sodium hydroxide beads. The NaOH beads had been preconditioned with acetonitrile and rinsed with DMSO twice before the sample was added. Then, the NaOH column was stirred occasionally for 11 min. When finished, samples were unplugged and spun for 15 s at 5000 rpm (2400g) in a microcentrifuge to extract the glycan-containing solution. To wash off all the permethylated glycan, 300 μL of acetonitrile was added to the spin column and then centrifuged for 30 s at 10 000 rpm (9600g). Then, samples from the first spin-through were placed in a silanized 13 × 100 mm glass test tube containing approximately 3.5 mL of 0.5 M NaCl solution in 0.2 M sodium phosphate buffer (pH 7.0) and mixed well. Next, the second spin-through was pooled with the rest of the sample, avoiding the white residue at the bottom of the spin column. The test tube was capped and shaken thoroughly after adding 1.2 mL of chloroform to the sample. Liquid/liquid extraction was performed three times, saving the chloroform layer. The chloroform layer was then extracted with a silanized pipet, transferred to a silanized glass test tube, and dried under nitrogen at heater-block temperature setting of 74 °C.

TFA Hydrolysis

A total of 325 μL of 2 M TFA was added to each sample. Samples were then capped and heated at 121 °C for 2 h. Afterward, samples were dried down under nitrogen at 74 °C.

Reduction of Sugar Aldehydes

A total of 475 μL of a freshly prepared 10 mg/mL solution of sodium borohydride in 1 M ammonium hydroxide was added to each test tube. After the sample was allowed to react for 1 h at room temperature, 63 μL of methanol was added to each sample and then dried down at 74 °C under nitrogen. A solution of 9:1 (v/v) methanol/ acetic acid was then prepared, and 125 μL was added to each test tube, which was again dried under nitrogen. Before moving forward, the samples were fully dried in a vacuum desiccator for at least 15–20 min.

Acetylation of Nascent Hydroxyl Groups

A total of 18 μL of water was added to each sample and mixed well to dissolve the entire sample residue. A total of 250 μL of acetic anhydride was then added to each sample. Next, the sample was sonicated in a water bath for 2 min, followed by an incubation for 10 min at 60 °C. A total of 230 μL of concentrated TFA was then added to each test tube. The capped test tube was then incubated at 60 °C for 10 min.

Final Cleanup

Approximately 2 mL of methylene chloride was added to each test tube and mixed well. Then, 2 mL water was added to each sample and mixed well. Liquid/liquid extraction was performed twice, saving the organic layer. Next, the organic layer was transferred with a silanized glass pipet into a silanized autosampler vial. The organic layer was then evaporated under nitrogen, reconstituted in 120 μL of acetone and capped for injection onto GC–MS. A molecular overview of the global glycan methylation analysis procedure is shown in Figure 2.

Gas Chromatography–Mass Spectrometry

For sample analysis, an Agilent Model A7890 gas chromatograph (equipped with a CTC PAL autosampler) was used coupled to a Waters GCT (time-of-flight) mass spectrometer. A total of 1 μL of the sample was injected in split mode onto an Agilent split-mode liner that contained a small plug of silanized glass wool with the temperature set to 280 °C. For all samples, one injection was made at split ratio of 20:1. A 30 m DB-5 ms GC column was used for chromatography. The oven temperature was initially held at 165 °C for 0.5 min. Then, the temperature increased 10 °C/min up to 265 °C, followed by an immediate increase of 30 °C/min to 325 °C, where it was kept constant for 3 min. The total run time was 15.5 min. The temperature of the transfer line was kept at 250 °C. After the sample components were eluted from the GC column, they were subjected to electron ionization with an electron energy of 70 eV at a temperature of 250 °C. The m/z range of analysis was 40–800 with a spectral acquisition rate of 10 Hz. Perfluorotributylamine was used for the daily tuning and calibration of the mass spectrometer.

Data Processing

Quantification was done by integrating the summed extracted ion chromatogram peak areas (details provided elsewhere)¹⁸ using QuanLynx software. The peaks were integrated automatically and verified manually. Then, all the information given by integration was exported to a spreadsheet for further analysis.

Statistical Analysis

All data (chromatographic peak areas) for each sample analyzed as part of this study are provided within a spreadsheet available as the Supporting Information. The peak area for each glycan node was normalized in one of two possible ways. In the first approach, individual hexoses were normalized to heavy glucose, and individual HexNAcs were normalized to heavy N-acetyl glucosamine (heavy GlcNAc). (Notably, these two internal standards were omitted during analysis of the prostate cancer set of samples.) In the second approach, individual hexoses were normalized to the sum of all endogenous hexoses, and individual HexNAcs were normalized to the sum of all endogenous HexNAcs. This normalization scheme provided modestly improved within-batch reproducibility but limited observation of potential simultaneous increases in all glycan nodes; see the spreadsheet provided in the Supporting Information “Average CVs” worksheet for details on the reproducibility of each normalization approach. Based on the QC sample analyzed in each batch, the average percent CV for the heavy glucose/heavy GlcNAc normalization approach for the top five performing glycan nodes described in the Results section was 17%; for normalization by the sum of endogenous hexoses or HexNAcs, this value was 10%.

Each stage of each cohort was log-transformed, and outliers were removed with the ROUT method at Q = 1% using GraphPad Prism 7. Data were then reversed transformed by taking the anti-log of each value. Differences between patient cohorts and stages in the large lung cancer study were evaluated by means of the Kruskal–Wallis test followed by the Benjamini–Hochberg false discovery correction procedure using R version 3.3.3. This software was also used to generate the receiver operating characteristic (ROC) curves that were statistically compared to one another via DeLong’s test using RStudio Version 1.0.143. GraphPad Prism 7 was used to plot the ROC curves shown in Figures 3–4. Stage-by-stage multivariate modeling on the large lung cancer set was carried out using multivariate logistic regression, with performance assessed by leave-one-out cross-validation, and model selection was carried out using a best subsets procedure. These analyses were carried out using R version 3.3.3. The ability of particular glycan nodes to predict cancer progression and survival was assessed via Cox proportional hazards regression models using XLSTAT Version 2012.3.01, the results of which were verified (duplicated) using SAS 9.4. Survival curves were generated and associated log-rank Mantel–Cox tests were carried out using GraphPad Prism 7.

Figure 4.

ROC curves depicting the stage-dependent performance of the top five-performing glycan nodes in distinguishing different types of cancer from controls or healthy individuals (panels a–e). Adjacent to panels b–e are ROC curves from the large lung cancer study for comparison (panels f–i). Clear stage dependence is evident regardless of the type of cancer involved. A comparison of each ROC curve at each stage in the large lung cancer study to the parallel ROC curve in a different type of cancer or different lung cancer sample set revealed no significant differences between ROC curves (DeLong’s test; see Table S5). A superscript “NE” (panels d and h) indicates that these data sets were normalized to the sum of endogenous hexoses or HexNAcs because heavy labeled internal standards were not added during analysis of the prostate cancer sample set.

RESULTS

Prior to initiating this study, matched collections of serum and several different types of plasma were acquired from healthy donors. Glycan nodes were analyzed in these samples to determine whether subtle differences in sample matrix (i.e., different anticoagulants and serum) impacted the analytical results. Only a few statistically significant differences between the P/S matrices were observed (Tables S2 and S3). Sodium citrate and sodium EDTA plasma samples were excluded from this study, which accounts for all of the pair-wise differences observed in Table S2; a few remaining differences (noted within the smaller sample set involving heparin plasma; Table S3), while statistically significant, were small and actually within the interassay precision range for the relevant markers.¹⁹ A summary of all sample sets analyzed as part of this study is provided in Table 1.

The primary focus of this study was the large lung cancer set as it constituted the single largest set and covered all stages of cancer. In total, 19 glycan “nodes” were measured with relative abundances that were consistently greater than 1% of respective total hexoses or total N-acetylhexosamines (HexNAcs). As reported elsewhere, this threshold ensures quantitative precision between batches of samples.^18,19 Relative to the age-, gender-, and smoking-status-matched controls, significant changes were observed in 4 out of 19, 2 out of 19, 17 out of 19, and 17 out of 19 nodes in plasma samples taken from stage I, II, III, and IV patients, respectively (Table 2). Based on normalization to heavy, stable isotope-labeled glucose and GlcNAc internal standards, all altered glycan nodes except 4-Glc (which is mostly derived from glycolipids) were elevated in the cancer patients relative to the controls. Analogous results for data in which each hexose was normalized to the sum of endogenous hexoses and each HexNAc was normalized to the sum of endogenous HexNAcs revealed that this alternate normalization procedure is not as effective at teasing out differences between the cohorts in the large lung cancer study (Table S4).

Table 2.

Statistically Significant Differences between Cohorts within the Large Lung Cancer Study^a

glycan nodeb	CH vs C	CH vs I	CH vs II	CH vs III	CH vs IV	C vs I	C vs II	C vs III	C vs IV	I vs II	I vs III	I vs IV	II vs III	II vs IV	III vs IV
t-Fucose	ns	ii	ns	iiii	iiii	ii	ns	iiii	iiii	ns	ns	ns	ns	ns	ns
t-Gal	ns	ns	ns	i	iii	ns	ns	iii	iiii	ns	ns	ns	ns	ns	ns
2-Man	ns	ii	i	iiii	iiii	i	ns	iiii	iiii	ns	ns	ns	ns	ns	ns
4-Glc	dddd	dd	dddd	dddd	dddd	ii	ns	i	i	ns	ns	ns	ns	ns	ns
3-Gal	ns	ns	ns	i	i	ns	ns	i	i	ns	ns	ns	ns	ns	ns
6-Gal	i	ns	i	iiii	iiii	ns	ns	iiii	iiii	ns	iii	iii	ii	ii	ns
3,4-Gal	ns	ns	iiii	ns	ns	ns	iiii	i	i	iii	ns	ns	ii	ii	ns
2,4-Man	i	i	ii	iiii	iiii	ns	ns	iiii	iiii	ns	iii	iii	i	i	ns
2,6-Man	ii	i	iii	iiii	iiii	ns	ns	iiii	iiii	ns	iii	iii	i	i	ns
3,6-Man	ns	ns	ns	iii	iii	ns	ns	iiii	iiii	ns	ns	ns	ns	ns	ns
3,6-Gal	ns	ns	ns	ns	ns	ns	ns	ns	ns	ns	ns	ns	ns	ns	ns
3,4,6-Man	i	iiii	i	ii	ii	ii	ns	ns	ns	ns	i	i	ns	ns	ns
t-GlcNAc	ns	ns	i	iiii	iiii	ns	i	iiii	iiii	ns	ii	i	ns	ns	ns
4-GlcNAc	i	ns	i	iiii	iiii	ns	ns	iiii	iiii	ns	ii	ii	ns	i	ns
3-GlcNAc	ns	ns	i	iiii	iiii	ns	ns	iiii	iiii	ns	iii	iii	ns	ns	ns
3-GalNAc	ii	ns	i	iiii	iiii	ns	ns	ii	iii	ns	ii	iii	ns	ii	ns
3,4-GlcNAc	ns	ns	i	iiii	iiii	ns	ns	iiii	iiii	ns	iii	iii	i	ii	ns
4,6-GlcNAc	ii	ns	ii	iiii	iiii	ns	ns	iii	iii	ns	ii	ii	ns	ns	ns
3,6-GalNAc	iiii	iii	iii	iiii	iiii	ns	ns	ii	iii	ns	ns	ns	ns	ns	ns

^aHexose data were normalized to heavy, stable isotope labeled glucose (Glc) and HexNAc data normalized to heavy, stable isotope labeled GlcNAc.

^bKruskal–Wallis test followed by Benjamini–Hochberg false discovery correction procedure where significance at the 95% confidence level is given by p < 0.05. “ns” indicates “not significant”. “i” and “d” stand for “increased” or “decreased” in the clinically more advanced cohort listed in the column header. “i” or “d” indicates p < 0.05, “ii” or “dd” indicates p < 0.01, “iii” or “ddd” indicates p < 0.001, and “iiii” and “dddd” indicates p < 0.0001. CH: certifiably healthy; C: controls; I: Stage I; II: Stage II; III: Stage III; and IV: Stage IV.

Highly Altered Glycan Features

The five glycan nodes that were most elevated in the cancer cases relative to the at-risk controls included the following: (1) terminal fucose, which corresponds to essentially all fucose in blood plasma (nonterminal fucose is only found in notch proteins,^18,28 which, at most, would contribute only an infinitesimal fraction of the fucose found in blood plasma and, if ever detected by the approach employed here, would be observed as 3-linked fucose); (2) 6-linked galactose, which corresponds specifically to α2–6 sialylation and almost completely to the activity of the ST6GalI glycosyltransferase enzyme;¹⁸ (3) 2,4-linked mannose, which corresponds to β1–4 branching of N-linked glycans and almost completely to the activity of the GnT-IVa enzyme;¹⁸ (4) 2,6-linked mannose, which corresponds to β1–6 branching of N-linked glycans and to the activity of the GnT-V enzyme;¹⁸ and (5) 3,4-linked N-acetylglucosamine (GlcNAc), which predominately corresponds to outer-arm fucosylation and the activity of the FucT-III, FucT-V, FucT-VI, and FucT-XI enzymes.¹⁸ The univariate distributions of these five glycan nodes (normalized to heavy glucose or heavy GlcNAc added as an internal standard), along with receiver operating characteristic (ROC) curves that describe the potential clinical relevance of their distributions, are shown in Figure 3.

Stage and Health-Status Dependence

Table 2 and Figure 3 illustrate both the strong stage dependence of these glycan features as well as the notable contrast of their distributions in certifiably healthy individuals compared to the general middle-aged to elderly population (i.e., “controls”) who are at a similar risk for cancer as individuals who actually had cancer. Similar distributions and trends were noted when the five glycan nodes were normalized to the sum of endogenous hexoses or HexNAcs, but the ROC c-statistics (areas under the curve, AUCs) tended not to be as large (Figure S1). The average age of the certifiably healthy living kidney donor population was 47, and that of both the controls and lung cancer cases in this set of samples was 61 (Table S1). However, after pooling data from the certifiably healthy donors, controls and lung cancer cases and correcting for multiple comparisons, no statistically significant correlations with age were observed for any of these glycan nodes. (Before correcting for multiple comparisons, terminal (total) fucose appeared slightly correlated with age (Pearson correlation of R² = 0.013 and p = 0.021), but this result cannot be considered statistically significant after considering the fact that multiple comparisons were made.) Likewise, no statistically significant correlations of glycan nodes with age were observed when these groups of patients were evaluated individually.

In general, the five glycan nodes increased together as the stage of cancer advanced (Figure 4). Moreover, the behavior of these nodes was independent of the organ of tumor origin, at least when comparing lung cancer with pancreatic, ovarian, and prostate cancers. This was quantitatively evident when the ROC curves in panels c and d of the left column of Figure 4 were statistically compared with ROC curves from their respective lung cancer stages shown in the right column (Table S5). At stage IV, both outer-arm fucosylation and terminal (total) fucosylation lag a bit behind α2–6 sialylation, β1–4 branching, and β1–6 branching, but fucosylation-related nodes caught up and even surpassed these other glycan features once cancer had fully run its course (Figure 4a). When stage was held constant, no glycan nodes were found to be significantly different between adenocarcinoma, squamous cell carcinoma and small cell carcinoma, the three different histological subtypes observed in the large lung cancer study (Table S1). However, terminal (total) fucosylation, β1–6 branching, and outer-arm fucosylation were altered within the control cohort on the basis of smoking status (grouped as never-smokers, former smokers, or current smokers; Figure 5).

Figure 5.

Univariate distributions of the top five-performing glycan nodes within the control group of the large lung cancer set, subdivided on the basis of smoking status. Letters above the data points indicate statistically significant differences between the three groups shown; any overlap in lettering between groups indicates a lack of significant difference between the groups (Kruskal–Wallis; Bonferroni-corrected p values of <0.0167 for within-group pairwise comparisons were considered statistically significant).

Orthogonality of Glycan Features

To evaluate the orthogonality of all 19 glycan nodes included in this study (Table 2), multivariate logistic regression models were created for the large lung cancer set on a stage-by-stage basis (Figure 6). Results of modeling are shown as ROC curves, where the model-derived predicted probability of disease for the sample was used as the discriminatory variable. In summary, the fully cross-validated forms of these multivariate logistic regression models do not distinguish lung cancer cases from controls any better than individual glycan nodes (cf. Figure 4f–i). This indicates a general lack of orthogonality or independence between the glycan features observed in this study.

Figure 6.

Multivariate logistic regression models for stage I–IV lung cancer patients from the large lung cancer data set. Fully validated multivariate combinations of glycan nodes did not produce significantly better ROC curves in stage IV, III, II, or I lung cancer patients (panels a–d, respectively) compared to the best-performing individual glycan node in the control specimens (DeLong test). A total of three separate curves are shown on each plot, corresponding to predicted probabilities derived from a multivariate logistic regression model (1) refitted at each iteration of cross-validation (referred to as “CV Probabilities (full)”); (2) fitted once on the complete data set, fixing the predictors but allowing parameter estimates to change at each iteration of cross-validation (referred to as “CV Probabilities (semi)”); and (3) fitted once on the complete data set and taking the model-derived probability without use of cross-validation (referred to as “Fitted Probabilities”).

Comparison to Liver Fibrosis

The vast majority of glycoproteins found in blood P/S are derived from either liver glycoproteins or immunoglobulins (IgG molecules) secreted by the immune system.^29,30 In terms of raw abundance, which is in the range of tens of milligrams per milliliter, the relative contribution of P/S glycoproteins provided by the liver and by the immune system is approximately 50% each.³⁰ Essentially all nonprotein targeting serum glycomics approaches, including the one employed in this study, detect changes in these abundant P/S glycans and not novel glycans secreted or sloughed-off by cancer cells. This concept has been acknowledged elsewhere.³¹ Nevertheless, P/S glycans are notoriously known for being altered in cancer.^1–4,32 However, they are also known to be altered in inflammatory conditions in the absence of cancer.^33–35 As an initial attempt to begin to parse out the behavior of the five glycan nodes that were most elevated in the large lung cancer set, they were analyzed in a set of serum samples from liver fibrosis patients (Figure 7). Statistical analysis (Kruskal–Wallis) indicated that there were no significant differences in any of the glycan nodes shown across all stages of liver fibrosis. This may have been due to limited statistical power. Notably, however, fucosylation-related markers exhibited a tendency to be elevated in stage III–IV liver fibrosis.

Figure 7.

Univariate distributions of fucosylation-related glycan nodes, α2–6 sialylation, β1–4 branching, and β1–6 branching in stage 0 through stage IV liver fibrosis. No statistically significant differences were observed for any pairwise comparisons within a single glycan node (Kruskal–Wallis).

Prediction of Progression and All-Cause Mortality

The five glycan nodes that were most elevated in the large lung cancer set were evaluated for their ability to predict both progression and all-cause mortality in a Cox proportional hazards regression model. After adjustment for age, gender, smoking status, and cancer stage, only 6-linked galactose, which corresponds to α2–6 sialylation, predicted both progression and all-cause mortality with p-values of <0.01 when the glycan nodes were modeled as continuous variables. All four other top-performing glycan nodes were able to predict survival (p < 0.05), but only β1–4 branching and β1–6 branching were also able to predict progression (p < 0.05). Because relative rather than absolute quantification was employed, glycan node units lack readily interpretable meaning. As such, measurements of α2–6 sialylation were broken into quartiles, and the Cox proportional hazards analysis repeated. After adjustment for age, gender, smoking status, and cancer stage, the top α2–6 sialylation quartile predicted progression with a hazard ratio of 2.45 relative to all other quartiles combined (lower bound at 95% CL = 1.54; upper bound at 95% CL = 3.90; p = 1.5 × 10⁻⁴). Likewise, after the same adjustments, the top α2–6 sialylation quartile predicted all-cause mortality with a hazard ratio of 1.52 relative to all other quartiles combined (lower bound at 95% CL = 1.02; upper bound at 95% CL = 2.23; p = 0.042). Progression and survival curves illustrate the differences in the rates of occurrence of these events for the top α2–6 sialylation quartile versus all other quartiles (Figure 8). Progression and survival curves for stage III patients alone illustrate that the separation of progression by α2–6 sialylation and the separation of survival by α2–6 sialylation is not simply driven by stage (Figure 8c,d). α2–6 sialylation was not elevated or able to predict progression or survival in the stage I lung adenocarcinoma set.

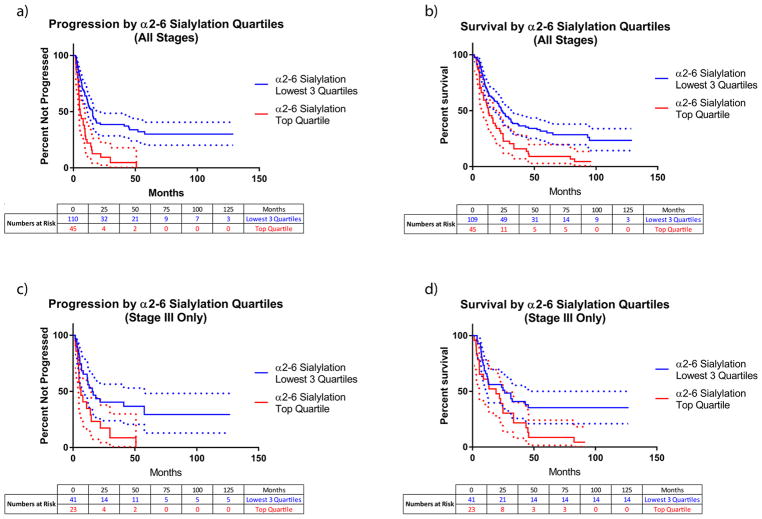

Figure 8.

Large lung cancer data set progression (i.e., progression-free survival; panels a and c) and survival (all-cause mortality; panels b and d) curves for the top α2–6 sialylation quartile compared to all other quartiles combined. Panels a and b combine data from all stages; panels c and d present data from stage III only, illustrating that curve separation based on α2–6 sialylation is not simply driven by stage. Dotted lines represent 95% confidence intervals, colored according to their respective curves. Within each plot, progression curves were significantly different from one another (log-rank Mantel-Cox test; p < 0.01) as were the survival curves (log-rank Mantel-Cox test; p < 0.05). For the progression data (all stages; panel a), the median duration of follow-up for those that progressed, until progression, was 6.9 months (17.1 months median total follow-up time); for those that did not progress, the median duration of follow-up was 22.7 months. Results from Cox proportional hazards models are described in the Results section.

DISCUSSION

The five glycan features that were most elevated relative to healthy individuals and at-risk controls were terminal (total) fucosylation, α2–6 sialylation, β1–4 branching, β1–6 branching, and outer-arm fucosylation (Table 2 and Figures 3 and 4). A pair of phenomena stood out most with regard to their distributions among the cohorts of the large lung cancer study: First, there was a striking stage dependence of all five glycan features that was independent of the tumor organ of origin (Table 2, Figures 3 and 4, and Table S5). In part, statistical significance at earlier stages may not have been achieved due to the relatively low number of samples measured from patients at stages I–II (n ≈ 20 per stage). Statistically significant elevation of core-branched O-glycans (i.e., 3,6-linked GalNAc) over age-, gender-, and smoking-status-matched controls was observed in stage I lung adenocarcinoma from this separate, larger set of samples (Figure 4). However, it was clear from the ROC curve (Figure 4e) that this glycan node cannot serve as a useful early stage diagnostic biomarker.

A second notable feature apparent in the large lung cancer set was the statistically significant difference between certifiably healthy living kidney donors and risk-matched controls for α2–6 sialylation, β1–4 branching, and β1–6 branching, with controls always increased toward the direction of cancer (Table 2 and Figure 3). These differences between certifiably healthy individuals and patients with an elevated risk of cancer underscore the high risk of false discovery when nominally healthy sample donors rather than well-characterized, clinically relevant controls are employed during biomarker development. The notable differences between healthy individuals and at-risk controls also support the idea that the biological landscape within plasma and serum may undergo “grooming”, “conditioning”, or premetastatic “niche” formation prior to cancer taking hold within the body.^36–40 Given that inflammation is closely tied to the development of cancer^41,42 and that at least some glycans and glycan features are known to be altered in inflammatory conditions in the absence of cancer,^33–35 precancerous inflammation may be responsible for the elevation of many of the glycan features observed in the at-risk controls relative to the certifiably healthy living kidney donors, suggesting that the goal of preventing such a precancerous state may be as important as preventing the transition from an at-risk state to stage I cancer. With this in mind, it is interesting to note that about 62% of the age-qualified U.S. population would be excluded as living kidney donors due to preventable health conditions.⁴³

A few studies have been published that are closely related to the one reported here but in which intact glycans were analyzed.^31,44,45 While not in conflict with any of these studies, our most prominent findings of increased terminal (total) fucosylation, α2–6 sialylation, β1–4 branching, β1–6 branching, and outer-arm fucosylation in stage III–IV lung cancer are most closely aligned with the major changes reported by Vasseur et al.³¹ for intact glycans in lung cancer. They reported significant increases in fucosylated tri- and tetra-antennary structures, outer-arm fucosylated structures, and α2–6 sialylated structures. Moreover, they reported that all of these features were elevated in control-group former smokers relative to control group nonsmokers. We found increases in terminal (total) fucosylation, β1–6 branching, and outer-arm fucosylation in current smokers relative to people who never smoked but only increases in terminal (total) fucosylation and outer-arm fucosylation in former smokers relative to people who had never smoked (Figure 5). Notably, the method employed for the analysis of intact glycans by Vasseur et al. is one of just a few approaches that are capable of distinguishing 6-linked from 3-linked sialic acid.^46–48

Multivariate logistic regression models were not able to outperform individual glycan nodes (cf. Figures 4f–i and 6) with regard to distinguishing cancer at stages I–IV from controls. This indicates a general lack of biological orthogonality among the abnormal glycan features observed, suggesting that they likely have a singular (or small set of closely related) upstream causes. The concentration of glycoproteins in P/S is in the range of tens of milligrams per milliliter. As such, the observations of significant changes in P/S glycans observed here cannot be due to glycoproteins shed directly from cancer cells; almost certainly, they are derived from alterations to one or both of the two major sources of P/S glycoproteins, namely liver glycoproteins or immunoglobulins (IgG molecules) secreted by the immune system.^29,30 Such alterations are thought to be mediated by cytokines secreted from the tumor microenvironment and exist as part of an acute-phase inflammatory response.^31,49–53

However, this is not to imply that liver glycoprotein and immunoglobulin glycan alterations are unimportant or lack a cancer-relevant pathological effect. Several cancer up-regulated glycoforms that cancer cells have in common with glycans that are induced on acute-phase liver proteins and/or IgG molecules in the presence of cancer have been found to mediate specific immune-modulating effects, some of which overtly favor cancer progression:

Galectins are a family of lectins that bind β-galactoside sugars within glycans and are known to modulate a variety of immunological processes involved in cancer.^39,54,55 Malignant T-cells in mycosis fungoides/Sezary syndrome have been found to resist galectin-1 mediated apoptosis because they both lack the CD7 receptors that carry the oligosaccharides recognized by galectin-1 and because they express sialylated core 1 O-glycans that promote galectin-1 resistance.⁵⁶ Poly-N-acetyllac-tosamine-modified core 2 O-glycans bind to galectin-3, reducing the affinity of tumor major histocompatibility complex (MHC) class I-related chain A (MICA) for the activating NKG2D receptor on natural killer (NK) cells, preventing the tumor-cell killing of core 2 O-glycan expressing cancer cells.^57–60 Similarly, modification of MUC1 by poly-N-acetyllactosamine and subsequent binding by galectin-3 interferes with TRAIL-mediated killing of DR4-expressing cancer cells by NK cells.^60–62 However, perhaps the best-known example is the ability of excessive tumor cell surface sialylation to stimulate the inhibitory Siglec-7 receptor on NK cells, preventing their activation.^60,63–65

In light of these discoveries, the fact that α2–6 sialylation of abundant plasma and serum proteins is both associated with metastasis and poor prognosis^66,67 and, in our study, was not only elevated in lung cancer but also predicted progression and all-cause mortality in the large lung cancer set may shed additional light on a means by which cancer potentially manipulates the immune system to groom the physiological landscape and carve out a metastatic niche. Rather than directly interacting (cell-to-cell) with NK cells, tumor cells may simply be able to send out cytokine signals that are picked up by the liver and the immune system that alter the way that these nominally healthy tissues glycosylate their secreted proteins. This could, for example, facilitate a large-scale amplification of sialylated glycans that are able to continually activate Siglec-7 receptors on NK cells, preventing them from killing tumor cells and allowing them to metastasize. The possibility that cancer cells may induce the abnormal glycosylation of the highly abundant liver glycoproteins and IgG molecules found in P/S as a shielding mechanism against innate immune detection during metastasis attempts has received very little attention but may be worth investigating. Though speculative, this strategy could even potentially be deployed in cases in which cancer cells deplete themselves of a glycan feature required for immune-cell recognition, such as the fucosylation recognized by the TRAIL-mediate killing mechanism of NK cells,⁶⁸ but induce it on abundant P/S proteins, serving to “swamp out” the recognition mechanism of innate immune surveillance.

The ability of α2–6 sialylation to predict lung cancer progression and survival is not unique among P/S glycans. Indeed, all five top-performing glycan nodes in the present study were able to predict progression and survival to a more-limited extent than α2–6 sialylation. The prognostic capacity of β1–4 and β1–6 branching, however, may, at least in part, be due to the fact that these glycan features simply create greater opportunity for sialylation. Beyond this study, others have found that the sialyl Lewis X epitope (which displays α2–3 sialylation rather than α2–6 sialylation) predicts progression and survival in both small-cell⁶⁹ and non-small-cell lung cancer.^70–72 Like the prognostic Veristrat markers,^73–75 which are serum amyloid A proteoforms,⁷⁶ elevated α2–6 sialylation in lung cancer may largely be due to an inflammatory response by the liver. However, if, as described above, sialylation-based cloaking of tumor cells from the immune system plays an important role in the metastatic process, α2–6 sialylation may turn out to play a causative, mechanistic role in lung cancer progression.

CONCLUSIONS

A molecularly bottom-up approach to plasma and serum (P/S) glycomics based on glycan linkage analysis that captures unique glycan features such as α2–6 sialylation, β1–6 branching, and core fucosylation as single analytical signals was employed to evaluate the behavior of P/S glycans in all stages of lung cancer and across various stages of prostate, ovarian and pancreatic cancers. Elevation of terminal (total) fucosylation, α2–6 sialylation, β1–4 branching, β1–6 branching, and outer-arm fucosylation markers were most pronounced in lung cancer in a stage-dependent manner, but these changes were found to be independent of the tumor tissue-of-origin. Using a Cox proportional hazards regression model, the marker for α2–6 sialylation was found to predict both progression and all-cause mortality in lung cancer patients after adjusting for age, gender, smoking status, and stage at which the sample was taken. Interestingly, certifiably healthy P/S donors had markedly lower levels of α2–6 sialylation, β1–4 branching, and β1–6 branching relative to cancer risk-matched controls. While early detection is ideal, the information provided by this and related studies^{31,33–35,41,42,49–53} suggests that precancerous inflammation may be responsible for the elevation of many of the glycan features observed in the at-risk controls relative to the certifiably healthy donors, implying that the goal of preventing such a precancerous state may be as important as preventing the transition from an at-risk state to stage I cancer.
