Abstract
Empirical models are most widely used for path loss predictions because they are simple, easy to use, and require less computational efficiency when compared to deterministic models. A number of empirical path loss models have been developed for efficient radio network planning and optimization in different types of propagation environments. However, data that prove the suitability of these models for path loss predictions in a typical university campus propagation environment are yet to be reported in the literature. In this data article, empirical prediction models are comparatively assessed using the path loss data measured and predicted for a university campus environment. Field measurement campaigns are conducted at 1800 MHz radio frequency to log the actual path losses along three major routes within the campus of Covenant University, Nigeria. Path loss values are computed along the three measurement routes based on four popular empirical path loss models (Okumura-Hata, COST 231, ECC-33, and Egli). Datasets containing measured and predicted path loss values are presented in a spreadsheet file, which is attached to this data article as supplementary material. Path loss prediction data of the empirical models are compared to those of the measured path loss using first-order statistics, boxplot representations, tables, and graphs. In addition, correlation analysis, Analysis of Variance (ANOVA), and multiple comparison post-hoc tests are performed. The prediction accuracies of the empirical models are evaluated based on Mean Absolute Error (MAE), Root Mean Squared Error (RMSE), and Standard Error Deviation (SED). In conclusion, the high-resolution path loss prediction datasets and the rich data exploration provided in this data article will help radio network engineers and academic researchers to determine the empirical model that is most suitable for path loss prediction in a typical university campus environment.
Keywords: Models, Forecasting, Path loss, Loss models, Radio propagation, Smart campus
Specifications table
| Subject area | Engineering |
| More specific subject area | Telecommunication Engineering |
| Type of data | Tables, graphs, figures, and spreadsheet file |
| How data was acquired | Field measurement campaigns are conducted at 1800 MHz radio frequency to log the actual path losses along three major routes within the campus of Covenant University, Nigeria. Path loss values are computed along the three measurement routes based on four popular empirical path loss models (Okumura-Hata, COST 231, ECC-33, and Egli). |
| Data format | Raw, analyzed |
| Experimental factors | Field measurement campaigns were limited to areas covered by the lobes of the directional antennas of the 1800 MHz base station antennas |
| Experimental features | Path loss prediction data of the empirical models are compared to those of the measured path loss using first-order statistics, boxplot representations, tables, and graphs. In addition, correlation analysis, Analysis of Variance (ANOVA), and multiple comparison post-hoc test are performed. |
| Data source location | Covenant University, Ota, Ogun State, Nigeria (Latitude 6°40'30.3"N, Longitude 3°09'46.3"E) |
| Data accessibility | Datasets containing measured and predicted path loss values are presented in a spreadsheet file, which is attached to this data article asSupplementary material. |
Value of the data
-
•
Path loss data obtained using empirical prediction models are not often made available in regular research publications [1], [2], [3], [4]. This practically limits data reuse for required research reproducibility. In this data article, field measurement data and predicted path loss data are made freely available to the public domain. Also, the datasets are thoroughly described to facilitate further works among industry experts, radio network engineers, and academic researchers in this field of engineering.
-
•
The suitability of empirical models for path loss predictions have been extensively evaluated for different scenarios and use cases within rural, suburban, and urban propagation environments [5], [6], [7], [8]. However, to the best of our knowledge, studies that focused on university campus environments are very limited. This data article focused on a smart campus use case in a bid to offer efficient Quality of Service (QoS) for smooth running of Internet of Things (IoT) applications within the university community [9].
-
•
Over the years, several empirical models have been developed for path loss predictions [10], [11], [12]. However, data that prove the suitability of these models for path loss predictions in a typical university campus propagation environment are yet to be made available to the public. High-resolution path loss prediction datasets and rich data exploration are provided in this data article; and this information will help radio network engineers and academic researchers to determine the empirical model that is most suitable for path loss prediction in a typical university campus environment.
-
•
Data exploration in this data article is supported with sufficient statistical analyses as done in [13], [14], [15], [16], [17], [18], [19].
1. Data
Path loss models are used to estimate radio network coverage and received signal strengths of transmitted electromagnetic waves at different points within a particular cell radius. The use of path loss models is a good alternative to carrying out actual measurements, which may be require much time and resources. There are three broad classes of path loss models namely: deterministic, semi-deterministic, and empirical [1], [3]. Empirical models are popularly used for path loss predictions because they are simple, easy to use, and require less computational efficiency when compared to deterministic models. A number of empirical path loss models have been developed for efficient radio network planning and optimization in different types of propagation environments. In this data article, field measurement data and predicted path loss data are made freely available to the public domain. Empirical prediction models are comparatively assessed using the path loss data measured and predicted for a university campus environment. Also, the datasets are thoroughly described to facilitate further works among industry experts, radio network engineers, and academic researchers in this field of engineering.
This data article focused on a smart campus use case in a bid to offer efficient Quality of Service (QoS) for smooth running of Internet of Things (IoT) applications within the university community. High-resolution path loss prediction datasets and rich data exploration are provided in this data article; and this information will help radio network engineers and academic researchers to determine the empirical model that is most suitable for path loss prediction in a typical university campus environment.
2. Experimental design, materials and methods
Actual path loss measurement data taken at the proposed propagation environment are required for objective comparative assessment of the prediction accuracy of empirical models in a university campus environment. Therefore, field measurement campaigns were conducted at 1800 MHz radio frequency under favourable climatic conditions and the actual path losses along three major routes (A, B, and C) within the campus of Covenant University, Ota, Nigeria (Latitude 6°40'30.3"N, Longitude 3°09'46.3"E) were recorded. The experimental design and setup consists of TEMS™ Investigation software developed by InfoVista®, Sony Ericsson® W995 mobile phones, Garmin Global Positioning System (GPS), and a Windows 7 Professional Operating System (OS) running on a laptop. The specifications of the Personal Computer (PC) is as follows: Intel® Core™ i5 Central Processing Unit (CPU) M520 @2.40 GHz processor; 4 GB Random Access Memory (RAM); 64-bit OS.
Path loss values were computed along the three measurement routes based on the mathematical equations of four popular empirical path loss models (Okumura-Hata, COST 231, ECC-33, and Egli) as given in [1], [3], [4]. All mathematical computations were performed using MATLAB 2017a produced by MathWorks Inc. Datasets containing measured and predicted path loss values are presented in a spreadsheet file, which is attached to this data article as Supplementary material. Path loss prediction data of the empirical models were compared to those of the measured path loss using first-order statistics, boxplot representations, tables, and graphs. In addition, correlation analysis, Analysis of Variance (ANOVA), and multiple comparison post-hoc test were performed. The prediction accuracies of the empirical models were evaluated based on Mean Absolute Error (MAE), Root Mean Squared Error (RMSE), and Standard Error Deviation (SED).
3. Data exploration
Table 1, Table 2, Table 3 present the descriptive statistics of measured path loss data and path loss values predicted by Okumura-Hata, COST 231, ECC-33, and Egli models for measurement routes A, B, and C respectively. The boxplot representations of the measured path loss data and the predicted path loss data for measurement routes A, B, and C are shown in Fig. 1, Fig. 2, Fig. 3 respectively.
Table 1.
First-order statistics of path loss predictions along measurement route A.
| Measured path loss (dB) | Okumura-hata model (dB) | COST 231 model (dB) | ECC-33 model (dB) | Egli model (dB) | |
|---|---|---|---|---|---|
| Mean | 129.40 | 121.50 | 123.45 | 142.81 | 94.59 |
| Median | 130.00 | 124.04 | 125.99 | 144.04 | 97.36 |
| Mode | 129.00 | 92.77 | 94.71 | 126.76 | 63.25 |
| Standard Deviation | 8.30 | 10.64 | 10.64 | 6.68 | 11.61 |
| Variance | 68.91 | 113.23 | 113.23 | 44.57 | 134.68 |
| Kurtosis | 4.76 | 3.03 | 3.03 | 2.51 | 3.03 |
| Skewness | −0.72 | −0.95 | −0.95 | −0.69 | −0.95 |
| Range | 58.00 | 41.42 | 41.43 | 24.79 | 45.18 |
| Minimum | 89.00 | 92.77 | 94.71 | 126.76 | 63.25 |
| Maximum | 147.00 | 134.19 | 136.14 | 151.55 | 108.43 |
| Sample Size | 496 | 496 | 496 | 496 | 496 |
Table 2.
First-order statistics of path loss predictions along measurement route B.
| Measured path loss (dB) | Okumura-hata model (dB) | COST 231 model (dB) | ECC-33 model (dB) | Egli model (dB) | |
|---|---|---|---|---|---|
| Mean | 125.84 | 124.23 | 126.17 | 144.72 | 97.56 |
| Median | 128.00 | 127.97 | 129.91 | 146.83 | 101.64 |
| Mode | 126.00 | 92.77 | 94.71 | 126.76 | 63.25 |
| Standard Deviation | 9.44 | 11.09 | 11.09 | 6.96 | 12.09 |
| Variance | 89.12 | 122.99 | 122.99 | 48.48 | 146.29 |
| Kurtosis | 5.33 | 3.88 | 3.88 | 3.32 | 3.88 |
| Skewness | −1.52 | −1.39 | −1.39 | −1.16 | −1.39 |
| Range | 48.00 | 42.57 | 42.57 | 25.69 | 46.43 |
| Minimum | 95.00 | 92.77 | 94.71 | 126.76 | 63.25 |
| Maximum | 143.00 | 135.34 | 137.28 | 152.45 | 109.68 |
| Sample Size | 547 | 547 | 547 | 547 | 547 |
Table 3.
First-order statistics of path loss predictions along measurement route C.
| Measured Path Loss (dB) | Okumura-Hata Model (dB) | COST 231 model (dB) | ECC-33 model (dB) | Egli model (dB) | |
|---|---|---|---|---|---|
| Mean | 131.54 | 120.87 | 122.82 | 143.19 | 93.90 |
| Median | 132.00 | 125.29 | 127.24 | 144.91 | 98.72 |
| Mode | 132.00 | 27.28 | 29.23 | 117.39 | -8.16 |
| Standard Deviation | 6.96 | 17.03 | 17.03 | 9.40 | 18.58 |
| Variance | 48.38 | 290.11 | 290.11 | 88.43 | 345.05 |
| Kurtosis | 9.00 | 6.61 | 6.61 | 2.81 | 6.61 |
| Skewness | −1.88 | −1.67 | −1.67 | −0.76 | −1.67 |
| Range | 47.00 | 112.01 | 112.01 | 38.27 | 122.15 |
| Minimum | 97.00 | 27.28 | 29.23 | 117.39 | -8.16 |
| Maximum | 144.00 | 139.29 | 141.24 | 155.66 | 113.99 |
| Sample Size | 773 | 773 | 773 | 773 | 773 |
Fig. 1.
Boxplot representations of path loss predictions along measurement route A.

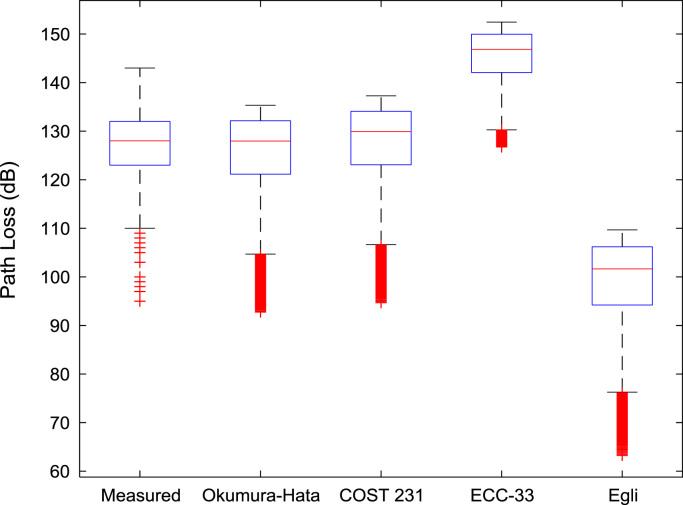

Fig. 2.
Boxplot representations of path loss predictions along measurement route B.
Fig. 3.
Boxplot representations of path loss predictions along measurement route C.
Signal path loss usually increase as the mobile receiver station moves further away from the transmitting base station. The relationships between the path loss datasets (measured and predicted) and the separation distance between the receiver and the transmitter for the three measurement routes (A, B, C) are depicted in the plots shown in Fig. 4, Fig. 5, Fig. 6. It is clear that the predictions of Okumura-Hata and COST 231 models are much closer to those of the actual measured data. However, the two models under-predicted the path loss values for distances below 200 m. On the other hand, ECC-33 model over-predicted the path loss values while Egli model under-predicted the path loss values throughout the distance range covered in this study.
Fig. 4.
Path loss predictions against separation distance along measurement route A.
Fig. 5.
Path loss predictions against separation distance along measurement route B.
Fig. 6.
Path loss predictions against separation distance along measurement route C.
The regression equations and coefficients of the Okumura-Hata, COST 231, ECC-33, and Egli model prediction data, relative to the measured path loss data, are shown in Fig. 7, Fig. 8, Fig. 9. These information will help in understanding the relationships between the measured data and the predicted data. Further insights about the relationships can be gained from the results of correlation analyses presented in Table 4, Table 5, Table 6.
Fig. 7.
Regression Coefficients of the predictions of empirical models along measurement route A.
Fig. 8.
Regression Coefficients of the predictions of empirical models along measurement route B.
Fig. 9.
Regression Coefficients of the predictions of empirical models along measurement route C.
Table 4.
Correlation coefficient matrix for predictions of empirical models along measurement route A.
| Measured | Okumura-Hata | COST 231 | ECC-33 | Egli | |
|---|---|---|---|---|---|
| Measured | 1.0000 | 0.6855 | 0.6855 | 0.7059 | 0.6855 |
| Okumura-Hata | 0.6855 | 1.0000 | 1.0000 | 0.9967 | 1.0000 |
| COST 231 | 0.6855 | 1.0000 | 1.0000 | 0.9967 | 1.0000 |
| ECC-33 | 0.7059 | 0.9967 | 0.9967 | 1.0000 | 0.9967 |
| Egli | 0.6855 | 1.0000 | 1.0000 | 0.9967 | 1.0000 |
Table 5.
Correlation coefficient matrix for predictions of empirical models along measurement route B.
| Measured | Okumura-Hata | COST 231 | ECC-33 | Egli | |
|---|---|---|---|---|---|
| Measured | 1.0000 | 0.5356 | 0.5356 | 0.5520 | 0.5356 |
| Okumura-Hata | 0.5356 | 1.0000 | 1.0000 | 0.9970 | 1.0000 |
| COST 231 | 0.5356 | 1.0000 | 1.0000 | 0.9970 | 1.0000 |
| ECC-33 | 0.5520 | 0.9970 | 0.9970 | 1.0000 | 0.9970 |
| Egli | 0.5356 | 1.0000 | 1.0000 | 0.9970 | 1.0000 |
Table 6.
Correlation coefficient matrix for predictions of empirical models along measurement route C.
| Measured | Okumura-Hata | COST 231 | ECC-33 | Egli | |
|---|---|---|---|---|---|
| Measured | 1.0000 | 0.4541 | 0.4541 | 0.3679 | 0.4541 |
| Okumura-Hata | 0.4541 | 1.0000 | 1.0000 | 0.9724 | 1.0000 |
| COST 231 | 0.4541 | 1.0000 | 1.0000 | 0.9724 | 1.0000 |
| ECC-33 | 0.3679 | 0.9724 | 0.9724 | 1.0000 | 0.9724 |
| Egli | 0.4541 | 1.0000 | 1.0000 | 0.9724 | 1.0000 |
ANOVA and multiple comparison post-hoc tests were performed to understand whether the differences in the mean path losses obtained using the four models are significant. If so, the multiple comparison post-hoc test shows the extent to which the mean path losses differ from one another. The test results of the ANOVA test for path loss predictions along measurement route A, B, and C are presented in Table 7, Table 8, Table 9. Comparing the prediction outputs of Okumura-Hata, COST 231, ECC-33, and Egli models with one another, the lower limits for 95% confidence intervals, mean difference, upper limits for 95% confidence intervals, and the p-values obtained for measurement routes A, B, and C are presented in Table 10, Table 11, Table 12. The results are further depicted by the plots shown in Fig. 10, Fig. 11, Fig. 12.
Table 7.
ANOVA test results for path loss predictions along measurement route A.
| Source of variation | Sum of squares | Degree of freedom | Mean squares | F statistic | Prob>F |
|---|---|---|---|---|---|
| Columns | 615539.2 | 4 | 153884.8 | 1621.12 | 0 |
| Error | 234939.4 | 2475 | 94.9 | ||
| Total | 850478.6 | 2479 |
Table 8.
ANOVA test results for path loss predictions along measurement route B.
| Source of variation | Sum of squares | Degree of freedom | Mean squares | F statistic | Prob>F |
|---|---|---|---|---|---|
| Columns | 621404.3 | 4 | 155351.1 | 1465.92 | 0 |
| Error | 289311.8 | 2730 | 106 | ||
| Total | 910716.1 | 2734 |
Table 9.
ANOVA test results for path loss predictions along measurement route C.
| Source of variation | Sum of squares | Degree of freedom | Mean squares | F statistic | Prob>F |
|---|---|---|---|---|---|
| Columns | 1028370 | 4 | 257092.5 | 1210.31 | 0 |
| Error | 819935 | 3860 | 212.4 | ||
| Total | 1848305 | 3864 |
Table 10.
Multiple comparison post-hoc test results for predictions along route A.
| Groups Compared | Lower limits for 95% confidence intervals | Mean difference | Upper limits for 95% confidence intervals | p-value | |
|---|---|---|---|---|---|
| Measured | Okumura-Hata | 6.2093 | 7.8970 | 9.5846 | 0.0000 |
| Measured | COST 231 | 4.2632 | 5.9508 | 7.6384 | 0.0000 |
| Measured | ECC-33 | −15.1048 | −13.4172 | −11.7296 | 0.0000 |
| Measured | Egli | 33.1198 | 34.8074 | 36.4950 | 0.0000 |
| Okumura-Hata | COST 231 | −3.6338 | −1.9462 | −0.2586 | 0.0143 |
| Okumura-Hata | ECC-33 | −23.0018 | −21.3142 | −19.6265 | 0.0000 |
| Okumura-Hata | Egli | 25.2228 | 26.9104 | 28.5980 | 0.0000 |
| COST 231 | ECC-33 | −21.0556 | −19.3680 | −17.6804 | 0.0000 |
| COST 231 | Egli | 27.1690 | 28.8566 | 30.5442 | 0.0000 |
| ECC-33 | Egli | 46.5370 | 48.2246 | 49.9122 | 0.0000 |
Table 11.
Multiple comparison post-hoc test results for predictions along route B.
| Groups Compared | Lower limits for 95% confidence intervals | Mean difference | Upper limits for 95% confidence intervals | p-value | |
|---|---|---|---|---|---|
| Measured | Okumura-Hata | −0.0785 | 1.6194 | 3.3174 | 0.0700 |
| Measured | COST 231 | −2.0244 | −0.3264 | 1.3716 | 0.9849 |
| Measured | ECC-33 | −20.5728 | −18.8748 | −17.1769 | 0.0000 |
| Measured | Egli | 26.5852 | 28.2832 | 29.9811 | 0.0000 |
| Okumura-Hata | COST 231 | −3.6438 | −1.9459 | −0.2479 | 0.0153 |
| Okumura-Hata | ECC-33 | −22.1923 | −20.4943 | −18.7963 | 0.0000 |
| Okumura-Hata | Egli | 24.9658 | 26.6637 | 28.3617 | 0.0000 |
| COST 231 | ECC-33 | −20.2464 | −18.5484 | −16.8504 | 0.0000 |
| COST 231 | Egli | 26.9116 | 28.6096 | 30.3076 | 0.0000 |
| ECC-33 | Egli | 45.4600 | 47.1580 | 48.8560 | 0.0000 |
Table 12.
Multiple comparison post-hoc test results for predictions along route C.
| Groups Compared | Lower limits for 95% confidence intervals | Mean difference | Upper limits for 95% confidence intervals | p-value | |
|---|---|---|---|---|---|
| Measured | Okumura-Hata | 8.6480 | 10.6702 | 12.6925 | 0.0000 |
| Measured | COST 231 | 6.7021 | 8.7243 | 10.7466 | 0.0000 |
| Measured | ECC-33 | −13.6718 | −11.6496 | −9.6274 | 0.0000 |
| Measured | Egli | 35.6155 | 37.6377 | 39.6600 | 0.0000 |
| Okumura-Hata | COST 231 | −3.9681 | −1.9459 | 0.0763 | 0.0659 |
| Okumura-Hata | ECC-33 | −24.3421 | −22.3198 | −20.2976 | 0.0000 |
| Okumura-Hata | Egli | 24.9453 | 26.9675 | 28.9897 | 0.0000 |
| COST 231 | ECC-33 | −22.3962 | −20.3739 | −18.3517 | 0.0000 |
| COST 231 | Egli | 26.8912 | 28.9134 | 30.9356 | 0.0000 |
| ECC-33 | Egli | 47.2651 | 49.2873 | 51.3096 | 0.0000 |
Fig. 10.
Graphical representation of post-hoc results along route A.

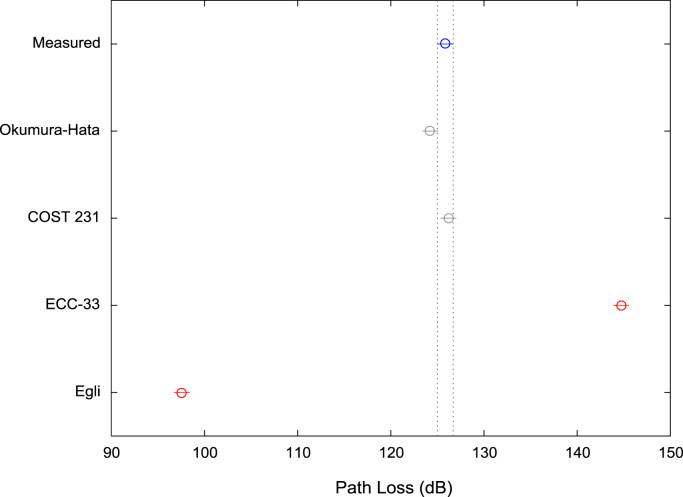

Fig. 11.
Graphical representation of post-hoc results along route B.
Fig. 12.
Graphical representation of post-hoc results along route C.
In conclusion, the prediction accuracies of the empirical models are evaluated based on MAE, RMSE, and SED. The values of the performance metrics for measurement routes A, B, and C are presented in Table 13, Table 14, Table 15. In essence, the empirical evidence and statistical analyses provided in this data article will help radio network engineers and academic researchers to determine the empirical model that is most suitable for path loss prediction in a typical university campus environment.
Table 13.
Statistical evaluation of predictions of empirical models along route A.
| Okumura-Hata | COST 231 | ECC-33 | Egli | |
|---|---|---|---|---|
| Mean Absolute Error | 8.4785 | 7.0738 | 13.4511 | 34.8074 |
| Mean Squared Error | 123.2816 | 96.3332 | 215.1928 | 1282.9000 |
| Root Mean Squared Error | 11.10322 | 9.814948 | 14.66945 | 35.81759 |
| Standard Error Deviation | 7.8130 | 7.8131 | 5.9366 | 8.4568 |
Table 14.
Statistical evaluation of predictions of empirical models along route B.
| Okumura-Hata | COST 231 | ECC-33 | Egli | |
|---|---|---|---|---|
| Mean absolute error | 6.9801 | 7.0093 | 18.8815 | 28.2832 |
| Mean squared error | 102.4099 | 99.8952 | 421.1782 | 912.8365 |
| Root mean squared error | 10.11978 | 9.994759 | 20.52263 | 30.21318 |
| Standard error deviation | 9.9985 | 9.9986 | 8.0646 | 10.6351 |
Table 15.
Statistical evaluation of predictions of empirical models along route C.
| Okumura-Hata | COST 231 | ECC-33 | Egli | |
|---|---|---|---|---|
| Mean absolute error | 13.7923 | 12.8628 | 12.3939 | 37.6377 |
| Mean squared error | 344.4628 | 306.7217 | 224.2870 | 1692.3000 |
| Root mean squared error | 18.55971 | 17.51347 | 14.97621 | 41.13757 |
| Standard error deviation | 15.1956 | 15.1956 | 9.4175 | 16.6162 |
Acknowledgements
This work was carried out under the IoT-enabled Smart and Connected Communities (SmartCU) Research Cluster of Covenant University. The research is fully sponsored by Covenant University Centre for Research, Innovation and Development (CUCRID), Covenant University, Ota, Nigeria.
Footnotes
Supplementary data associated with this article can be found in the online version at 10.1016/j.dib.2018.03.040.
Supplementary data associated with this article can be found in the online version at 10.1016/j.dib.2018.03.040.
Transparency document. Supplementary material
Supplementary material
.
Appendix A. Supplementary material
Supplementary material
.
References
- 1.Oseni O.F., Popoola S.I., Abolade R.O., Adegbola O.A. Comparative analysis of received signal strength prediction models for radio network planning of GSM 900 MHz in Ilorin, Nigeria. Int. J. Innov. Technol. Explor. Eng. (IJITEE) 2014;4:45–50. [Google Scholar]
- 2.Oseni O.F., Popoola S.I., Enumah H., Gordian A. Radio frequency optimization of mobile networks in Abeokuta, Nigeria for improved quality of service. Int. J. Res. Eng. Technol. 2014;3:174–180. [Google Scholar]
- 3.Popoola S.I., Oseni O.F. Performance evaluation of radio propagation models on GSM network in Urban Area of Lagos, Nigeria. Int. J. Sci. Eng. Res. 2014;5:1212–1217. [Google Scholar]
- 4.Popoola S.I., Oseni O.F. Empirical path loss models for GSM network deployment in Makurdi, Nigeria. Int. Ref. J. Eng. Sci. 2014;3:85–94. [Google Scholar]
- 5.S.I. Popoola, S. Misra, A.A. Atayero, Outdoor Path Loss Predictions Based on Extreme Learning Machine, Wireless Personal Communications, pp. 1–20.
- 6.I.Y. Abdulrasheed, N. Faruk, N.T. Surajudeen-Bakinde, L.A. Olawoyin, A.A. Oloyede, S.I. Popoola, Kriging based model for path loss prediction in the VHF band, in: Proceedings of the 3rd International Conference on ElectroTechnology for National Development, Federal University of Technology, Owerri (FUTO), Imo State, Nigeria, 7-10 November, 2017, pp. 173–176.
- 7.S.I. Popoola, A.A. Atayero, N. Faruk, C.T. Calafate, E. Adetiba, V.O. Matthews, Calibrating the standard path loss model for urban environments using field measurements and geospatial data, in: Lecture Notes in Engineering and Computer Science: Proceedings of The World Congress on Engineering 2017, 5-7 July, London, U.K., 2017, pp. 513–518.
- 8.S.I. Popoola, A.A. Atayero, N. Faruk, C.T. Calafate, L.A. Olawoyin, V.O. Matthews, Standard propagation model tuning for path loss predictions in built-up environments, in: International Conference on Computational Science and Its Applications, 2017, pp. 363–375.
- 9.V.O. Matthews, Q. Osuoyah, S.I. Popoola, E. Adetiba, A.A. Atayero, C-BRIG: a network architecture for real-time information exchange in smart and connected campuses, Lecture Notes in Engineering and Computer Science: Proceedings of The World Congress on Engineering 2017, 5–7 July, London, U.K., 2017, pp. 398-401.
- 10.M.A. Salman, S.I. Popoola, N. Faruk, N. Surajudeen-Bakinde, A.A. Oloyede, L.A. Olawoyin, Adaptive Neuro-Fuzzy model for path loss prediction in the VHF band, in: Computing Networking and Informatics (ICCNI), 2017 International Conference on, 2017, pp. 1–6.
- 11.I.A. Sikiru, N. Faruk, S.I. Popoola, Y. Imam-Fulani, A.A. Oloyede, L.A. Olawoyin, et al., Effects of Detection Threshold and Frame Size on Duty Cycle in GSM Bands, in: Proceedings of the 3rd International Conference on Electro-Technology for National Development, Federal University of Technology, Owerri (FUTO), Imo State, Nigeria, 7–10 November, 2017, 2017, pp. 343–346.
- 12.Popoola S.I., Adetiba E., Atayero A.A., Faruk N., Calafate C.T. Optimal Model for Path Loss Predictions using Feed-Forward Neural Networks. Cogent Eng. 2018 [Google Scholar]
- 13.Popoola S.I., Atayero A.A., Okanlawon T.T., Omopariola B.I., Takpor O.A. Smart campus: data on energy consumption in an ICT-driven university. Data Brief. 2018;16:780–793. doi: 10.1016/j.dib.2017.11.091. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 14.Popoola S.I., Atayero A.A., Faruk N., Badejo J.A. Data on the key performance indicators for quality of service of GSM networks in Nigeria. Data Brief. 2018;16:914–928. doi: 10.1016/j.dib.2017.12.005. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 15.Popoola S.I., Atayero A.A., Faruk N. Received signal strength and local terrain profile data for radio network planning and optimization at GSM frequency bands. Data Brief. 2018;16:972–981. doi: 10.1016/j.dib.2017.12.036. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 16.Popoola S.I., Atayero A.A., Badejo J.A., John T.M., Odukoya J.A., Omole D.O. Learning analytics for smart campus: data on academic performances of engineering undergraduates in a Nigerian Private University. Data Brief. 2018;17:76–94. doi: 10.1016/j.dib.2017.12.059. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 17.Popoola S.I., Atayero A.A., Arausi O.D., Matthews V.O. Path loss dataset for modeling radio wave propagation in smart campus environment. Data Brief. 2018 doi: 10.1016/j.dib.2018.02.026. (2018/02/16/) [DOI] [PMC free article] [PubMed] [Google Scholar]
- 18.Okeniyi J.O., Atayero A.A., Popoola S.I., Okeniyi E.T., Alalade G.M. Smart campus: data on energy generation costs from distributed generation systems of electrical energy in a Nigerian University. Data Brief. 2018 doi: 10.1016/j.dib.2018.02.022. (2018/02/16/) [DOI] [PMC free article] [PubMed] [Google Scholar]
- 19.Odukoya J.A., Popoola S.I., Atayero A.A., Omole D.O., Badejo J.A., John T.M. Learning analytics: dataset for empirical evaluation of entry requirements into engineering undergraduate programs in a Nigerian university. Data Brief. 2018 doi: 10.1016/j.dib.2018.02.025. (2018/02/15/) [DOI] [PMC free article] [PubMed] [Google Scholar]
Associated Data
This section collects any data citations, data availability statements, or supplementary materials included in this article.
Supplementary Materials
Supplementary material
Supplementary material
