Endovascular stent-induced alterations in host artery mechanical environments and their roles in stent restenosis and late thrombosis

Abstract

Cardiovascular stent restenosis remains a major challenge in interventional treatment of cardiovascular occlusive disease. Although the changes in arterial mechanical environment due to stent implantation are the main causes of the initiation of restenosis and thrombosis, the mechanisms that cause this initiation are still not fully understood. In this article, we reviewed the studies on the issue of stent-induced alterations in arterial mechanical environment and discussed their roles in stent restenosis and late thrombosis from three aspects: (i) the interaction of the stent with host blood vessel, involve the response of vascular wall, the mechanism of mechanical signal transmission, the process of re-endothelialization and late thrombosis; (ii) the changes of hemodynamics in the lumen of the vascular segment and (iii) the changes of mechanical microenvironment within the vascular segment wall due to stent implantation. This review has summarized and analyzed current work in order to better solve the two main problems after stent implantation, namely in stent restenosis and late thrombosis, meanwhile propose the deficiencies of current work for future reference.

Introduction

Cardiovascular occlusive disease such as arteriosclerosis leads to poor blood circulation, angina pectoris, lack of oxygen and myocardial infarction. It has become one of the most threatening killers of human beings [1, 2]. Percutaneous coronary intervention is an effective and widely used therapy for atherosclerotic stenosis. Despite the effectiveness, this treatment faces late failure challenges resulting from in-stent restenosis (ISR) [3, 4] and thrombosis [5, 6]. According to clinical data, the restenosis rate of bare metal stents or drug-eluting stent (DES) can range from 16% to 44% or 3% to 20%, respectively [7]. Restenosis may occasionally cause fatal late thrombosis. To overcome the restenosis problem of bare metal stents, the DESs were developed, such as CD133-specific antibody-coated stents which have superiority in re-endothelialization and inhibition of ISR through promoting adhesion and proliferation of endothelial progenitor cells (EPCs), as well as rapamycin-coated stents, paclitaxel-coated stents and so on [8]. Unfortunately, mounting evidence has shown that the DES has two main problems, one is failed reduction of vascular damage, and another is the inhibited proliferation of smooth muscle cells (SMCs) and endothelium, leading to the formation of local thrombosis [9, 10]. However, at present, no drug can effectively restrain the growth of SMCs and promotes endothelial repair synchronously. At the same time, many researchers try to optimize the design of the scaffolds, using different flower patterns, thickness, and weaving mode to improve the performance of the scaffolds. Before solving these problems, we should first understand the interaction between the stent and the host blood vessels and the influence of the stent on the hemodynamics.

It has been well documented that vascular cells can adapt to mechanical stimuli, resulting in vascular remodeling [11]. Stent implantation significantly alters the mechanical environment within the host artery, possibly leading to the restenosis and thrombosis [5, 12]. To better understand the mechanism of ISR so that targeted strategies can be forged to prevent it, we must first clarify how the mechanical microenvironment within the host artery changes with time after a stent is deployed.

The goal of this review paper is to analyze the hemodynamics in the lumen after stent implantation, the mechanical microenvironment within the host artery, and to discuss their effects on re-endothelialization, restenosis, thrombosis formation and inflammation.

Interactions between stents and host blood vessels

In this section, we will review the response of vascular wall and the mechanism of mechanical signal transmission, and then discuss the process of re-endothelialization and late thrombosis.

Response of vascular wall after stent implantation

From inside to outside, there are three layers of the vascular wall: endothelial cells (ECs), SMCs and collagen fibers. ISR arises from multifactorial influences, including vascular intimal injury, thrombosis, vascular remodeling, inflammation and healing [13].

After stent implantation, the adventitia and medium will respond to the stent-induced alterations in the host artery mechanical environment, hence leading to the remodeling of the vessel wall and resulting in significant changes of its mechanical properties, such as the elastic modulus [14, 15]. In the case of vascular sclerosis and decreasing tensile stress, vascular SMCs (VSMCs) are switched into their synthetic state, which leads to the degradation of vascular matrix, more cell proliferation and migration, and ultimately vascular disease [16]. The elastic modulus of VSMCs basement is positively correlated with cell spreading projection area, and increased substrate elastic modulus promotes the proliferation and migration of VSMCs [17]. Peyton found that VSMCs generate greater stress on the substrates with high moduli when compared to the substrates with low moduli. The ligand concentration of the extracellular matrix (ECM) (especially fibronectin) is directly related to the number of migrating cells [18]. High levels of mechanical strain applied to fibronectin reduce the rates of both cell spreading and cell migration [19]. Muscle fibroblasts, which possess the characteristics of SMCs, have the ability to shrink, migrate and secrete ECM [20]. In blood vessels, fibroblasts, vascular ECs (VECs), VSMCs and monocytes on the scaffold can be differentiated into muscle fibroblasts [21]. Therefore, the increase in the elastic modulus of the blood vessels caused by the contractility of muscle fibroblasts and ECM large secretion may cause VSMCs hypertrophy and proliferation [22], leading to further fibrosis. Tissue fibrosis will result in decreased vascular compliance, increased elastic modulus, and the changes of SMCs and fibroblasts, which in turn change the biomechanical properties of the blood vessels.

While atherosclerosis (AS) in native coronary arteries develops over decades, in-stent neoatherosclerosis seems to occur much faster, i.e. in months to years following stent placement [23]. It is speculated that incompetent and dysfunctional endothelial coverage of the stented segment contributes to this process. Stent implantation causes vascular injury with endothelial denudation. Incomplete maturation of the regenerated endothelium, which is characterized by poor cell-to-cell junctions, leads to reduced expression of antithrombotic molecules and low nitric oxide production. Pathologic intimal thickening with lipid pool is a hall mark of native AS and plaque progression, whereas in neoatherosclerosis necrotic core formation is mostly driven by macrophage apoptosis in the absence of lipid pool, which eventually leads to in-stent plaque rupture [24]. The normal neointima proliferates homogeneously, and the lipid-laden intima is not observed in the early phase. In the late phase, the lipid-laden intima is found in 67% of the cases (Fig. 1) [25].

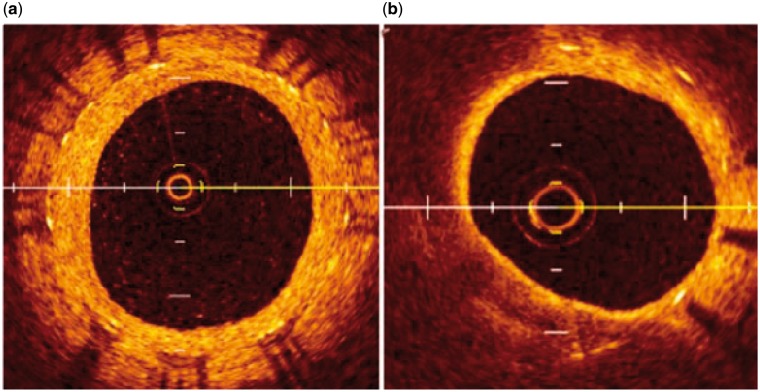

Figure 1.

Optical coherence tomography images of common neointima and neoatherosclerosis. (a) Common neointima is recognized by its high-signal intensity and homogeneous region inside stent struts; (b) the neointima has a diffuse border and marked attenuation. Cited from [25], copyright 2015, with permission from World J Cardiol.

Indeed, activated VSMCs could efficiently proliferate and migrate to contribute to vessel wall repair. However, the latest evidence [22] suggests that recruitment of rich hematopoietic stem cells/EPCs in the vessel wall during vascular remodeling, such as intimal hyperplasia and atherogenesis, allows SMCs to accumulate in the intima. Especially in chronic AS, arterial smooth muscle is abnormally regulated, resulting in enhanced SMC differentiation and ECM formation within the plaque region [26]. Therefore, it is generally accepted that the activation, migration, proliferation and further intimal hyperplasia of VSMCs are the main pathological bases for ISR [27].

Response of ECs and the mechanism of mechanical signal transmission

Stent implantation inevitably injures the ECs. Moreover, the stent-induced mechanical environmental changes can also lead to a series of changes in the ECs. ECs respond to shear stress via various mechanical sensitivity receptors, such as vascular endothelial growth factor receptor 2, VE-cadherin, platelet EC adhesion molecule-1, integrin, glycoprotein complex, primary cilium and glycocalyx (Fig. 2). Mechanical signals are transformed into biochemical information, which regulates the activation of multiple intracellular signaling pathways, such as inflammatory responses [28–30]. It is worth noting that the response of ECs to mechanical forces varies because of the size or direction of the force and the actual time fluctuation quantity. Laminar high shear stress (HSS) can affect cell polarity and protrusion of lamellipodia, and contraction of stress fibers by promoting cell actin cytoskeleton remodeling, thereby increasing migration of ECs. In contrast, low shear stress (LSS) is more likely to cause cell sloughing and assist cell migration due to larger shear stress gradient. The wall shear stress (WSS) demonstrates a characteristic pattern with time on the basis of the in-stent stenosis change (Fig. 3). The WSS gradient increases from the proximal to distal segment until day 14 after Wingspan stents placement. At day 28, the trend is reversed dramatically, decreasing from the proximal to the distal segment [31]. Shear stress regulates the cell cycle by activating Adenosine 5′-monophosphate (AMP)-activated protein kinase (AMPK) cascade reaction and the protein kinase B (PKB/AKT) signaling pathway [32]. Laminar HSS can simultaneously activate AMPK cascade and AKT signaling, maintain mammalian target of rapamycin (mTOR) in steady state to reduce the proliferation of ECs. However, low oscillatory shear stress only activates the AKT signaling pathway, but not the AMPK cascade, which leads to the proliferation of ECs through sustained activation of p70 ribosomal S6 kinase signaling molecules.

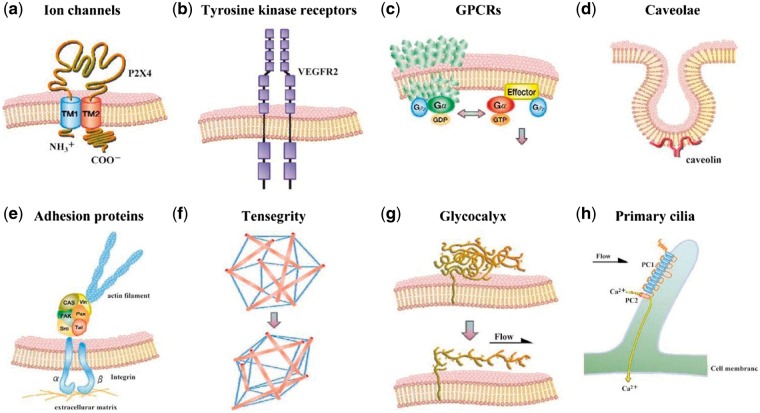

Figure 2.

The mechanical receptors of VECs. (a) Ion channel; (b) tyrosine kinase receptor; (c) G-protein-coupled receptors; (d) cavelae; (e) adhesion molecule; (f) tensegrity; (g) glycocalyx and (h) primary cilium. Cited from [33], copyright 2009, with permission from Circ J.

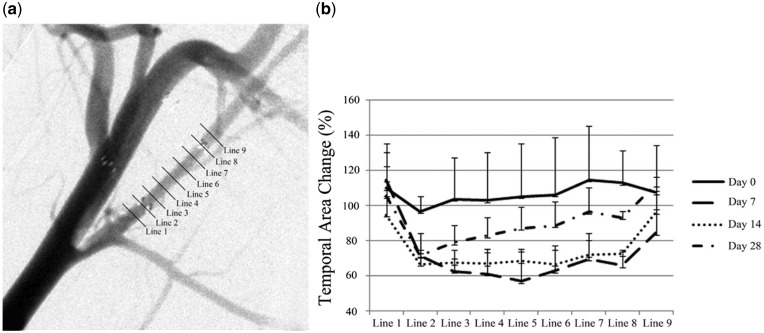

Figure 3.

A characteristic pattern with time on the basis of the in-stent stenosis change. (a) Nine cross-sectional areas at 1.5-mm intervals, including the 1.5 mm proximal and distal to the stent; (b) temporal area change after wingspan stent placement, at days 0, 7, 14 and 28, was demonstrated in comparison with the preprocedural area. Cited from [31], copyright 2014, with permission from Am J Neuroradiol.

In addition to shear stress, because stent implantation alters the compliance of the host blood vessel, it will also affect the movement of the vascular wall under pulsatile blood pressure, hence the stretches of ECs. ECs have been confirmed to receive strain signal through the substantial cell membrane surface mechanical sensors, including cell adhesion sites [34], integrin receptors [35], tyrosine kinase receptor, ion channels [36] and lipid molecules [37], which transform mechanical signal into chemical signal, and further transmit it into the cell. The strain will activate transcription factors such as activator protein 1 and nuclear factor kappa-light-chain-enhancer of activated B cells, and regulate the expression of inflammatory genes. Meanwhile, the strain can induce the release of EC angiotensin-II, and activate angiotensin II type 1 receptor by up-regulating the expression of nicotinamide adenine dinucleotide phosphate (NADPH) oxidase peroxidase, which leads to the dysfunction of ECs and occurrence of inflammation [38].

Re-endothelialization and late thrombosis

After stent implantation, thrombosis formed after 1 month to 1 year is defined as late thrombosis. Thrombosis formed after more than 1 year is defined as very late thrombosis [39]. The incidence of late stent thrombosis is only about 1%, but it causes more than 90% of the disability or death [40].

In the early stage after stent implantation, endothelial ablation, platelet aggregation and activation, coagulation cascade and strong inflammation locally happen in vascular. Endothelial layer is destroyed, and the stent surface is coated with a thin thrombotic layer. The main cellular component of the neointima is α-actin positive SMCs, which begin to migrate into the intima from the tunica elastica within several days after implantation. A healthy endothelial layer has tight junctions that can strictly regulate lipid and inflammatory molecule infiltration, and has balanced secretion of anticoagulant molecules that can provide good resistance to thrombosis formation [41]. Normal neointima with a smooth white membrane structure is antithrombogenic. On the other hand, the yellow neointima with neoarteriosclerosis can lead to thrombosis [25].

In the middle stage, ECs repair gradually completes, the coagulation cascade reaction decreases gradually, and SMCs migrate from the media membrane to the inner membrane [42]. Intimal thickening occurs and local inflammatory reaction tends to be normal. Studies have shown that vascular re-endothelializationafter injury can prevent metal stents from directly contacting the blood, which reduces flow disturbance and promotes the release of many active factors, such as VEGF, epidermal growth factor, platelet-derived growth factor (PDGF). This can effectively inhibit platelet activation/aggregation and thrombus formation in turn, finally reduce the incidence of ISR [43–45].

In the late stage, the re-endothelialization is completed but lacks entire function, because of the insufficient secretion of the anticoagulation factor. Therefore, late thrombosis may occur [46]. The re-endothelialization process mainly depends on the proliferation/migration of mature VECs derived from adjacent damaged intima, and on the homing, adhesion and differentiation of EPCs derived from bone marrow [47, 48]. Flow shear stress, tensile stress and the elastic modulus of the blood vessel can affect ECs migration [49–51]. The homing, proliferation and differentiation of endothelial stem cells (ESCs) can also be affected by flow shear stress [52]. Abnormal flow shear stress can lead to small plaque formation, thus restrain endothelial regeneration, hinder endothelialization and even cause endothelial dysfunction [53, 54]. HSS contributes to rupture-prone plaque formation through angiogenesis [55, 56]. This will eventually lead to late thrombosis. Therefore, the local hemodynamic environment plays an important role in the regulation of cell interaction and the regeneration of VECs, which affect the formation of thrombosis.

Coronary artery calcification

Two recognized types of coronary artery calcification are atherosclerotic and medial artery calcification [57]. Vascular calcification is a hallmark of AS. The location, density and confluence of calcification may change portions of the arterial conduit to a noncompliant structure. Calcifications may also seed the cap of a thin cap fibro atheroma, altering tensile forces on the cap and rendering the lesion prone to rupture [58]. One effective method for the treatment of vascular calcification is stent implantation. However, the calcium deposits formed again over the years around the stent struts sometimes break into pieces, causing luminal thrombi [59–61]. This is likely due to a change in the local mechanical environment after stent implantation, contributing to more matrix vesicles produced by VSMCs matrix vesicles, and thereby regulates mineralization in the vascular intima and media. The effect of mechanical environment on the formation of vascular calcification needs further verification.

Inflammation reaction

After stent implantation, the ECs are peeled off, and the subcutaneous tissue is exposed to the flowing blood. Although vascular mechanical damage caused by stent appears to be a prerequisite for the expression of the inflammatory response such as white blood cells and platelets, the inflammatory response and persistence may be related to individual factors. In particular, the increased expression of interleukin-antagonists (anti-inflammatory molecules) results in risk reduction of restenosis especially in young patients [62]. The reaction degree of ‘foreign matter’ triggered by the exposure of the strut is related to the persistence and sensitivity of individuals (see section 3.1, if you want to learn more about ‘strut’).

As early as 10–15 min after stent implantation, recruitment and aggregation of white blood cells can be detected in the stent area of the coronary artery [63, 64]. Infiltration of white blood cells, platelets and the change of the intimal lesion of the coronary artery result in a significant increase of the cell membrane surface. Platelet activation induces fibrinogen receptors, and leukocytes increase the expression of intercellular adhesion receptor factor [64, 65]. The stent can be covered with the neointima in 4 weeks. The rupture of the arterial tear and the plaque fibrous cap, and the support of the stent to the lipid core of the plaque can lead to enhanced inflammatory response, intimal hyperplasia, and a greater risk of ISR [64].

Recently, it has been shown that the main pathological basis of ISR is the activation, migration and proliferation of VSMCs with intimal hyperplasia [27]. Finding a drug that can effectively inhibit the proliferation of SMCs and the growth and migration of ECs, or developing a new kind of DES that can restrain the proliferation of smooth muscle and promote re-endothelialization may largely reduce the incidence of ISR.

Stent-induced alteration in hemodynamics

In normal coronary arteries, blood flow takes a form of laminar flow, resulting in relatively high WSS on VECs. In the narrow section of the coronary artery with AS plaques, magnetic resonance imaging has been used to detect rapid increase in blood flow speed with significantly enhanced WSS [66]. Distal to the atherosclerotic stenosis, the WSS becomes relatively low due to the formation of flow separation and vortices (Fig. 4a) [66]. Histopathological changes in blood vessel wall, caused by either arteriosclerosis or thrombosis formation on the atherosclerotic lesions, will alter the geometry and the mechanical properties of the vessel, i.e. lumen narrowing, deformation and reduced elasticity of the vessel. These changes, in turn, lead to changes in hemorheological characteristics. For instance, when blood flow comes to the narrow section of the vessel, it may transit from laminar flow into turbulent flow depending on the degree of the stenosis, leading to abnormal HSS rate in the vicinity of the stenotic throat, but rather LSS in the vortex flow region distal to the stenosis. This is important because normal laminar flow shear stress is antithrombotic and antimigration, which can suppress atherogenesis. In contrast, disturbed flow with LSS is prothrombotic and promigration, which can lead to the genesis/development of AS (Fig. 4c) [67].

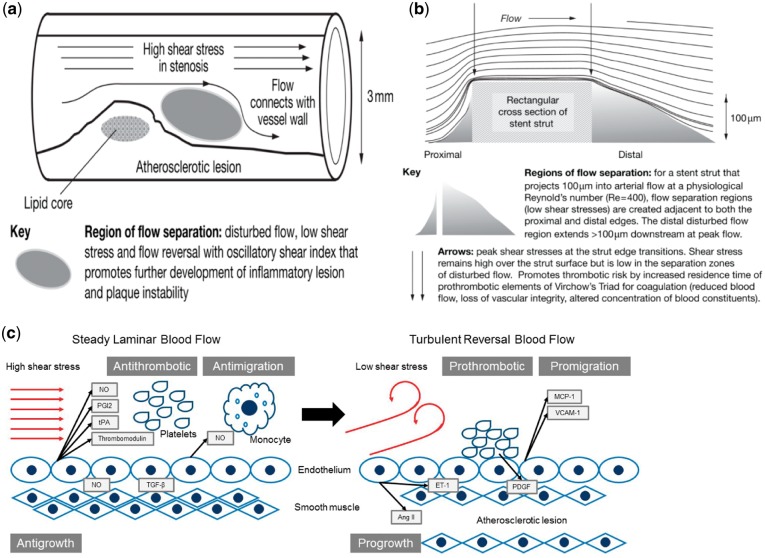

Figure 4.

Flow separations at a stenosis (a) or a stent strut (b) that predispose to or contribute to pathogenesis. Cited from [74], copyright 2009, with permission from Nat Clin Pr Cardiovasc Med. (c) The influence of flow pattern and shear stress on the formation of AS.

Stent implantation restores the stenotic lumen of the blood vessel to the normal state of dredging [49, 64–77], so that the HSS at the plaque stenosis will be reduced to the normal level with an improved local blood flow [78]. However, the stent implantation will inevitably cause some adverse hemodynamic changes in the lumen. For instance, the stent implanted will reduce the compliance of the vascular segment, leading to a compliance mismatch with other parts of the blood vessel. The compliance mismatch will affect the blood flow by creating flow separation zones. In addition, the intrusions of the stent struts (see section 3.1) into the lumen will also affect the blood flow resulting in small eddies with LSS, which is also pathogenic [66].

Strut wire

Finite element analysis shows that the stress distribution of a stent after deployment is not uniform [79]. The major stressed areas occur at the locations where the struts deform the most, such as the bending segment [80–82]. Stress concentration may result in fracture of the struts. The worst fatigue most likely occurs along the lateral edge of a strut. The stress leads to the erosion of the coating (Fig. 5a) which leads to further degradation of stent effectiveness.

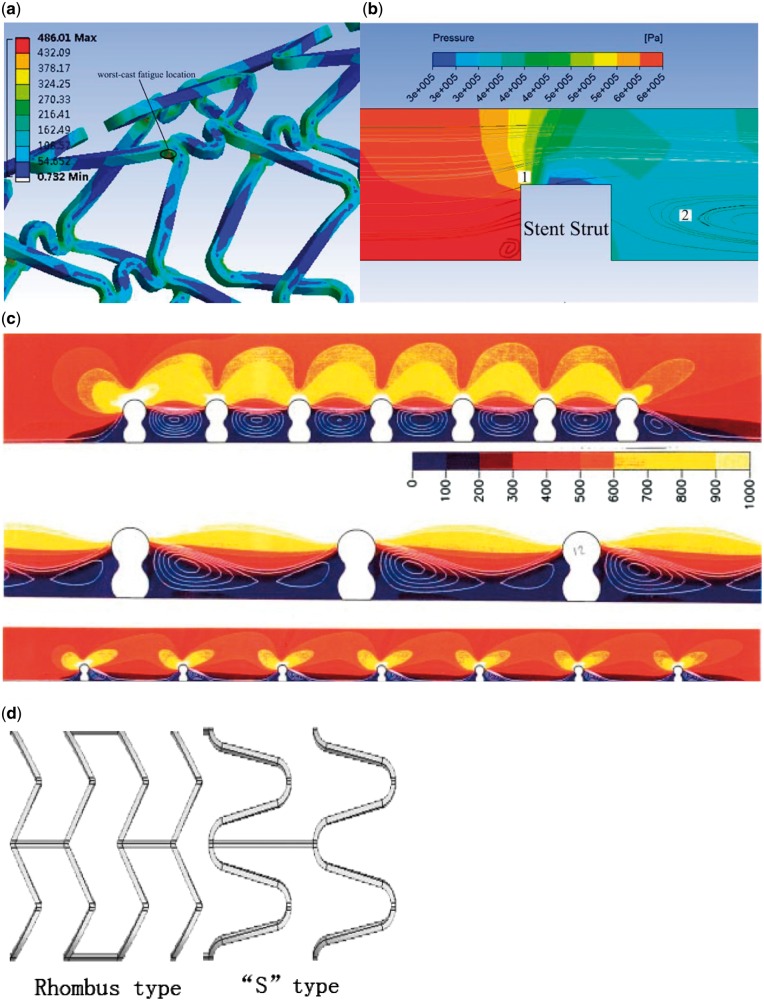

Figure 5.

The influence factors of hemodynamic changes after stenting. (a) Finite element analysis of stress distribution after stent wire expansion. (b) Numerical simulation of the stress distribution around scaffold. (c) The influence of scaffold distance on hemodynamics, the color scales are adjusted to accentuate the flow patterns. Figure c cited from [91], copyright 2000, with permission from Ann Biomed Eng. (d) Stent strut of rhombus type and ‘s’ type.

Currently, commercially available stents are manufactured using mesh-wired tube with certain thickness. As mentioned previously, the thickness of the strut leads to the formation of vortices or disturbed flow. On one hand, disturbed flow with vortices may facilitate deposition of substances. On the other hand, due to the intrusion of the stent into the vascular lumen, different stress distribution of the proximal and distal end of the stent leads to changes in hemodynamics. As shown in Fig. 5b, the high shear force in zone 1 can activate platelets, the activated platelet then will be trapped in zone 2, leading to increased concentration of cell factors such as PDGF (Fig. 5b).

Strut space

Different strut spaces lead to different stress distribution both at the proximal and distal end of the strut [83]. In a stent with short strut space, flow stagnation region between adjacent struts will overlap, which is not the case for a stent with long strut space (Fig. 5c).

Compared with ‘rhombus’ stent, the ‘S’ type stent has lower radial stiffness, which results in less stress magnitude and radial displacement of the arterial wall (Fig. 5c) [84]. In particular, strut thickness and stent flexibility have been recognized to impact the degree of injury, risk of rupture of the elastic laminae and overall inflammation, with a thicker strut generally leading to higher inflammation and restenosis than the thinner one and open cell design [85]. Thus, we believe that the flower pattern of stent significantly changes the flow direction, and further affects the alteration in hemodynamic. Moreover, such a change certainly affects cellular functions. However, to verify this statement, additional investigations are needed.

Compliance changes

Stent implantation changes the compliance of the blood vessel, which also affects the hemodynamics in the blood vessel [86]. Stiff metal struts compromise the geometry of the host artery leading to long-term adverse hemodynamic conditions and chronic stimulation, which further cause restenosis and clinical events [87–89]. For instance, stent implantation not only alters the 3D configuration of the host artery, but also alters the curvatures of its inlet and outlet, which lead to the changes in local shear stress distribution [90]. To a certain extent, these changes may explain the asymmetric mode of the restenosis in scaffold.

Adverse hemodynamic alteration by stent implantation is only one of the major factors leading to ISR. Since other forces can also affect the surrounding mechanical environment of vascular cells, the mechanism of the cellular response to its surrounding mechanical environment alterations needs further studies. Furthermore, the alteration of mechanical environment after stent implantation may postpone re-endothelialization that further leads to late thrombosis formation. However, the vascular cells may not directly respond to the force from external environment, perhaps in an indirect way or other signals. Therefore, how to optimize the stent design to reduce the degree of changes in vascular internal mechanical environment is a problem for us to consider, such as trying different kinds of flower patterns and softer scaffold materials.

Mechanical microenvironment of stent vascular segment

In this section, we will review the changes in the mechanical microenvironment of the host artery due to stent implantation and the effects of these changes on vascular cells in an attempt to better understand the mechanism of ISR and late thrombosis formation.

The data show a clear impact of the vascular mechanical microenvironment on vessel cells. Figure 6a is a schematic drawing of different stresses acting on the host artery by a single stent scaffold, showing a clear impact of the vascular mechanical microenvironment on vessel cells. As shown in Fig. 6, after stent implantation, ECs of the intima and SMCs of the medium experience pressure stress, tension stress, and flow-induced shear stress [69]. From this viewpoint, ISR actually is a healing process of the arterial wall after injury due to squeezing pressure by the stent wires. This process is composed of three main steps: elastic recoil, vascular intimal hyperplasia and vascular remodeling. The cells in the adventitia and medium can sense the mechanical changes in their surroundings (mechanical environment) during the stenosis process accordingly conduct mechanical signals and adjust their responses. For example, the stent diameter can directly affect the circumferential stress (Z′1, Z′2) of the artery that has an obvious impact on the intimal hyperplasia process. Both too large and too small diameters of the stent can significantly increase the degree of intimal hyperplasia [70]. The axial tension (Z1, Z2) of the stent can also affect intimal hyperplasia [71]. The stent will interfere with local flow altering the distribution of flow-induced WSS (τ₀) [54]. The number, shape, thickness and width of stent struts, the launched diameter and the weaving mode of the stent can significantly affect the temporal and spatial distribution of local flow patterns, hence the flow-induced WSS [47]. Both animal experiments and clinical studies have found that the flow shear stress is related to the degree of intimal hyperplasia induced by vascular stent [72].

Figure 6.

Mechanical environment of vascular tissue near the scaffold. (a) After expansion, stent filaments will cause damage to vascular endothelial, then reach the smooth muscle layer through endothelium, adjacent stent wires come about radial extrusion P1 and P2 on smooth muscle layer and cortex, respectively, axial tension Z1 and circumferential tension Z′1 on smooth muscle layer, as well as axial tension Z2 and circumferential tension Z′2 on endothelium. Due to varying extension of smooth muscle layer and endothelium, on the interface of which will come about shear stress τ1 and τ′1, meanwhile, this part of the endothelium will face the blood pressure P0 and WSS τ0 under the blood flow. (b) Spatial WSS gradient with time after stent implantation. Figure b cited from [73], copyright 2002, with permission from Ann Biomed Eng.

Numerical simulation analysis of the thrombus-induced spatial WSS gradient with time suggests that stents cause a transient HSS gradient after implantation and that the shear stress gradually returns to normal 14 days after implantation (Fig. 6b) [73].

Although it has been recognized that ISR and late thrombosis are mainly attributed to stent-induced mechanical microenvironment alterations, the regularity of the stent-induced mechanical changes in the host artery is still far from clarified because most of the existing studies regarding this aspect are based on very simplified models, which cannot reflect the real dynamic scenarios of the host artery with stent implantation. The future work can be based on the changes in the mechanical microenvironment after the stent implantation, which can affect the mediator and thus cause the ISR. Improving evaluation means of mechanical microenvironmental changes caused by the design of stent is conducted to better serve the stent design and optimize the mechanical environment of vascular stent.

Conclusion and future perspective

It has been widely documented that ISR is mostly attributed to the changes in mechanical microenvironment due to stent implantation [5, 12]. Without in-depth understanding of these mechanical changes regularity, it would be impossible to find targeted/effective ways to resolve the two major problems of stenting, namely the restenosis and late thrombosis. This is precisely what is lacking in the existing literature. In the present article, we have summarized what has been done up to now regarding this issue in a hope to attract the attention of scholars.

ISR is a repair process of the arterial wall after mechanical injury, consisting of elastic retraction, intimal hyperplasia and vascular remodeling [73]. In this process, vascular cells such as SMCs and fibroblasts respond to stent-induced mechanical environment changes by adjusting their phonotype and behavior. Under the condition of angiosclerosis and reduced tensile stress, SMCs not only change their phonotype from the contractile state to the synthetic state, leading to vascular matrix degradation, but also proliferate or migrate, causing the genesis or development of vascular lesions, respectively [16]. In addition, the basal elastic modulus of SMCs shows a positive correlation with spreading projection area. Increased basal elastic modulus can promote SMCs proliferation or migration, which has a positive correlation with ligand concentration of the ECM (especially fibronectin) [18]. Myofibroblast is one type of fibroblasts with SMCs-like characteristics, which has strong ability to contract, migrate and secrete ECM [20]. Not only fibroblasts, ECs and SMCs can differentiate into myofibroblast [21]. The increase in elastic modulus caused by vasoconstriction, and a large amount of ECM secreted by fibroblasts, causing SMCs hypertrophy and proliferation [22], resulting in further vascular fibrosis. Unfortunately, the occurrence time of muscle fibroblasts appearing and apoptosis after stent implantation do not have the systematically thorough research. After stent implantation, effective inhibition of the proliferation and migration of SMCs may delay the progression of vascular fibrosis and thus reduce the incidence of ISR.

The delayed healing of EC layer after stent implantation is considered to be the key pathological event leading to late stent thrombosis. It is believed that the proliferation and migration of ECs in uninjured artery segment might eventually repair the wounded EC layer [92], but this process could be influenced by flow shear stress and tensile stress [49], and also by vascular elastic modulus [50]. Obviously, stent implantation has significant adverse impacts on these mechanical parameters, which hinder EC migration and interrupts bone marrow-derived ESCs homing, proliferation and differentiation. Moreover, stent implantation–induced local flow disturbance itself can cause small plaque formation that slows down endothelium healing and even causes endothelial dysfunction [53, 54]. Therefore, stent implantation may inevitably create an unfavorable mechanical environment for late thrombosis formation. Many drugs that can availably promote endothelialization have achieved a certain effect, but endothelial dysfunction and hemodynamic environment changes in stented segment are still serious problems to be solved, which put forward higher requirements of endothelial growth promoting drug screening and rational design of the stent.

The immune cells in blood are regulated by flow shear stress [93]. For instance, the migration and activation of lymphocytes are regulated by shear stress via the integrin dependent pathway [94]. A large number of EPCs, dendritic cells and neural crest derived cells are found in the vascular neointima after stent implantation, but nearly none in the media layer [95]. Therefore, it has been believed that these three kinds of cells might play important roles in the formation of new endothelial layer [96–98]. However, the role of the interaction between ECs and dendritic cells in VSMCs and mechanism of thrombosis formation induced by it under the conditions of hemodynamic changes has not yet been elucidated.

To sum up, finding out how the vascular stent implantation changes the biomechanical environment of blood vessels, thereby affecting the formation of restenosis and late thrombosis, and its molecular mechanism is a scientific problem of great concern. Based on this, future researches can be carried out from the following three aspects. Presently, most of the work on this issue is based on simplified theoretical models, lacking in vivo experimental verification. Theoretical models of the blood vessel and the stent after stent implantation can be predicted by numerical simulation, but the interaction between the stent and the blood vessel, blood vessel and blood cannot be directly reflected. In the future, more realistic numerical models are needed to elucidate the dynamic interaction between the stent and the host artery in terms of hemodynamic and vessel WSS distributions including the distributions of flow shear stress, the axial, radial and circumferential stress of vascular wall. Then, based on the detailed information of stent-induced mechanical environment changes obtained, systematic study should be designed to clarify the responses of the vascular and vascular immune cells to these mechanical stimuli, so as to build a more realistic model where we could get more hypotheses. The model can be improved when the new hypothesis is verified. Second, systematically study the effects of mechanical environment changes on the physiological characteristics of vascular cells (ECs, SMCs and fibroblasts), cells (mainly dendritic cells) that are involved in vascular immune system, and vascular EPCs that are involved in vascular injury repair. Finally, systematically clarify the interactive relationship between mechanic-cell biological behavior and its biological significance in ISR, and the relationship between mechanic-vascular biological behaviors, explore the molecular mechanism involved in the ISR and re-endothelialization. In this way, we may find targeted and effective ways to resolve the two problems of stenting.
