Regulation of Eag by Ca²⁺/calmodulin controls presynaptic excitability in Drosophila

Abstract

Drosophila ether-à-go-go (eag) is the founding member of a large family of voltage-gated K⁺ channels, the KCNH family, which includes Kv10, 11, and 12. Concurrent binding of calcium/calmodulin (Ca²⁺/CaM) to NH₂- and COOH-terminal sites inhibits mammalian EAG1 channels at submicromolar Ca²⁺ concentrations, likely by causing pore constriction. Although the Drosophila EAG channel was believed to be Ca²⁺-insensitive (Schönherr R, Löber K, Heinemann SH. EMBO J 19: 3263–3271, 2000.), both the NH2- and COOH-terminal sites are conserved. In this study we show that Drosophila EAG is inhibited by high Ca²⁺ concentrations that are only present at plasma membrane Ca²⁺ channel microdomains. To test the role of this regulation in vivo, we engineered mutations that block CaM-binding to the major COOH-terminal site of the endogenous eag locus, disrupting Ca²⁺-dependent inhibition. eag CaMBD mutants have reduced evoked release from larval motor neuron presynaptic terminals and show decreased Ca²⁺ influx in stimulated adult projection neuron presynaptic terminals, consistent with an increase in K⁺ conductance. These results are predicted by a conductance-based multicompartment model of the presynaptic terminal in which some fraction of EAG is localized to the Ca²⁺ channel microdomains that control neurotransmitter release. The reduction of release in the larval neuromuscular junction drives a compensatory increase in motor neuron somatic excitability. This misregulation of synaptic and somatic excitability has consequences for systems-level processes and leads to defects in associative memory formation in adults.

NEW & NOTEWORTHY Regulation of excitability is critical to tuning the nervous system for complex behaviors. We demonstrate in this article that the EAG family of voltage-gated K⁺ channels exhibit conserved gating by Ca²⁺/CaM. Disruption of this inhibition in Drosophila results in decreased evoked neurotransmitter release due to truncated Ca²⁺ influx in presynaptic terminals. In adults, disrupted Ca²⁺ dynamics cripples memory formation. These data demonstrate that the biophysical details of channels have important implications for cell function and behavior.

INTRODUCTION

The repolarization of neurons and muscle cells by K⁺ channels plays an important role in limiting the excitability of cells and returning them to a baseline membrane potential to be ready for the next action potential. K⁺ channels also play an indirect role in regulating Ca²⁺ levels inside the cell, preventing excitotoxicity and shaping the temporal profile of cellular responses to activity. Several families of Ca²⁺-activated K⁺ channels (e.g., small- and large-conductance, SK and BK channels) appear to act in a feedback mode, with internal Ca²⁺ activating the channels to hyperpolarize the cell and limit additional Ca²⁺ entry. However, there is one Ca²⁺-regulated K⁺ channel family that appears to act in a counterintuitive manner. The mammalian ether-à-go-go (EAG) K⁺ channel is completely inhibited at all membrane voltages in the presence of 100–300 nM Ca²⁺/calmodulin (Ca²⁺/CaM; Schönherr et al. 2000; Stansfeld et al. 1996; Whicher and MacKinnon 2016; Ziechner et al. 2006). We sought to understand the role of this seemingly maladaptive regulation by disrupting the CaM interaction with EAG in Drosophila, where the presence of only one gene coding for EAG simplifies the analysis.

The Drosophila ether-à-go-go (eag) gene encodes a voltage-gated delayed rectifier K⁺ channel subunit, EAG. The first eag mutant was discovered in Drosophila and was identified by its ether-induced leg shaking (Kaplan and Trout 1969). Subsequently, Drosophila EAG was found to define a family of K⁺ channels with multiple homologs in mammals (Warmke and Ganetzky 1994). EAG is a member of the KCNH family of K⁺ channels and is also referred to as Kv10 (Gutman et al. 2003). Although the transmembrane domains of EAG are similar in structure to Shaker-type voltage-gated channels (Warmke and Ganetzky 1994), recent structural data have led to the hypothesis that EAG has an additional novel gating mechanism. This alternate gating mechanism allows cytoplasmic factors such as CaM to act on the pore region through the domain linking the COOH terminus to the S6 transmembrane domain (Whicher and MacKinnon 2016). Channel closure is achieved by the simultaneous binding of Ca²⁺/CaM to both an NH₂-terminal and a COOH-terminal site. This requirement for binding at two sites means that disruption of a single CaM binding domain (CaMBD) should block Ca²⁺-dependent gating entirely.

The biophysical properties of EAG have been determined in heterologous expression systems, and little is known about its function in the nervous system. Fly loss-of-function eag mutants, in which the conductance is completely missing, have learning deficits (Griffith et al. 1994) in addition to a robust hyperexcitability in larval motor neurons that also causes spontaneous neuronal firing (Drysdale et al. 1991; Ganetzky and Wu 1983; Griffith et al. 1994; Srinivasan et al. 2012). In cockroaches, knockdown of EAG revealed a role for Ca²⁺-dependent inhibition in the light response (Immonen et al. 2017). EAG1 knockout mice have normal learning and memory, sensorimotor function, social behavior, and anxiety and only display a mild hyperactivity (Ufartes et al. 2013). However, the existence of multiple EAG family members in mammals raises the possibility of compensation or redundancy and complicates in vivo analysis. Cellular physiology in EAG1 knockout mice has revealed enhanced synaptic facilitation during high-frequency stimulation (≥50 Hz) at the parallel fiber-Purkinje cell synapse in the cerebellum, accompanied by elevated presynaptic Ca²⁺ (Mortensen et al. 2015). In both insects and mammals, the dominant phenotype of loss of EAG channels appears to be increased presynaptic release.

The role of gating by Ca²⁺/CaM in vivo is likely to be more complicated, and understanding the role of Ca²⁺ inhibition requires generating an EAG channel that is voltage gated but lacks Ca²⁺/CaM inhibition. Such a channel would be predicted to pass more current when Ca²⁺ concentration is high. In this study we show that fly EAG is inhibited by Ca²⁺/CaM, and we generate mutant alleles disrupting the CaM interaction with EAG to interrogate its function. We find that without Ca²⁺/CaM inhibition of EAG, evoked synaptic currents are reduced, and presynaptic Ca²⁺ is reduced during high-frequency stimulation. These defects lead to changes in somatic excitability that go in the opposite direction, likely the result of homeostasis. The complex misregulation of excitability in these mutants disrupts higher level behavior, demonstrating that the biophysical details of channel regulation can have profound effects at the organismal level.

MATERIALS AND METHODS

Drosophila Crosses for Recording and Protein Analysis

Crosses to produce larvae for electrophysiology were set up in vials with 5–6 females and 5 males for each genotype to have consistent numbers of larvae between genotypes and were kept at ~22°C in the laboratory. Crosses were flipped every 3–5 days, but no more than 4 times. Bottle crosses were used for protein extraction. The single alleles analyzed were hemizygous males resulting from a cross of homozygous control or CaMBD mutant females to w males. The transheterozygous alleles were females resulting from crossing two homozygous alleles of control (WT12 and WT8) or CaMBD mutants (CaMBD8 and CaMBD17). Whenever possible, the transheterozygous combinations were used to reduce the effect of potential off-target mutations not eliminated during outcrossing of stocks.

Generation of Mutant Strains

Control and calmodulin binding domain (CaMBD) mutant knockin strains were generated by targeted ends-out homologous recombination using methods described in detail previously (Staber et al. 2011). The homologous arms were amplified by PCR from genomic DNA, and each arm was cloned into a TOPO-TA vector (Invitrogen, Thermo Fisher) and were a kind gift from the laboratory of Robert Reenan (Brown University, Providence, RI). Mutations to the arm spanning the C2 CaMBD were made by site-directed mutagenesis (Stratagene) using primers CGTCCGGAAGATATCCTCCAAATCTCGTCGCACTCCGC (forward) and GCGGAGTGCGACGAGATTTGGAGGATATCTTCCGGACG (reverse). The arms were cloned sequentially into a P[w25.2] target vector. The full eag deletion mutant was generated using piggyBac insertions containing FRT sites (Thibault et al. 2004) as described previously (Parks et al. 2004). Briefly, Exelixis stocks PBac{RB}e03618 and PBac{WH}f02960 (p-element on X chromosome) were used to delete the entire eag gene. PBac{RB}e03618/FM7a flies were crossed to heat shock-driven FLP recombinase (hs-FLP)/Bal, and male progeny were crossed to PBac{WH}f02960 females. After 48 h, the bottle crosses were heat shocked in a 37°C water bath for 1 h to activate the FLP recombinase. The parents were removed after 72 h, and the bottles were heat shocked daily (1 h at 37°C) for 4 more days. The candidate flies were balanced and screened by PCR using paired element-specific and genome-specific primers: PB08014, GATCATTAAAACGTGGCCAACTAC (5′ eag flanking region e03618); PB08013, CCTCGATATACAGACCGATAAAAC (element-specific primer), and PB08015, GTGGGGGTTCTTATTCTTCAGTT (3′ eag flanking region f02960).

Electrophysiology

Solutions.

Nominally Ca²⁺-free hemolymph-like solution HL3.1 (Feng et al. 2004) consisted of (in mM) 70 NaCl, 5 KCl, 4 MgCl₂, 10 NaHCO3, 5 Trehalose, 115 sucrose, and 5 HEPES, adjusted to pH 7.1–7.2 with NaOH. A 0-Ca²⁺ modified A solution consisted of (in mM) 118 NaCl, 2 KCl, 4 MgCl₂, 5 Trehalose, 45.5 sucrose, 5 HEPES, and 0.5 EGTA, adjusted to pH 7.3–7.4 with NaOH. Nominally Ca²⁺-free modified A solution consisted of (in mM): 118 NaCl, 2 KCl, 4 MgCl₂, 5 Trehalose, 45.5 sucrose, and 5 HEPES, adjusted to pH 7.3–7.4 with NaOH. Human embryonic kidney (HEK) cell low-Ca²⁺ internal patch solution contained (in mM) 2 NaCl, 130 K-gluconate, 0.1 CaCl₂, 2 MgCl₂, 1 EGTA, and 10 HEPES, adjusted to pH 7.3–7.4 with KOH. Motor neuron low-Ca²⁺ internal patch solution contained (in mM) 2 NaCl, 130 K-gluconate, 0.1 CaCl₂, 1 EGTA, 0.5 Na-GTP, 4 Mg-ATP, and 10 HEPES, adjusted to 285 mosM with glucose and to pH 7.3–7.4 with KOH.

HEK cell recordings by whole cell patch were made 48–60 h after transfection. Cells were recorded at 21–22°C in 0-Ca²⁺ modified A solution and a low-Ca²⁺ internal patch solution (see Solutions). The appropriate amount of Ca²⁺ was added to the internal solution to yield the approximate calculated free Ca²⁺ concentrations shown in Fig. 1. The Maxchelator program (Chris Patton, Stanford University) was used to calculate the free Ca²⁺ concentrations. The HEK cells were voltage-clamped with a Multiclamp 700A amplifier (Axon Instruments, Molecular Devices, Sunnyvale, CA), and currents were filtered at 2.6 kHz and recorded using pClamp 8 software (Axon Instruments, Molecular Devices). Software sampling was performed at 10 kHz. Leak currents were calculated offline by fitting the steady-state current vs. voltage relationship from −80 to −60 mV. The slope and intercept of the linear fit were used to calculate the leak current at each membrane potential and subtracted from the recorded sustained currents. EAG-transfected cells were rejected if the initial resting potential was <20 mV. The recording for the different EAG isoforms (Fig. 1E) was performed as described above except that the internal pipette solution was changed to increase EGTA concentration to 5 mM and 4 mM Mg-ATP was added.

Fig. 1.

Drosophila EAG channels are regulated by Ca²⁺. A: cartoon of the fly EAG subunit showing the position of the highly conserved CaM binding domains (CaMBDs; not drawn to scale). Protein sequence alignments of the 3 fly CaMBDs with human EAG are shown, as well as comparison of the different Drosophila splice variants in the NH₂-terminal CaMBD. Basic residues are solid bold, hydrophobic residues are shaded bold. Arrows indicate the 2 phenylalanines mutated to serines to disrupt CaM binding in the C2 domain. B: Western blot of HEK-293 cell extracts expressing wild-type (EAG-PA) or CaMBD (F232S,F235S) mutant (mut.) plasmid DNA in combination with an enhanced GFP plasmid. C: sample traces of wild type (WT) or F232S,F235S mutant EAG currents (left) and current-voltage relation of EAG current densities recorded under whole cell patch clamp from HEK-293 cells with 100 μM internal Ca²⁺ in pipette solution (right). D: plot comparing mean WT and CaMBD mutant EAG current densities at various internal Ca²⁺ concentrations at a membrane voltage of 40 mV. WT (EAG-PA) and CaMBD mutant mean current densities are significantly different at 100 and 500 μM internal [Ca²⁺] (*P = 0.04 for each concentration, Wilcoxon rank sum test). E: plot of mean WT EAG current densities for the NH₂-terminal CaMBD splice variants at 40 mV with mouse EAG for comparison. In C–E, numbers in parentheses represent number of cells recorded. All values are mean ± SE. There were no significant differences (P = 0.4, 2-factor ANOVA) between Drosophila splice isoforms across Ca²⁺ concentrations.

Potentials from the neuromuscular junction (NMJ) were recorded in current-clamp mode from muscle 6 of wandering third instar (sex specified in fly cross methods) larvae with intracellular electrodes filled with 3 M KCl (20–30 MΩ) in 0.4 or 0.2 mM Ca²⁺ HL3.1. Signals were amplified with an Axoclamp 2B amplifier (Molecular Devices, Sunnyvale, CA), digitized with a Digidata 1322A (Molecular Devices), and recorded at 10 kHz with pClamp8 software (Molecular Devices). Muscles with resting potentials more depolarized than −45 mV were not used. The miniature excitatory junctional potential and nerve-evoked recordings were done in 0.2 mM Ca²⁺ HL3.1 but with 2 mM KCl to increase the K⁺ driving force. For the nerve stimulation experiments, current was injected to keep the muscles at −60 mV to keep a consistent membrane potential for all cells. The motor nerves were stimulated by sucking up the nerve with a glass pipette ~10 μm in diameter at 2–3 times the threshold voltage to first trigger a postsynaptic response. The stimulation was delivered by a model 2100 isolated pulse stimulator (A-M Systems, Sequim, WA) that was triggered by the pClamp software at each recording sweep.

Synaptic currents at the NMJ were recorded from larval muscle 6 of wandering third instar larvae in two-electrode voltage-clamp (TEVC) mode with an Axoclamp 2B amplifier and digitized as described above. We used 0.2 mM Ca²⁺ HL3.1 solution but adjusted KCl to 2 mM. The 3 M KCl-filled voltage-sensing electrodes had resistances of 15–18 MΩ, and the current-passing electrodes filled with 3 M KCl had resistances of 10–15 MΩ. Muscles were held at −70 mV. Cells were rejected if, after the muscle was impaled with both electrodes, the average of the two resting potentials recorded at each electrode was more depolarized than −30 mV. Motor nerve stimulation was performed as described previously.

Type Is motor neuron voltages were recorded by whole cell patch clamp in current-clamp mode with a Multiclamp 700A amplifier (Molecular Devices). Filtering and sampling was the same as for HEK cells. Larvae were filleted in Ca²⁺-free modified A solution, and the brain was left intact. Dorsal motor neurons directly below the sheath of the ventral nerve cord were visualized with a ×40 water-immersion objective and exposed by applying 0.2% (wt/vol) protease (type XIV; MilliporeSigma, St. Louis, MO) in Ca²⁺-free modified A solution with a patch pipette directly around the cluster of neurons. The patch pipettes for recording had resistances of 2–3 MΩ. The identity of the type of motor neuron was based on position in the motor neuron cluster (Choi et al. 2004) and confirmed by the characteristic delay to spike phenotype unique to MNISN-Is motor neurons. Recordings were made first in nominally Ca²⁺-free modified A solution, and then the solution was changed to a 1.8 mM Ca²⁺ modified A solution. Current was injected to keep the motor neurons at −60 mV. Cells were rejected if the initial resting potential was more depolarized than −45 mV.

All physiological preparations were superfused with the indicated saline solutions by gravity feed and vacuum suction at 1–2 ml/min. Electrophysiology trace plotting and analysis of membrane current and voltage signals were performed in MATLAB (The MathWorks, Natick, MA) using scripts written by P. Bronk. Table 1 shows cell properties recorded for each of the data sets in this study.

Table 1.

Conditions and cell properties for electrophysiological recordings

				RMP, mV		Cm, pF		Rm, GΩ		Rs, MΩ
Cell Type	Genotype	n	[Ca2+]	Initial	Final	Initial	Final	Initial	Final	Initial	Final
Motor neuron	WT	5	0 Ext. Ca2+	−50.2 ± 1.3	−47.6 ± 2.9	23.5 ± 0.4	21.9 ± 0.3	0.91 ± 0.1	1.01 ± 0.1	35.0 ± 4.3	43.4 ± 8.7
Motor neuron	CaMBD mutant	7	0 Ext. Ca2+	−56.3 ± 1.5	−56.0 ± 1.5	25.2 ± 0.8	22.9 ± 0.8	0.88 ± 0.2	1.02 ± 0.2	36.9 ± 3.9	53.5 ± 8.7
Motor neuron	WT	3	1.8 mM Ext.	−48.0 ± 1.5	−49.3 ± 1.9	20.3 ± 0.5	19.1 ± 0.5	0.92 ± 0.1	0.96 ± 0.1	40.6 ± 7.0	52.6 ± 13.6
Motor neuron	CaMBD mutant	4	1.8 mM Ext.	−55.3 ± 2.2	−55.3 ± 1.9	22.6 ± 1.4	21.0 ± 1.3	1.08 ± 0.3	0.92 ± 0.2	48.9 ± 10.8	65.9 ± 10.6
HEK	WT	13	13 nM Int.	−38.5 ± 2.0	−41.9 ± 3.0*	16.2 ± 2.7	15.5 ± 2.8	1.13 ± 0.3	0.88 ± 0.2	8.3 ± 1.1	10.2 ± 1.8
HEK	CaMBD mutant	9	13 nM Int.	−37.2 ± 2.0	−36.6 ± 3.0*	17.6 ± 3.8	16.8 ± 4.2	0.6 ± 0.1	0.42 ± 0.1	9.1 ± 1.7	11.5 ± 1.5
HEK	WT	4	100 nM Int.	−43.3 ± 3.4	−37.3 ± 4.3	17.3 ± 3.1	16.5 ± 3.3	1.09 ± 0.4	0.43 ± 0.1	4.9 ± 0.4	7.5 ± 1.2
HEK	CaMBD mutant	5	100 nM Int.	−45.6 ± 1.7	−43.2 ± 0.7	20.5 ± 4.2	27.3 ± 10.7	1.30 ± 0.6	1.26 ± 0.6	8.3 ± 0.7	12.6 ± 1.1
HEK	WT	6	10 µM Int.	−41.5 ± 4.1	−37.7 ± 5.0	19.7 ± 2.5	19.3 ± 2.9	0.69 ± 0.1	0.86 ± 0.2	10.8 ± 3.8	13.9 ± 5.1
HEK	CaMBD mutant	4	10 µM Int.	−37.8 ± 5.9	−38.5 ± 10.5	17.5 ± 5.0	13.9 ± 2.2	1.01 ± 0.4	0.77 ± 0.2	12.0 ± 4.4	13.1 ± 2.9
HEK	WT	7	100 µM Int.	−41.7 ± 0.9	−28.9 ± 4.8	14.6 ± 2.6	14.2 ± 2.7	1.23 ± 0.3	0.95 ± 0.2	8.5 ± 1.8	15.4 ± 3.2
HEK	CaMBD mutant	6	100 µM Int.	−40.7 ± 3.0	−43.5 ± 4.2	16.8 ± 1.8	16.2 ± 1.6	1.57 ± 0.4	0.91 ± 0.2	6.7 ± 1.6	11.3 ± 2.2
HEK	WT	9	500 µM Int.	−39.7 ± 4.3	−18.2 ± 4.3	21.1 ± 3.1	15.2 ± 2.8	0.85 ± 0.2	0.70 ± 0.2	11.0 ± 4.0	8.3 ± 1.3
HEK	CaMBD mutant	7	500 µM Int.	−43.6 ± 2.1	−34.9 ± 4.2	24.5 ± 4.0	15.8 ± 2.9	0.76 ± 0.2	0.53 ± 0.2	8.3 ± 1.0	11.6 ± 3.4
HEK	EAG-PA	4	10 nM Int.	−37.8 ± 3.7	−35.5 ± 3.5	25.3 ± 7.6	23.6 ± 7.1	0.41 ± 0.2	0.38 ± 0.1	14.7 ± 3.6	16.4 ± 3.6
HEK	EAG-PE	3	10 nM Int.	−36.7 ± 3.3	−41.7 ± 1.7	17.5 ± 9.3	17.0 ± 9.1	1.23 ± 0.4	1.11 ± 0.4	11.5 ± 3.2	13.7 ± 3.8
HEK	EAG-PF	2	10 nM Int.	−34.5 ± 1.5	−28.5 ± 1.5	18.7 ± 5.9	20.2 ± 7.9	0.20 ± 0.04	0.43 ± 0.2	14.0 ± 0.9	14.4 ± 0.5
HEK	GFP	4	10 nM Int.	−16.8 ± 5.4	−21.3 ± 6.6	12.7 ± 2.7	12.2 ± 2.7	1.95 ± 0.2	1.34 ± 0.2	10.4 ± 2.0	11.7 ± 2.8
HEK	EAG-PA	5	500 nM Int.	−38.2 ± 3.7	−35.5 ± 3.5	14.9 ± 2.0	14.2 ± 2.1	1.17 ± 0.3	0.75 ± 0.1	9.6 ± 0.7	18.3 ± 5.5
HEK	EAG-PE	8	500 nM Int.	−36.8 ± 1.3	−29.9 ± 3.0	13.6 ± 1.9	13.3 ± 1.8	0.56 ± 0.2	0.33 ± 0.1	8.2 ± 0.9	10.1 ± 1.0
HEK	EAG-PF	5	500 nM Int.	−32.8 ± 3.0	−27.8 ± 2.7	18.0 ± 3.5	17.5 ± 3.4	1.0 ± 0.5	0.53 ± 0.2	6.7 ± 0.3	7.9 ± 0.6
HEK	EAG-PA	3	1 µM Int.	−48.3 ± 3.9	−42.0 ± 7.5	10.1 ± 0.3	9.7 ± 0.2	1.09 ± 0.5	1.0 ± 0.4	8.2 ± 0.9	10.4 ± 1.9
HEK	EAG-PE	4	1 µM Int.	−39.5 ± 3.0	−36.0 ± 2.1	16.4 ± 3.7	16.0 ± 3.8	0.60 ± 0.3	0.59 ± 0.3	10.7 ± 1.3	13.5 ± 1.7
HEK	EAG-PF	4	1 µM Int.	−40.0 ± 6.1	−26.5 ± 6.6	19.6 ± 5.8	18.7 ± 5.4	0.67 ± 0.4	0.85 ± 0.6	13.4 ± 2.7	16.6 ± 3.3
HEK	GFP	3	1 µM Int.	−24.7 ± 4.9	−18.3 ± 6.2	12.2 ± 2.0	11.5 ± 2.2	1.02 ± 0.03	1.0 ± 0.1	7.5 ± 1.5	18.1 ± 7.7
Muscle (VC)	WT	28	0.2 mM Ext.	−46.6 ± 1.5*		4.4 ± 0.2 (nF)		0.0038 ± 0.0003		0.14 ± 0.0009
Muscle (VC)	CaMBD mutant	30	0.2 mM Ext.	−46.8 ± 1.1*		4.8 ± 0.1 (nF)		0.0027 ± 0.0003		0.14 ± 0.0009

Values are means ± SE for resting membrane potential (RMP), membrane capacitance (C_m), membrane resistance (R_m), and series resistance (R_s) in motor neurons, human embryonic kidney (HEK) cells, and muscle (VC, voltage clamp); n = no. of cells. The motor neuron parameters are separated by Ca²⁺ condition, but the cells in the 1.8 mM Ca²⁺ condition are cells first recorded in no external Ca²⁺ that remained healthy enough to undergo the second recording in external Ca²⁺.

^*The parameter was not available for all cells. In these instances, the SE was adjusted for the reduced value of n.

Protein Analysis

For immunoblots, HEK cells were washed twice with 1× PBS, and then cells were scraped in 500 μl of 2× Laemmli sample buffer. The cell suspension was passed through a syringe needle two to three times to break up the membranes. The homogenate was separated by 7.5% SDS-PAGE and immunoblotted with an anti-Eag rabbit polyclonal antibody raised against amino acids 1032–1174 of Drosophila Eag.

For CaM-agarose purification of WT and CaMBD mutant EAG (which still has an NH₂-terminal CaMBD), 1 ml of flies of each genotype were collected in a 15-ml conical centrifuge tube and frozen on dry ice. The frozen flies were vortexed and dumped onto a sieve to collect the heads that passed through on a fine mesh cooled on dry ice. The heads were put into 1.5-ml Eppendorf tubes on dry ice and then transferred to a Dounce homogenizer (2 ml) on ice. One hundred milliliters of homogenization solution (20 mM HEPES-NaOH, pH 7.4, and 1 mM EGTA) were added, and the heads were homogenized. The homogenate was transferred to a fresh 1.5-ml Eppendorf tube and 100 ml of additional homogenization solution were added to the homogenizer to wash and collect the remaining homogenate. Two hundred milliliters of 2× solubilization buffer (20 mM HEPES-NaOH, pH 7.4, 200 mM NaCl, 2% Triton X-100, and 1 mM EGTA) were added to the homogenate. Both buffers contained a broad-spectrum protease inhibitor, Complete Mini (Roche Diagnostics, Mannheim, Germany). The tubes of homogenate were rotated at 4°C for 1 h and centrifuged for 15 min (4°C, 14,000 rpm). Supernatant (3 μl) was removed from each sample to determine the total starting protein concentration by Bradford protein assay (BioRad).The supernatant was added to 100 μl of Sepharose beads conjugated to calmodulin (equilibrated in the same buffers used in solubilization step) along with Ca²⁺ to a final concentration of 2 mM and rotated 1 h at 4°C. One hundred microliters of the supernatant (flow through) were removed from each sample before the beads were washed in Ca²⁺-containing buffer three times. One hundred microliters of 2× Laemmli sample buffer were added to the beads, and then the samples were boiled for 10 min. Volumes of samples loaded were based on the protein concentration determined in the Bradford assay. Samples were separated by 7.5% SDS-PAGE and immunoblotted with an anti-Eag rabbit polyclonal antibody (1:500) raised against amino acids 1032–1174 of Drosophila Eag and actin antibody (1:5,000; EMD Millipore).

Immunohistochemistry

Larval brain.

Wandering third instar larvae were filleted and pinned out in Sylgard-coated 35-mm × 15-mm petri dishes (3 larvae/dish) containing ice-cold Ca²⁺-free HL3.1 solution. The HL3.1 solution was removed and replaced by fresh ice-cold 4% paraformaldehyde in PBS, and the dishes were incubated at 4°C on an orbital shaker for 4 h. Fixed preparations were washed three times for 5 min with PBS-TX (0.2% Triton-X-100 in PBS) and then blocked overnight at 4°C in PBS-TX-BSA (0.2% Triton-X-100 and 5% bovine serum albumin in PBS). The head and first few abdominal segments were cut from the rest of the larval body (with the brain attached) and placed into wells of a 60-well minitray (1 larva/well; Nunc, Roskilde, Denmark) containing rabbit EAG antibody (1:500) in PBS-TX-BSA and mouse actin antibody (1:1,500; EMD Millipore) in PBS-TX-BSA. The tissue was incubated at room temperature for 2 h on an orbital shaker and washed three times for 5 min with PBS-TX. Alexa Fluor 488 goat anti-rabbit (1:200; Invitrogen, Molecular Probes) and Alexa Fluor 680 goat anti-mouse (1:200; Invitrogen, Molecular Probes) in PBS-TX-BSA were added to the well and incubated at room temperature for 1.5–2 h. The brain preparations were then washed three times for 5 min and mounted on slides in Vectashield (Vector Laboratories, Burlingame, CA) while still attached to the head to keep the brain oriented. Sequential images of the green and red emission signals were taken using the ×63 objective on a Leica TCS SP2 confocal microscope. Ten optical sections (1.2 μm each) were taken from each brain using identical settings, with care taken to ensure none of the signals were saturated. The pixel intensities were analyzed using MATLAB (The MathWorks) by averaging the pixel intensity in the same region of the neuropil for each optical section and subtracting the average pixel intensity in the background. The ratio of green-to-red pixel intensities was calculated for each brain.

Larval NMJ.

Wandering third instar larvae were filleted and pinned out in Sylgard-coated 35-mm × 15-mm petri dishes containing ice-cold Ca²⁺-free HL3.1 solution. The motor nerves were cut carefully, and the brain was removed before the solution was replaced with ice cold 4% paraformaldehyde in PBS, and was incubated at room temperature on an orbital shaker for 20 min. After a quick rinse in PBS, the prep was washed in PBS for 20 min at room temperature on an orbital shaker. The larval preparations were then washed three times for 10 min at room temperature in PBT (PBS + 0.05% Triton X-100). The larval tissue was then blocked for 1 h at room temperature in blocking solution (5% heat-inactivated goat serum + PBT). Mouse 4F3 anti-discs large (DLG) antibody (Developmental Studies Hybridoma Bank) was diluted 1:50 in blocking solution and added to the larval preparations, and they were incubated overnight at 4°C on an orbital shaker. After being washed three times for 10 min in PBT, the larval preparations were incubated with goat anti-mouse Alexa-Fluor 488 (Invitrogen) diluted 1:200 in PBS and Alexa-Fluor 594-conjugated goat anti-horseradish peroxidase (HRP; 1:200; Jackson ImmunoResearch Laboratories) for 2–3 h at room temperature. Final washes were performed in PBT (5 × 5 min). The larval preparations were then mounted on slides in Vectashield (Vector Laboratories). Images of the NMJs were taken sequentially at the appropriate emission spectra on a Leica TCS SP5 confocal microscope. Only boutons associated with DLG staining were counted from muscles 6/7 in segments A2 or A3.

Cell Culture and Plasmids

HEK cells were grown in DMEM (GIBCO/Life Technologies) supplemented with heat-inactivated bovine serum (Invitrogen). Cells were transfected with EAG plasmids (4 μg/100-mm plate) using the Ca²⁺-phosphate method and cotransfected with green fluorescent protein (GFP; 1 μg/100-mm plate). After 6 h, transfected cells were resuspended and plated onto 35-mm plates coated with poly-l-lysine. Twenty-four hours after transfection, cells were transferred to a 26°C incubator. This was necessary for the expression of functional Drosophila Eag channels in HEK cells (Li et al. 2011). HEK cells were transfected with a pcDNA3 vector backbone containing wild-type (WT) or mutant eag cDNA (PA). The C2 CaM binding domain mutations F232S,F235S were generated by site-directed mutagenesis (Stratagene) using primers CGTCCGGAAGATATCCTCCAAATCTCGTCGCACTCCGC (forward) and GCGGAGTGCGACGAGATTTGGAGGATATCTTCCGGACG (reverse). The correct sequence of the plasmids was verified over the entire length of the cDNA. The splice isoforms EAG-PE and EAG-PF were constructed from the EAG-PA plasmid described above with the Gibson cloning method using five primers: F10, GACTCACTATAGGGAGACCCAAGCTTGGTACCGAGCTCGGATCC; R11, GCCAATTTGGCGAATTTCGAGAGACCTCCCTTCGTGTCCTCGCTGTCG; R14, GCGAATTTCGAGAGACCAGGGAGAAACAGGTTGACGGCAAAACTCCCTTCGTGTCCTCG; F12, GTCTCTCGAAATTCGCCAAATTGGCAAGATCAGTGACACG; and R13, TTCTCGTTGTCTGTCTCCGCGGCGACATTGCCAAAGCCCACC. Three PCR reactions were performed: F10:R11, F10:R14, and F12:R13. Region of editing was checked by sequencing.

Calcium Imaging of Adult Drosophila Neurons

Homozygous eag CaMBD17 mutant and eag WT12 control female flies were crossed with transgenic flies carrying GH146-GAL4 (Bloomington stock no. 30026) and UAS-GCaMP6f (Bloomington stock no. 52869). Male progeny were screened for transgene expression by eye color and housed at 25°C for 5–10 days posteclosion. Experimental animals were anesthetized with ice, and brains were dissected in adult hemolymph-like (AHL) saline (Wang et al. 2003). Ex vivo brains were secured to a Sylgard-lined perfusion chamber filled with AHL using bent tungsten pins.

The antennal lobe (AL) of the brain was located by morphology using an Olympus BX51WI microscope and a ×40/0.8-NA objective. A concentric bipolar electrode (CBAEB50; FHC) was positioned in the center of the AL using a manual micromanipulator. During each experimental trial, 4 electrical stimulus trains were delivered to the AL by an A.M.P.I. Master-8 pulse generator with a 20-s intertrain interval. The stimulus trains were 20 pulses with a 1-ms pulse duration at a 100-Hz pulse rate. The stimulus voltage was raised on each trial; 3-, 5-, 7-, and 9-V trials were performed on each brain.

The GCaMP6f response of the GH146 terminals in the lateral horn was measured using a Hammamatsu Orca-ER camera controlled by Micro-Manager. Images were acquired at a 300-ms frame interval. Stimulus delivery and image acquisition were synchronized using a National Instruments USB-6212 data acquisition device and a custom MATLAB program. Brains were continuously perfused with room temperature (20–22°C) AHL during the experiment. All brains responded to the high voltage (9 V) stimulus, no brains were excluded, and the stimulus electrode was not repositioned after the experiment began.

Imaging data were analyzed using a custom MATLAB program. The program aligned the image time series to correct drift using the Image Processing Toolbox. An analysis region of interest (ROI) and background (BG) region were manually defined, the per-frame mean fluorescence values of the ROI and BG were calculated, and the BG-corrected fluorescence time series was calculated. The change in fluorescence (ΔF/F) was calculated for each frame i using the formula ΔF_i/F = (F_i – F_1–20)/F_1–20. The peak change in ΔF/F was calculated as the ΔF/F of the stimulus frame minus the ΔF/F of the frame before the stimulus. The sustained level of ΔF/F was calculated as the mean ΔF/F of frames 1–5 s after the stimulus minus the ΔF/F of the frame before the stimulus. Frame timestamps were used to generate a mean peristimulus ΔF/F for each trial. The timing of each frame varied by several milliseconds because of software delays, so for display, the data were resampled to a uniform 10-Hz time base using shape-preserving piecewise cubic interpolation.

Modeling

Characterization of EAG channels.

Time series data of currents in HEK cells expressing EAG channels during voltage clamp were used to characterize the activation functions and kinetics of EAG channels. Peak currents in HEK cells as a function of voltage were subtracted from peak currents in EAG-expressing HEK cells to isolate the currents due to EAG channels alone. Leak currents were then subtracted from this current-voltage curve, which was then converted to a curve of conductance vs. voltage using a reversal potential E_K = −106.17 mV. EAG channels were modeled using the Hodgkin-Huxley framework (Hodgkin and Huxley 1952). The current due to EAG channels is given by

$$I_{EAG}=\overline{g}{m}^2\left(V-E\right)A,$$

where ḡ is the specific conductance of the channels, m is the activation variable, E is the reversal potential and A is the surface area of the compartment. m is a time varying variable determined by

$${\tau }_m\frac{\text{d}m}{\text{d}t}=m_{\infty }-m,$$

where m_∞ and τ_m are functions of the membrane potential V that are determined by fitting functions to plots of conductance vs. voltage and time series of conductance at various holding voltages. Because the activity of EAG channels also depends on the intracellular Ca²⁺ concentration ([Ca²⁺]_i), the process was repeated for multiple Ca²⁺ concentrations to obtain functions that depended on both the membrane potential and the Ca²⁺ concentration. For these channels, we used

$$m_{\infty }\left(V,Ca\right)=\left[\frac{0.0929}{0.0929+\left[C{a}^{2+}\right]}\right]\left[\frac{1}{1+\text{exp}\left(\frac{V+23.12}{-16.94}\right)}\right]$$

for WT EAG channels and

$$m_{\infty }\left(V,Ca\right)=\left[\frac{0.8740}{0.97+\left[C{a}^{2+}\right]}\right]\left[\frac{1}{1+\text{exp}\left(\frac{V+23.12}{-16.94}\right)}\right]$$

for CaMBD mutant EAG channels. Note that the mutant and WT channels differ in their Ca²⁺ sensitivity, but not in their voltage sensitivity (Fig. 1C). For both WT and mutant EAG channels, we found that the timescale of activation was not a strong function of Ca²⁺ concentration, so we used

$${\tau }_m\left(V\right)=5,497-\frac{5,500}{1+\text{exp}\left(\frac{V+251.5}{-16.94-51.5}\right)}$$

In these functions, V is in units of millivolts, τ_m is in milliseconds, and [Ca²⁺] is in micromoles per liter.

Model of presynaptic terminal.

Because EAG is inhibited only at relatively high levels of intracellular Ca²⁺, we reasoned that a possible zone where EAG could be inhibited is the microdomain close to voltage-gated Ca²⁺ channels (VGCCs) at the presynaptic terminal. We modeled the presynaptic terminal using a three-compartment model: one for the invading action potential, another for the Ca²⁺ microdomain, and a third for parts of the presynaptic terminal far from VGCCs. The Ca²⁺ microdomain had voltage-gated Na⁺ channels, K⁺ channels, EAG channels, and Ca²⁺ channels. The other compartment had the same channel profile, except for Ca²⁺ channels. All compartments were electrically coupled to each other with a conductance of 0.1 nS.

The activation functions and kinetics of Na⁺ channels were determined using fits to data from embryonic Drosophila neurons (O’Dowd and Aldrich 1988); K⁺ channels from Drosophila photoreceptors (Hardie 1991), and Ca²⁺ channels from Drosophila embryonic muscles (Hara et al. 2015). The model was integrated using the exponential Euler method (Dayan and Abbott 2001), utilizing a general-purpose neuron simulator written in C++ that we have made freely available at https://github.com/sg-s/xolotl/.

Characterization of effect of EAG on action potential width.

To study the effect of WT and mutant EAG on the action potential waveform, we set up a single-compartment model with Na⁺, K⁺, Ca²⁺, and EAG channels as described above. The Ca²⁺ dependence of the EAG channel was constrained by data from recordings of WT or mutant EAG channels. In Fig. 2A, the “EAG null” trace was generated without any EAG channels in the single-compartment model. In Fig. 2, B–D, all parameters except the one being varied on the x-axis were kept constant at the reference value (g_Na = 500 μS/mm², g_K = 60 μS/mm², g_EAG = 300 μS/mm², g_Ca = 20 μS/mm², g_Leak = 1 μS/mm²).

Fig. 2.

Comparison of the effects of eag null and CaMBD mutations on action potential properties in a 1-compartment model of Drosophila presynaptic terminal. A: evoked potentials in response to a 3-ms depolarization for WT EAG (blue), eag null mutant (black), and CaMBD mutant (red). B: effect of genotype on action potential (AP) width at 0 mV. The presence of EAG allows external Ca²⁺ (Ca_ext) to influence AP width. C: time to peak current is affected by both the amount of EAG and its Ca²⁺ sensitivity. D: AP width is affected by EAG Ca²⁺ sensitivity over a limited range of current densities. g_EAG, EAG channel conductance.

Code availability.

A script to reproduce Figs. 2 and 6, a toolbox to interactively vary parameters in the model, and scripts to estimate gating functions of EAG from raw data are available at https://github.com/marderlab/eag.

Fig. 6.

Effects of the CaMBD mutation in a 3-compartment model of the presynaptic terminal. A: schematic of the multicompartment model of the presynaptic terminal. The presynaptic terminal is modeled as 3 electrically coupled compartments: 1) the invading action potential (gray box, top), 2) the Ca²⁺ microdomain with voltage-gated Ca²⁺ channels and Ca²⁺ influx (solid black box), and 3) the parts of the synaptic terminal outside the Ca²⁺ microdomain (dotted black box). B: evoked potentials in response to invading action potential in the Ca²⁺ microdomain with WT EAG channels (blue) and CaMBD mutant EAG channels (red). In WT, EAG channels are inhibited by incoming Ca²⁺, and this generates a prolonged potential. The CaMBD mutant EAG channels have reduced sensitivity to Ca²⁺, and the membrane potential quickly repolarizes due to a gain of EAG function. C: comparison of evoked potentials in the Ca²⁺ microdomain (green) and outside the Ca²⁺ microdomain (black). Because EAG channels outside the microdomain are not inhibited by incoming Ca²⁺, they quickly repolarize the membrane after an action potential. D: comparison of evoked Ca²⁺ influx with WT (blue) and CaMBD mutant EAG (red). Similar to Fig. 5, Ca²⁺ influx is larger and more prolonged in cells with WT EAG than in cells with CaMBD mutant EAG. All parameters of the model are identical between WT and mutant, and between the 2 compartments of the presynaptic terminal.

Learning and Memory Assays

Appetitive conditioning protocol was as described previously (Liu et al. 2012). A group of ~50 flies in a training tube alternatively received 10% 3-octanol (OCT; Merck) and 10% 4-methylcyclohexanol (MCH; Sigma-Aldrich) for 1 min for immediate memory or for 2 min for 24-h memory. Flies were loaded into CS+ tubes containing 2 M dried sucrose filter papers with one odor presentation and then CS− tubes without sucrose papers with the other odor. After the retention time being tested (2 min or 24 h), the trained flies were allowed to choose between OCT and MCH for 2 min in the T-maze. A learning index was then calculated by taking the mean performance indexes (PIs) of the two reciprocally trained groups. Each PI was calculated by the differences of flies choosing CS+ and CS− divided by the total number of flies. To control whether the learning deficits were due to lack of ability to sense sucrose or odors, flies were allowed to choose between sucrose+ and sucrose− tubes for 2 min or between one odor (OCT or MCH) and air for 2 min. Sucrose PI or odor avoidance index was calculated, respectively.

Statistics

Electrophysiology.

Statistical analysis were performed using the Wilcoxon rank sum test, unpaired Student’s t-test, and ANOVA done in MATLAB (The MathWorks) or Excel (Microsoft).

Memory.

Statistical analyses were performed using GraphPad Prism 7. The Wilks-Shapiro test was used to determine data normality. Normally distributed data were analyzed with the unpaired t-test, and data that did not pass the normality test were analyzed with a Mann-Whitney test. Data are means ± SE. Differences between groups were considered significant at P < 0.05.

RESULTS

Drosophila EAG is Inhibited by High [Ca²⁺]_i

Human EAG has three calmodulin (CaM) binding sites: one NH₂ terminal and two COOH terminals (C1 and C2) (Ziechner et al. 2006), and is inhibited by nanomolar levels of Ca²⁺ (Schönherr et al. 2000). Previous work on Drosophila EAG, in which it was compared with hEAG1 in Xenopus oocytes, suggested that the fly channel was not regulated by Ca²⁺ (Schönherr et al. 2000). Intrigued by the fact that all of these sites appear to be conserved in Drosophila (Fig. 1A), we revisited the issue of regulation by Ca²⁺ by expressing wild-type (WT) EAG or a COOH-terminal CaMBD mutant form (F732S,F735S; Sun et al. 2004) in HEK-293 cells and recording currents with varying amounts of Ca²⁺ in the pipette internal solution. The COOH-terminal mutation should block all CaM-dependent regulation, because inhibition has been suggested to depend on CaM bridging the NH₂ and COOH terminals (Whicher and MacKinnon 2016). Mutant and WT channels were expressed at comparable levels (Fig. 1B), although there can be variability in molecular weight that is likely due to differences in glycosylation (see Fig. 3B and Ramos Gomes et al. 2015). GFP was coexpressed to identify transfected cells.

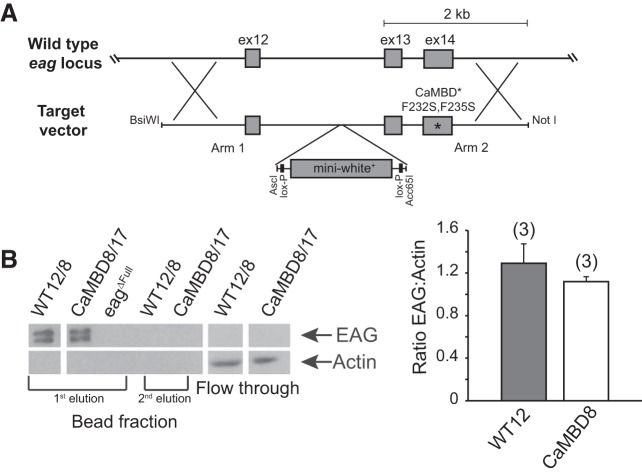

Fig. 3.

Characterization of F232S,F235S CaMBD homologous recombination mutant Drosophila. A: schematic of the targeted region (exons 12–14) of the Drosophila eag locus and the target vector used to generate the CaMBD mutants with F232S,F235S mutations. The control line used the same target vector without the F232S,F235S mutations. ex, Exon. B, left: Western blot from a CaM bead pull-down of fly EAG from whole head extract of CaMBD mutant, WT control, and the eag^ΔFull null allele. The flow-through and 2nd bead elutions were run to confirm all of EAG was bound and released in the 1st elution. Flow through shows actin levels, indicating loading was comparable for these samples. Right, larval brain immunohistochemistry with EAG antibody. Plot shows the mean pixel intensity of the neuropil normalized to actin immunostaining for control and CaMBD mutant larvae. There is no significant difference in the normalized pixel intensities for WT and CaMBD mutants (P = 0.4, unpaired Student’s t-test). Numbers in parentheses represent number of brains. Values are means ± SE.

As previously reported (Schönherr et al. 2000), Drosophila EAG was not inhibited at or below 1 μM [Ca²⁺]_i. Only when [Ca²⁺]_i was increased to high micromolar levels did we see significant inhibition. Figure 1C, left, shows currents recorded in the presence of 100 μM internal Ca²⁺. Currents from cells transfected with WT EAG are clearly smaller compared with those from cells expressing EAG-carrying mutations blocking CaM binding to the major COOH-terminal site, reflecting inhibition by Ca²⁺. The voltage dependence of the channel is unaffected by this mutation (Fig. 1C, right). A dose-response relationship for [Ca²⁺]_i is shown in Fig. 1D. Despite high variability, it is clear that WT EAG current density approaches that of nontransfected cells at high [Ca²⁺]_i, whereas the CaMBD mutant has substantial residual current even at almost millimolar levels of Ca²⁺ in the pipette.

It is interesting to note that although the COOH-terminal CaMBD should completely block the gating mechanism proposed by Whicher and MacKinnon (2016), the CaMBD mutant does show substantial inhibition at high Ca²⁺ levels. Whether this inhibition is due to some action of CaM mediated by the NH₂-terminal CaMBD alone or whether it is due to some other Ca²⁺-dependent regulatory process (e.g., activation of a cyclase or phosphorylation by CaMKII; Wang et al. 2002) is unknown.

NH₂-Terminal Splicing Does Not Substantially Alter the Ca²⁺ Sensitivity of EAG

Examination of genomic data for the eag gene revealed that the NH₂-terminal CaMBD, which is a critical partner of the COOH-terminal site for Ca²⁺-dependent gating (Whicher and MacKinnon 2016), is located at an exonic junction that is alternatively spliced (Attrill et al. 2016, Fig. 1A). Given that CaM is known to bind amphipathic helices, variation at this region is potentially important for the affinity of CaM binding and might explain the published Ca²⁺ insensitivity of the canonical “WT” EAG, which corresponds to the PA splice variant (Drysdale et al. 1991) curated on FlyBase, if PA produced a dysfunctional NH₂-terminal binding domain. The splice site found in PA is also present in the PD and PG proteins, but the PE splice form has a 2-amino acid deletion, making it more like the mammalian EAG1 protein, whereas the PF variant has an additional 7 amino acids inserted into the predicted amphipathic helix. To determine if splice variation at this site substantially alters the Ca²⁺ sensitivity of EAG, we transfected each of the splice forms into HEK-293 cells and assayed their response to changes in [Ca²⁺]_i (Fig. 1E). Neither PE nor PF were more sensitive to Ca²⁺ than the original PA isoform, and all were significantly less sensitive than mEAG1, which was completely inhibited at 500 nM [Ca²⁺]_i. We conclude that either the NH₂-terminal splice variants all display the same low affinity for Ca²⁺/CaM or the functional sensitivity of Drosophila EAG to inhibition by Ca²⁺ is set by low affinity of the COOH-terminal CaMBDs, because it is unchanged by variation in the NH₂-terminal domain.

Modeling a Role for Ca²⁺-Dependent Inhibition of EAG

The biological role of Ca²⁺-dependent inhibition of EAG channels is not easily intuited, because K⁺ channels are usually thought to function to suppress excitability. Indeed, all previous work on Drosophila eag, using mutants that eliminate or reduce EAG currents, are consistent with this idea (starting with Ganetzky and Wu 1983; Wu et al. 1983). EAG channels are thought to contribute to repolarization, and their loss broadens the neuronal action potential, prolongs release at the larval neuromuscular junction (NMJ) in flies, and induces spontaneous depolarization of the presynaptic terminal (Griffith et al. 1994).

To aid in thinking about how Ca²⁺-dependent inhibition of EAG might affect the shape of the action potential, we constructed a single-compartment, conductance-based model of the presynaptic terminal. Data from our HEK cell experiments were used to model EAG, and literature values were used for Na⁺, K⁺, and Ca²⁺ channels. We modeled three situations: WT (EAG with Ca²⁺ sensitivity measured in WT), eag null (no EAG), and CaMBD mutant (WT levels of EAG, but with Ca²⁺ sensitivity as measured from the CaMBD mutant in HEK cells). Figure 2A shows the effects of a 3-ms depolarization on membrane potential. Compared with the WT case, the eag null mutant has a very prolonged and broadened action potential, qualitatively similar to what has been seen in vivo in recordings from animals with reduced amounts of EAG. In contrast, the CaMBD mutant EAG produces a marked narrowing of the action potential, consistent with a failure of Ca²⁺ influx to inhibit the current. Additional metrics for the action potential waveform suggest that the Ca²⁺-dependent inhibition of EAG may serve to broaden spikes (Fig. 2, B–D).

The low sensitivity of EAG to Ca²⁺/CaM inhibition is notable. How EAG would respond in the context of the cell is not clear. Bulk cytoplasmic Ca²⁺ is modulated in the nanomolar to low micromolar range in neurons. The HEK cell results show that at very high levels of intracellular Ca²⁺, the CaMBD mutant EAG channel has a higher conductance than the WT channel (Fig. 1D). The only cytoplasmic domains that have levels of Ca²⁺ (mM) that are this high are near the mouth of open Ca²⁺ channels (Parekh 2008). The affinity of EAG for Ca²⁺/CaM suggests that it would only be inhibited if it were localized to this type of Ca²⁺ channel microdomain in vivo, meaning that regulation may be more complicated in a real neuron.

Construction and Characterization of a CaMBD Mutant at the Endogenous eag Locus

To determine if there were a physiological role for Ca²⁺-dependent inhibition of EAG, we engineered the COOH-terminal CaMBD mutations characterized above into the endogenous eag locus by ends-out homologous recombination (Fig. 3A). This mutant is qualitatively different from previously characterized loss-of-function or null eag mutants in that it does not reduce the EAG K⁺ current; rather, it allows it to persist when Ca²⁺ level is high by blocking its inhibition. Multiple alleles containing the F732S,F735S mutations were recovered. WT strains, made in an identical manner with WT recombination arms, were also generated. Like the mutant alleles, these WT strains contain a residual 76-bp loxP site located in an intron. These strains were used in all experiments as controls because of their similar genetic background.

Biochemical analysis of adult head protein from CaMBD and WT flies by partial purification on CaM-agarose and immunoblotting shows that EAG protein is present in comparable amounts in both mutant and WT control alleles (Fig. 3B, left). Quantitative immunohistochemistry of larval brain neuropil (Fig. 3B, right) confirms this. EAG is normally present at high concentration in neuropil and can be seen in axons and at the NMJ in larvae (see Fig. 1B in Sun et al. 2004 for immunohistochemistry of native EAG), and the CaMBD mutation did not change this distribution (data not shown).

Third Instar NMJs in CaMBD Mutants are Morphologically Normal and Have No Spontaneous Activity

The NMJ of the third instar larva has been extensively used to assay excitatory synaptic structure and function. eag null mutants, with reduced EAG K⁺ conductance, have a characteristic constellation of phenotypes in this preparation that include increases in the number of synaptic boutons (Budnik et al. 1990) and a robust hyperexcitability phenotype in larval motor neurons seen both postsynaptically at isolated NMJs (Drysdale et al. 1991; Ganetzky and Wu 1983; Griffith et al. 1994) and at the soma (Srinivasan et al. 2012). To determine if CaMBD mutants had morphological abnormalities, we stained third instar NMJs with antibodies to HRP and DLG to visualize presynaptic and postsynaptic structures. NMJs from CaMBD and WT strains were indistinguishable (Fig. 4A), and there was no significant difference in bouton number.

Fig. 4.

Characterization of the CaMBD mutant larval neuromuscular junction (NMJ). A: sample images (left) from immunohistochemistry of WT and CaMBD mutant larval neuromuscular junctions (muscles 6/7) with HRP and DLG antibodies to compare morphology of motor neuron boutons. Plot (right) shows number of boutons at the muscle 6/7 NMJs for WT and CaMBD mutants. There is no significant difference in the number of CaMBD mutant boutons compared with WT (P = 0.6, unpaired Student’s t-test). Numbers in parentheses represent number of NMJs from 4 larvae each for WT control and CaMBD mutant. B: sample traces (left) of spontaneous excitatory junctional potentials (EJPs) in WT, CaMBD mutant, and a molecular null of eag recorded in 0.4 mM external Ca²⁺ (eag^ΔFull). Plot (right) shows the mean spontaneous EJP frequencies. The CaMBD mutants are significantly different from the eag full deletion (P = 1.1 × 10⁻⁷, Wilcoxon rank sum test). Numbers in parentheses represent number of cells from 5 WT larvae, 6 CaMBD mutant larvae, and 7 full eag deletion larvae. C: sample traces of stimulated EJPs (left) and plot of mean quantal content in 0.2 mM external Ca²⁺ (right). The CaMBD mutants had a significantly smaller quantal content (P = 0.03, Wilcoxon rank sum test). Numbers in parentheses represent number of cells from 9 larvae for WT and 6 larvae for the CaMBD mutants. D: sample traces of stimulated excitatory junctional currents (EJCs; left) and plot of mean EJC amplitudes recorded in 0.2 mM external Ca²⁺ and normalized to muscle size (right). The mean current density of the CaMBD mutant EJCs were significantly smaller than that of controls (P = 4.7 × 10⁻⁴, unpaired Student’s t-test). Numbers in parentheses represent number of larvae (1 cell recorded per larva). Values are means ± SE. *P < 0.05; **P < 0.001; n.s., not significant.

We also performed current-clamp recordings from muscle 6/7 to ask if the CaMBD mutant was functionally normal. Baseline recordings from CaMBD and WT control animals showed no significant level of spontaneous excitatory junctional potentials (EJPs; Fig. 4B). In contrast, recordings from NMJs of eag^ΔFull, a molecular null mutant, had high levels of spontaneous activity. In experiments in which we evoked release by nerve stimulation in normal saline, we did not see any supernumerary EJPs in the CaMBD mutant (Bronk P, data not shown).

CaMBD Mutant Third Instar Larvae Exhibit Decreases in the Amplitude of Evoked EJPs

The EJPs seen in unstimulated eag null mutants are the result of spontaneous depolarization of the presynaptic nerve terminal and synchronous Ca²⁺-dependent release of many vesicles. To determine if there were changes in spontaneous Ca²⁺-independent release of single vesicles in the CaMBD mutants, we recorded miniature excitatory junctional potentials (mEJPs). Neither the rate nor the amplitude of this class of events was changed in CaMBD animals compared with WT controls (mean mEJP frequency: WT12/8, 1.92 ± 0.21 Hz; CaMBD8/17, 1.46 ± 0.15 Hz, P = 0.09; mean mEJP amplitude: WT12/8, 0.85 ± 0.04 mV; CaMBD8/17, 0.83 ± 0.05 mV, P = 0.8). This indicates that the probability of release for individual vesicles and the quantal postsynaptic response to glutamate are both unaffected by loss of regulation of EAG by Ca²⁺.

We also assayed evoked release by stimulating the motor nerve with a suction pipette and recording activity in the muscle. We saw a significant decrease in the amplitude of stimulated EJPs in the CaMBD mutants and a reduced quantal content (Fig. 4C). EAG is also expressed in larval muscles (Zhong and Wu 1991, 1993), so to make sure that activation of the EAG channels in the postsynaptic muscle did not confound the amplitude of potentials recorded in the muscle, we voltage-clamped the muscle and recorded excitatory junctional currents (EJCs). As shown in Fig. 4D, CaMBD mutants had significantly smaller EJC amplitudes than controls. There was no significant difference in the decay of the CaMBD mutant EJCs compared with WT controls (WT: 10.2 ± 0.5 ms, CaMBD mutant: 10.8 ± 1.8 ms, P = 0.8, unpaired Student's t-test).

CaMBD Domain Mutants Have Reduced Presynaptic Ca²⁺ Influx

The CaMBD mutant’s reduction in quantal content and synaptic currents is consistent with a gain of EAG function (i.e., more K⁺ current) when Ca²⁺/CaM is not able to inhibit EAG currents. As shown in Fig. 1, C and D, the F732S,F735S mutation leads to larger EAG currents when internal Ca²⁺ is at high concentrations. This could cause more effective repolarization of activated presynaptic terminals and an early termination of Ca²⁺ influx, which would be predicted to decrease neurotransmitter release. To directly test the effects of the CaMBD mutation on Ca²⁺ influx, we expressed GCaMP6, a genetically encoded Ca²⁺ indicator (Chen et al. 2013), in olfactory projection neurons. These neurons have well-separated axonal and dendritic processes that allow clear visualization of the presynaptic terminals in the lateral horn. These neurons can be directly stimulated by applying current to the antennal lobes with a bipolar stimulating electrode.

Figure 5 shows GCaMP responses in WT and CaMBD mutant terminals with different levels of stimulation. Ca²⁺ influx increases with stimulation strength, but CaMBD mutant sustained levels are lower than WT at all voltages. Interestingly, the form of the WT Ca²⁺ response changes at high stimulation levels. The peak appears to plateau, and a shoulder appears that increases the width of the response. These data are consistent with the effect of the CaMBD mutant having more repolarizing K⁺ current than WT and terminating the Ca²⁺ influx from voltage-gated Ca²⁺ channels more effectively.

Fig. 5.

CaMBD mutants have reduced evoked presynaptic Ca²⁺ influx. A: mean ΔF/F (%) traces from imaging of GCaMP6 responses in the lateral horn axon terminals of GH146-GAL4+ neurons from adult brains before, during, and after electrical stimulation of the antennal lobe. Shaded areas represent the 25th/75th percentile bounds. Arrow indicates time of stimulus (20 × 1 ms, 100 Hz). B: bar graphs of mean peak change in ΔF/F (top) and sustained level of ΔF/F (bottom) for each stimulus amplitude. With a 7-V stimulus, the mean peak change was significantly lower in CaMBD mutants compared with controls (P = 0.03), and the sustained level was significantly lower in CaMBD mutants at 7 (P = 0.004) and 9 V (P = 0.001; unpaired Student’s t-test with Bonferroni correction for multiple comparisons). Numbers in parentheses represent number of brains. Values are means ± SE. *P < 0.05.

A Multicompartment Model of the Presynaptic Terminal Recapitulates Changes in the Width of Action Potential and the Duration of Ca²⁺ Influx Seen in the CaMBD Mutant

The fact that Ca²⁺ influx appears to be blunted in the CaMBD mutant supports the idea that this mutation produces more repolarizing K⁺ current. However, because the sensitivity of Drosophila EAG to Ca²⁺ is very low, it is possible that this only matters if EAG is present close to areas of high local Ca²⁺ concentration. In presynaptic terminals, the voltage-gated Ca²⁺ channels that control neurotransmitter release are highly localized to the active zone, a molecular complex where vesicle fusion occurs (Kawasaki et al. 2004). In contrast, Drosophila EAG immunohistochemistry (Gillespie and Hodge 2013; Sun et al. 2004) suggests that EAG is widely distributed, including in areas where it would never see Ca²⁺ levels high enough to cause inhibition. To determine if our electrophysiological and imaging results were consistent with the presence of two distinct pools of EAG, one that could be inhibited by Ca²⁺ and a second that was insensitive even in WT animals, we built a model of the presynaptic terminal that contained pools of EAG that were both inside and outside of Ca²⁺ microdomains (Fig. 6). Using parameters obtained from our HEK cell experiments, we simulated the invasion of an action potential into the presynaptic terminal and studied its effects in regions corresponding to the two pools of EAG. Consistent with our results at the NMJ and in the adult brain, we found that action potentials were narrower (Fig. 6B), and Ca²⁺ influx smaller (Fig. 6D), in CaMBD mutants compared with WT. Because EAG channels outside Ca²⁺ microdomains were inhibited to a smaller degree, membrane repolarization occurred more quickly compared with that inside Ca²⁺ microdomains (Fig. 6C).

Loss of Ca²⁺-Dependent Inhibition of EAG Is Associated with Increased Somatic Excitability

Although the decrease in presynaptic release at the NMJ appears to be due to a decrease in excitability and Ca²⁺ influx, direct recordings from terminals are difficult, so we carried out whole cell patch clamp of identified MNISN-Is neurons in the ventral ganglion to more closely examine the relationship between membrane potential and firing in the CaMBD mutant. Figure 7A shows representative traces of CaMBD and WT control neurons with increasing current injection. CaMBD neurons fire earlier and at a higher rate than that of WT controls. The complete spike frequency vs. stimulus curves (F-I) are shown in Fig. 7B. These data demonstrate that the CaMBD mutants are somatically hyperexcitable.

Fig. 7.

Motor neurons show somatic hyperexcitability. A: sample traces of whole cell patch current-clamp recordings from type Is larval motor neuron cell bodies at selected current stimulus steps (80 and 120 pA) in nominally Ca²⁺-free (left) or 1.8 mM external Ca²⁺ (right). B: spike frequency vs. stimulus curves (F/I) for nominally Ca²⁺-free (left) and 1.8 mM external Ca²⁺ (right). There is no significant difference in the mean spike frequencies with or without Ca²⁺ (P = 0.9, 3-factor ANOVA). The CaMBD mutant mean spike frequencies were significantly higher than controls (no Ca²⁺: P = 3.1 × 10⁻⁵; 1.8 mM Ca²⁺: P = 0.03, 2-factor ANOVA). Numbers in parentheses represent number of motor neurons recorded. Plotted values are means ± SE. *P < 0.05; **P < 0.001. All cells recorded in the 1.8 mM external Ca²⁺ condition were first recorded in the nominally Ca²⁺-free condition.

Recordings were performed both in nominally Ca²⁺-free external solution and in 1.8 mM external Ca²⁺ solution. Interestingly, there was no difference with Ca²⁺ as a main effect between the two sets of F-I curves (3-way ANOVA, P = 0.9). This indicates that it is unlikely that the Ca²⁺-dependent regulation of EAG normally plays a role in somatic excitability. This could mean that either EAG is not present in the somatodendritic compartment or that it is located too far from sites of Ca²⁺ influx to be inhibited. Given previous literature on eag null mutants (Srinivasan et al. 2012), it is more likely that this is an issue of differential localization.

The data from the soma present a significant contrast to those obtained at the NMJ, where there appeared to be a pronounced hypoexcitability. Given that these results are from different cellular compartments of the same motor neurons, it seems likely that there is compartment-specific homeostatic compensation occurring that increases drive to motor neuron terminals. The lack of effect of external Ca²⁺ suggests that the alterations in excitability do not involve acutely Ca²⁺-dependent processes. The increase in excitability may act to partially compensate for the decrease in evoked amplitude at the motor neuron terminals.

CaMBD Mutants Have Memory Defects

The demonstration of a change in somatic excitability aimed at compensating for poor presynaptic release suggested that homeostatic changes might be able to ameliorate the effects of this mutation at the circuit level. To test this, we asked if associative memory, a complex behavior with a well-described circuitry, was disrupted in the CaMBD mutant. Adult flies were conditioned by presenting one odor in the presence of sugar, an appetitive stimulus, and a different odor with no sugar. WT flies, when asked to choose between the two odors either immediately (short-term memory) or 24 h after training (long-term memory), will choose the paired odor significantly above chance. CaMBD mutants have impairment in both types of memory (Fig. 8A). Input behaviors, sugar preference and odor avoidance (Fig. 8B), are not impaired. If anything, the CaMBD mutants were better than the WT control lines at avoidance of octanol. The level of short-term memory impairment was similar to that seen with eag null mutants, which interestingly also have enhanced octanol avoidance (Liu C, data not shown). Although it is not clear if the behavioral effects we see are due to the presynaptic or somatic phenotypes of this mutant, these data demonstrate that the dysregulation of excitability caused by the loss of Ca²⁺ sensitivity of the EAG channel has widespread effects on neuronal circuits and disrupts complex behaviors.

Fig. 8.

Adult behavioral phenotypes of control and CaMBD mutant adults. A: plot of the performance index for 2-min and 24-h memory of CaMBD mutant 17.4.1 (CaMBD17) and WT control 12.6.1 (WT12) adults in a white⁺ genetic background. The CaMBD mutants had a significantly lower performance index for appetitive conditioning (P = 0.007 for both 2-min and 24-h tests, 2-factor ANOVA with Sidak’s multiple comparison test). Numbers in parentheses represent number of groups tested (see materials and methods). CaMBD mutant 8.8.1 showed a similar 2-min memory deficit, whereas 24-h memory was not assayed (Liu C, data not shown). B: quantification of sugar preference (P = 0.4) and avoidance of 4-methylcyclohexanol (MCH; P = 0.08) and 3-octanol (OCT; P = 0.0002). Values are means ± SE. *P < 0.05; **P < 0.001 (comparisons done with unpaired Student’s t-test).

DISCUSSION

An obvious role of protein localization is to limit the action of a molecule to a particular cell compartment; e.g., an anchored K⁺ channel will only affect the membrane potential of a small area surrounding it; a scaffolded kinase will preferentially phosphorylate substrates in the same complex. Less obvious consequences of binding to a scaffold are alterations of the intrinsic activities of the complexed molecules and generation of novel complex-specific effects on neuronal processes. A well-known example of this is the fusion of vesicles carrying neurotransmitters. Cytosolic bulk Ca²⁺ in neurons is typically regulated in the 10 nM to 10 μM range, and only cytoplasmic Ca²⁺ microdomains close to a voltage-gated Ca²⁺ channel (VGCC) ever see Ca²⁺ at millimolar concentrations. The SNARE (soluble N-ethylmaleimide-sensitive factor attachment protein receptor) machinery has very low Ca²⁺ affinity and only functions when vesicles are docked to a complex with VGCCs (Stanley 2016). The inhibition of Drosophila EAG channels by Ca²⁺ is likely to be facilitated by a similar type of interaction. In this study we provide the first insights into its role by introducing mutations into the endogenous eag locus that block regulation by Ca²⁺.

Drosophila EAG is Inhibited by Levels of Ca²⁺ Only Seen in VGCC Microdomains

The fly EAG channel had been thought to be an outlier with regard to regulation by Ca²⁺. In this study we show that it is regulated in the same manner as mammalian EAG1 (Fig. 1). The major difference between fly and mammalian EAGs appears to be sensitivity. Inhibition of fly EAG is only see at high micromolar to millimolar Ca²⁺ levels in transfected cells. It is important to note, however, that we have not measured the Ca²⁺ sensitivity in vivo. Although the most parsimonious expectation is that EAG Ca²⁺ sensitivity is low in Drosophila neurons, it remains possible that some fly-specific extrinsic factor (not present in mammalian or amphibian cells) could serve to increase it in the native context. Nonetheless, our data show a striking difference between the regulation of mammalian EAG1, which is fully inhibited at nanomolar levels of Ca²⁺, and the fly EAG, which retains activity even at millimolar Ca²⁺ levels. How the difference in sensitivity is achieved in the fly protein is unknown, but we present evidence that the efficacy of regulation of EAG channels by Ca²⁺/CaM is likely controlled by the COOH-terminal CaMBDs, because alternative splicing in the fly gene at the site of the NH₂-terminal CaMBD does not significantly modulate apparent affinity. This Ca²⁺-dependent inhibition of EAG channels is a robust and evolutionarily conserved feature of the channel family that has so far been without demonstrated function in central neurons.

Ca²⁺-Dependent Inhibition of EAG May Function to Tune Presynaptic Release

EAG channels are located in presynaptic terminals in both mammals and flies (Gillespie and Hodge 2013; Mortensen et al. 2015) and characterization of knockouts suggest that EAG participates in repolarization after action potential invasion and controls action potential width (Wu et al. 1983). These loss-of-function studies make it clear that repolarizing K⁺ current is important for presynaptic function and that the channel has a similar overall role across species. The role of Ca²⁺-dependent inhibition of EAG currents is not as well understood. The finding that evoked release was decreased in the EAG CaMBD mutant in the face of normal spontaneous release dynamics and quantal size argued that presynaptic EAG in vivo is exposed to very high levels of Ca²⁺ during action potential-mediated neurotransmitter release, consistent with localization at active zones. The reduced neurotransmitter release suggests that the Ca²⁺-dependent inhibition of EAG is used to locally amplify the effects of depolarization at the active zone by decreasing the repolarizing current in that domain.

In mammals it has been speculated that the inhibition of EAG1 by Ca²⁺/CaM serves as a feedback mechanism to reduce the electrochemical driving force for Ca²⁺ influx (Schönherr et al. 2000). The idea is that EAG channels, if colocalized with VGCCs, could control the local membrane potential after an action potential during the time that the Ca²⁺ channels are open. Inhibition of EAG by Ca²⁺ would allow the membrane potential to stay close the Ca²⁺ reversal potential and blunt the electrochemical drive for Ca²⁺ influx through the open VGCC. Our data (Figs. 4 and 5) would argue against this hypothesis for the presynaptic terminal at the larval NMJ, because loss of regulation by Ca²⁺ decreases presynaptic release and evoked Ca²⁺ influx. Whether this might be a viable mechanism for regulation of Ca²⁺ in dendrites will require further investigation.

Another possible role for Ca²⁺-dependent inhibition might be maintaining neurotransmitter release during repetitive firing, essentially providing a way to turn down local repolarization to maintain the ability to catalyze vesicle fusion. Our data are consistent with this type of role. Future studies of the dynamics of EAG inhibition and its dependence of action potential pattern might provide clues to this aspect of EAG function.

Compartment-Specific Compensation?

The fact that presynaptic release at the NMJ and Ca²⁺ responses in central axons are reduced is consistent with the gain-of-function nature of the CaMBD mutation, which allows the EAG K⁺ current to be maintained during neuronal activation. This suggests that there is little local homeostatic change in axon terminals when the ability of Ca²⁺ to inhibit EAG currents is lost. This lack of compensation is especially interesting in light of the ability of the NMJ to quickly compensate for toxin-mediated decreases in EJP amplitude in eag null mutants (Bergquist et al. 2010) and to chronically compensate for EJP reductions, e.g., in glutamate receptor mutants (Haghighi et al. 2003) or when muscle excitability is dampened (Paradis et al. 2001). One possible interpretation of this is that EAG itself is part of the homeostatic machinery that would be engaged in this type of neuronal insult and that its regulation by Ca²⁺ is required for compensation. Perhaps consistent with this, we saw a significant transcriptional induction of eag mRNA in these mutants (Bronk P, data not shown). Another possibility is that the increase in EAG current itself occludes the effects of the normal homeostatic compensation.

Whereas the phenotype of the nerve terminal appears relatively straightforward, somatic recordings demonstrated a surprising increase in excitability. This enhanced excitability is not directly reconcilable with the nature of the eag CaMBD mutation itself, because it would be expected to result in suppression of excitability due to enhanced K⁺ current. There are at least three possible scenarios that might explain this observation. One is that the loss of regulation of EAG triggers a compensation in the dendritic/somatic compartment, but this compensation “overshoots;” i.e., the expression of excitability-promoting channels/transporters is too high. A second possibility is that the motor neuron’s somatic/dendritic increase in excitability is a homeostatic response to the decrease in release at the NMJ. Because the normal mechanisms of compensation (locally increased presynaptic release) are not engaged, the neuron may scale up its responses to inputs to allow more transmitter to be released via increased numbers of action potentials. This would imply that there are secondary tiers of compensation and that there can be interactions between homeostatic programs similar to what has been reported when neurons receive conflicting perturbations (Bergquist et al. 2010). These possibilities are speculative but in line with the robust homeostasis seen with other manipulations of this preparation. A third possibility is that at the action potential initiation zone, increased EAG current can act to enhance fast firing by, for example, blunting Na⁺ channel inactivation.

Why Is Regulation by Ca²⁺ Different in Mammals and Insects?

The sequence conservation of both NH₂- and COOH-terminal CaMBDs from insects to mammals is striking. Why would their apparent affinities be orders of magnitude apart? The difference in sensitivity might be driven by how subcellular complexes are constituted and the relative size of synaptic compartments in the two types of organisms. The Ca²⁺ sensitivity required to carry out a function depends on the localization of the effector with respect to the Ca²⁺ source and the nature of local Ca²⁺ buffering. Channels located in very close proximity to VGCCs do not require high Ca²⁺ sensitivity, because they are exposed to very high (mM) local Ca²⁺ concentrations (Tadross et al. 2013). Conversely, EAG channels that are inhibited with high affinity could be affected by Ca²⁺ distant from the mouth of the VGCC. For fly neurons whose central processes are very small, high-affinity EAG inhibition might completely abolish all EAG current and render neurons hyperexcitable, much like the case for eag null animals. The Ca²⁺-dependent inhibition of EAG could therefore contribute to maintaining presynaptic activity with repetitive stimulation in both species but be tuned differently due to differences in the location of the channels, buffering capacity of the neurons, or the size of the cell and synapse. A better understanding of the localizations of VGCCs and EAG channels will be required to fully understand the role Ca²⁺-dependent inhibition of EAG family channels.

Localization of Ion Channels to Specific Subcellular Domains is Critical for Their Regulation

In neurons, ion channel-containing signaling complexes are a key class of protein assemblage. The colocalization of proteins to the same complex can strongly influence the kinetics and even the energetics of their activities and produce unforeseen interactions. Most of a neuron’s important biochemistry is not well predicted by simply considering the equilibrium state; Ca²⁺ microdomains are an excellent example of this principle. In this study, we present data demonstrating that blocking the regulation of EAG by Ca²⁺ can disrupt the ability to form memory (Fig. 8). This argues that relatively subtle changes in the regulation of excitability can have profound effects. There are an increasing number of examples of proteins whose function requires their localization to a particular microdomain (Averaimo et al. 2016; Oheim et al. 2018; Sanchez-Alonso et al. 2016). To understand how neurons work, we must understand how protein complexes shape signaling, and the fly EAG channel will provide a useful model for this endeavor.
