1. Introduction
Bite mark analysis plays a vital role in forensic investigations.1 It is a mark created by teeth, either alone or in combination with other oral structures.2,3 Bite marks are characteristic of an individual and these are different even in identical twins.4 This inimitability of an individual's dentition forms the scientific basis for bite mark identification which is used to match a bite mark to suspected perpetrators.
Bite marks are mostly seen in sexual assault, murder and child abuse at the crime site. Bite mark evidence may be found on the body of a living person or a corpse or on objects.5 It can occur on any part of the body of a victim but most commonly seen on face, neck, arm, breast, legs, buttocks, waist and female genitals.6 Bite marks can also be seen on other objects, including food stuff like cheese, chocolate, apples or chewing gums, assessment of which can be a major factor leading to conviction of the accused.
Bite marks have a distinct double horseshoe shape pattern showing the anterior teeth of the upper & lower jaw.7 These marks reveal the peculiar features of individual dentition such as tooth spacing or ridges on the biting surfaces, restorations, as well as missing, broken, chipped, or distorted teeth facilitating identification of a particular individual.8
Various methods have been devised for recording of the bite marks, which can be categorized into direct and indirect method. Direct technique involves the use of a model of the suspect's teeth which is then compared to life sized photographs of the bite mark, while in indirect technique dental exemplars with the duplicate of the biting surface of teeth is compared to the injury pattern either manually or using software analysis. The procedure for comparing bite marks is well established and includes measurement and analysis of the pattern, size, and shape of teeth against similar characteristics observed in an injury on skin or a mark left on an object.9,10 Several methods exist to produce these overlays like hand tracing from dental study casts, wax impression technique, photographic method, radiographic wax impression technique, photocopying and computer assisted overlay generation method.11, 12, 13 Other methods use X-ray film overlays created from radio-opaque material applied to the suspect's wax bite. Recently, some authors have reported improved methods for comparative analysis by using computer-based techniques to produce bite mark comparison overlays.14,15
Bi-dimensional methods are more commonly used in bite mark analysis. The bi-dimensional (2D) registration of 3Dimensional (3D) structures leads to loss of information. The three factors of the 3-dimensionality involved when a person bites are the curvature of the object, the shape of the biting dentition and the depth of the penetration. Cone Beam Computed Tomography (CBCT) is specially developed for the imaging of the structures related to dentistry and uses relatively small equipment with lower radiation doses at comparatively lower than a conventional CT.16 The images are obtained in series of DICOM files (Digital Imaging and Communication in Medicine), that can be analyzed through several different software suites17. The analysis of bite-marks by an expert is often delayed, even with strict adherence to the guidelines by the ABFO (The American Board of Forensic Odontology). The advantage of using 3D-CBCT over the conventional technique for bite registration is the minimal handling of the object, in turn minimal changes in the original bite pattern found at the crime scene.18 It avoids the problems resulting from the 2 dimensional (2D) recording process, simplifying the guidelines and reducing errors. Also, it is easier to store and retrieve the data in a 3D computed imaging.18Also, 3D system minimizes angular distortions and hence has a potential to create a robust forensic evidence.17 Thus, CBCT can have an edge over the conventional recording of the bite pattern. Also, the present research is unique as no such study has been conducted so far where mesio-distal dimensions of anterior teeth on human bite marks scan were compared with the mesio-distal dimensions of anterior teeth (at incisal edge) on scans of the dental casts of the individuals.
2. Aim and objective
The aim of this paper was to evaluate ease of using Cone Beam Computed Tomography (CBCT) in studying the bite marks by analyzing the surface and interior of the bitten objects. In this study, CBCT is applied to the analysis of bite marks in foodstuffs, which may be found in a forensic case scenario.
3. Materials and methods
3.1. Selection of the participants and ethical statement
100 healthy subjects (50 males and 50 females) in the age group of 18–52 years were randomly selected from the out-patient department of the hospital. Individuals having all anterior teeth were included in the study while individuals with missing anterior teeth, chronic periodontitis, mobile anterior teeth and with wasting disease of teeth such as severe attrition of anterior teeth were excluded from the study. All subjects were informed about the study in their understandable language and included in study after taking written consent.
3.2. Bite mark registration and study cast preparation
The selected individuals were asked to bite on apple. Alginate impressions of maxillary and mandibular anterior teeth of every individual were taken. The alginate impression were disinfected by rinsing the impression with gently running water followed by immersion of impression in 5.25% sodium hypochlorite (diluted to 1:10) for less than 10 min. Finally the impressions were thoroughly rinsed with water and casts were poured.
3.3. CBCT scanning
The bitten apples were stored in a refrigerator in a sealed plastic bag within an hour and then were subjected to scan using Carestream CS 9300 CBCT machine. All the images are captured with field of view (FOV) of 11 × 17 cm, a voxel size of 90 and an exposure time of 20 s at 80 kV and 5 mA. The volumetric data were collected. Maxillary and mandibular casts were also scanned individually with same parameters as in bitten apple and volumetric data were collected.
3.4. Construction of 3D images and measurement of mesio-distal dimension of teeth
The volumetric data of both bitten apple and casts were transferred as DICOM file to a computer with Dolphin Imaging 11.9 Premium Software. The 3D images of apple were constructed (Fig. 1) and bite marks of teeth on apple were analyzed and the mesio-distal dimensions of all anterior teeth bite mark were measured and data were collected. The 3D images of both maxillary and mandibular cast were also reconstructed (Fig. 2) and mesio-distal dimension (at incisal edge) of all anterior teeth were measured and data were collected.
Fig. 1.
3D image of apple with bite marks of teeth.

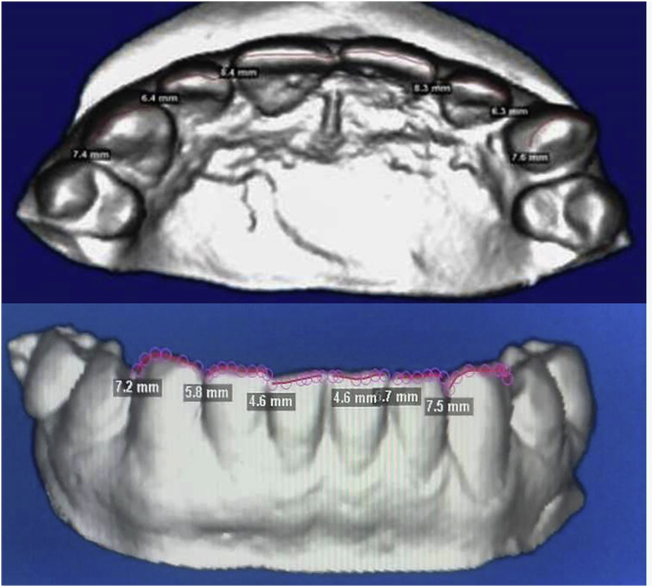

Fig. 2.
3D images of maxillary and mandibular cast.
3.5. Statistical analysis
Categorical variables were presented as number and percentage (%) and continuous variables were presented as mean ± SD. Quantitative variables was compared using unpaired t-test between two groups. P value of <0.05 was considered statistically significant. The data was entered in Micro Soft Excel spreadsheet and analysis was done using Statistical Package for Social Sciences (SPSS) version 21.0.
4. Results
Mesio-distal dimensions at 3 D images of upper and lower anterior teeth on dental cast was statistically significant (p < 0.05) for all anterior teeth in males and females except for left and right mandibular lateral incisor teeth [Table 1]. Similarly, mesio-distal dimensions of bite marks of upper and lower anterior teeth on 3 D images of apple was also found statistically significant (p < 0.05) for all anterior teeth of both genders except for mandibular left lateral incisor only [Table 2].
Table 1.
Gender wise comparison of mesiodistal dimension of anterior teeth on cast.
| Sex | N | Mean | Std. Deviation | P value | |
|---|---|---|---|---|---|
| CAST MAXILLA 11 | Male | 50 | 8.4560 | .38235 | <0.001* |
| Female | 50 | 7.8040 | .73595 | ||
| CAST MAXILLA 12 | Male | 50 | 7.1640 | .38638 | <0.001* |
| Female | 50 | 6.8000 | .58484 | ||
| CAST MAXILLA 13 | Male | 50 | 7.6760 | .59335 | 0.017* |
| Female | 50 | 7.3240 | .83166 | ||
| CAST MAXILLA 21 | Male | 50 | 8.4400 | .35225 | <0.001* |
| Female | 50 | 7.8600 | .64839 | ||
| CAST MAXILLA 22 | Male | 50 | 7.1360 | .38532 | 0.001* |
| Female | 50 | 6.7880 | .59544 | ||
| CAST MAXILLA 23 | Male | 50 | 7.6600 | .55032 | 0.045* |
| Female | 50 | 7.3840 | .78698 | ||
| CAST MAND 31 | Male | 50 | 5.5360 | .35557 | 0.008* |
| Female | 50 | 5.2960 | .51228 | ||
| CAST MAND 32 | Male | 50 | 6.0840 | .44692 | 0.146 |
| Female | 50 | 5.9400 | .53223 | ||
| CAST MAND 33 | Male | 50 | 6.9320 | .39354 | 0.001* |
| Female | 50 | 6.6600 | .43331 | ||
| CAST MAND 41 | Male | 50 | 5.5320 | .29516 | 0.007* |
| Female | 50 | 5.2960 | .52643 | ||
| CAST MAND 42 | Male | 50 | 6.0840 | .40575 | 0.087 |
| Female | 50 | 5.9160 | .55452 | ||
| CAST MAND 43 | Male | 50 | 6.9080 | .35447 | 0.001* |
| Female | 50 | 6.6400 | .41008 |
Table 2.
Gender wise comparison of mesiodistal dimension of anterior teeth on bitten apple.
| Sex | N | Mean | Std. Deviation | P value | |
|---|---|---|---|---|---|
| APPLE MAX 11 | Male | 50 | 8.4120 | .53781 | <0.001* |
| Female | 50 | 7.8040 | .97457 | ||
| APPLE MAX 12 | Male | 50 | 7.0680 | .37112 | 0.006* |
| Female | 50 | 6.7120 | .80828 | ||
| APPLE MAX 13 | Male | 50 | 7.8360 | .37020 | 0.003* |
| Female | 50 | 7.4280 | .85644 | ||
| APPLE MAX 21 | Male | 50 | 8.4360 | .51021 | <0.001* |
| Female | 50 | 7.7680 | 1.03163 | ||
| APPLE MAX 22 | Male | 50 | 7.0840 | .35419 | 0.004* |
| Female | 50 | 6.7200 | .78921 | ||
| APPLE MAX 23 | Male | 50 | 7.7920 | .41396 | 0.037* |
| Female | 50 | 7.5160 | .82644 | ||
| APPLE MAND 31 | Male | 50 | 5.5120 | .32741 | 0.008* |
| Female | 50 | 5.2840 | .49953 | ||
| APPLE MAND 32 | Male | 50 | 6.0640 | .38320 | 0.150 |
| Female | 50 | 5.9440 | .44178 | ||
| APPLE MAND 33 | Male | 50 | 6.9000 | .28284 | 0.037* |
| Female | 50 | 6.7440 | .43900 | ||
| APPLE MAND 41 | Male | 50 | 5.5000 | .27255 | 0.016* |
| Female | 50 | 5.2960 | .52097 | ||
| APPLE MAND 42 | Male | 50 | 6.0880 | .31728 | 0.033* |
| Female | 50 | 5.9200 | .44721 | ||
| APPLE MAND 43 | Male | 50 | 6.9240 | .24458 | 0.013* |
| Female | 50 | 6.7560 | .40212 |
On comparing the mesio-distal dimension of individual anterior teeth of cast on 3 D images with mesio-distal dimension on 3 D images of bite mark at apple, only significant value found for the mandibular right canine [Table 3]. Our results reveal that teeth can transfer their unique features to the bitten surface. Identifying characteristics in the bite marks like the shape of the arch, diastema or teeth misalignment could be recognized.
Table 3.
Paired comparison of cast and bitten apple.
| Mean | N | Std. Deviation | P value | ||
|---|---|---|---|---|---|
| Pair 1 | CAST MAXILLA 11 | 8.1300 | 100 | .66916 | 0.774 |
| APPLE MAX 11 | 8.1080 | 100 | .84060 | ||
| Pair 2 | CAST MAXILLA 12 | 6.9820 | 100 | .52597 | 0.156 |
| APPLE MAX 12 | 6.8900 | 100 | .65080 | ||
| Pair 3 | CAST MAXILLA 13 | 7.5000 | 100 | .74019 | 0.113 |
| APPLE MAX 13 | 7.6320 | 100 | .68768 | ||
| Pair 4 | CAST MAXILLA 21 | 8.1500 | 100 | .59535 | 0.550 |
| APPLE MAX 21 | 8.1020 | 100 | .87652 | ||
| Pair 5 | CAST MAXILLA 22 | 6.9620 | 100 | .52873 | 0.372 |
| APPLE MAX 22 | 6.9020 | 100 | .63548 | ||
| Pair 6 | CAST MAXILLA 23 | 7.5220 | 100 | .68969 | 0.069 |
| APPLE MAX 23 | 7.6540 | 100 | .66491 | ||
| Pair 7 | CAST MAND 31 | 5.4160 | 100 | .45499 | 0.193 |
| APPLE MAND 31 | 5.3980 | 100 | .43554 | ||
| Pair 8 | CAST MAND 32 | 6.0120 | 100 | .49427 | 0.651 |
| APPLE MAND 32 | 6.0040 | 100 | .41583 | ||
| Pair 9 | CAST MAND 33 | 6.7960 | 100 | .43390 | 0.325 |
| APPLE MAND 33 | 6.8220 | 100 | .37567 | ||
| Pair 10 | CAST MAND 41 | 5.4140 | 100 | .44085 | 0.245 |
| APPLE MAND 41 | 5.3980 | 100 | .42616 | ||
| Pair 11 | CAST MAND 42 | 6.0000 | 100 | .49072 | 0.861 |
| APPLE MAND 42 | 6.0040 | 100 | .39490 | ||
| Pair 12 | CAST MAND 43 | 6.7740 | 100 | .40443 | 0.013* |
| APPLE MAND 43 | 6.8400 | 100 | .34171 |
5. Discussion
3D Cone Beam Computed Tomography (CBCT) has revolutionized the field of dentistry in every facet and Forensic Odontology is no exemption. CBCT imaging produces images with sub millimetre isotropic voxels resolution which gives images of 1:1 ratio.19 This property is valuable in achieving precise measurement of the structures. Hence CBCT was used to measure the dental indentations on the food stuff in present study. Marques J et al. used CBCT for analysis of relative density of bite marks in different foodstuff using Hounsfield unit as internal tool.20 Only few studies has been done on CBCT base bite mark analysis. Present study was planned to evaluate the ease in utilizing CBCT in indirect method of recording bite marks on food stuff. In our knowledge this is the first study where mesio-distal dimensions of anterior teeth on human bite marks scan were compared with the mesio-distal dimensions of anterior teeth (at incisal edge) on scans of the dental casts of the individuals. One of the limitations of CBCT is its poor soft tissue contrast, hence Dolphin 3D imaging software (Chatsworth, California) was used for measurement of the dental marks on the bitten apple. Apple was selected over other food stuff items as apple is commonly available fruit in most houses and we can get three dimensional impression of the bite also.
While comparing mesio-distal dimensions we found that the comparison of mesio-distal dimension of anterior teeth on the bitten apple and mesio-distal dimension of teeth on the cast of that individuals were statistically not significant (p > 0.05) except in case of right mandibular canine teeth. This discrepancy could be avoided by controlling the temperature at which bitten apple is stored before scanning through CBCT as in the present study. This is in consistent with findings of Rai et al.21 in which bite marks in apple demonstrated large secondary distortions.
6. Conclusion
Hence we conclude that the type and consistency of food stuff plays an important role in recording of the measurements of bite marks and inculcation of CBCT in bite mark analysis. CBCT has added advantage over conventional methods due to minimal distortion, better reproduction of the bite marks and permanence of records. Further studies should be called upon using 3D imaging techniques for precise measurements in bite mark analysis.
