State-of-the-art of microbubble-assisted blood-brain barrier disruption

Abstract

Focused ultrasound with microbubbles promises unprecedented advantages for blood-brain barrier disruption over existing intracranial drug delivery methods, as well as a significant number of tunable parameters that affect its safety and efficacy. This review provides an engineering perspective on the state-of-the-art of the technology, considering the mechanism of action, effects of microbubble properties, ultrasound parameters and physiological variables, as well as safety and potential therapeutic applications. Emphasis is placed on the use of unified parameters, such as microbubble volume dose (MVD) and ultrasound mechanical index, to optimize the procedure and establish safety limits. It is concluded that, while efficacy has been demonstrated in several animal models with a wide range of payloads, acceptable measures of safety should be adopted to accelerate collaboration and improve understanding and clinical relevance.

Introduction

In 2005, the World Health Organization reported that the global burden of neurological diseases exceeded that of cancer, HIV and heart disease ¹. The five primary categories of neuropathologies, ordered by frequency, are cerebrovascular diseases (stroke), neurodegenerative disorders (i.e., Parkinson's, Alzheimer's disease), neuroinfections (meningitis, viral infections), brain cancers (glioblastoma, astrocytoma and glioma) ²; and injuries of the central nervous system (CNS), such as traumatic brain injury ³. Current examples of invasive drug delivery to the CNS include convection-enhanced delivery (CED, intracranial injection), intracerebral implants (Gliadel® BCNU chemotherapeutic wafers), as well as intraventricular, intrathecal and interstitial delivery (e.g., see needle track in Figure 1A). In addition to contributing to extensive recovery periods and cost, invasive procedures pose safety and post-operation quality of life concerns for patients ⁴.

Figure 1.

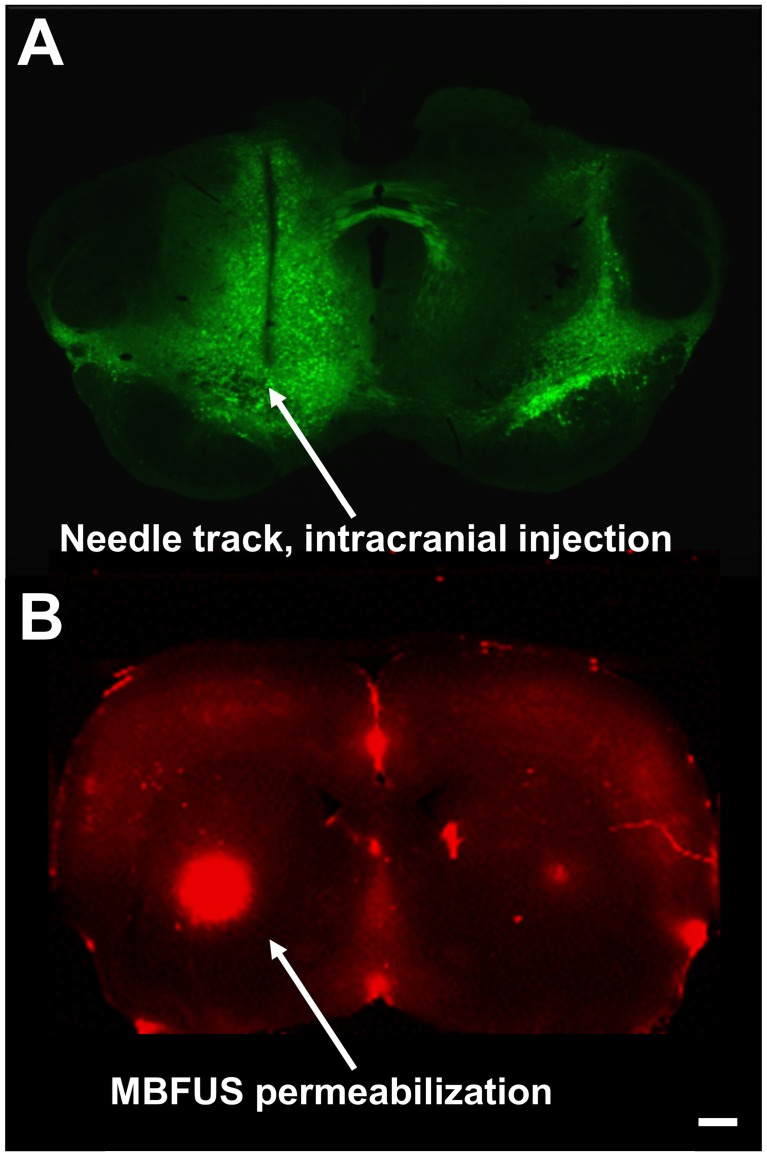

Fluorescence microscopy image comparisons of (A) a coronal slice of AAV-EGFP-injected mouse brain with significant needle-track scarring and diffuse area of effect versus (B) MB+FUS BBBD in rat brain, demonstrating minimally invasive targeted delivery of systemically injected Evans blue (scale bar is 100 µm).

The brain is one of the most highly vascularized organs in the body, with a capillary density in excess of four times the average found in the human body ⁵. Virtually every novel and existing viral and non-viral therapeutic agent targeting the CNS benefits from the ability to pass through the blood-brain barrier (BBB), the primary obstacle to efficient intracerebral delivery of systemically injected therapeutic agents. The BBB primarily comprises brain endothelial cells, basement membrane, pericytes and astrocytes, which interact to form tight-junctions that block the transport of hydrophilic, non-lipophilic, highly charged or large (>400 Da) molecules ⁶. The presence of xenobiotic transporters in BBB-specific endothelium further impedes intracerebral drug localization, and accelerates the clearance of drugs already in the CNS to the bloodstream or cerebrospinal fluid ^7,8. The BBB therefore presents a mechanical and chemical obstacle to pathogens and therapeutic agents alike, inducing suboptimal dose-response and precluding precise drug localization or biomarker targeting of brain parenchymal tissue. Improved trans-BBB drug delivery methods are not only highly desirable, but also necessary to enable cost-effective application of many neuro-therapeutic agents.

Blood-brain-barrier disruption (BBBD) aims to compromise transiently the BBB using chemical or mechanical means to allow the passage of circulating therapeutic molecules and biomarkers into, and less frequently, out of the parenchyma (Table 1). Chemical approaches to BBBD, such as detergents and receptor-based delivery methods, overcome some of the gross trauma presented by invasive methods, but are faced with the issues of toxicity, minimal control over BBB permeabilization and the certainty of off-target effects. Intra-arterial mannitol infusions, for example, increase cerebral blood flow and improve BBB permeability, but have resulted in 10% mortality due to cerebral edema in studies involving brain cancer therapy and the emergent therapeutic agent, boronophenylalanine ⁹. Viral, colloidal, immune and ligand-receptor based delivery schemes aim to circumvent damage done to vascular tissue, but such vehicles are similarly limited in their specificity, affinity and overall ability to deliver sufficient quantities of therapeutic agent ¹⁰.

Table 1.

Methods of drug delivery to the central nervous system.

		Example	Limitations
Invasive	Interstitial	Direct injection of chemotherapeutic agents into brain tumors, convection-enhanced delivery	Safety—repeated procedures are not well accepted. Scarring evident from needle/catheter
	Intraventricular	Ommaya reservoir
	Implantables	Gliadel BCNU wafers	Limited drug distribution
Non-invasive	Biological	Peptide masking, prodrugs, viruses	Non-specific, drug alteration
	Chemical	Mannitol	Toxicity, limited efficiency
	Colloidal	Liposomes	Non-specific, low pass-through
	Intranasal	Mucosal grafts	Limited drug distribution

Microbubble-assisted BBBD

Microbubble-assisted focused-ultrasound (MB+FUS) is a particularly attractive noninvasive approach for permeabilizing the BBB due to its tunable and transient effect on vasculature ¹¹, as well as its ability to target specific brain regions using stereotaxic coordinates and image guidance (Figure 1B) ^12-14. MB+FUS BBBD offers both chemical and spatial targeting to millimeter-scale resolution, as well as precise temporal control over BBB opening. The microbubbles used in tissue permeabilization are considered theranostic agents, owing to their dual roles as drug-delivery vehicles and highly echogenic ultrasound imaging probes. For example, microbubbles can be used as echogenic “blinking” probes for super-resolution ultrasound imaging of cerebral vasculature ¹⁵. Additionally, the microbubble echo can serve as a signal (e.g., passive cavitation detection) for real-time feedback control ^16-18. Similar to viral, liposomal, nanoparticle- or polymer-based vehicles, microbubbles offer the potential for ligand-receptor targeting ¹⁹, payload conjugation and biocompatibility ^20,21. Unlike these conventional delivery vehicles, however, microbubbles offer in situ targeting with the use of focused ultrasound (Figure 2). Additionally, microbubble-assisted BBBD offers a less invasive alternative to in vivo electroporation, and clinical translatability due to its popular use in echocardiography and radiology as an FDA-approved ultrasound contrast agent. Unlike chemical methods of inducing BBBD, varying physical FUS parameters can be used to control the duration of BBB opening ²². The primary advantage of MB+FUS over its longer-studied predecessor, high-intensity focused ultrasound (HIFU), is the reduced acoustic intensities and temperatures necessary to affect tissue. While HIFU disrupts tissue primarily through heating ²³, MB+FUS does so through localized thermomechanical effects ²⁴.

Figure 2.

Schematic cartoon of microbubble-assisted focused ultrasound (MB+FUS) blood-brain barrier disruption (BBBD), which uses micrometer-scale mechanofluidic effects from the oscillating microbubbles to enhance drug transport noninvasively, locally and transiently into the brain parenchyma.

Mechanism of action

Central to MB+FUS is the acoustic responsiveness of microbubbles, which are 1-10 µm diameter lipid or protein-encapsulated gas spheres (Figure 3). Microbubbles excel at transforming kinetic energy from the traveling acoustic wave to the local microenvironment, owing to their high compressibility and tendency to cavitate under ultrasound. When cavitating, microbubbles oscillate volumetrically and induce fluid streaming within a diameter's range away from their surface ²⁵. Consequently, this oscillation leads to mechanofluidic impingement of nearby cells and tissue, and transient permeabilization.

Figure 3.

(A) Structure of a lipid-encapsulated microbubble. (B) Microscopy image of size-isolated 6-µm lipid-coated microbubbles in suspension.

Acoustic cavitation is typically categorized under two states: stable and transient. Transient cavitation is typified by bubble instability, often accompanied by strong inertial effects such as jetting, fragmentation and shock-wave formation. The latter phenomenon leads to a broadband acoustic emission, often labeled as “inertial cavitation”. Inertial cavitation has been suggested as an indicator of cellular damage due to the higher pressures necessary to induce such an event, as well as its destructive effects observed on inorganic materials ^26-28. These inertial events are expected to induce vessel invagination and rupture during MB+FUS BBBD ^29-31. The term “inertial cavitation” is somewhat misleading, however, because so-called “stable” cavitation (typified by prolonged bubble activity) can also lead to high-Reynolds-number inertial effects. Stable cavitation is designated acoustically by harmonic emissions. Stable cavitation can have an equal, if not significantly greater impact on cells, owing to cavitation power persisting over a significantly longer period of time - in essence, conveying greater overall kinetic energy output compared to shorter duration inertial cavitation ³². The implementation of passive cavitation detectors (PCDs) has demonstrated the occurrence of BBBD during stable cavitation ³³. Moving from stable to inertial cavitation was shown to induce larger molecular weight delivery ³⁴. Additionally, MB+FUS-mediated changes in the gene expression of key BBB efflux transport proteins, such as downregulation of P-glycoprotein, may significantly alter the pharmacokinetics of BBBD, improving drug localization in the parenchyma ^35,36. Owing to the inability to directly observe microbubble activity at the BBB in vivo at tissue depth, however, no study so far has isolated the exact physical mechanism of stable cavitation on BBBD.

Due to the microscale influence of cavitation from microbubbles ²⁵, concerns have been expressed regarding the fate of therapeutic agents after extravasation from intracranial vasculature, specifically the hypothesized inability of MB+FUS to disrupt the brain parenchyma in addition to vasculature ²². With an average capillary density of 600 per mm³ throughout the body, human cells conservatively reside within two or three cell-lengths (120-180 µm) from the nearest capillary ⁵. The brain has an average capillary density of 2500-3000 capillaries/mm³, suggesting that a significant portion of brain cells are within 100 µm of the nearest capillary ³⁷. To address concerns regarding inefficient drug diffusion into the parenchyma, we can estimate drug penetration through 100 µm of cerebral tissue using diffusion parameters for a potential payload: glial cell-line derived neurotropic factor (GDNF). GDNF is an 18-kDa protein that does not efficiently cross the BBB but has potent trophic actions for treatment of Parkinson's disease and other neurodegenerative disorders. We can predict the adequate tissue distribution of GDNF originating from a capillary and traversing through the brain parenchyma using a previously proposed diffusion model of therapeutic agents in brain tissue ³⁸:

where C₀ is the concentration at either the periventricular or pial brain surface (x = 0), C is the concentration in tissue at a distance x from source, τ is the efflux half-life (72 h for GDNF) and D* is its diffusion constant corrected for brain tortuosity (1.3×10^-6 cm²/s for GDNF) ^38-40. Using this model, the concentration fraction (C/C₀) of GDNF 100 µm from the capillary is estimated to be 98.6%. This calculation for the macromolecule GDNF supports the argument that BBBD is sufficient for effective drug delivery to the brain.

MB+FUS BBBD is affected by several independent variables, which can be classified as microbubble, acoustic and physiological parameters (Figure 4). Of these, acoustic parameters have been extensively studied both in vitro and in vivo, while studies on the effect of microbubble and physiological parameters remain sparse. These parameters can have significant effects on the magnitude and duration of BBBD, tissue damage, immune response and drug distribution.

Figure 4.

Parameters affecting MB+FUS BBBD outcome.

Microbubble parameters

Ultrasound contrast agents (UCAs)

Many studies rely on FDA-approved ultrasound contrast agents (UCAs), which were originally developed for echocardiography, because they are commercially available and have already received regulatory approval for diagnostic imaging. Examples of commonly used UCA formulations include Optison™ (GE Health Care), Definity® (Lantheus Biomedical) and SonoVue® (Bracco Imaging): one protein and two lipid-shelled microbubbles, respectively. In addition to differences in microbubble shell mechanics and transport properties, these UCAs also exhibit significant differences in microbubble gas composition, concentration and size distribution from each other. Differences in microbubble concentration and size exist even among batches of the same formulation (hence, a range of sizes is given on the product inserts) ⁴¹. While these differences are inconsequential for qualitative contrast-enhanced ultrasound imaging, they are all known to significantly affect MB+FUS tissue permeabilization ^14,32,41,42. Thus, while it is tempting to use UCAs for BBBD studies owing to the obvious benefit of having already received regulatory approval, the agent-to-agent and batch-to-batch variability may ultimately hinder regulatory approval of MB+FUS BBBD and broad dissemination of the technology. We need to improve our understanding of these microbubble properties and, in turn, how they affect the safety and efficacy of BBBD.

Indeed, agreement on optimized reference parameters has remained difficult to achieve in MB+FUS BBBD studies ^43,44. This is due in part to difficulty in standardizing the microbubble dose (Figure 5A). In most studies, dose is reported as volume of stock formulation injected per weight (mL/kg) of the subject. We define this dose as the fluid volume dose (FVD), which is defined as:

Figure 5.

(A) Microbubble volume-weighted size distributions for polydisperse vs. size-isolated 4-µm lipid-coated microbubbles. (B) Microbubble concentration versus volume. The area under the curve is equal to φ_MB (equation 4 in the text) and used to calculate the microbubble gas volume dose (MVD). (C) Microbubble in vivo circulation half-life as a function of MVD after systemic delivery of 2-, 4- and 6-µm size-isolated, lipid-coated microbubbles in CD-1 mice under ultrasound imaging (Vevo 770; Visualsonics) ⁵². (D) Extravasated Evans blue fluorescence in the striatum after MB+FUS BBBD as a function of MVD for 2- and 6- µm size-isolated, lipid-coated microbubbles in adult Sprague-Dawley rats ¹⁴.

where V_stock is the volume of fluid taken from the stock solution and injected into the subject, and m_subject is the mass of the subject. Despite the prevalent use of FVD in the literature, this form of the dose is disadvantaged by the variation in gas composition, shell properties, microbubble concentration and particle size distribution. These variations make it extremely difficult to correlate the effects of FVD to the resulting measures of MB+FUS effects. Indeed, MB+FUS BBBD dosing parameters remain central to understanding the different presentations of sterile immune response (SIR) in the brain—a matter of some debate ^45,46, which centers on whether or not there is a therapeutic window between the microbubble concentration needed to induce BBBD and that which causes SIR. Even matching FVD and acoustic parameters, two studies using different UCA formulations will likely observe significant differences in results due to unequal microbubble concentration, size distribution, gas composition and shell chemistry ⁴⁷.

Microbubble dose

Among the first MB+FUS BBBD parameters studied after acoustic intensity was microbubble dose ⁴⁸. Early studies often used commercial UCA formulations and treated microbubble dose similar to drug dose: representing varying microbubble dose as FVD ⁴⁹. Precedent, as well as the availability of pre-formulated UCAs, may explain the continued use of FVD in MB+FUS BBBD studies today ^45,50. As mentioned previously, however, commercial UCAs can differ significantly in composition, size and concentration, even between vials of the same brand ⁴¹. There exists strong evidence that this may introduce variability in BBBD ^51-53. Beyond the possibility of identifying optimized microbubble size distributions and concentrations, unified parameters such as total microbubble gas volume allow for retroactive and future overlap between studies ¹⁴. We therefore recommend the use of “microbubble volume dose” (MVD), which is defined as follows:

where φ_MB is the volume fraction of the stock solution that is occupied by microbubbles (Figure 5B). The value of φ_MB is a function of the particle size distribution (PSD); it can be determined by plotting the microbubble number concentration (c) versus microbubble volume (v) and integrating to find the area under the curve.

The utility of MVD is that it captures both microbubble size and concentration in a single variable. We recently showed the utility of MVD in a study examining BBBD efficiency in adult rats sonicated at 1.0 MHz center frequency and 0.5 MPa peak negative pressure (PNP) de-rated for skull attenuation ¹⁴. Size-isolated microbubbles with diameters of 2 or 6 µm were injected at number doses ranging from 4×10⁷ to 4×10⁸ MB/kg. As found in a previous investigation, increasing injected microbubble size and count increased permeability ⁵¹. However, conversion of both parameters to MVD yielded a clear, linear indicator of BBBD magnitude, regardless of microbubble size or count. The trend between integrated fluorescence intensity of Evan's blue dye in the brain parenchyma and MVD was linear, with different microbubble sizes collapsing to the same linear trend line.

The advantage of MVD over FVD is that it provides a unified dose metric for each injection ⁴¹. Similarly, deducing the MVD retroactively may allow for the useful comparison of previously investigated BBBD variables, such as acoustic and physiological parameters, as long as UCA concentrations and size distributions are known. Values of φ_MB and MVD for common UCAs at the recommended dose for diagnostic imaging are tabulated here to facilitate such comparisons (Table 2). One can implement MVD into the guidance and control of drug delivery by taking the following steps:

Table 2.

MVD of common UCAs at the dose recommended for diagnostic imaging.

Product	φMB (µL/mL) a	FVD (µL/kg) b	MVD (µL/kg)
Optison	35.2 ± 3.0	6.2	0.22
Definity	44 ± 9.5	10	0.44
Sonovue	6.5 ± 1.2	25	0.16

^a Taken from Hyvelin et al. ¹¹³. ^b Taken from product inserts for an average adult human. φ_MB is microbubble volume fraction, FVD is fluid volume dose, MVD is microbubble volume dose.

1. Measure the particle size distribution and concentration using an accurate method, such as the Coulter principle ^54,55. Ideally, this is done just prior to injection, as dilution and handling can alter the total number and size of the microbubbles.

2. Convert the size distribution to microbubble number concentration versus microbubble volume () and integrate to determine φ_MB.

3. Multiply φ_MB by the indicated FVD to determine MVD.

Of course, changing other parameters (e.g., microbubble surface charge, drug size, ultrasound parameters etc.) may shift the curves of MVD vs. drug delivery. More research is necessary to better understand these effects.

More investigation into the linearity of BBBD vs. MVD is also warranted. Several factors may hypothetically alter this trend. For example, the slope of the trend line may shift over a range of MVDs corresponding to a change in the dominant pathway for microbubble elimination (phagocytosis vs. dissolution). Additionally, BBBD may saturate and even decrease as MVD is increased to a point where MBs significantly attenuate the FUS beam in tissue between the transducer and focus. Future work is necessary to elucidate these effects.

Microbubble pharmacokinetics

Upon injection, microbubbles circulate systemically until stimulated at the target site by ultrasound. Microbubble circulation persistence is known to depend on microbubble dissolution rate and the rate of clearance by the mononuclear phagocyte system. Microbubble dissolution rate is affected by properties of the individual microbubble, such as size and gas/shell composition, as well as the ensemble (concentration and size distribution). For example, well-established models of single microbubble dissolution ⁵⁶, as well as data on suspensions from in vivo imaging studies ⁵², suggest that increasing microbubble diameter and/or concentration significantly increases circulation persistence (Figure 5C). As for BBBD, a linear relationship was observed between microbubble half-life (τ_1/2) and MVD. In addition to providing longer imaging windows, enhanced circulation persistence may increase microbubble concentration at the targeted site during the treatment, increasing permeabilization. Previous results obtained by O'Reilly et al. indicate that BBBD correlated with peak circulating microbubble concentration ⁵⁷: short-duration (15 s) bolus injections consistently effected greater BBBD than long-duration (2 min) injections of the same microbubble dose, likely due to a lower peak concentration of MB in the circulation for the latter. Clearly, more work is necessary to establish the role of both MB and drug pharmacokinetics on MB+FUS BBBD, and this could be facilitated by use of MVD in dosing.

Microbubble size

Microbubble size has been linked to increased tissue permeabilization ⁵¹. A notable study on the effect of microbubble size on a popular measure of BBBD, quantification of extravasated magnetic resonance imaging (MRI) contrast agent, was conducted by Samiotaki et al. in mouse models, using 2-, 4- and 6-µm diameter microbubbles ⁵³. Although the primary aim of the study was to identify the rate at which the BBB healed after BBBD, several peripheral results provided compelling support for the implementation of monodisperse microbubbles to improve control over treatment. A 1.5-MHz focused ultrasound array was targeted to the area between the hippocampus and the thalamus on the right hemisphere for 60 s, using 10 Hz pulse repetition frequency (PRF), 60 µs pulse length and 0.3-0.6 MPa PNP. The results showed that BBB healing occurred in the reverse of permeabilization, starting at the outer edges of the treatment region and moving towards the center. Significantly less BBBD was seen with the smaller 2-µm microbubbles as opposed to 4- and 6-µm microbubbles. Additionally, the time for BBB closing was dependent on microbubble size. Previous studies had shown that the time of BBB closing was approximately 24-48 h with polydisperse commercial formulations ⁵³. FUS with larger microbubbles (4- and 6-µm) increased the duration of BBBD to over five days. The authors explained this result as being a consequence of larger pores created by larger microbubbles. Additionally, tissue damage (dark neurons, extravasated red blood cells) seen initially with short time-course studies was not observed, or greatly mitigated in the mice, suggesting that disrupted tissue may recover after a few days. However, this study compared size effects at a common microbubble number dose (MND in units of MB/kg) rather than MVD, making it difficult to distinguish the relative impact of number versus size. It therefore remains unclear whether or not microbubble size affects the extent of BBBD when isolated from effects of MVD. Preliminary data by Song et al. for cationic lipid-coated microbubbles indicate that it does not ¹⁴, but more work is necessary to confirm this result.

Microbubble composition

Typical UCA formulations use albumin protein (Optison) or phospholipids (Definity and Sonovue). While clinical microbubbles are expedient for rapidly moving the technology to clinical trials, many researchers believe that UCA compositions originally developed for diagnostic imaging are suboptimal for BBBD. However, very few studies have systematically investigated the effect of microbubble composition on the measures of BBBD. Wu et al. examined the effects of lipid acyl chain lengths C16, C18 and C24 for size-isolated microbubbles on BBBD using 1.5 MHz frequency and 0.23 to 0.6 MPa PNP ⁴⁷. Interestingly, increasing microbubble tail length resulted in a significant increase in 70-kDa fluorescent dextran extravasation, while insignificant differences were seen for 3-kDa dextran. This suggests that microbubbles comprising longer acyl-chain lipids, which are known to circulate longer in vivo ⁵⁸, may favorably affect delivery efficiency of larger drug molecules. The composition of the gas core has been shown to dictate circulation persistence due to varying solubility and diffusivity ^59,60, but few other bioeffects have been linked to gas composition. We suggest that effects of composition on pharmacokinetics and BBBD should be isolated from size and concentration by the use of MVD.

Microbubble complexes have been engineered for improved control over BBBD and subsequent drug delivery. In a study conducted by Åslund et al., nanoparticle-coated microbubbles were shown to direct delivery to the brain ⁶¹. The same group showed that a UCA conjugated to a lipid-encapsulated perfluoromethylcyclopentane droplet induced droplet vaporization under FUS, generating temporary >25 µm microbubble complexes that transiently occluded blood flow for up to 10 min ⁶². Burke et al. demonstrated that MB+FUS with agents comprising 5-fluorouracil-bearing nanoparticles bonded to microbubbles inhibit solid glioma tumor growth and improve survival ⁶³. Clearly, more research is warranted to optimize microbubble design and complexation for BBBD applications.

Summary of microbubble effects

Figure 4 shows a simplified block flow diagram displaying the influence of microbubble parameters on MB+FUS BBBD. As we describe above, microbubble concentration and size distribution can be combined into a single dose parameter: the microbubble volume dose (MVD). Both microbubble composition (gas and shell) and dose are expected to affect the pharmacokinetics (circulation half-life and area-under-the-curve). Note that physiological (e.g., immune competency) and ultrasound (e.g., stable vs. transient cavitation) parameters also may affect the pharmacokinetics. In turn, the microbubble pharmacokinetics and ultrasound parameters determine the safety and efficacy of MB+FUS BBBD.

Physiological parameters

Skull attenuation

Perhaps the first obstacle facing translation of MB+FUS BBBD to the clinical setting was transmitting sufficient and precise ultrasonic energy through the skull to the brain tissue within. The pressure amplitude is diminished by attenuation from the transducer, coupling agent, skin, skull and brain tissue beneath, as well as reflections at the boundaries between them. The ratio by which the transmission is decreased can be estimated by the following equation ⁶⁴:

Where T is the overall pressure amplitude transmission coefficient; P₀ and P are the pressures transmitted by the transducer and into the brain, respectively; Z₁, Z₂ and Z₃ are the acoustic impedances for skin [1.99 x 10^-6 kg/(s·m²)], bone [7.75 x 10^-6 kg/(s·m²)] and brain tissue [1.60 x 10^-6 kg/(s·m²)], respectively; α₂ and x₂ are the attenuation [20dB/(cm·MHz)] and thickness (6 mm in humans and 0.5 mm in rats) of the bone ⁶⁵; and f is the frequency of the acoustic pulse (MHz). This calculation gives a transmission coefficient of approximately 14% in humans and 50% in rats, which are in line with experimental results ^66,67.

The challenges posed by the skull in larger animals regarding MB+FUS were first reported by McDannold et al. in a 2010 conference proceeding ⁶⁸, and then by Tung et al. in 2011 ⁶⁹. In the latter, three macaque monkeys were treated with 500 µL of Definity (1.1-3.3 µm diameter) or 4-µm diameter size-isolated lipid microbubbles. The 18-cm transducer, driven at 500 kHz and 0.3 or 0.45 MPa, failed to induce BBBD with Definity microbubbles. BBBD was seen, however, with the size-isolated microbubbles, and in subsequent studies with Definity by McDannold et al. ⁷⁰, who utilized a 30-cm Exablate 4000 (Insightec) 220-kHz hemispherical FUS transducer array, suggesting that lower driving frequencies and increased transducer area may aid in achieving BBBD at mechanical indices (see the section 'Mechanical index') as low as 0.32 (149 kPa PNP).

Brain location and vasculature

In the non-human primate study mentioned above ⁶⁹, the results showed that BBBD was not visible at some acoustic intensities that induced inertial cavitation (recorded with a passive cavitation detector). These occurrences coincided with the localization of MB+FUS in sinuses within the brain tissue, which suggested that the cavitating microbubbles were unable to impinge efficiently upon the endothelium when stimulated in these relatively large fluid regions, as opposed to smaller diameter vessels. Treatments at 0.3 MPa PNP effected more BBBD than 0.45 MPa sonications owing to variation in location, suggesting that the vascular structure at the treatment region is an important consideration.

The type of vasculature affected by MB+FUS has also been shown to affect BBBD ⁷¹. A 2006 study by Sheikov et al. indicated that arterioles, the intermediate vasculature between arteries and capillaries, demonstrated more trans-endothelial transport compared to capillaries and venules. As opposed to vascular compromise, the primary means of marker transfer into the parenchyma was reported to be transcytosis at 0.69 and 0.26 MHz with an estimated target-site acoustic pressure of 0.3-0.8 MPa and Optison microbubbles. Future studies will likely need to optimize not only FUS parameters, but also MB dose, when choosing a specific target in the brain for drug delivery.

Anesthesia carrier gas

Microbubble dose at the target site is affected by a combination of microbubble dissolution and clearance in specific organs, namely the lungs, liver and spleen ^52,72. Some of these factors can be expediently controlled through microbubble parameters ⁵⁸. However, the partial pressures of dissolved gases in the blood, which are directly affected by inhaled gas composition and physiology of the cardiopulmonary circuit, have also been shown to control microbubble circulation persistence ^45,50. Longer microbubble persistence was observed in animals breathing air as the anesthesia carrier, in comparison to oxygen, owing to nitrogen gas and lower ventilation/perfusion mismatch.

Additionally, it is known that decreasing pO₂ can trigger the formation of adenosine and other potent vasodilators, increasing cerebral blood flow and likely the concentration of microbubbles at the target site ⁷³. Results by McDannold et al. may corroborate this effect, as BBBD in mice injected with Optison and targeted with 690 kHz 0.54 MPa PNP showed a significantly greater volume of BBBD (as quantified by MRI) after inhaling 21% (air) vs. 100% O₂ ⁷⁴. The partial pressure of oxygen in the blood can affect heart rate as well ⁷³, a physiological parameter that can differ greatly between species and individuals, and the effects of which are unexplored regarding MB+FUS BBBD. In rats, for example, the resting heart rate is 330-480 bpm ⁷⁵, while the resting heart rate in humans falls within 60-100 bpm, which may significantly alter the availability and clearance of microbubbles before and during BBBD.

Ultrasound parameters

Before the incorporation of microbubbles, ultrasound parameters were among the first to be examined in the context of BBBD. The use of ultrasound alone to effect BBBD was first demonstrated by Lynn et al. in 1942, and by Bakay et al. in 1956 ^76,77. Although this new method was non-invasive and could spatially target treatment regions deep within the body, the resulting cell death and tissue damage limited translatability. It was almost 55 years before the first exogenous microbubble-assisted permeabilization of the BBB was conducted by Hynynen et al. in 1996, with acoustic parameters as the focus of investigation ⁷⁸. These early microbubble studies demonstrated that BBBD could be achieved with much lower acoustic amplitudes than with ultrasound alone, greatly reducing the risk of neuronal and parenchymal tissue damage ^24,78,79, and enabling a greater variety of effects beyond local heating. Although these early studies examined the effect of varying ultrasound parameters, it is important to consider the significant interaction between acoustic, microbubble and physiological parameters as outlined below.

Mechanical index (MI)

Mechanical index (MI) is a parameter unifying ultrasound frequency (f in units of MHz) and acoustic pressure (PNP in units of MPa) through the following relationship:

While several studies indirectly examined mechanical index by varying acoustic pressure or frequency alone, few studies have examined the effect of mechanical index by varying both pressure and frequency. Experimental results from Chu et al., as well as collated results from other groups, indicate that MI correlates well with BBBD efficiency over a range of PNPs and frequencies (0.41-1.12 MI; 0.25-0.83 MPa; 0.4-1.0 MHz) ⁸⁰. However, few studies have measured MI at the target site due to the heterogeneity of intervening and targeted tissue in MB+FUS BBBD. Early in vitro studies of microbubbles demonstrated that inertial cavitation occurs at MI as low as 0.5, although it is important to note that several studies in adult rats (250+ g) demonstrated effective BBBD at MI as low as 0.25 (0.125 estimated in adult rats, see the section 'Skull attenuation'), showing that stable cavitation is sufficient to induce BBBD ^16,70,81,82. An MI of 0.45 was identified by several studies as a safe and effective threshold for BBBD ^{16,70,81,82,80}, although this does not account for the effect of microbubble parameters, sonication duration or immune response. For example, increasing the number of ultrasound cycles at a fixed MI has been shown to significantly increase BBBD ⁶⁹, and significant immune response has been observed at MI under 0.4 ^45,50.

Pulse center frequency

In addition to affecting mechanical index, the pulse center frequency affects cranial attenuation. While in vitro studies with macaque (attenuation: 4.92 dB/mm) and human skull samples (7.33 dB/mm) have demonstrated that lower frequency ultrasound corresponds to decreased attenuation ⁸³, no study to date has isolated this effect on BBBD efficiency. It is important to note that studies using low-frequency ultrasound (~300 kHz, 700 mW/cm²; ~0.19 MI) alone have resulted in undesired cerebral hemorrhaging in patients and animal models (~20 kHz; 0.5 W/cm²; ~0.61 MI) ^84,85.

The MB+FUS effects, independent of MI, are in principle closely related at the microbubble resonance frequency. Microbubble resonance frequency has been reviewed by Doinikov et al. ⁸⁶. The linearized resonance frequency (f₀) for small-amplitude oscillations of lipid-shelled microbubbles is given by ⁸⁷:

where R₀ is microbubble resting radius, γ is the polytropic coefficient, p_A is ambient pressure, ρ is the density of the medium, σ_w is surface tension and x is lipid shell elasticity. The nonlinear acoustic behaviors of forced bubble oscillation are dependent on the mismatch between the microbubble resonance frequency and the driving frequency, the acoustic pressure and microbubble distribution in the insonified area. Therefore, isolating the effects of frequency necessitates the use of monodisperse microbubbles at matched mechanical index and MVD. Such a study has yet to be reported in the literature.

Peak negative pressure (PNP)

Due to attenuation and limited transducer bandwidth, varying PNP offers a more expedient means of altering MI and the magnitude of BBBD. Early MB+FUS BBBD studies exclusively focused on the effects of acoustic driving pressure and acoustic intensity ^24,78. The acoustic attenuation differs between animal models, but clear trends exist between increasing acoustic pressure and its bioeffects, although the effects of varying PNP alone, independent of MI, are unclear. It is generally well-established that increasing acoustic pressure increases the relative expansion and wall velocities of microbubbles, and is thus linked to increased BBBD as well as BBBD-related effects such as petechiae formation ^24,78,88,17.

An acoustic output-control scheme currently used in at least one clinical trial is the feedback-facilitated adjustment of PNP to induce stable-cavitation-mediated BBBD ^16,18. This approach was demonstrated by O'Reilly et al. in 2012, and by Sun et al. in 2017, under the assumption that inertial cavitation would cause tissue damage, and that stable cavitation was favorable ^16,17 . In contrast with previous studies on MB+FUS BBBD, which linked absolute PNP values to BBBD efficiency and safety, a percentage pressure threshold of 50% of the minimum PNP necessary to induce inertial cavitation was identified as efficacious and safe at a frequency of 551.5 kHz. This method revealed that peak pressures as low as 0.18 MPa (likely corresponding to stable cavitation) induced BBBD, while the highest peak pressure that disrupted the BBB without causing tissue damage, as indicated by NeuN stains and macroscopic analysis, was 0.40 MPa—a value corroborated by previous studies in adult rats ^{16,70,81,82,80}. Increasing the pressure threshold from 50% to 75% was enough to induce frequent edema, underscoring the variable and narrow range of PNPs able to induce non-superfluous BBBD in individual animals. In the context of safety, it is important to note that MRI of animals in which edema was detected immediately after sonication showed no signs of edema eight days after MB+FUS BBBD. This type of feedback control is currently in use in clinical trials.

Pulse repetition frequency (PRF) and pulse length

In comparison with mechanical index and frequency, the effects of pulse repetition frequency (PRF) and pulse length have received less attention. In general, a simultaneous increase in PRF and pulse length (N number of cycles per pulse; T time per pulse) is expected to increase BBBD by increasing duty cycle ⁸⁹:

However, physiological responses to the stress of MB+FUS have been shown to also be affected by “resting periods”, as demonstrated by Choi et al. ⁸⁹. Contrary to early results obtained by McDannold et al. ⁸², these studies demonstrated that PRF plays a significant role in BBBD efficacy: resting periods shorter than 0.1 s or longer than 1 s (1.5 MHz) resulted in no BBBD. While increasing pulse length has been shown to improve model drug penetration into the parenchyma ⁸², it has also been hypothesized that long pulse lengths increase the occurrence of standing waves, inducing off-target effects and increasing tissue damage ^13,89.

Safety considerations

BBBD safety has been a long-standing concern related to the standardization of ultrasonic and microbubble parameters. Qualitative assessments of excised neural tissue (evidence of dead or compromised parenchyma) and quantitative assessments of behavior (motor function after recovery period) have been the most common means of evaluating BBBD safety ^70,89,90. The field of MB+FUS BBBD has only recently begun to introduce multi-reporter immune-histo-fluorescence (IHF) to monitor immune response, vascular structure and cell death. In contrast, the safety of potential pharmaceutical agents is often comprehensively evaluated with quantitative immunostaining, high-throughput imaging and relevant functional tests; for motor function, studies often included rotarod performance, grip-strength tests and behavioral assays such as the Basso-Beattie-Bresnahan locomotor rating scale for rats, and Basso Mouse Scale for mice.

Some studies have observed the presence of petechiae, or visually detectable extravasated red blood cells ^90,88,13,74. Contradictory interpretations regarding the impact of petechiae on safety have been presented. Another early mode of examination of BBBD safety was qualitative observations of hemorrhage and edema as indicated by MRI imagery ²⁴. In MRI-guided focused ultrasound (MRIg-FUS), edema and hemorrhage are indicated by increased blood flow by MRI image processing to the regions of exposure. While several MRIg-FUS studies have suggested that such results demonstrate effective BBBD with minimal or no hemorrhaging, low level of hemorrhaging has not been conclusively evaluated. Although blood toxicity is a well-studied phenomenon in cases of stroke, cerebrovascular insults (compared to MB+FUS) represent significantly larger quantities of blood and red blood cells accumulating in the parenchyma, with accompanying pressure, clotting and other bulk effects. Indeed, the effect of just heme and other erythrocyte components is poorly understood ⁹¹. The effect of micropetechiae seen in MB+FUS BBBD on neuronal health is unstudied. However, it makes sense that in the case of BBBD, micropetechiae are a byproduct of transiently compromising cerebral vasculature to induce macromolecular delivery. MB+FUS BBBD behavioral studies have also reported that despite the presence of edema or petechiae immediately after BBBD in macaques, they were not present one week later ⁹⁰. It is important to emphasize that the presence of petechiae may not be evidence of trauma post-BBBD. Although petechiae are often present in cases of brain jury, sufficient BBBD for passage of drugs and biomolecules may be accompanied by extravasation of red blood cells.

A complementary means of evaluating neuronal insult is immunostaining for activated immune cells, specifically, microglia. Microglia are the primary immune cells in the brain and are critical for monitoring the brain for pathogens and foreign molecules, as well as responding to injury. Activation of microglia is readily detected using antibodies to cell markers, such as anti-Iba1 (Figure 6). Unlike qualitative assessments of neuronal health, studies of immune cells have demonstrated significant immune cell response to BBBD ⁵⁰. Additionally, pro-inflammatory cytokines such as interleukin-1, tumor necrosis factor alpha (TNFα) and heat shock protein (hsp) 70 can be interrogated with immunostaining, as well as by RNA expression profiling of treated brain tissue. In RNA expression profiling, mRNA from treated tissue is quantified and compared to untreated tissue to indicate changes in the cellular transcriptome due to BBBD. A handful of studies have examined cellular stress in this manner ^45,50. In 2017, Kovacs et al. published an article examining sterile immune response (SIR) as an aggregate of Iba1 expression using anti-Iba1 reporter molecules, presence of pro-inflammatory and anti-inflammatory cytokines, chemokines and trophic factors (CCTFs), macrophage presence and differential gene mapping examining components of NFκB-mediated inflammation. Significant increase in Iba1 expression as indicated by anti-Iba1, as well as mRNA related to NFκB-associated genes were increased following MB+FUS BBBD at 590 kHz, 0.3 MPa with Optison in rats. Cellular insult immediately after BBBD was apparent in elevated levels of HSP70 and pro-inflammatory cytokines (interleukins etc.) at the target site, an inflammatory response that subsided after 24 h. Activated astrocytes and microglia were still present six days after the study. On the other hand, McMahon et al. ⁴⁵ showed that SIR is dependent on MB dose, sparking an important debate over the role of MBs in BBBD and SIR ^46,92, and highlighting the importance of aforementioned considerations detailed in this review.

Figure 6.

(A) dsAAV1-CMV-eGFP transduction (green) after MB+FUS BBBD using 6-µm SIMBs (2×10⁸ MB/kg) in adult 350 g female Sprague-Dawley rats. A Philips Therapeutic Imaging Probe System was utilized to target the right striatum at 1 MHz, 0.5 MPa PN, 100 Hz PRF and 10% duty cycle ¹⁴. (B) Iba1 immunostaining of inflamed microglia (white) after MB+FUS BBBD of the targeted region (scale bar is 100 µm).

Behavioral studies are another fundamental component in the study of therapeutic neurologic agents, ranging from fine motor control tests to behavioral scoring. Studies on macaques indicated that two minutes of FUS applied at 0.3 and 0.55 MI with 4-5 µm size-isolated microbubbles resulted in effective BBBD accompanied by degraded reaction time and visual motion discrimination immediately after sonication. However, animal cognitive performance was reported to return to baseline four days after sonication ⁹⁰. A similar study was conducted by Olumolade et al. at 1.5 MHz, 0.45-1.5 MPa examining rotarod and open field performance in 8-week-old (adolescent) mice. While functional deficits were observed immediately after BBBD for the positive control group, no significant differences in rotarod or open field tests were observed after four weeks at 0.45 MPa or 1.5 MPa PRP (positive control).

Therapeutic and clinical applications

In addition to potential diagnostic roles, microbubbles and MB+FUS are particularly suited to therapeutic applications (Table 3). MB+FUS overcomes significant deficits and augments strengths in existing therapeutic agents and existing schemes of drug localization, such as enhanced permeability and retention (EPR), in which drug particles accumulate in convoluted vasculature, or nanoparticle and polymer-based delivery ⁹³. Additionally, MB+FUS BBBD may overcome insufficient trans-BBB performance of many promising therapeutic agents and address the lack of a true targeting scheme, as well as reducing the magnitude of off-target effects. Currently, at least two MB+FUS clinical trials are underway: one for the treatment of brain cancers using Definity and a custom FUS array ⁹⁴, and the other using Sonovue and an implantable ultrasound system, SonoCloud ⁹⁵.

Table 3.

Therapeutic agents delivered with MB+FUS in animal models.

Delivered agent	Proposed application	References
Adeno-associated virus	Gene therapy	108-112,14
Anti-Aβ	Alzheimer's disease	96,98,99
BCNU	Chemotherapeutic	114,115
Boronphenylalanine	Chemotherapeutic	116,104
Doxorubicin	Chemotherapeutic	100,117
Epirubicin	Chemotherapeutic	93
GDNF	Parkinson's disease, TBI	118,119
Herceptin	Chemotherapeutic, metastatic breast cancer	120
Htt-siRNA	Huntington's disease	121,122
Methotrexate	Chemotherapeutic	123
Stem cells	Neuroregeneration	124
Temozolomide	Chemotherapeutic	125

Targeted therapy and molecular diagnostics in particular, have much to gain from the utilization of MB+FUS BBBD. Today, at least 118 monoclonal antibodies are approved for clinical use as listed in the FDA-approved list of biologics. In addition to potential therapeutic effects, such antibodies can also be used for diagnosis when bound to MBs or other reporters. By coupling the specificity of antibodies with BBBD, targeted theranostics represent a non-invasive means of cost-effectively diagnosing and treating pathologies beyond the BBB. A demonstration of such bimodal application is the treatment is MB+FUS BBBD Alzheimer's disease (AD) therapy. Conventional diagnosis of AD begins with an implicative approach, by way of behavioral symptoms and family history, and no physiological test short of a post-mortem biopsy is able to identify positively AD pathologies. Due to the ability to overcome the physical barrier of CNS vasculature, MB+FUS is capable of accessing the parenchyma in which AD-specific plaques and biomarkers are present ^96-99. In 2008, Raymond et al. demonstrated that MB+FUS BBBD followed by an injection of amyloid-targeted antibodies (anti-Aβ) localized in brain tissue with high amyloid loads ⁹⁶.

Two categories of diseases have been of particular interest for MB+FUS BBBD studies: neurodegenerative diseases and cancer. Brain cancer therapy is an understandably attractive target for MB+FUS BBBD, due to the systemic effects of chemotherapeutic agent, the desire to reduce dose and increase therapeutic index, and the invasive nature of re-introducing chemotherapeutic agent via intracranial surgery. A handful of groups have shown improved chemotherapeutic delivery to the brain using MB+FUS in rodent models ^100-102; a functional improvement in glioblastoma mouse models was shown by Kovacs et al. in 2014 ¹⁰³. Doxorubicin, co-injected microbubbles were stimulated in GL261 brain tumors with 612.5 kHz at 0.4 MPa (PRP, PNP unspecified). While mice treated with only doxorubicin or FUS demonstrated identical median survival times of 22 days, MB+FUS with doxorubicin-treated mice demonstrated an impressive 66% improvement in survival time of 37 days. Other studies have examined the benefits of augmenting emerging cancer therapy methods such as boron neutron capture therapy with MB+FUS, by delivering p-boronophenylalanine (BPA), a molecule exhibiting selective uptake by malignant cells, and subsequent destruction of nearby (5-9 µm) tissue through localized radiation from neutron capture. Using MB+FUS BBBD, Alkins et al. demonstrated a three-fold uptake in 9L rat gliosarcoma models using 558 kHz, 0.4 MPa after injection of BPA and Definity ¹⁰⁴. Similarly, Yang et al. demonstrated that application of MB+FUS resulted in 3.6 times the BPA concentration in F98 glioma tumors at 1 MHz at an undisclosed acoustic pressure after injection of Sonovue and BPA in adolescent rats ¹⁰⁵. Neither studies reported the presence of tissue damage after histological staining.

While MB+FUS provides a significant improvement in drug localization for chemotherapeutic agents, drugs such as 1-3-bis(2-chloroethyl)-1-nitrosourea (BCNU) are relatively small and pass through the BBB without MB+FUS. However, a well-studied therapeutic agent for Alzheimer's disease, anti-Aβ, only passes through the BBB at very low rates ¹⁰⁶. To be effective, immunotherapy requires antibodies such as anti-Aβ to pass through the BBB and “label” diseased tissue for T-cell mediated clearance ¹⁰⁷. Burgess et al. demonstrated a task completion improvement of 72% in rat models of Alzheimer's in memory studies, similar to that of healthy mice, using Definity (FVD = 0.02 mL/kg) stimulated with 1.68 MHz, 1.2 MPa PNP over a 2-min duration. Histology revealed an increase in learning-associated DCX-positive neurons, as well as a 332% increase in dendrite length in treated populations.

Gene therapy without MB+FUS shares similar challenges with immunotherapy: namely, the BBB poses a significant barrier to efficient viral localization in the parenchyma. As of the time of this writing, no biodegradable non-viral agents have been able to induce transfection of neuronal tissue in vivo with MB+FUS. On the other hand, modified viral particles have been shown to induce robust transduction in neurons, and at least six studies have demonstrated successful transduction of neurons using adeno-associated virus (AAV) ^108-112,14.

Summary and outlook

MB+FUS BBBD promises unprecedented advantages over existing intracranial drug delivery methods, as well as a significant number of tunable parameters that affect its safety and efficiency. Numerous studies have been published on the effect of acoustic parameters, oftentimes highlighting the feasibility of novel methodological and analytical techniques; fewer studies have isolated the effect of the microbubbles themselves, and even fewer have focused on biochemical, immunological and physiological parameters. However, optimization of MB+FUS BBBD, and efforts to improve its clinical relevance, are well underway; its safety and efficiency have been demonstrated in several animal models with a wide range of payloads, and interactions between parameters are being explored to provide new avenues of optimization.

Nonetheless, standardization of MB+FUS parameters and implementation of rigorous safety metrics are essential to improving our understanding of its effects and eventual clinical translation. Challenging this goal are the numerous permutations of microbubble, ultrasound and physiological parameters. Specifically, readily varied parameters such as FUS frequency and amplitude have been extensively studied, but the lack of optimized and commonly shared parameters in microbubble formulations, dosage metrics, animal models, as well as histological and behavior assays for safety have stymied productive overlap in past studies. While unified parameters, such as mechanical index (MI) and microbubble volume dose (MVD), incorporate multiple individual parameters into single reference parameters that may be more suitable for standardization, optimization of such parameters and others, as well as deeper characterization of their tissue- and cell-level effects, remain yet to be completed. Finally, MB+FUS BBBD is a highly translational field of study, and widely accepted measures of safety should be adopted from well-established disciplines to accelerate collaboration and improve understanding and clinical relevance.
