. 2018 Aug 31;21:1724–1737. doi: 10.1016/j.dib.2018.08.137

LTE RSRP, RSRQ, RSSNR and local topography profile data for RF propagation planning and network optimization in an urban propagation environment

Oluyomi Simpson 1,⁎, Yichuang Sun 1
PMCID: PMC6249519  PMID: 30505908

Abstract

In the design of 5 G cellular communication to guarantee quality signal reception at every point within a coverage area, fundamental knowledge of the channel propagation characteristics is vital. A correct knowledge of electromagnetic wave propagation is required for efficient radio network planning and optimization. Propagation data are used extensively in network planning, particularly for conducting feasibility studies. Hence, measurement of accurate propagation models that predict how the channel varies as people move about is crucial. However, these measured data are often not widely available for channel characterization and propagation model development. In this data article, the Reference Signal Received Power (RSRP), Reference Signal Received Quality (RSRQ) and Reference Signal Signal to Noise Ratio (RSSNR) at various points in space which is covered by a Long-Term Evolution (LTE) marco base station operating at 2100 MHz located in Hatfield, Hertfordshire, United Kingdom were measured. Further, local topography profile data of the study area were extracted from a digital elevation model (DEM) to account for the features of the propagation environment. Correlation matrix and descriptive statistics of the measured LTE data along different routes are analyzed. The RSRP, RSRQ and RSSNR variation with transmitter (Tx) – receiver (Rx) separation distance along the routes are presented. The probability distribution and the DEM of LTE data measurement are likewise presented. The data provided in this article will facilitate research advancement in wireless channel characterization that accounts for local topography features in an urban propagation environment. Moreover, the data sets provided in this article can be extended using simulation-based analysis to extract spatial and temporal channel model parameters in urban cellular environments in the development of 5 G channel propagation models.

Keywords: LTE, Reference Signal Received Power (RSRP), Reference Signal Received Quality (RSRQ), Reference Signal Signal to Noise Ratio (RSSNR), RF propagation planning, RF network optimization

Specifications table

Subject area Engineering
More specific subject area Wireless and Mobile Communication Engineering
Type of data Tables, graphs, figures, spreadsheet file (.xlsx), map file (.kml)
How data was acquired
  • –

    LTE receiver field measurement data was collected over a LTE marco base station operating at 2100 MHz using a test reconfigurable Base Transceiver System (BTS).

  • –

    The BTS is based on Software Defined Radio (SDR) using a National Instrument (NI) Universal Software Radio Peripheral (USRP) B200 board and OpenBTS.

  • –

    OpenBTS was operated using open source software GNU Radio running on a Linux OS.

  • –

    Global Position System׳s (GPS) Latitude and longitude data were collected using the USRP.

  • –

    Local topography profile data were obtained from Shuttle Radar Topography Mission (SRTM1) dataset.
Data format Raw and analyzed
Experimental factors
  • –

    The RF measurements were carried out under good climatic conditions.

  • –

    An average speed of 20 mile per hour by the vehicle was maintained throughout the propagation measurement along the drive route.
Experimental features
  • –

    Correlation matrix and descriptive statistics of measured LTE data and local topography profile data are presented.

  • –

    Measured LTE data variation with respect to slot and Tx – Rx separation.

  • –

    Probability distribution of measured LTE data measurement are presented.

  • –

    The digital elevation model (DEM) of measured LTE data are presented.
Data source location The LTE measurement and local topography profile data presented in this article were collected in Hatfield, Hertfordshire, United Kingdom (Latitude 51° 44׳ 56.72" N and longitude 000° 14׳ 33.65" W).
Data accessibility Datasets on various measurements such as RSRP, RSRQ, RSSNR, Tx- Rx Distance and Altitude are provided with this article.
Open in a new tab

Value of the data

  • •

    The data provided in this article will facilitate research advancement in wireless channel characterization that accounts for local topography features in an urban university campus propagation environment.

  • •

    The data provided in this article will provide useful insights into the performance of cellular networks under different fading conditions, during the network planning and for designing future 5 G network infrastructure to ensure an adequate quality-of-service for all users in an urban university campus propagation environment.

  • •

    The data will facilitate research development of analytical standard models such as the 3rd Generation Partnership Project (3GPP) WINNER II MIMO channel model for long term evolution (LTE)-Advanced and other proposed models for future 5 G systems for sub−6 GHz and mmWave frequencies.

  • •

    The data sets provided can be extended using simulation-based analysis to extract spatial and temporal channel model parameters in urban cellular environments in the development of 5 G channel propagation models.

1. Data

To meet the ever-increasing demand for data on the move, all major telecommunications companies, as well as global standardization entities, are actively driving the research and development of 5 G cellular communications [1], [2]. During the deployment of 5 G cellular communication to increase cellular network capacity, cellular base station will need to be upgraded [1]. Theses base station features will include a new generation of high-capacity base band units, multi-band remote radio units, Large-bandwidth and high-power C-band Massive MIMO active antenna unit, and high-power cabinets [3].

In the design of 5 G cellular communication to guarantee quality signal reception at every point within the coverage area, fundamental knowledge of the channel propagation characteristics is vital. A correct knowledge of electromagnetic wave propagation is also required for efficient radio network planning and optimization [4]. Propagation data are used extensively in network planning, particularly for conducting feasibility studies. They are also very useful for performing interference studies as the deployment proceeds [5].

Wireless communications engineers rely on measurement data and local terrain profile information to determine optimal locations of base stations; attain best possible data rates; predict radio coverage; determine the required Tx power; aid appropriate selection of antenna height and pattern; conduct radio network optimization; perform interference feasibility studies; and ensure an acceptable level of quality of service without the need of expensive and time consuming measurements [6]. In this data article, the Reference Signal Received Power (RSRP), Reference Signal Received Quality (RSRQ) and Reference Signal Signal to Noise Ratio (RSSNR) from a LTE Marco base station operating at frequency 2100 MHz located in Hatfield, Hertfordshire, United Kingdom (Latitude 51° 44׳ 56.72" N and longitude 000° 14׳ 33.65" W) were measured along a drive route D1 and 2 pedestrian routes P1 and P2 as shown in Fig. 1. Correlation matrix and descriptive statistics of measured LTE data along drive D1 (route 1), pedestrian P1 (route 2) and pedestrian P2 (route 3) are present in Table 1, Table 2, Table 3, respectively. Fig. 2, Fig. 3, Fig. 4 represent the RSRP, RSRQ and RSSNR variation in N – Sample slots along route 1, route 2 and route 3, respectively. The RSRP, RSRQ and RSSNR variation with transmitter (Tx) – receiver (Rx) separation distance along route 1 – 3, respectively are presented in Fig. 5, Fig. 6, Fig. 7. Fig. 8, Fig. 9, Fig. 10, Fig. 11, Fig. 12, Fig. 13, Fig. 14, Fig. 15, Fig. 16 present the probability distribution of RSRP, RSRQ and RSSNR LTE data measurement along route 1 – 3, respectively. In Fig. 17, Fig. 18, Fig. 19, Fig. 20, the digital elevation model (DEM) of RSRP, RSRQ and RSSNR measured data along route 1–3, respectively, are shown in. The DEM terrain is presented in Fig. 17.

Fig. 1.

Fig. 1

Open in a new tab

Data collection region and complete measurement routes followed [7].

Table 1.

Correlation matrix and descriptive statistics of measured LTE data along drive route – D1 (n = 142).

Route 1 - D1 RSRP (dBm) RSRQ (dB) RSSNR (dB) Tx- Rx Distance (m) Altitude (m)
RSRP (dBm) 1.00000
RSRQ (dB) 0.76603 1.00000
RSSNR (dB) 0.79865 0.82967 1.00000
Tx- Rx Distance (m) 0.35399 0.04587 0.05834 1.00000
Altitude (m) −0.34087 −0.56812 −0.62685 0.59098 1.00000
Mean −100.62676 −7.39437 1.14789 394.24706 86.66127
Standard Error 0.55796 0.17737 0.07032 16.68969 0.53384
Median −99.00000 −7.00000 1.30000 493.65500 83.20000
Mode −96.00000 −6.00000 0.80000 482.96600 83.00000
Standard Deviation 6.64885 2.11364 0.83791 198.88057 6.36145
Sample Variance 44.20722 4.46749 0.70209 39,553.47970 40.46806
Kurtosis −0.05214 0.12849 −1.14921 −0.96960 −0.99506
Skewness −0.86603 −0.95839 −0.24912 −0.71951 0.77333
Range 27.00000 9.00000 2.80000 592.66300 19.40000
Minimum −117.00000 −13.00000 −0.30000 15.49900 79.00000
Maximum −90.00000 −4.00000 2.50000 608.16200 98.40000
Sum −14,289.00000 −1050.00000 163.00000 55,983.08300 12,305.90000
Count 142.00000 142.00000 142.00000 142.00000 142.00000
Confidence Level (95.0%) 1.10305 0.35065 0.13901 32.99437 1.05537
Open in a new tab

Note. All correlation were significant at p < .01. Tx = Transmitter: Rx = Receiver.

Table 2.

Correlation matrix and descriptive statistics of measured LTE data along pedestrian route – P1 (n=367).

Route 2 - P1 RSRP (dBm) RSRQ (dB) RSSNR (dB) Tx- Rx Distance (m) Altitude (m)
RSRP (dBm) 1.00000
RSRQ (dB) 0.79846 1.00000
RSSNR (dB) 0.67556 0.75220 1.00000
Tx- Rx Distance (m) −0.54251 −0.53318 −0.55844 1.00000
Altitude (m) −0.24042 −0.08427 −0.20733 −0.05408 1.00000
Mean −105.86921 −7.54496 0.63651 380.08749 88.36458
Standard Error 0.21536 0.09573 0.02963 5.21768 0.09162
Median −106.00000 −7.00000 0.50000 404.67500 87.70000
Mode −104.00000 −6.00000 0.40000 187.15400 87.00000
Standard Deviation 4.12566 1.83396 0.56764 99.95636 1.75524
Sample Variance 17.02110 3.36341 0.32222 9991.27446 3.08087
Kurtosis −0.63911 −0.94638 −0.07042 −1.06125 −0.02334
Skewness −0.00388 −0.25923 0.59754 −0.43682 0.99543
Range 20.00000 7.00000 2.90000 329.92800 6.60000
Minimum −117.00000 −12.00000 −0.60000 186.16700 86.10000
Maximum −97.00000 −5.00000 2.30000 516.09500 92.70000
Sum −38,854.00000 −2769.00000 233.60000 139,492.10700 32,429.80000
Count 367.00000 367.00000 367.00000 367.00000 367.00000
Confidence Level (95.0%) 0.42349 0.18825 0.05827 10.26039 0.18017
Open in a new tab

Note. All correlation were significant at p < .01. Tx = Transmitter: Rx = Receiver.

Table 3.

Correlation matrix and descriptive statistics of measured LTE data along pedestrian route – P2 (n=846).

Route 2 - P1 RSRP (dBm) RSRQ (dB) RSSNR (dB) Tx- Rx Distance (m) Altitude (m)
RSRP (dBm) 1.00000
RSRQ (dB) 0.53390 1.00000
RSSNR (dB) 0.56762 0.74420 1.00000
Tx- Rx Distance (m) 0.62252 0.04869 0.24856 1.00000
Altitude (m) 0.05989 0.07969 0.17529 0.53149 1.00000
Mean −102.60875 −8.79078 0.51418 477.06914 100.87045
Standard Error 0.25099 0.08127 0.02161 4.54318 0.10400
Median −102.00000 −8.00000 0.50000 527.82600 100.80000
Mode −101.00000 −8.00000 0.40000 561.14400 103.00000
Standard Deviation 7.30044 2.36392 0.62843 132.14319 3.02497
Sample Variance 53.29644 5.58813 0.39492 17,461.82247 9.15042
Kurtosis 1.33550 −0.14329 0.51639 −1.07435 0.93493
Skewness −0.64380 −0.61733 0.55765 −0.61897 −1.02304
Range 45.00000 11.00000 3.60000 427.59900 13.10000
Minimum −129.00000 −16.00000 −0.90000 219.36400 91.20000
Maximum −84.00000 −5.00000 2.70000 646.96300 104.30000
Sum −86,807.00000 −7437.00000 435.00000 403,600.48952 85,336.40000
Count 846.00000 846.00000 846.00000 846.00000 846.00000
Confidence Level (95.0%) 0.49265 0.15952 0.04241 8.91723 0.20413
Open in a new tab

Note. All correlation were significant at p < .01. Tx = Transmitter: Rx = Receiver.

Fig. 2.

Fig. 2

Open in a new tab

RSRP (dBm), RSRQ (dB) and RSSNR (dB) variation along drive route – D1 (route 1).

Fig. 3.

Fig. 3

Open in a new tab

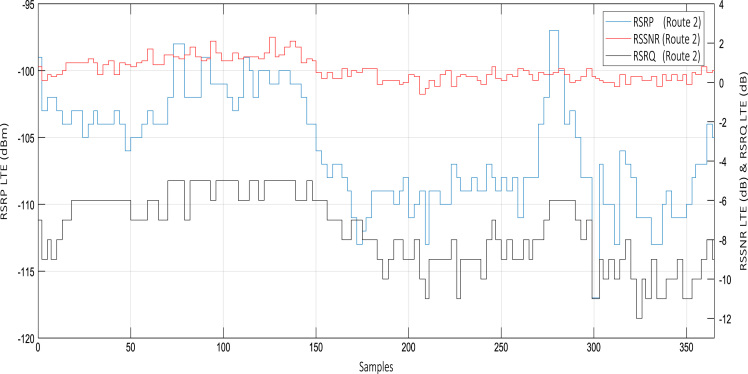

RSRP (dBm), RSRQ (dB) and RSSNR (dB) variation along pedestrian route – P1 (route 2).

Fig. 4.

Fig. 4

Open in a new tab

RSRP (dBm), RSRQ (dB) and RSSNR (dB) variation along pedestrian route – P2 (route 3).

Fig. 5.

Fig. 5

Open in a new tab

RSRP (dBm), RSRQ (dB) and RSSNR (dB) vs Tx–Rx Separation Distance (m) along drive route – D1 (route 1).

Fig. 6.

Fig. 6

Open in a new tab

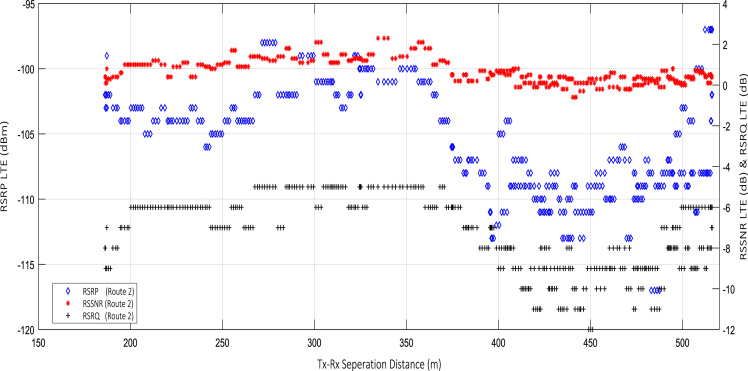

RSRP (dBm), RSRQ (dB) and RSSNR (dB) vs Tx–Rx Separation Distance (m) along pedestrian route – P1 (route 2).

Fig. 7.

Fig. 7

Open in a new tab

RSRP (dBm), RSRQ (dB) and RSSNR (dB) vs Tx–Rx Separation Distance (m) along pedestrian route – P2 (route 3).

Fig. 8.

Fig. 8

Open in a new tab

RSRP (dBm) probability distribution along drive route – D1 (route 1).

Fig. 9.

Fig. 9

Open in a new tab

RSRQ (dB) probability distribution along pedestrian route – P1 (route 1).

Fig. 10.

Fig. 10

Open in a new tab

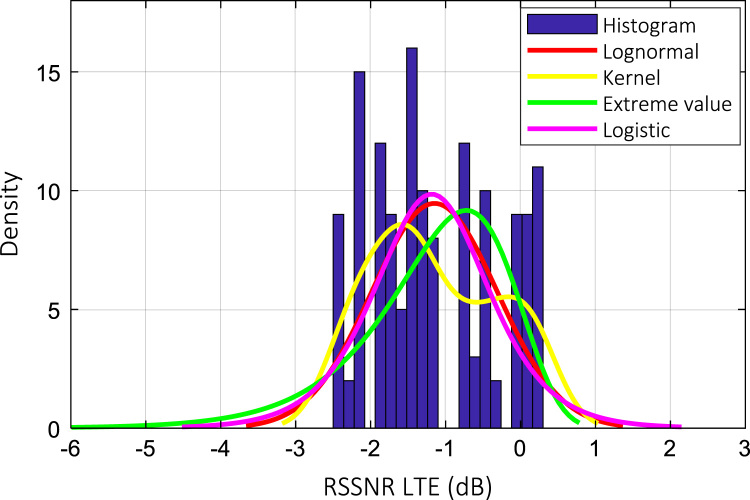

RSSNR (dB) probability distribution along pedestrian route – P2 (route 1).

Fig. 11.

Fig. 11

Open in a new tab

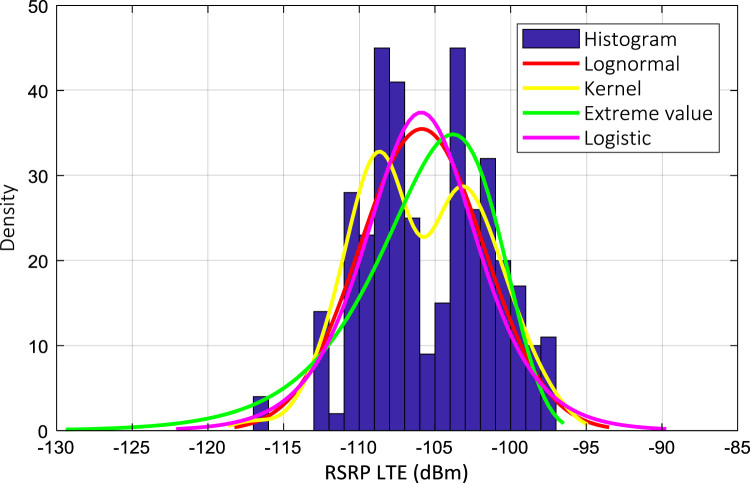

RSRP (dBm) probability distribution along drive route – D1 (route 2).

Fig. 12.

Fig. 12

Open in a new tab

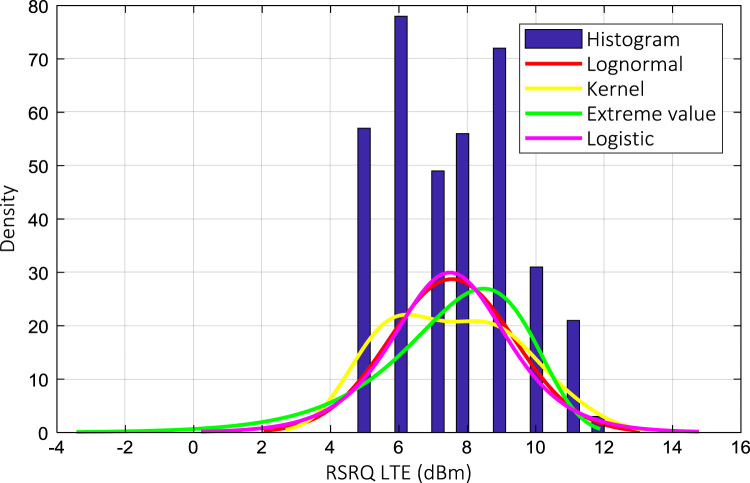

RSRQ (dB) probability distribution along pedestrian route – P1 (route 2).

Fig. 13.

Fig. 13

Open in a new tab

RSSNR (dB) probability distribution along pedestrian route – P2 (route 2).

Fig. 14.

Fig. 14

Open in a new tab

RSRQ (dBm) probability distribution along drive route – D1 (route 3).

Fig. 15.

Fig. 15

Open in a new tab

RSRQ (dB) probability distribution along pedestrian route – P1 (route 3).

Fig. 16.

Fig. 16

Open in a new tab

RSSNR (dB) probability distribution along pedestrian route – P2 (route 3).

Fig. 17.

Fig. 17

Open in a new tab

Digital elevation model topography map [7], [8].

Fig. 18.

Fig. 18

Open in a new tab

Digital elevation model along drive route – D1 (route 1).

Fig. 19.

Fig. 19

Open in a new tab

Digital elevation model along pedestrian route – P2 (route 2).

Fig. 20.

Fig. 20

Open in a new tab

Digital elevation model along pedestrian route – P2 (route 3).

2. Experimental design, materials, and methods

LTE radio resource management measurement was conducted within an urban university campus - Hatfield, Hertfordshire, United Kingdom. The propagation environment is a typical urban area comprising of distributed buildings of various heights, vegetation and open lands. Three routes covered by a macro base station were mapped out as shown in Fig. 1 and Fig. 17. The macro base station has an antenna height of 15 m, Tx power of 28.7 dBW and operating frequency of 2100 MHz.

The LTE receiver field measurement data was collected using a test reconfigurable Base Transceiver System (BTS). The BTS is based on Software Defined Radio (SDR) using a National Instrument (NI) Universal Software Radio Peripheral (USRP) B200 board and OpenBTS. A retractable 9 dBi omni-directional whip antenna was coupled to the USRP. The network testing software OpenBTS was realized using open source software GNU Radio running on a Linux OS. The Linus OS was running on a 7th generation Intel® Core™ i7–7500U CPU processor with 16 GB RAM. The Global Position System׳s (GPS) Latitude and longitude data were collected using the USRP with a magnetic mount GPS antenna attached to the USRP for enhanced functionality. The local topography profile data were obtained from NASA׳s SRTM1 database [8] digital terrain map. For route 1 measurements the setup was placed in a vehicle driven at an average speed of 20 mile per hour. The speed of the vehicle was maintained throughout the propagation measurement along D1 (route 1). For the pedestrian test the setup was loaded into a Portable walking safety laptop desk harness for both P1 (route 2) and P2 (route 3). All measurements were carried out under good climatic conditions.

2.1. Correlation matrix and descriptive statistics of measured LTE data

See Table 1, Table 2, Table 3.

2.2. Measured LTE data variation

See Fig. 2, Fig. 3, Fig. 4, Fig. 5, Fig. 6, Fig. 7.

2.3. Probability distribution of measured LTE data measurement

See Fig. 8, Fig. 9, Fig. 10, Fig. 11, Fig. 12, Fig. 13, Fig. 14, Fig. 15, Fig. 16.

2.4. Digital elevation model (DEM) of measured LTE data

See Fig. 17, Fig. 18, Fig. 19, Fig. 20.

Acknowledgments

This research work was carried out under the Wireless and Mobile Communication Systems Research Group in the School of Engineering and Technology, University of Hertfordshire. The authors wish to appreciate the Electrical, Communication and Electronic Division, School of Engineering and Technology, University of Hertfordshire for the purchase of the equipment used in this research.

Footnotes

Transparency document

Transparency data associated with this article can be found in the online version at https://doi.org/10.1016/j.dib.2018.08.137.

Appendix A

Supplementary data associated with this article can be found in the online version at https://doi.org/10.1016/j.dib.2018.08.137. These data include Google maps of the most important areas described in this article.

Appendix B

Supplementary data associated with this article can be found in the online version at https://doi.org/10.1016/j.dib.2018.08.137.

Transparency document. Supplementary material

Supplementary material

mmc1.docx (13KB, docx)

Appendix A. Supplementary materials

The following KMZ files contain the Google maps of the most important areas described in this article.

Map

KMZ file containing the Google map.

mmc2.zip (103.8KB, zip)

Appendix B. Supplementary material

Supplementary material

mmc3.xlsx (91.8KB, xlsx)

References

  • 1.Prather D.W., Shi Shouyuan, Schneider Garrett J. Optically upconverted, spatially coherent phased-array-antenna feed networks for beam-space MIMO in 5G cellular communications. IEEE Trans. Antennas Propag. 2017;65(12):6432–6443. [Google Scholar]
  • 2.O. Simpson, Y. Abdulkadir, Y. Sun and M. Cheikh, Spectrum Sensing of DVB-T2 Signals in Multipath Channels for Cognitive Radio Networks, European Wireless 2018; 24th European Wireless Conference, Catania, Italy (2018) pp. 1–5.
  • 3.Oliveri G., Gottardi Giorgio, Robol Fabrizio. Codesign of unconventional array architectures and antenna elements for 5G base stations. IEEE Trans. Antennas Propag. 2017;65(10):6752–6767. [Google Scholar]
  • 4.A. Taufique, M. Jaber, A. Imran et al., Planning wireless cellular networks of future: outlook, challenges and opportunities, in: IEEE Access, 5 (2017) pp. 4821–4845.
  • 5.Hamid S., Al-Dweik A.J., Mirahmad M. Inside-out propagation: developing a unified model for the interference in 5G networks. IEEE Vehicular Technology Magazine. 2015;10(2):47–54. [Google Scholar]
  • 6.Popoola S.I., Atayero A.A., Faruk Nasir. Received signal strength and local terrain profile data for radio network planning and optimization at GSM frequency bands. Data Brief. 2018;16:972–981. doi: 10.1016/j.dib.2017.12.036. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 7.Google Maps, 2018. University of Hertfordshire: College Lane Campus, 1:1.500. Google Maps [online] Available at 〈https://www.google.com/maps/place/Hatfield+AL10+9AB/@51.7522256,-0.2413402,17z〉 (Accessed 26 July 2018).
  • 8.NASA Jet Propulsion Laboratory (JPL), NASA Shuttle Radar Topography Mission United States 1 arc second. Version 3. NASA EOSDIS Land Processes DAAC, USGS Earth Resources Observation and Science (EROS) Center, Sioux Falls, South Dakota [online] (2013). Available at: 10.5067/MEaSUREs/SRTM/SRTMUS1.003 (Accessed 26 July 2018). [DOI]
