Spin-Orbit induced phase-shift in Bi₂Se₃ Josephson junctions

Abstract

The transmission of Cooper pairs between two weakly coupled superconductors produces a superfluid current and a phase difference; the celebrated Josephson effect. Because of time-reversal and parity symmetries, there is no Josephson current without a phase difference between two superconductors. Reciprocally, when those two symmetries are broken, an anomalous supercurrent can exist in the absence of phase bias or, equivalently, an anomalous phase shift φ₀ can exist in the absence of a superfluid current. We report on the observation of an anomalous phase shift φ₀ in hybrid Josephson junctions fabricated with the topological insulator Bi₂Se₃ submitted to an in-plane magnetic field. This anomalous phase shift φ₀ is observed directly through measurements of the current-phase relationship in a Josephson interferometer. This result provides a direct measurement of the spin-orbit coupling strength and open new possibilities for phase-controlled Josephson devices made from materials with strong spin-orbit coupling.

An anomalous phase shift in a topological insulator based Josephson junction is expected but never been observed. Here, Assouline et al. observe an anomalous phase shift in a Bi₂Se₃ based Josephson junction in presence of an in-plane magnetic field, opening opportunities for phase-controlled Josephson devices.

Introduction

In Josephson junctions¹, the Current-Phase relationship (CPR) is given by the first Josephson equation², I_J(φ) = I₀ sin (φ + φ₀). Time-reversal and spatial parity symmetries³, P_x,P_y,P_z impose the equality I_J(φ → 0) = 0 and so only two states for the phase shift φ₀ are possible. φ₀ = 0 in standard junctions and φ₀ = π in presence of a large Zeeman field, as obtained in hybrid superconducting-ferromagnetic junctions^4–6 or in large g-factor materials under magnetic field^7,8.

To observe an anomalous phase shift φ₀ intermediate between 0 and π, both time-reversal and parity symmetries must be broken^9–22. This can be obtained in systems with both a Zeeman field and a Rashba spin-orbit coupling term ${\mathrm{H}}_{\mathrm{R}}=\frac{\alpha }{\hslash }\left(\mathbf{p}\times {\mathbf{e}}_z\right).\sigma$ in the Hamiltonian^11,20, where α is the Rashba coefficient, e_z the direction of the Rashba electric field and σ a vector of Pauli matrices describing the spin. Physically, these terms lead to a spin-induced dephasing of the superconducting wave-function.

This anomalous phase shift is related to the inverse Edelstein effect observed in metals or semiconductors with strong spin-orbit coupling. While the Edelstein effect consists in the generation of a spin polarization in response to an electric field²³, the inverse Edelstein effect²⁴, also called spin-galvanic effect, consists in the generation of a charge current by an out-of-equilibrium spin polarization. These two magneto-electric effects are predicted also to occur in superconductors as a consequence of a Lifshitz type term in the free energy^25,26. Thus, in a superconductor with a strong Rashba coupling, a Zeeman field induces an additional term in the supercurrent. In Josephson junctions this term leads to the anomalous phase shift²⁰.

Several designs of Josephson junctions leading to an anomalous phase shift have been proposed theoretically where the Zeeman field can be obtained from an applied magnetic field^14,16,20 or by using a magnetic element¹¹. These designs include the use of atomic contacts¹², quantum dots^13,27, nanowires^17,18, topological insulator^19,28–30, diffusive junction²⁰, magnetic impurity²¹, ferromagnetic barrier¹¹, and diffusive superconducting-ferromagnetic junctions with non-coplanar magnetic texture³¹.

Experimentally, the anomalous phase shift φ₀ can be detected in a Josephson Interferometer (JI) through measurements of the CPR. Anomalous phase shifts have been identified recently in JIs fabricated from the parallel combination of a normal ‘0’ and ‘π’ junction²² that breaks the parity symmetries.

Because of its large g-factor g = 19.5³² and large Rashba coefficient, Bi₂Se₃ is a promising candidate for observing the anomalous Josephson effect due to the interplay of the Zeeman field and spin-orbit interaction. In this topological insulator^33,34, the effective Rashba coefficient of the topological Dirac states is about α ≃ 3 eVų⁵, while the Rashba coefficient of the bulk states, induced by the broken inversion symmetry at the surface, has a value in the range 0.3–1.3 eVÅ as measured by photoemission^36,37.

As detailed in refs. ^20,26 the amplitude of the anomalous phase depends on the amplitude of the Rashba coefficient α, the transparency of the interfaces, the spin relaxation terms such as the Dyakonov-Perel coefficient and whether the junction is in the ballistic or diffusive regime. At small α, the anomalous phase is predicted proportional to α³, at large α, it should be proportional to α.

In the ballistic regime¹¹ and for large α, the anomalous phase shift is given by ${\phi }_0=\frac{4E_{\mathrm{Z}}\alpha L}{{\left(\hslash v_{\mathrm{F}}\right)}^2}$ for a magnetic field of magnitude B and perpendicular to the Rashba electric field, where $E_{\mathrm{Z}}=\frac{1}{2}g{\mu }_{B}B$ is the Zeeman energy, L is the distance between the superconductors and v_F is the Fermi velocity of the barrier material. For the Rashba spin-split conduction band with α ≈ 0.4 eVÅ, v_F = 3.2×10⁵ ms⁻¹ and junction length L = 150 nm, a magnetic field B = 100 mT generates an anomalous phase ${\phi }_0\simeq 0.01\pi$, while for Dirac states³⁵ with v_F = 4.5×10⁵ ms⁻¹, ${\phi }_0\simeq 0.005\pi$.

In the diffusive regime, the expected anomalous phase shift has been calculated in ref. ²⁰. For weak α, highly transparent interfaces and neglecting spin-relaxation, the anomalous phase shift is given by the relation:

$${\phi }_0=\frac{\tau m^{*2}{E}_{\mathrm{Z}}{\left(\alpha L\right)}^3}{3{\hslash }^{6}D}$$ 1

where τ = 0.13 ps is the elastic scattering time, $D=\frac{1}{3}{v}_{\mathrm{F}}^2\tau =40{\mathrm{cm}}^2{\mathrm{s}}^{-1}$ is the diffusion constant and m^* = 0.25 m_e is the effective electron mass³⁸.

To test these theoretical predictions, we fabricated single Josephson junctions and JIs from Bi₂Se₃ thin films of 20 quintuple layers thick, ~20 nm, grown by Molecular Beam Epitaxy and protected by a Se layer, see Supplementary Note 1 and Supplementary Figure 1. As described in Supplementary Figure 2, these junctions are in the diffusive regime. From the measurement of the relative phase shift between two JIs with different orientations of the Josephson junctions with respect to the in-plane magnetic field, we observed unambiguously the anomalous phase-shift predicted by Eq. (1).

Results

Current-phase relationship and Shapiro steps

The JI shown in Fig. 1a consists of two junctions in parallel of widths W₁ = 600 nm and W₂ = 60 nm, respectively. The phase differences φ₁ and φ₂ for the two junctions are linked by the relation ${\phi }_1-{\phi }_2=2\pi \frac{\varphi }{{\varphi }_0}$, where ϕ = B_zS is the magnetic flux enclosed in the JI of surface S, B_z is a small magnetic field perpendicular to the sample, i.e. along e_z, and ϕ₀ is the flux quantum. In this situation, the Zeeman energy is negligible and oriented along the Rashba electric field, which implies that φ₀ = 0. As the critical current $I_{{\mathrm{c}}_1}$ is much higher than $I_{{\mathrm{c}}_2}$, then φ₁ = π/2 and $I_{\mathrm{c}}=I_{{\mathrm{c}}_1}+I_{{\mathrm{c}}_2}\cos \left(\omega B_z\right)$ with ω = 2πS/ϕ₀³⁹. Thus, a measurement of the critical current I_c as function of B_z provides a measure of the current $I_{{\mathrm{c}}_2}$ as function of φ₂, i.e. the CPR. From the voltage map as a function of current I and B_z, shown Fig. 1b, the critical current I_c is extracted when the voltage across the device exceeds the value V_switch = 4 μV, as shown in Fig. 1c. We find that the CPR displays a conventional sinusoidal form I_J = I_c sin (φ), as shown by the fit in Fig. 1d. Furthermore, under microwave irradiation, the JI displays a conventional, 2π periodic, Shapiro pattern, as shown Fig. 2, and detailed discussion in Supplementary Note 2.

Fig. 1.

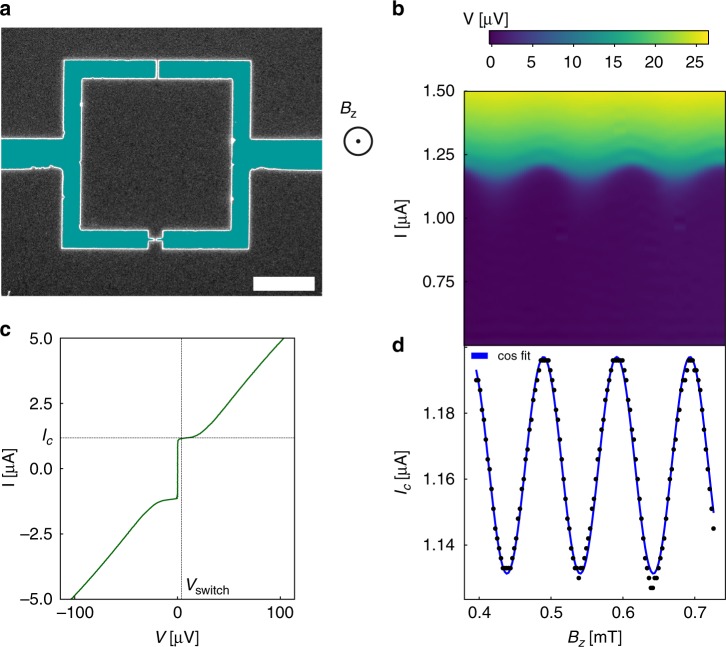

Probing the CPR with a Josephson interferometer. a SEM image of a JI device. The scale bar is 2 μm. This device consists of two Josephson junctions in parallel and enables probing the CPR of the smaller junction. The Aluminum electrodes are 50 nm thick. b Voltage map as a function of current and magnetic field B_z applied perpendicular to the film plane showing zero voltage below a critical current value. The critical current of the small junction oscillates with the magnetic flux in the superconducting loop. c IV curve of the JI device. The critical current value I_c is extracted when the junction develops a finite voltage defined as B_z and indicated by the dashed vertical line. d Critical current extracted from c as a function of B_z. The oscillations are properly described by the function $I_{\mathrm{c}}\left(B_z\right)=I_{{\mathrm{c}}_{\mathrm{1}}}+I_{{\mathrm{c}}_{\mathrm{2}}}\mathrm{cas}\left(\omega B_z\right)$, indicating a sinusoidal CPR as expected for conventional Josephson junctions

Fig. 2.

A.C. Josephson effect in Bi₂Se₃. For this Josephson junction, 50 nm thick Aluminum electrodes are used. a–c Resistance maps as a function of current and RF power for different microwave frequencies (a) f = 2 GHz, (b) 2.7 GHz, and (c) 5.3 GHz. The zero resistance regions correspond to voltage plateaus. d IV curves showing the Shapiro steps for two values of the microwave power. The n^th current step appears at a voltage $V_n=\frac{nhf}{2e}$. e Resistance map as a function of current (upper panel) or voltage (lower panel) and RF power at the frequency f = 4.236 GHz. In the lower panel as a function of voltage, dashed lines are plotted at $V_n=\frac{nhf}{2e}$. f Theoretical maps calculated at f = 4.236 GHz with the RSJ model, see Supplementary Note 2, using two different CPRs: a conventional 2π periodic CPR I_J = I_csin(φ) is used for upper panel, it reproduces properly the experimental data. An unconventional CPR $I_{\mathrm{J}}=I_{\mathrm{c}}\left(\frac{4}{5}\sin \left(\phi \right)+\frac{1}{5}\sin \left(\phi ∕2\right)\right)$ is used for the lower panel where the odd steps have a lower current amplitude

Asymmetric Fraunhofer pattern with in-plane magnetic field

Figure 3b–d show resistance maps dV/dI of a single junction, Fig. 3a, as function of current I and B_z for different values of an in-plane magnetic field, B_y. Figure 3e shows the corresponding critical current curves. A Fraunhofer pattern is observed with the first node located at $B_0\simeq 1.2\mathrm{mT}$. This value is consistent with the theoretical value $B_0=\frac{{\varphi }_0}{W\left(L+2{\lambda }_z\right)}$, using the effective magnetic penetration depth λ_z = 175 nm and taking into account flux-focusing effects, see Supplementary Note 3. While for B_y = 0, the Fraunhofer pattern is symmetric with respect to B_z, this pattern becomes asymmetric upon increasing the amplitude of B_y. This evolution is shown in the critical current map as a function of B_z and B_y in Fig. 3f. We observed a much less pronounced asymmetry when we apply the magnetic field in the x direction as shown in Supplementary Figure 5. Similar behavior has been observed recently in InAs⁴⁰ interpreted as the consequence of a combination of spin-orbit, Zeeman and disorder effects. As described in ref. ³, the generation of an anomalous phase shift requires breaking all symmetry operations U leaving UH(φ)U^† = H(−φ), where H is the full Hamiltonian of the system including spin-orbit interactions. These symmetry operations are shown in Table 1 together with the parameters breaking those symmetries. This table shows that for a system with a finite spin-orbit coefficient α, finite B_y is sufficient to generate an anomalous phase shift. However, additional symmetry operations U leaving UH(B_z, φ)U^† = H(−B_z, φ) must be broken to generate an asymmetric Fraunhofer pattern, as shown in Supplementary Table 1. In addition to non-zero values for α and B_y, disorder along y direction, i.e. non-zero V_y, is required to generate an asymmetric Fraunhofer pattern. AFM images, as in shown in Supplementary Figure 6g, show that the MBE films present atomic steps. Due to the dependence of the Rashba coefficient on film thickness³⁵, phase jumps along the y direction of the junction can be produced by jumps in the Rashba coefficient and explains the polarity asymmetry of the Fraunhofer pattern. As detailed in Supplementary Note 4, using a simple model, the asymmetric Fraunhofer pattern measured experimentally can be simulated, as shown in Fig. 3g.

Fig. 3.

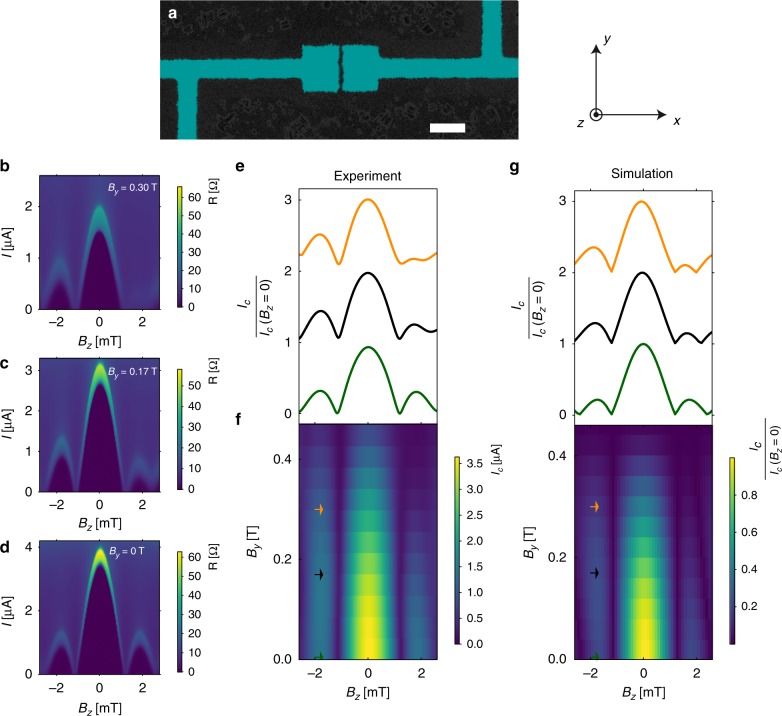

Asymmetric Fraunhofer pattern. a SEM image of a single junction device with 20-nm-thick Aluminum electrodes. The scale bar is 2 μm. The spacing between the two superconducting electrodes is L = 150 nm and the width of the junction W = 2 μm. b–d Resistance maps as function of current and perpendicular magnetic field B_z, for different values of the in-plane magnetic field B_y. The corresponding critical current curves are shown panel e. At zero in-plane magnetic field, panel d, the Fraunhofer pattern is symmetric with respect to B_z. The pattern becomes asymmetric upon increasing B_y. f Critical current map as a function of B_z and B_y showing the evolution from symmetric Fraunhofer pattern at B_y = 0 to the asymmetric Fraunhofer pattern for B_y>0. g Numerical simulation of the anomalous Fraunhofer pattern due to disorder and spin-orbit coupling. The model is described in the Supplementary Note 4

Table 1.

Symmetry operations U protecting H(φ) = H(−φ) from ref. ³

UH(φ)U† = H(−φ)	Broken by
P y P x	α, Vx, Vy
σ z P y P x	Bx, B, Vx, Vy
σ x P y T	Bx, α, Vy
σ y P y T	By, Vy

The symmetry operations on the left column are broken by one of the parameters on the right column. These parameters include the in-plane magnetic fields B_x, B_y, the asymmetric disorder potentials V_x, V_y and the spin-orbit term α which is the consequence of the structural inversion asymmetry (Rashba). To generate an anomalous phase φ₀, each symmetry operator, one per line of the table, must be broken. For example, the combination of the magnetic field B_y and the spin-orbit coupling α is enough to break all symmetries.

Current-phase relationship with in-plane magnetic field

To unambiguously demonstrate that an anomalous phase shift φ₀ can be generated by finite spin-orbit coefficient α and finite magnetic field B_y alone, a direct measurement of the CPR with in-plane magnetic field is required. To that end, we measured simultaneously two JIs, oriented as sketched in Fig. 4a, differing only by the orientation of the small junctions with respect to the in-plane magnetic field.

Fig. 4.

Probing the anomalous phase shift. a Sketch of the setup consisting of two JIs fabricated on the same chip. The reference and anomalous JIs have identical area, respectively S and S_ref, where $S\simeq S_{\mathrm{ref}}\simeq 20.6\mu {\mathrm{m}}^2$. The Aluminum electrodes are 20 nm thick. From Table 1, in the absence of disorder, an anomalous phase shift induced by Rashba spin-orbit coupling can be generated only by an in-plane magnetic field B_y. b Voltage map showing the critical current oscillation of the two devices as a function of magnetic field B. The critical current of both devices oscillate due to the perpendicular component of the magnetic field B_z = B sin (θ), as sketched panel c. The oscillation frequency can be changed by mechanically tilting the sample, i.e by changing the angle θ between the plane containing the superconducting loop and the magnetic field B. The frequency of the anomalous device is larger than the reference as a consequence of the anomalous phase shift. The colored arrows are guide to the eyes, to help visualizing the increased phase shift in the anomalous device

The CPRs for the two JIs are measured as function of a magnetic field making a small tilt θ with the sample plane, which produces an in-plane B_y = B cos (θ) and a perpendicular B_z = B sin (θ) magnetic field, as sketched in Fig. 4c. In this situation, the critical current for the reference JI changes as I_c ∝ cos (ω_ref B) with ${\omega }_{\mathrm{ref}}=\frac{2\pi S_{\mathrm{ref}}}{{\varphi }_0}\sin \left(\theta \right)$ where S_ref is the surface of the JI. For the anomalous JI, the critical current changes as I_c ∝ cos (ωB) with:

$$\omega =\frac{2\pi S}{{\varphi }_0}\sin \theta +C_{{\phi }_0}\cos \left(\theta \right)$$ 2

where $C_{{\phi }_0}=\frac{\tau m^{*2}g{\mu }_{\mathrm{B}}{\left(\alpha L\right)}^3}{6{\hslash }^{6}D}$ in the diffusive regime.

In Eq. (2), the first term arises from the flux within the JI of area S, the second term arises from the anomalous phase shift ${\phi }_0=C_{{\phi }_0}B\cos \left(\theta \right)$.

Figure 4b shows voltage maps for two different orientations θ, Fig. 4c. At low B, the two JIs are in-phase and become out-of-phase at higher magnetic field, indicating that the frequency ω of the anomalous JI is slightly larger than the reference JI. This is also visible on the critical current plot, Fig. 5a, extracted from these voltage maps. To see this more clearly, the average critical current, shown as a continuous line in Fig. 5a, is removed from the critical current curve and the result shown in Fig. 5b for the two JIs. On these curves, the nodes at π(2n + 1/2), n = 0,1,.., are indicated by large red (blue) dots for the reference (anomalous) curve. At low magnetic field, the two JIs are in-phase as indicated by the blue and red dots being located at the same field position. Upon increasing the in-plane magnetic field, the two JIs become out-of-phase with the anomalous JI oscillating at a higher frequency than the reference JI, as indicated by the blue dot shifting to lower magnetic field position with respect to the red dot. This increased frequency for the anomalous device is expected from Eq. (2) as a consequence of the anomalous phase shift. Supplementary Figure 7a,b shows additional data taken from negative to positive magnetic field, across zero magnetic field. A plot of the phase difference between the two JIs as function of in-plane magnetic field, shown in Supplementary Figure 7c, demonstrates that the two JIs are in-phase at zero magnetic field and reach a dephasing approaching about π/2 for an in-plane magnetic field of ≃80 mT.

Fig. 5.

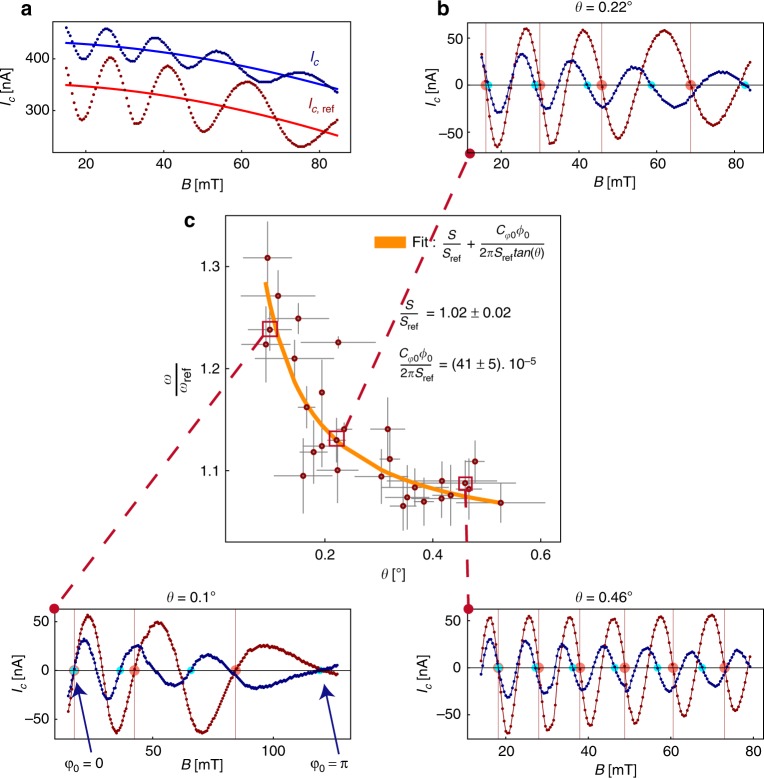

Comparison of the JIs frequencies as a function of the angle θ. a The critical current is extracted and shown as a function of magnetic field. The red and blue curves correspond to the reference and anomalous device, respectively. As the critical current of the large junction decreases with the magnetic field, this leads to a decreasing background fitted for both devices and shown by the continuous lines. b Critical current as a function of magnetic field where the background, indicated by continuous lines in panel a, are subtracted. The anomalous device shows a larger oscillation frequency than the reference device. The colored dots help to visualize the increased frequency of the anomalous device (blue dots) with respect to the reference device (red dots). The two JIs are in-phase at low magnetic field and become out-of-phase at high magnetic field, with an anomalous phase shift reaching ${\phi }_0\simeq \pi$ for $B\simeq 100\mathrm{mT}$. The periods are compared one by one and the average of the single period ratios provides the value $\frac{\omega }{{\omega }_{\mathrm{ref}}}$. c The ratio of the oscillation frequencies is plotted as a function of the angle θ. Without the generation of an anomalous phase, this ratio should be constant and equal to the surface ratio $\frac{S}{S_{\mathrm{ref}}}\simeq 1$. This ratio diverges as $\frac{1}{\theta }$ for small θ, as shown by Eq. (3). Fitting the curve with Eq. (3) provides the spin-orbit coefficient α

One also sees that the oscillation period of both JIs increase with increasing B. As detailed in Supplementary Note 3, this is due to flux focusing that makes the effective area of the JIs larger at low magnetic field. As the effect of flux focusing decreases with the increasing penetration depth at higher magnetic field, the effective areas of the JIs decreases upon increasing the magnitude of the magnetic field and so the period of oscillations increases.

While the two JIs have been fabricated with nominally identical areas, to exclude that the observed difference in frequencies between the two JIs is due to a difference of areas, we plot in Fig. 5c, the frequency ratio $\frac{\omega }{{\omega }_{\mathrm{ref}}}\left(\theta \right)$ measured at different angles θ. Because each curve contains several periods T_i, the frequency ratio is obtained from the average between the N periods ratio as $\omega ∕{\omega }_{\mathrm{ref}}=\frac{1}{N}{\sum }_{i=1}^N\frac{T_{i,\mathrm{ref}}}{T_i}$, where T_i,ref and T_i are the i^th oscillation period for the reference and for the anomalous device respectively. This method enables ignoring the flux focusing effect because the ratio is only taken between two periods measured at about the same magnetic field. We find that the experimental data follows the relation:

$$\frac{\omega }{{\omega }_{\mathrm{ref}}}\left(\theta \right)=\frac{S}{S_{\mathrm{ref}}}+\frac{C_{{\phi }_0}{\varphi }_0}{2\pi S_{\mathrm{ref}}\tan \left(\theta \right)}$$ 3

At large θ, this ratio is equal to the ratio of areas $S∕S_{\mathrm{ref}}\simeq 1$, however, for small θ, this ratio increases as 1/tan(θ), indicating the presence of an anomalous phase shift φ₀.

Another way of extracting the frequency is described in the Supplementary Note 5 and leads to the same result, as shown in Supplementary Figure 8.

Discussion

A fit of the experimental data with Eq. (3), Fig. 5c, enables extracting the coefficient $\frac{C_{{\phi }_0}{\varphi }_0}{2\pi S_{\mathrm{ref}}}=41\pm 510^{-5}$. Using the expression of $C_{{\phi }_0}$ in the diffusive regime given above, we calculate a spin-orbit coefficient α = 0.38 ± 0.015 eVÅ. This value of the Rashba coefficient is consistent with the value extracted from Rashba-split conduction band observed by photoemission measurements^36,37. Table 2 gives the anomalous phase shift extracted from the critical current oscillations at the largest magnetic field about 80–100 mT. The phase shift is extracted from the magnetic field difference between the last nodes of the oscillations, indicated by blue and red dots on Fig. 5. At this largest magnetic field, we find an anomalous phase shift ${\phi }_0\simeq 0.9\pi$ for all three tilt angles θ. This shows that the anomalous phase shift depends only on the parallel component of the magnetic field as expected. This experimental value is compared with the theoretical values calculated in the ballistic regime, for the Rashba-split conduction states and Dirac states, and in the diffusive regime, for the Rashba-split conduction states. This table shows that the Dirac states provide only a phase shift of 0.005π and so cannot explain the experimental data. The table also shows that the Rashba-split conduction states provide a phase shift of only 0.01π in the ballistic regime while they provide an anomalous shift of 0.94π in the diffusive regime, close to the experimental value, confirming that the junctions are indeed in the diffusive regime and demonstrating the validity of the theory leading to Eq. (1).

Table 2.

Anomalous phase shifts obtained at B ≃ 100 mT, compared to theory

	θ = 0.1°	θ = 0.22°	θ = 0.46°	Ballistic	Dirac	Diffusif
φ 0	0.88π	1.01π	0.85π	0.01π	0.005π	0.94π

The three first columns show the anomalous phase shifts extracted from the last nodes of the critical current oscillations shown in Fig. 5 for the three curves taken at different angles θ. The last three columns show the calculated anomalous phase shifts in the ballistic regime, for the Rashba-split conduction states and Dirac states, and in the diffusive regime, for the Rashba-split conduction states. These theoretical values are calculated using α = 0.4 eVÅ for the Rashba-split conduction states and α = 3 eVÅ for the Dirac states. See main text for the formula and other parameters.

A detailed look at Table 1 shows that the anomalous shift observed here must be the consequence of finite Rashba coefficient and in-plane magnetic field. While Table 1 shows that disorder alone V_y is sufficient to generate an anomalous phase shift, this disorder-induced anomalous phase shift should exist even at zero magnetic field and should not change with magnetic field. In contrast, as discussed above, we have seen that the two JIs are in-phase near zero magnetic field and become out of phase only for at finite magnetic field. Thus, this observation implies that disorder V_y is absent, which is plausible as the small Josephson junction is only 150 nm × 150 nm. In the absence of disorder V_y, Table 1 shows that the only way for an anomalous phase shift to be present is that the coefficient α be non-zero. Indeed, if α were zero, the first and third symmetry operations of Table 1 would not be broken even with finite B_y.

To summarize the result of this work, the simultaneous measurements of the CPR in two JIs making an angle of 90° with respect to the in-plane magnetic field enabled the identification of the anomalous phase shift φ₀ induced by the combination of the strong spin-orbit coupling in Bi₂Se₃ and Zeeman field. This anomalous phase shift can be employed to fabricate a phase battery, a quantum device of intense interest for the design and fabrication of superconducting quantum circuits^41,42.

Methods

Sample preparation

The Bi₂Se₃ samples were grown by Molecular Beam Epitaxy. The crystalline quality of the films was monitored in-situ by reflection high energy electron diffraction and ex situ by x-ray diffraction, and by post growth verification of the electronic structure though the observation of the Dirac cone fingerprint in angle-resolved photoemission spectra as described in ref. ⁴³. Following growth, the samples were capped with a Se protective layer. The Josephson junctions are fabricated on these thin films with standard e-beam lithography, e-beam deposition of Ti(5 nm)/Al(20–50 nm) electrodes and lift-off. The Se capping layer is removed just before metal evaporation by dipping the samples in a NMF solution of Na₂S. In the evaporator chamber, the surface is cleaned by moderate in-situ ion beam cleaning of the film surface before metal deposition. While for standard junctions, an aluminum layer 50 nm thick is usually deposited, we also fabricated junctions with 20-nm-thick electrodes to increase their upper critical field as required by the experiments with in-plane magnetic field. See Supplementary Figure 3 for a lateral sketch of the devices. After microfabrication, the carrier concentration is about 10¹⁹ cm⁻³ and the resistivity about 0.61 mΩ.cm, as shown in Supplementary Figure 2. A comparison between the normal state junction resistance of the order of 20–50 Ω and the resistivity of the films indicates negligible contact resistance, i.e. the junction resistance is due to the Bi₂Se₃ film between the electrodes.

Measurements details

The values for the normal resistance and critical current values measured on 20 devices are found to be highly reproducible, demonstrating the reliability of our procedure for surface protection and preparation before evaporation of the electrodes. The devices are measured in a dilution fridge with a base temperature of 25 mK. The IV curves are measured with standard current source and low noise instrumentation amplifiers for detecting the voltage across the junctions. The measurement lines are heavily filtered with π filters at room temperature at the input connections of the cryostat. They are also filtered on the sample stage at low temperature with 1 nF capacitances connecting the measurements lines to the ground.

Author contributions

H.A. proposed and supervised the project. M.E. and P.A. have grown the Bi₂Se₃ thin films by MBE and did the structural characterization (AFM, X-Ray, and TEM). A.A. designed and microfabricated the samples with the help of C.F.P., T.Z., A.M., A.Z., E.L., M.A., and H.A.; A.A., M.A., and H.A made the measurements with the help of C.F.P. and N.B.; A.A., M.A., and H.A. analyzed the data and wrote the manuscript.

Data availability

The data that support the main findings of this study are available from the corresponding author upon request. The source data underlying Fig. 5c and Supplementary Fig. 8d are provided as Source Data files.
