A new gold(I) complex-Au(PPh₃)PT is a deubiquitinase inhibitor and inhibits tumor growth

Abstract

Background

Ubiquitin-proteasome system (UPS) is integral to cell survival by maintaining protein homeostasis, and its dysfunction has been linked to cancer and several other human diseases. Through counteracting ubiquitination, deubiquitinases (DUBs) can either positively or negatively regulate UPS function, thereby representing attractive targets of cancer therapies. Previous studies have shown that metal complexes can inhibit tumor growth through targeting the UPS; however, novel metal complexes with higher specificity for cancer therapy are still lacking.

Methods

We synthesized a new gold(I) complex, Au(PPh₃)PT. The inhibitory activity of Au(PPh₃)PT on the UPS and the growth of multiple cancer cell types were tested in vitro, ex vivo, and in vivo. Furthermore, we compared the efficacy of Au(PPh₃)PT with other metal compounds in inhibition of UPS function and tumor growth.

Findings

Here we report that (i) a new gold(I) complex-pyrithione, i.e., Au(PPh₃)PT, induced apoptosis in two lung cancer cell lines A549 and NCI-H1299; (ii) Au(PPh₃)PT severely impaired UPS proteolytic function; (iii) Au(PPh₃)PT selectively inhibited 19S proteasome-associated DUBs (UCHL5 and USP14) and other non-proteasomal DUBs with minimal effects on the function of 20S proteasome; (iv) Au(PPh₃)PT induced apoptosis in cancer cells from acute myeloid leukemia patients; (v) Au(PPh₃)PT effectively suppressed the growth of lung adenocarcinoma xenografts in nude mice; and (vi) Au (PPh₃)PT elicited less cytotoxicity in normal cells than several other metal compounds.

Interpretation

Together, this study discovers a new gold(I) complex to be an effective inhibitor of the DUBs and a potential anti-cancer drug.

Fund

The National High Technology Research and Development Program of China, the project of Guangdong Province Natural Science Foundation, the projects from Foundation for Higher Education of Guangdong, the project from Guangzhou Medical University for Doctor Scientists, the Medical Scientific Research Foundation of Guangdong Province, and the Guangzhou Key Medical Discipline Construction Project Fund.

Research in context.

Evidence before this study

Deubiquitinases (DUBs), especially the 19S proteasome-associated deubiquitinases are promising therapeutic targets in cancer treatment. While inhibitors of DUBs were recently reported and shown experimentally to exhibit anticancer effects, the suitability of these inhibitors for clinical use remains to be tested.

Added value of this study

In this study, we identify a novel metal-containing compound, Au(PPh₃)PT, that inhibits the activity of 19S proteasome-associated and other deubiquitinases. Furthermore, Au(PPh₃)PT induces apoptosis in lung cancer cell lines in vitro, are selectively toxic to bone marrow cells from acute myeloid leukemia patients ex vivo, and has a high potency of inhibition of the growth of lung adenocarcinoma xenografts in vivo.

Implications of all the available evidence

This study discovers a new gold(I) complex to be a novel and potent inhibitor of deubiquitinases with potential utility in cancer treatment.

Alt-text: Unlabelled Box

1. Introduction

The ubiquitin-proteasome system (UPS) is the primary degradation machinery of intracellular proteins and regulates numerous cellular and pathophysiological events [1]. Not surprisingly, its dysfunction has been linked to the pathogenesis of a wide array of human diseases, including neuronal degenerative disorders, cardiovascular diseases, viral infection, and tumorigenesis [[2], [3], [4], [5]]. A variety of cancer cells such as colon cancer, prostate cancers, and leukemia possess a hyperactive proteasome system, suggesting that cancer cells may rely more heavily on the UPS to defend against cellular stresses than non-cancer cells. Indeed, accumulating evidence has demonstrated the effectiveness of targeting UPS for cancer treatment [6,7]. The 26S proteasome is assembled by the 20S core complex and the 19S regulatory complex. Bortezomib (Velcade, Vel) is the first compound developed to specifically inactivate the enzymatic activity of the 20S proteasome and subsequently approved by U.S. FDA to treat multiple myeloma in 2003 [8]. Since then, Vel-based therapy has greatly benefited many cancer patients and improved the overall survival rate of these patients. However, clinical data revealed that Vel-based therapy often associates with relapses and toxicities and has minimal effects on solid tumors [9,10]. Therefore, there is an urgent need for the discovery of new potent and selective proteasome inhibitors with little to no toxicity for cancer treatment.

Deubiquitinases (DUBs) are a class of enzymes that deconjugate ubiquitin from ubiquitinated proteins. DUBs regulate many cellular processes, including cell cycle [11], protein proteolysis [12], transcriptional gene expression [13], and DNA damage response [14,15]. Mutations in several DUBs are implicated in human diseases such as cancer and neurological disorders [[16], [17], [18]]. The human genome encodes 98 putative DUBs [19]. Among them, three DUBs are associated with the 19S regulatory particles: POH1/RPN11, USP14/Ubp6, and UCHL5/Uch37. USP14/Ubp6 and UCHL5/Uch37 are cysteine proteases and belong to the ubiquitin specific protease (USP) and ubiquitin C-terminal hydrolases (UCH) families, respectively. POH1/RPN11 is a Zn²⁺-dependent protease of the JAB1/MPN/Mov34 (JAMM) family and an intrinsic subunit of the lid of the 19S proteasome [20]. The physiological roles of the 19S proteasome-associated DUBs are not well understood [[21], [22], [23]]. Many of DUBs have been identified as oncogenes or tumor suppressors, likely functioning to regulate the stability of key proteins involved in tumorigenesis [24]. And increasing evidence suggests that DUBs are attractive therapeutic targets for cancer [25]. Unlike 20S proteasome inhibitors that block protein degradation with limited substrate specificity, most of the reported DUB inhibitors selectively target one or several DUBs and thus only regulate the expression of a subset of cellular proteins. Interference with the DUBs, especially the 19S proteasome-associated DUBs, could be more effective in limiting the growth of cancer cells and more tolerable to normal cells [25,26].

We and others have previously demonstrated that metal-containing compounds inhibit the proteasome peptidase activities and induce cytotoxicity in cancer cells [[27], [28], [29], [30], [31]]. Pyrithione (PT) possesses excellent metal chelating properties. The nickel and zinc complexes of pyrithione (NiPT and ZnPT), for example, has significant anticancer effects through inhibiting the 19S proteasome-associated DUBs [30,31] . Moreover, we have recently show that copper pyrithione (CuPT) has potent inhibitory effects on UPS function through inactivation of both the 19S and 20S proteasome and exhibits strong cytotoxic effects in cancer cells [27]. In this current work, we report that a new gold(I) complex, Au(PPh₃)PT, inhibits the activity of 19S proteasome-associated and other DUBs but has little impact on the proteolytic activities of the 20S proteasome, leading to a rapid buildup of ubiquitinated proteins. While induces less cytotoxicity in normal cells, Au(PPh₃)PT is cytotoxic to lung cancer cells and pathogenic bone marrow cells isolated from AML patients, and effectively represses the growth of lung adenocarcinoma xenografts in nude mice. Hence, Au(PPh₃)PT could be a highly promising anti-cancer compound.

2. Materials and methods

2.1. Materials

Au(PPh₃)PT,NiPT, and CuPT were synthesized in our laboratory and stored as a 2 mM stock solution in dimethyl sulfoxide (DMSO) at −20 °C. Velcade (bortezomib, PS341) was purchased from BD Biosciences (San Jose, CA, USA). N-ethylmaleimide (NEM), Cisplatin (CDDP), N-acetyl-Lcysteine (NAC), and tert-Butylhydroquinone (tBHQ) were purchased from Sigma-Aldrich (St. Louis, MO, USA). Pan caspase Inhibitor Z-VAD-FMK was purchased from EnzoLife Sciences International (Inc, Plymouth Meeting, PA, USA). b-AP15, Suc-Leu-Leu-Val-Tyr-AMC (Suc-LLVY-AMC), Z-Leu-Leu-Glu-AMC (Z-LLE-AMC), Boc-Leu-Arg-Arg-AMC (Boc-LRR-AMC), 20S and 26S human proteasome preparations, HA-Ubiquitin-Vinyl Sulfone (HA-Ub-VS), and K48-linked tetra-ubiquitin Ubiquitin-AMC (U550) were purchased from Boston Biochem (Cambridge, MA, USA). Antibodies used in this study were from the following sources: anti-GFP (B-2) was from Santa Cruz Biotechnology (Santa Cruz, CA, USA); anti-caspase 3 (8G10), anti-caspase 8 (1C12), anti-caspase 9 (C9), anti-cleaved caspase-8 (18C8), anti-PARP, anti-USP7, anti-USP10, anti-USP15, anti-USP25, anti-p-ATM, anti-p-CHK1, anti-p-CHK2, and anti-γ-H2AX were purchased from Cell Signaling Technology (Beverly, MA, USA); anti-K48-linkage specific polyubiquitin (D9D5), anti-GAPDH, anti-HA-tag, anti-cleaved caspase-3, and anti-cleaved caspase-9 were from Bioworld Technology (St. Louis Park, MN, USA); anti-UCHL5/Uch37 (Epitomics) and anti-USP14 (C-term) were from ABGENT (San Diego, CA, USA); anti-Ki67 was from Servicebio Technology CO., LTD (Wuhan, China). Annexin V- fluoroisothiocyanate (FITC) / propidium iodide (PI) apoptosis detection kit and reactive oxygen species assay kit were purchased from Keygen Company (Nanjing, China). Enhanced chemiluminescence (ECL) reagents were purchased from Santa Cruz Biotechnology (Santa Cruz, CA, USA).

2.2. Syntheses and structure determination of Au(PPh₃)PT

Au(PPh₃)PT was synthesized by our laboratory. Au(PPh₃)PT (49 mg, 0.1 mmol) was dissolved in 20 ml of dichloromethane (CH₂Cl₂) followed by the addition of 2-mercaptopyridine-1-oxide sodium(Nampo; 20 mg, 0.1 mmol). The reaction mixture was stirred for six hours before subsequent filtration. The resulting filtrate was allowed to evaporate at ambient atmosphere for five days. Block-shaped light yellow crystals of complex Au(PPh₃)PT were collected, washed by ethanol, and air dried.

Single crystal of complex Au(PPh₃)PT (size: 0.20 mm × 0.20 mm × 0.15 mm) was subjected to single crystal X-ray analysis. The diffraction data was collected on a Rigaku Mercury CCD and the data were collected using a graphite monochromator Mo Kα radiation (λ = 0.071073 nm) at 293(2) K. A total of 23,432 reflection was collected with 7439 unique one (Rint = 0.2396 0.2376) for complex Au(PPh₃)PT. Lorentz factor, polarization, air absorption and absorption due to variations in the path length through the detector faceplate were applied to correct the data sets. Absorption correction based on Multi-scan method was also applied. The structure of Au(PPh₃)PT was solved using direct methods (SHELXTL) and refined by full-matrix least-square techniques with atomic coordinates and anisotropic temperature factors for all non-hydrogen atoms. The hydrogen atoms attached to C and O atoms were added according to theoretical models, and their positions and thermal parameters were fixed during the structure refinement. For complex Au(PPh₃)PT, the final R1 = 0.1154 and wR2 = 0.2670, S = 1.012, (△ρ)_max = 6.04 and (△ρ)_min = −1.67 e·Å⁻³ for 4151 observed reflections (I > 2σ(I)) with 253 parameters.

2.3. Cell lines and cell viability assay

Human lung cancer cell lines A549 and NCI-H1299, and human epithelial lung cell line BEAS-2B were obtained from American Type Culture Collection (Manassas, VA, USA). A549 and NCI-H1299 cell lines were cultured in RPMI 1640, while BEAS-2B cell line was cultured in F12. Both of these media were supplemented with 10% FBS, 100 units/ml of penicillin, and 100 μg/ml of streptomycin. Cell cultures were maintained at 37 °C and 5% CO₂. The CellTiter 96® AQueous One Solution Cell Proliferation Assay (MTS) (Promega, Shanghai, China) was performed to test cell viability as previously reported [32]. Briefly, A549, NCI-H1299, and BEAS-2B cells were plated onto 96-well plates at a total of 10,000 cells/well, then treated with either vehicle or Au(PPh₃)PT, NiPT, CuPT for 24, 48, or 72 h before performing the MTS assay. MTS assay reagent (20 μl) was added to each well of the 96-well plate three hours before the termination of the experiments. The absorbance at 490 nm was detected using a plate reader (Varioskan Flash 3001, Thermo, Waltham, MA, USA). The concentrations of each compound that induce 50% inhibition of cell growth (IC₅₀) values were derived.

2.4. Cell death assay

Apoptotic rates were assessed by flow cytometry using Annexin V-fluoroisothiocyanate (FITC)/propidium iodide (PI) (Keygen, Nanjing, China) double staining [32]. After treatment with Au(PPh₃)PT at various concentrations for 24 h, cells were collected and washed with binding buffer, then incubated with Annexin V-FITC followed by the addition of PI prior to analysis. In addition, cells were submitted to Annexin V/PI staining in situ, then imaged with an inverted fluorescence microscope equipped with a digital camera (Axio Obsever Z1, Zeiss, Germany).

2.5. Western blot analysis

After treatment, the cells were lysed in RIPA buffer (1 × PBS, 1% NP-40, 0.5% sodium deoxycholate, 0.1% SDS) supplemented with 10 mM β-glycerophosphate, 1 mM sodium orthovanadate, 10 mM NaF, 1 mM phenylmethylsulfonyl fluoride (PMSF), and 1× Roche Complete Mini Protease Inhibitor Cocktail (Roche, Indianapolis, IN). SDS-PAGE, transferring, and immunodetection were performed as previously described [33]. In brief, an equal amount of total protein was resolved by SDS-PAGE and electro-transferred onto polyvinylidene difluoride (PVDF) membranes. After blocking with 5% milk, primary antibodies and appropriate horseradish peroxidase (HRP)-conjugated secondary antibodies were used to detect the designated proteins. ECL detection reagents (Santa Cruz, CA, USA) were used for detection, and bands were revealed by autoradiography (Kodak, Japan).

2.6. Sample collection and cell culture

The use of human samples is approved by the Institution with the permission of the patients and volunteers. Seven patients with AML and six healthy volunteers were recruited in this preclinical study. Bone marrow and blood samples of patients with AML were obtained from the Department of Hematology (Second Affiliated Hospital, Guangzhou Medical University). Peripheral blood samples of normal control individuals were obtained from Guangzhou Blood Center. Ficoll-Paque (Pharmacia, Uppsala, Sweden) was used to isolate mononuclear cells from either peripheral blood or bone marrow samples by density gradient. The mononuclear cells were cultured in RPMI 1640 culture medium with 15% FBS as described previously [31].

2.7. Peptidase activity assay

Briefly, purified human 20S proteasome was incubated with 2.5, 5, 10, 20 μM Au(PPh₃)PT or 0.1 μM Velcade for 60 min at 37 °C before the addition of fluorogenic substrates. The 20S proteasome activity was measured by the release of hydrolyzed AMC groups using a fluorescence microplate reader (Varioskan Flash 3001, Thermo, USA) as previously described [31]. The fluorogenic substrates used for chymotrypsin-like, caspase-like, and trypsin-like activity are Suc-LLVY-AMC, Z-LLE-AMC, and Boc-LRR-AMC, respectively.

2.8. Deubiquitinase (DUB) activity assay

DUB activity was measured as previously reported [25]. Cell lysates (5 μg) and 26S proteasome (25 nM) were incubated with Au(PPh₃)PT (0.25, 0.5, 1 μM) or NEM (2 mM) in ice-cold DUB buffer (50 mM Tris-HCl pH 7.5, 5 mM MgCl₂, 250 mM sucrose, and 1 mM PMSF) for 15 min. Ub-AMC was then added and the mixtures, at a final volume of 100 μl, were incubated at 25 °C. A fluorescence microplate reader (Varioskan Flash 3001, Thermo, USA) was used to record the release of AMC.

2.9. Active DUB labeling assays

These assays were performed as previously reported [30,31]. Purified 26S proteasomes (25 nM) were incubated with Au(PPh₃)PT (2, 20 μM) in DUB buffer for 10 min. HA-UbVS was then added into the mixture for another 1 h at 37 °C. These samples were boiled in the reducing sample buffer and subjected to Western blot analysis. In cells, it was performed as previously reported [25]. A549 or NCI-H1299 cells were either treated with 2 μM, 20 μM Au(PPh₃)PT or 50 μM b-AP15 for 2 h, or were treated with 20 μM Au(PPh₃)PT, NiPT, CuPT, b-AP15 for 3 h. Whole cell lysates (25 μg) were subsequently incubated with or without HA-UbVS(1 μM) in vitro for 30 min at 37 °C. The samples were then subjected to Western blot analysis.

2.10. Nude mouse xenograft model

All animal experiments followed the protocols approved by the Institutional Animal Care and Use Committee of Guangzhou Medical University. Five-week-old male nude Balb/c mice (purchased from Guangdong Animal Center) were subcutaneously inoculated with approximately 1× 10⁷ A549 or NCI-H1299 cells in a total volume of 100 μl in the left armpit. Seventy-two hours after inoculation, the mice were randomly divided into two groups and treated with either vehicle (DMSO, polyethylene glycol 400, and 0.9% NaCl at 1:3:6 volume ratio) or Au(PPh₃)PT (7 mg/kg/day), for a total of 16 days (in A549 xenograft) or 13 days (in NCI-H1299 xenograft). Tumor volumes were determined every three days [27] .

2.11. Immunohistochemical staining

Tumor tissues were fixed, embedded in paraffin and sectioned. Immunohistological staining of tumor xenograft sections (4 μm) was performed using MaxVision TM reagent (MaixinBiol, Fuzhou, China) by following the manufacturer's instructions. After incubation with the primary antibodies, the sections were treated with 0.05% diaminobenzidine and 0.03% H₂O₂ in 50 mM Tris-HCl (pH 7.6) and counterstained with hematoxylin. Preimmune rabbit serum served as negative control for each antibody.

2.12. ROS measurement

The intracellular reactive oxygen species (ROS) production was detected as previously reported [34]. A549 and NCI-H1299 cells were treated with Au(PPh₃)PT (2 μM) and/or NAC (5 mM), tBHQ (100 μM) for 12 h. Then the cells were washed twice and incubated with serum-free media with the addition of 10 μM of 2^′,7^′-dichloro-fluorescein diacetate (DCFH-DA) (Keygen, Nanjing, China) for 20 min at 37 °C in the dark. In the presence of ROS, DCFH penetrates the cells and is in turn oxidized to DCF. DCF fluorescence was detected by flow cytometry.

2.13. ALT/AST test

Mouse blood samples were obtained to evaluate the levels of serum ALT and AST. Briefly, blood was collected from mouse hearts, set on bench for 30 min at 25 °C, and then centrifuged at 1800 ×g for 20 min at 4 °C to obtain serum. The serum ALT and AST were measured with the Roche's original kit by a modular analyzer (Roche Cobas 8000, Roche Diagnostics, USA).

2.14. In vitro complex formation of Au(PPh₃)PT with NAC or tBHQ and HPLC analysis.

This was performed as previously reported [34]. A 2 mM solution of Au(PPh₃)PT was mixed with a 500 mM solution of NAC or 100 mM solution of tBHQ, both in DMSO. The mixtures were incubated for 48 h at room temperature and then diluted in methanol before being subjected to HPLC analysis with a Shimadzu dual-pump LC-20AT fitted with a DGU-20A3R. Data was collected digitally with Shimadzu Labsolution software.

2.15. Statistical analysis

All the results were expressed as Mean ± SD, with at least three individual measurements in all experiments. GraphPad Prism 5.0 software (GraphPad Software, USA) was used for statistical analysis. Two-tailed unpaired Student's t-test was used to evaluate the statistical significance of the difference between two groups in all experiments. When the difference among ≥3 groups was evaluated, one-way analysis of variance (one-way ANOVA) was performed. The p <0.05 was considered statistically significant.

3. Results

3.1. Syntheses and structure of the new complex- Au(PPh₃)PT

To synthesize Au(PPh₃)PT, Au(PPh₃)Cl (49 mg, 0.1 mmol) was dissolved in 20 ml of dichloromethane (CH₂Cl₂), followed by the addition of 2-mercaptopyridine-1-oxide sodium(Nampo; 20 mg, 0.1 mmol). The reaction mixture was stirred for six hours before filtration. The resultant filtrates were allowed to evaporate at room temperature for five days. Block-shaped light yellow crystals of complex 1 were collected, washed by ethanol and air-dried, which leads to a yield of 27 mg of Au(PPh₃)PT based on the measurement of Au. Then single crystals of Au(PPh₃)PT was selected for single crystal X-ray analysis. Crystal and structure refinement data for Au(PPh₃)PT was summarized in Table 1, the selected bond distances and angles for Au(PPh₃)PT was listed in Table 2, and the crystal structure of Au(PPh₃)PT was shown in Fig. 1.

Table 1.

Crystal and structure refinement data for complex Au(PPh₃)PT.

Complex	Au(PPh3)PT
Empirical formula	C23H19AuNOPS
Formula weight	585.39
Crystal system	Monoclinic
Temperature/K	293(2)
Space group	P21/c
a/Å	10.198(2)
b/Å	12.345(3)
c/Å	17.082(3)
β/(°)	90.02(3)
V/Å3	2086.3(8)
Z	4
Dc/(g·cm−3)	1.864
μ/mm−1	15.014
F(000)	1128
Crystal size/mm	0.2 × 0.2 × 0.15
θ range for data collection/(°)	7.38 to 136.4
Limiting indices	−12 ≤ h ≤ 12, −14 ≤ k ≤ 14, −20 ≤ l ≤ 20
Reflections collected	23,432
Independent reflections (Rint)	7439 (0.2396 0.2376)
Observed reflections (I > 2σ(I))	4151
Final GOF	1.012
R1, wR2 (I > 2σ(I))a	0.1154, 0.2670
R1, wR2 (all data)	0.1491, 0.3109
Largest different peak and hole/(e·Å−3)	6.04, −1.67

Table 2.

Selected bond lengths (nm) and bond angles (°) for complex Au(PPh₃)PT.

Au(1)-P(1)	0.224 24(10)	Au(1)-O(1)	0.257 4(3)	P(1)-C(6)	0.182 1(4)
Au(1)-S(1)	0.231 01(11)	P(1)-C(12)	0.181 9(4)	P(1)-C(18)	0.182 2(4)
P(1)-Au(1)-O(1)	107.74(6)	P(1)-Au(1)-S(1)	176.54(4)	S(1)-Au(1)-O(1)	75.63(7)

Fig. 1.

The crystal structure of Au(PPh₃)PT. Single crystals of Au(PPh₃)PT were scanned by single-crystal X-ray diffraction. The structure of Au(PPh₃)PT was solved using direct methods (SHELXTL) and refined using the full-matrix least-square technique with atomic coordinates and anisotropic temperature factors for all non-hydrogen atoms.

3.2. Induction of apoptosis in A549 and NCI-H1299 cells by Au(PPh₃)PT

To determine whether Au(PPh₃)PT has any cytotoxic effects on cancer cells, A549 and NCI-H1299 cells were treated with Au(PPh₃)PT at different concentrations for 24, 48, or 72 h. MTS assay revealed that Au(PPh₃)PT significantly decreased the cell viability in a dose-dependent manner, with the IC₅₀ values of 1.41 (24 h), 1.24 (48 h), and 1.02 μM (72 h) in A549 cells; and 1.46 (24 h), 1.22 (48 h), 1.01 μM (72 h) in NCI-H1299 cells, respectively (Fig. 2a, b).

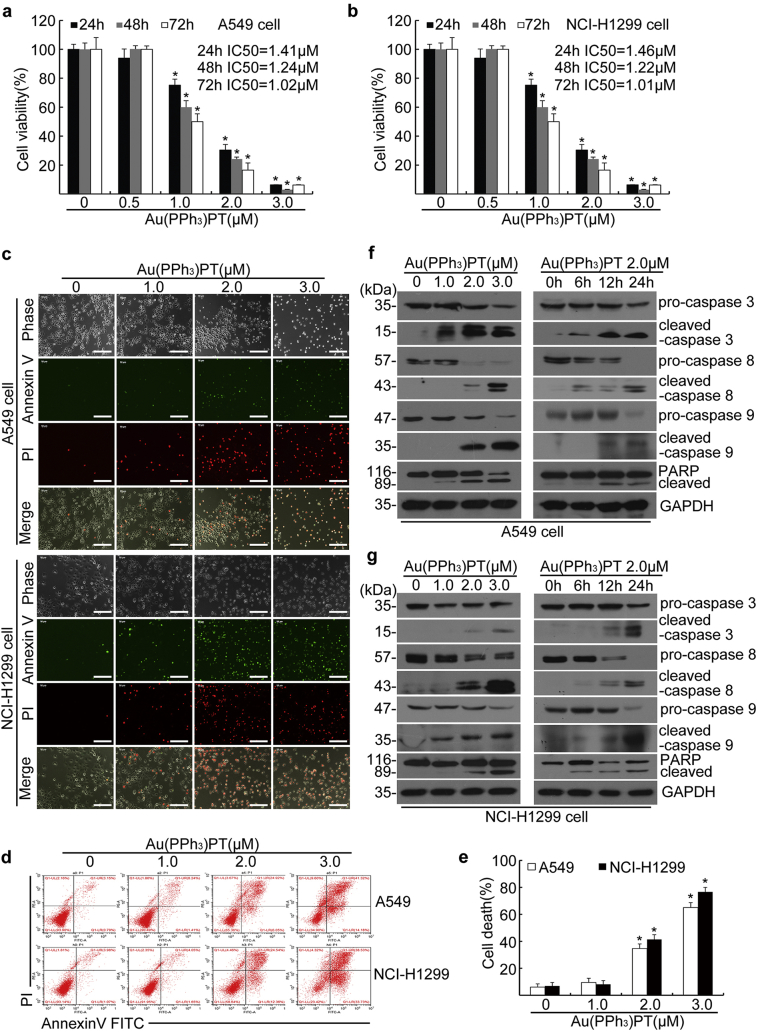

Fig. 2.

Au(PPh₃)PT induced cytotoxicity in A549 and NCI-H1299 lung cancer cell lines. A549 and NCI-H1299 cells were treated with Au(PPh₃)PT at the indicated concentrations at different time points (a, b, f, and g) or 24 h (c-e). (a, b) Viability of A549 and NCI-H1299 cells assessed by MTS assay. Data from three biological repeats are presented. Mean ± SD (n = 3). (Two-tailed unpaired Student's t-test) *P <0.05 versus control. (c-e) Apoptotic cells were detected by Annexin V-FITC/PI staining, followed by microscopy and flow cytometry analysis. Representative microscopic images (bars, 200 μm) (c), flow cytometry analysis (d), and the quantitative data from flow cytometry (e) are shown. Mean ± SD (n = 3). (Two-tailed unpaired Student's t-test) *P <0.05 versus control. (f, g) Western blot analysis of indicated proteins in A549 (f) and NCI-H1299 (g) cells. GAPDH serves as loading control.

We next determined the time course of Au(PPh₃)PT-induced cell death in these two lung cancer cell lines. Exposure of A549 and NCI-H1299 cells to Au(PPh₃)PT for 24 h resulted in a dose-dependent increase in AnnexinV/PI-positive cells (Fig. 2c–e). Western blot analysis show a reduction in precursor forms of caspase-3, -8, and -9 with a concomitant increase in the cleaved forms of caspase-3, caspase-8, caspase-9, and PARP after Au(PPh₃)PT treatment in a dose- and time-dependent manner (Fig. 2f, g). These results suggest that Au(PPh₃)PT induces caspase-dependent apoptotic cell death in cancer cells.

3.3. Au(PPh₃)PT inhibits UPS function

We and others have reported that metal complexes can directly inhibit proteasome function [[27], [28], [29], [30], [31]]. To assess whether Au(PPh₃)PT regulates UPS function, we first measured the abundance of ubiquitinated proteins in Au(PPh₃)PT-treated A549 and NCI-H1299 cells. Our results showed that Au(PPh₃)PT resulted in a striking increase in total and K48-linked ubiquitinated proteins in a dose-dependent manner (Fig. 3a). GFPu is a surrogate UPS substrate [35,36], and in HEK293 cells stably expressing GFPu, Au(PPh₃)PT led to the accumulation of GFPu and ubiquitinated proteins (Fig. 3b, c). Notably, the inhibitory effect of Au(PPh₃)PT on the UPS was comparable to Velcade (bortezomib, a classical 20S proteasome inhibitor) [9] and b-AP15 (an inhibitor of 19S proteasomal DUBs) [25] (Fig. 3).

Fig. 3.

Au(PPh₃)PT inhibits UPS function in cultured cells. (a) A549 (left) and NCI-H1299 (right) cells were treated with various concentrations of Au(PPh₃)PT for 6 h. Western blot analysis of total ubiquitinated proteins (Ub-prs.) and K48-linked ubiquitinated proteins (K48-) is shown. GAPDH serves as loading control. Velcade (0.1 μM) and b-AP15 (0.5 μM) were used as positive controls of proteasome inhibition. Grey-scale analysis of the indicated proteins by ImageJ software. All data are expressed as Mean ± SD (n = 3). (Two-tailed unpaired Student's t-test) *P <0.05 versus control. (b, c) HEK293 cells stably expressing GFPu, a UPS surrogate substrate, were treated with Velcade (0.1 μM), b-AP15 (0.5 μM), or Au(PPh₃)PT at the indicated concentrations for 6 h. Western blots of the indicated proteins (b) and representative bright field (Phase) and fluorescent (GFP) images (bars, 200 μm) (c) are shown. Grey-scale analysis of the indicated proteins in (b) was performed as in (a). Mean ± SD (n = 3). (Two-tailed unpaired Student's t-test) *P <0.05 versus control.

3.4. Au(PPh₃)PT inhibits 19S proteasome-associated DUBs but not 20S proteasome activities

To determine the molecular mechanism by which Au(PPh₃)PT induced proteasome inhibition, we first wanted to know whether Au(PPh₃)PT has any impact on 20S proteasome peptidase activity. By incubating Au(PPh₃)PT with purified 20S proteasome, we observed that Au(PPh₃)PT, even at a dose as high as 20 μM, did not inhibit the caspase-like (C-like), trypsin-like (T-like), and chymotrypsin-like (CT-like) peptidase activities of the purified 20S proteasome, suggesting a distinct function from Vel (Velcade) (Fig. 4a).

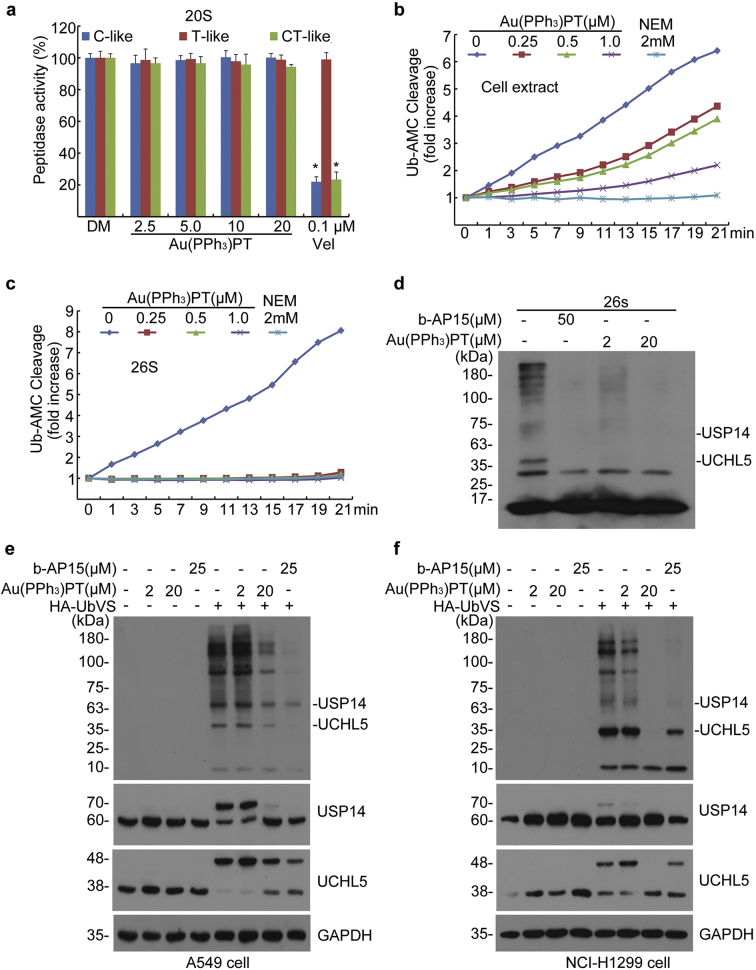

Fig. 4.

Au(PPh₃)PT inhibits proteasome deubiquitinase activities. (a) Au(PPh₃)PT did not alter 20S proteasome peptidase activities. Purified 20S proteasomes were treated with DMSO (DM) or Au(PPh₃)PT at the indicated doses. The caspase-like (C-like), trypsin-like (T-like), and chymotrypsin-like (CT-like) peptidase activities were measured using specific synthetic fluorogenic substrates. Velcade (Vel, 0.1 μM) was used as a positive control. Mean + SD (n = 3). (Two-tailed unpaired Student's t-test) *P <0.05 versus DM. (b) Effects of Au(PPh₃)PT on the cleavage of Ub-AMC in cell lysate. Cell lysate was treated with the indicated doses of Au(PPh₃)PT or NEM (N-ethylmaleimide, 2 mM) for 15 min prior to incubation with Ub-AMC. DUB activity was expressed as fold change of fluorescence units (RFU) relative to the at the start point reading. Shown is a representative image of three independent repeats. (c) Effects of Au(PPh₃)PT on the cleavage of Ub-AMC. Purified 26S proteasomes were treated with the indicated doses of Au(PPh₃)PT or NEM (2 mM). DUB activity was measured as described in (b). (d) Active-site-directed labeling of proteasomal DUBs. 26S proteasomes were treated with Au(PPh₃)PT (2 or 20 μM) for 10 min and then labeled with HA-UbVS for 1 h at 37 °C. Western blots are shown. b-AP15 (50 μM) was used as a positive control for DUB inhibition. (e, f) Au(PPh₃)PT inhibited the binding of HA-UbVS to the active sites of proteasomal deubiquitinases. A549 (e) and NCI-H1299 (f) cells were treated with 2 μM or 20 μM Au(PPh₃)PT for 2 h. Cell lysates were subsequently labeled with or without HA-UbVS (1 μM) in vitro for 30 min at 37 °C. Western blots of the indicated proteins are shown.

We next tested the effect of Au(PPh₃)PT on DUBs activities by measuring the cleavage of a Ub-AMC (ubiquitin 7-amido-4-methylcoumarin), a fluorogenic substrate for a wide range of DUBs, including UCHs and USPs [25]. In cell lysates, Au(PPh₃)PT dose-dependently inhibited the cleavage of Ub-AMC (Fig. 4b). In purified 26S proteasomes, Au(PPh₃)PT completely abrogated the cleavage of Ub-AMC at all of the tested doses, with a potency equivalent to N-ethylmaleimide (NEM), a general inhibitor of DUBs (Fig. 4c). We then performed the HA-Ubiquitin-Vinyl Sulfone (HA-UbVS) labeling assay to probe DUB activities. HA-UbVS can covalently bind to the active site of DUBs and the binding affinity reflects the DUBs activity [25]. Like NEM, Au(PPh₃)PT (2 and 20 μM) was able to inhibit the binding of HA-UbVS to both UCHL5 and USP14 in purified 26S proteasome (Fig. 4d). In human A549 and NCI-H1299 cancer cells, low dose (2 μM) Au(PPh₃)PT had negligible effects on HA-UbVs labeling; however, high dose (20 μM) of Au(PPh₃)PT significantly inhibited the binding of HA-UbVs to USP14 and UCHL5, as well as other DUBs. Notably, the inhibitory effect of Au(PPh₃)PT is comparable to the effect of b-AP15, a specific inhibitor of 19S proteasome-associated DUBs [25] (Fig. 4e, f).

Together, our results suggest that Au(PPh₃)PT inhibits 19S proteasome-associated DUBs (UCHL5 and USP14), among others.

3.5. Proteasome inhibition and activation of caspase are attributable to Au(PPh₃)PT-induced cytotoxicity

Given its inhibitory effect on 19S proteasome associated DUBs, we asked whether Au(PPh₃)PT regulates proteasomal proteolytic function. As shown in Fig. 5a, Au(PPh₃)PT treatment at a low dose (2 μM) led to a substantial accumulation of ubiquitinated proteins in both A549 and NCI-H1299 cells, which can be detected as early as 3 h and lasts until 24 h, suggesting that Au(PPh₃)PT inhibits proteasomal proteolytic function. Moreover, the cleavage of PARP, an executor of apoptosis, was not induced until 6 h (in NCI-H1299 cells) or 12 h (in A549 cells) after Au(PPh₃)PT treatment (Fig. 5a), supporting that apoptosis is preceded by proteasome inhibition. To rule out the possibility that the impairment of UPS function is secondary to apoptosis, we tested the effect of pan-caspase inhibitor z-VAD-FMK on Au(PPh₃)PT-impaired UPS function. As shown in Fig. 5b, while z-VAD-FMK effectively abolished PPAR cleavage, it did not have any effect on Au(PPh₃)PT-induced accumulation of ubiquitinated proteins. These findings suggest that, like other classic proteasome inhibitors [32,37], Au(PPh₃)PT inhibits UPS proteolytic function and induces caspase-dependent apoptosis.

Fig. 5.

Proteasome inhibition precedes the activation of caspase in Au(PPh₃)PT-treated cells. (a) The time-course effect of Au(PPh₃)PT on proteasome activity and apoptosis. A549 (left) and NCI-H1299 (right) cancer cells were treated with Au(PPh₃)PT (2 μM) for the indicated times. Western blots of indicated proteins are shown. GAPDH serves as loading control. (b) A549 (left) and NCI-H1299 (right) cells were treated with Au(PPh₃)PT (2 μM) and/or z-VAD-FMK (50 μM) for 12 h. Total ubiquitinated proteins (Ub-prs.) and PARP proteins were assessed by Western blot. GAPDH was serves as loading control. (c, d) NAC and tBHQ attenuated Au(PPh₃)PT-induced ROS generation. A549 (c) and NCI-H1299 (d) cells were treated with Au(PPh₃)PT (2 μM), NAC (5 mM), tBHQ (50 μM), Au(PPh₃)PT + NAC (A + N), or Au(PPh₃)PT + tBHQ (A + t) for 12 h. ROS was detected by flow cytometry. Relative level of ROS are shown. Mean ± SD (n = 3). (One-way ANOVA with Tukey's test) *P <0.05; ns, not significant. (e) NAC reversed Au(PPh₃)PT-induced accumulation of ubiquitinated proteins and PPAR cleavage. A549 and NCI-H1299 cells were treated as in (c, d). Western blot analyses for the indicated proteins were performed.

Next, we found that like other gold containing compounds [38], Au(PPh₃)PT increased ROS (reactive oxygen species) production in A549 and NCI-H1299 cells, which was attenuated by ROS scavenger NAC (N-acetyl-cysteine) and tert-Butylhydroquinone (tBHQ) (Fig. 5c, d). Interestingly, NAC, but not tBHQ, was able to effectively reverse Au(PPh₃)PT-induced proteasome inhibition and apoptosis as evidenced by the reduction in ubiquitinated proteins and PARP cleavage (Fig. 5e). We further found that NAC, but not tBHQ, altered the chemical structure of Au(PPh₃)PT (Fig. S1). These results suggest that proteasome dysfunction but not ROS production plays a major role in Au(PPh₃)PT-induced cell death.

Fig. S1.

NAC altered the chemical structure of Au(PPh₃)PT. Au(PPh₃)PT (2 Mm) was incubated with NAC (500 mM) or TBHQ (100 mM) for 48 h at room temperature and then diluted in methanol before HPLC analysis. Data was collected and shown.

3.6. Au(PPh₃)PT inhibits proteasome function and induces cytotoxicity in cancer cells from leukemia patients

Proteasome inhibitors have been proven effective in treating leukemia patients [8,9]. Thus we sought to determine the ex vivo antineoplastic effect of Au(PPh₃)PT using monocytes isolated from 7 patients with AML and 6 healthy volunteers. As shown in Fig. 6a, primary monocytes from AML patients were more sensitive to Au(PPh₃)PT-induced cell death, as evidenced by much lower IC₅₀ values (ranging from 0.66 to 5.091 with an average of 2.02 μM) than normal controls (ranging from 2.83 to 15.87 μM with an average of 10.63 μM). As expected, the proteasome inhibitor Velcade caused more cell death in monocytes isolated from AML patients than in those from healthy controls (Fig. 6b). Consistently, Annexin V/PI staining followed by flow cytometry analysis revealed that 1 μM of Au(PPh₃)PT only caused cell death in ~20% of monocytes isolated from healthy controls (Fig. 6c, d); while it significantly induced cell death in ~85% of monocytes isolated from AML patients (Fig. 6f, g). Moreover, Au(PPh₃)PT drastically increased the levels of total and K48-linked ubiquitinated proteins in the monocytes isolated from AML patients (Fig. 6h); however, the same doses had much less robust effects in the monocytes from normal controls (Fig. 6e). These ex vivo results demonstrate that monocytes from AML patients are more susceptible to Au(PPh₃)PT-induced cell death, likely due to increased sensitivity to proteasome inhibition .

Fig. 6.

Au(PPh₃)PT inhibited proteasomal function and specifically induced cytotoxicity in cancer cells from acute myeloid leukemia (AML) patients. (a, b) Cancer cells from 7 AML patients (Pt) and peripheral blood mononuclear cells from 6 healthy volunteers were treated with Au(PPh₃)PT at the indicated doses or with Velcade (Vel, 0.1 μM) for 24 h. Cell viability was determined by MTS assay. The IC₅₀ values in each group are shown in the scatter plot (a). Mean ± SD (n = 7 or 6). (Two-tailed unpaired Student's t-test) *P <0.05, versus patients. Cell viability with Vel treatment in each group is shown in (b). Mean ± SD (n = 7 or 6). (Two-tailed unpaired Student's t-test) *P <0.05, versus AML patients. (c-e) Peripheral mononuclear cells from healthy volunteers were incubated with Au(PPh₃)PT at the indicated doses or with Vel (0.1 μM) for 24 h. Cell death was detected by Annexin V/PI staining, followed by flow cytometry (c). Quantification results are summarized in (d). Western blots of the indicated proteins are shown in (e). GAPDH serves as loading control. (f-h) AML cancer cells were treated with the indicated doses of Au(PPh₃)PT or Vel (0.1 μM)) for 24 h. Cell death were detected by Annexin V/PI staining and analyzed by flow cytometry. Representative images (f) and the quantification (g) are shown. Western blots of the indicated proteins are shown in (h).

3.7. Au(PPh₃)PT inhibits proteasome function and tumor growth in vivo

We next wanted to assess the antineoplastic action of Au(PPh₃)PT in vivo. Xenograft models were created by subcutaneous injection of A549 or NCI-H1299 cells to immunodeficient BALB/c nude mice. Three days after inoculation, these mice were treated with vehicle or Au(PPh₃)PT (7 mg/kg/day) via intraperitoneal injection for up to 16 days in A549, and 13 days in NCI-H1299 xenograft, respectively. Au(PPh₃)PT significantly inhibited tumor growth in both models, as evidenced by significantly decreased tumor size (Fig. 7a, b, e, f). Moreover, Au(PPh₃)PT treatment led to ~42.5% reduction of tumor weight in A549 xenograft model and ~46.1% reduction in NCI-H1299 xenograft model (Fig. 7c, g). Despite its tumor-suppressive effect, Au(PPh₃)PT treatment did not cause significant body weight loss (Fig. S2). Immunohistochemistry staining revealed that total ubiquitinated proteins were significantly increased, while Ki67-positive cells, a nuclear non-histone protein that is associated with cell proliferation [39], were significantly decreased in the Au(PPh₃)PT-treated tumors (Fig. 7d, h). Meanwhile, the activity of cleaved-caspase 3 and 8 increased both in A549 and NCI-H1299 xenograft mice (Fig. S3). Together, these results demonstrate that Au(PPh₃)PT has strong inhibitory effects on both proteasome function and tumor growth in vivo.

Fig. 7.

Au(PPh₃)PT inhibited tumor growth and impaired the proteasome function of tumor xenografts in nude mice. BALB/c nude mice bearing A549 and NCI-H1299 tumors were treated with vehicle (Veh) or Au(PPh₃)PT (7 mg/kg/day, i.p.) for 16 (A549) and 13 (NCI-H1299) days, respectively. Tumor growth curves were recorded every three days. Tumor size (a, e), tumor images (b, f), and tumor weight (c, g) are shown. Mean ± SD (n = 6). (Two-tailed unpaired Student's t-test) *P <0.05. (d, h) Immunohistochemistry staining of total ubiquitinated proteins (Ub-prs.) and Ki67 in tumor tissues. Representative images collected at a magnification of 200× are shown. The level of Ub-prs. and Ki67 were quantitated by ImageJ software. n = 3 mice per treatment, Mean ± SD. (Two-tailed unpaired Student's t-test) *P <0.05, compared with Vehicle control.

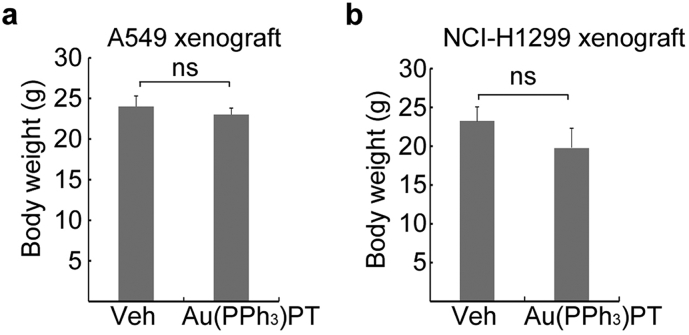

Fig. S2.

Au(PPh₃)PT did not cause body weight loss in xenografts nude mice. BALB/c nude mice bearing A549 and NCI-H1299 tumors were treated with vehicle (Veh) or Au(PPh₃)PT (7 mg/kg/day, i.p.) for 16 days and 13 days, respectively. The body weight of A549- (a) and NCI-H1299-inoculated (b) mice were recorded. Mean ± SD (n = 6). (Two-tailed unpaired Student's t-test) ns, not significant, compared with Vehicle control.

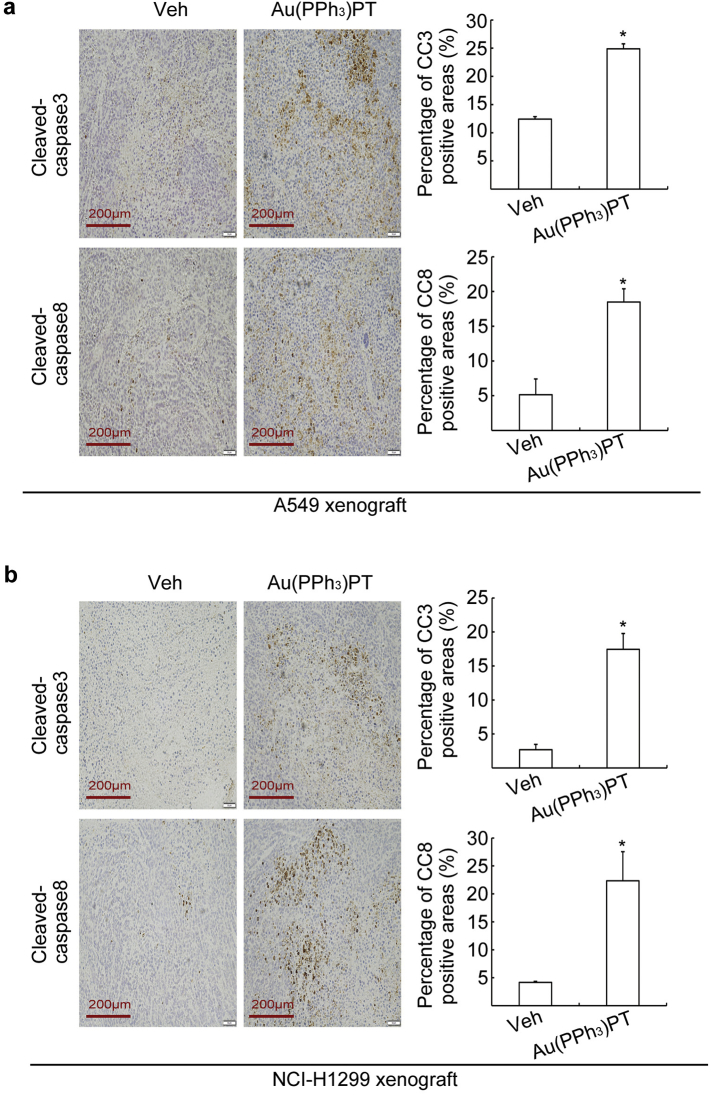

Fig. S3.

Au(PPh₃)PT induced the cleavage of caspase 3 and 8 in A549 and NCI-H1299 xenograft mice. BALB/c nude mice bearing A549 and NCI-H1299 tumors were treated with vehicle (Veh) or Au(PPh₃)PT (7 mg/kg/day, i.p.) for 16 and 13 days, respectively. Immunohistochemistry staining of cleaved-caspase 3 and 8 in A549 (a) and NCI-H1299 (b) tumor tissues were performed. The representative images collected at a magnification of 200× are shown. The levels of cleaved-caspase 3 and 8 were quantitated by ImageJ software. Mean ± SD (n = 3). (Two-tailed unpaired Student's t-test) *P <0.05, compared with Vehicle control.

3.8. Au(PPh₃)PT has cellular functions distinct from other metal compounds

We have reported that other metal complexes (NiPT and CuPT) suppressed tumor growth via targeting proteasome function [[27], [28], [29], [30], [31]]. We wanted to gain new insights into the molecular actions and efficacy of these complexes in comparison to Au(PPh₃)PT. We first compared their effects on the viability of cancer cells (A549, NCI-H1299) and normal cells (human epithelial lung cell line BEAS-2B). As shown in Fig. 8a–8c, CuPT has comparable IC₅₀ in cancer cells (0.12 μM in A549 and 0.28 μM in NCI-H1299) and in normal cells (0.24 μM in BEAS-2B), suggesting that CuTP has little selectivity on inhibiting cancer cell growth. In contrast, Au(PPh₃)PT (IC₅₀ = 4.22 μM) and NiPT (IC₅₀ = 7.84 μM) exerted a much lower cytotoxicity in BEAS-2B cells compared with CuPT. While Au(PPh₃)PT has a slightly higher cytotoxicity on normal cells compared with NiPT, it is more potent in inducing cell death in cancer cells (IC₅₀ = 1.36 μM vs. 6.80 μM of NiPT in A549 cells and IC₅₀ = 1.31 μM vs. 4.92 μM of NiPT in H1299 cells). These findings suggest that Au(PPh₃)PT has a higher selectivity in inhibition of cancer cell growth.

Fig. 8.

DUB activity inhibition and cytotoxicity induced by Au(PPh₃)PT compared to other metal complexes. (a, b, c) Cytotoxic curves of the indicated metal complexes. Cancer cells A549 (a) and NCI-H1299 (b), and human epithelial lung cell BEAS-2B (c) were treated with escalating doses of Au(PPh₃)PT, NiPT, or CuPT for 24 h. Cell viability was measured by MTS assay. Values are expressed as Mean ± SD (n = 3). The IC₅₀ values of the complexes are shown. (d) The effects of Au(PPh₃)PT, NiPT, or CuPT on the binding of HA-UbVS to the active sites of DUBs. A549 (left) and NCI-H1299 (right) cells were treated with Au(PPh₃)PT (20 μM), NiPT (20 μM), or CuPT (20 μM) for 3 h. Cell lysates were subsequently labeled with HA-UbVS (1 μM) in vitro for 30 min at 37 °C. Western blots of the indicated proteins are shown. b-AP15 (20 μM) serves as positive control for DUB inhibition. GAPDH was used as a loading control. (e) Western blot of DNA damage-related proteins in A549 and BEAS-2B cells treated with Au(PPh₃)PT (2 μM), NiPT (2 μM), or CuPT (2 μM) for 3 h. CDDP (10 μM) was used as positive control for DNA damage response. (f, g) The activities of alanine aminotransferase (ALT) and aspartate aminotransferase(AST) in mouse serum. BALB/c mice were injected with vehicle (Veh), Au(PPh₃)PT, NiPT, or CuPT (2 mM/kg/day, i.p.) for 7 days and the sera were collected for ALT/AST tests. Values are expressed as Mean ± SD (n = 5). (Two-tailed unpaired Student's t-test) *P <0.05, compared with Vehicle control.

We next compared the inhibitory effects of these metal compounds on DUB activities by performing the HA-UbVS labeling assay in A549 and NCI-H1299 cancer cells. The results show that at the same dose (20 μM), Au(PPh₃)PT and CuPT had inhibitory effects equivalent to that of b-AP15 on the binding of HA-UbVs to USP14 and UCHL5, as well as other DUBs (USP7, USP10, USP15, USP25). In contrast, NiPT show less inhibition on the activity of USP14, and has no effect on other tested DUBs activity (Fig. 8d). Thus, these data support that Au(PPh₃)PT is a specific pan-inhibitor of DUBs among the tested metal compounds.

We also compared the effect of these metal compounds on the DNA damage response pathway. We found that CuPT, but not Au(PPh₃)PT and NiPT, significantly increased the levels of DNA damage-related proteins including p-ATM, p-CHK1, p-CHK2, and γ-H2AX in both cancer cells (A549) and normal cells (BEAS-2B) (Fig. 8e), suggesting that Au(PPh₃)PT and NiPT do not induce DNA damage in vitro. In addition, we injected Balb/c mice with the same dose of Au(PPh₃)PT, NiPT, and CuPT (2 mM/kg/day for 7 days, i.p.) and measured the activity of alanine aminotransferase (ALT) and aspartate aminotransferase(AST), two enzymes indicative of liver function, in the plasma. The results showed that CuPT treatment significantly increased the level of ALT/AST in the plasma (Fig. 8f, g), indicating that CuPT induced hepatic stress in mice.

4. Discussion

DUBs, especially 19S proteasome-associated DUBs are increasingly being recognized as potential drug targets for cancer therapies. Although inhibitors of proteasomal DUBs have recently been developed and are able to suppress tumor growth under experimental settings [40], their effectiveness in cancer patients remains to be tested in clinical studies. Additionally, metal-based compounds have recently gained attention for their potential as proteasome inhibitors in cancer therapy. In the present study, we developed a new gold(I) complex, Au(PPh₃)PT, that possesses potent anti-tumor activities both in vitro and in vivo. We further demonstrated that Au(PPh₃)PT inhibits UPS function by targeting 19S proteasome-associated DUBs (UCHL5 and USP14) and other non-proteasome DUBs (USP7, USP10, USP15, and USP25). Hence, this study identifies a novel DUB inhibitor that may have potential use in cancer treatment.

In the past decade, chemical complexes containing metal ions including, but not limited to, gallium (III), copper (II), zinc (II), nickel (II), and cobalt (II) were targeted to inhibit the 26S proteasome [[41], [42], [43], [44], [45]]. The discovery of these metal-based compounds provides a new direction in developing novel anticancer drugs. Although several metal-based compounds have been reported to inhibit UPS function, their potency in limiting tumor growth in patients remains to be demonstrated. While cisplatin has been commonly used for treatment of several types of solid tumors, its clinical application has been associated with severe side effects: drug resistance and reoccurrence of malignancies [33]. Therefore, substantial efforts have been directed to search for novel non‑platinum-containing metal compounds with potent anti-cancer activity but low toxicity. We and others have reported that several gold-containing compounds can directly inhibit 20S proteasome peptidase activities. Specifically Auranofin (Aur), a gold (I)-containing compound that has been widely used to alleviate the symptoms of rheumatic arthritis, was found to be a potent inhibitor of 19S proteasome-associated DUBs (UCHL5 and USP14) [34,46]. Furthermore, we have found that several metal complexes of pyrithione (PT) inhibit proteasome peptidase activity and trigger cell death in cancer cells [27,30,31]. Since PT possesses excellent metal chelating properties, we sought to synthesize a new gold(I) complex of pyrithione, Au(PPh₃)PT, and to investigate its potential anti-tumor effects.

The current study demonstrates that Au(PPh₃)PT is a novel inhibitor of UPS function. It is generally believed that lysine 48 (K48)-linked ubiquitinated proteins are preferable substrates for the proteasome versus other linkages [47]. Using K48-linked proteins, total polyubiquitinated proteins, and GFPu as readouts, we show that Au(PPh₃)PT can lead to the accumulation of both endogenous and exogenous proteasome substrates in vitro, ex vivo and in vivo (Fig. 3, Fig. 6h, 7d, h). Notably, therapeutic doses of Au(PPh₃)PT are sufficient to inhibit UPS at a potency comparable to Vel (Fig. 3). We further prove that, in contrast to Vel, Au(PPh₃)PT did not inhibit the caspase-like, trypsin-like, or chymotrypsin-like activities of 20S proteasomes (Fig. 4a), suggesting that Au(PPh₃)PT does not target 20S proteasome.

Next we demonstrate that 19S proteasome-associated UCHL5 and USP14 are likely directly targeted by Au(PPh₃)PT. By detecting the cleavage of Ub-AMC and HA-UbVs labeling, we showed that Au(PPh₃)PT has robust effects on inhibiting the activities of UCHL5 and USP14, two 19S proteasome associated DUBs, in both purified 26S proteasomes and in cancer cells (Fig. 4). Due to the lack of a reliable readout, it remains unclear whether Au(PPh₃)PT targets RPN11, an intrinsic 19S proteasome DUB that is required for 26S proteasome-mediated proteolysis. Inhibition of USP14 has been shown to promote proteasomal proteolytic function [48]. Therefore, it is very likely that the impairment of UPS function by Au(PPh₃)PT is an outcome of the combined effects of USP14 and UCHL5 inhibition.

Previous studies have indicated that blockade of tumor proteasome activity results in cancer cell apoptosis [49], and that gold (I)-containing compound, Aur, induced intracellular ROS generation [38]. Consistent with these reports, we found that cleaved PARP (an apoptosis indicator) was preceded by proteasome inhibition in Au(PPh₃)PT-treated cancer cells (Fig. 5a). The new gold(I) complex of pyrithione, Au(PPh₃)PT, also increased ROS production in cancer cell lines A549 and NCI-H1299 (Fig. 5c, d). Interestingly, while both thiol-containing antioxidant (NAC) and phenol-containing antioxidant (tBHQ) effectively scavenged Au(PPh₃)PT-induced ROS production (Fig. 5c, d), only NAC completely prevented Au(PPh₃)PT-induced total polyubiquitinated proteins accumulation and PARP cleavage (Fig. 5e) because NAC alone alters the chemical structure of Au(PPh₃)PT (Fig. S1). Taken together, these results indicate that UPS dysfunction, rather than ROS production, plays a major role in Au(PPh₃)PT-induced cell death.

Cancer cells rely on hyperactive proteasomes to offset proteotoxicity resulting from metabolic, hypoxic, and mechanical stress, and therefore are highly sensitive to UPS inhibitors. We presented in vitro, ex vivo, and in vivo evidence demonstrating the selective anticancer activity of Au(PPh₃)PT (Fig. 2, Fig. 6, Fig. 7), which is at least in part attributable to the inhibition of UPS function and the induction of apoptotic cell death. Besides targeting 19S proteasome-associated DUBs, Au(PPh₃)PT can also diminish the activity of other cytoplasmic non-proteasomal DUBs, including USP7, USP10, USP15, and USP25 (Fig. 4, Fig. 8d), which may also contribute to its cytotoxicity in cancer cells. Interestingly, previous studies have revealed both oncogenic and tumor suppressive functions of these DUBs. On the one hand, inhibition of USP7 increased tumor suppressor INK4a and caused senescence [50]. USP15 stabilized TGFβ receptor I and promoted oncogenesis in glioblastoma [51]. Silencing of USP25 was shown to inhibit invasion and metastasis of human non-small cell lung cancer [52]. On the other hand, downregulation of USP10 associated with tumorigenesis possibly through promoting the degradation of tumor suppressors such as P53 and SIRT6 [53,54]. Therefore, the tumor suppressive effects of Au(PPh₃)PT is likely the combinational outcome of its inhibition on both oncogenic and tumor suppressive DUBs. Nevertheless, the specificity of Au(PPh₃)PT on these DUBs, as well as the mechanisms by which Au(PPh₃)PT inhibits DUBs, remains to be understood. Au(PPh₃)PT elicits robust cytotoxicity in bone marrow cells from AML patients but induces much less cytotoxicity in monocytes from healthy volunteers (Fig. 6). Moreover, Au(PPh₃)PT treatment did not cause body weight loss (Fig. S2) and hepatic injury (Fig. 8f, g) in mice at the doses required to repress tumor growth, indicating the lack of systematic toxicity. Together, our study identifies a new metal-based compound as a promising anticancer drug.

We have previously reported that several metal-based compounds exert anti-tumor activity. CuPT, a chelating product of copper ion and pyrithione, suppresses tumor growth by targeting both 19S proteasome-specific DUBs and 20S proteasome peptidases [27]. A nickel complex, NiPT, is also effective in restraining tumor growth by inhibiting the 19S proteasomal DUBs USP14 and UCHL5 (Zhao et al., 2016). Our comparison analysis of these compounds (Fig. 8) showed that CuPT induced DNA damage and cell death equivalently in cancer cells and normal cells and led to liver injury in mice, suggesting that targeting both 20S proteasome and DUBs by CuPT is quite toxic to normal cells. In contrast, inhibition of DUBs by either NiPT or Au(PPh₃)PT appeared to be more tolerable by normal cells and does not cause DNA damage in cultured cells or liver injury in mice. Moreover, Au(PPh₃)PT exhibits higher potency in inducing cell death in cancer cells compared with NiPT (Fig. 8a, b), possibly owing to its broad effect in inhibiting both 19S proteasome-associated DUBs and other cytoplasmic DUBs. Interestingly, we found that b-AP15, a specific inhibitor of 19S proteasome-associated DUBs (USP14 and UCHL5) [25], like Au(PPh₃)PT, also inhibited other non-proteasomal DUBs (USP7, USP10, USP15, USP25) (Fig. 8d), warranting further investigation. Our finding suggested that different metal complexes have distinct actions in inhibition of UPS function and tumor growth.

Besides metal-based compounds, a new class of compounds that target proteasomal DUBs have recently been developed to inhibit tumor growth [25,[55], [56], [57], [58]]. For instance, RA-9 inhibits not only 19S proteasome DUBs (USP14 and UCHL5) but also other cytoplasmic DUBs such as UCHL1, UCHL3, USP8, and USP9x in vitro. WP1130 was found to inhibit a broad spectrum of DUBs, whereas IU1 selectively inhibits USP14 but not UCHL5 activity [48]. Our studies, along with others, suggest that targeting 19S proteasome DUBs and other cytoplasmic DUBs could be a promising strategy for cancer therapy.

In conclusion, we identify a novel metal-containing compound, Au(PPh₃)PT, that exhibits strong inhibitory effect on the growth of multiple cancer cell types in vitro, ex vivo, and in vivo. Mechanistically, Au(PPh₃)PT inhibits 19S proteasome-associated DUBs and other non-proteasomal DUBs, leading to the severe impairment of UPS function and consequent prevalent apoptotic cell death. Thus, Au(PPh₃)PT is a promising anti-cancer drug candidate. Further investigation is warranted to confirm its preclinical and clinical value in the field of cancer therapy.

The following are the supplementary data related to this article.

Funding sources

This work was supported by the National High Technology Research and Development Program of China (2006AA02Z4B5), NSFC (81272451/H1609, 81472762/H1609, 81602427/H1602), project of Guangdong Province Natural Science Foundation (2016A030310281), projects from Foundation for Higher Education of Guangdong (2015KQNCX126), project from Guangzhou Medical University for Doctor Scientists (2014C01), Medical Scientific Research Foundation of Guangdong Province (A2018421), and Guangzhou Key Medical Discipline Construction Project Fund.

Conflicts of interest

The authors confirm that there are no conflicts of interest.

Author contributions

Jinbao Liu and Xiaofen Li designed experiments; Peiquan Zhang synthesized the new complex and determined the structure of compound; Xiaofen Li, Qingtian Huang,Huidan Long, and Peiquan Zhang performed laboratory experiments; Jinbao Liu and Huabo Su wrote and revised the manuscript. All authors were involved in editing and approval of the final manuscript. Xiaofen Li, Qingtian Huang, and Huidan Long contributed equally to this work.
