Overexpression of FZD1 is Associated with a Good Prognosis and Resistance of Sunitinib in Clear Cell Renal Cell Carcinoma

Abstract

Frizzled class receptor 1 (FZD1), a receptor for Wnt signaling pathway. Overexpression of FZD1 has been detected in many cancer tissues and cells resulting in tumor development and drug resistance. However, its expression status and prognostic merit in renal cancer still remains unclear. We screened the FZD1 mRNA in clear cell renal cell carcinoma (ccRCC) and papillary renal cell carcinoma (pRCC) from TCGA database and Oncomine database. We then detected FZD1 mRNA expression in sunitinib-resistant cells and the corresponding parental cells by qRT-PCR. FZD1 level was significantly upregulated in renal cancer tissues, renal cancer cell lines and their corresponding sunitinib-resistant cells. FZD1 level was also associated with the clinicopathological characteristics of ccRCC patients that could discriminate metastasis, pathological stage, recurrence and prognosis in ccRCC patients. The Kaplan-Meier survival curve and the log-rank test revealed FZD1 was higher in lower clinical stage and grade that correlated with better overall survival (OS) and disease-free survival (DFS) in total and subgroups of ccRCC patients. Both univariate and multivariate cox regression analysis indicated that high FZD1 level was an independent predictor of good prognosis for OS (HR 0.569, P=0.001) and DFS (HR 0.559, P=0.036) in ccRCC patients. Using cBioportal program, less than 1% mutation in the patients with renal cancer was observed, the alterations in FZD1 were correlated with better OS (P=0.0404) in ccRCC patients. Finally, the result of KEGG pathway analysis predicted seven potential pathways that FZD1 and its related genes got involved in ccRCC, including Hippo signaling pathway. This indicated potential therapeutic targets of ccRCC. In conclusion, our results suggested that expression status of FZD1 had a diagnostic value and prognostic value in ccRCC patients, it also may serve as a potential drug target to relieve sunitinib resistance in renal cancer patients.

Introduction

Renal cancer causes more than 140,000 deaths per year, and is the seventh most common cancer in the world ¹. Annually, ~295,000 new kidney cancer cases are diagnosed and ~134,000 deaths are recorded worldwide ^{2, 3}. Approximately 70% to 80% of all renal cell carcinoma (RCC) histological subtype is ccRCC, while pRCC accounts for 10% to 15% of all RCC ⁴. Localized RCC can be treated with active surveillance ⁵, ablation ⁶ and partial or radical nephrectomy ⁷, but varied greatly in the outcome. As 29.1% patients had died with a median of 1.9 years after surgery, also 10-year cancer specific survival rate was only 12%~36% for patients with advanced tumor ⁸, thus require systemic therapies. Targeted therapies against vascular endothelial growth factor (VEGF) and mammalian target of rapamycin (mTOR) pathways have been developed, but treatment response is varied and most patients eventually progress ⁹. Sunitinib is a broad-spectrum small-molecule inhibitor of receptor tyrosine kinases (RTK) that serves as the present standard of care for first-line therapy of advanced ccRCC. Though there is a trend towards improved survival for an unselected RCC patients treated with targeted therapies ¹⁰, not all patients respond to sunitinib, and the vast majority eventually develop resistance to sunitinib therapy ¹¹. Recent research showed that cytoplasmic expression of annexin A1 (ANXA1) got involved in sunitinib resistance, it can serve as a negative predictive marker for sunitinib therapy in RCC patients ¹². Another study also found that solute carrier family 10 member 2 (SLC10A2) was decreased in sunitinib-resistant ccRCC, and was identified as an independent prognostic factor of overall survival of ccRCC ¹³, but the exact mechanisms of resistance to sunitinib therapy are still poorly understood. In ccRCC, the VHL tumour suppressor gene is the most frequently mutated gene ¹⁴, but VHL loss alone is insufficient to induce ccRCC, which requires additional genetic events such as mutations in other tumor suppressor genes or oncogenes ^15,16. A previous report that ccRCC patients even within the same tumor stage may have different clinical features because mutation or dysregulation of different genes ¹⁷. Hence, there is an urgent need to identify new mutated genes that are involved in the pathogenesis of ccRCC, which help identify clinic patients and drug resistance of ccRCC that improve accuracy of outcome prediction.

FZD1, belongs to the 'frizzled' gene family. It encodes 7-transmembrane domain proteins that are receptors for Wnt signaling proteins ¹⁸. Wnt ligands bind to FZD receptors to trigger the activation of the canonical Wnt/β-catenin signaling pathway or the non-canonical Wnt/ Ca2+ or Wnt/planar cell polarity signaling cascades ¹⁹. The overexpression of FZDs and activation of the Wnt signaling pathway resulting in cell growth, invasion, metastasis and chemoresistance ²⁰. A previous research uncovered sunitinib's actions on the brain tumor microenvironment impedes brain tumor progression ²¹. FZD1 could also get involved in cellular microenvironment in the regulation of cell proliferation ²². There was a report that FZD1 expression in the tumor microenvironment had a gradient effect may modulate colon cancer progression and dissemination, representing a new therapeutic target for patients with colon cancer ²³. FZD1 is involved in the Wnt/β-catenin pathway and abnormally expressed in various cancers ^24-27, it can also mediate drug resistance in neuroblastoma ²⁸, acute myeloid leukemia ²⁹ and breast cancer ³⁰. Though the important role of FZD1 in tumor development and drug resistance, its expression status and prognostic merit in renal cancer still remains unclear. We carried out this research to explore its relationship within renal cancer patients, especially in ccRCC patients.

In this study, we focus on FZD1 expression in renal cancer, especially in ccRCC. FZD1 was significantly upregulated in cancer tissues, renal cancer cell lines and their corresponding sunitinib-resistant cell lines. FZD1 was higher in lower clinical stage and grade that correlated with better OS and DFS in total and subgroups of ccRCC patients. Furthermore, we analyzed the prognostic significance of FZD1 by using independent ways and multiple approaches, displayed the mutation information of FZD1 in ccRCC, and predicted the potential pathways of FZD1 involved in ccRCC to comprehend the mechanism comprehensively.

Materials and Methods

Cell culture and establishment of sunitinib-resistant cell lines

The human RCC cell lines 786-O (primary clear cell adenocarcinoma), OS-RC-2 (renal cell adenocarcinoma), Caki-1 (metastatic clear cell renal cell carcinoma), ACHN (metastatic papillary renal cell), HK-2 (normal kidney cell) were obtained from the Shanghai Institutes for Biological Sciences. The cell lines 786-O, OS-RC-2, Caki-1 and HK-2 were cultured in RPMI 1640. ACNH cells were maintained in DMEM medium. Cells were cultured and supplemented with 10% fetal bovine serum (FBS) in a humidified atmosphere of 5% CO2 maintained at 37°C. 786-O and OS-RC-2 cells were plated in 10-cm petri dish with PRIM 1640 medium with 10% FBS, grown to 50% confluence and incubated overnight for attachment. The cells were then exposed to sunitinib-containing media. The sunitinib concentration and exposure time were adjusted depending on the tolerance of the cells. Cells were exposed to sunitinib for 2~3 days and then replaced with fresh media without sunitinib for 24h. Cells that showed proliferation at a specific sunitinib concentration were digested and exposed to a higher concentration (0.5μmol higher than the previous concentration). If the increased concentration was not tolerated, the cells were maintained in media with an identical or lower sunitinib concentration. The sunitinib on-off exposure cycle was maintained until the cells could proliferate in the presence of the target concentration. The final IC50 value of 786-OR was 8.811 μmol/L, and 8.911 uM/L for OS-RC-2R. Cells were frozen at each cycle. CCK8 was used to assay the viability of sunitinib-resistant cell lines and the parental cell lines. Cells were seeded onto 96-well plates at a density of 4 × 10³ cells per well in media with 10% FBS and allowed to attach for 24 h. Sunitinib was added at different concentrations. After 48 h of treatment, CCK-8 reagent (Sigma-aldrich St Louis, MO) was added to cells (1:10 ratio) in each well and allowed to incubate at 37°C in a humid atmosphere with 5% CO2 for 1~2h. After that, plate was read at 450 nm using an Epoch spectrophotometer (BioTek Winooski, VT).

RNA extraction and quantitative real-time PCR

RNA isolation and qRT-PCR Total RNA was extracted using Trizol (Invitrogen, USA) according to the manufacturer's instructions. One microgram of total RNA from each sample was reverse transcribed into complementary DNA (cDNA) using the RNA PCR Kit (Takara Biotechnology, Japan). Then qRT-PCR was performed to quantify the expression level of FZD1 with SYBR Green PCR Master Mix (Applied Biosystems) according to the manufacturer's instructions. FZD1 expression was normalized to β-actin and calculated using the comparative Ct method.

ONCOMINE analysis

ONCOMINE gene expression array datasets (www.oncomine.org), an online cancer microarray database ³¹ was used to analyze the transcription levels of FZD1 in ccRCC and pRCC. The mRNA levels of FZD1 in clinical cancer specimens were compared with that in normal controls, using a Student' T-test to generate a p value. The cut-off of p value and fold change were defined as 0.001 and 2, respectively.

TCGA data and cBioPortal

The Cancer Genome Atlas (TCGA) had both sequencing and pathological data on 30 different cancers. Gene expression data by RNA-seq for cohorts of 530 ccRCC and 288 pRCC cases that have clinical outcome data available were extracted from TCGA. Clinical information for each patient including survival status, recurrence status, time to last follow-up, and other clinicopathological characteristics were also extracted from TCGA. Patients were divided into “high” and “low” groups based on the median value of FZD1 mRNA. Using cBioPortal, the ccRCC (TCGA, Provisional) dataset was selected for further analyses of FZD1 (www.cbioportal.org) ^{32, 33}. OS and DFS were calculated according to the cBioPortal's online instruction. The database query was based on mutation and altered expression of the FZD1 in ccRCC (U Tokyo, Nat Genet 2013; TCGA, Nature 2013; TCGA, Provisional), pRCC (TCGA, Provisional) and nccRCC (Genentech, Nat Genet 2014).

COSMIC analysis for mutations

Catalogue of Somatic Mutations in Cancer (COSMIC) database (http://www.sanger.ac.uk/cosmic/) was utilized for assessment of FZD1 mutations in ccRCC ³⁴. Pie charts were generated for a distribution overview in ccRCC.

David and KEGG analysis of FZD1 and its related genes in ccRCC

cBioportal programs were performed to identify FZD1 related genes. A total of 100 related genes (with the highest expression correlation with FZD1 in ccRCC, only gene pairs with values > 0.3 or < -0.3 in both pearson correlations and spearman correlations were obtained) were input into DAVID Database (http://david.abcc.ncifcrf.gov/) and the Kyoto Encyclopedia of Genes and Genomes (KEGG) for Gene Ontology (GO) or pathway enrichment analysis. The enrichment of related genes in three major GO classifications, that is, cell components (CC), biological processes (BP) and molecular functions (MF). KEGG pathway analysis was carried out to analyze the significant pathways that FZD1 and its related genes got involved in ccRCC. A network graph was generated via the cytoscape software, directly demonstrating the association of these genes with FZD1. The nodes in the network represented the related genes and different colors of the nodes represented positive or negative correlation with FZD1.

Statistical analysis

Statistical analysis was performed using SPSS 23.0 software. The data of four groups were analyzed by ANOVA analysis and the data of two groups were analyzed by T-test. Receiver operator characteristic (ROC) curve and area under the curve (AUC) analyses were applied to detect the optimal cutoff point that yielded the highest total accuracy with respect to discriminate different clinical classifications, good and poor prognosis, recurrence and non-recurrence respectively. The Kaplan-Meier (KM) curve was generated to evaluate the association between the expression level of FZD1 and the survival rate with log-rank test. Univariate and multivariate Cox proportional hazard regression analyses were used to estimate the prognostic significance of FZD1 in RCC. Statistical significance was set at two-tailed, p <0.05.

Results

The transcription levels of FZD1 in renal cancer tissues and renal cancer cell lines

Based on the Oncomine database, we discovered that FZD1 expression was significant elevated in renal cancer tissues compared with normal tissues in the datasets (Figure 1A). As for ccRCC samples, five cases of datasets summary found that FZD1 mRNA levels were upregulated in cancer tissues (P<0.0001). In Gumz's dataset, FZD1 was upregulated in ccRCC tissues compared with normal tissues (fold change= 2.829; P<0.0001), and we got similar results in other four datasets (P=0.016, P=0.034, P<0.0001 and P<0.0001, respectively). We also obtained FZD1 mRNA expression in ccRCC tissues and normal tissues from TCGA database, the FZD1 expression level was significantly upregulated in ccRCC tissues compared with normal and paired non-cancerous tissues (normal vs. cancer, both P<0.0001; Figure 1B). To further confirm the results of TCGA and Oncomine database, we tested FZD1 mRNA in renal cancer cells by qRT-PCR. The results showed that FZD1 level in renal cancer cells was significantly higher than normal kidney cells (Figure 1C). We next classified the renal cancer cell lines into primary and metastatic subtypes, FZD1 expression level in different renal cancer cell subtypes was obtained from real-time PCR, the FZD1 expression was higher in primary renal cancer cell lines (786-O) than metastatic renal cancer cell lines (CAKI-1, ACHN) (Figure 1C). As for pRCC, FZD1 level was also upregulated in pRCC tissues compared with normal and paired non-cancerous tissues (both P<0.0001; Fig. S1A-B).

Figure 1.

The transcription levels of FZD1 in ccRCC patients and renal cancer cell lines. A, The mRNA levels of FZD1 were significant elevated in ccRCC tissues compared with normal tissues in five microarray datasets based on the Oncomine database. Data are presented as Log2 median-centered intensity. B, FZD1 expression was significantly upregulated in ccRCC tissues compared with normal and paired non-cancerous tissues based on the TCGA database. C, qRT-PCR analysis of FZD1 levels in primary and metastatic renal cancer cells as well as normal kidney cells. The error bars represent mean ± SD of three independent experiments. Data differences were tested with Student's T-test (***, p<0.001, **, p<0.01, *, p<0.05, NS, no significance).

The relationship between mRNA levels of FZD1 and clinicopathological characteristics in ccRCC patients

According to above findings, we wondered if FZD1 level could further stratify the ccRCC patients according to various clinicopathological characteristics (Table 1). The FZD1 level was higher in living compared with dead patients (P<0.0001; Figure 2A), it also show significantly upregulated in patients without recurrence (P=0.0168; Figure 2B). Overexpression of FZD1 significantly correlated with lower T stage (P<0.0001; Figure 2C), negative lymph node metastasis (P=0.0353; Figure 2D), negative distant metastasis (P=0.0068; Figure 2E), pathological stage (P<0.0001; Figure 2F), Grade stage (P=0.0001; Figure 2G) in ccRCC patients. However, the expression of FZD1 was not associated with age, race, ethnicity, neoadjuvant treatment, laterality and hemoglobin level (data not shown). The FZD1 mRNA level was negatively correlated with the size and weight of tumors (one-way ANOVA, P<0.0001 and P=0.0006, separately; Figure 2H-I). It also decreased and negatively correlated with the grade of tumors (one-way ANOVA, P<0.0001; Figure 2J). We also explored the association between FZD1 expression and clinicopathological characteristics in pRCC, FZD1 expression was higher in pRCC with lower T stage, negative lymph node metastasis status and pathological stage (P<0.05; Fig. S1C-F). These data indicated that FZD1 expression was associated with various clinicopathological characteristics and can be a potential prognostic biomarker for ccRCC patients.

Table 1.

The relationship between FZD1 mRNA expression and clinicopathological characteristics in ccRCC patients

Parameter	No.pts	FZD1 expression (No.)		P value
		Low (n=265)	High (n=265)
Age (years)	61 (52-70)	60(51.5-69)	61(52-72)	0.273
Age (years)
<60	245	131	114	0.139
≥60	285	134	151
Gender
Female	186	76	110	0.002
Male	344	189	155
Race
White	459	227	232	0.478
Asian	8	4	4
Black †	56	32	24
Unknown	7	2	5
Pathological stage
Stage I	265	109	156	<0.001
Stage II	57	26	31
Stage III	123	72	51
Stage IV	82	55	27
Unknown	3	3	0
T stage
T1	271	113	158	<0.001
T2	69	34	35
T3	179	108	71
T4	11	10	1
N stage
N0	239	121	118	0.032
N1	16	13	3
Unknown	275	131	144
M stage
M0	420	195	225	0.004
M1	78	52	26
Unknown	32	18	14
Grade stage
G1	14	3	11	<0.001
G2	227	95	132
G3	206	104	102
G4	75	57	18
Unknown	8	6	2
Ethnicity
Not hispanic ‡	353	185	168	0.279
Hispanic §	26	11	15
Unknown	151	69	82
Neo treatment ¶
No	513	255	258	0.46
Yes	17	10	7
Laterality
Right	280	142	138	0.579
Left	249	123	126
Bilateral	1	0	1
Serum calcium level
Low	203	94	109	0.002
Normal	150	91	59
Elevated	10	8	2
Unknown	167	72	95
Hemoglobin level
Low	261	144	117	0.131
Normal	184	84	100
Elevated	5	2	3
Unknown	80	35	45
Survival Status
Alive	357	153	204	<0.001
Dead	173	112	61
Recurrence Status
No	130	177	307	<0.001
Yes	71	54	125
Unknown	64	34	98

^† Black or african American; ^‡ Not hispanic or latino; ^§ Hispanic or latino; ^¶ Neoadjuvant treatment

ccRCC: clear cell renal cell carcinoma

Figure 2.

The relationship between mRNA levels of FZD1 and clinicopathological characteristics in ccRCC patients. High levels of FZD1 mRNA predicted good prognosis of ccRCC patients. The mRNA levels of FZD1 was compared in different clinicopathological characteristics: (A) living status, (B) recurrence status, (C) T stage, (D) N stage, (E) metastasis status, (F) TNM stage, (G) grade stage. (H-J) The FZD1 mRNA level was negatively correlated with the size and weight of tumors as well as negatively correlated with the grade of tumors. Data differences were tested with one-way ANOVA or Student's T-test (***, p<0.001, **, p<0.01, *, p<0.05).

The association between FZD1 expression and diagnostic value in ccRCC patients

We next analyzed the ROC curves for clinicopathological characteristics to explore the diagnostic value of FZD1 in ccRCC patients. FZD1 mRNA could effectively differentiate ccRCC from para-cancer tissues yielding an area under curve (AUC) of 0.9564 (95%CI: 0.9156 to 0.9972; P<0.0001) with a sensitivity of 79.43% and a specificity of 94.45% when cutoff value was 15.13 (Figure 3A). We next analyzed the expression of FZD1 mRNA in subgroups of ccRCC patients. High FZD1 level could be a potential diagnostic indicator for ccRCC patients with (T1+T2)/(T3+T4) stage (AUC=0.6002, P=0.0001), N0/N1 stage (AUC=0.6566, P=0.0360), Non-metastasis/metastasis (AUC=0.5965, P=0.0068), (G1+G2)/(G3+G4) stage (AUC=0.5973, P=0.0001), (Ⅰ+Ⅱ)/(Ⅲ+Ⅳ) stage (AUC=0.6013, P<0.0001), OS status (AUC=0.6107, P<0.0001) and DFS status (AUC=0.5733, P=0.0168) (Figure 3B-H).

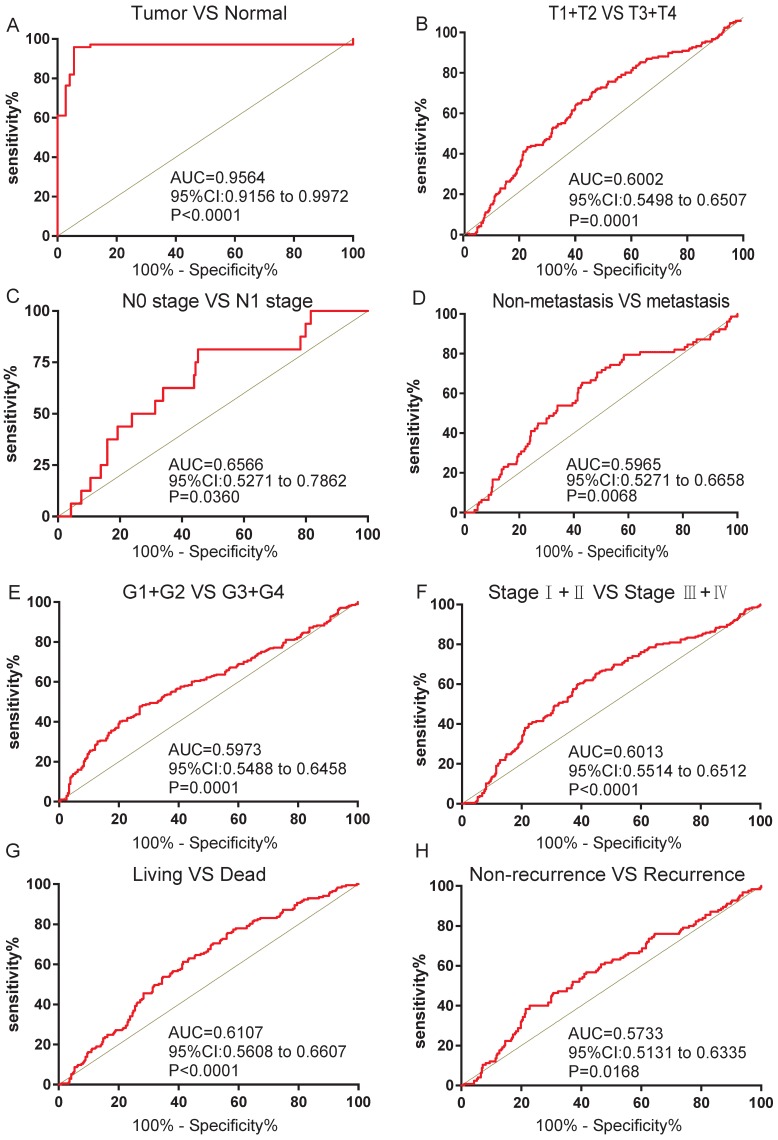

Figure 3.

FZD1 expression served as a diagnostic indicator in ccRCC patients. ROC curve showed that FZD1 could effectively distinguish ccRCC from (A) paired non-cancerous tissues, and ROC curve analysis towards the expression of FZD1 mRNA in subgroups of ccRCC patients against (B) T stage, (C) TNM stage, (D) metastasis status, (E) G stage, (F) N stage, (G) OS status and (H) recurrence status.

The correlation between high FZD1 expression and good OS in total and subgroups of ccRCC patients

The Kaplan-Meier curve and log-rank test analyses revealed that FZD1 overexpression was significant associated with better OS in all ccRCC patients (log-rank test, P<0.0001; Figure 4A). We then examined OS survival analysis towards the expression of FZD1 mRNA in subgroups of ccRCC patients (Figure 4B-L). Our results showed that upregulated FZD1 level could be a potential prognostic factor for ccRCC patients with Age<60 years (P=0.0021), Age≥60 years (P<0.0001), Female (P<0.0001), Male (P=0.0029), T3+T4 stage (P=0.0009), N0 stage (P<0.0001), Non-metastasis (P=0.0019), Metastasis (P=0.0011), Pathological (Ⅲ+Ⅳ) stage (P=0.0006), G3+G4 stage (P<0.0001) and Non-neoadjuvant treatment (P<0.0001), which all were significantly related to better OS. However, high FZD1 level had no significant correlation with OS in ccRCC patients with T1+T2 stage, N1 stage, Pathological (Ⅰ+Ⅱ) stage, G1+G2 stage, Neoadjuvant treatment group (Fig. S2A-E).

Figure 4.

High levels of FZD1 mRNA predicted good overall survival in ccRCC patients. The correlation between FZD1 expression and overall survival time of (A) total ccRCC patients and different subgroups of ccRCC patients (B-L). OS curve for: (B) Age<60 years, (C) Age≥60 years, (D) Male, (E) Female, (F) T3+T4 stage, (G) N0 stage, (H) Non metastasis status, (I) metastasis status, (J) TNM (Ⅲ+Ⅳ), (K) G3+G4 stage and (L) Non-neoadjuvant treatment. The ccRCC patients from TCGA-KIRC database were classified into high or low FZD1 expression groups according to median expression level.

The correlation between high FZD1 expression and good DFS in total and subgroups of ccRCC patients

To further probe into the correlation of FZD1 mRNA expression and DFS time in ccRCC patients. Their relationship was analyzed with Kaplan-Meier survival plots. High expression of FZD1 had better DFS than low FZD1 expression group (log-rank test, P=0.0033; Figure 5A). We then examined DFS survival analysis towards the expression of FZD1 mRNA in subgroups of ccRCC patients (Figure 5B-I). Upregulated FZD1 level could be a potential prognostic factor for ccRCC patients with Age<60 years (P=0.0303), Age≥60 years (P=0.0202), Female (P=0.0008), T1+T2 stage (P=0.0466), N0 stage (P=0.0073), Non-metastasis (P=0.0169), G3+G4 stage (P=0.0189), Non-neoadjuvant treatment group (P=0.0025). However, high FZD1 level had no significant correlation with DFS in ccRCC patients with male, T3+T4 stage, N1 stage, Metastasis status, Pathological (Ⅰ+Ⅱ) stage, Pathological (Ⅲ+Ⅳ) stage, G1+G2 stage, Neoadjuvant treatment group (Fig. S3A-H).

Figure 5.

High levels of FZD1 mRNA predicted good disease-free survival in ccRCC patients. The correlation between FZD1 expression and disease-free survival time of (A) total ccRCC patients and different subgroups of ccRCC patients (B-I). DFS curve for: (B) Age<60 years, (C) Age≥60 years, (D) Female, (E) T1+T2 stage, (F) N0 stage, (G) non-metastasis status, (H) G3+G4 stage and (I) Non-neoadjuvant treatment. The ccRCC patients from TCGA-KIRC database were classified into high or low FZD1 expression groups according to median expression level.

FZD1 was an independent prognostic marker for ccRCC patients

We also used univariate and multivariate Cox regression to analyze OS and DFS in the cohort of ccRCC patients. Univariate analysis indicated that FZD1 expression was identified as a prognostic factor for OS in the ccRCC patients (HR 0.45; P<0.001). Multivariate analysis showed that FZD1 overexpression was an independent predictor of good prognosis for OS in ccRCC patients (HR 0.569; P=0.001). Patients with larger, advanced stage tumor, elderly patients (≥60 years of age), not hispanic or latino and abnormal hemoglobin level had worse OS (Table 2).

Table 2.

Univariate and Multivariate analyses of FZD1 mRNA level and ccRCC patient overall survival

Variable	Univariate cox regression		Multivariate cox regression
	HR (95%CI)	P value	HR (95%CI)	P value
Age (years)		<0.001		0.004
<60	Reference		Reference
≥60	1.781(1.3-2.439)		1.609(1.16-2.233)
Gender		0.76
Female	Reference
Male	0.953(0.699-1.299)
Race
White	Reference
Asian	0.54(0.075-3.867)	0.54
Black†	0.893(0.484-1.649)	0.718
Unknown	0.954(0.236-3.851)	0.947
Pathological stage
Stage I	Reference		Reference
Stage II	1.204(0.648-2.235)	0.557	2.36(0.61-9.126)	0.214
Stage III	2.638(1.756-3.965)	<0.001	4.997(1.719-14.529)	0.003
Stage IV	6.53(4.455-9.569)	<0.001	14.957(2.976-75.167)	0.001
Unknown	7.293(0.994-53.489)	0.051	15.877(1.332-189.198)	0.029
T stage
T1	Reference		Reference
T2	1.506(0.903-2.512)	0.117	0.426(0.127-1.425)	0.166
T3	3.271(2.314-4.625)	<0.001	0.351(0.13-0.952)	0.04
T4	10.558(5.33-20.913)	<0.001	0.261(0.073-0.931)	0.038
N stage
N0	Reference		Reference
N1	3.523(1.873-6.628)	<0.001	1.319(0.555-3.136)	0.531
Unknown	0.829(0.609-1.128)	0.233	0.787(0.57-1.086)	0.144
M stage
M0	Reference		Reference
M1	4.335(3.172-5.924)	<0.001	0.687(0.182-2.6)	0.581
Unknown	0.885(0.28-2.8)	0.835	0.593(0.148-2.38)	0.461
Grade stage
G1	Reference		Reference
G2	2565.729(0-5.33E+33)	0.826	2404.779(0.000-2.36E+39)	0.854
G3	4769.895(0-9.91E+33)	0.812	3588.853(0.000-3.52E+39)	0.846
G4	12893.55(0-2.68E+34)	0.79	5439.316(0.000-5.34E+39)	0.839
Unknown	1874.127(0-4E+33)	0.833	1570.709(0.000-1.58E+39)	0.862
Ethnicity
Not hispanic ‡	Reference		Reference
Hispanic §	0.213(0.068-0.669)	0.008	0.214(0.066-0.688)	0.01
Unknown	0.831(0.584-1.182)	0.303	1.207(0.833-1.748)	0.32
Neo treatment ¶		0.02		0.473
No	Reference		Reference
Yes	2.139(1.129-4.054)		1.366(0.583-3.199)
Laterality
Right	Reference
Left	1.413(1.047-1.907)	0.024
Bilateral	0(0-1.069E+182)	0.968
Serum calcium level
Low	Reference		Reference
Normal	1.283(0.904-1.819)	0.163	1.099(0.726-1.663)	0.656
Elevated	5.001(2.481-10.08)	<0.001	1.35(0.537-3.397)	0.524
Unknown	0.614(0.411-0.917)	0.017	0.62(0.373-1.03)	0.065
Hemoglobin level
Low	Reference		Reference
Normal	0.436(0.305-0.623)	<0.001	0.65(0.436-0.969)	0.034
Elevated	2.626(0.833-8.283)	0.099	5.805(1.687-19.967)	0.005
Unknown	0.341(0.192-0.606)	<0.001	0.773(0.379-1.58)	0.481
FZD1 expression		<0.001		0.001
Low	Reference		Reference
High	0.45(0.329-0.616)		0.569(0.406-0.797)

^† Black or african American; ^‡ Not hispanic or latino; ^§ Hispanic or latino; ^¶ Neoadjuvant treatment

ccRCC: clear cell renal cell carcinoma

HR: estimated from Cox proportional hazard regression model; 95%CI: 95% interval of the estimated HR.

We also found that FZD1 expression was a risk factor for DFS in the ccRCC patients by univariate cox regression analysis (HR 0.588; P=0.004). By adjusting multivariate analysis, high FZD1 expression was still considered as an independent predictor of good prognosis for DFS in ccRCC (HR 0.559; P=0.036). Patients with advanced stage tumor, positive lymph node metastasis status, positive distant metastasis status had worse DFS (Table 3).

Table 3.

Univariate and multivariate analyses of FZD1 mRNA level and ccRCC patient disease free survival

Variable	Univariate cox regression		Multivariate cox regression
	HR (95%CI)	P value	HR (95%CI)	P value
Age (years)		0.062		0.138
<60	Reference		Reference
≥60	1.403(0.983-2.002)		1.506(0.877-2.588)
Gender		0.056		0.779
Female	Reference		Reference
Male	1.477(0.99-2.202)		0.926(0.54-1.587)
Pathological stage		<0.001		0.006
StageⅠor StageⅡ	Reference		Reference
StageⅢor StageⅣ	6.404(4.309-9.517)		4.447(1.522-12.994)
T stage		<0.001		0.645
T1 or T2	Reference		Reference
T3 or T4	4.435(3.075-6.395)		0.816(0.344-1.938)
N stage		<0.001		0.049
N0	Reference		Reference
N1	4.69(2.293-9.592)		2.642(1.006-6.938)
M stage		<0.001		0.002
M0	Reference		Reference
M1	8.264(5.67-12.043)		2.925(1.504-5.689)
Grade stage		<0.001		0.337
G1 or G2	Reference		Reference
G3 or G4	3.313(2.193-5.005)		1.311(0.754-2.28)
Ethnicity
Not hispanic ‡	Reference		Reference
Hispanic §	0.567(0.248-1.296)	0.179	0.287(0.067-1.231)	0.093
Unknown	0.667(0.433-1.027)	0.066	1.398(0.778-2.51)	0.262
Neo treatment ¶		0.074		0.814
No	Reference		Reference
Yes	2.113(0.929-4.807)		0.841(0.198-3.577)
Laterality		0.024		0.217
Right	Reference		Reference
Left	1.498(1.055-2.127)		1.363(0.834-2.229)
FZD1 expression		0.004		0.036
Low	Reference		Reference
High	0.588(0.411-0.841)		0.559(0.325-0.964)

^‡ Not hispanic or latino; ^§ Hispanic or latino; ^¶ Neoadjuvant treatment; ccRCC: clear cell renal cell carcinoma HR: estimated from Cox proportional hazard regression model; 95%CI: 95% interval of the estimated HR.

We next used univariate and multivariate Cox regression to analyze the OS in the cohort of pRCC patients. Univariate analysis indicated that FZD1 expression was identified as a risk factor for OS in pRCC patients (HR 0.424; P=0.008). However, controlling for other variables in the multivariate analysis, FZD1 expression was not considered as an independent prognostic factor in pRCC patients (HR 0.7; P=0.349) (Table S1).

Taken these data together, suggested that FZD1 overexpression is an independent predictor of good prognosis for ccRCC patients but not pRCC patients.

The impact of alterations in FZD1 on the clinical survival

Using COSMIC database, the pie chart described the mutations information including substitution nonsense, missense, synonymous, deletion frame and insertion frame shift. Substitution missense rate was 100% of mutation samples of ccRCC (Figure 6A). Alteration frequency of FZD1 mutation in renal cancer was analyzed by cBioportal program. We found that less than 1% mutation in the patients with renal cancer with observed (Figure 6B). After analyzed by Kaplan-Meier plot and log-rank test, the alterations in FZD1 were associated with better OS in ccRCC patients (P=0.0404; Figure 6C). However, there was no significant difference between DFS in ccRCC patients with/without FZD1 alterations (P=0.328; Figure 6D).

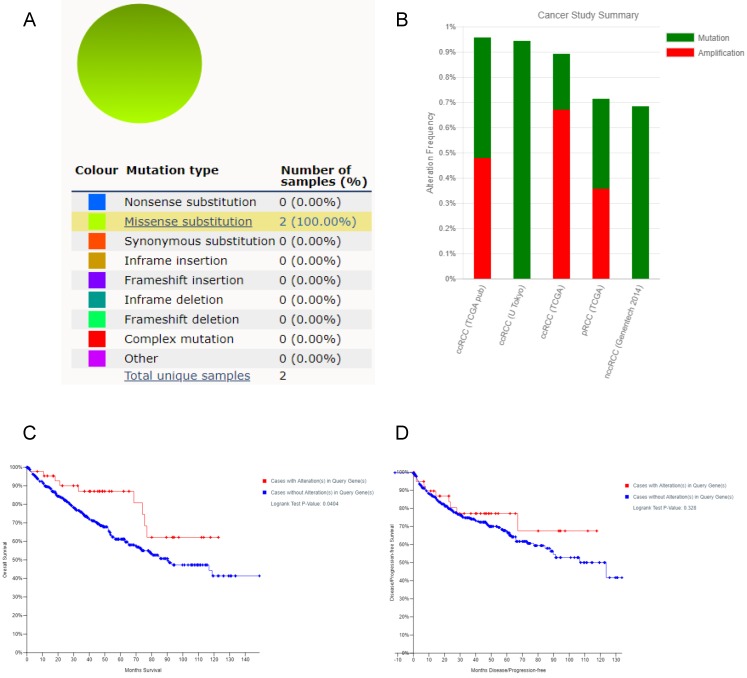

Figure 6.

FZD1 gene expression mutation and alterations analysis in ccRCC (from COSMIC and cBioPortal). A, Pie-chart showed the percentage of the mutation type of FZD1 in ccRCC according to COSMIC database. B, Oncoprint in cBioPortal represented the proportion and distribution of samples with alterations in FZD1 gene. C, Kaplan-Meier plots comparing OS in cases with/without FZD1 gene alterations. D, Kaplan-Meier plots comparing DFS in cases with/without FZD1 gene alterations.

FZD1 was upregulated in sunitinib-resistant cell lines

We established two sunitinib-resistant cell lines (786-OR and OS-RC-2R) by incubating the cells in media with a gradually increasing sunitinib concentration. Both 786-OR and OS-RC-2R displayed higher cell viability compared with parental cells after administrating different sunitinib concentrations (Figure 7A). We then detected FZD1 mRNA expression in sunitinib-resistant cells and the corresponding parental cells by qRT-PCR. The result indicated that sunitinib-resistant cells had higher FZD1 expression and a higher sunitinib tolerance (Figure 7B-C).

Figure 7.

FZD1 was upregulated in sunitinib-resistant cell lines. A, cell viability assay of 786-O and OS-RC-2 as well as their corresponding parental cells when added different sunitinib concentrations. B, IC50 value of sunitinib-resistant and parental cells. C, mRNA expression of FZD1 in sunitinib-resistant and parental cells. The error bars represent mean ± SD of three independent experiments. Data differences were tested with Student's T-test (***, p<0.001, **, p<0.01, *, p<0.05).

Function and pathway enrichment analysis of FZD1-related genes in ccRCC

To comprehend the functions and potential mechanisms of FZD1 in ccRCC, we identified FZD1-related genes in ccRCC through cBioportal programs. To more directly demonstrate the association of these genes with FZD1, a network was generated via the cytoscape software. The red nodes in the network graph represented positively correlated genes, and the blue represented negatively correlated genes, different sizes of the nodes represented different degree of the association with FZD1 (Figure 8A). KEGG pathway analysed seven potential pathways that FZD1 and its related genes got involved in ccRCC. These results indicated FZD1 was involved in ccRCC via HTLV-I infection pathway, pathways in cancer, mTOR signaling pathway, melanogenesis, cushing's syndrome, gastric cancer and Hippo signaling pathways (Table 4). Thus, experiments need to be designed and performed to confirm the potential pathways. We also put these genes input into the David Database for GO enrichment analysis, revealing 27 GO terms with statistical significance (P <0.05). The most enriched GO items were “regulation of multicellular organismal development” for BP (P=0.002) and “protein dimerization activity” for MF (P=0.06), in terms of CC, these genes were found to be significantly present in the mitochondrial membrane. These corresponding GO terms were considered as the most specific and useful for describing the concrete function of FZD1 in ccRCC, the interaction between different GO terms in BP, CC and MF were visualized as three GO maps (Figure 8B).

Figure 8.

Function and pathway enrichment analysis of FZD1 and its related genes in ccRCC. A, The interactions between FZD1 (center) and its 100 neighbors genes in ccRCC. The red nodes in the network graphs represented the positively correlated genes, while the blue represent the negatively correlated genes, and different size of the nodes represented different degree of the association with FZD1. B, GO analysis of FZD1 and its related genes using DAVID in ccRCC, showed 27 Go terms enriched in these genes. The function enrichment of related genes in three major GO classifications, that is, cell components (blue), biological processes (red) and molecular functions (green).

Table 4.

KEGG pathway analysis predicted seven potential pathways that FZD1 was involved in ccRCC

Pathway ID	Pathway name	Genes
hsa05166	HTLV-I infection	ADCY9 ANAPC5 POLD4 FZD1
hsa05200	Pathways in cancer	FZD1 MAPK1 BCL2 ADCY9
hsa04150	mTOR signaling pathway	LPIN1 MAPK1 FZD1
hsa04916	Melanogenesis	ADCY9 MAPK1 FZD1
hsa04934	Cushing's syndrome	ADCY9 MAPK1 FZD1
hsa05226	Gastric cancer	FZD1 MAPK1 BCL2
hsa04390	Hippo signaling pathway	AMOT FZD1 AJUBA

ccRCC: clear cell renal cell carcinoma

Discussion

The expression of FZD1 has been shown to be aberrant expression in several kinds of malignant tumors, such as colon cancer ²⁴, pancreatic cancer ²⁷, follicular thyroid cancer ³⁵, suggesting a potential role for FZD1 in processes associated with tumorigenesis. FZD1 expression level and function varied greatly according to different tumor types. Overexpression of FZD1 in pancreatic cancer were associated with invasion, metastasis and shorter overall survival ²⁷. However, in follicular thyroid carcinoma, FZD1 was downregulated and overexpression of FZD1 decreased invasiveness and proliferation rate ³⁵. In this work, we identified that FZD1 expression was significantly upregulated in ccRCC tissues and renal cancer cell lines. The high FZD1 level was strongly associated with indolent and non-recurrent characteristics of ccRCC. Although we could not elucidate this phenomenon in the present study, we speculate that genetic mutations and epigenetic alterations may play important roles. Genetic mutations and epigenetic alterations are very important for tumorigenesis, also impose vital impact as independent prognostic markers on therapeutic strategies for cancer patients.

In ccRCC, although somatic VHL mutations have been described for some time ¹⁴, more recent cancer genomic studies have identified new mutations in ccRCC, including PBRM1, SETD2, BAP1 ¹⁴, MTOR ³⁶ and CKAP4 ³⁷ that were associated with aggressive clinical features ³⁸. FZD1 was mutated at frequency ranged from 4% to 2%, involved in cell migration and invasion in neuroblastoma ³⁹. FZD1 was also frequently methylated and whose methylation was associated with inactivation of gene expression in prostate cancer cell lines ⁴⁰. We found less than 1% mutation in the patients with renal cancer was observed and the alterations in FZD1 were associated with better OS in ccRCC patients. The exact mechanism of FZD1 alteration with longer OS in ccRCC patients needs more investigations.

The Kaplan-Meier curve and log-rank test analyses revealed that upregulated FZD1 was associated with favorable OS and DFS in total and subgroups of ccRCC patients, which revealed that FZD1 mRNA expression may serve as an indicator for prevention and prognosis of ccRCC. ROC curve and AUC analysis found that FZD1 expression could be a potential diagnostic indicator for ccRCC patients. Univariate and multivariate cox regression analyses for OS and DFS in ccRCC patients furthermore confirmed that FZD1 expression was considered as an independent prognostic factor. Anaemia and hypercalcaemia were independent predictors of poor OS in renal cell carcinoma patients ^{41, 42}. But in this work, we found that high hemoglobin levels could also be an independent risk factor for ccRCC patients. We also identified new mutated genes that are involved in the pathogenesis of ccRCC, which help identify clinic patients.

As for pRCC, we got a similar result that FZD1 level in pRCC tissues was significant higher compared with normal tissues. FZD1 overexpression was associated with lower clinical stage in pRCC patients. However, multivariate analysis found FZD1 expression was not considered as an independent prognostic factor in pRCC patients.

Antiangiogenic therapy almost universally leads to the development of resistance and tumor progression in RCC ⁴³. In this work, we identified that FZD1 was upregulated in sunitinib-resistant cell lines compared with corresponding parental cells. And FZD1 was also involved in drug resistance in non-small cell lung cancer ⁴⁴, multidrug-resistant leukemic cells ²⁹, ovarian cancer ⁴⁵ and uterine sarcoma cell ⁴⁶. FZD1 is overexpressed in the multidrug resistant breast cancer cell, when FZD1 silencing induced down-regulation of MDR1/P-gp through the Wnt/β-catenin signaling, restored sensitivity to chemotherapy drugs ³⁰. The Hippo-YAP/TAZ pathway has emerged as a hub that integrates diverse stimuli which regulates cell growth, survival, organ size and tissue homeostasis. Hippo signaling dysregulation underlies various human diseases including cancer ⁴⁷. And FZD1 initiates β-catenin-independent alternative Wnt signaling to activate YAP/TAZ, which were found to be the key downstream effectors of alternative Wnt signaling to mediate the effects of Wnt ligands ⁴⁸. Thus we used KEGG pathway analysis to identify the potential pathways of FZD1 involved in ccRCC. Interestingly, the results showed that Hippo signaling pathway was also involved in ccRCC via FZD1, also including AMOT and AJUBA. AJUBA increased the drug resistance through Hippo pathway in cervical cancer ⁴⁹. Thus, we speculated the Hippo signaling pathway may be involved in drug-resistant through activation of FZD1, further experimental confirmation is still needed. FZD1 is overexpression in sunitinib-resistant cell lines that may serve as a potential drug target to relieve sunitinib resistance in renal cancer patients.

The drawback of this study was the lack of enough specimens for FZD1 levels and survival time of KM-curve in protein level. FZD1 expression played a vital role in tumor development, recurrence and drug resistance in ccRCC patients, but the exact mechanism need to be further investigated. Despite these limitations, our study demonstrates a direct association between ccRCC patients FZD1 levels and prognosis based a large and representative population.

Conclusions

In summary, we provide the idea that FZD1 is upregulated in ccRCC tissues and renal cancer cell lines. It had a diagnostic value and prognostic value in ccRCC patients. FZD1 is overexpressed in sunitinib-resistant cell compared with corresponding parental cells, it may serve as a potential drug target to relieve sunitinib resistance in renal cancer patients. It's anticipated that FZD1 would complement the currently available markers to identify clinic patients that improve accuracy of outcome prediction.

Supplementary Material

Supplementary figures and table.

Abbreviations

FZD1

Frizzled class receptor 1

RCC

renal cell carcinoma

ccRCC

clear cell renal cell carcinoma

pRCC

papillary renal cell carcinoma

OS

overall survival

DFS

disease-free survival

GO

Gene Ontology

CC

cell components

BP

biological processes

MF

molecular functions

VEGF

vascular endothelial growth factor

mTOR

mammalian target of rapamycin

RTK

receptor tyrosine kinases

TCGA

The Cancer Genome Atlas

AUC

area under the curve.
