Differential Mobility Spectrometry of Ketones in Air at Extreme Levels of Moisture

Abstract

The performance of a differential mobility spectrometer was characterized at ambient pressure and ten values of water vapor concentration, from 1.0 × 10² to 1.7 × 10⁴ ppm using a homologous series of seven ketones from acetone to 2-dodecanone. Dispersion plots at 30 °C with separation fields from 35 to 123 Td exhibited increased alpha functions for the hydrated proton, protonated monomers, and proton bound dimers with increased moisture levels. Increases in the level of moisture were accompanied by decreased quantitative response with progressive suppression in the formation of the proton bound dimer first and then protonated monomer. Product ions for 2-octanone at 7 ppb were not observed above a moisture level of 4.0 × 10³ ppm, establishing a limit for observation of analyte ion formation. The observation limit increased from 1.1 × 10³ ppm for acetone to 5.7 × 10³ ppm for 2-dodecanone. These findings demonstrate that ketones can be determined with a differential mobility spectrometry (DMS) analyzer near room temperature in the presence of elevated levels of moisture expected with the use of membrane inlets or headspace sampling of surface or ground waters. Moisture levels entering this DMS analyzer employed as an environmental monitor should be kept at 1.0 × 10³ ppm or below and quantitative studies for individual ketones should be made at a fixed moisture level.

Introduction

Differential mobility spectrometry (DMS) is an embodiment of ion mobility spectrometry (IMS) where ion characterization and separation occur as a result of the non-linear dependence of ion velocity on the intensity of an electric field. In DMS instruments, ions are carried by gas flow through a gap formed between two parallel plates. The electric field inside the gap, which is perpendicular to plates, is generated by voltage of an asymmetric waveform^1,2. The maximum amplitude of the waveform is called the separation voltage (SV). Differences in mobility coefficients between the two extremes of the asymmetric oscillating electric field cause off-axis displacement and loss of ions during passage through the gap. Ions can be restored to the gap center and passed to a detector when a weak electric field, the compensation field (CF), is superimposed on the oscillating field. Analytical information from DMS instruments is contained in the differential mobility spectrum, the dependence of ion current on CF. The plot of ion abundance as a function of separation field (SF) and CF is called a dispersion plot.

The dependence of the ion mobility coefficient K(E/N) on the electric field E can be described by the formula:

$$K\left(\frac{E}{N}\right)=K_0(1+\alpha (\frac{E}{N}\left)\right)$$ 1

Where N is the number density of the gas (number of molecules per cubic centimeter), K₀ is the mobility measured under low field conditions and α is a function characterizing the dependence of mobility on electric field³. Since mobility coefficients are sensitive to gas temperature⁴, moisture^5,6, pressure⁷ and gas composition⁸, these parameters should be controlled for the stable and reliable performance of DMS and other mobility analyzers. The simplicity of design and fabrication of DMS analyzer have encouraged applications in chemical measurements from monitoring of air quality on the International Space Station⁹ to pre-filtering ions prior to mass spectrometry¹⁰. Hand held DMS analyzers have been developed for military use to detect chemical warfare agents, demonstrating an embodiment of DMS for demanding on-site measurements.

In chemical analysis performed with DMS, substances are ionized through reactions with precursor ions formed in ionization regions at ambient pressure often, in purified air or nitrogen¹¹. In positive polarity, ionization of a substance (M) occurs through displacement of water from hydrated protons forming relatively simple product ions, typically a protonated monomer MH⁺(H₂O)_n or a proton bound dimer M₂H⁺(H₂O)_n. Such reactions are known from studies using chemical ionization mass spectrometry (CI-MS), atmospheric pressure ionization MS, and IMS-MS with moisture content in supporting gas atmospheres below 1 × 10² ppm. Response to a broad range of substances is possible and can be extended using a range different ionization sources including radioisotopes, photoionization^12,13 and gas discharge¹⁴. Simple spectral patterns from such ion sources enable valuable analytical performance with comparatively low resolving power technology. The separation of ion peaks in DMS for improved analytical performance in some instances can be enhanced by adding into the gas atmosphere up to 1.0 × 10³ ppm of small polar molecules^15–17. Such substances, called vapor modifiers, increase the differences in mobility coefficients at asymmetric field extremes, resulting in increased separation of ion peaks in the compensation field. Moisture can be considered a vapor modifier in DMS.

Complimented by advantages of simplicity, size, and low cost, the use of DMS analyzers for monitoring aqueous environments is also supported by prior success of drift tube IMS instruments for monitoring ammonia in surface waters¹⁸, haloacetic acids in drinking water¹⁹, thiotetronic acids in groundwater²⁰ and in general environmental measurements²¹. Environmental monitoring of water using DMS analyzers is nonetheless uncommon, although some successes have been reported^22,23. Interfaces to aqueous samples such as headspace samplers or membrane inlets²⁴ and likely will introduce moisture into the DMS.

A central concern in this research program is the influence of moisture on DMS response and performance, necessitating quantitative descriptions and managed parameters. Previous studies in MS, DMS, and drift tube IMS have shown that increases in moisture suppress response, though this can be reversed with increased temperature^6,25–28 Particularly, the recent work of Borsdorf, et al.²⁸ who systematically evaluated the effect of increased moisture on the reactant ion peak in an ion mobility spectrometer at 80 °C and up to 2.0 × 10³ ppm moisture. Quantitative response with elevated moisture levels was diminished by >90% with aromatic compounds and >70% with ketones. Response to high proton affinity aniline, 2-methyl aniline and substituted anilines was diminished by <10%. In our DMS instrument, temperature was limited to 40 °C because the analyzer stage is fabricated from printed circuit boards.

As part of a development program leading to a field-deployed instrument for water monitoring, understandings of the quantitative influence of moisture on response and performance in DMS are necessary. Ketones were chosen to benchmark performance over a wide range of moisture levels with some assurance of favorable ionization chemistry from the considerably higher proton affinity of ketones compared with that of water. The embodiment of DMS chosen for water monitoring in Finland is a prototype instrument from Environics Oy with a capacity to operate at room temperature with high levels of moisture and could be suitable for directly monitoring aquatic enviroments. Findings in this study will inform designs of the next stage toward development of an inlet or interface to aqueous samples and the levels of moisture suitable for response to volatile organic compounds. Results on the influence of moisture on the ionization of ketones may be useful also in understanding DMS response to other analytes using atmospheric pressure ionization in the positive mode.

The main aim of our project was to develop the AIMS2-DMS detector for environmental pollutant monitoring. The aspiration module (AIMS) part of the equipment was not investigated in our study, however its features are promising for selected applications. An advantage of DMS over drift tube IMS is favorable performance with samples in humid air. In DMS, the changes in peak position or dispersion plots with differing moisture content might provide quantitative information about moisture levels in a sample. Since DMS analyzers are simpler and smaller than drift-tube IMS analyzers, they are highly suitable for portable applications.

Experimental

Instrumentation

Differential Mobility Analyzer

A model AIMS2-DMS analyser (Environics OY, Mikkeli, Finland) consists of an aspiration ion mobility spectrometer (AIMS) and a two-channel DMS detector as shown in the analyzer structure (Fig. 1). The ionization source is ²⁴¹Am with 5.92 MBq activity. A DMS drift region consists of two parallel rectangular electrodes 6 mm wide × 14 mm long, separated by a 0.25 mm gap defined by a PTFE spacer. The DMS stage was provided an asymmmetric waveform with duty cycle of 5% and frequency of 250 kHz. The DMS was operated at 30 °C and ambient pressure monitored by a pressure sensor in-line with the analyzer. Sample flow was drawn into the DMS analyzer at a rate of 2.8 L min⁻¹ by the Venturi effect (Fig. 2). Measurements were made using the SV from 200 V to 650 V in 45 steps and the CV was scanned from −2 V to +12 V in 400 increments. Amplifier dual time at each voltage combination was 150 ms. For each experiment, a disperson curve was determined. Details of the AIMS2-DMS analyzer including sensitivity and resolving power have been described²⁸.

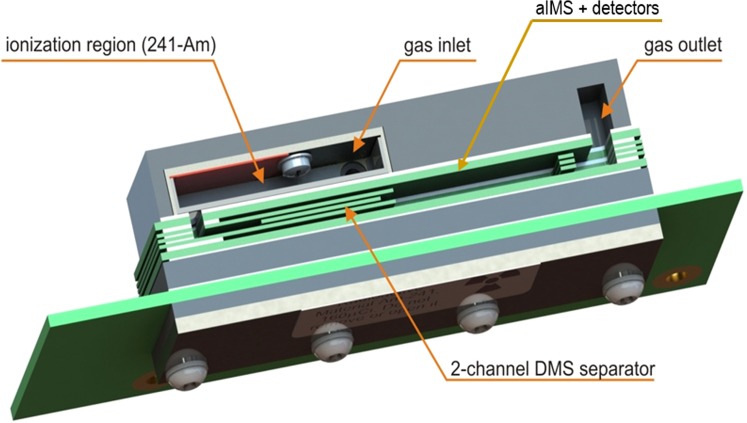

Figure 1.

Graphic of analyzer region of differential mobility spectrometer (top frame) showing location of ion source and two mobility stages based on differential mobility spectrometry (DMS) and aspirator IMS region including three detectors. Schematic in bottom frame shows side shows principle of two stage analyzer. In these studies, only performance of the first (DMS) stage was explored. The analyzer was equipped with an inline pressure sensor.

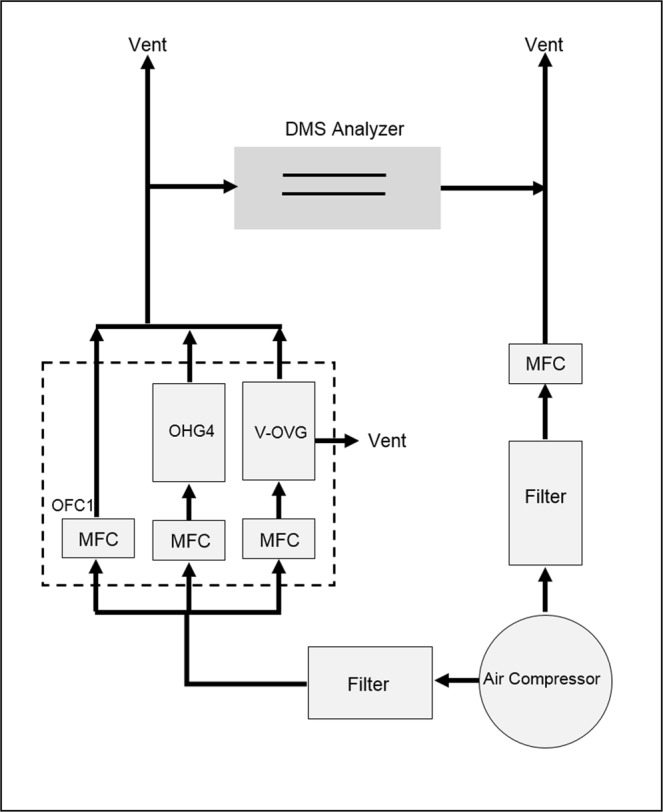

Figure 2.

Schematic of sample vapor and gas flows including DMS analyzer, mass flow controllers (MFC), and vapor generator comprised of dilution flow (OFC1), humidifier (OHG4), and permeation chamber (V-OVG). Flow though the DMS analyzer was controlled using the Venturi effect. Excess flows, shown as Vent, entered a fume hood.

Vapor Generator

Four ml or more of a chemical were placed in a permeation tube, built from a stainless steel tube capped with a polydimethylsiloxane membrane 3 mm thick × 1 mm diameter, and held at 30 °C for a minimum of one week before use. The permeation rate was determined gravimetrically over two or more weeks. Flow from the permeation tube (in the V-OVG chamber) was introduced into the DMS analyzer as shown in Fig. 2. The vapor generator (Gen-Sys, Owlstone Ltd., Cambridge, UK) was equipped also with a model OHG-4 humidity generator and model OFC-1 (dilution flow) flow controller to allow humidity and vapor concentration to be accurately adjusted. The accuracy of adjustment for flow rate is 0.1 ml min⁻¹ and of temperature for V-OVG is 0.1 °C. The generator provided air, purified through an activated carbon filter (Carbon Capsule Filter, Pall Laboratory, VWR) and a mixed bed of 4 A, 5 A, and 13X molecular sieve. The air supply was an Atlas Copco SF 6 FF oil free compressor. Vapor concentration was adjusted to 7 ppb using generator flow, split flow, and dilution flow containing known moisture level from OHG-4. Gas pressure provided to the vapor generator was maintained at 40 psig. Sample flow was at a rate greater than that sampled by the DMS analyzer with the excess vented into a fume hood.

Chemicals

Seven ketones of analytical standard grade (Sigma-Aldrich Corp., St. Louis, MO), acetone, 2-butanone, 2-hexanone, 2-octanone, 2-nonanone, 2-decanone, and 2-dodecanone represent a homologous series. Deionized water for the humidity generator was from an Arium® mini purifier (Ultrapure Water System, Sartorius, Germany).

Procedures

Studies of Response with Different Moisture Levels

Control measurements for the reactant ion were made without analyte from 1.0 × 10² ppm to 1.71 × 10⁴ ppm moisture in 37 steps. Measurements were then repeated for the individual ketones at 7 ppb over the same moisture levels.

Data Analysis

Data sets were processed using MATLAB (The MathWorks Inc., Natick, MA) to determine CV for peak positions and peak intensities at each SV and stored as a data matrix. Electric field intensities (SF and CF) were calculated on the basis of corresponding voltages (SV and CV) using gap width (0.25 mm). Values of electric field were normalized to number density (N) as E/N with units of Townsends (1 Td = 10⁻²¹ V m⁻²). Barometric pressure inside the DMS separator was nominally 94.9 kPa over the course of these measurements, which gives at 30 °C the number density of 2.27 × 10²⁵ molecules m⁻³. Thus, a value for SV of 500 V produced a field of 2.0 × 10⁴ V cm⁻¹, and E/N = 88 Td.

Results and Discussion

DMS spectra for the reactant ion for a wide range of moisture

Mobility spectra obtained in the absence of analyte were repeatable showing a single peak, due to the reactant ion, the hydrated proton, H⁺(H₂O)_n^29,30. The field dependence of this peak is seen in the characteristic DMS dispersion plot in Fig. 3A for 1.0 × 10² ppm moisture. The shape arises from the difference in mobility coefficients between the hydration levels of H⁺(H₂O)_n at extremes of the separation field intensity. The alpha function (Eq. 1) from this plot is relatively shallow for a 13 mm long analyzer region yet consistent with the 5% duty cycle of the asymmetric waveform, against 30% for similar DMS analyzers^3,31.

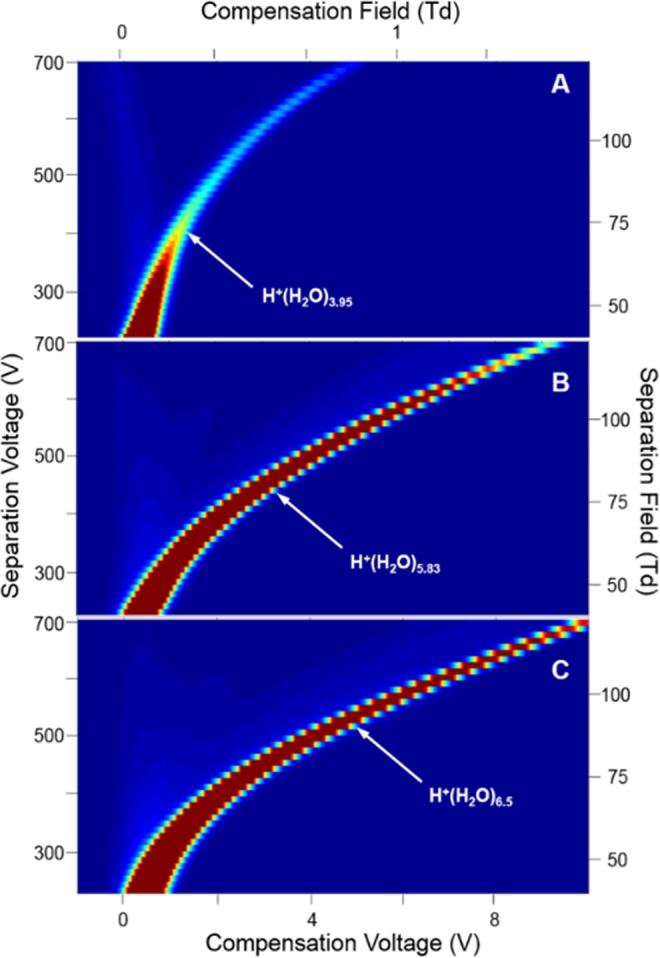

Figure 3.

Dispersion plots for the reactant ion H⁺(H₂O)_n at moisture levels of (A) 1.0 × 10², (B) 6.00 × 10³, and (C) 1.71 × 10⁴ ppm in purified air; average values at these levels for n are 3.95, 5.83, and 6.50, respectively.

A moisture level of 1.0 × 10² ppm was the minimum employed for the study of ketones since lower levels were deemed unrealistic for in-field monitors of aqueous media with headspace samplers or membrane inlets. When the moisture level was increased to 6.00 × 10³ ppm (Fig. 3B) and 1.71 × 10⁴ ppm (Fig. 3C) the alpha function increased with greatest change between 1.0 × 10² and 6.00 × 10³ ppm and least change between 6.00 × 10³ and 1.71 × 10⁴ ppm. Water functions as a vapor modifier expanding the range of compensation voltage and is a favorable, welcome influence, mindful of the inevitable participation of moisture from sampling surface or ground waters³². Significantly, no fouling or dysfunction occurred with this analyzer despite these high moisture levels.

Measured relationships between the moisture level and CV are shown in Fig. 4 over the range 1.00 × 10³ ppm to 1.71 × 10⁴ ppm at five settings of SV³³. The shapes of all plots follow a common pattern with a large change between 1.0 × 10² and 1.00 × 10³ ppm followed by a gradual decrease in slope. Since CV is a measure of the difference of mobility values for ions at field extremes, this response above 4.00 × 10³ ppm suggests the impact of the moisture level on alpha functions reaches a limit. The cause for this is attributed to the differing level of proton hydration. As is shown in Fig. 5, calculated fractional abundances of H⁺(H₂O)_n ions for n = 3, 4 and 5 at 30 °C and 100 ppm H₂O are 0.245, 0.635, and 0.135, respectively giving an average value of n of 3.95, which corresponds to an average ion mass of 72 Da. At 1.00 × 10³ ppm H₂O, the average value for n is 4.52 and the average ion mass is 82 Da. Over this range in moisture levels, heat capacities of these ions and dehydration during the high field extreme of SF should be comparable. Increases in mobility differences (and thus CV as suggested in Fig. 4) arise from differences in hydration levels during the low extreme of SF.

Figure 4.

Compensation voltage (and corresponding compensation field) for the hydrated proton at moisture levels from 1.0 × 10² to 1.71 × 10⁴ ppm at five values of separation voltages as shown above each curve with corresponding separation field in parentheses.

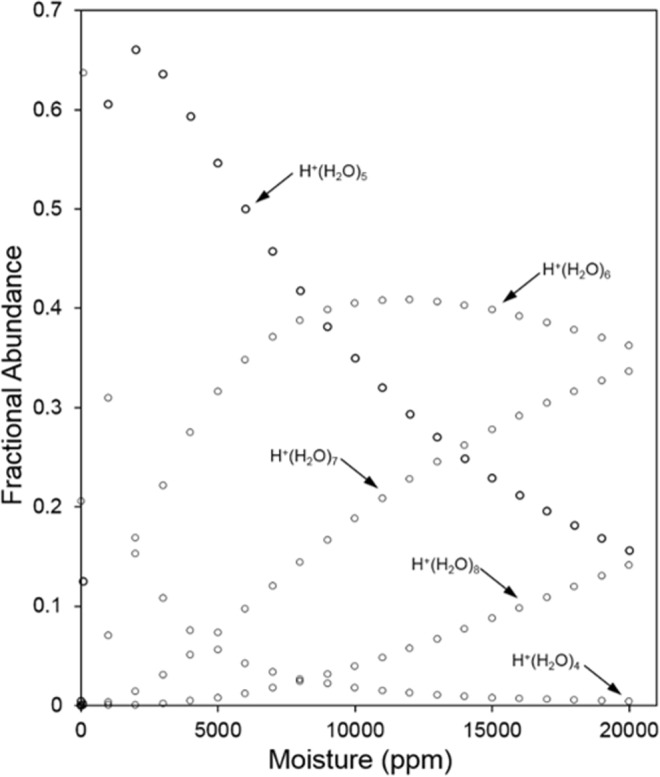

Figure 5.

Plots for the distribution of species H⁺(H₂O)_n at 30 °C at equilibrium with moisture levels from 1.0 × 10² to 2.00 × 10⁴ ppm, calculated from literature data²⁹.

As the level of moisture is increased above 1.00 × 10³ ppm, the dehydration step should decrease due to increased heat capacity of more heavily hydrated H⁺(H₂O)_n where average values for n are 5.34 at 5.00 × 10³ ppm, 5.91 at 1.00 × 10⁴ ppm, 6.27 at 1.50 × 10⁴ ppm, and 6.50 at 1.71 × 10⁴ ppm. This corresponds to average ion masses (Da) of 96.76, 107.38, 113.86, and 118.0. An increase in hydration of the ion at the low field extreme of SF has occurred in Fig. 4 yet limited dehydration at the high field extreme is suggested by the slopes. Nonetheless, a shallow, yet discernable, slope for SV = 600 V for example is evidence that SF, even with 5% duty cycle, is sufficient to heat the ions, producing a change in ΔK and hence CV, even with extreme levels of moisture.

Values for peak full width at half-maximum (FWHM) which are established initially by the distance of the gap between the plates in the separation region (for SF = 0) and decreased with increased SV from 400 V to 600 V at all levels of moisture as shown for four levels of moisture in Table 1. FWHM also decreased with decreased moisture. Both trends can be understood on the basis of the simple model for the DMS analysers²⁷.

Table 1.

Full width at half maximum (FWHM in V) for reactant ion peak at four levels of moisture and six values of separation voltage (field).

H2O (ppm)	1.0 × 102	1.00 × 103	4.00 × 103	1.71 × 104
Separation Voltage (V) (Separation Field, Td)
400 (70.5)	0.61	0.66	0.70	0.72
450 (79.4)	0.60	0.65	0.67	0.70
500 (88.2)	0.56	0.63	0.66	0.68
550 (97)	0.54	0.62	0.64	0.66
600 (105.8)	0.48	0.60	0.63	0.65
650 (114.6)	0.43	0.58	0.61	0.63

A secondary effect from increased moisture levels was increased intensity for the hydrated proton peak as shown in Fig. 6. The slope of these plots exhibit an initial rapid rise from 1.0 × 10² ppm to 1.00 × 10³ ppm and then an increasingly smaller rise to 1.71 × 10⁴ ppm. Over the entire moisture span, the average mass of H⁺(H₂O)_n increases from 75.05 Da to 123.5 Da as the average value for n increases from 3.95 to 6.5. Since ion transmission efficiency in planar DMS analyzers is mass-dependent the trends in peak intensity observed in Fig. 6 can be attributed to changes in the mass of the hydrated proton. The effective gap for H⁺(H₂O)_n increases with moisture level and ion transmission is increased (Table 1) at each SF.

Figure 6.

Peak intensity for H⁺(H₂O)_n at five Separation Voltages (V) or Separation Fields (Td) at moisture levels from 1.0 × 10² to 1.71 × 10⁴ ppm.

DMS response for example analyte (2-octanone) over the range of moisture

While elevated moisture levels from sampling ground or surface waters may have favorable benefits in DMS (see above), moisture can also affect the chemistry of ion formation. The typical behavior of ketone ions with increased levels of moisture is shown in dispersion plots for 2-octanone (7 ppb) in Figs 7–9. In each figure, the dispersion plot for the reactant ion peak is shown as a reference of instrument response without ketone vapor. At a moisture level of 1.0 × 10² ppm, the reactant ion (Fig. 7, top frame) is replaced in the presence of 2-octanone vapor with a proton bound dimer (Fig. 7, bottom frame) that is characterized by a slight trend with increased SF to a more negative CF, that is a negative alpha function. An initial collision complex [MH⁺(H₂O)_n]* formed between M and the hydrated proton is stabilized by collision with ambient gas molecules G (Eq. 2). The hydration shell is changed, probably by loss of one or more water molecules, the number denoted by x in the equation:

$$H^{+}{(H_{2}O)}_n+M\to {[M{H}^{+}{(H_{2}O)}_n]}^{⁎}\stackrel{G}{⟶}M{H}^{+}{(H_{2}O)}_{(n-x)}+x{H}_{2}O$$ 2

MH⁺(H₂O)_(n−x) will change its degree of hydration by coming to equilibrium with water in the atmosphere. We denote the new hydration number by p in Eq. 3 that illustrates the formation of the proton bound dimer by further reaction of MH⁺(H₂O)_p, again with probable change in hydration number, again denoted by x. Because the hydrogen bond in symmetrical proton-bound dimers is always greater than between non-symmetrical proton-bound dimers, thermodynamic considerations lead to preferential formation of the symmetrical dimers^34,35. The rate at which symmetrical dimer formation occurs depends in the present case on the degree of solvation of the monomer as per Eq. 2.

$$M{H}^{+}{(H_{2}O)}_p+M\to {[M_2{H}^{+}{(H_{2}O)}_P]}^{⁎}\stackrel{G}{⟶}{M}_2{H}^{+}{(H_{2}O)}_{(p-x)}+x{H}_{2}O$$ 3

Figure 7.

Dispersion Plots for (A) the reactant ion and for (B) product ions from 2-octanone at 7 ppb in air at a moisture level of 1.0 × 10² ppm. Ions with positive dependence of SF on ΔK (positive alpha function) trend toward positive CV, i.e., CF in this analyzer. Average n = 3.95.

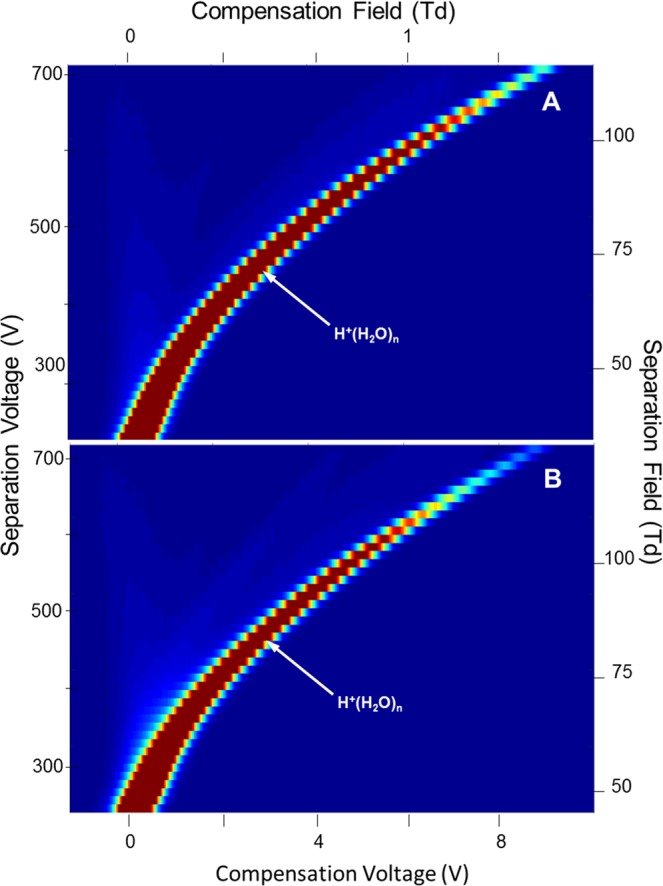

Figure 9.

Dispersion Plots for (A) the reactant ion and (B) for product ions from 2-octanone at 7 ppb in air at a moisture level of 4.00 × 10³ ppm. Average n = 5.28.

M₂H⁺(H₂O)_p–x will also come to equilibrium with the atmosphere to give a dimer with average number of water molecules denoted by subscript q (see below). The degrees of ion hydrations, depend on the moisture level and temperature. At a moisture level of 1.40 × 10³ ppm (Fig. 8, top frame), the hydrated proton peak exhibits enhanced dispersion in CV and this same ion is evident in the presence of the ketone vapor (Fig. 8, bottom frame). Moreover, the proton bound dimer with intense response at 1.0 × 10² ppm [H₂O] is decreased in intensity and the protonated monomer with comparable intensity is present. At 4.00 × 10³ ppm only the reactant ion peak is present (Fig. 9) and suppression of ionization of 2-octanone is complete. Another view of the changes observed in the spectra obtained with SV = 500 V is shown in Fig. 10 for these same levels of moisture and the quantitative change over the moisture range is shown in Fig. 11. This change in abundance of product ions (while the vapor level of 2-octanone was stable at 7 ppb) can be attributed to changes in the rates of reactions in Eqs 2 and 3 as the hydration level of the participating ions increases with increased moisture levels (see below).

Figure 8.

Dispersion Plots for (A) the reactant ion and (B) for product ions from 2-octanone at 7 ppb in air at a moisture level of 1.40 × 10³ ppm. Average n = 4.98.

Figure 10.

Mobility spectra for reactant ion and 2-octanone at separation voltage of 500 V (88 Td) and moisture levels of 1.0 × 10², 1.40 × 10³, and 4.00 × 10³ ppm.

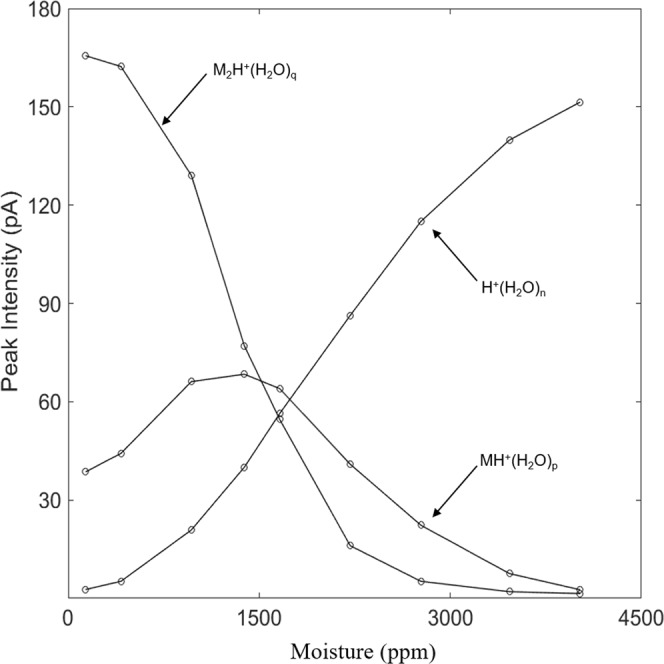

Figure 11.

Peak intensity for the reactant ion, protonated monomer, and proton bound dimer of 2-octanone at 7 ppb in air with moisture levels from 1.0 × 10² to 4.00 × 10³ ppm at SV = 500 V.

As the moisture level increases, the hydrated proton grows in size (Fig. 5), which leads to an increase in nominal proton affinity of the water cluster (Table 2) that is approximately defined by the enthalpy change for reaction described by Eq. 4.

$$H^{+}{(H_{2}O)}_n\to H^{+}+n{H}_{2}O$$ 4

Table 2.

Proton affinity for H⁺(H₂O)_n for n from 1 to 10.

n	Formula	Proton Affinity (kJ mol−1)
1	H+(H2O)	691
2	H+(H2O)2	827
3	H+(H2O)3	911
4	H+(H2O)4	984
5	H+(H2O)5	1040
6	H+(H2O)6	1090
7	H+(H2O)7	1135
8	H+(H2O)8	1178
9	H+(H2O)9	1219
10	H+(H2O)10	1256

The nominal proton affinities for the clusters with n = 1 to 6 are (kJ mol⁻¹) consecutively, 691, 827, 911, 984, 1040, and 1090. In comparison, the proton affinity of 2-octanone, is approximately 850 kJ mol⁻¹, an upper limit for listed ketones. (NIST Standard Reference Simulation Website)³⁶. Exothermic proton transfer is therefore only possible for H⁺(H₂O)_n with n = 1 or 2. Exothermic proton transfer from H⁺(H₂O)_n to 2-octanone for n ≥ 3 can only occur with concomitant transfer of one or more water molecules as described by Eq. 2.

The collision of 2-octanone with H⁺(H₂O)_n leads to a nascent ion-molecule complex [MH⁺(H₂O)_n]^* that can either be stabilized by collision, with or without loss of water molecules, or revert to reactants. The reversion will be increasingly favored as n increases because of steric hindrance and some delocalization of charge over the water network. The rate of proton transfer to produce MH⁺(H₂O)_p will decrease and with a sufficiently large n, proton transfer will not occur. The degree of hydration of MH⁺(H₂O)_p also increases with increasing moisture content and the same argument made for MH⁺(H₂O)_p can be made for the decreasing rate of formation of M₂H⁺(H₂O)_q with increasing moisture content. Figure 11 shows that M₂H⁺(H₂O)_q decreases monotonically as MH⁺(H₂O)_p first increases, attains a maximum and then decreases while non-reacted H⁺(H₂O)_n increases monotonically. Above 4.00 × 10³ ppm moisture no proton transfer is possible for 2-octanone at a concentration of 7 ppb. From Fig. 5 this occurs when H⁺(H₂O)₅ is the main reactant ion. The plots in Fig. 11 hold critical importance for analytical measurements of water samples demonstrating that moistures content should be as low as possible for best response Moisture up to 1.00 × 10³ ppm is tolerable but with increasing degraded quantitative response. The influence of moisture level on ionization of other ketones should differ based on the trend in proton affinities in the homologous series of ketones (Table 3) where proton affinity ranges from 691 to 840 kJ mol⁻¹.

Table 3.

Proton affinities from Gaussian modeling for a homologous series of ketones and maximal threshold values of humidity above which no ketone detection was possible.

Ketone	Proton Affinity (kJ mol−1)	H2O (ppm)
Acetone	810	1.10 × 103
2-Butanone	820	1.25 × 103
2-Hexanone	826	3.60 × 103
2-Octanone	835	4.00 × 103
2-Noanone	837	4.20 × 103
2-Decanone	838	5.40 × 103
2-Dodecanone	840	5.70 × 103

DMS analysis of a homologous series of ketones

The response to ketones at 7 ppb to moisture levels of 1.0 × 10² to 6.00 × 10³ ppm is shown in Fig. 12 where the patterns described above for protonated monomer and proton bound dimer are consistent for ketones above hexanone. The pattern of response is progressive loss of proton bound dimer and then protonated monomer until only reactant ion remains above the different moisture level thresholds shown in Table 3. The thresholds, increase proportionally with ketone mass to 5.70 × 10³ ppm H₂O for 2-dodecanone (PA 840 kJ mol⁻¹). Findings for acetone and butanone are not included in Fig. 12 due to complete convolution of peaks for protonated monomer and proton bound dimer (see Supplementary Information). Dispersion plots for nonanone exhibited unusual patterns of ion intensity suggestive of ion decomposition. This merits closer inspection perhaps with DMS/Mass Spectrometry but such studies were beyond the scope of this investigation.

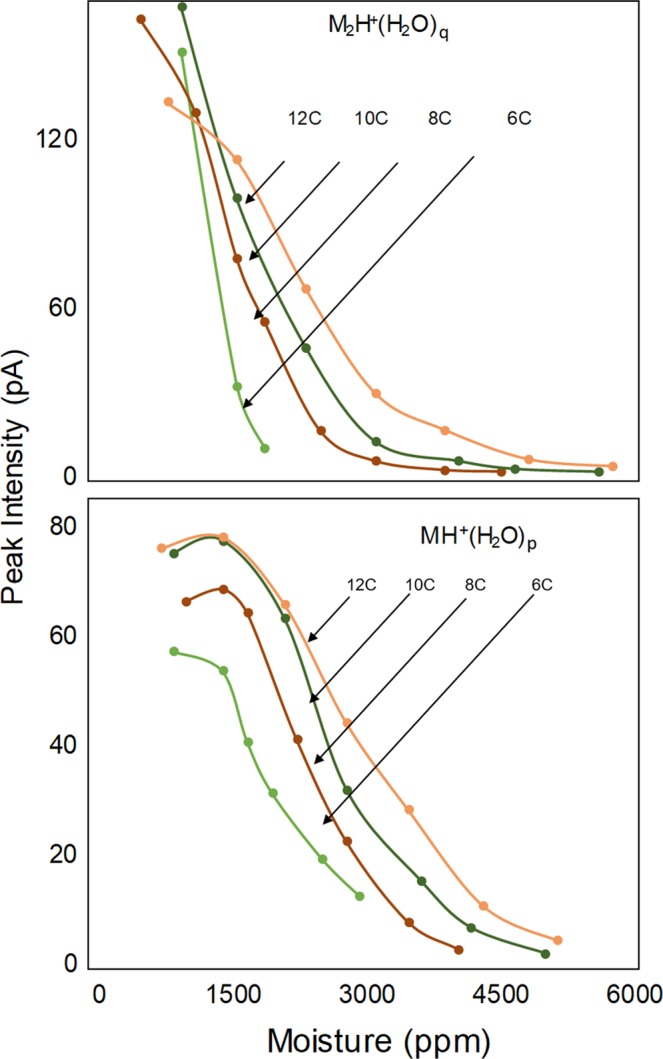

Figure 12.

Peak intensity for protonated monomer and proton bound dimer of a homologous series of ketones (C for carbon number) with moisture levels from 1.0 × 10² to 4.70 × 10³ ppm. Acetone and butanone are not included due to convolved peaks for protonated monomer and proton bound dimer. Nonanone was removed due to anomalous patterns necessitating further, detailed study.

At a practical level, individual calibration curves will be needed for each ketone for quantitative monitoring of ketones in ground or surface waters.

At a practical level, individual calibration curves will be needed for each ketone for quantitative monitoring of ketones in ground or surface waters and this technology has demonstrated performance in detection up to 6.00 × 10³ ppm with acceptable behavior for ion formation and ion separation by DMS. At a fundamental level of ionization chemistry, levels of moisture entering the ion source should be as low as possible and for best response should not exceed 1.00 × 10³ ppm. The technology and operating parameters of this drift tube however necessitate elevated levels of moisture beginning at 1.00 × 10³ ppm.

Conclusions

A DMS analyzer at 30 °C operated over a broad range of moisture levels (1.0 × 10² to 1.71 × 10⁴ ppm) without any anticipated technical problems due to moisture condensation. This study has demonstrated that measurements with a commercial embodiment of DMS at room temperature is possible over a range of water concentration in the gas phase with a conflicting demand of best ionization properties with reduced moisture and stable analyzer performance over 1.00 × 10³ ppm. The boundary of analyzer performance is shown to provide acceptable response and chemistry of ion formation. Response was improved by decreasing of moisture level. This is attributed to suppression of ionization as the reactant ion H⁺(H₂O)_n was progressively hydrated and the displacement of H₂O by M was increasingly disfavored. Although the duty cycle was 5% for the separation waveform, resolution of peaks was achieved and demonstrated the suitability of this instrument for further development as an environmental monitor. Intentions to adapt this analyzer, and other DMS analyzers, for water monitoring should be approached with caution since the influence of moisture levels with relatively high proton affinity ketones portends difficulties under same conditions for substances, of environmental interest with lesser proton affinities. Response to a homologous series of ketones was dependent on molar mass and proton affinities providing a caution that calibrations for individual ketones should be made with DMS in environmental monitoring.

Author Contributions

Z.S. performed the experiments, and wrote the main text of the manuscript. M.S. and G.A.E. supervised the research. All authors were involved in the process of experiments, preparation of the manuscript, agree with the data analyses and reviewed the manuscript.

Competing Interests

The authors declare no competing interests.

Supplementary information

Supplementary information accompanies this paper at 10.1038/s41598-019-41485-7.
