Synthesis, Characterization and Biological Studies of Rhenium, Technetium-99m and Rhenium-188 Pentapeptides

Abstract

A pentapeptide macrocyclic ligand, KYCAR (lysyl-tyrosyl-cystyl-alanyl-arginine), has been designed as a potential chelating ligand for SPECT imaging and therapeutic in vivo agents. This study shows the synthesis and characterization of KYCAR complexes containing nonradioactive rhenium, ^99mTc, or ¹⁸⁸Re. The metal complexes were also biologically evaluated to determine in vivo distribution in healthy mice. The overall goals of this project were (1) to synthesize the Tc/Re pentapeptide complexes, (2) to identify spectroscopic methods for characterization of syn versus anti rhenium peptide complexes, (3) to analyze the ex vivo stability, and (4) to assess the biological properties of the [^99mTc]TcO-KYCAR and [¹⁸⁸Re]ReO-KYCAR complexes in vivo. Details on these efforts are provided below.

Methods

^NatRe/^99mTc/¹⁸⁸ReO-KYCAR complexes were synthesized, and macroscopic species were characterized via HPLC, IR, NMR, and CD. These characterization data were compared to the crystallographic data of ReO-KYC to assist in the assignment of diastereomers and to aid in the determination of the structure of the complex.

Results

The radiometal complexes were synthesized with high purity (>95%). HPLC, IR, NMR and CD data on the macroscopic ^natReO-KYCAR complexes confirm the successful complexation as well as the presence of two diastereomers in syn and anti conformations. Tracer level complexes show favorable stabilities ex vivo for 2+ hours.

Conclusion

Macroscopic metal complexes form diastereomers with the KYCAR ligand; however, this phenomenon is not readily observed on the tracer level due to the rapid interconversion. It was determined through pK_a measurements that the macroscopic ^natReO-KYCAR complex is 0 at physiological pH. The [^99mTc]TcO-KYCAR is stable in vitro while the [¹⁸⁸Re]ReO-KYCAR shows 50% decomposition in PBS and serum. Biologically, the tracer level complexes clear through the hepatobiliary pathway. Some decomposition of both tracers is evident by uptake in the thyroid and stomach.

1. Introduction

Central to molecular imaging is the development of novel imaging probes; advances in radiometal technology and novel biological targeting vectors have provided the motivation and opportunities for new diagnostic and therapeutic agents [1–4]. Radioactive isotopes of technetium (Tc) and rhenium (Re) have utility in both diagnostic imaging and radiotherapy, due to their associated decay schemes and physical half-life properties. ^99mTc, a pure γ-emitter (γ: 142 keV; t_1/2: 6.02 h), is an isotope that is used in over 80% of nuclear imaging [5] due to its excellent physical properties, convenience, and minimal radiation burden to the patient[6, 7]. Rhenium, the third-row transition metal congener of Tc, exhibits similar complexation chemistry to technetium, and its non-radioactive isotope is often used as a surrogate for the characterization of ^99mTc radiopharmaceuticals. The radioactive isotope ¹⁸⁸Re has exceptional potential as a radiotherapeutic isotope. ¹⁸⁸Re possesses a half-life of 16 h, emits a high-energy β^– (E_max= 2.11 MeV) that is effective for cell killing, and also generates an imageable γ-ray of 155 keV [8–10]. The availability of ¹⁸⁸Re from the ¹⁸⁸W/¹⁸⁸Re generator renders ¹⁸⁸Re as a convenient, inexpensive radiotherapeutic isotope. Both ^99mTc and ¹⁸⁸Re form stable peptide complexes with amine and amide nitrogens, carboxylate oxygens, and thiolate sulfurs [11, 12].

Short peptide sequences labeled with ^99mTc and ¹⁸⁸Re can be useful as chelators in targeted radiopharmaceuticals. In some agents, a portion of the peptide serves as a chelator to the metal and a separate portion serves as a target for a specific receptor [13–19]. Generally, Tc peptide complexes have been investigated due to their favorable pharmacokinetics and their receptor targeting [20, 21]. Due to their small size, peptides generally exhibit rapid pharmacokinetics and are able to penetrate tumors very efficiently [22, 23]. They also exhibit fast blood clearance and lower kidney retention. It is possible to engineer peptides to exhibit desired pharmacokinetic characteristics by changing the peptide sequence during solid-phase synthesis or by grafting additional elements such as polyethylene glycol (PEG) linkers to the chelate region. The coordination chemistry of the metal-peptide complex will determine the geometry, stability of the radiopeptide construct, and has the potential to influence receptor affinity and/or pharmacokinetics in vivo [24].

In this work, structures of ^99mTc, ¹⁸⁸Re, and macroscopic ^natRe complexes of the KYCAR (lysyl-tyrosylcystyl-alanyl-arginine) peptide sequence are prepared, characterized, diastereomers determined, chemistry of the complexes investigated, and charge of the chelator region determined. The KYCAR ligand was chosen because the [^99mTc]TcO-KYCAR was reported to exhibit tumor uptake [25, 26]. The in vitro and in vivo stabilities and biodistribution studies are reported. Chelation about the radiometal includes three nitrogens (one amine of Lys side chain, two amide nitrogens of Tyr and Cys) and one sulfur (thiol sulfur of Cys) to give a N₃S donor set of atoms (Figure 1).

Figure 1.

KYCAR Ligand.

The thiol group has a high affinity for “soft” transition metals, a property convenient for labeling cysteine-based proteins with ^99mTc^V=O and ¹⁸⁸Re^v=O moieties [11, 27, 28]. When peptide-based chelators are comprised of amino acids containing side chains, chiral centers are incorporated into the coordination environment, and diastereomeric complexes are known to form where the M=O group (M= Tc, Re) is either syn or anti to the substituents[29, 30]. In this work, it was found that two main products are formed when KYCAR is radiolabeled with rhenium, and these are purported to be the syn and anti diastereomers of ReO-KYCAR. The two diastereomers are referred to as syn or anti with regard to the position of the side chain of Tyr relative to the M=O bond (Figure 2).

Figure 2.

Anti and syn Diastereomers of ReO-KYCAR

To this end, we have (1) synthesized the ^99mTc/¹⁸⁸Re/^natRe pentapeptide complexes, (2) identified spectroscopic methods for their characterization, (3) investigated the chemical reactivity of the residues of the metal peptide complexes; (4) identified the charge of the radiometal chelator region under physiological conditions, (5) analyzed the in vitro stability, and (6) assessed the biological properties of the [^99mTc]TcO-KYCAR and [¹⁸⁸Re]ReO-KYCAR complex in vivo. Importantly, this study allows a direct comparison of the ¹⁸⁸Re to ^99mTc products with respect to radiolabeling, yields, stability and biodistribution.

2. Materials and Methods

2.1. Reagents

^99mTc was obtained via Memorial Sloan Kettering Cancer Center, New York, New York, as Na^99mTcO₄, eluted from a Technelite ⁹⁹Mo/^99mTc Generator from Lantheus, Billerica, Massachusetts, USA. The isotope ¹⁸⁸Re was obtained as Na¹⁸⁸ReO₄ was eluted from an ¹⁸⁸W/¹⁸⁸ Re generator with saline (0.9% NaCl solution). The ¹⁸⁸W/¹⁸⁸Re generator was purchased from RadioMedix, Houston, Texas, USA. Activity measurements were obtained from an Atomic Products Corporation Atomlab 100 Dose Calibrator. The ligands, KYCAR and KYC-NH₂, were purchased from United Peptide, Herndon, Virginia, USA. Methanol (MeOH), dimethyl sulfoxide (DMSO), HPLC-grade acetonitrile, triflouroacetic acid (TFA), and 0.9% NaCl solution were purchased from Fisher Scientific. Tin (II) tartrate 99%, tin (II) chloride dehydrate, d-gluconic acid and silica gel TLC plates were purchased from Sigma Aldrich. Deionized water (18 MΩ) was obtained from a 0.22 μm Millipore filtration system. All in vivo experiments were performed according to protocols approved by the Memorial Sloan Kettering Institutional Animal Care and Use Committee. The rhenium starting material, (Bu₄N)[ReOBr₄(H₂O)]•H₂O, was prepared following the method of Rose et. al. [31].

2.2. Synthesis of ReO-KYCAR

The KYCAR ligand (0.0403 mmol) was dissolved in 500 μL CH₃OH. The above synthesized (Bu₄N)[ReOBr₄(H₂O)]•H₂O (0.0403 mmol) was dissolved in 500 μL CH₃OH and added dropwise to the ligand. The resulting reddish-brown solution was allowed to stir at 200 rpm for 10 min. Following stirring, the solution was allowed to sit at room temperature for ten days to reach equilibrium. For semi preparative collections, the methanol solvent used to synthesize macroscopic rhenium complexes was evaporated under a stream of N₂(g) for about 4 h. The dry complex was then reconstituted in a 95%/5% (solvent A/ solvent B) mixture of the mobile phase for HPLC analysis. The ReO-KYCAR product was purified via HPLC; the diastereomers were separately collected and fractions were lyophilized to a powder. The lyophilized powders ranged in color depending on the diastereomer ranging from light peach (peak 1, anti) to a darker pinkish/peach (peak 2, syn). Yields were 23.2% and 16.8% for the anti and syn diastereomers respectively, for a total yield of 40.0%. LCMS calculated for C₂₇H₄₂N₉O₈ReS ([M + H]⁺), 839.2435, found 840.2493. HPLC retention times: Intermediate (INT): 12.5 min; anti diastereomer, peak 1: 14.1 min; syn diastereomer, peak 2: 16.5 min.

¹H NMR (600 MHz, 0.01 M HCl/D₂O 50:50 (v:v)) peak 1: δ 8.45–8.44 (d, 1H), 8.26–8.25 (d, 1H), 7.51 (br, 1H), 7.10–6.98 (m, 1H), 6.84–6.83 (d, 1H), 6.58–6.57 (d, 1H), 4.89–4.87 (m, 1H), 4.78–4–74 (m, 1H), 4.18–4.17 (t, 1H), 4.12–4.11 (d, 1H), 3.98–3.96 (t, 1H), 3.80–3.78 (d, 2H), 3.34–3.32 (t, 2H), 3.04–3.02 (d, 1H), 2.93–2.91 (t, 1H), 1.88–1.86 (t, 1H), 1.83–1.81 (m, 1H), 1.76–1.74 (m, 1H), 1.66–1.55 (m, 3H), 1.54–1.40 (m, 1H), 1.31–1.21 (m, 1H).

¹H NMR (600 MHz, 0.01 M HCl/D₂O 50:50 (v:v)) peak 2: δ 8.23–8.19 (m, 1H), 7.75–7.74 (d, 1H), 7.46 (br, 1H), 7.10–6.95 (m, 1H), 6.48–6.47 (d, 1H), 6.42–6.41 (d, 1H), 5.09–5.08 (m, 1H), 5.04–5.03 (m, 1H), 4.10–4.04 (m, 1H), 3.96–3.95 (m, 1H), 3.86–3.85 (m, 1H), 3.34–3.26 (m, 2H), 2.93–2.91 (m, 2H), 2.85–2.84 (d, 1H), 2.62–2.55 (m, 1H), 2.15–2.06 (m, 1H), 1.74–1.73 (m, 1H), 1.63–1.61 (m, 1H), 1.50–1.48 (m, 2H), 1.26–1.25 (m, 1H), 1.16–1.15 (m, 1H).

2.3. Synthesis of ReO-KYC-NH₂ (ReO-KYC)

The KYC-NH₂ ligand (0.0403 mmol) was dissolved in 500 μL CH₃OH. (Bu₄N)[ReOBr₄(H₂O)]•H₂O (0.0403 mmol) was dissolved in 500 μL CH₃OH and added dropwise to the ligand. The resulting reddish-brown solution was allowed to stir with a stir bar at 200 rpm for 10 min. Subsequently, the solution was allowed to sit at room temperature for 40 min. For semi preparative HPLC purification of the diastereomers, the methanol solvent was evaporated under a stream of N₂(g) for about 4 h. The dry complex was then reconstituted in a 95%/5% (solvent A/ solvent B) mixture of the mobile phase for preparative HPLC purification. Two fractions were collected and lyophilized to powders that were pinkish in color. The yield of the ReO-KYC was 12.5% and 10.5% for the anti and syn diastereomers, respectively, for a total yield of 23.0%. X-ray quality crystals of ReO-KYC were obtained by supersaturation in methanol over 1 week at room temperature. HPLC retention times: anti diastereomer, peak 1: 12.1 min; syn diastereomer, peak 2: 14.5 min.

2.4. Synthesis of [^99mTc]TcO-KYCAR

To a saline solution of ^99mTcO₄⁻ (370 MBq; 10 mCi), KYCAR ligand (200 μL, 0.00234 mmol solution) in saline was added. To that mixture tin(II) tartrate (40 μL, 0.0221 mmol solution) in water was added and the mixture was vortexed. The reaction mixture was then kept at 90 °C for 10 min followed by incubating at room temperature for 30 min. The solution was then filtered through a 0.1 μm syringe filter and analyzed or purified via HPLC. Radiochemical Purity determined by iTLC was 99.9%. HPLC retention times: anti diastereomer, peak 1: 9.1 min; syn diastereomer, Peak 2: 10.1 min. Radiochemical Yield 62.2%.

For in vitro and in vivo studies, the [^99mTc]TcO-KYCAR complex (syn) was purified by injecting on to a 4.6 × 150 mm Water Atlantis dc18 3 μm 100 Å column. The collected fraction was reduced in volume using vacuum and reconstituted in the appropriate solvent.

2.5. Synthesis of [¹⁸⁸Re]ReO-KYCAR

To a saline solution of ¹⁸⁸ReO₄⁻ (370 MBq; 10 mCi), tin (II) chloride (75 μL, 0.105 mmol solution) in water and d-gluconic acid (150 μL, 0.102 mmol solution) in water were added. The reaction mixture was vortexed and kept at 37 °C for 30 min. To this solution the KYCAR ligand (200 μL, 0.00313 mmol solution) in saline was added, the reaction mixture was vortexed and kept at 37 °C for 30 min. The solution was then filtered through a 0.1 μm syringe filter and analyzed or purified via HPLC. Radiochemical Purity determined by iTLC was 99.9%. HPLC retention time: anti diastereomer, peak 1: 9.1 min. Radiochemical Yield 84.2%.

For in vitro and in vivo studies, the [¹⁸⁸Re]ReO-KYCAR complex (syn) was purified by injecting on to a 4.6 × 150 mm Water Atlantis dc18 3 μm 100 Å column. The collected fraction was reduced in volume using vacuum and reconstituted in the appropriate solvent.

2.6. HPLC Analyses and Purifications

Complexes were analyzed using a Waters Symmetry 4.6 × 150 mm C₁₈ 3.5 μm 100 Å analytical column. Complexes were purified using a semi-preparative Waters Nova Pak HR 19 × 300 mm C₁₈ 6 μm 60 Å column. All non-radioactive Re HPLC experiments were conducted on a Rainin HPXL solvent delivery system with a Prostar 325 UV-vis Detector. Radioactive ^99mTc, ¹⁸⁸Re HPLC experiments were completed using a Varian Pro Star HPLC system. The radioactive complexes were analyzed and purified using a Waters Atlantis 4.6 × 150 mm dc18 3 μm 100 Å column. The γ emissions were monitored using a Bicron 2m2/2 NaI detector and Tennelec Minibin components. The software used for all HPLC systems was the ProStar WorkStation. The solvents used were ultra-pure deionized water with 0.1% trifluoroacetic acid (solvent A), and HPLC-grade acetonitrile with 0.1% trifluoroacetic acid (solvent B). Method 1 was used for all non-radioactive analytical and preparative ^natRe HPLC experiments: 5–25% B over 26 min. Method 2 was used for all radioactive HPLC experiments: 5–25% B over 20 min. The flow rate for analytical analyses was 1.0 mL/min, and for semi-preparative separations 16.7 mL/min. For all HPLC analyses the UV detection was monitored at 280 nm.

2.7. Mass Spectrometry Analyses

For macroscopic, cold rhenium compounds, mass spectral data were obtained on a LCMS system comprised of an Agilent 1200 LC system coupled to an Agilent 6340 ion trap mass spectrometer. Samples were injected onto an Agilent Zorbax column (SB-C8, 5 μM, 2.1 × 50 mm) using a linear gradient of 5–95% acetonitrile in water (0.5% formic acid) over 10 min. The samples were prepared by dissolving the lyophilized ReO-KYCAR samples in water:acetonitrile solution (v:v, 450:50 μL).

2.8. NMR Analyses

The 1D proton and 2D TOCSY (total correlation spectroscopy) NMR spectra were obtained from a Bruker Avance III 600 MHz with a TCI cryoprobe NMR spectrometer with chemical shift referenced to H₂O, at T=296 K. ReO-KYCAR samples (peak 1, anti, and peak 2, syn) (5–10 mg) were dissolved in an 800 μL solution of 0.01 M HCl/D₂O 50:50 (v:v). The solution was then transferred to a 5 mm U-Thin NMR tube. 1D proton NMR spectra were collected at 8 scans. 2D COSY scans were collected at 2 scans, 256 increments.

pK_a determination of the amine nitrogen of lysine in the ReO-KYCAR complex is described by Cantorias et. al. [30] Briefly 10 mg of the macroscopic rhenium complex was dissolved in 700 μL 0.01 M DCl in D₂O. The pH was recorded, the solution was transferred to a 5 mm U-Thin NMR tube, and 1D proton and 2D COSY (correlation spectroscopy) NMR spectra were obtained. The sample was then titrated with 0.05 M NaOD until the pH changed from 0.5 to 1 intervals. The volume and pH were recorded, and NMR spectra were obtained at each interval. We recognize that measuring the pD with a pH electrode impacts the pK_a values. General pK_D versus pK_H correlations have been reported for a series of different acids and for macrocyclic ligands [32]. For Brønsted acids the correlation is:

$${\text{pK}}_{\text{D}}=0.32+1.044{\text{pK}}_{\text{H}}$$

For macrocycles the correlation is:

$${\text{pK}}_{\text{D}}=0.11+1.10{\text{pK}}_{\text{H}}$$

Applying these correlations to convert the pKa_D values measured in our NMR will result in pK_a values that are 0.4 to 1.0 pH units lower than our measured values. Since these correlations are for acids and macrocycles, not metal peptide complexes, we note that the actual pK_a values may be lower than our measured value.

2.9. Infrared Spectroscopy Analyses

Infrared spectra were obtained using a Perkin-Elmer Spectrum Two IR Spectrometer with attached UATR in the range of 500–4000 nm. Briefly a small amount of lyophilized sample was placed on the UATR and the appropriate pressure was applied.

2.10. Circular Dichroism Analyses

Circular Dichroism spectra were collected on an Aviv Biomedical Circular Dichroism spectrometer of approximately 1 nanomol solutions of Re-KYCAR in 1 mL methanol. The samples were scanned from 200 to 680 nm. The ^natReO-KYCAR samples analyzed were peak 1 and peak 2 from the HPLC prep purification.

2.11. X-ray Structure Determination

X-ray diffraction data were collected on a Bruker X8 Kappa Apex II diffractometer using Mo Kα radiation. The structure was solved using direct methods and standard difference map techniques, and was refined by a full-matrix least-squares procedures on F² with SHELXTL (version 2014/7)[33, 34]. All hydrogen atoms bound to carbon were placed in calculated positions and refined with a riding model [U_iso(H) = 1.2–1.5U_eq(C)], while hydrogen atoms bound to nitrogen and oxygen were located on the difference map before refinement with a riding model.

2.12. Instant Thin Layer Chromatography

To assess the radiochemical purity of the HPLC purified radiometal complexes, instant thin layer chromatography (iTLC) was completed post HPLC purification. Briefly 1 μL of the product was placed on a silica gel TLC plate with glass backing. The TLC strip was then placed in a falcon tube containing 70% ethanol and allowed to develop. Using this solvent system ^99mTc and ¹⁸⁸ReO-KYCAR complexes remains at the origin (Rf= 0.0–0.1), while ^99mTcO₄ ⁻¹⁸⁸ and ReO₄⁻ run with the solvent front (Rf= 0.9–1.0). TLC strips were analyzed on an Eckert & Ziegler Bioscanner to determine percent of activity at the origin versus at the solvent front.

2.13. Log D Studies

To determine the distribution coefficients the radioactive metal (^99mTc, ¹⁸⁸Re) complexes were HPLC purified, dried via high vacuum system, and reconstituted in PBS and placed into a micro centrifuge tube with an equal amount of 1 octanol. The samples were vortexed followed by centrifugation at 10,000 rpm for 5 min. Layers were separated and aliquots counted on an Atomic Products Corporation Atomlab 100 Dose Calibrator.

2.14. Biodistribution Studies

All animals were treated according to the guidelines set by the Institutional Animal Care and Use Committee. The HPLC purified ^99mTc and ¹⁸⁸Re labelled KYCAR complexes were evaluated for their biological distribution in healthy athymic nude female mice 6–8 weeks old (Charles River Labs). 3.7 – 7.4 MBq (100 μCi to 200 μCi) of the radiolabeled complex was injected intravenously into the mice via the tail vein. Mice were sacrificed (CO₂ (g) asphyxiation) 30 min, 1, 2 and 4 h post injection; 5 mice per time point. The following tissues were removed, rinsed in water, and dried in air; blood, heart, lungs, liver, spleen, stomach, small intestines, large intestines, kidneys, muscle, bone, skin, thyroid, and gall bladder. The tissues were then counted on a Perkin Elmer Automatic Wizard γ-counter calibrated for either ^99mTc or ¹⁸⁸Re. Counts were converted to activity using a calibration curve generated from known standards. Count data were background- and decay-corrected to the time of injection, and the percent injected dose per gram (%ID/g) were calculated and reported.

3. Results and Discussion

3.1. Synthesis and Characterization of ^natRe KYCAR Complexes

Synthesis of ^nat Re KYCAR

The reaction of Re^VOBr₄⁻ with the KYCAR pentapeptide in methanol resulted in two major [Re^VO] complexes after incubation at room temperature for 10 days. The HPLC data are shown on Figure 3. Four hours after mixing, three peaks are observed. These are an intermediate peak, denoted INT, peak 1 and peak 2. The intermediate complex disappears over time. Peaks 1 and 2 are the two major ReO-KYCAR peaks. Peak 1 converts into peak 2 over time; after 2 days the peak 1/peak 2 ratio was approximately 2.1:1. After 3 days, the ratio of peaks 1/peak 2 was approximately 1:1. The two major complexes reached equilibrium after 6 days, where peak 2 was the slightly dominant peak at a ratio of approximately 0.8:1. The ratios do not change after 6 days and the two complexes represented by peaks 1 and 2 were HPLC purified after 10 days.

Figure 3.

Synthesis of ReO-KYCAR over a 6 day period in methanol. Immediately post synthesis there are three peaks present (INT, peak 1 and peak 2). Peak INT (short-lived intermediate complex) converts to peak 1, “anti” diastereomer and peak 2, “syn” diastereomer. Peak 1 converts to peak 2 over time. The two diastereomers were isolated at day 10 by preparative HPLC, lyophilized and characterized. See text.

These peaks (1 and 2) represent ReO-KYCAR diastereomers: the anti complex is represented by the earlier eluting peak, 1, and the syn complex is represented by the later eluting peak, 2. These assignments are based on previous work ([16, 30]and were confirmed in this study, specifically by direct comparison to the ReO-KYC syn diastereomer (peak 2) crystal structure as well as circular dichroism experiments, vide infra.

To fully characterize all species, peaks 1 and 2 were collected separately after 10 days and the intermediate peak (INT) was collected after one day by preparative HPLC, Method 1. The fractions were lyophilized to powders. After lyophilization, the powders from both the intermediate peak (INT) and peak 1 products exhibited a peach color, whereas the powder from peak 2 was darker in relation to peak 1. Peak 1 revealed a molecular ion [M + H]⁺ peak at m/z 840, which is consistent with the exact mass of the ReO-KYCAR complex (mass= 839.24 g/mol) (Figure S1).

Peak 2 revealed a molecular ion [M + H]⁺ peak at m/z 854, which is 14 dalton above the exact mass of ReO-KYCAR. This represents a methyl ester adduct (Figure S2) wherein an acid-catalyzed esterification between methanol and the carboxylic acid (of the arginine) occurred during the synthesis. This is expected for a free carboxylate in a methanolic synthesis. The intermediate peak contained a mixture of both complexes, showing m/z 840 and 854. Two lines of evidence support the methyl ester adduct assignment. First, conducting the reaction in methanol for two hours instead of ten days and collecting peak 2 results in mass spectral data showing both m/z 840 and m/z 854 demonstrating that a rapid conversion from the carboxylate to the methyl ester occurred. The second experiment was to run the reaction in acetonitrile instead of methanol (supporting material, Figure S3A and S3B). For this acetonitrile reaction the mass spectral data demonstrated that both peak 1 and peak 2 displayed signals at m/z 840 with no mass observed at m/z 854.

Unfortunately, the yield of peak 2 was extremely low when the reaction was performed in acetonitrile. Moreover, unlike the reactions conducted in methanol, reactions conducted in acetonitrile showed no interconversion of peak 1 to peak 2 (Figure S3A) thus further minimizing access to peak 2. Therefore, all reactions to isolate peak 2 were conducted in methanol. However, the data discussed below, specifically the crystal structure of the ReO-KYC (peak 2) and the circular dichroism studies confirm the assignments of peak 1: anti diastereomer and peak 2: syn diastereomer, vide infra.

3.2. Crystallography

Due to the unsuccessful attempts crystallizing ReO-KYCAR, described in the Supporting Information (Tables S1 and S2), ReO-KYC-NH₂ (ReO-KYC) (Figure S4) crystallization was attempted to investigate the structure around the complexation region. An amide capped peptide was used to prevent any potential methyl esterification from occurring. Crystals of similar ReO and ⁹⁹TcO tripeptide complexes bearing cysteine at the carboxylate terminus have been previously obtained and reported in the literature [30]. ReO-KYC was synthesized and an aliquot from the reaction mixture was analyzed via reverse phase HPLC (Figure S5). The HPLC trace shows that there are two major peaks present corresponding to two diastereomers. Orange crystals were obtained by the supersaturation of the remaining reaction mixture in methanol over 1 week. The crystal and structure refinement data are found in Supporting Information (Table S3). Bond lengths and bond angles are tabulated in Table 1, and the structure is shown in Figure 4 and Figure S6.

Table 1.

Bond lengths and bond angles for ReO-KYC peak 2 (Syn).

[(KYC-H)ReO][Br]	Bond Length (Å)
Re-O	1.676(3)
Re-N1	1.983(3)
Re-N2	1.984(3)
Re-N3	2.117(3)
Re-S	2.2630(9)
N3-C6	1.497(5)
	Bond Angle (deg)
N2-Re-N3	79.06(12)
N3-Re-S	91.22(9)
N1-Re-N2	78.72(12)
N1-Re-S	82.66(9)
O-Re-N3	107.62(12)
O-Re-N2	113.23(12)
O-Re-N1	111.94(13)
O-Re-S	109.80(10)

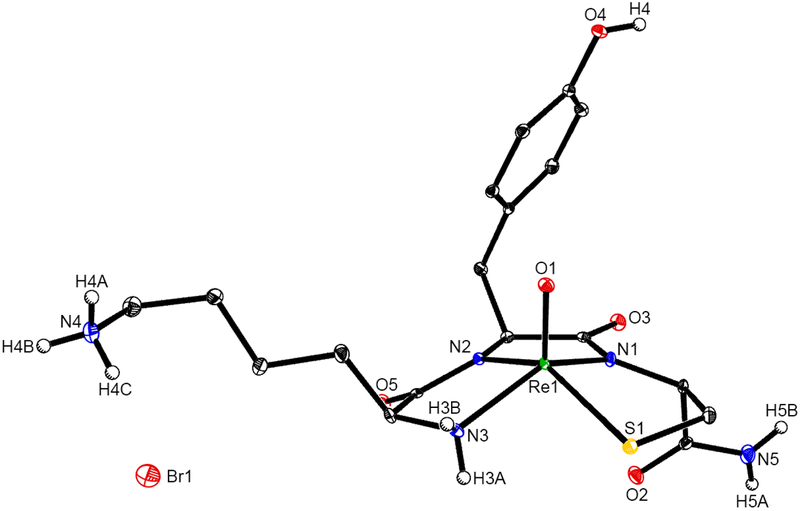

Figure 4.

Structure for ReO-KYC (syn).

The crystal structure determined that the coordinating nitrogen on the lysine (N3) is an amine nitrogen and the epsilon residue (N4) is protonated, thus the overall charge of the molecule is +1. This is balanced by the presence of a bromide counterion. With respect to the geometry at the Re center, Addison et. al. describes a τ₅ parameter as a range from 0 (C4v square pyramid) to 1 (D3h trigonal bipyramid). If we examine the τ₅ value of the ReO-KYC crystal (0.04) we see that this indicates square pyramidal geometry [35]. The crystallization in a chiral space group confirms that there is only one enantiomer present.

Examination of the bond angles about N2 and N1 demonstrate that these are amidate nitrogen atoms, i.e. that a proton is lost upon metal complexation. The angles range from 116.3(3) degrees to 125.4(2) degrees, encompassing 120 degrees would be expected for a sp2 hybridized nitrogen atom. In contrast the C6-N3-Re angle is 111.4(2) degrees which is closer to 104.5 degrees representative of a sp3 hybridized nitrogen atom [30].

The crystals were dissolved and reinjected into the HPLC to confirm the presence of one peak at 14.50 min that corresponds to “peak 2” (Figure S7). Since these crystals of ReO-KYC were the syn diastereomer, it can be inferred that peak 2 of the ReO-KYCAR is also the syn diastereomer. This is consistent with the Circular Dichroism and NMR data as well as our previous work in which we demonstrated that for Tc and Re tripeptides, peak 1 corresponds to the anti diastereomer and peak 2 corresponds to the syn diastereomer [30].

3.3. Spectroscopic Characteristics

NMR

The 2-Dimensional ¹H NMR data were collected and the chemical shifts from the ¹H NMR spectra of the macroscopic ReO-KYCAR diastereomers were compared to the free KYCAR ligand (Table 2). The 2-Dimensional TOCSY NMR data for ReO-KYCAR peak 1 (anti) and peak 2 (syn) complexes are shown in Figures S8, S9, S10, and S11. The 1-Dimensional ¹H NMR data are shown in figure S12. The2-Dimensional data allow assignment of the protons of the diastereomers and reveal information regarding the coordination of the chelate about the rhenium. The discussion below is facilitated by referring to Figures 1–2, S13-S14.

Table 2.

¹H NMR of KYCAR, ReO-KYCAR peak 1, ReO-KYCAR peak 2, and the change (Δ) in ppm between peak 1 and peak 2.

	Residue	Free Ligand	Peak 1	Peak 2	Δ ppm
K	HN	7.42	-	-	-
	Hα	3.84	3.97	3.95	0.02
	Hβ	1.73	1.88	2.10	0.22
		-	1.82		1.82
	Hγ	1.24	1.5	1.48	0.02
	Hδ	1.53	1.66	1.65	0.01
	Hε	2.85	2.92	2.92	0.00
	Hζ	-	7.51	7.46	0.05
Y	HN	8.69	-	-	-
	Hα	4.41	4.88	5.09	0.21
	Hβ	2.91	3.79	3.30	0.49
		2.75	3.32	2.91	0.41
	Hδ	6.96	6.84	6.48	0.36
	Hε	6.66	6.58	6.42	0.16
C	HN	8.07	-	-	-
	Hα	4.20	4.88	5.03	0.15
	Hβ	2.60	3.79	3.28	0.51
		-	3.32	2.64	0.68
A	HN	8.19	8.45	7.75	0.70
	Hα	4.04	4.11	4.09	0.02
	Hβ	1.25	1.27	1.15	0.12
R	HN	8.24	8.27	8.21	0.06
	Hα	4.19	4.20	3.85	0.35
	Hβ	1.78	1.79	1.72	0.07
		1.64	1.62	1.26	0.36
	Hγ	1.49	1.47	1.53	0.06
	Hδ	3.05	3.07	2.85	0.22
	Hε	7.03	7.03	7.03	0.00

All of the protons can be assigned in the NMR under the acidic, aqueous conditions used in the experiments except for the amine protons on the lysine (K) that are not observed. This is due to exchange of the amine protons in aqueous solution, which is a common occurrence known to be dependent on factors such as pH and concentration. The protons of the amide groups of the tyrosine (Y) and cysteine (C) amino acids were not observed, that is consistent with deprotonation of the amide nitrogen atoms to form amidate-Re bonds. Amidate-Re bonds for tyrosine and cysteine are found in the crystal structure, vida supra, thus the NMR data confirms coordination of these amino acids to the Reoxo core in aqueous solution. The β-protons of the cysteine are split into two resonances in each complex that also is consistent with complexation of the thiol sulfur to the metal. The NMR data are similar to those reported for ⁹⁹TcO and ReO tripeptide complexes [30] and demonstrate that the ReO-KYCAR maintains its structure in solution. Typically, technetium(V)-oxo and rhenium(V)-oxo-complexes carry a square pyramidal structure with the metal oxo group in the apical position when complexed to a tetradentate ligand [36–39] such as a tripeptide chelate. Crystal structure data, vide supra, and circular dichroism, vide infra, are better indicators of the absolute configuration of the diastereomers.

Circular Dichroism

To observe structural signatures of each of the isolated peaks, peaks 1 (anti) and peak 2 (syn), CD spectra were obtained and are shown below (Figure S15). The areas that provide the most information lie between 280 and 340 nm. Within this region are transitions, which include ligand to metal charge transfer. According to previous studies on rhenium-Schiff base complexes, this region correlates to the oxygen to rhenium charge transfer transitions [39, 40]. The strong positive Cotton effect, or characteristic change in optical rotatory, around 280 nm is assigned to the Re-oxo core in the anti position. Conversely, we see a negative Cotton effect of the Re-oxo core in the syn position. The postulated anti and syn circular dichroism spectra can be confirmed by comparing this CD data to previously reported data showing anti and syn complexes with crystallographically characterized Re- and Tc peptides (Figure S16) [30].

Infrared Spectroscopy

The infrared spectra for the anti and syn peaks, B and C, show a Re=O stretching frequency at 991 cm⁻¹ and 990 cm⁻¹, respectively. These values are slightly shifted to higher energies from 984 cm⁻¹, which was observed from (Bu₄N)[ReOBr₄(H₂O)]•H₂O, indicating that the Re=O bond from peaks B and C exhibit slightly more double bond character. The diastereomers also exhibit a broad peak at 2800–3500 cm⁻¹, characteristic of the phenol and carboxylic acid O-H and amine N-H. Both peaks exhibit a strong intensity stretching frequency at around 1649 cm⁻¹ (anti) and 1654 cm⁻¹ (syn), indicative of the C=O secondary amide bond, specifically representing an amide I band. New medium intensity stretching frequencies at 1515 cm⁻¹ (anti) and 1514 cm⁻¹ (syn) are characteristic of a secondary amide as well, specifically corresponding to an amide II band. The last new major peak that appears in ReO-KYCAR exhibits a strong intensity stretching frequency at 1199 cm⁻¹ (anti) and 1198 cm⁻¹ (syn), corresponding to the secondary amide C=O amide III band. For the syn peak specifically, a stretching frequency characteristic of a C=O methyl ester band overlaps with the amide carbonyl stretch at 1654 cm⁻¹. The infrared spectra of the syn peak reveals that there are actually 2 peaks at around 1654 cm⁻¹, whereas the infrared spectra of the anti isomer exhibit only 1 peak at 1649 cm⁻¹. This double peak indicates that the ester and amide carbonyl stretches are overlapping (Figure S17).

pK_a Measurements

The charge on the chelate is very important to assess/understand biological behavior. We attempt to identify the charge on the chelate and the charge on the overall complex.

From crystallography of the ReO-KYC, previous crystallographic and NMR studies [16, 17, 30, 38, 41–46], and the present NMR characterization, it is evident that the tyrosine and cysteine amide protons are lost to form amidate-Re bonds on complexation and that the cysteine thiol loses the proton to form a thiolate-Re bond (Figure 2, S13-S14). This phenomenon is common for rhenium and technetium peptide complexes or Re/Tc peptide-like complexes that contain amide bonds [16, 17, 30, 38, 41–46]. In our previous studies [30], we observed by crystallography and by potentiometric and NMR titrations that the first amino acid of a tripeptide possessing lysine in the second position deprotonates to form an amide bond to the Re. In fact the pK_a of the phenylalanine amine in the Re-tripeptide complex ReO-FKC, reported in reference [30], was 5.63. This was determined by NMR titrations monitoring the chemical shifts of the β proton of the phenylalanine. The lysine residue appeared to profoundly increase the acidity of the phenylalanine amine proton in ReO-FKC compared to another Re-tripeptide, ReO-FGC, complex that did not contain a lysine. Titration studies revealed a further protonation equilibrium at pK_a= 11.7 for ReO-FKC which was assigned to the ε-NH₃ of the lysine side chain. Considering the influence of deuterium, we measured the pKa_D. Applying the equations mentioned in the experimental to correlate pK_D to pK_H for macrocycles and acids, vide supra, the pKa_H values for all of our measured pK_a would be lower by 0.4 to 1.0 pH units. Since the pK_D:pK_H correlations were for macrocycles and acids they may not exactly apply to our studies on rhenium peptide complexes. We note here that the true pK_a values may be lower than our measured pK_a values reported below. However, the trends in pK_a values discussed below are still valid.

In this study, we performed similar NMR titration studies to determine the pK_a of the lysine (K) amine proton bound to the Re in the ReO-KYCAR (anti). For this study, it was decided to monitor the H_α found on the lysine (Figure S14, S18-S19). The H_α of the lysine residue is adjacent to the amine moiety and thus, should reflect the environment of the amine and allow calculation of the amine pK_a. We performed the titration on the free KYCAR to validate our method. We were not able to obtain suitable data on the ε lysine proton to determine the pK_a of the ε lysine proton without significant errors. In the future we plan to use the lysine as a conjugation point to targeting vectors and did not pursue the pK_a measurement. However, from our previous studies, the pK_a of the ε lysine proton was around 11.7 for ReO-FKC.

An NMR titration procedure described by Popov et. al[47] was employed to determine the pK_a values of the lysine amine in the KYCAR ligand and ReO-KYCAR (anti diastereomer). Briefly, the values were determined by plotting pH vs. 100[(σ_obs-σ_HL)/ (σ_L-σ_HL)]. Here σ_obs is the chemical shift at a specific pH; σ_HL is the chemical shift of the highest pH; σ_L is the chemical shift of the lowest pH. Tables summarizing the calculations and figures highlighting the plots and the pK_a values can be found in Supplementary Information (Tables S4–S5, and Figures S20-S23). In the free KYCAR ligand, it was determined that the pK_a values of the alpha proton on the lysine was 7.48; this value is reasonable for N-terminal amino acids, and serves to validate our method. For the ReO-KYCAR (anti diastereomer), the pK_a of the amine proton of the lysine was 6.00. See supporting information for experiments and graphs including a graphical representation of the potentiometric titration.

The pK_a of 6.00 for the amine proton on the lysine of ReO-KYCAR is consistent with our reported findings of the pK_a of 5.6 for the amine proton of the Re-tripeptide complex, ReO-FKC [30]. Our previous work also demonstrated that Re-tripeptide complexes that did not contain lysine, such as ReO-FGC, demonstrated a pK_a value of 6.80 that was considerably higher than for the ReO-FKC. A study by Marzilli [48] indicated that a negatively charged carboxylate pendant group in the proximity of a secondary amine is responsible for a lower pK_a and deprotonation of the amine. Further studies by this group showed that pK_a’s of amines bound to Re^V=O are in the physiological range when pendant groups, such as carboxylate moieties, can bind to form a six-coordinate metal. They suggest that the acidity of amines is influenced by pendant groups, rigidity of chelates and the position of the C=O group with the chelate framework. In previous studies [30] and here, the pendant lysine group seems to serve in a similar capacity, perhaps interacting with the Re=O core or C=O of the amide functionality of tyrosine or cysteine and increasing the acidity of the lysine amine.

With pK_a information from this study and others, we can determine the charge on the chelator region, ReO-KYC, and the entire ReO-KYCAR molecule. The pK_a measurement of 6.00 suggests that at physiological pH (7.4), deprotonation of the lysine NH₂ terminus would occur creating a Re-N_amide bond for the lysine N-terminus of the peptide. The Re-N_amide bond would then carry a negative charge. Also, under physiological pH, the lysine epsilon amine is positively charged. Therefore, under physiological pH, the charge on the chelator region only in 0 due to the “zwitterionic effect”, where the lysine epsilon amine is positively charged, and the amide bound to the rhenium is negatively charged. However, considering the entire molecule (ReO-KYCAR) at physiological pH, the charge on the entire molecule would be 0, again due to a “zwitterionic effect” (a positive arginine and a negative carboxylate). Scheme 1 shows the deprotonations of the lysine amine and the epsilon amine of the chelator region only (ReO-KYC) at low pH, physiological pH, and high pH. At low pH the charge on the chelator region only is +1 due to the positive lysine epsilon amine and the neutral amine donating to the rhenium core. At physiological pH (discussed above), the charge on the chelator region is zero. At high pH the charge on the chelator region is −1 due to the neutral lysine epsilon amine and the negatively charged amide bound to the rhenium.

Scheme 1.

Deprotonation of the lysine epsilon amine and formation of the metal amide (showing the chelator region only) of ReO-KYCAR (anti) at varying pH. R= Ala Arg (AR).

3.4. Synthesis and Characterization of ^99mTc and ¹⁸⁸Re KYCAR

The reaction of the KYCAR ligand with ^99mTcO₄⁻ reduced with tin(II) tartrate results in one major complex. Figure 5 shows the immediate post synthesis reverse phase HPLC trace. It is hypothesized that this single species occurs due to the extended heating/ reaction time during the synthesis. Instant thin layer chromatography shows that the purity post HPLC purification is 99.9%.

Figure 5.

HPLC Trace [^99mTc]TcO-KYCAR.

The purified [^99mTc]TcO-KYCAR was then co-injected with the macroscopic ReO-KYCAR lyophilized peak 1 (anti) and the coelution is shown in Figure 6. This HPLC (Figure 6) shows the macroscopic rhenium complex eluting between 9.0 and 12.0 min and the tracer technetium complex eluting between 10.0 and 12.5 min. Due to the location and sequence of the UV and radio detectors in this HPLC system, UV active species should elute before radio detection. We note that the shoulder appears in the radiotrace at 10.0 min; this co-elutes with the ReO-KYCAR (anti) and is assigned to the anti ^99mTc diastereomer. The majority of the [^99mTc]TcO-KYCAR is assigned to the syn diastereomer. The first radiotrace peak (anti diastereomer) likely occurs due to the orders of magnitude of macroscopic, carrier ReO-KYCAR (anti). The coelution of [^99mTc]TcO-KYCAR and the syn diastereomer of the macroscopic ReO-KYCAR (Figure S24) was also completed using the ReO-KYCAR methyl ester complex. This coelution shows the first macroscopic rhenium peak (anti diastereomer) eluting at 10.2 min. The radiotrace peak, [^99mTc]TcO-KYCAR (syn diasteromer), elutes at 11.3 min while the ReO-KYCAR syn diastereomer elutes at 12.0 min as expected.

Figure 6.

Coelution of [^99mTc]TcO-KYCAR (peaks 1 and 2, anti and syn) with ReO-KYCAR Peak 1(anti).

The reaction of ¹⁸⁸ReO₄⁻ reduced with tin (II) chloride in the presence of d-gluconic acid forms the putative [¹⁸⁸Re]ReO-gluconic acid derivative that can be displaced by subsequent reaction with the KYCAR ligand. In this reaction d-gluconic acid is an exchange ligand; this reaction also results in a major complex. Figure 7 shows the immediate post synthesis reverse phase HPLC trace. It is observed that there is only one peak present due to the heated incubation, which allows for complete conversion to the syn product (retention time: 11.1 min with HPLC Method 1). Instant thin layer chromatography demonstrates that the purity post HPLC purification is 99.9%. The purified [¹⁸⁸Re]ReO-KYCAR was then coeluted with the macroscopic ReO-KYCAR lyophilized peak 1 (anti) (Figure 8). This shows the macroscopic rhenium complex eluting between 7.0 and 11.0 min and the tracer rhenium complex eluting between 8.0 and 12.0 min. The retention time for the [¹⁸⁸Re]ReO-KYCAR is 9.1 min under HPLC Method 1, and this corresponds to the anti disastereomer. The conversion of the [¹⁸⁸Re]ReO-KYCAR (syn) to the [¹⁸⁸Re]ReO-KYCAR (anti) diaseteromer can be facilitated with the use of the macroscopic ReO-KYCAR anti diastereomer in a “carrier effect”, as well as the instability of ¹⁸⁸Re complexes compared to the ^99mTc analogs. This instability is also demonstrated by some decomposition to ¹⁸⁸ReO₄⁻. Conversion of syn to anti diastereomers as well as formation of ¹⁸⁸ReO₄⁻ was observed in a [¹⁸⁸Re]ReO-tripeptide study (data not shown). There appears to be small amounts of other decomposition products as seen by the radiopeak at 4.5 min and 14.5 min.

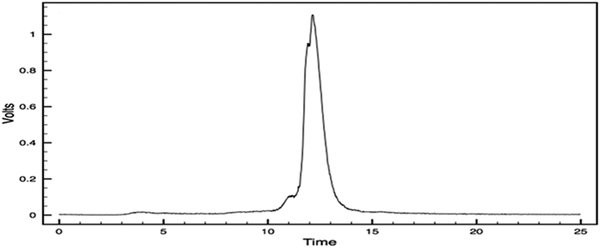

Figure 7.

HPLC Trace of [¹⁸⁸Re]ReO-KYCAR syn diastereomer.

Figure 8.

Coelution of [¹⁸⁸Re]ReO-KYCAR anti with ^natReO-KYCAR anti diastereomer. The red trace shows the UV detection of the ^natReO-KYCAR; the black trace monitors the gamma radioactivity. This study shows co-elution of anti diastereomers with slight decomposition to ¹⁸⁸ReO₄⁻.

3.3. In vitro and in vivo evaluations

The stability of [^99mTc]TcO-KYCAR and [¹⁸⁸Re]ReO-KYCAR in phosphate buffered saline (PBS) (Figure S25 and S27) and human serum (Figure S26) were evaluated in vitro via HPLC analysis. The [^99mTc]TcO]-KYCAR remained stable with less than 3% ^99mTcO₄⁻ growing in up to 2 h. Decomposition of the complex to ^99mTcO₄⁻ would result in a peak with an elution time of 5.0 min. The in vitro incubation of [^99mTc]TcO-KYCAR in human serum results in an immediate 5–10% decomposition of the complex to ^99mTcO₄⁻ and another polar species. There is no further decomposition up to 2 h.

The biological distribution of [^99mTc]TcO-KYCAR were examined in healthy mice and the data is summarized as the percent of the injected dose to each selected organ of the mouse (%ID/g) (Table 3; Figure 9). [^99mTc]TcO-KYCAR shows high uptake in the liver after 30 min (22.10 %ID/g). After 4 h, the radioactivity in the liver decreased to 1.8 %ID/g indicating efficient clearance and low amounts of accumulation over time in the liver. Concurrently, [^99mTc]TcO-KYCAR exhibited rapid accumulation in the small intestine 30 min post injection (22.8% ID/g), with subsequent depletion 4 h post injection (3.6 %ID/g). As expected from this trend, levels of the radiotracer in the large intestine increased from 0.3 %ID/g at 30 min to 36.8 %ID/g at 4 h. Extremely high uptake is observed in the gall bladder that decreases with increasing uptake in the small and large intestines. The majority of the radioactivity is excreted via the hepatobiliary system despite the hydrophilic nature of our radiotracer (log D =−2.631).

Table 3.

Biodistribution results of [^99mTc]TcO-KYCAR(syn) in healthy mice (n=5). The results are reported in %ID/g. Shows that the activity travels through the gastrointestinal track. Also shows some decomposition to potential ^99mTcO₄⁻ products as seen with thyroid accumulation.

[99mTcO]-KYCAR(syn), %ID/g ± S.D.
Organ	0.5 h	1 h	2 h	4 h
Blood	1.77 ± 0.37	1.37 ± 0.14	1.08 ± 0.20	0.91 ± 0.04
Heart	0.66 ± 0.60	0.42 ± 0.05	0.58 ± 0.22	0.33 ± 0.06
Lungs	1.39 ±0.23	1.13 ± 0.18	1.52 ± 0.98	0.99 ± 0.38
Liver	22.10 ± 4.80	13.35 ± 1.85	4.37 ± 1.55	1.83 ± 0.19
Spleen	0.82 ± 0.25	0.69 ± 0.13	0.57 ± 0.18	0.44 ± 0.17
Stomach	4.57 ±0.86	5.06 ± 1.33	5.83 ± 2.10	4.07 ± 1.03
Small Intestine	22.82 ± 3.66	30.49 ± 10.05	21.18 ±10.14	3.62 ± 1.28
Large Intestine	0.31 ± 0.07	0.30 ± 0.04	1.82 ± 1.81	36.77 ± 10.76
Kidneys	5.95 ± 0.60	5.58 ± 0.85	5.09 ± 0.50	4.87 ± 0.54
Muscle	0.25 ±0.11	0.24 ± 0.10	0.19 ± 0.01	0.24 ± 0.12
Bone	0.71 ± 0.15	0.59 ± 0.16	0.53 ± 0.32	0.50 ± 0.18
Skin	1.12 ± 0.36	0.57 ± 0.06	0.49 ± 0.11	0.47 ± 0.07
Thyroid	38.44 ± 11.07	118.75 ± 15.13	116.71 ± 23.20	146.44 ± 42.20
Gall Bladder	590.36 ± 274.09	840.72 ± 523.07	206.78 ± 104.24	164.07 ± 136.89

Figure 9.

Biodistribution of [^99mTc]TcO-KYCAR(syn) in healthy mice (n=5). The results are reported in %ID/g. Shows that the activity travels through the gastrointestinal track. Also shows some decomposition to potential ^99mTcO₄⁻ products as seen with thyroid accumulation.

Uptake and retention of [^99mTc]TcO-KYCAR is also seen in moderate amounts in the kidneys (5.9 %ID/g at 30 min to 4.9 %ID/g at 4 h) indicating some excretion through the renal system. These findings are contradictory to the hypothesis that relatively high hydrophilicity (log D: −2.631) would favor renal excretion over hepatobiliary excretion; however, it is possible that the large molecular weight of the radiolabeled peptide complex favors this method of excretion. The high uptake and retention observed in the thyroid indicates potential decomposition of the [^99mTc]TcO-KYCAR complex. When compared to the thyroid uptake of the previous tripeptide complexes reported by Cantorias et. al.[30], this high uptake supports the instability of the [^99mTc]TcO-KYCAR in vivo. Significantly, low uptake and retention of [^99mTc]TcO-KYCAR was observed at 4 h in the heart (0.3 %ID/g), lungs (0.9 %ID/g), spleen (0.4 %ID/g) and muscle (0.2 %ID/g). The low level of radioactivity in the blood at 30 min (1.8 %ID/g) indicates favorable and rapid blood clearance (decreases to 0.9 %ID/g at 4 h).

The stability of [¹⁸⁸Re]ReO-KYCAR in PBS over time can be found in Supporting Information (Figure S25). This complex shows an immediate 50% decomposition with observation of three peaks in PBS. The first peak which elutes at around 5.0 min corresponds to ¹⁸⁸ReO₄⁻, and the second peak that elutes at 6.0 min is possibly a [¹⁸⁸Re]ReO-KYCAR fragment or decomposition product. The third peak that elutes at 13.3 min represents the [¹⁸⁸Re]ReO-KYCAR syn complex. Though the initial contact with PBS results in a relatively large amount of decomposition, the subsequent HPLC traces show a small increase (ca 10%) of the perrhenate peak. The stability of [¹⁸⁸Re]ReO-KYCAR in serum is particularly interesting in that the complex does not appear to be very stable. After contacting the rhenium complex with human serum for 30 min there is only ¹⁸⁸ReO₄⁻ present in the supernatant. In general, rhenium complexes tend to oxidize more easily than their Tc analogs and this trend appears to be observed in this study.

Despite the in vitro results, we analyzed the behavior of [¹⁸⁸Re]ReO-KYCAR in vivo and the data is shown in Table 4 and Figure 10. Similar trends are observed with the [¹⁸⁸Re]ReO-KYCAR construct compared to [^99mTc]TcO-KYCAR. Its log D value of −2.280 reveals that it is slightly more hydrophobic than the [^99mTc]TcO-KYCAR construct. The complex clears mainly through the hepatobiliary pathway. At 30 min, radioactivity in the liver is 17.6 %ID/g, and similar to the technetium-labeled pentapeptide, after 4 h, the radioactivity decreases to 0.9 %ID/g. As with the Tc analog, the gall bladder exhibits high uptake that decreases with time possibly emptying into the intestines. At 30 min, the radioactivity in the small intestine is 33.2 %ID/g, while the radioactivity in the large intestine is low at 0.4 %ID/g. After 4 h, the radioactivity in the small intestine decreases to 0.9 %ID/g, while the radioactivity in the large intestine increases to 31.9 %ID/g. Although there is uptake in the kidneys (3.8 %ID/g at 30 min), this is less than for [^99mTc]TcO-KYCAR, consistent with the more positive log D values for the ¹⁸⁸Re analog, and confirming that the rhenium construct is even more inclined to be excreted through the hepatobiliary system. Similar to the technetium construct, the radioactivity accumulation in the stomach for [¹⁸⁸Re]ReO-KYCAR decreases with time, showing 2.5 %ID/g retained 4 h post injection, as compared to 6.2 %ID/g at 30 min. However, the thyroid is consistently high supporting decomposition to perrhenate that was observed in the in vitro serum stability studies. The uptake value for all other collected organs is <1.0%ID/g after 4 h.

Table 4.

Biodistribution results for [¹⁸⁸Re]ReO-KYCAR (syn) in healthy mice (n=5). The results are reported in %ID/g. Shows that the activity travels through the gastrointestinal track. Also shows some decomposition to potential ¹⁸⁸ReO₄⁻ products as seen with thyroid and stomach accumulation.

[188ReO]-KYCAR(syn), %ID/g ± S.D.
Organ	0.5 h	1 h	2 h	4 h
Blood	1.29 ± 0.43	0.94 ± 0.12	0.71 ± 0.18	0.38 ± 0.07
Heart	0.45 ± 0.15	0.54 ± 0.28	0.34 ± 0.23	0.14 ± 0.02
Lungs	0.97 ± 0.31	2.13 ± 1.50	0.87 ± 0.59	0.29 ± 0.07
Liver	17.61 ± 4.30	9.93 ± 1.53	3.07 ± 0.68	0.99 ± 0.14
Spleen	0.65 ±0.06	3.07 ± 5.50	0.38 ± 0.05	0.24 ± 0.03
Stomach	6.24 ± 2.49	7.76 ± 5.12	7.32 ± 3.80	2.50 ± 0.79
Small Intestine	33.15 ± 14.41	48.77 ± 12.68	20.68 ± 22.60	0.95 ± 0.76
Large Intestine	0.38 ± 0.15	0.65 ± 0.44	4.03 ± 4.47	31.99 ± 9.13
Kidneys	3.81 ±1.26	3.26 ± 1.47	2.33 ± 0.07	1.33 ± 0.22
Muscle	0.49 ± 0.53	0.38 ± 0.08	0.35 ± 0.23	0.18 ± 0.10
Bone	0.58 ± 0.05	0.55 ± 0.10	0.41 ± 0.07	0.32 ± 0.05
Skin	0.74 ± 0.35	0.49 ± 0.09	0.36 ± 0.09	0.24 ± 0.04
Thyroid	57.21 ± 23.57	113.99 ± 67.52	118.34 ± 49.75	84.39 ± 27.31
Gall Bladder	1085.49 ± 1084.29	826.44 ± 1105.72	365.84 ± 287.48	168.99 ± 196.65

Figure 10.

[¹⁸⁸Re]ReO-KYCAR (syn) biodistribution in healthy mice (n=5). The results are reported in %ID/g. Shows that the activity travels through the gastrointestinal track. Also shows some decomposition to potential ¹⁸⁸ReO₄⁻ products as seen with thyroid and stomach accumulation.

4. Conclusion

We have isolated two diastereomers of ReO-KYCAR and identified the anti and syn diastereomers that elute as peak 1 and peak 2 on reverse phase HPLC, respectively. These complexes have been thoroughly characterized by Infrared Spectroscopy, proton NMR spectroscopy, circular dichroism and by comparison to a crystal structure of a related analog. The proton NMR spectroscopy reveals the coordination environment about the Re^VO core, supporting the amide nitrogen coordination of the tyrosine and cysteine residues as well as the deprotonation and coordination of the thiol. The ¹H NMR data also show shifts in the ligand residues resulting from a change in the position of the Re-oxo core, further suggesting the disposition of the anti and syn diastereomers as peaks 1 and 2, respectively on RP-HPLC. The identity of the syn diastereomer is supported by crystallography of a ReO-KYC analog as well as by comparison to previous Tc tripeptide complexes. Circular dichroism data compared to previous work on rhenium tripeptides provides compelling information on the structures of the diastereomers of ReO-KYCAR: the first eluted complex, the anti diastereomer, follows the trend of having a large positive Cotton effect about the region that correlates to the oxygen-rhenium charge transfer transitions. Furthermore, the second eluted complex, the syn diastereomer, follows the trend of having a negative Cotton effect about the same region.

We also identified the pK_a of the amine nitrogen, which determines the charge of the chelate in solution, through pK_a measurements. We found that at biological pH, 7.35 −7.45, the amine nitrogen of the lysine is likely deprotonated and bears a negative charge, while the epsilon nitrogen of the lysine residue is likely protonated and bears a positive charge. As a result, the ReO-KYCAR is expected to be neutral overall. Moreover, when we compare our pK_a measurements to previous metal-peptide work we find that having lysine in the chelator region appears to modulate the pK_a of the amine protons, thus influencing the charge on the chelator.

Biologically, the ^99mTc, tracer level complex is stable under in vitro conditions in PBS and human serum up to 2 h. The ¹⁸⁸Re tracer complex appears to undergo 50% dissociation to perrhenate and an unidentified ¹⁸⁸Re peptide complex in PBS and decomposition to perrhenate in serum studies. [^99mTc]TcO-KYCAR shows high uptake in the liver, gallbladder, small intestines and large intestines up to 4 h post injection. The biodistribution data demonstrates that the complex is excreted via the hepatobiliary system despite the relatively hydrophilic nature of our radiotracer. There is considerable uptake in the thyroid, which would indicate in vivo decomposition products. Further studies, including blocking studies, should be completed to determine whether thyroid uptake is due to the localization of decomposition of the metal complexes or if the thyroid is targeted by the metal peptide. The [¹⁸⁸Re]ReO-KYCAR complex shows very similar organ uptake to [^99mTc]TcO-KYCAR. One noticeable difference is the increased uptake in the stomach, likely due to decomposition of the ¹⁸⁸ReO₄⁻ complex, as shown in the in vitro data. It appears the localization of the complexes in the gastrointestinal region, particularly the gallbladder, is facilitated by the KYCAR ligand. ^99mTcO₄⁻ and ¹⁸⁸ReO₄⁻ independently evaluated in vivo show high accumulation in the thyroid and quick excretion via the renal track. The gastrointestinal localization could be circumvented through the use of a targeting vector.
