Gene Regulation by Antitumor miR-204-5p in Pancreatic Ductal Adenocarcinoma: The Clinical Significance of Direct RACGAP1 Regulation

Abstract

Previously, we established a microRNA (miRNA) expression signature in pancreatic ductal adenocarcinoma (PDAC) tissues using RNA sequencing and found significantly reduced expression of miR-204-5p. Here, we aimed to investigate the functional significance of miR-204-5p and to identify miR-204-5p target genes involved in PDAC pathogenesis. Cancer cell migration and invasion were significantly inhibited by ectopic expression of miR-204-5p in PDAC cells. Comprehensive gene expression analyses and in silico database searches revealed 25 putative targets regulated by miR-204-5p in PDAC cells. Among these target genes, high expression levels of RACGAP1, DHRS9, AP1S3, FOXC1, PRP11, RHBDL2 and MUC4 were significant predictors of a poor prognosis of patients with PDAC. In this study, we focused on RACGAP1 (Rac guanosine triphosphatase-activating protein 1) because its expression was most significantly predictive of PDAC pathogenesis (overall survival rate: p = 0.0000548; disease-free survival rate: p = 0.0014). Overexpression of RACGAP1 was detected in PDAC clinical specimens, and its expression enhanced the migration and invasion of PDAC cells. Moreover, downstream genes affected by RACGAP1 (e.g., MMP28, CEP55, CDK1, ANLN and S100A14) are involved in PDAC pathogenesis. Our strategy to identify antitumor miRNAs and their target genes will help elucidate the molecular pathogenesis of PDAC.

1. Introduction

Due to its aggressive nature, pancreatic ductal adenocarcinoma cancer (PDAC) is the deadliest of all solid cancers [1]. Patients with PDAC often present without symptoms and, by the time of diagnosis, exhibit lymph node and distant metastases as well as vessel invasion [2]. The prognosis of patients with PDAC has not been improved by surgery or current chemotherapy, with the 5-year survival rate remaining at only 5−7% [3]. Recently, molecular target therapies for several cancers have shown remarkable therapeutic efficacy; however, no targeted therapeutics are currently approved for treatment of PDAC [4]. Previous studies have demonstrated that KRAS, TP53 and SMAD are driver oncogenes in PDAC [5]. To improve prognosis, further studies are required to identify anticancer molecules. Comprehensive analysis of RNA networks in PDAC cells is indispensable for the development of novel therapeutic strategies for lethal PDAC.

Developing high-throughput genotyping technologies have been accelerated personalized medicine. Through the latest Genome-Wide Association Studies (GWAS) assays, several genetic risk variants involved in the risk of PDAC developing have been detected [6,7,8,9]. Importantly, GWAS catalogue shows that functional genetic variants revealed by GWAS were localized in non-coding region of human genome. In the near future, GWAS analyses may show variants of miRNAs and risk of developing PDAC.

MicroRNAs (miRNAs) are small non-coding RNAs (19–22 nucleotides, single stranded) that act to fine-tune the expression of protein-coding and non-coding RNAs in a sequence-specific manner [10,11,12,13,14,15]. As a unique characteristic of miRNAs, a single miRNA regulates a vast number of RNA transcripts within a cell [10,11,12,13,14,15]. Therefore, it is possible to identify novel RNA networks based on miRNA regulation using the latest genome analysis strategies in a given cell type. Accumulating evidence has shown that aberrantly expressed miRNAs actually act as oncogenes or tumor suppressors in human cancer cells and are involved in cancer pathogenesis [10,11,12,13,14,15].

In our continuing analyses of PDAC pathogenesis, we attempted to identify antitumor miRNAs and the cancer pathways that they control. Recently, we successfully created the miRNA expression signature of PDAC using RNA-sequencing technologies [16]. Based on antitumor miRNAs by miRNA signature, we have sequentially demonstrated novel RNA networks in PDAC cells [17,18,19,20]. Our previous studies showed significant downregulation of five miRNAs clustered on chromosome 2p16.1 (miR-217, miR-216a-5p, miR-216a-3p, miR-216b-5p and miR-216b-3p) in PDAC tissues, and ectopic expression of these miRNAs inhibited cancer cell migration and invasion [16,17]. A search of oncogenes targeted by miRNAs revealed that miR-216b-3p and miR-217 directly regulate Forkhead box Q1 (FOXQ1) and actin-binding protein Anillin (ANLN) in PDAC cells, respectively [16,17].In addition, FOXQ1 and ANLN were found to be overexpressed in PDAC clinical specimens and acted as oncogenes in PDAC cells [16,17].Searching for novel expression networks based on miRNAs is an effective strategy to identify molecular targets of PDAC.

RNA-sequencing analyses of miRNA expression signatures revealed that miR-204-5p was significantly downregulated in PDAC tissues. Although a tumor suppressor function of miR-204-5p has been reported in several cancers, miR-204-5p regulation of RNA networks in PDAC is still obscure. Here, we aimed to investigate the antitumor roles of miR-204-5p and to identify miR-204-5p-regulated oncogenes involved in PDAC pathogenesis. Comprehensive gene expression analyses and in silico database searches revealed that 25 putative targets are regulated by miR-204-5p in PDAC cells. Among these targets, high expression of seven genes (RACGAP1, DHRS9, AP1S3, FOXC1, PRP11, RHBDL2 and MUC4) was significantly associated with a poor prognosis of patients with PDAC according to analyses of The Cancer Genome Atlas (TCGA) database. In this study, we focused on RACGAP1 (Rac GTPase-activating protein 1) and performed further cell functional analyses. Our present data may provide new insights into the potential mechanisms of PDAC aggressiveness.

2. Results

2.1. Expression of miR-204-5p in PDAC Specimens and Cell Lines

Expression of miR-204-5p was evaluated in normal pancreatic tissues (n = 17), PDAC tissues (n = 24) and PDAC cell lines (SW1990 and PANC-1). Expression of miR-204-5p was found to be significantly downregulated in the PDAC specimens and both cell lines than in normal pancreatic tissues (Figure 1A). The clinical features of the patients with PDAC and the normal tissues are summarized in Table 1; Table 2, respectively.

Figure 1.

Downregulated expression and antitumor effect of miR-204-5p in pancreatic ductal adenocarcinoma (PDAC). (A) Expression levels of miR-204-5p in PDAC clinical specimens and cell lines determined by qRT-PCR. Expression levels were normalized to that of RNU48. p = 0.0119. (B) Cell proliferation determined by XTT assays 72 h after transfection of 10 nM miR-204-5p. * p < 0.0001; N.S.: not significant. (C) Cell migration assessed by migration assays. * p < 0.0001. (D) Cell invasion assessed by Matrigel invasion assays. * p < 0.0001.

Table 1.

Patient characteristics.

Pancreatic Ductal Adenocarcinoma (PDAC)	Factors	Number	(%)
Total number		24
Average age(range), years		67.0 (42–79)
Gender	Male	12	(50.0)
	Female	12	(50.0)
T category	pT1	1	(4.2)
	pT2	0	(0)
	pT3	23	(95.8)
	pT4	0	(0)
N category	0	8	(33.3)
	1	16	(66.7)
M category	0	23	(95.8)
	1	1	(4.2)
Lymphatic invasion	0	1	(4.2)
	1	11	(45.8)
	2	9	(37.5)
	3	3	(12.5)
Vascular invasion	0	1	(4.2)
	1	10	(41.7)
	2	11	(45.8)
	3	2	(8.3)
Neoadjuvant Chemotherapy	(−)	12	(50.0)
	(+)	12	(50.0)
Adjuvant Chemotherapy	(−)	7	(29.2)
	(+)	17	(70.8)
Recurrence	(−)	7	(29.2)
	(+)	17	(70.8)

Table 2.

Patient characteristics.

Normal Pancreatic Tissue	Factors	Number	(%)
Total number		17
Average age (range), years		64.8 (42–85)
Gender	Male	6	(35.3)
	Female	11	(64.7)

2.2. Effects of Overexpressing miR-204-5p on the Proliferation, Migration and Invasion of PDAC Cells

To evaluate the antitumor effects of miR-204-5p, we applied gain-of-function assays (mature miRNAs transfection) in PDAC cell lines (SW1990 and PANC-1). PDAC cell proliferation was not affected by miR-204-5p overexpression (Figure 1B). In contrast, ectopic expression of miR-204-5p significantly prevented PDAC cell migration and invasion (Figure 1C,D).

2.3. Identification of Putative Genes Regulated by miR-204-5p in PDAC Cells and Their Clinical Significance

To identify putative oncogenes regulated by miR-204-5p in PDAC cells, in silico analyses were combined with the results of our genome-wide gene expression analyses using an oligonucleotide microarray (in SW1990 cells transfected with miR-204-5p; Gene Expression Omnibus (GEO) accession number: GSE115801). Our strategy to identify putative target genes regulated by miR-204-5p in PDAC cells is shown in Figure S1. From these analyses, 25 genes were identified as candidate oncogenes regulated by miR-204-5p in PDAC (Table 3).

Table 3.

Candidate target genes regulated by miR-204-5p.

Entrez Gene ID	Gene Symbol	Gene Name	Target Sites		GEO	Array (SW1990)	OncoLnc OS_p-Value PDAC
			Conserved Sites	Poorly Sites	FC (log)	Mock vs. miR-204-5p
29127	RACGAP1	Rac GTPase activating protein 1	0	1	1.34	−1.016	0.00005
10170	DHRS9	dehydrogenase/reductase (SDR family) member 9	0	2	1.57	−1.078	0.00103
130340	AP1S3	adaptor-related protein complex 1, sigma 3 subunit	0	2	1.17	−3.004	0.00407
2296	FOXC1	forkhead box C1	1	1	1.01	−1.059	0.00965
54933	RHBDL2	rhomboid, veinlet-like 2 (Drosophila)	0	1	1.18	−1.061	0.01770
4585	MUC4	mucin 4, cell surface associated	0	1	1.42	−1.569	0.02640
55771	PRR11	proline rich 11	1	0	1.42	−1.406	0.04200
4680	CEACAM6	carcinoembryonic antigen-related cell adhesion molecule 6 (non-specific cross reacting antigen)	0	1	3.50	−1.260	0.07160
6505	SLC1A1	solute carrier family 1 (neuronal/epithelial high affinity glutamate transporter, system Xag), member 1	0	2	1.52	−1.397	0.08320
2335	FN1	fibronectin 1	0	1	3.73	−1.023	0.09500
3397	ID1	inhibitor of DNA binding 1, dominant negative helix-loop-helix protein	0	1	1.29	−1.384	0.15300
55808	ST6GALNAC1	ST6 (α-N-acetyl-neuraminyl-2,3-β-galactosyl-1,3)-N-acetylgalactosaminide alpha-2,6-sialyltransferase 1	0	1	1.36	−1.367	0.15300
54210	TREM1	triggering receptor expressed on myeloid cells 1	0	1	1.55	−1.067	0.15700
8905	AP1S2	adaptor-related protein complex 1, sigma 2 subunit	2	0	1.04	−1.806	0.17700
147495	APCDD1	adenomatosis polyposis coli down-regulated 1	0	1	1.18	−1.276	0.21200
4837	NNMT	nicotinamide N-methyltransferase	0	1	2.69	−1.060	0.21900
7851	MALL	mal, T-cell differentiation protein-like	1	1	1.44	−1.252	0.22600
493	ATP2B4	ATPase, Ca++ transporting, plasma membrane 4	0	1	1.35	−1.149	0.23600
1295	COL8A1	collagen, type VIII, α 1	0	1	4.62	−1.131	0.36400
219699	UNC5B	unc-5 homolog B (C. elegans)	1	1	1.42	−1.628	0.59600
2192	FBLN1	fibulin 1	0	1	1.62	−1.262	0.65300
5159	PDGFRB	Platelet-derived growth factor receptor, beta polypeptide	0	2	1.80	−2.235	0.77500
2182	ACSL4	acyl-CoA synthetase long-chain family member 4	1	2	1.05	−1.570	0.79200
140885	SIRPA	signal-regulatory protein alpha	0	1	1.20	−1.194	0.80000
1809	DPYSL3	dihydropyrimidinase-like 3	1	1	2.07	−1.185	0.99600

GEO: Gene Expression Omnibus; FC: Fold-Change; OS: Overall Survival; PDAC: Pancreatic Ductal Adenocarcinoma.

Next, to investigate the clinical significance of these target genes, we determined the relationships between gene expression levels and prognosis (i.e., OS (overall survival) and DFS (disease-free survival) rates) in patients with PDAC using data from TCGA database. Significant associations were detected between upregulated expression of seven genes (RACGAP1, DHRS9, AP1S3, FOXC1, RHBDL2, MUC4 and PRR11) and a poor prognosis in patients with PDAC (OS: p < 0.05) (Table 3 and Figure 2).

Figure 2.

Clinical significance of the expression levels of seven genes targeted by miR-204-5p (RACGAP1, DHRS9, AP1S3, FOXC1, PRP11, RHBDL2 and MUC4) based on data from The Cancer Genome Atlas (TCGA) database. (A) Kaplan-Meier plots of overall survival and (B) disease-free survival with log-rank tests comparing the survival of PDAC patients with high (red lines) versus low (blue lines) expression levels of each of the abovementioned genes, based on data from TCGA database.

We also investigated the pathway analyses using miR-204-5p controlled downregulated genes. Several pathways were identified as miR-204-5p controlled pathways, e.g., “Regulation of actin cytoskeleton”, “Cytokine-cytokine receptor interaction”, “MAPK signaling pathway” and “Endocytosis” (Table S1). In this study, we focused on RACGAP1 because its expression level was most significantly associated with a poor prognosis in patients with PDAC (OS: p = 0.0000548; DFS: p = 0.0014) (Figure 2).

2.4. Expression of RACGAP1 in PDAC Clinical Specimens and Its Clinical Significance

The mRNA expression level of RACGAP1 was significantly upregulated in PDAC tissues (Figure 3A). Negative correlations between RACGAP1 mRNA expression and miR-204-5p expression were analyzed by Spearman’s rank test (R = −0.381, p < 0.0070, Figure S2). We extracted samples of PDAC from the TCGA database. We analyzed clinicopathological factors of miR-204-5p and RACGAP1 expression (miR-204-5p; Figures S3 and S4, RACGAP1). The recurrence of RACGAP1 showed high expression with a significant difference (p < 0.0015). Immunostaining revealed expression of the RACGAP1 protein in PDAC lesions but a lack of expression in noncancerous epithelial tissues (Figure 3C).

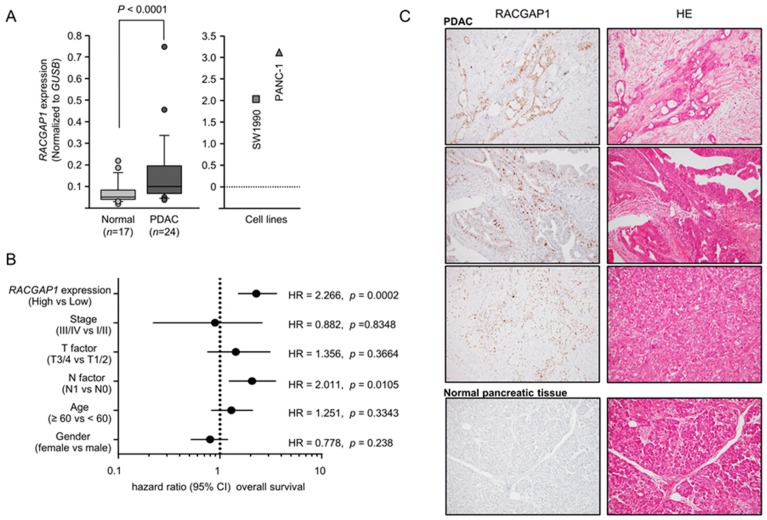

Figure 3.

Aberrant expression of RACGAP1 in PDAC specimens and its clinical significance. (A) Expression levels of RACGAP1 in PDAC clinical specimens and two cell lines, SW1990 and PANC-1. GUSB expression was evaluated as the internal control. (B) Expression level of RACGAP1 in patients with PDAC according to data from TCGA database (https://cancergenome.nih.gov/). Forest plot of univariate Cox proportional hazards regression analyses of 5-year overall survival rates according to RACGAP1 expression and clinicopathological factors. (C) Immunohistochemical analysis of RACGAP1 in PDAC clinical samples. RACGAP1 was strongly expressed in cancer lesions. In normal pancreatic tissue, expression of RACGAP1 was not recognized. Original magnification: 200×.

Kaplan-Meier analyses showed that OS and DFS rates were significantly lower in patients with PDAC exhibiting elevated RACGAP1 expression compared with low expression (Figure 2). The clinical significance of RACGAP1 expression in terms of OS in patients with PDAC was further assessed by univariate and multivariate Cox hazard regression analyses. RACGAP1 expression was an independent predictor of OS according to the multivariate analysis (hazard ratio = 2.266, p = 0.0002; Figure 3B).

In addition, TCGA database analyses showed that high expression of RACGAP1 was closely associated with poor prognosis (3-year overall survival) of several cancers, e.g., kidney renal papillary cell carcinoma, hepatocellular carcinoma, lung adenocarcinoma, sarcoma and skin cutaneous melanoma (Figure S5).

2.5. Direct Regulation of RACGAP1 by miR-204-5p in PDAC Cells

We then assessed whether miR-204-5p regulates the expression of RACGAP1 in PDAC cells. We first confirmed significant downregulation of RACGAP1 mRNA (Figure 4A) and protein (Figure 4B) levels in PDAC cells (SW1990 and PANC-1) transfected with miR-204-5p by qRT-PCR and western blotting, respectively.

Figure 4.

Direct regulation of RACGAP1 by miR-204-5p in PDAC cells. (A) RACGAP1 mRNA expression in PDAC cell lines was evaluated by qRT-PCR at 72 h after transfection of miR-204-5p. GUSB expression was evaluated as the internal control. * p < 0.0001. (B) RACGAP1 protein expression in PDAC cell lines was evaluated by western blotting at 96 h after transfection of miR-204-5p. GAPDH expression was evaluated as the loading control. (C) miR-204-5p binding sites within the 3′-UTR of RACGAP1 mRNA. Dual luciferase reporter assays using vectors harboring either the wild-type RACGAP1 3′-UTR sequence containing the putative miR-204-5p binding site (nucleotide positions 851-857) or the 3′-UTR sequence with deletion of this binding site. Data represent the ratio of Renilla/firefly luciferase activities in PDAC cells transfected with miR-204-5p relative to that in mock-transfected control cells. * p < 0.0001; N.S.: no significant.

According to the TargetScanHuman 7.2 database, RACGAP1 harbors one binding site for miR-204-5p at nucleotide positions 851-857 in the 3′-UTR (Figure 4C, upper).

Next, we performed dual luciferase reporter assays to determine whether this site within RACGAP1 is directly targeted by miR-204-5p by transfecting cells with plasmids harboring wild-type RACGAP1 or RACGAP1 with deletion of positions 851–857 in the 3′-UTR. miR-204-5p suppressed luciferase reporter activity in SW1990 and PANC-1 cells transfected with the wild-type RACGAP1 vector compared with the mock- or miR-control-transfected cells. On the other hand, luciferase reporter activity was not decreased in cells transfected with the vector harboring the RACGAP1 3′-UTR deletion (Figure 4C, lower). These results suggest that miR-204-5p directly binds to putative binding site within the 3′-UTR of RACGAP1.

2.6. Effects of RACGAP1 Knockdown on the Proliferation, Migration and Invasion of PDAC Cells

To assess the function of RACGAP1 in PDAC cells, loss-of-function assays using siRNAs targeting RACGAP1 (si-RACGAP1) were performed. High expression levels of RACGAP1 in two cell lines, SW1990 and PANC-1, were confirmed by PCR (Figure 3A). We evaluated the knockdown efficiency of RACGAP1 in si-RACGAP1-transfected SW1990 and PANC-1 cells and confirmed downregulation of RACGAP1 mRNA and protein levels (Figure 5A,B).

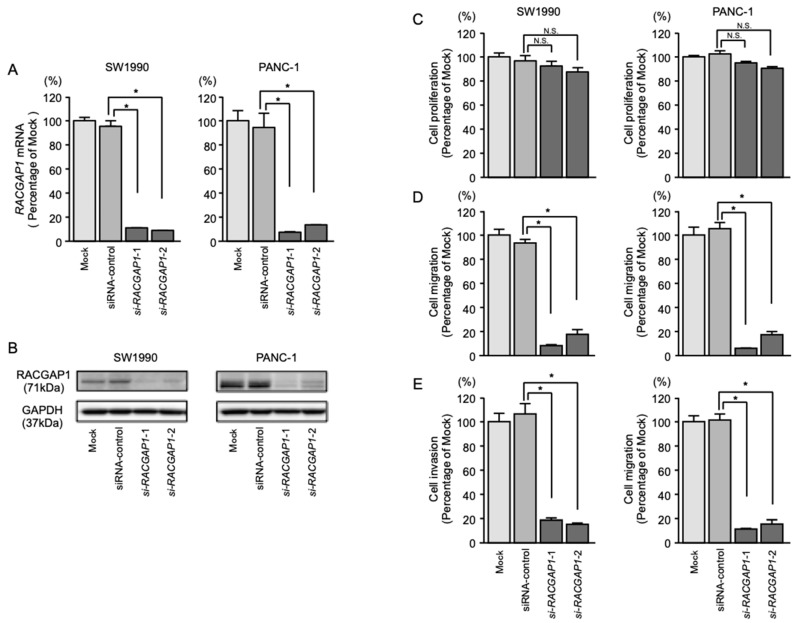

Figure 5.

Effects of RACGAP1 knockdown by si-RACGAP1 transfection into PDAC cells. (A) RACGAP1 mRNA expression in PDAC cell lines was evaluated by qRT-PCR at 72 h after transfection with si-RACGAP1-1 or si-RACGAP1-2. GUSB expression was evaluated as the internal control. (B) RACGAP1 protein expression in PDAC cell lines was evaluated by western blotting at 96 h after transfection with si-RACGAP1-1 and si-RACGAP1-2. GAPDH expression was used as the loading control. (C) Cell proliferation was assessed by XTT assays 72 h after transfection with 10 nM si-RACGAP1-1 or si-RACGAP1-2. (D) Cell migration was assessed by migration assays. * p < 0.0001. (E) Cell invasion was assessed by Matrigel invasion assays. * p < 0.0001.

Cancer cell migration and invasion were significantly inhibited in si-RACGAP1-transfected cells compared with mock- or siRNA-control-transfected PDAC cells. However, transfection of si-RACGAP1 did not significantly affect cell proliferation (Figure 5C–E).

EMT-related genes were selected and picked up from gene expression analysis data (GSE115801 and GSE115909). Our array data showed that expression of SNAL3 and vimentin were reduced by si-RACGAP1 transfection into SW1990 cells. Expression of fibronectin 1 was reduced by miR-204-5p transfection into SW1990 cells (Tables S3 and S4).

2.7. Identification of RACGAP1-Regulated Genes in PDAC Cells

To identify genes affected downstream of RACGAP1, we applied genome-wide gene expression analyses using SW1990 cells transfected with si-RACGAP1. The gene expression data were deposited in the GEO database (GEO accession number; GSE115909). Our strategy to identify RACGAP1-regulated genes is shown in Figure S6. Using this strategy, we identified 64 putative genes affected by RACGAP1 in PDAC cells (Table 4). Among these genes, high expression levels of 12 genes (MMP28, CEP55, CDK1, ANLN, S100A14, SLC6A14, TRIM29, TMPRSS4, SERPINB3, CAPN8, MELK and FAR2) were significantly associated with overall survival in patients with PDAC, according to analyses of data from TCGA database (Figure 6).

Table 4.

RACGAP1-meditade downstream genes in PDAC.

Entrez GeneID	Gene Symbol	GeneName	miR-204-5p Conserved Sites Total	miR-204-5p Poorly Conserved Sites Total	GEO FC (log)	Array(SW1990) Mock vs. si-RACGAP1	OncoLnc OS_p-Value PAAD
79148	MMP28	matrix metallopeptidase 28	-	-	1.44652	−1.30890	1.45E-05
29127	RACGAP1	Rac GTPase activating protein 1	0	1	1.34429	−3.04118	0.0000548
55165	CEP55	centrosomal protein 55 kDa	-	-	1.09192	−1.05821	0.000736
983	CDK1	cyclin-dependent kinase 1	-	-	1.41425	−1.03595	0.00137
54443	ANLN	anillin, actin binding protein	-	-	1.72921	−1.19268	0.00142
57402	S100A14	S100 calcium binding protein A14	-	-	1.06798	−1.19808	0.00469
11254	SLC6A14	solute carrier family 6 (amino acid transporter), member 14	0	1	3.01708	−1.20549	0.00678
23650	TRIM29	tripartite motif containing 29	-	-	2.00490	−1.23048	0.00934
56649	TMPRSS4	transmembrane protease, serine 4	-	-	1.96115	−1.27289	0.00954
6317	SERPINB3	serpin peptidase inhibitor, clade B (ovalbumin), member 3	-	-	1.74282	−1.15475	0.0188
388743	CAPN8	calpain 8	-	-	1.92729	−2.40223	0.0242
9833	MELK	maternal embryonic leucine zipper kinase	0	1	1.21153	−1.04052	0.028
55711	FAR2	fatty acyl CoA reductase 2	-	-	1.04894	−1.13250	0.0312
1893	ECM1	extracellular matrix protein 1	-	-	1.14510	−1.03234	0.0531
11178	LZTS1	leucine zipper, putative tumor suppressor 1	-	-	1.30061	−1.64372	0.0591
6696	SPP1	secreted phosphoprotein 1	-	-	2.67411	−1.79208	0.0639
5349	FXYD3	FXYD domain containing ion transport regulator 3	-	-	1.80037	−1.46428	0.0677
4680	CEACAM6	carcinoembryonic antigen-related cell adhesion molecule 6 (non-specific cross reacting antigen)	0	1	3.49703	−1.04848	0.0716
80736	SLC44A4	solute carrier family 44, member 4	-	-	1.84270	−1.14495	0.0761
80856	KIAA1715	KIAA1715	0	2	1.05264	−1.70461	0.0891
412	STS	steroid sulfatase (microsomal), isozyme S	-	-	1.32435	−2.62844	0.0996
1087	CEACAM7	carcinoembryonic antigen-related cell adhesion molecule 7	-	-	1.89107	−1.11293	0.105
29969	MDFIC	MyoD family inhibitor domain containing	0	1	1.20813	−1.20299	0.11
23596	OPN3	opsin 3	-	-	1.28539	−1.53133	0.122
56241	SUSD2	sushi domain containing 2	-	-	1.30384	−1.26476	0.123
55808	ST6GALNAC1	ST6 (alpha-N-acetyl-neuraminyl-2,3-β-galactosyl-1,3)-N-acetylgalactosaminide α-2,6-sialyltransferase 1	0	1	1.35766	−1.55278	0.153
90459	ERI1	exoribonuclease 1	-	-	1.08766	−1.07601	0.158
1999	ELF3	E74-like factor 3 (ETS domain transcription factor, epithelial-specific)	-	-	1.18538	−1.05779	0.174
121457	IKBIP	IKBKB interacting protein	-	-	1.10964	−1.06344	0.185
50810	HDGFRP3	hepatoma-derived growth factor, related protein 3	-	-	1.37815	−1.69105	0.187
1048	CEACAM5	carcinoembryonic antigen-related cell adhesion molecule 5	-	-	2.76693	−1.96132	0.188
147495	APCDD1	adenomatosis polyposis coli down-regulated 1	0	1	1.17965	−1.33923	0.212
200958	MUC20	mucin 20, cell surface associated	-	-	1.50494	−1.28329	0.232
54843	SYTL2	synaptotagmin-like 2	-	-	1.90048	−1.17307	0.242
7031	TFF1	trefoil factor 1	-	-	2.40095	−1.13688	0.242
1847	DUSP5	dual specificity phosphatase 5	-	-	1.47556	−1.77597	0.269
85477	SCIN	scinderin	-	-	1.14779	−1.62677	0.285
10000	AKT3	v-akt murine thymoma viral oncogene homolog 3	-	-	1.02342	−1.07780	0.317
89932	PAPLN	papilin, proteoglycan-like sulfated glycoprotein	0	2	1.81417	−1.08233	0.332
51056	LAP3	leucine aminopeptidase 3	-	-	1.06387	−1.23137	0.343
4688	NCF2	neutrophil cytosolic factor 2	-	-	2.00063	−1.14183	0.422
22795	NID2	nidogen 2 (osteonidogen)	-	-	1.78329	−1.09923	0.425
8706	B3GALNT1	β-1,3-N-acetyl-galactosaminyl-transferase 1 (globoside blood group)	-	-	1.06403	−1.07457	0.474
10551	AGR2	anterior gradient 2	-	-	2.04850	−1.20759	0.491
1009	CDH11	cadherin 11, type 2, OB-cadherin (osteoblast)	1	0	3.64065	−1.32668	0.526
340547	VSIG1	V-set and immunoglobulin domain containing 1	-	-	1.78237	−1.44981	0.54
219699	UNC5B	unc-5 homolog B (C. elegans)	1	1	1.42242	−1.48944	0.596
154141	MBOAT1	membrane bound O-acyltransferase domain containing 1	-	-	1.03451	−1.03993	0.615
3455	IFNAR2	interferon (α, β and ω) receptor 2	0	3	1.07229	−1.11007	0.618
2357	FPR1	formyl peptide receptor 1	0	2	1.09684	−1.92665	0.629
29887	SNX10	sorting nexin 10	-	-	1.20341	−1.63818	0.64
91607	SLFN11	Schlafen family member 11	-	-	1.37401	−1.23024	0.661
79071	ELOVL6	ELOVL fatty acid elongase 6	1	2	1.48750	−1.18773	0.727
3075	CFH	complement factor H	-	-	1.64335	−1.25960	0.732
5159	PDGFRB	platelet-derived growth factor receptor, β polypeptide	0	2	1.79906	−3.93598	0.775
10855	HPSE	heparanase	-	-	1.10037	−1.25724	0.783
2877	GPX2	glutathione peroxidase 2 (gastrointestinal)	-	-	2.06843	−1.24329	0.84
634	CEACAM1	carcinoembryonic antigen-related cell adhesion molecule 1 (biliary glycoprotein)	-	-	1.41681	−1.08376	0.843
54749	EPDR1	ependymin related 1	-	-	1.00831	−1.25356	0.86
2124	EVI2B	ecotropic viral integration site 2B	-	-	1.54469	−1.32368	0.939
3310	HSPA6	heat shock 70kDa protein 6 (HSP70B’)	-	-	1.34685	−1.10270	0.956
6453	ITSN1	intersectin 1 (SH3 domain protein)	-	-	1.21741	−1.04096	0.982
30001	ERO1L	ERO1-like (S. cerevisiae)	0	1	1.05476	−1.33509	No data
100499177	THAP9-AS1	THAP9 antisense RNA 1	-	-	1.02990	−1.06954	No data

Figure 6.

Clinical significance of RACGAP1 downstream genes associated with a poor prognosis of patients with PDAC.

Furthermore, we provided a heatmap gene visualization and validated as a prognostic ability of these 12 genes (Figure 7). As shown in Figure 7, patients with high gene signature expressions (Z-score > 0) were significantly poor OS and DFS rate than those with low gene signature expressions (Z-score ≤ 0) (OS; p = 0.0017, DFS; p = 0.0096, Figure 7). To explore the molecular network controlled by RACGAP1 in PDAC cells, we performed pathway analyses using RACGAP1 mediated downregulated genes (Table S2).

Figure 7.

Combination analysis with heatmap of 12 target genes related to poor prognosis in PDAC. Heatmap was created using analysis webcite “R2: Genomics Analysis and Visualization Platform (http://r2.amc.nl)”. Z-score was evaluated by a combination of si-RACGAP1 downstream genes based on TCGA datasets. High group (mRNA Z-score > 0) and low group (mRNA Z-score ≤ 0) are displayed as Kaplan–Meier plots with log-rank tests.

Clinical significance of the expression levels of 12 genes (MMP28, CEP55, CDK1, ANLN, S100A14, SLC6A14, TRIM29, TMPRSS4, SERPINB3, CAPN8, MELK and FAR2) based on data from The Cancer Genome Atlas database. Kaplan-Meier plots of overall survival with log-rank tests comparing the survival of PDAC patients with high (red lines) versus low (blue lines) expression levels of each of the abovementioned genes.

3. Discussion

Numerous protein-coding and noncoding RNAs can be regulated by a single miRNA. Altered miRNA expression can disrupt RNA networks within cancer cells; therefore, manipulation of miRNA expression in cancer cells will help identify novel RNA networks with critical roles in cancer. To obtain novel therapeutic targets in PDAC, we sequentially identified antitumor miRNA-regulated oncogenes and pathways based on our original PDAC miRNA signature [16].

In this study, we focused on miR-204-5p and its regulated genes involved in PDAC pathogenesis. Previous studies indicated that miR-204-5p is downregulated in several cancers, and that restoration of miR-204-5p expression inhibits cancer cell proliferation, migration and invasion [21,22,23]. Our recent study showed greatest downregulation of miR-204-5p in triple-negative breast cancer (TNBC) tissues according to the miRNA signature of TNBC [24]. Ectopic expression of miR-204-5p in TNBC cells inhibited cancer cell migration and invasion, suggesting that miR-204-5p acts as an antitumor miRNA in these cells [24]. We reported that miR-204-5p is a pivotal antitumor miRNA preventing cancer cell progression. We are also interested in the RNA networks controlled by miR-204-5p according to cancer cell type.

Analyses of RNA networks regulated by miR-204-5p will contribute to our understanding of cancer pathogenesis. Our study identified a total of 25 genes as putative oncogenes by miR-204-5p regulation in PDAC cells. Among these targets, the high expression levels of seven genes (RACGAP1, DHRS9, AP1S3, FOXC1, PRP11, RHBDL2 and MUC4) were significantly predictive of a poor prognosis in PDAC patients. These genes are highly involved in PDAC pathogenesis and are important landmarks for elucidating the molecular mechanisms underlying the aggressiveness of PDAC cells.

For example, overexpression of FOXC1 (forkhead box C1), a member of the forkhead box of transcription factors, has been observed in several cancers [25]. Previous studies showed that aberrant expression of FOXC1 enhances epithelial-to-mesenchymal transition and drug resistance [26,27]. In PDAC cells, FOXC1 was found to be a pivotal regulator of insulin-like growth factor 1 receptor signaling, and aberrant activation of this signaling pathway contributed to PDAC cell aggressiveness, metastasis and an epithelial-to-mesenchymal transition phenotype [28]. These findings suggest that FOXC1 is a potential therapeutic target for several cancers, including PDAC. Overexpression of MUC4 (mucin 4), a transmembrane mucin, has been observed frequently in several cancers, including PDAC [29]. Mucins not only protect the epithelium from adverse conditions but also help transmit several signals into the cell [30]. The functions of MUC4 are mediated by multiple receptors, and MUC4 overexpression contributed to tumorigenesis, metastasis and drug resistance in PDAC cells [31]. Recently, we showed overexpression of AP1S3 in TNBC specimens, and silencing of AP1S3 inhibited the proliferation, migration and invasion of TNBC cells [24]. Previous studies showed that FOXC1 was directly regulated by antitumor miR-204-5p in laryngeal squamous cell carcinoma and endometrial cancer [32]. Furthermore, AP1S3 was directly regulated by miR-204-5p in TNBC cells [24]. The miR-204-5p target genes identified in our present study are highly involved in cancer pathogenesis.

We focused on RACGAP1 because its elevated expression was most significantly predictive of a poor prognosis in PDAC patients (p = 0.0000548). Based on analysis of TCGA database, high expression of RACGAP1 is significantly associated with breast cancer, lung adenocarcinoma, papillary renal cell carcinoma, hepatocellular carcinoma and cutaneous melanoma. These data suggest that aberrant expression of RACGAP1 is involved in cancer pathogenesis. As a GTPase-activating protein, RACGAP1 binds to activated G proteins to stimulate GTP hydrolysis, which in turn inactivates the G protein [33]. The function of GTPase-activating proteins opposes that of guanine nucleotide exchange factors, which stimulate G protein activation [34].

Our present data showed that RACGAP1 was overexpressed in PDAC clinical specimens, and silencing of RACGAP1 inhibited cancer cell migration and invasion. Our data suggest that RACGAP1 acts as an oncoprotein rather than a tumor suppressor in PDAC cells. Recent studies reported overexpression of RACGAP1 in several types of cancers (e.g., gastric cancer, colorectal cancer, uterine carcinosarcoma, hepatocellular carcinoma and epithelial ovarian cancer), and its aberrant expression was associated with poor prognosis in patients with these cancers [35,36,37,38,39]. In ovarian cancer, it was found that RACGAP1 expression enhanced activation of RHOA and ERK proteins, and activation of its signaling induced cancer cell migration and invasion. In uterine carcinosarcoma cells, RACGAP1 positively regulated STAT3 phosphorylation and survivin expression, and these activated signaling pathways induced an invasive phenotype [37]. In squamous cell carcinoma, RACGAP1 was found to be regulated by the E2F7 transcription factor, and its expression enhanced doxorubicin resistance [39]. These findings suggest that overexpression of RACGAP1 is related to growth, progression, metastasis and drug resistance in various cancers.

Finally, to investigate RACGAP1-regulated oncogenes and cancer-associated pathways in PDAC, we performed genome-wide expression analyses in PDAC cells after knockdown of RACGAP1. A total of 64 genes were identified as putative targets of RACGAP1. Among these targets, expression of 12 genes (MMP28, CEP55, CDK1, ANLN, S100A14, SLC6A14, TRIM29, TMPRSS4, SERPINB3, CAPN8, MELK and FAR2) was closely associated with a worse prognosis in patients with PDAC. Interestingly, aberrant expression of the actin-binding protein ANLN (anillin) was detected in PDAC clinical specimens, and knockdown of ANLN markedly inhibited the migration and invasion of PDAC cell lines [17]. In addition, that same study found that ANLN was directly controlled by antitumor miR-217 in PDAC cells [17]. These results suggest that RACGAP1 and RACGAP1-mediated genes are possible therapeutic targets for PDAC.

Interestingly, TMPRSS4 and SERPINB3 were identified as a PDAC classifier for discriminating PDAC and early precursor lesions from non-malignant tissue [40]. Notably, silencing of TMPRESS4 expression blocked PDAC cell migration and invasion abilities [40]. Among these targets, we searched for regulation of miRNAs. Aberrant expression of the actin-binding protein ANLN (anillin) was detected in PDAC clinical specimens, and knockdown of ANLN markedly inhibited the migration and invasion of PDAC cell lines [17]. In addition, that same study found that ANLN was directly controlled by antitumor miR-217 in PDAC cells. Ectopic expression of miR-217 was significantly blocked cancer cell aggressiveness features [17]. Moreover, TRIM29, DNA and p53-binding protein is overexpressed in PDAC and its function as a mediator in DNA damage signaling [41]. Aberrant expression of TRIM29 associated with radio-resistance in PDAC cells [41]. Tumor suppressive miR-449a inhibited PDAC cell aggressiveness through targeting TRIM29 [41]. These results suggest that RACGAP1 and RACGAP1-mediated genes are possible therapeutic targets for PDAC. Analysis strategy based on aberrant expressed miRNAs is effective for searching to novel molecular pathogenesis of PDAC.

4. Materials and Methods

4.1. Clinical Samples and PDAC Cell Lines

In this study, 24 PDAC clinical samples were collected from PDAC patients who underwent resection at Kagoshima University Hospital (Kagoshima, Japan) from 1997 to 2016. As controls, 17 pancreatic tissue specimens were collected from noncancerous regions. Gene expression analyses were conducted using total RNA extracted from cryopreserved PDAC tissues, and immunohistochemistry was performed using paraffin-embedded PDAC tissues. The clinical samples were staged according to the American Joint Committee on Cancer/Union Internationale Contre le Cancer TNM staging system. The clinicopathological factors of the clinical specimens are shown in Table 1. The present study was approved by the Institutional Review Board of Kagoshima University. Written informed consent and approval were provided by all patients (approval number: 16-27).

We also used two PDAC cell lines in this study: SW1990 cells purchased from the American Type Culture Collection (Manassas, VA, USA) and PANC-1 cells purchased from RIKEN Cell Bank (Tsukuba, Ibaraki, Japan).

4.2. Quantitative Reverse-Transcription Polymerase Chain Reaction (qRT-PCR)

The procedure used for qRT-PCR has been described previously [42,43,44,45]. Reagents and equipment were purchased from Thermo Fisher Scientific (Waltham, MA, USA). TaqMan qRT-PCR probes targeting miR-204-5p (product ID: 000508) and RACGAP1 (product ID: Hs01100049_mH) were obtained. Probes targeting GUSB (product ID: Hs99999908_m1) and RNU48 (product ID: 001006) were used as internal controls.

4.3. Transfection of Mature miRNAs and Small-Interfering RNAs (siRNAs)

The procedures for miRNA or siRNA transfection into cancer cells have been described previously [42,43,44,45]. The following mature miRNAs or siRNAs were used for transfection: miR-204-5p (product ID: PM11116), negative control miRNA (product ID: AM 17111) and two RACGAP1 siRNAs (product IDs: HSS120934 and HSS120936). The oligonucleotides were transfected at 10 nM into PDAC cell lines using Lipofectamine RNAiMAX and Lipofectamine 2000 (Thermo Fisher Scientific, Waltham, MA, USA).

4.4. Cell Proliferation, Migration and Invasion Assays

As functional analyses, cell proliferation (XTT assay), migration (chamber cells migration assay) and invasion (Matrigel assay) assays were performed, as described previously [42,43,44,45].

4.5. Identification of Genes Regulated by miR-204-5p in PDAC Cells

To identify candidate target genes of miR-204-5p, comprehensive gene expression analyses using an oligonucleotide microarray (Agilent Technologies; Human Ge 60K, Santa Clara, CA, USA) were incorporated with in silico database analyses using the Target Scan Human 7.2 database (June 2016 release: http://www.targetscan.org/vert_71), as described previously (Figure S1) [42,43,44,45]. The microarray data were deposited into the Gene Expression Omnibus (GEO) repository (https://www.ncbi.nlm.nih.gov/ geo/). In addition, data from TCGA database regarding gene expression in PDAC were analyzed (https://cancergenome.nih.gov/).

4.6. Clinical Database Analyses of PDAC

TCGA database was used to investigate the clinical significance of PDAC miRNAs and the genes they regulated (https://tcga-data.nci.nih.gov/tcga/). Gene expression and clinical data were obtained from cBioPortal (http://www.cbioportal.org/) and OncoLnc (http://www.oncolnc.org) (data downloaded on 28 April 2018).

4.7. Plasmid Construction and Dual Luciferase Reporter Assay

The following 2 sequences were cloned into the psiCHECk-2 vector (C8021; Promega Corporation, Madison, WI, USA): the wild-type sequence of the 3′-untranslated regions (UTRs) of RACGAP1, or the deletion-type, which lacked the miR-204-5p target sites from RACGAP1 (position 851–857). The procedures for transfection and dual-luciferase reporter assays were provided in previous studies [42,43,44,45].

4.8. Western Blotting and Immunohistochemistry

For western blotting and immunostaining detection of RACGAP1 expression, anti-RACGAP1 antibodies (product ID: ab2270) were used according to the manufacturer’s instructions (Abcam Plc, Cambridge, UK). An anti-glyceraldehyde 3-phosphate dehydrogenase (GAPDH) antibody (product ID: SAF6698; Wako, Osaka, Japan) was used as an internal loading control for western blotting. Details of these methods have been described previously [42,43,44,45].

4.9. Downstream Genes Affected by RACGAP1 in PDAC Cells

Genome-wide gene expression and database oriented in silico analyses were applied to identify RACGAP1-mediated downstream genes. Our strategy for identification of genes regulated by RACGAP1 is outlined in Figure S6. The microarray data used have been deposited in the GEO repository under accession number GSE115909.

4.10. Statistical Analysis

Comparisons between groups were assessed using the Mann-Whitney U test or one-way analysis of variance followed by Tukey’s multiple comparison test. Differences in survival rates were determined by Kaplan-Meier survival analysis and log-rank test. The Z-scores of target genes mRNA expression data and clinical sample information corresponding to PDAC patients were collected from cBioPortal. R2: Genomics Analysis and Visualization Platform (http://r2.amc.nl) was used to create a heatmap. Furthermore, Z-score was evaluated by a combination of each genes sets. High group (mRNA Z-score > 0) and low group (mRNA Z-score ≤ 0) were analyzed by Kaplan–Meier survival curves and log-rank statistics. The analyses were conducted using Expert StatView version 5.0 (SAS Institute, Inc., Cary, NC, USA) and GraphPad Prism version 7.04 (GraphPad Software, Inc., La Jolla, CA, USA).

5. Conclusions

In conclusion, miR-204-5p was downregulated in PDAC clinical specimens and acted as an antitumor miRNA by targeting several oncogenes involved in PDAC pathogenesis. RACGAP1 was directly regulated by antitumor miR-204-5p, and high expression of RACGAP1 significantly predicted a shorter survival in patients with PDAC. Overexpression of RACGAP1 enhanced PDAC cell migration and invasion, suggesting RACGAP1 as a possible therapeutic target for PDAC patients. Our approach to identify antitumor miRNAs and their regulated target genes in PDAC has potential value for the development of new therapeutic strategies.

Supplementary Materials

The following are available online at https://www.mdpi.com/2072-6694/11/3/327/s1, Figure S1: Strategy for identification of putative genes regulated by miR-204-5p in PDAC cells, Figure S2: Expression levels of RACGAP1 and miR-204-5p were negatively correlated, Figure S3: Analysis of clinicopathological factors related to miR-204-5p expression in TCGA database from cBioportal, Figure S4: Analysis of clinicopathological factors related to RACGAP1 expression in TCGA database from cBioportal, Figure S5: TCGA database analyses showed that high expression of RACGAP1 was closely associated with poor prognosis (3-year OS) of several cancers, Figure S6: Strategy for identification of putative genes regulated by RACGAP1 in PDAC cells. Table S1: Enriched KEGG Pathways in miR-204-5p transfectant on SW1990, Table S2: Enriched KEGG Pathways in si-RACGAP1 transfectant on SW1990, Table S3: EMT related genes regulated by si-RACGAP1 and miR-204-5p, Table S4. MET related genes regulated by si-RACGAP1 and miR-204-5p.

Author Contributions

Conceptualization, M.K., T.I. and N.S.; methodology, N.S.; validation, H.T., M.W. and H.F.; formal analysis, M.K. and T.I.; investigation, N.S. and H.K.; resources, N.S., H.K., Y.Y., Y.Ka., Y.M., K.M. and S.N.; writing—original draft preparation, M.K., T.I. and N.S.; writing—review and editing, N.S., H.K., T.I., H.T., H.F., Y.M. and K.M.; visualization, M.K. and T.I.; supervision, N.S.; funding acquisition, N.S., H.K., Y.Ki., K.T., K.M. and S.N.

Funding

This study was supported by KAKENHI grants 18K16322, 18K08687, 18K08626, 17H04285, 16K19945, 18K15219, 16H05462(B) and 15K10801(C).

Conflicts of Interest

The authors declare no conflicts of interest.
