Rh(II)-Catalyzed Nitrene-Transfer [5+1] Cycloadditions of Aryl-Substituted Vinylcyclopropanes

Abstract

Formal [5+1] cycloadditions between aryl-substituted vinylcyclopropanes and nitrenoid precursors are reported. The method, which employs Rh₂(esp)₂ as a catalyst, leads to the highly regioselective formation of substituted tetrahydropyridines. Preliminary mechanistic studies support a stepwise, polar mechanism enabled by the previously observed Lewis acidity of Rh-nitrenoids. Overall, this work expands the application of nitrene-transfer cycloaddition, a relatively underexplored approach to heterocycle synthesis, to the formation of six-membered rings.

Graphical Abstract

The development of nitrenes and metallonitrenes as reactive intermediates useful for addressing limitations in organic synthesis has recently been accelerated by advances in nitrene-transfer catalysis.¹ Yet many potential applications remain unexplored.² One area of potential growth is their use as one-atom components in cycloaddition reactions for the preparation of nitrogen-containing heterocycles. Even for common N-heterocycles, which are present in a majority of FDA-approved small molecule drugs,³ current synthetic methods are, in many cases, not sufficiently advanced to allow for the rapid and flexible preparation of selectively substituted variants.⁴ The complementarity of nitrene chemistry to other approaches might provide paths to overcoming these limitations.⁵ However, only a handful of reports of the use of nitrene precursors in intermolecular cycloaddition reactions have appeared in the literature.⁶ These include [4+1] cycloadditions with dienes,⁷ [2+2+1] cycloadditions with alkynes,⁸ and [2+2+1] cycloadditions with alkynes and nitriles (Scheme 1a).⁹ All are limited to the formation of five-membered rings. Here, we describe the first examples of six-membered ring synthesis via nitrene-transfer cycloaddition. The overall reaction, which employs a strategy and catalytic approach distinct from the above examples, constitutes a formal [5+1] cycloaddition between a nitrene precursor and a vinylcyclopropane. In addition, the reactions provide a single regioisomer of heterocyclic products that are not readily available through other means.

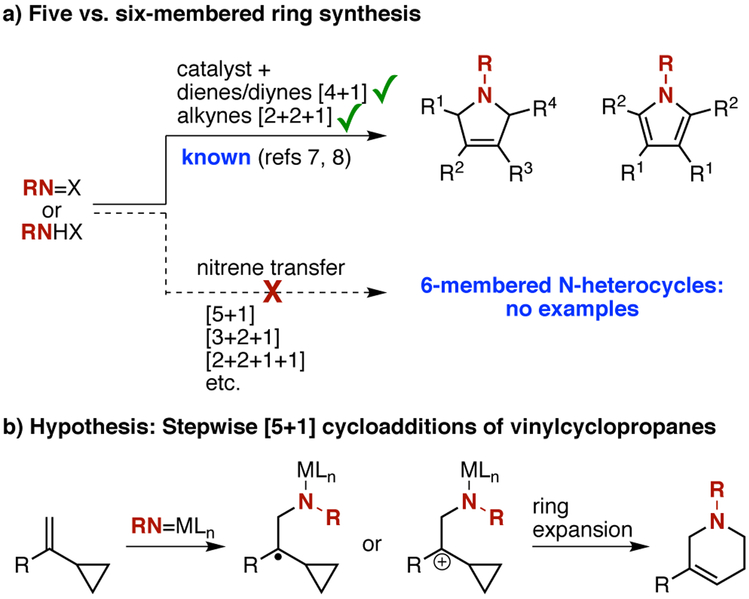

Scheme 1.

Progress and Challenges in Nitrene-Transfer Cycloaddition

Our strategy relies on the hypothesis that in certain cases, nitrene transfer to the olefin of a vinylcyclopropane (VCP) might produce a substituted cyclopropylcarbinyl cation or radical, arising either directly from the olefin or from an intermediate aziridine.¹⁰ Either cyclopropylcarbinyl species, if sufficiently long-lived, would be expected to promote cyclo-propane C–C bond cleavage, ultimately providing a ring-expanded [5+1] cycloaddition product (specifically a tetrahydropyridine) after a subsequent cyclization (Scheme 1b).¹¹ One advantage of this strategy is the potential to exert regiocontrol over the reaction outcome by adjusting substitution on the VCP to favor selective cleavage of one of two differentiated cyclopropane C–C bonds.

As part of our initial exploration of this idea, we evaluated the possibility of achieving the desired tandem nitrene-transfer/ring expansion outcome by employing Rh(II) catalysis (Table 1). In addition to their role as catalytic intermediates in C–H amination¹² and aziridination¹³ reactions, there is evidence that Rh-nitrenoids can act as mild Lewis acids, promoting dipolar ring opening of aziridines.¹³ In our case, we examined whether this dual nature of the nitrenoid could enable successful nitrene-transfer [5+1] cycloaddition of VCP 1a. Our initial experiments focused in the use of iminoiodinanes as nitrene precursors and Rh₂(esp)₂ as the catalyst.¹⁴ Previous studies have shown a high dependence of reaction yield for intermolecular Rh₂(esp)₂-catalyzed nitrene transfer reactions on iminoiodinane structure.¹⁵ Consistent with this, we observed only trace amounts of the desired [5+1] product 2a using PhINTs (A, entry 1) as the nitrene precursor, but obtained 40% isolated yield of 2,5-diphenyl substituted tetrahydropyridine 3a using PhINTces¹⁶ (B, entry 2). In situ formation of the iminoiodinane from TcesNH₂ was not compatible with the reaction conditions (entry 3). Further reaction optimization enabled the use of benzyl tosyloxycarbamate C, providing a product 4a that bears a Cbz protecting group (entry 4). The use of the Cbz group offers synthetic advantages over Tces, which requires the use of a large excess of Zn/Cu under acidic conditions for deprotection,¹⁶ rather than the catalytic hydrogenolysis conditions required for Cbz removal. Using the related Boc-protected nitrene precursor D, no formation of product 5a was observed (entry 5). Screening of alternative Rh(II) catalysts revealed the particular suitability of Rh₂(esp)₂ for the desired reaction. Of the other catalysts evaluated, only the use of Rh₂(OPiv)₄ provided any amount of 4a at room temperature, albeit in substantially reduced yield. Given that Rh₂(esp)₂ was designed to have enhanced stability over other tetracarboxylate Rh(II) catalysts for the specific purpose of enabling greater turnover in nitrene-transfer reactions,¹⁴ this might indicate that the efficiency of the nitrene transfer step is critical to achieving a productive [5+1] cycloaddition. Using the optimal protocol (entry 11), which employs a slight excess of C and lower concentration compared to the initial conditions (0.05 M), a synthetically useful yield could be obtained.

Table 1.

Optimization of a Rh(II)-catalyzed [5+1] reaction^a

entry	nitrene precursor (equiv)	catalyst (mol %)	R	yield (%)
1b	A (1.1)	Rh2(esp)2 (2)	Ts	<5c
2b	B (1.1)	Rh2(esp)2 (2)	Tces	40
3b	B (1.5)d	Rh2(esp)2 (2)	Tces	0
4	C (1.1)	Rh2(esp)2 (2)	Cbz	36
5	D (1.1)	Rh2(esp)2 (2)	Boc	NR
6	C (1.1)	Rh2(OAc)4 (2)	Cbz	NR
7	C (1.1)	Rh2(OPiv)4 (2)	Cbz	10c
8	C (1.1)	Rh2(tpa)4 (2)	Cbz	0
9	C (1.5)	Rh2(esp)2 (2)	Cbz	53
10	C (2.0)	Rh2(esp)2 (2)	Cbz	35
11e	C (1.5)	Rh2(esp)2 (2)	Cbz	60
12	C (1.1)	None	Cbz	NR

^aAll reactions were conducted on a 0.2 mmol scale of 1a, with isolated yields reported except where noted. NR = no reaction observed.

^bNo NaOAc used, reaction time 10 min.

^cNMR yield using methyl pivalate as an internal standard.

^dFormed in situ using 1.5 equiv each of TcesNH₂ and PhI(OAc)₂.

^eReaction concentration 0.05 M in 1a and reaction time 30 h.

With optimized conditions in hand, we surveyed the scope and limitations of this new reaction with regard to electronic modification of each aryl substituent (Figure 1, examples 4a to 4aa). Overall, the expected [5+1] cycloaddition product could be isolated in each case, with effects on reaction yield observed as a function of the nature and position of the substitution. While these effects were generally moderate, certain trends could be observed. For example, the inclusion of electron-donating groups in the para position of the styrenyl aryl group led to reduced yields (e.g. 4a vs 4b and 4s vs 4u), and a similar effect was observed for electron-withdrawing groups in the para position of the cyclopropyl aryl group (e.g. 4i and 4l vs 4a). Reasonable success was observed with fluorinated and trifluoromethylated aryl groups in the R²position, increasing the value of the method for the potential preparation of medicinal agents.¹⁷ Other halogenated products (e.g. 4f, 4o, 4x, 4aa) present handles for further diversification via cross coupling. The 2,5-diaryl tetrahydropyridine products have rarely appeared in the literature.¹⁸ In addition, more extensively substituted heterocyclic products can also be obtained, as in the tricyclic 4ac. In many cases, the reaction does not reach 100% conversion and a small amount of starting material remains. For selected examples where a substantial amount of the VCP was recovered, yields based on recovered starting material are reported (e.g. 4a, 4d, 4e, and others). In other cases (e.g. 4b), the starting material is completely consumed. In all cases, VCP that is unaccounted for appears to be nonselectively converted to an inseparable mixture of other, unidentifiable products formed in trace amounts. Finally, at the largest scale evaluated (1 mmol of 1a), no substantial effect on reaction yield was observed.¹⁹

Figure 1.

Scope and limitations of the [5+1] cycloaddition. Yields shown are of isolated products. All reactions employed 0.2 mmol of vinylcyclopropane as the limiting reagent.

A synthetically advantageous feature of this reaction is, in each case, the observation of only a single regioisomer of the product. This is reflected in both the high degree of selectivity for cleavage of the cyclopropane C–C bond adjacent to the aryl group, leading to a preference for the 2,5-disubstituted product, as well as the position of the olefin. This regioselectivity, which has been confirmed by X-ray crystallography,¹⁹ would be consistent with a heterolytic ring opening of the cyclopropane to a stabilized benzylic cation, as part of a stepwise mechanism promoted by the Lewis acidity of the Rh-nitrenoid. Further highlighting a potential role for resonance stabilization of cationic intermediates, alkyl substitution at either the R¹ or R² positions of the VCP abrogated the formation of the desired cycloaddition product. (4ad and 4ae).

To obtain additional preliminary evidence of the reaction mechanism, 24-hour ¹H-NMR time course experiments were performed. These data indicate that that the VCP is ~90% consumed after 10 hours, but at the same time point only ~50% of the eventual product formation has occurred. Several long-lived intermediates can be observed but not conclusively identified. Therefore, the data are consistent with the hypothesis of a stepwise [5+1] cycloaddition initiated by nitrene transfer to the olefin of the VCP. An alternative pathway involving initial cleavage of the cyclopropane ring can be tentatively ruled out given that we observe no reaction of cyclopropylbenzene under the reaction conditions. It has previously been shown that VCP 5 undergoes oxyamination to provide 6 under Rh₂(esp)₂-catalyzed conditions using PhINTces generated in situ. Mechanistic studies of this reaction suggested the involvement of a benzylic carbocation intermediate (Scheme 2a).¹³ These observations and precedent prompt us to propose the stepwise cationic pathway outlined in Scheme 2b. Aziridination of the substrate²⁰ could lead, after dipolar ring-opening, to formation of an equilibrium among 7 and geometric isomers 8 and 9, with the latter ultimately undergoing ring closure to the observed [5+1] product. This mechanism is also consistent with the regioselectivity of the reaction and the observed trends in yield. For example, an electron-deficient R² group less able to stabilize a carbocation would disfavor the formation of key intermediate 9, whereas an electron-rich VCP olefin (dependent on the R¹ substituent) might be expected to react in an unproductive sense with intermediates 7 or 8 at a higher rate than a comparatively electron-deficient olefin.²¹ This possibility of oligomerization or other unwanted reactivity of an intermediate carbocation is consistent with the aforementioned observation of complete consumption of the unaccounted-for starting material to a complex mixture of products.

Scheme 2.

Stepwise hypothesis for the Rh-catalyzed cycloaddition based on precedent and preliminary observations.

We have found that the use of 3 equivalents of NaOAc as an additive is essential to achieving the best yields for these reactions. The use of non-nucleophilic bases (e.g. DIPEA) and other carboxylates (e.g. NaOBz, NaOPiv, NaOCOCF₃) results in significantly reduced yields in all cases.¹⁹ While these results could point to a number of potential roles for acetate in the reaction mechanism beyond serving as a base to deprotonate the nitrene precursor, one possibility is that it reacts as a nucleophile with carbocations 7, 8, or 9 to form one or more of the long-lived intermediates that are observed by NMR. A similar role for tosylate liberated from C might be envisioned; nosylate and mesylate analogs of C perform substantially less well in the reaction.¹⁹ Our attempts to synthesize the potential aziridine and acetate intermediates derived from 1a have so far been unsuccessful using a variety of reaction conditions; decomposition of the starting material is observed rather than a productive reaction. This might indicate that if these intermediates are formed, they are prone to further reactivity such as that which we observe in the [5+1] reaction.

Finally, we envision that the tetrahydropyridine products of this reaction can serve as key intermediates in the synthesis of regio- and stereoselectively substituted piperidines, which are the most common N-heterocycle in FDA-approved drugs.³ Preliminary investigations that illustrate this capability are shown in Scheme 3. Hydrogenation of 4a to the fully saturated piperidine, with concurrent removal of the Cbz protecting group, proceeds in high yield to reveal the free amine 10. Oxidation or other non-hydrogenative functionalization of the olefin provides an avenue to access increasingly complex piperidines. In this regard, epoxidation of 4a proceeds with remarkably high diastereoselectivity, setting two new stereocenters and providing 2,4,5-trisubstituted piperidine derivative 11.

Scheme 3.

Derivatization of product 4a.

In summary, the first examples of the use of nitrene-transfer cycloaddition for the preparation of six-membered nitrogen-containing heterocycles have been presented. The method, which uses Rh₂(esp)₂ to catalyze nitrene transfer to a vinylcyclopropane in an overall [5+1] cycloaddition, exhibits high regioselectivity, enhancing its synthetic utility and allowing for further derivatization to complex piperidines. Furthermore, the expansion of the nitrene-transfer cycloaddition approach illustrates new possibilities for this underexplored reaction paradigm. Overall, this strategy offers an alternative synthetic entry to a class of compounds that are highly valued in medicinal chemistry, and we anticipate that further development of this approach could lead to broad application in the preparation of bioactive compounds.
