Chlorido­(2,2′-{[2-(1-methyl-1H-imidazol-2-yl-κN ³)imidazolidine-1,3-diyl-κN]bis­(methyl­ene)}bis­(1-methyl-1H-imidazole-κN ³))copper(II) perchlorate

The mol­ecular and crystal structure of a novel copper(II) complex bearing a new tetra­dentate 1-methyl-imidazole-containing imidazolidine ligand is described.

Abstract

In the crystal structure of the title complex, [CuCl(C₁₇H₂₄N₈)]ClO₄, the copper(II) metal exhibits an N₄Cl penta­coordinate environment in a distorted square-pyramidal geometry. Coordination to the metal centre occurs through the three 1-methyl­imidazole N atoms from the pendant groups, one amine N atom from the imidazolidine moiety and one chlorido anion. Inter­molecular inter­actions take place at two of the 1-methyl-­imidazole rings in the form of parallel-displaced π–π stacking inter­actions forming chains parallel to the a axis. Three O atoms of the perchlorate anion are rotationally disordered between two orientations with occupancies of 0.5.

Chemical context

Copper ions play a key role in many natural processes, as they are found in the active site of enzymes involved in electron and O₂ transfers, oxidation and reduction, being a target for the obtaining of biomimetic or bioinspired compounds (Stephanos & Addison, 2014 ▸). As a result of the redox characteristics of the copper ion, the versatility of ligands to which it coordinates, and the geometries it is capable of forming, copper complexes have attracted attention as catalysts for different transformations, mainly involving the activation and reduction of oxygen (Elwell et al., 2017 ▸). For the hydrogen evolution reaction (HER), the obtaining of homogeneous copper catalysts is limited by the dissociation of copper(II) because of the more negative potentials required for the reduction of protons (Zhang et al., 2014 ▸; Du et al., 2016 ▸). However, different copper complexes have been obtained and evaluated as catalysts for HER, showing promising results (Zhang et al., 2016 ▸; Haddad et al., 2017 ▸; Khusnutdinova et al., 2018 ▸). The use of bioinspired tripodal tetra­dentate ligands in the construction of metal complexes catalysts can provide a unique feature, the presence of cis-labile sites for substrate coordination that may be a requisite for its catalytic activity, facilitating electron/atom transfer processes.

Herein, we report the mol­ecular and crystal structure of a novel mononuclear copper(II) complex bearing an imidazolidine tetra­dentate ligand, namely chlorido­(2,2′-{[2-(1-methyl-1H-imidazol-2-yl-κN ³)imidazolidine-1,3-diyl-κN]bis­(methylene)}bis­(1-methyl-1H-imidazole-κN ³)copper(II) perchlorate, [Cu(L)Cl]ClO₄. Similar complexes obtained with penta­dentate ligands derived from the imidazolidine ring opening were previously reported (Cisnetti et al., 2007 ▸; Garcia et al., 2015 ▸), but to the best of our knowledge, this is the first example of a copper complex bearing an imidazolidine ligand with three 1-methyl-imidazole side arms.

Structural commentary

The title complex crystallizes in the monoclinic system, space group P21/n. The asymmetric unit comprises one complex cation and one disordered perchlorate anion (Fig. 1 ▸). The copper(II) ion has an N₄Cl penta­coordinated environment formed by one ligand mol­ecule and one chlorido ion. Coord­ination of the ligand to the metal centre occurs through the three 1-methyl-imidazole nitro­gen atoms (N_Me-im) and one of the tertiary amine nitro­gen atoms from the imidazolidine moiety (N_am). A distorted square-pyramidal geometry is observed (τ = 0.39), with the basal plane composed of the chlorido ion, the amine nitro­gen and the two equivalent 1-methyl-imidazole nitro­gen atoms N11/N21. The third 1-methyl-­imidazole nitro­gen N31 occupies the apical position. Distortion of the geometry is evidenced by the bond angles in the coordin­ation sphere, ranging from 77.43 (11) to 113.64 (12)° and 147.65 (12) to 171.21 (8)° for the cis and trans angles, respectively. This highly distorted square-pyramidal geometry may arise from the formation of a seven-membered chelate ring (Cu1/N1/C5/N4/C7/C32/N31) that is less tensioned than the four or five-membered rings, allowing a more flexible arrangement. As a consequence of the geometry distortion, the copper(II) ion lies 0.2565 (13) Å above the Cl1/N21/N1/N11 basal plane towards the apical position. Square-pyramidal copper complexes exhibiting a smaller geometry distortion tends to show a slighter displacement of the metal centre from the basal plane. In the similar [Cu(bpqa)Cl]⁺ (τ = 0.16) and [Cu(tmqa)Cl]⁺ (τ = 0.06) complexes [bpqa = 1-(pyridin-2-yl)-N-(pyridin-2-ylmeth­yl)-N-(quinolin-2-ylmeth­yl)methan­amine; tmqa = tris­(quinolin-2-ylmeth­yl)amine; Wei et al., 1994 ▸], the copper(II) ion is 0.189 (2) and 0.045 (3) Å above the basal plane, respectively. For the complexes [Cu(L)(ONO)]⁺ (τ = 0.27; L = [bis­(2-methyl­imidazol-2-yl)meth­yl][2-(pyridyl-2-yl)eth­yl]amine; Scarpellini et al., 2004a ▸) and [Cu(Hhis-im₂)Cl]⁺ {τ = 0.31; Hhis-im₂ = 2-(1H-imidazol-4-yl)-N,N-bis­[(1-methyl-1H-imidazol-2-yl)meth­yl]ethanamine; Higa et al., 2007 ▸}, the copper-to-plane distances are 0.1761 (1) and 0.23918 (10) Å, respectively.

Figure 1.

The structure of the title compound with displacement ellipsoids drawn at the 50% probability level. Only one component of the disordered oxygen atoms of the perchlorate anion is shown.

The Cu1—Cl1 bond length is 2.2698 (10) Å, being the longest in the coordination sphere. This value is in good agreement with the Cu—Cl bond lengths of 2.2742 (11) and 2.2690 (12) Å reported for the complexes [Cu(pmea)Cl]⁺ [pmea = 2-(pyridin-2-yl)-N,N-bis­(pyridin-2-ylmeth­yl)ethan­amine] and [Cu(pmap)Cl]⁺ [pmap = 2-(pyridin-2-yl)-N-(2-(pyridin-2-yl)eth­yl)-N-(pyridin-2-ylmeth­yl)ethanamine; Schatz et al., 2001 ▸]. For the complexes [Cu(hismimi)Cl₂] and [Cu(hismima)Cl₂] {hismimi = 2-(1H-imidazol-4-yl)-N-[(1-methyl-1H-imidazol-2-yl)methyl­ene]ethanamine; hismima = 2-(1H-imidazol-4-yl)-N-[(1-methyl-1H-imidazol-2-yl)meth­yl]ethanamine; Scarpellini et al., 2003 ▸}, the Cu—Cl bond lengths range from 2.2882 (11) to 2.2930 (11) Å for the Cl atoms in the basal plane and from 2.5705 (10) to 2.5789 (10) Å for the Cl atoms occupying the apical position.

The Cu—N_Me-im bond lengths in the title compound range from 1.976 (3) to 2.173 (3) Å, the longest one being formed by the 1-methyl-­imidazole nitro­gen N11. For the Cu—N_am bond, a distance of 2.137 (3) Å was found. Similar values were reported for the 1-methyl-imidazole-containing complexes [Cu(Hhis-im₂)Cl]⁺ (Higa et al., 2007 ▸), [Cu(hismima)(his)]⁺ {hismima = 2-(1H-imidazol-4-yl)-N-[(1-methyl-1H-imidazol-2-yl)meth­yl]ethanamine; his = histamine; Scarpellini et al., 2001 ▸}, [Cu₂(hismima)₂Cl₂]₂ ²⁺ (Scarpellini et al., 2004b ▸), [Cu(pymimi)Cl₂] and [Cu(pymima)Cl₂] {pymimi = [2-(pyridyl-2-yl)eth­yl][(1-methyl­imidazol-2-yl)meth­yl]imine; pymima = [2-(pyridyl-2-yl)eth­yl][(1-methyl­imidazol-2-yl)meth­yl]amine; Ferre et al., 2017 ▸}.

Supra­molecular features

Inter­molecular contacts in the title compound occur through π–π stacking inter­actions (Fig. 2 ▸) involving two 1-methyl-imidazole rings (N21/C22/N23/C25/C26 and N31/C32/N33/C35/C36), forming chains that propagate parallel to the a axis. The inter­centroid distances are 3.690 (2) and 3.761 (2) Å, the centroid-to-plane distances are 3.4719 (15) and 3.6240 (15) Å, and the parallel shifts are 1.250 (6) and 1.008 (7) Å.

Figure 2.

Crystal packing (viewed perpendicular to (100), top left, and (010), top right) and inter­molecular π–π stacking inter­actions (dashed lines, bottom) in the structure of the title compound.

Features of related complexes

In penta­coordinated copper(II) complexes containing tripodal N₄ donor ligands similar to the title compound, the Cu—Cl bond length seems to be directly related to the type and degree of geometry distortion around the metal centre. In complexes exhibiting a square-pyramidal geometry, as in the title compound, the Cu—Cl bond length has a range of 2.27–2.29 Å. For complexes in a trigonal–bipyramidal geometry, the Cu—Cl distance is around 2.23 Å (Karlin et al., 1982 ▸; Oberhausen et al., 1990 ▸; Wang et al., 1995 ▸). This difference may be related to the ligand spatial orientation, resulting from the geometric arrangements around the metal centre. The trigonal–bipyramidal geometry imposes a vertical positioning of the coordinated ligand rings parallel to the axial direction, which minimizes the repulsion between the electronic clouds of the chloride ion and the tripodal ligand. This arrangement allows a greater approach of the chloride ion to the metal centre and consequently a shorter bond distance. In the case of complexes in a square-pyramidal geometry, the coordinated rings are oriented parallel to the basal plane, increasing the chloride/ligand repulsion effect, which makes the Cu—Cl bond more elongated. Curiously, copper complexes in both geometries with tripodal ligands showing steric hindrance exhibit inter­mediate Cu—Cl bond distances among those found for complexes with non-hindered ligands on square-pyramidal and trigonal–bipyramidal geometries, indicating a balance of repulsive and stabilizing chloride/ligand inter­actions that is geometry independent (Wei et al., 1994 ▸; Jitsukawa et al., 2001 ▸).

Synthesis and crystallization

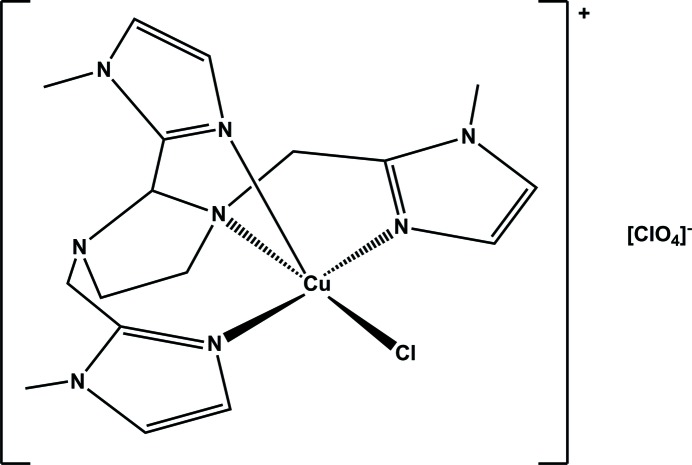

2,2′-{[2-(1-Methyl-1 H -imidazol-2-yl)imidazolidine-1,3-di­yl]bis­(methyl­ene)}bis­(1-methyl-1 H -imidazole), L: The new ligand L was synthesized by condensation reaction between N ¹,N ²-bis­[(1-methyl-1H-imidazol-2-yl)meth­yl]ethane-1,2-di­amine (Neves et al., 1997 ▸) (1.8939 g, 7.63 mmol) and 1-methyl-2-imidazole­carboxaldehyde (0.8401 g, 7.63 mmol) in ethano­lic media (40 ml). The reaction mixture was stirred for 24 h at room temperature, when the solvent was removed by rota-evaporation. To the resulting white solid, 40 ml of ethyl ether were added, and the mixture was stirred at room temperature for 24 h. After removal of the solvent under reduced pressure, the resulting white solid was recrystallized from acetone. Yield after recrystallization: 2.4 g (92%). ¹H NMR (500 MHz, DMSO) δ 7.16 (d, J = 0.8 Hz, 1H), 7.01 (d, J = 1.1 Hz, 2H), 6.84 (d, J = 1.1 Hz, 1H), 6.73 (d, J = 1.2 Hz, 2H), 4.20 (s, 1H), 3.74 (s, 3H), 3.63 (d, J = 13.5 Hz, 2H), 3.43 (d, J = 13.5 Hz, 2H), 3.33 (s, 6H), 2.96–2.87 (m, 2H), 2.75–2.67 (m, 2H) p.p.m. ¹³C NMR (126 MHz, DMSO) δ 144.89, 144.45, 127.16, 126.75, 124.13, 122.18, 82.92, 50.45, 33.37, 32.19 p.p.m..

[Cu( L )Cl]ClO₄: The synthesis was achieved by reacting CuCl₂·2H₂O (0.1708 g, 1 mmol) and the ligand L (0.3403 g, 1 mmol) in ethano­lic media, at room temperature. Recrystallization of the obtained amorphous green solid in aceto­nitrile solution at room temperature yielded 0.152 g (28%) of green single crystals after one day. IR (cm⁻¹, KBr): 3460 (ν O—H), 3160–3130 (ν C—H_arom), 2972–2854 (ν C—H_ali), 1636–1419 (ν C=N/C=C_ring), 1285 (ν C—N_amine), 1096/623 (ν Cl—O), 771 (δ C—H_arom), 502 (ν Cu—N_amine), 291 (ν Cu—Cl).

Refinement

Crystal data, data collection and structure refinement details are summarized in Table 1 ▸. The perchlorate anion is rotationally disordered over two orientations sharing the O1 oxygen atom with site occupancy factors of 0.5. The two disordered positions were refined by applying SADI restraints on the Cl–O bond lengths and O⋯O separations. The U _ij parameters of the Cl2 atom were restrained to an approximate isotropic behaviour.

Table 1. Experimental details.

Crystal data
Chemical formula	[CuCl(C17H24N8)]ClO4
M r	538.88
Crystal system, space group	Monoclinic, P21/n
Temperature (K)	288
a, b, c (Å)	10.2904 (4), 8.1336 (3), 26.317 (1)
β (°)	96.170 (1)
V (Å3)	2189.92 (14)
Z	4
Radiation type	Mo Kα
μ (mm−1)	1.29
Crystal size (mm)	0.25 × 0.16 × 0.09
Data collection
Diffractometer	Bruker D8 Venture
Absorption correction	Multi-scan (SADABS; Bruker, 2015 ▸)
T min, T max	0.656, 0.745
No. of measured, independent and observed [I > 2σ(I)] reflections	41042, 4471, 3704
R int	0.069
(sin θ/λ)max (Å−1)	0.625
Refinement
R[F 2 > 2σ(F 2)], wR(F 2), S	0.050, 0.102, 1.12
No. of reflections	4471
No. of parameters	319
No. of restraints	63
H-atom treatment	H-atom parameters constrained
Δρmax, Δρmin (e Å−3)	0.52, −0.53

Computer programs: APEX2 (Bruker, 2015 ▸), SAINT (Bruker, 2015 ▸, SHELXT (Sheldrick, 2015a ▸), SHELXL (Sheldrick, 2015b ▸) and OLEX2 (Dolomanov et al., 2009 ▸).

Supplementary Material

CCDC reference: 1905520

Additional supporting information: crystallographic information; 3D view; checkCIF report

supplementary crystallographic information

Crystal data

[CuCl(C17H24N8)]ClO4	F(000) = 1108
Mr = 538.88	Dx = 1.634 Mg m−3
Monoclinic, P21/n	Mo Kα radiation, λ = 0.71073 Å
a = 10.2904 (4) Å	Cell parameters from 117 reflections
b = 8.1336 (3) Å	θ = 2.9–22.7°
c = 26.317 (1) Å	µ = 1.29 mm−1
β = 96.170 (1)°	T = 288 K
V = 2189.92 (14) Å3	Block, clear light green
Z = 4	0.25 × 0.16 × 0.09 mm

Data collection

Bruker D8 Venture diffractometer	3704 reflections with I > 2σ(I)
φ and ω scans	Rint = 0.069
Absorption correction: multi-scan (SADABS; Bruker, 2015)	θmax = 26.4°, θmin = 2.2°
Tmin = 0.656, Tmax = 0.745	h = −12→12
41042 measured reflections	k = −10→10
4471 independent reflections	l = −32→32

Refinement

Refinement on F2	Primary atom site location: dual
Least-squares matrix: full	Hydrogen site location: inferred from neighbouring sites
R[F2 > 2σ(F2)] = 0.050	H-atom parameters constrained
wR(F2) = 0.102	w = 1/[σ2(Fo2) + (0.0274P)2 + 4.7286P] where P = (Fo2 + 2Fc2)/3
S = 1.12	(Δ/σ)max = 0.001
4471 reflections	Δρmax = 0.52 e Å−3
319 parameters	Δρmin = −0.53 e Å−3
63 restraints

Special details

Geometry. All esds (except the esd in the dihedral angle between two l.s. planes) are estimated using the full covariance matrix. The cell esds are taken into account individually in the estimation of esds in distances, angles and torsion angles; correlations between esds in cell parameters are only used when they are defined by crystal symmetry. An approximate (isotropic) treatment of cell esds is used for estimating esds involving l.s. planes.

Refinement. All H atoms were placed geometrically and refined using a riding atom approximation, with C–H = 0.93–0.98 Å, and with Uiso(H) = 1.2Ueq(C) or 1.5Ueq(C) for methyl H atoms. A rotating model was used for the methyl groups.

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Ų)

	x	y	z	Uiso*/Ueq	Occ. (<1)
Cu1	0.18398 (4)	0.35492 (5)	0.56226 (2)	0.02658 (12)
Cl2	0.61349 (10)	0.81015 (12)	0.66768 (4)	0.0394 (2)
Cl1	0.20109 (10)	0.10125 (11)	0.52765 (4)	0.0442 (3)
N21	0.2633 (3)	0.4598 (3)	0.50530 (11)	0.0276 (6)
N1	0.1935 (3)	0.6031 (3)	0.58904 (10)	0.0237 (6)
N31	0.0181 (3)	0.3032 (4)	0.59528 (11)	0.0298 (6)
N23	0.3807 (3)	0.6599 (4)	0.47829 (11)	0.0293 (6)
N11	0.3159 (3)	0.3367 (4)	0.63224 (12)	0.0324 (7)
N33	−0.1361 (3)	0.2601 (4)	0.64552 (11)	0.0332 (7)
N13	0.3635 (3)	0.4347 (4)	0.70991 (11)	0.0362 (7)
N4	0.0918 (3)	0.6184 (4)	0.66510 (11)	0.0331 (7)
C12	0.2988 (3)	0.4602 (4)	0.66327 (13)	0.0283 (7)
C26	0.2978 (3)	0.4181 (5)	0.45779 (13)	0.0319 (8)
H26	0.275354	0.321232	0.440245	0.038*
C22	0.3146 (3)	0.6059 (4)	0.51634 (12)	0.0241 (7)
C5	0.2183 (3)	0.6065 (4)	0.64627 (12)	0.0267 (7)
H5	0.268323	0.705847	0.656460	0.032*
C32	−0.0283 (3)	0.3493 (5)	0.63838 (13)	0.0307 (8)
C6	0.3044 (3)	0.6840 (4)	0.56629 (13)	0.0286 (8)
H6A	0.287929	0.800888	0.561970	0.034*
H6B	0.385168	0.669535	0.588489	0.034*
C36	−0.0650 (3)	0.1818 (4)	0.57440 (15)	0.0336 (8)
H36	−0.057209	0.127441	0.543794	0.040*
C25	0.3696 (4)	0.5416 (5)	0.44102 (14)	0.0341 (8)
H25	0.405045	0.545645	0.409984	0.041*
C35	−0.1586 (3)	0.1546 (5)	0.60512 (15)	0.0388 (9)
H35	−0.226056	0.078382	0.599912	0.047*
C7	0.0270 (4)	0.4682 (5)	0.67877 (14)	0.0388 (9)
H7A	−0.044043	0.500341	0.698061	0.047*
H7B	0.089098	0.407663	0.702043	0.047*
C2	0.0650 (3)	0.6893 (4)	0.57597 (14)	0.0328 (8)
H2A	0.003612	0.619174	0.555523	0.039*
H2B	0.076571	0.790207	0.557356	0.039*
C24	0.4503 (4)	0.8151 (5)	0.47750 (16)	0.0414 (10)
H24A	0.390577	0.904225	0.480668	0.062*
H24B	0.488065	0.825186	0.445837	0.062*
H24C	0.518329	0.818347	0.505466	0.062*
C16	0.3943 (4)	0.2272 (5)	0.66066 (16)	0.0407 (9)
H16	0.422015	0.126906	0.648747	0.049*
C3	0.0176 (4)	0.7253 (5)	0.62797 (15)	0.0437 (10)
H3A	0.032731	0.839800	0.637102	0.052*
H3B	−0.075173	0.702826	0.626991	0.052*
C15	0.4254 (4)	0.2850 (5)	0.70806 (16)	0.0458 (10)
H15	0.478094	0.234306	0.734412	0.055*
C34	−0.2202 (4)	0.2733 (6)	0.68726 (17)	0.0541 (12)
H34A	−0.169792	0.249093	0.719228	0.081*
H34B	−0.291094	0.196567	0.681554	0.081*
H34C	−0.254383	0.382966	0.688193	0.081*
C14	0.3707 (5)	0.5456 (6)	0.75403 (16)	0.0577 (12)
H14A	0.380595	0.656728	0.742796	0.087*
H14B	0.444214	0.516161	0.777864	0.087*
H14C	0.291865	0.536478	0.770330	0.087*
O1	0.5896 (4)	0.8829 (4)	0.61817 (11)	0.0659 (10)
O2	0.551 (2)	0.904 (3)	0.7022 (7)	0.089 (6)	0.5
O3	0.5625 (15)	0.6503 (12)	0.6636 (6)	0.074 (4)	0.5
O4	0.7476 (8)	0.803 (3)	0.6829 (7)	0.093 (6)	0.5
O4'	0.7405 (11)	0.851 (3)	0.6894 (7)	0.109 (7)	0.5
O3'	0.604 (2)	0.6372 (13)	0.6674 (8)	0.124 (8)	0.5
O2'	0.526 (2)	0.870 (3)	0.7006 (9)	0.094 (7)	0.5
