Comparative planetology of the history of nitrogen isotopes in the atmospheres of Titan and Mars

Abstract

We present here a comparative planetology study of evolution of ¹⁴N/¹⁵N at Mars and Titan. Studies show that ¹⁴N/¹⁵N can evolve a great deal as a result of escape in the atmosphere of Mars, but not in Titan’s atmosphere. We explain this through the existence of an upper limit to the amount of fractionation allowed to occur due to escape that is a function of the escape flux and the column density of nitrogen.

1. Introduction

Stable isotope ratios measured in planetary atmospheres are a valuable tool for evaluating the history of that atmosphere due to escape and photochemistry. Escape is of particular interest because it preferentially removes the lighter isotope causing the ratio to become “heavier” over long time periods and can have a profound impact on atmospheric composition. As an example, the D/H ratio in the atmosphere of Venus has been used to determine the amount of water lost from Venus over the history of the Solar System (e.g. Donahue et al., 1997), while several isotope ratios in the atmosphere of Mars provide evidence for long-term erosion of the atmosphere (e.g. Jakosky, 1991).

The evolution of nitrogen in the atmospheres of Titan (e.g. Lunine et al., 1999; Mandt et al., 2009, 2012a, 2014) and Mars (e.g. Fox and Dalgarno, 1983; Fox, 1997) are of particular interest for evaluating the origin and evolution of nitrogen throughout the Solar System. Fig. 1 illustrates nitrogen isotope ratios (¹⁴N/¹⁵N) that have been measured in the terrestrial planets, Titan and comets. These ratios are designated as either primordial (triangles in Fig. 1), or evolved (circles in Fig. 1). Primordial ratios, such as those measured in comets, are believed to have retained the same value they had when the parent body formed during the early stages of the Solar System. These ratios are presumed to provide a direct record of conditions in the protosolar nebula (PSN). Evolved ratios are expected to have changed in value over the history of the Solar System due to processes such as atmospheric escape or photochemistry.

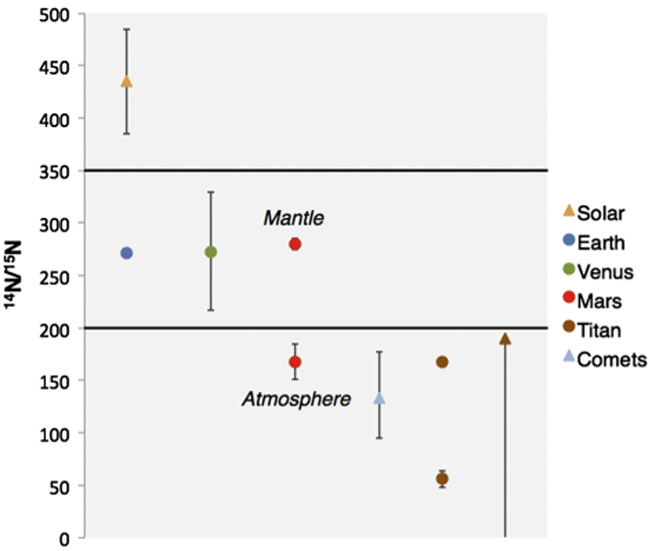

Fig. 1.

Measurements of nitrogen isotope ratios in the terrestrial planets, Titan and comets. Triangles are primordial values representing ¹⁴N/¹⁵N in the PSN. Circles are isotope ratios that have evolved over the 4.6 Billion year history of the Solar System. The primordial value for Titan is inferred from models of atmospheric evolution.

The primordial ratio that is most relevant to evaluating the evolution of Titan and Mars is ¹⁴N/¹⁵N is cometary NH₃ (Rousselot et al., 2014; Shinnaka et al., 2014). This ratio is moderately enriched in ¹⁵N relative to the terrestrial value of 272 (Marty and Zimmermann, 1999), which is likely to be evolved (Pepin, 2006), and heavily enriched compared to a primordial solar ratio of ~435 based on measurements made in the solar wind (Marty et al., 2011) and Jupiter’s atmosphere (Owen et al., 2001). The cometary ratio represents ¹⁴N/¹⁵N in NH₃ in the PSN, while the solar ratio represents ¹⁴N/¹⁵N in N₂ in the PSN. The primordial ratio for both Titan and Mars, if properly constrained, can give an indication of the atmosphere’s source of nitrogen.

Two ¹⁴N/¹⁵N measurements have been made in Titan’s atmosphere: N₂ of 167.7 ± 1.7 (Niemann et al., 2010) and HCN of 56 ± 8 (Vinatier et al., 2007). The much lower ratio in HCN is the result of self-shielding processes in the photodissociation of N₂ (Liang et al., 2007). In Fig. 1 we also provide an upper limit of ~190 for Titan’s primordial ¹⁴N/¹⁵N due to demonstrated limitations in the degree to which Titan’s atmosphere can evolve due to escape (Mandt et al., 2014). The similarity between the primordial ¹⁴N/¹⁵N for Titan and ¹⁴N/¹⁵N in ammonia in comets (Rousselot et al., 2014; Shinnaka et al., 2014) suggests that the nitrogen in Titan’s atmosphere originated in the cold PSN where the building blocks of Titan are likely to have formed (Mousis et al., 2009; Mandt et al., 2014).

Fig. 1 also provides two measurements for ¹⁴N/¹⁵N at Mars. ¹⁴N/¹⁵N in the mantle of Mars has been determined to be 280 ± 5 based on ¹⁴N/¹⁵N measured in an SNC meteorite (Mathew and Marti, 2001). This is thought to represent the isotope ratio for nitrogen when the atmosphere of Mars formed. As Fig. 1 illustrates, the ¹⁴N/¹⁵N for the mantle of Mars is within the same range as ¹⁴N/¹⁵N on Earth and Venus. At this time, it is not clear how nitrogen was delivered to the terrestrial planets, but it appears that all three planets had a ratio within the range of 250–300 when their atmospheres formed (e.g. Pepin, 2006). Fig. 1 also shows the most recent value measured in the atmosphere of Mars, 173 ± 11 (Wong et al., 2013). Like Titan, this value is within the range of cometary NH₃, but as previously stated atmospheric escape has been demonstrated to lower the ratio from the value determined for the mantle to the value found today in Mars’ atmosphere (e.g. Fox and Dalgarno, 1983; Fox, 1997).

The fact that Mars and Titan both have atmospheric ¹⁴N/¹⁵N in the range of cometary NH₃, but vastly different reasons for this similarity is curious. It seems contradictory that the nitrogen isotopes are able to fractionate significantly through escape at Mars but not at Titan. However, the difference between the influence of escape on the nitrogen isotopes at Mars and Titan can be explained by a limitation in fractionation that is a function of the escape flux and the column density of the atmospheric constituent. We demonstrate here how it is possible for the limits of fractionation for Titan to be very different than the limits for Mars.

2. The upper limit for fractionation due to escape

2.1. Methodology

The Rayleigh distillation relationship is commonly used to describe fractionation of an isotope ratio due to a single process. This is determined to be a function of the initial, n₀, and current, n, inventory of the constituent and a fractionation factor, f:

$$n_0∕n=(R∕R_0{)}^{\frac{1}{1-f}}$$ (1)

where R is the current ratio (heavy/light) and R₀ is the initial ratio. The ratio R/R₀ defines the degree of enrichment in the heavier isotope over the primordial value. When R/R₀ is less than one, the current inventory is depleted in the heavy isotope compared to the initial inventory while a value greater than one demonstrates enrichment in the heavy isotope.

An upper limit for the initial inventory of the constituent can be determined based on the maximum escape flux and the amount of time the fractionating process has been in effect:

$$n_0∕n⩽\frac{\varphi t+n}{n}=\varphi t∕n+1$$ (2)

where ϕ is the maximum escape flux and t is time. Combining Eqs. (1) and (2) gives:

$$(R∕R_0{)}^{\frac{1}{1-f}}⩽\varphi t∕n+1$$ (3)

which can be rearranged to provide an upper limit for the enrichment in the heavier isotope relative to the primordial value:

$$R∕R_0⩽(\varphi t∕n+1{)}^{(1-f)}$$ (4)

Eq. (4) can be used to define an upper limit for the enrichment in the heavy isotope in a planet’s atmosphere when the fractionation factor, the maximum escape rate and the timescale are well understood.

Some consideration needs to be given to changing escape rates due to evolution of the Sun. In the early stages of the Solar System, the extreme ultraviolet (EUV) flux from the Sun was significantly greater than it is today (Ribas et al., 2005). As a result, the escape of particles from planetary atmospheres was likely to have been greater in the past. It is possible to evaluate the enrichment in the heavier isotope for a case where the escape flux varies with time by integrating the ratio of the escape flux to the column density with time as follows

$$R∕R_0⩽{\left({\int }_{t_0}^t\varphi ∕ndt+1\right)}^{(1-f)}$$ (5)

2.2. Application to Mars and Titan

We can apply (Eqs. 4) and (5) to the evolution of ¹⁴N/¹⁵N in the atmospheres of Mars and Titan by evaluating what is known about escape processes for these two bodies. Table 1 gives input parameters based on research that has been done for each atmosphere.

Table 1.

Input parameters used to determine the upper limit for fractionation due to escape based on published studies of Mars and Titan.

	Escape type	Mars	Titan
Atmospheric col. density (cm−2)		~2 × 1023	2.37 × 1026
Nitrogen abundance		0.02	0.98
n (cm−2)		~4 × 1021	2 × 1026
ϕ (cm−2 s−1)	Non-thermal	8.1 × 105 (now)a	7 × 107c
		8.1–81.0 × 105 (past)b
	Jeans		3 × 109 (⩽40 Myr)d,e
	Hydrodynamic		4 × 1012 (⩽40 Myr)d
ϕ/n	Non-thermal	2.0–20.0 × 10−16	3.5 × 10−19
	Jeans		1.5 × 10−17 (⩽40 Myr)
	Hydrodynamic		2.0 × 10−14 (⩽40 Myr)
f	Non-thermal	0.80 (now)f,g	0.73e
		0.80 (past)b, f,g	0.72e
	Jeans		0.82e
	Hydrodynamic		0.98e

^aFox and Dalgarno (1983).

^bChassefière and Leblanc (2011).

^cDe la Haye et al. (2007).

^dPenz et al. (2005).

^eMandt et al. (2014).

^fBakalian and Hartle (2006).

^gChassefière and Leblanc (2004).

The results are illustrated in Fig. 2, where the degree of enrichment in the heavy isotope relative to the primordial value is provided as a function of time for different types of escape processes. For Mars, the thick red line in Fig. 2 represents enrichment due to non-thermal escape under current conditions as calculated with (Eq. 4). This is based on the average escape rate over the solar cycle (Bakalian and Hartle, 2006). According to the Monte Carlo computations made by these authors, the major non-thermal escape mechanism is photodissociation of N₂, dissociative recombination of ${\mathrm{N}}_2^{+}$ being 3 to 10 times less efficient depending on the level of solar activity. The fractionation factor for photodissociation escape is 0.82 based on the ¹⁵N¹⁴N/¹⁴N¹⁴N ratio at the exobase (Fox and Dalgarno, 1983 and references therein). The fractionation factor for dissociative recombination is in the range of 0.51–0.58 (Chassefière and Leblanc, 2004 and references therein). Due to the small contribution of dissociative recombination, the effective f value is in this case close to 0.8.

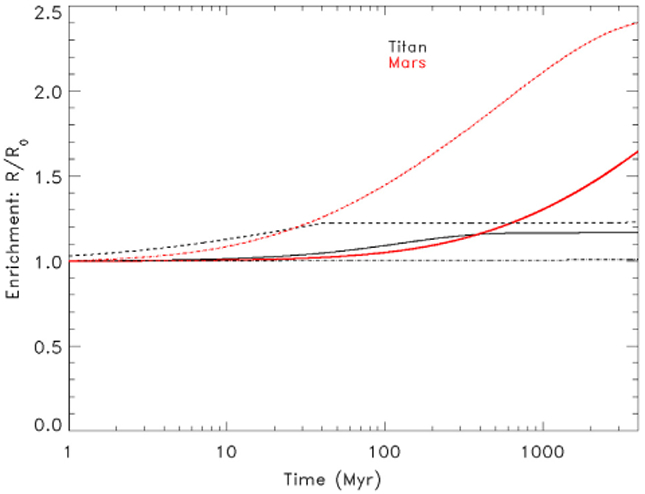

Fig. 2.

Upper limit for the enrichment of ¹⁴N/¹⁵N relative to the primordial value for Titan and Mars. For Titan, we compare the relative influence of sputtering (solid line), hydrodynamic escape (dashed line) and Jeans escape (dash-dot line). For Mars we illustrate the maximum enrichment based on current (solid line) and maximum historic (dashed line) non-thermal escape rates.

The dashed red line gives enrichment due to the maximum possible nonthermal escape rate under past conditions in the atmosphere of Mars (Chassefière and Leblanc, 2011). In order to take into account changes in escape over the history of the Solar System, we need to determine how the total escape rate has changed over time and the fractionation factor based on the dominant loss process. If dissociative recombination was the dominant loss process throughout the history of Mars, the greater abundance of nitrogen in the past would lead to a total past escape rate that is a factor of 2.51 greater than current escape rates and the fractionation factor would be 0.51 to 0.58 (Fox and Dalgarno, 1983). However, Bakalian and Hartle (2006) find that photodissociation is the dominant loss process. Changes in the solar EUV flux over the history of the Solar System would produce non-thermal escape fluxes that were an order of magnitude greater than current escape rates at the beginning of the Solar System (Ribas et al., 2005; Chassefière and Leblanc, 2011). The escape rate would then have decreased logarithmically over time to its current rate (see Chassefière and Leblanc, 2011, Fig. 3). In this case the fractionation factor would have been 0.80. We calculated the upper limit for fractionation at Mars using Eq. (5) and an escape flux that decreased with time based on the work of Chassefière and Leblanc (2011: Fig. 3) and f of 0.80.

Penz et al. (2005) and De la Haye et al. (2007) have evaluated current and past escape rates for nitrogen for Titan. Penz et al. (2005) found that thermal escape processes (hydrodynamic and Jeans escape) would have been effective for no more than 40 Myr based on changes in the EUV radiation of the Sun. In Fig. 2 we illustrate an upper limit of fractionation for Titan due to hydrodynamic (dashed black line) and Jeans escape (dot-dashed black line) of nitrogen based on this time limit. Fractionation due to sputtering (solid black line) is presented for the lifetime of the Solar System.

3. Discussion and conclusions

It is first clear from Fig. 2 that the longer an escape process is in effect, the greater the possible fractionation. It is also clear that, except in the case of hydrodynamic escape on Titan, the nitrogen isotopes on Mars will fractionate more rapidly than on Titan. We find that over the lifetime of the Solar System, sputtering on Mars would enrich the nitrogen isotopes by a factor of 1.45 to 2.40 relative to the primordial value, which gives a maximum initial ¹⁴N/¹⁵N of 415. The measured enrichment in ¹⁴N/¹⁵N on Mars is 1.6 times the presumed primordial value (Mathew and Marti, 2001; Wong et al., 2013), which is well within this range.

For Titan we find that neither sputtering nor Jeans escape is able to change the ¹⁴N/¹⁵N in Titan’s atmosphere by more than 1% as is illustrated in Fig. 2. This is because the column density, n, relative to the escape flux, ϕ, for these two processes is very low. In hydrodynamic escape of nitrogen, the escape flux relative to the column density is much higher, so total fractionation in this case is limited by time and the fractionation factor. For the hydrodynamic escape upper limit illustrated in Fig. 2, we use the most efficient combination of escape flux and fractionation factor as determined in Mandt et al. (2014). The upper limit based on (Eq. 4) for enrichment of ¹⁴N/¹⁵N on Titan is 1.23 times Titan’s primordial value. This gives an upper limit for primordial ¹⁴N/¹⁵N at Titan of 206. Therefore, it is possible for ¹⁴N/¹⁵N to fractionate more on Mars than on Titan due to the difference in escape rates relative to nitrogen column density. However, it is important to note that this evaluation does not consider late delivery of significant cometary NH₃ to Titan after hydrodynamic escape has ended (e.g. Trigo-Rodriguez and Martin-Torres, 2012), which could reset the ¹⁴N/¹⁵N to the cometary value.

In this study we have not included fractionation due to past hydrodynamic escape of hydrogen that drags nitrogen out of the atmosphere for neither Mars nor Titan (e.g. Chassefière, 1996; Mandt et al., 2009). Pepin (1994) and Jakosky et al. (1994) concluded that nitrogen on Mars would not be fractionated by hydrodynamic escape of hydrogen based on the fractionation observed in the Xe and Kr isotopes. For Titan, we found in previous work (Mandt et al., 2009) that this type of fractionation is not efficient because too much of the heavy isotope is dragged out of the atmosphere.

The main limitation of this study is that it focuses only on escape and neglects photochemistry, which can also fractionate the isotopes. Photochemistry on Titan has been shown to preferentially remove the heavier isotope due to self-shielding in the atmosphere (Liang et al., 2007). This process will reduce the isotope enrichment described by (Eq. 4) and illustrated in Fig. 2 and will help to keep ¹⁴N/¹⁵N within the range determined for ¹⁴N/¹⁵N in cometary NH₃.

Photochemical fractionation of nitrogen on Mars has been evaluated primarily for its role in producing odd nitrogen through photodissociation, which then escapes from the atmosphere (Fox and Dalgarno, 1983). Permanent loss of nitrogen through deposition of nitrate and nitrate minerals is estimated to be as much as 3 × 10₅ cm₋₂ s⁻¹ (Yung et al., 1977), which is the same order of magnitude as the current nitrogen loss rates due to escape. However, we did a basic calculation of photodissociation rates for Mars by adapting our Ion-Neutral Thermal model (INT12 – Mandt et al., 2012b) for the atmospheric conditions of Mars (i.e. temperature, composition) and found that the column density of nitrogen is too low to provide self-shielding, so this process is not effective at Mars. The implication of this is that measurements of ¹⁴N/¹⁵N in surface nitrates on Mars would provide the opportunity to study the history of ¹⁴N/¹⁵N in the atmosphere of Mars.
