Validating UMLS Semantic Type Assignments Using SNOMED CT Semantic Tags

Summary

Background:

The UMLS assigns semantic types to all its integrated concepts. The semantic types are widely used in various natural language processing tasks in the biomedical domain, such as named entity recognition, semantic disambiguation, and semantic annotation. Due to the size of the UMLS, erroneous semantic type assignments are hard to detect. It is imperative to devise automated techniques to identify errors and inconsistencies in semantic type assignments.

Objectives:

Designing a methodology to perform programmatic checks to detect semantic type assignment errors for UMLS concepts with one or more SNOMED CT terms and evaluating concepts in a selected set of SNOMED CT hierarchies to verify our hypothesis that UMLS semantic type assignment errors may exist in concepts residing in semantically inconsistent groups.

Methods:

Our methodology is a four-stage process. 1) partitioning concepts in a SNOMED CT hierarchy into semantically uniform groups based on their assigned semantic tags; 2) partitioning concepts in each group from 1) into the disjoint subgroups based on their semantic type assignments; 3) mapping all SNOMED CT semantic tags into one or more semantic types in the UMLS; 4) identifying semantically inconsistent groups that have inconsistent assignments between semantic tags and semantic types according to the mapping from 3) and providing concepts in such groups to the domain experts for reviewing.

Results:

We applied our method on the UMLS 2013AA release. Concepts of the semantically inconsistent groups in the PHYSICAL FORCE and RECORD ARTIFACT hierarchies have error rates 33% and 62.5% respectively, which are greatly larger than error rates 0.6% and 1% in semantically consistent groups of the two hierarchies.

Conclusion:

Concepts in semantically inconsistent groups are more likely to contain semantic type assignment errors. Our methodology can make auditing more efficient by limiting auditing resources on concepts of semantically inconsistent groups.

1. Introduction

Biomedical ontologies are widely used in healthcare information systems such as electronic health records, clinical decision support systems, and administrative documents. Notably, the Unified Medical Language System (UMLS), developed and maintained by the United States National Library of Medicine (NLM), is one of the most comprehensive terminological systems in biomedicine [1]. The UMLS has a twolayer structure. Its Metathesaurus is a repository of over three million concept names and over ten million terms with hierarchical and lateral relationships among them [2]. The Semantic Network, which overlays the Metathesaurus of the UMLS, consists of 127 broad categories called semantic types [3]. Each UMLS concept is assigned one or more semantic types. For example, the concept Myocardial Infarction is assigned the semantic type Disease or Syndrome. As described in [4], the semantic type assignment task is done semiautomatically. The NLM first carries out the semantic type assignment algorithmically when possible using the semantic information provided by the source terminologies, then subject matter experts are recruited to conduct further reviews of the automated semantic type assignments as well as additional manual assignments. Due to the scale and complexity of the UMLS Metathesaurus, it is unavoidable that errors and inconsistencies of semantic type assignments are introduced to the UMLS during the semiautomated semantic type assignment process. As a matter of fact, in a recent paper of He et al. [5], we found that the editors of the UMLS reintroduced inconsistencies and errors of the semantic type assignments that were corrected in earlier versions. For example, the combination of semantic types Congenital Abnormality and Finding was assigned to concepts in 2007AB. This combination of semantic types disappeared in 2008AA and reappeared in 2011AA. Due to the size of the UMLS, semantic type assignment errors are unavoidable and hard to detect [5]. It is thus imperative to devise automated and semiautomated techniques to detect the semantic type assignment errors and aid the ongoing quality assurance for the UMLS, an important part of any terminology’s development life cycle [6]. It is likely that the UMLS with more accurate semantic type assignments will improve its utility in various healthrelated applications that use the UMLS for named entity recognition and semantic annotation [7, 8, 9, 10].

In this paper, we develop a methodology that programmatically detects inconsistencies between semantic type assignments of a group of concepts in the UMLS and their associated semantic tag in their source terminology SNOMED CT [11]. We hypothesize that UMLS semantic type assignment errors may exist in concepts residing in these inconsistent groups. In this method, we first partition SNOMED CT concepts into groups with the same semantic tag. Then we partition each group such that the concepts in a subgroup have the same set of semantic types. To enable automated detection of inconsistencies of semantic tags and semantic types, we map every SNOMED CT semantic tag to one or more UMLS semantic types that semantically fit the semantic tag according to the usage notes of the semantic types. We then programmatically inspect semantic consistency between the semantic type assignment in the UMLS and its semantic tag in SNOMED CT. We demonstrate this crossvalidation QA method by applying it to 2013AA release of the UMLS, which contains January 2013 version of SNOMED CT.

The rest of the paper will be organized as follows: Section 2 briefly reviews various auditing methodologies as well as the application of the UMLS semantic types. Section 3 thoroughly describes our method of the application of semantically inconsistent groups to identify semantic type assignment errors. Section 4 presents the results, followed by conclusions and discussions in Section 5 and 6.

2. Background

2.1. SNOMED CT

SNOMED CT is one of the most comprehensive clinical healthcare terminologies in the world [11]. According to January 2017 release of SNOMED CT, it consists of more than 430,000 concepts, more than 2.5 million relationships and more than 1.3 million descriptions [12]. SNOMED CT concepts are organized into 19 hierarchies, with each hierarchy capturing a specific topic and similar types of concepts in the clinical domain, such as CLINICAL FINDING, PROCEDURE, PHARMACEUTICALS AND BIOLOGIC PRODUCTS, and so on. Within each hierarchy, concepts are organized from the general to the more specific with the ISA relations. The ‘Top Level Concepts’, which are usually the root of each hierarchy, are used to name the main branch of the hierarchy. Each concept in SNOMED CT has a fully specified name (FSN) to uniquely describe a concept and clarify its meaning. Each FSN ends with a semantic tag to represent the concept’s semantic category [11]. All the concepts of a hierarchy may share the same semantic tag. For example, all concepts in SPECIMEN hierarchy have the same semantic tag specimen that is the hierarchy’s Top Level Concept name. The majority of hierarchies have one semantic tag. Although each hierarchy stands for one category, concepts from the same hierarchy may have different semantic tags. For example, the concepts protein diet and avian sarcoma of CLINICAL FINDING hierarchy have semantic tags finding and disorder respectively. As a matter of fact, semantic tags finding and disorder are the only two semantic tags that concepts in CLINICAL FINDING hierarchy have. SNOMED CT has been first released in 2002 and then made available to U.S. users within the UMLS since 2003 [13].

2.2. Related Work on UMLS Auditing

The UMLS integrates more than 170 biomedical terminologies, including MeSH, RxNorm, SNOMED CT, CPT, and LOINC When a concept is integrated into this large terminology system, it is assigned at least one semantic type to specify its categorization at an abstract level. To automatically identify semantic type assignment errors, a compact abstract view of the UMLS was described and a divide-and-conquer approach was proposed to handle the categorization problem in UMLS [14]. In [15], inconsistencies between UMLS Metathesaurus and Semantic Network were detected by checking the ancestordescendant relationships in UMLS Metathesaurus. In [5, 16], concepts with similar semantics were grouped together by using an algorithmic method. Suspicious concepts were presented to human auditors, and concepts with wrong or missing semantic type (ST) assignment became noticeable to the auditors. To support auditors to efficiently detect inconsistencies, such as semantic type assignment errors, various auditing tools have been developed and utilized in [17, 18]. The Neighborhood Auditing Tool (NAT) [19] provides a “neighborhood-based” auditing platform, where it displays the focus concept and a variety of its closed related concepts[19]. This hybrid diagram and text interface allows an auditor to present knowledge from both concept level and semantic type level. As a preventive method, a rulebased support system AdviseEditor was developed to specify whether a combination of semantic types is permissible, which can help facilitate the work of UMLS editors and prevent erroneous semantic type assignment [18].

In recent research studies [20, 21], a crossvalidation strategy involving SNOMED CT’s hierarchy has been proposed to effectively and efficiently identify UMLS semantic type assignment errors [20, 21]. Gu et al. proposed a UMLS quality assurance (QA) methodology based on the hypothesis that a semantic-type assignment combination applicable only to a very small number of concepts in a SNOMED CT hierarchy is an indicator of potential problems. The auditing results confirmed our hypothesis [20].

2.3. Applications of UMLS Semantic Types

The semantic types of the UMLS have been widely used in natural language processing [22, 23, 24], ontology learning [25], and various health informatics applications [7, 8, 9, 10, 26]. The semantic types are often used to capture the semantic information of the terms in specific categories in order to acquire their precise meanings [22]. Albright et al. created annotated clinical narratives with syntactic and semantic labels using UMLS semantic types to facilitate the advancement of clinical natural language processing [23]. Zhang et al. used UMLS semantic types to extract and categorize three types of new information in clinical notes (i.e., problems, medications, and laboratory information) that is not copied and pasted from previous notes and performed an longitudinal analysis of these information in the notes [24]. Hoxha et al. presented an automated method for taxonomy learning using agglomerative hierarchical clustering [25]. Luo et al. introduced a system called SimQ to retrieve similar consumer questions, which reduced the response delay by instantly providing related questions and answers [7]. In the SimQ system, consumer questions are represented with UMLS semantic types and syntactic features (part-of-speech); the similarities among the questions are then computed for retrieving similar questions. Park et al. analyzed the coverage of the UMLS concepts and semantic types in consumers’ generated text on social platforms such as blogs and social Q&As [8]. Yu and He used the semantic types to analyze the semantic coverage of the consumer terms in the online communities of deaf and autism [27]. Weng et al. developed EliXR – a semantic representation for clinical trial eligibility criteria to support the electronic patient eligibility determination [9]. In the EliXR system, 20 UMLS semantic types were used to identify related medical concepts in the freetext eligibility criteria. Frequently occurring semantic patterns were observed to capture the complex semantic information in the eligibility criteria. He et al. recently developed a tool called simiTerm to identify consumer terms in social media free text that were contextually and syntactically similar to existing terms in the Open Access and Collaborative Consumer Health Vocabulary [10]. To capture the similarities among terms, the simiTerm tool annotated the semantic information of the given term and the terms in its context using the UMLS semantic types [10]. Due to the wide use of semantic types in various applications, erroneous semantic type assignments of the UMLS concepts can negatively affect these applications such as those mentioned above and therefore detecting and correcting these errors are important.

3. Methods

Our methodology is a fourstage process.

We first partition concepts of a SNOMED CT hierarchy into groups such that concepts in a group have the same semantic tag. We use Concept(H) to represent the set of all concepts in hierarchy H. Concept_tg(H) is used to denote a subset of Concept(H), which contains concepts with the same semantic tag tg in hierarchy H. Since each concept has only one semantic tag, all subsets Concept_tg(H) of Concept(H) are disjoint. For example, the set of all 97,630 concepts of hierarchy CLINICAL FINDING, Concept(CLINICAL FINDING), is divided into two disjoint subsets, Concept_finding(CLINICAL FINDING) that contains 33,038 concepts with semantic tag finding, Concept_disorder(CLINICAL FINDING) with 64,592 concepts that have semantic tag disorder. If hierarchy H contains only one semantic tag tg, Concept(H) will be the same as Concept_tg(H). For example, all concepts of the SPECIMEN hierarchy have the same semantic tag specimen. Therefore, Concept(SPECIMEN) is the same as Concept_specimen(SPECIMEN).

When a SNOMED CT concept is integrated into the UMLS, it is assigned one or more semantic types that represent the concept’s semantic categorization. Concepts in Concept_tg(H) can be assigned to the same semantic type or different semantic types. For example, concepts Animal trials, Clinical drug trials, Daily bathing, and Gene replacement therapy are all from Concept_procedure(PROCEDURE), but their semantic type assignments are not all the same. Animal trials and Clinical drug trials are assigned to the same semantic type Research Activity, while Daily bathing’s semantic type is Daily or Recreational Activity, and Gene replacement therapy is assigned to both semantic types Therapeutic or Preventive Procedure and Molecular Biology Research Technique in the UMLS.

In the second stage, all concepts in Concept_tg(H) are further partitioned into the disjoint groups such that all concepts of each group have the same semantic type assignment – the set of semantic types assigned to concepts. We use Group_sty(Concept_tg(H)) to represent a subset of Concept_tg(H), in which all concepts have the same semantic type assignment sty. Note that a sty can consist of single semantic type or multiple semantic types, i.e., in the previous example, Animal trials and Clinical drug trials are members of Group_{{Research Activity}}(Concept_procedure(PROCEDURE)) and Daily bathing is a member of Group_{{Daily or Recreational Activity}}(Concept_procedure(PROCEDURE)). Both groups have single semantic type assignments {Research Activity} and {Daily or Recreational Activity} respectively, while Gene replacement therapy is the member of Group_{{Therapeutic or Preventive Procedure, Molecular Biology Research Technique}}(Concept_procedure(PROCEDURE)) whose semantic type assignment consists of two semantic types Therapeutic or Preventive Procedure and Molecular Biology Research Technique. For example, concepts of Concept_procedure (PROCEDURE) are partitioned into 34 disjoint groups. Four of them possess semantic type assignments consisting of at least two semantic types.

In order to enable automatic inconsistency detection, every semantic tag tg is mapped to one or more UMLS Semantic Types that semantically fit the tg in the third stage of the process. The mapping was done through the following three steps: 1) identification of the introduction concept of the semantic tag tg. This can be the root concept of the hierarchy H with semantic tag tg, or a nonroot concept with semantic tag tg which is different from that of its parents (see Figure 1); 2) review of the FSNs of the introduction concept and its child concepts with the same semantic tag tg and identification of appropriate semantic type(s) by reviewing the definitions and usage notes [3] for semantic type(s); and 3) map semantic tag tg to semantic type(s) that are identified in 2). For example, in CLINICAL FINDING hierarchy, concept clinical finding is the root concept of hierarchy with the semantic tag finding. Thus it is identified as the introduction concept of semantic tag finding. After reviewing the FSNs of clinical finding, and its child concepts, such as bleeding, calculus finding, edema, and etc. with the same semantic tag finding, we mapped the semantic tag finding to semantic type finding, which was defined as “That which is discovered by direct observation or measurement of an organism attribute or condition, including the clinical history of the patient. The history of the presence of a disease is a ‘Finding’ and is distinguished from the disease itself.” [3] For the other semantic tag disorder in this hierarchy, disease was identified as the introduction concept since its parent concept clinical finding has the semantic tag finding that is different from disorder. After carefully reviewing FSNs of disease and its child concepts with the semantic tag disorder we conclude semantic tag disorder can be mapped to multiple semantic types Mental or Behavioral Dysfunction, Disease or Syndrome, Congenital Abnormality, Acquired Abnormality, Injury or Poisoning, Pathologic Function and finding.

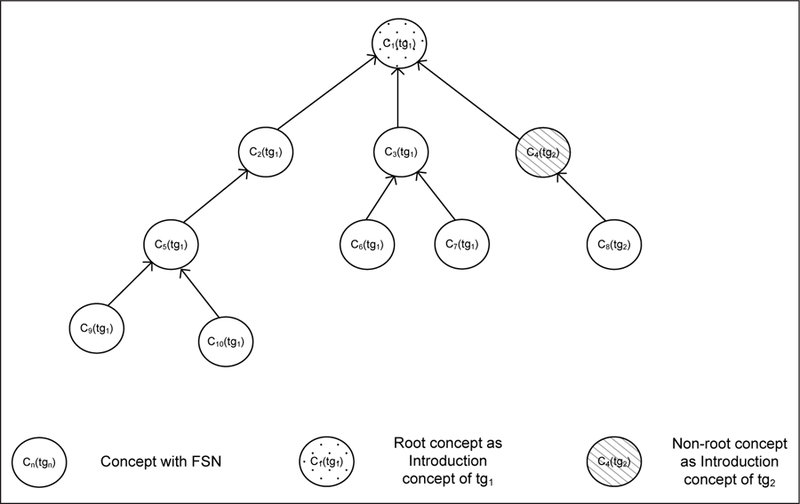

Figure 1.

Illustration of introduction concepts of semantic tags in SNOMED CT hierarchy.

The fourth stage is to verify the consistency between semantic tag tg and semantic type assignment sty of Group_sty(Concept_tg(H)). For each Group_sty(Concept_tg(H)), we programmatically inspect semantic consistency between its semantic type assignment sty in the UMLS and its semantic tag tg in SNOMED CT. The consistency is determined by whether there exists an agreement between semantic type sty of Group_sty(Concept_tg(H)) and the mapped semantic type(s) (msty) or their descendants of a semantic tag tg. For example, semantic type bacterium ∈ {bacterium} of Group_{bacterium}(Concept_organism(ORGANISM)) is a child of semantic tag organism’s mapped semantic type organism. Therefore, the semantic type assignment {bacterium} for the concepts of Group_{bacterium}(Concept_organism(ORGANISM)) is considered consistent with semantic tag organism in the SNOMED CT. However, semantic type food {food} of Group_{food}(Concept_{cell structure}(BODYSTRUCTURE)) is considered inconsistent, because the semantic tag cell structure was mapped to semantic type cell component that doesn’t have semantic type food as a descendant.

We present our semantic inconsistency detection algorithm as on the left.

Using the above algorithm, we identify a list of concept groups for each SNOMED CT hierarchy with semantic inconsistency between semantic type assignment and semantic tag. These groups will be provided to domain experts for further reviewing. We will evaluate concepts in a selected set of hierarchies to verify our hypothesis that UMLS semantic type assignment errors may exist in concepts residing in semantically inconsistent groups.

$$\begin{array}{l}Algorithm SemanticInconsistencyDetection\\ \hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\text{let SH be the set of all SNOMED Hierarchies,}\left|\text{SH}\right|\text{= 19;}\\ \hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\text{let T be the set of all semantic}\hspace{0.17em}\text{tags}\hspace{0.17em}\text{in}\hspace{0.17em}\text{the}\hspace{0.17em}\text{SNOMED}\hspace{0.17em}\text{CT,}\left|\text{T}\right|\text{=39;}\\ \hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\text{let}\hspace{0.17em}\text{ST be the set of all semantic}\hspace{0.17em}\text{types}\hspace{0.17em}\text{of}\hspace{0.17em}\text{semantic}\hspace{0.17em}\text{network}\hspace{0.17em}\text{of}\hspace{0.17em}\text{UMLS,}\left|\text{ST}\right|\text{=133;}\\ \hspace{0.17em}\\ \hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\text{for}\hspace{0.17em}\text{every}\hspace{0.17em}\text{hierarchy}\hspace{0.17em}\text{H}\in \text{SH}\\ \hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\text{let}\hspace{0.17em}\text{set}\hspace{0.17em}\text{SuspiciousGroup}\left(\text{H}\right)=\varphi ;\\ \hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\text{generate}\hspace{0.17em}\text{set}\hspace{0.17em}\text{Concept}\left(\text{H}\right)=\left\{\text{c}|\text{c}\hspace{0.17em}\text{is}\hspace{0.17em}\text{the}\hspace{0.17em}\text{concept}\hspace{0.17em}\text{in}\hspace{0.17em}\text{hierarchy}\hspace{0.17em}\text{H}\right\};\\ \hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\text{generate}\hspace{0.17em}\text{set}\hspace{0.17em}\text{Tag}\left(\text{H}\right)=\left\{tg|tg\in \text{T}\hspace{0.17em}\text{and}\hspace{0.17em}\exists \text{c}\in \text{concept}\left(\text{H}\right)\hspace{0.17em}\text{with}\hspace{0.17em}\text{semantic}\hspace{0.17em}\text{tag}\hspace{0.17em}tg\right\};\\ \hspace{0.17em}\\ \hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\text{for}\hspace{0.17em}\text{every}\hspace{0.17em}\text{semantic}\hspace{0.17em}\text{tag}\hspace{0.17em}tg\in \hspace{0.17em}\hspace{0.17em}\text{Tag}\left(\text{H}\right)\\ \hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\text{generate}\hspace{0.17em}\text{set}\hspace{0.17em}{\text{concept}}_{tg}\left(\text{H}\right)=\left\{\text{c}|\text{c}\in \text{Concept}\left(\text{H}\right)\hspace{0.17em}\text{whose}\hspace{0.17em}\text{semantic}\hspace{0.17em}\text{tag}\hspace{0.17em}\text{is}\hspace{0.17em}tg\right\};\\ \hspace{0.17em}\\ \hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}//\text{map}\hspace{0.17em}\text{semantic}\hspace{0.17em}\text{tag}\hspace{0.17em}tg\hspace{0.17em}\text{to}\hspace{0.17em}\text{one}\hspace{0.17em}\text{or}\hspace{0.17em}\text{more}\hspace{0.17em}\text{semantic}\hspace{0.17em}\text{types}\hspace{0.17em}\text{that}\hspace{0.17em}\text{have}\hspace{0.17em}\text{the}\hspace{0.17em}\text{same}\hspace{0.17em}\text{semantics}\hspace{0.17em}\text{as}\hspace{0.17em}tg\\ \hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\text{generate}\hspace{0.17em}\text{set}\hspace{0.17em}\text{MType}\left(tg\right)=\left\{\text{m}sty|\text{m}sty\in \text{ST}\hspace{0.17em}\text{and}\hspace{0.17em}\text{has}\hspace{0.17em}\text{the}\hspace{0.17em}\text{same}\hspace{0.17em}\text{semantics}\hspace{0.17em}\text{as}\hspace{0.17em}tg\right\};\\ \hspace{0.17em}\\ \hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}//\text{find}\hspace{0.17em}\text{all}\hspace{0.17em}\text{descendents}\hspace{0.17em}\text{of}\hspace{0.17em}\text{semantic}\hspace{0.17em}\text{types}\hspace{0.17em}\text{in}\hspace{0.17em}\text{MTypes}\left(tg\right)\\ \hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\text{generate}\hspace{0.17em}\text{set}\hspace{0.17em}\text{ST\_Related}\left(tg\right)=\left\{st|\exists \text{m}sty\in \hspace{0.17em}\text{MTypes}\left(tg\right)\hspace{0.17em}\text{and}\hspace{0.17em}st\hspace{0.17em}\text{is}\hspace{0.17em}\text{the}\hspace{0.17em}\text{descendent}\hspace{0.17em}\text{of}\hspace{0.17em}\text{ms}ty\right\};\\ \hspace{0.17em}\\ \hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}//\text{partition}\hspace{0.17em}{\text{Concept}}_{tg}\left(\text{H}\right)\text{into}\hspace{0.17em}\text{a}\hspace{0.17em}\text{collection}\hspace{0.17em}\text{of}\hspace{0.17em}\text{disjoint}\hspace{0.17em}\text{groups}\hspace{0.17em}{\text{Group}}_{sty}\left({\text{Concept}}_{tg}\left(H\right)\right)\hspace{0.17em}\text{such}\hspace{0.17em}\text{that}\hspace{0.17em}\text{all}\\ \hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{1em}\hspace{1em}\hspace{1em}//\text{concepts}\hspace{0.17em}\text{in}\hspace{0.17em}\text{a}\hspace{0.17em}\text{group}\hspace{0.17em}\text{have}\hspace{0.17em}\text{the}\hspace{0.17em}\text{same}\hspace{0.17em}\text{samantic}\hspace{0.17em}\text{type}\hspace{0.17em}\text{assignment}\hspace{0.17em}sty\\ \hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\text{generate}\hspace{0.17em}\text{set}\hspace{0.17em}\text{Group}\hspace{0.17em}\left({\text{Concept}}_{tg}\left(H\right)\right)=\{{\text{Group}}_{sty1}\left({\text{Concept}}_{tg}\left(H\right)\right),\\ \hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}{\text{Group}}_{sty2}\left({\text{Concept}}_{tg}\left(H\right)\right),\dots ,\\ \hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{1em}\hspace{1em}\hspace{1em}{\text{Group}}_{styn}\left({\text{Concept}}_{tg}\left(H\right)\right)\};\\ \hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\text{generate}\hspace{0.17em}\text{set}\hspace{0.17em}\text{ST\_Assignment}\left(tg\right)=\left\{sty1,sty2,\dots ,styn\right\};\\ \hspace{0.17em}\\ \hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\text{for}\hspace{0.17em}\text{every}\hspace{0.17em}\text{semantic}\hspace{0.17em}\text{type}\hspace{0.17em}\text{assignment}\hspace{0.17em}sty\in \text{ST\_Assignment}\left(tg\right)\\ \hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{1em}\hspace{1em}\hspace{1em}\text{if}\hspace{0.17em}\exists \text{s}\in \text{s}ty\hspace{0.17em}\text{and}\hspace{0.17em}\text{s}\notin \left(\text{MType}\left(tg\right)\cup \text{ST\_Assignment}\left(tg\right)\right)\\ \hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\text{then}\\ \hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}sty\hspace{0.17em}\text{is}\hspace{0.17em}\text{not}\hspace{0.17em}\text{consistent}\hspace{0.17em}\text{with}\hspace{0.17em}tg;\\ \hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\text{SuspiciousGroup}\left(\text{H}\right)\text{=SuspiciousGroup}\left(\text{H}\right)\cup {\text{Group}}_{sty}\left({\text{Concept}}_{tg}\left(H\right)\right);\end{array}$$

4. Results

Our auditing method was applied on the UMLS 2013AA and January 2013 release of the SNOMED CT. For every hierarchy, its semantic tag(s) and their mapped semantic types are listed in Table 1. This mapping process was done semiautomatically by programmatically identifying introduction concepts of semantic tags and manually reviewing (by YC and GE, two of the authors) their FSNs and the definitions of semantic types. Out of 19 hierarchies, nine hierarchies have only one semantic tag, and other 10 have 2 to 7 semantic tags. Each semantic tag, except product, appears in only one hierarchy. There are 12 concepts with semantic tag product that belong to both hierarchies PHARMACEUTICAL PRODUCT and PHYSICAL OBJECT. The 39 different SNOMED CT semantic tags were mapped to 47 different semantic types of UMLS Semantic Network. Some of the semantic tags were mapped to single semantic type, e.g., semantic tags cell and event were mapped to semantic types Cell and Event respectively, while others were mapped to multiple semantic types, e.g., semantic tag procedure was mapped to three semantic types Diagnostic Procedure, Laboratory Procedure, and Therapeutic or Preventive Procedure. Due to the different levels of semantic refinements between semantic tags and semantic types, one or more semantic tags may be mapped to the same semantic type. For example, semantic tags attribute, link assertion, and qualifier value were all mapped to semantic type Idea or Concept. There are eight such semantic types that receive mapping from different semantic tags.

Table 1.

Mappings of SNOMED CT semantic tags and UMLS semantic types.

SNOMED CT Hierarchies	SNOMED CT Semantic Tags	Mapped UMLS Semantic Types
BODY STRUCTURE	body structure	Body Space or Junction, Body Location or Region
	cell	Cell
	cell structure	Cell Component
	morphologic abnormality	Anatomical Abnormality, Neoplastic Process
CLINICAL FINDING	disorder	Acquired Abnormality, Congenital Abnormality, Disease or Syndrome, Finding, Injury or Poisoning, Mental or Behavioral Dysfunction, Pathologic Function
	finding	Finding
ENVIRONMENT OR GEOGRAPHICAL LOCATION	environment	Geographic area, Health Care Related Organization, Manufactured Object, Phenomenon or Process, Spatial Concept
	environment / location	Geographic Area, Spatial Concept
	geographic location	Geographic Area
EVENT	event	Event
LINKAGE CONCEPT	attribute	Idea or Concept
	link assertion	Idea or Concept
	linkage concept	Functional Concept, Intellectual Product, Qualitative Concept, Quantitative Concept, Spatial Concept, Temporal Concept
OBSERVABLE ENTITY	observable entity	Clinical Attribute, Finding
ORGANISM	organism	Organism
PHARMACEUTICAL PRODUCT	product	Chemical, Clinical Drug
PHYSICAL FORCE	physical force	Natural Phenomenon or Process, Phenomenon or Process
PHYSICAL OBJECT	physical object	Biomedical or Dental Material, Manufactured objects
	product	Manufactured Objects
PROCEDURE	procedure	Diagnostic Procedure, Laboratory Procedure, Therapeutic or Preventive Procedure
	regime/therapy	Therapeutic or Preventive Procedure
QUALIFIER VALUE	qualifier value	Intellectual Product, Idea or Concept
RECORD ARTIFACT	record artifact	Intellectual Product
SITUATION WITH EXPLICIT CONTENT	situation with explicit content	Finding
SOCIAL CONTEXT	ethnic group	Population Group
	life style	Behavior
	occupation	Occupation or Discipline, Professional or Occupational Group
	person	Age Group, Family Group, Patient or Disabled Group, Population Group, Professional or Occupational Group
	racial group	Population Group
	religion/philosophy	Finding, Idea or Concept, Population Group
	social concept	Idea or Concept
SPECIAL CONCEPT	inactive concept	Functional Concept
	namespace concept	Functional Concept
	navigational concept	Functional Concept
	special concept	Functional Concept
SPECIMEN	specimen	Body Part, Organ, or Organ Component, Body Substance, Substance, Tissue
STAGING AND SCALES	assessment scale	Classification, Intellectual Product
	staging scale	Classification, Intellectual Product
	tumor staging	Classification, Intellectual product
SUBSTANCE	Substance	Substance
Total: 19	39	47

For each hierarchy, the concept groups with semantic inconsistencies between semantic type assignment and semantic tag were programmatically identified. For example, seven out of nine concept groups were detected with semantic inconsistencies in the PHYSICAL FORCE hierarchy (Table 2). We also reviewed all concepts in the hierarchy for verification purposes and the results were shown in the column “# of concepts with error” of Table 2. Six out of 18 concepts in seven semantically inconsistent groups have semantic type assignment errors. For example, both concept Ultraviolet radiation in diagnosis in Group_{{Diagnostic Procedure}}(Concept_{physicalforce}(PHYSICAL FORCE) and concept Continued movement in Group{_{Qualitative Concept}}(Concept_{physical force}(PHYSICAL FORCE) were identified by the program as potential erroneous concept with improper semantic assignments. Upon examination of the concepts, the auditor considered that concept Ultraviolet radiation in diagnosis should be assigned semantic type Natural Phenomenon or Process, and concept Continued movement should have Phenomenon or Process as its semantic type. In two semantically consistent groups, concept high altitude is the only concept in Group_{{Natural Phenomenon or Process}}(Concept_{physicalforce}(PHYSICAL FORCE) which has semantic type assignment error. It should be assigned to the semantic type Quantitative Concept, not Natural Phenomenon or Process. In Table 3, we showed the results for hierarchy RECORD ARTIFACT.

Table 2.

Semantic inconsistency groups detected in hierarchy PHYSICAL FORCE.

Semantic Tag	Semantic Type Assignments	Semantically Inconsistent	# Of Concepts	# Of Concepts with Error
physical force	{Natural Phenomenon or Process}	0	126	1
	{Phenomenon or Process}	0	31	0
	{Quantitative Concept}	1	6	2
	{Manufactured Object}	1	4	0
	{Physical Object}	1	3	0
	{Qualitative Concept}	1	2	2
	{Medical Device}	1	1	0
	{Element, Ion, or Isotope}	1	1	1
	{Diagnostic Procedure}	1	1	1
Total	9	7	175	7

Table 3.

Semantic inconsistency groups detected in hierarchy RECORD ARTIFACT.

Semantic Tag	Semantic Type Assignments	Semantically Inconsistent	# Of Concepts	# Of Concepts with Error
record artifact	{Intellectual Product}	0	209	2
	{Finding}	1	9	3
	{Functional Concept}	1	3	3
	{Health Care Activity}	1	2	2
	{Manufactured Object, Intellectual Product}	1	2	2
Total	5	4	225	12

Table 4 shows the set of semantic tags (Semantic Tags), the number of concept disjoint groups for each semantic tag (# Of Groups), the number of concepts in the disjoint groups for each semantic tag (# Of Concepts), the number of groups with semantic inconsistency between concepts’ semantic type assignment and semantic tag (# of Semantically Inconsistent Groups), and the number of concepts in semantically inconsistent groups (# of Concepts with Semantically Inconsistent Groups) for every hierarchy. These detected semantically inconsistent groups will be provided to domain experts for further review.

Table 4.

Statistics of detected semantic inconsistency groups.

Hierarchies	Semantic Tags	# Of Groups	# Of Concepts	# Of Semantically Inconsistent Groups
BODY STRUCTURE	body structure	28	25,261	15
	cell	7	625	6
	cell structure	17	517	16
	morphologic abnormality	41	4,606	37
CLINICAL FINDING	Disorder	39	64,592	24
	finding	81	33,038	78
ENVIRONMENT OR GEOGRAPHICAL LOCATION	environment	17	1,088	8
	environment / location	1	1	0
	geographic location	1	618	0
EVENT	event	22	3,632	2
LINKAGE CONCEPT	attribute	51	1,111	42
	link assertion	1	8	0
	linkage concept	1	1	1
OBSERVABLE ENTITY	observable entity	60	8,221	56
ORGANISM	organism	20	32,319	5
PHARMACEUTICAL PRODUCT	product	148	15,570	9
PHYSICAL FORCE	physical force	9	175	7
PHYSICAL OBJECT	physical object	21	4,489	16
	product	1	12	0
PROCEDURE	procedure	34	50,039	30
	regime/therapy	13	2,455	12
QUALIFIER VALUE	qualifier value	83	8,881	71
RECORD ARTIFACT	record artifact	5	225	4
SITUATION WITH EXPLICIT CONTENT	situation with explicit content	27	3,233	24
SOCIAL CONTEXT	ethnic group	1	259	0
	life style	3	21	1
	occupation	7	3816	4
	person	10	421	5
	racial group	2	20	1
	religion/philosophy	6	203	3
	social concept	11	27	7
SPECIAL CONCEPT	inactive concept	2	8	1
	namespace concept	4	153	3
	navigational concept	41	640	40
	special concept	1	1	0
SPECIMEN	specimen	17	1,327	10
STAGING AND SCALES	assessment scale	9	1,056	8
	staging scale	2	16	0
	tumor staging	6	214	4
SUBSTANCE	Substance	268	23,938	35
Total: 19	39	1,118	292,837	585

We assume that concepts in the groups that are considered to be semantically consistent most likely have no semantic type assignment errors. To confirm our hypothesis, we selected two hierarchies PHYSICAL FORCE and RECORD ARTIFACT with manageable size and reviewed all their concepts. Table 5 shows the statistics of semantic type assignment errors. Note that six out of 18 concepts in seven detected groups have semantic type assignment errors in PHYSICAL FORCE hierarchy, while one out of 157 concepts in two semantically consistent groups was found semantic type assignment error. The methodology achieved the accuracy 33% (6/18), the recall 86% (6/7), and the precision 100% (6/6), which only need to review 18 concepts of identified groups (10% of total concepts in the hierarchy). For hierarchy RECORD ARTIFACT, we got similar results. As shown in Table 6, the concepts in semantically inconsistent groups have statistically significantly higher percentage of erroneous semantic type assignments than the concepts in semantically consistent groups in both PHYSICAL FORCE hierarchy and RECORD ARTIFACT hierarchies (p < 0.0001).

Table 5.

Statistics of semantic type assignment errors in detected semantic inconsistency groups.

Characteristics	Hierarchies
	PHYSICAL FORCE	RECORD ARTIFACT
# Of Concepts	175	225
# Of Concepts with Error	7	12
# Of Concepts in Semantically Inconsistent Groups	18	16
# Of Concepts in Semantically Inconsistent Groups with Error	6	10
Accuracy	6/18=33%	10/16=63%
Recall	6/7=86%	10/12=83%
Precision	6/6=100%	10/10=100%

Table 6.

The comparison of semantic type assignment errors in semantically consistent groups and semantically inconsistent groups within the PHYSICAL FORCE and RECORD ARTIFACT hierarchies.

Characteristics	Hierarchies
	PHYSICAL FORCE		RECORD ARTIFACT
	# Of Concepts without Errors	# Of Concepts with Errors	# Of Concepts without Errors	# Of Concepts with Errors
# Of Concepts in Semantically Inconsistent Groups	12	6	6	10
# Of Concepts in Semantically Consistent Groups	156	1	207	2
Fisher’s Exact Test, 2-tail	P < 0.001		P < 0.001

Table 7 provides the erroneous semantic type assignments and their corrections in the Inconsistent Semantic groups of the PHYSICAL FORCE and RECORD ARTIFACT hierarchies. The concept Temperature change which resides in the PHYSICAL FORCE hierarchy with semantic tag physical force was assigned the semantic type Qualitative Concept. The auditors deemed it to be erroneous assignment and suggested the correct assignment to be Natural Phenomenon or Process.

Table 7.

Semantic type assignment suggestions for the concepts in Semantically Inconsistent groups of the PHYSICAL FORCE and RECORD ARTIFACT hierarchies.

Hierarchies	Concept Name	Original Inconsistent Semantic Type Assignments	Suggested Semantic Type Assignments
PHYSICAL FORCE	Ultraviolet radiation in diagnosis	Diagnostic Procedure	Natural Phenomenon or Process
	Accelerated particle	Element, Ion, or Isotope	Phenomenon or Process
	Continued movement	Qualitative Concept	Phenomenon or Process
	Temperature change	Qualitative Concept	Natural Phenomenon or Process
	Electrons	Quantitative Concept	Natural Phenomenon or Process
	Positrons	Quantitative Concept	Natural Phenomenon or Process
RECORD ARTIFACT	Summary of needs	Finding	Intellectual Product
	Administrative documentation	Finding	Intellectual Product
	Statement of needs	Finding	Intellectual Product
	Report for Coroner	Functional Concept	Intellectual Product
	Social security claim report	Functional Concept	Intellectual Product
	Disabled drivers orange badge	Functional Concept	Intellectual Product
	Report to benefits agency	Health Care Activity	Intellectual Product
	CMS supervisory note	Health Care Activity	Intellectual Product
	Death Certificates	Manufactured Object Intellectual Product	Intellectual Product
	Intraoperative record	Manufactured Object Intellectual Product	Intellectual Product

Furthermore, we reviewed two other semantically consistent groups Group_{{Anatomical Abnormality}}(Concept_{morphologic abnormality}(BODY STRUCTURES)) and Group_{{Diagnostic Procedure, Therapeutic or Preventive Procedure}}(Concept_procedure(PROCEDURE)) with 153 and 235 concepts respectively. No semantic type assignment errors were found in the first group, and only 12 concepts were found with semantic type assignment errors in the second group. Only 3% of total number of concepts in these two semantically consistent groups had the semantic type assignment errors. The results confirm our hypothesis.

5. Discussion

The UMLS semantic types are a cornerstone for natural language processing and numerous methodologies related to healthcare informatics applications. As such, their correct assignment is of utmost importance for the applications that rely on them. While most of the biomedical ontologies that have been integrated into the UMLS do not provide semantic tagging of their content, SNOMED CT is an exception with its semantic tags. While SNOMED CT’s semantic tags are not as granular as the UMLS’s semantic types, one can expect a high degree of correlation between SNOMED CT’s semantic tags and the UMLS semantic type assignments.

In this study, based on premapping of SNOMED CT’s semantic tags to UMLS’s semantic types, we formulated and tested a methodology to evaluate the correctness of the UMLS assignment of semantic types to SNOMED CT concepts. The method can validate correctness and highlight inconsistencies that may occur during the semiautomated semantic type assignment process.

We tested our methodology on the PHYSICAL FORCE and the RECORD ARTIFACT hierarchies of SNOMED CT. Our results indicate that seven and four groups (respectively) had semantic type assignments that were inconsistent with the original semantic tags of SNOMED CT affecting four and 5.3 percent of the concepts in the respective hierarchies (Tables 2, 3, and 5). For example, the SNOMED CT concept CMS supervisory note with the semantic tag record artifact was assigned the semantic type Health Care Activity. However, SNOMED CT’s semantic tag, its SNOMED CT ancestor (record type) and the relevant SNOMED CT hierarchy (RECORD ARTIFACT) all provide a context that does not support the notion that Health Care Activity actually is an activity. Based on our prior mapping of SNOMED CT semantic tags to UMLS semantic type and the contextual information we can conclude that the assigned UMLS semantic type is erroneous and, in fact, this is not an activity but a form type and therefore an Intellectual Product UMLS semantic type.

Although 585 out of 1,118 concept groups (52%) were detected with semantic inconsistency, the number of concepts in those groups was less than 8% of the total number of concepts in the UMLS. This result indicates that the detected groups with semantic inconsistency should be small in size, which is in line with our previous research [20]. Our hypothesis is that concepts in those semantic inconsistency groups will have semantic type assignment errors. On the other hand, concepts in the groups that are considered to be semantically consistent most likely have no semantic type assignment errors. Our results confirm our hypothesis.

Our methodology achieved an accuracy of 33% (6/18), recall of 86% (6/7), and precision of 100% (6/6) for the PHYSICAL FORCE hierarchy with similar results for the RECORD ARTIFACT hierarchy. Thus, one only needs to review 18 and 16 concepts within these respective groups. Such reduction of the number of concepts that should be reviewed enhances the effective use of traditionally limited resources that are directed towards retrospective analysis. For any future integration of additional or modified SNOMED CT concepts into the UMLS, our algorithmic approach can be easily integrated into the process to reduce the chance of semantic type assignment errors. Furthermore, the mapping between SNOMED CT’s semantic tags and the UMLS’s semantic types can be used to enhance the integration effort of any biomedical ontology that overlaps with the domain coverage of SNOMED CT.

Arguably, there is a certain level of subjectivity in the mapping between UMLS semantic types and SNOMED semantic tags. Nevertheless, a small number of arguable mappings should not affect the validity of this method and the overall finding of this study. In this study, our intention was not test the validity of semantic tag assignments within SNOMED CT. As a gold standard, SNOMED CT semantic tag assignments may not be perfect. Ceusters and Bona found frequent changes in semantic tags, the nature of which suggests ambiguity in the concepts, SNOMED CT’s underlying ontological model, or both [28]. Accordingly, we observe that changes in SNOMED CT semantic tags can be associated with semantic type assignments for the same concept between different releases of the UMLS. For example the SNOMED CT concept Electrons had semantic tag Physical force in earlier releases, which may not be appropriate. In the 2017 version, the semantic tag has been changed to Substance. Despite this change, our methodological mapping between the SNOMED CT semantic tags and the UMLS semantic types still stands and our mapping between semantic tag Physical force and semantic type Natural Phenomenon or Process in Table 1 remains in effect. The semantic type assignment of the concept Electrons was Quantitative concept in the 2013AA version, which was identified as the inconsistency using our methodology. In the 2017AA version, the concept’s semantic type has been changed to Element, ion, or isotope, arguably inappropriate assignment as well. It is of note that in the 2017AA version the concept Positrons has the same semantic tag Physical force and semantic type assignment Quantitative concept as ones in the 2013AA version. As both Electrons and Positrons should likely have the same semantic tag and semantic type, these inconsistencies within SNOMED CT and the UMLS highlight the fact that neither can offer sufficiently satisfying semantic tags or types.

However, it is not clear to what extent semantic type assignments in UMLS releases may actually reflect changes to the semantic tags of SNOMED CT concepts. For example, while the concept Ultraviolet radiation in diagnosis (Table 7) has the semantic tag of Physical force, in the UMLS it has the semantic type Diagnostic Procedure. This is a clear mismatch and a reasonable indication that SNOMED CT semantic tags are not a major consideration, if any, during the mapping and the semantic type assignment processes of the UMLS. Had the semantic tag been considered during the process, it should have excluded that specific assignment in the UMLS and, hence, highlights the applicability of our methodology.

Admittedly, the cited incorrect semantic type assignments in this paper may not reflect the prevalence of the actual impact of incorrect semantic type assignments on practical performance metrics. Our previous work has shown the frequency of incorrect semantic type assignments [20]. We also reported the decrease in performance of the various kinds of systems that rely on them, which is directly attributable to incorrect semantic type assignments [20, 29].

In this work, we used the 2013AA version of the UMLS. In 2015 (2015AA release), the UMLS deleted six semantic types and the UMLS was left with only 127 semantic types. However, none of the deleted semantic types were involved in our work since none of them were mapped to SNOMED CT semantic tags. Therefore the use of the 2013AA release of the UMLS does not affect the validity of our results.

In the future, we plan to expand our investigation into the semantic type assignments for other hierarchies of SNOMED CT using our methodology with specific focus regarding instances where one SNOMED CT semantic tag may be mapped to multiple UMLS semantic types with hierarchical relationships between them.

6. Conclusions

In this work, we devise a crossvalidation strategy that leverages the semantic tags of SNOMED CT concepts to audit the semantic type assignments of the UMLS concepts. We show that concepts in semantically inconsistent groups are more likely to contain semantic type assignment errors. Our methodology can be utilized to optimize the use of the limited auditing resources by concentrating only on concepts in semantically inconsistent groups.
