Development of feline embryos produced by Piezo-actuated intracytoplasmic sperm injection of elongated spermatids

Abstract

Piezo-actuated intracytoplasmic sperm injection (Piezo-ICSI) is used as an efficient in vitro fertilization method with various animals. With this method, elongated spermatids are collected from testicular tissues and are easier to obtain from animals that unexpectedly die than ejaculate sperm. Additionally, elongated spermatid injection often results in the development of embryos and offspring. To develop assisted reproductive techniques (ARTs) for domestic cats, we examined the effects of oocyte activation on cleavage and embryo development after Piezo-ICSI with motile sperm (experiment 1) and after Piezo-ICSI with either testicular sperm or elongated spermatids (experiment 2). In experiment 1, the proportions of cleaved embryos, morulas, and blastocysts following Piezo-ICSI with ethanol activation were significantly higher (P < 0.05) than in the non-activated groups. However, the proportion of blastocysts and the blastocyst quality did not differ significantly (P > 0.05) between the ethanol-activated and non-activated groups. In experiment 2, the cleavage frequencies of oocytes after Piezo-ICSI of testicular sperm or elongated spermatids and ethanol activation were higher (P < 0.05) than that of oocytes in the non-activated group, but the occurrence of blastocyst formation and quality of blastocysts did not differ between the activated and non-activated groups. In summary, cat embryos can be produced by Piezo-actuated microinjection of elongated spermatids. Ethanol activation increased the frequency of cleavage, but it affected neither the occurrence of blastocyst development nor the quality of blastocysts. These results represent an expansion in the repertoire of ARTs that are potentially applicable to both domestic and endangered species of cats.

In recent years, some species of cats have been brought to the verge of extinction due to illegal hunting and the loss of habitats. In addition to habitat conservation and strategically managed breeding programs, another approach for maintaining biodiversity is to use assisted reproductive techniques (ARTs), such as gamete preservation and artificial insemination [1]. One impediment to efforts to improve breeding techniques of endangered cats is the limited access to gametes. During the past two decades, ARTs developed in domestic cats have been successfully applied to several species of non-domestic species [2]. While previous studies have shown the potential utility of ARTs for species conservation, these techniques have not been as broadly developed and applied with laboratory and livestock species for several reasons, including economic and political considerations, and (as mentioned above) limited gamete availability. Further studies to improve the efficacies of current techniques and to develop additional methods will assist in the propagation of endangered cats and cats that are biomedical models [2].

Piezo-actuated intracytoplasmic sperm injection (Piezo-ICSI) shows higher survival and fertilization rates than conventional ICSI in mice, humans, rats, cattle, and rabbits [3,4,5,6,7,8]. Because bovine oocytes contain an especially large number of lipid granules, structures inside the ooplasm (such as metaphase II chromosomes) are invisible under a light microscope. Thus, sperm injection by conventional methods can be more difficult than in species with oocytes that have a lighter, translucent ooplasm [6]. Piezo-ICSI disrupts the oolemma by Piezo electrical pulses and easily injects sperm into the oocytes. Thus, Piezo-ICSI is thought to be the most effective approach for fertilizing bovine oocytes [6]. Like bovine oocytes, cat oocytes have a dark/opaque ooplasm that prevents nuclear visualization under standard microscopy [9], but all previous reports on ICSI in cats have involved conventional methods [10,11,12,13,14,15,16]. Based on these observations, it is expected that the highest proportion of blastocysts could be obtained via Piezo-ICSI.

In some species, ICSI requires artificial oocyte activation. In cattle, fertilized eggs and offspring can be obtained by Piezo-ICSI, but embryo development is low when using non-activated oocytes [17]. However, when artificial oocyte activation treatment is applied, embryo development to the blastocyst stage is significantly improved, and calves can be obtained efficiently [7]. It has been reported that in cats, an artificial activation process is necessary to increase the incidence rate after conventional ICSI [10], but it is unknown whether artificial activation is necessary after Piezo-ICSI.

Ejaculated sperm collected by electrostimulation are normally used for ARTs in domestic and wild cats [18], but the use of these sperm is not applicable for endangered animals that could unexpectedly die. Therefore, spermatids in testes from animals that unexpectedly die can be meaningfully used to produce embryos by microinjection. In domestic cats, blastocysts have been successfully produced using testicular spermatozoa [11, 14, 19]. However, no reports have described embryo production via ICSI of elongated spermatids. If blastocysts are produced using elongated spermatids, then male gametes other than sperm can be secured and more fertilized oocytes can be produced. Based on these collective observations, we performed two experiments in this study, namely we examined the effect of ethanol-induced oocyte activation on cleavage and embryo development after Piezo-ICSI with epididymal sperm (experiment 1), or after Piezo-ICSI with either testicular sperm or elongated spermatids (experiment 2).

Material and Methods

In this study, cat ovaries and testes with epididymides were collected from a local veterinary clinic following a routine ovariohysterectomy and castration. The animals were neither operated on, nor sacrificed for this study. The uses of tissues were approved by the ethics committee of a local veterinary clinic. All cats were privately owned and the owners provided consent before the samples were collected.

Collection of oocytes and in vitro maturation

We collected ovaries from domestic short-haired cats that underwent an ovariohysterectomy at a local veterinary clinic. The ovaries were maintained in 0.8% (w/v) saline solution and transported to our laboratory within 6 h at room temperature. Oocyte collection and in vitro maturation (IVM) were conducted as previously described [20]. Briefly, cumulus-oocyte complexes (COCs) were collected after cutting ovaries in Medium 199 (Thermo Fisher Scientific, Waltham, MA, USA). We used oocytes that were completely surrounded with over four layers of compacted cumulus cells. The COCs were collected and rinsed three times in IVM medium, which comprised Medium 199 medium supplemented with 0.4% (w/v) bovine serum albumin (BSA; Sigma-Aldrich, St. Louis, MO, USA), 10 IU/ml 17β-estradiol (Sigma-Aldrich), 100 µg/ml gentamycin (Sigma-Aldrich), 137 µg/ml sodium pyruvate (Sigma-Aldrich), 0.02 IU/ml Follistim^® (human recombinant follicle-stimulating hormone; MSD, Tokyo, Japan), and 25 ng/ml epidermal growth factor (Sigma-Aldrich). Then, the COCs were incubated for 28 h in 100 µl IVM medium droplets covered with mineral oil (Sigma-Aldrich) in an incubator at 38.5°C with 5% CO₂.

Sperm collection and cryopreservation

Testes were obtained from a local veterinary clinic. After removing external tissues from testes, we then separated the epididymides. The epididymides were cut into small pieces in Dulbecco’s phosphate-buffered saline without Ca²⁺ and Mg²⁺ (PBS (–), Nacalai, Kyoto, Japan) and cultured at 38.5°C under 5% CO₂ in humidified air for 10 min. After filtering through a 20-µm filter (Nipro, Osaka, Japan), the semen was centrifuged for 5 min at 500 × g, and the seminal plasma was removed by aspirating the supernatant. The pelleted sperm were resuspended in m-HTF medium (Nippon Medical & Chemical Instruments, Osaka, Japan) to prepare a sperm suspension.

The sperm suspension was mixed with EYT-FC solution, which comprised egg yolk supplemented with 13 µg/ml citric acid (Nacalai), 10 µg/ml d-fructose (Nacalai), 24 µg/ml Tris aminomethane (Nacalai), 1000 IU/ml Penicillin (Sigma-Aldrich), and 1 mg/ml streptomycin (Sigma-Aldrich), and stored at 4°C. After 1 h, EYT-FC solution containing 14% (v/v) glycerol (Nacalai) was added the solution to obtain a final concentration of 12.5 × 10⁶ cells/ml, with a final glycerol concentration of 7%. Then, this solution was loaded into 0.25-ml straws (Fujihira, Tokyo, Japan). After sealing, the straws were laid horizontally on a rack 4 cm above liquid nitrogen vapor for 5 min, plunged into liquid nitrogen, and stored in a liquid nitrogen storage tank.

Thawing of cryopreserved sperm

Straws containing cryopreserved sperm were thawed by soaking in 37ºC water for 30 sec. The sperm were then released into m-HTF medium. This solution was centrifuged for 5 min at 500 × g, and resulting sperm were resuspended in HTF medium (Nippon Medical & Chemical Instruments). The resuspended sperm were centrifuged for 5 min at 500 × g, and the resulting sperm were added to m-HTF medium.

Testicular sperm and extraction of elongated spermatids

After the removal of tunica, seminiferous tubules were placed in m-HTF medium and cut into small pieces with a pair of fine scissors. After using the same protocol followed for sperm collection, the final suspension contained testicular sperm and spermatogenic cells in various developmental stages.

Piezo-ICSI of epididymal sperm, testicular sperm, and elongated spermatids

Piezo was performed using an IX71 inverted microscope (Olympus, Tokyo, Japan) equipped with a Piezo micromanipulator (MB-U, Prime Tech, Ibaraki, Japan). Injection pipettes had a deflection angle of 28° and a 6-µm outer diameter. Holding pipettes had a 10 to 15 µm inner diameter and a 100-µm outer diameter, with a fire-polished tip. The COCs incubated in IVM medium were pipetted gently many times to remove the cumulus layers. Denuded oocytes showing a first polar body under a stereomicroscope were regarded as being in metaphase II (M II) and were only used for microinjection. Two droplets of frozen sperm–12% polyvinylpyrrolidone (molecular weight: 36,000, Kanto Kagaku, Tokyo, Japan) in m-HTF suspension and six 5-µl droplets of m-HTF containing the denuded oocytes were placed in the chamber under mineral oil. The chamber comprised a 40-mm × 50-mm cover glass (Matsunami Glass, Osaka, Japan) bonded to a 50-mm × 50-mm slide glass (Matsunami Glass) with a 30-mm diameter hole in the center. Morphologically normal and progressively motile epididymal sperm were used. The M II oocytes were held to the holding pipette with the polar body at the 12 or 6 o'clock position and the injection pipette at the 3 o'clock position to avoid damaging the oocytes. The zona pellucida of each oocyte was drilled by applying several Piezo pulses to the sperm-injection pipette. After the sperm was pushed forward (until its head was near the tip of injection pipette), the pipette was advanced until its tip almost reached the opposite side of the oocyte cortex. The oolemma was broken by applying a single Piezo pulse, and the entire sperm was expelled into the ooplasm before the pipette was gently withdrawn. All procedures were performed at room temperature. Injected oocytes were maintained at room temperature for approximately 10 min.

Morphologically normal and immotile testicular sperm, as well as morphologically normal elongated spermatids (Fig. 1) were injected into oocytes as described above.

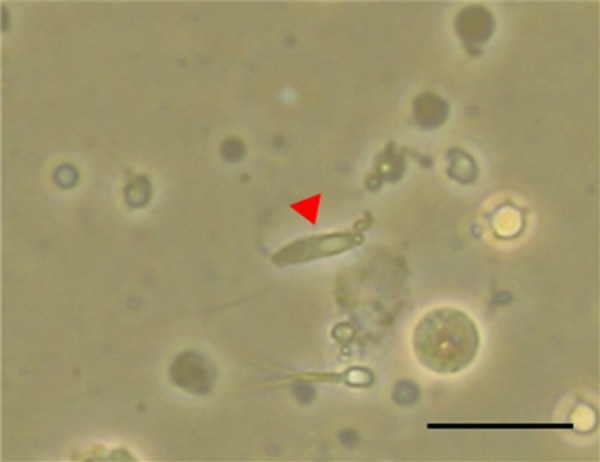

Fig. 1.

An elongated spermatid shown with an elongating tail from the centrioles of the cell (arrow: magnification, × 400). The tail of the sperm is elongating from the centrioles of the cell. The scale bar represents 20 µm.

Activation

After microinjection, oocytes were blindly divided into two groups. Oocyte activation was conducted as described [10]. One group was treated for 10 min at 38.5°C under 5% O₂ with HTF medium containing 7% (v/v) ethanol. The other group was not treated.

Embryo culture

After microinjection and activation, oocytes were cultured in Only-One medium (Nippon Medical & Chemical Instruments) supplemented with 0.3% (w/v) BSA for 2 days at 38.5ºC with 5% O₂, 5% CO₂, and 90% N₂. Subsequently, cleaved embryos were washed and cultured for 5 days in Only-one medium containing 5% (w/v) fetal bovine serum (Biosolutions International, Melbourne, Australia) at 38.5ºC with 5% O₂, 5% CO₂, and 90% N₂. The percentages of cleaved embryos, morulas, and blastocysts (related to the number of injected oocytes) were determined on days 2, 5, and 7 after microinjection. All blastocysts were rinsed twice with PBS (–). Then, the blastocysts were fixed and stained in 100% ethanol including 25 µg/ml bisbenzimide (Hoechst 33342, Sigma-Aldrich) for 2 to 3 h at 4°C. Stained blastocysts were examined under a fluorescence microscope to determine the numbers of cells.

Statistical analyses

All experiments were repeated independently at least 4 times. Results are expressed as the mean ± the standard error of the mean (SEM). Statistical differences were evaluated by analysis of variance and the Tukey-Kramer method (Statcel 3; OMC Publishing, Saitama, Japan). In all cases, differences were considered significant when P < 0.05.

Experiment design

Experiment 1: in vitro embryo development after Piezo-ICSI

In experiment 1, morphologically normal and progressively motile sperm were used. A total of 334 M II oocytes was divided among three groups: 1) activated oocytes (N = 140), 2) non-activated oocytes (N = 124), and 3) sham-treated oocytes (injection without sperm, N = 70) to serve as the control. The developmental competence of the microinjected oocytes was assessed in terms of cleavage, morula and blastocyst formation percentages on days 2, 5, and 7 of in vitro culture (day 0 = ICSI), respectively. Only embryos with ≥ 32 cells and a visible blastocoel cavity were classified as blastocysts.

Experiment 2: in vitro embryo development after Piezo-ICSI with testicular sperm and elongated spermatids

In experiment 2, morphologically normal and progressively motile sperm, morphologically normal and immotile testicular sperm, and morphologically normal elongated spermatids were used. A total of 635 M II oocytes was divided among the five treatment groups, as follows: 1) Piezo-ICSI with testicular sperm, plus ethanol activation (N = 113), 2) Piezo-ICSI with testicular sperm, no ethanol activation (N = 123), 3) Piezo-ICSI with elongated spermatids, plus ethanol activation (N = 123), 4) Piezo-ICSI of elongated spermatids, no ethanol activation (N = 122), and 5) Piezo-ICSI of epididymal sperm without ethanol activation (N = 154) to serve as the control. Cleavage and embryo development were evaluated as described above.

Results

In vitro embryo development after Piezo-ICSI

As shown in Table 1, in experiment 1, the proportions of cleaved embryos, and morulas after Piezo-ICSI with ethanol activation were significantly higher (P < 0.05) than in the non-activated groups. However, the proportions of blastocysts in the ethanol-activated and non-activated groups were similar (P > 0.05). In addition, the blastocyst quality in terms of the average number of cells did not significantly differ (P > 0.05) between blastocysts in the ethanol-activated and non-activated groups. No blastocyst development was observed in the sham group.

Table 1. Developmental competence of cat embryos after Piezo-ICSI using epididymal sperm (experiment 1).

Treatment	Number of oocytes	Stage of development (%)			Blast cells, N
		Cleavage	Morula	Blastocyst
Activation	140	81.4 ± 3.8 a	30.3 ± 4.3 a	9.1 ± 2.8 a	144.8 ± 36.1
No activation	124	50.4 ± 5.6 b	16.1 ± 3.6 b	9.2 ± 2.6 a	116.0 ± 12.1
Sham	70	14.4 ± 2.5 c	2.4 ± 2.4 c	0 b	N.D.

Data are expressed as the mean ± the standard error of the mean (SEM). Different superscripted letters indicate significant differences (P < 0.05). N.D. means not determined.

In vitro embryo development after Piezo-ICSI with testicular sperm and elongated spermatids

As shown in Table 2 , in experiment 2, the percent cleavages of testicular spermatozoa in the activated group and the elongated spermatids in the activated group were significantly higher (P < 0.05) than those in the non-activated groups. The proportion of morulas in elongated spermatids in the activated group was significantly higher (P < 0.05) than that of testicular sperm and elongated spermatids in the non-activated group. The blastocyst-formation rates were not different in any of the groups. Blastocysts generated with sperm and blastocysts generated with elongated spermatids were not morphologically different. In addition, the blastocyst quality as measured by the number of cells in each blastocyst were not different in any of the groups (Figs. 2A–C).

Table 2. Developmental competence of cat embryos after Piezo-ICSI using testicular sperm and elongated spermatids (experiment 2).

Treatment		Number of oocytes	Stage of development (%)			Blast cells, N
			Cleavage	Morula	Blastocyst
Testicular sperm	Activation	113	77.8 ± 3.2 a	20.5 ± 2.3 a, b	11.3 ± 4.3	132.8 ± 8.7
	No activation	123	50.2 ± 4.1 b	10.0 ± 2.1b	7.6 ± 2.0	151.8 ± 26.3
Elongated spermatid	Activation	123	71.8 ± 3.7 a	22.2 ± 2.7 a	4.1 ± 2.5	151.0 ± 33.2
	No activation	122	43.7 ± 5.5 b	9.0 ± 4.2 b	4.4 ± 1.4	117.8 ± 13.8
Sperm		154	50.5 ± 6.7 b	14.0 ± 2.9 a, b	12.2 ± 2.8	151.8 ± 20.8

Date are expressed as the mean ± the SEM. Different superscripted letters indicate significant differences (P < 0.05).

Fig. 2.

Cat blastocysts stained with bis-benzimide (Hoechst 33342) were visualized under a fluorescence microscope (magnification, × 200). (A) Blastocyst derived from Piezo-ICSI with a sperm cell. (B) Blastocyst derived from Piezo-ICSI with a testicular sperm. (C) Blastocyst derived from Piezo-ICSI with an elongated spermatid. The scale bar represents 30 µm.

Discussion

In experiment 1, the percentages of cleaved embryos, morulas and blastocysts significantly increased in the Piezo-ICSI group as compared with the sham group. Because oocytes in the sham group did not develop into blastocysts, we succeeded in obtaining blastocysts without parthenogenesis by Piezo-ICSI. In addition, over 9% of M II oocytes developed into blastocysts after Piezo-ICSI, which is substantially higher than that reported by Bogliolo et al. [10], who showed that conventional ICSI yielded blastocysts at a proportion of 5.4%. Thus, Piezo-ICSI does not cause damages due to oocyte deformation, increased internal pressure, or ooplasm suction, which do occur with conventional ICSI [4]. Therefore, Piezo-ICSI appeared to be very useful for fertilizing feline oocytes.

In experiment 2, blastocysts were produced by Piezo-ICSI with testicular sperm. A previous report showed that the percentage of cleavage was 39.7% and that the proportion of blastocysts was 5.5% [11], using conventional ICSI. In contrast, the percentage of cleavage was 50.1% and the proportion of blastocysts was 7.6% in experiment 2. In addition, we succeeded in producing blastocysts with elongated spermatids for the first time in cats. These results can be explained by considering that Piezo-ICSI can activate oocytes [4] and that conventional ICSI may cause more damage to oocytes than Piezo-ICSI by penetrating the zona pellucida and the oocyte membranes with a sharpened needle at the tip [3].

In this study, we found that the blastocyst-formation rate and cell numbers were not different when using elongated spermatids or sperm. A frequently used measure of blastocyst quality is to count the number of cells visible by fluorescence [14]. Here, we demonstrated that blastocysts produced by Piezo-ICSI with elongated spermatids had the same number of cells as those of blastocysts derived from sperm. In rabbits, blastocyst formation rate and number of cells/blastocyst from oocytes injected with elongated spermatids were lower than those of oocytes injected with sperm [21]. In this study, we demonstrated the feasibility and potential utility of producing cat embryos by Piezo-ICSI of elongated spermatids. Furthermore, it has been reported that elongated spermatids from humans and members of the Mastomys genus can be frozen [22, 23]. Thus, cryopreservation of elongated spermatids can potentially enable the preservation of genetic material of feline species. In addition, in the common marmoset, elongated spermatids could be collected from immature male tests [24]. In cats, it is also possible to collect elongated spermatids from immature individuals. If elongated spermatids from immature male cat can be used for Piezo-ICSI, then more male gametes can be secured and more fertilized oocytes can be produced.

In both experiments 1 and 2, the percent cleavage of all activated groups was significantly higher than that of the non-activated groups. The proportion of morulas in elongated spermatids in the activated group was significantly higher than that of testicular sperm and elongated spermatids in the non-activated group. In contrast, the incidences of blastocyst formation in the activated groups were not significantly different from that in the non-activated group. During fertilization, oocyte activation with Ca²⁺ oscillation is needed to resume oocyte meiosis [25]. In a previous study, pronuclear formation in sperm-injected bovine oocytes and subsequent blastocyst development were inhibited because the maturation-promoting factor (MPF) activity of oocytes was temporarily elevated at 4 h after microinjection [26]. The MPF activity decreased and the incidence of blastocyst development was increased by artificial activation at 4 h after microinjection [26, 27]. However, in rabbits, the incidence of blastocyst formation was increased by oocyte-activation treatment before microinjection [28]. Therefore, the optimal time for artificial activation of oocytes may be species-specific. In these experiments, with reference to a previous report [10], the activation treatment was performed immediately after microinjection; however, it is possible that the optimal timing for the activation treatment depends on multiple variables. It was reported that treatment with ethanol activated 74.2% of bovine oocytes, whereas cat oocytes were only activated at a rate of 34.1% [29]. Ethanol activates oocytes by causing a transient increase in the intracellular Ca²⁺ concentration [30]. The results of several reports show that Ca²⁺ oscillations led to normal embryonic development and an increased frequency of blastocyst formation [31,32,33].

In addition, elongated spermatids of several species can cause oocyte activation, but their activation abilities show species-specific differences. In rabbits, over 75% of oocytes injected with elongated spermatids were activated and Ca²⁺ oscillations were induced [34]. For this reason, artificial activation has not been carried out by microinjection using elongated spermatids in rabbits [21, 35]. Although 89% of oocytes injected with elongated spermatids were activated in mice, Ca²⁺ oscillations were not observed and only a few Ca²⁺ rises observed [34]. However, mouse oocytes injected with elongated spermatids can develop into offspring at high rate without artificial stimulation of oocytes [36]. Therefore, a few Ca²⁺ rises were sufficient for mouse oocyte activation [36]. In rats, only 39% of oocytes were activated after microinjection with elongated spermatids, and artificial activation was necessary for embryogenesis [34]. In cats, a comparison of the oocyte-activation ability of testicular sperm with that of elongated spermatids has not been reported. In this study, cleavage was observed, but many embryos did not develop into blastocysts. Activation methods include strontium, ionomycin, electric stimulation, and other methods besides ethanol. Few reports have described the use of artificial stimulation for ICSI in cats. In this study, we used the ethanol activation because a previous report described it use for conventional ICSI in cats [10]. Consequently, ethanol activation may be insufficient as an activation treatment for cat oocytes. In the future, it will be necessary to investigate the timing of the activation treatment for Piezo-ICSI in cats and to perform multiple stimulations with electrical pulses, or to test several reagents (alone or in combination) to artificially induce Ca²⁺ oscillations as an activation method.

In summary, we produced cat blastocysts by Piezo-ICSI with greater efficiency than reported previously by conventional microinjection of testicular sperm. In addition, we succeeded in obtaining blastocysts using elongated spermatids for the first time. The techniques described in our report represent an expansion in the availability of assisted reproductive technologies that have potential application to enhancing propagation of both domestic and endangered cats.
