Hepatic Hippo signaling inhibits pro-tumoral microenvironment to suppress hepatocellular carcinoma

Abstract

Objective:

Hippo signaling is a recently identified major oncosuppressive pathway that plays critical roles in inhibiting hepatocyte proliferation, survival and hepatocellular carcinoma (HCC) formation. Hippo kinase (Mst1 and Mst2) inhibits HCC proliferation by suppressing Yap/Taz transcription activities. As human HCC is mainly driven by chronic liver inflammation, it is not clear whether Hippo signaling inhibits HCC by shaping its inflammatory microenvironment.

Design:

We have established a genetic HCC model by deleting Mst1 and Mst2 in hepatocytes. Functions of inflammatory responses in this model were characterized by molecular, cellular and FACS analysis, immunohistochemistry and genetic deletion of monocyte chemoattractant protein-1 (Mcp1) or Yap. Human HCC databases and human HCC samples were analyzed by immunohistochemistry.

Results:

Genetic deletion of Mst1 and Mst2 in hepatocytes (DKO) led to HCC development, highly upregulated Mcp1 expression and massive infiltration of macrophages with mixed M1 and M2 phenotypes. Macrophages or deletion of Mcp1 in DKO mice markedly reduced hepatic inflammation and HCC development. Moreover, Yap removal abolished induction of Mcp1 expression and restored normal liver growth in the Mst1/Mst2 DKO mice. Finally, we showed that MCP1 is a direct transcription target of YAP in hepatocytes and identified a strong gene expression correlation between Yap targets and Mcp-1 in human HCCs.

Conclusions:

Hippo signaling in hepatocytes maintain normal liver growth by suppressing macrophage infiltration during pro-tumoral microenvironment formation through the inhibition of Yap-dependent Mcp1 expression, providing new targets and strategies to treat HCCs.

INTRODUCTION

It has been long hypothesized that cancer originated at sites of chronic inflammation [1] and recent studies have expanded the concept that inflammation is a critical component of tumor progression. The tumor microenvironment, largely orchestrated by inflammatory cells, is an indispensable participant in the neoplastic process, fostering proliferation, survival and migration. Hepatocellular carcinoma (HCC), a primary malignancy of the liver, is a major health problem, being the fifth most common cancer and second leading cause of cancer deaths in the world [2, 3]. In most cases, human HCC is driven by chronic liver inflammation caused by activation of many types of inflammatory cells due to chronic viral hepatitis, metabolic liver diseases and alcohol abuse [4]. Among them, macrophages derived from circulating monocytic precursors are key components involved in the initiation and maintenance of inflammation, fibrosis and cancer progression and they are normally the most abundant immune cells in the tumor microenvironment [5]. Factors secreted by the tumor-associated macrophages (TAMs) are thought to contribute to the initiation and growth of tumors. However, the cellular and molecular mechanisms underlying tumor-inflammation interaction remain largely unknown.

The recently discovered tumor suppressive Hippo signaling pathway has gained great interest as being critical regulators of cancer progression [6, 7] besides its fundamental functions in tissue growth/organ size control, regeneration and stem cells [6, 8]. Hippo signaling regulates a diverse cellular functions in a broad range of tissues including the hepatic systems [7, 9, 10]. Central to the Hippo pathway is the control of Yap/Taz transcription factors by a kinase cascade of Hippo (Mst1 and Mst2) and Lats in mammals. Hippo signaling suppresses Yap/Taz transcription activities by activating Lats kinases that directly phosphorylates Yap/Taz, causing Yap/Taz cytoplasmic retention and subsequent degradation. Unphosphorylated Yap/Taz enter the nucleus to activate genes promoting cell proliferation and survival.

We and others found that loss of Mst1/2 predominantly led to tumor formation in the liver with rapid HCC development [11, 12, 13, 14]. Furthermore, we show recently that loss of Mst1/2 in mammalian hepatocytes markedly increased liver macrophage infiltration [11, 15]. These studies strongly suggest that the Hippo signaling pathway is likely a critical gatekeeper preventing both liver tumor initiation and inflammation. However, despite the well-established cell autonomous tumor suppressive function of Mst1/2, effects of the Hippo pathway in tumor initiation and growth in the context of reciprocal interaction between tumor cells and the immune responses remain largely unknown.

Here we have found that a previously unknown fundamental function of the Hippo kinase in hepatocytes is to suppress protumoral immune responses besides directly restraining hepatocyte proliferation and survival by inhibiting expression of monocyte chemoattractant protein 1 (Mcp1 or Ccl2). Furthermore, we have observed strong correlation between Mcp1 expression and Yap transcription signature in HCC patients.

MATERIALS AND METHODS

Mouse.

Animal care and experiments were performed in accordance with the Institutional Animal Care and Use Committee (IACUC) guidelines at the National Institutes of Health and Harvard Medical School. The DKO, Mcp1^f/f and Yap^f/f mice were described previously [11] [16] [17]. Both male and female mice were analyzed and we found no gender bias in tumor phenotypes in this study.

Statistical Analysis.

All data in this study was analyzed using GraphPad Prism 7 (GraphPad Software). Quantification was performed from at least 3 independent experimental groups. Statistical analysis between groups was performed by 2-tailed Student’s t test to determine significance when only 2 groups were compared. One-way ANOVA with Tukey’s post-hoc tests was used to compare differences between multiple groups. P values of less than 0.05 and 0.01 were considered significant.

Other experimental information is provided as supplementary information.

RESULTS

Mcp1 expression is increased in the Mst1/2 DKO liver

Macrophages have been rediscovered in recent years as regulators of various diseases including cancer. Macrophages represent a major cell type of innate immunity and hepatic macrophages consist of Kupffer cells, which are fetal yolk sack-derived liver resident macrophages [18], and infiltrated bone marrow-derived monocytes (IMs) during infection and inflammation [19, 20]. We have found that in mice the CD11b^hiF4/80⁺ IMs associated with inflammation are markedly increased in the hepatocyte-specific Hippo mutant mice: the AlbCre; Mst1^−/−; Mst2^f/f mice (hereafter referred to as the DKO) [15]. Consistently, pro-inflammatory cytokines such as IL-1b, Mcp1 and IL-6 were highly expressed in the DKO liver (supplementary figure S1A). Because Mcp1 is a chemokine primarily responsible for monocyte/macrophage chemotaxis in inflammatory diseases and atherosclerosis [21, 22] and tumor growth has been found to induce CCR2⁺ (CCR2 is a receptor of Mcp1) monocytes to differentiate into tumor associated macrophages (TAMs) [23], we focused on investigating the function of the upregulated Mcp1 in promoting macrophage infiltration in the DKO liver. RNA-seq analysis revealed that among all chemokine genes with detectable expression in the liver, upregulation of Mcp1 is the most pronounced (figure 1A). Mcp1 protein levels in the DKO liver were also increased (figure 1B). Ccl4, also known as macrophage inflammatory protein-1β (MIP-1β) that encodes a chemoattractant for a variety of immune cells including monocytes [24] was expressed less robustly and less upregulated in the DKO liver (figure 1A). As the liver overgrowth became more severe and many tumor nodules were found in the 4 months old DKO liver [11, 12, 15], Mcp1 expression was also more highly upregulated (figure 1C). Consistent with these findings, Mcp1 protein levels in circulating blood of DKO mice were significantly increased compared to the control (figure 1D). To further investigate whether Mcp1 was secreted from hepatocytes, we isolated Mst1^−/−; Mst2^f/f hepatocytes and infected them with Cre Adenovirus (Ad-Cre) or Ad-GFP as control and found that Mcp1 protein in the medium was significantly increased in the Ad-Cre infected hepatocytes (figure 1E). Consistent with Mcp1 up-regulation, F4/80⁺ macrophages were more abundant in the DKO liver (supplementary figure S1B) [11, 15]. These results suggest that loss of Hippo signaling in hepatocytes promoted Mcp1 expression, which may have led to increased macrophage infiltration.

Figure 1.

Mcp1 (Ccl2) expression is upregulated in hepatocytes of Hippo-mutant mice. (A) Mcp1 (Ccl2) is the most highly upregulated chemokine in the Mst1/2 DKO liver. Heat-map of detectable Ccl family gene expression from RNA-seq analysis of the 4 week-old mouse liver with the indicated genotypes. (n=3 mice per group). (B) Western blotting analysis of liver lysates from 3 months old control and DKO mice. (C) qRT-PCR of Mcp-1 expression in liver tissues from indicated mice (n=3). Data are expressed as the mean ± SEM. **P < 0.01 by 2-tailed Student t-test. (D) the secreted Mcp1 was determined by ELISA in the serum of 3 months old mice with indicated genotypes. (E) Mst1^−/−; Mst2^f/f hepatocytes were isolated from 2 months old mice and infected with Ad-Cre (DKO) or Ad-GFP (control) in vitro. 5 days after infection, Mcp1 protein in the medium was determined by ELISA assay. In (D, E), n=3, data are expressed as the mean ± SEM.

*P < 0.01 and **P < 0.01 by 2-tailed Student t test.

Macrophages are required for growth and tumor formation in the DKO liver

We went on to address whether macrophage infiltration promotes liver growth and HCC formation in the DKO liver by depleting macrophages with clodronate liposomes retro-orbitally injected [25] (figure 2). Clodrosome treatment led to significant reduction of macrophage numbers in the liver, spleen size, liver/body weight ratio and tumor numbers (figure 2B–F). Furthermore, expression of IL-1β and IL-6 was decreased, indicating liver inflammation was reduced by macrophage depletion (figure 2G). These results indicate that macrophages in the DKO liver promoted liver inflammation, growth and tumor formation.

Figure 2.

Pharmacological depletion of macrophages reduces liver growth and tumor burden in Mst1/2 DKO liver. (A) The Mst1/2 DKO mice were injected retro-orbitally with 200 μl of Clorodrosome, once per week starting at the age of 4 weeks till 15 weeks. Control mice received liposome alone. (B) Representative macroscopic images of spleen treated with liposome alone or clodronate liposome and the corresponding quantitative comparison (control n=8, clodronate liposome n=8). (C) Liver sections were subjected to immunofluorescence staining with anti-F4/80 antibody to detect macrophages in the liver. Scale bar, 100 μm. Relative F4/80 expression by qRT-PCR shows significant reduction in macrophages in clodronate treated liver. (D) Representative macroscopic images of liver from controls and treatment groups. Black arrows indicate tumor nodules. (E) Quantitative comparison of liver weight and (F) tumor number between control (n=9) and treatment group (n=7). (G) qRT-PCR of IL-1β and IL-6 expression in liver tissues from indicated mice (n=3). Data are expressed as the mean ± SEM.

*P < 0.05 by 2-tailed Student t-test.

As Mcp1 expression in hepatocytes and macrophage infiltration were both drastically increased in the DKO liver (figure 1 and supplementary figure S1) and Mcp1 plays important roles in macrophage recruitment [22], we next tested whether Mcp1 is required for increased macrophage infiltration in the DKO liver by blocking its function with a neutralizing antibody. Injection of an anti-Mcp-1 antibody reduced hepatomegaly and tumor number in the DKO mice liver (supplementary figure S2A–C). Consistent with clodronate liposome study, we observed reduction of F4/80, IL-1β and IL-6 expression in anti-Mcp-1 antibody injected mice (supplementary figure S2D–F).

To further confirm these findings, we generated the AlbCre; Mst1^−/−; Mst2^f/f; Mcp1^f/f (TKO) mice [16] and found that macrophages, in particular the CD11b^hiF4/80^lo infiltrated monocytes/macrophages were significantly reduced in the TKO liver (figure 3A, B). In addition, associated with increased inflammation, we found that fibrosis was increased in the DKO liver, and such increase was attenuated in the TKO liver shown by sirius red staining and expression of fibrotic markers (supplementary figure S4). Importantly, liver overgrowth and tumor formation in the TKO mice were much reduced compared to those in the DKO mice (figure 3C–E) and consistently, cell proliferation was also reduced in the TKO liver compared to the DKO liver (supplementary figure S3). These results demonstrate that Mcp1 expression in hepatocytes of the DKO liver promotes liver growth and tumor formation by regulating macrophage infiltration.

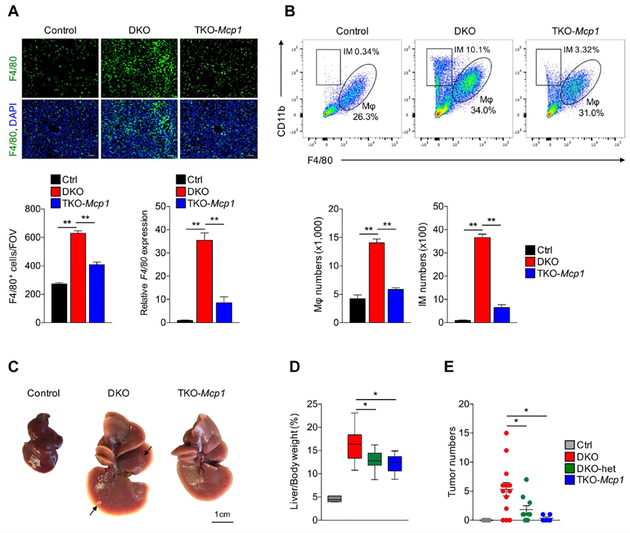

Figure 3.

Removal of Mcp1 in the Mst1/2 DKO mice relieves liver phenotypes. (A) A representative immune fluorescent staining of F4/80 in indicated mouse liver tissue at 6 weeks of age. Scale bars, 100μm (upper panel). F4/80 positive cells were counted and quantified as the number of F4/80⁺/ field of view (FOV) (bottom, left panel). qRT-PCR of F4/80 expression in the same liver tissues was also shown (n=3). Data are expressed as the mean ± SEM. *P < 0.05 by 1-way ANOVA with Tukey’s post-hoc test for multiple groups (bottom, right panel). (B) Liver NPCs were isolated from 3 indicated groups of 6 weeks old mice. Same numbers of total NPCs isolated from each mouse were analyzed by FACS. Quantified infiltrated macrophages (IMs) and tissue macrophages were shown in the lower panel. n=3. (C) Representative macroscopic images of livers from 3-month-old mice with the indicated genotypes. (D) Analysis of liver-to body weight ratio of 3-month-old mice with the indicated genotypes. Middle bars in the box plots represent the median value (Control n=5, DKO n=16, DKO-het n=10 and TKO-Mcp1 n=6). Data are expressed as the mean ± SEM. *P < 0.05 by 1-way ANOVA with Tukey’s post-hoc test for multiple groups. (E) Analysis of tumor numbers of 3-month-old mice with the indicated genotypes. Data are expressed as the mean ± SEM.

*P < 0.05 by 1-way ANOVA with Tukey’s post-hoc test for multiple groups.

Macrophages in the DKO liver exhibit both M1 and M2 characteristics

Plasticity is a hallmark of cells of the macrophage lineage [26, 27]. Depending on the local metabolic and immune environment, macrophages can exhibit a range of polarized phenotypes during activation, ranging from a proinflammatory M1 phenotype to an alternative/M2 phenotype involved in the resolution of inflammation and wound healing [19, 20, 26, 27]. Transcriptome analysis has shown that macrophages often exhibit mixed M1-M2 polarization in vivo, and M1-M2 Macrophage polarization, while conceptually useful, is mostly an oversimplification and does not adequately describe the spectrum of macrophage populations. The tumor associated macrophages (TAMs), although behave more like M2 macrophages in many circumstances [19, 26, 27], do not fit into the stringent criteria for M1 or M2 macrophages [23, 28]. As shaping macrophage function is an essential link between inflammatory response and cancer [26], we examined whether there are distinct populations of monocytes/macrophages in the DKO liver. It has been shown that Ly6C^hi marks inflammatory and tissue-damaging monocytes with M1 characters, while Ly6C^lo cells exhibit an antiinflammatory and tissue-protective phenotypes with M2 macrophage characters, but they are derived from the Ly6C^hi cells [29, 30]. We found that in the CD11b^hiF4/80^lo IMs (figure 3B), both CD11b^hiLy6C^lo and CD11b^hiLy6C^hi monocytes were increased in the DKO liver and both were dramatically decreased in the TKO liver (figure 4A).

Figure 4.

Activated macrophages in the MST1/2 DKO liver have both M1 and M2 characteristics. (A) IMs were further analyzed according to the expression of Ly6C by FACS. Both Ly6C^hi and Ly6C^lo cells were increased in the IM fraction from the Mst1/2 DKO liver. Such increased was much reduced in the IMs from the Mst1/2/Mcp1 TKO liver. (B) QRT-PCR of M1 (CD86 and IL-1RA) and M2 (Mrc1 and Ym1) markers expression in liver tissues from the indicated 3-month-old mice (n=3). Data are expressed as the mean ± SEM. *P < 0.05 and **P < 0.01 by 1-way ANOVA with Tukey’s post-hoc test for multiple groups (bottom, right panel). (C, D) Representative co-immunofluorescent (Co-IF) staining images for CD206 with F4/80 (C) and iNOS with F4/80 (D) in liver sections from 3 months old mice with the indicated genotypes. (E) FACS analysis of CD11b, F4/80, Ly6C|° and CD206 expression in macrophages and IM population from 6 weeks old mice.

To further test macrophage polarization during its activation in the DKO and TKO liver, we examined expression of markers that are typically associated with M1 or M2 polarization. We found that gene expression associated with both M1-like (CD86 and IL-1RA) and M2-like (Mrc1 and Ym1) macrophages was both upregulated in the DKO liver, but such upregulation was reduced in the TKO liver (figure 4B). M1 or M2 marker expression was not detected in the hepatocyte fraction from the DKO liver (data not shown). Consistent with this, cytokine expression associated with M1 polarization such as IL-1b and IL-6 was upregulated in the DKO liver, but such increase was alleviated in the TKO liver (supplementary figure S5). Cytokines that can induce M2 macrophage polarization [31] including IL-13, IL-10 and Tgfbs, but not IL-4, were also upregulated in the DKO liver (supplementary figure S5). Such increase was again alleviated in the TKO liver. Among these, IL-10 and Tgfb3 were also produced by M2 macrophages. Furthermore, immunohistochemistry of a M1 marker iNOS and M2 marker CD206 [26, 31] also showed both M1 and M2 macrophage polarization in the DKO liver (figure 4C, D). In the TKO liver, accompanied by reduction in total macrophage numbers (figure 3A, B), both iNOS and CD206 labeled macrophages were decreased. These results indicate that both M1 and M2 polarization was induced by Hippo deficient hepatocytes through Mcp1.

To further characterize macrophage phenotypic changes in the DKO liver, we noticed that both the CD11b^hiF4/80^lo IMs and CD11b^loF4/80^hi macrophages had increased in not just. numbers, but also intensities of lineage marker expression (figure 3B). It appears that many of the CD11b^loF4/80^hi Kupffer cells in the control have up regulated Cd11b expression to become CD11b^hiF4/80^hi macrophages in the DKO, suggesting that some of these CD11b^hiF4/80^hi macrophages may have derived from the CD11b^hiF4/80^lo IMs. Again, such changes were much alleviated in the TKO liver. To further test macrophage heterogeneity in the DKO and TKO liver, we have compared individual marker expression in the IM and F4/80^hi macrophage populations from the 6-week-old liver by fluorescence-activated cell sorting (FACS) analysis (figure 4E). Indeed, while CD11b was increased in the macrophage (Kupffer cells in the control) population, F4/80 was also increased in the IM population supporting the notion that some of the CD11b^hiF4/80^lo infiltrated monocytes had further differentiated to become CD11b^hiF4/80^hi macrophages in the DKO liver. Interestingly, while a distinct Ly6C^hi population was detected in the IM population, the macrophage population always had low Ly6C expression, even in the DKO liver, consistent with the notion that the IMs are associated with inflammation and when the IMs became CD11b^hiF4/80^hi macrophages, they may have switched to become the anti-inflammatory M2- like Ly6C^lo macrophages in the liver [30]. Consistent with this, CD206, a marker for M2 macrophage, was expressed at higher levels in the Ly6C^loF4/80^hi macrophage population in the DKO liver, while in the IM population, CD206 expression was always low, even in the DKO liver in which IMs had increased in number. Taken together, Hippo deficient hepatocytes have shaped their own microenvironment by inducing macrophage infiltration as well as activation with a mixed M1 and M2 phenotypes and importantly, these activities depend on Mcp1.

Macrophages regulate hepatocyte proliferation and survival independently of Hippo signaling itself.

Because of the different properties of IMs and macrophages that we have identified, we next asked how these macrophages are distributed in the liver and whether these macrophages change their phenotypes in the liver before and after tumors appear. We performed CD11b and Ly6C immunohistochemistry (IHC) to recognize the IMs and F4/80 IHC to mark the macrophage populations (figure 5). In the control liver, although there were many F4/80⁺ resident Kupffer cells, no CD11b⁺ or Ly6C⁺ cells were detected, indicating that the CD11b^lo or Ly6C^lo signals recognized in FACS analysis could not be detected by IHC (figure 5A–E, F–J and supplementary figure 6). We confirmed that there was substantial overlapping between CD11b^hi and Ly6^hi macrophages in the DKO and TKO liver (figure 5A’–C’, A”–C”, F’–H’, F”–H” and supplementary figure 6) and the CD11b^hi and Ly6^hi cell numbers were further increased in the 3 month-old DKO liver compared to the 6 week-old DKO liver. It has been shown that TAMs are distinct from tissue resident macrophage and often derived from infiltrated macrophages. Indeed we found that in the 3 month-old DKO liver, TAMs and macrophages in the non-tumor region exhibited quite distinct expression patterns of Cd11b, Ly6C and F4/80 (figure 5F’–J’, F”–J” and supplementary figure 6). CD11b^hi IMs were enriched in the tumor region compared to the non-tumor region (compare Fig. 5F’, F”’ with F), but F4/80⁺ cells were hardly increased in the tumor region (compare Fig. 5I’, I”’ with I), despite huge increase of F4/80⁺ cells in the non-tumor region. Furthermore, more Ly6C^hi expression was detected in non-tumor IMs than in TAMs (Fig. 5G’, G” and supplementary figure 6). Therefore, tumors in the DKO liver are largely populated by CD11b^hiLy6^loF4/80^lo IMs, which are distinct from the tissue resident Kupffer cells and IMs in the non-tumor region.

Figure 5.

Detection of different Macrophage populations in the liver sections. (A-C”) Representative Co-IF staining images of CD11b, Ly6C and DAPI in liver sections from 6 weeks old mice of the indicated genotypes. (D-E”) Representative Co-IF staining images of F4/80 and DAPI in liver sections from 6 weeks old mice of the indicated genotypes. (F-H”) Representative Co-IF staining images of CD11b, Ly6C and DAPI in liver sections from 3 months old mice of the indicated genotypes. (I-J”’) Representative Co-IF staining images of F4/80 and DAPI in liver sections from 3 months old mice of the indicated genotypes.

As macrophages play important roles regulating hepatocyte proliferation and survival by secreting cytokines such as TNFα, IL-6 and IL-1b and growth factors such as VEGF, HGF and (TGFs) (figure 3) [19, 20, 32], we then asked whether reduction of macrophages by removing Mcp1 in hepatocytes altered signaling events downstream of these cytokines and growth factors (figure 6). In the DKO liver, there was increased activation of JNK, Erk, Stat3 and Smad2 (figure 6A–C), and IκB and NF-_κB levels were also increased (supplementary figure S7). In the TKO liver, while there was reduction of pStat3, pSmad2 and pJNK levels, IκB and NF-κB levels and pErk levels were not altered compared to those in the DKO liver (figure 6A–C and supplementary figure S7). While we have shown that removal of Stat3 from hepatocytes had little effects in the DKO liver [15], reduction of Tgfβ signaling in Hippo signaling deficiency hepatocytes, indeed leads to reduced liver growth and tumor formation [33]. In addition, compound JNK deficiency in both hepatocytes and nonparenchymal cells also led to reduced liver tumor burdens [34]. These results suggest that elevated JNK and Tgfβ signaling are likely resulted from Mcp1-mediated macrophage infiltration and activation, which could lead to liver overgrowth and HCC formation.

Figure 6.

Hippo signaling indirectly regulates cell proliferation through Mcp1-mediated liver microenvironment remodeling. (A) Erk and Jnk are activated in the Mst1/2 DKO mouse livers. Western blotting analysis of liver lysates from 3 months old control, Mst1/2 DKO (DKO), and Mst1/2/Mcp1 TKO (TKO-Mcp1) mice with the indicated antibodies. Jnk, but not Erk, is reduced in the TKO-Mcp1 liver compared to the DKO liver. (B, C) Western blotting analysis of liver lysates from 3 months old control, DKO, and TKO-Mcp1 mice with the indicated antibodies to examine Stat3 and Smad2 activation. (D) Western blotting analysis of liver lysates from 3 months old control, DKO, and TKO-Mcp1 mice with the indicated antibodies (left panel).Quantification of Yap and Taz levels in the indicated mice (right panel). Data are expressed as the mean ± SEM.*P < 0.05 and **P < 0.01 by 1-way ANOVA with Tukey’s post-hoc test for multiple groups. n.s., not significant. (E) Yap/Taz target gene expression was not altered in the TKO-Mcp1 mouse liver compared to the DKO liver. qRT-PCR of Yap/Taz target genes Ctgf and Cyr61 expression in liver tissues from indicated mice (n=3). Data are expressed as the mean ± SEM. *P < 0.05 and **P < 0.01 by 1-way ANOVA with Tukey’s post-hoc test for multiple groups. n.s., not significant. (F) qRT-PCR of Jagged1 expression in liver tissues from the indicated mice (n=3). Data are expressed as the mean ± SEM. **P < 0.01 by 1-way ANOVA with Tukey’s post-hoc test for multiple groups. n.s., not significant. (G) Representative co-IF staining image of EpCAM and Sox9 in the liver sections from 3 months old mice of the indicated genotypes. (H) qRT-PCR of CcnE (Cyclin E), c-Myc and Surviviin expression in liver tissues from the indicated 3 months old mice (n=3). Data are expressed as the mean ±SEM.

*P < 0.05 and **P < 0.01 by 1-way ANOVA with Tukey’s post-hoc test for multiple groups.

To test whether Hippo signaling itself could also be regulated by macrophages or the microenvironment shaped by Mcp1, we examined protein levels of Yap and Taz and found that while there was no change in Yap protein levels in the TKO liver compared to the DKO liver, Taz levels were quite reduced (figure 6D). However, it appears that such reduction of Taz was not sufficient to cause cellular and molecular changes known to be regulated by Hippo signaling. Expression of Yap/Taz target genes including Jagged 1 (Jag1) [15] was not altered by Mcp1 deletion (figure 6E, F). Furthermore, Mcp1 deletion failed to rescue oval cell expansion caused by Hippo signaling deficiency [11] (figure 6G). Interestingly, despite similar Yap/Taz activities in the liver of the TKO and DKO mice, expression of CyclinE (CcnE), cMyc and Survivin that have been shown to act downstream of Yap/Taz in regulating cell proliferation and survival was reduced in the TKO liver compared to the DKO liver (figure 6H), suggesting that these genes may also be regulated indirectly by Mcp1-mediated liver. microenvironment.

Mcp1 expression was directly regulated by Yap/Taz

Requirement of Mcp1 in HCC formation caused by loss of Hippo signaling in hepatocytes led us to test the hypothesis that Mcp1 expression is directly regulated by Yap transcription factors. We first determined in vivo whether genetic reduction of Yap expression in hepatocytes reduces elevation of Mcp1 expression and macrophage infiltration in the DKO liver by generating the Alb-Cre; Mst1^−/−; Mst2^f/f;Yap^f/+ mice [17]. In these Mst1/2/Yap deficient liver, reduction of Yap almost completely restored normal liver growth [15] and we found significant reduction of Yap, Mcp1 and F4/80 protein as well as Mcp1 and F4/80 mRNA levels as compared to the DKO liver (figure 7A, B). These results indicate that Mcp1 expression is inhibited by Hippo kinases through suppressing Yap activities.

Figure 7.

Mcp1 is a direct target gene of Yaz/Taz. (A) Western blotting analysis of liver lysates from 3 months old mice with indicated genotypes. (B) qRT-PCR analysis for expression of Mcp-1 and F4/80 in mice liver with indicated genotypes (n=3). Data are expressed as the mean ± SEM. **P < 0.01 by 1-way ANOVA with Tukey’s post-hoc test for multiple groups. (C) TEAD family transcription co-activators associate with the indicated motif. YAP/TAZ recognizes and binds this consensus sequence via TEAD when Hippo signaling is inactive. (D) Genomic alignment was performed using the regulatory elements of the genes encoding Mcp-1 from various mammals. TEAD binding element in red is highly conserved (left panel). Upward bars indicate the sense orientation, and downward bars indicate the antisense orientation (right panel). TSS, transcription start site. (E) The TEAD-binding element (red arrow) is located ~ 400bp upstream of the transcription start site of MCP1. Based on ChIP-seq data curated by The ENCODE Project Consortium, the TEAD-binding site is located in a region (blue box) where H3K4me3 and H3K27ac histone modifications associated with transcriptionally active genes are enriched. (F) ChIP-qPCR analysis of indicated TEAD binding sites was performed in promoter regions of MCP1, CTGF and HBB. Data are expressed as the mean ± SEM.

**P < 0.01 by 2-tailed Student t test.

We then went on to determine in vitro whether Mcp1 is a direct transcription target of Yap. Yap activates transcription by binding to transcription factor TEADs that directly bind DNA with the consensus sequence motif (figure 7C) [35]. We have found that there is a conserved TEAD binding motif in mammals located ~400bp upstream of the Mcp-1 transcription start site (TSS) (figure 7D). Interestingly, based on ChIP-seq data curated by the ENCODE Project Consortium, the TEAD-binding site is located in a region (blue box) where H3K4me3 and H3K27ac histone modifications associated with transcriptionally active genes are enriched (figure 7E). To test whether YAP indeed binds to this region, we performed ChIP-qPCR analysis of the indicated TEAD binding site in the promoter region of MCP1 in the human hepatocyte cell line Huh7 cells. YAP binding to the promoters of target gene CTGF or irrelevant HBB gene was also tested as a positive and negative control, respectively. We found that YAP antibodies can pull down the predicted TEAD binding DNA in the MCP1 promoter region, similar to the one in the CTGF promoter region, but not the HBB promoter sequences. These results indicate that MCP1 is a direct target of YAP transcription factor. This finding prompted us to investigate whether there is a correlation between Mcp1 expression and Yap activity in human HCC patients. We reasoned that if MCP1 in human HCC is also regulated by YAP activities, its expression should have positive correlation with other YAP target gene expression. To test this, we analyzed mRNA sequencing data of human HCC samples in TCGA database and found that the MCP1 mRNA levels correlate with those of the well-known YAP target genes CYR61 and CTGF in human liver cancers (figure 8A). This conclusion was further strengthened by our analysis of another human HCC cohort data deposited in Gene Expression Omnibus (GSE14520)[36]. Remarkably, expression of Yap signature was also nicely correlated with MCP1 expression (Figure 8B). Furthermore, immunohistochemistry analysis showed both YAP and CYR61 as well as MCP1 protein expression were increased in 8 of 19 human HCC samples, but not in adjacent non- tumor tissue or normal liver control samples (Figure 8C and supplementary table 1). As HCC in different data sets were likely caused by a variety of molecular changes, YAP activation of MCP1 production in human HCC may be a common mechanism underlying pro-tumoral growth in a substantial fraction of HCCs.

Figure 8.

Mcp1 expression correlates with Yap signature in human HCC patients. (A) RNA-seq data are obtained from TCGA liver cancer data set and gene expression is analyzed using the UCSC Xena tool (http://xena.ucsc.edu). The heat map shows the relative levels of transcription of the indicated genes. Red: higher than average; black: average; green: lower than average. Sample numbers are indicated (left panel). A scatter plot matrix is shown between CYR61 and MCP-1 mRNA expression data in HCC. Pearson correlation R-value and P-value are indicated (right panel). (B) Scatter plot matrix are shown between MCP1 and CYR61 (upper panel) or CTGF (bottom panel) mRNA expression data form GSE14520 in HCC. Pearson correlation R-value and P-value are indicated. (C) Representative immunohistochemistry with indicated antibodies in serial liver sections from human HCC samples and normal liver samples (left panel) (see Materials and Methods and Supplementary table 1 for more information of these HCC samples). Scatter plot matrix shows the quantification data of immunohistochemistry studies of YAP, CYR61 and MCP1 expression (right panel). Pearson correlation R-value and P-value are indicated.

DISCUSSION

Here we report that Hippo pathway suppresses tumor formation non-cell autonomously by inhibiting pro-tumor inflammation. Our findings significantly extended previous studies on the cell-autonomous roles of Hippo signaling in HCC that focused on cell proliferation and survival [7, 8, 11, 15]. The identified function of Hippo signaling in shaping an inflammatory microenvironment should also be critical in other processes such as tissue homeostasis and injury repair.

The most significant conceptual advancement of our study is in the finding that Hippo signaling is required in hepatocytes to restrict liver growth and HCC formation by inhibiting monocyte/macrophage infiltration and activation through suppressing Mcp1 expression. Our work here shows that loss of function of the tumor-suppressor Hippo kinase in hepatocytes permits them to progress to malignancy by engaging nonmalignant monocytic cells in the protumoral microenvironment, which evolves along with the tumor. Reduced liver growth and tumor formation in the TKO liver as compared to the DKO liver suggests that Mcp1-mediated inflammatory response in the DKO liver is key to both tumor initiation and progression. Our finding is supported by many other studies that show both the systemic and local environment can play a tumor-initiating role by generating persistent inflammatory responses to a variety of stimuli. For instance, persistent inflammation referred to as “smoldering inflammation” caused by chronic infection with viruses such as Hepatitis B virus in liver or bacteria like Helicobacter pylori in the stomach is casually associated with cancer initiation [37]. In these contexts, it will be interesting to further investigate whether Hippo signaling deficiency plays a role in initiating and/or maintaining “smoldering inflammation”. The critical roles of CCL2(MCP1)-CCR2 signaling axis in promoting HCC with various mechanisms have been reported in several studies very recently [38, 39, 40]. Our studies have significantly advanced these investigations by identifying the Hippo-Yap signaling pathway as a key upstream regulator of Mcp1, linking the hepatic growth control function of Hippo signaling with the regulation of inflammatory responses. It has been recently reported that Lats kinase, which act downstream of Mst1 and Mst2 in the Hippo pathway, suppresses a tumor killing immune response by regulating extracellular vesicle secretion in a tumor graft model with melanoma cell lines [41]. The discrepancy in the findings may be caused by intrinsic differences in the genetic tumor models versus tumor cell graft models involved in the studies and/or hepatocytes versus melanoma cells.

Macrophages can be induced to polarize in M1 or M2 states in vitro, but the in vivo phenotypic plasticity of macrophages and the already described multiple phenotypes of TAMs suggest that simple classification of TAMs into M1 or M2 macrophages does not exist in the complex tumor microenvironment in vivo [28]. Indeed, macrophages in the DKO liver were activated with both M1 and M2 polarization (figure 4). While this is different from a recent publication showing that hepatocytes ectopically expressing an artificially activated Yap protein induce M2 macrophages [42], our conclusion is supported by large-scale transcriptome analysis that have shown TAMs have a mixed phenotype expressing both M1 and M2 markers in vivo [23, 28]. Our finding that CD11b^hi Ly6C^Lo IMs, not the F4/80^hi macrophages, were enriched inside the tumor nodule indicates that TAMs in the DKO liver are not resident Kupffer cells. In addition, previous findings suggest most TAM populations arise from the Ly6C^hi populations of circulating mouse monocytes [23, 43]. Therefore, it is likely that the CD11b⁺Ly6C^lo TAMs in the DKO liver are derived from the CD11b⁺Ly6C^hi macrophages found in pretumor stage or non-tumor regions as shown in another context [30]. Our results are consistent with the notion that to help their escape from immune surveillance, tumor cells coax macrophages to a less inflammatory phenotype in the liver [26]. It will be interesting to determine in the future which factor(s) secreted from DKO tumor cells promotes CD11b⁺Ly6C^lo macrophage differentiation. In addition, Mst1/2 deficient macrophages showed increased cytokine expression, but reduced phagocytic activities [44]. It is likely that loss of Hippo signaling in both hepatocytes and infiltrated macrophages led to increased cytokine expression, but reduced removal of tumor cells. Therefore, it is possible that enhancing Hippo signaling in both hepatocytes and macrophages would reduce hepatocyte proliferation, reduce inflammation, macrophage infiltration and enhance macrophage phagocytic function, all of which collectively reduce tumor formation. Taken together, our work reported here builds a new foundation by studying the integrated roles of Hippo signaling in regulating hepatocyte proliferation, survival and TAM differentiation as driving forces of HCC initiation and progression.

SIGNIFICANCE OF THIS STUDY.

1. What is already known on this subject?

   • Hippo signaling is required to inhibit hepatocyte proliferation and hepatocellular carcinoma (HCC) formation.
   • The tumor microenvironment, largely orchestrated by inflammatory cells, is an indispensable participant in the neoplastic process, fostering proliferation, survival and migration and human HCC is mainly driven by chronic liver inflammation.
   • Loss of Hippo signaling in hepatocytes results in increased macrophage infiltration, but the cellular and molecular mechanisms underlying reciprocal interaction between macrophages and pre-cancerous/cancerous hepatocytes remain largely unknown.
2. What are the new findings?

   • Loss of Hippo signaling in hepatocytes results in increased Mcp1 (Ccl2) expression in the Mst1/2 DKO mice.
   • Macrophages and Mcp1 are required for growth and tumor formation in the Mst1/2 DKO liver
   • Macrophages in the MST1/2 DKO liver exhibit both M1 and M2 characteristics and regulate hepatocyte proliferation and survival independently of Hippo signaling itself.
   • Mcp 1 expression is directly regulated by Yap and in human HCC samples, MCP1 expression levels are correlated with YAP target gene expression.
3. How might it impact on clinical practice in the foreseeable future?

   • Our study highlights the clinical significance of hepatic Hippo signaling as a critical inhibitor of inflammation and tumor microenvironment.
   • Our findings that Mcp1 induction by hepatic Hippo signaling deficiency mediates macrophage infiltration and tumor growth may lead to more efficient therapeutic interventions to reduce tumor burden in HCC patients.
