. 2019 Apr 23;123(25):15769–15776. doi: 10.1021/acs.jpcc.9b02363

Selective Detection of Nitroexplosives Using Molecular Recognition within Self-Assembled Plasmonic Nanojunctions

Weng-I Katherine Chio †,‡, William J Peveler §, Khaleel I Assaf ⊥, Suresh Moorthy ∥, Werner M Nau ⊥, Ivan P Parkin †, Malini Olivo ‡, Tung-Chun Lee †,∥,*
PMCID: PMC6614880  PMID: 31303905

Abstract

graphic file with name jp-2019-02363j_0007.jpg

We demonstrate that the reproducibility of sensors for nitroaromatics based on surface-enhanced Raman spectroscopy (SERS) can be significantly improved via a hierarchical aqueous self-assembly approach mediated by the multifunctional macrocyclic molecule cucurbit[7]uril (CB[7]). Our approach is enabled by the novel host–guest complexation between CB[7] and an explosive marker 2,4-dinitrotoluene (DNT). Binding studies are performed using experimental and computation techniques to quantify key binding parameters for the first time. This supramolecular complexation allows DNT to be positioned in close proximity to the plasmonic hotspots within aggregates of CB[7] and gold nanoparticles, resulting in significant SERS signals with a detection limit of ∼1 μM. The supramolecular ensemble is selective against a structurally similar nitroaromatics owing to the molecular-recognition nature of the complexation as well as tolerant against the presence of model organic contaminants that bind strongly to the SERS substrates.

Introduction

Detection of trace explosives is a major challenge in both homeland security and environmental monitoring of water quality.1−9 Nitroaromatic compounds including 2,4-dinitrotoluene (DNT) and 2,4,6-trinitrotoluene (TNT), which are associated with landmines and bombs used in military activities and terrorist attacks,6−9 are present as contaminants in groundwater and soils at munitions processing sites and military ranges.10,11 DNT is also a major degradation product of TNT with much higher vapor pressure.12 A highly sensitive and selective sensor is of great importance due to increasing global threats of terrorism and environmental safety concerns. Common explosive sensors have utilized mass spectrometric, fluorescent, colorimetric, electrochemical, or antibody-based techniques,13−16 but not all methods allow explosive detection on site in real time with high performance.

Surface-enhanced Raman spectroscopy (SERS) is a highly sensitive and selective spectroscopic technique used to identify analyte molecules via their vibrational fingerprints. This technique takes advantage of the strong field enhancement of plasmonic nanostructures (aka. SERS substrates) that can enhance Raman signals of molecules in their proximity by 4 to 10 orders of magnitude.17 SERS substrates based on noble metal nanoparticles such as gold (Au NPs) and silver (Ag NPs) offer numerous advantages for explosive detection such as high chemical stability, cost-effectiveness, rapid response, and little or no sample preparation.5,18,19 Attachment of macrocyclic molecules onto Au NPs can enhance sensitivity by controlling interparticle spacing and localizing analyte molecules at the plasmonic hotspots via formation of host–guest complexes.20−22

Cucurbit[n]urils (CB[n]s where n = 5–8, 10) are macrocyclic, rigid, highly symmetric, and Raman-active molecules, which can trap small analyte molecules inside their hydrophobic cavity to form inclusion complexes.23 CBs can also bind to the surface of Au NPs through their electron-rich carbonyl portals, mediating the formation of precise plasmonic hotspots via aqueous self-assembly.20,22 In this context, Mahajan and Scherman reported24 the first Raman and SERS study to differentiate major CB[n] homologues using commercial SERS substrates. In a follow-up work, Mahajan et al. investigated22 the kinetics of CB[5]–Au NP aggregation and demonstrated the specificity of host–guest binding of CB[n] via solution-phase SERS measurements. Subsequent SERS studies based on CB[n]–Au NP aggregates include ferrocene,25 polycyclic aromatics,26 diaminostilbene,27 and neurotransmitters.28 These previous studies focus on good CB guests that are positively charged and fit entirely or mostly within the CB cavity. Weaker guests, in particular polysubstituted nitroaromatics that are neutral and bulky, remain largely unexplored in such sensing systems, despite being attractive analytical targets.7

Herein we investigated the host–guest complexation of an explosive marker DNT and CB[7] in water using experimental and computational techniques to quantify key binding parameters of the resultant inclusion complex for the first time (Figure 1). We demonstrate the detection of DNT at different concentrations (down to 1 μM) with highly reproducible SERS signals via host–guest complexation with CB[7] on Au NPs. In addition, the new sensor exhibits high selectivity against a similar explosive molecule, picric acid, which is too bulky to bind into the CB[7] cavity. Notably, despite being a well-established property of CBs, molecular recognition phenomena in CB–Au NP systems have not been systematically investigated using SERS since the first experimental observation.22 Finally, the sensor also shows good tolerance against model organic contaminants that bind strongly to Au NPs.

Figure 1.

Figure 1

Open in a new tab

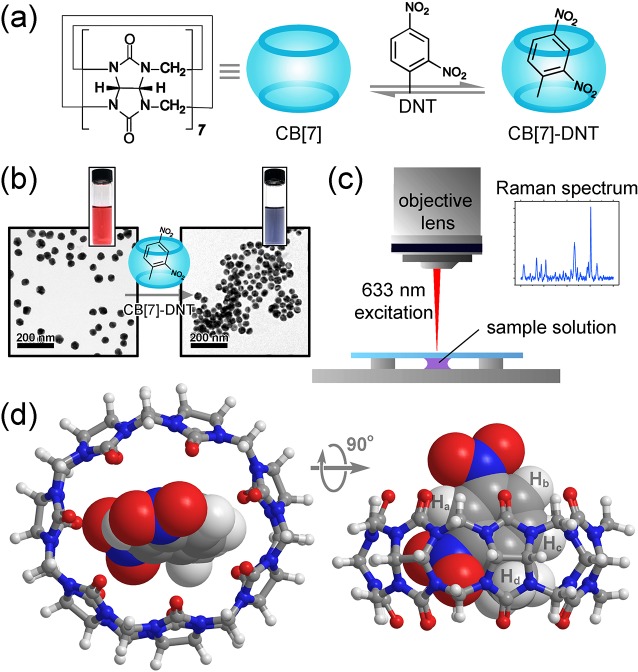

(a) Formation of a 1:1 inclusion complex between DNT and CB[7]. (b) TEM images and photographs showing 40 nm Au NPs before and after addition of the CB[7]–DNT complexes (see Figure S1 for a zoom-in). (c) Schematics of the Raman measurement; a droplet of sample solution is loaded in a custom-made cell and observed under a Raman microscope with 633 nm laser excitation. (d) Top and side views of an energy-minimized CB[7]–DNT complex in water modeled at the CPCM/wB97XD/6-311+G** level of theory.

Materials and Methods

Materials

Citrate-stabilized gold nanoparticles (Au NPs, 40 nm) were purchased from nanoComposix. HCl, paraformaldehyde, 2,4-dinitrotoluene (DNT), 1-adamantylamine (AdNH2), picric acid (PA, safety note: PA should be kept wetted at all times), 4-mercaptophenylboronic acid (4-MPBA), and 4-mercaptobenzonic acid (4-MBA) were purchased from Sigma-Aldrich. Methanol and ethanol were purchased from VWR. Glycoluril was purchased from Acros Organics. NaCl was purchased from Kanto Chemical. Cucurbit[7]uril (CB[7]) was synthesized according to the literature.29 All chemicals were used as received without further purification. Milli-Q water was used in all experiments.

Transmission Electron Microscopy (TEM)

A 100 μM CB[7]–DNT stock solution was diluted 10-fold into a Au NP solution to form Au NP–CB[7]–DNT aggregates. Then, one or two 5 μL drops of the solution were drop-casted onto a C-coated 300-mesh Cu grid and dried with Ar gas. The images were taken using a JEOL JEM-2100 TEM at an accelerating voltage of 200 kV.

Nuclear Magnetic Resonance (NMR) Spectroscopy

CB[7] (2 mM) solutions were prepared in D2O. DNT was added to the solutions with 1:1 or 1.2:1 molar ratios. Similarly, PA was added to the solution with 1:1 molar ratio. The samples were sonicated for 3 h. 1H NMR spectra were measured on a Bruker Advance III 600 Cryo spectrometer. Chemical shifts (in ppm) were referenced to D2O with δ = 4.79 ppm for 1H.

Simulations

DFT calculations were performed using a Spartan’16 Parallel Suite, and force-field calculations were performed using Chem3D. Geometry optimization was performed first using MMFF94, followed by full optimization at the required level of theory (HF/3-21G, wB97X-D/6-31G*, wB97X-D/6-311+G**). All quantum mechanical calculations were done using restricted (closed-shell) models. The binding energy of the discrete CB[7]–DNT inclusion complex was obtained by subtracting the energies of CB[7] and free DNT from that of the complex optimized and calculated at the same level of theory. Raman spectra were simulated at the HF/3-21G level of theory as previously reported.24 A scaling factor of 0.90 was applied to correct the calculated vibrational frequencies.

UV–Visible Binding Titration

UV–vis measurements were performed on a Varian Cary 4000 UV–visible spectrophotometer. DNT solution (10 μM in water, pH 7) was placed in a rectangular cuvette with 1 cm optical path length to which small amounts of the CB[7] stock solution (1 mM) were added up to 4–5 equiv, such that the total concentration of DNT was kept constant, while that of the CB[7] was gradually increased.

Isothermal Titration Calorimetry (ITC)

ITC experiments were carried out in water (unbuffered) on a VP-ITC from Microcal, Inc., at 25 °C. The binding equilibria were studied using a cellular guest (DNT) concentration of 0.1 mM, to which a 1.0 mM CB[7] solution was titrated. Typically, 27 consecutive injections of 10 μL were used. All solutions were degassed prior to titration. The first data point was removed from the data set prior to curve fitting according to a one-set-of-sites model. The knowledge of the complex stability constant (Ka) and molar reaction enthalpy (ΔH°) enabled the calculation of the standard free energy (ΔG°) and entropy changes (ΔS°) according to ΔG° = −RT ln Ka = ΔH° – TΔS°.

Raman and Surface-Enhanced Raman Spectroscopy (SERS)

Raman and SERS spectra were acquired using a Reinshaw Raman InVia Microscope with a 633 nm He–Ne laser (11.36 mW) and focused onto the sample via a 50 × objective lens (N.A. = 0.75). The grating used was 1800 lines mm–1, giving a spectral resolution of 1 cm–1. All spectra were calibrated with respect to Si and acquired at room temperature. Stock solutions were prepared by mixing CB[7] and DNT and, in the case of control experiments, in the presence of AdNH2, 4-MBA, or 4-MPBA. Similarly, CB[7]–PA stock solution was prepared by mixing CB[7] and PA. A 20 μL drop of the premixed stock solution was added to a 180 μL Au NP solution in a 0.5 mL Eppendorf tube. The sample solution was stirred for 30 s before dropping 15 μL onto a microscopic slide for SERS measurements. Three accumulations of 30 s scan were acquired on each measurement. Five measurements were taken across different regions of interest per sample. The spectra were averaged and baseline corrected using an asymmetric least-squares (ALS) plugin in Origin.

Results and Discussion

Supramolecular Chemistry of CB[7] and DNT

The host–guest complexation of CB[7] and DNT was first verified by 1H NMR in D2O which shows characteristic upfield shifts of the DNT proton signals (Figure S2). NMR titration experiments further revealed that the complexation–dissociation dynamics falls into the slow exchange regime on the NMR time scale at 298 K (Figure S3). The change in chemical shift (Δδ) after inclusion complex formation for Hd/Hc (Δδd = −0.86 ppm and Δδc = −1.1 ppm) of DNT is larger than for Hb/Ha (Δδb = −0.12 ppm and Δδa = −0.7 ppm), which indicates that Hd/Hc are located deep inside the CB[7] cavity, whereas Hb/Ha are situated closer to the carbonyl rim. Interestingly, the anisotropic binding of DNT leads to desymmetrization of the CB[7] protons and therefore splits the corresponding NMR signals in the complex. The NMR-deduced binding geometry matches well with the energy-minimized molecular model of the CB[7]–DNT complex calculated at the CPCM/wB97XD/6-311+G** level of theory (Figure 1d). The binding energy of a discrete complex is calculated to be −26.9 kcal mol–1 (see SI for details), which is consistent to that of other similar neutral complexes.30 It is noted that the NO2 group at the 4-position is sticking out through the portal, blocking its potential interaction with Au NPs. Nevertheless, the other CB portal remains accessible, leaving it available to bind to the surface of Au NPs which is critical to the subsequent SERS study.

It was challenging to extract an accurate binding constant with CB[7] using the NMR titration method, owing to the relatively low solubility of DNT in water (0.19 mg/mL at 22 °C)31 and the relatively high aqueous binding constant (see below). Hence, the system was further characterized by UV–vis titration, and a binding constant for CB[7] and DNT of (1.6 ± 0.2) × 106 M–1 was obtained (Figure 2a). We also determined the thermodynamics of binding by using isothermal titration calorimetry (ITC) measurements for DNT binding with CB[7] and verified the postulated 1:1 binding mode. The binding constant was found to be (4.94 ± 0.34) × 105 M–1; within methodological error, this affinity is consistent with the UV–vis titration results. The ITC data also revealed that the binding is enthalphically driven (ΔH° = −11.37 kcal mol–1). The results indicate that displacement of high-energy water molecules by DNT is the major driving force for complex formation, which is typical for CB[7] host–guest complexes (Figure 2b).32 Additionally, dispersion interactions between the highly polarizable nitroaromatics and the hydrophobic cavity are likely contributors.33,34 Negative entropic contributions (ΔS° = −0.012 kcal mol–1 K–1 or TΔS° = −3.61 kcal mol–1) reflect the formation of a conformationally restricted, tight inclusion complex, which is consistent with the deformed, ellipsoidal shape of the CB[7] moiety within the complex in the energy-minimized molecular model (Figure 1d).

Figure 2.

Figure 2

Open in a new tab

(a) UV–vis titration of 10 μM DNT with CB[7]; the fitting was done by assuming a 1:1 binding model from which the binding constant was derived. Inset: Actual changes in the UV–vis spectrum with increasing concentration of CB[7]. (b) Microcalorimetric titration results in neat water: Raw ITC data for sequential injections of 1.0 mM CB[7] into a 0.1 mM DNT solution and apparent reaction heats obtained from the integration of the calorimetric traces.

The Raman spectrum of solid DNT is characterized by a strong peak at 1348 cm–1 corresponding to symmetric NO2 stretching.35 The two peaks at 1544 and 1611 cm–1 correspond to asymmetric NO2 stretching and aromatic NO2 conjugation, respectively.35 The Raman spectrum of solid CB[7] is characterized by two major peaks at 444 and 833 cm–1 which are assigned to the ring scissor and ring deformation modes, respectively.24 The Raman spectrum of the 1:1 CB[7]–DNT host–guest complex in aqueous solution shows slight shifts in peak positions compared to the Raman spectra of CB[7] and DNT powder (Figure S4a). DNT signals are dominant in the Raman spectrum of the CB[7]–DNT complex, as DNT is more Raman-active than CB[7]. Raman spectra of CB[7], DNT, and their complex in the gas phase were modeled at the HF/3-21G level of theory (Figure S4b), showing general consistency with the experimental data. The Raman spectrum of the complex is roughly equal to the sum of that of CB[7] and DNT with slight shifts in some of the peaks.

SERS Sensing of the CB[7]–DNT Host–Guest Complex

The potential detection of the trace-explosive marker DNT by SERS was investigated by adding a solution of preformed 1:1 CB[7]–DNT complex to a solution of citrate-stabilized Au NPs of 40 nm size (Figure 1b). CB-mediated aggregation of Au NPs was observed, evidenced by the change in solution color from red to purple and the transmission electron microscopy (TEM) images; this is consistent with our previous findings.20−22 A SERS titration was first performed by adding different concentrations of CB[7]–DNT complex (Figure S5a,b). The characteristic Raman peak of DNT at 1334 cm–1 remained readily observable for DNT concentrations down to ∼10 μM. Nevertheless, at very low concentration of the complex, no aggregation of Au NPs, and therefore no SERS effect, can be observed because of the insufficient amount of CB[7] to trigger the self-assembly process. It is noted that the broad peak at ∼1640 cm–1 in the Raman spectrum of DNT is due to the H–O–H bending mode of liquid water (Figure S6).36

To test the detection limit, we performed SERS titrations of DNT at a constant CB[7] concentration of 10 μM (Figure 3a,b). This condition ensures the formation of reproducible aggregates, i.e., SERS substrates, because the aggregation kinetics is determined by the CB:Au NP ratio.22 The DNT main peak related to the symmetric NO2 stretching band can be observed clearly in the SERS spectra even when the concentration of DNT is as low as 2 μM (Figure 3b). The detection limit of DNT was found to be ∼1 μM with high linearity of the diagnostic Raman intensity (R2 ∼ 0.97) across a wide concentration range (Figure 3c), which is comparable to other solution-based SERS techniques.3,28

Figure 3.

Figure 3

Open in a new tab

(a) Full-range and (b) zoom-in SERS spectra of DNT with concentrations from 0 to 20 μM; aggregation of Au NPs was triggered by 10 μM CB[7]. Spectra were baseline corrected and offset for clarity. (c) Corresponding plot of SERS intensity of the DNT main peak (marked by * in (a)) against DNT concentration. Logarithmic fittings were performed to reveal correlation between SERS intensity and DNT concentration from 0.5 to 10 μM DNT. (d) Schematic illustration of precise plasmonic nanojunctions within dynamic aggregates of Au NPs formed by CB[7] for DNT detection (not to scale).

CB[7] plays two critical roles in enhancing the SERS signals of DNT. First, its rigid molecular structure defines precise nanojunctions between the Au NPs, resulting in strong and localized plasmonic hotspots. This effect is supported by a control experiment using 0.1 M NaCl as the aggregating agent (Figure S7). In this case, the Raman features are significantly broader, and no correlation between Raman intensity and DNT concentration can be observed, owing to the random Au NP aggregates from uncontrolled aggregation. Second, surface-bound CB[7] can encapsulate DNT molecules, leading to an enriched DNT concentration on the Au NP surface and around the plasmonic hotspots. This effect is especially important for analytes, such as nitroaromatics, that have a low intrinsic affinity to gold surfaces, as opposed to many of the precedent examples using analytes with high affinity to gold.27,28 The surface-enrichment effect was verified by a competitive binding experiment using 1-adamantylamine (AdNH2) which is a strong binder to CB[7] (Figure 4). The DNT signal was reduced by 67% in the presence of equimolar AdNH2 which effectively displaces DNT from the CB[7] cavity.

Figure 4.

Figure 4

Open in a new tab

(a) Schematic illustration of competitive formation of host–guest complexes of AdNH2 and DNT with CB[7]. (b) Full-range and (c,d) zoom-in SERS spectra showing competitive formation of host–guest complexes of AdNH2 and DNT with CB[7]. (d) The DNT signal dropped to ∼33% when 10 μM AdNH2 was added to 10 μM CB[7]–DNT. Main Raman peaks of DNT and AdNH2 are marked by * and x, respectively. Spectra were baseline corrected and offset for clarity.

Selectivity and Robustness of the Nitroaromatic Explosive SERS Sensor

The selectivity of our SERS system was demonstrated by control experiments with a structurally similar nitroaromatic explosive, picric acid (PA), which is too bulky to fit inside the CB[7] cavity as confirmed by NMR measurements (Figure S8). Its negative overall charge and high solubility in water also disfavor the binding with CB[7]. Despite being 3.5 times more Raman active than DNT (Figure S9), PA does not exhibit any observable SERS signals in the presence of CB[7] (Figure 5), illustrating the importance of host–guest affinity in our sensing scheme.

Figure 5.

Figure 5

Open in a new tab

(a) Schematic illustration showing host–guest complexes of CB[7] and PA cannot be formed due to the large molecular size of PA. (b) SERS spectra of Au NPs and PA in the presence and absence of CB[7]. (c) Full-range and (d) zoom-in SERS spectra of PA with concentrations from 0 μM to 20 μM in the presence of 10 μM CB[7]. Spectra were baseline corrected and offset for clarity.

Notably, in the CB[7]–DNT–Au NP system, aggregation of Au NPs should be mostly caused by empty CB[7], which is present in the system at dynamic equilibrium of host–guest complexation. In contrast to a number of previous reports using small analyte molecules that can be entirely encapsulated deep inside the CB cavity, the CB[7]–DNT complex alone could not mediate the aggregation of Au NPs because one of the CB[7] portals is blocked by the bulky nitro group, as evidenced by the NMR data and the energy-minimized molecular model of the complex (Figure 1d). Nevertheless, CB[7]–DNT complexes can still stay close to the plasmonic hot-spots through binding to the Au NP surface via the accessible portal (Figure 3d). This phenomenon is reflected in the relatively large error bar and the slight departure from linearity in the sample with excess DNT (20 μM DNT and 10 μM CB[7]) in Figure 3c, where the concentration of empty CB[7] is lower than that in other samples due to a shift in equilibrium position by excess DNT.

Finally, as a proof-of-concept experiment, we performed the SERS analysis of DNT in the presence of strong Au NP ligands, 4-mercaptobenezoic acid (4-MBA) and 4-mercaptophenylboronic acid (4-MPBA), to mimic strongly binding environmental impurities that might be featured in field applications. Although 4-MBA can bind strongly to Au NPs, no SERS signal of 1 μM 4-MBA can be observed in the absence of CB[7] (Figure S10a,c,d). CB[7] forms nanojunctions between Au NPs as aforementioned and gives rise to the SERS signals of 4-MBA (Figure 6a). We investigated multiplexed SERS detection of 10 μM DNT and 1 μM 4-MBA in the presence of CB[7]. The characteristic peaks of 4-MBA and DNT are clearly observed in the SERS spectra (Figure 6b–d). Similar results were obtained in the case of 4-MPBA, which reflects the tolerance of our SERS system in detecting trace explosives (Figure S10b,e,f). By extracting Raman shift information, interference from various contaminants can be eliminated, in contrast to classical on/off-type sensing techniques which are more prone to false-positive results.

Figure 6.

Figure 6

Open in a new tab

(a) Schematic illustration of the precise nanojunctions between adjacent Au NPs formed by CB[7] with DNT being encapsulated inside their hydrophobic cavities and 4-MBA being strongly bound to Au NPs (not to scale). (b) Full-range and (c,d) zoom-in SERS spectra of a 10 μM CB[7]–DNT 1:1 inclusion complex in the presence of a strong ligand, 1 μM 4-mercaptobenezonic acid (4-MBA). Main Raman peaks of DNT and 4-MBA are marked by * and + , respectively. Spectra were baseline corrected and offset for clarity.

Conclusions

In this work, we report a novel sensor that exploits the formation of a neutral host–guest complex between CB[7] and the explosive marker DNT. Key binding parameters of the complexation have been quantified using NMR, UV–vis titrations, and ITC measurements, supported by molecular modeling based on DFT. While CB[7] is known to host a wide range of positively charged guest motifs, neutral guests are much rarer. Our findings demonstrate new possibilities in utilizing aqueous host–guest chemistry of CB[7] for polysubstituted nitroaromatics, which is an important class of explosive compounds. The complexation between CB[7] and DNT allows a sensing scheme based on aqueous SERS, offering rapid response, high reproducibility, and signal linearity. The system achieved an explosive detection limit of ∼1 μM, consistent with other solution-based SERS sensors. Notably, the molecular recognition and host–guest binding properties of CB[7] are retained after anchoring onto the surface of Au NPs, which has been verified by a competitive binding experiment and a negative control experiment using picric acid. Proof-of-concept experiments showed that the SERS sensor is tolerant against the presence of model organic contaminants, paving the way toward its potential application in on-site environmental monitoring.

Acknowledgments

SM and TCL are grateful to the Research Project Grant (RPG-2016-393) funded by the Leverhulme Trust. WIKC, IPP, MO, and TCL are grateful to the Studentship funded by the A*STAR-UCL Research Attachment Programme through the EPSRC M3S CDT (EP/L015862/1). WJP acknowledges the University of Glasgow for a Lord Kelvin Adam Smith Fellowship. KIA and WMN thank the DFG for grant NA-686/8 within the priority program SPP 1807 “Control of London Dispersion Interactions in Molecular Chemistry”. WIKC and MO acknowledge the SBIC LBOI lab for use of facilities and resources.

Supporting Information Available

The Supporting Information is available free of charge on the ACS Publications website at DOI: 10.1021/acs.jpcc.9b02363.

  • Computational details of CB[7]–DNT; TEM images of Au NP–CB[7]–DNT; NMR spectra of CB[7]–DNT and CB[7]–PA; Raman spectra of DNT, CB[7], CB[7]–DNT, water, Au NPs, AdNH2, PA, 4-MBA, and 4-MPBA; and SERS spectra of CB[7]–DNT, NaCl control, 4-MBA, and 4-MPBA (PDF)

Author Contributions

WIKC, WJP, and TCL designed the experiments. WIKC performed all Raman and SERS measurements. SM and WJP performed NMR measurements. WIKC, SM, and TCL conducted the TEM imaging. Binding studies using UV–vis titration and ITC were performed by KIA. Computational studies were done by TCL. All authors contributed to data analysis and to writing of the manuscript.

The authors declare no competing financial interest.
