. 2018 Aug 15;3(8):9172–9181. doi: 10.1021/acsomega.8b01018

Cavitand-Decorated Silicon Columnar Nanostructures for the Surface Recognition of Volatile Nitroaromatic Compounds

Cristina Tudisco †, Alessandro Motta ‡, Tahnie Barboza §, Chiara Massera §, Antonino E Giuffrida †, Roberta Pinalli §, Enrico Dalcanale §,*, Guglielmo G Condorelli †,*
PMCID: PMC6644403  PMID: 31459051

Abstract

graphic file with name ao-2018-01018b_0008.jpg

Nanocolumnar Si substrates (porous silicon (PSi)) have been functionalized with a quinoxaline-bridged (EtQxBox) cavitand in which the quinoxaline moieties are bonded to each other through four ethylendioxy bridges at the upper rim of the cavity. The receptor, which is known to selectively complex aromatic volatile organic compounds (VOCs) even in the presence of aliphatic compounds, has been covalently anchored to PSi. The larger surface area of PSi, compared to that of flat substrates, allowed one to study the recognition process of the surface-grafted receptors through different techniques: Fourier-transform infrared spectroscopy, thermal desorption, and X-ray photoelectron spectroscopy. The experiments proved that surface-grafted cavitands retain the recognition capability toward aromatic VOCs. In addition, the affinities of EtQxBox for various aromatic compounds (i.e., benzene, toluene, nitrobenzene, and p-nitrotoluene) have been studied combining density functional theory computations and thermal desorption experiments. Computational data based on the crystal structures of the complexes indicate that this cavitand possesses a higher affinity toward aromatic nitro-compounds compared to benzene and toluene, making this receptor of particular interest for the detection of explosive taggants. The results of computational studies have been validated also for the surface-grafted receptor through competitive recognition experiments. These experiments showed that EtQxBox-functionalized PSi can recognize nitrobenzene in the presence of a significant excess of aromatic vapors such as benzene (1:300) or toluene (1:100).

Introduction

The detection of volatile nitroaromatic compounds is an area of active research, particularly regarding environmental monitoring and social security.1 Among nitroaromatics, nitrobenzene (NB) and 4-nitrotoluene (NT) are molecules of particular interests because NB, which is widely used in organic industries, is considered a highly polluting substance due to its toxicity, carcinogenicity, and biological persistence,2 whereas NT is an explosive taggant.3

Previous papers reported the detection of these nitroaromatic compounds adopting different analytical techniques such as liquid chromatography/mass spectrometry,4−6 spectrophotometry,7 chromatography,8 fluorescence quenching methods,9,10 electrochemical methods,11 surface-enhanced Raman spectroscopy,12,13 and using various organic and inorganic materials such as metallic nanoparticles,2,14 metal–organic frameworks,15−17 polymers,18 carbon nanostructures,19,20 and self-assembled monolayers.21,22 General overviews of nitroaromatic detection approaches can be found in some recent reviews.23−25 Although all of these methods allow the detection of NB at low concentrations, they often require complex instruments and time-consuming sample preparations and, in some cases, suffer from low selectivity or lack of reversibility. On the contrary, detection methods based on supramolecular receptors (such as quinoxaline-bridged and iptycene-roofed cavitands for aromatic volatile organic compounds (VOCs) or higher iptycenes for nitrocompound detection26−28) have recently been explored as alternatives to classical approaches for a fast and easy recognition of the presence of aromatic contaminants.29−35 Conformationally mobile quinoxaline-based cavitand (QxCav, Chart 1)36 showed remarkable selectivity and sensitivity for the detection of benzene, toluene, ethylbenzene, and xylenes (BTEX) in air.29 The complexation properties of this receptor are due to the presence of a deep, hydrophobic cavity capable of engulfing aromatic rings, interacting with them via a set of CH···π and π-stacking interactions.33 These complexation proprieties are retained after the covalent anchoring of this receptor on different surfaces (i.e., Si and ZnO).37,38 Recently, a new conformationally rigid quinoxaline cavitand (EtQxBox) delimited by four quinoxaline walls linked via ethylendioxy bridges (Chart 1) was synthetized.39 This new receptor exhibits an enhanced trapping efficiency for BTEX compared to the parent QxCav receptor in air. Moreover, the conformational rigidity of this cavitand maximizes the binding of toluene, ethylbenzene, and xylenes (TEX) with respect to benzene by increasing the number and strength of their synergistic CH···π interactions.39

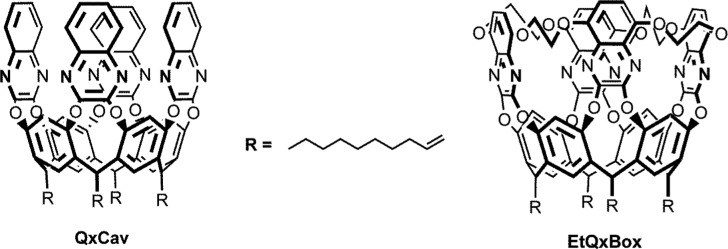

Chart 1. Chemical Structures of the Cavitands Discussed in this Study.

Chart 1

Open in a new tab

However, the use of cavitands as bulk material limits the degree of miniaturization achievable and, in addition, it can affect the receptor selectivity due to residual nonspecific adsorptions at the solid–gas interface. On the contrary, one of the limitations of the use of monolayers on flat substrates is related to the low surface area and, in turn, to the low amount of material involved in the recognition process, thus jeopardizing sensitivity. A possible solution to these limitations is the deposition of receptor monolayers on high surface area substrates.40−42

Herein, we report on the covalent anchoring of a specifically designed EtQxBox cavitand to columnar porous silicon (PSi) through hydrosilylation of the undecylenic feet decorating the lower rim of the receptor. The high surface area of PSi allowed us to study the heterogeneous recognition process of the surface-grafted receptors versus aromatic analytes through different analytical techniques: Fourier-transform infrared spectroscopy (FTIR), thermal desorption, and X-ray photoelectron spectroscopy (XPS). An unprecedented selectivity of EtQxBox@PSi toward nitroaromatic compounds compared to benzene and toluene has been assessed and rationalized combining thermal desorption experiments with a density functional theory (DFT) approach.

Results and Discussion

Material Synthesis and Characterization

The desired cavitand was prepared following a step-by-step synthetic approach, starting from resorcinarene Res [C10H19, H] (Scheme 1) presenting four terminal double bonds at the lower rim, essential for the grafting of the cavitand onto porous silicon.

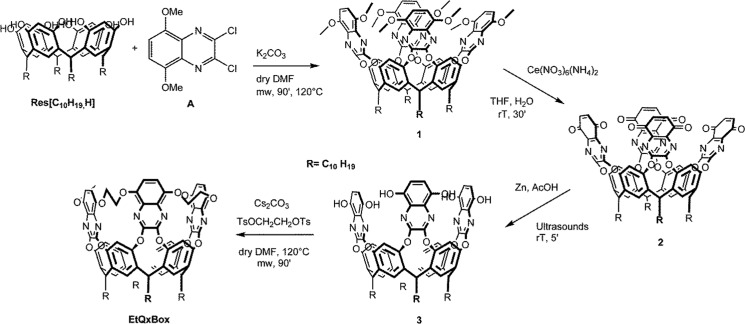

Scheme 1. Synthesis of EtQxBox.

Scheme 1

Open in a new tab

Resorcinarene Res [C10H19, H] was obtained from the standard condensation of resorcinol and undecylenic aldehyde in acidic conditions;43 Res [C10H19, H] was reacted in anhydrous conditions with four equivalents of 2,3-dicloro-5,8-dimethoxyquinoxaline A, in a microwave reactor, in the presence of K2CO3 as the base and dimethylformamide (DMF) as the solvent, affording the octamethoxy-quinoxaline cavitand 1 in good yields. The subsequent reaction step was the deprotection of the methoxy groups to have four couples of neighboring free OHs on the quinoxaline ring for cavity rigidification by the introduction of four ethylendioxy bridges. In a previously reported procedure,39 the deprotection of the methoxy groups of quinoxaline was performed by aluminum trichloride in anhydrous toluene. In this case, the presence of the four double bonds at the lower rim of the resorcinarene is not compatible with the use of AlCl3 as a deprotecting agent. Therefore, new deprotection conditions were elaborated to preserve the presence of the four double bonds. The deprotection of cavitand 1 was performed in two steps. The first one consisted in the oxidative elimination of the eight methoxy groups by cerium ammonium nitrate, leading to the tetraquinone-quinoxaline cavitand 2. Crude 2 was purified by column chromatography, and the deprotection was confirmed through 1H NMR by the disappearance of the methoxy signal. Owing to its low stability, cavitand 2 was immediately used in the next step, which consisted in the reduction of the quinone groups by sonication in the presence of metallic zinc (reducing agent) and acetic acid (proton donor) to give cavitand 3. The final reaction step was the rigidification of the cavitand via introduction of four ethylendioxy groups bridging the eight OH moieties at the upper rim. Cavitand 3 was reacted in dry conditions under microwave irradiation with ethylene glycol ditosylate in the presence of anhydrous Cs2CO3 as base and dry DMF as solvent, affording the desired EtQxBox cavitand in 50% yield (Figure S1).

PSi functionalization was performed through thermal hydrosilylation of the EtQxBox terminal double bonds at the lower rim, following a reported procedure.44 FTIR and XPS were carried out to characterize porous silicon slides (PSi) functionalized with EtQxBox receptors (EtQxBox–PSi). Figure 1 compares the following FTIR spectral regions of bare PSi (black line) and EtQxBox–PSi (red line): (a) the C–H stretching region between 3200 and 2700 cm–1; (b) the Si–H stretching region between 2300 and 2000 cm–1; and (c) the region between 1500 and 950 cm–1, which contains SiOx and C–O stretching vibrations. The EtQxBox–PSi spectrum shows two strong bands due to the CH2 symmetric (νs(CH2)) and antisymmetric (νa(CH2)) stretches at 2852 and 2928 cm–1 and a lower band at 3050 cm–1 assigned to the aromatic C–H (ν(CH)) stretches of the cavitand.44 The presence of these bands, combined with the absence of the analogue ones in the PSi spectrum, indicates that the receptor is grafted to the PSi surface. In the spectrum of bare PSi, three distinct signals at 2085, 2107, and 2267 cm–1, due to SiH, SiH2, and SiH3 stretches, respectively, are present.45 After EtQxBox anchoring, these SiHx peaks broaden slightly and decrease, leading to a single broad band, as a result of the hydrosilylation reaction, which causes the partial replacement of Si–H terminations with Si–C bonds. In addition, the low broad band at 2251 cm–1 observed in the EtQxBox–PSi spectrum can be assigned to the OSi–Hx stretches of the partially oxidized silicon substrate.46 The 1500–950 cm–1 region of the EtQxBox–PSi spectrum shows two bands at 1172 and 1272 cm–1 attributed to the aromatic C–O bond of the ethylendioxy bridges. In addition, the EtQxBox–PSi spectrum shows also some features in the 1500–1300 cm–1 region associated with the breathing modes of the aromatic ring. All of these features are not detectable in the PSi spectrum.

Figure 1.

Figure 1

Open in a new tab

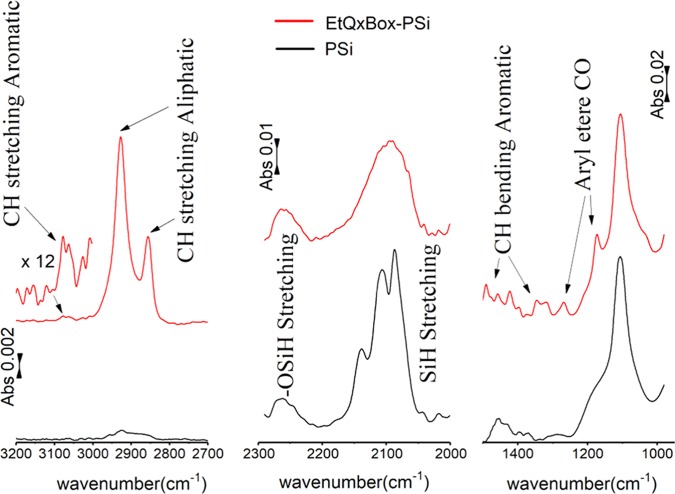

FTIR spectral regions in the 3200–2700 cm–1 (left), 2300–2000 cm–1 (middle), and 1500–950 cm–1 (right) ranges of bare PSi (black line) and EtQxBox–PSi (red line).

XPS characterization gives further indication of the success of the anchoring process. XPS C 1s and N 1s spectral regions of PSi and EtQxBox–PSi samples are shown in Figure 2. The C 1s spectrum of PSi (Figure 2a) mainly consists of a component centered at 285.0 eV due to adventitious carbon and a low shoulder around 286.0 eV due to oxidized adventitious carbons. The EtQxBox–PSi spectrum (Figure 2b) consists of three main components. The first component, centered at 285.0 eV, represents aliphatic and aromatic hydrocarbons, whereas the second one, centered at 286.5 eV, can be attributed to the carbon in the cavitand phenyl ring bonded to one oxygen. Note that the possible formation of Si–O–C groups due to the reaction between Si–H and Si–OH termination with oxidized carbon species can contribute to this latter component. The third component at 287.6 eV is due to quinoxaline carbons that bond both oxygen and nitrogen atoms. The N 1s spectrum of EtQxBox–PSi (Figure 2d) consists of a main band centered at 399.9 eV due to the nitrogens of the quinoxaline rings.47 A much less intense side component at 401.1 eV could be due to protonated N atoms or forming H bonds. The presence of these bands, combined with the absence of the analogue signals on PSi (Figure 2c), is a clear evidence of the grafting of EtQxBox on the surface.

Figure 2.

Figure 2

Open in a new tab

XPS C 1s (left) and N 1s (right) spectral regions of PSi (a, c) and EtQxBox–PSi (b, d) samples.

Complexation Studies

Crystal Structure of NT@EtQxBox

To evaluate the inclusion ability of EtQxBox toward nitroaromatic compounds, the crystal structure of complex NT@EtQxBox·10DMSO was determined by single-crystal X-ray diffraction methods (Figure S2). This complex was obtained by slow evaporation of a dimethyl sulfoxide (DMSO) solution of hexyl-footed EtQxBox39 and NT from a 1:1 stoichiometric ratio mixture. Crystallographic details for the structures are reported in the Supporting Information, Table S1.

Different views of the molecular structure are shown in Figure 3, whereas geometrical details of the interactions responsible for the complex formation are given in Figure S3 and Table S2. NT enters the cavity with the methyl group, which interacts with the aromatic walls at the lower rim of the host via two C–H···π interactions, dictating the orientation of the guest into the cavity. These interactions are strengthened by the presence of the nitro substituent on the aromatic ring, which renders the methyl group more “acidic”. The guest is further stabilized by the presence of two bifurcated C–H···N weak H bonds involving the aromatic hydrogen atoms ortho to the methyl group and the nitrogen atoms of two quinoxaline rings (see Figure S3 and Table S2). The nitro group does not interact with the cavity rim.

Figure 3.

Figure 3

Open in a new tab

Side and top views of the molecular structure of NT@EtQxBox. Color code: C, gray; O, red; N, blue. Hydrogen atoms and solvent molecules have been omitted for clarity. The guest is represented in space-filling mode.

Nitroaromatic Vapor Complexation by EtQxBox–PSi

The affinity of the cavitand-grafted silicon surfaces toward aromatic compounds has been evaluated by exposing EtQxBox–PSi to either NB (about 30 Pa) or NT (about 15 Pa) vapors calculated according to the Antoine equation.48 The detection of the surface-complexed molecules was performed using both XPS and FTIR techniques. In addition, a control reference surface (Ref-PSi) was prepared and similarly exposed to the nitroaromatic vapors. Ref-PSi consisted of a PSi surface functionalized with an inactive organic monolayer formed by a mixture (4:1) of 1-dodecene and a linear naphtyridine, the 2,7-diamido-1,8-naphthyridine.49 The mixed alkene/naphtyridine monolayer was chosen for its elemental composition (C/N/O = 14:1:0.5) similar to that of EtQxBox (C/N/O = 13.5:1:2).

Figure 4a shows the evolution of EtQxBox–PSi FTIR spectra in the 1800–1200 cm–1 range after exposure to NB or NT vapors. The spectrum of Ref-PSi after NB exposure has been reported as reference. The spectra of EtQxBox–PSi after exposure to the analytes show the characteristic bands at 1345 and 1523 cm–1 associated with the asymmetric and symmetric N–O stretching of NO2, respectively. These bands are absent in the Ref-PSi spectrum under the same conditions (Figure 4a bottom), indicating that surface-bound EtQxBox is needed for the recognition and that nonspecific interactions can be neglected.

Figure 4.

Figure 4

Open in a new tab

(a) FTIR spectra in the 1800–1200 cm–1 range of EtQxBox–PSi after exposure to NB (up) or NT (middle) vapors. The spectrum of Ref-PSi after NB exposure (bottom) has been added for reference. (b) Intensity variation of the 1523 cm–1 band of NO2 after cycles of absorption/desorption of NB with EtQxBox–PSi.

The reversibility of the complexation process was then evaluated through the FTIR monitoring of the intensity variation of NO stretches during NB adsorption/desorption cycles. These cycles were obtained through sample exposure to NB vapors (adsorption), followed by a mild treatment at 80 °C under N2 flushing for 20 min (desorption). The decrease of the feature associated with the NO2 group down to a 20% of the maximum after the desorption step indicates that the process operates with good reversibility (Figure 4b).

The complexation process was also monitored by XPS. Figure 5 reports the N 1s spectral regions of EtQxBox–PSi (Figure 5a) and Ref-PSi (Figure 5b) before and after the complexation process with NB. After the exposure to NB, the N 1s region of EtQxBox–PSi (Figure 5a middle trace) shows a new broad peak at ∼406.0 eV, besides the typical peak at 399.9 eV, attributable to the presence of the NO2 group of NB in the cavity. In the case of Ref-PSi, only the N 1s band centered at 400.0 eV assigned to the nitrogens of the 2,7-diamido-1,8-naphthyridine is present before and after vapor exposure (Figure 5b).

Figure 5.

Figure 5

Open in a new tab

N 1s spectral regions of (a) EtQxBox–PSi and (b) Ref-PSi before and after the NB exposure.

The NB desorption induced by sample heating was also monitored by XPS analysis, confirming the process reversibility observed in the FTIR experiments (Figure 5a upper trace).

Nitroaromatic vs Aromatic Complexation at the Gas–Solid Interface

The complexation of benzene (104 Pa), NB (30 Pa), and NT (15 Pa) vapors on EtQxBox–PSi slides and their thermal desorption under ultra-high vacuum (UHV) conditions (total pressure = 10–8 Torr) were studied by in situ mass spectrometry. Various ions associated with the fragmentation of the desorbing molecules have been detected by the mass spectrometer during the heating of the substrate (Figure 6). In the case of benzene desorption, the molecular C6H6+ (main ion) ion and the C6H5+ fragment (<20%) start to desorb below 50 °C, and the desorption is completed at about 150 °C.

Figure 6.

Figure 6

Open in a new tab

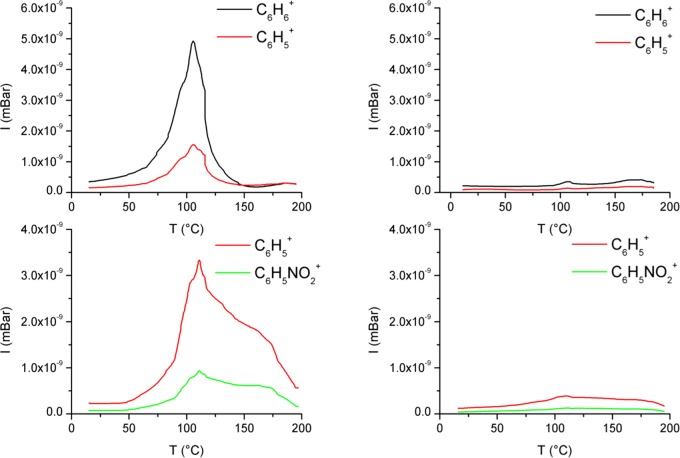

Thermal desorption experiments of EtQxBox–PSi (left) and Ref-PSi (right) after the adsorption of benzene (up) and NB (bottom).

In the case of NB, the complexation is proved by the desorption of the C6H5+ fragment, which in this case is the most intense, whereas the observed molecular C6H5NO2+ ion is about 30% of the main fragment. Note that the desorption temperature range of NB is broader than the one observed for benzene. The same trend is observed for the thermal desorption of NT (Figure S4). Similar experiments performed on the inert Ref-PSi slides showed a minimal uptake of the guests, further confirming that the presence of the cavitand on the surface is essential for the aromatic compound complexation.

To evaluate the different affinities of EtQxBox–PSi toward aromatic and nitroaromatic compounds, a set of experiments with simultaneous adsorptions of vapors of NB/benzene (1:300 ratio) and of NB/toluene (1:100 ratio) was performed. The comparison between benzene and NB adsorption emphasizes the effects on the cavitand–arene complex if a nitro group is added to the aromatic ring. On the contrary, through experiments adopting toluene and NB mixtures, the role of the two substituents can be compared. After the adsorption of the benzene/NB mixture, the main ions observed during the thermal desorption were C6H5+, which is the most intense peak arising from NB fragmentation, and the C6H5NO2+ molecular ion (Figure 7). Despite the large excess of benzene in the gas phase, only a reduced amount of benzene (peak C6H6+) was released during heating. Note that the contribution of benzene to the intensity of the fragment C6H5+ is below 10% because the amount of this ion, deriving from benzene fragmentation, is less than 20% of C6H6+. This experiment has shown that NB is preferentially complexed with respect to benzene by EtQxBox–PSi. It therefore indicates that the addition of the nitro group to the aromatic ring increases the stability of the cavity–arene complex.

Figure 7.

Figure 7

Open in a new tab

Thermal desorption experiments of EtQxBox–PSi (up) and Ref-PSi (bottom) after the adsorption of (left) benzene/NB (300:1) and (right) toluene/NB (100:1) mixtures.

During thermal desorption after toluene/NB exposure, the characteristic toluene ions (i.e., C7H8+ e C7H7+) and the NB C6H5NO2+ and C6H5+ ions are clearly present.

Despite the excess of toluene in the gas phase, the amount of adsorbed NB is comparable to that of the adsorbed toluene, suggesting a higher affinity of EtQxBox toward NB. However, in this case, the gap is less marked when compared to that of the benzene/NB mixture.

Rationalization of the Observed Selectivity via a DFT Study

DFT calculations of the insertion of aromatic compounds inside the EtQxBox cavity were performed to rationalize the higher affinity of the cavitand toward nitroaromatics compared to that toward simple aromatic hydrocarbons. In particular, complex formation with benzene, toluene, NB, and NT is compared. In all cases, deep insertion of the aromatic moiety into the cavity is observed (Figure 8).

Figure 8.

Figure 8

Open in a new tab

Optimized structures for the host–guest complex between aromatic guests and the EtQxBox cavitand: (a) benzene@EtQxBox; (b) NB@EtQxBox; (c) toluene@EtQxBox; and (d) NT@EtQxBox.

Benzene and toluene insert deeper than the respective nitro derivatives (see also the corresponding crystal structures in ref (39)). In the case of toluene, both orientations of the methyl group with respect to the cavity are energetically accessible, but the one with the methyl group protruding outside the cavity is preferred (Figure 8c). The nitro group is always positioned outside the cavity (Figure 8b,d).

The host–guest formation is in all cases exothermic and exoergonic (Figure 9). The stabilization energies are mostly due to the CHguest···πhost and CHguest···Nhost interactions, as also evidenced by the NT@EtQxBox crystal structure. In the cases of NB and NT, a further stabilizing contribution of about 7 kcal/mol, compared to benzene and nitrobenzene, respectively, is ascribable to the dipole–dipole interaction between the nitroaromatics and EtQxBox (Figure S5). The much higher affinity of the cavity toward NB compared to benzene, observed in the adsorption/desorption experiments, is due to this difference. Smaller differences are observed in the adsorption affinity between NB and toluene, as confirmed by the calculated lower energy gap (about 3 kcal/mol) between the host–guest complexes. In the case of toluene, the lack of the dipole–dipole stabilization due to the nitro group is partially balanced by the formation of the CHguest···πhost interactions of the methyl group.39 The process is entropy opposed due to the confinement of the guest inside the cavity. In fact, we found that Gibbs free energy values are always 13–16 kcal/mol higher than the respective enthalpy values (at 298 K). The entropic loss is quantified in about 13–16 kcal/mol in the gas phase.

Figure 9.

Figure 9

Open in a new tab

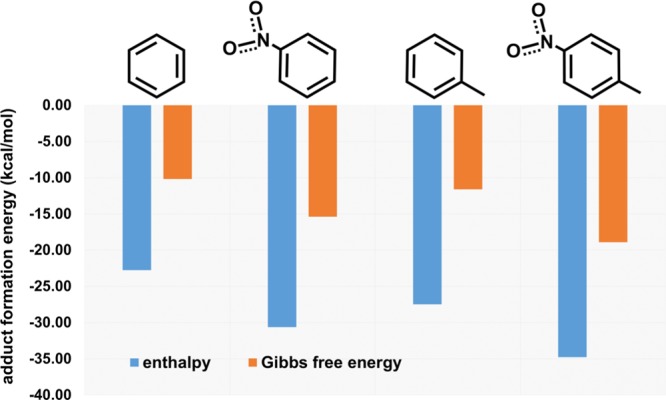

Interaction energy of the four guests with EtQxBox.

Conclusions

In this work, we report the synthesis, characterization, and complexation properties of a new organic–inorganic hybrid material based on a porous silicon surface decorated with a conformationally rigid quinoxaline-bridged cavitand. The recognition properties of EtQxBox toward aromatic VOCs have been transferred to the silicon surface. The success of the grafting protocol has been demonstrated by combining different analytic techniques (XPS and FTIR). Reversible host–guest complexation of aromatic and nitroaromatic compounds on the functionalized porous surface has been evaluated by XPS, FTIR, and desorption experiments. We demonstrated through the combination of experimental results and DFT modeling that the affinity of the EtQxBox–PSi system toward nitroaromatic compounds is significantly higher than the one toward benzene because of the stabilizing contribution due to the dipole–dipole interaction.

Experimental Section

Materials

Purchased chemicals were used as received unless otherwise noted. Water used in PSi preparation and functionalization was Milli-Q grade (18.2 MΩ cm) and was passed as a final step through a 0.22 μm filter.

Unless stated otherwise, reactions were conducted in flame-dried glassware under an atmosphere of argon using anhydrous solvents (either freshly distilled or passed through activated alumina columns). Silica column chromatography was performed using silica gel 60 (Fluka 230–400 mesh or Merck 70–230 mesh). 1H NMR spectra were obtained using a Bruker Avance 300 (300 MHz) and a Bruker Avance 400 (400 MHz) spectrometer at 298 K. All chemical shifts (δ) were reported in ppm relative to the proton resonances resulting from incomplete deuteration of the NMR solvents. High-resolution matrix assisted laser desorption ionization-time of flight (MALDI-TOF) was performed on AB SCIEX MALDI-TOF-TOF 4800 Plus (matrix: α-cyano-4-hydroxycinnamic acid). 2,3-Dicloro-5,8-dimethoxyquinoxaline A(50) and undecylenic-footed resorcinarene Res [C10H19, H]43 (Scheme 1) were prepared according to published procedures.

Synthesis of Cavitand EtQxBox

Synthesis of Octametoxy-Quinoxaline Cavitand 1

First, 1 g (9.61 × 10–4 mol) of resorcinarene Res [C10H19, H] was dissolved in 50 mL of dry DMF; K2CO3 (2.12 g, 0.01 mol) and quinoxaline A (0.99 g, 3.84 × 10–3 mol) were then added. The reaction was conducted in a microwave reactor, in open-vessel modality, at 120 °C for 1.5 h. The crude was diluted in a large excess of ethyl acetate and washed with water. The organic phase was dried over sodium sulfate and evaporated. The compound was purified by flash column chromatography (SiO2, CH2Cl2/acetone 95:5–90:10), affording a yellow solid, active in fluorescence, in 69% yield. 1H NMR (CDCl3, 300 MHz): 7.43 (s, 4H, Hup), 6.93 (s, 8H, ArHQuin), 6.84 (s, 4H, Hdown), 5.79 (m, 4H, −CH=CH2), 4.96 (m, 8H, −CH=CH2), 4.02 (s, 24H, −OCH3), 3.95 (t, 4H, ArCH–R, J3 = 7.9 Hz), 2.30 (m, 8H, −ArCH–CH2), 1.33 (m, 56H, −CH2−). MALDI: m/z = 1787.89 [M + H]+.

Synthesis of Tetraquinone-Quinoxaline Cavitand 2

Cavitand 1 (1.02 g, 5.72 × 10–4 mol) was dissolved in 100 mL of tetrahydrofuran, and cerium ammonium nitrate (3.76 g, 6.86 × 10–3 mol, previously diluted in a minimum amount of water) was added. The mixture was stirred at room temperature for 30 min and then quenched by the addition of water. After extraction with ethyl acetate and evaporation, the compound was purified by flash column chromatography (SiO2, CH2Cl2/acetone 85:15), affording an orange solid in 80% yield. Owing to its poor stability, the compound was characterized only through 1H NMR and immediately used for the next reaction. 1H NMR (CDCl3, 300 MHz): 7.38 (s, 4H, Hup), 7.18 (s, 8H, ArHQuin), 6.80 (s, 4H, Hdown), 5.80 (m, 4H, −CH=CH2), 4.97 (m, 8H, −CH=CH2), 3.63 (t, 4H, ArCH–R, J3 = 7.4 Hz), 2.30 (m, 8H, ArCH–CH2−), 1.33 (m, 56H, −CH2−).

Synthesis of Octahydroxy Quinoxaline Cavitand 3

Tetraquinone-quinoxaline cavitand 2 (0.21 g, 1.26 × 10–4 mol) was dissolved in 6 mL of acetone. Zinc (0.92 g, 0.01 mol) and 0.5 mL of acetic acid were added in this order. The suspension was sonicated for 5 min. The crude was filtered over celite, dissolved in ethyl acetate, and washed with water, until complete removal of acetic acid. After evaporation, the pure compound was obtained as a bright yellow solid in 90% yield. 1H NMR (DMSO- d6, 400 MHz): 8.32 (s, 8H, ArOH), 8.10 (s, 4H, Hup), 7.90 (s, 4H, Hdown), 6.94 (s, 8H, ArHQuin), 5.83 (m, 4H, −CH=CH2), 4.95 (m, 8H, −CH=CH2−), 4.08 (t, 4H, ArCH–R, J3 = 7.3 Hz), 2.30 (m, 8H, −ArCH–CH2−), 1.22 (m, 56H, −CH2−). MALDI-MS: m/z =1673.71 [M + H]+.

Synthesis of Cavitand EtQxBox

Cavitand 3 (80 mg, 4.78 × 10–5 mol) was dissolved in 5 mL of dry DMF in a microwave vessel. Cs2CO3 (202 mg, 6.20 × 10–4 mol) and ethylene glycol ditosylate (106 mg, 2.86 × 10–4 mol) were added under nitrogen. The mixture was reacted in a microwave reactor at 120 °C for 1.5 h. The crude was extracted with CH2Cl2/H2O, dried over sodium sulfate, and evaporated. The compound was purified by preparative thin layer chromatography (SiO2, acetone 100%), affording the desired compound as a bright yellow solid, in 50% yield. 1H NMR (CDCl3, 400 MHz): 8.31 (s, 4H, Hup), 7.55 (s, 4H, Hdown), 6.74 (s, 8H, ArHQuin), 5.88 (m, 4H, −CH=CH2), 5.81 (t, 4H, ArCH–R, J3 = 7.6 Hz), 5.04 (m, 8H, −CH=CH2), 4.64–4.50 (m, 16H, ArOCH2CH2OAr), 2.11 (m, 8H, −ArCH–CH2−), 1.32 (m, 56H, −CH2−). MALDI-MS: m/z = calculated for C108H113N8O16 [M + H]+ 1777.82745, found 1777.8230, calculated for C108H112N8NaO16 [M + Na]+ 1799.8094, found 1799.8094 [M + Na]+.

PSi Preparation

PSi has been prepared by wet metal-assisted chemical etching according to a published method.39,ref40 In particular, Czochralski-grown, p-type Si(100) slides having a resistivity of 1.5–4 Ω cm were treated for 5 min with an hydrofluoric acid (HF) (0.14 M) and AgNO3 (5 × 10–4 M) water solution. After the deposition of Ag particles, the slides were dipped in HF, H2O2, and H2O (40% HF/30% H2O2/H2O 25:10:4 v/v) solution for 1 min and then rinsed with Milli-Q water and dried under N2 flow.

Cavitand Grafting

For grafting on porous substrates, the etched PSi was dipped in a EtQxBox solution in mesitylene. The solution was refluxed at 200 °C under N2 for 5 h; then functionalized PSi slides were cleaned by two washing cycles in an ultrasonic bath (5 min each) in dichloromethane.

Cavitand Complexation Tests

Adsorption experiments were performed by placing samples for 30 min in a closed chamber saturated with aromatic VOC vapors. The saturated chamber at 25 °C was obtained by placing one beaker (or two beakers for the mixtures) containing 3 mL of the aromatic compound (benzene, toluene, or NB) and allowing vapor saturation for 4 h. The saturation of NT vapor was obtained by placing for 2 h ∼50.0 mg of NT in a closed chamber kept at 50 °C.

Sample Characterization

XPS spectra were obtained with a PHI 5600 multitechnique ESCA-Auger spectrometer equipped with a monochromated Al Kα X-ray source. Analyses were carried out with a photoelectron takeoff angle of 45° (relative to the sample surface) with an acceptance angle of ±7°. The XPS binding energy scale was calibrated by centering the C 1s peak due to hydrocarbon moieties and “adventitious” carbon at 285.0 eV.

FTIR spectra were obtained with JASCO FTIR 430, using 100 scans per spectrum (scan range 560–4000 cm–1, resolution 4 cm–1).

Thermal desorption experiments were performed in a UHV chamber (basic pressure ∼ 10–8 Torr). For the experiments, the holder (Vacuum Science, Italy) was resistively heated with a ramp of about 10 °C/min from 30 to 200 °C. The desorbed molecules were detected with a Smart-IQ + (Thermo Electron Corporation) quadrupole mass spectrometer equipped with an electron filament as ion source and a multiplier detector (mass range 1–300).

Crystal Structure of NT@EtQxBox

The crystal structure of NT@EtQxBox was determined by single-crystal X-ray diffraction methods. Intensity data and cell parameters were obtained at 190 K on a Bruker APEX II equipped with a charge-coupled device area detector and a graphite monochromator (Mo Kα radiation λ = 0.71073 Å). The data reduction was carried out using the SAINT and SADABS51 programs. The structure was solved by Direct Methods using SIR9752 and refined on Fo2 by full-matrix least-squares procedures, using SHELXL-2014/753 in the WinGX suite version 2014.1.54 All of the nonhydrogen atoms were refined with anisotropic atomic displacements, with the exclusion of some atoms belonging to the disordered DMSO lattice molecules and of a terminal methyl carbon atom of the alkyl chain. The hydrogen atoms were included in the refinement at idealized geometries (C–H 0.95/0.99 Å) and refined “riding” on the corresponding parent atoms. The weighting schemes used in the last cycle of refinement was w = 1/[σ2Fo2 + (0. 0.1232P)2 + 5.6500P], where P = (Fo2 + 2Fc2)/3. Geometric calculations were performed with the PARST97 program.55 Crystallographic data (excluding structure factors) for the structure reported have been deposited with the Cambridge Crystallographic Data Centre as supplementary publication no. CCDC-1831062 and can be obtained free of charge on application to the CCDC, 12 Union Road, Cambridge, CB2 IEZ, U.K. (fax: +44-1223-336-033; e-mail deposit@ccdc.cam.ac.uk or http://www.ccdc.cam.ac.uk).

Computational Details

Calculations were performed adopting the M06 hybrid meta-generalised gradient approximation functional.56 The standard all-electron 6-31G** basis57 was used for all atoms. Molecular geometry optimization of stationary points was carried out without symmetry constraints and used analytical gradient techniques.58 Frequency analysis was performed to obtain thermochemical information about the reaction pathways at 298 K using the harmonic approximation. All calculations were performed using the G16 code59 on Linux cluster systems.

Acknowledgments

This work was supported by the European Union through the DOGGIES project (Grant FP7-SEC-2011-285446) and University of Catania through the project “Piano della Ricerca di Ateneo 2016–2018”. Centro Interfacoltà di Misure “G. Casnati” and the “Laboratorio di Strutturistica Mario Nardelli” of the University of Parma are kindly acknowledged for the use of NMR and MALDI facilities and of the Diffractometer.

Supporting Information Available

The Supporting Information is available free of charge on the ACS Publications website at DOI: 10.1021/acsomega.8b01018.

  • 1H NMR spectrum of the EtQxBox cavitand; crystallographic data, refinement details, and ORTEP view of NT@EtQxBox·10DMSO; crystallographic geometrical parameters and view of the host–guest interaction for the complex NT@EtQxBox; thermal desorption experiments for NT vapors; DFT calculated values of the dipole moment of the EtQxBox host and used guests (PDF)

Author Present Address

∥ Laboratory of Adsorption and Catalysis, Department of Chemistry, University of Antwerpen (CDE), Universiteitsplein 1, 2610 Wilrijk, Antwerpen, Belgium (C.T.).

The authors declare no competing financial interest.
