. 2018 Sep 14;3(9):11151–11162. doi: 10.1021/acsomega.8b01300

Bispyranopyrazoles as Green Corrosion Inhibitors for Mild Steel in Hydrochloric Acid: Experimental and Theoretical Approach

Priyanka Singh †,*, Madhan Kumar §, Mumtaz Ahmad Quraishi §,*, Jiyaul Haque ‡, Gurmeet Singh †
PMCID: PMC6645101  PMID: 31459224

Abstract

graphic file with name ao-2018-01300n_0017.jpg

In the present study, we have synthesized two novel corrosion inhibitors BP-1 and BP-2 and evaluated their corrosion inhibition property on mild steel (MS) in acid solution through weight loss and electrochemical corrosion techniques. The corrosion test results reveal that both compounds inhibit corrosion by an adsorption mechanism and display inhibition efficiency more than 95% at a low concentration of 1.72 × 10–4 M. From the surface analysis of the protective film on MS, it was corroborated that adsorption of inhibitor molecules occurred on the MS surface through chemisorption, which further suppresses the corrosion rate. Density functional theory simulated data helps correlate the experimental trend with the theoretical study.

1. Introduction

Pyranopyrazoles have been considered as a significant category of heterocyclic compounds due to their widespread applications in pharmaceuticals and biodegradable agrochemicals.1 Pyranopyrazole compounds exhibited numerous biological activities like anticancer, antibacterial, antiherpetic, and molluscicidal activities.2 These observations have prompted us to evaluate corrosion inhibition characteristics of bispyranopyrazoles (BPs). BPs have been selected in the present investigation as corrosion inhibitors because they are highly functionalized heterocyclic compounds with NH2 and CN as functional groups and possess four N and two O atoms in the ring, besides π electrons, through which they can readily attach on the surface of mild steel (MS) and bring down the corrosion rate.3 Another interesting feature is that they can be synthesized very easily by multicomponent one-pot reactions with good yields using green chemistry principles.2

In the present investigation, we have used a theoretical method, density functional theory (DFT), to perceive the corrosion inhibition efficiency (IE) of the studied compounds. These techniques are inexpensive and time-saving, provide detailed information about the mechanism of corrosion inhibition in comparison with traditional methods, and help simulate the obtained experimental results with estimated molecular properties (high occupied molecular orbital energy) (EHOMO), low unoccupied molecular energy (ELUMO), energy gap (ΔE), global softness (GS, σ), global hardness (GH, η), electronegativity (χ), and fraction of electrons transferred (ΔN) from BPs to MS.4−6

Our research group has reported earlier four pyranopyrazoles that showed corrosion inhibition efficiency (88–98%) at 200 mg/L.7 In the present effort, we have synthesized two new corrosion inhibitors BP-1 and BP-2, which are likely to give enhanced inhibition efficiency compared to that of earlier reported pyranopyrazoles at lower concentrations because these molecules are more functionalized than previously reported pyrazoles. We have compared the inhibition performance of BPs with some previously reported inhibitors and found their better corrosion inhibition performance. Gupta et al. have reported α-aminophosphonates as corrosion inhibitors for mild steel. These inhibitors gave 58–96% IE at (141–564) × 10–6 M. Wang et al. reported S-benzyl-O,O′-bis(2-naphthyl)dithiophosphates as corrosion inhibitors, which showed IE of 70–95% at 40–100 mg/L.8,9 To the best of our knowledge, there is no previous investigation on the use of bispyranopyrazoles for the corrosion inhibition of metallic substrates in an acidic environment.

Herein, we investigate the application of two interface inhibitors BP-1 and BP-2 for the corrosion inhibition of MS samples in an acidic environment through gravimetric and electrochemical measurements. Surface characterizations of MS samples without and with BPs were performed to analyze the protective inhibitor film. Quantum chemical theoretical studies were also performed to investigate the correlations between experimental observations and the quantum chemically calculated values (Table 1).

Table 1. Molecular Structures of Bispyrano[2,3-c]pyrazoles.

1.

Open in a new tab

2. Results and Discussion

2.1. Gravimetric Measurements

The gravimetric measurement results for MS samples in test acidic solution in the presence and absence of BPs are summarized in Table 2. It is a reliable approach to optimize the influence of concentrations of the corrosion inhibitor on inhibition effectiveness (Figure 1).10 The obtained results indicated that addition of BP-1 and BP-2 prevents the MS against corrosion and also the corrosion inhibition efficiency increases with the increase in concentration of BPs, presented in Figure 2. Of the two inhibitors, BP-2 shows higher inhibition efficiency, and the order of inhibition is BP-2 (98.01%) > BP-1 (96.02%) at 1.72 × 10–4 M. Furthermore, the good inhibition performance is ascribed to the attachment of BP molecules on the MS surface, which is supported due to the existence of numerous heteroatoms (N, O) in BPs with large molecular structure of BPs. Furthermore, the variance in the corrosion inhibition efficiency between BP-1 and BP-2 is ascribed to the nature of the substituent group attached to the pyrazole ring. In the BP-2 molecule, the presence of phenyl group increases the electron density at the active centers, which facilitates more interaction of this inhibitor with the MS steel surface as compared to that of BP-1, which is devoid of substituents.11

Table 2. Gravimetric Measurements for MS in the Absence and Presence of Bispyrano[2,3-c]pyrazoles in 1 M HCl at 308 K.

inhibitors conc. (mol) corrosion rate (mg/cm2/h) surface coverage (θ) η%
blank 0.0 5.03
BP-1 4.31 × 10–5 0.70 0.85 85.09 (2.3)
  8.63 × 10–5 0.40 0.92 92.05 (1.4)
  1.29 × 10–4 0.26 0.94 94.70 (1.8)
  1.72 × 10–4 0.20 0.96 96.02 (0.8)
BP-2 4.31 × 10–5 0.53 0.89 89.40 (1.45)
  8.63 × 10–5 0.25 0.95 95.03 (1.63)
  1.29 × 10–4 0.15 0.97 97.01 (1.48)
  1.72 × 10–4 0.10 0.98 98.01 (1.26)
Open in a new tab

Figure 1.

Figure 1

Open in a new tab

Synthetic route for the preparation of bispyrano[2,3-c]pyrazoles.

Figure 2.

Figure 2

Open in a new tab

Effect of different concentrations of bispyrano[2,3-c]pyrazoles on the inhibition efficiency for MS in 1 M HCl.

2.1.1. Adsorption Isotherms

The obtained values of surface coverage (θ) by gravimetric measurements for BP-1 and BP-2 were used to find the best-fitted adsorption isotherms. The adsorption isotherms help understand the interaction between the inhibitor molecules and the metal surface. The inhibitor molecules adsorb on the metal surface either physically or chemically. To understand the adsorption phenomenon, different adsorption isotherms (Temkin, Freundlich, and Langmuir isotherms) were applied to the experimental results. It was observed that the Langmuir adsorption isotherms fitted very well, with the regression coefficient (R2) value for BP-1 and BP-2 of 1, suggesting good fitting. The obtained slope and intercept values for the Langmuir isotherm are 0.99646, 7.77607 × 10–6 for BP-1 and 0.98767, 5.62968 × 10–6 for BP-2. For Freundlich R2, the slope and intercept for BP-1 are 0.95898, 0.08934, and 0.32206 and for BP-2, 0.9537, 0.06734, and 0.24743; for Temkin R2, the slope and intercept for BP-1 are 0.95665, 0.1858, and 1.6662 and for BP-2, 0.9590, 0.1451, and 1.5318, respectively. The Langmuir adsorption isotherm plot between C/θ and Ci shown in Figure 3, and the equation is represented below

2.1.1. 1

where C represents the concentration of the inhibitor, θ is the surface area, and Kads is the adsorption equilibrium constant. The Kads values were obtained by a linear straight fitted plot between C/θ and C to obtain free energy of adsorption ΔGads. Kads is related to ΔGads by the following equation

2.1.1. 2

where R is the gas constant and T is the absolute temperature. The value 55.5 is the concentration of water in solution in mol/L. By putting Kads in the above equation, the ΔGads values were obtained.

Figure 3.

Figure 3

Open in a new tab

Langmuir adsorption isotherms for MS in the presence of bispyrano[2,3-c]pyrazoles.

It is reported that the values of ΔGads varying between −40 kJ/mol and more negative values suggest that the adsorption is chemisorption, whereas the value of ΔGads around −20 kJ/mol or less negative implies that the adsorption is due to electrostatic interaction, i.e., physisorption.12,13 The ΔGads values for BP-1 and BP-2, i.e., 40.42 and 41.24 kJ/mol, suggest chemisorption type of adsorption.

2.2. Electrochemical Corrosion Studies

The variation obtained in open circuit potential (OCP) for MS corresponding to the reference electrode in the absence and presence of BP-1 and BP-2 is graphically represented in Figure 4. It is apparent from the OCP vs time plot that the presence of BPs shifts the steady state potential toward more negative values without changing common features. This shift in the steady state potential toward a nobler direction is attributed to dissolution of the surface oxide layer and formation of a protective film of the inhibitor on the MS surface.14

Figure 4.

Figure 4

Open in a new tab

OCP vs time plots for MS in 1 M HCl without and with bispyrano[2,3-c]pyrazoles.

The electrochemical impedance spectroscopy (EIS) results were analyzed with the proposed equivalent circuit diagram for MS immersed in the test solution in the presence and absence of BPs are displayed in Figures 5–7. The parameters obtained by fitted Nyquist arcs are summarized in Table 3. The equivalent circuit diagram consists of Rs (electrolytic resistance), polarization resistance (Rp), that is analogous to the constant phase element (CPE). From the Nyquist plots, it is clearly observed that both BPs exhibit one capacitive arc/loop for MS and that the diameter of the capacitive arc with addition of BPs is higher as compared to that in 1 M HCl without BPs. In general, the diameter of the Nyquist arcs is associated with the polarization resistance (Rp).15−17 The Rp for BPs increases with an increase in concentration, and the highest Rp values for BP-2 and BP-1 are 481.9 and 210.0 Ω cm2 at 1.72 × 10–4 M, respectively.

Figure 5.

Figure 5

Open in a new tab

Nyquist plots for MS in 1 M HCl without and with bispyrano [2,3-c]pyrazoles.

Figure 7.

Figure 7

Open in a new tab

Bode (log f vs log|Z|) and phase angle (log f vs α°) plots for MS in 1 M HCl without and with bispyrano[2,3-c]pyrazoles.

Table 3. Electrochemical Impedance Parameters for MS in the Absence and Presence of Bispyrano[2,3-c]pyrazoles in 1 M HCl.

inhibitors conc. (mol) Rs(Ω cm2) Rp (Ω cm2) n Y° Cdl (μF/cm2) η%
blank 0.0 2.08 10.58 (0.01) 0.88 294 142
BP-1 8.63 × 10–5 2.12 123.4 (0.02) 0.85 176 91 91.42
  1.29 × 10–4 0.73 141.8 (0.01) 0.85 126 62 92.53
  1.72 × 10–4 0.93 210.0 (0.02) 0.86 77 40 94.96
BP-2 8.63 × 10–5 0.64 144.3 (0.02) 0.85 137 71 92.66
  1.29 × 10–4 0.37 206.3 (0.01) 0.79 140 59 94.87
  1.72 × 10–4 0.61 481.9 (0.01) 0.74 72 24 97.80
Open in a new tab

Figure 6.

Figure 6

Open in a new tab

Equivalent circuit model used to analyze the EIS data.

The inhibition efficiency (η%) was estimated as

2.2. 3

where Rp(i) and Rp represent the polarization resistance in the presence and absence of BP-1 and BP-2. The observations from Table 3 reveal that addition of different concentrations of BPs causes an increase in the inhibition efficiency and that for BPs the inhibition order is BP-2 (97.80%) > BP-1 (94.96%) at 1.72 × 10–4 M. Moreover, Cdl values decrease with increasing BP concentrations. This decreasing Cdl points toward/suggests more adsorption of BP molecules on the metal surface, which provide better surface coverage, thereby decreasing the exposed area.18

The double layer capacitance (Cdl) can be calculated by including CPE parameter values like Y° and n by the equation

2.2. 4

where Y° indicates the CPE constant and n and ω represent the CPE exponent and angular frequency, respectively.

Figure 7 displays the EIS results in Bode resistance and phase angle formats. In general, the ideal capacitive behavior can be recognized when a slope value reaches −1 with phase angle −90°. The deviation of the phase angle along with slope values with BP molecules ranged from 0.71–0.83 to 62–71° compared with the blank slope i.e., −0.54 and phase angle −39°. The movement away/deviation of Bode resistance and phase angle parameter from perfect values confirms the capacitive behavior of MS on addition of BPs.19

Polarization plots for MS samples in 1 M HCl without and with different concentrations of BPs are presented in Figure 8. Generally, a potentiodynamic polarization study provides valuable evidence regarding the kinetics involved in the reactions occurring at the anodic and cathodic areas and also what type of inhibition action is taken by corrosion inhibitors on the basis of corrosion potential. It is reported in many research articles that the presence of corrosion inhibitors suppresses the electrochemical reactions (anodic and cathodic) occurring on the metal surface, which results in lowering of the corrosion current icorr. The decrease in icorr suggested the corrosion inhibition phenomenon.20,21

Figure 8.

Figure 8

Open in a new tab

Polarization curves for MS in 1 M HCl without and with bispyrano[2,3-c]pyrazoles.

Table 4 presents the values extracted from Tafel fit analysis such as corrosion current density (icorr), corrosion potential (Ecorr), and cathodic (βc) and anodic (βa) Tafel constants. From the obtained results, it is clearly visible that the addition of BPs transfers the corrosion potential toward the more negative direction, which is less than 85 mV compared to that without the inhibitor, signifying a mixed type of inhibitor.22−24 The βc and βa values concurrently changed in a similar pattern on increasing BP concentrations, supporting the mixed action of inhibition.12 However, for the potential higher than −340 mV/SCE, the presence of BP-2 and BP-2 does not change the current-vs-potential characteristic in the anodic region (Figure 8). This potential can be defined as a desorption potential. Similar results have been reported by some other authors.25−27 On continuous discussion of results, it is also seen that the addition of BP-1 and BP-2 into 1 M HCl causes a decrease of icorr values (74.0 and 31.6 μA/cm2 at 1.72 × 10–4 M). The reduction of icorr in the presence of BPs in comparison to that without the inhibitor, i.e., in 1 M HCl (1800 μA/cm2) for MS, clearly indicated retardation in the electrochemical reaction, resulting in corrosion prevention.

Table 4. Polarization Parameters for MS in the Absence and Presence of Bispyrano[2,3-c]pyrazoles in 1 M HCl.

inhibitors conc. (mol) icorr (μA/cm2) Ecorr (mV/SCE) βa (mV/dec) –βc (mV/dec) η%
blank 0.0 1800 (0.01) –481 73 134
BP-1 8.63 × 10–5 168 (0.01) –520 100 152 90.66
  1.29 × 10–4 146 (0.02) –556 85 130 91.88
  1.72 × 10–4 74 (0.01) –482 67 102 95.88
BP-2 8.63 × 10–5 138 (0.02) –503 118 196 92.33
  1.29 × 10–4 64.4 (0.01) –527 55 69 96.42
  1.72 × 10–4 31.6 (0.01) –526 67 102 98.24
Open in a new tab

The corrosion inhibition efficiency is calculated by the following equation

2.2. 5

where icorr° and icorr are the corrosion current density without and with BP-1 and BP-2, respectively.

2.3. Surface Characterization after Immersion

The surface morphological observation for the steel samples in the test acid solution without and with 1.72 × 10–4 M BP additives, after an exposure period of 6 h at 308 K was carried out by scanning electron microscopy (SEM). The polished MS surface is shown in Figure 9a. The MS samples exposed to 1 M HCl solution are subjected to severe corrosion shown in Figure 9b. On the other hand, a smooth surface with less damages was observed in the case of the MS surface with the addition of BP-1 and BP-2 (Figure 9c,d), which suggests that the MS surface was adequately protected from corrosion by the addition of BPs.28,29

Figure 9.

Figure 9

Open in a new tab

SEM micrographs of (a) polished mild steel, (b) in 1 M HCl, and in the presence of (c) BP-1 and (d) BP-2, at 1.72 × 10–4 M.

Figure 10a–c displays the surface topographic images of the MS surface immersed without and with BP-1 and BP-2 in acid solution. The MS samples immersed in 1 M HCl showed a very rough surface with 188 nm surface roughness, whereas a reduction in surface roughness (48, 24 nm) is obtained in the presence of BP-1 and BP-2, suggesting corrosion inhibition.30,31

Figure 10.

Figure 10

Open in a new tab

Atomic force microscopy (AFM) micrographs of MS surface in (a) 1 M HCl and in the presence of (b) BP-1 and (c) BP-2, at 1.72 × 10–4 M.

The IR spectra of pure BP-1 and attenuated total reflection (ATR)-IR study of adsorbed BP-1 on the MS surface are displayed in Figure 11. The observed peaks at 3230, 3104, and 2187 cm–1 represent N–H and C≡N stretching peaks for BP-1. From the inspection of ATR-IR spectra (Figure 10) of the inhibited MS, it could be evidently indicated that the observed C≡N and N–H stretching peaks shifted toward lower frequency. This lower frequency shift is attributed to the interaction of BP-1 with MS. In addition with that the mentioned peaks shifted in adsorbed inhibitor spectra of MS surface compared to pure BP-1 suggested the adsorption of inhibitor molecules on steel surface and shift towards lower frequency is attributed owing to the exchange of electrons between metal d orbitals and inhibitor molecules.32,33

Figure 11.

Figure 11

Open in a new tab

Fourier-transform infrared (FTIR)-ATR spectra of pure BP-1 and inhibited MS.

Figure 12 shows the contact angle images of the MS sample surface in the test acid solution and the inhibited surface by the adsorption of BP-2. The contact angles obtained in the case of MS immersed in blank and inhibited solutions are found to be 74 and 123°, respectively. The lower value of contact angle, 74°, in corroded MS due to direct contact with acid (Figure 12a) shows the hydrophilic nature of corrosion products, which allows water droplets to spread on the MS surface. However, opposite to that, the inhibited MS surface shows a 123° contact angle with the MS surface, representing development of hydrophobic nature after adsorption of inhibitor and supporting corrosion34 inhibition in the presence of BP-2 (Figure 12b).

Figure 12.

Figure 12

Open in a new tab

Contact angle measurement pictures for MS exposed to (a) 1 M HCl and (b) 1 M HCl + BP-2.

The interaction between the BP molecules and MS surface was further examined with X-ray photoelectron spectroscopy (XPS) analysis. Figure 13a displays the low-resolution survey XPS spectra of the blank and inhibited MS surface, and the elements including Fe, C, N, and O were noticed in the case of inhibited MS surface. Figure 13b–e presents the high-resolution deconvoluted profiles for C 1s, N 1s, O 1s, and Fe 2p for the MS surface with the BP-2 inhibitor film. The deconvoluted C 1s spectrum (Figure 13b) for inhibited steel exhibits three key peaks, which indicated the three different chemical states of carbon on the MS surface. The largest peak appearing at 284.65 eV could be ascribed to the C–C, C=C, and C–H aromatic bonds, and the next peak is ascribed to the C–N and C=N bonds in the pyrazole ring with distinctive binding energy (BE) of 283.53 eV. Furthermore, the third peak around 282.62 eV is probably ascribed to the carbon atom of C=N+ in the pyrazole due to the protonation of the =N– structure in the pyrazole ring and/or the coordination of nitrogen in the pyrazole ring with the MS surface. The XPS spectrum of N 1s (Figure 13c) is decomposed to three components. The first component appearing at 398.52 eV is attributed to the N atom of C–N bonds and the unprotonated N atoms (=N−) in the pyrazole ring. The next component takes the highest influence and might be attributed to coordinate N atoms of pyrazole rings with the MS surface (N–Fe), which shifts toward higher BE. Furthermore, the final component appearing at 400.83 eV may be associated with protonated nitrogen atoms in pyrazole rings. Hence, the appearance of the N 1s peak at 399.96 eV (Figure 13a) specifies the existence of thin layer of BP molecules over the MS surface, and further deconvolution of N 1s signals corroborates the interaction of N atom with the iron surface (N–Fe).35 Furthermore, the O 1s spectrum at 530.40 eV (Figure 13d) might be ascribed to the production of oxide (Fe2O3) on the MS surface.36−38 The Fe 2p spectrum of MS surface in the presence of BP-2 is displayed in Figure 13e. The Fe 2p spectrum of the MS surface with BP-2 illustrates the double peak profile positioned at around 711.43 eV (Fe 2p1/2) and 725.32 eV (Fe 2p3/2), displaying a certain degree of oxidation of the steel surface. From the obtained XPS results, it was supported that chemisorption of BP-2 molecules on the MS surface takes place via sharing of electrons among nitrogen atoms and/or the π electrons and vacant d-orbitals of Fe.

Figure 13.

Figure 13

Open in a new tab

XPS results: (a) survey scan, (b) N 1s, (c) C 1s, (d) O 1s, and (e) Fe 2p for blank and inhibited MS substrates.

2.4. Quantum Chemical Studies

The quantum chemical calculations are very helpful in attaining more information on the phenomenon of inhibition. The corrosion inhibition performance of an inhibitor is associated with the calculated quantum chemical factors such as EHOMO, ELUMO, ΔE, η, σ, χ, and ΔN and Mulliken charges on the atoms. These parameters can be observed by the optimization of the studied inhibitor molecules.39,40 These parameters help predict metal–inhibitor interactions. In the present study, all of the quantum parameters were calculated for both neutral and protonated BP molecules in gas phase. The results obtained are summarized in Table 5.

Table 5. Calculated Quantum Chemical Parameters for BPs Using DFT-B3LYP/6-31G.

compounds → parameters↓ neutral phase
 protonated phase
6-31G BP-1 BP-2 BP-1 BP-2
EHOMO (eV) –3.108 –3.162 –7.480 –7.233
ELUMO (eV) –1.433 –1.579 –5.147 –5.093
ΔE (eV) 1.675 1.583 2.333 2.140
η 0.837 0.791 1.166 1.070
σ 1.194 1.264 0.857 0.934
χ (eV) 2.27 2.37 6.31 6.16
ΔN 1.52 1.54 –0.638 –0.626
Open in a new tab

The optimized geometries of neutral and protonated BP-1 and BP-2 are shown in Figures 14 and 15. The inhibitor reactivity can be realized by their frontier molecular orbital energies, EHOMO and ELUMO. The distributions of the frontier molecule orbital density for BPs are presented in Figures 14 and 15. In general, the EHOMO energy value demonstrates the electron donating capacity of the inhibitor. The high value of EHOMO infers that the inhibitor has a high affinity to offer electrons to suitable acceptor molecules, whereas the ELUMO values indicate the electron accepting capacity from metal to inhibitor. Generally, the lower value of ELUMO reveals that the inhibitor can certainly accept electrons from the metal by back-donation. The lower value of ΔE (ΔE = ELUMO – EHOMO) represents good inhibition performance of the molecule.41,42 The global hardness (GH) and global softness (GS) are other important factors that give information about molecular stability and their reactivity.43 The energy gap for a hard molecule is large, whereas for a soft molecule, it is low. Hence, the high value of GS and low value of GH suggest a higher corrosion inhibition efficiency.44,45

Figure 14.

Figure 14

Open in a new tab

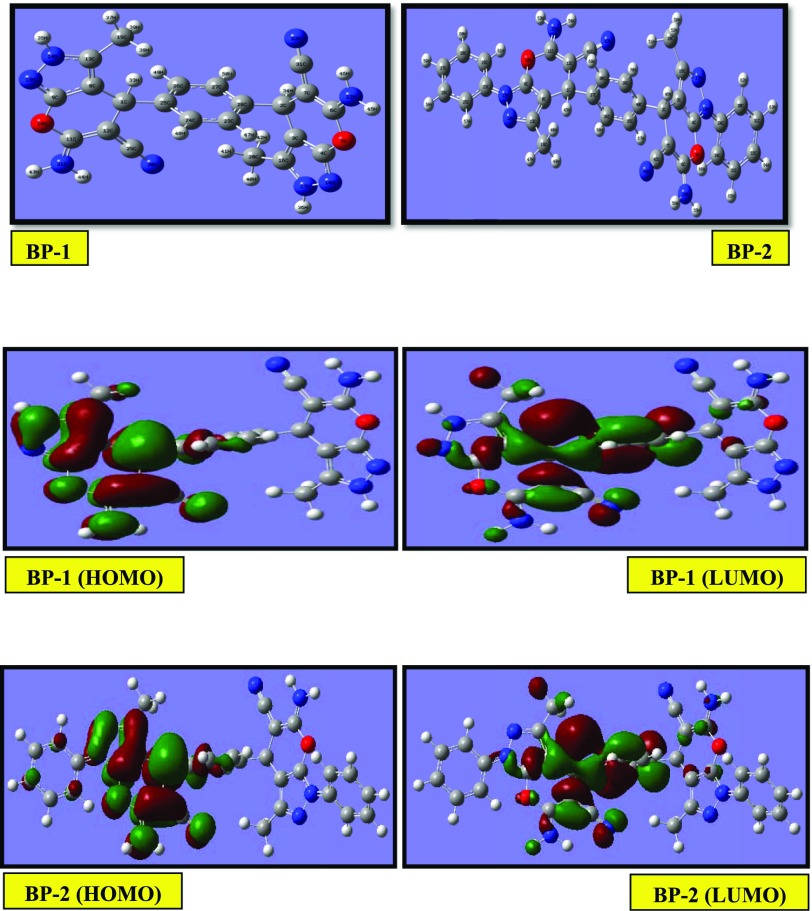

Gas-phase optimized molecular structures and the HOMO and LUMO electron density distribution surfaces of neutral BP-1 and BP-2 molecules.

Figure 15.

Figure 15

Open in a new tab

Gas-phase optimized molecular structures and the HOMO and LUMO electron density distribution surfaces of protonated BP-1 and BP-2 molecules.

In neutral inhibitor molecules (Figure 14), Table 5 shows that the ΔE value for BP-1 (1.675 eV) is greater than that for BP-2 (1.583 eV), which are very well correlated with the experimental results. The values of global softness (σ) and fraction of electrons transferred (ΔN) for BP-2 > BP-1 and global hardness (η) for BP-2 < BP-1 are also in support of experimental results. The EHOMO value of BP-2 (−3.162 eV) is lower than the EHOMO value of BP-1 (−3.108 eV), which is slightly inconsistent with the experimental results.

The Mulliken charge analysis is useful to estimate the adsorption centers of inhibitors. The more negatively charged the heteroatom, the more the ability to be adsorbed on the metal surface.22 For BPs, the higher negative charges are found around the nitrogen, oxygen, and some carbon atoms, which indicates that these are the coordinating sites of the inhibitors, but the nitrogen attached as −NH2 with the ring shows that higher negative Mulliken charges have been selected for the protonation sites. The Mulliken charges are given in Table 6.

Table 6. Mulliken Charges of Heteroatoms Present in BPs.

  Mulliken charges of heteroatoms

inhibitors N14 N15 N17 N18 N21 N22 N30 N32 O5 O10
BP-1 –0.308 –0.220 –0.295 –0.230 –0.481 –0.475 –0.295 –0.259 –0.308 –0.316
BP-2 –0.289 –0.319 –0.282 –0.304 –0.487 –0.478 –0.281 –0.253 –0.343 –0.409
Open in a new tab

In the case of protonated inhibitor molecules (Figure 15), the obtained ΔE value for BP-2 (2.140 eV) is lesser than that of BP-1 (2.333 eV), which supports the experimental observations. The discussed parameters like σ, ΔN, and η for neutral molecules show the same supporting experimental trend in the case of protonated molecules, i.e., BP-2 > BP-1 for σ and ΔN and BP-2 < BP-1 for η. The EHOMO value of BP-2 (−7.233 eV) is higher than EHOMO of BP-1 (−7.480 eV), supported very well the experimental results. These findings clearly suggest that BP-2 forms strong bonds with the Fe metal as it shows better inhibition efficiency (98.01%) than that of BP-1 (96.02%).

In the case of protonated inhibitor molecules (Figure 15), the values of EHOMO for BP-1 and BP-2 are lower, −7.480 and −7.233 eV, as compared to those for the neutral molecules (−3.108 and −3.162 eV) due to protonation. It means that the electron donating ability of EHOMO decreases. Therefore, the formation of bond between the inhibitor and the metal occurs by sharing of electrons from the metal to the inhibitor (back-donation). The values of ΔE, ΔN, η, and σ support that BP-2 is a better inhibitor than BP-1. The quantum chemical parameters (ΔE, η, σ, and ΔN) showed good agreement with the obtained experimental results, suggesting higher corrosion inhibition efficiency of BP-2 than that of BP-1.

3. Conclusions

Both the synthesized bispyranopyrazoles BP-1 and BP-2 showed excellent inhibition efficiency of 96.02 and 98.01% at 1.72 × 10–4 M, respectively. BP-2 having a phenyl substituent showed a higher inhibition efficiency than BP-1. EIS analysis showed that an increase in the concentration of inhibitors increases Rp on the metal surface and decreases Cdl. Potentiodynamic polarization suggests that the investigated BP-1 and BP-2 acted as mixed-type inhibitors. SEM, AFM, FTIR-ATR, and contact angle studies corroborated the formed inhibitor film on the MS surface. Specifically, XPS studies confirmed the presence of a thin film of inhibitor on the MS surface, which is formed by BP-2 inhibitor molecules via mutual sharing of electrons. The quantum chemical values and experimental results were observed to be in very good agreement.

4. Experimental Section

4.1. Materials and Methods

The steel samples (25 mm × 20 mm × 0.6 mm and 80 mm × 10 mm × 0.6 mm) were utilized as base substrates for the gravimetric and electrochemical corrosion tests and have following elemental configuration: Mn-0.596%, Si-0.066%, C-0.066%, P-0.028%, S-0.010%, and remaining iron (wt %). Before each experiment, the MS samples were ground using SiC sheets ranging from 600 to 1200 grade, cleaned with water followed by acetone, and dried. The diluted test solution (1 M HCl) with double-distilled water was prepared using analytical-grade 37% HCl.

4.2. Inhibitors

The two bispyranopyrazoles, 4,4′-(1,4-phenylene)bis(6-amino-3-methyl-2,4-dihydropyrano[2,3-c]pyrazole-5-carbonitrile) (BP-1) and 4,4′-(1,4-phenylene)bis(6-amino-3-methyl-1-phenyl-1,4-dihydropyrano[2,3-c]pyrazole-5-carbonitrile) (BP-2), were prepared on the basis of the previous report.2Figure 1 shows the schematic route for the synthesis. At the completion of the synthesis, the obtained compound was sieved and rinsed appropriately using EtOH for the desired product. The molecular structures of BP-1 and BP-2 are shown in Table 1. The 1H NMR spectra was recorded using a Bruker instrument at 500 MHz and IR spectra with an FTIR (02) (Perkin Elmer, Bruker) spectrophotometer. The spectral data for BP-1: 1H NMR (500 MHz, DMSO-d6) δ: d = 1.74 (s, 6H, 2CH3), 4.53 (s, 2H, 2CH), 6.79 (s, 4H, 2NH2), 7.11 (s, 4H, C6H4), 12.07 (s, 2H, 2NH) ppm, IR (KBr) cm–1: 3230, 3104, 2187, 1640, 1585, 1487.

4.3. Gravimetric Measurements

The gravimetric measurements were performed using MS samples in 1 M HCl without and with BP-1 and BP-2. The MS samples were first ground, washed, dried, and weighted. These specimens were immersed in a 100 mL conical flask for 6 h at 308 K with and without BPs. After the designated exposure period, the MS samples were removed, cleaned with distilled water and subsequently with ethanol, and allowed to dry. The loss in weight was estimated by the difference in weight of MS samples before and after the exposure. The other parameters like corrosion rate (CR), corrosion inhibition efficiency (η%), and MS surface coverage (θ) were calculated by the following equations

4.3. 6
4.3. 7
4.3. 8

where W represents the loss in weight of the specimen (mg), A is the coupon area (cm2), t is the exposure time (h), and CR and CR(i) represent the corrosion rates without and with BPs.

4.4. Electrochemical Measurements

Electrochemical corrosion analysis was done by a Gamry G300-45050 potentiostat/galvanostat through a typical three-electrode cell assembly having MS samples (exposure zone of 10 mm2) acting as working, saturated calomel electrode (SCE) and Pt (platinum) sheet become reference and auxiliary electrode respectively. All of the electrochemical corrosion tests were carried out after a 30 min immersion period for MS to achieve steady open circuit potential (OCP). The EIS test was accomplished with an alternating current amplitude of 10 mV using a frequency region of 105–10–2 Hz. Furthermore, the potentiodynamic polarization test was performed by adjusting the potential of ±250 mV vs OCP with the scanning speed of 1.0 mV s–1. For data analyses, fitting, and simulations, Gamry Echem Analyst 5.50 software was used.

4.5. Surface Characterization

To investigate the morphological changes on the MS surface before and after the addition of BPs, scanning electron microscopic (SEM) examination was done by the Ziess Evo 50 XVP instrument model at 1.00k× magnifications. The MS samples were initially immersed without and with 1.72 × 10–4 M BP-1 and BP-2 for 6 h at 308 K. After the exposure period, the MS samples were taken out, rinsed with water followed by ethanol, and allowed to dry to analyze surface microstructure. To investigate the surface topography, AFM was performed by an NT-MDT multimode AFM on the MS sample surface after the exposure period. The attenuated total reflectance study was performed using Bruker-Alpha FTIR spectroscopy with model Eco-ATR. For data analysis, we have used OPUS spectroscopy software. The contact angle study of the MS surface exposed to 1 M HCl without and with BP-2 was executed by Ramé-Hart Goniometer model 250. MS substrates were immersed in 1 M HCl containing 2.0 mM inhibitors for 24 h. After removal from the solutions, the MS samples were washed with ethanol and allowed to dry at room temperature. The X-ray photoelectron spectroscopic (XPS) analysis was done by the Al Kα radiation as a source, and the take-off angle θ was attuned to 45° based on the standard surface.

4.6. Quantum Chemical Studies

Quantum chemical estimations for BP molecules were done in gas phase with both neutral and protonated modes via the DFT approach with the Becke three-parameter hybrid functional along with the Lee–Yang–Paar correlation functional (B3LYP).46−48 All estimations were done by Gaussian 03 software with the 6-31G(d,p) basis set.49 The estimated parameters were extracted depending upon the electronic values of the most stable conformers of the investigated inhibitors. The obtained frontier molecular orbital energies such EHOMO and ELUMO help calculate further important factors including ΔE, η, σ, χ, and ΔN using the following equations50,51

4.6. 9
4.6. 10
4.6. 11
4.6. 12
4.6. 13

where χFe and ηinh represent the electronegativity and hardness of Fe, respectively. For χFe, a reported magnitude of 7 eV/mol was utilized, whereas for ηFe, 0 eV/mol was used for Fe.52 Recent literature reveals that the theoretically chosen value of χFe = 7 eV is not acceptable because in this case only free electron gas Fermi energy of iron is taken into consideration and electron–electron interaction is neglected. Therefore, to avoid this anomaly, the work function (ϕ) of the metal surface is used in place of χFe and the equation is rewritten as

4.6. 14

For an iron surface having a higher stabilization energy and packed surface, i.e., Fe(110) is used, and its DFT-derived ϕ value is 4.82.53

Acknowledgments

P.S. is thankful to SERB-National Post-doctoral Fellowship (N-PDF), DST, India, for the financial assistance and University of Delhi for facilitation of this study.

The authors declare no competing financial interest.

References

  1. Vasuki G.; Kumaravel K. Rapid four-component reactions in water: synthesis of Pyranopyrazoles. Tetrahedron Lett. 2008, 49, 5636–5638. 10.1016/j.tetlet.2008.07.055. [DOI] [Google Scholar]
  2. Ablajan K.; Wang L. J.; Maimaiti Z.; Lu Y. T. CeCl3-promoted one-pot synthesis of multisubstituted bispyrano[2,3-c]pyrazole derivatives. Monatsh. Chem. 2014, 145, 491–496. 10.1007/s00706-013-1104-6. [DOI] [Google Scholar]
  3. Kumar S.; Sharma D.; Yadav P.; Yadav M. Experimental and Quantum Chemical Studies on Corrosion Inhibition Effect of Synthesized Organic Compounds on N80 Steel in Hydrochloric Acid. Ind. Eng. Chem. Res. 2013, 52, 14019–14029. 10.1021/ie401308v. [DOI] [Google Scholar]
  4. Singh P.; Singh A.; Quraishi M. A. Inhibition effect of 1,3,5-tri-p-tolyl-1,3,5-triazene on the corrosion of brass in 0.5 M HCl solution. Res. Chem. Intermed. 2014, 40, 595–604. 10.1007/s11164-012-0985-z. [DOI] [Google Scholar]
  5. Sulaiman K. O.; Onawole A. T. Quantum chemical evaluation of the corrosion inhibition of novel aromatic hydrazide derivatives on mild steel in hydrochloric acid. Comput. Theor. Chem. 2016, 1093, 73–80. 10.1016/j.comptc.2016.08.014. [DOI] [Google Scholar]
  6. Turcio-Ortega D.; Pandiyan T.; Cruz J.; Garcia-Ochoa E. Interaction of Imidazoline Compounds with Fen (n) 1-4 Atoms) as a Model for Corrosion Inhibition: DFT and Electrochemical Studies. J. Phys. Chem. C 2007, 111, 9853–9866. 10.1021/jp0711038. [DOI] [Google Scholar]
  7. Yadav D. K.; Quraishi M. A. Electrochemical investigation of Substituted Pyranopyrazoles Adsorption on Mild Steel in Acid Solution. Ind. Eng. Chem. Res. 2012, 51, 8194–8210. 10.1021/ie3002155. [DOI] [Google Scholar]
  8. Gupta N. K.; Verma C.; Salghi R.; Lgaz H.; Mukherjee A. K.; Quraishi M. A. New phosphonate based corrosion inhibitors for mild steel in hydrochloric acid useful for industrial pickling processes: experimental and theoretical approach. New J. Chem. 2017, 41, 13114–13129. 10.1039/C7NJ01431G. [DOI] [Google Scholar]
  9. Wang C.; Lai C.; Xie B.; Guo X.; Fu D.; Li B.; Zhu S. Corrosion Inhibition of Mild Steel in HCl Medium by S-benzyl-O,O′-bis(2-naphthyl)dithiophosphate with Ultra-long Lifespan. Results Phys. 2018, 10, 558–567. 10.1016/j.rinp.2018.07.002. [DOI] [Google Scholar]
  10. Haque J.; Verma C.; Srivastava V.; Quraishi M. A.; Ebenso E. E. Experimental and quantum chemical studies of functionalized tetrahydropyridines as corrosion inhibitors for mild steel in 1 M hydrochloric acid. Results Phys. 2018, 9, 1481–1493. 10.1016/j.rinp.2018.04.069. [DOI] [Google Scholar]
  11. Verma C.; Olasunkanmia L. O.; Ebensoa E. E.; Quraishi M. A. Substituents effect on corrosion inhibition performance of organic compounds in aggressive ionic solutions: A review. J. Mol. Liq. 2018, 251, 100–118. 10.1016/j.molliq.2017.12.055. [DOI] [Google Scholar]
  12. Singh P.; Ebenso E. E.; Olasunkanmi L. O.; Obot I. B.; Quraishi M. A. Electrochemical, Theoretical, and Surface Morphological Studies of Corrosion Inhibition Effect of Green Naphthyridine Derivatives on Mild Steel in Hydrochloric Acid. J. Phys. Chem. C 2016, 120, 3408–3419. 10.1021/acs.jpcc.5b11901. [DOI] [Google Scholar]
  13. Mishra A.; Verma C.; Lgaz H.; Srivastava V.; Quraishi M. A.; Ebenso E. E. Synthesis, characterization and corrosion inhibition studies of N-phenyl-benzamides on the acidic corrosion of mild steel: Experimental and computational studies. J. Mol. Liq. 2018, 251, 317–332. 10.1016/j.molliq.2017.12.011. [DOI] [Google Scholar]
  14. Solmaz R. Investigation of Adsorption and Corrosion Inhibition of Mild Steel in Hydrochloric Acid Solution by 5-(4-Dimethylaminobenzylidene)Rhodanine. Corros. Sci. 2014, 79, 169–176. 10.1016/j.corsci.2013.11.001. [DOI] [Google Scholar]
  15. Haldhar R.; Prasad D.; Saxena A.; Singh P. Valeriana wallichii root extract as a green & sustainable corrosion inhibitor for mild steel in acidic environments: experimental and theoretical study. Mater. Chem. Front. 2018, 2, 1225–1237. 10.1039/C8QM00120K. [DOI] [Google Scholar]
  16. Solmaz R. Investigation of the Inhibition Effect of 5-((E)-4-phenylbuta-1,3-dienylideneamino)-1,3,4-thiadiazole-2-thiol Schiff Base on Mild Steel Corrosion in Hydrochloric Acid. Corros. Sci. 2010, 52, 3321–3330. 10.1016/j.corsci.2010.06.001. [DOI] [Google Scholar]
  17. Saha S. K.; Dutta A.; Ghosh P.; Sukul D.; Banerjee P. Novel Schiff-base molecules as efficient corrosion inhibitors for mild steel surface in 1 M HCl medium: experimental and theoretical approach. Phys. Chem. Chem. Phys. 2016, 18, 17898–17911. 10.1039/C6CP01993E. [DOI] [PubMed] [Google Scholar]
  18. Ansari K. R.; Quraishi M. A.; Singh A. Corrosion Inhibition of Mild Steel in Hydrochloric Acid by some Pyridine Derivatives: An Experimental and Quantum Chemical Study. J. Ind. Eng. Chem. 2015, 25, 89–98. 10.1016/j.jiec.2014.10.017. [DOI] [Google Scholar]
  19. Dandia A.; Gupta S. L.; Singh P.; Quraishi M. A. Ultrasound-Assisted Synthesis of Pyrazolo[3,4-b]pyridines as Potential Corrosion Inhibitors for Mild Steel in 1.0 M HCl. ACS Sustainable Chem. Eng. 2013, 1, 1303–1310. 10.1021/sc400155u. [DOI] [Google Scholar]
  20. Srivastava V.; Haque J.; Verma C.; Singh P.; Lgaz H.; Salghi R.; Quraishi M. A. Amino acid based imidazolium zwitterions as novel and green corrosion inhibitors for mild steel: Experimental, DFT and MD studies. J. Mol. Liq. 2017, 244, 340–352. 10.1016/j.molliq.2017.08.049. [DOI] [Google Scholar]
  21. Saxena A.; Prasad D.; Haldhar R.; Singh G.; Kumar A. Use of Sida cordifolia extract as green corrosion inhibitor for mild steel in 0.5 M H2SO. J. Environ. Chem. Eng. 2018, 6, 694–700. 10.1016/j.jece.2017.12.064. [DOI] [Google Scholar]
  22. Umoren S. A.; Obot I. B.; Israel A. U.; Asuquo P. O.; Solomon M. M.; Eduok U. M.; Udoh A. P. Inhibition of Mild Steel Corrosion in Acidic Medium using Coconut Coir Dust Extracted from Water and Methanol as Solvents. J. Ind. Eng. Chem. 2014, 20, 3612–3622. 10.1016/j.jiec.2013.12.056. [DOI] [Google Scholar]
  23. Kosari A.; Moayed M. H.; Davoodi A.; Parvizi R.; Momeni M.; Eshghi H.; Moradi H. Electrochemical and Quantum Chemical Assessment of Two Organic Compounds from Pyridine Derivatives as Corrosion Inhibitors for Mild Steel in HCl Solution Under Stagnant Condition and Hydrodynamic Flow. Corros. Sci. 2014, 78, 138–150. 10.1016/j.corsci.2013.09.009. [DOI] [Google Scholar]
  24. Yadav D. K.; Quraishi M. A. Application of Some Condensed Uracils as Corrosion Inhibitors for Mild Steel: Gravimetric, Electrochemical, Surface Morphological, UV–Visible, and Theoretical Investigations. Ind. Eng. Chem. Res. 2012, 51, 14966–14979. 10.1021/ie301840y. [DOI] [Google Scholar]
  25. Zarrouk A.; Hammouti B.; Lakhlifi T.; Traisnel M.; Vezin H.; Bentiss F. New 1H-pyrrole-2,5-dione derivatives as efficient organic inhibitors of carbon steel corrosion in hydrochloric acid medium: Electrochemical, XPS and DFT studies. Corros. Sci. 2015, 90, 572–584. 10.1016/j.corsci.2014.10.052. [DOI] [Google Scholar]
  26. Bentiss F.; Traisnel M.; Gengembre L.; Lagrene M. A new triazole derivative as inhibitor of the acid corrosion of mild steel: electrochemical studies, weight loss determination, SEM and XPS. Appl. Surf. Sci. 1999, 152, 237–249. 10.1016/S0169-4332(99)00322-0. [DOI] [Google Scholar]
  27. Gao G.; Liang C. Electrochemical and DFT studies of -amino-alcohols as corrosion inhibitors for brass. Electrochim. Acta 2007, 52, 4554–4559. 10.1016/j.electacta.2006.12.058. [DOI] [Google Scholar]
  28. Verma C.; Olasunkanmi L. O.; Ebenso E. E.; Quraishi M. A.; Obot I. B. Adsorption Behavior of Glucosamine-Based, Pyrimidine-Fused Heterocycles as Green Corrosion Inhibitors for Mild Steel: Experimental and Theoretical Studies. J. Phys. Chem. C 2016, 120, 11598–11611. 10.1021/acs.jpcc.6b04429. [DOI] [Google Scholar]
  29. Singh P.; Quraishi M. A. Corrosion inhibition of mild steel using Novel Bis Schiff’s Bases as corrosion inhibitors: Electrochemical and Surface measurement. Measurement 2016, 86, 114–124. 10.1016/j.measurement.2016.02.052. [DOI] [Google Scholar]
  30. Vashisht H.; Bahadur I.; Kumar S.; Goyal M. S.; Kaur G.; Singh G.; Katata-Seru L.; Ebenso E. E. Synergistic interactions between tetra butyl phosphonium hydroxide and iodide ions on the mild steel surface for corrosion inhibition in acidic medium. J. Mol. Liq. 2016, 224, 19–29. 10.1016/j.molliq.2016.09.056. [DOI] [Google Scholar]
  31. Singh P.; Srivastava V.; Quraishi M. A. Novel quinoline derivatives as green corrosion inhibitors for mild steel in acidic medium: Electrochemical, SEM, AFM, and XPS studies. J. Mol. Liq. 2016, 216, 164–173. 10.1016/j.molliq.2015.12.086. [DOI] [Google Scholar]
  32. Kumar R.; Yadav O. S.; Singh G. Electrochemical and surface characterization of a new eco-friendly corrosion inhibitor for mild steel in acidic media: A cumulative study. J. Mol. Liq. 2017, 237, 413–427. 10.1016/j.molliq.2017.04.103. [DOI] [Google Scholar]
  33. Kumar R.; Chopra R.; Singh G. Electrochemical, morphological and theoretical insights of a new environmentally benign organic inhibitor for mild steel corrosion in acidic media. J. Mol. Liq. 2017, 241, 9–19. 10.1016/j.molliq.2017.05.130. [DOI] [Google Scholar]
  34. Bandeira R. M.; Drunen J.; Garcia A. C.; Filho G. T. Influence of the thickness and roughness of polyaniline coatings on corrosion protection of AA7075 aluminum alloy. Electrochim. Acta 2017, 240, 215–224. 10.1016/j.electacta.2017.04.083. [DOI] [Google Scholar]
  35. Bentiss F.; Jama C.; Mernari B.; El Attari H.; El Kadi L.; Lebrini M.; Traisnel M.; Lagrené M. Corrosion control of mild steel using 3,5-bis(4-methoxyphenyl)-4-amino-1,2,4-triazole in normal hydrochloric acid medium. Corros. Sci. 2009, 51, 1628–1635. 10.1016/j.corsci.2009.04.009. [DOI] [Google Scholar]
  36. Zhang D.; An Z.; Pan Q.; Gao L.; Zhou G. Comparative study of bis-piperidiniummethyl-urea and mono-piperidiniummethyl-urea as volatile corrosion inhibitors for mild steel. Corros. Sci. 2006, 48, 1437–1448. 10.1016/j.corsci.2005.06.007. [DOI] [Google Scholar]
  37. Zhang Z.; Chen S.; Li Y.; Li S.; Wang L. A study of the inhibition of iron corrosion by imidazole and its derivatives self-assembled films. Corros. Sci. 2009, 51, 291–300. 10.1016/j.corsci.2008.10.040. [DOI] [Google Scholar]
  38. Obot I. B.; Madhankumar A.; Umoren S.; Gasem Z. Surface protection of mild steel by benzimidazole derivatives: Electrochemical evaluation, weight loss study, surface analyses and theoretical approaches. J. Adhes. Sci. Technol. 2015, 29, 2130–2152. 10.1080/01694243.2015.1058544. [DOI] [Google Scholar]
  39. Singh P.; Singh A.; Quraishi M. A. Thiopyrimidine derivatives as new and effective corrosion inhibitors for mild steel in hydrochloric acid: Electrochemical and quantum chemical studies. J. Taiwan Inst. Chem. Eng. 2016, 60, 588–601. 10.1016/j.jtice.2015.10.033. [DOI] [Google Scholar]
  40. Mendonça G. L. F.; Costa S. N.; Freire V. N.; Casciano P. N. S.; Correia A. N.; de Lima-Neto P. Understanding the corrosion inhibition of carbon steel and copper in sulphuric acid medium by amino acids using electrochemical techniques allied to molecular modelling methods. Corros. Sci. 2017, 115, 41–55. 10.1016/j.corsci.2016.11.012. [DOI] [Google Scholar]
  41. Ansari K. R.; Quraishi M. A. Experimental and Computational Studies of Naphthyridine Derivatives as Corrosion Inhibitor for N80 Steel in 15% Hydrochloric Acid. Phys. E 2015, 69, 322–331. 10.1016/j.physe.2015.01.017. [DOI] [Google Scholar]
  42. Singh P.; Makowska-Janusik M.; Slovensky P.; Quraishi M. A. Nicotinonitriles as green corrosion inhibitors for mild steel in hydrochloric acid: Electrochemical, computational and surface morphological studies. J. Mol. Liq. 2016, 220, 71–81. 10.1016/j.molliq.2016.04.042. [DOI] [Google Scholar]
  43. Abd El-Lateef H. M. Experimental and computational investigation on the corrosion inhibition characteristics of mild steel by some novel synthesized imines in hydrochloric acid solutions. Corros. Sci. 2015, 92, 104–117. 10.1016/j.corsci.2014.11.040. [DOI] [Google Scholar]
  44. Abd El-Lateef H. M.; Abu-Dief A. M.; Abdel-Rahman L. H.; Sanudo E. C.; Aliaga-Alcalde N. Electrochemical and theoretical quantum approaches on the inhibition of C1018 carbon steel corrosion in acidic medium containing chloride using some newly synthesized phenolic Schiff bases compounds. J. Electroanal. Chem. 2015, 743, 120–133. 10.1016/j.jelechem.2015.02.023. [DOI] [Google Scholar]
  45. Olasunkanmi L. O.; Obot I. B.; Ebenso E. E. Adsorption and corrosion inhibition properties of N-{n-[1-R-5-(quinoxalin-6-yl)-4,5-dihydropyrazol- 3 yl] phenyl} methane sulfon amides on mild steel in 1 M HCl: experimental and theoretical studies. RSC Adv. 2016, 6, 86782–86797. 10.1039/C6RA11373G. [DOI] [Google Scholar]
  46. Becke A. D. Density-Functional Thermochemistry. III. The Role of Exact Exchange. J. Chem. Phys. 1993, 98, 5648–5652. 10.1063/1.464913. [DOI] [Google Scholar]
  47. Becke A. D. Density-Functional Exchange-energy Approximation with correct Asymptotic Behaviour. Phys. Rev. A 1988, 38, 3098–3100. 10.1103/PhysRevA.38.3098. [DOI] [PubMed] [Google Scholar]
  48. Lee C.; Yang W.; Parr R. G. Development of the Colle-Salvetti Correlation-energy Formula into a Functional of the Electron Density. Phys. Rev. B 1988, 37, 785–789. 10.1103/PhysRevB.37.785. [DOI] [PubMed] [Google Scholar]
  49. Frisch M. J.; et al. Gaussian 03, revision E.01; Gaussian Inc.: Wallingford, CT, 2007.
  50. Martinez S. Inhibitory Mechanism of Mimosa Tannin using Molecular Modeling and Substitutional Adsorption Isotherms. Mater. Chem. Phys. 2003, 77, 97–102. 10.1016/S0254-0584(01)00569-7. [DOI] [Google Scholar]
  51. Olasunkanmi L. O.; Obot I. B.; Kabanda M. M.; Ebenso E. E. Some Quinoxalin-6-yl Derivatives as Corrosion Inhibitors for Mild Steel in Hydrochloric Acid: Experimental and Theoretical Studies. J. Phys. Chem. C 2015, 119, 16004–16019. 10.1021/acs.jpcc.5b03285. [DOI] [Google Scholar]
  52. Pearson R. G. Absolute Electronegativity and Hardness: Application to Inorganic Chemistry. Inorg. Chem. 1988, 27, 734–740. 10.1021/ic00277a030. [DOI] [Google Scholar]
  53. Singh A.; Ansari K. R.; Haque J.; Dohare P.; Lgaz H.; Salghi R.; Quraishi M. A. Effect of electron donating functional groups on corrosion inhibition of mild steel in hydrochloric acid: Experimental and quantum chemical study. J. Taiwan Inst. Chem. Eng. 2018, 82, 233–251. 10.1016/j.jtice.2017.09.021. [DOI] [Google Scholar]

Articles from ACS Omega are provided here courtesy of American Chemical Society

RESOURCES
