Fluorinated Thieno[2′,3′:4,5]benzo[1,2-d][1,2,3]triazole: New Acceptor Unit To Construct Polymer Donors

Xiu Jiang †, Jiacheng Wang †, Yang Yang †, Xiaowei Zhan ‡,*, Xingguo Chen †,*
PMCID: PMC6645298  PMID: 31458085

Abstract

graphic file with name ao-2018-02053j_0007.jpg

A new acceptor unit, fluorinated thieno[2′,3′:4,5]benzo[1,2-d][1,2,3]triazole (fBTAZT), has been designed and synthesized to build two donor–acceptor (D–A) copolymers with the none/fluorinated benzodithiophene (BDT) unit, which have been applied as the electron-donating material with ITIC as an electron-accepting material to fabricate the nonfullerene polymer solar cells (PSCs). It is found that fluorination at the BTAZT unit and BDT unit exerts a significant influence on photophysical properties and photovoltaic performances of the PSCs. As a result, when the fluorine atom is introduced both into the BTAZT unit and the side-chain thiophene ring of the BDT unit, the corresponding polymer PfBTAZT-fBDT exhibits deeper highest occupied molecular orbital–lowest unoccupied molecular orbital energy level and shows stronger interchain interaction with a little broad and red-shift absorption and high charge mobilities as well as good phase-separated morphologies, thus leading to higher power conversion efficiency of 6.59% in nonfullerene PSCs compared with another polymer PfBTAZT-BDT without F atom at the BDT unit, indicating that fBTAZT can be acted as a medium strong organic acceptor to build D–A polymer donor for high efficient PSCs.

Introduction

Polymer solar cells (PSCs) as a new energy have got a lot of attention because of their great merits of being lightweight, constitute flexible, and low-cost fabrication.1−7 Much recently, the power conversion efficiency (PCE) of PSCs has been boosted from over 10–11%8,9 up to over 13–14%10−16 in single junction solar cells with a medium or wide band gap-conjugated polymer as a donor and narrow band gap n-type organic semiconductor (n-OS) as an acceptor. At present, a series of narrow band gap n-OS acceptors with excellent performance,17−33 such as ITIC,34 IEIC,35 and IDIC,36,37 have been reported. With the rapid development of the narrow band gap n-OS acceptors, medium or wide band gap D–A polymeric donors draw the attention because of the complementary absorption for efficiently harvesting sunlight.38,39 The D–A copolymers based on the bithienylbenzodithiophene-alt-benzotriazole (BTA) backbone have been confirmed as highly efficient donor materials for nonfullerene PSCs.40−44 For D–A polymer designing,45 side-chain engineering was often used to the molecular design,46 especially for fluorine (F). In addition, a number of groups have verified that the introduction of F atom into BTA units or the conjugated side groups of the BDT unit is an effective strategy to raise PCE of the PSCs because of the electronegative effect of F atom and intermolecular interactions between F atom and other atoms.47−50 These may produce a deep highest occupied molecular orbital (HOMO) energy level for a high open-circuit voltage (Voc) of the PSCs and ordered crystalline structure for a high hole mobility. For example, Li et al.51 had reported a wide band gap polymer donor named J91, in which the introduction of two F atoms into the BTA unit and four F atoms into the side groups of the BDT unit resulted in great enhancement of the PCE from 4.80% of the polymer J50 without F atoms to 11.63% of the polymer J91. Interestingly, it seems that the introduction of one or more F atoms onto the donor unit or/and acceptor unit of D–A copolymers may result in a distinct influence on the photovoltaic performance.52−55 For example, Hou and co-workers56 developed four D–A copolymers based on BDT and thieno[3,4-b]thiophene (TT) to investigate the influence of F atoms at different positions on the photovoltaic performances. The results indicated that when one or more F atoms were attached to the BDT unit or TT unit, the photovoltaic performances of the polymer-based PSCs were varied greatly. Therefore, how to extend the application of fluorination in D–A polymers is still interesting and is also of significant importance to the molecular design of highly efficient photovoltaic polymers.

Recently, our group had reported several organic acceptors, such as thiophene-fused benzotriazole (BTAZT) and thiophene-fused benzothiadiazole (BTT), to build D–A copolymers for PSCs. It has been found that the fusion of one thiophene ring at the side of BTAZ or BT unit can stabilize the quiniod population of the D–A conjugation backbone, thus to strengthen the intramolecular charge-transfer (ICT) effect and promote the short-circuit current density (Jsc).57−59 Therefore, in this work, a new BTA-based organic acceptor, fluorinated thieno[2′,3′:4,5]benzo[1,2-d][1,2,3]triazole (fBTAZT), has been designed, in which fluorine (F) is introduced at α-position of the fused thiophene ring at the BTAZT unit to further regulate HOMO–lowest unoccupied molecular orbital (LUMO) energy levels and the photophysical properties. Then, two D–A copolymers have been synthesized based on the fBTAZT unit with BDT and fluorinated BDT units, respectively, which are named PfBTAZT-BDT and PfBTAZT-fBDT and shown in Figure 1. Furthermore, the introduction of F atoms at BTAZT or/and BDT units to influence the photophysical and electrochemical properties of the polymers as well as the photovoltaic performances of the PSCs has been investigated. It is found that fluorination at BTAZT and BDT units exerts a synergistic effect on the HOMO–LUMO energy levels and photovoltaic performances of the corresponding D–A copolymers. Indeed, the polymer PfBTAZT-fBDT introduced fluorine atoms at both BTAZT and BDT blocks shows the deeper HOMO level, and the corresponding solar cell device exhibits a relatively high Voc of 0.77 V and PCE of 6.59%.

Figure 1.

Figure 1

Open in a new tab

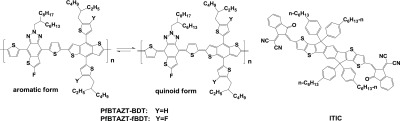

Structure of the polymers and ITIC.

Results and Discussion

Synthesis and Characterization

In this work, fBTAZT as a new organic acceptor has been designed and Scheme 1 presents the synthetic process of fBTAZT unit and two polymers (PfBTAZT-BDT and PfBTAZT-fBDT). As shown, the initial compounds 1 and 2 (yield, 28.7%) were synthesized according to the previous paper reported by our group.55 Then, the hydrolysis of 2 produced ethyl 2-(2-hexyldecyl)-2H-thieno[2′,3′:4,5]benzo[1,2-d][1,2,3]triazole-6-carboxylate (3) (yield, 95%), and the thermal decarboxylation of 3 yielded the important immediate compound 4 (yield, 87.3%), 2-(2-hexyldecyl)-2H-thieno[2′,3′:4,5]benzo[1,2-d][1,2,3]triazole (BTAZT). Afterward, under the protection of argon, butyl lithium was applied to remove hydrogen from the α-position of the fused thiophene at BTAZT and the fluorinating reagent (PhSO2)2NF was added to complete the fluorination to yield 6-fluoro-2-(2-hexyldecyl)-2H-thieno[2′,3′:4,5]benzo[1,2-d][1,2,3]triazole (fBTAZT) (5) (yield, 59.1%), which can be acted as a new organic acceptor unit to construct the D–A copolymer. The rest of the compounds and final monomer (M1) were synthesized according to the previous paper reported by our group. The detailed synthetic process is shown in the Supporting Information, and all of the compounds were identified by NMR and mass spectrometry. Monomers M2 and M3 were prepared according to the procedure described in the literature.60 Finally, two copolymers (PfBTAZT-BDT and PfBTAZT-fBDT) based on fBTAZT and BDT or fBDT units were synthesized via Stille coupling reaction of M1 with M2 or M3, respectively, and the detailed synthetic process is shown in the Supporting Information. These two polymers are easily soluble in some usual organic solvents such as tetrahydrofuran, chloroform, chlorobenzene, toluene, and so on. The number-average molecular weights (Mn) and polydispersity indices (PDIs) were measured by gel permeation chromatography analysis, and the corresponding data are listed in Table 1. The thermal stability of the two polymers was tested by the thermogravimetric analysis (TGA). Both of them showed very fine thermal stability with 5% weight loss beyond 400 °C (Table 1 and Figure S1).

Scheme 1. Synthetic Routes for fBTAZT, Monomer (M1), and Polymers.

Scheme 1

Open in a new tab

Table 1. Optical and Physical Properties of PfBTAZT-BDT and PfBTAZT-fBDT.

polymer Mn (PDI) (kDa) ad (°C) λmaxsoln (nm) aλmaxfilm (nm) bEHOMO (eV) cELUMO (eV) dEgopt (eV)
PfBTAZT-BDT 94(2.4) 420 348, 571 351, 577 –5.27 –3.45 1.82
PfBTAZT-fBDT 85(2.5) 431 350, 580 353, 579 –5.37 –3.58 1.79
Open in a new tab
a

Polymer thin films on the quartz plate cast from chloroform solution.

b

EHOMO = −(4.80 + Eoxonset – 0.49).

c

ELUMO = EHOMO – Egopt.

d

Calculated from the absorption edge of the polymer films: Egopt = 1240/λedg.

Optical Properties

Figure 2 shows the UV–vis absorption spectra of the polymers in dilute chloroform solution and in the thin film, and the corresponding data are summarized in Table 1. As can be seen, both in the solution and in thin film, PfBTAZT-BDT and PfBTAZT-fBDT display the similar absorption spectra with two broad bands in the region of 300–400 and 400–700 nm, respectively. The high-energy band of 300–400 nm is related to the local π–π* electron transition of conjugated skeleton, and the low-energy band with stronger absorption in 400–700 nm can be attributed to the ICT effect. It should be noted that PfBTAZT-fBDT only exhibits a little red-shift absorption compared with PfBTAZT-BDT both in solution and in thin film. In addition, the absorption in the thin film also exhibits a little red shift compared with that in solution for both PfBTAZT-BDT and PfBTAZT-fBDT. This indicates that there is a strong interchain interaction between the conjugation backbones in solution and in solid state. As shown in Figure 1, PfBTAZT-BDT has a little structural difference from PfBTAZT-fBDT where another F atom has been introduced into the side-chain thiophene ring of the BDT unit. It seems that the F atom with pair electrons at the backbone of PfBTAZT-fBDT shows weak electron-donating ability to increase the π-electron density of BDT, thus to strengthen the ICT effect from the electron-donating unit (fBDT) to electron-accepting unit (fBTAZT). At the same time, the presence of more F atoms at the conjugation backbone is favorable to strengthen the intermolecular interaction among the polymeric main chains, which can also lead to the red-shift absorption. Moreover, the fusion of a thiophene ring into the BTAZT unit can stabilize the quinoid structure of the conjugation backbone and enhance the rigidity of the main-chain conjugation backbone,61,62 which is beneficial for the interchain π–π interaction, so these two polymers only exhibit a little different absorption both in solution and in solid state. Therefore, it is inferred that synergy of the fusion of the thiophene ring onto the BTAZT unit and the introduction of F atom at the BDT unit are attributed to different absorption properties between PfBTAZT-BDT and PfBTAZT-fBDT. The absorption edges of PfBTAZT-BDT and PfBTAZT-fBDT from the absorption spectra in the thin film are estimated to be about 681 and 693 nm, respectively, which corresponds to the optical band gaps (Egopt) of 1.82 and 1.79 eV. This indicates that fluorination onto the conjugated side groups of the BDT unit can slightly decreases the band gap of the polymer42 and both of them belong to the medium band gap semiconductors.

Figure 2.

Figure 2

Open in a new tab

UV–vis spectra of PfBTAZT-BDT and PfBTAZT-fBDT in CHCl3 solution and in thin film.

In addition, the extinction coefficient of PfBTAZT-BDT and PfBTAZT-fBDT in CHCl3 solution has been measured, as shown in Figure S3 (Supporting Information). It can be seen that PfBTAZT-fBDT shows the weaker absorption efficiency in the region of 450–700 nm compared with PfBTAZT-BDT, although it has a little red-shift ICT absorption band.

Electrochemical Properties

The HOMO levels of these two polymers were studied by cyclic voltammetry (CV) measurement, as shown in Figure 3, and the electrochemical data are also summarized in Table 1.

Figure 3.

Figure 3

Open in a new tab

CV curves of PfBTAZT-BDT and PfBTAZT-fBDT.

As can be seen from Figure 3, the onset oxidation potentials of PfBTAZT-BDT and PfBTAZT-fBDT were estimated to be about 0.94 and 1.04 V, respectively. The corresponding HOMO energy levels were determined to be −5.27 eV for PfBTAZT-BDT and −5.37 eV for PfBTAZT-fBDT. At the same time, the corresponding LUMO energy levels of PfBTAZT-BDT and PfBTAZT-fBDT are also estimated to be about −3.45 and −3.58 eV, respectively, coming from the difference between the HOMO energy level and the optical band gap (shown in Table 1). Because of very strong electronegativity of F atom, the import of F atom onto the conjugation backbone has become one of the effective strategies to regulate the HOMO–LUMO energy level of the acceptor or donors for enhancing the open voltage (Voc), and to strengthen the intermolecular interaction for improving the charge mobility and further increasing the short-circuit current density (Jsc) of the PSCs. Obviously, in this work, the introduction of two F atoms both onto the BTAZT unit and the side-chain thiophene ring of BDT unit makes PfBTAZT-fBDT which shows much lower HOMO–LUMO energy levels than PfBTAZT-BDT. Generally, the lower HOMO energy level is more beneficial to achieve higher Voc in the PSCs, which has been observed in the following investigation for the polymer-based PSCs.

The photoluminescence (PL) quenching experiments have been performed to investigate the charge-transfer behavior in the polymer/ITIC blend films (Figure S4). As can be seen, when excited at 700 nm, the PL of ITIC was almost completely quenched when blended with PfBTAZT-BDT or PfBTAZT-fBDT, suggesting that there is efficient hole transfer from ITIC to the two polymers. By comparison, it seems that the hole transfer efficiency from ITIC to PfBTAZT-BDT is a little better than that to PfBTAZT-BDT. When excited at 600 nm, the PL of the polymers was also efficiently quenched by ITIC and has approximately the same quenching efficiency, indicating that there is efficient electron transfer from polymers to ITIC.

Photovoltaic Properties

To evaluate the photovoltaic properties of the polymer-based organic solar cells, ITIC has been chosen as a small nonfullerene acceptor (A) with these two polymers (PfBTAZT-BDT or PfBTAZT-fBDT) as the donor (D) to build active layer, and the corresponding PSC devices with an inverted structure of indium tin oxide/ZnO/copolymer/ITIC/MoO3/Ag were fabricated. The active layer was spin-coated from o-dichlorobenzene solution with different weight ratios of D/A. First of all, three different ratios for the polymer/ITIC blends (D/A = 1.5:1, 1:1, and 1:1.5 w/w) were scanned to get the optimal D/A ratio (see Table S1 in the Supporting Information). It is found that two polymer-based devices with a blend ratio of D/A = 1:1 exhibit the best photovoltaic performances. Then, under the optimal D/A ratio, some solvent additives including 1,8-diiodooctane, diphenyl ether (DPE), and 1-chloronaphthalene were chosen to try to modify the morphologies of the active layer and to further improve the photovoltaic performances. It was found that for PfBTAZT-BDT-based device, addition of any additives fails to improve the photovoltaic performances. As for the PfBTAZT-fBDT-based device, when 2% DPE was added to the polymer/ITIC blend and the active layer was annealed for 10 min at 110 °C, the PCE is significantly increased from 5.52 to 6.59%.

The current density–voltage (J–V) curves of the two PSCs under the optimal condition are shown in Figure 4a, and the corresponding photovoltaic parameters are listed in Table 2. As can be seen, the PfBTAZT-BDT-based device shows the Jsc of 14.20 mA cm–2, a Voc of 0.74 V, and a FF of 57.48%, leading to the PCE of 5.71%, and PfBTAZT-fBDT-based device gives a Jsc of 13.94 mA cm–2, a Voc of 0.77 V, and a FF of 61.82%, leading to the PCE of 6.05%. By comparison, both kind of the devices shows the comparable Jsc for PfBTAZT-BDT (Jsc = 14.20 mA cm–2) and PfBTAZT-fBDT (Jsc = 13.94 mA cm–2) and the latter is even less than the former. However, the PfBTAZT-fBDT-based device exhibits higher Voc and FF than those of the PfBTAZT-BDT. Obviously, the higher Voc of the PfBTAZT-fBDT-based device is attributed to that another F atom introduced at the BDT unit reduced the HOMO energy level, which is beneficial for the enhancement of Voc. In addition, the introduction of more F atoms at the conjugation skeleton is favorable to the interchain interaction and also to improve the morphologies of the active layer, thus leading to the improvement of the FF. Therefore, the best PCE of 6.59% for the PfBTAZT-fBDT-based device is higher than that of PfBTAZT-BDT (PCE = 6.04%), indicating that the introduction of F atoms onto BDT and BTAZT units has a synergistic effect on enhancing the output voltage in the device.

Figure 4.

Figure 4

Open in a new tab

(a) J–V curves and (b) EQE curves of the PSCs based on polymer/ITIC.

Table 2. Photovoltaic Performance Parameters of the PSCs Based on Polymer/ITIC Blend Film under the Optimal Condition.

adevice additive annealing Voc (V) Jsc (mA cm–2) FF (%) PCEav (PCEmax) (%)
PfBTAZT-BDT/ITIC     0.74 14.20 57.48 5.71 (6.04)
PfBTAZT-fBDT/ITIC 2% DPE 110 °C 0.77 13.94 61.82 6.05 (6.59)
Open in a new tab
a

Device average values and standard deviation are based on 10 devices. The best efficiencies are given in parentheses.

Figure 4b shows incident-photon-to-converted-current efficiency (IPCE) of the PSCs fabricated under the optimal condition; the corresponding photovoltaic parameters are listed in Table 2. The IPCE of two polymer-based PSCs displays a photoresponse in the region of 350–800 nm, covering almost all of the visible region. Obviously, the IPCE for the PfBTAZT-fBDT-based device exceeds 65% from 550 to 700 nm with a peak over 67% at around 710 nm, but the maximum IPCE of 60.1% for the PfBTAZT-BDT-based device is much lower than that of PfBTAZT-fBDT, in which the PfBTAZT-BDT-based device shows a weaker photoresponse from about 350–430 and 550–750 nm but only a little stronger photoresponse in the very narrow region from about 430–550 nm, compared with the PfBTAZT-fBDT-based device. Therefore, the PfBTAZT-BDT-based device exhibits a little lower PCE than the PfBTAZT-fBDT-based device. In addition, the calculated Jsc values from the integration of EQE data with the AM 1.5 G reference spectrum are about 13.58 mA cm–2 for PfBTAZT-BDT and 13.71 mA cm–2 for PfBTAZT-fBDT, which are all within a reasonable range of error (<5%).

In order to further understand the effect of fluorinated BDT and BTAZT units on the Jsc and FF of the PSCs, we got the hole and electron mobility of the blend films by the space-charge-limited-current (SCLC) method (Figure S2). The hole and electron mobilities for the two blend films are shown in Table S2. The hole (μh)/electron (μe) mobilities are calculated to be 2.25 × 10–4/1.01 × 10–4 and 3.04 × 10–4/4.5 × 10–4 cm2 V–1 s–1 for PfBTAZT-BDT/ITIC blend film and PfBTAZT-fBDT/ITIC blend film, respectively. Apparently, the PfBTAZT-fBDT/ITIC blend film exhibits higher charge carrier mobilities than that of the PfBTAZT-BDT/ITIC blend film, suggesting that the better molecular packing occurs when introducing fluorine atoms simultaneously at the BTAZT and BDT units that strengthen the intramolecular and intermolecular interactions.

Morphological Characterization

Atomic force microscopy (AFM) and transmission electron microscopy (TEM) were measured to evaluate the morphologies of polymer/ITIC active layer films. As can be seen in Figure 5a,b, the obtained root-mean-square (rms) roughness with 2.02 and 1.84 nm was observed for the PfBTAZT-BDT/ITIC blend film and PfBTAZT-fBDT/ITIC blend film, respectively. Because the PfBTAZT-BDT/ITIC blend film and PfBTAZT-fBDT/ITIC blend film have little different rms, they also show the comparable Jsc, which is in agreement with the experimental results. However, it can be seen from the AFM phase images of Figure 5c–d and TEM images of Figure 5e–f, the fBTAZT-fBDT/ITIC blend film seems to exhibit much clearer phase separation and more uniform morphology, indicating that the PfBTAZT-fBDT/ITIC blend film has more efficient charge separation and transport ability. Thus, the PSCs based on the PfBTAZT-fBDT/ITIC blend film exhibit better FF and PCE, which is because the presence of more F atoms at the conjugation backbone does favor to strengthen the intermolecular interaction among the polymeric main chains and improve the morphologies of the polymer/ITIC blend film.

Figure 5.

Figure 5

Open in a new tab

Tapping mode AFM height images (5 × 5 μm2) of (a) PfBTAZT-BDT/ITIC and (b) PfBTAZT-fBDT/ITIC blend films; The AFM phase images of (c) PfBTAZT-BDT/ITIC and (d) PfBTAZT-fBDT/ITIC blend films; TEM images of (e) PfBTAZT-BDT/ITIC and (f) PfBTAZT-fBDT/ITIC blend films under the optimal condition.

In addition, the X-ray diffraction experiment has been performed to measure the molecular packing of the two blend films (polymers/ITIC = 1:1), as shown in Figure S5. As can be seen, the PfBTAZT-fBDT/ITIC blend film obviously exhibits stronger and sharper diffraction peaks than the PfBTAZT-BDT/ITIC blend film. This implies that the intermolecular stackings for the PfBTAZT-fBDT/ITIC blend film are more well ordered, which is favorable for improving charge transfer of the PSCs.

Conclusions

In summary, the fBTAZT unit has been designed and synthesized and it has been applied to build two new D–A copolymers with the none/fluorine-substituted benzodithiophene (BDT) donor unit for PSCs. The measurements based on UV–vis spectroscopy and CV indicated that fluorination at both of the BTAZT unit and BDT unit shows the synergistic effect on photophysical and electrochemical properties, in which PfBTAZT-fBDT with another F atom at the side-chain thiophene ring of the BDT unit exhibits a little more red-shift absorption and deeper HOMO–LUMO energy levels than PfBTAZT-BDT without no F atom at the BDT unit. The photovoltaic performances of the PSCs based on the polymers as the donor and ITIC as the acceptor have been investigated, and it is found that PfBTAZT-fBDT-based devices exhibit higher Voc than the PfBTAZT-BDT, which is attributed to its lower HOMO energy level because of more fluorine atoms introduced onto the conjugation backbone. Moreover, fluorination both into the BTAZT unit and the side-chain thiophene ring of the BDT unit in PfBTAZT-fBDT strengthens the intermolecular interaction, which can improve the charge mobility and morphology of the active layer, thus leading to higher FF and better PCE.
