Ribosomal Proteins Regulate MHC Class I Peptide Generation for Immunosurveillance

Summary

The MHC class I antigen presentation system enables T cell immunosurveillance of cancers and viruses. A substantial fraction of the immunopeptidome derives from rapidly degraded nascent polypeptides (DRiPs). By knocking down each of the 80 ribosomal proteins, we identified proteins that modulate peptide generation without altering source protein expression. We show that 60S ribosomal proteins L6 (RPL6) and RPL28, which are adjacent on the ribosome, play opposite roles in generating an influenza A virus encoded peptide. Depleting RPL6 decreases ubiquitin-dependent peptide presentation, while depleting RPL28 increases ubiquitin-dependent and - independent peptide presentation. 40S ribosomal protein S28 (RPS28) knockdown increases total peptide supply in uninfected cells by increasing DRiP synthesis from non-canonical translation of "untranslated" regions and non-AUG start codons, and sensitizes tumor cells for T cell targeting. Our findings raise the possibility of modulating immunosurveillance by pharmaceutical targeting ribosomes.

Graphical Abstract

Wei et al. show cells with ribosomes lacking any one of three ribosomal protein subunits have an altered capacity to generate MHC class I peptides for immunosurveillance, and that tumor cells can potentially use this mechanism to avoid CD8 T cell immunosurveillance.

Introduction

By displaying oligopeptides on the cell surface, class I major histocompatibility complex (MHC-I) molecules enable T cell immunosurveillance of viruses and other intracellular pathogens, cancers, transplants and autoimmune targets, and mediate additional functions including natural killer (NK) cell activation, mate selection, hormone receptor function, and neuronal development.

MHC class I antigenic peptides typically arise from proteasomal products that are transported by TAP (transporter associated with antigen processing) into the endoplasmic reticulum (ER), trimmed at their NH₂ termini, loaded onto class I molecules, and transported to the cell surface. Such endogenous MHC-I peptide ligands, have two potential sources: “retirees” and “DRiPs” (defective ribosomal products). Retirees are proteins that attain stable structures and exhibit normal turnover kinetics, i.e. a median half-life of 46 h across the entire proteome (Schwanhausser et al., 2011). The rapid presentation of peptides from otherwise highly stable viral proteins, prompted the DRiP hypothesis that peptides arise from translation products that cannot or do not achieve a stable structure and are rapidly degraded (Anton and Yewdell, 2014; Yewdell et al., 1996).

DRiPs include translation products resulting from inevitable errors in transcription, translation, folding, targeting, and assembly. An important class of DRiPs arise from non-canonical translation, including CUG codon initiation (Starck et al., 2012), downstream initiation (Berglund et al., 2007), alternative reading frame translation (Bullock and Eisenlohr, 1996), intron translation (Apcher et al., 2013; Coulie et al., 1995), and nuclear translation (Apcher et al., 2013; Dolan et al., 2010a).

DRiPs exert critical roles in peptide generation for viral and tumor immunosurveillance. Viral peptide class I complexes can be detected even prior to detection of viral proteins (Croft et al., 2013; Esquivel et al., 1992). Rapid presentation of antigenic peptides enables CD8+ T cells to recognize and kill virus-infected cells before progeny virions can be released. In the context of tumor immunosurveillance, a positive correlation between checkpoint inhibitor efficacy in immunotherapy and the number of somatic mutations present in tumor cells implicates mutated self-peptides as important targets of tumor-specific T cell. Given the increased tendency for mutant proteins to misfold, this supports a role for DRiPs in neoantigen presentation.

The close association between DRiP translation and peptide generation raises the possibility of specialization in the translation apparatus in antigen presentation. Shastri and colleagues have shown that translation of CUG-initiated antigenic peptides relies on non-canonical translation initiation and a dedicated initiator Leu-tRNA (Starck and Shastri, 2016). Ribosomes can potentially exhibit enormous heterogeneity, and myriad varieties of modifications discovered on both ribosomal RNAs and proteins (Erales et al., 2017; Higgins et al., 2015). Numerous reports that ribosomes lacking one or more of their 80 proteins can exhibit distinct functions (Dinman, 2016; Shi and Barna, 2015; Shi et al., 2017) raises the possibility that such specialized ribosomes (i.e. “immunoribosomes” (Yewdell and Nicchitta, 2006)) preferentially synthesize DRiPs for immunosurveillance.

Here we show that ribosomes lacking one of three identified protein subunits demonstrate altered efficiencies in generating peptides. This establishes that ribosome modifications can selectively modulate the generation of DRiP derived antigenic peptides, and raises the possibility of therapeutically manipulating DRiP translation to modulate immunosurveillance of pathogens, tumors and autoantigens.

Results

RPs regulate MHC-I peptide presentation

To examine the role that individual ribosomal proteins (RPs) play in MHC class I peptide generation we constructed a lentiviral shRNA panel that targets each of the 80 RPs (Supplementary Table 1). We then tested each virus for its ability to modulate MHC-I peptide presentation in HEK293-K^b cells (HEK293 cells expressing the mouse class I molecule H-2K^b from a transgene) allowing 6–7 days to reduce levels of RPs (Fig. 1A).

Fig. 1. RPs show differential effects on MHC-I antigen presentation.

(A) Schematic representative of experimental design. Levels of indicated cell surface proteins were measured after lentiviral transduction by flow cytometry. (B to D) Representative flow cytometry analysis. (B) HEK293-K^b cells infected with shRNA lentivirus gated by side scatter area (SSC-A) and red fluorescent signal (RFP). Transduced cells (RFP+, red in C and D) were compared to non-transduced cells (RFP-, blue in C and D). (C) Expression levels of NA (upper), K^b-SIINFEKL (middle), and the ratio of K^b-SIINFEKL to NA (bottom) on individual RFP+ cells (in red) and RFP- cells (in blue). The ratio was multiplied by 1000 to bring the value to the scale. (D) Expression levels of β2m, pan Class I, H-2K^b and HLA-A2 on individual RFP+ cells (in red) and RFP- cells (in blue). (E) Median fluorescent intensity over background (ΔMFI) of RFP+ cells compared with that of RFP- cells to quantify the effect of knocking down individual RPs as in C (upper) and D (bottom). Center values and error bars represent mean ± range (n = 2 independent experiments). (F) Heatmap showing the effects of knocking down individual RPs on MHC-I surface expression (right) and viral protein expression and peptide generation (left) (n = 2 independent experiments). Filled arrows indicate RPs with selective effects on viral peptide generation. Unfilled arrows indicate RPs with selective effects on MHC-I surface expression. See also Figure S1.

We measured cell surface MHC class I expression by flow cytometry using a panel of monoclonal antibodies (mAbs) that bind either the β₂-microglobulin (β2m) subunit, all human classical class I molecules, or HLA-A2 (endogenous to HEK293 cells) or K^b specifically (Fig. 1A). We also used the 25-D1.16 mAb to measure K^b molecules bound to the model peptide SIINFEKL generated after infecting cells with a recombinant influenza A virus (rIAV) encoding SIINFEKL in the stalk of NA glycoprotein (rIAV-NA-SIINFEKL). Using a NA-specific mAb simultaneously, we could determine the ratio of K^b-SIINFEKL to its source protein in order to control for RP knockdown effects on IAV gene expression (Fig. 1A). Red fluorescent protein (RFP) expression by the lentiviral shRNA vector enabled gating on non-transduced cells (RFP-) as an internal standard to detect subtle changes in class I expression and to control for IAV infection dose (Fig. 1B).

As an example of raw data acquisition and quantification, in the case of RPS6 (eS6) knockdown, staining with each Ab is reduced in transduced cells (Figs. 1C and 1D, quantification given in Fig. 1E). Importantly, NA and K^b-SIINFEKL signals are equally diminished, resulting in no change in peptide generation per NA molecule synthesized (Fig. 1C, bottom panel, and quantification given in Fig. 1E, upper panel). This is typical of knockdown of many RPs, which are expected to reduce overall protein synthesis (Fig. 1F). Notably, RPS4Y1 knockdown had little effect on NA or class I expression, consistent with the absence of this Y chromosome encoded-RP in a cell line derived from a female donor (Fig. S1).

Strikingly, both 60S ribosome subunit and 40S ribosome subunit contain RPs (respectively, RPLs and RPSs) that specifically modulate MHC-I peptide cell surface expression. RPS10, RPS13, RPS28, RPLP0, RPLP1 and RPL3 selectively regulate cell surface human class I molecules including HLA-A2, having no or the opposite effect on H-2K^b (Fig. 1F, highlighted by unfilled arrows). RPS7, RPS15A, RPL6, RPL17, RPL28, RPL38, RPL39 and RPL40 regulate K^b-SIINFEKL generation without affecting viral protein translation (Fig. 1F, highlighted by filled arrows.)

RP knockdown has minor effects on transcriptome

As protein translation is exquisitely sensed by cellular pathways that can modulate various aspects of MHC class I biogenesis, it was essential to assess how individual RP knockdown alters general cell functions. Selecting the RPs with most pronounced effects on class I expression or class I viral peptide complex generation while not affecting overall translation (RPLP0, RPL3, RPL6, RPL28, RPS28), we performed microarray analysis to determine the effects of RP knockdown on the transcriptome.

Cluster analysis based on 35,211 microarray probes revealed that of the five RPs examined, RPL28 (eL28), RPS28 (eS28) and RPL6 (eL6) knockdowns most resembled scrambled control transduced cells (shControl) (Fig. 2A). RPL3 and RPLP0 perturbed the transcriptome more dramatically, suggesting these two RPs could affect class I expression by altering multiple intertwined cellular pathways. As a result, we focused on RPL28, RPS28 and RPL6 in the following studies. Importantly, differences between each of these RP knockdowns and shControls, are similar in magnitude to differences between the two different shControls, demonstrating that they only have minor effects on the transcriptome (Figs. 2B and 2C). Only a small number of transcripts demonstrate significant changes (p-value < 0.05), with few exhibiting larger than a 2-fold change compared to shControl1 and shControl2 (colored red in Fig. 2C). Even with RPL6 knockdown, which exhibits the greatest difference from shControls, alterations in the transcriptome are minor, with RPL6 mRNA level itself being most severely affected (~4-fold decrease) (Fig. 2C). For RPL28 and RPS28, in addition to the RP mRNAs, the corresponding pseudogene mRNAs lacking protein-coding ability are also changed, likely due to the presence of shRNA targeting sequence in the transcripts.

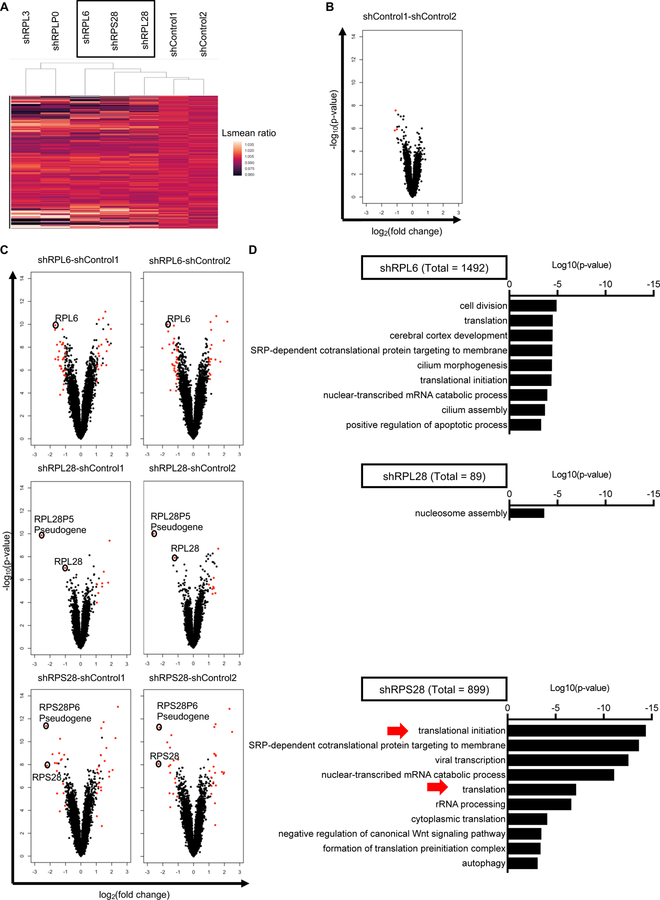

Fig. 2. RP knockdown has minor effects on the transcriptome.

(A) Heatmap and hierarchical clustering showing the effect of knocking down indicated RP genes on 35,211 probes in microarray. Least-squares means (lsmeans) of each knockdown is compared with the average of lsmeans of two shControls. (B) Volcano plots comparing two shControls. Probes with adjusted P values < 0.05 and absolute log₂ (fold change) > 1 are colored red. (C) Volcano plots comparing RPs knockdown with two shControls. Probes with adjusted P values < 0.05 and absolute log₂ (fold change) > 1 in both comparisons are colored red (n = 2 biological replicates). (D) Significantly different transcripts revealed by microarray were segregated by Visualization and Integrated Discovery (DAVID) v6.8 for Gene Ontology (GO) terms enrichment (n = 2 biological replicates). See also Figure S2.

Remarkably, given the possibility of coordinated RP mRNA regulation, other RP mRNAs exhibited only minor changes in abundance (Fig. S2), with the exception that RPL13A mRNA was also decreased 2-fold in RPS28 knockdown cells (Fig. S2). Because RPL13A knockdown does not recapitulate the RPS28 knockdown phenotype (Fig. S1), it is unlikely to contribute to the effect of RPS28 shRNA antigen presentation (Fig. S1).

Gene ontology (GO) term analysis of all the significantly changed transcripts (p-value < 0.05) in either comparison to shControl1 or shControl2 cells revealed different patterns among three knockdown cells (Fig. 2D). For RPL28 knockdown, only “nucleosome assembly” associated mRNAs achieved significance (p value < 0.001). By contrast, 9 mRNA families were significantly altered in RPL6 knockdown cells, with 3 related to protein translation. For RPS28, 4 of 10 altered families were translation related. Importantly, none of the three knockdowns altered “antigen presentation” related mRNAs, and at the individual gene level, knocking down RPL6, RPL28 or RPS28 does not significantly alter mRNA levels of known genes associated with MHC-I antigen processing, or the p53 pathway as a result of ribosome biogenesis stress. These data indicated that knocking down RPS28, RPL6 and RPL28 have minor effects on the transcriptome, and likely regulate class I peptide presentation through mechanisms independent of regulating individual mRNA transcripts.

RP knockdown has minor effects on ribosome protein content

To further characterize the potential cascading effects of RP knockdown, we used a mass spectrometry (MS)-based quantitative proteomic approach to analyze the protein content of ribosomes purified from RPL28 knockdown vs. shControl cells (Erales et al., 2017) (Fig. 3A). Of 80 reproducibly quantified RPs and a number of associated proteins, only RPL28 (~7-fold reduction) and 8 non-RPs show a strongly significant change. Of 8 non-RPs, 5 proteins have RNA-based functions, including translation initiation (eIF3D), mRNA cap formation (RNGTT), RNA metabolism (IMPDH2), putative RNA binding (MAK16 and C7orf50), while 3 proteins are not known to be involved in translation (RPS6KC1, DNAH8 and STON2).

Fig. 3. RP knockdown has minor effects on ribosome protein content.

(A) Quantitative MS-based proteomic analysis comparing protein contents of control ribosomes with RPL28 knockdown ribosomes. All quantified proteins were plotted. Significant changed sites are labeled. Dotted lines indicate P < 0.005 and abs (log₂ (fold change)) > 2. (B) RiboMethSeq assay measuring rRNA methylation status comparing control ribosomes with RPL28 knockdown ribosomes. Dotted lines indicate P < 0.05 and abs (difference) > 0.05. Significant changed sites (Am2388, Gm4588 and Gm4607 found in 28S rRNA) are colored in red (n=5 technical replicates).

RiboMethSeq analysis reveals that RPL28 depletion modulated the methylation status of three 28S rRNA sites (Am2388, Gm4588 and Gm4607) (Fig. 3B). These findings show that reduction in a single RP alters ribosomes by changing methylation patterns and modulating associated proteins, without necessarily altering other RPs.

To summarize, using a lentiviral panel to knock down each RP, we identified three RP knockdowns for further characterization, RPL6, RPL28 and RPS28 that regulate MHC-I antigenic peptide generation yet have minor effects on the transcriptome. We also show that RP knockdown can potentially alter ribosome function by inducing changes in ribosome associated proteins and rRNA methylation patterns.

Opposite roles of RPL6 and RPL28 in peptide generation

Eight hours post infection with rIAV-NA-SIINFEKL, RPL6 knockdown decreased cell surface K^b-SIINFEKL while RPL28 knockdown had the opposite effect (Fig. 4A, left panel), despite neither knockdown affecting NA cell surface expression. To rule out the possibility that modulation of K^b-SIINFEKL surface expression by RPL6 and RPL28 results from altering β₂m or K^b levels, we measured the total cell associated K^b by immunoblotting (Fig. S3A), and surface expression of β₂m and K^b by flow cytometry (Fig. S3B). Neither RPL6 or RPL28 knockdown significantly changed β₂m cell surface expression or total cell associated immunoblotted K^b. The slight increase of surface H-2K^b (1.2 fold) on RPL28 knockdown cell surface cannot account for the 2-fold increase in K^b-SIINFEKL (Fig. 4A). We reasoned that RPL6 and RPL28 changed the supply of SIINFEKL to be loaded onto K^b in the ER.

Fig. 4. RPL6 and RPL28 modulate K^b-SIINFEKL generation.

(A) Source protein and K^b-SIINFEKL expression levels on cells infected with IAV encoding SIINFEKL in NA (left) or M2 (right) genes at 8 hour post infection (hpi). Results are normalized first to internal non-transduced control cells and then to shControls. (B) Kinetics of K^b-SIINFEKL (left) and source protein (NA or M2, right) expression after IAV infection. MFI of each time point was normalized to that of shControl at 8 hpi. (C) K^b-SIINFEKL generation from indicated rIAVs in knockdown cells. (D) K^b-SIINFEKL generation from indicated rIAVs in response to the E1 inhibitor MLN7243. (E) Immunoblotting of RPL6 knockdown cells and shControl cells. Black bar indicates the region used for quantification. Values represent mean ± range after normalizing to loading control histone H3 (n = 3 independent experiments). *P < 0.05 with one sample t test. (F) Ribosome structure adapted from human 80S ribosome (PDB:4V6X) with rRNA hidden (generated by Chimera³⁷). (A to D), All values are mean ± s.e.m. (n = 4 independent experiments). (A, C and D) *P < 0.05 by two tailed one sample t test. (B) *P < 0.05 by two-way ANOVA. See also Figure S3.

SIINFEKL generation from IAV encoded NA is proteasome/Ub-dependent (Dolan et al., 2010b; Wei et al., 2017), so we next examined presentation of SIINFEKL appended to the COOH-terminus of the IAV M2 membrane protein, which is both proteasome- and Ub-independent (Yang et al., 2016). M2 cell surface expression was not altered by RPL6 knockdown, while we typically observed a 10% decrease by RPL28 depletion. Despite the slight decrease in M2 expression, RPL28 depletion increased K^b-SIINFEKL generation, resulting in a ~2-fold increase in the complex to source protein ratio. Remarkably, RPL6 had no significant effect on K^b-SIINFEKL generation (Fig. 4A, right panel), indicating that RPL6’s impact on antigen presentation is peptide context dependent, providing further evidence that is not due to global alterations in K^b expression or trafficking.

To more precisely assess peptide presentation, we performed kinetic analysis following infection with rIAVs (Fig. 4B). Consistent with SIINFEKL generation from DRiPs, K^b-SIINFEKL cell expression nearly perfectly paralleled surface expression of NA and M2, despite their high metabolic stabilities (Dolan et al., 2010b; Yang et al., 2016). Neither NA nor M2 cell surface expression was significantly affected by RPL6 or RPL28 knockdown (Fig. 4B, right panel). Recapitulating the single time point experiments, RPL28 knockdown cells showed a dramatic enhancement of K^b-SIINFEKL regardless of the source protein (used to normalize K^b-SIINFEKL expression of each infected cell), while K^b-SIIFNEKL inhibition by RPL6 was dependent on the SIINFEKL context in its IAV fusion protein (Fig. 4B, left panel).

We next examined K^b-SIINFEKL generation in four different IAV-encoded contexts (Fig. 4C and Fig. S3C). In each case, RPL28 depletion increases K^b-SIINFEKL presentation. By contrast, RPL6 knockdown has no effect on ER-targeted (ES) or cytosolic (Ub) SIINFEKL while decreasing presentation of SIINFEKL that must be liberated from NS1 or M2. Using a cell permeant Ub E1 activating enzyme inhibitor, MLN7243 (Wei et al., 2017), we found that RPL6 knockdown inhibition of SIINFEKL presentation parallels E1 dependence of peptide generation (Fig. 4D). While MLN7243 nearly abolished K^b-SIINFEKL expression from NA, NS1 and M2(45), it had little effect on presentation from M2(C-term), Ub- or ER leader sequence-fusion proteins appended to PB1 (results summarized in Fig. S3C).

Since RPL6 selectively affects Ub/proteasome dependent SIINFEKL generation from DRiPs, and DRiPs provide a substantial fraction of ubiquitylated proteins (Kim et al., 2011; Schubert et al., 2000; Wang et al., 2013), we examined whether RPL6 depletion affected the overall ubiquitylated protein pool. Immunoblotting with the FK2 mAb, specific for poly- and mono-ubiquitylated proteins revealed a modest (15–30%) but reproducible increase in the smear of high molecular weight polyubiquitylated proteins that are substrates of proteasomes, without altering discretely ubiquitylated individual species. A species with molecular weight corresponding to monoubiquitylated H2A serves as an internal control for extraction and loading (Fig. 4E). Given the RPL6 blockade in Ub-dependent SIINFEKL presentation, this finding is consistent with the idea that RPL6 knockdown interferes with ubiquitin-proteasome mediated degradation of DRiPs.

Taken together, we show that RPL6 and RPL28 have opposite roles in modulating peptide generation. RPL6 knockdown selectively inhibits Ub-dependent peptide generation implicating RPL6 in ubiquitylating or degrading DRiP substrates, while RPL28 knockdown enhances SIINFEKL presentation in all circumstances (TAP/ubiquitin/proteasome dependent/independent). Intriguingly, RPL6 and RPL28 are located in close proximity within the ribosome (Fig. 4F), with a number of contact residues, identifying this ribosome domain as having a specific role in class I peptide generation.

RPS28 controls non-canonical translation and influences tumor immunosurveillance

40S small ribosomal subunit protein S28 (RPS28) knockdown cells increase cell surface expression of HLA-A2, and perhaps other human class I molecules recognized by pan class I Ab W6/32 (Fig. 5A). It does not, however, increase K^b surface expression (Fig. S1), indicating that the HLA-A2 increase is unlikely to be due to increases in expression of proteins involved in antigen processing. Consistent with this conclusion, HLA-A2 upregulation persists in RPS28 knockdown cells after increasing expression of processing components by treating cells for 24 h with IFN-γ (Fig. 5A). Further, RPS28 knockdown does not increase expression of TAP (Fig. 5B), whose levels are typically regulated in parallel with other antigen processing pathway components. The slight upregulation of total MHC-I level (~1.2-fold, Fig. 5B) cannot account for the 2-fold change of surface class I. Rather, RPS28 knockdown cell surface HLA-A2 recovers more rapidly from acid stripping that remove class I ligands, consistent with increased peptide generation (Fig. 5C).

Fig. 5. RPS28 regulates cell surface MHC-I expression.

(A) Pan class I and HLA-A2 levels in response to IFN-g. *P < 0.05 by two tailed one sample t test (n = 3 independent experiments). (B) Immunoblotting of RPS28 knockdown cells and shControl cells. Values represent mean ± range after normalizing to loading control (n = 3 biological replicates). (C) Recovery kinetics of pan class I and HLA-A2 after acid wash. For each sample, increased MFI after acid wash at indicated time points was normalized to the last time point. Data representative of 3 independent experiments. (D) Flow cytometry analysis comparing HEK293-K^b cells with and without ICP47. Left, representative histograms. Middle, MFI of non-transduced cells was compared to evaluate the level of HLA-A2 on cells with and without ICP47. Statistical significance was evaluated with two tailed unpaired t test. Right, RPS28 knockdown cells (RFP+) were compared with non-transduced cells (RFP-) to quantified the effect of RPS28 knockdown. Centre values and error bars represent mean ± s.e.m. (n = 3 biological replicates).

To determine the extent to which RPS28 control of antigen generation is limited to TAP-dependent peptides, we stably expressed in HEK293-K^b cells the potent TAP inhibitor ICP47 (Hill et al., 1995) (Fig. 5D). As expected, ICP47 expression reduced cell surface HLA-A2 levels (Fig. 5D, middle). HLA-A2 upregulation persisted in RPS28 knockdown EK293-K^b cells containing ICP47, though at a slightly diminished level (Fig. 5D, right). This indicates that RPS28 affects both TAP dependent- and independent-peptide generation.

Gene ontology enrichment analysis of the transcriptome alterations in RPS28 knockdown cells identifies “translational initiation” and “translation” in the top 5 categories with strong significance (Fig. 2D). Together with findings that RPS28 locates in the “accuracy center” of the ribosome (Alksne et al., 1993) and modulates start codon usage in yeast (Anthony and Liebman, 1995), we therefore hypothesized that RPS28 knockdown increases peptide generation by increasing non-canonical translation.

To test this, we employed ribosome profiling (Ribo-Seq) to characterize the effect of RPS28 knock down on the translatome (Ingolia et al., 2011). For both shControl and RPS28 knockdown cells, we observed strong correlation between biological replicates (Fig. S4A). As expected, RPS28 expression itself is downregulated, as demonstrated by reduced reads in the protein-coding region (Fig. S4B). Consistent with microarray analysis (Fig. 2), RNA-Seq performed simultaneously with Ribo-Seq revealed a high correlation (r = 0.9131) between control and knockdown cells at the mRNA level (Fig. S5A, left panel). The Ribo-Seq correlation is weaker (r = 0.8937) (Fig. S5A, right panel), consistent with a role for RPS28 in translational regulation. Indeed, by calculating translation efficiencies (the ratio between Ribo-Seq RPKM and RNA-Seq RPKM), we observed that RPS28 knockdown mainly selectively downregulates translation of a relatively small mRNA subset Fig. 6A).

Fig. 6. RPS28 regulates non-canonical translation and modulates tumor immunosurveillance.

(A) Correlation of translation efficiencies of shControl and RPS28 knockdown. (B) Percentages of reads mapped to 5’UTR (left) and 3’UTR (middle) among reads mapped to exons from Ribo-Seq and percentages of reads mapped to UTR from RNA-Seq (right). Center values and error bars represent mean ± range. Statistical significance was evaluated with one tailed unpaired t test (n = 2 biological replicates). n.s., non-significant. (C) Analysis of start codons that initiate open reading frames with ORF-RATER score > 0.9. (D) Reporter assays using BFP and GFP to compare cap-independent translation to cap-dependent translation (left) and CUG initiated translation to AUG initiated translation (right). a.u., arbitrary unit. Statistical significance was evaluated with two-tailed unpaired t test. (E) Viability of lentiviral shRNA transduced Mel624 cells after co-culture with CD8⁺ T cells. Center values and error bars represent mean ± s.e.m. Statistical significance was evaluated with two-tailed unpaired t test (n = 3 biological replicates). See also Figure S4 and S5.

Importantly, Ribo-Seq showed that RPS28 knockdown cells contain a higher fraction of reads in both 5’ UTR and 3’ UTR, demonstrating that RPS28 knockdown increases non-canonical translation by enhancing translation from these “untranslated regions”. The UTR derived-read fraction was not altered in the RNA-Seq (Fig. 6B, right panel), indicating RPS28 modulates UTR translation per se and not UTR containing mRNA. In addition, codon usage analysis revealed that, although the hierarchy of codon usage was similar to control cells, RPS28 knockdown cells increased non-AUG codon initiation (Fig. 6C), further perturbing the translatome.

We confirmed that RPS28 knockdown enhances non-canonical translation by plasmid driven reporter assays (Fig. 6D). We observed increased translation of both GFP an internal ribosome entry site (IRES) leader relative to cap dependent translation of BFP, and CUG initiated GFP relative to AUG initiated BFP. Taken together, we conclude that RPS28 knockdown is likely to increase class I expression by increasing non-canonical translation of peptide generating-DRiPs.

A recent study reported that RPs are selectively enriched in a genome-wide CRISPR/Cas9 survey to identify genes involved in tumor escape from CD8+ T cell mediated killing (Patel et al., 2017). To examine the contribution of RPS28 to T cells immunosurveillance, we tested the effect of RPS28 knockdown on killing of human melanoma cells by HLA-A2 restricted, NY-ESO-1 specific T cells (Fig. 6E). Lentivirus mediated RPS28 knockdown in Mel624 cells increased T cell killing, consistent with increased presentation of the NY-ESO-1 peptide A2 complex and the conclusion that ribosome-based modulation of CD8+ T immunosurveillance facilitates tumor cell immunoevasion. Since somatically acquired RP mutations are extremely common in human cancer (Ajore et al., 2017; Kandoth et al., 2013), our findings suggest the potential for modulating ribosome functions pharmaceutically or genetically to enhance cancer immunotherapy.

Discussion

Our findings extend prior observations that cells can function with significant fractions of ribosomes lacking certain individual RPs, and that the effects of RP absence can vary between cell or tissue types with highly selective effects on translating individual mRNAs (Briggs and Dinman, 2017; Shi and Barna, 2015; Shi et al., 2017; Xue and Barna, 2012). Most importantly, we establish the principle that peptide generation for immunosurveillance can be controlled by intrinsic alterations to ribosomes themselves, in addition to exploiting extrinsic translation factors, as has been amply demonstrated (Apcher et al., 2011; Apcher et al., 2013; Dolan et al., 2010a; Prasad et al., 2016; Schmidt, 2009; Starck et al., 2012). Whether intrinsic ribosomal alterations are naturally exploited to positively or negatively influence MHC class I immunosurveillance of foreign and self-antigens remains to be established, though it seems likely, particularly in cancer immunoediting. At a minimum, our findings show that alterations in ribosomes can change the efficiency of class I peptide presentation independently of their effects on the amount of native source proteins translated.

Detailed characterization of ribosomes from RPL28 knockdown cells provides a clear demonstration that modifying individual RPs can, without changing other RPs, alter rRNA methylation and increase/decrease extrinsic translation factors that stably associate with ribosomes. RPL28 increases presentation of the SIINFEKL model peptide from all IAV encoded translation products, including TAP- and Ub- independent antigens, consistent with physically or functionally (via molecular chaperones) increasing access of nascent polypeptides to TAP/ER translocon with or without proteasome degradation.

Remarkably, RPL28 contacts RPL6, which when knocked down exerts the opposite effect in reducing antigenic peptide generation from IAV proteins, but, intriguingly, only those that are generated in a Ub E1-dependent manner. Since RPL6 knockdown increases large molecular weight ubiquitylated substrates, our findings suggest that RPL6 is required for targeting ubiquitylated DRiPs to proteasomes adept at generating peptides for MHC class I immunosurveillance. The presence of RPL28 may decrease RPL6 function in targeting DRiP for class I peptide generation, accounting for the opposite effects of these RPs on peptide generation and their physical proximity.

RPS28 knockdown increases HLA-A2 cell surface expression without changing cellular expression of HLA-A2 itself or TAP. This, and the lack of effect on K^b expressed by the same cells points to an increased HLA-A2 peptide ligand supply. A ready explanation for this effect comes from Ribo-Seq and reporter assay analysis demonstrating a clear increase in non-canonical translation, a substantial fraction of which are probably DRiPs. The selectivity of A2 vs. K^b is puzzling but well precedented by large differences in class I allomorph sensitivity to inhibiting E1 (Wei et al., 2017), proteasomes (Benham et al., 1998; Luckey et al., 2001; Vinitsky et al., 1997), TAP (Henderson et al., 1992; Smith and Lutz, 1996), and protein synthesis itself (Schubert et al., 2000).

We link RPS28 control of peptide generation to cancer immunosurveillance, suggesting that ribosome mutations, common in cancers (Vlachos, 2017), may be selected for immunoevasion from CD8+ T cells or NK cells. This raises the possibility of the ribosome as a druggable target in cancer immunotherapy, and potentially autoimmunity as well. While it is nearly inevitable that ribosome targeting therapeutics will have major side effects, these are likely to be tolerable relative to their clinical benefits, with proteasome inhibitor cancer therapy providing a clear example of the utility of even broader targeting of an essential cellular machine (Yong et al., 2018). Regardless of their natural roles in immunosurveillance, our findings establish that RPs can be individually targeted pharmacologically or genetically to modulate antigen presentation in various diseases.

STAR Methods

CONTACT FOR REAGENT AND RESOURCE SHARING

Further information and requests for resources and reagents should be directed to and will be fulfilled by the Lead Contact, Jonathan W Yewdell (jyewdell@niaid.nih.gov).

EXPERIMENTAL MODEL AND SUBJECT DETAILS

Cell culture

HEK293-K^b, Mel624, Lenti-X 293T, and HEK293-K^b-ICP47 and the corresponding control cells were maintained in Dulbecco’s Modified Eagle’s Medium (DMEM) with 10% fetal bovine serum (FBS). All cultures were grown at 37°C in a 5% CO2 incubator and tested to be free of mycoplasma contamination. Human T cells transduced with recognizing the HLA-A*02-restricted melanoma antigens NY-ESO-1 were cultured in T cell medium: AIM-V medium supplemented with 5% human AB serum, 100 U ml⁻¹ penicillin and 100 µg ml⁻¹ streptomycin, 2 mM L-glutamine and 12.5 mM HEPES.

Cell line generation

For HEK293-K^b-ICP47 cells generation, a bacterial artificial chromosome with the herpes simplex virus type 1 genome was a generous gift of David Leib (Dartmouth) and Thomas Kristie (NIAID, NIH). The ICP47 gene was amplified with the following primers: 5’-TAGAAGGCCTCTGAGGCCATGTCGTGGGCCCTGGAAATGGCG-3’, 5’-TTGATGGCCTGACAGGCCTCAACGGGTTACCGGATTACGGGG-3’ and cloned into the SfiI site of the pSBbi-Pur Sleeping Beauty expression vector (a gift from Eric Kowarz, Addgene plasmid #60523). HEK293-K^b cells were transfected with either the base pSBbi-Pur vector or the ICP47 pSBbi-Pur vector along with 1/20 amount of Sleeping Beauty 100x (a gift from Zsuzsanna Izsvak, Addgene plasmid #34879). Transfected cells were selected in 2 µg ml⁻¹ puromycin to generate a stable population.

Influenza A virus strains

Recombinant Influenza A virus A/Puerto Rico/8/34 (rIAVs) expressing SIINFEKL were described previously (Dolan et al., 2010b, Yang et al., 2016) or below. rIAVs was grown in 10-d embryonic chicken eggs and used as infectious allantoic fluid.

Recombinant influenza A virus construction

PB1-ES-SIINFEKL was cloned as a three-segment assembly using NEBuilder HiFi DNA Assembly Master Mix (New England Biolabs) with vector pDZ digested with restriction enzyme SapI. The left half consisted of all of the PB1 segment up to the end of the PB1 coding sequence PCR amplified with the universal influenza primer IAV 5’ SapI 5’-AGCTCTTCAGGGAGCAAAAGCAGG-3’ and primer PB1 AgeI bot 5’-TTTCACCGGTGCTTTTTGCCGTCTGAGCTCTTCAATG-3’. The right half consisted of FMV 2A-ES-SIINFEKL fused to the final 270bp of PB1 as follows. The final 270bp of the PB1 segment was PCR amplified with primers ES-SIIN-PB1 top 5’-GCGGCAGTCTGCAGCGCGGCCAGTATAATCAACTTTGAAAAACTGTAGTTGAAGAT GAACAAATGTACC-3’ and universal flu primer IAV 3’ SapI 5’-TGCTCTTCTATTAGTAGAAACAAGG-3’, extended by PCR amplification with primers 2A-ES-SIIN top 5’-TGAGTCCAACCCTGGGCCCATGAGGTACATGATTTTAGGCTTGCTCGCCCTTGCG GCAGTCTGCAGCGCGGCCAG-3’ and IAV 3’ SapI to add ES signal sequence, followed by further extension by PCR amplification with primers ES-SIIN-PB1 AgeI top 5’-AGCACCGGTGAAACAGACTTTGAATTTTGACCTTCTCAAGTTGGCAGGAGACGTTG AGTCCAACCCTGGGCCCATG-3’ and IAV 3’ SapI to add the 24-mer FMV 2A sequence. PCR products were purified by agarose gel electrophoresis and QIAquick spin cartridges (Qiagen) between each step. Final PCR products were digested with SapI (pDZ vector), or SapI and AgeI (left and right insert fragments) and heat inactivated prior to assembly.

PB1-Ub-SIINFEKL was cloned in a manner similar to PB1-ES-SIINFEKL except that the right insert fragment was replaced with FMV 2A fused to Ubiquitin-SIINFEKL- and the final 270bp of PB1. The final 270bp of the PB1 segment was PCR amplified as above with primers SIIN-PB1 top 5’-ATAATCAACTTTGAAAAACTGTAGTTGAAGATGAACAAATGTAC-3’ and universal flu primer IAV 3’ SapI. Ubiquitin was PCR amplified with primers 2A-Ub-top 5’-GACCTTCTCAAGTTGGCAGGAGACGTTGAGTCCAACCCTGGGCCCATGCAGATCT TCGTGAAGAC-3’ and Ub-SIIN bot 5’-ACAGTTTTTCAAAGTTGATTATACTACCACCTCTTAGTCTTAAGAC-3’. The PCR products of Ubiquitin and the final 270bp of PB1 were joined via splice overlap extension, while simultaneously adding the 24-mer FMV 2A sequence using primers 2A AgeI top 5’-AGCACCGGTGAAACAGACTTTGAATTTTGACCTTCTCAAGTTGG-3’ and IAV 3’ SapI. Final PCR products were digested with SapI (pDZ vector) or SapI and AgeI as above (left and right insert fragments) prior to assembly.

The NS1-SIINFEKL plasmid was generated by mutagenesis of plasmid pDZ-PR8-NS1 using primers NS1-SIIN top 5’-ACGGCCTCTCGATCTATCGCTACTACGGCTTGTCGATCATCAACTTCGAGAAGCTC TACCTAACTGACATGACTCTTGAG-3’ and NS1-SIIN bot 5’-AGCGATAGATCGAGAGGCCGTAGTACCTGTAAATACTCAGCCCGTAGTAACGATAA ATACTACGCGACGCAGGTACAGAG-3’ using QuikChange II site directed mutagenesis kit (Agilent).

METHOD DETAILS

Lentiviral shRNAs

All shRNA targeting sequences were cloned into DECIPHER pRSI9-U6- (sh)-UbiC-TagRFP-2A-Puro (Cellecta, CA). shRNA targeting sequences listed in Supplementary Table 1 were based on RNAi consortium at Broad Institute (https://www.broad.mit.edu/rnai/trc). Lentiviral particles were packaged using Lenti-X 293T cells (Clontech) according to the manufacturer’s instructions. Virus-containing supernatants were collected at 48-h after transfection and filtered to eliminate cell contaminates. Target cells were infected by shRNA lentivirus in 5 µg ml⁻¹ polybrene at MOI = 2 to achieve approximately 50% transduction efficiency for flow cytometry assay that differentiates cells by RFP signal, and at MOI = 5 for other assays.

MHC-I peptide presentation screen and data analysis

For steady state Class I, cells infected with shRNA lentivirus were stained with fluorochrome-conjugated Abs including anti-HLA-A,B,C (W6/32, prepared in-house), anti-H-2K^b (HB176, prepared in-house), anti-β2m (BBM.1, prepared in-house), and anti-HLA-A2 (MA2.1, prepared in-house). For SIINFEKL presentation, cells infected with shRNA lentivirus were resuspended in FBS-free acidified RPMI 1640 medium, infected with rIAV at MOI = 10 at 37°C, resuspended in cultu re medium, harvested at indicated time points, and stained with fluorochrome-conjugated Abs including anti-NA (NA2–1C1, prepared in-house), anti-M2 (M2–1C6, prepared in-house) and anti-K^b-SIINFEKL (25D1.16, prepared in-house). ES and Ub were UV inactivated before use to avoid saturation of K^b-SIINFEKL on cell surface. Fluorochrome conjugation using antibody labeling kit (ThermoFisher) was conducted following manufacturer’s instructions. Secondary staining was conducted with Alexa Fluor 647–coupled goat anti-mouse IgG (H+L) (Life Technologies), when necessary. Flow cytometric data were acquired using a BD LSR Fortessa X-20 flow cytometer (BD Biosciences), gated on single cells, and data were analyzed with FlowJo version 9.8.5 software (FlowJo LLC).

RNA purification and microarray analysis

6 days after lentivirus transduction, total RNA was isolated from 1 × 10 ⁶ cells by TRIzol reagent (Invitrogen), purified by RNeasy Mini Kit and analyzed by HumanHT-12 Gene Expression BeadChip (Illumina) at NIAID Research Technologies Branch. Raw data were analyzed by JMP/Genomics software 7.0 with SAS Version 9.4 to calculate lsmeans, log₂ (fold change), negative log₁₀ (p-value), and determine statistical significance. lsmeans were used to plot heatmap in Fig. 2A with the Python function seaborn.heatmap. log₂ (fold change) and negative log₁₀ (p-value) were used to generate volcano plots in Fig. 2 and Fig. S2 by R package ggplots. Significant changed genes were analyzed by Visualization and Integrated Discovery (DAVID) v6 .8 (NIAID) for Gene Ontology (GO) terms enrichment to generate Fig. 2D.

Proteomics, RiboMethSeq and statistical analysis

Five replicates of ribosomes were purified as described (Belin et al., 2010) before characterization by MS-based proteomic analysis as described (Erales et al., 2017). Briefly, extracted proteins were stacked in the top of a 4–12% NuPAGE gel (Invitrogen) before in-gel digestion using modified trypsin (Promega). Resulting peptides were analyzed by nanoliquid chromatography coupled to tandem MS (Ultimate 3000 RSLCnano system coupled to Q-Exactive Plus, Thermo Scientific) using a 120-min gradient. RAW files were processed using MaxQuant (Cox and Mann, 2008) version 1.5.8.3 and the SwissProt database (Homo sapiens taxonomy, June 2017 version). Intensity-based absolute quantification (iBAQ) (Schwanhausser et al., 2011) values were calculated from MS intensities of unique and razor peptides and used for statistical analyses using ProStaR (Wieczorek et al., 2017). Only proteins quantified in at least 5 replicates of 1 condition were kept. For each sample, individual iBAQ values were normalized by the sum of iBAQ values extracted from ribosomal proteins. Missing data were imputed using the .5-percentile value of each column before statistical testing using limma t-test. Differentially expressed proteins were sorted out using a log₂ (fold change) cut-off of 1 and an adjusted p-value allowing to reach a FDR threshold below 0.5% using the Benjamini-Hochberg method. Site-specific rRNA methylation was determined by RiboMethSeq, as previously described (Marchand et al., 2016). Briefly 150 ng of total RNA were subjected to alkaline hydrolysis for 14 min at 96°C followed by end-repair and library preparation using NEBNext Small RNA Library kit (NEB, UK) following the manufacturer’s instructions. Libraries were multiplexed and sequenced on Hiseq1000 at 6 pM. Bioinformatic analysis was performed as described (Ayadi et al., 2018).

Class I peptide complex recovery

Cells were treated with ice-cold citric acid buffer (0.13 M citric acid, 0.061 M Na₂HPO4, 0.15 M NaCl [pH 3]) at 1 × 10 ⁷ cells ml⁻¹ for 120 s, washed three times with PBS, and resuspended in culture medium. At the indicated time point, an aliquot of cells was removed and stained with Abs including anti-HLA-A,B,C (W6/32, prepared in-house) and anti-HLA-A2 (MA2.1, prepared in-house).

Ribo-Seq, RNA-Seq and Translation efficiency (TE)

Ribo-Seq experiments were conducted as described previously (McGlincy and Ingolia, 2017) with modification described below. Ribo-Zero Gold rRNA removal Kit (Human, Mouse, Rat) (Illumina) was used before reverse transcription. In addition to oligos described previously (Ingolia et al., 2012), oligos in Supplementary Table 2 were also used to deplete rRNA. Ribo-Seq libraries were sequenced as SR 50 cycles on Illumina HiSeq 2000 instrument. Cutadapt was used to trim adaptor and select read lengths between 25 to 35 bp. After align to a pre-build rRNA library by Bowtie (Langmead et al., 2009), unaligned reads were then aligned to human genome hg19 by Tophat (Trapnell et al., 2009). Best alignment was analyzed by Plastid (Dunn and Weissman, 2016) to determine P-site offset. Gene position files containing only protein coding genes were built by Plastid. Reads were then tabulated as RPKM values and mapped to exon, CDS, 5’UTR, and 3’UTR by Plastid. Genes with CDS RPKM > 0.5 were kept for downstream analysis. RPKM values were used to plot Figs. S4A and S5A. Best alignments were visualized by Integrative Genomics Viewer (IGV, Broad Institute) in Fig. S4B. To identify open reading frames (ORFs), multiple alignments were kept, two replicates were merged and analyzed by ORF-RATER (Fields et al., 2015) to determine and rate ORFs. Start codons that initiate ORFs with rate score > 0.9 were shown in Fig. 6C.

For RNA-Seq, total RNA was extracted by adding SDS (1% final concentration) to Ribo-Seq cell lysate and purified by RNA Clean & Concentrator (Zymo Research). RNA-Seq libraries were prepared by SMARTer total RNA Pico kit (Clontech) and sequenced as PE 75 cycles on Illumina NextSeq instrument. Trimmomatic (Bolger et al., 2014) was used for adaptor and quality filtering. Alignment to human genome hg19 was performed by TopHat. Reads were tabulated as RPKM values and mapped to exon, CDS, 5’UTR, and 3’UTR by Plastid. Genes with CDS RPKM > 0.5 were kept for downstream analysis.

Statistical analysis of differences in TE between shControl and shRPS28 was conducted using DESeq2. log₂ (fold change) and negative log₁₀ (adjusted P value) were plotted in Fig. S5B.

Dual reporter assay

To compare cap-dependent translation with cap-independent translation, BFP was amplified from pTagBFP-N (evrogen) using primers 5’-CAAGCTTCGAATTCTCGCCACCATGAGCGAGCTGAT-3’ and 5’-AGAGGGGCGGATCCCAGTCGCGGCCGCTTTAATTAA-3’, digested with EcoRI and BamHI, and inserted into similarly digested pIRES2-EGFP. To compare AUG translation with CUG translation, GFP with start codon mutated to CTG and three CTG following start codon mutated to CTC or CTA was amplified from pEGFP-N1 using primers 5’-GATCCACCGGTCGCCACCAUGGTGAGCAAGGGCGAGGAGCTCTTCACCGGGGTG GTGCCCATCCTCGTCGAGCTAGACGGCGACGTA-3’ and 5’-TGATCTAGAGTCGCGGCCGCTTTACT-3’, digested with Agel and XbaI, and inserted into similarly digested pEGFP-N1. Primers 5’-GGATCCACCGGTCGCCACCATGGTGAGCAAGGGCGA-3’ and 5’-TGATCTAGAGTCGCGGCCGCTTTACT-3’ were then used to mutate start codon back to ATG. Transfection was conducted 5 days post shRNA lentivirus infection, and GPF and BFP signal measured by flow cytometry 48-h post transfection. GFP and BFP plasmids were transfected individually in parallel to serve as single color controls and fluorescence minus one controls.

Immunoblotting

Whole cell lysates were generated as described previously (Wei et al., 2015). Blots were probed with rabbit anti-histone H3 (D1H2, Cell Signaling Technology), mouse anti-GAPDH (clone 1E6D9, proteintech), mouse anti-mono and polyubiquitin Ab (clone FK2; Enzo Life Sciences), rabbit anti-RPS28 (ab133963, Abcam), rabbit anti-RPL28 (ab138125, Abcam), rabbit anti-RPL6 (ab126100, Abcam), mouse anti-HLA Class I ABC (ab70328, Abcam), mouse anti-TAP1 (clone148.3, Millipore), followed by incubation with IRDye 800CW anti-rabbit Ab, and IRDye 680LT anti-mouse Ab (both from LI-COR). Protein was quantitated on an Odyssey infrared scanner using Image Studio v2.0 software (LI-COR)

T cell and tumor cell co-culture assay

T cell and tumor cell co-culture experiments were conducted as described previously (Patel et al., 2017). In short, NY-ESO-1 T cells used for co-culture assays were thawed and cultured in AIM-V medium (ThermoFisher) supplemented with 5% human AB serum (Valley Biomedical), 100 U ml⁻¹ penicillin and 100 µg ml⁻¹ streptomycin, 2 mM L-glutamine, 12.5 mM HEPES, and 300 IU ml⁻¹ IL-2. T cells were then co-cultured with RPS28 knockdown Mel624 cells at the effector:target ratio of 1:1 overnight. At the end of the co-culture, tumor cells were detached using trypsin and washed twice with PBS. Tumor cells and T cells were stained with fixable Live/Dead dye (ThermoFisher) followed by human anti-CD3 antibody (clone SK7, BioLegend). Live, CD3- cell counts were measured by CountBright Absolute Counting Beads (ThermoFisher).

QUANTIFICATION AND STATISTICAL ANALYSIS

The type of statistical test is annotated in the Figure legend and/or in the Method Details section specific to the analysis. In addition, statistical parameters such as the value of n, mean/median, SEM, SD and significance level are reported in the Figures and/or in the Figure Legends. A P value less than or equal to 0.05 was considered statistically significant for all analyses unless indicated otherwise. Prism (GraphPad Software Inc.) was used for these analyses unless indicated otherwise.

Highlights.

• Ribosome heterogeneity controls MHC-I peptide ligand presentation

• RPL6 and RPL28 play opposing roles in viral peptide generation

• RPS28 controls MHC-I peptide generation by modulating non-canonical translation

• Ribosomal proteins influence CD8+ T cell cancer immunosurveillance.
