Green synthesis of spiro[indoline-3,4′-pyrano[2,3-c]pyrazoles] using Fe₃O₄@l-arginine as a robust and reusable catalyst

Abstract

The synthesized Fe₃O₄@l-arginine showed strong catalytic performance in the one-pot synthesis of spiropyranopyrazoles via the reactions of hydrazines, β-keto esters, isatins, and malononitrile or ethyl cyanoacetate under solvent-free conditions. The biologically active heterocyclic compounds including spiropyranopyrazole derivatives were efficiently synthesized in short reaction times and excellent yields in the presence of Fe₃O₄/l-arginine at room temperature. The highlighted features of the Fe₃O₄@l-arginine nanocomposite are highly stable, easy to separate, low loading, cost-effective with easy preparation and reusability of the catalyst. The heterogeneous nanocomposite was fully characterized by SEM, EDX, FT-IR, XRD and TEM analysis.

Introduction

One-pot multi-component reactions (MCRs), is an interesting synthetic strategy for the synthesis of small-molecule libraries with various degrees of structural variety because various organic moieties are joined in one step for carbon–carbon and carbon-heteroatom bond formation [1, 2]. They offer considerable advantages over ordinary linear step synthesis by decreasing time, saving money, energy, and crude materials. Therefore, they result in both economical and environmental benefits. At the same time, variety can be gained from building up libraries by differing each component [3, 4]. In recent years, there has been massive development in three- and four-component reactions, and great efforts continue to be made to expand new MCRs [5]. Spirocyclic compounds are considered as significant building canton for the easy availability of a diversity of cyclic products by a sequential reaction due to their steric strain attendant with the quaternary carbon [6]. Expansion of new procedures for producing spirocyclic compounds is an interesting and challenging function in organic synthesis [7]. One of the significant multi-component reactions is the synthesis of spiropyranopyrazole derivatives which exhibit high medicinal attributes and biological activities. Spiropyranopyrazoles area class of nitrogen heterocyclic compounds with considerable and well- offered biological activities that consist of antimicrobial [8], anti-inflammatory [9], anticancer [10] and molluscicidal activities [11]. Spiropyranopyrazoles are important heterocyclic compounds due to their variety and pharmaceutical biological activities [12]. Concerning the arithmetic of the significance of oxindole parts in organic compounds, as well as the intrinsic complexity of isatins as heterocyclic substrates, it is not amazing that many diverse and elegant MCRs have been introduced for the synthesis of various heterocyclic and spiroheterocyclic products by using isatins as a core component [13]. Therefore, different synthetic approaches for the synthesis of spirooxindole-fused heterocycles have been reported and reviewed [14]. Previous studies have described procedures to synthesize of pyrano[2,3-c]pyrazoles using several catalysts such as cerium ammonium nitrate [15], l-proline [16], piperidine [17] and cobalt NPs [18].

Nevertheless, there are only two reported methods in the literature for the synthesis of spiro[indoline-3,4′-pyrano[2,3-c]pyrazole] derivatives via four-component reaction of hydrazines, ethyl acetoacetate, isatins, and malononitrile or ethyl cyanoacetate which have been done in the presence of piperidine [19], and Et₃N [20].

Magnetic organic–inorganic nanocomposites have recently been the subject of intense research as magnetic catalysts in both industrial and academic settings. These magnetic nanoparticle catalysts can be used for investigating the reusing and seclusion problems that occur in several homogenous and heterogeneous catalytic reactions. Supported magnetic metal nanoparticles as new class of nanocatalysts have received much attention in diverse fields. The main feature of these particles is their high surface area that leads to their higher catalytic activity in comparison with traditional heterogeneous acid catalysts [21–27].

One of the outstanding procedures for preventing particle aggregation is coating nanoparticles with various targeting factors, taking into account their biocompatibility. Among the chemicals that can be used for achieving this target, amino acids are appropriate because of their crucial role in the body [28]. Amino acids react with the nanoparticles’ surface via the carboxyl groups and side chains [29]. Amino-functionalized materials demonstrate excellent ability to remove an extensive range of heavy metal ions from aqueous solutions because of the potent affinity between the nitrogen atom and metal cations [30]. Among different nanocomposite, Fe₃O₄/amino acid has received great attention in different fields because of their unique attributes and potential functions [31]. Some crucial characteristics of these catalysts include high catalytic activity, facile separation through an external magnet with no need for filtration, eco-friendliness, and non-toxicity. Recently, functionalized magnetic nanoparticles have been utilized as a useful catalytic system in numerous chemical processes such as synthesis of α-amino nitriles [32], bis(indolyl)methane derivatives [33], indazolo[2,1-b]phthalazine-triones and pyrazolo[1,2-b]phthalazine-diones [34], 3,4-dihydropyrimidin-2(1H)-ones [35], 1,8-dioxo-octa hydro xanthene derivatives [36], 2-amino-4H-chromen-4-yl phosphonates [37], 1,4-dihydropyridines [38] and pyrrole synthesis [39].

In continuation of our study in the synthesis of heterocyclic compounds using heterogeneous nanostructures [40–44], herein we describe a highly efficient and straightforward method for the synthesis of spiro[indoline-3,4′-pyrano[2,3-c]pyrazoles] via multi-component reaction of hydrazines, β-keto esters, isatin and malononitrile or ethyl cyanoacetate using Fe₃O₄@l-arginine as a green, economic, available and environmentally benign nanocatalyst under solvent-free conditions (Fig. 1).

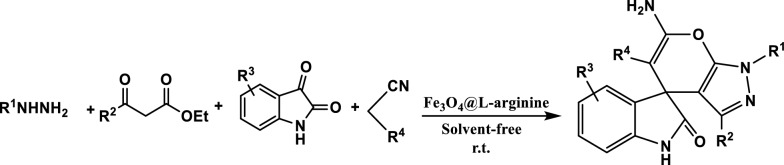

Fig. 1.

Synthesis of spiro[indoline-3,4′-pyrano[2,3-c]pyrazoles] using Fe₃O₄@l-arginine nanocomposite under solvent-free conditions

Results

Catalyst characterization

In the preliminary experiments Fe₃O₄@l-arginine nanoparticles were prepared and characterized by SEM, EDX, FT-IR and XRD spectroscopy tenchniques.

The earned lattice parameter of the nanoparticle Fe₃O₄@l-arginine using XRD technique coincided to the standard parameters of magnetite. The pattern of the Fe₃O₄@l-arginine nanocomposite is depicted in Fig. 2. It could be seen that the strong diffraction peaks at 2θ of 30.1°, 35.4°, 43.2°, 53.7°, 56.9° and 62.9° belong to the peaks of (220), (311), (400), (422), (511) and (440) of the Fe₃O₄, which is similar to the bare Fe₃O₄ nanoparticles [40, 45].

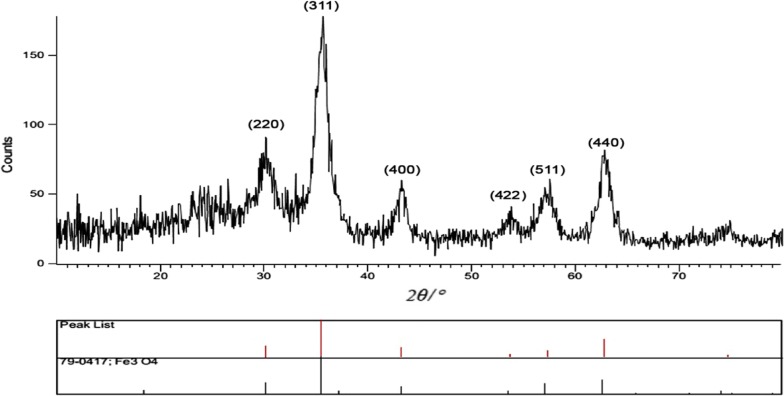

Fig. 2.

The X-ray diffraction pattern of the Fe₃O₄@l-arginine nanocomposite

The chemical purity of the sample, as well as their stoichiometry, was tested by EDX study. Figure 3 shows that the elemental compositions of Fe₃O₄@l-arginine are Fe, O, C, H, and N.

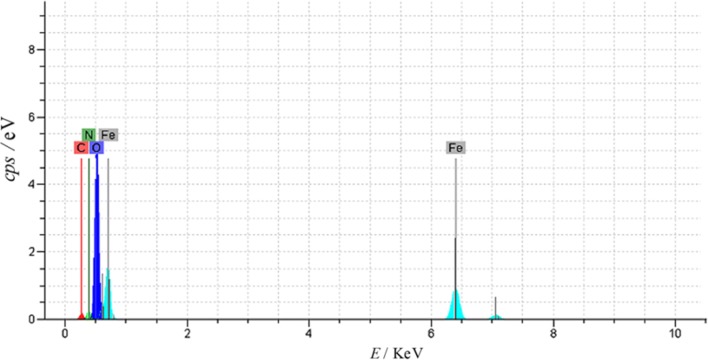

Fig. 3.

EDX spectrum of the Fe₃O₄@l-arginine nanocomposite

The FT-IR spectra of the bare Fe₃O₄ and Fe₃O₄@l-arginine nanocomposite are presented in Fig. 4. Bare magnetite nanoparticles are easily distinguished by strong absorption peaks at 583 cm⁻¹ because of the stretching vibration of the Fe–O band (Fig. 4a). Figure 4b shows the FT-IR spectrum of Fe₃O₄@l-arginine nanocomposite. The existence of Fe₃O₄ NPs is determined by the strong adsorption band at 595 cm⁻¹ related to the Fe–O vibrations. In the case of Fe₃O₄@l-arginine, the additional adsorption peaks at 1386, 1631 and 3154, 3436 cm⁻¹ are due to bending vibration of N–H, asymmetric and symmetric stretching vibrations of COO⁻, and stretching vibrations of N–H, respectively, which indicate the presence of bonded arginine on the surface of magnetite nanoparticles. Furthermore, the connections and interactions between COO⁻ groups and metal atoms are completely according to pervious literature [45–48].

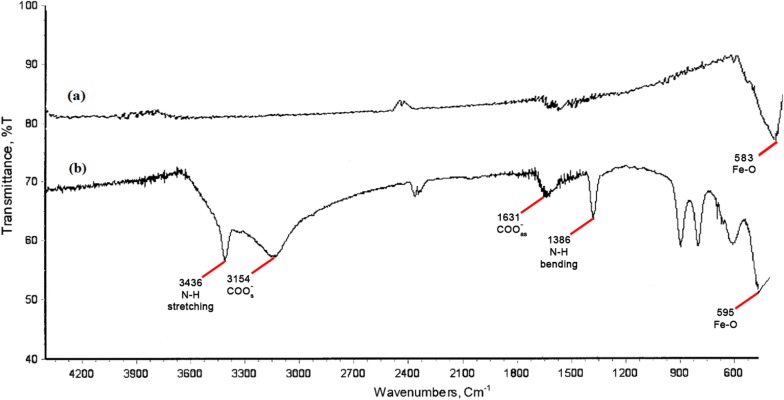

Fig. 4.

The comparative FT-IR spectra of the Fe₃O₄ (a) and Fe₃O₄@l-arginine (b)

In order to investigate the morphology and particle size of nanoparticles, SEM image of the mesoporous is illustrated in Fig. 5. The SEM image of the magnetite nanoparticles modified with arginine indicate spherical shape with an average diameter about 10–15 nm.

Fig. 5.

SEM image of the Fe₃O₄ @l-arginine nanocomposite

The morphology and particle size of Fe₃O₄@l-arginine were investigated using transmission electron microscopy (TEM) (Fig. 6). The TEM image of this nanocomposite shows that the average particle size of Fe₃O₄@l-arginine is around 10–20 nm which was confirmed by the SEM image.

Fig. 6.

TEM image of Fe₃O₄@l-arginine

Discussions

Initially, to obtain the best reaction conditions, we selected reaction of hydrazine, ethyl acetoacetate, isatin and malononitrile as model reaction. Different catalysts, solvents and temperatures were examined in the four-component preparation of spiro[indoline-3,4′- pyrano[2,3-c]pyrazole] (Fig. 7).

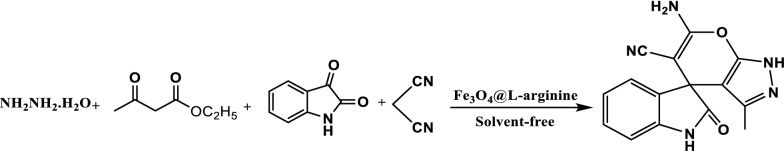

Fig. 7.

The model reaction for the synthesis of spiro[indoline-3,4′- pyrano[2,3-c]pyrazole]

Firstly, the model study was performed in various solvents including EtOH, DMF, H₂O, CH₃CN and PhCH₃ under reflux conditions and also under solvent-free conditions using Fe₃O₄@l-arginine nanocomposite. The summarized results of Table 1 show that the best results were obtained under solvent-free conditions. To further improve the yield and decrease the reaction time, we used the different reaction temperatures under solvent-free conditions. Further increase in temperature from room temperature to 80 °C in the model study did not have any remarkable influence on the reaction time and production yield (Table 1).

Table 1.

The effect of solvents on the model reaction in the presence of Fe₃O₄@l-arginine

Entry	Solvent	Time (min)	Yield (%)a
1	EtOH (reflux)	70	60
2	DMF (reflux)	120	50
3	H2O (reflux)	130	35
4	CH3CN (reflux)	120	45
5	Toluene (reflux)	240	25
6	Solvent-free (r.t.)	60	96
7	Solvent-free (40 °C)	60	95
8	Solvent-free (80 °C)	60	96

Reaction conditions: hydrazine monohydrate, isatin, ethyl acetoacetate, malononitrile (molar ratio: 1:1: 1.2:1) using (0.01 g) of Fe₃O₄@l-arginine

^aIsolated yields

Afterward, the model was performed using several catalysts including ZnO, CuI, MgO, Na₂CO₃, Et₃N, piperidine, Fe₃O₄, CaO, SiO₂, and Fe₃O₄@l-arginine under solvent-free conditions. As can be seen from Table 2, no product was afforded in the absence of a catalyst (Table 2, entry 1). Also, it is noticed that Fe₃O₄@l-arginine has a significant effect in the yield of the corresponding product and reaction time (Table 2, entry 11). Next, various amounts of the Fe₃O₄@l-arginine were used in the model reaction. As shown in Table 2, the best experimental operation conditions included 8 mol % of the Fe₃O₄@l-arginine. With increasing the amount of nanocatalyst, no considerable change was observed in the product yield and reaction time. In comparison, a decrease in the catalyst amount cause to decrease the product yield. Hence, 8 mol % Fe₃O₄@l-arginine was selected as the optimum amount in the model reaction (Table 2).

Table 2.

The model study catalyzed in the presence of various catalysts

Entry	Catalyst	Catalyst loading (mol  %)	Time (min)	Yield(%)a
1	None	–	120	0
2	ZnO	15	120	35
3	CuI	15	120	42
4	MgO	15	100	65
5	Na2CO3	15	80	72
6	Et3N	15	60	70
7	Piperidine	15	80	55
8	Fe3O4	15	120	40
9	CaO	15	80	65
10	SiO2	15	120	35
11	Fe3O4@l-arginine	15	60	96
12	Fe3O4@l-arginine	10	60	96
13	Fe3O4@l-arginine	8	60	96
14	Fe3O4@l-arginine	5	90	70

Reaction conditions: hydrazine monohydrate (1 mmol), isatin (1 mmol), ethyl acetoacetate (1 mmol) and malononitrile (1 mmol) under solvent-free at room temperature

^aIsolated yields

The optimized reaction conditions were tested for library constructions with two hydrazines 1{1–2}, β-keto esters 2{1–2}, four isatins 3{1–4}, and two acetonitrile derivatives 4{1–2} (Figs. 8 and 9).

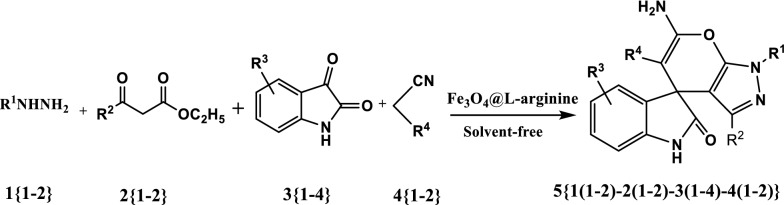

Fig. 8.

Synthesis of spiro[indoline-3,4′-pyrano[2,3-c]pyrazole] derivatives

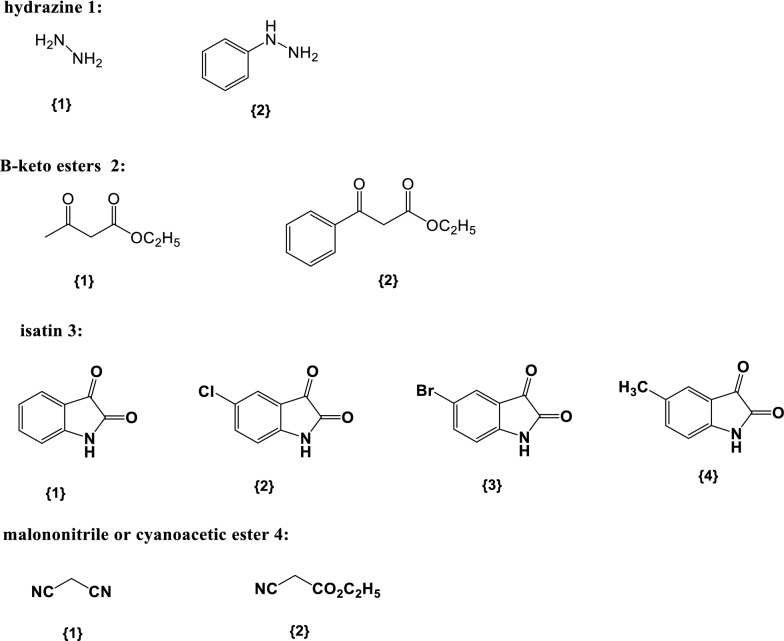

Fig. 9.

Diversity of the reagents

The corresponding spiro-[indoline-3,4′-pyrano [2,3-c]pyrazole] derivatives 5 were obtained in good yields at room temperature under solvent-free conditions (Table 3). The protocol was effective with isatins containing either electron-withdrawing (halides) or electron-donating (alkyl) groups.

Table 3.

Synthesis of spiro[indoline-3,4′- pyrano[2,3-c]pyrazole] derivatives using Fe₃O₄@l-arginine under solvent-free conditions

Entry	Product	Yield (%)a	M.p.  °C	Lit. M.p.  °C
1	5{1,1,1,1}	96	286–288	285–286 [18]
2	5{1,1,2,1}	91	297–298	297–298 [18]
3	5{1,1,3,1}	95	283–285	282–283 [18]
4	5{2,1,1,1}	90	225–227	227–229 [18]
5	5{1,2,3,1}	91	257–259	256–257 [18]
6	5{1,2,1,1}	90	282–284	280–281 [18]
7	5{1,2,1,2}	87	240–242	242–243 [18]
8	5{1,2,3,2}	89	256–258	257–259 [18]
9	5{1,2,2,2}	85	266–268	265–267 [18]
10	5{1,1,4,1}	94	278–280	279–281 [18]
11	5{1,2,4,1}	86	246–248	247–249 [18]
12	5{1,2,4,2}	87	262–264	260–263 [18]
13	5{2,1,4,1}	89	220–222	222–224 [18]
14	5{2,1,3,2}	92	212–214	–b
15	5{2,1,2,2}	90	279–281	–b
16	5{2,1,4,2}	97	198–200	–b

^aIsolated yield

^bNew Products

The model study was run several times using recycled magnetic nanocomposite to consider the recoverability level and lifetime of the Fe₃O₄@l-arginine nanocomposite. The results showed that the recovered magnetic nanocomposite can be utilized for five successive runs with a negligible decrease in its activity (Table 4).

Table 4.

The catalyst reusability for the synthesis of spiro[indoline-3,4′-pyrano[2,3-c]pyrazole]

Cycle	First	Second	Third	Fourth	Fifth
Yield (%)a	96	94	93	89	88

^aYields refer to the isolated pure product

A possible mechanism for the synthesis of spiro[indoline-3,4′-pyrano[2,3-c]pyrazoles] using Fe₃O₄@l-arginine MNPs is presented in Fig. 10. This mechanism is based on the results of our experiment and some literature [19]. According to this mechanism, a condensation of hydrazine 1 with β-keto esters 2 is offered to give the intermediate A. Next, A Knoevenagel condensation of isatin 3 with malononitrile or ethyl cyanoacetate 4 is presented to provide the intermediate C. Next, the Michael addition of the intermediate A to C catalyzed by Fe₃O₄@l-arginine which provided the intermediate D. Then, the intermediate F was prepared via the intramolecular cyclization of intermediate D. Eventually, the intermediate F is tautomerized to product 5 (Fig. 10).

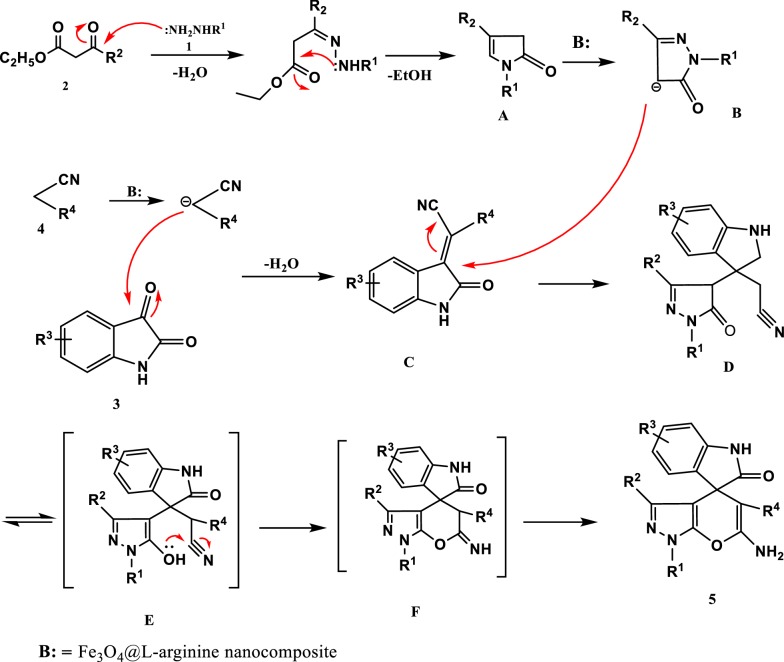

Fig. 10.

The proposed mechanism for the synthesis of spiro[indoline-3,4′-pyrano[2,3-c]pyrazoles] catalyzed by Fe₃O₄@l-arginine nanocomposite

Conclusions

In conclusion, we have demonstrated that Fe₃O₄@l-arginine nanocomposite is an effective catalyst for the MCRs of hydrazine, β-keto esters, isatins, and malononitrile or ethyl cyanoacetate under solvent-free conditions at room temperature. The heterocyclic compounds including spiro[indoline-3,4′-pyrano[2,3-c]pyrazole] derivatives were obtained in high yields. The catalyst can be recovered and reused at least up to five runs for the synthesis of corresponding product. The one-pot nature and the use of heterogeneous solid Brønsted basic catalyst as an eco-friendly structure make it an interesting alternative to multi-step approaches.

Experimental section

Chemicals and apparatus

Chemicals were purchased from the Sigma-Aldrich and Merck in high purity. All of the materials were of commercial reagent grade and were used without further purification. The synthesis and characterization of the studied compounds were previously reported [49]. Melting points of products were determined by Electro thermal 9200. ¹H NMR and ¹³C NMR spectra were obtained on Bruker 400 MHz spectrometer with DMSO-d₆ as solvent using TMS as an internal standard. FT-IR spectrum was recorded on Magna-IR, spectrometer 550. The elemental analyses (C, H, N) were obtained from a Carlo ERBA Model EA 1108 analyzer. Powder X-ray diffraction (XRD) was carried out on a Philips diffractometer of X’pert Company with mono chromatized Cu Kα radiation (λ = 1.5406 Å). Microscopic morphology of products was visualized by SEM (LEO 1455VP). The compositional analysis was done by energy dispersive analysis of X-ray (EDX, Kevex, Delta Class I). Transmission electron microscopy (TEM) was performed with a Jeol JEM-2100UHR, operated at 200 kV.

Preparation of Fe₃O₄@l-arginine nanocomposite

Fe₃O₄@l-arginine was prepared according to previous report in the literature with some modifications [50]. In a typical experiment, FeCl₃·6H₂O (13 g, 0.048 mol), FeCl₂·4H₂O (4.8 g, 0.024 mol) and arginine (16.7 g, 0.096 mol) were dissolved in 100 mL deionized water. Then, the solution pH was adjusted to 11 with NaOH solution (2 M) to form a black suspension. Next, the reaction mixture was reflux under Ar atmosphere for 12 h. Finally, the prepared nanocomposite was separated from the reaction media by an external magnet and washed several times with deionized water and dried in an oven overnight to yield Fe₃O₄@l-arginine (Fig. 11).

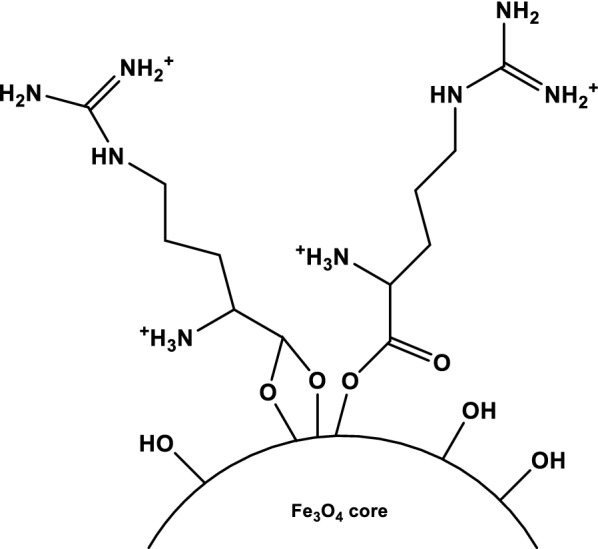

Fig. 11.

Possible structure for l-arginine coating on Fe₃O₄ nanoparticles, the inset is showing the molecular structure of Fe₃O₄

General procedure for the synthesis of spiro[indoline-3,4′-pyrano[2,3-c]pyrazole]

Fe₃O₄@l-arginine (8 mol %) was added to a solution of hydrazine (1 mmol), β-keto esters (1 mmol), isatin derivatives (1 mmol), and malononitrile/ethyl cyanoacetate (0.06 g, 1 mmol). The reaction mixture was stirred under solvent-free conditions at room temperature for the appropriate times. After completion of the reaction [as determined by thin layer chromatography (TLC)], the reaction mixture was dissolved in dichloromethane and the catalyst was separated magnetically. The solvent was evaporated and the residue was recrystallized from ethanol to afford the pure product.

All of the products were characterized and identified with m.p., ¹H NMR, ¹³C NMR and FT-IR spectroscopy techniques. Spectral data of the new products are given below.

Spectral data of new compounds

Ethyl-6′-amino-5-bromo-3′-methyl-2-oxo-1′-phenyl-1′H-spiro[indoline-3,4′-pyrano[2,3-c]pyrazole]-5′-carboxylate (5{2,1,3,2})

White solid, m.p. 212–214 °C. IR (KBr) (ν_max/cm⁻¹): 3396 (NH₂), 3143 (NH), 1714 (CO); ¹H NMR (400 MHz, DMSO-d₆) δ: 0.92 (t, 3H, J = 7.6, CH₃CH₂OCO), 1.23 (s, 3H, CH₃), 3.70 (q, 2H, J = 7.8, CH₃CH₂OCO), 6.93 (d, 1H, J = 7.6, ArH(isatin)), 7.34 (d, 1H, J = 7.4, ArH (isatin)), 7.51–7.58 (m, 3H, ArH(PhNHNH₂)), 7.61 (s, 2H, NH₂), 7.74 (s, 1H, ArH(isatin)), 7.78 (d, 2H, J = 7.8, ArH (PhNHNH₂)), 10.90 (s, 1H, NH); ¹³C NMR (100 MHz, DMSO-d₆) δ: 11.2, 14.8, 26.8, 57.2, 91.2, 113.1, 119.9, 124.5, 126.6, 129.1, 129.7, 131.2, 131.9, 135.2, 139.6, 148.7, 152.1, 161.8, 162.9, 171.2, 177.5; Anal. Calcd for C₂₃H₁₉BrN₄O₄ (Mr = 495.33) (%): C 55.77, H 3.87, N 11.31. Found (%): C 55.87, H 3.79, N 11.36.

Ethyl-6′-amino-5-chloro-3′-methyl-2-oxo-1′-phenyl-1′H-spiro[indoline-3,4′-pyrano[2,3-c]pyrazole]-5′-carboxylate (5{2,1,2,2})

White solid, m.p. 279–281 °C. IR (KBr) (ν_max/cm⁻¹): 3377 (NH₂), 3185(NH), 1712 (CO); ¹H NMR (400 MHz, DMSO-d₆) δ: 1.09 (t, 3H, J = 7.8, CH₃CH₂OCO), 1.24 (s, 3H, CH₃), 3.72 (q, 2H, J = 7.6, CH₃CH₂OCO), 6.82 (d, 1H, J = 7.4, ArH(isatin)), 7.21 (d, J = 7.6, ArH(isatin)), 7.48–7.53 (m, 3H, J = 7.7 ArH(PhNHNH₂)), 7.68 (s, 2H, NH₂), 7.72 (s, 1H, ArH(isatin)), 7.81 (d, 2H, J = 7.8 ArH (PhNHNH₂)), 10.93 (s, 1H, NH); ¹³C NMR (100 MHz, DMSO-d₆) δ: 10.8, 15.1, 23.9, 55.2, 93.2, 113.1, 120.1, 123.5, 125.1, 128.7, 129.9, 132.1, 133.1, 135.1, 140.2, 147.1, 151.4, 162.4, 162.9, 174.1, 178.1; Anal. Calcd for C₂₃H₁₉ClN₄O₄ (Mr = 450.88) (%): C 61.27, H 4.25, N 12.43. Found (%): C 61.20, H 4.33, N 12.39.

Ethyl-6′-amino-3′,5-dimethyl-2-oxo-1′-phenyl-1′H-spiro[indoline-3,4′-pyrano[2,3-c]pyrazole]-5′-carboxylate (5{2,1,4,2})

White solid, m.p 198–200 °C. IR (KBr) (ν_max/cm⁻¹): 3370 (NH₂), 3181 (NH), 1709 (CO); ¹H NMR (400 MHz, DMSO-d₆) δ: 1.13 (t, 3H, J = 7.6, CH₃CH₂OCO), 1.22 (s, 3H, CH₃), 2.25 (s, 3H, CH₃), 3.78 (q, 2H, J = 7.7, CH₃CH₂OCO), 7.08 (d, 1H, 2H, J = 7.8, ArH (isatin)), 7.16 (d, 1H, 2H, J = 7.6, ArH (isatin)), 7.34–7.41 (m, 3H, m, p, ArH (PhNHNH₂)), 7.45 (s, 1H, ArH (isatin)), 7.66 (s, 2H, NH₂), 7.68 (d, 2H, 2H, J = 7.6, ArH (PhNHNH₂)), 10.78 (s, 1H, NH); ¹³C NMR (100 MHz, DMSO-d₆) δ: 11.6, 14.8, 21.4, 25.7, 56.1, 92.7, 115.4, 117.9, 121.2, 123.4, 125.8, 126.9, 128.6, 129.1, 129.9, 137.1, 147.1, 148.3, 159.4, 162.6, 173.2, 176.8; Anal. Calcd for C₂₄H₂₂N₄O₄ (Mr = 430.46) (%): C 66.97, H 5.15, N 13.02. Found (%): C 66.91, H 5.19, N 12.97.

Abbreviations

MCR

multi-component reactions

EtOH

ethanol

SEM

scanning electron microscope

TEM

transmission electron microscopy

FT-IR

Fourier transform infrared spectroscopy

XRD

powder X-ray diffraction

EDX

energy dispersive analysis of X-ray

NMR

Nuclear Magnetic Resonance

TLC

thin layer chromatography

Authors’ contributions

MAG, BME and MHAB designed and performed the research. BME and MHAB did the sample collection. MAG, BME and MHAB analyzed the data and interpreted the results. MAG and BME wrote the manuscript. All authors read and approved the final manuscript.

Funding

This study was financially supported by the Islamic Azad University, Qom Branch, Iran, based on Grant Number [2014-13929].

Availability of data and materials

The datasets generated and analyzed during the current study available from the corresponding author on reasonable request.

Competing interests

The authors declare that they have no competing interests.
