The autoimmune risk variant PTPN22 C1858T alters B cell tolerance at discrete checkpoints and differentially shapes the naïve repertoire

Abstract

A common genetic variant in the gene encoding the protein tyrosine phosphatase nonreceptor type 22 (PTPN22 C1858T) has been linked to a wide range of autoimmune disorders. Although a B cell-intrinsic role in promoting disease has been reported, the mechanism(s) through which this variant functions to alter the pre-immune B cell repertoire remains unknown. Using a series of polyclonal and transgenic self-reactive models harboring the analogous mutation in murine Ptpn22, we show evidence for enhanced BCR, BAFFR and CD40 co-receptor programs, leading to broadly enhanced positive selection of B cells at two discrete checkpoints in the bone marrow and spleen. We further identified a bias for selection of B cells into the follicular (FM) vs. marginal zone (MZ) B cell compartment. Using a biomarker to track a self-reactive heavy chain in peripheral blood, we found evidence of similarly enhanced positive selection in human carriers of the PTPN22 C1858T variant. Our combined data supports a model whereby the risk variant augments the BCR and co-receptor programs throughout B cell development promoting enrichment of self-reactive specificities into the FM compartment, thereby likely increasing the risk for seeding of autoimmune B cell responses.

INTRODUCTION

The protein tyrosine phosphatase nonreceptor type 22 gene (PTPN22) encodes for the phosphatase, LYP, (or PEP in mice) which functions as a negative regulator of antigen receptor (AgR) signaling through its direct modulation of Src-family kinases (1). A genetic variant in PTPN22 (C1858T; encoding LYP-R620W) is a major risk factor for a number of autoimmune disorders including type 1 diabetes (T1D), systemic lupus erythematosus (SLE), rheumatoid arthritis (RA), Graves’ disease, and others (2-6). To model this variant in vivo, we previously generated knock-in mice with the analogous risk allele on a mixed 129/Sv and C57BL/6J background. Expression of the Ptpn22 variant significantly altered lymphocyte function and led to the development of systemic autoimmunity (7).

Although the PTPN22 risk variant promotes disease via its impact on multiple cell lineages, B cells appear to be particularly important for this process (7,8). Notably, the disorders associated with PTPN22 risk variant are characterized by high titers of disease-specific pathogenic autoantibodies (9). While autoantibodies may result from B and/or T cell-driven processes, our group found that B cell-intrinsic Ptpn22 variant expression was sufficient to promote autoimmunity (7). The conclusion that altered B cell tolerance may potentiate similar risks in human subjects arose from the observation that transitional B cells were increased in both human and murine carriers of the risk variant (7,10). Lending further support to this idea, increased proportions of self-reactive B cells were identified at two checkpoints during human B cell development based on analyses of cells isolated from the peripheral blood of healthy subjects with the risk allele (11).

Taken together, these data suggest that the PTPN22 variant plays an important role in shaping the pre-immune B cell repertoire in at-risk individuals and in murine models; however, several key questions remain that warrant further study. First, one major unresolved issue is whether the variant confers a gain- vs. loss-, or alternatively an altered-, functional activity. Indeed, a range of contradictory findings with respect to the impact of the variant on AgR signals have been observed in human and murine studies (reviewed in (12)). The studies to date have relied upon in vitro stimulated cells, thus direct ex vivo analysis of AgR signaling is needed. Secondly, other than the BCR signaling pathway, it is unclear whether additional networks are impacted by PTPN22 variant. Of particular relevance are the BAFFR and CD40 co-receptor pathways, given their importance in regulating B cell tolerance and known crosstalk with the BCR signaling program (13-16). Lastly, a more complete understanding of how the PTPN22 variant shapes the specificities selected into the mature, naïve B cell compartments might help to predict the risk for subsequent aberrant activation of such cells in autoimmune individuals.

In the current study, we use a series of murine models, in association with a rigorous assessment of the naïve repertoire, to track the development and selection of B cells expressing the Ptpn22 risk variant. Murine studies included mice homozygous for the non-risk allele (Ptpn22^CC) and heterozygous (Ptpn22^CT) or homozygous (Ptpn22^TT) risk allele animals intercrossed with various selection models. To reduce potential impacts from additional genetic modifiers, we used Ptpn22 variant and controls backcrossed onto the non-autoimmune C57BL/6J background. In parallel, a flow-based assay tracking a self-reactive heavy chain (HC) was used to monitor peripheral B cell selection in human carriers with the variant. Our combined results suggest the Ptpn22 variant augments the coordinate BCR, BAFFR, and CD40 programs throughout B cell development, leading to altered tolerance at discrete checkpoints in the bone marrow and periphery. These events promoted enhanced positive selection of transitional B cells, with an unexpected bias for self-reactive specificities into the FM compartment. Healthy human subjects expressing the risk variant exhibited a reduced proportion of transitional B cells utilizing a specific, self-reactive heavy-chain family, findings most consistent with broadly enhanced positive selection for developing B cells with a range of self-reactive specificities. Our collective data add to the understanding of B cell-mediated autoimmunity, suggesting that allelic variants that enhance the BCR and/or key co-receptor pathways preferentially skew self-reactive B cells into the follicular B cell compartment, thereby increasing the probability of subsequent events that trigger autoimmune germinal center responses.

MATERIALS AND METHODS

Mice

Ptpn22^CC (Ly 5.1 and Ly 5.2 lines), Ptpn22^TT, Nur77-GFP Tg, BAFFR^−/−, CD40^−/−, CD40L^−/−, MD4 Tg, mHEL, sHEL, μMT, and 125 Tg (VH125 and VK125 lines) mice were maintained in the specific pathogen-free animal facility of Seattle Children’s Research Institute and handled according to Institutional Animal Care and Use Committee-approved protocols. Ptpn22^TT knock in mice were generated as previously described (7) and backcrossed to C57BL/6J for 10 generations before crossing to Nur77-GFP Tg, MD4, 125 Tg (VH125) or 125 Tg (VK125). The experimental mice contained 1 copy of Nur77-GFP, 1 copy of MD4, or 1 copy each of VH125 and VK125 transgenes.

High-throughput BCR sequencing

Murine FM and MZ B cell populations were bulk sorted and genomic DNA was extracted for survey-depth sequencing of the IgH locus (Adaptive Biotechnologies, Seattle WA). Adaptive Biotechnologies’ ImmunoSEQ Illumina-based sequencing platform was used to identify productive templates for assignment of IgH V and J genes and to determine CDR3 boundaries (defined as including the first base of the codon for the conserved cysteine in the V gene through the last base of the codon for the conserved residue in the J gene). Average hydrophobicity scores (GRAVY) were calculated using http://www.gravy-calculator.de/. Diversity scores (reciprocal Simpson Index) were calculated as described (17). The total number of productive templates generated can be found in Supplemental Table I. Data are representative of two independent experiments.

Human subjects and sample preparation

Frozen PBMCs from age and sex-matched healthy subjects screened for PTPN22 1858 were obtained from the Benaroya Research Institute Immune Mediated Disease Registry. Subjects included PTPN22 C/C (n=35), C/T (n=35) and T/T (n=3). For flow cytometry, single-cell PBMC suspensions were incubated with fluorescently labeled Abs (see below) for 20 min at 4°C in staining buffer, and data collected on an LSRII (BD) and analyzed using FlowJo software (Tree Star). Subject information can be found in Supplemental Table II. Data are representative of three independent experiments.

Reagents and Abs

Anti-murine Abs used in these studies include: B220 (RA3-6B2), CD24 (M1/69), CD21 (7E9), CD23 (B3B4), CD4 (RM4-4) and CD44 (IM7) from Biolegend; IgMa (DS-1) and CD40 (3/23) from BD; Ly 5.1 (A20), Ly 5.2 (104), Gr1 (RB6-8C5), CD11b (M1/70), CD3 (17A2), BAFFR (eBio7H22-E16), CD93 (AA4.1), CD62L (MEL-14) and CD40L (MR1) from eBiosciences; IgM (1B4B1) and IgD (11-26) from Southern Biotech; recombinant human insulin conjugated to biotin from Fitzgerald Industries; Streptavadin (S-868) from Life Technologies. Anti-human Abs used include: CD19 (HIB19) and IgM (MHM-88) from Biolegend; CD27 (O323) from eBiosciences; CD10 (HI10a), CD24 (ML5), CD38 (HIT2), IgD (IA6-2), and BAFFR (IIC1) from BD; anti–human FITC-conjugated 9G4 antibody (18).

Flow cytometry and cell sorting

Murine single-cell BM and splenocyte suspensions were incubated with fluorescently labeled Abs for 30 min at 4°C in staining buffer, and data collected on an LSRII (BD) and analyzed using FlowJo software (Tree Star). Cell sorting was performed using an Aria II (BD); sort purities were >90% in all experiments.

Single-cell BCR cloning

Murine single FM and MZ cells were FACS sorted into 96-well plates. BCRs were cloned from the cDNA of single cells and used to generate mAbs using methods previously described (16,19). Data are representative of at least two independent experiments.

ELISA tests

All monoclonal antibody ELISAs were performed with each mAb first normalized to a standard dilution ranging from 10ng/ml to 10ug/ml. Individual FM and MZ mAbs were tested for reactivity with insulin (Fitzgerald Industries International), MDA-LDL (20P-MD L-105; Academy Bio-Medical), dsDNA (Sigma-Aldrich), phosphorylcholine (PC)-12 (Sigma-Aldrich) and smRNP (ATR01-10; Arotech Diagnostics Limited) as previously described (18). Abs were considered reactive if the observed OD at the highest mAb concentration (10ug/ml) was greater than a threshold value set at 0.5 OD. Anti-HEL Abs in MD4 chimeras were measured by incubating serum on HEL pre-coated plates, followed by detection with anti-IgMa conjugated to biotin (DS-1) and streptavidin-HRP. Serum BAFF levels were measured using BAFF/BlyS Quantikine ELISA kit (R&D Systems). Data are representative of two independent experiments.

Competitive Chimera BM transplantations

BM was harvested from donor Ptpn22^CC (Ly 5.1), Ptpn22^TT (Ly 5.2) and μMT (Ly 5.1/Ly 5.2) mice and single-cell suspensions were mixed at a 10:10:80 ratio for retro-orbital injection of 5 × 10⁶ cells into lethally irradiated (900 cGy) Ptpn22^CC (Ly 5.1/Ly 5.2) recipients. Resulting BM chimeras were sacrificed 12-14 wks post-transplantation. Data are representative of five independent experiments.

HEL BM transplantations

BM was harvested from donor Ptpn22^CC MD4 or Ptpn22^TT MD4 mice and made into single-cell suspensions, where 5 × 10⁶ cells were retro-orbitally injected into lethally irradiated (900 cGy) mHEL or sHEL recipients. Resulting BM chimeras were sacrificed 8-12 wks post-transplantation. Data are representative of two independent experiments.

Quantitative PCR

RNA was isolated from sorted cells (purity >90% for all samples) using the AllPrep DNA/RNA Micro Kit (QIAGEN) and converted into cDNA by reverse transcription (Maxima Reverse Transcriptase; Thermo Scientific). Real-time PCR was performed using a CFX96 real-time PCR detection system (Bio-Rad) with iTaq universal SYBR Green supermix (Bio-Rad). Ratios were calculated using the comparative C_T method with β2-microglobulin as an endogenous control. Primers used were as follows: β2M FP, 5’-CTTCAGTCGTCAGCATGGCTCG-3’; β2M RP, 5’-GCAGTTCAGTATGTTCGG CTTCCC-3’; BAFFR FP, 5’-CT GAGGCTGCAGAGCTGTC-3’; BAFFR RP, 5’-GGTGAGAAACTGCGTGTCCT-3’; CD40 FP, 5’-CTGCATGGTGTCTTTGCCT-3’; CD40 RP, 5’-GCCATCGTGGAGGTACTGTT-3’; PIM2 FP, 5’-CTTTCGAGGCC GATAACCGA-3’; PIM2 RP, 5’-GATGGCCACCTGACGTCTAT-3’; A1 FP, 5’-CCTGGCTGAGCACTACCTTCA-3’; A1 RP, 5’-CTGCATGCTTGGCTTGGA-3’; Notch2 FP, 5’-TTCGTGTCCCCCAGGCACCC-3’; Notch2 RP, 5’-AATCCGGT CCACGCACTGGC-3’; Deltex1 FP, 5’-CGGACATTTGAGACCCACTT-3’; Deltex1 RP, 5’-CCACTTTCAAGGAGGGAGAA-3’; Hes1 FP, 5’-GAGAAGAGGCGAA GGGCAAGAAT-3’; Hes1 RP, 5’-GAGGTGACTTCACAGTCA-3’.

In vitro stimulations

To allow for receptor internalization, total splenocytes were cultured in RPMI media alone or stimulated with 0.1μg/ml recombinant murine BAFF (R&D) or 0.1μg/ml mouse sCD40L (Southern-Biotech) at 37°C for 5-60min in pre-warmed media. To prevent receptor internalization and thus assess the potential impact of ligand-mediated competition with BAFFR or CD40 antibody staining, similar stimulations were performed on ice for a similar timecourse in pre-chilled media in the presence of sodium azide (0.2%). All cells were immediately washed post-stimulation with ice-cold PBS in a pre-chilled centrifuge and incubated with fluorescently labeled B220, BAFFR, and CD40 Abs for 30 min on ice in staining buffer. After washing, cells were immediately fixed in 2% PFA with data collected on an LSRII (BD) and analyzed using FlowJo software (Tree Star). Data are representative of two independent experiments.

Statistical analysis

The p-values were calculated using the two-tailed Student t test or Paired t test where appropriate (GraphPad software). Differences were considered significant when p < 0.05 (*), p < 0.01 (**), p < 0.001 (***), and p < 0.0001 (****).

RESULTS

Ptpn22 variant increases BCR and co-receptor signaling programs in developing B cells

Previous in vitro stimulation studies revealed evidence for subtly enhanced BCR signaling in bulk splenic B cells isolated from Ptpn22 variant mice (7). This change in signaling, however, was only evident in cells pre-stimulated with a TLR ligand and correlated with an upregulation in PEP expression. In order to assess the potential impact of BCR signaling within unmanipulated B cells in vivo, we utilized the Nur77-GFP Tg reporter strain. In this model, endogenous BCR signals activate a wide spectrum of GFP expression under control of the Nur77 regulatory region, consistent with self-antigen-mediated in vivo BCR signaling (20). For these studies, we assessed Ptpn22 variant mice with a single copy of the variant crossed to the Nur77-GFP Tg model (Ptpn22^CT Nur77 Tg), as we were unable to generate pups with two transgene copies (likely due to co-inheritance with the randomly inserted Nur77 transgene). Compared to control animals, B cells from Ptpn22^CT Nur77 Tg mice exhibited a higher frequency of GFP+ cells as well as a higher GFP MFI beginning at the immature stage in the bone marrow and continuing in all transitional and naïve B cell subsets in the periphery (Fig. 1A and Supplemental Fig. 1A). These findings suggest that the Ptpn22 variant promotes a greater proportion of self-reactive B cells to survive tolerance mechanisms and enter the periphery, consistent with an enhanced BCR signaling program mediating these events.

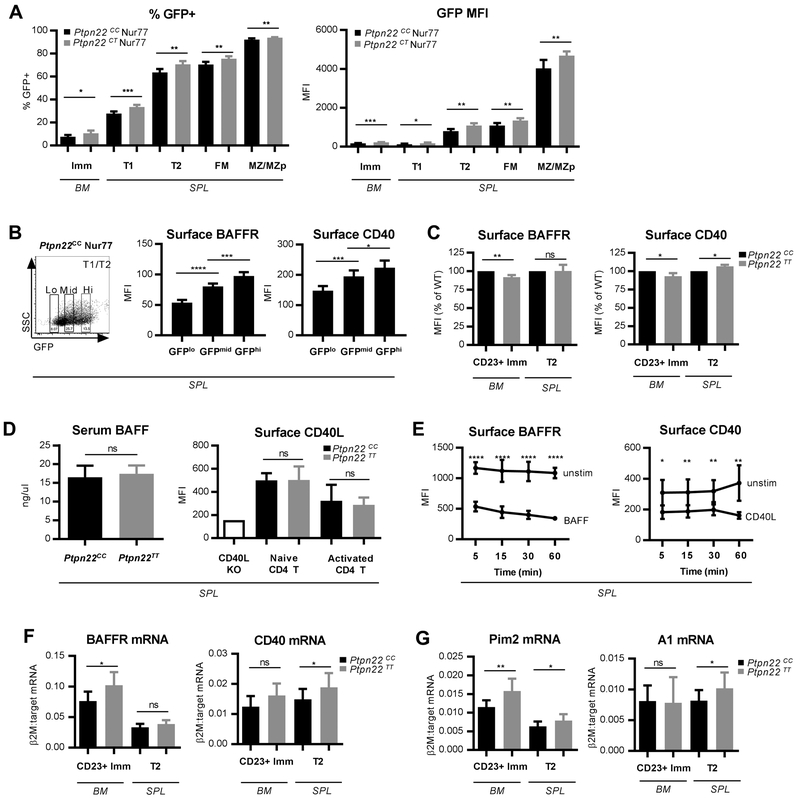

FIGURE 1. Ptpn22 variant B cells exhibit enhanced antigen-mediated BCR, BAFFR and CD40 programs.

(A) The Nur77 GFP Tg model was used to assess in vivo antigen-mediated BCR signaling. Frequency of GFP+ cells (left) and mean fluorescent intensity (MFI) of GFP (right) in specific B cell subsets in 12wk Ptpn22^CC Nur77 (n=6) and Ptpn22^CT Nur77 (n=6) mice. See Supplemental Fig. 1A for representative GFP histograms and Supplemental Fig. 2A-B for details of B cell subset gating. (B) Representative gating of GFP^lo, GFP^mid and GFP^hi (left panel); and MFI of BAFFR (middle panel) and CD40 (right panel) on T1/T2 cells (gated B220+ CD24^hi CD21^lo-mid) across varying GFP intensities in 15wk Ptpn22^CC Nur77 (n=6) mice. (C) MFI of surface BAFFR (left panel) and CD40 (right panel) in bone marrow CD23⁺ immature and splenic T2 B cells in 10-12wk Ptpn22^CC (n=9) and Ptpn22^TT (n=9) mice. See Supplemental Fig. 2B-C for gating. (D) Serum BAFF levels (left panel) in 8-12wk Ptpn22^CC (n=10) and Ptpn22^TT (n=11) mice; surface CD40L MFI (right panel) of CD4+ naïve (CD44− CD62L+) and activated (CD44+ CD62L−) T cell subsets in 8-11wk Ptpn22^CC (n=12) and Ptpn22^TT (n=12) mice. CD40L knockout mouse used as a negative staining control. (E) Splenocytes from 10wk Ptpn22^CC (n=6) mice were stimulated with either soluble BAFF (0.1 ug/ml) or CD40L (0.1 ug/ml) for the indicated times at 37 degrees and MFI of surface BAFFR (left panel) and CD40 (right panel) of B220⁺ cells were analyzed by FACs. Similar stimulations were performed at 4 degrees in the presence of sodium azide (0.2%) to prevent receptor internalization and test for possible competition between ligand and staining antibodies (Supplemental Fig. 1C). (F and G) Quantitative PCR of CD23⁺ immature and T2 cells sorted from 8-10wk Ptpn22^CC (n=8 samples for BM, 11 samples for SPL) and Ptpn22^TT (n=6 samples for BM, 11 samples for SPL) mice; mRNA levels of BAFFR (F, left panel), CD40 (F, right panel), Pim2 (G, left panel), and A1 (G, right panel) relative to β₂-microglobulin. See Supplemental Fig. 2B-C for gating. All data are representative of at least two independent experiments. Error bars show SD. Statistical analysis was performed using Student’s t test: * p<0.05; ** p<0.01; *** p<0.001; **** p<0.0001.

Recent studies suggest that BCR signals coordinate with both BAFF family receptors and CD40 to shape the mature, naive B cell repertoire (21). BCR signaling promotes the BAFFR program through modulation of receptor transcript levels (22), as well as providing p100 substrate for induction of the alternative NFκB pathway (23). We therefore determined whether BCR signaling in vivo correlated with surface expression levels of BAFFR and CD40. Using the Nur77-GFP Tg model, we found that higher GFP expression in transitional cells indeed correlates with higher expression of both BAFFR and CD40 (Fig. 1B), suggesting a direct and/or indirect role for antigen-mediated BCR signaling in regulating sensitivity to these co-receptor signals.

We also compared BAFFR and CD40 surface levels across bone marrow and splenic subsets in control Ptpn22^CC mice in order to determine the developmental stages most likely to be impacted by co-receptor signals. Prior reports have identified increased levels of BAFFR on the CD23⁺ subset of immature BM B cells, a population comprising ~20% of all immature IgM⁺ cells (gated as B220⁺ IgM⁺ AA4.1⁺ CD23⁺) (21,23-26). Therefore, we adopted a similar gating strategy in the BM. As shown in Supplemental Fig. 1B, CD23⁺ immature BM and splenic late transitional (T2) B cells (gated as B220⁺ CD24^hi CD21^mid) expressed higher levels of BAFFR and CD40 relative to their earlier developmental counterparts. Thus, we focused our subsequent analysis of co-receptor studies on these specific subsets in control and risk variant mice.

Based on the increased BCR signal observed in Ptpn22^CT Nur77 Tg mice (Fig. 1A) and correlation of BCR signal strength with co-receptor expression (Fig. 1B), we hypothesized that Ptpn22^TT animals may exhibit enhanced BAFFR and/or CD40 signaling in CD23+ immature and T2 cells. Consistent with this prediction, T2 cells had greater surface CD40 levels in Ptpn22^TT mice (Fig. 1C). In contrast, surface levels of both BAFFR and CD40 were reduced in Ptpn22^TT immature CD23⁺ B cells compared to controls (Fig. 1C). Because serum BAFF and surface CD40L levels on T cell subsets did not differ between control and Ptpn22^TT animals (Fig. 1D), reduced receptor levels could not be explained by reduced ligand availability. Instead, a potential explanation for the paradoxical reduction in co-receptor surface levels on Ptpn22^TT CD23⁺ immature B cells was enhanced receptor internalization. Consistent with this possibility, we first demonstrated that stimulation of control splenic B cells with either BAFF or soluble CD40L is sufficient to reduce surface expression levels of BAFFR or CD40, respectively (Fig. 1E; Supplemental Fig. 1C). Similar to our findings, BAFFR levels were reported to decline following ex vivo BAFF stimulation of human B cells (27). Therefore, to determine whether reduced levels of these co-receptors on risk variant BM CD23⁺ B cells reflected increased signaling, we assessed transcript levels using quantitative PCR in sort-purified, CD23⁺ and T2 B cells isolated from 8-10wk control and Ptpn22^TT mice. Consistent with an enhanced co-receptor signaling program, Ptpn22^TT immature and transitional cells exhibited greater levels of BAFFR and CD40 transcripts, respectively (Fig. 1F).

To more directly parse out the interconnected BCR and co-receptor signaling programs, we measured transcript levels of the alternative NFκB-pathway target, Pim2 - responsive to co-receptor signals, and the alternative and classical NFκB-pathway target, A1 – responsive to the BCR and co-receptor signals. (26,28-30). Pim2 transcripts were substantially increased at both stages of development in Ptpn22^TT mice (Fig. 1G), while A1 was significantly increased only in the periphery. Collectively, these results demonstrate that the Ptpn22 variant coordinately increases both antigen-mediated, BCR signaling and the BAFFR and CD40 co-receptor programs. While enhanced BCR signals mediated by the risk variant likely impacts both co-receptor programs (directly and/or indirectly) during this developmental window, our findings suggest that the variant may exert a greater role on BAFFR in the BM and on CD40 in the periphery.

Ptpn22 risk variant expression alters B cell tolerance checkpoints at two discrete stages

The hen egg lysozyme (HEL) and anti-HEL (MD4) BCR transgenic mouse models have been used extensively to study negative selection of self-reactive B cells (31,32). In these studies, MD4 B cells express high-affinity BCRs specific to the neo-self antigen, HEL. Upon development in membrane-bound HEL (mHEL) expressing mice, MD4 B cells receive a strong BCR signal and are deleted or undergo receptor editing before entry into the periphery (33,34). In contrast, exposure to soluble HEL (sHEL) elicits a weaker BCR signal in MD4 B cells that allows them to enter the periphery, where they exhibit features of functional anergy, including down-regulation of surface IgM and an inability to secrete anti-HEL antibodies (35).

To evaluate whether the Ptpn22 variant modulates either deletion or anergy of self-reactive B cells, we created mixed BM chimeras using Ptpn22^CC MD4 Tg or Ptpn22^TT MD4 Tg mice as donors for transplantation into lethally irradiated mHEL (Fig. 2A) and sHEL recipient mice (Fig. 2B). We found that Ptpn22^TT MD4 Tg B cells developing in either mHEL or sHEL recipients exhibit comparable deletion (Fig. 2C-E, gating as in Supplemental Fig. 2D) and anergy (Fig. 2F-H) as their Ptpn22^CC MD4 Tg counterparts.

FIGURE 2. Intact negative selection of self-reactive Ptpn22 variant B cells in a high-affinity BCR transgenic model.

Mixed BM chimeras utilizing the donor MD4 (anti-HEL Ig transgenic) and either (A) membrane-bound (m) or (B) soluble (s) HEL recipients were used to assess deletion and anergy, respectively. (C-E) mHEL recipients reconstituted with either Ptpn22^CC MD4 (n=6) or Ptpn22^TT MD4 (n=6) BM were analyzed 2-3 months after transplant. Reconstitution of donor MD4 B cell subsets in the (C) BM and (D) SPL of mHEL recipients were analyzed by FACS. (E) HEL-specific serum antibody levels from mHEL recipients. (F-H) sHEL recipients reconstituted with either Ptpn22^CC MD4 (n= 12) or Ptpn22^TT MD4 (n= 12) BM were analyzed 2-3 months after transplant. (F) Reconstitution of donor MD4 B cells in the SPL of sHEL recipients. (G) MFI of MD4 anti-HEL transgene (IgMa) in sHEL recipients, gated on B220+ splenic B cells. (H) HEL-specific serum antibody levels from sHEL recipients. See Supplemental Fig. 2D for gating. All data represents at least two independent experiments. Error bars show SD. Statistical analysis was performed using Student’s t test.

While negative selection mechanisms thus appeared intact in Ptpn22 variant animals, it remained possible that the subtly enhanced BCR signal in Ptpn22^TT mice was masked by the high-affinity signal utilized in the HEL models (which express anti-HEL BCRs originally generated from post-germinal center cells). We therefore generated mixed BM chimeras to assess the development of Ptpn22^CC versus Ptpn22^TT variant B cells within a competitive, polyclonal setting. Congenically marked Ptpn22^CC (Ly^5.1), Ptpn22^TT (Ly^5.2), and B-cell deficient Ptpn22^CC (μMT; Ly^5.1/5.2) donors were mixed at a 10:10:80 ratio for transplantation into lethally irradiated Ptpn22^CC (Ly^5.1/5.2) recipients. The addition of μMT BM allowed us to assess B-intrinsic effects of Ptpn22 variant expression on B cell selection, since the majority (~90%) of all non-B cells would express wildtype Ptpn22^CC, whereas B cells were mixed evenly between those expressing Ptpn22^CC and Ptpn22^TT (Fig. 3A).

FIGURE 3. Competitive advantage of murine Ptpn22 variant B cells in mixed BM chimeras.

(A) B cell-intrinsic Ptpn22^CC and Ptpn22^TT competitive BM chimeras created by transfer of congenically marked 80% μMT (Ly 5.1/5.2) + 10% Ptpn22^CC (Ly5.1) + 10% Ptpn22^TT (Ly5.2) BM into lethally irradiated Ptpn22^CC mice (Ly5.1/5.2). Chimeras sacrificed three months after transplant (n=28). (B) Representative gating of B cell and splenic monocyte (B220⁻ CD3⁻ Gr1⁻ CD11b⁺) subsets by FACS. (C) Frequency of Ptpn22^CC vs. Ptpn22^TT vs. host + μMT cells in each subset. Data represents five independent experiments. See Supplemental Fig. 2A-B for gating. Error bars show SD. Statistical analysis was performed using Student’s t test: *** p<0.001; **** p<0.0001.

Chimeras were sacrificed at 3 months post-transplant to evaluate the frequencies of Ptpn22^CC (Ly^5.1) and Ptpn22^TT (Ly^5.2) B cells at each stage of development. Equivalent levels of donor cell engraftment were observed in splenic monocytes based upon congenic marker expression (Fig. 3B-C). The Pre+Pro B cell fraction also exhibited equal contributions from each genotype, suggesting that variant expression does not alter early B cell development (Fig. 3B-C). In contrast, Ptpn22^TT B cells exhibited a competitive advantage at the BM immature and peripheral early transitional (T1) and late transitional (T2) stages (Fig. 3B-C). Notably, while this competitive advantage was maintained in mature FM B cells, it was lost in MZ B cells (Fig. 3B-C). The enhanced competition at the immature/transitional stage, followed by discrepant competition into FM vs. MZ B cell compartments, is consistent with a model whereby the Ptpn22 risk variant alters B cell tolerance at two discrete checkpoints in the bone marrow and periphery.

Ptpn22 variant selectively promotes B cells into the FM compartment

To better understand the differential impact of Ptpn22 risk variant expression on mature B cell subsets, we decided to test whether FM versus MZ cell fate was altered. Given the role that BCR signal strength has been proposed to play in determining cell fate (36), we predicted that the increased BCR signal in Ptpn22^TT mice might promote a preferential bias into the FM compartment. Previous studies in Ptpn22 ^TT mice at >12 weeks of age (in a mixed 129/Sv and C57BL/6J background) revealed normal proportions of mature subsets (7), a finding reproduced in the current study in the C57BL/6J background (data not shown). Because the murine MZ B cell compartment is established during the initial ~12 weeks of life, we determined whether earlier assessment of splenic subsets in Ptpn22^TT animals might reveal subtle differences in FM vs. MZ fate. Indeed, comparing the proportions of splenic peripheral subsets during an 8.5-11 week interval of age, we observed a significant increase in FM and concomitant decrease in the proportion of marginal zone precursor (MZp) and MZ B cells in Ptpn22^TT mice compared to controls (Fig. 4A). Consistent with an alteration in Notch2 dependent signals required for MZ B cell development (37,38), analysis of MZ precursor cells sorted from Ptpn22^CC vs. Ptpn22^TTmice at 8.5 weeks of age revealed reduced Notch2 and Notch target gene transcript levels. In addition, a reduction in Hes1 transcripts was also observed in sorted T2 cells (Fig. 4B).

FIGURE 4. Preferential selection of murine Ptpn22 variant B cells into FM compartment.

(A) 8.5-11wk Ptpn22^CC (n=9) and Ptpn22^TT (n=10) mice were analyzed for splenic B cell subsets by FACS. (B) Quantitative PCR of B cell subsets sorted from 8.5wk Ptpn22^CC (n=6) and Ptpn22^TT (n=6) mice; mRNA levels of Notch2 (left panel), Deltex1 (center panel) and Hes1 (right panel) relative to β₂-microglobulin. (C) The 125 Tg (anti-insulin Ig transgenic) model was used to track insulin-specific B cells in the periphery. 9-16wk Ptpn22^CC 125 Tg (n= 11) and Ptpn22^TT 125 Tg (n=11) mice were analyzed for total splenic B cell subsets by FACS. All data represents at least two independent experiments. See Supplemental Fig. 2B for gating. Error bars show SD. Statistical analysis was performed using Student’s t test: * p<0.05; ** p<0.01; *** p<0.001; **** p<0.0001.

While these polyclonal studies suggested widespread selection bias, these data did not assess whether self-reactive B cells in particular were affected. To track the selection of B cells with self-reactivity relevant to an autoimmune disorder associated with the PTPN22 risk variant, we crossed Ptpn22^TTmice to the 125 Tg model. In this model, ~95% of peripheral B cells express a fixed H and L chain (identified as IgMa+ by FACS) and are insulin-reactive (39). Using FACs analysis of splenic B cell subsets, we found that Ptpn22^TT 125 Tg mice similarly exhibited a marked reduction in the proportion of insulin-reactive MZ B cells, and a subtle (though not statistically significant) increase in FM B cells compared to controls (Fig. 4C). Taken together with data demonstrating skewed mature compartments in a polyclonal setting, these findings support the idea that variant protein expression promotes antigen-mediated selection of self-reactive peripheral B cells, biasing their entry into the FM over MZ compartment.

FM and MZ naïve repertoires are differentially skewed in Ptpn22 variant mice

Given the enhanced positive selection and differential selection of transitional cells into the FM and MZ compartments in Ptpn22^TT mice, we hypothesized that these findings might correlate with skewing of the naïve repertoires. We therefore performed a detailed assessment of the naïve repertoire of Ptpn22^TT mice using combined approaches: high throughput sequencing (HTS) of the BCR H chain, and single cell BCR cloning and assessment of BCR self-reactivity.

We first sought to validate IgH HTS as an appropriate platform for reading out distinct CDR3 profiles between FM and MZ subsets. While useful in many respects, prior sequencing studies have been limited by their restriction to a single VH family, gating strategies that included transitional cells, and/or analysis restricted to the BALB/c background (40-42). To expand on these findings, we bulk sorted FM and MZ B cells from wildtype Ptpn22^CC mice on the C57BL/6 background for high-throughput sequencing of the IgH locus (obtaining a total of 120,805 – 142,910 productive sequences for each sample; Supplemental Table I). Our studies revealed broadly altered differences in CDR3 length and composition between mature, naïve FM and MZ subsets (Fig. 5). Consistent with published data, we found that MZ B cells had increased usage for JH2 family (Fig. 5A), shorter average CDR3s (Fig. 5B), a greater proportion of CDR3s lacking N nucleotides (Fig. 5C), and slightly reduced hydrophobicity (Fig. 5D) compared to FMs. This high-throughput approach further revealed novel differences, including broadly altered VH family (Fig. 5E) and amino acid usage (Fig. 5F) between subsets, decreased N2 insertions (Fig. 5G), and reduced diversity (Fig. 5H) in MZ cells. Notably, we found no difference in charged amino acid usage between subsets (data not shown), in contrast to prior studies (40,42).

FIGURE 5. High-throughput sequencing reveals broadly altered CDR3 characteristics between murine FM and MZ subsets.

Follicular (FM) and marginal zone (MZ) cells were sorted from 11-14wk Ptpn22^CC mice (n=4 per subset) for high throughput BCR IgH chain sequencing. Nonproductive templates were excluded from analysis. (A) JH family usage. (B) CDR3 length. (C) Templates lacking N insertions (between both V-D and D-J junctions). (D) Hydrophobic amino acids (includes: F, I, W, L, V, M, Y, C, A). (E) VH family usage. (F) Amino acid usage. (G) N2 insertions (between D-J junction). (H) Diversity index. See Supplemental Fig. 2B for gating. See Supplemental Table I for numbers of sequences analyzed. Data represents two independent experiments. Error bars show SD. Statistical analysis was performed using Student’s t test: * p<0.05; ** p<0.01; *** p<0.001; **** p<0.0001.

Armed with an ability to read out distinct CDR3 profiles between mature, naïve subsets using IgH HTS, we next expanded our sequencing studies to include FM and MZ subsets sorted from Ptpn22^TT mice (obtaining a total of 119,459 – 142,910 productive sequences for each sample; Supplemental Table I). Surprisingly, we found that the CDR3 profiles in naïve subsets derived from Ptpn22 variant mice did not differ markedly from controls. We identified only minor differences in VH usage and N1 insertions in Ptpn22^CC vs. Ptpn22^TT MZ B cells (Fig. 6). Thus, while an HTS approach was suitable for identifying unique CDR3 characteristics between FM and MZ B cells, it was for the most part unable to detect any impact of the Ptpn22 variant on the BCR repertoire.

FIGURE 6. Control and murine Ptpn22 variant FM and MZ B cells exhibit indistinguishable IgH CDR3 profiles.

Follicular (FM) and marginal zone (MZ) subsets were FACS sorted from 11-14wk Ptpn22^CC (n=4) and Ptpn22^TT (n=4) mice for high throughput BCR IgH chain sequencing. Nonproductive templates were excluded from analysis. (A) FM VH and (B) FM JH family usage. (C) MZ VH and (D) MZ JH family usage. (E) CDR3 length. (F) N1 insertions (between V-D junction). See Supplemental Fig. 2B for gating. See Supplemental Table I for numbers of sequences analyzed. Data represents two independent experiments. Error bars show SD. Statistical analysis was performed using Student’s t test: * p<0.05.

One possible explanation, supported by our polyclonal studies (Fig. 3-4), is that the Ptpn22 variant impacts a broad range of BCR specificities, leading to a setting where individual CDR3 features might appear largely unchanged. Differences that may exist in a subpopulation, such as in self-reactive cells, could be lost in a high-throughput approach. Therefore, we next turned to single cell BCR cloning for a more targeted assessment of the naïve repertoire. Using established methods (16,19), BCRs were cloned from single FM and MZ cells sorted from Ptpn22^CC and Ptpn22^TT mice, producing a total of 273 recombinant mAbs. We assessed antigen specificity using ELISAs for a range of self-antigens, including insulin, malondialdehyde (MDA)-LDL, dsDNA, phosphorylcholine (PC-12) and smRNP. Strikingly, for each self-antigen tested, the proportion of Ptpn22^TT mAbs considered reactive (reaching an OD threshold greater than 0.5) was approximately doubled in FM cells. In striking contrast, we observed the opposite impact in MZ B cells with the proportion of Ptpn22^TT mAbs considered reactive reduced nearly in half compared to control mAbs (Fig. 7; ELISA curves in Supplemental Fig. 1D-E). The proportions of polyreactive clones exhibited similar differential skewing, with higher and lower proportions found in the FM and MZ compartments, respectively, of variant mice (Fig. 7). As predicted by our tolerance studies, we conclude that Ptpn22 variant mice exhibit a subset-specific skewing of the naïve repertoire, with a preferential bias for self-reactive BCRs within the FM over MZ compartment.

FIGURE 7. Ptpn22 variant mice exhibit an increased proportion of self-reactive FM B cells but fewer self-reactive MZ B cells.

Follicular (FM) and marginal zone (MZ) cells were FACS sorted from 8-12wk Ptpn22^CC (n=5) and Ptpn22^TT (n=5) mice for single cell BCR cloning of mAbs (n=70 Ptpn22^CC FM, n=71 Ptpn22^TT FM, n=67 Ptpn22^CC MZ, n=65 Ptpn22^TT MZ mAbs). Proportions of (A) FM and (B) MZ mAbs reactive to self-antigens (insulin, MDA-LDL, dsDNA, phosphorylcholine [PC-12], smRNP) or polyreactive (reactive to three or more of above self-antigens) by ELISA assay. See Supplemental Fig. 2B for gating and Supplemental Fig. 1D-E for ELISA curves. Data represents two independent experiments.

Carriers of the PTPN22 variant exhibit evidence for broadly enhanced positive selection

The increased self-reactivity of the FM compartment in Ptpn22^TT mice closely mirrors the increase in self-reactivity observed in circulating naïve B cells of healthy human subjects with the PTPN22 risk variant (11). In an effort to better understand the signaling events that drive the selection of autoreactive B cells in PTPN22 variant carriers, we turned to a flow based assay based on tracking of a self-reactive heavy chain (HC). We chose the VH4-34 family as a candidate for study due to its well-documented polyreactivity towards a range of self-antigens including B cells, RBCs, and dsDNA (43-45), as well as its relatively high frequency within the transitional and naïve mature B cell compartments in healthy subjects. In addition, previous work from our laboratory and others have documented enrichment of VH4-34 family expressing transitional and mature B cells in autoimmune settings, thought to be driven through modulations in dual BCR and TLR signals (18,46). Based on these previous studies, we anticipated that healthy PTPN22 risk variant carriers might exhibit an increased proportion of VH4-34⁺ B cells (as detected by the anti-idiotypic mAb, 9G4), as would be consistent with a naïve repertoire skewed towards autoreactivity prior to disease development. Surprisingly, in contrast to this prediction, we found that healthy PTPN22 risk subjects had fewer 9G4⁺ B cells across all peripheral blood compartments compared to healthy non-risk controls, including most notably within the transitional subset (Fig. 8A-B; cells gated as in Supplemental Fig. 2E).

FIGURE 8. Healthy subjects with the PTPN22 risk variant exhibit broadly enhanced positive selection.

(A-B) PBMCs from age and sex-matched healthy subjects screened for PTPN22 1858 C/C (n=34), C/T (n=34), and T/T (n=3) genotypes were analyzed by FACS for VH4-34 family (9G4+) B cells. (A) Representative histograms quantifying 9G4+ B cells. (B) Percentage of 9G4+ cells across peripheral B cell subsets. (C-D) PBMCs from age and sex-matched healthy subjects screened for PTPN22 1858 C/C (n=18) and C/T (n=18) genotypes were analyzed by FACS for surface BAFFR MFI of total B cells (C) and 9G4− and 9G4+ gated B cells (D). See Supplemental Fig. 2E for gating. See Supplemental Table II for subject information. All data represents at least two independent experiments. Error bars show SD. Statistical analysis was performed using Student’s t test (B) or paired t test (C): * p<0.05; ** p<0.01.

One possible explanation for the reduced frequency of 9G4+ B cells in PTPN22 risk variant subjects, supported by our murine studies, is that globally enhanced positive selection across multiple specificities might reduce the relative proportion of BCRs utilizing this specific HC family. In partial support of this idea, CD40 levels and signaling activity were previously reported to be increased in PTPN22 risk variant subjects (11). To test whether BAFFR levels were similarly increased, and might reflect events similar to our observations in the murine model, we next compared surface BAFFR levels in PTPN22 non-risk vs. risk subjects. Strikingly, the MFI of BAFFR expression was increased in all peripheral B cell subsets in risk subjects (Fig. 8C). The elevated BAFFR levels in risk subjects were unlikely to reflect differences in available cytokine, as we have previously reported that non-risk and risk subjects exhibit similar serum levels of BAFF (10) However, it remained possible that the reduced frequency of self-reactive 9G4+ B cells in risk subjects might reflect an impaired ability compete for available BAFF. To test for this possibility, we compared surface BAFFR levels among 9G4⁺ (representing predominantly self-reactive BCRs) or 9G4⁻ peripheral B cell subsets (representing a more heterogeneous population) in both non-risk and risk subjects. Strikingly, relative to non-risk subjects, PTPN22^CT subjects exhibited a global increase (or trend for increase) in BAFFR levels across all populations, including 9G4⁻ and 9G4⁺ cells within the transitional, naive and IgM memory B cell compartments (Fig. 8D). Overall, these data imply that in risk subjects, BCR and/or other coordinate signals promote increased BAFFR expression, thereby permitting such cells to compete more effectively for BAFF family survival and differentiation signals.

DISCUSSION

Our findings in the Ptpn22^TT murine models indicate that while negative selection mechanisms are intact, enhanced BCR and/or co-receptor signaling programs promote increased positive selection of transitional B cells (including cells with a range of self-reactive specificities) into the follicular mature B cell compartment. Moreover, the counter selection of VH4-34+ expressing cells in human carriers, coupled with global increases in BAFFR and CD40 co-receptor expression described here and in a previous study (11), respectively, support a similar role for the risk variant in human B cell selection. Our combined datasets imply that the risk variant facilitates a subtle yet widespread increase in positive selection signaling programs throughout BM and transitional B cell development. These combined events ultimately allows for a broader range of autoreactive B cells to compete for survival into the mature, naïve B cell compartment. While additional work is required to definitively assess the specific biochemical impact(s) of PTPN22 C1858T variant on BCR and/or co-receptor signaling pathways in developing B cells, our findings strongly suggest that similar mechanisms alter central and peripheral B cell tolerance in both murine and human immune development.

As described earlier, multiple studies in murine models and human subjects support the idea that PTPN22 variant alters B cell tolerance mechanisms (7,10,11). However, it remained unknown whether this defect was B cell-intrinsic. To eliminate the potential impact of disrupted T cell tolerance and homeostasis present in Ptpn22 variant mice and human subjects (7,12,47), our BM chimera studies restricted variant expression predominantly to B cells. Our finding that Ptpn22^TT expressing B cells exhibit a competitive advantage at key developmental checkpoints in the bone marrow and periphery highlight the importance of B cell-intrinsic signaling pathways in regulating these events. Consistent with this, we found an identical competitive advantage for variant expressing B cells in competitive chimeras depleted of CD4 T cells (data not shown).

To better address the key question regarding how the Ptpn22 risk variant alters BCR signaling in murine B cells, we utilized the newly described Nur77-GFP model (20). This model has the advantage of permitting assessment of BCR signaling directly ex vivo at discrete stages of B cell development. Our results indicate that risk variant expression promotes a greater proportion of B cells to survive tolerance mechanisms throughout development, mediated in part through stronger BCR signals. Taken as a whole, these data provide compelling evidence that the Ptpn22 variant modulates key survival programs dependent upon BCR signals in vivo, and that engagement with self-antigen in the periphery can promote these events.

Although BCR signaling serves as a master regulator of B cell tolerance, its synergy with key co-receptor pathways, predominantly BAFFR and CD40, ultimately determines the developmental fate of a given B cell (21,48). Each of these co-receptor pathways, in turn, play an important role in promoting positive selection in the periphery (13-16). In addition, a growing body of work, including our own, suggests they serve a similar function in the bone marrow (16,23,25,49). Our finding that Ptpn22^TT mice exhibit slightly augmented BCR and co-receptor signals is consistent with subtle signaling changes whereby the variant promotes greater positive selection throughout immature and naïve B cell development.

While the complexity of receptor crosstalk (21) prevented us from fully dissecting the relative contributions of the BCR versus co-receptor signals in mediating selection, our studies demonstrate how subtle fluctuations in these signaling networks can influence the mature repertoire, and may do so in distinct ways. For instance, enhanced positive selection observed in Ptpn22 risk variant mice differs from other autoimmune settings. Unlike models in which a transgenic self-reactive BCR (50) or a specific, self-reactive BCR family (18) facilitates positive selection at the T2 stage via clonal expansion, the Ptpn22 risk variant instead impacts a broad range of BCR specificities during BM and splenic transitional B cell development, allowing multiple self-reactive B cells to compete for BAFF and CD40L signals. Thus, while highly specific VH family skewing is evident in both mice and humans with defects in the Wiskott-Aldrich syndrome (WAS) gene – an autoimmune setting of augmented BCR and TLR signals – (18), we did not observe major differences in either IgH CDR3 profiles or VH family use in Ptpn22^TT mature B cells. We further propose that the broad impact of the Ptpn22 variant limited the relative expansion of individual (including self-reactive) VH families. Although the implication of these subtle distinctions in dual BCR/TLR vs. BCR/BAFFR/CD40-mediated positive selection in distinct models remains to be seen (including implications likely beyond autoimmunity), they nevertheless illustrate the usefulness of our integrated approach in assessing the naïve repertoire.

This integrated approach also helped us identify an unexpected bias for selection into the FM compartment of Ptpn22^TT mice, including of several self-reactive specificities. Several lines of evidence led to this idea: First, a larger proportion of FM relative to MZ cells was observed in both polyclonal and insulin-specific Ptpn22^TT murine models, and marginal zone precursors exhibited a significant decrease in Notch2 expression and in Notch target gene transcripts. Secondly, and consistent with a preferential bias for selection into the FM compartment, our single cell BCR cloning studies revealed an increased proportion of self-reactive and polyreactive BCRs within the FM compartment. In parallel, we observed the opposite finding in the MZ with decreases in both self-reactive and polyreactive specificities in individual MZ B cells. These observations support the conclusion that the Ptpn22 risk variant skews the naïve FM B cell compartment towards self-reactivity, while revealing an additional novel role for restricting MZ development and/or fate. While the mechanistic basis for these surprising observations with respect to MZ B cell development remain unclear, these findings align with recent studies in which BCR and Notch2 signaling exhibit crosstalk that critically regulates MZ lineage commitment (51).

Notably, while we were unable to directly study human splenic B cell subsets, we made progress in translating our murine findings to human subjects. Our observations provide an alternative interpretation of the prevailing model for how the PTPN22 variant impacts human B cell development. As noted above, previous human studies suggest that PTPN22 C1858T carriers exhibit an attenuated BCR signal, promoting relaxed negative selection and subsequent enrichment of self-reactive B cells within the naïve compartment (10,11,52,53). Interestingly, these previous studies have proposed that hypo-responsive BCR signals in risk subjects leads to both increased numbers of self-reactive, new-emigrant (transitional) B cells (10,53), and a seemingly paradoxical aberrant activation of these cells, as demonstrated by elevated BCR target genes involved in cell activation, proliferation, and survival (11). Most notably, previous work described higher levels of both CD40 transcripts and expression and increased CD40 signaling in risk variant new emigrant B cells (11). Thus, while the interpretation differs from our conclusions, these earlier findings indicate that healthy subjects with the risk allele exhibit an increase in the CD40 co-receptor program in transitional B cells. Consistent with these observations, our murine studies revealed intact negative selection and evidence for augmented BCR and/or BAFFR and CD40 co-receptor signals in Ptpn22 variant mice, leading to broadly enhanced positive selection and preferential skewing for several self-reactive specificities into the FM compartment. Thus, while the end result appears the same, explanations for how a greater proportion of self-reactive B cells enter the naïve repertoire differ with respect to previous human and our current murine studies.

As a means to begin to test whether our findings of broadly enhanced positive selection in murine models also applied to human carriers, we utilized a flow-based assay to track the selection of a polyreactive VH family in peripheral blood (VH4-34; identified as 9G4+) (46). Our observation that healthy PTPN22 variant subjects had fewer 9G4⁺ B cells, yet exhibited increased BAFFR levels in all peripheral B subsets, including both 9G4⁺ and 9G4⁻ cell populations, is most consistent with a model whereby positive selection is globally enhanced, thereby reducing the relative contribution of this single family VH family. Finally, an additional (but not mutually exclusive) interpretation for the reduced proportion of 9G4⁺ B cells in PTPN22 carriers, is that this may reflect impaired MZ fate/development – an untested yet intriguing possibility given our murine findings of impaired Notch2 signaling, as well as the presumed enrichment of 9G4+ B cells into an MZ-like B cell subset within human peripheral blood (18,46).

In summary, our collective murine and human data provides an alternative model for how the PTPN22 C1858T variant promotes self-reactivity into the naïve B cell repertoire, and consequently, is likely to increase the probability of triggering autoimmune B cell responses in at-risk individuals. Our studies highlight the importance of synergistic BCR and co-receptor signaling pathways in regulating these events, and in doing so, identifies novel pathways for future study.

Abbreviations used in this article:

FM

follicular mature

MZ

marginal zone

AgR

antigen receptor

BAFFR

B-cell activating factor receptor

CD40

cluster of differentiation 40

HEL

hen egg lysozyme

IgH

BCR heavy chain

CDR3

complementarity determining region 3

BM

bone marrow

MDA-LDL

malondialdehyde low-density lipoprotein

PC

phosphorylcholine

smRNP

Smith and nuclear ribonucleoprotein

β2M

beta-2-microglobulin

MFI

mean fluorescent intensity

T2

late transitional

BAFF

B-cell activating factor

MZp

marginal zone precursor

HTS

high-throughput sequencing
