Extensive profiling in Arabidopsis reveals abundant polysome-associated 24-nt small RNAs including AGO5-dependent pseudogene-derived siRNAs

Abstract

In a reductionist perspective, plant silencing small (s)RNAs are often classified as mediating nuclear transcriptional gene silencing (TGS) or cytosolic posttranscriptional gene silencing (PTGS). Among the PTGS diagnostics is the association of AGOs and their sRNA cargos with the translation apparatus. In Arabidopsis, this is observed for AGO1 loaded with micro(mi)RNAs and, accordingly, translational-repression (TR) is one layer of plant miRNA action. Using AGO1:miRNA-mediated TR as a paradigm, we explored, with two unrelated polysome-isolation methods, which, among the ten Arabidopsis AGOs and numerous sRNA classes, interact with translation. We found that representatives of all three AGO-clades associate with polysomes, including the TGS-effector AGO4 and stereotypical 24-nt sRNAs that normally mediate TGS of transposons/repeats. Strikingly, approximately half of these annotated 24-nt siRNAs displayed unique matches in coding regions/introns of genes, and in pseudogenes, but not in transposons/repeats commonly found in their vicinity. Protein-coding gene-derived 24-nt sRNAs correlate with gene-body methylation. Those derived from pseudogenes belong to two main clusters defined by their parental-gene expression patterns, and are vastly enriched in AGO5, itself found on polysomes. Based on their tight expression pattern in developing and mature siliques, their biogenesis, and genomic/epigenomic features of their loci-of-origin, we discuss potential roles for these hitherto unknown polysome-enriched, pseudogene-derived siRNAs.

INTRODUCTION

In eukaryotes, silencing small (s)RNAs, including micro(mi)RNAs and small-interfering(si)RNAs, regulate gene expression upon incorporation into effector proteins within the broadly conserved ARGONAUTE (AGO) family (Krol et al. 2010; He et al. 2011). RNA-directed DNA methylation (RdDM) in plants operates via the AGO4-clade AGOs encompassing AGO4, AGO6, and AGO9, which, loaded with transposable elements (TEs)- and repeat-derived siRNAs induce de novo DNA methylation at these loci often resulting in transcriptional gene silencing (TGS). RdDM involves large protein complexes containing de novo DNA methyl-transferases and the plant-specific DNA-dependent RNA polymerases PolIV and PolV, which enable transcription of epigenetically modified target loci. Short PolIV transcripts are converted by RNA-DEPENDENT RNA POLYMERASE 2 (RDR2) into double-stranded RNA (dsRNA). The dsRNA is in turn processed by DICER-LIKE 3 (DCL3), one of four Arabidopsis DCL RNaseIII enzymes, into diagnostic 24-nt-long repeat-associated (rasi)RNAs (Law and Jacobsen 2010; Feng and Jacobsen 2011; Matzke et al. 2015). These are thought to guide AGO4/6/9 and associated DNA-methyl-transfereases onto nascent POLV-dependent transcripts actin as scaffolds for locus-specific epigenetic modifications. The 24-nt rasiRNAs constitute, by far, the largest bulk of endogenous sRNAs accumulating in healthy Arabidopsis, due to the highly repetitive nature of their loci-of-origin (Kasschau et al. 2007; Lelandais-Brière et al. 2010). Individual 24-nt rasiRNA species are, however, typically low in abundance at any given TE/repeat locus due to the low transcriptional state imposed by RdDM and other epigenetic modifications.

Posttranscriptional gene silencing (PTGS) in healthy Arabidopsis involves mostly gene regulation via ∼21-nt miRNAs produced from stem–loop-containing primary transcripts by DCL1 and, occasionally, DCL4 (Rajagopalan et al. 2006; Voinnet 2009). miRNA effector proteins include the near-ubiquitously expressed AGO1 protein, and, secondarily, the AGO1-clade members AGO10 and AGO5 displaying a more tissue-specific expression (Borges et al. 2011; Tucker et al. 2012; Roodbarkelari et al. 2015; Zhou et al. 2015). miRNAs are diverse in sequences/transcription patterns and their steady-state accumulation can vary extensively from high abundance to bare detectability (Rogers and Chen 2013). AGO-miRNA pairs assembled as part of RNA-induced silencing complexes (RISCs) direct gene silencing of target transcripts bearing miRNA-complementary sequences, mostly in coding regions. Some noncoding RNAs known as trans-acting (ta)siRNA primary transcripts (TAS) are converted into dsRNA by RDR6 upon interaction with 22-nt, asymmetric AGO1-bound miRNAs or with the AGO7-bound 21-nt miR390. DCL4 processes the dsRNA into a population of so-called secondary (2nd)siRNAs—the tasiRNAs—within a dominant sequence register, or “phase,” ultimately enabling silencing of tasiRNA-complementary protein-coding transcripts (Felippes and Weigel 2009; Allen and Howell 2010; Vazquez et al. 2010). Some miRNAs also spawn RDR6-dependent tasiRNA-like molecules, called phasiRNAs, from protein-coding genes often belonging to large families, of which they enable the coordinated regulation via PTGS (Fei et al. 2013; Xia et al. 2015).

One mode of PTGS involves endonucleolytic cleavage, or “slicing” in the middle of target/sRNA base-paired regions, enabled by the catalytic core of slicing-proficient AGOs. Another mode of PTGS of target RNAs, mostly evident with endogenous miRNAs in plants (Chen 2004; Brodersen et al. 2008), is through translational repression (TR) possibly coupled to mRNA decay as in metazoan miRNA-mediated TR (Huntzinger and Izaurralde 2011; Fabian and Sonenberg 2012; Jonas and Izaurralde 2015). An implication of plant PTGS at the translation level is the association of the core components involved with monosomes and/or polysomes, first demonstrated in a low-throughput study of some AGO1-bound miRNAs (Lanet et al. 2009). Further work later revealed that miRNA-mediated TR via AGO1 occurs on membranes, likely predominantly the endoplasmic reticulum (ER) because the process requires the integral membrane protein ALTERED MERISTEM PROGRAM1 (AMP1) in association with this endomembrane compartment (Li et al. 2013). These findings echo related results obtained in the context of AGO2-mediated RNAi in mammalian cells (Stalder et al. 2013), and those of earlier studies in which a link between RNA silencing and membranes was established both in mammals and invertebrates (Gibbings et al. 2009; Lee et al. 2009). A similar connection was later found between membranes and AGO1-mediated PTGS in Arabidopsis (Brodersen et al. 2012), including in the context of RDR6-dependent tasiRNA biogenesis (Jouannet et al. 2012).

Until recently, there was little insight into the extent to which plant miRNAs associate with polysomes, since the only available study (Lanet et al. 2009) had focused on a small selection of miRNA. A follow-up to the AMP1 study employing genome-wide deep-sequencing-based analyses showed that Arabidopsis miRNAs are generally enriched on membrane-bound polysomes (MBPs) compared to total polysomes, and that their MBP association depends on AGO1, which is itself membrane-bound in an RNA-independent manner (Li et al. 2016). This seminal study showed, unexpectedly, that slicing guided by the AGO1-miRNA RISC also occurs on MBPs thereby enabling tasiRNA/phasiRNA production from their MBP-associated noncoding and protein-coding precursors, respectively. Li et al. (2016) used a sedimentation-based method similar to that originally employed in the low-throughput analysis of Lanet et al. (2009), except that a step for microsome purification was added. Sedimentation-based fractionation of ribosomes according to their molecular mass is typically achieved by high-speed centrifugation through a 15%–60% sucrose gradient (Mustroph et al. 2009). This accurately separates 40S and 60S ribosome subunits, monosomes (80S) and polysomes, although large molecular complexes might cosediment nonspecifically with ribosomes/polysomes, a potentially bias-inducing aspect of the method. The intrinsic resolution of the fractionation can also be limiting.

The present study was primarily aimed at expanding the scope of the previous analyses (Lanet et al. 2009; Li et al. 2016), which focused largely on AGO1-miRNA interactions with total polysomes and MBPs, respectively. Our larger aim was to comprehensively analyze which, among the multiple AGO effector proteins and the numerous cellular sRNA classes of Arabidopsis, interact with the translation machinery. We decided to employ at least one additional and alternative method to the sedimentation-based ribosome fractionation (thereafter referred to as “ribosome profiling” or “RP”) used so far. The second method is the translating-ribosome affinity immunopurification (TRAP) (Zanetti et al. 2005; Mustroph et al. 2009; 2012; Juntawong et al. 2014). TRAP enables global translatome acquisition (Juntawong et al. 2014; Lin et al. 2014) and circumvents potential biases of RP including the nonspecific cosedimentation of high molecular weight complexes. However, TRAP requires the use of transgenic Arabidopsis lines in which a Flag-tagged version of the ribosomal protein RPL18 is overexpressed from the Cauliflower mosaic virus (CaMV) 35S—or from cell-specific—promoters (Mustroph et al. 2009; Juntawong et al. 2014). As RPL18 incorporates into the 60S subunit, the method immunopurifies, in a single step, a mix of ribosomal complexes including monosomes and polysomes, together with associated cofactors. As such, it is therefore less discriminative than the sedimentation-based RP. However, given that both methods rely on completely distinct biochemical features, they provided a unique opportunity to conduct our global survey in the most unbiased manner, the results of which are presented here.

RESULTS

Two complementary approaches to study AGO and sRNA association to ribosomes

A preliminary comparative survey of the TRAP and RP methods focused on miRNAs and their main effector, AGO1. TRAP coupled to northern analysis in inflorescences showed that only a small proportion of total AGO1 associates with Flag-RPL18, yet most miRNAs tested effectively coimmunopurified with ribosomal complexes, except miR173 and miR162, which were at or below detection limit (Fig. 1A). Two RP fractionation protocols were then tested. In the first one, used in the original study of Lanet et al. (2009), lysates were directly fractionated onto sucrose gradients (Fig. 1B, without sucrose cushion). This method was improved, however, to avoid collecting fractions from the bottom of the gradient—a source of variation in the collection process—and to expand the resolution to 10–13 instead of the original six fractions (see Materials and Methods). In the second method, high molecular weight ribosomal complexes were first enriched by ultracentrifugation through a 2M sucrose cushion (Fig. 1B, with cushion). Without cushion, soluble cytosolic proteins sedimented in light fractions 1–2, whereas polysomes, distributed in heavy fractions 5–9, were only represented at a low level. Adding the sucrose cushion step inverted this distribution, with soluble cytosolic proteins being depleted from the now underrepresented light fractions (Fig. 1B, compare blue squares) and polysomes significantly enriched in heavy fractions (Fig. 1B, compare red squares). Both protocols confirmed the cosedimentation of AGO1 with polysomes (Fig. 1B); but the first one also indicated that the majority of AGO1 cosediments with soluble, low-molecular weight (LMW) proteins and small complexes thereof, with only a comparatively small amount in the heavy monosomal/polysomal fractions 5–7 (Fig. 1B, without cushion). This observation therefore confirms the TRAP results (Fig. 1A) that only a small fraction of cellular AGO1 is potentially involved in translational regulations. This AGO1 pool is significantly enriched in polysomal fractions 7–9 obtained through the second RP protocol (Fig. 1B, with cushion), used, therefore, for the rest of our investigation.

FIGURE 1.

An AGO1 miRNA-RISC associates with ribosomal complexes in Arabidopsis. (A) Immunoprecipitation of ribosomal complexes from inflorescences via constitutive Flag-tagged RPL18 in two independent experiments (left and right panel); see main text for details. The abundance of AGO1 and selected miRNAs in the various fractions were measured by western and northern analysis using an antibody against native AGO1 and labeled complementary oligonucleotide probes, respectively. (FT) Flow-through, (IP) immunoprecipitation. (B, left, upper and lower panels) RP in inflorescences using two different protocols without or with sucrose cushion respectively; see main text for details. (Right panel) RP on 15%–60% sucrose gradients was conducted in inflorescences. AGO1 and selected miRNA analyses were conducted as in A. (C) RP as described in B, but in WT or hen1-6 inflorescences, in the presence of 40 mM EDTA or RNase A/T1. (D) Western analysis of AGO1 upon RP conducted as in B in amp1-30i Arabidopsis. Immunodetection of ribosomal protein S14 was used as a control in B–D to verify RP quality. All these experiments were produced in triplicate.

As seen with TRAP, miR159, miR163, miR168, miR171, miR390 (of which the majority is AGO7-bound), and AGO1 cosedimented together with fractions 7–10 (Fig. 1B,C) in RP, suggesting their polysomal enrichment. Also, as with TRAP, miR162 and miR173 were below northern detection in RP (Fig. 1B,C). The only discrepancy concerned miR166 and miR172, below detection in RP (Fig. 1B,C) but recovered by TRAP, albeit at low levels compared to their input levels (Fig. 1A). These two miRNAs might be poorly associated with the translation apparatus, and the additional sucrose gradient might cause their dilution among polysomal fractions, preventing their detection by RP. Their detection might be enhanced by addition of a further microsome separation step and MBP analyses (Li et al. 2016). For the most, nonetheless, the two approaches gave mutually consolidating results, providing a foundation for large-scale analyses via ultra-deep sequencing of sRNAs isolated through each method.

AGO1 association with polysomes is mRNA-dependent, lost upon ribosome dissociation, and correlates with the cellular abundance of its sRNA cargoes

We first tested if miRNA/AGO1 polysomal association indeed reflects targeting of translating mRNAs by an AGO1-RISC or, conversely, mere unspecific interactions between ribosomal subunits and silencing factors. RP was thus conducted with an extraction buffer (PEB) containing 40 mM EDTA (Fig. 1C), a Mg²⁺ chelator previously shown, in mammalian cells, to dissociate ribosomal subunits and deplete polysomes in heavy fractions as do classical puromycin treatments (Maroney et al. 2006; Del Prete et al. 2007). Puromycin treatments in seedlings/Arabidopsis cells were ineffective in our hands due, possibly, to penetration issues. Under 40 mM EDTA conditions, the AGO1 and ribosomal protein S14 (directly reflecting the ribosomes’ sedimentation state) fractionation profiles were distinctively different: S14 still accumulated in heavy fractions 6–9 yet AGO1 and miRNAs were shifted to light fractions 2–4 and 2–3, respectively (Fig. 1C), suggesting that AGO1 polysomal association does not result from unspecific interactions. AGO1/miRNAs interaction with polysomes as part of a RISC is predicted to be target mRNA-dependent. To address this point, RNase A/T1 was added to the PEB buffer to degrade ribosome-bound mRNAs (Fig. 1C; Juntawong et al. 2014; 2015). AGO1 and miRNAs were shifted to the light fractions 1–3, while S14 remained in fractions 6–9, possibly reflecting its residual association to cleaved mRNA fragments (Fig. 1C). These results concur with those of Li et al. (2016) showing that AGO1 association to MBPs depends largely on intact mRNAs. Collectively, the results from the EDTA and RNase A/T1 treatments are consistent with AGO1/miRNAs congregating on polysomes with their targets as part of functional RISCs.

As expected from their protective loading into AGOs including, chiefly, AGO1, the investigated miRNAs were unaffected by RNase A/T1 treatment, and so we resorted to genetics to verify if the mRNA-dependent AGO1 polysome cosedimentation requires AGO1 loading with miRNA/sRNAs. We thus monitored the AGO1 polysomal distribution profile in Arabidopsis defective in miRNA biogenesis (dcl1-11), total sRNA stability (hen1-6), or mi/siRNA action (ago1-27) (Fig. 1C; Supplemental Fig. S1). In both dcl1-11 and ago1-27, several investigated miRNAs remained stable, possibly reflecting the hypomorphic nature of these mutations. In their MBP-focused analysis, Li et al. (2016) showed an effect of ago1-27 on miRNA recruitment to the ER. AGO1 was still detected on total polysomes in dcl1-11 and ago1-27, but parts of it were shifted to light fractions 1-2 in dcl1-11, suggesting that lack/reduction of some miRNAs decreases AGO1 association with the translation apparatus (Supplemental Fig. S1). The most dramatic effect was in hen1-6, where most investigated miRNAs were destabilized and the bulk of AGO1 signal below detection along most of the profile (Fig. 1C). Unlike the miRNA-restricted effects of dcl1-11 and ago1-27 miRNA-restricted effects, hen1-6 reduces stability of all Arabidopsis sRNAs, including endo-siRNA cargoes of AGO1. Although global lack of cargoes reduces AGO1 steady-state levels (Derrien et al. 2012), a fraction of it was still found in heavy fractions 9–10 in hen1-6, possibly reflecting either (i) the presence, in the same fractions, of miRNAs, which, like miR171 or miR390, are less sensitive to HEN1 activity (Fig. 1C; Wang et al. 2015), or (ii) as proposed by Li et al. (2016), the miRNA-independent association of AGO1 with the polysome subset bound at the ER membrane. These might suffice to maintain a minimal pool of total polysome-associated AGO1. Collectively, these results therefore suggest that AGO1 association with total polysomes depends, at least partly, on the abundance and stability of its sRNA cargoes.

Defect in AMP1 destabilizes AGO1 association with polysomes unlike expression of viral suppressors of RNA silencing

miRNA-mediated TR is a complex and poorly understood process involving, in Arabidopsis, endo-membrane biology, possible trafficking and signaling via the cytoskeleton, as well as components of the mRNA decay pathway. Indeed, in addition to AGO1 and AGO10, TR-related factors include the GW-repeat-containing protein SUO (Yang et al. 2012), the microtubule-severing enzyme KATANIN (KTN), the decapping complex component VARICOSE (VCS), and the ER-/AGO1-associated integral membrane protein AMP1 (Brodersen et al. 2008; Várallyay et al. 2010; Li et al. 2013). No obvious variations in AGO1 polysomal association were observed in ktn and vcs compared to Col-0 (WT), as already observed in ago1-27 (Fig. 1B; Supplemental Fig. S1, and data not shown). In contrast, AGO1 consistently showed an unusual distribution in amp1-30, spanning fractions 2–10 (Fig. 1D), suggesting that part of the polysomal AGO1 was shifted to the monosomes and out of ribosomal complexes, to light fractions 2–3. This effect was AGO1-specific because distribution of S14 was unaltered in amp1-30. The partial effect observed on AGO1 might reflect that the strong requirement of AMP1 in TR was discovered upon MBP isolation, unlike total polysome isolation used here (Li et al. 2013). Nonetheless, the results suggest that stable polysomal association of AGO1 relies, at least partly, on its genetic and/or physical interaction with AMP1. We also tested the effects of viral-encoded suppressors of RNA silencing (VSRs) on AGO1 polysome association, since an AGO1:siRNA antiviral RISC can also form in the cell. None of the VSRs tested affected AGO1 distribution in RP, however, and accordingly, none could be detected on monosomes or polysomes (Supplemental Fig. S2).

The cohorts of polysome-associated sRNAs in Arabidopsis

RP was conducted in inflorescences of WT Arabidopsis (ecotype Col-0) and sRNAs cosedimenting with either monosomal (4–5) or polysomal (7–9) fractions were separately subjected to deep-sequencing, as were sRNAs isolated in one TRAP experiment. Sequences from monosomal fractions were used for comparison to the polysome-specific sRNA signals, since total RNA cannot be used for normalization. Data were expressed in reads per million (RPMs) to compare the results within biological replicates and between the RP and TRAP methods. A bimodal sRNA length distribution was found in both RP sequencing libraries, with discrete peaks at 21-nt (miRNAs) and 24-nt (rasiRNAs), the sizes of the dominant Arabidopsis sRNA species; the sRNA length distribution obtained by TRAP was also bimodal, but the 24-nt peak was more pronounced (Supplemental Fig. S3A). The following sections provide a summary of the sRNA cohorts identified with both methods.

Global comparison of sRNAs identified via the ribosomal profiling and TRAP approaches

The libraries’ qualities were first assessed by comparing abundance/size distribution of various RNA-derived fragments typically contaminating si/miRNA preparations. None of the five libraries showed specific size distribution biases for ribosomal RNAs (rRNAs), small nuclear RNAs (snRNAs) and small nucleolar RNAs (snoRNAs) (Fig. 2A; Supplemental Fig. S3A). A small tRNA peak in the 23–26-nt size range was detected, however, possibly corresponding to AGO-loaded DCL3-processed tRNA fragments, of which some might contribute to TE silencing (Cognat et al. 2016; Martinez et al. 2017). rRNA reads abounded in all libraries, and at higher levels in the monosomal fractionations’ replicates (Mono1 & 2); tRNAs also predominated in all libraries, and were twice more abundant in polysomal fractions (Poly 1 & 2) and TRAP samples, consistent with their role in translation elongation. snoRNAs, although sequenced at low levels, were four- to 12-fold more abundant in TRAP; as previously noted (Juntawong et al. 2014). snRNA were the least abundant and nearly unaltered among the five libraries, which displayed, therefore, overall comparable qualitative features (Fig. 2A; Supplemental Fig. S3A). The miRNA size was centered on 21-nt in the five libraries and their levels were 1.6-fold higher in polysome library poly2 versus the two monosome libraries. Although miRNA levels were clearly underrepresented in TRAP versus all ribosomal fractions or total inflorescences (Fig. 2A; Supplemental Fig. S3A), northern analyses of distinct miRNAs isolated via either method showed comparable results, and all libraries contained near-identical miRNA populations (Supplemental Fig. S3B; Fig. 2A, lower right corner; Fig. 2B; Supplemental Fig. S3B, discussed in the next section). The tasi/phasiRNA size was centered on 21–22-nt in all five libraries, with a slight enrichment in the poly2 versus the two monosome libraries (Fig. 2A). Inverted-repeat (IR)-derived siRNA distribution was biphasic, centered on 21–22-nt and 24-nt, reflecting IR processing by DCL4-DCL2 and DCL3, respectively, with the 24-nt fraction being enriched by approximately twofold in poly1, poly2 and TRAP libraries. Abundant TE- and genes/pseudogenes-derived 24-nt siRNAs were enriched similarly (Fig. 2A; Supplemental Fig. S3A). Both RP and TRAP methods thus revealed unexpectedly high levels of various 24-nt sRNAs associated with the translation machinery, and their consistent enrichment in total polysomes compared to monosomes.

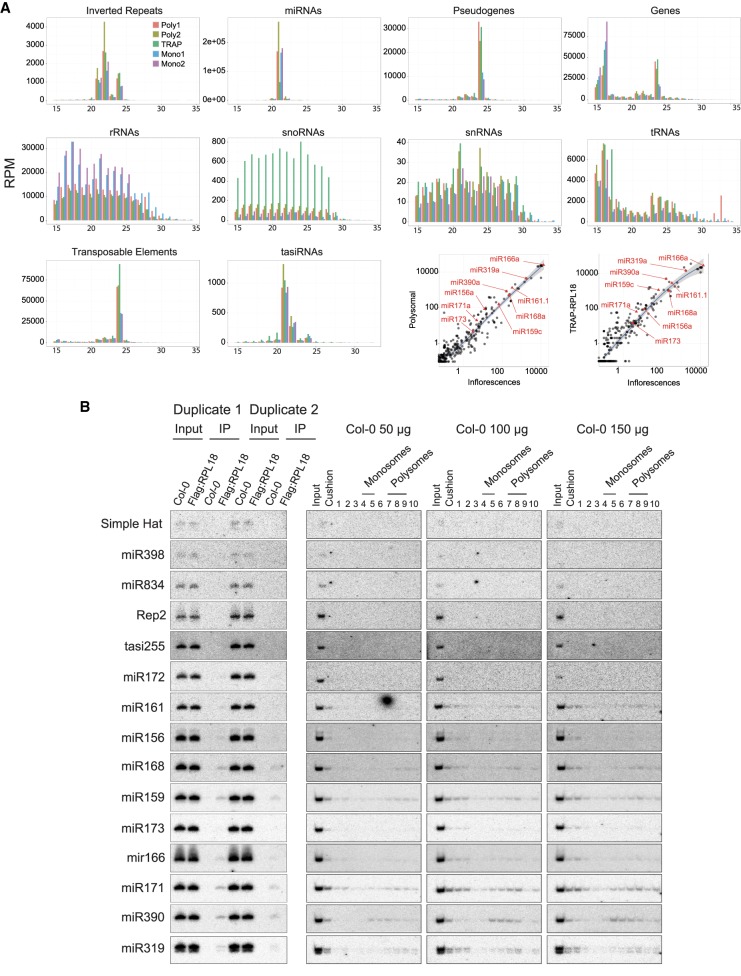

FIGURE 2.

miRNA steady-state levels correlate with their association with polysomes. (A) Read size distribution in reads per million (RPM) grouped by genomic annotation for monosomal (Mono1 and Mono2), polysomal (Poly1 and Poly2), and TRAP sRNA-sequencing libraries. Correlations between mature miRNA accumulations in polysomal fraction versus inflorescences and TRAP versus inflorescences are shown in the lower right corner, with selected miRNAs indicated in red. (B) TRAP and RP were conducted in parallel as in Figure 1A,B to monitor the abundance of tasi-, mi- and siRNAs in ribosomal complexes via northern analysis using labeled complementary oligonucleotide or random-primed PCR-amplified fragments as probes, respectively. For RP, varying inputs of total RNA, as indicated, were loaded onto the sucrose gradients.

Polysomal association is not a miRNA-intrinsic property but a mere reflection of their steady-state accumulation levels

With few exceptions, the deep-sequencing analyses revealed a strong correlation between total miRNA abundance and polysomal/TRAP association (R² = 0.96 for both RPs and R² = 0.86 for TRAP; Fig. 2A, lower right corner). Hence, miR166a, miR319a, miR168a, miR390a, or miR159c, abundant in inflorescences and efficiently sequenced from both RP- and TRAP-isolated ribosomes, were also detected in separate northern analysis of sRNAs extracted via each method in biological duplicates and triplicates, respectively (Fig. 2B), confirming, incidentally, the reproducibility of the methods. miR172, in contrast, which is low in total inflorescences, had low read counts in poly1/poly2 and TRAP fractions and was below northern detection (Fig. 2B). However, some miRNAs below detection in TRAP-coupled northern analyses (e.g., miR161, miR156) became detectable in RP if the total amount of input RNA was increased to 100 µg and beyond (Fig. 2B). miRNA polysomal association is, therefore, merely proportional to their steady-state levels, suggesting indeed that most, as opposed to select, miRNAs promote TR in addition to slicing (Brodersen et al. 2008), a conclusion also consistent with the findings of Li et al. (2016) in seedling-derived MBPs. This proportional relationship between total miRNA levels and polysomal association means that miRNAs not detected on total polysomes cannot be deemed as not mediating TR. Indeed, miR172, miR398, and miR834, three TR-promoting miRNAs (Chen 2004; Brodersen et al. 2008; Lanet et al. 2009; Li et al. 2013) eluded northern detection at up to 150 µg of input RNA (Fig. 2B): these might be too low in abundance or accumulate only in specific cells of whole inflorescences. We also analyzed polysomal association of tasi/phasiRNA-trigger miRNAs (Felippes and Weigel 2009; Allen and Howell 2010; Vazquez et al. 2010), focusing on miR173 (TAS1/TAS2) and miR390, (TAS3) accumulating respectively at low and high levels in inflorescences, since miR828, spawning TAS4-tasiRNAs, was at background levels in all samples. Underscoring the proportionality to steady-state levels evoked above, miR390 was readily detected and slightly enriched in polysomes versus monosomes in RP, and in TRAP versus total inflorescences (Fig. 2A, lower right corner), as confirmed by northern analyses. In contrast, miR173 was below detection at up to 150 µg of input RNA (Fig. 2B); Li et al. (2016) found that miR173 is approximately twofold less abundant than miR390 in seedling-derived MBPs. While most phasiRNA-trigger miRNAs were at/below background in all libraries, miR472 (spawning phasiRNA from several CC-NBS-LRR transcripts) was consistently approximately twofold enriched in polysomes versus monosomes in RP, and in TRAP versus total inflorescences, despite its low steady-state levels. Perhaps the protein-coding nature of phasiRNA precursors enables a more sustained interaction of phasiRNA- compared to tasiRNA-trigger miRNAs with polysomes. Regardless, slicing is mandatory for most tasi/phasiRNA production, underscoring the coincidence of this process with TR, at least in whole-tissue analyses (Brodersen et al. 2008; Li et al. 2016).

Endogenous siRNAs: tasiRNAs, IR-derived siRNAs, and 24-nt sRNAs

Similar discrete peaks of 5′ U terminal 21-nt (and to a lower extent, of 24-nt species) miR173-dependent TAS1-tasiRNAs were equally found in monosomes and polysome fractions, and in TRAP samples (Fig. 2A; Supplemental Fig. S4). The same was seen with TAS3-tasiRNAs, although the discrete D5(−) siRNA species produced from TAS3a was noticeably enriched in polysomes (Supplemental Fig. S4, asterisk). Thus, unlike miRNAs, AGO1-loaded tasiRNAs unlikely mediate trans-PTGS on polysomes but, rather, in distinct cytosolic locales possibly including the P-body-proximal membranous structures involved in the unique RDR6-dependent dsRNA conversion of their precursors (Jouannet et al. 2012). Previous work had suggested that 21-nt siRNAs derived from an artificial IR transgene could mediate TR (Brodersen et al. 2008). Of eleven endogenous IRs identified in our laboratory, only IR71 and IR2039 (Henderson et al. 2006) showed above-background read counts among the sequencing libraries. Specific IR71-derived 22-nt, but not 24-nt, siRNAs were strongly polysome-enriched, corresponding to three discrete major species, of which two start with a 5′ U and one with a 5′ C, the loading biases of AGO1 and AGO5 (Mi et al. 2008), respectively (Supplemental Fig. S4, asterisks); both IR2039-derived 22-nt and 24-nt siRNA populations were globally enriched in total polysomal fractions (Supplemental Fig. S4). As mentioned, our survey revealed a significant enrichment of 24-nt sRNAs in total polysomes compared to monosomes, and their presence in TRAP samples was even more pronounced than that of 21-nt sRNAs (Fig. 2A; Supplemental Fig. S3A). This was unexpected since rasiRNAs, which form a large bulk of this sRNA size fraction, mediate RdDM in the nucleus (Feng and Jacobsen 2011; Law and Jacobsen 2010; Du et al. 2015; Matzke et al. 2015). Simple Hat-, si1003-, Rep2-, and AtSN1-derived rasiRNAs were effectively below detection in both RP- and TRAP-coupled northern analyses and, accordingly, their polysome read counts in deep-seq analyses were respectively extremely low (si1003, Rep2, and Simple Hat) and low (ATSN1; Fig. 2B; Supplemental Fig. S3C). These observations may simply reflect the low steady-state levels of these and other individual rasiRNA specie. They may thus not be indicative of their lack of ribosome/polysome association per se, as discussed with some low-abundance miRNAs known to mediate TR (e.g., miR172). In fact, the presence of a large bulk of these molecules in total polysomes suggested the possible cofractionation of some 24-nt sRNA silencing effector protein(s) and indeed, 47% of these species had a 5′ A bias typical of AGO4-clade AGO cargoes (Supplemental Fig. S5).

Ribosome profiling of distinct Arabidopsis AGO-clade members

The above finding led us to examine if AGO4, or indeed other AGOs, associate with polysomes, in addition to AGO1. The ten Arabidopsis AGOs are divided into three phylogenetic clades (Morel et al. 2002; Vaucheret 2008; Mallory and Vaucheret 2011) of which several representatives were investigated here. The first “PTGS” clade comprises AGO1, AGO5, and AGO10 (Mi et al. 2008; Zhu et al. 2011). A second clade comprises AGO2, AGO3 and AGO7, mainly involved in antiviral silencing, seed development and miR390-directed tasiRNA biogenesis, respectively (Fahlgren et al. 2006; Montgomery et al. 2008; Carbonell et al. 2012; Pumplin and Voinnet 2013; Zhang et al. 2016). The third rasiRNA-associated “TGS” clade, encompasses AGO4, AGO6, AGO9 (Law and Jacobsen 2010; Feng and Jacobsen 2011; Du et al. 2015; Matzke et al. 2015); AGO8 is considered a pseudogene (Vaucheret 2008). In RP analysis, AGO2, AGO4, AGO5, and AGO10 were, like AGO1, detected in polysomal fractions 7–9, but to varying extents (Fig. 3A). The presence of AGO5/AGO10 was expected given their amino acid sequence- and functional-relatedness with AGO1 in mediating miRNA silencing in the shoot apical meristem (SAM; AGO10) and reproductive tissues (AGO5), respectively (Borges et al. 2011; Tucker et al. 2012; Roodbarkelari et al. 2015; Zhou et al. 2015). AGO2, member of clade 2, was also readily detected on total polysomes, supporting recent evidence that besides its roles in antiviral defense (Jaubert et al. 2011; Scholthof et al. 2011; Zhang et al. 2012), AGO2 regulates mRNA translation (Fátyol et al. 2016) including, possibly, via stress-induced miRNA cargoes (Zhang et al. 2011). Both AGO4 and AGO9 were strongly detected in the light fractions 1–2, possibly because both are parts of large RdDM nuclear complexes (Law and Jacobsen 2010; Feng and Jacobsen 2011; Du et al. 2015; Matzke et al. 2015) that might pass through the sucrose cushion and reach the first two gradient layers (Fig. 3A, fractions 1–2). Strikingly, however, AGO4 also consistently cosedimented with polysomal fractions 7–9, albeit at comparably lower levels than in fractions 1–2. In their recent analysis, Li et al. (2016) could not detect AGO4 in seedling's microsomal fractions or MBPs, unlike AGO1. These observations suggest that AGO4 in fractions 7–9 is one source of polysomal 24-nt sRNAs detected by RP and observed in TRAP, and that this AGO4 pool exerts as yet unidentified function(s) distinct from miRNA-mediated silencing on the ER, or PTGS mediated by AGO1 on other endo-membranes (Fig. 3A, fractions 7–9). Despite repeated attempts, we failed to detect silencing effectors other than AGO1 in the TRAP immunoprecipitated fractions.

FIGURE 3.

In silico identification of pseudogene derived siRNAs. (A) Western analysis of AGO1, AGO2, AGO4, AGO5, and AGO10 upon cosedimentation on monosomes and polysomes via RP, as in Figure 1B. The ribosomal protein S14 was used as a control to verify the RP quality. This experiment was produced in triplicate. (B) Ratios of unique-mapper 24-nt siRNAs versus total 24-nt siRNAs, grouped by genomic annotation of sRNAs from publicly available sequencing libraries of total RNA and AGO IPs. (C) Expression heat-map of pseudogene derived siRNA parent genes at the various developmental stages encompassed in the bar.toronto database, using unsupervised hierarchical clustering. (D) Boxplot representation of average cytosine methylation levels in the three contexts for parent genes and respective pseudogenes of cluster 1 or cluster 2. (E) mRNA steady-state accumulation in polysomal and monosomal fractions based on RNA-seq conducted in the indicated libraries, for the parent genes and respective pseudogenes of cluster 1 or cluster 2. (F) Total 21-to-24 nt sRNA accumulation profiles for psARK1 and psPEROS pseudogenes, in polysomal and monosomal fractions. (G) Boxplots representation of average GC contents for parent genes and respective pseudogenes in cluster 1 or cluster 2.

Polysome-associated 24 nt siRNAs with a 5′ terminal cytosine bias are overrepresented in AGO5 immuno-precipitates, map to pseudogenes and are more sequenced in siliques

More than half of annotated ribosome-associated 24-nt sRNAs detected by TRAP or RP map to protein-coding genes and pseudogenes, but not TEs/repeats, and thus do not qualify as bona fide rasiRNAs (Fig. 2A; Supplemental Fig. S3A). As already discussed, individual TEs/repeats usually spawn, on their own, only low levels of 24-nt rasiRNAs contributing however, as a whole, the largest bulk of Arabidopsis silencing sRNAs due to the repeated nature of their loci-of-origin. Genes define unique loci and, therefore, the sheer quantity of 24-nt sRNAs spawned from them (Fig. 2A; Supplemental Fig. S3A) suggests that at least some genes individually generate large amounts of these molecules. Indeed, 20 loci accounted, alone, for nearly half of the protein-coding gene-mapping 24-nt unique reads in inflorescences (five examples are presented in Supplemental Fig. S6; Supplemental Table 1 lists all examples). Inspection of a further 80 genes (thus, 100 genes in total) showed that, in most cases, 24-nt sRNA populations as opposed to discrete species, were derived from them, with very few overlapping 21-nt and 22-nt sRNA species, if at all (Supplemental Table 1). Of these 100 genes, 79% are located <1 kb from TEs or remnants thereof, compared to 39.3% for the entire Arabidopsis gene-set (Supplemental Fig. S7). The Helitron superfamily represented 67.9% of TEs found in the vicinity of unique 24-nt sRNA-producing loci compared to the 46.4% of TEs nearby the entire Arabidopsis gene-set. The small nonautonomous AtRep10D, which produces large quantities of 24-nt siRNAs, represented, alone, 13.5% of these compared to 5.3% for the whole Arabidopsis gene-set. Strikingly, however, in the majority of cases, the protein-coding gene-proximal TEs did not spawn themselves the 24-nt sRNA populations. These mapped, instead, within the coding regions and, to a lower extent, introns (Supplemental Fig. S6; Supplemental Fig. S8A,B) and correlated with cytosine methylation patterns almost exclusively in the CHG and CG contexts indicating maintenance methylation (Supplemental Fig. S8C, compared with 3D cluster 2). These observations agree with a key role for CHROMOMETHYLASE 3 (required for CHG methylation maintenance) in gene body methylation (gbM) and with a speculated TE-silencing-related origin of this otherwise poorly understood phenomenon (for review, see Bewick and Schmitz 2017).

Next, we focused on 24-nt sRNAs derived from pseudogenes, reannotated in the present study in order to encompass the largest set of loci (Supplemental Table 3). To do so, we implemented a bidirectional hit strategy using blastx and tblastn to detect shared homology between intergenic regions and protein-coding genes (see Materials and Methods). Because some pseudogene sequences may be repeated, including as a consequence of TE-driven reverse-transcription, we distinguished total 24-nt siRNAs (including the major rasiRNA fraction from TEs and repeats) from the 24-nt sRNAs specifically derived from pseudogenes and genes, and, finally, the 24-nt sRNA reads mapping to unique genomic regions (termed “unique mappers” thereafter) encompassing almost exclusively genes and pseudogenes. Interestingly, gene- and pseudogene-derived 24-nt sRNAs were enriched by 1.9- and 3.1-fold in TRAP and polysome fractions, respectively, compared to monosomes (Fig. 2A). Furthermore, pseudogene-derived 24-nt unique mappers were 2.6 times more abundant in polysomes and TRAP, than in monosome fractions (Supplemental Fig. S3D). This enrichment was not an artifact of pseudogene reannotation, because it was similarly observed using the TAIR-based annotation (Supplemental Fig. S3E). The (24-nt unique mappers to total 24-nt siRNAs) ratio, calculated for each genomic annotation, also revealed an enrichment in 24-nt unique mappers for sRNAs derived from pseudogenes and, to a lesser extent, genes, in the polysome- and TRAP-, compared to monosomes- and total inflorescence-libraries (Fig. 3B). We investigated if the 24-nt unique mappers displayed preferential loading into AGO protein(s) using the publicly available data set of Mi et al. (2008), which provides a comparative sRNA analysis of AGO1, AGO2, AGO4, and AGO5 immunoprecipitates (IPs; Fig. 3B). Strikingly, the AGO5 IP library showed the highest enrichment in unique pseudogene-derived 24 nt sRNAs. These were respectively 2.5- and 2.9-fold higher than in total inflorescences and AGO4 IPs (Fig. 3B). 91% of pseudogene-derived 24 nt sRNAs loaded into AGO5 displayed the cognate 5′ C signature of its cargoes (Mi et al. 2008). Their genomic origin, unique-mapper properties, occurrence as sRNA populations and hitherto unknown enrichment in AGO5 and on polysomes, suggest that pseudogene 24-nt sRNAs should now be inspected as a novel class of plant siRNAs. siRNAs exhibiting unique mapping mostly in intergenic regions and, in some cases, loaded into AGO5 were described in maize and rice as meiotic 24 nt and premeiotic 21/22 nt phasiRNAs (Komiya et al. 2014; Zhai et al. 2015). Mining total sRNA-seq data from various tissues/developmental stage revealed that pseudogene derived siRNAs are enriched in siliques where they are 1.9-fold more abundant than in total inflorescences (Fig. 3B). In polysomes, siliques and AGO5-IP libraries the (unique mappers to total 24-nt siRNAs) ratio from pseudogenes even reaches quantitatively that from TEs/repeats, i.e., 11.8% in AGO5-IP, 9.7% in polysomal fractions and 8.7% in siliques (Fig. 3B).

Many pseudogenes are spawned from expressed genes often encoding functional proteins, called “parent genes” (Xiao et al. 2016). Therefore, pseudogene derived siRNAs could interfere with their corresponding “parent genes” expression analogously to pseudogene-derived siRNA in the distant protozoan Tryposonoma brucei (Wen et al. 2011). Hierarchical clustering based on the bar.utoronto gene expression atlas (http://bar.utoronto.ca/~dev/eplant/) uncovered highly specific pseudogene parent gene expression patterns, which can be divided into three main clusters (Fig. 3C). Cluster 1 includes parent genes globally down-regulated in the pollen and up-regulated in the SAM, whereas parent genes from cluster 2 are also down-regulated in the pollen but mainly up-regulated in the embryonic meristem. Parent genes from the much smaller cluster 3 follow a similar expression pattern to those of Cluster 2 but with a higher expression in siliques. These specific expression profiles suggest that, within each cluster, parent genes and/or pseudogene derived siRNA-producing loci are under selection. Analyses of the parent genes and pseudogenes distribution for cluster 1 and 2 showed that they are equally represented on the five Arabidopsis chromosomes. (Supplemental Fig. S3F). However, while cluster 1 parent genes are, overall, homogeneously distributed along the chromosomes’ arms only, their related pseudogenes are also present, even enriched, in peri-centromeric regions, giving rise to strikingly mutually exclusive distribution patterns in these regions (Supplemental Fig. S3F). In contrast, both pseudogenes and parent genes from cluster 2 show a similar distribution more concentrated on peri-centromeric regions (Supplemental Fig. S3F). Like pseudogenes of both cluster 1 and 2, the presence of cluster 2 parent genes into peri-centromeric regions likely entails transposition events, and indeed a search for close-proximity TEs (<1 kb) revealed a significant (Fisher-test: P-value < 1 × 10⁻¹⁶) TE enrichment in the vicinity of cluster 2 compared to cluster 1 parent genes (Supplemental Fig. S9) and was likely underestimated given that ancient TE excision sites are difficult to detect, as are degenerated TEs.

Due to their high TE/repeat content, peri-centromeric regions are heavily DNA methylated, heterochromatic and predominantly transcriptionally silenced. Thus, the specific combinations of pseudogene/gene distribution within cluster 1 and 2 might partially explain the distinctive expression patterns displayed in Figure 3C as a result of contrasted epigenetic regulations (Lippman et al. 2004). Agreeing with this idea, mining the whole-genome bi-sulfite sequencing data produced by Stroud et al. (2013) revealed that both parent genes and pseudogenes from cluster 2 display cytosine methylation in the CG (high), CHG (moderate) and CHH (low) context, a result consistent with the more peri-centromeric localization of both types of loci and the involvement of RdDM (Fig. 3D). Although epigenetic reprograming would likely enable their expression at specific developmental (including chiefly, reproductive) stages (Klosinska et al. 2016; Martinez and Köhler 2017), parent- and pseudo-genes of cluster 2 are thus predicted to be poorly expressed and/or translated, on average. Indeed, transcripts from both types of cluster 2 loci were equally poorly represented in RNA-seq libraries of the two separate monosomes and polysome fractions prepared by RP in this study (Fig. 3E). While pseudogenes of cluster 1 display a methylation pattern similar in extent and nature to that of parent genes/pseudogenes of cluster 2, DNA methylation in CHG and CHH contexts is nearly absent from cluster 1 parent genes, which display, however, CG methylation but at significantly lower levels than in cluster 1 pseudogenes and cluster 2 genes/pseudogenes. This specific pattern presumably reflects the preferential euchromatic location, transcription and mRNA translation of cluster 1 genes (Fig. 3D). Indeed, while cluster 1 pseudogene transcripts were as poorly represented on monosomes/polysomes as their cluster 2 counterparts, those of cluster 1 parent genes were 6.2-fold more abundant on ribosomes, with statistically higher levels on polysomes (Fig. 3E) (Fisher-test: P-value < 1 × 10⁻¹⁶).

Figure 3F provides examples of siRNAs mapped onto two pseudogenes from cluster 1, of which the corresponding parent genes will be analyzed in a further section of this study. As seen with protein-coding gene-derived 24 nt unique mappers (Supplemental Fig. S6), pseudogene derived siRNAs are enriched in the polysomal as opposed to monosomal fractions suggesting their involvement in translation regulation downstream the initiation step. One feature that might predispose polysomal pseudogene derived siRNAs to load into AGO5 by virtue of a 5′-C terminal bias is an increase in GC content of siRNA-generating pseudogenes compared to parent genes, which is indeed clearly observed for cluster 1 and, as expected, to a lesser extent for cluster 2 pseudogenes (Fig. 3G).

Genetics, AGO loading and developmental-stage specificity reveal two classes of cluster 1 pseudogene derived siRNAs

Based on supervised classification by several features of polysome-associated 24 nt sRNAs (abundance in sRNA-seq libraries, pseudogene-derived from small gene family with high sequence similarity), ten individual cluster 1 pseudogene derived siRNAs showing abundant reads in the deep-seq analyses were selected and manually curated for further studies (Supplemental Table 2). Given their apparent higher accumulation in these tissues, we first tried to detect these siRNAs by northern analysis of total RNA extracted from inflorescences of WT Arabidopsis or various mutant derivatives thereof. Out of ten random-primed PCR products corresponding to the genomic regions predicted to spawn each pseudogene derived siRNA population, six provided a clear signal including the four best computer-based predictions made with pseudogenes psARK1, psPEROS, psPROIN, and psPHR2 (Fig. 4A; Supplemental Fig. S10A,B; Supplemental Table 4). No significant variations in the levels of these six siRNA populations were observed in any of ten Arabidopsis ago single mutant backgrounds tested, nor were they altered in dcl4, rdr6 or rdr1 (Fig. 4A; Supplemental Fig. S10A,B). Pseudogene derived siRNAs were, however, below detection in hen1, rdr2, poliv, but not polv mutants, indicating that their core biogenesis is similar to that of rasiRNAs spawned from peri-centromeric regions (Fig. 4A; Supplemental Fig. S10A,B; Matzke and Mosher 2014; Wendte and Pikaard 2017). In dcl3 mutant plants, the pseudogene derived siRNAs accumulated as 22-nt sRNA species, while they were 21-nt in length in dcl2-dcl3 double mutants indicating the hierarchical involvement of DCL3 → DCL2 → DCL4 in their processing (Fig. 4A). Strikingly, psARK1, psPEROS and psPROIN siRNA levels were reduced or below detection levels in dcl1-11 suggesting that certain pseudogene derived siRNA precursors need first to be cleaved by DCL1 before being processed by DCL3, or that their biogenesis requires prior targeting of such precursors by miRNAs, as proposed for epigenetically activated siRNAs (easiRNAs) (Fig. 4A; Creasey et al. 2014).

FIGURE 4.

Tissue-specificities, biogenesis and loading of various pseudogene derived siRNA classes. (A) Northern analysis of specific pseudogene derived siRNA populations in the indicated genetic backgrounds from inflorescences; the hybridization probes were random-primed, PCR-amplified DNA fragments covering the most abundant pseudogene derived siRNA signal detected in sRNAseQ analyses. (B) Same as in A but in various Arabidopsis tissues. sRNAs derived from REP2 and SIMPLE HAT were used as representatives of conventional rasiRNAs. (C) AGO1, AGO4, and AGO5 IPs were carried out from inflorescences and 1–3 DAP siliques, and the presence of the proteins in IP fractions was assessed by western analysis using antibodies against native proteins (left panel). Pseudogene derived siRNA populations co-IPed with the corresponding AGOs were detected by northern analysis as in B (right panel). Hybridization to the U6 small RNA was used as a loading control in panels A and B. A and B were produced in triplicate, C in duplicate.

Northern analysis of the six cluster 1 pseudogene derived siRNA populations during plant development and in various organs revealed that they are exclusively found in inflorescences and siliques, supporting a function during seed development (Fig. 4B). Among these candidates, siRNAs showed two inverted accumulation patterns in siliques, defining two classes. Class I, epitomized by psARK1-, psPEROS- and psPROIN-derived siRNAs accumulates mostly in 3–4 DAP siliques, whereas class II, represented by psPHR2, psMMDH1, and psNRBP2, predominates in closed flowers and >7DAP siliques (Fig. 4B; Supplemental Fig. S10C). We investigated the loading status of these populations in AGO1 and AGO4, because pseudogene derived siRNAs are composed of a minority of 21/22-nt and a majority of 24-nt sRNAs, as well as AGO5, because this protein is cytosolic, and specifically expressed in the pollen and siliques (Borges et al. 2011; Tucker et al. 2012; Roodbarkelari et al. 2015; Zhou et al. 2015). Although class II pseudogene derived siRNA populations exhibit an accumulation profile in inflorescences similar to several AGO4-loaded rasiRNAs including REP2 and SIMPLE HAT (Fig. 4B; Supplemental Fig. S10C), those derived from psPHR2 and psMMDH1 were below detection in AGO4 or indeed in other AGO IPs (Fig. 4C). Class I pseudogene derived siRNA populations including those derived from psARK1, psPEROS and psPROIN, were loaded into AGO1, AGO4, and AGO5 in inflorescences and 1–3 DAP siliques where they are most abundant (Fig. 4B,C), suggesting that class I siRNAs act at an early stage of seed development reminiscent of the epistatic interaction between AGO5 and chalcone synthase (CHS) siRNAs in glycine max (Cho et al. 2017). The 21–22-nt species from class I were loaded into AGO1 and AGO5, and the 24-nt species into AGO4 and AGO5 (Figs. 3B, 4C), respectively, suggesting that class I pseudogene derived siRNAs might mediate both PTGS, in trans, and RdDM in cis, most likely through a complex AGO proteins interplay. Supporting the former possibility, both AGO1 and AGO5 are cytosolic (Borges et al. 2011; Maldonado-Bonilla 2014), cosediment with polysomal complexes (Fig. 3A) and load 21-nt sRNAs, the molecules size usually associated with PTGS. However, we did not exclude that 24-nt pseudogene derived siRNAs loaded into AGO5 may also engage into this mode of RNA silencing, as explored in the next section.

Class I, but not Class II pseudogene derived siRNAs of cluster 1, are present on polysomes

To further ascertain the existence of, and potential differences between, the two classes of cluster 1 pseudogene derived siRNAs, we conducted RP in whole inflorescences as well as 1DAP and 3DAP. To optimize signal detection and determine in which fraction(s) these siRNAs preferentially accumulate, light (1–2), monosomal (4–5), or polysomal (7–9) fractions were respectively grouped together and the coeluting sRNA subjected to northern analysis (Fig. 5). We found that class I, unlike class II pseudogene derived siRNAs cosediment with polysomes in a manner reflecting quantitatively their increasing abundance from inflorescences-to-3DAP siliques (Fig. 5). Accordingly, class I-, but not class II-pseudogene derived siRNAs were also detected by deep-sequencing following TRAP: Both methods (RP an TRAP) showed a clear pseudogene derived siRNA enrichment dominated by 24-nt among rarer 21-nt species (Figs. 2A, 3B). Together, these results suggest that class II pseudogene derived siRNAs are unlikely involved in translational regulations. We propose that they probably mediate RdDM in an AGO4-dependent manner, agreeing with their accumulation profiles being similar to those of rasiRNAs (Fig. 4B; Supplemental Fig. S10C). In contrast, class I pseudogene derived siRNAs, including their 24-nt forms, interact with the translation machinery via AGO5 alongside, possibly, AGO4 (Fig. 4C). Northern analysis of predicted parent genes’ transcripts from selected class I pseudogene derived siRNAs showed that their levels were not significantly changed in the rdr2 and dcl3 backgrounds—which alleviate pseudogene derived siRNA production altogether (Fig. 4A)—and in various plant tissues showing strong fluctuation in pseudogene derived siRNA levels (Fig. 4B; Supplemental Fig. S10C). These results, confirmed by semiquantitative RT-PCR analysis and high molecular northern blots (Supplemental Fig. S11), are consistent with the idea that class I pseudogene derived siRNAs possibly modulate target gene expression translationally.

FIGURE 5.

Class I, but not class II, pseudogene derived siRNAs cosediment in siliques’ polysomes. RP conducted in inflorescences, 1DAP and 3 DAP siliques. Fractions 1 and 2 (light fractions), fractions 4 and 5 (monosomes), and fractions 7, 8, and 9 (polysomes) were pooled to optimize northern analysis of the indicated pseudogene derived siRNA populations as in Figure 4A. This experiment was produced in triplicate.

DISCUSSION

Work presented here constitutes, thus far, the most exhaustive and unbiased analysis of the silencing sRNA cohorts and AGO effector proteins associated with the translational apparatus of Arabidopsis. Although they rely on completely unrelated biochemistry, both the TRAP and RP approaches provided largely mutually consolidating results such that the corresponding sRNA-seq data sets generated in inflorescences should become a solid and valuable resource to the plant community. The specific analysis of miRNA/AGO1 association with total polysomes consolidates and extends further the conclusions drawn from the pioneering study conducted by Li et al. (2013) on seedling-derived MBPs. It can now be safely stated that most, unlike a select category of plant miRNAs, have the potential to mediate TR because they associate on polysomes with target mRNAs as part of AGO1-, and as suggested here, AGO5-, AGO10- and perhaps AGO2-RISCs. In the case of AGO1-RISCs, this association occurs in an AMP1-dependent manner and at levels reflecting the mere cellular steady-state accumulation of miRNAs in the tissues/growth stages analyzed (e.g., seedlings, inflorescences). Both studies raise, however, the long-standing, unsolved and yet fundamental issue of how slicing and TR might be concurrently achieved on polysomes/MBPs? One possibility entails that slicing (anticipated to rely on AGO1 without associated proteins), despite its multiturnover nature, might never be complete and/or that excessive mRNA levels might be rate-limiting for this reaction. For any given miRNA, a varying pool of unsliced target mRNA would thus remain sufficiently available on polysomes to allow assembly of a putative AGO1-associated protein complex required for TR. This complex might comprise the GW-repeat-containing protein SUO (Yang et al. 2012), which, as seen with the metazoan GW182, may facilitate miRNA translational repression by recruiting the CCR4-NOT deadenylase complex to target mRNAs (Rogers and Chen 2013). Alternatively, TR and slicing in plants may be physically separated phenomena occurring in distinct cell types in a manner that cannot be adequately resolved by analyzing whole tissues or organs, which form complex cell mosaics (Voinnet 2009). The latter was recently supported by a study conducted at single-cell-type resolution in the Arabidopsis root tip (Brosnan et al. 2019).

One aspect consistently evidenced by both RP and TRAP approaches is the surprisingly small amount of cellular AGO1 available to miRNA action on polysomes. Since miRNAs represent, by far, the main AGO1 cargoes in healthy Arabidopsis, the observation suggests that the steady-state association of the AGO1:miRNA complex to target transcripts is low, and that, consequently, the largest pool of this complex is found elsewhere in the cell or occupied by another mechanism. Up to now, miRNA loading into AGO1 has been inferred to occur in the cytosol despite little, if any, supporting experimental evidence. If, as suggested by cell biology (Fang and Spector 2007), mechanistic data (Eamens et al. 2009), and their stepwise nuclear maturation (Voinnet 2009; Rogers and Chen 2013), loading of plant miRNAs into AGO1 precedes their export to the cytosol, it would be anticipated that a large AGO1 pool would be engaged into nucleo-cytosolic shuttling. We have indeed recently provided evidence that AGO1 displays such a property and loads mature miRNAs in the nucleus, from which AGO1:miRNA complexes are then exported in a CRM1-dependent manner (Bologna et al. 2018). Besides, we found that the modest AGO1 pool able to bind polysomes still does so in the hen1 mutant. We tentatively attributed this effect to the residual miRNAs found in hen1 although Li et al. (2016) reported that AGO1 still binds polysomes in the miRNA-deficient hyl1 and dcl1 mutants. The same authors also suggested that lack of siRNAs does not affect AGO1 association to polysomes. This apparent inconsistency could perhaps be solved by studying a miRNA-binding deficient AGO1 allele, if viable.

Our work in inflorescences revealed unexpectedly large amounts of 24-nt sRNAs associated with total monosomes and, even more so, on polysomes. These were not found by Li et al. (2016) on seedling-derived MBPs, suggesting that the polysome-associated 24-nt siRNAs might be selectively enriched in non-MBP. Approximately half of these molecules correspond to multimappers derived from TEs and repeats and thus represent bona fide rasiRNAs which could therefore possibly mediate PTGS and TR via the previously unknown polysomal fraction of AGO4 identified here. TE-derived unique mapper 24-nt siRNAs, abundant in AGO1 and AGO2 (Fig. 3B), could also have this function. In all these circumstances, cytosolic rasiRNAs could act as a backup for RdDM, buffering potentially spurious Pol II transcription of otherwise epigenetically silent TEs via Pol IV/V action. This speculative scenario is consistent with the unexplained prevailing cytosolic localization of rasiRNAs, and their loading into AGO4 in the cytosol before nuclear import (Ye et al. 2012). The second half of all polysome-associated 24-nt sRNAs is formed of unique mappers within large populations derived from the coding regions/introns of protein-coding genes, as well as from pseudogenes. Coding gene associated 24-nt sRNAs correlated with cytosine methylation patterns with the hallmarks of gbM. Although this process is found in 47 of 49 angiosperms investigated to date and although its varying extents among Arabidopsis ecological niches suggest an adaptive potential, no clear function has been attributed to gbM in modulating gene expression so far (Bewick and Schmitz 2017). However, all studies conducted to date have inferred effects at the mRNA and/or mRNA isoform level, but not protein production level. This stage of action might need to be considered in future investigations of gbM given the clear polysomal association of gene body-derived 24-nt sRNAs, and that a significant fraction of these species likely corresponds, in fact, to class II pseudogene derived siRNAs of Cluster 1 (see below).

Thus far, pseudogene-derived 24-nt sRNA species have received little attention, if at all, and hence have been almost systematically categorized within a collective “rasiRNA-like” cohort of Arabidopsis sRNAs, yet the present study shows that this generic annotation requires amendment. Nonetheless, by no means does our study imply that pseudogenization, which may occur via a large variety of processes, necessarily entails sRNA production. Our study suggests a hitherto unknown and possibly prevalent function for AGO5 in mediating parent gene TR in inflorescences and siliques. According to our data, summarized in the speculative model in Figure 6, class I pseudogene derived siRNA and those from the major Cluster 1 in particular, which display transcriptionally and translationally active parent genes in chromosomal arms, but epigenetically silenced siRNA-generating loci near the centromeres, would be naturally predisposed to promote TR of their parent genes, via AGO5. Nonetheless, we do not exclude the contribution of other AGOs at this stage, including of AGO4, which also colocalizes with polysomes and strongly associates with pseudogene-derived siRNAs . Indeed, the degeneration process of pseudogenes is expected to naturally dilute the degree of complementarity between corresponding AGO5/4-loaded polysomal siRNAs, on the one hand, and the parent genes’ transcripts, on the other. This would inherently favor translation repression over slicing due to sRNA/target sequence mismatches, particularly if these occur in the AGO catalytic core's vicinity (Supplemental Fig. S3G). The very tight developmental window of their production peaks in siliques and our failure to detect their predicted target proteins using commercial antibodies have so far prevented us to assess the presumed TR potential of these pseudogene derived siRNAs. Use of adequately expressed mRNA sensors might help addressing this question, but even in this case, the likely cell-specificity and brief temporal accumulation of pseudogene derived siRNAs might require elaborated constructs based on short lived reporter proteins and gain-of-function rather than loss-of-function readouts. However, other evidences support this hypothesis. Premeiotic 21-nt phasiRNAs in maize and rice which exhibit pseudogene derived siRNA properties such as loading in cytosolic AGO5-related MEL1/AGO5c, tight spatiotemporal expression and unique mapping (Komiya et al. 2014; Zhai et al. 2015) are also unlikely to mediate cleavage of predicted targets as shown by PARE-sequencing data analysis, supporting an effect via AGO-directed TR activity and affinity for siRNAs with partial target complementarity. Partial target complementarity might also explain the poor CHG and CHH methylation pattern of cluster 1 parent genes if we assume Cluster 1 pseudogene derived siRNAs as mediator of de novo trans-methylation. In this TGS context, they would thus contribute mostly to (re)inforce cis-methylation onto the pseudogenes that spawn them.

FIGURE 6.

A model for the evolution and modes of action of Cluster 1 pseudogene derived siRNAs of class I.

It is also possible that pseudogene derived siRNAs act merely as buffers against inadequate/undesirable parent gene expression following developmental, stress or environmental cues, such that their regulatory output would be mostly invisible under ideal laboratory plant growth conditions. This scenario is attractive given that cluster 2 siRNA-generating loci are embedded into genomic regions replete with TEs, which are themselves potentially reactivated by stress, as well as AGO5 (Mirouze et al. 2009; Tsukahara et al. 2009; Ito et al. 2011; Brosseau and Moffett 2015). Noteworthy, many TEs are also epigenetically reactivated before and after fertilization (Lippman et al. 2004; Slotkin et al. 2009; Köhler and Lafon-Placette 2015) the precise time window of pseudogene derived siRNA accumulation. A regulatory role for pseudogene derived siRNAs as modeled in Figure 6 in the case of class I siRNAs of cluster 1 could provide an interesting paradigm of coordinated, rather than independent, evolution of at least some pseudogene/gene pairs, similar in essence to the coevolution proposed for MIRNA genes and their target protein-coding loci, which indeed play the role of parent genes in at least one scenario of MIRNA birth (Cuperus et al. 2011). While addressing these and the many additional questions prompted by their discovery will require further extensive work, an immediately foreseeable application of pseudogene derived siRNAs is a refined annotation or, perhaps, redefinition, of plant pseudogenes, given the abundance of these molecules in inflorescences, unique mapper nature, and specific biochemical properties clearly setting them apart from conventional rasiRNAs.

MATERIALS AND METHODS

Plant material

Arabidopsis thaliana ecotype Columbia-0 (Col-0) was used in this study as wild type. All the mutant backgrounds have been previously described. (Burk et al. 2001; Chen et al. 2002; Morel et al. 2002; Peragine et al. 2004; Gasciolli et al. 2005; Xie et al. 2005; Bouché et al. 2006; Lobbes et al. 2006; Vaucheret 2008; Zhang et al. 2008; Jia et al. 2009; Lahmy et al. 2009; Mosher et al. 2009; Lam et al. 2012; Nagano et al. 2014)

Plasmid construction and transformation

35S:VSRs:HA constructs were generated using single-site Gateway technology (Invitrogen). VSRs were amplified with DNA primers (containing the gateway recombination sites B1 and B2, and the HA tag) using Phusion HF DNA Polymerase (Thermo Scientific) and cloned into pDONR 221 (Invitrogen). VSRs were mobilized by LR recombination into the 35S promoter–containing vector pB7CWG2 (gateway vectors, Gent university) and the resulting constructs introduced into Agrobacterium tumefaciens GV3101. A. thaliana transformation was carried out by the floral dip method (Zhang et al. 2006). At least ten transgenic lines for each construct were analyzed in order to obtain at least one single-copy insertion line for each VSR.

Ribosome profiling onto sucrose gradients

Experiments were conducted according to the protocol of Mustroph et al. (2009). One gram of ground tissue was homogenized with 10 mL of PEB buffer (200 mM Tris-HCl pH 9, 200 mM KCl, 25 mM EGTA, 36 mM MgCl₂, 5 mM dithiothreitol [DTT], 50 mg/mL cycloheximide, 50 mg/mL chloramphenicol, 1% [v/v] Triton X-100, 1% [v/v] Tween 20, 1% [w/v] Brij-35, 1% [v/v], Igepal CA-630, and 1% [v/v] polyoxyethylene). The crude extract was clarified by centrifugation at 3200g for 10 min at 4°C and the supernatant loaded onto a 8 mL-1.6 M sucrose cushion. After a high-speed centrifugation at 170,000g for 3 h at 4°C, pellets were resuspended in 400 µL of wash buffer (200 mM Tris-HCl pH 9, 200 mM KCl, 25 mM EGTA, 36 mM MgCl₂, 5 mM DTT, 50 mg/mL cycloheximide, and 50 mg/mL chloramphenicol), and incubated 10 min at 4°C. Isolated ribosomal complexes were finally separated through 15%–60% (v/v) sucrose density gradients (160,000g, 2 h) and 10 fractions of 700 µL collected for further molecular analysis. Proteins were precipitated by addition of three volumes of ethanol absolute and pellets resuspended in 50 µL of 2X SDS-loading buffer for western analysis. RNAs were extracted by phenol/chloroform, and precipitated with three volumes of ethanol absolute. Pellets were resuspended in sterile water for analysis by northern blot or RNA deep sequencing.

Immunoprecipitation of ribosome complexes

Experiments were conducted using an established transgenic line (Arabidopsis Col-0) overexpressing the ribosomal protein RPL18 fused in amino-terminal with a His₆-Flag tag (Zanetti et al. 2005). Briefly, 1 g of ground tissues was homogenized with 6 mL of PEB buffer (see above). The resulting lysate was clarified by centrifugation at 3200g for 10 min at 4°C, and precleared by incubation for 30 min with 15 µL of protein A-agarose beads (Sigma). Beads were removed by centrifugation at 3200g for 1 min and the clarified lysates incubated with 30 µL of anti-Flag protein A-agarose beads (Sigma) for 3 h at 4°C, on a rotating shaker. Beads were then washed four times with 6 mL of wash buffer (see above). Ribosomal complexes were finally resuspended in 70 µL of wash buffer containing 1 mg/mL 3xFlag peptide (Sigma) and eluted by incubation at 37°C for 30 min under strong agitation. As described for RP, proteins and RNAs were extracted from eluted complexes and further analyzed by western blot, northern blot, or RNA deep sequencing.

RNA blot analysis

For low-molecular-weight northern analysis, 10 µg of total RNA was resolved on a denaturing 17.5% polyacrylamide-urea gel, electrotransferred to HyBond-NX membrane (GE Healthcare) and chemically crosslinked with 1-Ethyl-3-(3-dimethylaminopropyl)carbodiimide (EDC, Sigma). For high-molecular-weight northern analysis, 15 µg of total RNA was resolved on denaturing 1.2% agarose gels with 2.2 M formaldehyde, capillary transferred to the HyBond-NX membrane and chemically crosslinked with 1-Ethyl-3-(3-dimethylaminopropyl)carbodiimide (EDC, Sigma). DNA oligonucleotides complementary to microRNAs, tasiRNAs (tasiRNAs), rasiRNAs or U6 small nuclear RNA (snRNA) were 5′ end labeled with [γ-32P]-dATP using T4 PNK (Thermo Scientific) (Supplemental Table 4). Radiolabeled PCR probes for the detection of pseudogene derived siRNAs and predicted pseudogene derived siRNA mRNA targets were made by random-priming reactions using the Prime-A-Gene kit (Promega) in the presence of [α-32P]-dCTP (Hartmann Analytic) (Supplemental Table 4).

Semiquantitative RT-PCR

Accumulation of potential pseudogene derived siRNA targets in various plant tissues was measured by semi qRT-PCR using two independent pairs of gene-specific primers (Supplemental Table 4). Total RNA was extracted from A. thaliana with TRIzol (Invitrogen) and 2 µg were reverse-transcribed into cDNA using the Maxima First-Strand cDNA Synthesis kit (Thermo Scientific). To control equal cDNA amounts in each reaction, a PCR was performed with primers corresponding to actin (AT3G18780).

Protein blot analysis

A total of 30–100 µg of proteins were resolved on SDS-PAGE, electrotransferred onto Inmobilon-P PVDF membrane (Millipore), and incubated with antibodies in PBST buffer (PBS, 0.1% Tween-20, 5% nonfat dried milk). After incubation with HRP-conjugated secondary goat antibody to rabbit (Sigma), detection was performed with the ECL Western Blotting Detection kit (GE Healthcare). Affinity-purified antibodies were used at the indicated dilutions: AGO1 (1:5,000), AGO2 (1:3,000), AGO4 (1:5,000), AGO5 (1:3,000), AGO9 (1:5,000), AGO10 (1:3,000), S14 (1:10,000), and HA (1:5,000).

AGO proteins immunoprecipitation

Arabidopsis thaliana inflorescences and siliques were homogenized in 10 mL of IP buffer (50 mM Tris-HCl, pH 7.5, 150 mM NaCl, 10% glycerol, 0.1% NP-40) containing 2 µM proteasome inhibitor MG-132 and protease inhibitor cocktail (Complete). The resulting lysates were clarified by centrifugation at 3200g for 10 min at 4°C and precleared by incubation on a rotating shaker with 15 µL of Protein A-agarose beads (Sigma) for 30 min at 4°C. Beads were removed by centrifugation at 3200g for 1 min. Clarified lysates were incubated with antibodies for 2 h at 4°C on a rotating shaker and for an additional 1 h with 15 µL of Protein A-agarose beads. Beads were collected by centrifugation at 4000g, and washed three times with 1 mL of IP buffer. Immune complexes were finally resuspended in 70 µL of wash buffer containing 1 mg/mL of AGO peptides (Agrisera and Eurogentec) and eluted at 37°C for 30 min under strong agitation. For RNA analysis, immune complexes were subjected to phenol/chloroform extraction. Aliquots of input, flow-through (before washes) and immunoprecipitated fractions were analyzed by western blot to assess the efficiency of immunoprecipitation. For immunoprecipitation of AGO1, AGO4, and AGO5 antibodies were used at a 1:1000 dilution.

Deep sequencing

Five micrograms of total RNA were extracted from ribosome immunoprecipitation and RP by phenol/chloroform, processed into sequencing libraries using adapted Illumina protocols and sequenced at Fasteris (Geneva, Switzerland) using the HiSeq 2000 or 2500 sequencer. As prerequisite to small RNA-sequencing, gel size selection was performed to isolate 19–35 nt long RNA fragments. RNA-sequencing was performed from Total RNA in order to produce 2 × 100 bp paired-end, stranded reads.

Bioinformatics

All Arabidopsis genome annotations, except pseudogenes, inverted-repeats and miRNAs, were downloaded from the TAIR10 repository (arabidopsis.org). miRNA annotations were downloaded from miRbase v20. Mapping and annotation of RNA-sequencing libraries were computed with the Tophat v2.0.11 and Cufflinks v2.2.0 suites (Trapnell et al. 2009) with default parameters, except minimum intron size set to 60 nt and maximum intron size to 5000 nt. sRNA libraries were mapped with the ncpro-seq tool v1.5.0 (Parameters: -e 50 -a -m 5000 –best –strata –nomaqround -y) (Chen et al. 2012). Annotation of inverted-repeats is not exhaustive and was compiled from current and previous work in the laboratory. To reannotate pseudogenes as summarized in Supplemental Figure S12, we first searched for shared homology between intergenic regions and protein-coding genes using Blastx (E-value ≤ 1 × 10⁻⁴). Then, we removed redundant alignments and merged, into contigs, overlapping sequences aligned against the same protein. To detect putative parent genes, we searched for shared homology querying Arabidopsis protein-coding genes against our contig database using tblastn (E-value ≤ 1 × 10⁻⁴). As input, we used intergenic regions including the 929 already annotated pseudogenes and excluding transposons. As such, we defined 3738 pseudogenic regions corresponding to 2375 putative parent genes (Supplemental Table 3). 91% of previously annotated pseudogenes were detected, the rest being composed of pseudogenes overlapping excessively with TEs. All the data were postprocessed using in-house shell and R scripts available upon request.

Deep-sequencing data deposition

The reproducibility and depth of the sRNA sequencing repeats produced for this work are summarized in Supplemental Figure S13. The publicly available deep-sequencing libraries used in the study, available on the Gene Expression Omnibus are GSE10036 series (AGO-IPs) (Mi et al. 2008), GSM1931307 (Siliques) (Pumplin et al. 2016), GSM1062223 (inflorescences) (Marí-Ordóñez et al. 2013). The following deep-sequencing data have been deposited on the Gene Expression Omnibus as follows: small-RNA deep-sequencing libraries from whole seedlings, TRAP, polysomal and monosomal fractions form the GSE99827 series (reviewer access with secure token: inadmcmojnorjcz). The RNA deep-sequencing libraries from polysomal and monosomal fractions (Fig. 3E) form the GSE99826 series (reviewer access with secure token: apatscoudpcvbul).

SUPPLEMENTAL MATERIAL

Supplemental material is available for this article.
