Abstract

Background.

Described variations of tentorial venous anatomy impact surgical sectioning of the tentorium in skull base approaches; however, described configurations do not consistently explain post-operative complications. To understand the outcomes of two clinical cases we studied the tentorial venous anatomy of two cadavers.

Methods:

The venous anatomy of the tentorium isolated in two un-injected fresh cadaver head specimens with preserved bridging veins was observed by transillumination before and after methylene blue injection of the dural sinuses and tentorial veins. Our findings in cadavers were applied to explain the clinical and radiologic (MRI and CTV) findings in the 2 cases presented.

Results:

A consistent trans-tentorial venous system, arising from transverse and straight sinuses, communicating with supra- and infratentorial bridging veins was seen in the cadaver and patient radiography (MRI and CTV). Our first patient had a cerebellar venous infarct from compromise of the venous drainage from the adjacent brain after ligation of a temporal lobe bridging vein to the tentorium. Our second patient suffered no clinical effects from bilateral transverse sinus occlusion due to drainage through the accessory venous system within the tentorium.

Conclusion:

Herein, we elaborate upon trans-tentorial venous anatomy. These veins, previously reported to obliterate in completed development of the tentorium, remain patent with consistent observed configuration. The same trans-tentorial venous system was observed in both cases and provided insight to their outcomes. These findings emphasize the importance of the trans-tentorial venous system physiologically and in surgical approaches.

Keywords: cadaver, development, tentorial sinuses, trans-tentorial approaches, venous anatomy

Introduction

Many approaches to the skull base involve sectioning of the tentorium to widen the surgical corridor.1-4 Combined presigmoid/retrosigmoid approaches have been framed around the safety of incising avascular regions of the tentorium. Study of tentorial vascular anatomy has been related to direct observation of the visible hemispheric and cerebellar bridging veins (BVs).5-7 Radiologic study has added to the understanding of the tentorial venous anatomy.8

Al-Mefty defined patterns of venous drainage of the cerebellum in silicon-injected cadaveric specimens and found that most cerebellar BVs drain medially into the tentorium, providing greater understanding of the territories of cerebellar BVs in the supracerebellar infratentorial approach.9 However, this did not examine venous structures within the tentorium. Rhoton Jr.10 and Matsushima7 defined patterns and variants of lateral and medial tentorial sinuses (LTS and MTS), respectively, related to parenchymal BV drainage in silicon-injected heads.

Kaplan and Browder studied the venous configuration of the tentorium directly,5,11-12 but did not explain how tentorial manipulation could cause remote infarcts or how tentorial veins could act as accessary venous pathways to mitigate the effects of sinus obstruction. To better understand the role of the tentorium in venous drainage and the effect of tentorial manipulation, we studied the venous anatomy of the tentorium in two cadaveric specimens and related our findings to two clinical cases: 1) bilateral remote cerebellar infarct following resection of a medial temporal lobe glioma and 2) tolerance of bilateral transverse sinus (TS) and straight sinus (SS) thrombosis.

Methods

Two fresh non-injected cadaver head specimens were dissected. Bilateral hemicraniectomy and suboccipital retrosigmoid craniectomy were performed to visualize the tentorium and adjacent compartments. The parenchyma and vascular structures were removed with preservation of BVs. Uninjected tentorial anatomy was observed. Cannulation of the dural venous sinuses and fluoroscopic study of barium contrast injection with blockage of sinus outflow was performed prior to methylene blue injection into the dural sinuses. Veins in the tentorium were identified by transillumination and digitally photographed. Additional fluoroscopic studies were performed following methylene blue wash-out. Radiologic studies from clinical patients undergoing craniotomy were reviewed and evaluated for potential tentorial venous drainage. IRB/ethics committee approval was not required for the cadaver or retrospective chart review because patient 1 was deceased and no intervention was provided for patient 2.

Results

Cadaver Findings—Tentorial Venous Channels

Transillumination allowed visualization of veins in the tentorium (Fig. 1), confirmed by Direct injection with methylene blue (Fig. 2). Orientation of the cadaver is shown (Fig. 2A). Larger veins throughout the tentorium had a more regular pattern than smaller, anastomotic veins. Initial injection of the Vein of Galen (VG) and SS through the Vein of Galen confluens (VGC) partially filled the TS, falcine vessels near the confluens, and MTS in the posterior tentorium (Fig. 2B). The anterior half of the SS was duplicated in both specimens. The VG was appreciated as a separate channel within the falx inserting in the posterior half of the SS. Subsequent injection of the SPS at the petrous apex filled the ipsilateral TS, the LTS, and MTS, with the LTS and MTS communicating through intratentorial venous channels (Fig. 2B-D). Injection into the LTS filled the most lateral venous channels, the lateral tentorial vein (LTV), and plexiform anastomosis (PAs) located more medially in the tentorium. Repeat injection into the ipsilateral compartment of the duplicated SS filled the venous channels arising from the anterior half of the SS, the medial, and intermediate tentorial veins (MTV and ITV). The PA centered in the tentorium receives channels from both the SS and TS or LTS; the ringed configuration (RC) appears to also be a channel connecting the LTS and MTS at PA (Fig. 2C-D). In the suboccipital retrosigmoid view (Fig. 2E), a cerebellar BV is seen inserting into the tentorium, arising from the PA between the ITV and LTV, medial to the LTS. PA along the tentorial free edge (T-FE) receives channels from the SS and from vessels draining the petroclival region at the tentorial insertion (Fig. 2C-D). Prior to ligation, BVs from the tentorium to the inferior temporal lobe were appreciated (Fig. 3A) in continuity with the MTV leading to the PA on the T-FE. This tentorial vein joined the SPS at the petrous apex. Under fluoroscopy, contrast injected into the ipsilateral TS while clamping the ipsilateral sigmoid sinus and contralateral TS flowed into the superior petrosal sinus (SPS), circular sinus, and sphenoparietal sinus (SpPS). This pattern of drainage also included the apical tentorial vein (ATV) (Fig. 3B-C).

Figures 1A and 1B.

Figures 1A and 1B.

Open in a new tab

Preparation and Transillumination of the Tentorium in the Cadaver Specimens. Venous channels can be seen connecting the straight sinus and transverse sinus coursing in the direction of attachment of the tentorium at the petroclival region. The channels are identified by the arrowheads.

Figures 2A-2E.

Figures 2A-2E.

Open in a new tab

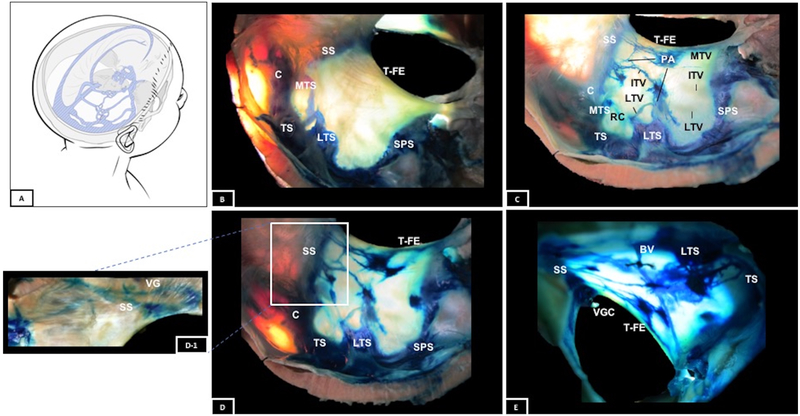

Serial Injection of the Dural Sinuses with Methylene Blue. Figure A shows the orientation of the tentorium in the cadaveric dissection. The supratentorial compartment is observed in Figure B-D and methylene blue is seen filling first the LTS from the SPS injection. The insert, D-1, shows the separation of the VG from the SS within the falx seen on initial injection of the VGC. In Figure C, plexiform anastomosis between venous channels arising from both the SS and TS are seen along the T-FE, medially in the plane of the tentorium, and laterally draining into the large dural sinuses. Figure E shows the BV draining into the venous channels from the retrosigmoid suboccipital view.

Figures 3A-C.

Figures 3A-C.

Open in a new tab

Correlation of Tentorial Venous Channels with Fluoroscopic Study. Contrast injection into the ipsilateral transverse sinus was performed through foley catheter (FC) with the superior sagittal sinus, contralateral transverse sinus, and ipsilateral sigmoid sinus clamped. Venous channels in the tentorium were found to be dependent on pressure dependent back-flow not captured in this injection; however, this injection identified continuity of the sphenoparietal sinus (SpPS) with the circular sinus and the tentorial venous channel on the free edge arising from the bridging vein of the inferior temporal lobe. The gross and fluoroscopic cadaveric images are overlaid in C to demonstrate the anatomy. The fluoroscopic image was rotated to match the cadaver due to the different angle (30° AP; 15° lateral) required for the fluoroscopic study.

Case Review

Case 1—Remote Cerebellar Infarct

77-year-old male with past medical history of atrial fibrillation with warfarin anticoagulation, MEN-2A syndrome status post bilateral adrenalectomy and thyroidectomy, and previous subarachnoid hemorrhage of unknown etiology. Prior imaging and angiography were negative for vascular malformation. He presented to the emergency unit with nausea and vomiting. Neurological examination was normal. Head MRI scan was performed; an enhancing right anteromedial temporal lobe mass (Fig. 4A) was found. The venous architecture is seen on T1 post-contrast sequence (Fig. 4B-E).

Figure 4A-J.

Figure 4A-J.

Open in a new tab

MRI and CT Studies of Temporal Lobe Glioma with Remote Cerebellar and Brainstem Infarct Following Resection. Pre-operative MRI is seen A-E. The bridging vein of the inferior temporal lobe to the tentorium is seen on the axial T2 FLAIR sequence in A (arrowhead). A difference in caliber of the jugular bulb is seen in the coronal T1 post-contrast sequence in B; the right is narrowed distally with dilation proximally while the left is narrowed proximally (arrows). Dilation of the right sigmoid sinus compared to the left is seen on the coronal T1 post contrast sequence in C (arrows). In the same slice, tentorial vessels are seen in the plane of the tentorium (arrowheads). More posteriorly, the cerebellar bridging veins, right more lateral than left, are seen draining into the tentorium (arrowheads) in the coronal T1 post-contrast sequence in D. Stenosis of the left transverse sinus and dilation of the right is seen on the coronal T1 post-contrast sequence in E. The extent of the post-operative remote cerebellar and brainstem infarct is appreciated on the Axial T2 FLAIR in F-H; venous hemorrhage in the resection cavity is also seen. Extension of the resection cavity hemorrhage and intraventricular blood is appreciated on I. A contrast filling channel, the MTV, is seen coursing from the resection cavity to the straight sinus medially along the right tentorial free-edge with draining into a channel belonging to the cerebellar bridging vein (arrowheads) on delayed phase CTA in J; a mesencephalic bridging vein is also seen in continuity with this channel of the free edge.

An IVC filter was placed and warfarin was stopped. The patient underwent tumor resection through a right frontotemporal craniotomy and trans-sylvian approach after coagulation normalized. Intraoperative pathology demonstrated hemorrhagic glioblastoma, W.H.O. grade IV. The patient awoke without neurologic deficit following tumor resection. Routine post-operative MRI and CT performed within 24 hours demonstrated remote infarcts in the right and left cerebellar hemispheres and hemorrhage within the resection cavity (Fig. 4F-I). Delayed-phase CTA is shown in Figure 4J. Elevated intracranial pressure from brain swelling was reduced by external ventricular drainage and bilateral suboccipital decompressive craniectomy.

Case 2—Venous Sinus Thrombosis

30-year-old female with past medical history of psoriasis presented with a three-day history of right ear pain, nausea, and severe bifrontal headache. Evaluation by CTV showed complete TS thrombosis bilaterally and partial SS thrombosis (Fig. 5A-J). Extensive collateral venous drainage through the entire tentorium was also shown.

Figure 5A-J.

Figure 5A-J.

Open in a new tab

CTV Studies of Tentorial Sinuses and Veins in the Setting of Thrombosis of the Straight, Transverse, and Sigmoid Sinuses. A schematic of the venous architecture in this patient is seen in A; shaded regions represent clotting. Cerebellar BV are seen in B, with the left draining to the tentorial veins at a PA. In C, the MTS is seen on the right arising from the TS near the confluens; the LTV is seen in continuity with the PA on the left. The RC connection from the MTS to the LTS is seen on the right in D, and the ITV is seen arising from the SS on the left. L is seen draining into the LTS on the right in E. The LTV is also seen arising from the LTS; both ITV are seen arising from the SS. A PA is appreciated between the LTS, LTV, and ITV on the left in the same image. In F, L, the ITV bilaterally, and the LTV on the right are again visualized. The SPS is seen in continuity with mesencephalic BV bilaterally. The PA between the ITV and MTV is appreciated bilaterally in G; the ATV is also appreciated bilaterally. The MTV is seen bilaterally giving rise to mesencephalic bridging veins in H and continuing on to the ATV preceding the cavernous sinus in I. The MIP sequence in J demonstrates all of these sinuses and tentorial veins. Of note, the right BVR was incomplete and did not drain the anterior mesencephalon in this patient (J).

Discussion

General and Technical Considerations

Prior studies of the intracranial venous anatomy utilized cadaver heads with latex-filled vessels via cannulation of the carotid arteries and jugular veins.7,10 Tentorial veins may not fill with this method due to the small caliber of the tentorial veins, viscosity of the latex mixture, and effect of fixation techniques. Larger vessels have lower resistance to flow; absence of intracranial pressure effects on vein diameter further decreases resistance.

Browder and Krieger used vinylite casts to study drainage of the major dural sinuses, the tentorium, and the circular and cavernous sinuses.5,11,12 Casting through the dural sinuses and digesting the parenchyma demonstrated venous channels arising from the dural sinuses, but the properties of vinylite may adversely affect venous anatomy. Vinylite is dissolved in acetone to allow perfusion of fine structures; evaporation of the acetone through the parenchyma allows polymerization and incurs thermal expansion and shrinkage.13,14 This may disrupt the walls of the venous channels within the tentorium12. Cured vinylite is brittle and requires pruning.15 These considerations may explain the interpretation of negative casting in the center of the tentorium as venous lakes while the remainder of the venous anatomy was positively casted, implying that the finer plexuses were disrupted in the casting process.

To better appreciate tentorial venous anatomy and avoid the shortcomings of these techniques, we injected methylene blue directly into the dural sinuses and observed the pattern of blue vessels in and around the tentorium. We supplemented and compared this study with fluoroscopic imaging of contrast-infused veins within and around the tentorium. Resistance was met upon perfusion of the PA of the ITV and LTV from the LTS. The courses of the ITV and LTV can be seen by transillumination to continue to the SPS in Figure 2C-D. Dye perfusion was not continued to avoid rupture. In the cases presented, these channels can be seen in the same configuration, further supporting the identification of these channels based on venous development.

Embryologic Considerations

The venous channels observed within the tentorium communicate with the TS and/or SS. Streeter and Padget elucidated embryologic origins of the dural sinuses and demonstrated the presence of venous plexiform channels within the prosencephalic, tentorial, and myelencephalic dorsal mesenchymal dural fields.16,17 The development of the adult dural sinuses is a result of sloping of the tentorium and alteration in the direction of flow through the paths of least resistance (Figure 6).17

Figure 6A-D.

Figure 6A-D.

Open in a new tab

Development of the Dural Venous System. Week 12, adopted from Dr. Huang’s embryologic work, is shown in 6A. The SSS is seen plexiform anteriorly and coalesced posteriorly. At this stage, the tentorium is narrow and lacks incline. Thus, drainage of the diencephalon occurs through the VDV into the TVs. The prosencephalon is drained by the MVP of Markowski. As the arrows indicate, continued development of the cerebellum will result in posterior fossa size increase and increase in the incline of the tentorium, which will also continue to grow medially. The petrous pyramid will also begin anteromedial growth and rotation. The falx will continue to develop inferoposteriorly and the MVP will form the FS and SS intradurally and the VGC in the subarachnoid space, as seen in 6B at week 17 of development. The stems of the MVP give rise to the BVRs, ICVs, and ISS. At this stage, the jugular foramen is narrowed due to continued petrous pyramid development and rotation; thus, the TS is dilated while the posterior aspect of the SSS has not yet converged. This maintains flow through the FS and TVs. The adult configuration is shown in 6C as observed in the present study. The SSS is seen completely coalesced. The ISS drains into the junction of the VGC and SS and the VG continues in the falx as a separate structure as observed. The MTV is seen originating from SS on the tentorial free edge and continuing to the CS while giving off the MBV and TBV to transition to the ATV. The ITV is seen from SS to SPS in PA with the MTV and LTV, a continuation of the RC and LTS. In 6D, propagation of venous thromboembolism is shown following ligation of the TBV, as seen in Case 1 with resultant infarction and hemorrhagic conversion.

VDV, ventral diencephalic vein; TVs, tentorial veins; MVP, median vein of the prosencephalon; FS, falcine sinus; ICVs, internal cerebral veins; ISS, inferior sagittal sinus; MBV, mesencephalic bridging vein; TBV, temporal lobe bridging vein;

As primary neurulation is completed and retrogressive differentiation begins, the forebrain compartment of the neural tube exceeds gradient regulation and regulative positioning imposed by the posterior neuropore signaling source.18 The isthmic organizer arises between the posterior fossa and diencephalon and transverse organizers arise laterally as the forebrain is segmented.18,19 The mesenchymal tissue receives metabolic waste from the parenchyma by passive diffusion.20 The dural field is induced by arborization of the neural tube as waste removal by passive diffusion is exceeded.16-18,20,21 The supratentorial mesenchyme develops through intramembranous ossification into the meninges and bone in gradient dependent fashion due to neural tube induction while the infratentorial skull base forms by somite migration.21,22

The venous channels organize within the dural fields and BVs migrate toward the parenchyma through the developing arachnoid plane to penetrate as medullary veins as shown by Huang.23,24 Lateral head veins, which give rise to the cavernous sinus anteriorly, initially bound the dural venous field; a central vein courses through the field.25 Plexiform channels connect these.16,17,20,26 The tentorial venous field moves infero-laterally with 1) disproportionate posterior fossa growth incurred by proximity to the isthmic organizer and 2) inferolateral somite migration.17,18 Increase in the tentorial pitch leads to drainage of venous blood laterally while continued gradient differentiation of mesenchyme adjacent to developing calvarium leads to the obliteration of the endothelium, forming the major dural sinuses.16,17 The tentorium is thus attached medially to the 1) falx which develops as the median vein of the prosencephalon arises from the superior sagittal sinus (SSS) and divides the hemispheres27 and 2) the infero-medially migrating petrous bone28 and developing dural sinuses.17,24

Flow Considerations

Perfusion of the observed tentorial veins in the studies performed suggests that they are patent. The orientation of these vessels parallel to the slope of the tentorium provides insight into the conditions under which these fill.

The tentorium is situated at the interface of dural venous sinuses, the parenchyma, and CSF subarachnoid compartment. The impact of change to these components is related to the size and the rate of change of each compartment.29 The arterial supply and venous outflow have the fastest rate of change while the CSF rate of change is minimal, 0.35 cc per minute; parenchyma is constant until relative positioning is changed.29,30 This is particularly relevant when examining flow-related changes in the dural sinuses and tentorial veins at the interface of the three components.

Studies examining transverse sinus manometry related to TS stenosis have defined pathologic pressures as those above 0-10 cm H20, the same as intracranial pressure.31 This suggests that the direction of flow through the venous sinuses and channels identified herein is imposed by positioning, path of least resistance, and dynamic factors of the surrounding system both in development and later physiology.30 The maintenance of anterograde flow in the venous system through the BVs to the tentorial channels and into the major sinuses is maintained by pulsatile pressure and trans-dural movement of CSF, parenchymal pressure on the veins, and arachnoid tethering.30-32

Anatomy and Physiology of Intracranial Venous Channels

Drainage to the major dural sinuses is a phenomenon of completed development.16,17 The lateral head veins, which rotate with the tentorium, give rise to the TS, the sigmoid sinus (S), the SPS and IPS, and the CS, the medial venous channel of which is in continuity with the circular sinus, as demonstrated by Streeter and later by Browder.17,25,33 Initial disproportionate posterior fossa growth leads to increased venous drainage to the TS by increase in the lateral pitch of the tentorium.17 However, in fetal development and through childhood, the jugular foramen has a narrow caliber due to the incomplete medial migration of the petrous pyramid to the clivus.24,28 The resultant venous pooling in the TS is thought to lead to retrograde flow and outpouchings of the dural sinuses and formation of the MTS and LTS.24,26,34 This is consistent with the major dural sinuses as distensible spaces capable of receiving stagnant flow.

Histologic study of the dural sinuses found that the degree of separation of endothelium within the sinus to form a separate vein is related to the amount of muscular, elastic, and collagenous differentiation of the surrounding dura.35 The venous plexuses in the tentorium organize to form the BVs and separate channels. The degree of venous architecture present appears to be a result of gradient dependent development. The differing properties of these structures impacts flow dynamics. The dural sinuses have a compliance; the degree of distension of the sinuses is detected by the recurrent tentorial nerve, which shares its branching pattern with the venous channels identified in this study and regulates cerebral vasodilation.36-38 The tentorial veins may remain patent due to positional and compliance dependent flow and their connections to drainage through the Sylvian veins, the cavernous and circular sinuses, the mesencephalic plexus, and the cerebellar veins.

Relationship to Venous Pathways and Surgical Considerations

Consequences of interruption of the tentorial venous system and bridging veins to the tentorium should be considered in surgical planning. In supine or sitting positions, blood flow through the bridging veins may be toward the tentorium because tentorial pressure is reduced by the loss of CSF and head elevation. It may be beneficial to ligate supra-tentorial BVs at the entrance to the tentorium to avoid formation of clot in the supratentorial BV that propagates through the tentorium to a cerebellar BV, resulting in hemorrhagic infarction. It may be beneficial to ligate cerebellar BVs at the parenchyma to prevent propagation of a clot from the free BV into the cerebellar parenchymal vein. The venous system does not share the anterograde pressure of the arterial system.29,32 Thus, venous flow through the tentorial channels may be directionally altered as the surrounding system is manipulated and may depend on the position of the patient.

In case 1, the patient underwent right frontotemporal, trans-sylvian resection of a mass. The venous architecture in this patient may have increased trans-tentorial drainage when the head was placed right side up. We postulate that when the bridging vein to the inferior temporal lobe was compromised during mass resection, the sylvian and bilateral cerebellar venous drainage into the TS may have been re-distributed through the medial tentorial vein to the mesencephalic and cerebellar BVs, resulting in the bilateral cerebellar and mesencephalic hemorrhagic infarction, as shown in Figure 6D.

Case 2 demonstrates how the trans-tentorial venous system can serve as an accessory drainage pathway. Contrast filled the tentorial veins and sinuses bilaterally from the vein of Labbé drained into the LTS in retrograde. Drainage through the mesencephalic plexus continued to the anterior cervical epidural plexus to the radicular veins which drain to the jugular veins, returning to the right atrium. Cerebellar drainage was maintained through the tentorial veins via BVs into the PAs. The right MTV in this case was important due to the incomplete development of the right BVR to meet the mesencephalic plexus anteriorly. This case may serve as an explanation for observation of asymptomatic post-operative thrombosis of the transverse sinus.39

These cases highlight the importance of recognizing normal and anomalous tentorial drainage. Prior to complete development of the trans-cerebral venous system arising from the VG, the diencephalon and mesencephalon bridging veins arise from a tentorial sinus.24,26,40 The medullary veins arise from BVs, which arise from the prosencephalic, tentorial, and myelencephalic plexuses.17,23,24, While it was originally thought that completed rotation of the tentorium obliterates the tentorial veins,17 this study supports the concept that the trans-tentorial venous system persists. We hypothesize that the volume dependency of pressure in the dural venous system maintains directionality of flow and patency of the tentorial veins. Further, Huang demonstrated that the right jugular bulb and dural sinuses are larger in caliber and flow due to retrograde pulsations of the heart.24 Case 1 and 2 accentuate the normal development with dominant right dural sinuses and incomplete development of BVR,40 respectively.

The trans-tentorial venous system was identified in both cases on T1-weighted post-contrast MRI and delayed-phase CTA. The outcomes of these cases suggest the importance of pre-operative evaluation of this venous system, possibly to include MRV and CTV in cases where the tentorium or bridging veins may need to be manipulated.

Limitations of the study

While in this study we have identified a consistent configuration of the trans-tentorial venous network in two cadaver heads and two clinical cases with related outcomes, further cadaveric or radiographic study is warranted to determine generalizability of this framework and how it is affected by developmental and pathologic processes.

Conclusions

Cadaveric study of the tentorium elaborated on a trans-tentorial venous system connecting venous drainage of parenchyma within the anterior, middle, and posterior fossae. These veins, thought to obliterate in completed development of the tentorium, remain patent. This tentorial vein configuration was found in a case of remote cerebellar and brainstem venous infarction following resection of a medial temporal lobe glioblastoma. In the other case presented, bilateral transverse sinus thrombosis did not result in damage to the brain parenchyma because venous channels in the tentorium may have acted as an accessory venous drainage pathway. The cases presented emphasize the importance of the trans-tentorial venous system physiologically and in surgical approaches.

Acknowledgement

The authors wish to thank NIH Medical Illustrators Alan Hoofring and Erina He for the drawings in Figures 2, 5, and 6.

We would also like to thank Alejandro Berenstein MD for his critical review of the manuscript.

Funding

This study was supported, in part, by the Intramural Research Programs of the National Institute of Neurological Disorders and Stroke and National Cancer Institute at the National Institutes of Health.

Abbreviations:

BV

Bridging Vein

PA

Plexiform Anastomosis

MTS

Medial Tentorial Sinus

LTV

Lateral Tentorial Vein

RC

Ring Configuration

LTS

Lateral Tentorial Sinus

ITV

Intermediate Tentorial Vein

SPS

Superior Petrosal Sinus

L

Vein of Labbé

MTV

Medial Tentorial Vein

SpPS

Sphenoparietal Sinus

ATV

Apical Tentorial Vein

T-FE

Tentorial Free Edge

SS

Straight Sinus

TS

Transverse Sinus

Footnotes

Disclosure

The authors report no conflict of interest concerning the materials or methods used in this study or the findings specified in this paper.

Publisher's Disclaimer: This is a PDF file of an unedited manuscript that has been accepted for publication. As a service to our customers we are providing this early version of the manuscript. The manuscript will undergo copyediting, typesetting, and review of the resulting proof before it is published in its final citable form. Please note that during the production process errors may be discovered which could affect the content, and all legal disclaimers that apply to the journal pertain.

No portion of this work has been presented previously
