A refinement approach in a mouse model of rehabilitation research. Analgesia strategy, reduction approach and infrared thermography in spinal cord injury

Veronica Redaelli 1,#, Simonetta Papa 2,#, Gerardo Marsella 3, Giuliano Grignaschi 3, Alice Bosi 4, Nicola Ludwig 5, Fabio Luzi 1, Irma Vismara 2, Stefano Rimondo 2, Pietro Veglianese 2, Svetlana Tepteva 1, Silvia Mazzola 1, Pietro Zerbi 6, Luca Porcu 7, John V Roughan 8, Gianfranco Parati 4,9, Laura Calvillo 4,*
Editor: Chang-Qing Gao10
PMCID: PMC6821094  PMID: 31665157

Abstract

The principles of Refinement, Replacement and Reduction (3R’s) should be taken into account when animals must be used for scientific purpose. Here, a Reduction / Refinement approach was applied to the procedure of spinal cord injury (SCI), an animal model used in rehabilitation medicine research, in order to improve the quality of experiments, avoiding unnecessary suffering. The aims of this investigation were 1- to assess acute surgical pain in mice subjected to SCI, 2- to compare the efficacy of commonly used analgesia (three buprenorphine subcutaneous injection in 48 hours, 0,15 mg/kg each) with a combination of opioid and NSAID (one subcutaneous injection of 5 mg/kg carprofen before surgery followed by three buprenorphine subcutaneous injection in 48 hours, 0,15 mg/kg each) and 3- to test if Infrared Thermography (IRT) could be a potential new Refinement method to easily assess thermoregulation, an important metabolic parameter. Finally, we aimed to achieve these goals without recruiting animals on purpose, but using mice already scheduled for studies on SCI. By using behaviours analysis, we found that, despite being commonly used, buprenorphine does not completely relieve acute surgical pain, whereas the combination of buprenorphine and carprofen significantly decreases pain signs by 80%. IRT technology turned out to be a very useful Refinement tool being a non invasive methods to measure animal temperature, particularly useful when rectal probe cannot be used, as in the case of SCI. We could find that temperatures constantly and significantly increased until 7 days after surgery and then slowly decreased and, finally, we could observe that in the buprenorphine and carprofen treated group, temperatures were statistically lower than in the buprenorphine-alone treated mice. To our knowledge this is the first work providing an analgesic Refinement and a description of thermoregulatory response using the IRT technology, in mice subjected to SCI.

Introduction

According to European directive 2010/63 on the protection of animals used for scientific research, the principles of Refinement, Replacement and Reduction (3R’s) have to be taken into account when animal models must be used for scientific purpose. Our previous work [1] described an ethical approach to set up the analgesic management of thoracic post-surgical acute pain, that is quantifying and managing pain in animals already scheduled for biomedical research experiments, without recruiting animals on purpose. This approach allowed to reach two important goals, first it was possible to Reduce the number of animals used and, second, allowed researchers to Refine their surgical model by observing and quantifying stress/pain related behaviours and by developing more accurate analgesia.

In connection with that experience, our group applied the same Reduction approach to refine experimental surgical procedure of spinal cord injury (SCI), an animal model used in rehabilitation medicine research.

According to the World Health Organization at least 250,000 people suffer a SCI each year due to road traffic crashes, falls or violence, becoming disabled, and these patients are two to five times more likely to experience comorbid health problems leading to premature death [2]. Both the societal cost of SCI and the individual patient costs are vast, consequently to refine the experimental model of SCI is extremely important for the preclinical research aimed to develop potential treatment and rehabilitation strategies. Medical research needs solid experimental models and applying 3R’s, with the development of new methods to Refine and Reduce, can improve the standard of animal models used in rehabilitation medicine.

SCI could potentially be severely painful to mice, analgesics are therefore essential to avoid unnecessary suffering, low quality data and waste of animal and financial resources. Unalleviated pain may interfere with study integrity since pain and stress can result in major physiological alterations and statistical noise [3–4]. Another major issue is that despite substantial research efforts there is still only limited information about the analgesic needs of mice. At present, little is known about pain severity and its prevention in mice used as models of SCI. Despite guidelines [5] recommend association between opioid and NSAID in mice surgery, the best match results in pubmed research, for the keywords “spinal cord injury mouse”, report articles in which analgesia is not mentioned or it is limited to Buprenorphine [6–10]. The use of drug combination is very common and already studied in various kind of animal species including primates and also in various pain models, nevertheless, in the mouse model of SCI this approach is not yet commonly applied. The aims of this investigation were therefore the following: a) to assess acute surgical pain in mice subjected to SCI, b) to compare the efficacy of commonly used analgesic strategy (buprenorphine injection) with a multimodal approach (carprofen injection followed by buprenorphine injections) and c) to test if Infrared Thermography (IRT) could be a potential new Refinement method. IRT is a non-invasive technique that has been found to reflect welfare, physiologic and metabolic status in several species [11–15], whereby the dynamics of peripheral blood flow is altered in stressful or fearful conditions as well as in those resulting in pain [16–17]. IRT has proven to be a potential tool for Refinement, assessing superficial temperature, at distance, in a completely non-invasively way [18]. Moreover, it was yet used in rat and rabbit to study reactions after stress stimuli [19] [17], because stress, fear and pain, can create vasoconstriction/vasodilation phenomena altering blood flow. Despite this, to our knowledge there are no works indicating the reference temperatures for mice undergoing surgery events. Finally, according to its Refinement aspirations, the study was conducted in line with the 3R’s principle of Reduction; i.e. the assessments were conducted in mice that were already scheduled for SCI without recruiting animals on purpose.

Methods

Ethical statement

The protocol was approved by the Institutional Animal Care and Use Committee or Animal Welfare Body (AWB) of the Istituto di Ricerche Farmacologiche Mario Negri IRCCS (Milan Italy) and the study was carried out in strict accordance with the recommendations and with the authorization of the Italian Ministry of Health (Permit Number 62/2014-PR) according to 26/2014 Italian Law on the protection of animals used for scientific purposes. All surgery was performed under isoflurane anesthesia, and all efforts were made to minimize suffering. The manuscript was prepared according to the ARRIVE guidelines [20–21].

Refinement and reduction

In compliance with the 3R’s principle of Reduction, animals included for the present analysis were selected from those already scheduled for studies on SCI and the monitoring methods were designed to have no impact on the primary study outcomes.

Husbandry

Males C57BL/6N mice, average weight 25 gr, about 2 months old, were supplied by Charles River (Calco, LC, Italy), were kept in cages with wood-shaving bedding (each cage of 435 cm2 will house 5 mice) and permitted one week to acclimate to their new surroundings prior to experimentation. Male gender was chosen to avoid possible hormonal interferences, thus preventing potential bias in experimental results. All cages were open to the room environment and animals were regularly handled by the staff involved in the experimental protocol. Room temperature were maintained at 20°±2°C with 55% ± 10% relative humidity and ventilated at 15–18 filtered air changes per hour. Animals were kept on a 12:12 light: dark cycle and provided ad libitum access to water and rodent feed (Teklad Global Diet 18%—ENVIGO RMS). Considering the type of surgical operation which the animals were subjected to, and the position of the wound, the designated veterinarian chose absorbent paper as a nesting material. Two mice for cage were housed after surgery. Regular blood screenings on sentinel mice certified the absence of endoparasites and ectoparasites in the animal facility which is classified as SPF (specific pathogen free).

Study design

To assess pain and stress in mice subjected to SCI, to compare the efficacy of two different analgesic strategies and to test IRT as new Refinement method, the study was performed in two steps, each lasting 28 days (Fig 1a and 1b).

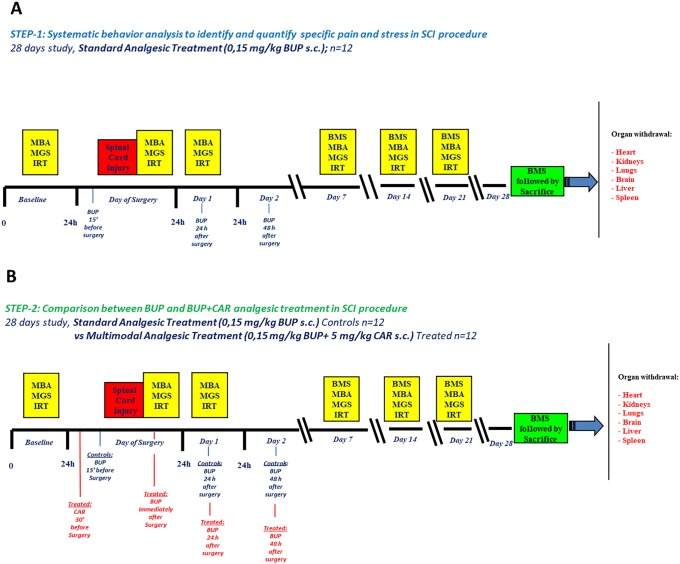

Fig 1. Study design.

Fig 1

Open in a new tab

The study was conducted in two steps; in STEP-1(A) only BUP was provided, 15 minutes before SCI, and then repeating treatment at 24 and 48h. The MBA, IRT and MGS assessments were applied before surgery (Baseline, as a non-surgery control), immediately post-surgery (Day 0), and then at 24h (Day 1), and 7, 14 and 21 days. In STEP-2 (B), a control arm, identical to STEP-1, was compared to an experimental arm consisting in a multimodal analgesic strategy (BUP+CAR). Both steps were followed by retrieval of various organs for histological evaluations.

STEP-1. assessment of acute surgical pain, stress and IRT in mice after SCI, under commonly used analgesic strategy, consisting in injection of 0,15 mg/kg buprenorphine (BUP) subcutaneously (s.c.) three times in 48 hours. First injection was performed 15 minutes before surgery, the second and the third, 24 and 48 hours respectively after surgery (Fig 1a).

STEP-2. comparison of two analgesic strategies: assessment of acute surgical pain, stress and IRT measurements after SCI under a) BUP analgesia (same BUP injections as in STEP-1) or b)under a combination of two analgesic drugs [multimodal strategy [22]]: one s.c. injection of 5 mg/kg carprofen (CAR) 30 minutes before surgery, followed by one s.c. injection of 0,15 mg/kg BUP immediately after surgery, and two further BUP s.c. 24 and 48 hours respectively after surgery (BUP+CAR analgesia) (Fig 1b).

We chose the multimodal strategy after our experience with thoracic surgery analgesia [1] and the type of drugs and doses on the base of the literature [22] and of our experience. In fact, in our hand the commonly used BUP injection every 12 hours [5] caused kidney failure in most SCI mice, likely due to a decreased blood perfusion in this organ, already affected by the hind limbs paralysis. We therefore decided to reduce the frequency of opioid injections.

The following procedures were performed to evaluate post-surgical behaviour, acute surgical pain, stress and IRT: Basso Mouse Scale (BMS) [23], Manual Behaviour Analysis (MBA) [24], Mouse Grimace Scale (MGS) [25] and temperature detection in the brown adipose tissue (BAT) area with a high resolution infrared camera [16–17]. These procedures consist of a series of video recordings to detect predefined signs of pain and/or stress and BAT temperature [1] [24–25]. MBA, MGS and IRT were performed during the first week at baseline (24 hours prior to surgery), at day 0 (immediately after recovery from surgery), and again after 24 hours (day 1). After the first week, the measurements were recorded at day 7, day 14 and day 21. BMS was performed at day 7, day 14, day 21 and day 28 (Fig 1a and 1b).

There was only one experimental group in STEP-1 (BUP treated, n = 12 mice) and two experimental groups in STEP-2:

  • Control (BUP), (n = 12)

  • Treated (BUP+CAR), (n = 12)

Pain assessment was evaluated through the observation of video-recordings, which occurred a posteriori in single-blind conditions, by two investigators. Animals were randomly assigned in a 1:1 ratio by using a fair coin.

Experimental procedures

Surgery

All surgical equipment was provided by 2Biological Instruments, VA, Italy. Drugs were provided by veterinary pharmacies: Isofluorane-Vet isofluorane, Merial, Italy) Temgesic (buprenorphine, Indivior, UK) Imalgene (ketamine hydrochloride, Merial, Italy) Domitor® (medetomidine, Vétoquino, Finland) Rimadyl® (carprofen, Pfizer, Italy) and Amplital® (ampicillin, Pfizer, Italy).

Pre-surgical preparation: Each researcher wore disposable clothes, gloves, footwear, surgical mask and a hair cover.

The operating table and heating pad were disinfected with TEGO 51, an aqueous mixture of amphoteric amines. The mouse skin was disinfected with chlorhexidine gluconate 4%, before surgery. The surgical tools were autoclaved.

Ampicillin 50 mg/kg was injected s.c. 5 minutes before surgery and for the subsequent 4 days, as modified protocol based on our previous study [1].

Surgery: Anaesthesia and SCI Before surgery, animals received one s.c. injection of ampicillin (50 mg/kg) and analgesic treatment as described above and in Fig 1 (BUP or BUP+CAR). Surgical procedure was carried out in deep anaesthesia by isoflurane (3% in O2). After hair removal and disinfection, animals were placed on a Cunningham Spinal Cord Adaptor (Stoelting, Dublin, Ireland) and laminectomy of T12 vertebra was done to uncover the lumbar spinal cord. Trauma was induced using an aneurysm clip with a closing force of 60g (left in place for 1 min and then removed).

At the end of the procedure, animals underwent surgical suturing and treatments until complete recovery (body temperature control with heating pad until complete awakening after anaesthesia and 50 mg/kg of ampicillin plus rehydration every day for 4 days).

Spinal cord surgery-related behavioural evaluations: Locomotor performances analysis (BMS)

All treated mice were evaluated by testing hind limb locomotor performances using BMS once a week from day 7 to 28 Days Post Injury (DPI) (when animals started to recover partial mobility). The BMS is a 10-points scale (9 = normal locomotion; 0 = complete hind limb paralysis). Video acquisition of the locomotor performances (5 min) was performed by a ICD-49E camera (Ikegami) and the evaluation was carried out by two independent observers, blinded to the treatment. Individual hind limb scores were averaged for each animal group at each time point.

Acute surgical pain and wellness assessment: MBA, MGS, IRT

The cameras to assess MBA, MGS and IRT were two Sony Digital Handycam and a microbolometric high resolution infrared camera FLIR with A65, 640X512 pixel sensor.

Each recording session lasted about 30 minutes (3 minutes for the first IRT measurement, two consecutive videos, lasting 10 minutes each, for MBA and for MGS and again one IRT measurement lasting 3 minutes).

IRT was performed before any other manipulation, when the mouse arrived from the housing area (T0), and 30 minutes after (T30), when mouse completed the behavioural surveys exploring different environments. The fur in the region of interest was cut the day of the surgery and temperatures were recorded always between 10 a.m. and 1 p.m.

Three IRT images for each subject were stored and evaluated with Flir Tools and IRT Analyser software and the median of the max temperature values on the BAT and on the tail were extracted. To analyse thermoregulatory behaviour, only T30 values were used, in order to avoid possible confounding effect of anaesthesia at T0 in the day of surgery.

To assess behaviours indicating acute surgical pain and stress, each mouse was filmed in polycarbonate cages for analysis of predefined pain and stress specific indicators [24–25]. Pain severity was assessed via MBA scoring, encompassing the presence and the frequency of pain and stress specific signs [24].

According to Langford [25], the MGS was applied by evaluating the ear, eye, cheek, nose bulge and whisker Facial Action Units (FAU’s) [25]. An MGS score between 0 to 2 was assigned to quantify pain (whereby a score of 0 represents pain not present, 1 represents moderate pain and 2 represents severe pain).

Considering that the procedure of video recording does not cause any stress or suffering, we recorded all the animals used in the main study to have the maximum numerousness possible.

All assessments were performed by two observers, blind to the treatment, for a single blind control.

Euthanasia

For the main study-primary endpoints, animals were sacrificed according to the authorized method of transcardial perfusion after overdose of ketamine hydrochloride (150 mg/kg) and medetomidine (2 mg/kg) anaesthesia and were perfused with 40 ml of PBS, 0.1 mol / liter, pH 7.4, followed by 50 mL sodium 4% paraformaldehyde solution buffered with phosphate.

Organs were then collected and stored in formalin for histological analysis.

Histology

Histological analyses were performed in order to verify the status of the organs after surgery and the consequent paralysis of the hind limbs. Histological analyses allowed to eventually exclude those animals showing abnormal features not related to the procedure, thus verifying the quality of surgical procedure itself. The organs included in paraffin embedded blocks were liver, heart, lungs, kidneys, brain and spleen.

After fixation, sampling was performed in order to obtain representative paraffin embedded blocks of each organ. Three micrometer (3 μm) thin sections were cut and H&E staining was performed for all blocks. Trichromic Masson’s stain was performed on organ samples in order to evaluate tissue fibrosis. Digital images were obtained by acquiring slides with a digital scanner (Hamamatsu NanoZoomer-SQ, Japan). All organs were analysed in order to detect any histological abnormality, architectural or inflammatory.

Statistical analysis

The number of animals to be included was derived from power calculation for the major endpoint of the main study, which was the improvement of locomotor functions (BMS) of injured mice after different neurodegenerative treatments. In particular, a sample size of 12 animals per group is required to detect a difference of 3 in BMS with a standard deviation (SD) of 3.3 and a correlation of 0.5 between matched pairs, with a significance level of 0.05 and a power of 0.80.

A non-parametric approach was used to statistically describe and formally test animal data. Specifically, covariate distributions, treatment characteristics and outcomes were summarized using non-parametric descriptive statistics (median and range for ordinal and continuous variables, and absolute and percentage frequencies for categorical variables). In case of respectively paired and unpaired data, Wilcoxon signed-rank test and Wilcoxon rank-sum test were used to formally detect difference between groups. The Friedman test was used to formally detect differences between groups across repeated measures. Statistical analysis was generated using SAS/STAT software, version 9.4 of the SAS system for Windows. Range plots with capped spikes were generated using Stata Software, version 15.1 (StataCorp. 2017. College Station, TX: StataCorp LLC).

Results

Complete raw data are available in Supporting Information files: S1 and S2 Files.

Spinal cord surgery-related behavioural evaluations

Locomotor performances analysis (BMS)

STEP-1: Twelve mice underwent SCI and one was found dead 48 hours after surgery. A physiological recovery up to median 2.0 BMS score at 28 DPI (range: 2–3) was detected after an initial complete paraplegia corresponding to a BMS score of 0, which was verified for all animals included in the study (Fig 2A).

Fig 2.

Fig 2

Open in a new tab

Locomotor performance (BMS) results in mice undergoing SCI in STEP-1 (A) and STEP-2 experiments (B). Assessments were undertaken at 7, 14, 21 and 28 DPI. Time course of twitching activity in STEP-1 (C) and STEP-2 (D) experiments. This sign of pain increased during the day of surgery in both settings, but in BUP treated animals of STEP-2 experiment, it statistically increased with respect to BUP+CAR group (p = 0.001).

STEP-2: Twenty-four mice (twelve per group) underwent SCI. Three mice that received BUP alone were euthanized on welfare grounds; the first at 24 hours after surgery, another after 48 hours and the third on day 14. One BUP+CAR treated mouse completed 21 days of behavioural testing but was found dead on day 26. BMS score confirmed the physiological recovery up to median 2.0 BMS score at 28 DPI (range: 2–3) in both mice treated with BUP and BUP+CAR (median: 2.0; range: 1–3). No statistically significant difference was detected between arms (p-value, Friedman test: 0.757), suggesting that the alternative analgesic protocol does not affect the quality of the experimental procedure (Fig 2B).

Manual Behaviour Analysis (MBA)

In both STEP 1 and 2, the only sign detectable among behaviours associated with suffering [24] was twitching (an intense short-lasting muscle spasm), no abdominal writhing, nor back-arching or staggering were observable. Among the typical rodent behaviours, only grooming (a series of behaviours like paw licking followed by face washing, head scratching, etc), digging and normal cage exploration were present. It should be noted that SCI procedure completely paralyzes hind limbs, therefore many behaviours, including some indicating distress, were impossible to perform by the animals.

STEP-1. Twitching behaviour was not apparent before SCI but significantly increased relative to baseline during the first 24 hours after surgery. The median scores on the day of surgery and 24 hours later were, respectively, 8.0 events/10 minutes (range: 4–19, p = 0.001) and 1.0 events/10 minutes (range: 0–3, p = 0.008) (Fig 2C).

Twitching seems to be specifically associated with acute pain in the thoracic area, both ventral and dorsal, in small laboratory rodents. This behaviour has been observed in rats [1] after thoracotomy and in mice during this SCI study. Moreover, it was observed that signs of well-being such as grooming, digging and normal cage exploration, found in healthy animals, were greatly reduced during the 24 hours post-operation and they resumed normal frequencies in the following weeks.

STEP-2. Overall, multimodal analgesia (BUP+CAR) was significantly more effective than BUP alone in reducing twitching frequency (Friedman test; p<0.001), especially immediately post-surgery [median BUP 7.5 events/10 minutes, (range: 0–23) vs. BUP+CAR 1.0 events/10 minutes, (range: 0–5; p = 0.001)], thus suggesting that combination of BUP+CAR in this surgical model is more effective in reducing acute pain than only BUP (Fig 2D).

As in STEP-1, also grooming and digging were reduced during the first 24 hours after surgery, but not significant difference was found between the two groups of analgesic treatments. Mice thereafter regained and maintained normal digging and grooming.

Mouse Grimace Scale (MGS)

STEP-1: Among the MGS components analysed (eyes, cheeks, whiskers and nose), the most indicative of suffering was the ear position, as seen in other species like laboratory rabbit [26]. On the base of the ears position, pain is reflected by a pulling apart and back of the ears from baseline position. Before surgery, animals showed baseline ear position with a pain score of 0, but during the first 24 hours after surgery the ears became flattened to the skull, with the apex turned caudally [median: 1.25 (range: 0.5–2, p = 0.001) the day of surgery, median: 1.5 (range: 0.5–2, p = 0.001) the day after surgery]. Over the subsequent weeks the ears resumed a partially normal position but never fully recovered (i.e. completely erect) (Fig 3A).

Fig 3. Pain score based on ear position according to MGS method.

Fig 3

Open in a new tab

A: STEP-1, score increased during the day of surgery until 24 hours later and decreased to 0 one week later. B: STEP-2, BUP+CAR treatment statistically decreased pain score 24 hours after surgery. As in STEP-1, score returned to baseline value after one week. Example of ear position in the mouse C: BUP treated animals 24 hours after surgery, D: BUP+CAR treated animals 24 hours after surgery.

STEP-2: Overall, BUP+CAR treatment was more effective than BUP alone in reducing pain according to ear position score (p-value, Friedman test: <0.001). There was a significant difference between BUP and BUP+CAR groups on both the day of surgery [median: 2.0 (range: 1–2) in the BUP group vs median: 1.5 (range: 0.5–2) in BUP+CAR group, p = 0.021)], and on the day after surgery; in this latter case, mice in the BUP+CAR group showed a more rapid recovery respect to BUP treated animals, [median: 2.0 (range: 0.5–2) in BUP group vs median: 0.5 (range: 0–1) in BUP+CAR group, p = 0.002] (Fig 3B, 3C and 3D).

IRT

Although IRT recordings were performed on both the tail and BAT, the tail data were not included as they were found to be highly variable. This was possibly a metabolic consequence of SCI; affecting the entire caudal section of the mouse. By contrast, results from the BAT area were consistent and reproducible and allowed us to describe the thermoregulatory response to surgery.

STEP-1: Baseline temperatures in the brown adipose tissue (BAT) area were lower than subsequently recorded. The difference was statistically significant at 24 hours after surgery both respect to baseline [median: 32.6°C 24 hours after surgery (range:31.3–34.3) vs. 30.8°C (range: 29.4-31-4) in the baseline, p = 0.001] and to the day of surgery [median: 32.6°C (range:31.3–34.3) 24 hours after surgery vs median: 31.2°C (range: 29.2–32.6) in the day of surgery, p = 0.005]. Temperatures constantly increased until the day 7, and then slowly decreased (Fig 4A).

Fig 4. IRT measurements.

Fig 4

Open in a new tab

Upper panel left: In STEP-1 (A), at the baseline, the temperatures recorded in the BAT area were lower than those recorded in the day of surgery and in the following days. In the STEP-2 experiments (B), BUP+CAR treated group showed temperatures statistically lower than in the BUP group. Upper panel right: example of infrared images obtained, the hottest region in red is the BAT area of the mouse. Lower panel: sequence of infrared images of a mouse from baseline (upper left) to day 21 (lower right). The highest temperature were recorded on day seven (middle right).

Low values were documented in the surgery day even if these data were detected with no fur, as the area was shaved immediately before surgery.

STEP-2: In the BUP treated animals, we confirmed the temperature trend observed in STEP-1, despite the absolute temperature values were different. In the BUP+CAR treated group, temperatures were systematically and statistically lower than in the BUP group (p-value, Friedman test: 0.011). Maximum difference was observed at day 14 [median: 36.4°C (range: 33.2–40.4) in BUP+CAR vs median: 39.9°C (range: 33.1–40.4) in BUP] (Fig 4B).

Histology

Histological analysis showed typical alterations of the model but not obvious signs of failure, confirming the correct execution of the surgical procedure. No experimental subject was therefore excluded for abnormality related to histological findings. All organs displayed normal architecture except for some alterations such as vascular damage and hypoxia of the liver, likely due to surgical-induced paralysis of hind limbs. Fibrosis was specifically evaluated using Masson’s trichromic stain, but no alterations were found in any treatment group. Presence of inflammatory cells was found in some samples, but none of these results were pathologically significant. Rare lymphocytes infiltrates were dispersed in liver parenchyma without statistically differences between the two groups.

Discussion

The main goal of this project was to apply a Refinement and Reduction approach to a mouse model of SCI, which is still essential for rehabilitation research, with the aim of improving the standard of animal models used in rehabilitation medicine. This was achieved through three main interventions: the first was to use mice already scheduled for studies on SCI, without recruiting animals on purpose (Reduction). The second intervention was to verify the actual level of stress and suffering experienced by mice undergoing SCI when treated with the commonly used analgesic drug (buprenorphine) and, consequently, to test if the recommended association between opioid and NSAID could improve analgesia after SCI surgical procedure (Refinement). The third intervention was to test a potential new Refinement method (IRT) already used in rat and rabbit but not yet in laboratory mice.

Regarding the first point, that is studying and improving Refinement in animals already scheduled for experimental procedures, we hope that this work will encourage investigators to do likewise, filming behaviours as routine during experiments. This will allow researchers to detect and avoid possible bias caused by pain and stress, thus improving the quality of experimental data.

The second issue was pain and analgesia. The problem of pain has a remarkable impact in refining animal models and several studies performed on laboratory animals demonstrated that pain is associated with profound changes in the physiology of the immune and nervous systems and in gene expression [27–29]. At present, buprenorphine is commonly used for experimental SCI procedure, nevertheless observations made in STEP-1 experiments showed unexpected signs of suffering in our animals. We verified that the recommended treatment [5] with a combination of opioids and NSAID, the BUP+CAR treatment, was more effective than the opioid alone in decreasing surgical acute pain. Therefore, this type of analgesia could be considered for SCI surgery in all those settings where the use of NSAID does not create drug-related confounding effects.

Another important observation was the presence of twitching when there was pain in the thoracic area, a finding already noted in our last work [1], suggesting that the anatomical site of injury might affect different suffering behaviours. There is therefore the need of assessing specific pain and stress signs for every in vivo procedure and there is the need of a precise quantification and management of pain.

Finally, IRT can be considered a new refinement tool being a not invasive methods to measure animal temperature, particularly useful when rectal probe cannot be used, as in the case of SCI.

Thermoregulation is a very important physiological and metabolic parameter [11–13] that should be taken into account in every experimental model. IRT allows a rapid assessment, over only a 3 minute recording period, thus further reducing animal stress. To our knowledge this is the first work providing a description of mice thermoregulatory response after SCI surgery using the IRT technology, and showing a possible correlation between thermography and pain. In fact, we could describe the temperature trend during the first week after surgery and we could observe that BAT temperatures of BUP+CAR treated mice were systematically and statistically lower than in the BUP group. We cannot clarify whether this temperature decrease in BUP+CAR group was due to an anti-inflammatory effect of the NSAID component of the multimodal analgesia or to another reason since, in order not to interfere with the main study procedures, we could not perform biochemical measurements, nevertheless this is an issue which deserves to be deepened in future studies.

Study limitation

There are some study limitations: the monitoring methods were designed to have no impact on the primary study outcomes, therefore, during the three weeks of the study it was not possible to withdraw blood to measure pain-related peptides levels or inflammatory parameters. Also nesting-score was not possible since the particular type of surgery wound required ready-to-use nest enrichment. Nevertheless, all the observations made in the Refinement study might have an impact also for the primary study, therefore, indirectly, for translational outcome. Moreover, because of the posterior limbs paralysis, we have excluded from the analysis various behaviour associated with pain, such as ‘cat like’ back arch, writhing and stagger/fall. For the same reason, some welfare signals, typical of well-being or post-operative recovery of activities, such as jumping or rearing, could not be included in our analysis.

Conclusion

Biomedical research aimed to patient rehabilitation needs solid experimental models. It is urgent to verify and quantify stress and hyperalgesia in laboratory animals since, from their metabolic response in experimental models of human pathologies, we may collect results useful for switching from bench to bedside. In this regard, this work provides interesting information. It offers a description of pain assessment in mice subjected to SCI; it compares two different analgesic strategies, identifying the most effective one and it describes mice thermoregulatory response after SCI surgery using the IRT technology, showing a possible correlation between thermography and pain. Finally, it applies a Reduction strategy to the study design, thus achieving the purpose of applying the Reduction/Refinement principle to an in vivo study.

Supporting information

S1 File. Step1 rawData pdf file includes the complete database of the step 1 study (animals treated with BUP analgesia only).

(PDF)

Click here for additional data file. (532.5KB, pdf)
S2 File. Step2 rawData pdf file includes the complete database of the step 2 study (animals treated with BUP vs BUP+CAR analgesia).

(PDF)

Click here for additional data file. (581.5KB, pdf)

Acknowledgments

Authors are grateful to Dr. Pietro Cipresso, Dr. Juan Eugenio Ochoa and Dr. Lidia Cova for their precious suggestions.

Data Availability

All relevant data are within the paper and its Supporting Information files.

Funding Statement

The authors received no specific funding for this work.

Reference

  • 1.Ciuffreda MC, Tolva V, Casana R, Gnecchi M, Vanoli E, Spazzolini C, et al. Rat experimental model of myocardial ischemia/reperfusion injury: An ethical approach to set up the analgesic management of acute post-surgical pain. PLoS One. 2014;9(4):e95913 10.1371/journal.pone.0095913 [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 2.World Health Organization. Spinal cord injury [Internet]. 2013. http://www.who.int/news-room/fact-sheets/detail/spinal-cord-injury
  • 3.Balcombe JP, Barnard ND, Sandusky C. Laboratory routines cause animal stress. Contemp Top Lab Anim Sci. 2004;43(6):42–51. [PubMed] [Google Scholar]
  • 4.Lofgren J, Miller AL, Lee CCS, Bradshaw C, Flecknell P, Roughan J. Analgesics promote welfare and sustain tumour growth in orthotopic 4T1 and B16 mouse cancer models. Lab Anim. 2018;52(4):351–64. 10.1177/0023677217739934 [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 5.Musterman M (University of BC. Rat and mouse anasthesia and analgesia formulary and general drug information. 2016;1–14. https://animalcare.ubc.ca/sites/default/files/documents/Guideline-Rodent%20Anesthesia%20Analgesia%20Formulary%282016%29.pdf
  • 6.Forgione N, Chamankhah M, Fehlings MG. A Mouse Model of Bilateral Cervical Contusion-Compression Spinal Cord Injury. J Neurotrauma. 2016;34(6):1227–39. [DOI] [PubMed] [Google Scholar]
  • 7.Brommer B, Engel O, Kopp MA, Watzlawick R, Müller S, Prüss H, et al. Spinal cord injury-induced immune deficiency syndrome enhances infection susceptibility dependent on lesion level. Brain. 2016;139(3):692–707. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 8.Prüss H, Tedeschi A, Thiriot A, Lynch L, Loughhead SM, Stutte S, et al. Spinal cord injury-induced immunodeficiency is mediated by a sympathetic-neuroendocrine adrenal reflex. Nat Neurosci. 2017;20(11):1549–59. 10.1038/nn.4643 [DOI] [PubMed] [Google Scholar]
  • 9.Yang L, Ge D, Chen X, Jiang C, Zheng S. MiRNA-544a regulates the inflammation of spinal cord injury by inhibiting the expression of NEUROD4. Cell Physiol Biochem. 2018;51(4):1921–31. 10.1159/000495717 [DOI] [PubMed] [Google Scholar]
  • 10.Saini V, Loers G, Kaur G, Schachner M, Jakovcevski I. Impact of neural cell adhesion molecule deletion on regeneration after mouse spinal cord injury. Eur J Neurosci. 2016;44(1):1734–46. 10.1111/ejn.13271 [DOI] [PubMed] [Google Scholar]
  • 11.Lee P, Ho KKY, Lee P, Greenfield JR, Ho KKY, Greenfield JR. Hot fat in a cool man: Infrared thermography and brown adipose tissue. Diabetes, Obes Metab. 2011;13(1):92–3. [DOI] [PubMed] [Google Scholar]
  • 12.Society of Nuclear Medicine (1953-) J, Knowles S, Taschereau R, Chatziioannou A, Stout D. Murine brown fat metabolism measured by infrared thermography correlates with PET FDG uptake [Internet]. Vol. 54, Journal of Nuclear Medicine. Society of Nuclear Medicine; 2013 May [cited 2019 Jul 23]. http://jnm.snmjournals.org/cgi/content/short/54/supplement_2/1120
  • 13.Ferreira V, Francisco N, Belloni M, Aguirre G, Caldara F, Nääs I, et al. Infrared thermography applied to the evaluation of metabolic heat loss of chicks fed with different energy densities. Rev Bras Ciência Avícola. 2011;13(2):113–8. [Google Scholar]
  • 14.Su TY, Ho WT, Chiang SC, Lu CY, Chiang HK, Chang SW. Infrared thermography in the evaluation of meibomian gland dysfunction. J Formos Med Assoc [Internet]. 2017;116(7):554–9. 10.1016/j.jfma.2016.09.012 [DOI] [PubMed] [Google Scholar]
  • 15.Rekant SI. Veterinary applications of infrared thermography. Am J Vet Res. 2016;77(1):98–107. 10.2460/ajvr.77.1.98 [DOI] [PubMed] [Google Scholar]
  • 16.Vianna D.M.L. and Carrive P. Changes in cutaneous and body temperature during and after conditioned fear to context in the rat. Proc Aust Neurosci Soc. 2005;21:2505–2512. [DOI] [PubMed] [Google Scholar]
  • 17.Ludwig N, Gargano M, Luzi F, Carenzi C, Verga M. Technical note: Applicability of infrared thermography as a non invasive measurement of stress in rabbit. World Rabbit Sci. 2007;15(4):199–205. [Google Scholar]
  • 18.Fornasier M., Redaelli V., Tarantino A., Luzi F. VM. Infrared thermography (IRT) in nude mice: an alternative method for body temperature measurement. In: Atti Scand FELASA 2010, Helsinki, June 14–17, 2010. 2010.
  • 19.Vianna D.M.L. and Carrive P. Changes in cutaneous and body temperature during and after conditioned fear to context in the rat. Eur J Neurosci. 2005;21:2505–12. 10.1111/j.1460-9568.2005.04073.x [DOI] [PubMed] [Google Scholar]
  • 20.Kilkenny C, Browne WJ, Cuthill IC, Emerson M, Altman DG. The ARRIVE guidelines Animal Research: Reporting In Vivo Experiments. 2010;(June):1–2. [Google Scholar]
  • 21.Kilkenny C, Browne WJ, Cuthill IC, Emerson M, Altman and DG. The ARRIVE Guidelines Checklist. https://www.nc3rs.org.uk/arrive-guidelines [Internet]. 2010; https://www.nc3rs.org.uk/sites/default/files/documents/Guidelines/NC3Rs%20ARRIVE%20Guidelines%20Checklist%28fillable%29.pdf
  • 22.Stokes EL, Flecknell PA, Richardson CA. Reported analgesic and anaesthetic administration to rodents undergoing experimental surgical procedures. Lab Anim. 2009;43(2):149–54. 10.1258/la.2008.008020 [DOI] [PubMed] [Google Scholar]
  • 23.Basso DM, Fisher LC, Anderson AJ, Jakeman LB, McTigue DM, Popovich PG. Basso Mouse Scale for locomotion detects differences in recovery after spinal cord injury in five common mouse strains. J Neurotrauma. 2006;23(5):635–59. 10.1089/neu.2006.23.635 [DOI] [PubMed] [Google Scholar]
  • 24.Roughan J V., Flecknell PA. Behavioural effects of laparotomy and analgesic effects of ketoprofen and carprofen in rats. Pain. 2001;90(1–2):65–74. 10.1016/s0304-3959(00)00387-0 [DOI] [PubMed] [Google Scholar]
  • 25.Langford DJ, Bailey AL, Chanda ML, Clarke SE, Drummond TE, Echols S, et al. Coding of facial expressions of pain in the laboratory mouse. Nat Methods. 2010;7(6):447–9. 10.1038/nmeth.1455 [DOI] [PubMed] [Google Scholar]
  • 26.Keating SCJ, Thomas AA, Flecknell PA, Leach MC. Evaluation of EMLA Cream for Preventing Pain during Tattooing of Rabbits: Changes in Physiological, Behavioural and Facial Expression Responses. PLoS One. 2012;7(9):e44437 10.1371/journal.pone.0044437 [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 27.Ren K, Dubner R. Interactions between the immune and nervous systems in pain. Nat Med [Internet]. 2010;16(11):1267–76. http://www.ncbi.nlm.nih.gov/pubmed/20948535 10.1038/nm.2234 [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 28.Wang H, Sun H, Della Penna K, Benz RJ, Xu J, Gerhold DL, et al. Chronic neuropathic pain is accompanied by global changes in gene expression and shares pathobiology with neurodegenerative diseases. Neuroscience. 2002;114(3):529–46. 10.1016/s0306-4522(02)00341-x [DOI] [PubMed] [Google Scholar]
  • 29.Gemes G., Rigaud M. Dean C., Hopp F.A., Hogan Q.H., Seagard J. Baroreceptor Reflex is Suppressed in Rats that Develop Hyperalgesia Behavior after Nerve Injury. Pain 2009. December; 146(3):293–300. 10.1016/j.pain.2009.07.040 [DOI] [PMC free article] [PubMed] [Google Scholar]

Decision Letter 0

Chang-Qing Gao

2 Sep 2019

PONE-D-19-20984

A Refinement approach in a mouse model of rehabilitation research.

PLOS ONE

Dear PhD Calvillo*,

Thank you for submitting your manuscript to PLOS ONE. After careful consideration, we feel that it has merit but does not fully meet PLOS ONE’s publication criteria as it currently stands. Therefore, we invite you to submit a revised version of the manuscript that addresses the points raised by the reviewer during the review process.

We would appreciate receiving your revised manuscript by Oct 17 2019 11:59PM. When you are ready to submit your revision, log on to https://www.editorialmanager.com/pone/ and select the 'Submissions Needing Revision' folder to locate your manuscript file.

If you would like to make changes to your financial disclosure, please include your updated statement in your cover letter.

To enhance the reproducibility of your results, we recommend that if applicable you deposit your laboratory protocols in protocols.io, where a protocol can be assigned its own identifier (DOI) such that it can be cited independently in the future. For instructions see: http://journals.plos.org/plosone/s/submission-guidelines#loc-laboratory-protocols

Please include the following items when submitting your revised manuscript:

  • A rebuttal letter that responds to each point raised by the academic editor and reviewer(s). This letter should be uploaded as separate file and labeled 'Response to Reviewers'.

  • A marked-up copy of your manuscript that highlights changes made to the original version. This file should be uploaded as separate file and labeled 'Revised Manuscript with Track Changes'.

  • An unmarked version of your revised paper without tracked changes. This file should be uploaded as separate file and labeled 'Manuscript'.

Please note while forming your response, if your article is accepted, you may have the opportunity to make the peer review history publicly available. The record will include editor decision letters (with reviews) and your responses to reviewer comments. If eligible, we will contact you to opt in or out.

We look forward to receiving your revised manuscript.

Kind regards,

Chang-Qing Gao

Academic Editor

PLOS ONE

Journal Requirements:

When submitting your revision, we need you to address these additional requirements.

Please ensure that your manuscript meets PLOS ONE's style requirements, including those for file naming. The PLOS ONE style templates can be found at

http://www.journals.plos.org/plosone/s/file?id=wjVg/PLOSOne_formatting_sample_main_body.pdf and http://www.journals.plos.org/plosone/s/file?id=ba62/PLOSOne_formatting_sample_title_authors_affiliations.pdf

1. Please amend either the title on the online submission form (via Edit Submission) or the title in the manuscript so that they are identical.

[Note: HTML markup is below. Please do not edit.]

Reviewers' comments:

Reviewer's Responses to Questions

Comments to the Author

1. Is the manuscript technically sound, and do the data support the conclusions?

The manuscript must describe a technically sound piece of scientific research with data that supports the conclusions. Experiments must have been conducted rigorously, with appropriate controls, replication, and sample sizes. The conclusions must be drawn appropriately based on the data presented.

Reviewer #1: Yes

**********

2. Has the statistical analysis been performed appropriately and rigorously?

Reviewer #1: Yes

**********

3. Have the authors made all data underlying the findings in their manuscript fully available?

The PLOS Data policy requires authors to make all data underlying the findings described in their manuscript fully available without restriction, with rare exception (please refer to the Data Availability Statement in the manuscript PDF file). The data should be provided as part of the manuscript or its supporting information, or deposited to a public repository. For example, in addition to summary statistics, the data points behind means, medians and variance measures should be available. If there are restrictions on publicly sharing data—e.g. participant privacy or use of data from a third party—those must be specified.

Reviewer #1: No

**********

4. Is the manuscript presented in an intelligible fashion and written in standard English?

PLOS ONE does not copyedit accepted manuscripts, so the language in submitted articles must be clear, correct, and unambiguous. Any typographical or grammatical errors should be corrected at revision, so please note any specific errors here.

Reviewer #1: Yes

**********

5. Review Comments to the Author

Please use the space provided to explain your answers to the questions above. You may also include additional comments for the author, including concerns about dual publication, research ethics, or publication ethics. (Please upload your review as an attachment if it exceeds 20,000 characters)

Reviewer #1: 1) I do not see where data from experiments are being made available in supplementary information.

2) Additional information needed under "Husbandry" section": age and sex of mice studied (if only male, need to justify why sex was not considered as a variable), single or co-housed, pathogen status

3) Experimental designs between Step1 and Step2 are not perfectly comparable: timing of buprenophrine admin was 15 min before procedure in Step1, 15 after procedure in Step2...all are conditions same (except opioid treatment as variable). Need to explain and justify why this difference in admin times for buprenorphine between experiments.

4) Video-recordings are a good supplement to assessment of pain, but other observations, such as heart rate, respiratory rate, vocalization, which all are altered in response to pain, cannot be assessed by videorecording. Therefore, authors should explain and justify why these primary observations were not part of the study, and/or why they feel that they are insufficient alone or can be replaced by observations made by videorecording.

5) Experimental design: there is no non-surgical control, which I can understand since the intention of the experiment was not to assess they surgery, but to assess two different pain relief protocols after surgery.

6) I do not understand how this is a double-blinded study. The observers were blind to the treatment, which makes this a single blinded study. But what other parameter were the observers blinded to in order to determine that this was double blinded?

7) Please indicate who is the authorizing "authority" for the method of euthanasia.

8) Twitching can be considered a spinal reflex that does not require conscious perception. Therefore, the authors should address whether carprofen could impact a spinal reflex directly without having an impact on conscious perception of pain. On the other hand, the grimace test is a far more direct indicator of conscious pain which was shown experimentally to be impacted by opioid treatment.

9) Temperature values were reported different between the two groups of mice receiving buprenorphine in Step1 and Step2 experiments. If this difference was spurious, why are not the other differences (between buprenorphine alone and with carprofen) also spurious?

10) Figures are of very low quality and very difficult to read or understand.

**********

6. PLOS authors have the option to publish the peer review history of their article (what does this mean?). If published, this will include your full peer review and any attached files.

If you choose “no”, your identity will remain anonymous but your review may still be made public.

Do you want your identity to be public for this peer review? For information about this choice, including consent withdrawal, please see our Privacy Policy.

Reviewer #1: No

[NOTE: If reviewer comments were submitted as an attachment file, they will be attached to this email and accessible via the submission site. Please log into your account, locate the manuscript record, and check for the action link "View Attachments". If this link does not appear, there are no attachment files to be viewed.]

While revising your submission, please upload your figure files to the Preflight Analysis and Conversion Engine (PACE) digital diagnostic tool, https://pacev2.apexcovantage.com/. PACE helps ensure that figures meet PLOS requirements. To use PACE, you must first register as a user. Registration is free. Then, login and navigate to the UPLOAD tab, where you will find detailed instructions on how to use the tool. If you encounter any issues or have any questions when using PACE, please email us at figures@plos.org. Please note that Supporting Information files do not need this step.

PLoS One. 2019 Oct 30;14(10):e0224337. doi: 10.1371/journal.pone.0224337.r002

Author response to Decision Letter 0

8 Oct 2019

1. Is the manuscript technically sound, and do the data support the conclusions?

The manuscript must describe a technically sound piece of scientific research with data that supports the conclusions. Experiments must have been conducted rigorously, with appropriate controls, replication, and sample sizes. The conclusions must be drawn appropriately based on the data presented.

Reviewer #1: Yes

We thank the Reviewer for this recognition

2. Has the statistical analysis been performed appropriately and rigorously?

Reviewer #1: Yes

Again, thank you for the acknowledgement

3. Have the authors made all data underlying the findings in their manuscript fully available?

The PLOS Data policy requires authors to make all data underlying the findings described in their manuscript fully available without restriction, with rare exception (please refer to the Data Availability Statement in the manuscript PDF file). The data should be provided as part of the manuscript or its supporting information, or deposited to a public repository. For example, in addition to summary statistics, the data points behind means, medians and variance measures should be available. If there are restrictions on publicly sharing data—e.g. participant privacy or use of data from a third party—those must be specified.

Reviewer #1: No

We thank the Reviewer for bringing this to our attention A Supplement file with supporting information is now available. A complete raw data file is now provided.

4. Is the manuscript presented in an intelligible fashion and written in standard English?

PLOS ONE does not copyedit accepted manuscripts, so the language in submitted articles must be clear, correct, and unambiguous. Any typographical or grammatical errors should be corrected at revision, so please note any specific errors here.

Reviewer #1: Yes

Thank you for your approval

5. Review Comments to the Author

Please use the space provided to explain your answers to the questions above. You may also include additional comments for the author, including concerns about dual publication, research ethics, or publication ethics. (Please upload your review as an attachment if it exceeds 20,000 characters)

Reviewer #1:

1) I do not see where data from experiments are being made available in supplementary information.

Thank you for bringing this inaccuracy to our attention. A Supplement file with supporting information is now available, in particular the complete raw data file is now provided.

2) Additional information needed under "Husbandry" section": age and sex of mice studied (if only male, need to justify why sex was not considered as a variable), single or co-housed, pathogen status.

Again thank you for the comment. We used males mice (averaged weight 25 gr, which correspond to about 2 months of age) to avoid possible hormonal interferences, thus preventing potential bias in our results. Two mice for cage were housed after surgery and animal facility is classified as SPF (specific pathogen free). These data are now included in the manuscript

3) Experimental designs between Step1 and Step2 are not perfectly comparable: timing of buprenophrine admin was 15 min before procedure in Step1, 15 after procedure in Step2...all are conditions same (except opioid treatment as variable). Need to explain and justify why this difference in admin times for buprenorphine between experiments.

Thank you for your note. STEP-1 timing of BUP administration represents the most common analgesic treatment for Spinal Cord Injury Model and, being administered before surgery, ensures the best possible analgesic effectiveness. One of our aims was to find an even more effective analgesic strategy with fewer side effects, therefore we wanted to combine the advantage of having analgesic efficacy due to pre surgical administration, with the advantage of not risking a possible respiratory depression, always possible when administering together anesthetics and opioids. Therefore, in step 2 we decided to perform carprofen pre-treatment to maintain analgesic effectiveness and to use buprenorphine right after surgery to avoid too much stress with two injections for the awaken animals before surgery. Moreover, in this way we avoided possible buprenorphine related respiratory depression during anaesthesia.

4) Video-recordings are a good supplement to assessment of pain, but other observations, such as heart rate, respiratory rate, vocalization, which all are altered in response to pain, cannot be assessed by videorecording. Therefore, authors should explain and justify why these primary observations were not part of the study, and/or why they feel that they are insufficient alone or can be replaced by observations made by videorecording.

The Reviewer comment is very appropriate and highlights the issue of assessing pain in mice, which is one of the main goals of our group. Regarding heart rate and respiratory rate, according to our approach (which is not to interfere with main study endpoint) we did not measure the cardiovascular parameters. In fact, the main tools available for cardiovascular measurements are telemetry, ECGenie System or subcutaneous needle connected to a polygraph. The first was not possible because the device might affect locomotor parameters, in the second system, the drag of the legs due to the paralysis can interfere with the signal. The last procedure was again not possible since it would require anaesthesia, thus undermining the measurement. With regard to vocalization, mice are typically hunted animals and, respect to the rats, they more often neglect to show any vulnerability including vocalization.

5) Experimental design: there is no non-surgical control, which I can understand since the intention of the experiment was not to assess they surgery, but to assess two different pain relief protocols after surgery.

The comment is absolutely pertinent, nevertheless, in Spinal Cord Injury, the main endpoint is the evaluation of Basso Mouse Scale for locomotion assessment. This parameter is not affected by sham procedure, therefore, in order to Reduce the number of animals and to avoid unnecessary suffering, we decided to exclude this group.

6) I do not understand how this is a double-blinded study. The observers were blind to the treatment, which makes this a single blinded study. But what other parameter were the observers blinded to in order to determine that this was double blinded?

We thank the Reviewer for reporting this error, this is a single-blinded study. The text has been corrected accordingly

7) Please indicate who is the authorizing "authority" for the method of euthanasia.

The method of euthanasia was approved by Italian Ministry of Health (Permit Number 62/2014-PR) according to 26/2014 Italian Law on the protection of animals used for scientific purposes.

8) Twitching can be considered a spinal reflex that does not require conscious perception. Therefore, the authors should address whether carprofen could impact a spinal reflex directly without having an impact on conscious perception of pain. On the other hand, the grimace test is a far more direct indicator of conscious pain which was shown experimentally to be impacted by opioid treatment.

We thank the Reviewer for this important comment. The first description of twitching behaviour in the context of pain detection was by one of our co-authors (Roughan; Pain 2001, 90: 65-74). This activity was originally defined as “a transient, apparently involuntary muscle spasm”, it is not a true reflex. We agree that reflexive responses are probably less helpful in terms of pain evaluation than scales such as the MGS, but reflexes can be defined as “an action that is performed without conscious thought as a response to a stimulus”. Pain is a stimulus but is more appropriately defined as a state. In Roughan’s article twitching ‘behaviour’ occurred in rats in response to abdominal pain with a proportionately similar level of occurrence as other more complex behaviours such as back arching and writhing, but was absent in intact rats given a range of dose rates of carprofen. Twitching is more frequent and easier to recognise, consequently it can be provide a useful insight as to the underlying pain state and whether it has been ameliorated by analgesic treatment(s). It is therefore a helpful parameter for pain assessment, especially when combined other parameters as we have done here.

9) Temperature values were reported different between the two groups of mice receiving buprenorphine in Step1 and Step2 experiments. If this difference was spurious, why are not the other differences (between buprenorphine alone and with carprofen) also spurious?

We thank the Reviewer for this relevant comment which allows us to clarify an important point: Infrared Thermography is a particular technique which is influenced by several parameters including

- variations in microenvironment temperature

-possible fast over activity, typical of small rodents, occurred some minutes before the measurement

-normal and accepted variations in Animal Facility temperature (22±2°C, according to Italian Law Dlgs. 26/2014)

Therefore, we did not compare baselines from STEP-1 with those from STEP-2, but we completely repeated the measurement in order to have a better internal control (not only for IRT values but also for the other measurements, including those related to buprenorphine w/out carprofen analgesic effects). Accordingly, STEP-1 results indicated mice temperature trend respect to time. STEP-2 indicated both the trend and the difference between analgesic treatments. In conclusion, with this design we obtained two information: a description of mice thermoregulatory response after SCI surgery and a possible correlation between thermography and pain.

10) Figures are of very low quality and very difficult to read or understand.

We apologize for the inconvenience which is probably due to a problem generated by the system in the website, when converting tiff file to pdf file for revision. We asked Editors for support and they answered:

Reviewer can access high-resolution versions of each image in the PDF by clicking the blue link at the top of the page where the figure appears.

We verified that the link actually opens the Tiff figures. We hope that this will fix the problem
