Strategies among phytoplankton in response to alleviation of nutrient stress in a subtropical gyre

Abstract

Despite generally low primary productivity and diatom abundances in oligotrophic subtropical gyres, the North Atlantic Subtropical Gyre (NASG) exhibits significant diatom-driven carbon export on an annual basis. Subsurface pulses of nutrients likely fuel brief episodes of diatom growth, but the exact mechanisms utilized by diatoms in response to these nutrient injections remain understudied within near-natural settings. Here we simulated delivery of subsurface nutrients and compare the response among eukaryotic phytoplankton using a combination of physiological techniques and metatranscriptomics. We show that eukaryotic phytoplankton groups exhibit differing levels of transcriptional responsiveness and expression of orthologous genes in response to release from nutrient limitation. In particular, strategies for use of newly delivered nutrients are distinct among phytoplankton groups. Diatoms channel new nitrate to growth-related strategies while physiological measurements and gene expression patterns of other groups suggest alternative strategies. The gene expression patterns displayed here provide insights into the cellular mechanisms that underlie diatom subsistence during chronic nitrogen-depleted conditions and growth upon nutrient delivery that can enhance carbon export from the surface ocean.

Introduction

A defining characteristic of subtropical gyre ecosystems is low biological productivity, but as vast expanses that cover 40% of the Earth’s surface, these regions have a significant role in primary production and biogeochemical cycling [1]. The Sargasso Sea in the North Atlantic Subtropical Gyre (NASG) is one such region that has been extensively studied via the Bermuda Atlantic Time Series (BATS) [2]. Here, as in much of the low latitude oligotrophic ocean, nitrogen is often the limiting nutrient for phytoplankton growth with surface nitrate typically measured in nanomolar concentrations [3, 4].

Despite this pervasive nitrogen limitation, some estimates of net community production (NCP), i.e. carbon export potential, in the NASG are surprisingly high (>3.0 ± 1.0 mol C m⁻² year⁻¹) and similar to those in regions with a more regular supply of nutrients [5–7], although measured carbon export is only 43–77% of these NCP estimates [8, 9]. Export of organic matter in the NASG appears to have significant contributions from diatoms as evidenced by estimates that they can account for >30% of the annual particulate organic carbon export at BATS and by the presence of intact healthy diatom cells in the deep ocean [10–12]. In general, diatoms are anticipated to be substantial contributors to carbon export as a result of their heavy siliceous cell walls, but such high contributions to export are unexpected in the NASG given that diatoms are considered to be responsible for <5% of regional chlorophyll concentrations [2, 13].

Although diatoms are typically in low abundances, the historical record at BATS indicates that diatom blooms occur periodically [2, 14, 15]. As with the surprisingly high estimates of NCP, the mechanism for nutrient supply that would fuel such blooms remains unresolved [9]. Nitrogen (N₂) fixation by diazotrophs may introduce new nitrogen into the system, but the measured rates of N₂ fixation are much lower than needed to support NCP estimates [16–18]. New nitrogen can also be introduced via atmospheric deposition; however, these fluxes are also relatively low [19, 20]. Passage of winter storms is believed to cause entrainment of nitrate into the euphotic zone, but the most intense diatom blooms have been recorded in the late spring or summer suggesting that the two are not linked [2, 21].

Wind-induced vertical mixing has been shown to increase surface nitrate concentrations and fuel diatom blooms in the spring [15]. Other mechanisms of vertical supply such as eddy pumping and frontal features are also likely significant sources of nitrate [8, 22]. Estimates of these upward nitrate fluxes are calculated to be sufficient to support rates of primary production in the Sargasso Sea, and although these sources show seasonal variation, summertime upward fluxes are still observed [23]. Furthermore, isotopic signatures of small eukaryotic phytoplankton during the summertime indicate consumption of nitrate originating from the subsurface rather than a reliance on recycled nitrogen; therefore, a summertime supply of nitrate to fuel diatom growth is possible [5, 24].

Diatoms are believed to have superior abilities to take up and store nitrate, allowing them to outcompete other phytoplankton groups [12, 25–29]. Molecular studies on nitrogen limitation in diatoms have shown a transcriptional pattern among diatoms that consists of carbon metabolism restructuring and increased nitrogen recycling [30–33]; however, these studies have primarily focused on monocultures under laboratory conditions, particularly model organisms, which may not accurately represent the natural environment. Patterns in gene expression within a plankton community under near-natural conditions in an oligotrophic subtropical gyre have rarely been examined. Alexander et al. [34] showed there are transcriptional differences among phytoplankton groups, but these differences in expression of specific genes and metabolic pathways remain mostly uncharacterized.

To investigate unique strategies diatoms may be using for survival under oligotrophic conditions followed by rapid growth when nutrients are introduced and to compare these strategies to those of other eukaryotic phytoplankton groups, we artificially simulated delivery of subsurface nutrients by mixing near-surface seawater with filtered, nutrient-replete deep seawater (DSW) collected in the Sargasso Sea. Gene expression within each group was examined via comparative metatranscriptomics after 48 h of incubation. We substantiate that diatoms are highly transcriptionally responsive to such pulses from depth compared to other dominant phytoplankton groups and provide evidence that eukaryotic phytoplankton have differing strategies for nitrate use.

Materials and methods

Experimental design

DSW amendment experiments were conducted in the Sargasso Sea onboard the R/V Atlantic Explorer at 27°25.693′N 76°26.244′ W (Site 1) on August 7, 2016 and at 31° 58.821′N 74°56.514′W (Site 2) on August 10, 2016 (Fig. 1). At ~06:00 ADT (UTC-3) on both days, near-surface seawater (5 m) and DSW (600 m) were collected using 12 L Niskin bottles on a CTD rosette. Near-surface water was immediately transferred to 10 L Cubitainers® (Hedwin Corporation, Newark, DE, USA) and subsampled for the initial time point (T0). Cubitainers were cleaned prior to the incubations by soaking the inside walls in 1.2 mol L⁻¹ HCl for 3 days followed by three rinses with Milli-Q H₂O and a rinse with near-surface seawater. For the incubations, 5 L of unfiltered near-surface seawater was dispensed into all cubitainers. The remaining 5 L for each cubitainer was either filtered near-surface seawater or filtered DSW that was passed through a 0.2 µm/0.2 μm AcroPak 1000 that had been pre-rinsed with surface seawater. All incubations were conducted in triplicate.

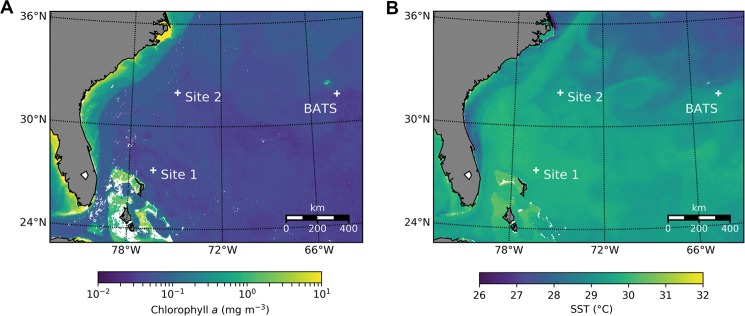

Fig. 1.

Map of locations for seawater collection with a satellite-derived chlorophyll a and b sea surface temperature (SST). Satellite data are 8-day averages centered on August 9, 2016 and obtained from the NOAA Coastwatch Browser. White areas indicate no data as a result of cloud cover

Cubitainers were incubated in an on-deck surface seawater flow-through system maintained at ambient surface temperatures and covered with neutral density screening to reduce irradiance to ~33% of the incident irradiance. Temperatures from inside the incubators and on-deck irradiance values are provided in Fig. S1. To prevent the ship’s deck lights from affecting the incubations, the incubators were covered with an opaque tarp after sunset until just before sunrise. After 48 h of incubation, subsamples from each cubitainer were collected for dissolved macronutrients, chlorophyll, nitrate uptake rates, and RNA. Additional materials and methods are available in the Supplementary Information.

RNA sequencing and analysis

Approximately 6.4 L from each cubitainer were filtered using a peristaltic pump onto 0.8 µm Pall Supor® polyethersulfone filters (142 mm), which were immediately flash frozen in liquid nitrogen then stored at −80 °C. RNA was extracted using the ToTALLY RNA Total RNA Isolation Kit and then treated with DNase 1 (Life Technologies, Grand Island, NY, USA). The extraction procedure followed the manufacturer’s instructions with an additional glass bead beating step first to assist with cell lysis. For the initial time point (T0), total RNA from triplicate filters were pooled into a single sample. Due to low RNA yields, RNA was linearly amplified using the MessageAmp™ Premier RNA Amplification Kit (Catalog no. AM1792, Invitrogen, Carlsbad, CA, USA). RNA quantity and purity were assessed prior to sequencing on an Agilent Bioanalyzer 2100. Library prep was then conducted with the KAPA Stranded mRNA-Seq kit for Illumina platforms then sequenced on two lanes on the Illumina HiSeq 2500 platform at the High-Throughput Sequencing Facility at the University of North Carolina at Chapel Hill. One lane was run in high output mode with 100 bp paired-end reads to generate more reads and the other was run in rapid run mode with 150 bp paired-end reads to generate longer reads. Triplicate samples were sequenced for both treatments from Site 1 whereas duplicates were sequenced from Site 2 (Dataset S1).

Reads were assembled de novo using Trinity v2.5.1 with the default options for quality trimming via trimmomatic [35, 36]. Contigs were clustered based on 99% similarity with CD-HIT-EST [37]. Taxonomic annotation of contigs was assigned by best homology (lowest E-value) to sequences in PhyloDB v1.076 [38] using BLASTX v2.7.1 (E-value ≤ 10⁻⁵). To assign gene function to contigs, the same methodology was used with the Kyoto Encyclopedia of Genes and Genomes (KEGG, Release 86) [39]. KEGG Ortholog (KO) annotations were assigned from the top hit with a KO annotation from the top 10 hits (https://github.com/ctberthiaume/keggannot).

Taxonomically annotated contigs were used to construct an index and trimmed reads were mapped using Salmon v0.9.1 with GC bias correction to generate transcripts per million (TPM) and read number estimates per contig [40]. TPM were used to quantify relative taxonomic proportions. To assess differential expression, read number estimates were summed based on KO number within each taxonomic group. For contigs with no KO number, read number estimates were summed by the KEGG gene definition. Normalized gene abundances, fold change values, and Benjamini–Hochberg adjusted P-values were calculated using DESeq2 v1.18.1 [41]. Genes were considered significantly differentially expressed if the adjusted p-value was <0.05.

Statistical analyses

Two-way ANOVAs followed by Tukey tests for multiple comparisons were performed on the biological and chemical properties of the seawater (non-gene expression data) in Graphpad PRISM v8.00.

Data deposition

The sequence data reported in this study have been deposited in the National Center for Biotechnology (NCBI) sequence read archive. RNA sequences are under the accession no. SRP172750 (Bioproject accession no. PRJNA508539), and rDNA sequence data are under the accession no. SRP126177 (Bioproject accession no. PRJNA421139). Assembled contigs, read counts, and annotations are available at Zenodo (10.5281/zenodo.2538206).

Results and discussion

Phytoplankton community responses to DSW amendments

Initial dissolved nitrate plus nitrite concentrations from the near surface seawater were 0.27 ± 0.27 µmol L⁻¹ at Site 1 and below the detection limit (<0.007 µmol L⁻¹) at Site 2 (Fig. 2). Relative to the other macronutrients, these low nitrate concentrations suggest that the initial phytoplankton communities were likely nitrogen limited as anticipated for the region [2]. Silicic acid concentrations are normally depleted to 0.5–1 µmol L⁻¹ at BATS; however, initial concentrations at both study sites were >3.5 µmol L⁻¹ further indicating that nitrate rather than silicic acid was limiting to diatom growth [42]. Dissolved iron concentrations were 1.42 nmol L⁻¹ at Site 1 and 1.21 nmol L⁻¹ suggesting that iron limitation or stress in the initial community was unlikely [43]. The initial chlorophyll a concentrations at both sites were low (0.04 ± 0.01 and 0.05 ± 0.00 for Sites 1 and 2, respectively) which were also anticipated for the region [8] and were further diluted by 50% with the filtered seawater additions (Fig. 3a). The majority of chlorophyll belonged to the large (>5 µm) size-fraction.

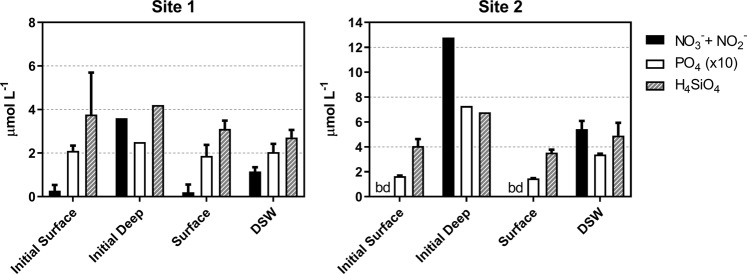

Fig. 2.

Macronutrient concentrations for the initial surface and deep seawater and following 48 h of incubation (surface and deep seawater [DSW] amendment treatments) at both experimental sites. Error bars represent the standard deviation of the mean (n = 3), except the initial deep seawater from 600 m where n = 1. bd below detection limit

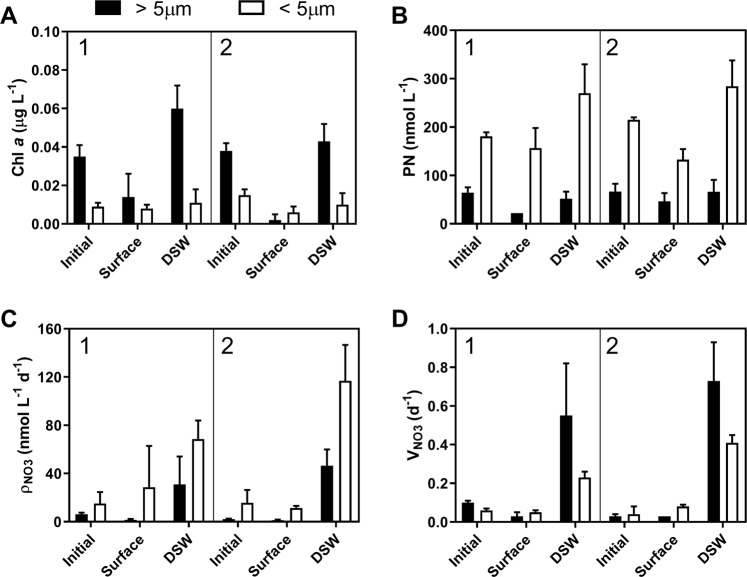

Fig. 3.

Biomass and NO₃ uptake measurements from the initial surface seawater and incubations following 48 h for the >5 µm (black) and <5 µm (white) phytoplankton community at sites 1 (left) and 2 (right): a Chlorophyll a (µg L⁻¹), b Particulate nitrogen (PN, nmol L⁻¹), c Absolute nitrate (NO₃⁻) uptake rates (ρ, NO₃⁻ taken up per day), d Biomass-specific nitrate uptake rates (V_NO3), i.e. nitrate uptake rates normalized to particulate nitrogen (nmol N L⁻¹ day⁻¹/nmol N L⁻¹ or day⁻¹). Error bars represent the standard deviation of the mean (n = 3)

DSW nitrate concentrations at both sites were likely much higher than would be anticipated for a pulse of new nitrogen even after dilution by 50% (Fig. 2) [3]. By averaging the initial nitrate concentrations from the seawater at both depths, estimates of the starting concentrations for the DSW treatment were 1.94 µmol L⁻¹ at Site 1 and 6.39 µmol L⁻¹ at Site 2. Addition of this filtered nutrient-rich DSW and incubating for 48 h resulted in a significant increase (P <0.0001) in chlorophyll from the large (>5 µm) size-fraction. In addition, particulate nitrogen in both size fractions increased albeit not always significantly (Fig. 3b). Interestingly although chlorophyll a concentrations were normally higher in the large size-fraction, particulate nitrogen and nitrate uptake rates were greater in the small size-fraction (<5 µm) (Fig. 3b, c).

Nitrate uptake was significantly higher within each size fraction in the DSW treatments apart from the small size fraction at Site 1. Due to the low initial nitrate concentrations at both sites in the initial seawater and surface treatments, the tracer addition of 0.1 µmol L^{−1 15}NO₃ to measure uptake may have alleviated some nitrate limitation; thus, these measurements are more reflective of a potential uptake rate rather than actual nitrate uptake [44]. This influence is apparent in comparisons to previous measurements during oligotrophic conditions (<1 nmol L⁻¹ day⁻¹) as rates in the initial or surface treatments were much higher in this study [3]. The measured rates from the DSW treatments, however, are similar when compared to those obtained during bloom periods (10–150 nmol L⁻¹ day⁻¹) [3].

Biomass-specific nitrate uptake rates (V_NO3) were also higher (P < 0.001 except in the <5 µm community at Site 1) in both size fractions in the DSW treatment with larger phytoplankton displaying significantly higher V_NO3 due to higher biomass (i.e., particulate nitrogen concentrations) in the small size fraction. Small eukaryotes have been shown to have an affinity for nitrate (>50% of N quota) while prokaryotic phytoplankton continue to mostly rely on regenerated forms of nitrogen. Although Synechococcus populations under similar conditions have shown a high affinity for nitrate [45], a significant proportion of the observed nitrate uptake in our experiments can likely be attributed to eukaryotic phytoplankton [5, 24, 46]. These results indicate that both large (>5 µm) and small (<5 µm) phytoplankton may have a preference or reliance on new forms of nitrogen with a potentially greater affinity for nitrate in larger cells.

Detrital material has been shown to account for 25% of the bulk particulate nitrogen under similar conditions [24], and thus, it could be elevating the particulate nitrogen measurements reducing V_NO3 in the smaller size fraction. However, nitrate uptake was also greater for smaller cells, indicating that the newly available dissolved nitrate must have been assimilated into particulate nitrogen. Some of the nitrate uptake in the small size fraction may be attributed to heterotrophic bacteria which can account for 15% of the bulk particulate nitrogen [24, 47, 48]. It is also possible that the small cells were more effectively grazed as is common in incubation experiments [49], and chlorophyll became uncoupled as particulate nitrogen may be shifted to small non-chlorophyll-containing particles, although grazing rates were likely significantly impacted by the 50% dilution [50]. Alternatively, this high level of nitrogen unmatched by chlorophyll could be explained by nitrogen storage. Evidence of nitrate storage has been reported across major eukaryotic phytoplankton lineages [51], and uptake of nitrate that is then stored rather than immediately utilized for growth would be consistent with the observation of nitrate uptake and increased particulate nitrogen unmatched by increases in chlorophyll.

Taxonomic composition

The relative abundance of TPM were examined to assess the changes in the taxonomic composition of the eukaryotic community following DSW amendment (Fig. 4). The initial communities’ transcript pools at both sites were dominated by dinoflagellates with increases in their relative proportions following 48 h of incubation in the surface treatment (Fig. S2). This relatively high dinoflagellate presence in the initial seawater is supported by V4-18S ribosomal DNA (rDNA) amplicon sequencing results (Dataset S2, Fig. S2). Dinoflagellates have previously been found to be a major constituent of the protistan community in the euphotic zone of the Sargasso Sea [52], and mixotrophic dinoflagellates are likely able to outcompete other eukaryotic phytoplankton under oligotrophic conditions [53]. Of the dinoflagellates resolved to a genus level, the top three genera at both sites were Gyrodinium, Neoceratium, and Karlodinium, all of which are known to contain species that exhibit mixotrophy (Fig. S3) [53, 54].

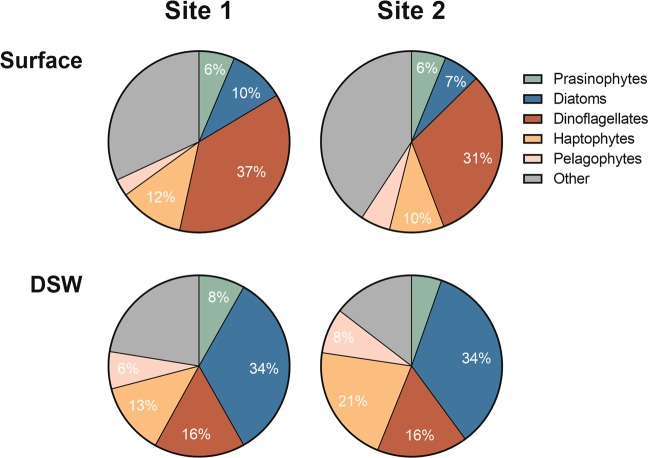

Fig. 4.

Average proportion of transcripts per million (TPM) in the surface and deep seawater (DSW) treatments for the five most dominant eukaryotic phytoplankton groups at both sites

Haptophytes were the second most abundant group in the initial community (Figs. 4 and  S2) and mostly comprised of Prymnesiales, consistent with previous observations in the region (Dataset S2, Fig. S4) [14, 55]. Prasinophytes were the third most abundant group based on the 18S rDNA, although less abundant than diatoms based on RNA (Figs. 4 and S2). Most Prasinophyte OTUs did not resolve to a SILVA family-level assignment; however, the most abundant with annotation belong to clade IX, which entirely consists of uncultured environmental sequences and have been shown to dominate warm oligotrophic oceanic waters (Fig. S5) [56, 57]. The prevalent prasinophyte genera with annotations were Pyramimonas and Dolichomastix, the latter of which have also been associated with oligotrophic surface waters (Dataset S2) [56].

Less than 8% of the transcripts were attributed to diatoms in the surface treatments which is consistent with estimates via pigment analysis that show diatom contributions to total chlorophyll biomass are commonly low [2]. Diatoms comprised even lower relative abundances (<1%) of the V4-18S rDNA suggesting that their proportion of the initial eukaryotic community may have been even lower than that estimated via transcripts (Fig. S2). Initial diatom abundances via quantitative rDNA were 4.34 × 10⁶ (Site 1) and 7.38 × 10⁶ (Site 2) copies L⁻¹, which were similar but above average compared to values obtained throughout the Sargasso Sea during the study period (Fig. S6). The dominant diatom taxa included Chaetoceros, Pseudo-nitzschia, and Ditylum (Fig. S7), the former two genera having previously been reported to be common at BATS [14, 58]. Chaetoceros can form diatom–diazotroph associations (DDAs), which likely confers an advantage under nitrogen-limiting conditions [59].

Following incubation with DSW, diatoms became the dominant eukaryotic phytoplankton group with 34% of the transcripts at both sites. At BATS, diatom blooms are infrequent but have been previously observed [14, 15, 60–62], and the increase in diatoms observed here was anticipated due to diatom’s known ability to grow rapidly in nutrient-replete conditions [63, 64]. An increase in diatoms was also observed in a similar metatranscriptomic study in the North Pacific Subtropical Gyre (NPSG) [34], where occasional diatom blooms are observed indicating that these characteristic responses may apply across similar ocean basins, although the conditions under which diatom blooms occur in the two gyres may differ [65, 66].

Transcriptional responses among phytoplankton groups

The total number of genes overrepresented in either treatment (surface or DSW) for each of the four dominant functional groups were examined (Fig. 5a). At both sites, diatoms increased expression of a majority of their genes in the DSW treatment. Dinoflagellates showed an opposite trend with more genes overrepresented in the surface treatment. Results were inconsistent across the two sites for prasinophytes and haptophytes.

Fig. 5.

Gene expression comparison among the four dominant eukaryotic phytoplankton groups at both experimental sites: diatoms (blue), dinoflagellates (red), prasinophytes (green), and haptophytes (orange). a Histograms of gene counts binned by log₂ fold change intervals of 1 for the DSW treatment/surface treatment and fitted with a Gaussian curve. Dashed vertical lines indicate a log₂ fold change of −1 or 1. b Heatmap of KEGG Ortholog (KO) expression for the 1004 genes expressed by all four groups at both sites. Sites are denoted with the site number. Each row indicates an expressed KO with darker red (positive fold change) indicating overrepresentation in the DSW treatment and darker blue (negative fold change) indicating overrepresentation in the surface treatment. KOs were sorted based on average fold change values for each taxonomic group at both sites, having higher or lower fold change values than other taxonomic groups, and the variance in fold change values across all four groups being greater than the mean variance for the dataset. The number of genes uniquely overrepresented for a particular group in the DSW treatment is indicated on the left

These distributions indicate that the two diatom communities here were highly transcriptionally active following nutrient amendment relative to the nutrient-depleted surface conditions which is consistent with what has been observed under similar incubations in the NPSG [34] and in response to being upwelled [27]. It has also been suggested that these transcriptional distributions are a reflection of r- and K-selection [34]. Given the observed responsiveness and increase in diatom abundances, both the experiments performed in this study align with this paradigm. Interestingly, dinoflagellates showed little change in expression in the NPSG, in contrast to this study, where higher transcriptional activity was observed under surface conditions. Numerous differences in the experiments, such as timing of sampling may contribute to this discrepancy. It has also been suggested that dinoflagellates have comparatively less regulation of gene expression with transcription [67]; however, studies have shown differential expression of many genes in dinoflagellates under certain environmental conditions [68–70]. Higher transcriptional activity here may be linked to their speculated mixotrophic behavior under the ambient oligotrophic conditions.

The expression of genes with matching KEGG Orthology (KO) annotation among these four dominant algal groups were queried to examine similarities or differences in transcription of conserved genes under both conditions. Orthologs normally retain the same function throughout evolutionary history allowing for direct comparisons in transcription among the taxonomic groups. 1004 genes were found to be expressed by all four of the dominant eukaryotic phytoplankton groups in both experiments (Fig. 5b, Dataset S3). These genes were sorted based on the variance expression of the gene among the groups compared to the average variance of the dataset and which group displayed the highest fold change values. A majority of the genes showed relatively little change in expression among the groups and are involved in a wide array of processes including glycolosis, amino acid biosynthesis, photosynthesis, and ribosomal proteins. No genes were found to be consistently overrepresented (absolute log₂-fold change > 2) among all four groups in either the surface or DSW treatments.

In concordance with diatoms’ increased transcription of more genes following DSW amendment, diatoms had the largest number of uniquely overrepresented orthologs (193 KOs; Fig. 5b), that is, genes with above average variance and fold change values greater than other groups. This pattern appears to continue when examining the diatom genes expressed by only one or two of the other examined groups (Fig. S8). Each group also had uniquely overrepresented orthologs; however, these numbered fewer than those of diatoms (42–81 genes).

Categorization of these uniquely overrepresented genes based on KEGG modules broadly shows the unique expression and transcriptional investments exhibited by each group (Fig. S9), although only 1787 (23.8%) of the orthologs found here have a KEGG module categorization, which is expected from the database [27]. Diatoms expressed genes associated with photosynthesis, DNA repair and replication, sterol biosynthesis, and amino acid metabolism, which may correspond to their investments in growth and cell division-associated metabolic pathways and contribute to their increase in relative transcript proportions. Meanwhile, dinoflagellates and haptophytes expressed genes associated with glycan and fatty acid catabolism suggesting heterotrophy or higher reliance on intracellular compounds similar to observations of these same groups at depth and in the presence of prey [71, 72]. Altogether, these distinctly overrepresented genes may represent some degree of niche partitioning with transcriptional investments in different cellular processes in response to nutrient amendment.

Expression of nitrogen metabolism genes

Genes involved in nitrogen assimilation and utilization were examined in all four dominant eukaryotic phytoplankton groups to investigate links between transcription and increases in particulate nitrogen and nitrate uptake rates (Figs. 3, 6, and S10). The nitrate uptake rates in both experiments indicate that both small and large size-fractions responded to the nutrient addition with increased rates of nitrate uptake; however, gene expression patterns suggest that not all four groups respond with the assimilatory nitrate reduction genes equivalently.

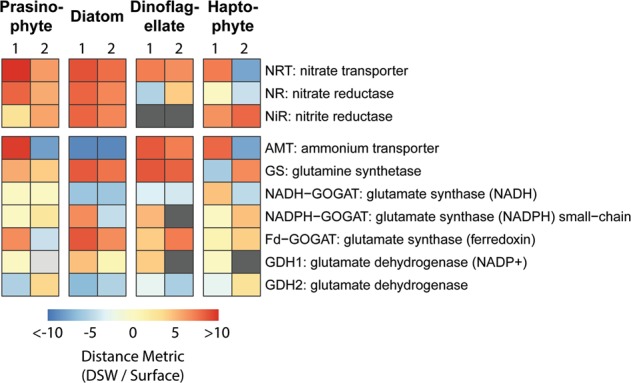

Fig. 6.

Heatmap comparing the expression of nitrogen metabolism genes among the four dominant eukaryotic phytoplankton groups at both sites. Site numbers are denoted at the top of the heatmap. To account for both the abundance and change of gene expression, plotted values are the Euclidian distance of the log₂ transformed mean abundance and fold change from 0 (DSW/Surface), i.e. no expression or change. Distances that are derived from negative fold change values are also shown as negative. Gray indicates no expression

All groups but haptophytes at one site showed increased expression of nitrate transporters, and the greatest overrepresentation of nitrate transporters after nutrient amendment was observed in prasinophytes and diatoms. This corresponds to the observed increase in nitrate uptake rates within both size fractions, assuming the majority of prasinophytes were in the small size-fraction and diatoms were mostly in the large size-fraction. Diatoms, however, were the only group to consistently exhibit both high (>95th percentile of genes) and increased expression upon DSW amendment for the genes required for assimilatory nitrate reduction: nitrate transporter, nitrate reductase, and nitrite reductase. Prasinophytes showed comparatively low expression of nitrite reductase (43rd percentile at Site 1, 69th percentile at Site 2) and dinoflagellates displayed no detectable expression upon DSW amendment.

Results were inconsistent for nitrate reductase expression in dinoflagellates and haptophytes. Expression in both was reduced with DSW amendment at one of the two sites, and dinoflagellates increased expression at another site. At Site 1, expression in haptophytes also increased but was very low (23rd percentile). Expression of ammonium transporters was also variable among the four groups. Within the DSW treatment, dinoflagellates showed increased gene expression whereas diatom expression decreased; haptophyte and prasinophyte expression patterns were inconsistent.

Although small eukaryotic phytoplankton have been found to be more reliant on nitrate compared to prokaryotes [24, 46], the differences here suggest that the proposed reliance on or utilization of nitrate among eukaryotes is not equivalent. First, the inconsistent expression of nitrate and nitrite reductases among phytoplankton groups suggests that eukaryotic phytoplankton groups may employ different strategies for nitrate assimilation. Nitrate is likely taken up by all groups based on the increased gene expression of nitrate transporters and nitrate uptake rates. Diatoms increased their expression of the entire pathway and likely channeled the assimilated nitrate towards growth, corresponding to increases in chlorophyll for the large size fraction and increases in the proportion of diatoms (Figs. 3 and 4). In contrast, the low expression of nitrite reductase in prasinophytes and dinoflagellates and of nitrate reductase in dinoflagellates and haptophytes suggests that these groups may exhibit a delayed response or shuttled nitrate towards storage rather than towards growth or short-term utilization. In the dinoflagellate Alexandrium minutum, it has been shown that most of the nitrate and ammonium taken up was stored rather than immediately utilized [73]. Nitrate storage has also been shown in the dinoflagellate Amphidinium carterae, the haptophyte Isochrysis galbana, and the chlorophyte Dunaliella tertiolecta although other species from the same lineages showed a lack of storage [25, 74]. At least for the small (<5 µm) phytoplankton, i.e. certain prasinophytes and haptophytes, these results may explain the maintenance of relatively high particulate nitrogen and nitrate uptake rates unmatched by increases in phytoplankton biomass (i.e., chlorophyll concentrations). Alternatively, timing of sampling may have resulted in the transcriptional response of these groups to be missed, although nitrate concentrations were still significantly higher in the DSW treatment compared to surface treatment (P < 0.05; Fig. 2). It is also plausible that diatoms are exhibiting some degree of nitrate storage as inferred by the overrepresentation of a putative vacuolar nitrate (CLC) transporter in the DSW treatment (P = 0.06) [75].

Secondly, dinoflagellates increased their expression of ammonium transporters, indicating a preference for ammonium even when nitrate was abundant which has also been observed in the laboratory for the dinoflagellate A. minutum (Fig. 6) [73]. In contrast, diatoms at both sites and haptophytes and prasinophytes at one site showed decreased expression of ammonium transporters. These differences in expression may be an example of niche partitioning by dinoflagellates to exploit regenerated forms of nitrogen as other groups, particularly diatoms, may be reducing their reliance on these recycled forms.

In dinoflagellates and diatoms, high expression of nitric oxide dioxygenase (NOD) was found at both sites. Dinoflagellates displayed high expression (>85th percentile) of this gene in both treatments while diatoms significantly expressed it in the surface treatment (log₂ fold change > 3, P < 0.05; Fig. 7). Phylogenetic analysis indicates that the gene was likely inherited via multiple horizontal gene transfer events, and that haptophytes also possess the gene although we did not detect haptophyte NOD gene expression (Supplementary Text, Figs. S11 and S12). In prasinophytes, it was not identified.

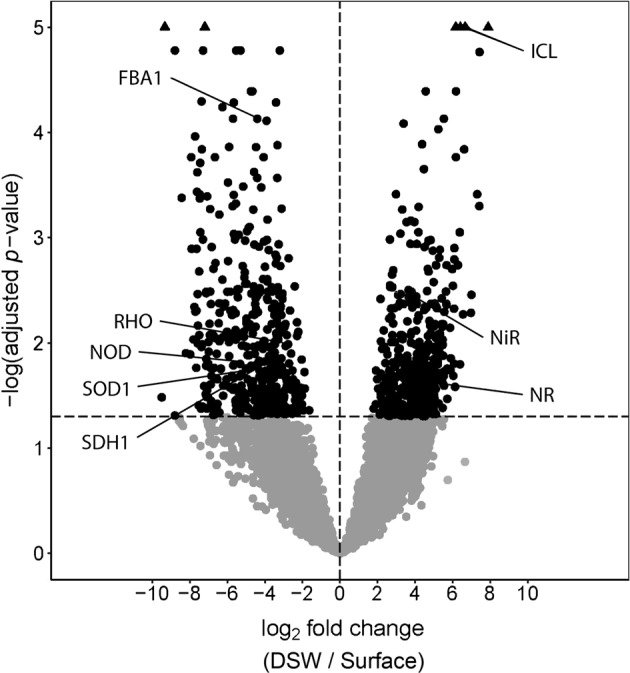

Fig. 7.

Volcano plot of genes expressed by diatoms considering all surface and deep treatments from both experiments as replicates. The log₂ fold changes (DSW vs. Surface) are displayed on the x-axis and the –log(adjusted p-values) are on the y-axis such that the most significantly expressed genes have greater values. Points with adjusted p-values > 0.05 are below the horizontal dashed line in gray while points >5 (P < 1 × 10⁻⁵) are plotted at 5 as black triangles. Labeled genes are abbreviated as follows: FBA1 fructose-bisphosphate aldolase, class I, ICL isocitrate lyase, NR nitrate reductase, NiR nitrite reductase, NOD nitric oxide dioxygenase, RHO proteorhodopsin, SDH succinate dehydrogenase, SOD1 Cu–Zn superoxide dismutase

NO in seawater likely only exists in low picomolar levels [76]. It can be produced abiotically via the photochemical reduction of nitrite, but this is an unlikely source here as nitrite concentrations were also extremely low (Fig. 2) [77]. NO can also be produced via nitrate reductase activity or nitric oxide synthases as part of a stress surveillance system in diatoms or under lytic infection in haptophytes [78–81]; however, nitric reductase expression was lower in the surface treatment, and overall, nitric oxide synthase displayed relatively low gene expression or was absent in each of the main phytoplankton groups during this study.

Regardless of its synthesis from biotic or abiotic sources, NOD may play an important role in regulating the level of NO as a signaling molecule and thereby regulating the expression of nitrogen assimilation genes. In the model marine diatom, P. tricornutum, NOD is coexpressed with nitrate reductase suggesting that the two enzymes function to regulate nitrogen levels (nitrate, nitrite, and NO) which may control nitrogen assimilation gene expression [82]; however, strong opposing expression of NOD and nitrate reductase was observed here (Fig. 7). The presence of NO in P. tricornutum has also been shown to upregulate nitrite reductase expression [81]; therefore, NOD may act to suppress NO and maintain lower expression of nitrite reductase consistent with our observations (Fig. S10). NOD also catalyzes the conversion of nitric oxide (NO) to nitrate with an associated oxidation of ferrous to ferric heme followed by a reduction back to the ferrous state by flavin adenine dinucleotide (FAD) [83, 84]. As the product of this reaction is nitrate, use of this gene may provide a small amount of additional nitrate from NO when nitrate concentrations are low and are limiting to phytoplankton growth similar to a role that has been suggested in raphidophytes [85].

Diatom-specific gene expression

Other significantly expressed genes in diatoms during these experiments may indicate certain cellular mechanisms that are utilized for their subsistence under typical oligotrophic conditions and for growth during periods of nutrient injection into the euphotic zone (Fig. 7). In examining both experiments, 904 genes showed significant differential expression (461 in the surface water treatment and 443 in the DSW treatment) (Dataset S4). This assessment includes genes that do not currently have an annotated function.

The genes overrepresented in the surface water treatments indicate how the diatom community is responding to long-term nitrogen-limited conditions. As expected, gene expression patterns indicate a reliance on regenerated forms of nitrogen as ammonium and urea transporters were highly expressed in the surface treatment (Fig. 8). Interestingly, transcript abundances of two genes that have been associated with low-iron conditions in diatoms, proteorhodopsin, and class I fructose-bisphosphate aldolase (FBA), were also significantly higher in the surface water treatment (P < 0.05) despite the relatively high iron concentrations that suggest iron availability was likely not limiting growth (Fig. 7) [86, 87]. Proteorhodopsin may serve as an alternative phototrophic mechanism while photosynthetic efficiency is reduced due to iron limitation [88]. Increased expression of proteorhodopsin in the surface water treatment also suggests that there may be other roles for the protein in diatoms in addition to coping with iron limitation. Class I FBAs are metal-independent functional equivalents of class II FBAs [89, 90]. Given that NOD requires Fe, utilization of low-iron-requiring pathways may reduce cellular Fe requirements to better support NOD activity; however, superoxide is required as well. A diatom-associated gene encoding Cu–Zn superoxide dismutase was also significantly expressed (P < 0.05) (Fig. 7), and the activity of superoxide dismutase would inhibit NOD activity.

Fig. 8.

Diatom cell schematic showing log₂ fold change values for nitrogen metabolism and TCA cycle genes at sites 1 and 2 (see legend). Genes colored darker red (positive fold change) indicate overrepresentation in the DSW treatment and darker blue (negative fold change) indicate overrepresentation in the Surface treatment. Dashed arrows indicate uncharacterized transport as described by Davis et al. [94]. Genes are abbreviated as follows: ACN aconitase, AMT ammonium transporter, ARG arginase, ASL arginosuccinate lyase, ASSY arginosuccinate synthase, CPS carbamoyl phosphate synthetase, CS citrate synthase, FUM fumarate hydratase, GS glutamine synthetase, GOGAT glutamate synthase, GDH glutamate dehydrogenase, ICL isocitrate lyase, IDH isocitrate dehydrogenase, LSC succinate-CoA ligase, MS malate synthase, MDH malate dehydrogenase, NRT nitrate transporter, NR nitrate reductase, NiR nitrite reductase, OGDH oxoglutarate dehydrogenase, OTC ornithine carbamoyltransferase, SDH succinate dehydrogenase, URT urea transporter, URE urease

In the DSW treatment, diatom transcription of many urea cycle genes were overrepresented, which is consistent with its known use for recovery from nitrogen limitation; however, some exceptions are apparent [91] (Fig. 8). Ornithine carbamoyltransferase showed nearly no change in expression between the two treatments. Urease showed reduced (Site 1) or no expression (Site 2) possibly indicating a delayed response until a sufficient amount of urea is generated (Fig. 8). As both ornithine and urea are products of arginase, ornithine could be used to produce putrescine for polyamine synthesis via ornithine decarboxylase at the time of sampling [92]. These ornithine-derived polyamines are important for cell wall biogenesis which would be important for diatom cell division [93]; transcripts for the gene encoding ornithine decarboxylase were highly abundant in the DSW treatment at Site 1 (fold change = 13.9, P = 0.16) but not at Site 2.

Among the most significantly overrepresented genes in the DSW treatment was isocitrate lyase (Fig. 7, P < 1 × 10⁻⁷), suggesting that diatoms alter their carbon metabolism in response to the nutrient amendment and that the peroxisomal glyoxylate cycle plays an important role in this response [94]. Isocitrate lyase and malate synthase can create a bypass to the tricarboxylic acid (TCA) cycle, which corresponds with decreases in expression in several TCA cycle genes (Figs. 7 and 8). This modification may help satisfy increased carbon demand as nitrogen assimilation increases. Increased expression of isocitrate lyase under nitrate replete conditions also aligns with laboratory studies examining nitrogen dynamics in P. tricornutum, although malate synthase was not differentially expressed in our study [95]. Isocitrate lyase has also been shown to be upregulated in diatoms under iron limitation [82, 90] indicating that the glyoxylate cycle may have more widespread importance under other nutritional scenarios.

Conclusions

Our metatranscriptomic analysis supports differing levels of transcriptional responsiveness among phytoplankton groups upon nutrient amendment in oligotrophic subtropical gyre systems [34]. Moreover, gene expression in conjunction with assessments of nutrient standing stocks and biological rate processes suggests that eukaryotic phytoplankton respond to injections of nitrate in different ways. Diatom gene expression patterns suggest newly acquired nitrate is rapidly assimilated and used to support growth, which partially explains the high level of diatom-driven export in the region. Meanwhile other phytoplankton groups may initially be storing the nitrate or relying on regenerated nitrogen forms. Further examination of nitrate storage across eukaryotic phytoplankton groups is warranted and could help provide context for these results.

Diatoms also coordinately alter their expression of other genes upon nutrient amendment which may support their increases in nitrogen assimilation. Ultimately, with most diatom genes lacking a functional annotation, it is likely that there are many cellular processes contributing to their survival and then subsequent growth upon nutrient delivery that are yet to be identified [13]. Furthermore, oligotrophic regions have been shown to have unexpectedly high diatom diversity implying that diatoms as a whole display a wide spectrum of growth strategies [96, 97]; thus, although we characterized a distinct diatom response here as a singular group, this observed response is likely driven by a dominant subset of diatoms while rarer species could be displaying other growth strategies more akin to the other phytoplankton functional groups. Further investigation into diatom diversity in the Sargasso Sea and other oligotrophic regions will be necessary to reveal the full spectrum of strategies.

A 15-year record of biogenic silica at BATS has found that diatom abundances are declining [98]. Corresponding increases in water column stratification and temperatures due to climate change suggests that increased nitrogen demand in eukaryotic phytoplankton [99] followed by less frequent delivery of subsurface nutrients could lead to a further decline. Our results indicate that diatoms are able to physiologically adjust their metabolism and employ mechanisms for survival under oligotrophic conditions, but it is possible that the limits of these mechanisms could soon be reached. Alternatively, diatom taxa and responses, such as those observed here may become more common as increased warming and vertical stratification expand oligotrophic subtropical gyre-like conditions to other regions of the ocean [100].

Compliance with ethical standards

Conflict of interest

The authors declare that they have no conflict of interest.

Supplementary information

The online version of this article (10.1038/s41396-019-0489-6) contains supplementary material, which is available to authorized users.
