Patterns of immune-cell infiltration in murine models of melanoma: roles of antigen and tissue site in creating inflamed tumors

Abstract

Immune-cell infiltration is associated with improved survival in melanoma. Human melanoma metastases may be grouped into immunotypes representing patterns of immune-cell infiltration: A (sparse), B (perivascular cuffing), and C (diffuse). Immunotypes have not been defined for murine melanomas, but may provide opportunities to understand mechanism-driving immunotype differences. We performed immunohistochemistry with immune-cell enumeration, immunotyping, and vascular density scoring in genetically engineered (Braf/Pten and Braf/Pten/β-catenin) and transplantable (B16-F1, B16-OVA, and B16-AAD) murine melanomas. The transplantable tumors were grown in subcutaneous (s.c.) or intraperitoneal (i.p.) locations. Braf/Pten and Braf/Pten/β-catenin tumors had low immune-cell densities, defining them as Immunotype A, as did B16-F1 tumors. B16-OVA (s.c. and i.p.) and B16-AAD s.c. tumors were Immunotype B, while B16-AAD i.p. tumors were primarily Immunotype C. Interestingly, the i.p. location was characterized by higher immune-cell counts in B16-OVA tumors, with counts that trended higher for B16-F1 and B16-AAD. The i.p. location was also characterized by higher vascularity in B16-F1 and B16-AAD tumors. These findings demonstrate that spontaneously mutated neoantigens in B16 melanomas were insufficient to induce robust intratumoral immune-cell infiltrates, but instead were Immunotype A tumors. The addition of model neoantigens (OVA or AAD) to B16 enhanced infiltration, but this most often resulted in Immunotype B. We find that tumor location may be an important element in enabling Immunotype C tumors. In aggregate, these data suggest important roles both for the antigen type and for the tumor location in defining immunotypes.

Introduction

Immune-cell infiltration into the tumor microenvironment is associated with improved survival and clinical response to immune therapies in melanoma; thus, a goal of combination immunotherapy is to enhance immune-cell infiltration [1–8]. We previously showed that infiltration into human melanoma metastases can be categorized into three distinct immunotypes that are associated with patient survival. Immunotype A is sparsely infiltrated with immune cells, Immunotype B is characterized by immune-cell cuffing around intratumoral vessels, and Immunotype C is characterized by diffuse intratumoral immune-cell infiltrates [1]. Murine models facilitate preclinical studies leading to mechanistic understanding of factors that underlie each immunotype, yet murine models of each immunotype have not been defined. Thus, it is useful to identify murine models that reflect each of the immunotypes of human melanoma and to understand how features of those models influence the patterns and extent of immune infiltration.

Established murine models for melanoma include both genetically engineered and spontaneous tumors. Braf/Pten and Braf/Pten/β-catenin (mutated Braf, Pten knockout, and stabilization of β-catenin [9]) mice are genetically engineered to enable the induction and outgrowth of melanomas under the influence of genetic alterations that reflect the molecular and oncogenic signature pathways that drive tumor formation in human melanoma [9, 10]. However, they have a low density of immune infiltrates [11–13], thought to reflect their low mutational burden and consequent lower immunogenicity [14, 15]. Patterns of immune-cell distribution in the Braf/Pten models have not been previously described. We hypothesized that, despite the presence of genetic driver mutations of melanoma in the Braf/Pten models, their low number of spontaneous mutations will result in sparse immune-cell infiltration (Immunotype A). On the other hand, the transplantable B16 murine melanoma cell line has a high mutational burden comparable to that seen in human melanomas [14–16], though the oncogenic drivers underlying its formation have not been established. One might expect that those mutations would support immune-cell infiltrates, but the previous work from our group has demonstrated a low density of immune infiltrates in B16-F1 melanoma [11]. Immune-cell infiltrates are enhanced when B16-F1 cells are transfected with ovalbumin (B16-OVA) [11]. However, the spatial distribution of immune cells in B16-OVA tumors has not been defined. In addition, differences in homing receptor ligands in s.c. compared to i.p. compartments directly impact immune infiltration and lead to increased infiltration in peritoneal tumor implants [17]. However, the impact of tumor site on immune infiltration is not well-studied. We hypothesized that B16 melanomas transfected with xenogeneic antigens would induce immune-cell infiltrates consistent with either Immunotypes B and C and that the immunotypes may be impacted by the nature of the antigen and the tissue site.

The goals of the present study were to define patterns of immune-cell infiltrates in Braf/Pten and B16 murine models and to determine whether these are similar to immunotypes observed in human melanoma metastases, and also to provide mechanistic insights into factors that influence immunotypes in these murine models. We included B16 melanomas transfected to express either the model antigen ovalbumin (B16-OVA) or the chimeric class I MHC molecule AAD (B16-AAD) to test whether addition of a strong “neoantigen” enhances immune infiltration and thereby alters the immunotype. We test whether immunotype is intrinsic to the malignant cell type or whether it may be modulated by the site of tumor outgrowth, as this may have implications for intra-patient heterogeneity in humans. Since immune-cell infiltration also depends on extravasation from tumor vasculature [17, 18], we also assessed tumor vascularity among different melanomas in two anatomical sites. These studies contribute to understanding the role of antigen and tumor site in defining immunotype and density of immune infiltrates in murine tumors.

Materials and methods

Cell lines

B16-F1 parental cell lines were transfected with OVA [19] and AAD [20] constructs as previously described. AAD is a chimeric class I MHC molecule comprised of the α1 + α2 domains of human HLA-A*0201 and the α3 domain of murine H-2D^d [21]. Transfectants were cultured in RPMI-1640 containing 5% FBS supplemented with SerXtend (Irvine Scientific, Santa Ana, CA) and 300 μg/ml G418 (Life Technologies, Grand Island, NY), and screened regularly by flow cytometric analysis for AAD expression using the HLA-A2-binding antibodies CR11-351 or BB7.2. To establish tumors, 4 × 10⁵ tumor cells were injected s.c. in the nape of the neck, or i.p., to establish solid tumors in the subcutaneous space or i.p. cavity, respectively. Tumors were allowed to establish 10–14 days for i.p. and s.c. before harvest.

Animals

C57BL/6 mice (NCI-Frederick Animal Production Program) were maintained in pathogen-free facilities at the University of Virginia. Protocols were approved by the University of Virginia Institutional Animal Care and Use Committee.

Braf/Pten tumors

Tumors were induced in 3-week-old Tyr-CreER/Pten^lox/Braf^CA and Tyr-CreER/Pten^lox/Braf^CA/Ctnnb1^loxex3 transgenic mice using methods previously described [9, 10], and harvested when they reached 1 cm³ in volume (approximately 6–8 weeks later). Formalin-fixed paraffin-embedded blocks were prepared from these tumors.

Human tumors

Immunohistochemistry was performed on human melanomas on tissue microarrays, which were prepared as previously described [1].

Immunohistochemistry and tumor cross-sectional area measurements

Tissue sections from human and murine tumors were deparaffinized and hydrated with xylene and graded alcohol series. Antigen retrieval was performed with target retrieval solution (Dako North America, S2367), pH 9, at 100 °C for 20 min. Sections were stained with a triple combination of antibodies specific for S100 (Human and Mouse: Cat# Z0311, Dako North America, Carpinteria, CA), CD45 (Human: Clone # PD7/26/16 + 2B11, Dako North America; Mouse: Clone # 30-F11, BD Biosciences San Jose, CA), and CD31 (Human: Clone # JC70A, Dako North America; Mouse: Clone # SZ31, Dianova GmbH, Hamburg, Germany). Detection was made using ImmPRESS HRP kits Anti-rabbit Ig MP-7401, Anti-mouse Ig MP-7402, and Anti-rat Ig MP-7044, and ImmPACT HRP Substrates 3,30-diaminobenzidine (DAB), SG Peroxidase (Blue/Gray), and VIP Peroxidase (Purple) (all from Vector). Sections were cover-slipped with mounting medium (Vector) after they were rinsed with water. Negative control slides were prepared by omitting the primary antibodies. ImageJ was used to manually draw a region of interest around each tumor, and tumor cross-sectional area was calculated in mm² using the measure function in ImageJ and was converted to high-power fields (hpfs).

Quantification of TIL, immunotyping, and vascularity scoring

Enumeration of CD45⁺ cells was performed by a trained pathologist (J Pinczewski) on representative sections triple stained with S100, CD45, and CD31 in 10 independent hpfs for each tumor. Cells within blood vessels or necrotic tumor areas were excluded. Immunotype was assigned (J Pinczewski) using criteria previously defined in our laboratory [1]. If there were less than 15 CD45⁺ cells per hpf (~ 50 per mm²) based on the average of 10 hpfs, the tumor was classified as Immunotype A, regardless of distribution. A CD45⁺ cell density of 15 per hpf or greater was classified as Immunotype B or C, depending on cell distribution. The entire tumor section was evaluated for overall pattern of distribution. Immunotype B was classified by a predominant perivascular distribution of CD45⁺ cells, and Immunotype C was classified by a predominant diffuse intratumoral immune infiltration irrespective of perivascular cuffing. Vascularity scoring was performed by a certified pathologist (J Pinczewski) who was blinded to the origin of the samples based upon CD31⁺ staining vessels. A scant number of vessels were represented by a score of 1, a moderate number of vessels by a score of 2, and a large number of vessels by a score of 3. Images were obtained using an Olympus (Center Valley, PA) BX51 microscope coupled to an Olympus BP70 digital camera and analyzed using Image ProPlus 4.5 for the Windows software.

Multispectral Imaging and immune-cell subset enumeration

4-μm-thick sections were cut from formalin-fixed paraffin-embedded murine tumor specimens, and murine spleen was used as a positive control. Multispectral staining was performed according to the manufacturer’s protocol using the OPAL Multiplex Manual IHC kit and antigen retrieval buffer (AR) 9 (PerkinElmer, Waltham, Massachusetts, USA). Staining sequence, antibodies, and antigen retrieval buffers were as follows: AR9, CD4 (dilution 1:100; Abcam, Cambridge, Massachusetts, cat#ab183685) Opal520; AR9, CD8 (1:200, Abcam, cat#ab237723) Opal540; AR9, CD34 (1:400, Abcam, cat#81289) Opal620; AR9, CD19 (1:50; Cell-Signaling Technology, Danvers, Massachusetts, cat#90176S); and spectral DAPI (PerkinElmer, Waltham, Massachusetts, USA). Slides were mounted using prolong diamond antifade (Life Technologies, Carlsbad, California, USA) and scanned at 10 × magnification using the PerkinElmer Vectra 3.0 system and Vectra software (PerkinElmer, Waltham, Massachusetts, USA). Regions of interest were then identified in the Phenochart software, and 20 × magnification images were acquired with the Vectra 3.0 system. These images were spectrally unmixed using single-stain positive controls and analyzed using the InForm software (PerkinElmer, Waltham, Massachusetts, USA). Enumeration of immune-cell subsets was performed using an algorithm generated with the InForm software and validated manually (KM Leick).

Statistical analysis

Analyses were performed with the GraphPad Prism 7 software. Student’s t test was used to compare two groups. One-way ANOVA with Tukey’s post-test was used to compare more than two groups and two-way ANOVA with Bonferroni correction was used to compare data grouped by two variables. A P value of less than 0.05 was considered to be significant.

Results

In prior work, we assessed the localization and density of CD45⁺ immune cells relative to intratumoral vasculature in human melanoma metastases to define Immunotypes using single-stain IHC in three consecutively cut sections. To improve our assessments, we developed an approach to triple-stain single sections of human and murine tumors using antibodies to CD45 (immune cells), CD31 (vasculature), and S100 (melanoma cells). Examples of this approach applied to human melanoma metastases are shown in Fig. 1. This serves as a better method for immunotyping by allowing the pathologist to more reliably distinguish cellular spatial relationships within a single-tissue section instead of making comparisons across several individually stained tissue sections.

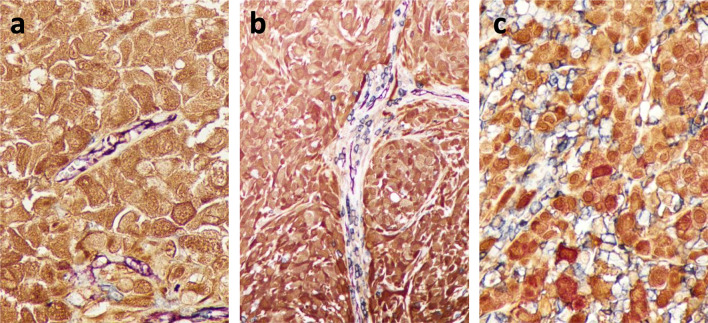

Fig. 1. Immunotype A, B, and C human melanoma metastases, respectively.

Tissue sections were triple stained with antibodies to CD31 (vascular endothelium, purple), CD45 (immune cells, blue), and S100 (melanoma cells, brown)

We used this approach to analyze 9–11-week-old dermal melanomas induced at 3 weeks of age in Braf/Pten and Braf/Pten/β-catenin transgenic mice (n = 3 each). For all six tumors, there were only rare immune cells (< 15/hpf, Fig. 2). Others have shown that the activation of the β-catenin pathway is associated with immune-cell exclusion from tumors [22]. However, there was no significant difference in immune infiltration between Braf/Pten and Braf/Pten/β-catenin given the number of evaluable tumors. The CD45⁺ cell counts for Braf/Pten tumors ranged from 0.2 to 8.9 per hpf and from 0 to 2.7 per hpf for Braf/Pten/β-catenin tumors (Fig. 2c). Thus, we classified those tumors as Immunotype A.

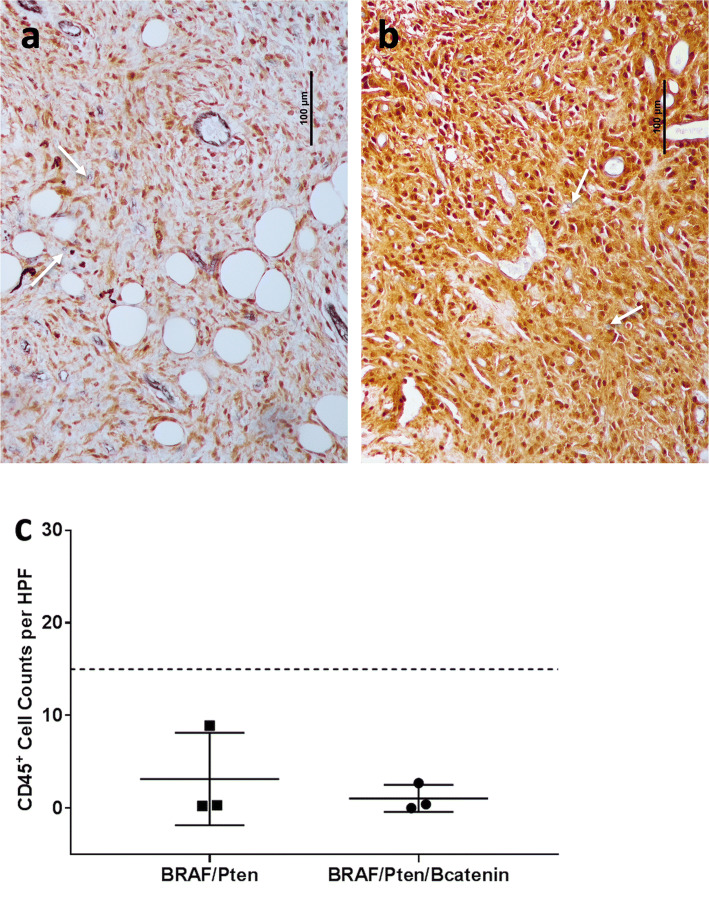

Fig. 2. Immunotype and immune-cell density of spontaneous murine melanomas.

Representative examples of Braf/Pten (a) and Braf/Pten/β-catenin (b) dermal melanomas were triple stained with antibodies to CD31 (vascular endothelium, purple), CD45 (immune cells, blue), and S100 (melanoma cells, brown). Quantification of CD45 counts per 10 hpf of Braf/Pten (n = 3) and Braf/Pten/β-catenin (n = 3) murine melanoma (c) with dashed line at 15 to indicate cutoff for Immunotype A and white arrows to indicate CD45⁺ immune cells

On the other hand, in B16 models, we found examples of Immunotypes A (Fig. 3a, d), B (Fig. 3b, e), and C (Fig. 3c, f) that were strikingly similar to the immunotypes defined in human melanoma. We then asked whether the more densely infiltrated Immunotype C and B tumors have decreased tumor outgrowth compared to the more sparsely infiltrated Immunotype A tumors, similar to that shown in humans [1]. Measurement of tumor cross-sectional areas demonstrated significantly reduced tumor burden in Immunotype B and C tumors compared to Immunotype A tumors (Fig. 4a). This suggests that immunotypes in murine tumors have functional implications in tumor outgrowth that are reflected in human melanomas.

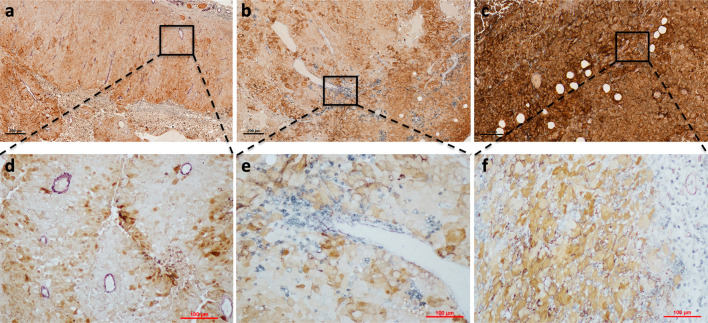

Fig. 3. Representative images of B16 tumors demonstrate Immunotypes A, B, and C.

All tumors were triple stained with antibodies to CD31, CD45, and S100. A representative image of a s.c. B16-F1 tumor classified as Immunotype A with low- (a) and high (d)-power views. (b) Low-power and high-power (e) views of a s.c. B16-AAD tumor categorized as Immunotype B. (c) A low and high (f) power view of i.p. B16-AAD tumor of melanoma classified as Immunotype C

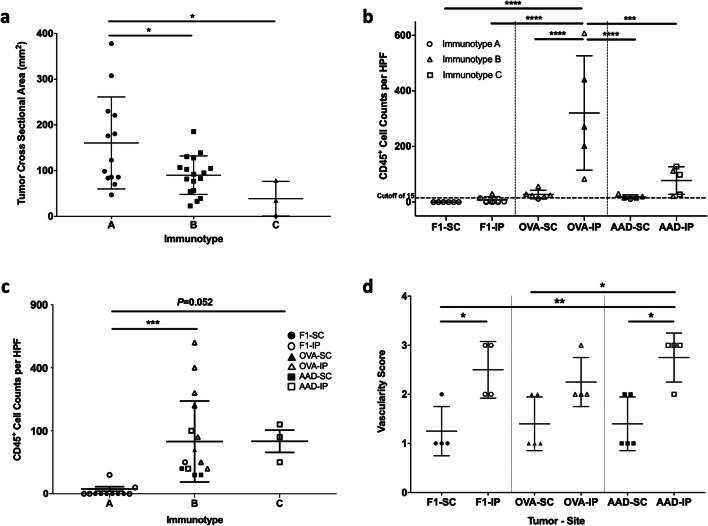

Fig. 4. Associations of B16 tumor cell type and tumor location with tumor cross-sectional area, immune infiltrate, and vascularity.

B16-F1 melanomas, or those transfected with OVA or AAD, were grown in s.c. or i.p. locations and evaluated for tumor cross-sectional area in mm² using ImageJ (a) and overall CD45⁺ cell counts with dashed line at 15 to indicate cutoff for Immunotype A (b) and vascularity (d). (c) CD45⁺ cell counts were quantified across 10 high-powered fields in Immunotype A (n = 13), Immunotype B (n = 17), and Immunotype C (n = 3). This included s.c. and i.p. tumors from each B16 model. Differences were assessed by one-way ANOVA, with significance noted by asterisks: *  <   0.05, ** < 0.01, *** < 0.001, **** < 0.0001

We then assessed B16 melanoma models based on tumor type and tissue site. Despite the expression of a large number of mutated neoantigens in parental B16-F1 melanomas [16], 11 of 12 B16-F1 tumors were exclusively Immunotype A, independent of tumor location (Fig. 4b). Mean CD45⁺ counts for B16-F1 were 0.1 ± 0.1 (SD) and 7.6 ± 12 cells/hpf for s.c. and i.p tumors, respectively, without significant differences between tumor sites (Fig. 4b). B16-OVA tumors express one strong neoantigen for T cells, presented by H-2 K^b, and are more extensively infiltrated by T cells compared to B16-F1 [11]. In keeping with this, and in contrast to B16-F1, 9/10 B16-OVA tumors were Immunotype B, independent of tumor location (Fig. 4b). Interestingly, however, the CD45⁺ counts in B16-OVA tumors were significantly and dramatically higher in i.p. sites (321 ± 206 cells/hpf) than in s.c. sites (27 ± 15 cells/hpf, P < 0.0001, Fig. 4b). B16-AAD tumors are generated through transfection of a gene encoding the human/murine chimeric HLA molecule AAD, resulting in expression of a xenogeneic MHC-I molecule that can present multiple endogenous peptides [21] and may also serve as a xenoantigen for antibody recognition; however, the influence of this antigen on immune infiltration is not known. As with B16-OVA, s.c. B16-AAD tumors were also predominantly (4/5) Immunotype B. In contrast, most (3/5) i.p. B16-AAD tumors were Immunotype C (Fig. 4b). In B16-AAD, the CD45⁺ counts trended higher in i.p tumors (77 ± 50 cells/hpf, Fig. 4b) compared to s.c. tumors (19 ± 7 cells/hpf, Fig. 4b). Thus, introduction of either strong antigen (OVA or AAD) in B16 melanoma results in a greater density of immune cells compared to parental B16-F1. While expression of either strong antigen induced Immunotype B tumors in s.c. locations, AAD expression was unique in inducing Immunotype C tumors selectively in i.p. locations.

In patients with melanoma, Immunotype C tumors have higher immune-cell density than Immunotype B [1]. Therefore, we hypothesized that Immunotype C murine tumors would be more robustly infiltrated than Immunotype B tumors. The CD45⁺ counts for Immunotype B and C tumors were higher than for Immunotype A tumors (P = 0.006 and P = 0.052, respectively; Fig. 4c). Interestingly, there was wide variation among those counts in Immunotype B tumors. Thus, we assessed whether cell count variation could be explained by antigen (OVA vs AAD) and/or tumor site. Among B16-AAD tumors, CD45⁺ cell density did not differ between s.c. and i.p. sites. However, in B16-OVA tumors, CD45⁺ density was greater in the i.p. site, with wide variation among these counts (Fig. 4b, c). CD45⁺ densities for B16-OVA i.p. were higher than B16-AAD i.p. (P = 0.009, Fig. 4b), despite the fact that the pattern of infiltrate was more diffuse (mostly Immunotype C) for B16-AAD i.p. (Figure 4b). This suggests that the pattern of infiltrate is not simply a surrogate for immune-cell density and that both tumor location and the nature of the tumor antigens may independently impact immune-cell density and immunotype.

To determine whether there was a predominance of a particular immune-cell subset related to immunotype, tumor type, or location, we evaluated the B16 tumors with multiparameter immunofluorescence staining for CD8⁺ and CD4⁺ T cells, CD19⁺ B cells, and CD34⁺ vasculature, with examples of Immunotypes A (Fig. 5a), B (Fig. 5b, d, e), and C (Fig. 5e). Immunotype C and Immunotype B tumors were more robustly infiltrated with CD8⁺ and CD4⁺ T cells than Immunotype A tumors (Fig. 5f), while there was a trend towards higher B-cell counts in Immunotypes B and C (P = 0.1, Fig. 5f). This is consistent with higher overall CD45⁺ cell counts in Immunotypes B and C in these tumors (Fig. 4c). Characterization of the immune-cell subsets based on tumor type and location demonstrated significantly higher density of CD8⁺ T cells in B16-AAD i.p. tumors than B16-OVA and B16-F1 tumors, but not significantly higher than B16-AAD s.c. tumors (Fig. 6a). This suggests that the AAD antigen may induce a strong CD8⁺ T-cell response. B16-AAD i.p. tumors also had significantly higher densities of CD4⁺ T cells than all other tumors except for B16-OVA i.p (Fig. 6b), indicating an important role for CD4⁺ T cells in both B16-OVA and B16-AAD, and specifically in the i.p. location. Interestingly, the highest B-cell densities were in B16-OVA i.p. and B16-AAD i.p. tumors (Fig. 6c). B16-F1 and OVA s.c. tumors had low numbers of immune-cell subsets overall. We also considered the lymphocyte subset composition in terms of percentages, finding that proportions of CD8⁺ T cells trended higher in s.c. sites, whereas B cells trended higher in i.p. sites among all three B16 tumors (Fig. 6d, f). CD4⁺ T cells proportionately trended higher in i.p. sites for B16-F1 and B16-AAD, but trended higher in s.c. sites for B16-OVA (Fig. 6e). The low proportion of CD4⁺ cells among B16-OVA i.p. is explained by the finding that B cells were most prevalent among B16-OVA i.p. (44 ± 16%, Fig. 6f).

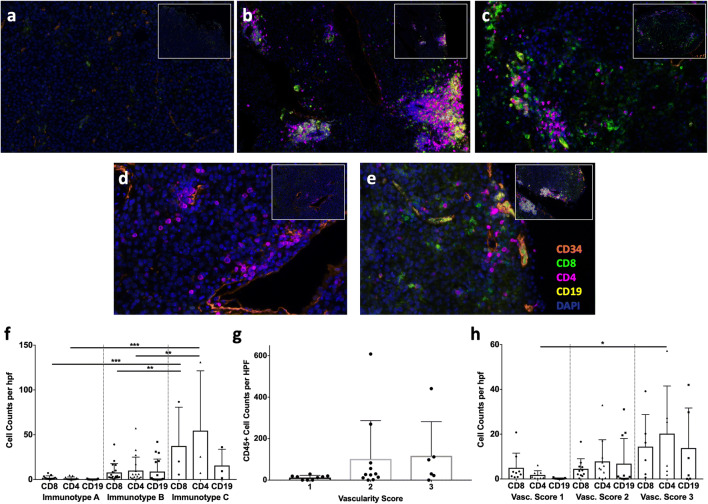

Fig. 5. Immune-cell subset characterization based on immunotype and vascularity in B16 melanomas.

All tumors were stained with antibodies to CD34 (orange), CD8 (green), CD4 (magenta), CD19 (yellow), and DAPI (blue) and immune-cell subsets were enumerated. (a) A representative image of a s.c. B16-F1 tumor classified as Immunotype A. (b) An i.p. B16-OVA tumor categorized as Immunotype B with a tertiary lymphoid structure (TLS). (c) An i.p. B16-AAD tumor of melanoma classified as Immunotype C. (d) A B16-OVA s.c. tumor classified as Immunotype B with perivascular cuffing and without TLS. (e) A B16-AAD i.p. tumor classified as Immunotype B with perivascular cuffing independent of a TLS on high-power view, as well as a TLS in the inset. A low-power inset is provided in the right upper corner of each image. CD8⁺ T cells, CD4⁺ T cells, and CD19⁺ B cells were quantified for Immunotype A, Immunotype B, and Immunotype C tumors (f). B16 melanomas were evaluated for associations of vascularity with CD45⁺ cell counts (g), and CD8⁺ and CD4⁺ T-cell counts, and CD19⁺ B-cell counts (h). Differences were assessed by one-way ANOVA, with significance noted by asterisks: * < 0.05, ** < 0.01, *** < 0.001, **** < 0.0001. vasc vascularity

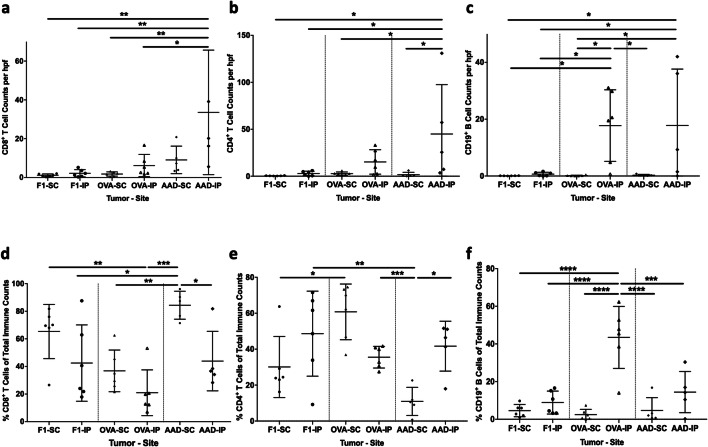

Fig. 6. Characterization of CD8 ⁺, CD4⁺, and CD19⁺ immune-cell subsets in B16 melanomas.

B16-F1 melanomas, or those transfected with OVA or AAD, in s.c. or i.p. locations were evaluated for CD8⁺ T-cell counts (a), CD4⁺ T-cell counts (b), and CD19⁺ B-cell counts (c). The percentage of CD8⁺ T cells comprising the sum of CD8, CD4, and CD19 cell counts in each tumor type at both s.c. and i.p. locations (d), and the percentage of CD4⁺ T cells (e) and CD19⁺ B cells (f) of the total cell counts. Differences were assessed by one-way ANOVA, with significance noted by asterisks: * < 0.05, ** < 0.01, *** < 0.001, **** < 0.0001

Immune infiltration has been linked to intratumoral vascular abnormalities in human cancers [23]. We wished to determine whether the distributions of immune cells in Immunotypes B and C were related to differences in vascular density. One hypothesis is that the more diffuse pattern of infiltrates seen related to Immunotype C in B16-AAD i.p. tumors compared to their s.c. counterparts is related to greater vascular density, which allows immune cells to infiltrate at more distributed points within the tumor mass and results in a diffuse distribution within the tumor. An alternative hypothesis is that increased vascular density provides greater opportunities for perivascular immune-cell clustering, thus leading to Immunotype B. Vascular density was significantly greater in B16-AAD i.p. tumors compared to their B16-AAD s.c. tumors, consistent with an association between increased density and Immunotype C (Fig. 4d). However, vascular density was also significantly higher in B16-F1 i.p. tumors compared to B16-F1 s.c., and trended higher for B16-OVA i.p. compared to B16-OVA s.c. tumors (Fig. 4d). Thus, differences in vascularity are inherent within s.c. versus i.p. compartments of all B16 tumor models. In addition, there were trends towards higher vascularity in association with higher CD45⁺, CD8⁺, CD4⁺, and CD19⁺ immune-cell density; however, this was only significant for CD4⁺ T-cell infiltration (Fig. 5g, h). While the results do not rule out a possible role for increased vascular density in supporting the development of Immunotype C, any such role appears to be subservient to factors such as the overall strength of the immune response.

We also have considered whether variations in immune-cell subsets related to immunotype could be explained by the formation of tertiary lymphoid structures (TLS) in selected immunotypes. TLS contain high endothelial venule-like vasculature, which can enable naïve T cells to enter tumor tissue [24], and TLS have been associated in some studies with CD8⁺ T-cell infiltrates [24, 25]; however, direct associations with immunotype remain to be explored. Thus, it is tempting to imagine that formation of tertiary lymphoid structures could be contributory to immunotypes. However, B-cell clusters are a key component of TLS, but B-cell densities are highest for B16-OVA i.p. Prominent B/T-cell clusters were observed in all B16-OVA i.p. tumors, examples of which are shown in Fig. 5b, e (inset). TLS were also observed in some B16-AAD i.p. tumors, but were less prominent (data not shown). This finding of TLS and B-cell dominance in B16-OVA i.p., all of which are Immunotype B, could suggest that the perivascular immune-cell-cuffing characteristic of Immunotype B can be explained simply by high prevalence of TLS in those tumors. However, a large proportion of the perivascular infiltrates in Immunotype B tumors consist mostly of CD4⁺ and CD8⁺ T cells, without any B-cell clusters [Fig. 5d, e (high-power image)]. In addition, as previously reported [24], TLS are not seen in s.c. sites (Fig. 5d), but only in i.p. (Fig. 5b, e). Nonetheless, Immunotype B tumors are found in both locations. Thus, these findings suggest that TLS alone do not determine immunotype. Immunotype B histology reflects infiltrates of T cells primarily limited to perivascular locations, plus some TLS in those locations. On the other hand, among Immunotype C tumors, we found that the immune-cell composition among tumor cells (distant from vasculature) was almost completely comprised of T cells (CD4⁺ and CD8⁺) (Fig. 5c, and data not shown), suggesting that Immunotype C histology in B16-AAD i.p. tumors is primarily a T-cell phenomenon.

Discussion

In the present study, we identified characteristic immunotypes in murine B16 and Braf/Pten models that match immunotypes observed in human melanoma metastases [1]. In particular, we found that Immunotype A (a “cold” or non-inflamed tumor) can be modeled by B16-F1 implantable tumors or the spontaneous Braf/Pten or Braf/Pten/β-catenin tumors. On the other hand, Immunotype B (inflamed but with immune cells only cuffing intratumoral vasculature) can be modeled by B16-OVA tumors (i.p. or s.c.) or by B16-AAD tumors (s.c. only). Diffuse infiltrates (Immunotype C) were identified only in B16-AAD melanomas growing intraperitoneally. Our work identifies both antigen expression and tumor location as critical determinants of immunotype in murine models.

Findings from this study demonstrate the central role that immune responses to strong antigens play in distinguishing Immunotypes B and C from Immunotype A. Thus, we have established that Braf/Pten tumors, which are rapidly induced by activation of oncogenic driver genes with little time for accumulation of genomic mutations, are Immunotype A, while B16 tumors expressing either OVA or AAD are Immunotype B or C. Strong immunodominant peptides are generated from the OVA protein, and presented either by MHC-I or MHC-II molecules [26, 27] to CD8⁺ and CD4⁺ T cells, respectively. AAD is a xenogeneic cell-surface MHC molecule and thus may be recognized by the TCR as foreign MHC. One can expect that it will present thousands of peptide antigens derived from the B16 proteins, all of which could be considered neoantigens since the host is otherwise naïve to AAD-presented peptides. In addition, AAD may itself be processed intracellularly and presented to T cells, and because it is a surface protein, it may be recognized by murine B cells and antibodies. Thus, AAD may be particularly effective at inducing diffuse infiltrates related to its broad antigenicity.

On the other hand, it is surprising that B16-F1 tumors are Immunotype A: over five hundred somatic mutations have been identified in B16 melanomas, 76% of which have been predicted to be presented by murine MHC molecules [16]. In murine models using a series of melanoma cell lines with defined genetic driver mutations and a low number of somatic mutations (YUMM), immune infiltration is low [28]; however, increasing the number of somatic mutations in the YUMM tumors (YUMMER) leads to more robust immune infiltrates [29]. In addition, increased mutational load has been reported to lead to more inflamed tumors in humans [30, 31]. However, it is notable that several studies suggest that the vast majority of neoantigens are immunologically silent [32, 33], or induce responses that cross-react with normal host proteins, and thus may be subject to self-tolerance [16]. Our results suggest that a high mutational load does not necessarily translate to strong neoantigens that are sufficient to induce an inflamed tumor microenvironment, a finding that is consistent with human data from The Cancer Genome Atlas [34, 35].

The fact that high neoantigen load in B16-F1 is insufficient to induce meaningful inflammation also raises the possibility that B16-F1 tumors may have intrinsic features that limit T-cell infiltration. On one hand, low-level expression of critical homing receptor ligands on the endothelium may fail to recruit immune cells from circulation. Interestingly, expression of homing receptor ligands by intratumoral endothelium [17, 18], and of critical chemokines such as CXCL10, is enhanced by IFNγ or other cytokines [17, 36–38], suggesting a feedback loop that enhances immune infiltration and immune signatures once a certain threshold of activation occurs. This could explain why the dramatic change in antigenicity of B16-AAD can lead to Immunotype C tumors. On the other hand, different subsets of human melanomas are characterized by one or more of the following possible mechanisms of T-cell exclusion: enhanced WNT/β-catenin signaling, expression of endothelin receptor B, or overexpression of mechanical barrier molecules [39–41], which may be impenetrable by immune cells or require a specific threshold of antigen activation to be breached.

There is notable enhancement in immune-cell infiltration and/or immunotype for i.p. tumors compared to s.c. tumors generally (Fig. 4b). The fact that Immunotype C is common only in i.p, but not in s.c. sites for B16-AAD tumors suggests that some aspect of i.p. location drives formation of Immunotype C. Interestingly, there were substantial differences in the dominant immune-cell types in immune infiltrates as a function of tumor antigen as well as tissue site (Fig. 6). The impact of tissue site on immune infiltration and immunotype has not been well-explored and may be crucial to addressing the heterogeneity of immune response efficacy to different tumors in the same patient. Prior work has shown that the homing receptor ligands required for T-cell infiltration differ for metastases in different sites [17, 18] and that vaccines administered in different sites (s.c. vs i.v.) mediate T-cell accumulation in different visceral or soft tissues [42]. The proximity of i.p. tumors to the gut raises interesting questions of whether the gut microbiome may contribute to the observed findings, and this deserves further investigation. Regardless, the findings of the present work further highlight the critical influence of tumor location on immune-cell infiltration and immunotype, which may have greater implications for enhancing immune therapy than has previously been appreciated. Overall, our data highlight the role of antigen in immune-cell infiltration and immunotype but point out a previously unrecognized role for tissue site that is independent of the tumor antigenicity.

The route by which immune cells infiltrate peripheral tissues involves the intratumoral vasculature, and a component of the definition of Immunotype B tumors is that the infiltrates are limited to perivascular sites. Thus, one may hypothesize that vascular density or other measures may have an impact on immunotype. Intratumoral vascular density has also been identified as a positive prognostic indicator in melanoma [43, 44]. We found higher intratumoral vascular density in i.p. tumors vs. s.c. tumors, which is worth further study to understand how vascular density may be site-dependent and how that may contribute to increased immune infiltrates in i.p. tumors, and also to study the association of CD4⁺ T cells with increased vascular density. However, the vascularity scores were very comparable for B16-F1, B16-OVA, and B16-AAD. The association of vascular density with tumor site is strikingly consistent across the different tumor types, but does not explain overall changes in immune infiltrates or immunotypes, suggesting that functional changes in the vasculature may be more crucial than the vessel density itself, and that Immunotype C may be more dependent on these functional changes as the driving force compared to Immunotypes A or B.

In summary, the present work provides documentation of features of immune-cell infiltration into commonly used murine models, along with definition of their immunotypes. This information provides a basis for employing these models for preclinical studies of combination immunotherapies to understand how they may enhance infiltration or tumor control. Our data also highlight the fact that a large number of spontaneous neoantigens may be insufficient to drive high immune infiltrates and inflamed tumors, but that even a single strong antigen may be sufficient, and that the impact may be strongly influenced by tumor location. We find it very provocative that B-cell density and TLS formation are both identified in the B16-OVA i.p. tumors, which are all Immunotype B, rather than in B16-AAD i.p. tumors, which are mostly Immunotype C. Considering that the AAD molecule (not OVA) is a cell-surface protein, we would expect a strong antibody/B-cell response to AAD. Thus, the higher prevalence of B cells in OVA tumors than in AAD tumors is a surprising finding, and will prompt future studies on the nature of immune infiltrate as a function of antigen. As we have previously reported [24], we have found that TLS are present only in i.p. tumors, but not in s.c. tumors; thus, the impact of antigen on B-cell accumulation and TLS formation cannot be considered independent of tumor site. The findings of this work also reveal that immunotype patterns do not simply reflect TLS formation, but are likely driven by multiple factors. Many questions remain, including the impact of antigenicity and location on the type and function of infiltrating immune cells, and what mechanisms are at play in B16 melanoma and in the spontaneous Braf/Pten tumors that may actively exclude immune-cell infiltration. Furthermore, the findings raise provocative and critical questions about the roles of antigen type, breadth of immune response, tumor location, and vascularity in immune-cell infiltration patterns (immunotype) and density. We hope that these findings will lead to new work to define mechanisms explaining these findings, and to define which human tumors can be rendered responsive to immunotherapy by modulation of the same processes that have impact in these murine models.
