Transgenic interleukin 11 expression causes cross-tissue fibro-inflammation and an inflammatory bowel phenotype in mice

Wei-Wen Lim; Benjamin Ng; Anissa Widjaja; Chen Xie; Liping Su; Nicole Ko; Sze-Yun Lim; Xiu-Yi Kwek; Stella Lim; Stuart Alexander Cook; Sebastian Schafer

doi:10.1371/journal.pone.0227505

. 2020 Jan 9;15(1):e0227505. doi: 10.1371/journal.pone.0227505

Transgenic interleukin 11 expression causes cross-tissue fibro-inflammation and an inflammatory bowel phenotype in mice

Wei-Wen Lim ^1,², Benjamin Ng ^1,², Anissa Widjaja ², Chen Xie ¹, Liping Su ¹, Nicole Ko ², Sze-Yun Lim ¹, Xiu-Yi Kwek ¹, Stella Lim ², Stuart Alexander Cook ^1,^2,^3,^4,^‡,^*, Sebastian Schafer ^1,^2,^‡,^*

Editor: Cristiano Pagnini⁵

¹National Heart Research Institute Singapore, National Heart Centre Singapore, Singapore, Singapore

²Cardiovascular and Metabolic Disorders Program, Duke-National University of Singapore Medical School, Singapore, Singapore

³National Heart and Lung Institute, Imperial College London, London, England, United Kingdom

⁴MRC-London Institute of Medical Sciences, London, England, United Kingdom

⁵Sapienza University of Rome, S. Andrea Hopital, ITALY

Competing Interests: S.A.C. and S.S. are co-inventors of the patent applications ‘Treatment of fibrosis’ (WO/2017/103108). S.A.C., S.S., W.W.L. and B.N. are co-inventors of the patent application ‘Treatment of SMC mediated disease’ (WO/2019/073057). S.A.C. and S.S. are co-founders and shareholders of Enleofen Bio PTE LTD, a company (which S.A.C. is a director of) that develops anti-IL11 therapeutics. All other authors declare no competing interests.

‡ These authors jointly supervised this work.

^✉

* E-mail: sebastian@duke-nus.edu.sg (SS); stuart.cook@singhealth.com (SAC)

Roles

Wei-Wen Lim: Conceptualization, Data curation, Formal analysis, Investigation, Methodology, Project administration, Validation, Visualization, Writing – original draft, Writing – review & editing

Benjamin Ng: Conceptualization, Data curation, Formal analysis, Investigation, Methodology, Resources, Validation, Visualization, Writing – original draft, Writing – review & editing

Anissa Widjaja: Formal analysis, Investigation, Visualization

Chen Xie: Investigation

Liping Su: Conceptualization, Investigation, Validation

Nicole Ko: Investigation

Sze-Yun Lim: Investigation

Xiu-Yi Kwek: Investigation

Stella Lim: Investigation

Stuart Alexander Cook: Conceptualization, Data curation, Funding acquisition, Project administration, Resources, Supervision, Validation, Visualization, Writing – original draft, Writing – review & editing

Sebastian Schafer: Conceptualization, Data curation, Funding acquisition, Project administration, Supervision, Validation, Visualization, Writing – original draft, Writing – review & editing

Cristiano Pagnini: Editor

PMCID: PMC6952089 PMID: 31917819

Abstract

Interleukin 11 (IL11) is a profibrotic cytokine, secreted by myofibroblasts and damaged epithelial cells. Smooth muscle cells (SMCs) also secrete IL11 under pathological conditions and express the IL11 receptor. Here we examined the effects of SMC-specific, conditional expression of murine IL11 in a transgenic mouse (Il11^SMC). Within days of transgene activation, Il11^SMC mice developed loose stools and progressive bleeding and rectal prolapse, which was associated with a 65% mortality by two weeks. The bowel of Il11^SMC mice was inflamed, fibrotic and had a thickened wall, which was accompanied by activation of ERK and STAT3. In other organs, including the heart, lung, liver, kidney and skin there was a phenotypic spectrum of fibro-inflammation, together with consistent ERK activation. To investigate further the importance of stromal-derived IL11 in the inflammatory bowel phenotype we used a second model with fibroblast-specific expression of IL11, the Il11^Fib mouse. This additional model largely phenocopied the Il11^SMC bowel phenotype. These data show that IL11 secretion from the stromal niche is sufficient to drive inflammatory bowel disease in mice. Given that IL11 expression in colonic stromal cells predicts anti-TNF therapy failure in patients with ulcerative colitis or Crohn’s disease, we suggest IL11 as a therapeutic target for inflammatory bowel disease.

Introduction

Non-striated smooth muscle cells (SMCs) line the walls of hollow organs and the vasculature. In adults, SMCs are not terminally differentiated and their cellular phenotype remains plastic. A variety of extracellular cues such as humoral factors, mechanical or oxidative stress and cell-cell interactions can induce a spectrum of cellular states ranging from contractile SMCs to highly synthetic and proliferative SMCs [1]. Synthetic SMCs are associated with a wide variety of vascular pathologies such as atherosclerosis or hypertension [1] and other disorders such as asthma [2] and inflammatory bowel disease (IBD) [3]. Many fibro-inflammatory diseases have a component, or are defined by, SMC dysfunction. This is exemplified by systemic sclerosis, which presents with global organ fibrosis and specific vascular abnormalities [4] and is characterized by elevated transforming growth factor beta (TGFB) 2 and interleukin 11 (IL11) expression in dermal stromal cells [5, 6]. This co-occurrence of fibrosis and SMC dysfunction may in part be explained by molecular similarities of the fibrogenic fibroblast-to-myofibroblast conversion and the SMC contractile-to-synthetic phenotype switch. Both these cellular transitions are characterized by extracellular matrix (ECM) production, cell proliferation, invasion and migration. They can also be triggered by the same extracellular cues including TGFB family members [1, 7].

We recently identified IL11 as a critical driver of fibroblast activation in the cardiovascular system, liver and lung downstream of a variety of pro-fibrotic factors including TGFB1 [8–10]. In a study from 1999, IL11 was also found to be secreted by vascular SMCs (VSMCs) in response to pathogenic stimuli, including interleukin 1 alpha (IL1A), TGFB and tumor necrosis factor (TNF) [11]. Although IL11 is upregulated in systemic sclerosis [6], TNF-resistant ulcerative colitis [12, 13] and asthma [14] and despite SMCs being a source of IL11 [11], the effect of IL11 function in SMC biology has not been studied. To address this gap in our knowledge, we generated an inducible Il11 transgenic mouse to overexpress mouse Il11 in myosin heavy chain 11 (Myh11)-positive smooth muscle cells (Il11^SMC). Here we characterized key organs that may be affected by SMC pathobiology in Il11^SMC mice to better understand the role of SMC-derived IL11.

Materials and methods

Mouse models

This study was carried out in compliance with the recommendations in the Guidelines on the Care and Use of Animals for Scientific Purposes of the National Advisory Committee for Laboratory Animal Research (NACLAR). All experimental procedures were approved (2014/SHS/0925) and conducted in accordance to the SingHealth Institutional Animal Care and Use Committee (IACUC). All mice were from a C57BL/6JN genetic background and were bred and housed in individually vented cages in the same room under ABSL-1 conditions in the SingHealth Experimental Medicine Centre and provided normal chow (Specialty Feeds) and water ad libitum. All research staff involved in animal studies underwent the Responsible Care and Use of Laboratory Animal Course (RCULAC, Singapore) prior to study commencement. Animals were euthanized at endpoint by ketamine (100 mg/kg) and xylazine (10 mg/kg) given IP, followed by the removal of vital organs and tissues.

Mice were scruffed to restrict motion during tamoxifen administration IP and monitored daily for clinical signs of distress and body weights were measured thrice per week upon tamoxifen induction. When rectal inflammation/bleeding was observed, the wound was gently disinfected with 70% methylated spirits and 10% povidone-iodine. Mice that displayed behavioral abnormalities, weight loss, and/or rectal bleeding were therapeutically treated with buprenorphine (0.1 mg/kg SQ) and enrofloxacin (5 mg/kg SQ) where necessary. Animals that did not recover with treatment or presented with deteriorated symptoms including pronounced weight loss (>20% over 1 week or >10% over 24 hours) and the development of rectal prolapse were euthanized following consultation with a veterinarian prior to the study endpoint and were treated as deaths.

Smooth muscle-specific Il11 transgenic model

To direct transgene expression in smooth muscle cells, we crossed the heterozygous Rosa26-Il11 (Gt(ROSA)26Sor^{tm1(CAG-Il11)Cook}) mouse [8] to the hemizygous SMMHC-CreERT2 (B6.FVB-Tg(Myh11-cre/ERT2)1Soff/J) mouse [15] available from the Jackson Laboratory (031928 and 019079 respectively) to generate double heterozygous SMMHC-CreERT2:Rosa26-IL11 offspring (referred to here as Il11^SMC mice). Only male Il11^SMC mice were utilized as the Myh11-Cre/ERT2 transgene is inserted on the Y chromosome. To induce Cre-mediated Il11 transgene induction, six week old Il11^SMC mice were intraperitoneal injected with 3 doses of 50 mg kg^-1 tamoxifen (tam; T5648, Sigma Aldrich) or an equivalent volume of corn oil vehicle (veh; C8267, Sigma Aldrich) for a week. Single hemizygous SMMHC-CreERT2 littermates were designated as controls (referred to as Cre^SMC). A total of forty-seven Il11^SMC mice (tam-treated n = 35; veh-treated n = 12) and twenty-seven Cre^SMC mice were used. Individual mice died due to bowel inflammation and bleeding (n = 7) or were humanely euthanized when mice showed signs of pronounced weight loss and rectal prolapse (n = 15).

For genotyping of mice genomic DNA, we performed polymerase chain reaction (PCR) on the tail biopsies which were obtained at the time of weaning. Genotyping was conducted in two sequential PCRs, for Myh11-Cre and Rosa26-Il11 genes separately. Agarose gel electrophoresis was subsequently conducted to confirm the respective product sizes for genotyping. Genotyping primer sequences are listed in S1 Table.

Fibroblast-specific Il11 transgenic model

To model fibroblasts-selective secretion of IL11 in vivo, we crossed the heterozygous Rosa26-IL11 mice with Col1a2-CreER mice [16] to generate double heterozygous Col1a2-CreER:Rosa26-Il11 mice (referred to as Il11^Fib) [9]. For Cre-mediated Il11 transgene induction, Il11^Fib mice were intraperitoneal injected with 50 mg kg^-1 tamoxifen at 6 weeks of age for 10 consecutive days and the animals were sacrificed on day 21. Wildtype littermates (designated as control) were injected with an equivalent dose of tamoxifen for 10 consecutive days as controls. Both female and male mice were used.

Colon length was measured from the caecum to the anus. The most distal half was taken for histology and the adjacent part was portioned and immediately snap frozen in liquid nitrogen for downstream molecular work (hydroxyproline assay, western blot analysis and quantitative polymerase chain reaction assessment). The excised heart was halved from the base to mid ventricle for histology and the remainder separated into 3 portions for molecular work. The left lung was isolated for histology and the right lung separated into 3 portions for molecular work. The right lobe of the liver was excised for histology and the left lobe separated into 3 portions for molecular work. The left kidney was fixed for histology and the right kidney separated in thirds for molecular work. The dorsal skin was harvested and halved for histology and molecular work.

Hydroxyproline assay

The amount of total tissue collagen was quantified using colorimetric detection of hydroxyproline using the Quickzyme Total Collagen assay kit (Quickzyme Biosciences) performed according to the manufacturer’s protocol. All samples were run in duplicate and absorbance at 570 nm was detected on a SpectraMax M3 fluorescence microplate reader using SoftMax Pro version 6.2.1 software (Molecular Devices).

Fecal calprotectin (S100A8/A9) levels

To characterize inflammation in the gut, we investigated levels of fecal calprotectin in the Il11^SMC and Il11^Fib mice using the mouse S100A8/A9 heterodimer duoset ELISA kit (DY8596-05, R&D systems). Calprotectin is a biomarker for inflammatory activity and has been clinically applied as a diagnostic tool for inflammatory bowel diseases [17, 18]. Stool samples were collected in a 1.5 ml tube and diluted with 50x (weight per volume) of extraction buffer (0.1 M Tris, 0.15 M NaCl, 1.0 M urea, 10 mM CaCl2, 0.1 M citric acid monohydrate, 5 g/l BSA (pH 8.0)) with the assumption of fecal density to be 1 g/ml. Samples were homogenized until no large particles were present. Homogenate was transferred into a fresh tube and further centrifuged at 10,000 g at 4 °C for 20 minutes. The supernatant was assessed for S100A8/A9 levels by ELISA as per the manufacturer’s instructions.

RT-qPCR

Total RNA was extracted from snap-frozen tissues using RNAzol RT (R4533, Sigma-Aldrich) followed by Purelink RNA mini kit (12183025, Invitrogen) purification. The cDNA was prepared using iScript cDNA synthesis kit (1708891, Bio-Rad) as per the manufacturer’s instructions. Quantitative RT-PCR gene expression analysis was performed on duplicate samples using fast SYBR green (Qiagen) technology using the ViiA 7 Real-Time PCR System (Applied Biosystem). RT-qPCR primers are listed in S2 Table. Expression data were normalized to Gapdh mRNA expression levels and the 2^-ΔΔCT method was used to calculate the fold change.

Immunoblotting

Western blots were carried out on total protein extracts from mouse tissues. Frozen tissues were homogenized and lyzed in radioimmunoprecipitation assay (RIPA) buffer containing protease and phosphatase inhibitors (Roche) followed by centrifugation. Equal amounts of protein lysates were separated by SDS-PAGE, transferred onto PVDF membrane and immunoblotted for pERK1/2 (4370, CST), ERK1/2 (4695, CST), pSTAT3 (4113, CST), STAT3 (4904, CST), GAPDH (2118, CST) and IL11 (X203, Aldevron). Proteins were visualized with appropriate secondary antibodies anti-rabbit HRP (7074, CST) and anti-mouse HRP (7076, CST).

Histology

Tissues from Il11^SMC and Il11^Fib mice were fixed in 10% neutral-buffered formalin for 24–48 hours, tissue processed and paraffin-embedded. Sections were obtained at 5 μm and stained with Masson’s trichrome staining for collagen. Brightfield photomicrographs of the sections were randomly captured by a researcher blinded to the treatment groups using the Olympus BX51 microscope and Image-Pro Premier 9.2 (Media Cybernetics).

Photomicrographs of the colon taken at 200X magnification were used to calculate muscle wall thickness. The distance between the inner and outer circumference of the muscularis propria was measured using the incremental distance tool at a calibrated step size of 25 μm on Image-Pro Premier 9.2 (Media Cybernetics). A total of 75 to 250 measurements across three to five photomicrographs per section were taken and averages reported per photomicrograph. Muscle thickness was reported as an average across 3 cross-sections of the colon per animal.

Photomicrographs of the dorsal skin were captured in 3 fields per section at 100X magnification and used to calculate epidermal and dermal thickness. The epidermis was measured from the stratum basale to the stratum granulosum using hand-drawn line segments on Image-Pro Premier 9.2 (Media Cybernetics). The dermis was measured from the dermal-epidermal junction to the hypodermis. Measurements were recorded using the incremental distance tool at a calibrated step size of 50 μm on Image-Pro Premier 9.2 (Media Cybernetics). A total of 75 to 200 measurements across three photomicrographs per section were taken and averages reported per photomicrograph. Overall epidermal and dermal thickness was reported as an average across the 3 fields per animal.

Fibrosis quantification was conducted as referenced [19]. Color deconvolution version 1.5 plugin using the Masson Trichrome vector on ImageJ (version 1.52a, NIH) and thresholding was applied for area quantification. Perivascular fibrosis was measured as a ratio of the fibrosis area to the vessel area. Vascular hypertrophy was quantified as the ratio of media wall area to the lumen area.

Immunohistochemistry

Paraffin-embedded colon tissue were sectioned at 5 μm, deparaffinized and permeabilized with Triton X-100 (Sigma-Aldrich) and heat antigen retrieved with Bull’s Eye Decloaker (Biocare Medical). Slides were then blocked for endogenous peroxidase with Bloxall^™ blocking solution (Vector Lab) followed by blocking with either 3% bovine serum albumin, or mouse on mouse blocking reagent (Vector Lab). Anti-IL11 (ab10558; PA5-36544, Invitrogen), anti-CD45 (1:100; ab10558, Abcam), anti-LGALS3 (1 μg/ml; CL8942AP, Cedarlane) amd anti-LAMP2 (1 μg/ml; 550292, BD Bioscience) were added and incubated overnight at 4°C. Anti-rabbit (1:100; ab27478, Abcam) and anti-rat IgG (1 μg/ml; sc-2026, Santa Cruz) isotype controls were added as respective negative controls. Slides were incubated with anti-rabbit IgG peroxidase (1:500, A0545, Sigma-Aldrich) and anti-rat IgG peroxidase (MP-7404, Vector Lab) followed by chromogen development with ImmPACT^® DAB peroxidase substrate kit (SK-4105, Vector Lab) according to manufacturer’s instructions. Lastly, Gill’s haematoxylin (H-3401, Vector Lab) was added for nuclear counterstain. To control for unspecific binding, primary antibody isotype controls were included and images are presented in S3 Fig.

Statistical analysis

Data are presented as mean ± standard deviation or median ± range as stated in the figure legends. Statistical analyses were performed on GraphPad Prism 8 software (version 8.1.2). Outliers (ROUT 2%, GraphPad Prism software) were removed prior to analyses. Comparison of survival curves was analyzed with the log-rank Mantel-Cox test. Bodyweight progression was analyzed with two-way ANOVA with Sidak multiple comparisons. A comparison of mice strains for all other parameters was analyzed with a two-tailed unpaired t-test. The criterion for statistical significance was established at P < 0.05.

Results

Expression of Il11 in smooth muscle cells results in ill health and early mortality

We generated an Il11^SMC mouse model that overexpresses IL11 specifically in Myh11^+ve SMCs: Conditional transgenic mice with mouse Il11 inserted into the Rosa26 locus (Rosa26-Il11-Tg) [8] were crossed with smooth muscle-specific Myh11-cre/ERT2 mice [15] (Fig 1a and 1b). We then injected tamoxifen (tam) three times at day 0, 3 and 5 into 6-week old Il11^SMC mice to induce recombination in Myh11^+ve cells and monitored the survival and body weight for 14 days. Following tam-induced Il11 expression in SMCs, mice started dying from day three onwards, with only 37% of Il11^SMC mice surviving to day 14. This was significantly different from the survival of either vehicle (veh)-treated Il11^SMC animals or tam-treated Cre^SMC control mice, which were unaffected and both had 100% survival (both P < 0.001; Fig 1d and S1b Fig). Starting from day four onwards, tam-treated Il11^SMC mice progressively lost weight as compared to veh -treated and tam-treated Cre^SMC controls (both P < 0.001; Fig 1e and S1d Fig). Following two weeks of tam-induced Il11 expression, Il11^SMC mice were significantly smaller in body weight and length as compared to tam-treated Cre^SMC controls (both P < 0.001; S1f and S1g Fig) and veh-treated Il11^SMC mice (P = 0.002 and P < 0.001 respectively; Fig 1f and 1g). In contrast, the indexed weight of the heart, lung and kidney in tam-treated Il11^SMC animals was significantly elevated (P_Heart < 0.001; P_Lung < 0.001; P_Kidney = 0.006) when compared to veh-treated mice (Fig 1h). We did not observe differences in liver weight or colon length in veh or tam treated Il11^SMC animals (data not shown).

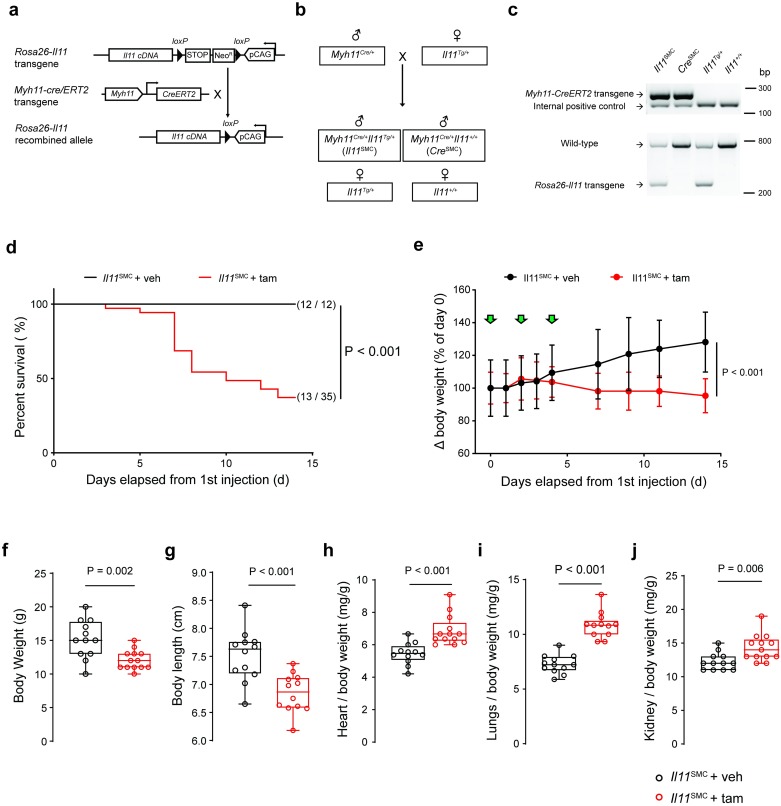

Fig 1 — **(a)** Schematic diagram of the targeted expression of *Il11* in *Myh11*^+ve SMC. In *Rosa26-Il11* mice, a floxed cassette containing both the neomycin (neo) resistance and stop elements is positioned before the murine *Il11* transgene cassette, which undergoes tamoxifen (tam) initiated *Cre*-mediated recombination when crossed to the *Myh11-Cre/ERT2* mouse. **(b)** Breeding scheme to generate *Myh11*^Cre/+*Rosa26*^Il11/+ (*Il11*^SMC) and *Myh11*^Cre/+*Rosa26*^+/+ (*Cre*^SMC) offspring mice. Note that the *Myh11-Cre* gene is expressed on the Y chromosome and therefore only male offspring carry the transgene. **(c)** Genotyping of tail biopsy DNA. A 287 bp band indicates the presence of the *Cre* transgene whereas the 180 bp band determines the presence of the internal positive control (top gel). Polymerase chain reaction with the *Rosa26-Il11* primer set detects a 270 bp band indicative of the *Rosa26-Il11* transgene whereas the 727 bp band indicates the presence of the wild-type transgene (bottom gel). Uncropped blots are presented in S2 Fig. **(d)** Survival curve of *Il11*^SMC mice treated with tam (n = 35) and corn oil vehicle (veh; n = 12) mice following tamoxifen initiation at day 0 and followed until day 14. Survival curves were compared using the log-rank Mantel-Cox test. **(e)** Body weight changes (expressed as percentage of day 0 body weight) in *Il11*^SMC mice treated with tam or veh (n = 8 per group). Green arrows denote individual injections. Statistical analyses by two-way ANOVA with Sidak multiple comparisons; data expressed as mean ± standard deviation. **(f)** Collated body weights (left) and **(g)** body lengths (right) of *Il11*^SMC mice treated with tam or veh measured at d14 post initial tamoxifen dose (n = 12–13 per group). **(h)** Organ weights of the heart, **(i)** lung and **(j)** kidney normalized to body weight in *Il11*^SMC mice treated with tam or veh (n = 12–13 per group). All comparisons were conducted in mice 14 days post-veh and tam treatment. Statistical analyses by two-tailed unpaired t-test; data expressed as median ± IQR, whiskers represent the minimum and maximum values.

IL11 expression causes severe inflammatory bowel disease associated with fibrosis

The most obvious and striking feature of Il11^SMC mice treated with tam was progressive rectal prolapse and pale loose stool formation from as early as day three after gene induction (Fig 2a and S1c Fig). Gross anatomical inspection of the gastrointestinal tract revealed inflammation and swelling of the small and large intestines of tam-treated Il11^SMC mice when compared to veh-treated controls (Fig 2b). Intestinal inflammation was specifically indicated by an increase in fecal calprotectin, a biomarker used to monitor disease activity in human colitis, in tam-treated Il11^SMC mice when compared to veh treatment (P < 0.001; Fig 2c). Masson’s trichrome staining of the colon indicated a very large increase in collagen deposition (P < 0.001; Fig 2d and 2e). Histology also showed a significant increase in the thickness of the smooth muscle-dominant muscularis propria (P = 0.040; Fig 2f). Quantitative hydroxyproline assessments revealed an increase in colonic collagen content in Il11^SMC mice after tam treatment (P < 0.001; Fig 2g), confirming the histological data.

Fig 2 — **(a)** Representative images of the *Il11*^SMC mice before (d0) and up to 7 days (d7) treatment with either corn oil vehicle (veh) or tamoxifen (tam). Presence of rectal prolapse are indicated with white arrows. Images represent the same animal across time points not taken to the same scale. **(b)** Excised gastrointestinal tract of representative *Il11*^SMC mice at day 14 post-treatment with veh or tam. Scale bar represents 5 cm. **(c)** Fecal calprotectin in representative *Il11*^SMC mice treated with veh or tam assessed by ELISA (n = 6–8 per group). **(d)** Representative cross-section and longitudinal section of the colon stained with Masson’s trichrome (left) and at 200X magnification (right). Scale bar of cross and longitudinal sections represents 500 μm and at 200X magnification represents 200 μm. **(e)** Colon fibrosis determined as a percentage of collagen positive area (blue) from histological images taken at 200X magnification (n = 6 per group). **(f)** Tunica muscularis (smooth muscle) thickness of the colon (n = 6 per group). **(g)** Total collagen content assessed by hydroxyproline assay and expressed as fold change (FC) of veh-treated *Il11*^SMC mice (n = 10–11 per group). **(h)** Representative images of the colonic smooth muscle and crypts taken at 400X magnification for Masson’s trichrome and immunohistochemistry staining for IL11, cluster of differentiation 45 (CD45), lysosome-associated membrane protein 2 (LAMP2), and galectin-3 (LGALS3) (n = 3 per group). Black arrows denote focal staining of positive cells, white arrows denote myenteric plexus which are positive for IL11 and CD45 expression, and white arrowheads denotes leukocyte aggregation. Scale bars represent 100 μm. All comparisons were conducted in organs harvested from mice 14 days post-veh and tam treatment. Statistical analyses by two-tailed unpaired t-test; data expressed as median ± IQR, whiskers represent the minimum and maximum values.

We then performed an immunohistochemical staining for IL11, CD45, lysosomal-associated membrane protein 2 (LAMP2) and lectin, galactose binding, soluble 3 (LGALS3) in the smooth muscle and crypt compartment of the colon in veh and tam-treated Il11^SMC mice (Fig 2h). In Il11^SMC mice, IL11 staining was diffuse in the smooth muscle, perhaps with a higher background staining, and also localized more strongly to other stromal cells that are likely fibroblasts, which express the IL11 receptor [8]. Furthermore, CD45^+ve leukocytes were increased in the fibrotic regions and crypts of the tam-treated Il11^SMC mouse colon. LAMP2 and LGALS3 are markers for epithelial cells and activated macrophages contributing to intestinal inflammation. Tam-treated Il11^SMC colon demonstrated increased expression of LAMP2 and LGALS3 in the epithelial cells and leukocytes of the crypts, consistent with inflammation in these regions [20–23]. In tam-treated Il11^SMC treated with Tam as compared to veh-treated mice, there was also activation of leukocytes in the Peyer’s patches of the colon, which are a primary site of mucosal immune response (Fig 3a), as well as in localized areas of disrupted villi architecture (Fig 3b). Interestingly, the myenteric plexus of the colon demonstrated ganglionic hyperplasia and fibrosis (Fig 3c), typical of neuroinflammation associated with inflammatory bowel disease.

Fig 3 — **(a)** Peyer’s patch of tam-treated *Il11*^SMC mice showed increased expression of IL11, CD45, LAMP2 and LGALS3 compared to veh-treated controls. **(b)** Cross- and longitudinal sections of the mucosa region of the colon in tam-treated *Il11*^SMC mice have inflammatory cell infiltrates that extend from the submucosa to the mucosa region resulting in distortion of villi architecture. **(c)** Ganglionic hyperplasia and fibrosis in the myenteric plexus of tam-treated *Il11*^SMC mice compared to vehicle controls. White arrowheads denote ganglionic cells. Black boxes were imaged at 400X magnification. All scale bars represent 200 μm.

IL11 expression in smooth muscle cells activates non-canonical IL11 signaling pathways

Given that smooth muscle cells are expressed in the walls of most organs, including the vasculature, bronchi, gastrointestinal and abdominal organs, we sought to confirm the expression of Il11 in Il11^SMC mice across tissues and performed western blotting at 14 days after tamoxifen administration. This confirmed that IL11 protein was significantly upregulated at the protein level across all tissues tested (P_colon = 0.034; P_heart = 0.002; P_lung = 0.039; P_liver < 0.001; P_kidney = 0.004; and P_skin = 0.004; Fig 4).

Fig 4 — Immunoblots of IL11 expression, phospho- (p) and total ERK1/2 and STAT3 protein in **(a)** colon, **(b)** heart, **(c)** liver, **(d)** lung, **(e)** kidney, **(f)** skin tissue of *Il11*^SMC mice treated with vehicle (veh) or tamoxifen (tam) (n = 3 per group). Dotted boxes in the immunoblots represent the veh-treated (black) and tam-treated (red) groups for all organs. All comparisons were conducted in organs harvested from mice 14 days post-veh or tam treatment.

IL11 is a member of the IL6 family of cytokines, which are considered to signal via the Janus Kinase (JAK)/Signal Transducer and Activator of Transcription (STAT) pathway [24]. However, we recently showed that the IL11 effect, both in vitro in fibroblasts and in vivo at the tissue level, is also dependent on non-canonical signaling via extracellular signal-regulated kinase (ERK) [8–10]. To investigate both canonical and non-canonical signaling pathways after Il11 expression, we performed western blotting of phosphorylated (p) STAT3 or ERK1/2 and total protein levels and derived indices of kinase activation by normalizing phosphorylation amounts to total protein levels (Fig 4). At baseline, ERK was phosphorylated at low levels in most tissues except for the skin. Upon IL11 expression, we detected a strong and significant activation of ERK in all tissues (P_colon = 0.002; P_heart = 0.004; P_lung = 0.049; P_liver = 0.056; P_kidney = 0.001; and P_skin < 0.001; Fig 4). STAT3 phosphorylation was unchanged in the heart, lung and liver but was elevated in the colon and skin (P = 0.05 and 0.001 respectively; Fig 4). In contrast, total levels of STAT3 appeared to be increased in the liver and kidney of tam-treated Il11^SMC animals (Fig 4d and 4e). Overall, while both pathways were affected, ERK signaling was consistently activated across tissues tested whereas STAT3 was not.

IL11 destroys tissue integrity and promotes collagen deposition

To investigate the effect of Il11 expression in SMCs on tissue composition beyond the colon, we performed histological analyses of the heart, lung, liver, kidney and skin. Masson’s trichrome staining was used to visualize collagen and quantify extracellular matrix deposition. In the heart, we observed collagen deposition in the perivascular region (P = 0.002; Fig 5a and 5b). We also observed vascular hypertrophy (P = 0.019; Fig 5c) and mild ventricular hypertrophy in the absence of dilatation (data not shown). Hydroxyproline assay of the whole heart confirmed cardiac fibrosis (P = 0.026; Fig 5d). In the lung, Ashcroft scores of pulmonary histological images showed lung damage after tam-induced Il11 expression (P < 0.001; Fig 5e and 5f). Masson’s trichrome staining indicated elevated collagen expression throughout the lung in Il11^SMC mice and pulmonary fibrosis was confirmed by the hydroxyproline assay (P = 0.001; Fig 5g).

The effect of Il11 expression on the liver was overall mild and characterized by perisinusoidal fibrosis (Fig 5h to 5j). Renal tissue structure was also affected only mildly, with limited fibrosis occurring around the blood vessels (Fig 5k to 5m). The effect of IL11 on the skin of tam-treated Il11^SMC animals was more profound and both the dermal and epidermal thickness was significantly increased (Fig 5n to 5p; P = 0.041 and P = 0.001 respectively). Dorsal skin sections showed that epidermal and dermal cell infiltrates were increased and the adipose tissue layer in the hypodermis was largely depleted. Confirming Masson’s trichrome staining of skin sections, we observed increased collagen deposition in the skin of tam-treated Il11^SMC mice using the hydroxyproline assay (P < 0.001; Fig 5q).

IL11 secretion from smooth muscle cells drives fibrogenic gene expression

We assessed the RNA expression of fibrogenic genes to complement our histology studies, which further substantiated the presence of multi-organ fibrosis. Reverse transcription-polymerase chain reaction (RT-PCR) was performed using RNA from colonic, ventricular, pulmonary, hepatic, renal and skin tissue of veh- or tam-treated Il11^SMC mice. Collagen, type I, alpha 1 (Col1a1) RNA was significantly upregulated in all tissues (P_colon = 0.005; P_heart = 0.005; P_lung < 0.001; P_liver = 0.016; P_kidney = 0.022; P_skin = 0.016; Fig 6), confirming the effect of Il11 expression on global organ fibrosis that we observed on the protein level (Fig 5). Additional markers for fibrosis such as collagen, type I, alpha 2 (Cola1a2), collagen, type III, alpha 1 (Col3a1), fibronectin 1 (Fn1), tissue inhibitor of metalloproteinase 1 (Timp1) and matrix metallopeptidase 2 (Mmp2) were also assessed via RT-PCR (Fig 6a to 6f). These genes were elevated in most tissues of tam-treated Il11^SMC mice. Timp1 transcripts were significantly upregulated in the heart (P < 0.001), lung (P = 0.004), liver (P = 0.003), kidney (P = 0.003) and skin (P = 0.017), which is a recognized feature of pathological ECM remodeling [25].

Fig 6 — Relative mRNA expression of collagen type 1a1 (*Col1a1*), type 1a2 (*Col1a2*), type 3a1 (*Col3a1*), fibronectin-1 (*Fn1*), tissue inhibitor of metalloproteinase 1 (*Timp1*) and matrix metalloproteinase 2 (*Mmp2*) normalized to Glyceraldehyde 3-phosphate dehydrogenase (*Gapdh*) expression in the **(a)** colon, **(b)** heart, **(c)** lung, **(d)** liver, **(e)** kidney and **(f)** skin. All comparisons were conducted 14 days post-veh (black) and tam (red) initiated mice. Statistical analyses by two-tailed unpaired t-test; data expressed as median ± IQR, whiskers represent the minimum and maximum values.

IL11 secreted from smooth muscle cells causes inflammation across tissues

In addition to fibrosis, SMC-driven diseases are often characterized by tissue inflammation. To better understand whether IL11 secretion from SMCs can contribute to this pathology, we performed RT-PCR experiments of inflammatory marker genes across multiple tissues. Interleukin 6 (IL6) also signals via gp130, similar to IL11, but its specific IL6 receptor subunit is expressed on a different subset of cells, most of which belong to the immune system [8]. IL6 is also a well-established therapeutic target for inflammatory diseases such as rheumatoid arthritis [26]. Upon tam-induced Il11 expression in Il11^SMC mice, we found Il6 mRNA to be significantly upregulated across all tissues tested (P_colon = 0.001; P_heart < 0.001; P_lung = 0.015; P_liver = 0.007; P_kidney < 0.001; and P_skin = 0.003; Fig 7).

Fig 7 — Relative mRNA expression of interleukin 6 (*Il6*), C-C motif chemokine ligand 2 (*Ccl2*), C-C motif chemokine ligand 5 (*Ccl5*) normalized to Glyceraldehyde 3-phosphate dehydrogenase (*Gapdh*) expression in the **(a)** colon, **(b)** heart, **(c)** lung, **(d)** liver, **(e)** kidney and **(f)** skin respectively. All comparisons were conducted in 14 days post-veh (black) and tam (red) initiated mice. Statistical analyses by two-tailed unpaired t-test; data expressed as median ± IQR, whiskers represent the minimum and maximum values.

In the colon, we also detected increased RNA expression of the inflammatory chemokine C-C motif chemokine ligand 2 (Ccl2) (P = 0.017), whereas C-C motif chemokine ligand 5 (Ccl5) was not significantly elevated but trended upwards (P = 0.141). Interestingly, these inflammatory chemokines are upregulated in the colonic mucosa of IBD patients [27, 28]. However, CCL2 transcripts, and not CCL5 transcripts, were found to be expressed in vessel-associated cells such as SMCs in IBD [27]. Given that Il11^SMC mice express Il11 in SMCs, it is consistent that the transcript expression of the chemokine expressed in this particular cellular niche in the colon is most affected. In the skin, all three inflammatory markers tested were highly upregulated. This points to an inflammatory gene expression signature in the skin that is reminiscent of that seen in systemic sclerosis, since IL6, CCL2, and CCL5 are elevated in the serum of patients [29, 30]. Of note, CCL2 levels were correlated with the extent of skin fibrosis in systemic sclerosis, a pathogenic feature also triggered by IL11 expression in SMCs (Fig 7) [29].

Fibroblast-selective expression of Il11 recapitulates the features of colonic inflammatory phenotype seen in Il11^SMC mice

We have previously described a model of Il11 expression in fibroblasts (Il11^Fib) that drives fibrosis in the heart, kidney, and lung [8, 9]. To examine further the effect of Il11 expression in stromal cells on the colon, we studied colonic phenotypes in this second model of Il11 expression from the stromal niche (Fig 8a). Gross examination of the gastrointestinal tract of Il11^Fib mice revealed macroscopic appearances consistent with inflammation of the colon to a similar extent as in Il11^SMC mice (Fig 8b). The total gastrointestinal gut length of Il11^Fib mice was unchanged overall but the colon length alone was reduced (P = 0.030; Fig 8b to 8d), which is a feature of experimental colitis in mice [31]. In this model, as compared to Il11^SMC mice, we detected Il6 but not Ccl2 or Ccl5, upregulation in the colon (Fig 8d and 8e). Inflammation of the gut was apparent in the Il11^Fib model as fecal calprotectin was significantly elevated (P = 0.003; Fig 8f). Histological examination revealed marked colonic dilation and increased SMC thickness (Fig 8g and 8h). In contrast to the Il11^SMC model of Il11 expression, colonic fibrosis as determined by histology, hydroxyproline assay or ECM gene expression, was not significantly different between tam-treated Il11^Fib and controls (data not shown). Taken together, fibroblast-driven Il11 expression recapitulates primarily the SMC-driven inflammatory, but not the fibrotic, phenotype in the mouse.

Fig 8 — **(a)** Schematic diagram demonstrating tamoxifen (tam) injection procedure in 6-week-old *Il11*^Fib and wildtype (control) littermates. **(b)** Excised gastrointestinal tract of representative *Il11*^Fib mice at day 21 compared to controls. Scale bar represents 5 cm. **(c)** Indexed GIT length in reference to body length (BL) was unchanged in *Il11*^Fib mice but **(d)** indexed colon length was markedly reduced as compared to controls (n = 4 per group). **(e)** Expression of inflammatory genes (*Il6*, *Ccl2* and *Ccl5*) in the colon tissue of *Il11*^Fib mice as compared to controls (n = 4–5 per group). **(f)** Fecal calprotectin in stool samples collected from *Il11*^Fib and control mice (n = 4–5 per group) as assessed by ELISA. **(g)** Representative cross-sections of the colon of *Il11*^Fib and control mice stained with Masson’s Trichrome (left) and at 200X magnification (right) (n = 6 biological replicates). Scale bars indicate 500 μm and 200 μm respectively. **(h)** Thickness of the smooth muscle layer (muscularis propria) in tam-treated *Il11*^Fib mice compared to controls (n = 6 per group). All comparisons were conducted in 21 days post-tam initiation in control (black) and *Il11*^Fib (green) mice. Statistical analyses by two-tailed unpaired t-test; data expressed as median ± IQR, whiskers represent the minimum and maximum values.

Discussion

In humans, IL11 is highly upregulated in the colonic mucosa of patients with either ulcerative colitis or Crohn’s disease who do not respond to anti-TNF therapy, with recent single cell RNA-seq studies localizing IL11 to inflammatory mucosal stromal cells [32–34]. To better understand the effect of IL11 in the colon, recombinant human IL11 has been used in rodent models of IBD [34–38] and it was suggested that IL11 may have a protective role in the bowel. However, a caveat with these studies is that human IL11 was administered to rodents despite the fact that human IL11 does not activate mouse stromal cells [8]. More recently, we have found that human IL11 unexpectedly acts as an inhibitor of endogenous mouse IL11 activity in the liver [39]. Thus, previous studies in IBD that showed that when human IL11 is injected into mice it protects them from IBD may paradoxically support the opposite conclusion: IL11 is not protective at all, but a driver of IBD. In light of this, there is a great need to assess the effects of species-specific IL11 in the mouse, which we undertook in this study by expressing murine Il11 in SMCs or fibroblasts in adult mice.

To enable our studies, we developed the Il11^SMC mouse as a tool to study the effect of murine IL11 secreted from SMCs, an established source of IL11 in the vasculature, airway, and colon [11, 40, 41]. Surprisingly, expression of Il11 in SMCs was sufficient to induce severe colonic inflammation and rectal prolapse within 3 days, which was followed by early mortality in Il11^SMC animals. We also documented increased colonic muscle thickness, which is a characteristic of the dextran sulphate sodium-induced colitis model [42]. In humans, histological features of clinical colitis include architectural distortion, shortening and size variation of crypts, immune cell infiltration, and granuloma formation [43]. Occurrences of architectural distortion of the glands and crypts in these mice were rare but present, although this may be reflective of the very short duration of IL11 expression. In contrast, these mice demonstrated thicker muscularis mucosa, increased immune cell infiltration, increased pro-inflammatory markers LAMP2 and LGALS3 in epithelial cells and the stroma and increased fibrosis in the mucosa sharing close similarities to intestinal fibrosis as observed in patients with ulcerative colitis [44]. Interestingly, IL11 expression in smooth muscle cells demonstrated signs of neuroinflammation in the myenteric plexus, which has been observed in inflammatory bowel disease [45].

We explored further the IL11 effect in the bowel using an additional model that expresses mouse Il11 in a second stromal cell type: the fibroblast. This complementary model also develops severe diarrhea and inflammation of the small intestines and colon, reinforcing the data generated in the Il11^SMC mice. In this model, the colon becomes distended with thicker muscularis mucosa, suggesting that IL11 secreted from fibroblasts acts in a paracrine fashion to cause smooth muscle hypertrophy. A lack of grossly detectable intestinal fibrosis in the colon in this model, which is very different to findings in the heart, kidney and lung [8,9], may reflect differing cellular composition of fibroblasts and smooth muscle cells in the intestinal wall, where smooth muscle cells appear to play a larger role. This would be consistent with the suggestion that smooth muscle hyperplasia and hypertrophy contributes mostly to the fibrostenosis and inflammation in IBD [46] and underlies the colonic contractile dysfunction [47].

Taken together these data show that Il11 expression in stromal cells is sufficient to cause an IBD phenotype and challenges the earlier data, based on the use of recombinant human IL11 in the mouse, that IL11 is protective in the bowel. Considered along with patient studies that show IL11 to be highly upregulated in the colonic mucosa of patients with ulcerative colitis or Crohn’s disease and that IL11 predicts treatment failure [32–34], our results highlight IL11 as a promising therapeutic target for IBD, particularly in the context of anti-TNF therapy resistance.

Supporting information

S1 Table. Genotyping primers.

(DOCX)

Click here for additional data file.^{(14.6KB, docx)}

S2 Table. RT-qPCR primers.

(DOCX)

Click here for additional data file.^{(14KB, docx)}

S1 Fig. Comparison of tamoxifen-treated Il11^SMC and Cre^SMC mice.

(a) Schematic diagram demonstrating the tamoxifen (tam) injection procedure in 6-week-old Il11^SMC and Cre^SMC mice. (b) Survival curve of tam-treated Il11^SMC (n = 35) compared to Cre^SMC mice (n = 27) mice from 1st injection starting at 6 weeks of age. Survival curves were compared with the log-rank Mantel-Cox test. (c) Representative images of the Cre^SMC and Il11^SMC mice before (d0) and up to 14 days (d14) post-tam initiation (left). Note the presence of pale and loose stools in Il11^SMC mice (right). The presence of rectal prolapse is indicated with white arrows. Tam-treated Il11^SMC images presented here are different from Fig 1c. Images were not taken to scale. (d) Baseline body weight of 6-week-old Cre^SMC and Il11^SMC mice before induction (n = 16 per group). Statistical analyses by two-tailed unpaired t-test; data expressed as median ± IQR, whiskers represent the minimum and maximum values. (e) Representative images of Cre^SMC and Il11^SMC mice at d14 post-Tam initiation. (f) Collated body weights and (g) body lengths of tam-treated Cre^SMC and Il11^SMC mice measured at d14 post-Tam initiation. (n = 12–17 per group). Statistical analyses by two-tailed unpaired t-test; data expressed as median ± IQR, whiskers represent the minimum and maximum values.

(TIF)

Click here for additional data file.^{(7.4MB, tif)}

S2 Fig. Uncropped blots for PCR genotyping from Cre^SMC and Il11^SMC mice treated with either tamoxifen (Tam) or vehicle (Veh).

PCR products of DNA extracted from tail biopsies of 21-day-old mice by use of set primers for Myh11-Cre (left) and Rosa26-Il11 (right) (primers as listed in S1 Table) and analyzed by agarose gel electrophoresis. Dashed boxes indicate cropped blots used in Fig 1c.

(TIF)

Click here for additional data file.^{(1.2MB, tif)}

S3 Fig. Immunohistochemistry with rat and rabbit IgG isotype controls as negative staining control in Fig 2h.

Smooth muscle and crypt staining with rat and rabbit IgG isotype controls demonstrate no positive staining in both veh- and tam-treated Il11-Tg colon. Scale bar represents 100 μm.

(TIF)

Click here for additional data file.^{(7.2MB, tif)}

Acknowledgments

The authors would like to acknowledge B.L. George, E. Khin, M. Wang, J. Tan for their technical expertise and support.

Data Availability

All relevant data are within the paper and its Supporting Information files.

Funding Statement

The research was supported by the National Medical Research Council (NMRC; https://www.nmrc.gov.sg/) Singapore STaR awards to S.A.C. (NMRC/STaR/0029/2017), the NMRC Central Grant to the NHCS, Goh Foundation, Tanoto Foundation and a grant from the Fondation Leducq. S.S. is supported by the Goh Foundation and Charles Toh Cardiovascular Fellowship and by the National Medical Research Council Young Individual Research Grant (MOH-OFYIRG18nov-0003). A.A.W. is supported by the NMRC YIRG (NMRC/OFYIRG/0053/2017). The funders had no role in study design, data collection and analysis, decision to publish, or preparation of the manuscript.

References

1.Owens GK, Kumar MS, Wamhoff BR. Molecular Regulation of Vascular Smooth Muscle Cell Differentiation in Development and Disease. Physiological Reviews. 2004. pp. 767–801. 10.1152/physrev.00041.2003 [DOI] [PubMed] [Google Scholar]
2.Johnson PR, Roth M, Tamm M, Hughes M, Ge Q, King G, et al. Airway smooth muscle cell proliferation is increased in asthma. Am J Respir Crit Care Med. 2001;164: 474–477. 10.1164/ajrccm.164.3.2010109 [DOI] [PubMed] [Google Scholar]
3.Shea-Donohue T, Notari L, Sun R, Zhao A. Mechanisms of smooth muscle responses to inflammation. Neurogastroenterology & Motility. 2012. pp. 802–811. 10.1111/j.1365-2982.2012.01986.x [DOI] [PMC free article] [PubMed] [Google Scholar]
4.Herrick AL. Vascular function in systemic sclerosis. Current Opinion in Rheumatology. 2000. pp. 527–533. 10.1097/00002281-200011000-00009 [DOI] [PubMed] [Google Scholar]
5.Shin JY, Beckett JD, Bagirzadeh R, Creamer TJ, Shah AA, McMahan Z, et al. Epigenetic activation and memory at a TGFB2 enhancer in systemic sclerosis. Science Translational Medicine. 2019. p. eaaw0790. 10.1126/scitranslmed.aaw0790 [DOI] [PMC free article] [PubMed] [Google Scholar]
6.Denton CP, Ong VH, Xu S, Chen-Harris H, Modrusan Z, Lafyatis R, et al. Therapeutic interleukin-6 blockade reverses transforming growth factor-beta pathway activation in dermal fibroblasts: insights from the faSScinate clinical trial in systemic sclerosis. Ann Rheum Dis. 2018;77: 1362–1371. 10.1136/annrheumdis-2018-213031 [DOI] [PMC free article] [PubMed] [Google Scholar]
7.Leask A, Abraham DJ. TGF-β signaling and the fibrotic response. The FASEB Journal. 2004. pp. 816–827. 10.1096/fj.03-1273rev [DOI] [PubMed] [Google Scholar]
8.Schafer S, Viswanathan S, Widjaja AA, Lim W-W, Moreno-Moral A, DeLaughter DM, et al. IL-11 is a crucial determinant of cardiovascular fibrosis. Nature. 2017;552: 110–115. 10.1038/nature24676 [DOI] [PMC free article] [PubMed] [Google Scholar]
9.Ng B, Dong J, Viswanathan S, D’Agostino G, Widjaja AA, Lim W-W, et al. IL-11 is a therapeutic target in idiopathic pulmonary fibrosis. 10.1101/336537 [DOI] [PubMed] [Google Scholar]
10.Widjaja AA, Singh BK, Adami E, Viswanathan S, Dong J, D’Agostino GA, et al. Inhibiting Interleukin 11 Signaling Reduces Hepatocyte Death and Liver Fibrosis, Inflammation, and Steatosis in Mouse Models of Non-Alcoholic Steatohepatitis. Gastroenterology. 2019. [DOI] [PubMed] [Google Scholar]
11.Taki H, Sakai T, Sugiyama E, Mino T, Kuroda A, Taki K, et al. Monokine stimulation of interleukin-11 production by human vascular smooth muscle cells in vitro. Atherosclerosis. 1999;144: 375–380. 10.1016/s0021-9150(99)00009-x [DOI] [PubMed] [Google Scholar]
12.Arijs I, Li K, Toedter G, Quintens R, Van Lommel L, Van Steen K, et al. Mucosal gene signatures to predict response to infliximab in patients with ulcerative colitis. Gut. 2009;58: 1612–1619. 10.1136/gut.2009.178665 [DOI] [PubMed] [Google Scholar]
13.Smillie CS, Biton M, Ordovas-Montañes J, Sullivan KM, Burgin G, Graham DB, et al. Rewiring of the cellular and inter-cellular landscape of the human colon during ulcerative colitis. 10.1101/455451 [DOI] [PMC free article] [PubMed] [Google Scholar]
14.Minshall E, Chakir J, Laviolette M, Molet S, Zhu Z, Olivenstein R, et al. IL-11 expression is increased in severe asthma: association with epithelial cells and eosinophils. J Allergy Clin Immunol. 2000;105: 232–238. 10.1016/s0091-6749(00)90070-8 [DOI] [PubMed] [Google Scholar]
15.Wirth A, Benyó Z, Lukasova M, Leutgeb B, Wettschureck N, Gorbey S, et al. G12-G13-LARG-mediated signaling in vascular smooth muscle is required for salt-induced hypertension. Nat Med. 2008;14: 64–68. 10.1038/nm1666 [DOI] [PubMed] [Google Scholar]
16.Zheng B, Zhang Z, Black CM, de Crombrugghe B, Denton CP. Ligand-dependent genetic recombination in fibroblasts: a potentially powerful technique for investigating gene function in fibrosis. Am J Pathol. 2002;160: 1609–1617. 10.1016/S0002-9440(10)61108-X [DOI] [PMC free article] [PubMed] [Google Scholar]
17.Wang S, Song R, Wang Z, Jing Z, Wang S, Ma J. S100A8/A9 in Inflammation. Frontiers in Immunology. 2018. 10.3389/fimmu.2018.01298 [DOI] [PMC free article] [PubMed] [Google Scholar]
18.Konikoff MR, Denson LA. Role of fecal calprotectin as a biomarker of intestinal inflammation in inflammatory bowel disease. Inflammatory Bowel Diseases. 2006. pp. 524–534. 10.1097/00054725-200606000-00013 [DOI] [PubMed] [Google Scholar]
19.Dahab GM, Kheriza MM, El-Beltagi HM, Fouda A-MM, Sharaf El-Din OA. Digital quantification of fibrosis in liver biopsy sections: Description of a new method by Photoshop software. Journal of Gastroenterology and Hepatology. 2004. pp. 78–85. 10.1111/j.1440-1746.2004.03183.x [DOI] [PubMed] [Google Scholar]
20.Sundblad V, Quintar AA, Morosi LG, Niveloni SI, Cabanne A, Smecuol E, et al. Galectins in Intestinal Inflammation: Galectin-1 Expression Delineates Response to Treatment in Celiac Disease Patients. Front Immunol. 2018;9: 379 10.3389/fimmu.2018.00379 [DOI] [PMC free article] [PubMed] [Google Scholar]
21.Dong S, Hughes RC. Macrophage surface glycoproteins binding to galectin-3 (Mac-2-antigen). Glycoconj J. 1997;14: 267–274. 10.1023/a:1018554124545 [DOI] [PubMed] [Google Scholar]
22.Kim H, Lee J, Hyun J, Park J, Joo H, Shin T. Expression and immunohistochemical localization of galectin-3 in various mouse tissues. Cell Biology International. 2007. pp. 655–662. 10.1016/j.cellbi.2006.11.036 [DOI] [PubMed] [Google Scholar]
23.Díaz-Alvarez L, Ortega E. The Many Roles of Galectin-3, a Multifaceted Molecule, in Innate Immune Responses against Pathogens. Mediators Inflamm. 2017;2017: 9247574 10.1155/2017/9247574 [DOI] [PMC free article] [PubMed] [Google Scholar]
24.Taga T, Kishimoto T. gp130 AND THE INTERLEUKIN-6 FAMILY OF CYTOKINES. Annual Review of Immunology. 1997. pp. 797–819. 10.1146/annurev.immunol.15.1.797 [DOI] [PubMed] [Google Scholar]
25.Birkedal-Hansen H. Proteolytic remodeling of extracellular matrix. Current Opinion in Cell Biology. 1995. pp. 728–735. 10.1016/0955-0674(95)80116-2 [DOI] [PubMed] [Google Scholar]
26.Rossi J-F, Lu Z-Y, Jourdan M, Klein B. Interleukin-6 as a therapeutic target. Clin Cancer Res. 2015;21: 1248–1257. 10.1158/1078-0432.CCR-14-2291 [DOI] [PubMed] [Google Scholar]
27.Mazzucchelli L, Hauser C, Zgraggen K, Wagner HE, Hess MW, Laissue JA, et al. Differential in situ expression of the genes encoding the chemokines MCP-1 and RANTES in human inflammatory bowel disease. J Pathol. 1996;178: 201–206. [DOI] [PubMed] [Google Scholar]
28.Grimm MC, Elsbury SK, Pavli P, Doe WF. Enhanced expression and production of monocyte chemoattractant protein-1 in inflammatory bowel disease mucosa. J Leukoc Biol. 1996;59: 804–812. 10.1002/jlb.59.6.804 [DOI] [PubMed] [Google Scholar]
29.Bandinelli F, Del Rosso A, Gabrielli A, Giacomelli R, Bartoli F, Guiducci S, et al. CCL2, CCL3 and CCL5 chemokines in systemic sclerosis: the correlation with SSc clinical features and the effect of prostaglandin E1 treatment. Clin Exp Rheumatol. 2012;30: S44–9. [PubMed] [Google Scholar]
30.Hasegawa M, Sato S, Fujimoto M, Ihn H, Kikuchi K, Takehara K. Serum levels of interleukin 6 (IL-6), oncostatin M, soluble IL-6 receptor, and soluble gp130 in patients with systemic sclerosis. J Rheumatol. 1998;25: 308–313. [PubMed] [Google Scholar]
31.Diaz-Granados N, Howe K, Lu J, McKay DM. Dextran Sulfate Sodium-Induced Colonic Histopathology, but not Altered Epithelial Ion Transport, Is Reduced by Inhibition of Phosphodiesterase Activity. The American Journal of Pathology. 2000. pp. 2169–2177. 10.1016/S0002-9440(10)65087-0 [DOI] [PMC free article] [PubMed] [Google Scholar]
32.Arijs I, Li K, Toedter G, Quintens R, Van Lommel L, Van Steen K, et al. Mucosal gene signatures to predict response to infliximab in patients with ulcerative colitis. Gut. 2009;58: 1612–1619. 10.1136/gut.2009.178665 [DOI] [PubMed] [Google Scholar]
33.Smillie CS, Biton M, Ordovas-Montanes J, Sullivan KM, Burgin G, Graham DB, et al. Intra- and Inter-cellular Rewiring of the Human Colon during Ulcerative Colitis. Cell. 2019;178: 714–730.e22. 10.1016/j.cell.2019.06.029 [DOI] [PMC free article] [PubMed] [Google Scholar]
34.Arijs I, Quintens R, Van Lommel L, Van Steen K, De Hertogh G, Lemaire K, et al. Predictive value of epithelial gene expression profiles for response to infliximab in Crohn’s disease. Inflamm Bowel Dis. 2010;16: 2090–2098. 10.1002/ibd.21301 [DOI] [PubMed] [Google Scholar]
35.Qiu BS, Pfeiffer CJ, Keith JC Jr. Protection by recombinant human interleukin-11 against experimental TNB-induced colitis in rats. Dig Dis Sci. 1996;41: 1625–1630. 10.1007/bf02087911 [DOI] [PubMed] [Google Scholar]
36.Gibson DL, Montero M, Ropeleski MJ, Bergstrom KSB, Ma C, Ghosh S, et al. Interleukin-11 reduces TLR4-induced colitis in TLR2-deficient mice and restores intestinal STAT3 signaling. Gastroenterology. 2010;139: 1277–1288. 10.1053/j.gastro.2010.06.057 [DOI] [PubMed] [Google Scholar]
37.Orazi A, Du X, Yang Z, Kashai M, Williams DA. Interleukin-11 prevents apoptosis and accelerates recovery of small intestinal mucosa in mice treated with combined chemotherapy and radiation. Lab Invest. 1996;75: 33–42. [PubMed] [Google Scholar]
38.Boerma M, Wang J, Burnett AF, Santin AD, Roman JJ, Hauer-Jensen M. Local administration of interleukin-11 ameliorates intestinal radiation injury in rats. Cancer Res. 2007;67: 9501–9506. 10.1158/0008-5472.CAN-07-0810 [DOI] [PubMed] [Google Scholar]
39.Widjaja AA, Dong J, Adami E, Viswanathan S, Ng B, Singh BK, et al. Redefining Interleukin 11 as a regeneration-limiting hepatotoxin. 10.1101/830018 [DOI] [PubMed] [Google Scholar]
40.Elias JA, Wu Y, Zheng T, Panettieri R. Cytokine- and virus-stimulated airway smooth muscle cells produce IL-11 and other IL-6-type cytokines. Am J Physiol. 1997;273: L648–55. 10.1152/ajplung.1997.273.3.L648 [DOI] [PubMed] [Google Scholar]
41.Shi X-Z, Sarna SK. Transcriptional regulation of inflammatory mediators secreted by human colonic circular smooth muscle cells. Am J Physiol Gastrointest Liver Physiol. 2005;289: G274–84. 10.1152/ajpgi.00512.2004 [DOI] [PubMed] [Google Scholar]
42.Jin B-R, Chung K-S, Cheon S-Y, Lee M, Hwang S, Noh Hwang S, et al. Rosmarinic acid suppresses colonic inflammation in dextran sulphate sodium (DSS)-induced mice via dual inhibition of NF-κB and STAT3 activation. Sci Rep. 2017;7: 46252 10.1038/srep46252 [DOI] [PMC free article] [PubMed] [Google Scholar]
43.DeRoche TC, Xiao S-Y, Liu X. Histological evaluation in ulcerative colitis. Gastroenterology Report. 2014. pp. 178–192. 10.1093/gastro/gou031 [DOI] [PMC free article] [PubMed] [Google Scholar]
44.de Bruyn JR, Meijer SL, Wildenberg ME, Bemelman WA, van den Brink GR, D’Haens GR. Development of Fibrosis in Acute and Longstanding Ulcerative Colitis. J Crohns Colitis. 2015;9: 966–972. 10.1093/ecco-jcc/jjv133 [DOI] [PubMed] [Google Scholar]
45.Lakhan SE, Kirchgessner A. Neuroinflammation in inflammatory bowel disease. Journal of Neuroinflammation. 2010. p. 37 10.1186/1742-2094-7-37 [DOI] [PMC free article] [PubMed] [Google Scholar]
46.Chen W, Lu C, Hirota C, Iacucci M, Ghosh S, Gui X. Smooth Muscle Hyperplasia/Hypertrophy is the Most Prominent Histological Change in Crohn’s Fibrostenosing Bowel Strictures: A Semiquantitative Analysis by Using a Novel Histological Grading Scheme. Journal of Crohn’s and Colitis. 2017. pp. 92–104. 10.1093/ecco-jcc/jjw126 [DOI] [PubMed] [Google Scholar]
47.Collins SM, Khan I, Vallance B, Hogaboam C. The role of smooth muscle in intestinal inflammation. Inflammatory Bowel Disease. 1994. pp. 162–169. 10.1007/978-94-009-0371-5_16 [DOI] [Google Scholar]

PLoS One. doi: 10.1371/journal.pone.0227505.r001

Decision Letter 0

Cristiano Pagnini

4 Nov 2019

PONE-D-19-24461

Interleukin 11 expression causes murine inflammatory bowel disease

PLOS ONE

Dear Dr Lim,

Thank you for submitting your manuscript to PLOS ONE. After careful consideration, we feel that it has merit but does not fully meet PLOS ONE’s publication criteria as it currently stands. Therefore, we invite you to submit a revised version of the manuscript that addresses the points raised during the review process.

We would appreciate receiving your revised manuscript by Dec 19 2019 11:59PM. When you are ready to submit your revision, log on to https://www.editorialmanager.com/pone/ and select the 'Submissions Needing Revision' folder to locate your manuscript file.

If you would like to make changes to your financial disclosure, please include your updated statement in your cover letter.

To enhance the reproducibility of your results, we recommend that if applicable you deposit your laboratory protocols in protocols.io, where a protocol can be assigned its own identifier (DOI) such that it can be cited independently in the future. For instructions see: http://journals.plos.org/plosone/s/submission-guidelines#loc-laboratory-protocols

Please include the following items when submitting your revised manuscript:

A rebuttal letter that responds to each point raised by the academic editor and reviewer(s). This letter should be uploaded as separate file and labeled 'Response to Reviewers'.
A marked-up copy of your manuscript that highlights changes made to the original version. This file should be uploaded as separate file and labeled 'Revised Manuscript with Track Changes'.
An unmarked version of your revised paper without tracked changes. This file should be uploaded as separate file and labeled 'Manuscript'.

Please note while forming your response, if your article is accepted, you may have the opportunity to make the peer review history publicly available. The record will include editor decision letters (with reviews) and your responses to reviewer comments. If eligible, we will contact you to opt in or out.

We look forward to receiving your revised manuscript.

Kind regards,

Cristiano Pagnini, M.D, PH.D.

Academic Editor

PLOS ONE

Journal Requirements:

When submitting your revision, we need you to address these additional requirements.

1. Please ensure that your manuscript meets PLOS ONE's style requirements, including those for file naming. The PLOS ONE style templates can be found at http://www.journals.plos.org/plosone/s/file?id=wjVg/PLOSOne_formatting_sample_main_body.pdf and http://www.journals.plos.org/plosone/s/file?id=ba62/PLOSOne_formatting_sample_title_authors_affiliations.pdf

2. At this time, we request that you please report additional details in your Methods section regarding animal care, as per our editorial guidelines. Please describe any steps taken to minimize animal suffering and distress, such as by administering anaesthesia, during the intraperitoneal injections of tamoxifen". Thank you for your attention to this request

3. PLOS ONE now requires that authors provide the original uncropped and unadjusted images underlying all blot or gel results reported in a submission’s figures or Supporting Information files. This policy and the journal’s other requirements for blot/gel reporting and figure preparation are described in detail at https://journals.plos.org/plosone/s/figures#loc-blot-and-gel-reporting-requirements and https://journals.plos.org/plosone/s/figures#loc-preparing-figures-from-image-files. When you submit your revised manuscript, please ensure that your figures adhere fully to these guidelines and provide the original underlying images for all blot or gel data reported in your submission. See the following link for instructions on providing the original image data: https://journals.plos.org/plosone/s/figures#loc-original-images-for-blots-and-gels.

In your cover letter, please note whether your blot/gel image data are in Supporting Information or posted at a public data repository, provide the repository URL if relevant, and provide specific details as to which raw blot/gel images, if any, are not available. Email us at plosone@plos.org if you have any questions.

Additional Editor Comments (if provided):

The paper is interesting but has consistent flaws, as highlighted in particular by reviewer#1. If the authors are able to address the criticisms and improve the paper, it can be reconsidered for publication.

[Note: HTML markup is below. Please do not edit.]

Reviewers' comments:

Reviewer's Responses to Questions

Comments to the Author

1. Is the manuscript technically sound, and do the data support the conclusions?

The manuscript must describe a technically sound piece of scientific research with data that supports the conclusions. Experiments must have been conducted rigorously, with appropriate controls, replication, and sample sizes. The conclusions must be drawn appropriately based on the data presented.

Reviewer #1: No

Reviewer #2: Yes

**********

2. Has the statistical analysis been performed appropriately and rigorously?

Reviewer #1: Yes

Reviewer #2: Yes

**********

3. Have the authors made all data underlying the findings in their manuscript fully available?

The PLOS Data policy requires authors to make all data underlying the findings described in their manuscript fully available without restriction, with rare exception (please refer to the Data Availability Statement in the manuscript PDF file). The data should be provided as part of the manuscript or its supporting information, or deposited to a public repository. For example, in addition to summary statistics, the data points behind means, medians and variance measures should be available. If there are restrictions on publicly sharing data—e.g. participant privacy or use of data from a third party—those must be specified.

Reviewer #1: No

Reviewer #2: Yes

**********

4. Is the manuscript presented in an intelligible fashion and written in standard English?

PLOS ONE does not copyedit accepted manuscripts, so the language in submitted articles must be clear, correct, and unambiguous. Any typographical or grammatical errors should be corrected at revision, so please note any specific errors here.

Reviewer #1: Yes

Reviewer #2: Yes

**********

5. Review Comments to the Author

Please use the space provided to explain your answers to the questions above. You may also include additional comments for the author, including concerns about dual publication, research ethics, or publication ethics. (Please upload your review as an attachment if it exceeds 20,000 characters)

Reviewer #1: In my opinion this manuscript present major multiple concerns. Of note, while the most striking feature of this mouse model is supposed to be the development of intestinal inflammation resembling inflammatory bowel disease (IBD) (as highlighted in the title), the main feature seems to be involving global and multi-organ abnormalities leading to 37% of surviving mice to day 14. The authors try to describe the development of an IBD-like phenotype with just few supporting data that actually reduce my confidence in the overall study.

1)A great deal rests on the characterization of intestinal inflammation. Fecal calprotectin should not be used as the only parameter to properly assess intestinal inflammation. A more detailed assessment of intestinal inflammation should be performed by an expert GI pathologist, who should be able to provide details about location of the inflammation (small or large intestine), active inflammation, chronic inflammation, transmural inflammation, percentage of ulceration etc.

2) Fibrosis is typically a long process. How do the authors explain the high severity of fibrosis in the different organs following just 1 or 2 weeks of tamoxifen injection?

3)In figure 2d, why is the color of the of stained section so different? It looks like a different method for staining was used.

4)In figure 3 the western blots are not convincing. The author should show in the main figure the whole gel but not just sections of it. P-STAT3 has been described in the results to be unchanged in heart, lung and liver. Looking at the blots, it looks like that also in the skin there are not changes. Quantification of the bands and statistical analysis should have been also reported in main figure.

5)How much IL-11 different tissues make? Is there a way to measure IL-11 protein production from tissue explants? Can the author stain (i.e. by IHC) IL-11 and correlate with levels of intestinal inflammation and fibrosis?

6)It is said in multiple places that IL11 secretion from smooth muscle cells drive fibrogenic gene expression. How IL-11 secretion was measured?

7)Similarly, which cells in the intestine express the receptor for IL-11 and is there a hint about the function?

8)Again, a more detailed assessment of intestinal inflammation should be performed by an expert GI pathologist for the second model described.

9)The main effect of IL11 expression seems to be induction of fibrosis across organs. This is not recapitulated in the second model of IL11 expression in fibroblasts. Is the level of calprotectin enough to claim that the second model recapitulates the colonic inflammatory phenotype seen in IL11smc mice? This is a major concern.

Reviewer #2: With this manuscript Authors examined the effects of SMC-specific, conditional expression of murine IL11 in a transgenic mouse (Il11SMC). They show that IL11 secretion from the stromal niche is sufficient to drive an IBD-like inflammation in mice. Overall, the manuscript is very well written and the data and overall message are convincing and an important advance in the field. The methods are robust, and the results support the conclusions.

Authors should however better discuss the histologic and mucosal differences between the model presented and IBD in order to weight the real impact of this model on the knowledge of IBD pathogenesis.

**********

6. PLOS authors have the option to publish the peer review history of their article (what does this mean?). If published, this will include your full peer review and any attached files.

If you choose “no”, your identity will remain anonymous but your review may still be made public.

Do you want your identity to be public for this peer review? For information about this choice, including consent withdrawal, please see our Privacy Policy.

Reviewer #1: No

Reviewer #2: No

[NOTE: If reviewer comments were submitted as an attachment file, they will be attached to this email and accessible via the submission site. Please log into your account, locate the manuscript record, and check for the action link "View Attachments". If this link does not appear, there are no attachment files to be viewed.]

While revising your submission, please upload your figure files to the Preflight Analysis and Conversion Engine (PACE) digital diagnostic tool, https://pacev2.apexcovantage.com/. PACE helps ensure that figures meet PLOS requirements. To use PACE, you must first register as a user. Registration is free. Then, login and navigate to the UPLOAD tab, where you will find detailed instructions on how to use the tool. If you encounter any issues or have any questions when using PACE, please email us at figures@plos.org. Please note that Supporting Information files do not need this step.

PLoS One. 2020 Jan 9;15(1):e0227505. doi: 10.1371/journal.pone.0227505.r002

Author response to Decision Letter 0

16 Nov 2019

Dear Cristiano Pagnini,

Thank you for sending our paper to review, we are grateful for the opportunity to improve our manuscript further and trust that the updated version addresses your concerns.

The manuscript now follows PLOS ONE’s style requirements and we report additional details in your Methods section regarding animal care. Original uncropped and unadjusted blot/gel image data were in S2 Fig (which has been moved into the main figure Fig 3 following reviewer #1 comments).

We were extremely encouraged by the comments of Reviewer 2 who stated “Overall, the manuscript is very well written and the data and overall message are convincing and an important advance in the field. The methods are robust, and the results support the conclusions”. This is in keeping with some reviews of our recent work at other journals. We were, therefore, most surprised by the comments of Reviewer 1 that are very much at odds with those of Reviewer 2, indeed at the opposite end of the spectrum. We believe Reviewer 1’s comments are misplaced and based on some erroneous interpretation of the data.

For example, reviewer 1 ignores RNA-based inflammation markers that we show throughout the manuscript. The reviewer also disregards the clinically important disease endpoints of IBD such as florid diarrhoea, rectal prolapse, and bleeding and asks instead for more detail of intermediate phenotypes, which do not predict disease severity or patient outcomes. Taken together with the well-established marker for intestinal inflammation calprotectin, our data show that the genetic models develop an IBD phenotype. IL11 is highly upregulated in human IBD patients - notably in stromal cells in the bowel wall - and its expression predicts treatment failure (we cite three studies showing this) and thus our data showing that IL11 causes the IBD with clinically relevant disease phenotypes will be of great interest: it establishes IL11 as an IBD disease gene for the first time.

Despite these concerns, we have addressed the points raised by the reviewers. In particular, we performed a number of new experiments and provide substantial additional data and analyses to address reviewer 1’s comments. The manuscript has been revised accordingly and is further improved. We also adjusted the title to specifically address a concern of Reviewer 1. We point out reviewer 2 asked only for a change to the discussion, which we provide.

We strongly believe that this manuscript will be of broad interest to the readership of the journal and presents novel and clinically relevant results that may influence therapy.

Please find below our detailed responses and we look forward to hearing from you soon.

Sincerely,

Sebastian Schäfer and Stuart Cook

Point-by-point response the Reviewers

While we focused our studies on the most prominent phenotype in transgenic mice - the IBD phenotype - we studied multiple organs and reported data across these organs. As stated in the abstract “The bowel of Il11SMC mice was inflamed, fibrotic and had a thickened wall, …. In other organs, including heart, lung, liver, kidney and skin there was a phenotypic spectrum of fibro-inflammation.” As such, this manuscript is not only about the bowel and IL11 is thought to be important in a range of fibro-inflammatory diseases. However, the bowel phenotype was the most prominent and, see our next answer, the upregulation of IL11 in IBD patients makes this aspect of the animal model particularly exciting. We disagree with the reviewer that we presented “just few” supporting data for the IBD phenotype and now provide a large amount of additional layers of evidence, as requested by this reviewer (see below). To address the reviewers concerns regarding the overall message of the manuscript, we have adjusted the title to include reference to the cross-tissue inflammation while retaining the focus of the manuscript on the overt IBD phenotype. The revised title now reads “Transgenic interleukin 11 expression causes cross-tissue fibro-inflammation and an inflammatory bowel phenotype in mice”. We trust this addresses the reviewer’s concern on this matter.

1) A great deal rests on the characterization of intestinal inflammation. Fecal calprotectin should not be used as the only parameter to properly assess intestinal inflammation. A more detailed assessment of intestinal inflammation should be performed by an expert GI pathologist, who should be able to provide details about location of the inflammation (small or large intestine), active inflammation, chronic inflammation, transmural inflammation, percentage of ulceration etc.

The manuscript does not rely solely on the characterization of intestinal inflammation. It is an established fact that IL11 is the most upregulated cytokine in non-responding patients suffering from Crohn’s Disease or Ulcerative Colitis (see Arijs et al Gut 2009, Smillie et al. Cell 2019, Arijs et al. Infl. Bow. Dis. 2010). Thus, by definition, IL11 is a gene relevant in a range of IBDs. This manuscript addresses a critical gap in the literature, where no gain-of-function studies exist that examine the effect of species-matched mouse IL11 on the murine gut. We overexpress mouse IL11 in the mouse in two cell-types important for IBD: Fibroblasts and SMCs. Hence, this model should give important insights into the pathogenesis of human disease related to the disease gene IL11.

We point out that this is a rapid model that develops in weeks and not a chronic inflammation model. Inflammation is present throughout the bowel in both models, as shown in Fig 2b and new Fig 8b, however we have focused on the colon phenotype due to overt characteristics of rectal prolapse suggesting the lower bowels to be highly inflamed. Additionally, while there is no obvious ulceration in our models, we have however noticed significant leukocyte aggregation structures and inflammation in some sections - see new data Fig 2h and Fig 3- and mice have died with blood in the intestinal cavity that suggests acute ulceration and bleeding that results in death.

In addition, we did not rely solely on fecal calprotectin to assess intestinal inflammation but also profiled other well established pro-inflammatory markers such as Il-6, Ccl2, and Ccl5 on the RNA level (see Fig. 6), which are all significantly elevated in the bowel of Il11SMC mice. Gross histology also clearly shows red and swollen intestines that are clearly indicative of a prominent inflammatory response in this organ. Most importantly, IBD is characterized by a number of pathologies in addition to inflammation. The Il11SMC model presented here also presents with acute large and small intestine disease (as shown in Fig 2b) along with florid diarrhea, rectal prolapse, and bleeding. This is accompanied by prominent fibrosis.

In the revised manuscript, we have followed up on the reviewer’s comments on other markers of inflammation and immunohistochemically stained for IL11, together with CD45 (leukocytes), LAMP-2, and LGALS3, markers that are commonly present in activated epithelial cells and immune cells. These, notably LGALS3, are elevated in the Il11SMC colon and there is widespread activation within Payer’s patches upon IL11 expression in SMCs (new Fig 2h and new Fig 3).

2) Fibrosis is typically a long process. How do the authors explain the high severity of fibrosis in the different organs following just 1 or 2 weeks of tamoxifen injection?

IL11 is an extremely potent pro-fibrotic factor. We have shown previously that IL11 can induce fibrosis in the cardiovascular system (Schafer et al. Nature 2017), lung (Ng et al. STM 2019) and liver (Widjaja et al. Gastroenterology 2019) within just weeks. Transgenic overexpressing of IL11 in fibroblasts or SMCs was hypothesized to be highly fibrogenic and the results shown in the manuscript are in line with previous observations. The data also show that IL11 expression in the stromal compartment is pro-inflammatory, which is a novel finding.

3)In figure 2d, why is the color of the of stained section so different? It looks like a different method for staining was used.

We thank the reviewer for raising this point. Identical methods for staining were used, but sections were done in batches which resulted in slight color differences. Images have been replaced with representative images from identical batches.

We thank the reviewer for raising this point and agree with the suggestion that will improve the manuscript. We have now moved the uncropped blots from Fig S2 to Fig 4 along with the densitometric analyses. Quantification and statistical analysis are now also shown in the main part of the manuscript. Dermal stat activation is weak, but densitometry and statistical analyses indicate that P-STAT3 is slightly elevated in the skin. Thus we are hesitant to state there are no changes.

We showed IL11 protein upregulation across tissues with quantification and statistics (previous Fig 3, now Fig 4). However, the actual level of IL11 production and its effects on the tissue level is highly dependent on the cellular composition of both the IL11 source (SMCs/fibroblasts) and the target cells (SMCs/fibroblasts/epithelium etc). As there are many possible cellular targets and the exact tissue composition is unknown, we do not believe that a simple correlation will provide any useful insights and point to the clinically relevant endpoints as the most important and defining phenotypes. It is the case that following this first definitive report of IL11 as an IBD gene that further and more detailed studies of cell-type effects will need to be studied using conditional gene knockouts and reporter strains to dissect inflammation-fibrosis cross-talk, which we are currently planning. We hope the reviewer can appreciate this fact.

6)It is said in multiple places that IL11 secretion from smooth muscle cells drive fibrogenic gene expression. How IL-11 secretion was measured?

IL11 is a secreted protein by its very nature as a cytokine via a protein motif that targets it to the extracellular space. The genetic models we utilize specifically induce IL11 protein expression in the target cells (either SMCs or fibroblasts). Western blots clearly showed upregulation of IL11 protein.

7)Similarly, which cells in the intestine express the receptor for IL-11 and is there a hint about the function?

The reviewer raises an interesting question and there is more than one answer. Smillie et al. Cell 2019 performed a single-cell study of human UC colon and found IL11RA expressed predominantly on fibroblasts and smooth muscle cells. The effect of IL11 on fibroblasts has been well documented by our group in a number of studies. More recently, we have found that IL-11 on fibroblasts is a potent driver of stromal inflammation: Ng B et al. Fibroblast-specific IL11 signaling is required for lung fibrosis and inflammation bioRxiv doi: https://doi.org/10.1101/801852

We suspect that this also plays a role in IBD, as Smillie et al. have also found an “Inflammatory Fibroblast” to be underlying anti-TNF resistance in IBD. However, this requires further study and is beyond the scope of this manuscript. We point out that IL11RA is also expressed on epithelial cells at high levels and it could well be that IL11 secreted from the stroma then impinges on the IECs but investigating this will again require further study.

8)Again, a more detailed assessment of intestinal inflammation should be performed by an expert GI pathologist for the second model described.

As with the first Il11SMC model, we show inflammation in the second Il11Fib model via calprotectin as well as elevated RNA levels of IL6. We now also show gross histology of this model, which clearly indicates a swollen and inflamed bowel that recapitulates the first model (revised Fig 7b). A significant reduction in colon length was also indicative of murine colitis, which was also shown. Again we would like to point out that the clinically meaningful endpoint of disease is ultimately more important than intermediate phenotypes that may or may not be present in animal models that variably recapitulates all the salient features of human disease.

9)The main effect of IL11 expression seems to be induction of fibrosis across organs. This is not recapitulated in the second model of IL11 expression in fibroblasts.

We cited a number of publications where we have previously shown that the second model (Il11Fib) develops severe fibrosis: Cardiovascular (Schafer et al. Nature 2017), pulmonary (Ng et al. STM 2019) and liver (Widjaja et al. Gastroenterology 2019) fibrosis. Perhaps the reviewer missed our citation of these papers that explain this model in some more detail. We point out that it is not expected that transgenic models with Il11 expression in SMC or fibroblasts will behave identically as these are - by definition - different cell types with different functions. Indeed SMC may be regarded as a more ‘inflammatory’ cell type as compared to fibroblasts, by some (Ng et al. Mediators Inflamm. 2003 and Chen et al. J Crohns Colitis 2017).

Is the level of calprotectin enough to claim that the second model recapitulates the colonic inflammatory phenotype seen in IL11smc mice? This is a major concern.

As we discuss in response to questions above, we do not base our observations solely on the elevation of calprotectin. We also do not want to argue, that the Il11Fib or the Il11SMC model are exact phenocopies. Indeed, they are different models and should be investigated as such. We have now amended the text to make this clearer and would like to thank the reviewer for pointing this out. We now present additional data on the second model (revised Fig 8).

We thank the reviewer for his supportive comments.

Authors should however better discuss the histologic and mucosal differences between the model presented and IBD in order to weight the real impact of this model on the knowledge of IBD pathogenesis.

We now discuss the histologic differences between the Il11SMC and Il11Fib models and human IBD in greater detail in the manuscript. However, we would like to point out that IL11 upregulation in the colon has been repeatedly detected in IBD patients (see Arijs et al Gut 2009, Smillie et al. Cell 2019, Arijs et al. Infl. Bow. Dis. 2010). Thus, the mechanisms present in the IL11 transgenic animals are highly clinically relevant, even if they do not completely phenocopy human disease (not uncommon in rodent models).

Attachment

Submitted filename: Response to Reviewers.docx

Click here for additional data file.^{(19.8KB, docx)}

PLoS One. doi: 10.1371/journal.pone.0227505.r003

Decision Letter 1

Cristiano Pagnini

20 Dec 2019

Transgenic interleukin 11 expression causes cross-tissue fibro-inflammation and an inflammatory bowel phenotype in mice

PONE-D-19-24461R1

Dear Dr. Lim,

We are pleased to inform you that your manuscript has been judged scientifically suitable for publication and will be formally accepted for publication once it complies with all outstanding technical requirements.

Within one week, you will receive an e-mail containing information on the amendments required prior to publication. When all required modifications have been addressed, you will receive a formal acceptance letter and your manuscript will proceed to our production department and be scheduled for publication.

Shortly after the formal acceptance letter is sent, an invoice for payment will follow. To ensure an efficient production and billing process, please log into Editorial Manager at https://www.editorialmanager.com/pone/, click the "Update My Information" link at the top of the page, and update your user information. If you have any billing related questions, please contact our Author Billing department directly at authorbilling@plos.org.

If your institution or institutions have a press office, please notify them about your upcoming paper to enable them to help maximize its impact. If they will be preparing press materials for this manuscript, you must inform our press team as soon as possible and no later than 48 hours after receiving the formal acceptance. Your manuscript will remain under strict press embargo until 2 pm Eastern Time on the date of publication. For more information, please contact onepress@plos.org.

With kind regards,

Cristiano Pagnini, M.D, PH.D.

Academic Editor

PLOS ONE

Additional Editor Comments (optional):

Reviewers' comments:

Reviewer's Responses to Questions

Comments to the Author

1. If the authors have adequately addressed your comments raised in a previous round of review and you feel that this manuscript is now acceptable for publication, you may indicate that here to bypass the “Comments to the Author” section, enter your conflict of interest statement in the “Confidential to Editor” section, and submit your "Accept" recommendation.

Reviewer #2: All comments have been addressed

**********

2. Is the manuscript technically sound, and do the data support the conclusions?

Reviewer #2: Yes

**********

3. Has the statistical analysis been performed appropriately and rigorously?

Reviewer #2: Yes

**********

4. Have the authors made all data underlying the findings in their manuscript fully available?

Reviewer #2: Yes

**********

5. Is the manuscript presented in an intelligible fashion and written in standard English?

Reviewer #2: Yes

**********

6. Review Comments to the Author

Reviewer #2: (No Response)

**********

7. PLOS authors have the option to publish the peer review history of their article (what does this mean?). If published, this will include your full peer review and any attached files.

If you choose “no”, your identity will remain anonymous but your review may still be made public.

Do you want your identity to be public for this peer review? For information about this choice, including consent withdrawal, please see our Privacy Policy.

Reviewer #2: No

PLoS One. doi: 10.1371/journal.pone.0227505.r004

Acceptance letter

Cristiano Pagnini

26 Dec 2019

PONE-D-19-24461R1

Transgenic interleukin 11 expression causes cross-tissue fibro-inflammation and an inflammatory bowel phenotype in mice

Dear Dr. Lim:

I am pleased to inform you that your manuscript has been deemed suitable for publication in PLOS ONE. Congratulations! Your manuscript is now with our production department.

If your institution or institutions have a press office, please notify them about your upcoming paper at this point, to enable them to help maximize its impact. If they will be preparing press materials for this manuscript, please inform our press team within the next 48 hours. Your manuscript will remain under strict press embargo until 2 pm Eastern Time on the date of publication. For more information please contact onepress@plos.org.

For any other questions or concerns, please email plosone@plos.org.

Thank you for submitting your work to PLOS ONE.

With kind regards,

PLOS ONE Editorial Office Staff

on behalf of

Dr. Cristiano Pagnini

Academic Editor

PLOS ONE

Associated Data

This section collects any data citations, data availability statements, or supplementary materials included in this article.

Supplementary Materials

S1 Table. Genotyping primers.

(DOCX)

Click here for additional data file.^{(14.6KB, docx)}

S2 Table. RT-qPCR primers.

(DOCX)

Click here for additional data file.^{(14KB, docx)}

S1 Fig. Comparison of tamoxifen-treated Il11^SMC and Cre^SMC mice.

(TIF)

Click here for additional data file.^{(7.4MB, tif)}

S2 Fig. Uncropped blots for PCR genotyping from Cre^SMC and Il11^SMC mice treated with either tamoxifen (Tam) or vehicle (Veh).

(TIF)

Click here for additional data file.^{(1.2MB, tif)}

S3 Fig. Immunohistochemistry with rat and rabbit IgG isotype controls as negative staining control in Fig 2h.

Smooth muscle and crypt staining with rat and rabbit IgG isotype controls demonstrate no positive staining in both veh- and tam-treated Il11-Tg colon. Scale bar represents 100 μm.

(TIF)

Click here for additional data file.^{(7.2MB, tif)}

Attachment

Submitted filename: Response to Reviewers.docx

Click here for additional data file.^{(19.8KB, docx)}

Data Availability Statement

All relevant data are within the paper and its Supporting Information files.

[pone.0227505.ref001] 1.Owens GK, Kumar MS, Wamhoff BR. Molecular Regulation of Vascular Smooth Muscle Cell Differentiation in Development and Disease. Physiological Reviews. 2004. pp. 767–801. 10.1152/physrev.00041.2003 [DOI] [PubMed] [Google Scholar]

[pone.0227505.ref002] 2.Johnson PR, Roth M, Tamm M, Hughes M, Ge Q, King G, et al. Airway smooth muscle cell proliferation is increased in asthma. Am J Respir Crit Care Med. 2001;164: 474–477. 10.1164/ajrccm.164.3.2010109 [DOI] [PubMed] [Google Scholar]

[pone.0227505.ref003] 3.Shea-Donohue T, Notari L, Sun R, Zhao A. Mechanisms of smooth muscle responses to inflammation. Neurogastroenterology & Motility. 2012. pp. 802–811. 10.1111/j.1365-2982.2012.01986.x [DOI] [PMC free article] [PubMed] [Google Scholar]

[pone.0227505.ref004] 4.Herrick AL. Vascular function in systemic sclerosis. Current Opinion in Rheumatology. 2000. pp. 527–533. 10.1097/00002281-200011000-00009 [DOI] [PubMed] [Google Scholar]

[pone.0227505.ref005] 5.Shin JY, Beckett JD, Bagirzadeh R, Creamer TJ, Shah AA, McMahan Z, et al. Epigenetic activation and memory at a TGFB2 enhancer in systemic sclerosis. Science Translational Medicine. 2019. p. eaaw0790. 10.1126/scitranslmed.aaw0790 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pone.0227505.ref006] 6.Denton CP, Ong VH, Xu S, Chen-Harris H, Modrusan Z, Lafyatis R, et al. Therapeutic interleukin-6 blockade reverses transforming growth factor-beta pathway activation in dermal fibroblasts: insights from the faSScinate clinical trial in systemic sclerosis. Ann Rheum Dis. 2018;77: 1362–1371. 10.1136/annrheumdis-2018-213031 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pone.0227505.ref007] 7.Leask A, Abraham DJ. TGF-β signaling and the fibrotic response. The FASEB Journal. 2004. pp. 816–827. 10.1096/fj.03-1273rev [DOI] [PubMed] [Google Scholar]

[pone.0227505.ref008] 8.Schafer S, Viswanathan S, Widjaja AA, Lim W-W, Moreno-Moral A, DeLaughter DM, et al. IL-11 is a crucial determinant of cardiovascular fibrosis. Nature. 2017;552: 110–115. 10.1038/nature24676 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pone.0227505.ref009] 9.Ng B, Dong J, Viswanathan S, D’Agostino G, Widjaja AA, Lim W-W, et al. IL-11 is a therapeutic target in idiopathic pulmonary fibrosis. 10.1101/336537 [DOI] [PubMed] [Google Scholar]

[pone.0227505.ref010] 10.Widjaja AA, Singh BK, Adami E, Viswanathan S, Dong J, D’Agostino GA, et al. Inhibiting Interleukin 11 Signaling Reduces Hepatocyte Death and Liver Fibrosis, Inflammation, and Steatosis in Mouse Models of Non-Alcoholic Steatohepatitis. Gastroenterology. 2019. [DOI] [PubMed] [Google Scholar]

[pone.0227505.ref011] 11.Taki H, Sakai T, Sugiyama E, Mino T, Kuroda A, Taki K, et al. Monokine stimulation of interleukin-11 production by human vascular smooth muscle cells in vitro. Atherosclerosis. 1999;144: 375–380. 10.1016/s0021-9150(99)00009-x [DOI] [PubMed] [Google Scholar]

[pone.0227505.ref012] 12.Arijs I, Li K, Toedter G, Quintens R, Van Lommel L, Van Steen K, et al. Mucosal gene signatures to predict response to infliximab in patients with ulcerative colitis. Gut. 2009;58: 1612–1619. 10.1136/gut.2009.178665 [DOI] [PubMed] [Google Scholar]

[pone.0227505.ref013] 13.Smillie CS, Biton M, Ordovas-Montañes J, Sullivan KM, Burgin G, Graham DB, et al. Rewiring of the cellular and inter-cellular landscape of the human colon during ulcerative colitis. 10.1101/455451 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pone.0227505.ref014] 14.Minshall E, Chakir J, Laviolette M, Molet S, Zhu Z, Olivenstein R, et al. IL-11 expression is increased in severe asthma: association with epithelial cells and eosinophils. J Allergy Clin Immunol. 2000;105: 232–238. 10.1016/s0091-6749(00)90070-8 [DOI] [PubMed] [Google Scholar]

[pone.0227505.ref015] 15.Wirth A, Benyó Z, Lukasova M, Leutgeb B, Wettschureck N, Gorbey S, et al. G12-G13-LARG-mediated signaling in vascular smooth muscle is required for salt-induced hypertension. Nat Med. 2008;14: 64–68. 10.1038/nm1666 [DOI] [PubMed] [Google Scholar]

[pone.0227505.ref016] 16.Zheng B, Zhang Z, Black CM, de Crombrugghe B, Denton CP. Ligand-dependent genetic recombination in fibroblasts: a potentially powerful technique for investigating gene function in fibrosis. Am J Pathol. 2002;160: 1609–1617. 10.1016/S0002-9440(10)61108-X [DOI] [PMC free article] [PubMed] [Google Scholar]

[pone.0227505.ref017] 17.Wang S, Song R, Wang Z, Jing Z, Wang S, Ma J. S100A8/A9 in Inflammation. Frontiers in Immunology. 2018. 10.3389/fimmu.2018.01298 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pone.0227505.ref018] 18.Konikoff MR, Denson LA. Role of fecal calprotectin as a biomarker of intestinal inflammation in inflammatory bowel disease. Inflammatory Bowel Diseases. 2006. pp. 524–534. 10.1097/00054725-200606000-00013 [DOI] [PubMed] [Google Scholar]

[pone.0227505.ref019] 19.Dahab GM, Kheriza MM, El-Beltagi HM, Fouda A-MM, Sharaf El-Din OA. Digital quantification of fibrosis in liver biopsy sections: Description of a new method by Photoshop software. Journal of Gastroenterology and Hepatology. 2004. pp. 78–85. 10.1111/j.1440-1746.2004.03183.x [DOI] [PubMed] [Google Scholar]

[pone.0227505.ref020] 20.Sundblad V, Quintar AA, Morosi LG, Niveloni SI, Cabanne A, Smecuol E, et al. Galectins in Intestinal Inflammation: Galectin-1 Expression Delineates Response to Treatment in Celiac Disease Patients. Front Immunol. 2018;9: 379 10.3389/fimmu.2018.00379 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pone.0227505.ref021] 21.Dong S, Hughes RC. Macrophage surface glycoproteins binding to galectin-3 (Mac-2-antigen). Glycoconj J. 1997;14: 267–274. 10.1023/a:1018554124545 [DOI] [PubMed] [Google Scholar]

[pone.0227505.ref022] 22.Kim H, Lee J, Hyun J, Park J, Joo H, Shin T. Expression and immunohistochemical localization of galectin-3 in various mouse tissues. Cell Biology International. 2007. pp. 655–662. 10.1016/j.cellbi.2006.11.036 [DOI] [PubMed] [Google Scholar]

[pone.0227505.ref023] 23.Díaz-Alvarez L, Ortega E. The Many Roles of Galectin-3, a Multifaceted Molecule, in Innate Immune Responses against Pathogens. Mediators Inflamm. 2017;2017: 9247574 10.1155/2017/9247574 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pone.0227505.ref024] 24.Taga T, Kishimoto T. gp130 AND THE INTERLEUKIN-6 FAMILY OF CYTOKINES. Annual Review of Immunology. 1997. pp. 797–819. 10.1146/annurev.immunol.15.1.797 [DOI] [PubMed] [Google Scholar]

[pone.0227505.ref025] 25.Birkedal-Hansen H. Proteolytic remodeling of extracellular matrix. Current Opinion in Cell Biology. 1995. pp. 728–735. 10.1016/0955-0674(95)80116-2 [DOI] [PubMed] [Google Scholar]

[pone.0227505.ref026] 26.Rossi J-F, Lu Z-Y, Jourdan M, Klein B. Interleukin-6 as a therapeutic target. Clin Cancer Res. 2015;21: 1248–1257. 10.1158/1078-0432.CCR-14-2291 [DOI] [PubMed] [Google Scholar]

[pone.0227505.ref027] 27.Mazzucchelli L, Hauser C, Zgraggen K, Wagner HE, Hess MW, Laissue JA, et al. Differential in situ expression of the genes encoding the chemokines MCP-1 and RANTES in human inflammatory bowel disease. J Pathol. 1996;178: 201–206. [DOI] [PubMed] [Google Scholar]

[pone.0227505.ref028] 28.Grimm MC, Elsbury SK, Pavli P, Doe WF. Enhanced expression and production of monocyte chemoattractant protein-1 in inflammatory bowel disease mucosa. J Leukoc Biol. 1996;59: 804–812. 10.1002/jlb.59.6.804 [DOI] [PubMed] [Google Scholar]

[pone.0227505.ref029] 29.Bandinelli F, Del Rosso A, Gabrielli A, Giacomelli R, Bartoli F, Guiducci S, et al. CCL2, CCL3 and CCL5 chemokines in systemic sclerosis: the correlation with SSc clinical features and the effect of prostaglandin E1 treatment. Clin Exp Rheumatol. 2012;30: S44–9. [PubMed] [Google Scholar]

[pone.0227505.ref030] 30.Hasegawa M, Sato S, Fujimoto M, Ihn H, Kikuchi K, Takehara K. Serum levels of interleukin 6 (IL-6), oncostatin M, soluble IL-6 receptor, and soluble gp130 in patients with systemic sclerosis. J Rheumatol. 1998;25: 308–313. [PubMed] [Google Scholar]

[pone.0227505.ref031] 31.Diaz-Granados N, Howe K, Lu J, McKay DM. Dextran Sulfate Sodium-Induced Colonic Histopathology, but not Altered Epithelial Ion Transport, Is Reduced by Inhibition of Phosphodiesterase Activity. The American Journal of Pathology. 2000. pp. 2169–2177. 10.1016/S0002-9440(10)65087-0 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pone.0227505.ref032] 32.Arijs I, Li K, Toedter G, Quintens R, Van Lommel L, Van Steen K, et al. Mucosal gene signatures to predict response to infliximab in patients with ulcerative colitis. Gut. 2009;58: 1612–1619. 10.1136/gut.2009.178665 [DOI] [PubMed] [Google Scholar]

[pone.0227505.ref033] 33.Smillie CS, Biton M, Ordovas-Montanes J, Sullivan KM, Burgin G, Graham DB, et al. Intra- and Inter-cellular Rewiring of the Human Colon during Ulcerative Colitis. Cell. 2019;178: 714–730.e22. 10.1016/j.cell.2019.06.029 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pone.0227505.ref034] 34.Arijs I, Quintens R, Van Lommel L, Van Steen K, De Hertogh G, Lemaire K, et al. Predictive value of epithelial gene expression profiles for response to infliximab in Crohn’s disease. Inflamm Bowel Dis. 2010;16: 2090–2098. 10.1002/ibd.21301 [DOI] [PubMed] [Google Scholar]

[pone.0227505.ref035] 35.Qiu BS, Pfeiffer CJ, Keith JC Jr. Protection by recombinant human interleukin-11 against experimental TNB-induced colitis in rats. Dig Dis Sci. 1996;41: 1625–1630. 10.1007/bf02087911 [DOI] [PubMed] [Google Scholar]

[pone.0227505.ref036] 36.Gibson DL, Montero M, Ropeleski MJ, Bergstrom KSB, Ma C, Ghosh S, et al. Interleukin-11 reduces TLR4-induced colitis in TLR2-deficient mice and restores intestinal STAT3 signaling. Gastroenterology. 2010;139: 1277–1288. 10.1053/j.gastro.2010.06.057 [DOI] [PubMed] [Google Scholar]

[pone.0227505.ref037] 37.Orazi A, Du X, Yang Z, Kashai M, Williams DA. Interleukin-11 prevents apoptosis and accelerates recovery of small intestinal mucosa in mice treated with combined chemotherapy and radiation. Lab Invest. 1996;75: 33–42. [PubMed] [Google Scholar]

[pone.0227505.ref038] 38.Boerma M, Wang J, Burnett AF, Santin AD, Roman JJ, Hauer-Jensen M. Local administration of interleukin-11 ameliorates intestinal radiation injury in rats. Cancer Res. 2007;67: 9501–9506. 10.1158/0008-5472.CAN-07-0810 [DOI] [PubMed] [Google Scholar]

[pone.0227505.ref039] 39.Widjaja AA, Dong J, Adami E, Viswanathan S, Ng B, Singh BK, et al. Redefining Interleukin 11 as a regeneration-limiting hepatotoxin. 10.1101/830018 [DOI] [PubMed] [Google Scholar]

[pone.0227505.ref040] 40.Elias JA, Wu Y, Zheng T, Panettieri R. Cytokine- and virus-stimulated airway smooth muscle cells produce IL-11 and other IL-6-type cytokines. Am J Physiol. 1997;273: L648–55. 10.1152/ajplung.1997.273.3.L648 [DOI] [PubMed] [Google Scholar]

[pone.0227505.ref041] 41.Shi X-Z, Sarna SK. Transcriptional regulation of inflammatory mediators secreted by human colonic circular smooth muscle cells. Am J Physiol Gastrointest Liver Physiol. 2005;289: G274–84. 10.1152/ajpgi.00512.2004 [DOI] [PubMed] [Google Scholar]

[pone.0227505.ref042] 42.Jin B-R, Chung K-S, Cheon S-Y, Lee M, Hwang S, Noh Hwang S, et al. Rosmarinic acid suppresses colonic inflammation in dextran sulphate sodium (DSS)-induced mice via dual inhibition of NF-κB and STAT3 activation. Sci Rep. 2017;7: 46252 10.1038/srep46252 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pone.0227505.ref043] 43.DeRoche TC, Xiao S-Y, Liu X. Histological evaluation in ulcerative colitis. Gastroenterology Report. 2014. pp. 178–192. 10.1093/gastro/gou031 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pone.0227505.ref044] 44.de Bruyn JR, Meijer SL, Wildenberg ME, Bemelman WA, van den Brink GR, D’Haens GR. Development of Fibrosis in Acute and Longstanding Ulcerative Colitis. J Crohns Colitis. 2015;9: 966–972. 10.1093/ecco-jcc/jjv133 [DOI] [PubMed] [Google Scholar]

[pone.0227505.ref045] 45.Lakhan SE, Kirchgessner A. Neuroinflammation in inflammatory bowel disease. Journal of Neuroinflammation. 2010. p. 37 10.1186/1742-2094-7-37 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pone.0227505.ref046] 46.Chen W, Lu C, Hirota C, Iacucci M, Ghosh S, Gui X. Smooth Muscle Hyperplasia/Hypertrophy is the Most Prominent Histological Change in Crohn’s Fibrostenosing Bowel Strictures: A Semiquantitative Analysis by Using a Novel Histological Grading Scheme. Journal of Crohn’s and Colitis. 2017. pp. 92–104. 10.1093/ecco-jcc/jjw126 [DOI] [PubMed] [Google Scholar]

[pone.0227505.ref047] 47.Collins SM, Khan I, Vallance B, Hogaboam C. The role of smooth muscle in intestinal inflammation. Inflammatory Bowel Disease. 1994. pp. 162–169. 10.1007/978-94-009-0371-5_16 [DOI] [Google Scholar]

PERMALINK

Transgenic interleukin 11 expression causes cross-tissue fibro-inflammation and an inflammatory bowel phenotype in mice

Wei-Wen Lim

Benjamin Ng

Anissa Widjaja

Chen Xie

Liping Su

Nicole Ko

Sze-Yun Lim

Xiu-Yi Kwek

Stella Lim

Stuart Alexander Cook

Sebastian Schafer

Roles

Abstract

Introduction

Materials and methods

Mouse models

Smooth muscle-specific Il11 transgenic model

Fibroblast-specific Il11 transgenic model

Hydroxyproline assay

Fecal calprotectin (S100A8/A9) levels

RT-qPCR

Immunoblotting

Histology

Immunohistochemistry

Statistical analysis

Results

Expression of Il11 in smooth muscle cells results in ill health and early mortality

Fig 1. Expression of Il11 in smooth muscle cells is associated with body weight loss, elevated organ weights and spontaneous death.

IL11 expression causes severe inflammatory bowel disease associated with fibrosis

Fig 2. Il11 expression results in fibro-inflammatory disease of the colon.

Fig 3. Il11 expression in smooth muscle cells leads to lymphoid cell aggregates, villi distortion and ganglionic hyperplasia.

IL11 expression in smooth muscle cells activates non-canonical IL11 signaling pathways

Fig 4. Il11SMC mice exhibit activated ERK1/2 signaling across organs.

IL11 destroys tissue integrity and promotes collagen deposition

Fig 5. Il11 expression in smooth muscle cells causes fibrosis across organs.

IL11 secretion from smooth muscle cells drives fibrogenic gene expression

Fig 6. Relative gene expression of fibrogenic genes in organs from tam-treated Il11SMC mice.

IL11 secreted from smooth muscle cells causes inflammation across tissues

Fig 7. Relative gene expression of inflammatory genes in organs from tam-treated Il11SMC mice.

Fibroblast-selective expression of Il11 recapitulates the features of colonic inflammatory phenotype seen in Il11SMC mice

Fig 8. Mice with fibroblast-specific Il11 expression develop inflammatory bowel disease.

Discussion

Supporting information

Acknowledgments

Data Availability

Funding Statement

References

Decision Letter 0

Cristiano Pagnini

Roles

Author response to Decision Letter 0

Decision Letter 1

Cristiano Pagnini

Roles

Acceptance letter

Cristiano Pagnini

Roles

Associated Data

Supplementary Materials

Data Availability Statement

ACTIONS

PERMALINK

RESOURCES

Similar articles

Cited by other articles

Links to NCBI Databases

Fig 4. Il11^SMC mice exhibit activated ERK1/2 signaling across organs.

Fig 6. Relative gene expression of fibrogenic genes in organs from tam-treated Il11^SMC mice.

Fig 7. Relative gene expression of inflammatory genes in organs from tam-treated Il11^SMC mice.

Fibroblast-selective expression of Il11 recapitulates the features of colonic inflammatory phenotype seen in Il11^SMC mice
