Skip to main content
NCBI home page
Frontiers in Chemistry logoLink to Frontiers in Chemistry
. 2020 Jan 15;7:919. doi: 10.3389/fchem.2019.00919

Constructing Hierarchical Porous Carbons With Interconnected Micro-mesopores for Enhanced CO2 Adsorption

Hainan Zhang 1, Zeming Wang 2, Xudong Luo 1, Jinlin Lu 1, Shengnan Peng 1, Yongfei Wang 1, Lu Han 1,*
PMCID: PMC6974550  PMID: 32010669

Abstract

A high cost-performance carbon dioxide sorbent based on hierarchical porous carbons (HPCs) was easily prepared by carbonization of raw sugar using commercially available nano-CaCO3 as a double-acting template. The effects of the initial composition and carbonization temperature on the micro-mesoporous structure and adsorption performance were examined. Also, the importance of post-activation behavior in the development of micropores and synthesis route for the formation of the interconnected micro-mesoporous structure were investigated. The results revealed excellent carbon dioxide uptake reaching up 2.84 mmol/g (25oC, 1 bar), with micropore surface area of 786 m2/g, micropore volume of 0.320 cm3/g and mesopore volume of 0.233 cm3/g. We found that high carbon dioxide uptake was ascribed to the developed micropores and interconnected micro-mesoporous structure. As an expectation, the optimized HPCs offers a promising new support for the high selective capture of carbon dioxide in the future.

Keywords: hierarchical porous carbons, template method, micro-mesoporous structure, activation, carbon dioxide adsorption

Introduction

Carbon dioxide has gradually increased in the atmosphere over the past century, resulting in increasing concerns about the global warming and climate change (Kanki et al., 2016; Qi et al., 2017; Li et al., 2019). In order to reduce the carbon dioxide content in the air, people began to develop new energy, such as hydrogen energy (Qi et al., 2019), degradation of pollutants and sewage (Sun et al., 2018; Chen et al., 2019), among others, but fundamentally solve the problem of carbon dioxide pollution. However, although carbon dioxide is considered as the main greenhouse gas, it is a transformable carbon resource (Garbarino et al., 2014; Son et al., 2014; Pullar et al., 2019). In the presence of a suitable catalyst, the captured carbon dioxide molecules can be converted into synthetic natural gas, such as methane (Lavoie, 2014; Wang et al., 2016; Xia et al., 2019). Therefore, promoting the development of carbon dioxide capture and storage (CCS) has important social significance and great economic value (Han et al., 2012; Hayat et al., 2019).

Tremendous research has been devoted to the development of new technologies for CCS, especially those based on high-performance sorbents for carbon dioxide capture (Liang et al., 2004; Santis et al., 2016; Patel et al., 2017; Zhu et al., 2019). Novel solid sorbents capable of reversibly capturing carbon dioxide through dry adsorption process have many distinct advantages over wet absorption and adsorption-coupled membrane separation. These include low investment, the moderate energy cost for regeneration, and large capacity at room temperature (Yaumi et al., 2017). In the past decade, various types of solid sorbents have been attempted for CCS. Examples include zeolites (Megías-Sayago et al., 2019), modified porous silicas (Dassanayake et al., 2017), metal organic frameworks (MOFs) (Shi et al., 2019), calcium looping sorbents (Zhu et al., 2017), polymer membranes (Ahmad et al., 2016; Zhang et al., 2019), and nanoporous carbons (NCs) (Lee et al., 2014). In particular, MOFs and NCs have received much attention due to their excellent capture performance. However, MOFs are still not feasible economically and sensitive to water, resulting in failure due to structural damage.

On the other hand, NCs offer many promising applications as catalyst supports (Kim et al., 2005; Song et al., 2019), advanced electrodes (Liu et al., 2010; Xu et al., 2019), and energy-storage materials (Wu et al., 2009), among others. Various types of NCs showed promise as alternatives to carbon dioxide capture, such as modified activated carbons (Lu et al., 2008), nitrogen-doped carbon molecular sieves (Patiño et al., 2014), and hierarchical porous carbons (HPCs) (Xia et al., 2014). These NCs presented several particular features like hydrophobic surface properties, superior thermal stability, and excellent chemical resistance, as well as some potential advantages in terms of extensive sources, tunable nano-pore structure, and controllable synthesis.

In view of the physical behavior during the adsorption process, the microporous structure was found more favorable for adsorption (Fan et al., 2013). Moreover, incorporation of basic groups into carbon framework, especially nitrogen-containing species doping was found highly praised in improving carbon dioxide selective adsorption performance (Wei et al., 2013). However, the realization of both micropore-enriched structures and nitrogen-doped modification depends heavily on the raw materials and synthesis route. For instance, Lu et al. reported the direct pyrolysis of copolymers based on resorcinol, formaldehyde, and lysine using the mannich reaction to fabricated nitrogen-doped porous carbon monolith (Hao et al., 2010). They measured high adsorption capacity reaching up 3.13 mmol/g at room temperature and 1 atm. Sun et al. reported a one-pot melting-assisted strategy using resorcinol and p-phthalaldehyde as carbon precursors, melamine as a nitrogen source, and Pluronic F127 as a surfactant under self-pressurized solvent-free conditions (Zhang et al., 2015). The resulting carbon material had a hierarchical porous structure with high surface area of 748 m2/g, and exhibited excellent capacity of 2.73 mmol/g at 298 K and 1 bar.

From the standpoint of structural design, Qiu et al. synthesized a novel carbon sorbent with a special bimodal microporous structure (Li Y. et al., 2013). The carbonized porous aromatic framework (PAF-1) derivatives were formed by high-temperature KOH activation showed unexpectedly superior carbon dioxide capture capacity reaching up to 7.2 mmol/g at 273 K and 1 bar. However, the starting materials are seldom used and the synthesis route was complicated and cumbersome. To overcome these problems, Jaroniec et al. designed two different tailored routes to develop microporous and mesoporous carbon spheres to demonstrate that the site-occupying silica in carbon spheres works as hard templates for the large mesopores (Marszewska and Jaroniec, 2017). The resulting mesoporosity enabled faster transfer of carbon dioxide from the bulk to the micropores and effectively improved the diffusion process. The best sorbent showed carbon dioxide uptakes as high as 4.0 mmol/g (23°C, 1 bar) and 7.8 mmol/g (0°C, 1 bar). Despite the improvement in NCs, the main drawbacks related to cost and technology transfer to industrial applications remain to be solved when used for CCS. At present, the research mainly focuses on employing low-cost resources to develop efficient and economical synthesis routes for sorbents with ideal performances.

In this study, HPCs with abundant micropores were prepared using a simple and cost effective route. To optimize microporosity and mesoporosity of HPCs, several influencing factors based on the ratio of raw materials and carbonization temperature were investigated, and related synthesis mechanisms were examined. The resulting materials showed promising features toward CCS on a commercial scale.

Experimental

Synthesis of HPCs

The commercial nano-CaCO3 (ca. 40~60 nm in size from Chengdu Aike Reagent) served as a hard template and micropore producer. Raw sugar was used as the carbon precursor. HPCs were prepared by dispersing nano-CaCO3 in the raw sugar aqueous solution at the mass ratios of raw sugar to CaCO3 varying from 2:8 to 5:5. The resulting homogeneous solution was then left to evaporated and dried in a water bath at 85°C. The collected semi-dry powders were dried thoroughly and then kept at 700 or 900°C for 2 h under flowing nitrogen (99.999%). The carbonized mixture was treated with 2 M HCl solution and then washed several times with distilled water, resulting in a solid product after drying overnight at 100°C. For comparison, a tentative sample was also obtained via post-activation method for HPCs at 700oC for 1 h under flowing carbon dioxide (50 cm3/min). The as-made carbon materials were labeled as HPCs*-x-y, where the superscript * represents the activated sample, and lowercase x and y are the share of raw sugar in dried raw materials and carbonization temperature, respectively.

Characterization and Evaluation of HPCs

Thermogravimetric (TG) analysis was carried out using a thermal analysis system (STA 449/F3, Netzsch) with heating rate of 10°C /min under nitrogen flow. The carbon yield of HPCs samples was calculated from the weight of resultant carbons divided by the weight of dried raw materials. X-ray powder diffraction (XRD) pattern was measured on a diffractometer (Bruker D8 ADVANCE) with a scanning rate of 2°/min, using Cu Kα radiation. The microstructure of samples were observed by field emission scanning electron microscopy (FESEM, Carl Zeiss, Supra 40). The structures and morphologies of the activated sample were characterized by transmission electron microscopy (TEM) (JEM-2100F JEOL, 200 kV). The microporosity and mesoporosity properties of samples were analyzed by the nitrogen adsorption-desorption isotherms at −196°C (Micrometrics, ASAP 3020). Specific surface areas of samples were determined using the Brunauer-Emmett-Teller (BET) equation. The total pore volume was calculated from the nitrogen adsorption amount at the relative pressure of 0.995. The mesoporous volumes of samples were determined using the Barrett-Joyner-Halanda (BJH) method. The micropore area and volume were estimated by the t-plot method (Brunauer et al., 1938). The pore size distributions were derived from the adsorption branch of nitrogen isotherms using the BJH method (Sing, 1985). The carbon dioxide adsorption performance of the sample was measured at 25 and 0°C using a carbon dioxide adsorption instrument (JWGB, JW-BK112). Prior to adsorption measurement, all samples were degassed at 200°C for 12 h.

Results and Discussion

TG Analysis

The carbonization process of raw sugar-CaCO3 mixtures was studied by TG analysis in the temperature range from 25 to 1,000oC under nitrogen flow, and the results are shown in Figure 1. The decomposition temperature of nano-CaCO3 was estimated to about 660°C, and carbonization of pure raw sugar occurred at around 200°C with a carbon yield of ca. 19% at 900°C. Compared to pure raw sugar, the decomposition of the mixture was delayed from 300 to 660°C. This was attributed to incorporated nano-CaCO3 in the matrix. Above 660°C, the weight loss dropped rapidly, indicating that carbon consumption process occurred above 660°C. Since the decomposition of CaCO3 into CaO and carbon dioxide above this temperature, it can be concluded that carbon dioxide gas reacted with carbon walls, leading to its oxidation into CO and removal. This etching process was known as “inner-activation” effect, which was first detected in the carbonization process of PF (phenol formaldehyde) resin and CaCO3 composite (Zhao et al., 2010). To investigate the porous texture of the prepared carbons, two series were prepared by changing the carbonization temperature: HPCs-x-700 series (x = 2, 3, 4, and 5) carbonized at 700°C as the initial stage of etching reaction and HPCs-x-900 series (x = 2, 3, 4, and 5) carbonized at 900°C as the mature stage of etching reaction.

Figure 1.

Figure 1

Open in a new tab

TG curves of raw sugar, nano-CaCO3, and raw sugar-CaCO3 mixture (ratio of raw sugar:CaCO3 = 5:5) under nitrogen flow.

The carbon yield of both HPCs-x-700 and HPCs-x-900 series (x = 2, 3, 4, and 5) as a function of the mass ratio of raw sugar:CaCO3 is shown in Figure 2. Now that carbon dioxide occurred above 700°C, adequate carbon dioxide might consume more carbon according to the reaction: CO2+C → 2CO (Zhao et al., 2010). Figure 2 confirmed this assumption, showing that both series with a total of eight samples consumed carbon according to the above reaction. At the same initial composition, more carbon dioxide were produced as carbonization temperature rose. Thus, the carbon consumption of HPCs-x-900 series was higher than that of HPCs-x-700 series. At the same carbonization temperature, the carbon consumption gradually decreased as CaCO3 ratio in the mixture reduced. Thus, an increase in carbon yield was linked to the decrease of carbon dioxide emissions. The effect of carbon dioxide post-activation on porous texture of various carbons had been studied thoroughly (Liou, 2010; Li Y. et al., 2013; Wickramaratne and Jaroniec, 2013a), and the effect of inner-activation on microstructure of HPCs materials needs further investigation as well.

Figure 2.

Figure 2

Open in a new tab

Carbon yield of HPCs-x-900 and HPCs-x-700 samples as a function of the mass ratio of raw sugar:CaCO3.

XRD Patterns

Typical XRD pattern was exhibited in Figure 3 to verify the graphitic characteristics of carbon. A sharp diffraction peak located at 2θ ≈ 23° and a broad diffraction peak located at 2θ ≈ 44° were clearly identified, indexed to the (002) reflection of pure graphitic lattice and the (100) reflection of the graphitic carbon, respectively (Xu et al., 2011). This structure might be beneficial to enhance catalytic effect for carbon dioxide conversion when the carbon combines with active materials (Wang et al., 2016).

Figure 3.

Figure 3

Open in a new tab

XRD pattern of HPCs-5-900.

FESEM Images

The morphological evolution from raw sugar-CaCO3 physical mixture into HPCs was depicted in Figure 4, using a series of FESEM images (a~f). In Figures 4a,b, the pristine raw sugar displayed a dense structure filled with apparent inclusions, corresponding to the nano-CaCO3 particles with their aggregates shown in the inset of Figure 4a. After high temperature carbonization above 700°C, the raw sugar was converted into graphitic carbon as demonstrated by TG and XRD, and the nano-CaCO3 decomposed into nano-CaO and carbon dioxide as confirmed by TG. As shown in Figures 4c,d, the as-received product depicted highly porous structure rich with fine pores, retaining no memory of pristine raw sugar-CaCO3 structure. After removal of CaO fillers, largely interconnected mesopores of 20~100 nm in diameter were formed in the carbon matrix, which were different from the morphology of matrix embedded with nano-CaO particles.

Figure 4.

Figure 4

Open in a new tab

FESEM images of (a) and (b) raw sugar-CaCO3 mixture matrix (inset of (a) is the TEM image of nano-CaCO3 particles), (c,d) carbonized matrix embedded with templates, and (e,f) HPCs.

TEM Images

To further investigate the microstructure of micropore-enriched HPCs after activation with carbon dioxide gas, a typical HPCs*-5-900 sample was characterized by TEM. As shown in Figures 5a,b, the edges at high magnification displayed well-developed three-dimensional system of the interconnected pores built by random carbon walls <10 nm in thickness to produce loose nanostructures. In Figures 5c,d, the magnified TEM image of the circular region by white circles in Figure 5a. The pore region was detected by the reaction of dilute hydrochloric acid solution with site-occupying template. The inwall of carbon was rough and curly, implying the structural disintegration of carbon and existence of fine micropores. The external carbon structure illustrated a dendritic arrangement with abundant micropores, suggesting the successful activation resulting from extrinsic carbon dioxide against carbon.

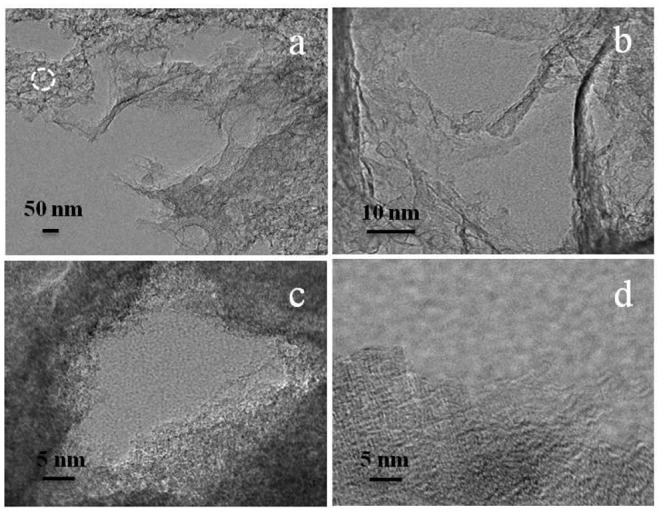

Figure 5.

Figure 5

Open in a new tab

TEM images of HPCs*-5-900 showing: (a) edges of carbon, (b) randomly carbon walls, (c) site-occupying region, and (d) micropore-enriched edges after carbon dioxide gas activation.

Nitrogen Adsorption/Desorption Isotherms

In Figures 6A,B, the nitrogen adsorption/desorption isotherms of HPCs-x-700 and HPCs-x-900 series (x = 2, 3, 4, and 5), respectively. The nitrogen adsorption/desorption isotherms of two series were typical Langmuir IV curves with distinct hysteresis loops, indicating the presence of mesopores created by the removal of site-occupying CaCO3 or CaO. The significant increase of adsorption volume at low-pressure range (P/P0 < 0.1) indicated the existence of abundant micropores. Three imaginable and reasonable sources caused the micropores to form: the voids derived from high-temperature pyrolysis of raw sugar, carbon dioxide escape routes during CaCO3 decomposition, and fine etching pores in carbon wall. Although there is no adsorption hysteresis in the macropore range (> 300 nm), the existence of micron level voids in the carbon matrix was clearly confirmed in the preceding FESEM images. Thus, it could be suggested that the formation of voids was mainly attributed to leaching of the aggregates of template particles (Li T. et al., 2013).

Figure 6.

Figure 6

Open in a new tab

Nitrogen adsorption/desorption isotherms of HPCs samples carbonized under nitrogen at (A) 700°C and (B) 900°C for 2 h.

Table 1 lists the calculated adsorption parameters for both series carbonized at 700 and 900°C, respectively. All HPCs samples showed high surface areas ranging from 408 to 986 m2/g and large total pore volumes varying from 0.327 to 1.095 cm3/g. For HPCs-x-700 or HPCs-x-900 series (x = 2, 3, 4, and 5), as x increased, Vmeso decreased gradually but Vmicro, Vmicro/Vtotal, SBET−micro, and SBET−micro/SBET rose gradually. This indicated a regular transition from mesoporosity to microporosity when mass ratio of raw sugar/CaCO3 increased. The former was attributed to the decrease in the amount of site-occupying CaCO3. For each HPCs series, both micropore volume and surface area increased as raw sugar ratio rose. As suggested by Figure 2, carbon yield rose as raw sugar ratio increased, in accordance with the changed trend of micropore volume and surface area. The inner-activation effect of carbon dioxide on the carbon matrix had also been confirmed by the previous discussion. The etching effect was greatly determined by respective content and dependency state of carbon dioxide and carbon, according to the reaction: CO2+C → 2CO. Thus, it can be concluded that the development of micropores did not only depend on carbon dioxide discharge derived from inner-activation but also closely associated with the essential amount of carbon matrix. Note that data presented here were slightly different from those reported in previous research (Zhao et al., 2010), and could be attributed to differences in the carbon source. In fact, the carbon source used in previous studies was phenolic resin. The effect of other carbon sources, such as resorcinol-formaldehyde mixture, sucrose, phenolic resin and polyacrylonitrile on porous texture will be reported in future publications.

Table 1.

Textural properties of all related HPCs samples.

Sample SBET (SBET−mia) (m2/g) SBET-mi/SBET Vt (Vmib) (cm3/g) Vmec Vmi /Vt
HPCs-2-700 408 (59) 0.145 0.650 (0.024) 0.626 0.037
HPCs-3-700 684 (252) 0.368 0.714 (0.107) 0.607 0.149
HPCs-4-700 646 (375) 0.580 0.578 (0.156) 0.422 0.270
HPCs-5-700 562 (491) 0.874 0.327 (0.195) 0.132 0.596
HPCs-2-900 822 (231) 0.281 1.052 (0.100) 0.952 0.095
HPCs-3-900 986 (383) 0.388 1.095 (0.165) 0.930 0.151
HPCs-4-900 793 (457) 0.576 0.693 (0.193) 0.500 0.278
HPCs-5-900 638 (532) 0.834 0.382 (0.215) 0.167 0.563
HPCs*-5-900 936 (786) 0.840 0.553 (0.320) 0.233 0.579
Open in a new tab

aThe micropore surface area was estimated using the t-plot method.

bThe micropore volume was estimated using the t-plot method.

cThe mesopore volume was estimated by BJH method.

Moreover, the HPCs-x-900 series exhibited higher SBET, SBET−micro, and Vmicro than those samples with the same raw materials ratio carbonized at 700°C, but the carbon yield of HPCs-x-700 series was higher than that of the carbonized samples at 900°C. This demonstrated that carbonization at 900°C could ensure the complete decomposition of CaCO3, and samples were thoroughly activated. In addition, the gap in amount of micropores between every two samples with the same raw materials ratio but carbonized at 900 and 700°C, respectively, became narrow due to the weakening of carbon dioxide inner-activation effect with decrease in amount of CaCO3. Specifically, the difference in micropore volume between HPCs-2-900 and HPCs-2-700 was estimated to 0.076 cm3/g. However, these values decreased to 0.058, 0.037 and 0.020 cm3/g, respectively, as the value of x rose from 3 to 5. Also, SBET−mi/SBET and Vmi /Vt increased to 0.834 and 0.563, respectively, as the value of x rose to 5. The microporosity structure was more prominent, especially for HPCs-5-700 and HPCs-5-900 samples.

To develop large volumes of small micropores for high carbon dioxide uptakes, the carbon dioxide activation was performed on HPCs-5-900 at 700oC for 1 h under flowing carbon dioxide. Figure 7A shows the nitrogen adsorption/desorption isotherms of HPCs-5-900 and HPCs*-5-900 samples. HPCs*-5-900 illustrated Langmuir IV type curves with distinct hysteresis loop, indicating the presence of constricted mesopores, similar to that of HPCs-5-900 sample. As expected, the nitrogen adsorption amount of HPCs*-5-900 in the low-pressure range (<0.1) was significantly higher than that of HPCs-5-900 because the former was activated by carbon dioxide and its micropore volume is enlarged by almost 50%. The pore size distributions of HPCs-5-900 and HPCs*-5-900 samples obtained by BJH method are inserted in Figure 7B. It clearly suggested that the amount of micropores in the activated sample was superior to that of the unactivated sample, demonstrating the benefits of carbon dioxide post-activation. On the other hand, a slight increase in the mesopore volume was carefully observed from the hysteresis loop and the data listed in Table 1. The development of mesopores was also caused by carbon dioxide activation that widened all pores existed in HPCs samples or produced new pores in the carbon matrix. In other words, a part of micropores connected to become mesopores or newborn mesopores directly germinated in the carbon matrix when carbon dioxide etching reaction occurred (Li T. et al., 2013; Marszewska and Jaroniec, 2017).

Figure 7.

Figure 7

Open in a new tab

(A) Nitrogen adsorption/desorption isotherms of HPCs-5-900 and HPCs*-5-900. (B) The corresponding pore size distributions curves calculated by BJH method.

Carbon Dioxide Adsorption Isotherms

The carbon dioxide adsorption isotherms of HPCs-x-700 and HPCs-x-900 series at 25°C are shown in Figures 8A,B, respectively. HPCs-5-900 showed the best performance toward carbon dioxide adsorption and the maximum value of adsorption capacity was estimated to 2.25 mmol/g at 25oC and 1 bar. Although HPCs-3-900 depicted the highest total pore volume of 1.095 cm3/g and mesopore volume of 0.930 cm3/g (Table 1), HPCs-5-900 possessed a superior micropore volume of 0.215 cm3/g, occupying ~56% of total pore volume. Hence, it can be concluded that the highest carbon dioxide adsorption performance of HPCs-5-900 necessarily originated from its huge amount of micropore volume. Despite using fillers, such as SiO2 (Feng et al., 2014; Marszewska and Jaroniec, 2017), MgO (Meng and Park, 2012) and porous concrete (Günther et al., 2012) in the preparation of porous carbon materials, nano-CaCO3 particles showed preferable advantages over other oxide fillers for hierarchical porous structure because they served simultaneously as mesopore templates and micropore producers (Zhao et al., 2010; Liu et al., 2013). The decomposition products of nano-CaCO3 particles results in nano-sized CaO particles and carbon dioxide gas, responsible for the formation of mesopores and micropores in carbon matrix, respectively. Thus, a series of HPCs with varying degrees of microporosity and mesoporosity can easily be obtained by adjusting the ratio of raw sugar/CaCO3 and carbonization temperature. From an economic standpoint, the mass ratio of raw sugar/CaCO3 as 1:1 is favorable. Besides, development of microporosity for carbon dioxide adsorption by setting the carbonization temperature at 900°C is desirable.

Figure 8.

Figure 8

Open in a new tab

Carbon dioxide adsorption isotherms measured at 25°C for HPCs series carbonized at (A) 700°C and (B) 900°C. (C) Carbon dioxide adsorption isotherms measured for a series of HPCs-5-900 samples obtained by different routes.

The chemical adsorption of carbon dioxide on HPCs materials is almost impossible due to the absence of basic groups like nitrogen-containing species in carbon. Since HPCs*-5-900 possessed a typical hierarchical porous structure with ultra-high micropores and moderate mesopores, and also exhibited a superior carbon dioxide uptake, it clearly demonstrated that the physical uptake was closely related to this micro-mesoporous structure. The importance of mesopores in carbon dioxide capture was recently reported (Wickramaratne and Jaroniec, 2013a,b; Marszewska and Jaroniec, 2017). In the case of HPCs materials, the synthetic route was adjusted in this study to deduce the necessity of mesopores in micropore-enriched carbon. As shown in Figure 8C, compared to HPCs-5-900, the sample obtained by preliminary carbonization, subsequent activation and final pickling (labeled as HPCs-5-900-C-A-P) exhibited a smaller carbon dioxide uptake of 1.69 mmol/g (25 oC, 1 bar). Specifically, the carbon dioxide uptake of HPCs-5-900-C-A (carbonized and activated without the pickling process) just reached to 0.17 mmol/g at 25 oC and 1 bar. The CO2 adsorption properties of the prepared all related HPCs samples are shown in Table 2.

Table 2.

CO2 adsorption properties of all related HPCs samples.

Sample HPCs-2-700 HPCs-3-700 HPCs-4-700 HPCs-5-700 HPCs-2-900 HPCs-3-900 HPCs-4-900 HPCs-5-900 HPCs*-5- 900
NaCO2 (mmol/g) 1.26 1.5 1.91 2.02 1.26 1.94 2.03 2.25 2.84b/3.66c
Open in a new tab
a

The carbon dioxide uptake at 25°C and 1 bar.

b,c

The carbon dioxide adsorption performance was measured at 25 and 0°C, respectively.

The essential difference from HPCs-5-900, which was just the process order, would definitively affect the carbon dioxide adsorption performance. The presence of site-occupying CaO particles in carbon matrix caused two negative effects on carbon dioxide diffusion. One was related to the post-activation effect and the other was linked to the development of interconnected micro-mesoporous structure. The presence of template particles blocked activation gas diffusion from the bulk phase to the interior, resulting in delayed pore-creating reaction. For HPCs-5-900-C-A, the almost negligible carbon dioxide uptake resulted from both effects. In the case of HPCs-5-900-C-A-P, the removal of these particles during the last step resulted in interconnected micro-mesoporous structure and improved carbon dioxide diffusion from the bulk phase to micropores. Therefore, the carbon dioxide uptake increased dramatically compared to HPCs-5-900-C-A, but still lower than HPCs-5-900. Thus, the removal of site-occupying templates before carbon dioxide activation was beneficial for activation gas transfer in unobstructed path and played a significant role in improving the microporous textures. The obtained hierarchical porous structure was very important in improving the carbon dioxide uptake. In addition, as shown in Table 3, we compared the texture properties of samples in this work with the carbon samples of different structures reported in the previous literature.

Table 3.

The comparison of textural properties of samples in this work with the literature values.

Carbon structure T (°C) SBET (m2/g) Vt (cm3/g) Vmi (cm3/g) Nco2 (mmol/g) (Condition) References
Hierarchical porous carbons 900°C 936 0.553 0.32 2.84
(25°C 1 bar)		 This work
Hierarchical macroporous nitrogen-doped carbons 600°C 682.8 − − 2.69
(25°C 1 bar)		 Li et al., 2016
Hierarchical porous graphene-based carbons 850°C 459 1.17 0.11 1.76
(0°C 1 bar)		 Xia et al., 2014
Ordered mesoporous carbon 850°C 1400 1.02 0.42 2.64
(25°C 1 bar)		 Mahurin et al., 2014
Nitrogen-doped microporous carbons 800°C 2567 1.49 1.25 2.78
(25°C 1 bar)		 Fan et al., 2013
Nitrogen-doped mesoporous carbons 600°C 537 0.47 0.17 2.8
(25°C 1 bar)		 Wei et al., 2013
Mesoporous carbon 900°C 3325 2.25 0.98 2.4
(25°C 1 bar)		 Huang et al., 2016
Mesoporous carbon 800°C 974 1.93 0.1 2.41
(25°C 1 bar)		 Lee et al., 2014
Mesoporous carbon 800°C 748 0.49 0.23 2.73
(25°C 1 bar)		 Zhang et al., 2015
Open in a new tab

Conclusions

In this study, a series of high-quality and cost-effective carbon dioxide sorbents based on HPCs are successfully synthesized by carbonizing raw sugar-CaCO3 composite precursors. Both starting materials are mass-produced and low-cost and the whole fabrication process only involved three steps. The carbonization and inner-activation reaction occurred synchronously, and their combination effectively induced regional micropores. The removal of site-occupying templates ensured the formation of the interconnected micro-mesoporous structure built by ultrathin carbon walls. The well-developed micropore-enriched structure was further improved through the final post-activation process. The combination of nano-CaCO3 incorporation and carbon dioxide post-activation were found to have significant beneficial effects on the structural controllability, especially the microporosity and mesoporosity. The best structural property with t-plot micropore surface area of 786 m2/g and micropore volume of 0.320 cm3/g were translated into excellent carbon dioxide uptake of 2.84 mmol/g at 25°C and 3.66 mmol/g at 0°C. Overall, the proposed synthesis methodology of HPCs looks promising for future applications in the field of carbon dioxide catalytic conversion.

Data Availability Statement

All datasets generated for this study are included in the manuscript.

Author Contributions

LH was the most important contributor of manuscript, and other authors have made a lot of contributions in experiments and writing of manuscript.

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Footnotes

Funding. This work was supported by the National Natural Science Foundation of China (51504133), the Project of Liaoning Science and Technology Agency (20170540465) and the 2019 Project of Liaoning Education Department (2019LNJC20).

References

  1. Ahmad N. A., Leo C. P., Ahmad A. L., Mohammad A. W. (2016). Separation of CO2 from hydrogen using membrane gas absorption with PVDF/PBI membrane. Int. J. Hydrogen Energy 41, 4855–4861. 10.1016/j.ijhydene.2015.11.054 [DOI] [Google Scholar]
  2. Brunauer S., Emmett P. H., Teller E. (1938). Adsorption of gases in multimolecular layers. J. Am. Chem. Soc. 60, 309–319. 10.1021/ja01269a023 [DOI] [Google Scholar]
  3. Chen H., Zhang S., Zhao Z., Liu M., Zhang Q. (2019). Application of dopamine functional materials in water pollution control. Prog. Chem. 31, 571–579. 10.7536/PC180823 [DOI] [Google Scholar]
  4. Dassanayake R. S., Gunathilake C., Dassanayake A. C., Abidi N., Jaroniec M. (2017). Amidoxime-functionalized nanocrystalline cellulose-mesoporous silica composites for carbon dioxide sorption at ambient and elevated temperatures. J. Mater. Chem. A 5, 7462–7473. 10.1039/C7TA01038A [DOI] [Google Scholar]
  5. Fan X., Zhang L., Zhang G., Shu Z., Shi J. (2013). Chitosan derived nitrogen-doped microporous carbons for high performance CO2 capture. Carbon 61, 423–430. 10.1016/j.carbon.2013.05.026 [DOI] [Google Scholar]
  6. Feng S., Li W., Shi Q., Li Y., Chen J., Ling Y., et al. (2014). Synthesis of nitrogen-doped hollow carbon nanospheres for CO2 capture. Chem. Commun. 50, 329–331. 10.1039/C3CC46492J [DOI] [PubMed] [Google Scholar]
  7. Garbarino G., Riani P., Magistri L., Busca G. (2014). A study of the methanation of carbon dioxide on Ni/Al2O3 catalysts at atmospheric pressure. Int. J. Hydrogen Energy 39, 11557–11565. 10.1016/j.ijhydene.2014.05.111 [DOI] [Google Scholar]
  8. Günther D., Beckmann J., Schöneich M., Schmidt P., Klepel O. (2012). Porous concrete as a template for the synthesis of porous carbon materials. Carbon 50, 3096–3098. 10.1016/j.carbon.2012.02.039 [DOI] [Google Scholar]
  9. Han J. H., Ryu J. H., Lee I. B. (2012). A preliminary infrastructure design to use fossil fuels with carbon capture and storage and renewable energy systems. Int. J. Hydrogen Energy 37, 17321–17335. 10.1016/j.ijhydene.2012.08.117 [DOI] [Google Scholar]
  10. Hao G. P., Li W. C., Qian D., Lu A. H. (2010). Rapid synthesis of nitrogen-doped porous carbon monolith for CO2 capture. Adv. Mater. 22, 853–857. 10.1002/adma.200903765 [DOI] [PubMed] [Google Scholar]
  11. Hayat A., Rahman M. U., Khan I., Khan J., Sohail M., Yasmeen H., et al. (2019). Conjugated electron donor-acceptor hybrid polymeric carbon nitride as a photocatalyst for CO2 reduction. Molecules 24:1779 10.3390/molecules24091779 [DOI] [PMC free article] [PubMed] [Google Scholar]
  12. Huang K., Chai S. H., Mayes R. T., Tan S., Jones C. W., Dai S. (2016). Significantly increasing porosity of mesoporous carbon by NaNH2 activation for enhanced CO2 adsorption. Micropor. Mesopor. Mat. 230, 100–108. 10.1016/j.micromeso.2016.04.041 [DOI] [Google Scholar]
  13. Kanki K., Maki H., Mizuhata M. (2016). Carbon dioxide absorption behavior of surface-modified lithium orthosilicate/potassium carbonate prepared by ballmilling. Int. J. Hydrogen Energy 41, 18893–18899. 10.1016/j.ijhydene.2016.06.158 [DOI] [Google Scholar]
  14. Kim P., Kim H., Joo J. B., Kim W., Song I. K., Yi J. (2005). Preparation and application of nanoporous carbon templated by silica particle for use as a catalyst support for direct methanol fuel cell. J. Power Sources 145, 139–146. 10.1016/j.jpowsour.2005.01.070 [DOI] [Google Scholar]
  15. Lavoie J. M. (2014). Review on dry reforming of methane, a potentially more environmentally-friendly approach to the increasing natural gas exploitation. Front. Chem. 2:81. 10.3389/fchem.2014.00081 [DOI] [PMC free article] [PubMed] [Google Scholar]
  16. Lee S. Y., Jang D. I., Bae S. T., Park S. J. (2014). Facile synthesis of nitrogen-enriched mesoporous carbon for carbon dioxide capture. Int. J. Hydrogen Energy 39, 12347–12352. 10.1016/j.ijhydene.2014.03.086 [DOI] [Google Scholar]
  17. Li D., Chen Y., Zheng M., Zhao H., Zhao Y., Sun Z. (2016). Hierarchically structured porous nitrogen-doped carbon for highly selective CO2 capture. ACS Sustainable Chem. Eng. 4, 298–304. 10.1021/acssuschemeng.5b01230 [DOI] [Google Scholar]
  18. Li T., Yang G., Wang J., Zhou Y., Han H. (2013). Excellent electrochemical performance of nitrogen-enriched hierarchical porous carbon electrodes prepared using nano-CaCO3 as template. J. Solid State Electr. 17, 2651–2660. 10.1007/s10008-013-2167-3 [DOI] [Google Scholar]
  19. Li X., Yu J., Jaroniec M., Chen X. (2019). Cocatalysts for selective photoreduction of CO2 into solar fuels. Chem. Rev. 119, 3962–4179. 10.1021/acs.chemrev.8b00400 [DOI] [PubMed] [Google Scholar]
  20. Li Y., Ben T., Zhang B., Fu Y., Qiu S. (2013). Ultrahigh gas storage both at low and high pressures in KOH-activated carbonized porous aromatic frameworks. Sci. Rep. 3:2420. 10.1038/srep02420 [DOI] [PMC free article] [PubMed] [Google Scholar]
  21. Liang Y., Harrison D. P., Gupta R. P., Green D. A., McMichael W. J. (2004). Carbon dioxide capture using dry sodium-based sorbents. Energy Fuels 18, 569–575. 10.1021/ef030158f [DOI] [Google Scholar]
  22. Liou T. H. (2010). Development of mesoporous structure and high adsorption capacity of biomass-based activated carbon by phosphoric acid and zinc chloride activation. Chem. Eng. J. 158, 129–142. 10.1016/j.cej.2009.12.016 [DOI] [Google Scholar]
  23. Liu B., Shioyama H., Jiang H., Zhang X., Xu Q. (2010). Metal-organic framework (MOF) as a template for syntheses of nanoporous carbons as electrode materials for supercapacitor. Carbon 48, 456–463. 10.1016/j.carbon.2009.09.061 [DOI] [Google Scholar]
  24. Liu H., Cao C. Y., Wei F. F., Jiang Y., Sun Y. B., Huang P. P., et al. (2013). Fabrication of macroporous/mesoporous carbon nanofiber using CaCO3 nanoparticles as dual purpose template and its application as catalyst support. J. Phys. Chem. C 117, 21426–21432. 10.1021/jp4078807 [DOI] [Google Scholar]
  25. Lu C., Bai H., Wu B., Su F., Hwang J. F. (2008). Comparative study of CO2 capture by carbon nanotubes, activated carbons, and zeolites. Energy Fuels 22, 3050–3056. 10.1021/ef8000086 [DOI] [Google Scholar]
  26. Mahurin S. M., Górka J., Nelson K. M., Mayes R. T., Dai S. (2014). Enhanced CO2/N2 selectivity in amidoxime-modified porous carbon. Carbon 67, 457–464. 10.1016/j.carbon.2013.10.018 [DOI] [Google Scholar]
  27. Marszewska J., Jaroniec M. (2017). Tailoring porosity in carbon spheres for fast carbon dioxide adsorption. J. Colloid Interf. Sci. 487, 162–174. 10.1016/j.jcis.2016.10.033 [DOI] [PubMed] [Google Scholar]
  28. Megías-Sayago C., Bingre R., Huang L., Lutzweiler G., Wang Q., Louis B. (2019). CO2 adsorption capacities in zeolites and layered double hydroxide materials. Front. Chem. 7:551. 10.3389/fchem.2019.00551 [DOI] [PMC free article] [PubMed] [Google Scholar]
  29. Meng L. Y., Park S. J. (2012). Influence of MgO template on carbon dioxide adsorption of cation exchange resin-based nanoporous carbon. J. Colloid Interf. Sci. 366, 125–129. 10.1016/j.jcis.2011.09.019 [DOI] [PubMed] [Google Scholar]
  30. Patel H. A., Byun J., Yavuz C. T. (2017). Carbon dioxide capture adsorbents: chemistry and methods. ChemSusChem 10, 1303–1317. 10.1002/cssc.201601545 [DOI] [PubMed] [Google Scholar]
  31. Patiño J., Gutiérrez M. C., Carriazo D., Ania C. O., Fierro J. L. G., Ferrer M. L., et al. (2014). DES assisted synthesis of hierarchical nitrogen-doped carbon molecular sieves for selective CO2 versus N2 adsorption. J. Mater. Chem. A 2, 8719–8729. 10.1039/C4TA00562G [DOI] [Google Scholar]
  32. Pullar R. C., Novais R. M., Caetano A. P. F., Barreiros M. A., Abanades S., Oliveira F. A. C. (2019). A review of solar thermochemical CO2 splitting using ceria-based ceramics with designed morphologies and microstructures. Front. Chem. 7:601. 10.3389/fchem.2019.00601 [DOI] [PMC free article] [PubMed] [Google Scholar]
  33. Qi K., Cheng B., Yu J., Ho W. (2017). A review on TiO2-based Z-scheme photocatalysts. Chin. J. Catal. 38, 1936–1955. 10.1016/S1872-2067(17)62962-0 [DOI] [Google Scholar]
  34. Qi K., Xie Y., Wang R., Liu S., Zhao Z. (2019). Electroless plating Ni-P cocatalyst decorated g-C3N4 with enhanced photocatalytic water splitting for H2 generation. Appl. Surf. Sci. 466, 847–853. 10.1016/j.apsusc.2018.10.037 [DOI] [Google Scholar]
  35. Santis A. D., Ingham D. B., Ma L., Pourkashanian M. (2016). CFD analysis of exhaust gas recirculation in a micro gas turbine combustor for CO2 capture. Fuel 173, 146–154. 10.1016/j.fuel.2016.01.063 [DOI] [Google Scholar]
  36. Shi W., Xu X., Ye C., Sha D., Yin R., Shen X., et al. (2019). Bimetallic metal-organic framework-derived carbon nanotube-based frameworks for enhanced capacitive deionization and Zn-air battery. Front. Chem. 7:449. 10.3389/fchem.2019.00449 [DOI] [PMC free article] [PubMed] [Google Scholar]
  37. Sing K. S. W. (1985). Reporting physisorption data for gas/solid systems with special reference to the determination of surface area and porosity (Recommendations 1984). Pure Appl. Chem. 57, 603–619. 10.1351/pac198557040603 [DOI] [Google Scholar]
  38. Son I. H., Lee S. J., Roh H. S. (2014). Hydrogen production from carbon dioxide reforming of methane over highly active and stable MgO promoted Co-Ni/γ-Al2O3 catalyst. Int. J. Hydrogen Energy 39, 3762–3770. 10.1016/j.ijhydene.2013.12.141 [DOI] [Google Scholar]
  39. Song H., Liu Z., Gai H., Wang Y., Qiao L., Zhong C., et al. (2019). Nitrogen-dopped ordered mesoporous carbon anchored Pd nanoparticles for solvent free selective oxidation of benzyl alcohol to benzaldehyde by using O2. Front. Chem. 7:458. 10.3389/fchem.2019.00458 [DOI] [PMC free article] [PubMed] [Google Scholar]
  40. Sun Q., Yang Y., Zhao Z., Zhang Q., Zhao X., Nie G., et al. (2018). Elaborate design of polymeric nanocomposites with Mg(ii)-buffering nanochannels for highly efficient and selective removal of heavy metals from water: case study for Cu(ii). Environ. Sci. Nano 5, 2440–2451. 10.1039/C8EN00611C [DOI] [Google Scholar]
  41. Wang W., Chu W., Wang N., Yang W., Jiang C. (2016). Mesoporous nickel catalyst supported on multi-walled carbon nanotubes for carbon dioxide methanation. Int. J. Hydrogen Energy 41, 967–975. 10.1016/j.ijhydene.2015.11.133 [DOI] [Google Scholar]
  42. Wei J., Zhou D., Sun Z., Deng Y., Xia Y., Zhao D. (2013). A controllable synthesis of rich nitrogen-doped ordered mesoporous carbon for CO2 capture and supercapacitors. Adv. Funct. Mater. 23, 2322–2328. 10.1002/adfm.201202764 [DOI] [Google Scholar]
  43. Wickramaratne N. P., Jaroniec M. (2013a). Activated carbon spheres for CO2 adsorption. ACS Appl. Mater. Interfaces 5, 1849–1855. 10.1021/am400112m [DOI] [PubMed] [Google Scholar]
  44. Wickramaratne N. P., Jaroniec M. (2013b). Importance of small micropores in CO2 capture by phenolic resin-based activated carbon spheres. J. Mater. Chem. A 1, 112–116. 10.1039/C2TA00388K [DOI] [Google Scholar]
  45. Wu X. L., Jiang L. Y., Cao F. F., Guo Y. G., Wan L. J. (2009). LiFePO4 nanoparticles embedded in a nanoporous carbon matrix: superior cathode material for electrochemical energy-storage devices. Adv. Mater. 21, 2710–2714. 10.1002/adma.200802998 [DOI] [PubMed] [Google Scholar]
  46. Xia K., Tian X., Fei S., You K. (2014). Hierarchical porous graphene-based carbons prepared by carbon dioxide activation and their gas adsorption properties. Int. J. Hydrogen Energy 39, 11047–11054. 10.1016/j.ijhydene.2014.05.059 [DOI] [Google Scholar]
  47. Xia Y., Tian Z., Heil T., Meng A., Cheng B., Cao S., et al. (2019). Highly selective CO2 capture and its direct photochemical conversion on ordered 2D/1D heterojunctions. Joule 3, 2792–2805. 10.1016/j.joule.2019.08.011 [DOI] [Google Scholar]
  48. Xu B., Shi L., Guo X., Peng L., Wang Z., Chen S., et al. (2011). Nano-CaCO3 templated mesoporous carbon as anode material for Li-ion batteries. Electrochim. Acta 56, 6464–6468. 10.1016/j.electacta.2011.04.130 [DOI] [Google Scholar]
  49. Xu K., Pan Q., Zheng F., Zhong G., Wang C., Wu S., et al. (2019). Hierarchical nitrogen-doped porous carbon microspheres as anode for high performance sodium ion batteries. Front. Chem. 7:733. 10.3389/fchem.2019.00733 [DOI] [PMC free article] [PubMed] [Google Scholar]
  50. Yaumi A. L., Abu Bakar M. Z., Hameed B. H. (2017). Recent advances in functionalized composite solid materials for carbon dioxide capture. Energy 124, 461–480. 10.1016/j.energy.2017.02.053 [DOI] [Google Scholar]
  51. Zhang Q., Bolisetty S., Cao Y., Handschin S., Adamcik J., Peng Q., et al. (2019). Selective and efficient removal of fluoride from water: in situ engineered amyloid fibril/ZrO2 hybrid membranes. Angew. Chem. Int. Ed. 58, 6012–6016. 10.1002/anie.201901596 [DOI] [PubMed] [Google Scholar]
  52. Zhang Z., Wang B., Zhu C., Gao P., Tang Z., Sun N., et al. (2015). Facile one-pot synthesis of mesoporous carbon and N-doped carbon for CO2 capture by a novel melting-assisted solvent-free method. J. Mater. Chem. A 3, 23990–23999. 10.1039/C5TA06465A [DOI] [Google Scholar]
  53. Zhao C., Wang W., Yu Z., Zhang H., Wang A., Yang Y. (2010). Nano-CaCO3 as template for preparation of disordered large mesoporous carbon with hierarchical porosities. J. Mater. Chem. 20, 976–980. 10.1039/B911913B [DOI] [Google Scholar]
  54. Zhu B., Wageh S., Al-Ghamdi A. A., Yang S., Tian Z., Yu J. (2019). Adsorption of CO2, O2, NO and CO on s-triazine-based g-C3N4 surface. Catalysis Tdy. 335, 117–127. 10.1016/j.cattod.2018.09.038 [DOI] [Google Scholar]
  55. Zhu Q., Zeng S., Yu Y. (2017). A model to stabilize CO2 uptake capacity during carbonation-calcination cycles and its case of CaO-MgO. Environ. Sci. Technol. 51, 552–559. 10.1021/acs.est.6b04100 [DOI] [PubMed] [Google Scholar]

Associated Data

This section collects any data citations, data availability statements, or supplementary materials included in this article.

Data Availability Statement

All datasets generated for this study are included in the manuscript.

Articles from Frontiers in Chemistry are provided here courtesy of Frontiers Media SA

RESOURCES
