Abstract
Galectin-1 modulates acute and chronic inflammation, and is associated with glucose homeostasis and chronic renal disease. Whether the serum galectin-1 level can predict short-term and long-term renal outcomes after contrast exposure in patients undergoing coronary angiography (CAG) remains uncertain. This study aimed to evaluate the relationship between the serum galectin-1 level and the incidence of contrast-induced nephropathy (CIN), and to investigate the predictive role of the circulating galectin-1 level for renal function decline in patients undergoing CAG. In total, 798 patients who had undergone CAG were enrolled. Baseline creatinine and serum galectin-1 levels were determined before CAG. CIN was defined as an increase in the serum creatinine level of 0.5 mg/dl or a 25% increase from baseline within 48 h after the procedure, and renal function decline was defined as > 30% reduction of the estimated glomerular filtration rate from baseline. All patients were followed for at least 1 year or until the occurrence of death after CAG. Overall, CIN occurred in 41 (5.1%) patients. During a median follow-up period of 1.4 ± 1.1 years, 80 (10.0%) cases showed subsequent renal function decline. After adjustment for demographic characteristics, kidney function, traditional risk factors, and medications, higher galectin-1 levels were found to be associated independently with a greater risk of renal function decline [tertile 2: hazard ratio (HR) 5.56, 95% confidence interval (CI) 1.79–17.22; tertile 3: HR 5.56, 95% CI 1.97–16.32], but not with CIN, regardless of the presence of diabetes. In conclusion, higher baseline serum galectin-1 levels were associated with a greater risk of renal function decline in patients undergoing CAG, but were not associated independently with CIN.
Subject terms: Predictive markers, Interventional cardiology, End-stage renal disease
Introduction
Chronic kidney disease (CKD) is a serious public health problem, and its incidence and prevalence are increasing1. The early detection of individuals at risk of CKD development or progression is especially important, as early-stage CKD is prevalent and contributes greatly to cardiovascular disease. Research clearly indicates that patients with coronary artery disease (CAD) are at increased risk of progressive renal dysfunction2. These patients may be further exposed to the risk of contrast-induced nephropathy (CIN), which has an incidence rate of 4.4–22.1%, if they undergo coronary angiography (CAG)3. CIN has traditionally been considered to be a benign and reversible disease, but it may prolong hospital stays and increase in-hospital mortality4. Accumulating evidence suggests that CIN is related to long-term renal function decline, in addition to short-term outcomes5,6. Efforts to predict the occurrence of CIN include the development of risk scoring systems composed of baseline risk factors7, renal Doppler evaluation8, 24-h serum creatinine elevation9, and renal injury biomarkers10–14. However, no predictive marker for long-term renal outcomes in patients undergoing CAG has been established.
Lectin–glycan interactions have been reported to be regulators of extensive physiological and pathological processes. Galectins form a group of proteins that can bind to β-galactoside sugars by N- or O-linked glycosylation through their carbohydrate recognition domains15. Galectins comprise three categories: monomeric, chimeric, and tandem-repeat types. They are characterized as homodimers of 14-kDa subunits with two β-galactoside–binding sites, and are expressed in many tissues15. Fifteen galectin isoforms, numbered in order of discovery (galectin-1–15), are recognized15. Galectin-1 is found in cytoplasm and on cell surfaces, and can be secreted to the extracellular matrix15. It modulates cell signaling, proliferation, and survival, and contributes to the control of inflammation and neovascularization16.
Diabetes is a traditional risk factor for CIN7 and CKD17. Recent evidence indicates that galectin-1 levels are increased in the proteome in subcutaneous interstitial fluid18 and plasma19 in patients with type 2 diabetes. The galectin-1 level is also elevated in the glomerular proteome in mice with CKD20. An in vitro study implicated galectin-1 in diabetic nephropathy, as seen in human podocytes in high-glucose culture21. Furthermore, galectin-1 was reported to be a new fibrosis protein and potential treatment target in the context of diabetic nephropathy22. However, whether the serum galectin-1 level can predict CIN and kidney function decline in patients undergoing CAG remains unclear. This study aimed to evaluate the relationship between the serum galectin-1 level and the incidence of CIN, and to clarify the predictive role of galectin-1 in renal function decline, in patients with suspected CAD undergoing CAG at a single hospital. We hypothesized that elevated galectin-1 levels, which have been reported to be associated with diabetes and diabetic nephropathy, would also be predictive markers of CIN and renal function decline in these patients. We also sought to clarify whether the possible predictive role of galectin-1 would be independent of diabetes.
Results
Baseline patient characteristics
In total, 798 subjects who underwent elective CAG and/or percutaneous coronary intervention (PCI) were enrolled in this analysis (Fig. 1). The mean age of the study population was 67 ± 12 years, and 67.5% of patients were male. Table 1 summarizes the clinical and demographic characteristics of the patients, grouped by galectin-1 concentration. Patients with higher plasma galectin-1 concentrations were older and had higher incidences of hypertension, diabetes, CKD, heart failure, and multiple vessel disease. Subjects in the highest galectin-1 tertile had significantly increased levels of fasting glucose, proteinuria, and decreased hemoglobin levels, estimated glomerular filtration rates (eGFRs), and left ventricular ejection fractions (LVEFs).

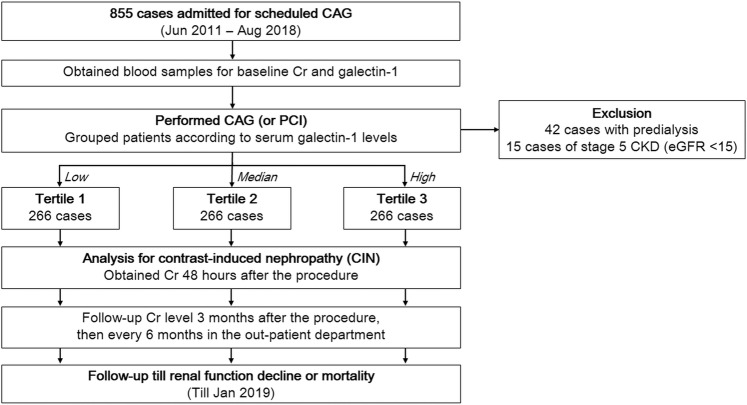

Figure 1.
Flowchart of patient recruitment and follow-up.
Table 1.
Baseline characteristics of the study cohort by tertiles of the serum galectin-1 concentration.
| Characteristic | Tertile 1 (n = 266) Galectin 1 <16.0 | Tertile 2 (n = 266) Galectin 1: 16.1–22.2 | Tertile 3 (n = 266) Galectin 1 ≥ 22.2 | P |
|---|---|---|---|---|
| Age (years) | 61 (54–71) | 67 (60–75) | 73.0 (62–81) | <0.001 |
| Male, n (%) | 180 (67.7) | 174 (65.4) | 185 (69.5) | 0.594 |
| Smoking, n (%) | 75 (28.2) | 91 (34.2) | 99 (37.2) | 0.080 |
| BMI (kg/m2) | 24.8 (22.4–27.6) | 25.8 (23.8–28.5) | 25.7 (22.9–28.2) | 0.019 |
| Medical history, n (%) | ||||
| Hypertension | 148 (55.6) | 175 (65.8) | 199 (74.8) | <0.001 |
| Diabetes | 70 (26.3) | 86 (32.3) | 119 (44.7) | <0.001 |
| Chronic kidney disease | 5 (1.9) | 5 (1.9) | 39 (14.7) | <0.001 |
| Heart failure | 9 (3.4) | 9 (3.4) | 33 (12.4) | <0.001 |
| Peripheral arterial disease | 18 (6.8) | 12 (4.5) | 31 (11.7) | 0.007 |
| Previous stroke | 12 (4.5) | 12 (4.5) | 22 (8.3) | 0.101 |
| Medications, n (%) | ||||
| Antiplatelet agents | 136 (51.1) | 136 (51.1) | 152 (57.1) | 0.276 |
| ACEi/ARB | 61 (22.9) | 80 (30.1) | 92 (34.6) | 0.012 |
| Diuretics | 10 (3.8) | 26 (9.8) | 36 (13.2) | 0.001 |
| Oral antidiabetic agents | 41 (15.4) | 50 (18.8) | 57 (21.4) | 0.202 |
| Insulin | 9 (3.4) | 13 (4.9) | 23 (8.6) | 0.025 |
| Statins | 84 (31.6) | 90 (33.8) | 71 (26.7) | 0.189 |
| Laboratory data | ||||
| White blood cells (K/cumm) | 6.6 (5.5–7.6) | 6.7 (5.7–7.8) | 6.9 (5.8–7.9) | 0.195 |
| Hemoglobin (g/dL) | 13.5 (12.5–14.3) | 13.4 (12.4–14.2) | 12.8 (11.3–14.0) | <0.001 |
| Fasting glucose (mg/dL) | 97.5 (87–119) | 98.0 (89–114) | 101 (91–128) | 0.044 |
| HbA1c (%) | 6.5 (6.0–7.3) | 6.3 (5.8–7.4) | 6.5 (5.9–7.3) | 0.419 |
| Proteinuria (mg/dL) | 0.0 (0.0–0.0) | 0.0 (0.0–0.0) | 0.0 (0.0–15.0) | <0.001 |
| Proteinuria ≥ 30 mg/dL, n (%) | 10 (3.8) | 15 (5.7) | 53 (20.3) | <0.001 |
| eGFR (ml/min/1.73 m2) | 80.5 (68–9) | 70.7 (59–81) | 56.9 (42–73) | <0.001 |
| Total cholesterol (mg/dL) | 160 (143–182) | 159 (137–182) | 159 (137–182) | 0.487 |
| Galectin 1 (ng/mL) | 13.3 (10.2–14.6) | 18.4 (17.3–20.0) | 27.7 (24.5–32.6) | <0.001 |
| Cardiac catheterization | ||||
| Mean blood pressure (mmHg) | 105 (95–113) | 105 (92–115) | 108 (98–118) | 0.281 |
| LVEF (%) | 59 (54–64) | 60 (54–64) | 57 (52–62) | 0.002 |
| Significant CAD, n (%) | 113 (43) | 135 (51) | 152 (57) | 0.003 |
| Underwent PCI, n (%) | 111 (42) | 124 (47) | 120 (45) | 0.509 |
| Contrast volume (ml) | 50 (50–95) | 50 (50–180) | 50 (50–225) | 0.002 |
| Outcomes | ||||
| CIN, n (%) | 7 (2.6) | 12 (4.5) | 22 (8.3) | 0.011 |
| eGFR decline > 30%, n (%) | 7 (2.6) | 20 (7.5) | 53 (19.9) | <0.001 |
| All-cause mortality, n (%) | 4 (1.5) | 1 (0.4) | 8 (3.0) | 0.055 |
BMI, body mass index; ACEi/ARB, angiotensin-converting enzyme inhibitor/angiotensin receptor blocker; HbA1c, glycosylated hemoglobin A1c; eGFR, estimated glomerular filtration rate; LVEF, left ventricular ejection fraction; CAD, coronary artery disease; PCI, percutaneous coronary intervention; CIN, contrast-induced nephropathy.
Kaplan–Meier survival analysis was performed to investigate the potential impact of the baseline galectin-1 level on adverse event–free survival (Fig. 2). Patients in the highest galectin-1 group were at significantly greater risk of renal function decline than were those in the lowest galectin-1 group (p < 0.001). Patients with prior CIN were also at significantly greater risk of renal function decline than were those without prior CIN (p < 0.001).
Figure 2.
Kaplan–Meier curves of freedom from renal function decline events by (A) tertiles of the serum galectin-1 concentration and (B) the incidence of contrast-induced nephropathy.
Baseline characteristics according to the presence of diabetes
Of the 798 study subjects, 275 (34.5%) were diabetic. Table 2 shows the clinical and demographic characteristics of patients grouped by the presence of diabetes mellitus. Patients with diabetes were older and had higher incidences of hypertension, CKD, and peripheral arterial disease. In addition to anti-diabetic agents, diabetic patients also received more antiplatelet therapy, statins, and anti-hypertensive agents. Compared with nondiabetic patients, patients with diabetes had higher levels of serum galectin-1, more proteinuria, lower hemoglobin and total cholesterol levels, and reduced LVEFs.
Table 2.
Baseline characteristics of the study cohort according to the presence of diabetes mellitus.
| Characteristic | Non-DM (n = 523) | DM (n = 275) | P |
|---|---|---|---|
| Age (years) | 65 (58–76) | 70 (60–78) | 0.003 |
| Male, n (%) | 344 (65.8) | 195 (70.9) | 0.152 |
| Smoking, n (%) | 168 (32.1) | 97 (35.3) | 0.385 |
| BMI (kg/m2) | 25.1 (22.9–27.9) | 25.8 (23.4–28.3) | 0.039 |
| Medical history, n (%) | |||
| Hypertension | 296 (56.6) | 226 (82.2) | <0.001 |
| Chronic kidney disease | 14 (2.7) | 35 (12.7) | <0.001 |
| Heart failure | 28 (5.4) | 23 (8.4) | 0.127 |
| Peripheral arterial disease | 20 (3.8) | 41 (15.0) | <0.001 |
| Previous stroke | 29 (5.6) | 17 (6.2) | 0.750 |
| Medications, n (%) | |||
| Antiplatelet agents | 254 (48.6) | 170 (61.8) | <0.001 |
| ACEi/ARB | 128 (24.5) | 105 (38.2) | <0.001 |
| Diuretics | 35 (6.7) | 36 (13.1) | 0.004 |
| Oral antidiabetic agents | 0 (0.0) | 148 (53.8) | <0.001 |
| Insulin | 0 (0.0) | 45 (16.4) | <0.001 |
| Statins | 144 (27.5) | 101 (36.7) | 0.010 |
| Laboratory data | |||
| White blood cells (K/cumm) | 6.6 (5.6–7.6) | 7.0 (5.7–8.2) | 0.007 |
| Hemoglobin (g/dL) | 13.4 (12.4–14.3) | 12.7 (11.3–13.8) | <0.001 |
| Fasting glucose (mg/dL) | 94 (87–102) | 123 (103–153) | <0.001 |
| HbA1c (%) | 5.9 (5.6–6.1) | 7.1 (6.5–8.0) | <0.001 |
| Proteinuria (mg/dL) | 0.0 (0.0–0.0) | 0.0 (0.0–15.0) | <0.001 |
| Proteinruia ≥ 30 mg/dL, n (%) | 24 (2.7) | 54 (19.9) | <0.001 |
| eGFR (ml/min/1.73 m2) | 72.7 (59.8–85.7) | 64.5 (44.8–80.8) | <0.001 |
| Total cholesterol (mg/dL) | 165 (143–186) | 152 (132–175) | <0.001 |
| Galectin 1 (ng/ml) | 17.0 (14.2–23.0) | 20.5 (15.9–28.5) | <0.001 |
| Cardiac catheterization | |||
| Mean blood pressure (mmHg) | 104 (93–112) | 109.5 (98–122) | 0.003 |
| LV ejection fraction (%) | 59.0 (54.0–64.0) | 56.8 (52.0–62.0) | 0.014 |
| Significant CAD, n (%) | 244 (46.7) | 156 (56.7) | 0.007 |
| Underwent PCI, n (%) | 210 (40.2) | 145 (52.7) | 0.001 |
| Contrast volume (ml) | 50.0 (50.0–120.0) | 60.0 (50.0–195.0) | <0.001 |
| Outcomes | |||
| CIN, n (%) | 18 (3.4) | 23 (8.4) | 0.004 |
| eGFR decline > 30%, n (%) | 36 (6.9) | 44 (16.0) | <0.001 |
| All-cause mortality, n (%) | 7 (1.3) | 6 (2.2) | 0.388 |
DM, diabetes mellitus; BMI, body mass index; ACEi/ARB, angiotensin-converting enzyme inhibitor/angiotensin receptor blocker; HbA1c, glycosylated hemoglobin A1c; eGFR, estimated glomerular filtration rate; LV, left ventricular; CAD, coronary artery disease; PCI, percutaneous coronary intervention; CIN, contrast-induced nephropathy.
Independent correlates of contrast-induced nephropathy and predictors of renal function decline
In univariate logistic regression analysis, a higher galectin-1 level, older age, history of diabetes, lower hemoglobin level, decreased baseline eGFR, and presence of proteinuria were associated significantly with a greater risk of CIN. To identify independent predictors of CIN, multivariable logistic regression analysis was performed. After adjustment for age, sex, and baseline eGFR, the highest serum galectin-1 level was associated significantly with CIN [odds ratio (OR), 2.64; 95% confidence interval (CI), 1.03–6.76; p = 0.04]. After adjustment for age, sex, and all factors that were significant in the univariate analysis, the serum galectin-1 level was not associated significantly with CIN, but associations persisted with age (OR, 1.04; 95% CI, 1.01–1.08; p = 0.026), and the hemoglobin level (OR, 0.67; 95% CI, 0.54–0.83; p < 0.001; Table 3).
Table 3.
Multivariable logistic regression analysis of the association between the serum galectin-1 concentration and the incidence of contrast-induced nephropathy.
| Outcome | Univariable | Model 1* | Model 2† | |||
|---|---|---|---|---|---|---|
| Crude OR (95% CI) | P | Adjusted OR (95% CI) | P | Adjusted OR (95% CI) | P | |
| Galectin-1 | ||||||
| tertile 1 | Reference | Reference | Reference | |||
| tertile 2 | 1.75 (0.68–4.51) | 0.248 | 1.54 (0.59–4.02) | 0.381 | 1.80 (0.67–4.81) | 0.244 |
| tertile 3 | 3.34 (1.40–7.95) | 0.007 | 2.64 (1.03–6.76) | 0.044 | 2.04 (0.77–5.43) | 0.152 |
| Age | 1.04 (1.01–1.07) | 0.003 | 1.04 (1.00–1.07) | 0.034 | 1.04 (1.01–1.08) | 0.026 |
| Gender | 0.74 (0.39–1.41) | 0.358 | 0.68 (0.35–1.31) | 0.250 | 0.86 (0.42–1.76) | 0.674 |
| HTN | 1.68 (0.81–3.48) | 0.163 | ||||
| Diabetes | 2.56 (1.36–4.83) | 0.004 | 1.82 (0.89–3.70) | 0.101 | ||
| Hb | 0.63 (0.53–0.75) | <0.001 | 0.67 (0.54–0.83) | <0.001 | ||
| eGFR | 0.98 (0.97–1.00) | 0.033 | 1.00 (0.98–1.02) | 0.853 | 1.02 (1.00–1.04) | 0.062 |
| Proteinuria | 1.01 (1.00–1.01) | 0.004 | 1.00 (1.00–1.01) | 0.057 | ||
| LVEF | 0.99 (0.96–1.02) | 0.457 | ||||
| Contrast | 1.00 (1.00–1.01) | 0.150 | ||||
OR, odds ratio; CI, confidence interval; HTN, hypertension; Hb, hemoglobin; eGFR, estimated glomerular filtration rate; LVEF, left ventricular ejection fraction.
*Adjusted for age, sex, and baseline eGFR; †adjusted for age, sex, and variables with p values < 0.05 in the univariable analysis.
In a univariate Cox regression analysis, older age, histories of hypertension and diabetes, proteinuria, higher serum galectin-1 level, lower hemoglobin level, reduced eGFR, and lower LVEF, as well as prior CIN, were associated significantly with a higher incidence of renal function decline. In a multivariable Cox regression analysis, the circulating galectin-1 level [tertile 2: hazard ratio (HR) 5.56, 95% CI 1.79–17.22; tertile 3: HR 5.67, 95% CI 1.97–16.32), hemoglobin level (HR, 0.83; 95% CI, 0.71–0.98; p = 0.025) and proteinuria (HR, 1.00; 95% CI, 1.00–1.01; p = 0.006) remained associated significantly with renal function decline (Table 4). Prior CIN was associated with renal function decline at a borderline significance level (HR, 1.98; 95% CI, 0.96–4.09; p = 0.063). The serum galectin-1 level was an independent predictor of renal function decline, rather than CIN, in patients undergoing CAG.
Table 4.
Multivariable Cox proportional-hazard analysis of the association of the serum galectin-1 concentration with the incidence of renal function decline.
| Outcome | Univariable | Model 1* | Model 2† | |||
|---|---|---|---|---|---|---|
| Crude HR (95% CI) | P | Adjusted HR (95% CI) | P | Adjusted HR (95% CI) | P | |
| Galectin-1 | ||||||
| tertile 1 | Reference | Reference | Reference | |||
| tertile 2 | 4.23 (1.63–10.99) | 0.003 | 4.13 (1.59–10.73) | 0.004 | 5.56 (1.79–17.22) | 0.003 |
| tertile 3 | 8.22 (3.38–19.97) | <0.001 | 6.62 (2.67–16.40) | <0.001 | 5.67 (1.97–16.32) | 0.001 |
| Age | 1.02 (1.00–1.04) | 0.019 | 1.01 (0.99–1.03) | 0.585 | 1.01 (0.99–1.04) | 0.343 |
| Gender | 1.00 (0.63–1.60) | 0.997 | 0.98 (0.61–1.57) | 0.926 | 0.91 (0.53–1.58) | 0.746 |
| HTN | 2.61 (1.46–4.64) | 0.001 | 1.61 (0.81–3.19) | 0.172 | ||
| Diabetes | 2.43 (1.56–3.78) | <0.001 | 1.31 (0.75–2.31) | 0.343 | ||
| Hb | 0.75 (0.66–0.85) | <0.001 | 0.83 (0.71–0.98) | 0.025 | ||
| eGFR | 0.98 (0.97–0.99) | <0.001 | 0.99 (0.98–1.01) | 0.077 | 0.99 (0.98–1.01) | 0.400 |
| Proteinuria | 1.01 (1.00–1.01) | <0.001 | 1.00 (1.00–1.01) | 0.006 | ||
| LVEF | 0.96 (0.94–0.98) | <0.001 | 0.98 (0.96–1.00) | 0.070 | ||
| Prior CIN | 4.01 (2.25–7.15) | <0.001 | 1.98 (0.96–4.09) | 0.063 | ||
HR, hazard ratio; CI, confidence interval; HTN, hypertension; Hb, hemoglobin; eGFR, estimated glomerular filtration rate; LVEF, left ventricular ejection fraction; CIN, contrast-induced nephropathy.
*Adjusted for age, sex, and baseline eGFR; †adjusted for age, sex, and variables with p values < 0.05 in the univariable analysis.
Subgroup analysis
The study cohort was stratified according to the presence of diabetes, presence of proteinuria, and PCI status. Increasing galectin-1 concentrations were associated significantly with renal function decline, irrespective of underlying diseases, such as diabetes and proteinuria, or of PCI status (pinteraction > 0.05; Table 5).
Table 5.
Stratified analysis of the effect of the serum galectin-1 concentration on renal function decline in patients grouped by diabetes, proteinuria, and percutaneous coronary intervention status.
| Subgroup (events/subjects) | Galectin-1 | P for interaction | |
|---|---|---|---|
| Adjusted HR (95% CI) | P | ||
| Overall (80/798) | |||
| tertile 2 | 5.56 (1.79–17.22) | 0.003 | |
| tertile 3 | 5.67 (1.97–16.32) | 0.001 | |
| With diabetes (44/275) | |||
| tertile 2 | 3.88 (0.92–16.41) | 0.065 | 0.236 |
| tertile 3 | 3.55 (0.99–12.81) | 0.053 | |
| Without diabetes (36/523) | |||
| tertile 2 | 10.45 (1.27–85.77) | 0.029 | |
| tertile 3 | 12.11 (1.57–93.40) | 0.017 | |
| With proteinuria (42/78) | |||
| tertile 2 | 7.57 (0.76–75.56) | 0.085 | 0.560 |
| tertile 3 | 9.61 (1.17–79.11) | 0.035 | |
| Without proteinuria (38/720) | |||
| tertile 2 | 3.90 (1.04–14.62) | 0.043 | |
| tertile 3 | 3.72 (1.07–13.02) | 0.039 | |
| Underwent PCI (39/355) | |||
| tertile 2 | 9.32 (1.12–77.44) | 0.039 | 0.115 |
| tertile 3 | 8.51 (1.06–68.23) | 0.044 | |
| Not underwent PCI (41/443) | |||
| tertile 2 | 2.08 (0.38–11.52) | 0.400 | |
| tertile 3 | 3.13 (0.84–11.67) | 0.089 | |
HR, hazard ratio; CI, confidence interval; PCI: percutaneous coronary intervention.
*Adjusted for age, sex, hypertension, diabetes, hemoglobin, baseline estimated glomerular filtration rate, proteinuria, left ventricular ejection fraction, and prior contrast-induced nephropathy.
Discussion
In this single-center observational study, the serum galectin-1 concentration was associated with eGFR decline during a mean follow-up period of 1.4 ± 1.1 years in 798 patients with stable angina undergoing elective CAG, irrespective of the presence of diabetes. To our knowledge, this longitudinal study is the first to explore the relationship between galectin-1 and subsequent renal function deterioration in patients undergoing CAG. These results demonstrate the involvement of galectin-1 in chronic renal function impairment, and suggest that the circulating galectin-1 level is an independent predictor of chronic renal function decline.
Much research attention has focused on galectin-1 and galectin-3, given their apparent major roles in cancer biology23. Recent reviews and meta-analyses have demonstrated that galectin-1 is associated with tumor formation, progression, metastasis, angiogenesis, and prognosis in several kinds of cancer23,24. Intracellularly, the galectin-1 protein provides a carbohydrate-independent scaffold for intracellular signaling pathways; extracellularly, it governs β-galactoside binding. Multivalent interactions between galectin-1 and glycoproteins in the extracellular matrix contribute to cancer metastasis. A few in vitro and animal studies have mentioned the potential link between galectin-1 and kidney diseases20–22,25–28, but no previous clinical report has described an association between the galectin-1 level and CKD.
The mechanisms linking galectin-1 elevation to CKD progression are not fully clear. Several groups have postulated the existence of mechanisms relating galectin-1 to CKD20, especially in the context of diabetes21,22. Increased galectin-1 expression has been reported in diabetes19, diabetic retinopathy29 and diabetic nephropathy21,22. Galectin-1 has been shown to regulate podocin production and damage, and diabetic nephropathy progression, in podocytes22. In addition, recent evidence has revealed that galectin-1 is a fibrosis protein that is highly expressed in the kidneys of mice with types 1 and 2 diabetes, and activated in proximal tubular epithelial cells under high-glucose conditions22. The phosphorylation and activation of Akt also may play crucial roles in the modulation of activating enhancer binding protein 4 (AP4) to up-regulate the galectin-1 protein under hyperglycemic conditions in diabetic mice22. AP4 was identified as a protein binding to the galectin-1 promoter that regulates various functions under high glucose stimulation22.
Less is known about the association between galectin-1 and CKD in non-diabetic contexts. Emerging evidence suggests that the progression of cardiac and renal functions is often interconnected30,31. Cardiac and renal diseases have several common pathways, including those of enhanced systemic inflammation and stress-mediated neurohormonal responses, the development of anemia and bone and mineral disorders, and acid–base and fluid imbalances31. Chronic myocardial dysfunction is also a well-known mediator of progressive renal function decline. The pathophysiology of this so-called type 2 cardiorenal syndrome remains under investigation30. Interestingly, a recent review suggested that galectin-1 is an emergent mediator of cardiovascular inflammation32. In this study, we also found that galectin-1 was associated with the LVEF and CAD in univariate analysis. We speculate that the parallel process affecting both heart and kidney functions also plays an essential role in the non-diabetic association between galectin-1 and CKD. Our findings, in agreement with previous reports, illustrate the association of galectin-1 with renal function decline irrespective of diabetes. Galectin-1 thus may play a critical role in renal function decline in diabetic and non-diabetic patients.
Interestingly, we found no significant association between galectin-1 and CIN in patients undergoing CAG or PCI procedures. One possible explanation is that the mechanisms of CIN differ from those of chronic renal decline. Contrast media may alter nitric oxide, endothelin, and adenosine levels, inducing renal vasoconstriction and leading to renal medulla ischemia and acute tubular necrosis33,34. Contrast media may also have cytotoxic effects via the upregulation of reactive oxygen species33,35 or direct induction of osmotic tubular nephrosis36. Another possible reason is the lower incidence of CIN than renal function decline in our study sample. Furthermore, galectin-1 and diabetes were correlated in this study and in previous reports17,18. Before adjustment for diabetes, tertile 3 of the galectin-1 level correlated with CIN. After adjustment for all related risk factors, including diabetes, this association was insignificant.
This study has some limitations that should be considered. First, the study population was relatively small, and consisted of Asian patients treated at a single hospital. Further studies larger numbers of different participants are required to confirm our findings. Second, patients enrolled in our study were elders (mean age, 67 ± 12 years). Caution should be taken when applying our findings to younger populations. Finally, the eGFR was used as the sole renal function endpoint, without consideration of other clinical endpoints affecting renal outcomes, including newly diagnosed diabetes mellitus and the progression of proteinuria. Nevertheless, our study demonstrated that the serum galectin-1 level is a novel risk marker for renal outcomes in patients with suspected CAD undergoing CAG or PCI procedures.
Conclusions
Although not a predictor of CIN, the circulating serum galectin-1 level is an independent prognostic marker for subsequent renal function decline in patients undergoing CAG, irrespective of diabetes. These findings provide novel evidence of galectin-1’s involvement in the pathogenesis of renal dysfunction in patients with suspected CAD. Further research exploring the underlying mechanism is needed.
Methods
Study design and patient population
A team of cardiologists (under the direction of Prof. Po-Hsun Huang) collected data for this study consecutively from June 2011 to August 2018. The sample size was not pre-calculated. In total, 855 subjects with stable coronary CAD admitted to Taipei Veterans General Hospital for elective CAG and/or PCI were screened. Each patient’s serum creatinine concentration was measured before CAG, and the eGFR was calculated using the CKD Epidemiology Collaboration equation37. Patients with stage 5 CKD, defined as creatinine clearance < 15 ml/min/1.73 m2 (n = 15), and those undergoing hemodialysis or peritoneal dialysis (n = 42) were excluded from the analysis. Thus, a total of 798 patients was enrolled in the study and included in the final analysis (Fig. 1). The patients were grouped into tertiles according to the serum galectin-1 concentration.
Each patient’s chart was reviewed in detail to collect data on medications, smoking status, and risk factors for CIN, such as age, existing renal dysfunction, type 2 diabetes mellitus, and volume depletion. Patients’ blood pressure was measured using electronic sphygmomanometers at least four times a day during hospitalization. Hypertension was defined as systolic blood pressure ≥ 140 mmHg, diastolic blood pressure ≥ 90 mmHg, or the use of antihypertensive medications. Type 2 diabetes mellitus was defined as fasting plasma glucose level ≥ 126 mg/dl or the use of hypoglycemic agents. The body mass index was calculated by dividing the weight of the patient (in kilograms) by the square of the height (in meters). A nonionic low-osmolality contrast medium (iopromide) was used for all patients’ examinations. It was administered intra-arterially, mainly through transradial catheters. Metformin and nephrotoxic medications, such as non-steroidal anti-inflammatory drugs, were discontinued 48 h before contrast medium administration. Before and after contrast medium exposure, physiological (0.9%) saline was given intravenously at a rate of 1 ml/kg/h for 12 h. In patients with left ventricular dysfunction (ejection fraction < 40%) or apparent heart failure, the hydration rate was reduced to 0.5 ml/kg/h. This research was conducted according to the principles expressed in the Declaration of Helsinki. This study was approved by the research ethics committee of Taipei Veterans General Hospital, and all participants provided written informed consent.
Laboratory investigations and cardiac catheterization
Blood samples were collected after an ≥ 8-h fast. The blood cell count; serum glucose, creatinine, and uric acid levels; and lipid profiles were determined using a Hitachi 7600 autoanalyzer (Hitachi Ltd., Tokyo, Japan). The serum creatinine concentration was assessed at the time of admission and daily for the following 3 days after contrast medium exposure. Urine dipstick analysis was performed using commercial test strips, and proteinuria was defined as a urine protein concentration ≥ 30 mg/100 ml. Plasma concentrations of galectin-1 were determined using the commercially available Human Galectin-1 Quantikine ELISA Kit DGAL10 (R&D Systems, Inc., Minneapolis, MN, USA); the sensitivity was 0.129 ng/ml and the assay range was 0.3–20 ng/ml. The intra- and interassay coefficients were 5.7–8.8% and 7.5–9.5%, respectively. Two experienced interventional cardiologists interpreted the coronary angiograms. Coronary lesions causing > 50% diameter narrowing were considered to represent significant stenosis. The LVEF was estimated by left ventriculography. The contrast consumption of each patient was also recorded.
Definition of study endpoints and renal function decline
All patients were evaluated for the occurrence of CIN, which was defined as an increase in the serum creatinine concentration of ≥0.5 mg/dl or a 25% increase from baseline within 48 h after CAG38. Patients were advised to visit outpatient clinics regularly after discharge from the hospital. The cohort was followed until January 2019 or the occurrence of death. Patients’ clinical data, including serum creatinine levels, were obtained every 3–6 months during the follow-up period. Renal function decline was defined as a > 30% decrease in the eGFR after discharge39,40. When it was identified, the serum creatinine level was re-measured 1 month later to ensure the accuracy of the diagnosis.
Statistical analysis
Data were expressed as medians (interquartile ranges) for numeric variables and as numbers (percentages) for categorical variables. Clinical and laboratory data were compared using the Mann–Whitney U test for continuous variables and Fisher’s exact test for categorical variables. The incidences of CIN and renal function decline were calculated. Survival curves were generated using the Kaplan–Meier method, and survival was compared among groups using the log-rank test. Logistic regression analysis was performed to examine the relationships of various risk factors to CIN, and Cox proportional-hazard regression analysis was performed to identify risk factors for progressive renal function decline. Factors that were significant in univariate regression analysis were entered into the multivariable regression analysis. To investigate modification of the effect of galectin-1 on renal function decline by different comorbidities, we performed subgroup analyses with the study cohort stratified according to the presence of diabetes, presence of proteinuria, and PCI status. Interactions between the galectin-1 concentration and comorbid conditions were examined by adding a product term of galectin-1 and comorbidities to the Cox regression analysis. Data were analyzed using SPSS version 18.0 (SPSS Inc., Chicago, IL). P values < 0.05 were regarded as significant.
Data availability
The datasets generated and/or analyzed during the current study are available from the corresponding author on reasonable request.
Acknowledgements
This study was supported, in part, by research grants from the Ministry of Science and Technology of Taiwan (MOST 106-2314-B-350-001-MY3); the Novel Bioengineering and Technological Approaches to Solve Two Major Health Problems in Taiwan program, sponsored by the Taiwan Ministry of Science and Technology Academic Excellence Program (MOST 108-2633-B-009-001); the Ministry of Health and Welfare (MOHW106-TDU-B-211-113001); and Taipei Veterans General Hospital (V105C-207, V106C-045, V108C-195). These funding agencies had no influence on the study design, data collection or analysis, the decision to publish, or the preparation of the manuscript.
Author contributions
Study concept and design: C.-S.K., P.-H.H., and S.-J.L.; acquisition of data: P.-H.H., and S.-J.L.; analysis and interpretation of data: R.-H.C., C.-S.K., Y.-W.L., and Y.-L.T.; drafting of the manuscript: C.-S.K., R.-H.C., and P.-H.H.; statistical analysis: R.-H.C., Y.-W.L., and Y.-L.T.; administrative, technical, or material support: C.-S.K., P.-H.H., and S.-J.L.; critical revision: C.-S.K., P.-H.H., and S.-J.L.; study supervision: P.-H.H., and S.-J.L. The corresponding authors have the right to grant on behalf of all authors and do grant on behalf of all authors a worldwide license to the publisher and its licensees in perpetuity.
Competing interests
The authors declare no competing interests.
Footnotes
Publisher’s note Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Contributor Information
Po-Hsun Huang, Email: huangbsvgh@gmail.com.
Shing-Jong Lin, Email: sjlin@vghtpe.gov.tw.
References
- 1.Levey AS, et al. National Kidney Foundation practice guidelines for chronic kidney disease: evaluation, classification, and stratification. Ann. Intern. Med. 2003;139:137–147. doi: 10.7326/0003-4819-139-2-200307150-00013. [DOI] [PubMed] [Google Scholar]
- 2.Sachdev M, et al. The prognostic importance of comorbidity for mortality in patients with stable coronary artery disease. J. Am. Coll. Cardiol. 2004;43:576–582. doi: 10.1016/j.jacc.2003.10.031. [DOI] [PubMed] [Google Scholar]
- 3.Eng J, et al. Comparative effect of contrast media type on the incidence of contrast-induced nephropathy: a systematic review and meta-analysis. Ann. Intern. Med. 2016;164:417–424. doi: 10.7326/M15-1402. [DOI] [PubMed] [Google Scholar]
- 4.McCullough PAMD, et al. Acute renal failure after coronary intervention: incidence, risk factors, and relationship to mortality. Am. J. Med. 1997;103:368–375. doi: 10.1016/S0002-9343(97)00150-2. [DOI] [PubMed] [Google Scholar]
- 5.Maioli M, et al. Persistent renal damage after contrast-induced acute kidney injury: incidence, evolution, risk factors, and prognosis. Circulation. 2012;125:3099–3107. doi: 10.1161/CIRCULATIONAHA.111.085290. [DOI] [PubMed] [Google Scholar]
- 6.James MT, et al. Acute kidney injury following coronary angiography is associated with a long-term decline in kidney function. Kidney Int. 2010;78:803–809. doi: 10.1038/ki.2010.258. [DOI] [PubMed] [Google Scholar]
- 7.Mehran R, et al. A simple risk score for prediction of contrast-induced nephropathy after percutaneous coronary intervention. J. Am. Coll. Cardiol. 2004;44:1393–1399. doi: 10.1016/j.jacc.2004.06.068. [DOI] [PubMed] [Google Scholar]
- 8.Wybraniec MT, Bożentowicz-Wikarek M, Chudek J, Mizia-Stec K. Pre-procedural renal resistive index accurately predicts contrast-induced acute kidney injury in patients with preserved renal function submitted to coronary angiography. Int. J. Cardiovasc. Imaging. 2016;33:595–604. doi: 10.1007/s10554-016-1039-1. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 9.Watanabe M, et al. Prediction of contrast-induced nephropathy by the serum creatinine level on the day following cardiac catheterization. J. Cardiol. 2016;68:412–418. doi: 10.1016/j.jjcc.2015.10.016. [DOI] [PubMed] [Google Scholar]
- 10.Chaykovska L, et al. Urinary vitamin D binding protein and KIM-1 are potent new biomarkers of major adverse renal events in patients undergoing coronary angiography. PLoS One. 2016;11:e0145723. doi: 10.1371/journal.pone.0145723. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 11.Torregrosa I, et al. Urinary KIM-1, NGAL and L-FABP for the diagnosis of AKI in patients with acute coronary syndrome or heart failure undergoing coronary angiography. Heart Vessel. 2015;30:703–711. doi: 10.1007/s00380-014-0538-z. [DOI] [PubMed] [Google Scholar]
- 12.Akdeniz D, et al. Is kidney injury molecule 1 a valuable tool for the early diagnosis of contrast-induced nephropathy? J. Investig. Med. 2015;63:930–934. doi: 10.1097/JIM.0000000000000243. [DOI] [PubMed] [Google Scholar]
- 13.Junrong Tong HL, et al. Neutrophil gelatinase-associated lipocalin in the prediction of contrast-induced nephropathy: a systemic review and meta-analysis. J. Cardiovasc. Pharmacol. 2015;66:239–245. doi: 10.1097/FJC.0000000000000268. [DOI] [PubMed] [Google Scholar]
- 14.Briguori C, et al. Cystatin C and contrast-induced acute kidney injury. Circulation. 2010;121:2117–2122. doi: 10.1161/CIRCULATIONAHA.109.919639. [DOI] [PubMed] [Google Scholar]
- 15.Barondes SH, Cooper DN, Gitt MA, Leffler H. Galectins: structure and function of a large family of animal lectins. J. Biol. Chem. 1994;269:20807–20810. [PubMed] [Google Scholar]
- 16.Camby I, Le Mercier M, Lefranc F, Kiss R. Galectin-1: a small protein with major functions. Glycobiol. 2006;16:137R–157R. doi: 10.1093/glycob/cwl025. [DOI] [PubMed] [Google Scholar]
- 17.Tsai W-C, et al. Risk factors for development and progression of chronic kidney disease. Med. 2016;95:e3013. doi: 10.1097/md.0000000000003013. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 18.Fryk E, et al. Microdialysis and proteomics of subcutaneous interstitial fluid reveals increased galectin-1 in type 2 diabetes patients. Metab. 2016;65:998–1006. doi: 10.1016/j.metabol.2016.04.003. [DOI] [PubMed] [Google Scholar]
- 19.Liu X, et al. Proteomics-based identification of differentially-expressed proteins including galectin-1 in the blood plasma of type 2 diabetic patients. J. Proteome Res. 2009;8:1255–1262. doi: 10.1021/pr800850a. [DOI] [PubMed] [Google Scholar]
- 20.Potthoff SA, et al. The glomerular proteome in a model of chronic kidney disease. Proteom. Clin. Appl. 2008;2:1127–1139. doi: 10.1002/prca.200800010. [DOI] [PubMed] [Google Scholar]
- 21.Liu Y, et al. High glucose-induced Galectin-1 in human podocytes implicates the involvement of Galectin-1 in diabetic nephropathy. Cell Biol. Int. 2015;39:217–223. doi: 10.1002/cbin.10363. [DOI] [PubMed] [Google Scholar]
- 22.Al-Obaidi N, et al. Galectin-1 is a new fibrosis protein in type 1 and type 2 diabetes. FASEB J. 2019;33:373–387. doi: 10.1096/fj.201800555RR. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 23.Cousin JM, Cloninger MJ. The role of galectin-1 in cancer progression, and synthetic multivalent systems for the study of galectin-1. Int. J. Mol. Sci. 2016;17:E1566. doi: 10.3390/ijms17091566. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 24.Huang MY, He JP, Zhang WQ, Liu JL. Pooling analysis reveals that galectin-1 is a reliable prognostic biomarker in various cancers. J. Cell Physiol. 2019;234:13788–13798. doi: 10.1002/jcp.28059. [DOI] [PubMed] [Google Scholar]
- 25.Valkova N, Yunis R, Mak SK, Kang K, Kültz D. Nek8 mutation causes overexpression of galectin-1, sorcin, and vimentin and accumulation of the major urinary protein in renal cysts of jck mice. Mol. Cell. Proteom. 2005;4:1009–1018. doi: 10.1074/mcp.M500091-MCP200. [DOI] [PubMed] [Google Scholar]
- 26.Ostalska-Nowicka D, et al. Immunohistochemical detection of galectin-1 in renal biopsy specimens of children and its possible role in proteinuric glomerulopathies. Histopathology. 2007;51:468–476. doi: 10.1111/j.1365-2559.2007.02818.x. [DOI] [PubMed] [Google Scholar]
- 27.Shimizu M, et al. Expression of galectin-1, a new component of slit diaphragm, is altered in minimal change nephrotic syndrome. Lab. Invest. 2009;89:178–195. doi: 10.1038/labinvest.2008.125. [DOI] [PubMed] [Google Scholar]
- 28.Okano K, et al. Suppression of renal fibrosis by galectin-1 in high glucose-treated renal epithelial cells. Exp. Cell Res. 2010;316:3282–3291. doi: 10.1016/j.yexcr.2010.08.015. [DOI] [PubMed] [Google Scholar]
- 29.Kanda, A., Dong, Y., Noda, K., Saito, W. & Ishida, S. Advanced glycation endproducts link inflammatory cues to upregulation of galectin-1 in diabetic retinopathy. Sci Rep7, 10.1038/s41598-017-16499-8 (2017). [DOI] [PMC free article] [PubMed]
- 30.Ronco C, Haapio M, House AA, Anavekar N, Bellomo R. Cardiorenal syndrome. J. Am. Coll. Cardiol. 2008;52:1527–1539. doi: 10.1016/j.jacc.2008.07.051. [DOI] [PubMed] [Google Scholar]
- 31.Schefold JC, Filippatos G, Hasenfuss G, Anker SD, von Haehling S. Heart failure and kidney dysfunction: epidemiology, mechanisms and management. Nat. Rev. Nephrol. 2016;12:610. doi: 10.1038/nrneph.2016.113. [DOI] [PubMed] [Google Scholar]
- 32.Seropian Ignacio M., González Germán E., Maller Sebastián M., Berrocal Daniel H., Abbate Antonio, Rabinovich Gabriel A. Galectin-1 as an Emerging Mediator of Cardiovascular Inflammation: Mechanisms and Therapeutic Opportunities. Mediators of Inflammation. 2018;2018:1–11. doi: 10.1155/2018/8696543. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 33.Persson PB, Hansell P, Liss P. Pathophysiology of contrast medium-induced nephropathy. Kidney Int. 2005;68:14–22. doi: 10.1111/j.1523-1755.2005.00377.x. [DOI] [PubMed] [Google Scholar]
- 34.Weisberg LS, Kurnik PB, Kurnik BR. Radiocontrast-induced nephropathy in humans: role of renal vasoconstriction. Kidney Int. 1992;41:1408–1415. doi: 10.1038/ki.1992.206. [DOI] [PubMed] [Google Scholar]
- 35.Heinrich MC, et al. Cytotoxic effects of ionic high-osmolar, nonionic monomeric, and nonionic iso-osmolar dimeric iodinated contrast media on renal tubular cells in vitro. Radiology. 2005;235:843–849. doi: 10.1148/radiol.2353040726. [DOI] [PubMed] [Google Scholar]
- 36.Azzalini L, Spagnoli V, Ly HQ. Contrast-induced nephropathy: from pathophysiology to preventive strategies. Can. J. Cardiol. 2016;32:247–255. doi: 10.1016/j.cjca.2015.05.013. [DOI] [PubMed] [Google Scholar]
- 37.Levey AS, et al. A new equation to estimate glomerular filtration rate development and comparison of a new equation to estimate GFR. Ann. Intern. Med. 2009;150:604–612. doi: 10.7326/0003-4819-150-9-200905050-00006. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 38.McCullough PA. Contrast-induced acute kidney injury. J. Am. Coll. Cardiol. 2008;51:1419–1428. doi: 10.1016/j.jacc.2007.12.035. [DOI] [PubMed] [Google Scholar]
- 39.Levey AS, et al. GFR decline as an end point for clinical trials in CKD: a scientific workshop sponsored by the National Kidney Foundation and the US Food and Drug Administration. Am. J. Kidney Dis. 2014;64:821–835. doi: 10.1053/j.ajkd.2014.07.030. [DOI] [PubMed] [Google Scholar]
- 40.Wu CH, et al. Circulating fibroblast growth factor 21 is associated with subsequent renal injury events in patients undergoing coronary angiography. Sci. Rep. 2018;8:12425. doi: 10.1038/s41598-018-30744-8. [DOI] [PMC free article] [PubMed] [Google Scholar]
Associated Data
This section collects any data citations, data availability statements, or supplementary materials included in this article.
Data Availability Statement
The datasets generated and/or analyzed during the current study are available from the corresponding author on reasonable request.
