Exercise alters cerebellar and cortical activity related to working memory in phenotypes of Gulf War Illness

Abstract

Gulf War Illness affects 25–32% of veterans from the 1990–91 Persian Gulf War. Post-exertional malaise with cognitive dysfunction, pain and fatigue following physical and/or mental effort is a defining feature of Gulf War Illness. We modelled post-exertional malaise by assessing changes in functional magnetic resonance imaging at 3T during an N-Back working memory task performed prior to a submaximal bicycle stress test and after an identical stress test 24 h later. Serial trends in postural changes in heart rate between supine and standing defined three subgroups of veterans with Gulf War Illness: Postural Orthostatic Tachycardia Syndrome (GWI-POTS, 15%, n = 11), Stress Test Associated Reversible Tachycardia (GWI-START, 31%, n = 23) and Stress Test Originated Phantom Perception (GWI-STOPP, no postural tachycardia, 54%, n = 46). Before exercise, there were no differences in blood oxygenation level-dependent activity during the N-Back task between control (n = 31), GWI-START, GWI-STOPP and GWI-POTS subgroups. Exercise had no effects on blood oxygenation level-dependent activation in controls. GWI-START had post-exertional deactivation of cerebellar dentate nucleus and vermis regions associated with working memory. GWI-STOPP had significant activation of the anterior supplementary motor area that may be a component of the anterior salience network. There was a trend for deactivation of the vermis in GWI-POTS after exercise. These patterns of cognitive dysfunction were apparent in Gulf War Illness only after the exercise stressor. Mechanisms linking the autonomic dysfunction of Stress Test Associated Reversible Tachycardia and Postural Orthostatic Tachycardia Syndrome to cerebellar activation, and Stress Test Originated Phantom Perception to cortical sensorimotor alterations, remain unclear but may open new opportunities for understanding, diagnosing and treating Gulf War Illness.

Gulf War Illness (GWI) symptoms worsen after exercise. The GWI population is composed of two subgroups based on heartrate (GWI-START and GWI-STOPP). No brain activation differences between subgroups exist before exercise. After exercise, the GWI-START subgroup decreases in cerebellar activation while the GWI-STOPP subgroup increases in supplementary motor area activation.

Graphical Abstract

Graphical Abstract.

Introduction

Gulf War Illness (GWI) affects approximately a quarter of veterans from the 1990–91 Persian Gulf War (Fukuda et al., 1998; Steele, 2000; Research Advisory Committee on Gulf War Veterans’ Illnesses U.S. Department of Veterans Affairs, 2008; Steele et al., 2012). Symptoms include debilitating fatigue, chronic widespread pain, gastrointestinal complaints and cognitive impairment. Diagnosis is based on subjective symptoms of fatigue, mood/cognition and bodily pain using the 1998 Center for Disease Control criteria (Fukuda et al., 1998), and moderate to severe complaints in at least three out of these six categories: fatigue/sleep, neurological/mood/cognition, pain, gastrointestinal, respiratory and skin symptom domains of the 2000 Kansas criteria (Steele, 2000). Although GWI has been attributed to somatoform, depressive and other psychiatric causes (Fiedler et al., 2006; Dursa et al., 2016; Janulewicz et al., 2017), evidence is accumulating for chronic neurotoxic pathologies that were induced by exposures during the Gulf War (White et al., 2016; Georgopoulos et al., 2017). An important clinical finding in GWI is post-exertional malaise with severe symptom exacerbations following physical, cognitive, emotional or other effort (Steele, 2000).

We previously studied the physical and cognitive domains of post-exertional malaise by having subjects perform two submaximal bicycle exercise stress tests on consecutive days with functional magnetic resonance imaging (fMRI) before the first and after the second exercise (Rayhan et al., 2013). We evaluated cognitive dysfunction using the N-Back verbal working memory task during fMRI data acquisition (Owen et al., 2005). Working memory tasks activate frontal-parietal executive control networks. We employed a continuous, verbal version of the N-Back in which subjects performed the simple 0-Back stimulus matching task (‘see the letter, push the button’), and the high cognitive load 2-Back task that involves viewing a series of nine letters at 2 s intervals, remembering their order, then pressing buttons corresponding to the letter seen two places (4 s) previously. Regional brain activation was determined by contrasting the blood oxygenation level-dependent (BOLD) signals of the whole brain between the 2-Back and 0-Back trials in order to identify regions that were differentially activated in this 2-Back > 0-Back condition. Preliminary qualitative analysis found that when all GWI subjects were combined into a single group, there were no differences in BOLD between GWI and control groups, or between pre-exertion and post-exertion MRI studies. However, two patterns of activation and exercise-induced BOLD alterations were found when GWI subjects were stratified by exercise-induced changes in postural orthostatic tachycardia.

In that study, because orthostatic intolerance complaints are common in GWI veterans, we assessed postural changes in heart rate (HR) before exercise and the time course of potential alterations after exercise. Before exercise, GWI veterans had normal elevation of HRs between supine and standing [ΔHR = 12 ± 5 beats per min (bpm), mean±SD]. However, after the first stress test, one-third developed postural tachycardia with ΔHR exceeding 30 bpm at least twice during their 5 min periods of standing. This exaggerated orthostatic effect was transient as ΔHR returned to normal within 24 to 48 h after exercise (Rayhan et al., 2013; Garner et al., 2018). The phenomenon was termed Stress Test Activated Reversible Tachycardia (GWI-START). START was distinct from Postural Orthostatic Tachycardia Syndrome (GWI-POTS), which is defined by persistent postural tachycardia with ΔHR ≥30 bpm during virtually all periods of standing (Sheldon et al., 2015). The other two-thirds of GWI subjects did not develop postural tachycardia at any time and were termed the Stress Test Originated Phantom Perception (GWI-STOPP) group because their perceptions of pain were reminiscent of phantom limb pain (Romero-Romo et al., 2010; De Ridder et al., 2014).

Qualitative analysis of BOLD outcomes for the 2-Back > 0-Back condition suggested differences in patterns of brain activation between the GWI-START and GWI-STOPP groups and generated the hypothesis that exertion induced distinct pathological mechanisms of cognitive dysfunction in each subgroup (Rayhan et al., 2013). Here, this hypothesis was tested by recruiting a second wave of healthy control (HC) and GWI subjects to perform the identical exercise-MRI protocol. Quantitative analysis used paired t-tests to identify regions of interest (ROIs) with significantly different pre- and post-exertion BOLD responses for any of the HC, GWI-START, GWI-STOPP or GWI-POTS subgroups. This approach identified ROIs in each subgroup that were either recruited for cognitive compensation (significantly increased BOLD activation after exercise) or had reduced activation indicating exercise-induced cognitive dysfunction and exertional exhaustion. Each ROI was tested in posthoc fashion in all subgroups for differences between pre-exercise and post-exercise BOLD response. The pre-exercise data determined if there were significant pre-existing differences in BOLD activation between groups. The post-exercise comparison determined if exercise caused significant differences in BOLD activation between subgroups.

Methods and materials

Ethics

The protocol was approved by the Georgetown University Institutional Review Board (IRB 2009-229, 2013-0943 and 2015-0579) and Department of Defense Congressionally Directed Medical Research Program (CDMRP) Human Research Program Office (HRPO) (A-15547 and A-18479), and listed in clinicaltrials.gov (NCT01291758 and NCT00810225). All clinical investigations were conducted according to the principles expressed in the Declaration of Helsinki.

Subjects

Veterans of the 1990–91 Persian Gulf War with GWI, and healthy, non-military control subjects were recruited to this 4-day long in-patient study in the Clinical Research Unit of the Georgetown–Howard Universities Center for Clinical and Translational Science. From the original study, we included the data of 10 control (5 deployed Gulf War-era veterans), 10 GWI-START, 18 GWI-STOPP and no POTS subjects (Rayhan et al., 2013). The additional recruits included 21 control (3 deployed veterans), 13 GWI-START, 28 GWI-STOPP and 11 GWI-POTS subjects (Garner et al., 2018). Subjects had history and physical examinations to ensure their inclusion by meeting Chronic Multisymptom Illness (Fukuda et al., 1998) and Kansas (Steele, 2000) criteria for GWI, confirmation of sedentary lifestyle for control subjects (<40 min of aerobic activity per week) and exclusion because of medical or psychiatric conditions (Steele, 2000; Reeves et al., 2003; Jones et al., 2009). Subjects completed Chronic Fatigue Syndrome Symptom Severity (Baraniuk et al., 2013), SF-36 quality of life (Ware and Sherbourne, 1992), Chalder Fatigue (Cella and Chalder, 2010) and McGill Pain (Dworkin et al., 2009) questionnaires and were examined for systemic hyperalgesia by dolorimetry (Naranch et al., 2002).

Protocols

Exercise

Two submaximal bicycle exercise tests were performed 24 h apart. Subjects cycled for 25 min at 70% predicted maximum HR (220-patient’s age), followed by a climb to 85% maximum HR to reach anaerobic threshold (Garner et al., 2018).

Postural tachycardia protocol and exercise-induced postural tachycardia subgroups

All subjects were assessed for postural tachycardia before and after exercise (Garner et al., 2018). Subjects rested supine for 5 min and had HR measured by continuous ECG monitor. After standing up, HR and blood pressure were measured every minute for 5 min. The incremental changes in HR after standing up (ΔHR) were calculated to identify episodes of postural tachycardia defined as ΔHR ≥ 30 bpm. The normal ΔHR was 12 ± 5 bpm (mean ± SD).

POTS was defined by ΔHR ≥30 bpm at two or more measurements prior to exercise during the 5-min standing periods. POTS criteria were met before and after exercise. Exercise did not exacerbate the postural tachycardia, so POTS subjects were distinct from the START and STOPP groups.

START was defined by having a normal ΔHR before exercise, but at least two measurements of postural tachycardia with ΔHR ≥30 bpm after exercise. This phenomenon was transient as ΔHR returned to normal 24–48 h following exercise (Garner et al., 2018).

STOPP was defined by normal ΔHR (ΔHR <30 bpm) at all times before and after exercise.

Verbal working memory task

Each subject performed the continuous 2-Back verbal working memory task during fMRI data acquisition (Fig. 1). Each 18-s stimulus block had instruction (REST, 0-BACK, 2-BACK, 2 s each), fixation (i.e. cross-hairs, 8 s), 0-Back and 2-Back components. For the 0-Back and 2-Back tasks, subjects viewed nine individual, pseudo-randomly selected upper-case letters (A, B, C, D) for 0.8 s each followed by an inter-stimulus interval (blank screen) of 1.2 s. For the 0-Back task, they pressed a button corresponding to the letter viewed. For the 2-Back task, they remembered the first two letters, then began to press the button corresponding to the letter seen two presentations (4 s) previous. These blocks were repeated for five cycles. Responses were collected from an MRI-compatible fibre-optic button box that subjects held with both hands. Response times between onset of each letter presentation and button pressing were recorded. There were 45 button responses for the 0-Back and 35 for the 2-Back tasks. The complete task (i.e. all five cycles) lasted a total of 5 min (300 s).

Figure 1.

Continuous N-Back paradigm. (Top) One complete 60-s cycle of the N-Back task consisted for 0-Back and 2-Back task blocks (18 s each) separated by an instruction block advising subjects to REST (2 s) followed by 8 s of fixation (i.e. cross-hairs). For the 0-Back task, subjects pressed a button corresponding to the letter they viewed. For the 2-Back task, subjects had to remember the string of letters and press the button corresponding to the letter seen two presentations (4 s) earlier. (Bottom) The numbers in circles indicate the five complete cycles of fixation, 0-back and 2-back tasks in the stimulus paradigm. The task lasted 5 min (300 s).

MRI data acquisition

All structural and functional MRI data were acquired on a Siemens 3T Tim Trio scanner located within the Center for Functional and Molecular Imaging at Georgetown University Medical Center equipped using a transmit-receive body coil and a commercial 12-element head coil array. Structural 3D T1-weighted Magnetization Prepared Rapid Acquisition Gradient Echo images parameters were: TR/TE = 1900/2.52 ms, flip angle = 9°, TI = 900 ms, FoV = 250 mm, 176 slices, slice resolution = 1.0 mm and voxel size = 1 × 1 × 1 mm. Magnetization Prepared Rapid Acquisition Gradient Echos were all processed in SPM12 (http://www.fil.ion.ucl.ac.uk/spm/software/spm12/; Friston et al., 1996). fMRI data consisted of T2*-weighted gradient echo-planar images (EPIs) acquired during the 5-min task. EPI data acquisition parameters were: TR/TE = 2500/30 ms, flip angle = 90°, FoV = 205 mm², matrix size = 64 × 64, number of slices = 47 and voxel size = 3.2 mm³ (isotropic).

fMRI statistical analysis

Both the first-level (fixed effects) and second-level (random effects) statistical analyses were performed in SPM12.

First level

The first six scans from each block were removed to account for T1 saturation (Fig. 1). Data were pre-processed through the default pipeline within the CONN version 17 toolbox (https://web.conn-toolbox.org/; Whitefield-Gabrieli and Nieto-Castanon, 2012). In brief, steps were: (i) slice-timing correction, (ii) realignment and unwarping of the functional images, (iii) outlier detection for ‘scrubbing’ based on artefact detection tools, (iv) segmentation and spatial normalization of the anatomic scan to the Montreal Neurological Institute (MNI) template and (v) spatial smoothing with a stationary Gaussian filter of 6 mm full width at half maximum. Voxel size was 2.0 mm³ (isotropic) after spatial normalization. Pre-processed EPI data from each individual were modelled with the following events: instruction, fixation, 0-Back and 2-Back. The contrast of interest, 2-Back > 0-Back, was modelled using a one-sample t-test with motion parameters (i.e. translation and rotation) included as covariates of no interest. The resulting 2-Back > 0-Back contrast maps from every subject were then used in second-level analyses.

Second level

To identify regions where BOLD response changes related to working memory were significantly altered by exertion, for each subgroup we performed two-tailed, paired t-tests for 2-Back > 0-Back and 2-Back < 0-Back contrasts [cluster level: P < 0.05, family-wise error correction (FWE), k_E≥50]. Each ROI was then applied to all subgroups. The mean BOLD response within each significant ROI was extracted from the contrast maps of all subjects using MarsBaR 0.44 (https://www.fil.ion.ucl.ac.uk/spm/ext/#MarsBar; Brett et al., 2002). MarsBaR output was compared between the HC, GWI-START, GWI-STOPP and GWI-POTS groups on the pre- and post-exercise days by one-way ANOVA (P < 0.05) followed by posthoc Tukey’s Honest Significant Difference (HSD) to correct for multiple comparisons. Exercise effects within each group were determined from 2-tailed paired t-tests between pre- and post-exercise data.

To minimize the effects of ‘double-dipping’ from the use of the same data set for ROI selection (Kriegeskorte et al., 2009; Button, 2019), significant HSDs between contrast groups that yielded ROIs were disregarded and FWE cluster-level significance was reported instead. Effect sizes for changes between the pre- and post-exertional fMRI sessions were estimated by Cohen’s d (paired studies) (Cohen, 1988, 1992; Ellis, 2010) and between groups on pre- and post-exercise days by Hedges’ g (Stangroom, 2019). In brief, effect sizes larger than 0.8 indicate strong studies and allow new studies of appropriate numbers of subjects to reproduce the effects in significant fashion (P < 0.05) with adequate power (>0.8) and so control false-positive and false-negative rates. These analyses were performed in SPSS (version 25).

The precise location and ‘regional compositional percentage' (e.g. 10% anterior cingulate, 13% medial frontal gyrus, etc.) of each ROI in cortical, subcortical and cerebellar structures were found using a custom MATLAB script that employed functions from both SPM and xjView 9.6 (http://www.alivelearn.net/xjview/). Anatomical labels for every ROI voxel were identified using the AAL (Automated Anatomic Labelling) atlas. Cerebellar regions were confirmed with the spatially unbiased infra-tentorial template (SUIT) atlas (Diedrichsen, 2006; Diedrichsen et al., 2009).

Data availability

Data are available from the authors upon request and will be uploaded to OpenfMRI and/or the Boston Biorepository, Recruitment, and Integrative Network (BBRAIN) forGWI.

Results

Demographics

Age, percentage of males and body mass index were not different between groups (Table 1). GWI-START (n = 23), GWI-STOPP (n = 46) and GWI-POTS (n = 11) groups had equivalent results that, when combined, were significantly different from HC (n = 31) for CFS Symptom Severity Questionnaire, pain (McGill Total Pain Score) and tenderness (dolorimetry), fatigue (Chalder Fatigue Score) and quality of life (SF-36; ANOVA P < 0.004; HSD P < 0.05). All three GWI subgroups had significantly greater pain and tenderness than HC.

Table 1.

Demographics

	HC	GWI-START	GWI-STOPP	GWI-POTS
N	31	23	46	11
Age	43.9 ± 15.9	45.1 ± 8.1	48.6 ± 7.4	45.7 ± 6.0
Male	0.645 ± 0.486	0.818 ± 0.395	0.756 ± 0.435	0.818 ± 0.405
Body mass index	28.7 ± 4.5	27.9 ± 4.3	29.8 ± 5.9	30.4 ± 6.1
McGill total pain score	4.2 ± 7.0a	26.8 ± 8.6	23.2 ± 8.7	23.0 ± 10.8
Dolorimetry (kg)	6.0 ± 1.9a	3.3 ± 2.1	3.6 ± 1.9	4.0 ± 2.3
Chalder Fatigue Score	12.4 ± 5.4a	26.1 ± 4.4	25.6 ± 4.7	24.8 ± 5.3
CFS Symptom Severity Questionnaire
Fatigue	1.4 ± 1.3a	3.8 ± 0.4	3.4 ± 0.8	3.4 ± 0.7
Short term memory and concentration	1.3 ± 1.3a	3.2 ± 0.9	3.2 ± 0.8	2.9 ± 0.7
Sore throat	0.3 ± 0.7a	1.9 ± 1.2	1.3 ± 1.2	1.3 ± 1.2
Sore lymph nodes	0.1 ± 0.4a	2.0 ± 1.3	1.3 ± 1.2	1.6 ± 1.2
Muscle pain	0.8 ± 1.1a	3.4 ± 0.6	3.1 ± 1.0	3.0 ± 1.2
Joint pain	0.9 ± 1.2a	3.5 ± 0.9	3.2 ± 0.9	2.8 ± 1.1
Headaches	1.0 ± 1.2a	2.9 ± 1.1	2.6 ± 1.2	3.0 ± 1.1
Sleep	1.8 ± 1.4a	3.7 ± 0.5	3.5 ± 0.8	3.2 ± 1.0
Exertional exhaustion	0.7 ± 1.2a	3.8 ± 0.5	3.2 ± 1.0	3.4 ± 1.0
SF-36
Physical functioning	83.8 ± 24.4a	42.4 ± 25.7	47.0 ± 22.6	45.5 ± 22.7
Role physical	76.7 ± 39.4a	6.0 ± 22.2	11.3 ± 25.3	0.0 ± 0.0
Bodily pain	80.9 ± 21.2a	22.8 ± 16.5	28.9 ± 18.4	34.1 ± 15.0
General health	67.6 ± 23.3a	20.7 ± 15.5	29.0 ± 20.3	23.4 ± 16.4
Vitality	58.0 ± 23.0a	13.3 ± 11.0	17.9 ± 17.1	20.5 ± 13.9
Social functioning	77.1 ± 27.7a	22.6 ± 17.9	33.1 ± 25.4	33.0 ± 18.8
Role emotional	84.4 ± 32.4a	25.4 ± 36.4	30.8 ± 39.5	30.3 ± 40.7
Mental health	73.9 ± 16.7a	49.7 ± 21.5	55.5 ± 22.3	54.5 ± 23.7

^aANOVA with P < 0.05 followed by P < 0.05 by HSD for HC compared with the combined GWI subgroups.

N-Back task performance

There were no significant differences between groups for response times or numbers of correct responses on the 0-Back or 2-Back tasks either before or after exercise (Fig. 2). Response times were faster for the 2-Back than 0-Back task.

Figure 2.

Response times and accuracies. Responses times for 0-Back (A) and 2-Back (B) and the total number of correct responses, respectively (C and D), were not different between groups or pre-exertion (white bars) and post-exertion (grey bars) periods. Mean ± SEM.

Neuroimaging

In cortex, all groups activated the frontal-parietal executive control network before and after exercise (Fig. 3). Likewise, all groups activated several regions within the cerebellum before and after exercise, but a marked decline in cerebellar activity is evident after exercise in the GWI-START group (Fig. 4). As the GWI-POTS group had fewer subjects relative to the other groups, we kept height thresholds in Figs 3 and 4 at P < 0.001 (uncorrected) for visualization purposes.

Figure 3.

Cortical BOLD activation for 2-Back > 0-Back. Frontal parietal executive control network regions were activated in the control and GWI START, STOPP and POTS groups during the pre-exertion and post-exertion scans.

Figure 4.

Cerebellar BOLD activation for 2-Back > 0-Back. Brain slices at the −20, −30, −40 and −50 MNI axial planes. Cerebellar regions were activated in the Control, GWI-START, GWI-STOPP and GWI-POTS groups during the pre-exertion and post-exertion scans.

ROI analysis identified three clusters that were significantly altered (P < 0.05, FWE) in response to the exercise stressor in the GWI-START and GWI-STOPP subgroups. Contrasting pre-exercise > post-exercise in the GWI-START group resulted in two significant cerebellar clusters. Contrasting post-exercise > pre-exercise in the GWI-STOPP group resulted in one significant cortical cluster. Reversing either of these contrasts (GWI-START: post-exercise > pre-exercise; GWI-STOPP: pre-exercise > post-exercise) yielded no significant clusters.

The larger of the two cerebellar ROIs (186 voxels) was in the right hemisphere and included voxels in the right cerebellar lobule VI (43/186 voxels, 23%), dentate nucleus (43/186, 23%), lobule IV (7/186, 4%) and lobule III (5/186, 3%; Fig. 5A). The remaining voxels (88/186) were undefined in the AAL and SUIT atlases. Activation in this ROI was equivalent between groups prior to exercise (Fig. 5B). This ROI resulted from deactivation after exercise in the GWI-START group (cluster level: P = 0.0028, FWE; Fig 5C). Posthoc analyses examined differences between subgroups on each day. Prior to exercise, the HC, GWI-START, GWI-STOPP and GWI-POTS groups had equivalent activation levels [ANOVA: F(3, 110) = 0.343, P = 0.80]. After exercise, levels were significantly different [ANOVA: F(3, 110) = 5.64, P = 0.001], and GWI-START had significant deactivation relative to HC (HSD, P = 0.001) and GWI-STOPP (HSD, P = 0.041). Paired comparisons of pre- versus post-exertional activity revealed a trend towards deactivation in GWI-POTS (paired t-test, P = 0.051; Fig. 5D). The effects of exercise were large with Cohen’s d of 1.7 for GWI-START and 0.89 for GWI-POTS. Effect sizes were small for GWI-STOPP (d = 0.28) and HC (d = 0.02). Hedges’ g indicated strong effect sizes to detect differences between GWI-START and the post-exercise HC (g = 1.16), GWI-STOPP (g = 0.92) and GWI-POTS (g = 0.73) results (Stangroom, 2019).

Figure 5.

Right cerebellar cluster. The 186-voxel ROI was identified from the exercise-induced decrease in BOLD activation in the GWI-START subgroup (cluster-level P = 0.0028, FWE). (A) Sagittal (top), coronal (middle) and transverse (bottom) slices of an MNI-standard brain, where cross-hairs indicate the cluster’s most active voxel (24, −46, −32). BOLD response for the 2-Back > 0-Back condition (mean ± SEM) are shown for (B) pre-exercise and (C) post-exercise changes in BOLD responses for the control (white bars), GWI-START (black bars), GWI-STOPP (light grey bars) and GWI-POTS (dark grey bars). The ANOVA P-values refer to the difference between the HC and the combined three GWI subgroups. (D) Post-minus pre-exercise BOLD response for the 2-Back > 0-Back condition for the HC, GWI-START, GWI-STOPP and GWI-POTS groups.

The second cerebellar ROI (145 voxels) was more medioposterior and included vermis lobules VII (51/145 voxels, 35%) and VI (30/145, 21%), and right cerebellar lobule VI (27/145, 19%; Fig. 6A). Activation in this second cerebellar ROI closely paralleled that of the first, with equivalent activity between groups prior to exercise (Fig. 6B) and deactivation after exercise in the GWI-START group (cluster level: P = 0.011, FWE) with a similar trend in GWI-POTS (P = 0.054; Fig. 6C). The responses before exercise were similar [ANOVA: F(3, 110) = 0.648, P = 0.65]. The responses after exercise were significantly different from each other [ANOVA: F(3, 110) = 5.21, P = 0.0087], with negative BOLD signal in GWI-START compared with GWI-STOPP (HSD, P = 0.008). Thus, these results like those for the larger cerebellar ROI reflect a significant relative decrease in GWI-START activity, not an increase in HC and GWI-STOPP activity, after exercise.

Figure 6.

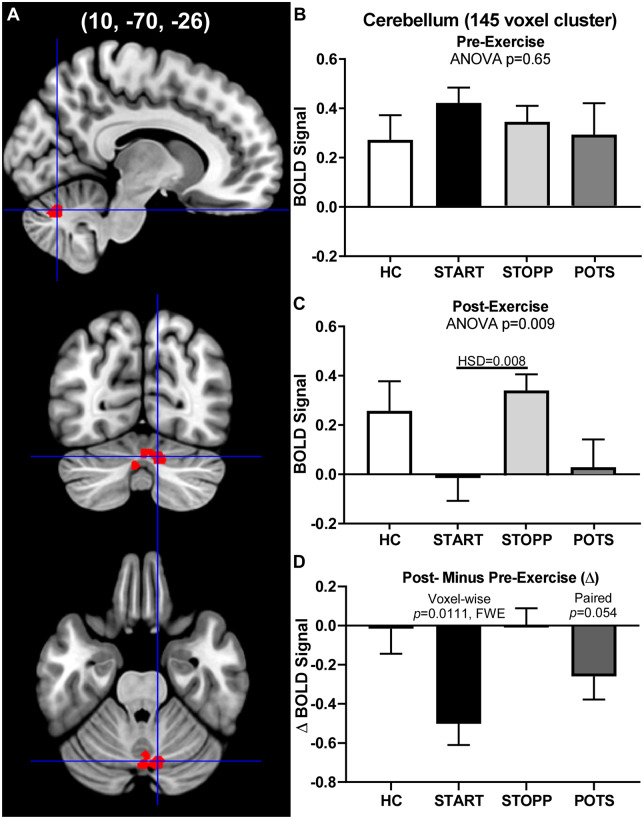

Medial cerebellar cluster. The 145-voxel ROI was identified from the exercise-induced incremental BOLD deactivation in the GWI-START subgroup (cluster-level P = 0.011, FWE). (A) Sagittal (top), coronal (middle) and transverse (bottom) slices of an MNI-standard brain, where cross-hairs indicate the cluster’s most active voxel (10, −70, −26). BOLD response for the 2-Back > 0-Back condition (mean ± SEM) are shown for (B) pre-exercise and (C) post-exercise changes in BOLD responses for the control (white bars), GWI-STOPP (light grey bars), GWI-POTS (dark grey bars) and GWI-START (black bars). The ANOVA P-values refer to the difference between the HC and the combined three GWI subgroups. (D) Post-minus pre-exercise BOLD response for the 2-Back > 0-Back condition for the HC, GWI-START, GWI-STOPP and GWI-POTS groups.

One GWI-START subject was an outlier for the cerebellar ROIs following exercise. Pre-exercise values were comparable with all other subjects. However, after exercise, the BOLD response increased to more than two standard deviations greater than the mean for the other GWI-START group members, reaching 1.26 and 0.61 for the 145- and 186-voxel ROIs, respectively. This was a focal finding because all of this subject’s other BOLD responses were comparable with the other GWI-START subjects. No abnormality was seen on structural scans. The subject’s data were excluded from the analysis of the cerebellar clusters but were used for all other analyses.

The third ROI (Fig. 7) was characterized by a significant increase in activation in the GWI-STOPP group following exercise (cluster-level P = 0.0068, FWE; Cohen’s d = 0.55). The 191-voxel ROI mapped to the anterior right supplementary motor area (163/191, 85%). MNI co-ordinates for this third ROI overlap with the dorsal anterior cingulate cortex regions of the anterior salience network as described by Shirer et al. (2012). Activation in this ROI was equivalent between groups before and after exercise. HC, GWI-START, GWI-STOPP and GWI-POTS groups had similar activation levels before [ANOVA: F(3, 110) = 2.08, P = 0.11] and after [ANOVA: F(3, 110) = 1.47, P = 0.23] exercise. GWI-STOPP was predicted to have higher BOLD responses following exercise provocations in future studies when compared with GWI-START (Hedges’ g = 1.01) and GWI-POTS (g = 0.73).

Figure 7.

Right Supplementary Motor Area Cluster. The 191-voxel ROI was identified from the exercise-induced increased BOLD activation in the GWI-STOPP subgroup (cluster-level: P = 0.0068, FWE). (A) Sagittal (top), coronal (middle) and transverse (bottom) slices of an MNI-standard brain, where cross-hairs indicate the cluster’s most active voxel (8, 14, 54). BOLD response for the 2-Back > 0-Back condition (mean ± SEM) are shown for (B) pre-exercise and (C) post-exercise changes in BOLD responses for the control (white bars), GWI-START (black bars), GWI-POTS (dark grey bars) and GWI-STOPP (light grey bars). The ANOVA P-values refer to the difference between the HC and the combined three GWI subgroups. (D) Post-minus pre-exercise BOLD response for the 2-Back > 0-Back condition for the HC, GWI-START, GWI-STOPP and GWI-POTS groups.

Table 2 contains regional comparisons between the AAL and SUIT atlases.

Table 2.

Comparison of cerebellar ROI voxel co-ordinate labels in the SUIT and AAL atlases

Cerebellar ROI (Peak Voxel)	SUIT labels	Voxel count	AAL labels	Voxel count
145-Voxel Cluster (10, -70, -26)	Left		Left
	Crus I	3	Lobule 8	4
	Lobule VI	3	Crus1	3
	Vermis Crus II	6	Crus2	8
	Vermis VI	6	Vermis 7	9
	Vermis VIIb	4
	Right		Right
	Crus I	11	Lobule 6	27
	Crus II	1	Lobule 8	1
	Lobule VI	36	Crus1	13
	Vermis Crus II	7	Crus2	4
	Vermis VI	64	Vermis 6	30
			Vermis 7	42
	Undefined	2	Undefined	4
186-Voxel Cluster (24, -46, -32)	Left		Left
	Lobule V	1	Vermis 4/5	1
	Right		Right
	Dentate	7	Lobule 3	5
	Lobule I/IV	34	Lobule 4/5	43
	Lobule V	21	Vermis 1/2	4
	Lobule VI	26	Vermis 4/5	26
			Vermis 6	1
	Undefined	97	Undefined	96

Discussion

Exercise caused alterations of regional brain blood flow measured by BOLD activity during the continuous N-back working memory task (2-Back > 0-Back condition), and autonomic changes leading to the transient postural tachycardia of the START group. Before exercise, BOLD responses were positive and equivalent among the four groups. Exercise had no effect on BOLD responses in HC subjects.

GWI-START had significant deactivation of right cerebellar dentate nucleus and vermis lobules VI and VII (Figs 5 and 6). GWI-POTS had a trend for deactivation in the cerebellar ROIs after exercise (P ≤ 0.054 by paired t-tests, Fig. 5) that was limited by the small sample size (n = 11, Cohen’s d = 0.89). The cerebellar findings (Figs 5 and 6) confirmed previous studies showing activation of cerebellar lobules VI, VII (Stoodley et al., 2012), crus I and dentate nucleus (Thurling et al., 2012) with various other N-Back task designs. Increasing task difficulty and working memory cognitive load recruit additional areas in the dentate nucleus and vermis VI and VII for cognitive compensation (Kuper et al., 2016). Roles for cerebellar dentate and vermis lobules VI and VII in verbal working memory are well attested from numerous brain lesion and neuroimaging studies (Desmond et al., 1997; Chen and Desmond, 2005; Kirschen et al., 2005; Hautzel et al., 2009; Stoodley and Schmahmann, 2009; Kirschen et al., 2010; Cooper et al., 2012; Stoodley et al., 2012; Thurling et al., 2012). Other roles include sensorimotor control (Sokolov et al., 2017), reward circuits, social behaviour and dysfunction in autism spectrum disorder, schizophrenia and addiction (Carta et al., 2019).

GWI-STOPP had a gain of function response after exercise with a significant increase in BOLD response in the right anterior supplementary motor area (Fig. 7). The MNI co-ordinates for this right anterior supplementary motor area ROI overlap with one atlas’s dorsal anterior cingulate cortex subdivision of the anterior salience network (Shirer et al., 2012). This ROI is also immediately adjacent to ‘pre-supplementary motor area’ and ‘midcingulate’ regions that are activated during pain in HC children (Hohmeister et al., 2010) and by thermal pain during a motor task in young adults (Misra and Coombes, 2015). The latter study found functional connectivity between the supplementary motor area and cerebellar lobules VI and VII indicating simultaneous multimodal processing of motor control and pain (Misra and Coombes, 2015; Coombes and Misra, 2016).

Limitations

The quantitative ROI analysis verified deactivation in the cerebellar vermis in the GWI-START group after exertion but did not substantiate the qualitative impression of basal ganglia and anterior insula activation in the GWI-STOPP group that was suggested by the earlier interim analysis (Rayhan et al., 2013). The exercise was required to unveil the transient postural tachycardia in GWI-START and patterns of BOLD activation in GWI subsets, indicating that resting state or baseline studies may not distinguish between GWI-START, GWI-STOPP and control groups. GWI-POTS subjects had cerebellar deactivation after exercise comparable to the GWI-START group, but larger studies will be needed to examine the statistical significance. Effects sizes were provided to help power future studies.

The study spanned two campaigns of recruitment and testing, but the exercise, N-Back and analytical procedures were identical. All scans were analysed as a single batch with extensive computational efforts to reduce the effects of head motion. This was a particular problem for veterans with severe pain and substantial systemic hyperalgesia.

Our ‘continuous' version of the N-Back task had the unusual effect of eliciting faster response times from subjects during the 2-Back condition than during the 0-Back condition. We designed the continuous N-Back to be more challenging than the typical N-Back as the continuous version demands that subjects retain and update a string of letters in working memory over the entirety of the task block. We suggest that the shorter reaction time in the 2-Back condition reflects the subjects’ desire to use information in memory (i.e. the letter from two presentations prior) and expunge it quickly, thereby reducing the amount of information (i.e. the number of letters in the string) needing to be stored. The continuous N-Back was adequate for the purposes of this study, but its differences from other version of the N-Back raises concerns about comparability to previous working memory studies. However, as there are over 50 variants of the N-Back task targeting verbal working memory alone (Owen et al., 2005), the continuous N-Back is simply one variation within a highly diverse field.

The discovery of the three ROIs was based on the hypothesis that each subgroup would have incremental differences in brain activation induced by exercise. The incremental changes within groups and differences between groups after exercise had large effect sizes suggesting the outcomes are likely to be reproduced in reasonably sized groups of subjects using the same exercise and cognitive testing paradigm. Testing for effect size in this way was not ‘double-dipping’ in two of the four groups because the ROIs that were discovered by intragroup cluster analysis were used as masks to test for the consequences of exercise between the 2 days in the other two groups, and to determine if there were significant intergroup differences on the pre- and post-exercise days. Furthermore, our ROI analyses employed only contiguous clusters, which are less susceptible to serious result distortion from selective analyses of selected data (Kriegeskorte et al., 2009). Critics of circular analysis in systems neuroscience concede that selective in-depth analysis of ROIs can provide additional insights to analyses employing non-selective mapping (Saxe et al., 2006; Kriegeskorte et al., 2009). Lastly, as we have addressed the need for larger studies, one can leverage larger subject pools to address issues with double-dipping. Specifically, provided a sufficiently large population, one can divide the population into two contrast groups, one for ROI detection and the other for quantitation within that ROI (Kriegeskorte et al., 2009).

The entire period of the two submaximal bicycle exercise stress test, postural tachycardia testing and overnight stay in the Clinical Research Unit constituted the physiological stressor. Our design did not determine if a single exercise stress test was sufficient to alter BOLD responses. Regional cerebellar deactivation was inferred to indicate cognitive decompensation, while the enhanced activation in the right anterior supplementary motor area may indicate cognitive compensation by the GWI-STOPP group.

Lastly, the data presented here are restricted to the BOLD responses elicited by verbal working memory (i.e. 2-Back > 0-Back). It is possible to differentiate veterans with GWI from HCs using other neural processes. For example, contrasting 0-Back > 2-Back revealed that the magnitude of deactivation in the default mode networks of veterans with GWI is greater than that of HCs (Rayhan et al., 2019). Thus, we plan future studies that will report the results of other contrasts in these data (e.g. 0-Back > 2-Back, 2-Back > Fixation, etc.) so that we can better differentiate autonomic subgroups of GWI from each other and HCs.

Conclusion

The exercise stressor protocol caused distinct changes in the patterns of dysfunction in veterans with GWI. After exercise, GWI-STOPP activated the right supplementary motor area/dorsal anterior cingulate cortex while GWI-START had cerebellar deactivation. GWI-POTS had a trend towards cerebellar deactivation similar to GWI-START. Thus, patterns of cerebellar and cortical somatosensory activation could be used to quantitatively distinguish the GWI-START from the GWI-STOPP phenotype. These results suggest that the exercise stressor paradigm affected different neural mechanisms in the GWI phenotypes and that distinct neural networks may mediate the cognitive dysfunction, post-exertional malaise and exertional exhaustion in these veterans.
