miR-20b inhibits the senescence of human umbilical vein endothelial cells through regulating the Wnt/β-catenin pathway via the TXNIP/NLRP3 axis

Abstract

Endothelial cell senescence is closely related to the occurrence of cardiovascular diseases and microRNAs (miRNAs/miRs) are considered as therapeutic targets for cardiovascular disease. The current study aimed to investigate the role of miR-20b in the senescence process of endothelial cells and its underlying mechanism. Cell viability, proportion of senescent cells and the cell cycle were respectively determined by Cell Counting Kit-8, SA-β-galactosidase and flow cytometry. The relative expressions of mRNA and protein were detected by reverse transcription-quantitative polymerase chain reaction and western blotting, respectively. The possible target genes and binding sites of miR-20b were predicted using Targetscan and further verified by dual luciferase reporter assay. The present study found that H₂O₂ inhibited cell viability, caused cell cycle arrest in G1 phase, decreased miR-20b level and induced cell senescence. Moreover, high expression of miR-20b promoted cell viability and reduced H₂O₂-induced cell senescence, whereas low expression of miR-20b produced the opposite effects. Thioredoxin interacting protein (TXNIP) was predicted as a target gene for miR-20b and knockdown of TXNIP increased cell viability, inhibited cell senescence, reduced the expression of p16, p21, TXNIP, NLR family pyrin domain containing 3 (NLRP3) and cleaved Caspase-1 and reversed the promoting effects of the miR-20b inhibitor and H₂O₂ on cell senescence. Furthermore, the knockdown of TXNIP inhibited the Wnt/β-catenin pathway. The finding reveals that high expression of miR-20b inhibits the senescence of human umbilical vein endothelial cells through regulating the Wnt/β-catenin pathway via the TXNIP/NLRP3 axis.

Introduction

Population aging is one of the main problems facing the 21st century. Aging is associated with an increased incidence of age-related diseases such as Parkinson's, Alzheimer's, cardiovascular and other diseases (1). Cardiovascular disease is a chronic disease closely related to aging (2) and atherosclerosis is the primary cause of cardiovascular disease. As we age, the structure and function of artery vasculature changes, the vessel lumen expands, vascular stiffness increases, eventually affecting other tissues and organs (3). Noticeably, the damage and functional changes of vascular endothelial cells play a crucial role in the occurrence and development of atherosclerosis, and penetrate into the whole pathological process of atherosclerosis (4).

Vascular endothelial cells, which are monolayer squamous epithelial cells located between vascular endothelium subcutaneous tissues and blood, function as a physical barrier between blood and tissues. Vascular endothelial cells play an important role in maintaining normal vascular function and tissue structure and in the regulation of cells proliferation (5,6). Endothelial cell senescence, which is closely related to atherosclerosis, is accompanied by the destruction of endothelial cell integrity and functional damage of endothelial cells that in turn cause vascular dysfunction, therefore creating conditions for the occurrence of cardiovascular diseases (7,8). Thus, it is highly necessary to understand the mechanism of endothelial cell senescence, to provide patients with effective clinical treatment and reduce the occurrence of cardiovascular diseases.

MicroRNAs (miRNAs/miRs) are small non-coding RNAs and have been regarded as therapeutic targets and biomarkers for evaluating cardiovascular disease in recent years (9). Among miRNAs, miR-222-221 can inhibit the proliferation and migration of endothelial cells and induce apoptosis (10,11). miR-126-3p and miR-126-5p are considered as potential biomarkers of atherosclerosis (12). A recent study reported that miR-20b is up-regulated in insulin-resistant skeletal muscle and is involved in glucose metabolism regulation (13). Moreover, miR-20b has been shown to play a critical role in maintaining vascular integrity, as the down-regulation of miR-20b was found to be able to down-regulate the level of a cellular senescence marker (14). However, studies are still needed to confirm the role and mechanism of miR-20b in endothelial cell senescence. In this study, the occurrence of senescence of HUVECs cells was induced by hydrogen peroxide (H₂O₂) and the role of miR-20b in the process of cellular senescence and its possible mechanism were investigated.

Materials and methods

Cell culture

Human umbilical vein endothelial cells (HUVECs) were purchased from Sciencell Research Laboratories, Inc., (cat. no. 8000). The cells were cultured in the endothelium cell medium (Sciencell Research Laboratories, Inc.) containing 5% fetal bovine serum (Sigma-Aldrich; Merck KGaA), 1% endothelial growth factor (Sigma-Aldrich; Merck KGaA), 100 µg/ml streptomycin (Gibco; Thermo Fisher Scientific, Inc.) and 100 U/ml penicillin (Gibco; Thermo Fisher Scientific, Inc.) in an incubator with 95% O₂ and 5% CO₂ at 37°C.

Induction of HUVECs cell senescence by H₂O₂

H₂O₂ was used to stimulate and induce cell senescence in HUVECs. The cells were randomly divided into 5 groups and treated with different concentrations of H₂O₂ (0, 10, 50, 100 and 500 µM). The blank group (0 µM H₂O₂) was cultured in normal medium, whereas the H₂O₂ group was incubated with normal medium at different concentrations of H₂O₂ for 24 h. The cell viability, proportion of senescent cells and cell cycle in each group were determined by Cell-Counting-Kit 8 (CCK-8; Beyotime Institute of Biotechnology), SA-β-galactosidase (SA-β-gal; Beyotime Institute of Biotechnology) and FACSCalibur Flow Cytometer (cat. no. 342973; BD Biosciences; Becton, Dickinson and Company).

Transfection

The specific groups were: Scramble group, miR-20b mimic group, miR-20b inhibitor group, scramble + H₂O₂ group, miR-20b mimic + H₂O₂ group and miR-20b inhibitor + H₂O₂ group. The sequences required for transfection are shown in Table I. The cells were transfected with the miR-20b mimic (100 pmol), miR-20b inhibitor (100 pmol) or 100 pmol scramble (Sigma-Aldrich; Merck KGaA) using Lipofectamine 2000 Transfection Reagent (Invitrogen; Thermo fisher Scientific, Inc.). Next, the Lipofectamine 2000 reagent was mixed with DMEM and incubated with the cells for 24 h at 37̊C with 5% CO₂. After that, the medium was replaced and certain groups of cells were stimulated by H₂O₂ (100 µM) for 24 h, while the rest was left untreated. The Scramble served as a negative control and whether the transfection was successful was confirmed by performing reverse transcription-quantitative (RT-q)PCR.

Table I.

The sequences required for transfection.

Sequence	5′-3′
miR-20b mimics	ACUGUAGUAUGGGCACUUCCAG
miR-20b inhibitor	UGCUCAUAGUGCAGGUAGUU
Scramble C	AUACAUUACCCGAAGUCUA
siTXNIP
Forward	CUCCCUGCUAUAUGGAUGUTT
Reverse	ACAUCCAUAUAGCAGGGAGTT
siTXNIP negative control
Forward	UUCUCCGAACGUGUCACGUTT
Reverse	ACGUGACACGUUCGGAGGAGAATT

miR, microRNA; si, small interfering.

Knocking down thioredoxin interacting protein (TXNIP) using small interfering RNA (siRNA)

TXNIP was knocked down by siRNA (Forward, RNA oligo: 5′-AGA GAA AAA GCC UUC U UUC CC-3′, and reverse, RNA oligo: 5′-GAA AGA AGG CUU UUU CUC UGA-3′, GE Healthcare Dharmacon Inc.) and a non-specific siRNA served as a negative control (NC sense RNA oligo: 5′-AGA AUC ACU GUA CAU CAA CUC UA-3′, antisense RNA oligo: 5′-GAG UUG AUG UAC AGU GAU UCU GC-3′). The HUVECs cells were transfected with siTXNIP (100 pmol) by Lipofectamine 2000 Transfection Reagent, at the same time, the cells incubated with Lipofectamine 2000 only were used as blank control group. Whether the transfection was successful was confirmed by performing RT-qPCR.

Next, the cells were co-transfected with miR-20b inhibitor (100 pmol) and siTXNIP (100 pmol) or NC, with NC group served as the control group. Some of the cells were stimulated by H₂O₂ (100 µM) for 24 h, while the rest was left untreated. The specific groups were as follows: NC group, siTXNIP miR-20b inhibitor + NC group, miR-20b inhibitor + siTXNIP group, miR-20b inhibitor + H₂O₂ + NC group and miR-20b inhibitor + H₂O₂ + siTXNIP group.

CCK-8 assay

The experimental operation of determining cell viability was performed according to the protocol of the CCK-8 (Beyotime Institute of Biotechnology). The cells were cultured at 37°C with 95% O₂ and 5% CO₂ in an incubator for 24 h, and CCK-8 solution was then added to further culture the cells for 2 h. The optical density (OD) value of each well was measured at 450 nm by enzyme-labeling instrument (Muliskan MK3; Thermo Fisher Scientific, Inc.).

SA-β-gal assay

The previously treated HUVECs were washed twice by PBS (Gibco; Thermo Fisher Scientific, Inc.) and fixed by cell fixative solution in β-gal staining kit (Beyotime Institute of Biotechnology) for 20 min at 37°C. Next, the cells were washed three times by PBS to remove the solution. β-gal dyeing liquid prepared in following the instruction was mixed with the cells and incubated together overnight in a regular incubator at 37̊C for 24 h without CO₂. The cells with blue cytoplasm by β-gal staining were positive under a light microscope (BX41; Olympus Corporation). A total of 10 fields in each group were selected under the microscope and the total cells and SA-β-gal positive cells in each field were counted by ImageJ (version 5.0; Bio-Rad Laboratories, Inc.). The proportion of positive cells was obtained by calculating the ratio of average SA-β-gal positive cell number to average total cell number in each group.

Cell cycle assay

The cells were fixed by precooled 70% ethanol at 4°C overnight, then re-suspended in PBS and cultured with RNAase (10 mg/ml) at 4°C for 1 h. The cells were then incubated with propidium iodide (PI; 10 µg/ml) solution in the dark at 4°C for 1 h. The FACSCalibur Flow Cytometer (BD Biosciences; Becton, Dickinson and Company) was used to detect cell cycle, and data were processed by CellQuest software (version 5.1; BD Biosciences; Becton, Dickinson and Company).

Target gene prediction of miR-20b

Potential target genes for miR-20b were predicted by Targetscan (http://www.targetscan.org/). RT-qPCR was carried out to determine the effect of miR-20b on the expression of target genes and Targetscan was used to predict the binding sites between the target genes and miR-20b.

Plasmid transfection and dual luciferase reporter assay

The binding ability of miR-20b and target genes was detected by dual luciferase reporter. The wild-type or mutant (mut) 3′-untranslated region (UTR) sequences of TXNIP, or NLRP3 targeting miR-20b was amplified by RT-qPCR and then respectively inserted into the pGL3 control vectors (Promega Corporation). The HUVECs were randomly divided into eight groups, namely: Control + TXNIP-3′-UTR group, miR-20b mimic + TXNIP-3′-UTR group, Control + TXNIP-3′-UTR mut group, miR-20b mimic + TXNIP-3′-UTR mut group, Control + NLRP3-3′-UTRgroup, miR-20b mimic + NLRP3-3′-UTR group, Control + NLRP3-3′-UTR mut group and miR-20b mimic + NLRP3-3′-UTR mut group and transfected by Lipofectamine 2000 Transfection Reagent (Invitrogen; Thermo Fisher Scientific, Inc.). The recombinant vectors or miR-20b mimic was respectively transfected into the cells for 24 h. The luciferase activities were measured using the Dual-Glo Luciferase assay kits (Promega Corporation) and normalized using a Renilla luciferase reference plasmid.

RT-qPCR

Total RNA was extracted by using TRIzol reagent (Invitrogen; Thermo Fisher Scientific, Inc.) and total RNA (2 µg) were reverse-transcribed into cDNA by using a Taqman MicroRNA Reverse Transcription kit (Applied Biosystems, Inc.) at 37°C for 15 min, at 85°C for 5 sec and preserved at 4°C. A SYBR-Green Master (Rox) kit (Thermo Fisher Scientific, Inc.) and RT-qPCR Detection System (ABI 7500; Life Technology; Thermo Fisher Scientific, Inc.) were used to perform RT-qPCR, the cycles were set as follows: Pretreatment at 95°C for 2 min, followed by 40 cycles at 95°C for 30 sec, at 60°C for 35 sec and at 95°C for 15 sec and finally preserved at 4°C. The 2^−ΔΔCq method was used to calculate the data (15). U6 and GAPDH expression served as the internal control. The primer sequences for RT-qPCR are shown in Table II.

Table II.

The primer sequences for reverse transcription-quantitative PCR.

Primer	Forward sequence (5′-3′)	Reverse sequence (5′-3′)
miR-20b	GCTCATAGTGCAGGTAGAA	TGTCAACGATACGCTACG
STAT3	CCTTCCTCACCGTGTACTGG	AGCGTAGGGTAAGGTTCTTGC
SMAD7	ACTCCAGATACCCGATGGATTT	CCTCCCAGTATGCCACCAC
TXNIP	CAGAAGCTCCTCCCTGCTATATG	GATGCAGGGATCCACCTCAG
NLRP3	CTTCCTTTCCAGTTTGCTGC	TCTCGCAGTCCACTTCCTTT
p16	CACGGGTCGGGTGAGAGT	CCCAACGCACCGAATAGTTAC
p21	GCCTGGACTGTTTTCTCTCG	ATTCAGCATTGTGGGAGGAG
U6	CTCGCTTCGGCAGCACA	AACGCTTCACGAATTTGCGT
GAPDH	AGTCAGCTCTCTCCTTTCAGG	TCCACCACCCTGTTGCTGTA

miR, microRNA; STAT3, signal transducer and activator of transcription 3; SMAD7, mothers against decapentaplegic homolog 7; TXNIP, thioredoxin interacting protein; NLRP3, NLR family pyrin domain containing 3.

Western blotting (WB)

The cells were lysed to obtain total proteins using radio immunoprecipitation assay lysis buffer (RIPA; Sigma Aldrich; Merck KGaA). The concentration of proteins was determined by Pierce BCA Protein Assay kit (Thermo Fisher Scientific, Inc.) and equal amounts of total proteins (2 µg) were added to 10% SDS-PAGE and transferred to polyvinylidene difluoride membrane (PVDF; Bio-Rad Laboratories, Inc.). The PVDF membrane was blocked by 5% non-fat milk at room temperature for 30 min and first incubated with primary antibodies for 4°C overnight and then with secondary antibodies for 2 h. The antibodies used during WB were anti-TXNIP antibody (Rabbit; cat. no. ab188865; 1:1,000; Abcam), anti-GAPDH antibody (mouse; cat. no. ab8245; 1:1,000; Abcam), anti-NLRP3 antibody (Rabbit; cat. no. ab214185; 1:200; Abcam), anti-Cleaved Caspase-1 antibody (Rabbit; cat. no. 4199; 1:1,000; Cell Signaling Technology, Inc.), anti-Caspase-1 antibody (Rabbit; cat. no. 3866; 1:1,000; Cell Signaling Technology, Inc.), anti-β-catenin antibody (Rabbit, cat. no. ab32572; 1:5,000; Abcam), goat anti-mouse IgG H&L (HRP; 1:2,000; cat. no. ab205719; Abcam) and goat anti-rabbit IgG H&L (HRP; 1:2,000; cat. no. ab205718; Abcam). ECL Blotting Detection Reagents (Applygen Technologies, Inc.) was used to analyze the protein bands. The gray values of the protein bands were analyzed by ImageJ (version 5.0; Bio-Rad, Laboratories, Inc.) and the relative expressions of the target proteins were determined by the ratio of the gray scale of target protein to the internal reference. GAPDH served as internal control.

Statistical analysis

Data were analyzed by SPSS 21.0 system (IBM, Corps.) and shown as the mean ± standard deviation. Significant differences among different groups were analyzed using analysis of variance followed by the Tukey post hoc test. P<0.05 was considered to indicate a statistically significant difference. All experiments were repeated three times.

Results

H₂O₂ induces cell senescence and inhibits miR-20b expression

The cell viability, senescence and cycle of the HUVECs were determined by CCK-8, SA-β-gal staining and flow cytometry, respectively, after treating HUVECs at different H₂O₂ concentrations (0, 10, 50, 100 and 500 µM). It was found that H₂O₂ at 50, 100 or 500 µM significantly reduced the cell viability of HUVECs compared with 0 µM (P<0.01; Fig. 1A). As shown in Fig. 1B, the blue cytoplasm was positive and the proportion of the positive cells significantly increased as the concentration of H₂O₂ became higher (P<0.01; Fig. 1B). At the same time, the proportion of HUVECs in G1 phase significantly increased with the increase of H₂O₂ concentration, while the proportion of HUVECs in S and G2 phase significantly decreased after H₂O₂ treatment (P<0.01; Fig. 1C). The results suggested that H₂O₂ inhibited cell viability, caused cell cycle arrest in G1 phase and induced cell senescence.

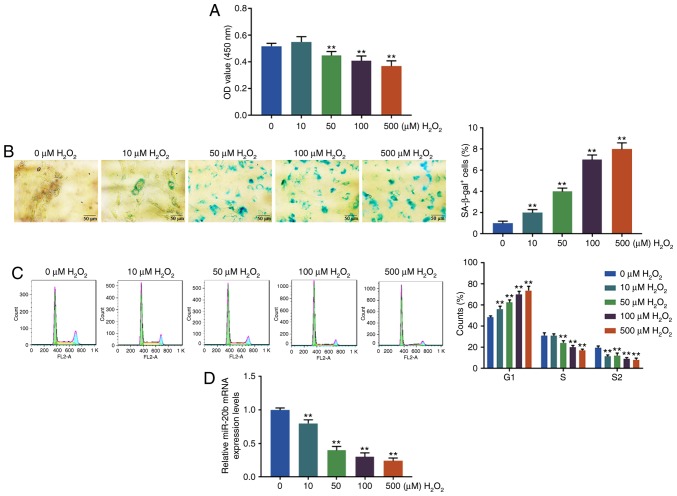

Figure 1.

Cell senescence induced by oxidative stress. (A) Cell viability was determined by Cell Counting Kit-8. (B) Cell senescence was detected by SA-β-gal staining. (C) The cell cycle was determined by flow cytometry. (D) The miR-20b level was detected by reverse transcription quantitative-PCR. The human umbilical vein endothelial cells were randomly divided into 5 groups and treated with different concentrations of H₂O₂ (0, 10, 50, 100 and 500 µM). The blank group (0 µM H₂O₂) was cultured in normal medium. The H₂O₂ group was incubated by normal medium with different concentrations of H₂O₂. The experiments were repeated in triplicate. ^**P<0.001 vs. 0 µM H₂O₂. miR, microRNA; OD, optical density; SA-β-gal, SA-β-galactosidase.

Moreover, the expression level of miR-20b in HUVECs was determined by RT-qPCR and the present study found that the miR-20b level was significantly downregulated by H₂O₂ treatment (P<0.01; Fig. 1D). The percentage of SA-β-gal+ cells in HUVECs exposed to H₂O₂ at 50 µM was only ~4%, while the percentage of SA-β-gal + cells in HUVECs exposed to H₂O₂ at 100 µM was 7% (Fig. 1B). Based on the above results and previous studies (16,17), to obtain more senescent cells and avoid potentially excessive damage from H₂O₂ at higher concentration (500 µM), H₂O₂ at 100 µM was chosen for further experiments.

HUVECs cells are successfully transfected with an miR-20b mimic or miR-20b inhibitor

In order to investigate the effect of miR-20b expression on the senescence of HUVECs, the miR-20b mimic and miR-20b inhibitor were respectively transfected into cells. RT-qPCR was performed to confirm whether the transfection was successfully conducted. The results demonstrated that compared with the scramble group, the expression of the miR-20b in miR-20b mimic and miR-20b mimic + H₂O₂ group were increased, while those in miR-20b inhibitor, scramble + H₂O₂ and miR-20b inhibitor + H₂O₂ group were significantly decreased (P<0.05; Fig. 2A). Compared with the scramble + H₂O₂ group, the miR-20b expression was significantly increased in miR-20b mimic + H₂O₂ group, but significantly decreased in miR-20b inhibitor + H₂O₂ group (P<0.05; Fig. 2A). Therefore, the present results showed that the expression of miR-20b in HUVECs was successfully upregulated and downregulated.

Figure 2.

Effects of miR-20b expression level on cell senescence. (A) The cells were transfected with the miR-20b mimic, miR-20b inhibitor or scramble and the transfection rate was detected by reverse transcription-quantitative PCR. (B) The effect of miR-20b on cell viability was detected by Cell Counting Kit-8. (C) The effect of miR-20b on cell senescence was detected by SA-β-gal staining. The HUVECs were divided into 6 groups, namely the scramble group, miR-20b mimic group, miR-20b inhibitor group, scramble + H₂O₂ group, miR-20b mimic + H₂O₂ group and miR-20b inhibitor + H₂O₂ group. The cells were transfected with the miR-20b mimic, miR-20b inhibitor or scramble and then stimulated with H₂O₂ (100 µM), or left untreated. ^**P vs. scramble; ##P<0.001 vs. scramble + H₂O₂. HUVECs, human umbilical vein endothelial cells; miR, microRNA; SA-β-gal, SA-β-galactosidase; OD, optical density.

High expression of miR-20b inhibits cell senescence

The cell viability and senescence were determined by CCK-8 and SA-β-gal staining, respectively, and it was found that the cell viability was upregulated in miR-20b mimic group but down-regulated in miR-20b inhibitor and miR-20b inhibitor + H₂O₂ group compared with the scramble group (P<0.05; Fig. 2B). In comparison with the scramble + H₂O₂ group, the cell viability was increased in the miR-20b mimic + H₂O₂ group but decreased in the miR-20b inhibitor + H₂O₂ group (P<0.05; Fig. 2B).

Moreover, the SA-β-gal staining results showed that the proportion of β-gal positive cells significantly increased in the miR-20b inhibitor, scramble + H₂O₂, miR-20b mimic + H₂O₂ and miR-20b inhibitor + H₂O₂ group (P<0.05; Fig. 2C). However, compared with scramble + H₂O₂ group, the proportion of β-gal positive cells decreased in the miR-20b mimic + H₂O₂ group but increased in miR-20b inhibitor + H₂O₂ group (P<0.05; Fig. 2C).

The results indicated that miR-20b could increase cell viability and inhibit cell senescence, and that miR-20b produced protective effect on HUVECs cells from H₂O₂-induced cell senescence.

TXNIP is the target gene for miR-20b

Targetscan predicted that the possible target genes for miR-20b were signal transducer and activator of transcription 3 (STAT3), mothers against decapentaplegic homolog 7 (SMAD7), TXNIP and NLRP3. RT-qPCR was performed to detect the effect of miR-20b on the possible target genes and it was found that in the scramble + H₂O₂, miR-20b mimic + H₂O₂, and miR-20b inhibitor + H₂O₂ groups, the levels of STAT3 were significantly downregulated, while that of SMAD7 was significantly upregulated compared with the scramble group (P<0.05; Fig. 3A). The levels of TXNIP and NLRP3 were significantly decreased in the miR-20b mimic group compared with those in the scramble group, but were still increased in the miR-20b inhibitor, scramble + H₂O₂, miR-20b mimic + H₂O₂ and miR-20b inhibitor + H₂O₂ groups compared with those in the scramble group (P<0.05; Fig. 3A). Compared with the scramble + H₂O₂ group, the levels of TXNIP and NLRP3 were significantly downregulated in the miR-20b mimic + H₂O₂ group but were significantly upregulated in the miR-20b inhibitor + H₂O₂ group (P<0.05; Fig. 3A). Thus, the data indicated that the TXNIP and NLRP3 may be the target genes for miR-20b.

Figure 3.

Target gene of miR-20b was predicted. (A) The potential target genes of miR-20b were predicted by Targetscan (http://www.targetscan.org/) and RT-qPCR was performed for detection. ^**P<0.001 vs. scramble; ^##P<0.001 vs. scramble + H₂O₂. (B) The binding sites of the target gene and miR-20b were predicted by Targetscan. (C) The binding abilities of miR-20b and TXNIP were detected by dual luciferase reporter. ^**P<0.001 vs. Control + TXNIP-3′-UTR; ^##P<0.001 vs. miR-20b mimic + TXNIP-3′-UTR mut. (D) The binding abilities of miR-20b and NLRP3 were detected by dual luciferase reporter. ^**P<0.001 vs. Control + TXNIP-3′-UTR; ^##P<0.001 vs. miR-20b mimic + TXNIP-3′-UTR mut. HUVECs were divided into 8 groups, namely, Control + TXNIP-3′-UTR group, miR-20b mimic + TXNIP-3′-UTR group, Control + TXNIP-3′-UTR mut group, miR-20b mimic + TXNIP-3′-UTR mut group, Control + NLRP3-3′-UTRgroup, miR-20b mimic + NLRP3-3′-UTR group, Control + NLRP3-3′-UTR mut group and miR-20b mimic + NLRP3-3′-UTR mut group. The pGL3 control vectors were used to generate recombinant vectors with mut sequence or a 3′UTR sequence of TXNIP or NLRP3 and the recombinant vectors and/or miR-20b mimic were transfected into cells. Mut, mutant; UTR, untranslated region; NLRP3, NLR family pyrin domain containing 3; HUVECs, human umbilical vascular cell; TXNIP, thioredoxin interacting protein.

In order to further determine the direct target gene for miR-20b, Targetscan website was used to predict the binding sites between miR-20b and TXNIP, and NLRP3 (Fig. 3B), and the results were further verified by dual luciferase reporter assay. The present study observed that in the miR-20b mimic + TXNIP-3′-UTR and miR-20b mimic + NLRP3-3′-UTR groups, the relative luciferase activities were significantly decreased, and the relative luciferase activity changes of TXNIP was the most significant (P<0.05; Fig. 3C and D). Thus, TXNIP was determined as the direct target gene for miR-20b.

siTXNIP reverses the effects of miR-20b inhibitor and H₂O₂

In order to investigate the mechanism of miR-20b in the cell senescence of HUVECs, TXNIP siRNA was used to transform HUVECs and the results were verified by RT-qPCR and WB. As shown in Fig. 4B and C, the expression of TXNIP decreased significantly in siTXNIP group (P<0.05), suggesting that HUVECs cells with a low expression of TXNIP were successfully constructed.

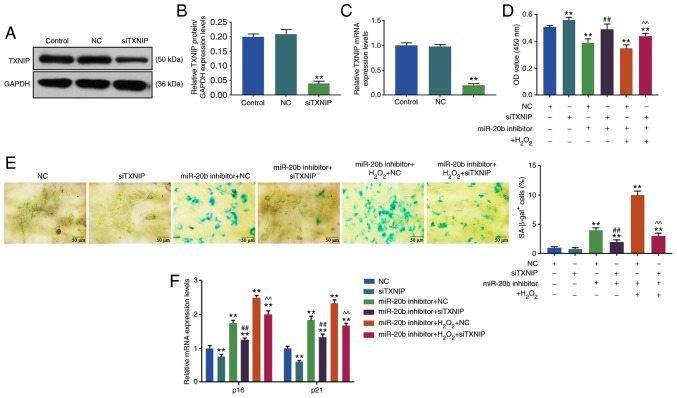

Figure 4.

Effects of siTXNIP on cell senescence. (A) Western blotting was used to determine the level of TXNIP. The knockdown of TXNIP was achieved by siRNA, the HUVECs cells were transfected with siTXNIP, the blank control group and NC group were set at the same time (Control group, NC group, and siTXNIP group). (B) The siTXNIP reduced the expression of TXNIP protein. (C) RT-qPCR was used to determine the TXNIP mRNA expression. (D) Cell viability was detected by Cell Counting Kit-8. The HUVECs were divided into 6 groups, namely, NC group, siTXNIP group, miR-20b inhibitor + NC group, miR-20b inhibitor + siTXNIP group, miR-20b inhibitor + H₂O₂ + NC group and miR-20b inhibitor + H₂O₂ + siTXNIP group. The cells were co-transfected with miR-20b inhibitor and siTXNIP or NC, and stimulated by H₂O₂ (100 µM), or left untreated. (E) Cell senescence was detected by SA-β-gal staining. (F) The expression of cell senescence-related genes were detected by RT-qPCR. ^**P<0.001 vs. NC; ^##P<0.001 vs. miR-20b inhibitor + NC; ^{^^}P<0.001 vs. miR-20b inhibitor + H₂O₂ + NC. RT-qPCR, reverse transcription-quantitative; miR, microRNA; si, small interfering; HHUVECs, human umbilical vascular endothelial cells; NC, negative control; TXNIP, thioredoxin interacting protein.

The cell viability and senescence of HUVECs were determined by CCK-8 and SA-β-gal staining, respectively, and it was found that the cell viability of HUVECs was increased in the siTXNIP group compared with in the NC group, moreover, the miR-20b inhibitor + NC group had a lower cell viability compared with in the miR-20b inhibitor + siTXNIP group. Furthermore, the cell viability of HUVECs was significantly increased in the miR-20b inhibitor + H₂O₂ + siTXNIP group compared with in miR-20b inhibitor + H₂O₂ + NC group (P<0.05; Fig. 4D) and the cell viability in miR-20b inhibitor + NC and miR-20b inhibitor + H₂O₂ + NC groups decreased compared with NC group (P<0.05; Fig. 4D).

SA-β-gal staining results showed that the proportions of β-gal positive cells in miR-20b inhibitor + NC and miR-20b inhibitor + H₂O₂ + NC groups were significantlu increased compared with the NC group (P<0.05; Fig. 4E), but decreased in the miR-20b inhibitor + siTXNIP group compared with in miR-20b inhibitor + NC group (P<0.05; Fig. 4E). Moreover, the number of β-gal positive cells was significantly increased in miR-20b inhibitor + H₂O₂ + siTXNIP group compared with that in miR-20b inhibitor + H₂O₂ + NC group (P<0.05; Fig. 4E).

The present data suggested that siTXNIP increased cell viability and partially reversed the inhibitory effects of miR-20b inhibitor and H₂O₂ on cell viability and the promoting effects of miR-20b inhibitor and H₂O₂ on cell senescence.

SiTXNIP reduces the expression of cell senescence-related genes

The results of WB showed that compared with NC group, the levels of p16 and p21 were decreased in siTXNIP group but were significantly increased in the miR-20b inhibitor + NC and miR-20b inhibitor + H₂O₂ + NC groups (P<0.05; Fig. 4F). However, the levels of p16 and p21 were decreased in the miR-20b inhibitor + siTXNIP group compared with those in the miR-20b inhibitor + NC group, and that the levels of p16 and p21 were lower in the miR-20b inhibitor + H₂O₂ + siTXNIP group compared with those in miR-20b inhibitor + H₂O₂ + NC group (P<0.05; Fig. 4F).

Compared with NC group, the expression of TXNIP, NLRP3 and cleaved Caspase-1 was significantly decreased in the siTXNIP group but increased in the miR-20b inhibitor + NC and miR-20b inhibitor + H₂O₂ + NC groups (P<0.05; Fig. 5B). Moreover, compared with the miR-20b inhibitor + NC group, the expression of TXNIP, NLRP3 and cleaved Caspase-1 in miR-20b inhibitor + siTXNIP group was decreased. However, the present study also found that the expression of TXNIP, NLRP3 and cleaved Caspase-1 was significantly decreased lower in the miR-20b inhibitor + H₂O₂ + siTXNIP group compared with miR-20b inhibitor + H₂O₂ + NC group, (P<0.05; Fig. 5B). Thus, the data showed that siTXNIP reduced the expression of senescence-related genes and inhibited cell senescence.

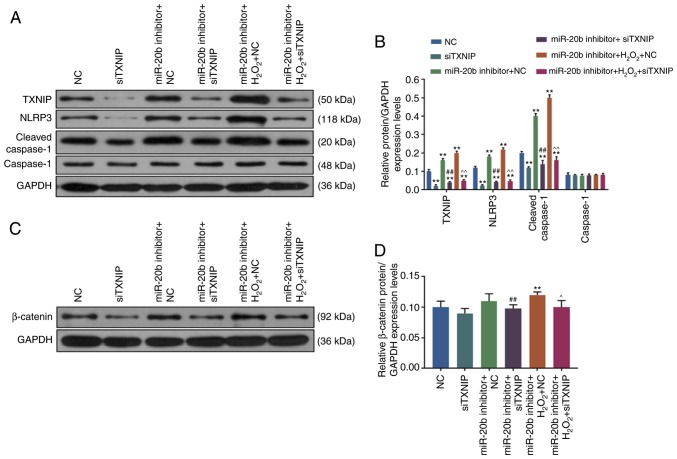

Figure 5.

siTXNIP inhibits the Wnt/β-catenin pathway. (A) The expression of TXNIP, NLRP3, cleaved Caspase-1 and Caspase-1 was determined by WB. (B) siTXNIP reduced TXNIP, NLRP3 and cleaved Caspase-1 expression. (C) β-catenin expression was determined by WB. (D) siTXNIP reduced β-catenin expression. ^**P<0.001 vs. NC; ^##P<0.001 vs. miR-20b inhibitor + NC; ^{^}P<0.001 and ^{^^}P<0.001 vs. miR-20b inhibitor + H₂O₂ + NC. NC, negative control; miR, microRNA; si, small interfering; WB, western blotting; NLRP3, NLR family pyrin domain containing 3; TXNIP, thioredoxin interacting protein.

SiTXNIP inhibits the Wnt/β-catenin signaling pathway

The present study found that compared with NC group, the expression level of β-catenin was downregulated in siTXNIP group but was significantly upregulated in miR-20b inhibitor + H₂O₂ + NC group (P<0.05; Fig. 5D), at the same time, the expression of β-catenin in miR-20b inhibitor + siTXNIP and miR-20b inhibitor + H₂O₂ + siTXNIP groups was significantly decreased compared with in the miR-20b inhibitor + NC and miR-20b inhibitor + H₂O₂ + NC groups (P<0.05; Fig. 5D), suggesting that siTXNIP decreased β-catenin expression and inhibited the Wnt/β-catenin pathway. The working model of miR-20b is shown in Fig. 6.

Figure 6.

Working model of miR-20b in senescence of HUVECs. H₂O₂ induced senescence in HUVECs. The expression level of miR-20b was decreased with the increased concentration of H₂O₂. In normal HUVECs without H₂O₂ stimulation, miR-20b targeted and suppressed TXNIP and NLRP3 mRNAs, causing decreased cleaved Caspase-1. In senescent HUVECs with H₂O₂ stimulation, the absence of miR-20b induced upregulation of TXNIP and NLRP3, causing increased cleaved Caspase-1. HUVECs, human umbilical vascular endothelial cells; miR, microRNA; TXNIP, thioredoxin interacting protein; NLRP3, NLR family pyrin domain containing 3; SA-β-gal, SA-β-galactosidase.

Discussion

Organismal aging, which refers to the progressive decline of physiological functions, also involves a series of inevitable physiological events (18-21). Manifested as growth stagnation and changes in gene expression profiles, cell senescence is defined by the irreversible detachment of cells from the cell cycle and the loss of proliferative capacity (22,23). Vascular senescence refers to cellular senescence in the vascular system and is closely related to the occurrence of cardiovascular and metabolic disorders (24). Endothelial cell senescence, which can lead to vascular endothelial dysfunction and aging of tissues and organs, is the major risk factor for developing cardiovascular disease (6). A previous study demonstrated that aging of endothelial cells is triggered by a variety of factors such as oxidative stress, ionizing radiation and telomere dysfunction (25). Oxidative stress plays a crucial role in the occurrence of endothelial dysfunction and is characterized by increased oxygen free radical level and damage to organs and tissues (26,27).

A series of structural and functional changes, for example, reduced cell division and proliferation, increased dyeing rate of SA-β-gal, expression of senescence markers and senescent-associated secretory phenotypes could also occur during the process of endothelial cell senescence (28). It has been reported that different concentrations of H₂O₂ treatment can induce cell senescence in a variety of types of cells (29). In the current study, the HUVECs were stimulated by H₂O₂ at different concentrations and it was found that the cell viability was decreased, while SA-β-gal positive cells were increased, and cell cycle arrest occurred after H₂O₂ stimulation intervention. Such results indicated that HUVECs cells treated by H₂O₂ had typical characteristics of cell senescence and that H₂O₂ can induce cell senescence through oxidative stress. Meanwhile, the H₂O₂ reduced miR-20b expression. Interestingly, H₂O₂ at 10 M did not decrease the cell viability, however, the level of miR-20b was downregulated, suggesting that the miR-20b expression change was more sensitive to H₂O₂ stimulation than cell viability change and that the reduced expression in miR-20b at 10 M H₂O₂ stimulation was not enough to cause decreased cell viability.

miRNAs are directly involved in the pathological process of numerous cardiovascular diseases (30). Lou et al (31) pointed out the unique role of miR-20b in controlling tuberculosis progression. Wong et al (32) showed that hsa-miR-20b is downregulated in tumor necrosis factor (TNF)-α-induced senescent microvascular endothelial cells. In addition, miR-20b is associated with aging and tends to be highly-expressed in the thymus of young mice (33) and upregulated in UVB-induced senescent diploid fibroblasts (34). However, the exact mechanisms of miR-20b in the regulation of endothelial cell senescence remains to be further studied, for such a purpose, the present study successfully constructed HUVECs cells with high and low expression of miR-20b. The results showed that the high expression of miR-20b increased cell viability and inhibited cell senescence, while the low expression of miR-20b produced the opposite effects, suggesting that a high level of miR-20b protected endothelial cells and inhibited H₂O₂-mediated cell senescence. These results indicated that loss of miR-20b expression might be involved in promoting senescence of HUVECs. Additionally, it would be better to perform cell cycle analysis on the miR-20b mimic or miR-20b inhibitor transfected cells. However, the present study focused on the cell senescence phenotype and cell viability, and didn't have enough resources to perform the cell cycle assay in each stage of this experiment. In addition, previous studies in animal models indicate that miR-20b is positively involved in hepatic ischaemia/reperfusion injury (35), breast cancer resistance (36), cardiac hypertrophy (37). However, whether it regulates the cardiovascular senescence in animal model remains unknown.

To study the mechanism of miR-20b in endothelial cell senescence, the potential target genes for miR-20b were predicted by Targetscan and verified by RT-qPCR and dual luciferase reporter. One recent report indicated that SMAD7 is a targeted gene for miR-20b in insulin-resistant skeletal muscle (13). Another recent study also showed that miR-20b is a circulating biomarker associated with type 2 diabetes and can target STAT3 (38). In the current study, SMAD7, STAT3, TXNIP and NLRP3 were all predicted to be the targets for miR-20b by Targetscan. However, RT-qPCR and dual lucif-erase reporter analyses showed that TXNIP and NLRP3 were the main direct target genes for miR-20b, while SMAD7, STAT3 could not be regulated by miR-20b. Nevertheless, the expression of SMAD7 and STAT3 were reduced by H₂O₂ stimulation. One study showed that depletion of SMAD7 causes β cell aging (39). Another study also indicated that the activation of STAT3 is necessary for TNFα-induced senescence (40). Thus, the present study inferred that SMAD7 and STAT3 may have a role in H₂O₂ -induced cell senescence, although it has not been confirmed in this study. Additionally, it seems that the luciferase activity of cells transfected with TXNIP-3-UTR could be more severely suppressed by the miR-20b mimic than cells transfected with NLRP3-3-UTR, thus TXNIP was chosen for further exploration. siRNA technology was applied to reduce the expression of TXNIP and detect the role of TXNIP in endothelial cell senescence. It was discovered that siTXNIP increased cell viability, but decreased SA-β-gal positive cells and partially reversed the effects of the miR-20b inhibitor and H₂O₂ on endothelial cells. Senescent cells are typically characterized by increased expression of cell cell-cycle inhibitors (such as p21 and/or p16), senescence-associated secretion phenotype, DNA damage and induced SA-β-gal activity (41). The senescence markers p16 and p21 play a regulatory role in the process of cell senescence, and can mediate cell cycle arrest and reduce the accumulation of damaged DNA (42,43). RT-qPCR data revealed that the levels of p16 and p21 were downregulated by siTXNIP, and that low level of TXNIP could partially reverse the senescence of endothelial cell induced by miR-20b inhibitor and H₂O₂.

Endothelial dysfunction is associated with the activation of the TXNIP/NLRP3 inflammasome axis (44). TXNIP plays a critical role in redox regulation, cell growth and other pathways, moreover, the increased expression of TXNIP leads to cell senescence of endothelial cells (45). The NLRP3 inflammasome is involved in the mechanism of cells senescence (46). TXNIP can bind to NLRP3 under oxidative stress, thereby activating the NLRP3 inflammasome (47). The activated NLRP3 inflammasome can further activate Caspase-1, while the activated Caspase-1 increases the expression of pro-inflammatory cytokines and promotes inflammation response and oxidative stress, therefore inducing endothelial cell senescence (48,49). In the current study, siTXNIP reduced the expression of TXNIP, NLRP3 and cleaved Caspase-1. The results reveal that siTXNIP inhibits the activation of the NLRP3 inflammasome and Caspase-1, reduces oxidative stress and reverses the cell senescence induced by oxidative stress.

The Wnt/β-catenin pathway is an important pathway that regulates the biological behavior of cells and plays different roles in diverse tissues and diseases (50). Some studies revealed that the excessive activation of the Wnt/β-catenin signaling pathway is associated with cellular senescence and that the p53/p21 pathway is the main mediator in cell senescence induced via Wnt/β-catenin pathway (51,52). In this study, siTXNIP was found to inhibit Wnt/β-catenin pathway and the present study speculated that TXNIP mainly regulate cell senescence via regulating the Wnt/β-catenin pathway. Moreover, a relatively slight decrease of cleaved Caspase-1 was observed compared with the change in TXNIP and NLRP3. A previous study indicated that the PI3K pathway is also involved in the activation of cleaved Caspase-1 and the present study inferred that TXNIP and NLRP3 regulate the activation of cleaved-Caspase 1; however, it is not the only pathway involved in activating cleaved-Caspase 1 in senescent HUVECs. In addition, as the interleukin (IL)-1β precursor is cleaved by cleaved-Caspase 1, further experiments should be performed to determine the level of IL-1β in HUVECs. Additionally, experiments in animals should be performed to confirm the present conclusion.

In conclusion, the present study demonstrated high expression of miR-20b promotes cell viability and inhibits cell senescence induced by oxidative stress. TXNIP is a direct target gene for miR-20b, and silencing of TXNIP enhances cell viability, reduces the expression of cell-senescence related genes and inhibits the Wnt/β-catenin pathway. The high expression of miR-20b inhibits endothelial cell senescence, which is possibly realized through regulating the TXNIP/NLRP3 axis to inhibit the Wnt/β-catenin pathway.
