p53 Integrates Temporal WDR5 Inputs during Neuroectoderm and Mesoderm Differentiation of Mouse Embryonic Stem Cells

SUMMARY

How ubiquitous transcription factors (TFs) coordinate temporal inputs from broadly expressed epigenetic factors to control cell fate remains poorly understood. Here, we uncover a molecular relationship between p53, an abundant embryonic TF, and WDR5, an essential member of the MLL chromatin modifying complex, that regulates mouse embryonic stem cell fate. Wild-type Wdr5 or transient Wdr5 knockout promotes a distinct pattern of global chromatin accessibility and spurs neuroectodermal differentiation through an RbBP5-dependent process in which WDR5 binds to, and activates transcription of, neural genes. Wdr5 rescue after its prolonged inhibition targets WDR5 to mesoderm lineage-specifying genes, stimulating differentiation toward mesoderm fates in a p53-dependent fashion. Finally, we identify a direct interaction between WDR5 and p53 that enables their co-recruitment to, and regulation of, genes known to control cell proliferation and fate. Our results unmask p53-dependent mechanisms that temporally integrate epigenetic WDR5 inputs to drive neuroectoderm and mesoderm differentiation from pluripotent cells.

In Brief

How ubiquitous chromatin-associated proteins and transcription factors (TFs) regulate cell fate determination is poorly understood. Li et al. show that regulation of the broadly expressed TF p53 by the chromatin-associated protein WDR5 is required for neuroectoderm versus mesoderm lineage determination in mouse embryonic stem cells (ESCs).

Graphical Abstract

INTRODUCTION

How ubiquitous epigenetic factors and transcription factors cooperate in a time-dependent manner to direct cell fate remains largely unexplored. In embryonic stem cells (ESCs), WDR5 is highly expressed and decreases during differentiation but remains present in somatic cells (Ang et al., 2011). Broad WDR5 expression is thought to be related to its “epigenetic house-keeping function”: methylation of lysine 4 on histone H3 (H3K4me) via the KMT2 (MLL) histone methyltransferase family. This histone mark is linked to transcription and, thus, WDR5 contributes to regulation of gene expression (Dou et al., 2006; Rao and Dou, 2015).

WDR5 interacts with OCT4, CTCF, or lncRNA to facilitate induced pluripotent stem cell reprogramming and maintains ESC identity (Ang et al., 2011; Yang et al., 2014). Wdr5 haploin-sufficiency in fetal mesoderm triggers somitogenesis defects and WDR5 overexpression accelerates Wnt-mediated osteoblast differentiation (Gori et al., 2006; Vilhais-Neto et al., 2017). WDR5 point mutations are linked to congenital heart defects (Zaidi et al., 2013; Zhu et al., 2017) and disrupted speech development (Eising et al., 2019) in humans. Still, the role of WDR5 in cell fate determination immediately following exit from pluripotency remains enigmatic.

Like WDR5, p53 is enriched in ESCs and decreases during differentiation (Lin et al., 2005). p53 is ubiquitous in the mouse embryo up to day 11 (Lin et al., 2005; Schmid et al., 1991; Rogel et al., 1985). Its abundance and enhanced stability in ESCs suggest roles that may contrast from its function in somatic cells, in which p53 is degraded rapidly by MDM2, and regulates the DNA damage response (Haupt et al., 1997; Sabapathy et al., 1997; Giaccia and Kastan, 1998). Moreover, p53 hyperactivation occurs in several developmental syndromes (e.g., CHARGE and others) that feature neuroectoderm (NE) defects (Bowen and Attardi, 2019).

Here, we identify a regulatory role for WDR5 on the activity of p53 during key ESC cell fate transitions. Molecularly, we found that WDR5 regulates p53 stability and directly interacts with p53 during ESC specification. Intact Wdr5 activity or brief Wdr5 inhibition leads to a distinct chromatin landscape in which WDR5 directly targets NE genes and favors transcription of NE lineage-specifying genes and differentiation of NE organoids. In contrast, prolonged Wdr5 inhibition causes dysregulated ribosomal protein (RP) gene expression and enhanced p53 stability, which leads to p53 activation. Increased p53 activity promotes mesoderm specification, as well as a global chromatin accessibility landscape that is permissive for mesoderm differentiation. Wdr5 rescue redirects WDR5 to mesoderm lineage-identity genes, which promotes differentiation toward contractile cardiogenic and hematopoietic mesoderm fates in a p53-dependent manner. This WDR5-p53 cell fate pathway offers a previously unrecognized example of how a broadly expressed epigenetic factor and embryonically abundant protein coordinate ESC lineage specification and differentiation in a time-dependent manner.

RESULTS

The WDR5-RbBP5 Interaction Surface Controls Rx⁺ NE Differentiation

WDR5 is essential for mouse ESC (mESC) self-renewal and viability (Ang et al., 2011). To determine whether WDR5 temporally regulates NE differentiation from ESCs, we used CRISPR-Cas9 and piggyBac transposon-based strategies to create “rescue” complementation ESC lines in which endogenous mWdr5 is replaced by a Tet-On, doxycycline (Dox)-inducible HA-tagged, human hWDR5, allowing temporal control of WDR5 expression. hWDR5 protein is 100% identical to mWDR5 (Li et al., 2019). This approach allows mWdr5 editing without altering hWDR5. We used Rx-GFP ESC lines, which contain GFP reporter knocked in to the endogenous NE-specific Rax/Rx promoter; these lines efficiently generate Rx⁺ NE organoids via serum-free embryoid body (EB)-like aggregates with quick reaggregation (SFEBq) culture (Assawachananont et al., 2014; Eiraku et al., 2011). We derived four independently targeted, hWDR5^Dox;mWdr5^KO (WDR5^Dox;Wdr5^KO) Rx-GFP mESC lines (Figures S1A–S1F). Interestingly, while Wdr5 transcripts decreased during NE differentiation, Wdr5 mRNA was expressed in both Rx⁺ and Rx⁻ EBs (Figure S1A). hWDR5 expression did not alter Rx⁺ NE induction in wild-type (WT) ESCs (Figures S1B and S1C). In Wdr5^KO EBs, Dox removal decreased hWDR5 (Figure S1G) and global histone marks H3K4Me2/3, but not H3K4Me1 (Figure S1H), consistent with the histone-modifying function of WDR5 (Wysocka et al., 2005).

Next, we assessed the role of WDR5 in NE differentiation. Impaired cell proliferation and Rx⁺ NE differentiation of Wdr5^KO EBs was rescued by Dox-induced WDR5 in a dose-dependent manner (Figures 1A and 1B). To test whether interaction of known WDR5 co-factors (Wysocka et al., 2005), MLL1 and RbBP5, with WDR5 is essential for NE differentiation, we expressed FLAG-tagged WT or mutant WDR5 into WDR5^Dox;Wdr5^KO ESCs (Figure S11). Surprisingly, Wdr5^KO EBs expressing WDR5-MLL1 mutants (WDR5^F133Y or WDR5^I305V) proliferated and differentiated to Rx⁺ NE normally (Figures 1C and 1D). Wdr5^KO EBs constitutively expressing WDR5-RbBP5-binding mutants WDR5^N225A, WDR5^L240K, WDR5^V268E, or WDR5^Q289E showed reduced NE differentiation (Figures 1C and 1D) and Rx mRNA (Figure 1E). Defective NE differentiation of WDR5-RbBP5-binding mutants, except for WDR5^Q289E, could not be fully rescued with WT WDR5 induced by Dox at 12 h following NE differentiation (T12h; Figures 1C–1F). We next derived dexamethasone (Dex) and Dox double-inducible Wdr5^KO ESCs (Figures S2A and S2B), in order to express WDR5-RbBP5 interaction mutants at similar levels. Dex treatment induced translocation of cytoplasmic WT WDR5 to the nucleus in Wdr5^KO ESCs, which maintained ESC pluripotency and self-renewal (data not shown). Both Dex-induced nuclear WT-WDR5 and Dox-inducible WT-WDR5 supported NE proliferation in Wdr5^KO EBs in monolayer and suspension-based NE differentiation culture conditions (Figures S2C and S2D). However, Dox-induced expression of WDR5-RbBP5-binding mutants, expressed at similar levels (Figure S2B) in Wdr5^KO EBs, showed defective NE differentiation (Figures 1G, S2C, and S2D). Together, we find specific interaction surfaces of WDR5 and RbBP5 are required for Rx⁺ NE differentiation.

Figure 1. WDR5 Induces Rx⁺ Neuroectoderm Differentiation via Its RbBP5 Interaction Surface.

(A and B) WDR5 regulates NE proliferation and differentiation in a dose-dependent manner. WT and WDR5^Dox;Wdr5^KO ESCs were maintained in the Dox-containing ESC media. ESCs were resuspended in SFEBq differentiation (EB day 0) in different concentrations of Dox. Cell proliferation at EB day 4 (A) and Rx-GFP positive NE at EB day 5 (B) were determined.

(C and D) Proliferation and NE differentiation in WDR5^Dox; Wdr5^KO ESCs stably transfected with FLAG-tagged WT or different WDR5 mutants. Upon differentiation, Dox was removed (no Dox) or added back 12 h later (2.0 ug/ml, T12h). Cell proliferation was determined at EB day 4 and relative cell proliferation was normalized to the respective group with Dox as 1.0 (D). Percentage of Rx-GFP⁺ NE cells at EB day 5 was determined by flow cytometry (E).

(E) Effects of WDR5-RbBP5 interaction mutants with or without Dox-induced WT WDR5 rescue on NE differentiation were determined by Rax mRNA qRT-PCR (EB day 6).

(F) WT, but not WDR5-RbBP5 interaction mutant WDR5^Q289E, retained capacity to induce Rax-GFP⁺ NE in Wdr5^KO EBs. Representative day 6 EBs were recorded under microscope using bright field or fluorescence channel. Scale bars: 50 μm.

(G) Expression of Dox-inducible WDR5-RbBP5 interaction mutants was not able to induce Rx-GFP⁺ NE differentiation. WDR5^Dex; Wdr5^KO ESCs (Δ26), maintained in dexamethasone (Dex) containing ES media, which enabled Dex-inducible WDR5 expression to maintain ESC self-renewal, were stably transfected with Dox-inducible forms of various HA-tagged WDR5 mutants. Upon differentiation, Dex was removed and Dox was added 12 h later (2.0 ug/ml, T12h). Percentage of Rx-GFP⁺ NE cells at EB day 7 was determined by flow cytometry.

EV: empty vector backbone control. Data in (A)–(F), (G), (H), and (I) represent mean ± SD (n ≥ 3). **p ≤ 0.01, ***p ≤ 0.001, and ****p ≤ 0.001.

See also Figures S1 and S2.

Timing of WDR5 Expression in ESCs Mediates an NE versus Mesoderm Fate Decision

To determine whether WDR5 exerts time-dependent effects on lineage-specific ESC differentiation, we rescued Wdr5^KO EBs with Dox-inducible WDR5 at consecutive 12-h intervals (Figure 2A). Induction of WDR5 from T12–24h after differentiation (hereafter termed “early void,” “early rescue,” or brief inhibition [of WDR5]) maintained EB proliferation and stimulated NE differentiation (Figures S3A and S3B). However, WDR5 induction at T36–48h after differentiation (hereafter named as “extended void,” “late rescue,” or prolonged inhibition) maintained Wdr5^KO EB growth but impaired NE formation. Unlike WT or early-void groups, virtually all extended-void EBs spontaneously contracted by days 8–9, suggesting cardiogenic mesoderm (MES) differentiation. Time-course qRT-PCR analysis showed induced cardiomyocyte-lineage transcripts in three independent WDR5^Dox;Wdr5^KO ESC lines in extended-void conditions such as Ncad (Honda et al., 2006), cTnT, αMHC, βMHC, and Myocd mRNA (Figures 2B and S3C–S3E). Cardiogenic-lineage-specific proteins such as intracellular N-cadherin, cTnT (CT3), and myosin heavy chain (MF20) were also present (Figure 2C). In contrast, WT and early-void groups showed induction of NE-specific Rx mRNA (Figures 2B and S3D), Moreover, N-cadherin exhibited NE-specific apical localization in WT or Wdr5^KO EBs with Dox-inducible WDR5 in early-void groups (Figure 2C) (Eiraku and Sasai, 2011). Time-course western blotting analyses confirmed expression of exogenous WDR5 protein in Wdr5 knockout (KO) EBs with Dox-inducible early and extended voids (Figure S3F). Cardiogenic MES differentiation was both WDR5 time (Figure 2D) and dose dependent (Figure 2E), indicating that MES induction is specific to WDR5 and not simply a “default” pathway for ESC differentiation. Further, generation of cardiogenic MES was genetically driven by Wdr5 and independent of external cues specific to SFEBq differentiation such as retinoic acid receptor antagonism, or specific lots of matrigel or KO serum replacement (Figure 2F; data not shown). Induction of the MES master transcription factor (TF) T/Brachyury in Wdr5^KO EBs with extended voids (Figure 2F) prompted us to examine whether other MES lineages may form in these conditions. When Wdr5^KO EBs with extended voids were seeded into methylcellulose-based differentiation medium at day 6 or 9 for secondary hematopoietic differentiation (Figure 2G, upper panel), colony-forming units of granulocyte-macrophage progenitor cells (CFU-GM, CFU-G, and CFU-M) arose, which were not observed in Wdr5^KO EBs with early voids (Figure 2G, lower panel; Figures S3G and S3H). These data demonstrate that an extended void in Wdr5^KO EBs stimulates ESCs toward cardiogenic and hematopoietic MES fates. This time-dependent ESC fate transition to MES occurs in SFEBq conditions, which does not contain the exogenous cytokines or fetal calf serum usually required for ESC-derived MES differentiation (Wataya et al., 2008; Eiraku et al., 2008, 2011). These findings demonstrate that the length of time of Wdr5 inhibition, followed by subsequent WDR5 rescue, determines whether ESCs differentiate toward NE versus MES-specific lineages. Since continuous and early voids (T12h) stimulate NE differentiation, and an extended void (T36–48h) promotes cardiogenic or hematopoietic MES formation, we further conclude that EB day 2 (T48h) defines a crucial period of lineage specification during which differentiating ESCs make an NE versus MES fate decision.

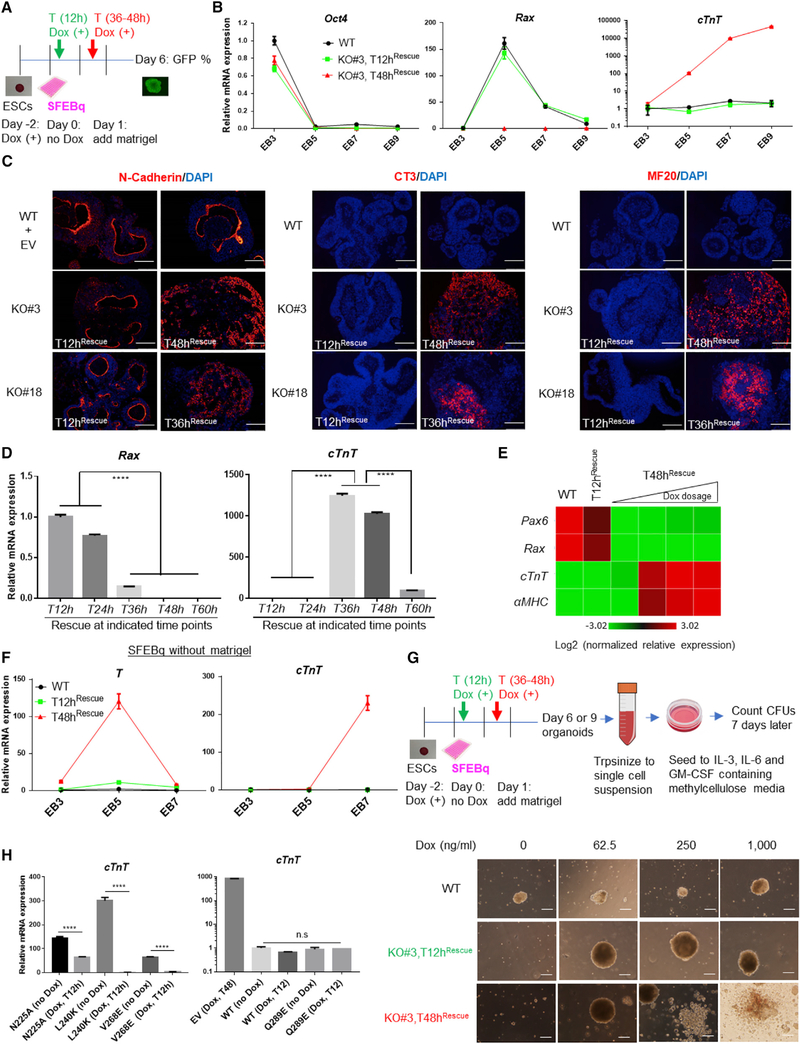

Figure 2. Prolonged Wdr5 Inhibition Triggers Mesoderm Differentiation.

(A) A schematic outline of SFEBq differentiation in WT, and WDR5^Dox;Wdr5^KO ESCs with early or extended void/rescue of Dox-inducible WDR5.

(B) qRT-PCR mRNA analysis of pluripotent (Oct4), NE (Rax/Rx), and cardiac mesoderm (MES) markers (cTnT) during time-course SFEBq differentiation of WT, early (T12h^Rescue) and extended void (T36h or 48h^Rescue)/rescue of WDR5 in Wdr5^KO EBs.

(C) Immunofluorescence staining on day 9 EB sections with neuroepithelial marker (N-cadherin), cardiac specific troponin T (CT3), and sarcomere myosin (MF20) in WT, early and extended void/rescue of WDR5 in mWdr5^KO EBs. DAPI was counterstained for nuclei. Scale bars: 100 μm.

(D) Critical time points for WDR5-mediated Rax/Rx⁺ NE and cardiogenic MES fate choice in Wdr5^KO EBs were determined by Rax and cTnT mRNA expression (EB day 6).

(E) Dose-dependent effects of WDR5 in Wdr5^KO EBs during WDR5 extended void on cardiogenic MES induction (cTnTand αMHC) and NE inhibition (Pax6 and Rax). Samples were collected on EB day 6.

(F) Cardiogenic MES induction by WDR5 extended void is not restricted to specific NE differentiation conditions. WT and Wdr5^KO EBs with WDR5 early or extended void were differentiated using SFEBq methods without Matrigel and Rx-inducing NE differentiation agent AGN. Induction of MES markers T (Brachyury) and cTnT was determined by qRT-PCR.

(G) MES induction by prolonged deletion of Wdr5 leads to hematopoietic differentiation. Upper panel: a schematic description of secondary hematopoietic cell colony-forming unit (CFU) assay using primary differentiating SFEBq organoids as test cells. Lower panel: the representative pictures of resultant secondary EBs and all CFU were presented at day 9 after secondary differentiation. Dox dose for primary differentiation: 2.0 ug/ml. Scale bars: 100 μm.

(H) Effects of WDR5-RbBP5 interaction mutants with or without Dox-inducible WT WDR5 void on cardiogenic MES-specific transcription were determined by cTnT qRT-PCR (EB day 6).

Data in (B), (D), (F), and (I) represent mean ± SD (n ≥ 3). ****p ≤ 0.001.

See also Figure S3.

The WDR5-RbBP5 Interaction Surface Regulates Mesoderm-Related Transcription

We next asked whether the WDR5-RbBP5 interaction surface regulates cardiogenic MES induction. Wdr5^KO EBs expressing constitutive WDR5^{N225A, L240K or V268E} mutants showed ~50û300-fold induction of cTnT mRNA (Figure 2H, left panel). This pro-cardiogenic MES induction effect was inhibited by concomitant rescue of WT WDR5 at T12h (Figure 2H, left panel). However, WDR5^Q289E had similar capacity as WT WDR5 to repress cTnT mRNA upregulation in Wdr5^KO EBs (Figure 2H, right panel). Thus, while the WDR5-RbBP5 interaction promotes NE fates (Figure 1C), it only partially restrains transcription of cardiogenic MES-related genes.

WDR5 Regulates Overlapping and Distinct Direct Target Genes in Divergent Cell Lineages

To identify molecular targets for WDR5 in Rx⁺ NE and cardiogenic MES lineages, we performed RNA sequencing (RNA-seq) from EB day 6 RNA isolated from four groups: WT, Wdr5^KO, Wdr5^KO with early (T12h^Rescue), or extended (T48h^Rescue) void. The majority of differentially expressed transcripts arose, and overlapped (75%–80%; Figure 3A), in WT versus T48h^Rescue (2,758), and T12h^Rescue versus T48^Rescue (2,937) groups (Figure S4A), compared to those of WT versus T12h^Rescue groups (593; Figure S4A). These data indicate that transcriptomes of WT and T12h^Rescue groups were comparable and harbored RNA profiles distinct from T48h^Rescue and Wdr5^KO groups (Figure S4B). Gene Ontology (GO) themes in the T12h^Rescue group included NE development, while those of the T48h^Rescue group emphasized MES specification (Figure 3B). RNA-seq analysis indicated that trophectoderm markers (Cdx2 and Gata3) and endoderm markers (Gata4 and Gata6) were upregulated in T48h^Rescue group (data not shown). Time-course qRT-PCR analysis showed that Cdx2 and Gata3 mRNA were transiently upregulated in T36–48h^Rescue groups during differentiation, to a greater degree than in the WT and T12h^Rescue groups (Figure 3C; data not shown), consistent with a previous report (Ang et al., 2011). However, the lack of concomitant endoderm-specific Foxa2 upregulation suggested that Gata4 upregulation suggests formation of lateral mesoderm rather than endoderm in T36–48h^Rescue groups (Figure 3C) (Rojas et al., 2005).

Figure 3. Early and Extended Void of WDR5 in Wdr5^KO EBs Activates Overlapping and Distinct Lineage-Determination Target Genes.

(A) Venn diagram of differentially expressed genes among groups for WT, Wdr5^KO with WDR5 early (T12h^Rescue), or extended void (T48h^Rescue) EBs (day 6).

(B) GO and heatmap clustering analysis of differentially expressed genes in day 6 Wdr5^KO EBs with early (T12h^Rescue) versus extended (T48h^Rescue) void of WDR5.

(C) Validation of RNA-seq data by qRT-PCR analysis of markers for trophectoderm (Cdx2 and Gata3) and endoderm (Gata4 and Foxa2) in WT or Wdr5^KO EBs with early or extended WDR5 void during time-course SFEBq differentiation.

(D) Metaprofiles (upper panels) and heatmaps (lower panels) of HA-WDR5 ChIP-seq signals demonstrating overlapping and distinct WDR5 bound peaks in day 6 Wdr5^KO EBs with T12h^Rescue and T48h^Rescue settings using all peaks existing in the T12h^Rescue group (left panel) or T48h^Rescue group (right panel) as reference, respectively.

(E) Heatmap demonstrating WDR5 direct target genes in day 6 Wdr5^KO EBs with T12h^Rescue and T48h^Rescue groups.

See also Figure S4.

To define direct target genes of WDR5 in NE and MES lineages, we performed HA-WDR5 chromatin immunoprecipitation sequencing (ChIP-seq) in Wdr5^KO EBs with T12h^Rescue and T48h^Rescue at EB day 6. We found that in both groups, WDR5 bound to intergenic, intron, and promoter regions (Figure S4C). Using peak centers of HA-WDR5-bound targets in the T12h^Rescue or T48h^Rescue group (Figure 3D) as references, we found that WDR5 bound both overlapping and distinct targets. In both NE organoids and MES-enriched EBs, we identified distinct de novo and known WDR5 target DNA motifs, including consensus sites shared with c-MYC, consistent with a previous report (Figure S4D) (Thomas et al., 2015). Integration of ChIP-seq with RNA-seq datasets revealed WDR5-bound targets that were associated with >2-fold differential gene expression (Figure S4E). Such WDR5 direct target genes in the T12h^Rescue group (123 genes: 76 and 47 genes down- and upregulated, respectively) included NE-related genes such as Sox2, Nestin, Sfrp2, and others (Figures 3E and S4E). In the T48h^Rescue group (45 genes: 25 and 20 genes down- and upregulated, respectively), these included MES-associated genes such as Pabpc4l, Nr3c1, Egln3, and others (Figures 3E and S4E). 22 direct WDR5 target genes (10 and 12 genes down- and upregulated, respectively) overlapped in both the NE and MES lineages, including Efcab12, Esrrb, Brn2, and 8 RP genes such as Rpl5 and Rpl37 (Figure S4E). These data show that WDR5 targets both overlapping and distinct genes in NE organoids and MES-enriched EBs.

WDR5 Regulates Target Gene Expression with Dynamic Chromatin Accessibility during ESC Lineage Specification

WDR5 is a core member of the MLL chromatin-modifying complex and is essential for H3K4me3 formation (Figure S1H) (Dou et al., 2006; Rao and Dou, 2015). Having established that WDR5 regulates differentiation of Rx⁺ NE and cardiogenic MES lineages at EB day 6, we sought to understand chromatin-related events that precede the formation of these distinct lineages, in WT EBs and immediately before T48h^Rescue in Wdr5^KO EBs, during the lineage specification period (EB day 2). RNA-seq analyses at EB day 2 revealed that ~60% of differentially expressed genes were downregulated in Wdr5^KO EBs (Figure 4A). We used CUT&RUN (cleavage under targets and release using nuclease sequencing) to define the genomic targets of WDR5 and H3K4me3 in WT and Wdr5^KO EBs at day 2 (Figure 4B) (Meers et al., 2019). H3K4me3 at WT WDR5-bound chromatin targets were reduced in Wdr5^KO EBs (Figure 4C). Genome-wide integration of WDR5-bound peaks from CUT&RUN with transcripts from RNA-seq data elucidated direct WDR5 target genes during EB day 2 lineage specification (Figure 4D). In Wdr5^KO EBs, we detected 33 WDR5 direct target genes. Of 33 genes, 20 were downregulated including Rpl29 and E2f3, which are genes essential for NE proliferation or differentiation while 13 genes were upregulated including Nodal, which is required for MES specification. Interestingly, differentially expressed transcripts of WDR5 direct target genes in day 2 WT and Wdr5^KO EBs overlapped with those of day 6 WT and Wdr5^KO EBs (Figure S5A).

Figure 4. Prolonged Inhibition of Wdr5 Leads to Dysregulated Target Gene Expression during mESC Lineage Specification.

(A) Volcano plots of down- and upregulated genes upon prolonged Wdr5 deletion (EB day 2) determined by RNA-seq. ≥ 2-fold higher or lower differentially expressed genes are colored red and blue, respectively. KO-A and KO-B represents EBs differentiating from two independent Wdr5^KO ESC clones.

(B) Heatmaps showing WDR5 and H3K4Me3 DNA binding peaks determined by CUT&RUN sequencing. WDR5-bound peaks in WT EBs that decreased due to Wdr5 deletion in day 2 EBs (Wdr5^KO;p53^KO DKO cells; see below) were called for H3K4Me3 peaks in WT and Wdr5^KO EBs at same time point (day 2).

(C) Metaprofiles comparing mean RPKM of H3K4Me3 peaks centered on WDR5-bound loci (WT) in day 2 WT and Wdr5^KO EBs.

(D) Heatmap displaying differential mRNA expression of WDR5 target genes upon prolonged Wdr5 deletion (EB day 2).

(E) Track views of ATAC-seq peak dynamics for a representative NE gene (Rax) and a cardiac MES gene (cTnT) in WT, Wdr5^KO EBs with T12h and T48h WDR5 void during time-course differentiation. The y axes were set as the same scale by group autoscale in Integrative Genomics Viewer.

(F) Metaprofiles showing correlation of ATAC-seq peaks with H3K4Me3 CUT&RUN sequencing peaks for day 2 WT and Wdr5^KO EBs. Genome-wide H3K4Me3 peaks lost by Wdr5 prolonged deletion were furtherly called for ATAC-seq change.

(G) GO analysis of closing and opening peaks by ATAC-seq analysis in Wdr5^KO EBs at day 2.

See also Figure S5.

As Wdr5 deletion led to both down- and upregulated direct target genes, we posited that WDR5-mediated canonical (transcriptional activation) and non-canonical H3K4me3 (transcriptional repression) chromatin mechanisms contribute to WDR5-mediated target gene regulation (Zhang et al., 2016). To this end, we performed ATAC-seq to determine whether WDR5 regulates “open and closed” chromatin accessibility regions at NE and MES lineage-identity genes. Genome-wide analyses revealed that genes with loss of H3K4me3 mark correlated, to some extent, with reduced chromatin accessibility in day 2 Wdr5^KO EBs (Figure 4F). We observed increased (“open”) chromatin accessibility at the NE-specific gene Rx transcription start site (TSS) region as early as EB day 4 in WT and T12h^Rescue groups, indicating proper NE specification (Figure 4E). In contrast, chromatin accessibility at the Rx TSS region remained inaccessible (“closed”) during the day 2–6 differentiation period in Wdr5^KO EBs with the T48h^Rescue group. For the MES-specific gene cTnT/Tnnt2, opening peaks were observed at its TSS in Wdr5^KO EBs with T48h^Rescue until EB day 6 differentiation, but not in WT and T12h^Rescue groups (Figure 4E).

We next sought to gain insights into WDR5-dependent, chromatin accessibility during lineage specification (EB day 2). Decreased chromatin accessibility in Wdr5^KO EBs at day 2 was associated with NE-pathways (Figures 4G and S5B) and motif analysis of those closing peaks correlated with the NE master regulator SOX1 (Figure S5C). Increased chromatin accessibility in Wdr5^KO EBs at day 2 was associated with Hippo, Wnt, and p53-signaling pathways (Figures 4G and S5B) and motif analysis of those open peaks correlated with transcription factor NF-YB and YY1 (Figure S5C). Indeed, activation of p53 and Wnt signaling pathways, and the transcription factor YY1, have been previously reported to promote MES differentiation (Wang et al., 2017; Gregoire et al., 2017). Hyperactivation of the Hippo pathway and overexpression of YAP impairs neural differentiation in mESCs (Lian et al., 2010), which is consistent with defective NE differentiation in Wdr5^KO EBs. Collectively, these data show that prolonged Wdr5 inactivation triggers alterations in chromatin accessibility and target gene expression that are permissive for MES differentiation and repressive for NE induction.

p53 Signaling Contributes to the NE versus Cardiogenic MES Cell Fate Decision

p53 signaling emerged as a common theme in GO analyses of opening peaks in ATAC-seq (Figure 4G) and of RNA-seq in Wdr5^KO EBs at days 2 and 6, respectively (Figures 4G and S5D). Indeed, the p53 direct target gene Cdkn1a mRNA in Wdr5^KO EBs was upregulated at days 2 and 3 (Figure 6C). To test whether p53 activation regulates Wdr5-mediated NE and MES fate choice, we edited p53 via CRISPR-Cas9 to derive WDR5^Dox;Wdr5^KO Rx-GFP ESC lines (Figures S6A and S6B). p53 and Wdr5 double-knockout (DKO) EBs showed reduced expression of p53 direct target genes Cdkn1a and Bax (Figures 6C and S6C). While p53 deletion rescued cell proliferation defects in Wdr5^KO EBs at EB day 4 (Figure 5A), neither Rx⁺ NE nor cardiogenic MES arose from DKO EBs (Figure 5B; data not shown), suggesting that p53 harbors proliferation-independent effects on cell fate.

Figure 6. WDR5 Regulates p53-Dependent Gene Regulation during ESC Specification.

(A) Metaprofiles for ATAC-seq chromatin accessibility in closing (left panel) and opening (right panel) peaks in day 2 Wdr5^KO EBs partially rescued by p53 deletion.

(B) Boxplots for downregulated (left panel) and upregulated (right panel) genes from RNA-seq show that transcriptional defects in day 2 Wdr5^KO EBs (versus WT) are partially rescued by p53 deletion. For downregulated genes, WT versus KO-A or KO-B: p = 2.2e–16. KO-A versus KO-A derived DKO-A: p = 0.009. KO-B versus KO-B derived DKO-B: p = 2.2e–16. For upregulated genes, WT versus KO-A or KO-B: p = 2.2e–16. KO-A versus KO-A derived DKO-A: p = 2.2e–16. KO-B versus KO-B derived DKO-B: p = 2.2e–16.

(C) qRT-PCR validation of partially rescued genes E2f3 and Cdkn1a in day 2 or day 3 Wdr5^KO EBs by p53 deletion. Data represent mean ± SD (n ≥ 3). **p ≤ 0.01 and ***p ≤ 0.001.

(D) Metaprofiles displaying H3K4Me3 peaks centered at WDR5-bound loci (WT) were reduced in day 2 Wdr5^KO EBs, but were partially reversed (rescued) by p53 deletion (DKO EBs).

Figure 5. p53 Deletion Represses Cardiogenic MES Induction Linked to Extended Wdr5 Inhibition and Partially Rescues NE Differentiation.

(A) Cell proliferation in day 4 Wdr5^KO and DKO EBs with or without WDR5 void.

(B) NE differentiation in WT, Wdr5^KO, and DKO EBs without WDR5 void (no Dox), or with early (Dox, T12h) or extended (Dox, T44h) WDR5 void, was determined by flow cytometry for Rx(+)-GFP cells at day 6.

(C) Rx⁺ NE differentiation by early WDR5 void in DKO EBs is WDR5 dose-dependent. Samples were analyzed at EB day 6.

(D) Representative images (EB day 7) of Rx⁺ NE and cardiogenic MES fate choice in WT, Wdr5^KO, and DKO EBs with early or extended WDR5 void. Scale bars: 50 μm.

(E) qRT-PCR analysis of NE (Rax/Rx and Pax6) and MES (cTnT) specific markers in WT, Wdr5^KO, and DKO EBs with early or extended WDR5 void. Samples were collected on EB day 10.

(F) Metaprofiles and heatmaps of ATAC-seq closing and opening peaks in WT, Wdr5^KO, and DKO EBs with early or extended WDR5 void. Samples were analyzed at EB day 6.

Data in (A)–(C) and (E) represent mean ± SD (n ≥ 3). ****p ≤ 0.001.

See also Figure S6.

Next, we added Dox (WDR5 rescue) to DKO EBs at T12h or T36–48h, which allowed us to determine whether p53 regulates WDR5-driven NE versus MES fate choice. Similar to Wdr5^KO EBs, early void (Dox, T12h) in DKO EBs stimulated Rx⁺ NE differentiation (Figures 5B and 5D; Videos S1, S3, and S5). Rx⁺ NE induction was WDR5 dose dependent (Figure 5C). Notably, unlike Wdr5^KO EBs with an extended void, which induces cardiogenic MES differentiation (Figure 5E; Video S4), DKO EBs with extended voids (Dox, T36–48h) did not form cardiogenic MES (Figure 5E; Video S6). Instead, Rx⁺ NE differentiation occurred (Figures 5B, 5D, 5E, and S6D). Corroborating these findings, EB day 6 ATAC-seq analyses revealed that NE-specific, open, unique peaks (chromatin accessible regions) in WT EBs that had closed (reduced chromatin accessibility) in Wdr5^KO EBs with T48h^Rescue were restored to an open state in DKO EBs (Figure 5F). Similarly, unique, opening peaks associated with MES specification in Wdr5^KO EBs with T48h^Rescue had closed in DKO EBs (Figure 5F). Thus, p53 controls the cardiogenic MES versus Rx⁺ NE fate choice in Wdr5^KO EBs.

WDR5 Regulates p53-Dependent Chromatin Accessibility, Histone Methylation, and Transcription during ESC Lineage Specification

Next, we wondered whether WDR5 and p53 regulate common target genes during ESC lineage specification. We compared EB day 2 ATAC-seq chromatin accessibility profiles of control (Wdr5^KO with T12h^Rescue), Wdr5^KO, and DKO EBs. p53 deletion reversed closed peaks observed in day 2 Wdr5^KO EBs (increased chromatin accessibility at regions of previously decreased accessibility) when compared to control (Figure 6A). Compared to the T12h^Rescue group, opening peaks in Wdr5^KO EBs modestly reverted (“closed”) upon p53 deletion (Figure 6A).

To determine whether the above changes in chromatin accessibility lead to transcriptional changes, RNA-seq was performed on day 2 WT, Wdr5^KO, or DKO EBs from two independent ESC lines. Among 736 downregulated genes in Wdr5^KO EBs, 63% (464) of the genes were rescued by p53 deletion in DKO EBs (Figures S6E, 6B, and 6C). Among these genes, Bcl2l14 is a direct p53 target gene and downregulation or mutation of genes including Fras1, Thy1, Meis1, and Vax2OS has been reported in NE defects including eye development, which is consistent with phenotypes observed later in day 6 Wdr5^KO EBs (Figure 1B). Among 440 upregulated genes in Wdr5^KO EBs, 60% (262) of the genes were rescued by p53 deletion in DKO EBs (Figures 6B and S6E). Among these genes, Cdkn1a is a known p53 target gene (Figure 6C) and Wnt3 is a p53 direct target that in ESCs promotes MES differentiation (Wang et al., 2017). Genes essential for MES specification such as Mesp2, Lefty1, Nodal, or Pitx2 were upregulated in Wdr5^KO EBs but were repressed by p53 deletion in DKO EBs. Interestingly, reduced H3K4me3 at WT WDR5-bound peaks in Wdr5^KO EBs was partially rescued by p53 deletion (Figure 6D). Thus, WDR5 regulates p53-dependent chromatin accessibility, H3K4me3, and transcription during ESC specification.

WDR5 Regulates p53 Protein Stability and Directly Interacts with p53 during ESC Specification

Next, we sought to explore the mechanism(s) by which WDR5 regulates p53. We found that Wdr5 extended void did not alter p53 transcripts (Figure 7A) (Sun et al., 2015; Xie et al., 2017). We noticed that ChIP-seq peaks representing WDR5 bound to RP genes were overrepresented (Figures S4E and S7A; data not shown). Downregulation of a subset of RP genes was confirmed by RNA-seq (Figure S7B). It is known that reduced RP gene transcription triggers defects in ribosome biogenesis, which upregulates p53 activity via MDM2 inhibition (RP-MDM2-p53 pathway) (Liu et al., 2016). Wdr5 deletion (EB day 2) and an extended void (EB day 6) led to downregulation of WDR5-bound RP genes including Rpl5, Rpl24, and Rpl29 (Figures 7B, 7C, and S7A). These data suggest that p53 activation due to Wdr5 deletion can be, in part, due to perturbation of WDR5-bound, RP target genes.

Figure 7. WDR5 Controls Posttranscriptional Regulation of p53 and Directly Interacts with p53 during ESC Lineage Specification.

(A) qRT-PCR analysis of p53 mRNA in WT and Wdr5^KO EBs at days 2 and 3.

(B) Track views of WDR5-bound peaks at TSS regions of Rpl5 and Rpl29 gene in day 2 WT and DKO EBs determined by CUT&RUN sequencing. The y axes were set as the same scale by group autoscale in Integrative Genomics Viewer.

(C) qRT-PCR validation of mRNA expression of ribosomal protein (RP) genes in day 2 WT and Wdr5^KO EBs.

(D) Western blot showing p53 levels in day 2 WT and Wdr5^KO EBs treated with cycloheximide (CHX, 50 μg/ml) for different time points. Right panel: quantification of p53 levels relative to loading control β-actin. Relative p53 level at time 0 of each group was set as 1.0.

(E) Physical interaction of endogenous WDR5 and p53 determined by immunoprecipitation (IP). EB day 2 WT and DKO cell lysates were precipitated with p53 antibody. IP elutions were probed with WDR5 and p53 antibodies, respectively. β-actin served as input loading control.

(F) Heatmaps showing p53-bound peaks determined by CUT&RUN sequencing on day 2 WT and DKO EBs.

(G) Track views of WDR5 and p53 co-bound peaks at the TSS region of Rap2b gene in day 2 WT and DKO EBs, as determined by CUT&RUN. The y axes were set as the same scale by group autoscale in Integrative Genomics Viewer.

(H) qRT-PCR showing upregulation of Rap2b mRNA in day 2 Wdr5^KO EBs and partial rescue (downregulation) of Rap2b transcription due to p53 deletion. Data in (A), (C), and (H) represent mean ± SD (n ≥ 3). **p ≤ 0.05, **p ≤ 0.01, ***p ≤ 0.001, and ****p ≤ 0.001.

See also Figure S7.

While p53 transcripts during lineage specification of WT and Wdr5^KO EBs were comparable (Figure 7A), Wdr5^KO EBs harbored elevated p53 protein levels (Figure 7D). We treated WT and Wdr5^KO EBs with the protein translation inhibitor cycloheximide (CHX), which showed that p53 stability was enhanced in Wdr5^KO EBs (Figure 7D). How does WDR5 regulate p53 stability? Post-translational modifications (PTMs) such as serine (S), phosphorylation (p), and lysine (K) acetylation (Ac) stabilize p53 (Hafner et al., 2019). Indeed, we found that Wdr5 deletion in Wdr5^KO EBs increased p53 PTMs at p-p53^S15, p-p53^S392, Ac-p53^K305, and Ac-p53^K379; WDR5 rescue reduced these PTMs (Figure S7C). Moreover, using immunofluorescence, we observed that prolonged deletion of Wdr5 led to increased nuclear p53 (Figures S7D and S7E). Together, Wdr5 deletion triggers PTMs that stabilize p53 and increase nuclear p53 activity, as evidenced by enhanced p53 stability and increased transcription of p53 direct target genes (Figure 6C).

Finally, by immunoprecipitation, we found that endogenous WDR5 and p53 physically interact during ESC specification (Figure 7E). We performed p53 CUT&RUN at EB day 2 and integrated the data with that of WDR5 CUT&RUN at EB day 2 (Figure 7F). We found co-recruitment of WDR5 and p53 to Rap2b, Irf2bp2, and Sox2 (Figure 7G). qRT-PCR confirmed that these direct, joint target genes displayed differential mRNA expression in WT and Wdr5^KO EBs, and that p53 deletion partially rescued defective transcription of these genes in Wdr5^KO EBs (Figures 7H and S7F). Notably, Rap2b and Irf2bp2 are known direct targets of p53; these genes regulate cell proliferation (Zhang et al., 2013; Koeppel et al., 2009). p53 CUT&RUN of WT EBs at day 2 revealed that p53-bound motifs at target loci are shared with motifs bound by pro-MES TF NKX2.5 (data not shown). Thus, WDR5 directly interacts with p53 and regulates p53 activity via direct and indirect PTMs during ESC specification.

DISCUSSION

Transcription factors expressed at a particular time and location, and at proper magnitude during development, have traditionally been the focus of studies of cell fate determination. In contrast, our study, using an ESC-to-organoid platform, unmasks time-dependent roles for the ubiquitous epigenetic protein and TF, WDR5 and p53, respectively, to control ESC fate choice.

Several WDR5-driven mechanisms regulate ESC differentiation. First, specific interaction sites that mediate WDR5-RbBP5 binding are required for NE differentiation. Second, WDR5 regulates p53 stability. WDR5 targets and transcriptionally activates a subset of RP genes. Wdr5 deletion leads to reduced transcription of these RP genes, triggering p53 activation via RP-MDM2-p53 pathway and to PTMs that increase p53 stability. Indeed, while this work was under review, a report independently confirmed our findings, which showed that RP genes are direct WDR5 targets and that WDR5 inhibition triggers p53 upregulation via the RP-MDM2-p53 pathway in leukemia cells (Aho et al., 2019). Third, during lineage specification, Wdr5 deletion derepresses the WDR5 direct target gene and MES TF Nodal; induced p53 activation from Wdr5 loss promotes MES lineage specification. p53 targets motifs on loci shared with another MES TF NKX2.5 (data not shown). Thus, WDR5 suppresses cardiogenic MES and promotes NE-specific chromatin accessibility, transcription, and cell fate in a p53-dependent manner. Indeed, impaired H3K4me3 deposition, chromatin accessibility, transcription, and NE specification in Wdr5^KO EBs are partially rescued when p53 is concurrently deleted. Finally, WDR5 directly interacts with p53 and both are recruited to target genes related to NE fate (Sox2) and cell proliferation (Rap2b and Irf2bp2).

Given that RbBP5, MYC, or KANSL2 bind to the same WDR5 interaction surface in mutually exclusive manner, a central role for this binding surface on WDR5 on the regulation of NE fate is supported from RbBP5 and MYC loss-of-function assays from our study and others (Thomas et al., 2015). RbBP5 depletion in ESCs leads to NE differentiation defects and deletion of c/n-Myc inhibits NE fates from mESCs (Jiang et al., 2011; Smith et al., 2010). Since we observed enrichment of MYC-associated DNA motifs at WDR5 direct targets in NE-lineage cells at EB day 6, the interplay of WDR5, RbBP5, and MYC on chromatin to regulate NE lineage-identity genes warrants further study.

p53 family members have been shown to regulate NE versus MES cell fate choice during development. In Xenopus, p53 promotes MES via an interaction with XFDL156, which represses ectoderm formation (Sasai et al., 2008). In mESCs, p53/p63/p73 contribute to MES differentiation by integration of WNT-TCF and Nodal-SMAD signaling (Wang et al., 2017). Indeed, we show that during prolonged Wdr5 inhibition, p53 deletion partially rescues Rx⁺ NE fate and inhibits cardiogenic MES differentiation. In the context of WDR5-dependent regulation, p63 and p73 do not appear to share redundant functions with p53, as p53 deletion alone is sufficient to stimulate NE and repress MES. Interestingly, p53-associated human syndromes and analogous mouse models feature p53 hyperactivation and NE defects (Bowen and Attardi, 2019; Bowen et al., 2019; Van Nostrand et al., 2014). Importantly, many of the p53-dependent, embryonic NE defects can be partially rescued by p53 deletion, similar to our work (Bowen et al., 2019; Van Nostrand et al., 2014). Still, whether our ESC-based study on the WDR5-p53 cell fate pathway relates to altered developmental events in vivo remains unknown.

Several pieces of evidence suggest that an instructive mechanism contributes to the WDR5-p53 cell fate pathway during lineage specification. First, Wdr5 deletion during a narrow time window (36–48 h after ESC exit from pluripotency) stimulates cardiogenic MES induction, highlighting that a short, 12-h “pulse” of Wdr5 inhibition initiates MES differentiation. Second, cell proliferation rates did not significantly differ in WT WDR5, Wdr5^KO, or DKO EBs that undergo WDR5 rescue at 36–48 h, and which differentiate to Rx⁺ NE, cardiogenic MES, or Rx⁺ NE, respectively. Third, despite rescue of impaired cell proliferation in Wdr5^KO EBs expressing mutant WDR5^L240K, ^N225A, ^V268E by WT WDR5, the cardiogenic MES fate is maintained. Fourth, prolonged Wdr5 inhibition rapidly triggers upregulation of a subset of genes permissive for MES induction. Notably, Wnt3 is a key p53 direct target gene that promotes MES fate specification from ESCs (Wang et al., 2017). Further, we found that WDR5 directly binds the MES master regulator Nodal, and that Nodal is rapidly derepressed within 36–48 h of Wdr5 loss during ESC specification. These findings further support an instructive role for WDR5-mediated cardiogenic MES induction (Kitajima et al., 2000).

Here, we define a physical interaction between WDR5 and p53 and find that they jointly bind and regulate common target genes related to cell proliferation (Rap2b and Irf2bp2) and NE fate (Sox2). Whether co-recruitment of WDR5 and p53 “draws” these directly interacting proteins away from other known canonical or non-canonical partners with which WDR5 and p53 interact individually, allowing for transcription of NE genes and suppression of non-NE genes, is a concept that ought to be explored in future studies. Further, it will be important to determine the function of WDR5-p53 protein-protein interaction in p53-associated human syndromes that feature congenital NE defects (Bowen and Attardi, 2019; Van Nostrand et al., 2014; Bowen et al., 2019). Finally, our work informs future translational studies that investigate potential off-target/teratogenic effects of WDR5 inhibitors used for WT and mutant p53-associated cancers, a field that has attracted a $1 billion investment by industry (AP, 2019).

STAR★METHODS

Detailed methods are provided in the online version of this paper and include the following:

LEAD CONTACT AND MATERIALS AVAILABILITY

Please direct any requests for further information or regents generated in current manuscript to the lead contact, Dr. Rajesh C. Rao, MD (rajeshr@umich.edu). All plasmids and ESC cell lines generated are shared for research and educational purposes under Materials Transfer Agreement.

EXPERIMENTAL MODEL AND SUBJECT DETAILS

Cell Lines

Rx:GFP K/I EB5 mouse ESCs, a subline of mouse embryonic stem cell line, EB5 (129/Ola), in which GFP gene is knocked-in under Rax gene promoter, was ordered from RIKEN Cell Bank (Ibaraki, Japan) (Wataya et al., 2008). Rx:GFP ESCs were maintained in leukemia inhibitory factor (LIF, ESG1107, Millipore) containing ES media [GMEM supplemented with 2.5 glutamine (GIBCO), 10% knockout serum replacement, KSR (GIBCO), 1% ES qualified fetal calf serum (FCS), 1 mM sodium pyruvate (Sigma), 0.1 mM non-essential amino acid (Sigma) and 0.1 mM of 2-mercaptoethnal (Sigma)].

METHOD DETAILS

ESC Maintenance and Induced Differentiation

Rx:GFP ESCs were routinely maintained at 37°C, 5% CO2 in ESC media in the presence of 2,000 IU/ml LIF. Induced differentiation to Rax (+) neuroectoderm via 3D (serum-free culture of embryoid-body-like aggregate with quick reaggregation, SFEBq) organoid methods was following a protocol as described previously. Briefly, 5,000 cells were re-suspended in 100 μl of GMEM based differentiation media supplemented with 5% KSR, 1 mM sodium pyruvate, 0.1 mM non-essential amino acid and 0.1 mM of 2-mercaptoethnal and 0.1 μM of retinoic acid receptor antagonist AGN 193109 Sodium Salt (AGN, Santa Cruz) and seeded on each well of 96U ultralow attachment plate (ThermoFisher Scientific) on day 0. On day 1, 50 μl of 2% Matrigel solution (v/v, Corning) was added to embryonic body (EB) suspension. NE differentiation was sustained in 96U plate for 6 to 9 days and differentiation efficiency was monitored by GFP via fluorescent microscopy (OLYPUS IX73) and flow cytometry (BD LSR II). For differentiation of ESCs using SFEBq method without matrigel and AGN, 5,000 cells were re-suspended in 150 μl of GMEM based differentiation media with 10% KSR as described elsewhere (Kamiya et al., 2011). For secondary hematopoietic cell differentiation, day 6 or 9 SFEBq organoids were re-suspended and trypsinized to single cell suspension. 1×10⁵ cells were seeded to methylcellulose based semisolid media M3234 (Stem Cell Technologies) in the presence of IL-3 (10ng/ml), SCF (10ng/ml) and GM-CSF (10ng/ml). After 9 days of differentiation, resultant colony forming units (CFU) were counted under microscope (OLYPUS IX73). For NE differentiation under adherent monolayer condition, we followed a protocol as described elsewhere (Ying et al., 2003).

Plasmids and ESC Transfection

Plasmids including pPBCAG-rtTM2-IN, transposase and Doxcycline (Dox) inducible PiggyBac pPBhCMV1cHApA were kindly provided by Dr. Hitoshi Niwa (Kumamoto University, Japan). WT or mutant forms of WDR5 (F133Y, N225A, L240K, V268E, Q289E and I305V) with Flag or HA tags were subcloned into to Dox inducible pPBhCMV1cHApA plasmid, all-in-one Dox inducible Piggybac TREG/Tet3G (subcloning from Addgene #97421 plasmid by removing dCas9 and APEX2 cassettes), or non-inducible PiggyBac plasmid (Addgene, #48754). For Dexamethasone inducible WT-WDR5 plasmid, glucocorticoid receptor ligand binding domain (GRBD) was amplified using PCR from pPyCAG-cGR-IP plasmid (catalog #RDB10440, RIKEN) and Flag-WDR5 and GRBD inframe infusion DNAs were subcloned to non-inducible Piggybac plasmid. For mESC transfection, 20 μg endotoxins free plasmid DNA was electroporated to 5×10⁶ ESCs using mouse ES cell nucleofector® kit (Lonza). Antibiotics resistance ESC colonies were selected for 5 days and pooled or single cell derived clones were picked for further characterization. To generate CRISPR-Cas9 mediated Wdr5 knockout (KO) plasmid, Wdr5 guide RNA sequence (TGTGAAGTTCAGCCCCAATG) was sub-cloned into pSpCas9(BB)-2A-Puro (PX459) V2.0 plasmid (Addgene, #62988). To generate Wdr5 KO ESC clones harboring with Dox inducible exogenous human WT WDR5 rescue platform (WDR5^Dox;Wdr5^KO) or Dex inducible exogenous human WT WDR5 rescue platform (WDR5^Dex; Wdr5^KO), Dox or Dex inducible WDR5 pooled ESC population were subjected to 2^nd round of transfection with Wdr5 KO plasmid and selected with puromycin (2 μg/ml) in the presence of Dox (2 μg/ml) or Dex (20 μM). Single cell derived ES clones were picked up, expanded, and maintained in presence of Dox or Dex. Sanger sequencing was used to determine DNA editing at expected sites with homozygous Indel mutations with frameshift will be selected and confirmed with western blotting to use as Wdr5 KO ESC clones. To generate CRISPR-Cas9 mediated p53 KO plasmids, two independent p53 guide RNA sequences AAAATGTCTCCTGGCTCAGA or ATAAGCCTGAAAATGTCTCC were sub-cloned into pSpCas9(BB)-2A-Hygro (PX459) V2.0 plasmid. Two independent WDR5^Dox;Wdr5^KO ESC lines were transfected with p53 KO plasmids and selected with 200 ug/ml hygromycin in the absence of Dox (2 ug/ml). Single cell clones were picked up and Wdr5 plus p53 double knockout (DKO) ESCs were confirmed with DNA Sanger sequencing for homozygous frameshift mutation and western blotting.

RNA Isolation, Reverse Transcription, and Quantitative Real-Time PCR (RT-qPCR)

Trizol reagent (ThermoFisher Scientific) and RNeasy mini kit (QIAGEN) were utilized for RNA isolation from ESCs or EBs. 1.0 μg total RNA was reversely transcribed to cDNA using high-capacity RNA-to-cDNA kit (ThermoFisher Scientific). RT-qPCR was performed using iQ SYBR green supermix (Bio-Rad). Gapdh, β-actin was used as internal control for normalization. Primer sequences for real-time PCR were available upon request. Data were automatically analyzed using Bio-Rad CFX manager software using ΔΔCt method.

Whole-Cell Lysate Preparation, Histone Extraction, Western Blotting, and Immunoprecipitation

ESCs or EBs were lysed with RIPA buffer (Pierce) in the presence of EDTA free protease inhibitor cocktail (Sigma). Histone extraction on EBs was performed using a histone extraction kit (Abcam) as described previously (Khan et al., 2015). Protein concentration was determined using Pierce BCA protein assay kit (ThermoFisher Scientific). 1.0 μg of histone extracts, or 10 μg of whole cell lysate was resolved on 4%–20% precast gel (Bio-Rad) was transferred to 0.45 μm PVDF membrane (Millipore). For immunoprecipitation, day 2 WT and Wdr5^KO EBs were harvested and lysed in RIPA buffer with EDTA free protease inhibitor cocktail (Sigma). 1 mg sonicated cell lysates were subjected to immunoprecipitation using WDR5 antibody (Bethyl). The following primary antibodies were used for probing: anti-HA (1:10,000, Abcam, ab9110), anti-WDR5 (1:5000, R&D), anti-WDR5 (1:5,000, Bethyl), anti-Flag (1:2,000, Sigma), anti-H3 (1:10,000, Abcam), anti-H3K4Me1 (1:5,000, Millipore), anti-H3K4Me2 (1:10,000, Millipore), anti-H3K4Me3 (1:10,000, Abcam), anti-P53 (1:5,000, Cell Signaling), anti-Tubulin (1:10,000, Cell signaling), anti-β-Actin (1:10,000, Cell signaling), anti-Phospho-p53 (Ser15) Antibody (1:5,000, Cell Signaling), anti-Phospho-p53 (Ser392) Antibody (1:5,000, Abcam), anti-Acetyl-p53 (K305) Antibody (1:5,000, Abcam), anti-Actyl-p53 (K379) Antibody (1:5,000, Cell Signaling).

Immunohistochemistry, Cytospin, and Immunofluorescence Staining

Day 9 EBs were harvested and fixed with 4% paraformaldehyde at 4°C overnight. EBs were sent to ULAM (Unit for laboratory animal medicine) at University of Michigan for paraffin processing, embedding, and sectioning. Antigen unmasking on slides was using citric acid methods as prescribed previously (Gage and Camper, 1997). Immunostaining was performed by combining of VectaStain ABC-HRP kit (Vector laboratories) and TSA Kit #24, with HRP-Streptavidin and Alexa Fluor 568 Tyramide (ThermoFisher Scientific). The primary antibodies were used for staining: anti-N-cadherin (mouse/monoclonal/1:2000, BD), anti- cardiac troponin T (CT3 clone, mouse/monoclonal/1:100, Developmental Studies Hybridoma Bank) and anti-myosin heavy chain antibody (MF20 clone, mouse/monoclonal/1:100, Developmental Studies Hybridoma Bank). For cytospin, Day 2 WT and Wdr5^KO EBs were harvested and trypsinized to single cell suspension. Cells were attached to EZ cytofunnels (ThermoFisher) slides using Cytospin 3 (Shandon). Cells were fixed with 100% methanol and immunostaining was performed using p53 antibody (NCL-L-P53-CM5P, Leica biosystems) at 1:100 dilution. Counter nuclear staining was performed with DAPI (Molecular Probes). Control sections were incubated without primary antibodies. 4 representative pictures from different field were recorded under fluorescence microscope (Olympus DP73).

Flow Cytometry

2 to 4 EBs (organoids) were combined and dissociated to single cell suspension by 0.25% trypsin-EDTA (Invitrogen). DMEM media with 10% FBS (Sigma, v/v) was used to inactivate trypsin and cells were subjected to spin down at 300 g for 5 min. Cell pellet was washing once using D-PBS without calcium and magnesium and re-suspended in 200 μl of D-PBS in V-bottom plate. Cells were immediately transferred to LSR-II flowcytometer (BD) for data recording and analysis. The dead cells in the cell population were gated out and percentage of GFP (+) cells were calculated on live cells.

ATAC-Seq

Time-course ATAC-Seq on SFEBq organoids with duplicates at day 2, 4 and 6 were performed using Nextera DNA sample prep kit (Illumina) by following a protocol described elsewhere. 5×10⁴ cells were washed with cold D-PBS and resuspended in 50 μl of cold lysis buffer (CHP-118-C, Boston Bioproducts) and pelleted. Transposition reaction by Tn5 transposase was incubated in TD buffer at 37°C for 30 min. After purification with MinElute Kit (QIAGEN), transposed DNA fragments were amplified through PCR using bar-coded Nextera PCR primers. Extra number of PCR cycles were added by qPCR as described and amplified DNA products were subjected to another round of DNA purification using MinElute Kit. Libraries were sent to University of Michigan DNA Sequencing Core for quality control test based on Bioanalyzer and sequenced using HiSeq 2500 or 4000 with pair-end reads.

RNA-Seq

RNA isolation for RNA-seq was performed by combination of Trizol reagent (ThermoFisher Scientific) and RNeasy mini kit (QIAGEN). Day 2 [WT, Wdr5 KO groups (KO#7 or KO#18 without Dox for 48 h), Wdr5 and p53 KO groups (DKO#7–11 or DKO#18–17 without Dox for 48 h)] or Day 6 EB RNA samples [WT group, KO group (Wdr5 KO #3 without Dox), Wdr5 KO #3 with early (Dox added at 12 h after differentiation, T12h group) and late (Dox added at 48 h after differentiation, T48h group) WDR5 rescue] were sent to University of Michigan DNA Sequencing Core for RNA quality analysis, library construction, and sequencing using Illumina HiSeq 4000 Libraries platform. Duplicate samples for each group were subjected to two round of independent library preparation and sequencing to avoid sample and batch effect of RNA-seq.

ChIP-Seq

Chromatin Immunoprecipitation (ChIP) assay were performed using a slightly modified version of ChIP Assay Kit (Millipore) based protocol as described previously. Day 6 EBs [Wdr5^KO #3 with early (Dox added at 12 h after differentiation, T12h group, total cell number 3×10⁷) and late (Dox added at 48 h after differentiation, T48h group, total cell number 4×10⁷) hWDR5 rescue were fixed with Disuccinimidyl glutarate crosslinker (COVAChem) at final concentration of 2 μM at room temperate for 30 min. Cells were further subjected to crosslink with 1% paraformaldehyde (Sigma) at room temperature at 10 min and the reaction was quenched using glycine at final concentration of 0.125M. The cells pellets were further sonicated to 300–500 bp in SDS lysis buffer by using a Biorupter 300 (Diagenode). 15 μg ChIP grade anti-HA antibody (ab9110, Abcam) was used for ChIP assay. The ChIP-DNA were sent to University of Michigan DNA Sequencing Core for quality control, library preparation, and sequencing using Illumina HiSeq 4000 Libraries platform.

CUT&RUN

Day 2 WT, Wdr5^KO and DKO EBs were harvested and trypsinized to single cell suspension. 2×10⁶ cells were prepared for Cut & Run experiment per antibody as previously described (Skene and Henikoff, 2017; Skene et al., 2018) and the following antibodies were used: WDR5 antibody (Bethyl), P53 antibody (NCL-L-P53-CM5P, Leica biosystems) and H3K4me3 antibody (Abcam). Protein A–micrococcal nuclease (pA-MN) fusion protein were generously provided by Dr. Steven Henikoff.

QUANTIFICATION AND STATISTICAL ANALYSIS

Statistical Analysis

All experiments were independently repeated with different mWdr5 KO ESC clones at least for 2 to 4 times with similar results, and data from one representative experiment are presented unless otherwise stated. Two-tailed unpaired Student’s t test was applied using GraphPad Prism (version 7.00) to determine whether the observed differences were statistically significant. Changes were considered statistically significant when p value less than 0.05.

Bioinformatics Analysis

Reads Mapping and Coverage

All RNA-seq data were mapped to the mm10 genome for mouse, and hg38 genome for human, using Tophat2 (2.1.1) (Kim et al., 2013), which was shown to be accurate alignment of transcriptomes in the presence of insertions, deletions, and gene fusions. Then, duplicated reads for pair-end data were removed, but not single-end data by SAMtools (v1.5) (Li et al., 2009). All ChIP-seq, ATAC-seq, and CUT&RUN sequencing data were mapped to the mm10 genome for mouse by using Bowtie2 (v2–2.2.4) with parameters “-q–phred33–very-sensitive -p 10” (Langmead and Salzberg, 2012), which is ultrafast and memory-efficient tool for aligning sequencing reads to long reference sequences. Then, we removed any duplicated reads for both pair-end and single-end data using SAMtools (v1.5) (Li et al., 2009). For all sequencing datasets, the bigwig files for visualization in Integrative Genomics Viewer (IGV) (Thorvaldsdóttir et al., 2013) were generated from BAM files by using “bamCoverage” from deepTools (Ramírez et al., 2014) with parameters “–ignoreDuplicates–normalizeUsingRPKM–skipNonCoveredRegions–binSize 50.” The bigwig files for IP/input ratio were generated from BAM files by using deepTools2 (v2.5.0) (Ramírez et al., 2016) with command “bamCompare -b1 ChIP-bam -b2 Input-bam-ignoreDuplicates–minMappingQuality 30–normalizeUsing RPKM –binSize 20–operation ratio–scaleFactorsMethod None -p 20.” Whereas, for ATAC-seq and CUT&RUN datasets, the bigwig files were generated from BAM files by using deepTools2 (v2.5.0) (Ramírez et al., 2016) with command “bamCoverage–outFileFormat bigwig–ignoreForNormalization chrM chrX chrY–skip-NAs-bam bowtie2.rmdup.bam-outFileName output.bigwig–normalizeUsing RPKM–minMappingQuality 30–binSize 20–smooth-Length 60–ignoreDuplicates–scaleFactor 1-numberOfProcessors 2.”BAM files of mapping results were merged for the same sample using SAMtools and converted to BED format by using BEDTools (Quinlan and Hall, 2010). Peaks of regulatory regions were called for each sample by using MACS (v 1.4.2) (Zhang et al., 2008) from bed files of ChIP-seq with parameters “-w -S -p 0.00001 -g mm.” The input signal was used as the control to call peaks for the ChIP-seq dataset. The heatmap plot of signals centered on peaks was implicated by deepTools2. The heatmap plot of signals centered on peaks was implicated by deepTools2 subcommand plotHeatmap.

Peak Calling and Annotation

BAM files of mapping results were merged for the same sample using SAMtools and converted to BED format by using BEDTools (Quinlan and Hall, 2010). Peaks of regulatory regions were called for each sample by using MACS (v 1.4.2) (Zhang et al., 2008) from datasets of ChIP-seq with parameters “-w -S -p 0.00001.” The input signal was used as the control to call peaks for the ChIP-seq dataset. The heatmap plot of signals centered on peaks and gene promoters was implicated by deepTools2 (v2.5.0) (Ramírez et al., 2016). Peak annotation was performed by using HOMER (v4.9.1) (Heinz et al., 2010) with default parameters. Motif analysis on peak regions was performed with HOMER function findMotifsGenome.pl with parameters “-size 50 -mask.”

DATA AND CODE AVAILABILITY

The datasets generated during this study are available at Gene Expression Omnibus (GEO) repository with accession numbers GEO: GSE116153, GSE116154, GSE116155, and GSE140899.

The graphical abstract was created with Biorender.com.

KEY RESOURCES TABLE.

REAGENT or RESOURCE	SOURCE	IDENTIFIER
Antibodies
Anti-WDR5	Bethyl	Cat# A302-429A, RRID:AB_1944302
Anti-WDR5	Bethyl	Cat# A302-430A, RRID:AB_1944300
Anti-WDR5	R & D Systems	Cat# AF5810, RRID:AB_2215565
Anti-HA	Abcam	Cat# ab9110, RRID:AB_307019
anti-FLAG	Sigma	Cat# F3165, RRID:AB_259529
anti-H3	Abcam	Cat# ab1791, RRID:AB_302613
anti-H3K4Me1	Millipore	Cat# 07-436, RRID:AB_310614
anti-H3K4Me2	Millipore	Cat# 07-030, RRID:AB_11213050
anti-H3K4Me3	Abcam	Cat# ab8580, RRID:AB_306649
anti-p53	Cell Signaling Technology	Cat# 32532, RRID:AB_2757821
anti-p53	Leica Biosystems	Cat# NCL-L-P53-CM5P
anti-α/β-Tubulin	Cell Signaling Technology	Cat# 2148, RRID:AB_2288042
Anti-β-Actin	Abcam	Cat# ab49900, RRID:AB_867494
anti-p53 (acetyl K305)	Abcam	Cat# ab109396, RRID:AB_10861725
anti-p53 (phospho S392)	Abcam	Cat# ab33889, RRID:AB_776988
anti-Phospho-p53 (Ser15)	Cell Signaling Technology	Cat# 12571, RRID:AB_2714036
anti-N-cadherin	BD Biosciences	Cat# 610920, RRID:AB_2077527
anti-myosin, sarcomere (MHC) antibody	DSHB	Cat# MF 20, RRID:AB_2147781
anti-troponin T (cardiac/slow) antibody	DSHB	Cat# ct3, RRID:AB_528495
Anti-p53, acetyl (Lys379)	Cell Signaling Technology	Cat# 2570, RRID:AB_823591
Anti-mouse IgG, HRP-linked Antibody	Cell Signaling Technology	Cat# 7076, RRID:AB_330924
Anti-rabbit IgG, HRP-linked Antibody	Cell Signaling Technology	Cat# 7074, RRID:AB_2099233
Donkey Anti-Goat IgG HRP Affinity Purified PAb antibody	R & D Systems	Cat# HAF109, RRID:AB_357236
Peroxidase IgG Fraction Monoclonal Mouse Anti-Rabbit IgG, light chain specific	Jackson ImmunoResearch Labs	Cat# 211-032-171, RRID:AB_2339149
Chemicals, Peptides, and Recombinant Proteins
AGN 193109 Sodium Salt	Santa Cruz Biotechnology	Cat# sc-210768
Dexamethasone	Sigma	Cat# D4902
Cycloheximide solution	Millipore	Cat# C4859
KnockOut Serum Replacement	GIBCO	Cat# 10828028
Matrigel® Growth Factor Reduced (GFR) Basement Membrane Matrix	CORNING	Cat# 354230
Glasgow’s MEM (GMEM)	GIBCO	Cat# 11710-035
Sodium Pyruvate (100 mM)	GIBCO	Cat# 11360070
MEM Non-Essential Amino Acids Solution (100X)	GIBCO	Cat# 11140050
TRIzol	Thermo Fischer	Cat# 15596026
iQ SYBR® Green Supermix	Bio-Rad	Cat# 1708880
TaqMan Gene Expression Master Mix	Thermo Fischer	Cat# 4369016
RIPA Lysis and Extraction Buffer	Thermo Fischer	Cat# 89900
Cold lysis buffer	Boston Bioproducts	Cat# CHP-118-C
Disuccinimidyl glutarate crosslinker	COVAChem	Cat# 13301
Dynabeads Protein G for Immunoprecipitation	Thermo Fisher	Cat# 10003D
VECTASHIELD® Hardset Antifade Mounting Medium with DAPI	Vector Laboratories	Cat# H-1500
Protein A-micrococcal nuclease	Dr. Steve Henikoff	N/A
Critical Commercial Assays
Nunclon Sphera Microplates	Thermo Fisher	Cat# 174925
In-Fusion® HD Cloning Plus	Takara	Cat# 638909
Mouse ES cell nucleofector® kit	Lonza	Cat# VPH-1001
ZymoPURE II Plasmid Midiprep Kit	Zymo	Cat# D4200
RNeasy Mini Kit	QIAGEN	Cat# 74104
High-capacity RNA-to-cDNA kit	Thermo Fisher	Cat# 4387406
Histone extraction kit	Abcam	Cat# ab113476
Pierce BCA Protein Assay Kit	Thermo Fisher	Cat# 23225
Invitrogen Molecular Probes TSA Kit 24	Thermo Fisher	Cat# T20934
Mouse on Mouse (M.O.M.®) Elite® Peroxidase Kit	Vector Laboratories	Cat# PK-2200
Nextera DNA sample prep kit	Illumina	Cat# 15028212
MinElute PCR Purification Kit	QIAGEN	Cat# 28004
Chromatin Immunoprecipitation (ChIP) Assay Kit	Millipore	Cat# 17-295
Deposited Data
ATAC-seq Data	This Study	GSE116153
RNA-seq Data	This Study	GSE116155
ChIP-seq Data	This Study	GSE116154
CUT&RUN Data	This Study	GSE140899
Experimental Models: Cell Lines
Rx-GFP K/I EB5 (sex: Male [XY])	RIKEN	Cat# AES0145
Oligonucleotides
Wdr5 guide RNA:TGTGAAGTTCAGCCCCAATG	This Study	N/A
p53 guide RNA #1:AAAATGTCTCCTGGCTCAGA	This Study	N/A
p53 guide RNA #2:ATAAGCCTGAAAATGTCTCC	This Study	N/A
Recombinant DNA
pPBCAG-rtTM2-IN	Dr. Hitoshi Niwa (Kumamoto University, Japan)	N/A
Transposase pBase	Dr. Hitoshi Niwa (Kumamoto University, Japan)	N/A
pPBCMV1cHApA	This Study	N/A
pPBCMV1-WT-WDR5-HA	This Study	N/A
pPBCMV1-L240K-WDR5-HA	This Study	N/A
pPBCMV1-V268E-WDR5-HA	This Study	N/A
pPBCMV1-Q289E-WDR5-HA	This Study	N/A
pPBTREG/Tet3G-FLAG-WT-WDR5	This Study	N/A
pPBTREG/Tet3G-FLAG-N225A-WDR5	This Study	N/A
pPBTREG/Tet3G-FLAG-L240K-WDR5	This Study	N/A
pPBTREG/Tet3G-FLAG-V268E-WDR5	This Study	N/A
pPBTREG/Tet3G-FLAG-Q289E-WDR5	This Study	N/A
PiggyBac-FLAG-WT-WDR5-GRBD	This Study	N/A
PiggyBac-FLAG-WT-WDR5	This Study	N/A
PiggyBac-FLAG-F133Y-WDR5	This Study	N/A
PiggyBac-FLAG-I305V-WDR5	This Study	N/A
PiggyBac-FLAG-N225A-WDR5	This Study	N/A
PiggyBac-FLAG-L240K-WDR5	This Study	N/A
PiggyBac-FLAG-V268E-WDR5	This Study	N/A
PiggyBac-FLAG-Q289E-WDR5	This Study	N/A
Software and Algorithms
Image lab Version 5.2.1	Bio-Rad	https://www.bio-rad.com/en-us/product/image-lab-software?ID=KRE6P5E8Z
GraphPad Prism Version 7.00	GraphPad Software	https://www.graphpad.com/scientific-software/prism/
SAMtools Version 1.5	Li et al., 2009	http://www.htslib.org/
Bowtie2 Version 2–2.2.4	Langmead and Salzberg, 2012	http://bowtie-bio.sourceforge.net/bowtie2/index.shtml
deepTools Version 2.5.0	Ramírez et al., 2014	https://deeptools.readthedocs.io/en/develop/
BEDTools	Quinlan and Hall, 2008; PMID: 20110278	https://bedtools.readthedocs.io/en/latest/
MACS Version 1.4.2	Zhang et al., 2008	https://github.com/taoliu/MACS/
HOMER Version 4.9.1	Heinz et al., 2010	http://homer.ucsd.edu/homer/

Highlights.

• WDR5-RbBP5 interaction surface controls ESC-to-neuroectoderm organoid differentiation

• Wdr5 inhibition stabilizes p53 and activates p53 signaling

• Transient Wdr5 inhibition stimulates ESC differentiation toward mesoderm fates via p53
