Structure–Bioactivity Relationships of Lapatinib Derived Analogs against Schistosoma mansoni

Abstract

We recently reported a series of compounds for a solubility-driven optimization campaign of antitrypanosomal compounds. Extending a parasite-hopping approach to the series, a subset of compounds from this library has been cross-screened for activity against the metazoan flatworm parasite, Schistosoma mansoni. This study reports the identification and preliminary development of several potently bioactive compounds against adult schistosomes, one or more of which represent promising leads for further assessment and optimization.

Schistosomiasis, caused by trematode flatworms of the genus Schistosoma, is a debilitating and serious parasitic neglected tropical disease (NTD) that leads to chronic ill-health.²⁰ There are two major forms of schistosomiasis infections, urogenital and intestinal. Urogenital schistosomiasis is caused by S. hematobium, and intestinal schistosomiasis is caused by S. mansoni, S. japonicum, S. mekongi, and S. guineensis (and related S. intercalatum).²⁰ The disease is currently treated and controlled with praziquantel; estimates show that at least 74 million people required treatment, and an additional 220 million people received prophylactic treatment in 2017.²⁰ Praziquantel is currently used against all Schistosoma species, but due to increasing concerns of resistance and inadequate efficacy there is a need for new therapeutics.² To shorten the timeline and costs associated with developing drugs against NTDs, repurposing efforts utilizing known drugs as starting points for chemical exploration and development can be employed.³

A target class repurposing approach was undertaken in order to optimize the U.S. Food and Drug Administration-approved drug lapatinib (Tykerb) (1) as an antitrypanosomal drug against Trypanosoma brucei brucei (Figure 1).⁴ A series of lapatinib-derived analogs were produced during medicinal chemistry optimization campaigns,⁵⁻⁸ ultimately resulting in the discovery of 3 (NEU-1953),⁸ a compound that displayed moderate antitrypanosomal potency.⁹ Subsequent efforts focused on the solubility-driven optimization of 3, while maintaining its antitrypanosomal potency and selectivity.¹⁰

Figure 1.

Target class repurposing of lapatinib as an antitrypanosomal compound.⁴⁻⁹ The different regions of exploration around 3 are denoted by color (head region is red; tail region is green; core is blue).

Historically, we have cross-screened compounds arising from our different kinase inhibitor repurposing projects against various parasites,^5,9,11,12 and due to the known representation of protein kinases in S. mansoni,¹³ a subset of the compounds from this optimization campaign was screened against the parasite. Table 1 summarizes a set of desired properties for antischistosomal lead compounds that are based on a suggested target product profile for schistosomiasis^2,14,15 and its emphasis on oral bioavailability. The in vitro ADME properties that are described were designed in-house with oral bioavailability in mind.

Table 1. Targeted in Vitro and in Vivo Properties for Antischistosomal Lead Compounds.

	property	suggested minimum value or threshold
in vitro bioactivity and selectivity properties	S. mansoni severity score	at 10 μM ≥ 2 after 5 h or ≥ 3 after 24 h
	HepG2 TC50	≥ 5 μM after 48 h
in vitro ADME properties	human liver microsome clearance	Clint < 8.6 μL/min/mg protein
	rat hepatocyte clearance	Clint < 5.1 μL/min/106 cells
	plasma protein binding (PPB)	< 95%
	thermodynamic solubility (pH = 7)	> 100 μM

Because the schistosome parasite can present multiple and dynamic phenotypic responses to chemical insult,¹⁶ we employ a constrained nomenclature of descriptors to describe the changes in the parasite as a function of time and concentration (e.g., motility, density, and shape; and in the case of the adult parasite, an inability to adhere to the bottom of the assay dish). These descriptors are converted into severity scores on a scale of 0 (green)–4 (severest/red) that allow for partially quantitative comparisons of compound effects.¹⁻¹⁹ Preference is given to those compounds that generate the highest severity score in the least time on the basis that highly active acute (single dose) therapies are part of the profile associated with a new drug to treat schistosomiasis.^2,14,15 The descriptors themselves and their respective scores are detailed in the Supporting Information, Table S1. Severity score data are presented in the results (with the corresponding descriptors detailed in the Supporting Information, Tables S2–S8), and eight new analogs developed and synthesized in support of this effort are described. Finally, absorption, distribution, metabolism and excretion (ADME) data of all compounds presented in this work are reported in the Supporting Information, Table S15.

When screened against adult S. mansoni, 3 displayed no bioactivity, which was also observed of the tert-butyl carbamate synthetic precursor 3a and a methylene carboxylic acid 3b (Table 2). Replacement of the piperazine with proline 3c maintains no bioactivity; however, its methyl ester derivative 3d displayed bioactivity after 24 h, progressing to the severest response by 48 h. This result may be due to the compound being a more cell-permeable pro-drug of 3c. Compound 3e, possessing a tert-butyl carbamate methylethylenediamine in place of the piperazine, displays a maximal phenotypic response after 48 h though this was also accompanied by an increase in toxicity versus HepG2 cells; however, both 3d and 3e display poor ADME profiles overall (see Supporting Information, Table S15).

Table 2. Phenotypic Changes, Expressed as Severity Scores, in S. mansoni and HepG2 TC₅₀ for Piperazine-Replacement Analogs 3a–3e.

Introduction of the bridged piperazine 4a improved aqueous solubility and metabolic stability in comparison to 3, though minimal bioactivity was observed after 48 h (Table 3). Extending the length of the piperazine alkyl chain to the ethyl (4b) and propyl (4c) resulted in activity after 5 h in both cases, with the propyl possessing the most severe phenotypic response after 48 h. Substitution of the piperazine for the N-alkylhomopiperazine derivatives (4d–f), and the unsubstituted homopiperazine (4g) (synthesis detailed in Supporting Information, Scheme S1), improved the solubility of the compounds in comparison to 3. However, bioactivity of this series was not observed against adult schistosomes.

Table 3. Phenotypic Changes, Expressed as Severity Scores, in S. mansoni and HepG2 TC₅₀ for Piperazine-Replacement, Increasing sp³ Carbon Content, Analogs 4a–4g.

Replacing the 2-aminopyrazine headgroup of 3 with saturated rings (Supporting Information, Table S4) resulted in no significant bioactivity recorded for tertiary amines (S1a and S1b) or upon replacement of the 2-aminopyrazine with either a cyclohexanol (S1c), tetrahydropyran (S1d), or methylene tetrahydropyran (S1e). Overall, it was noted that while increasing the sp³ content of the headgroup did achieve improved aqueous solubility in comparison to 3, these analogs displayed variable toxicity against HepG2 cells.

Notably, methylation at the 5-position of the 2-aminopyrazine headgroup (5a) resulted in a severe phenotypic response after just 5 h, vastly different from the negligible bioactivity observed of 3 (Table 4). However, aqueous solubility and metabolic stability decreased, and toxicity against HepG2 cells increased greater than 1.9-fold. The N-methylhomopiperazine tail counterpart, 5b, provided a potent compound with bioactivity recorded after 24 h, a later time point than 5a. Although 5a was a more potent antischistosomal lead, 5b displayed a superior ADME profile. The unsubstituted 2-aminopyrazine and pyrimidine headgroup analogs (4d and 5c, respectively) led to a complete loss in activity, whereas replacement with 3-chloro-4-methoxyphenyl (5d) (a truncated version of the lapatinib (1) headgroup) generated severe phenotypic responses, albeit it with a 7-fold decrease in aqueous solubility when compared to 3 and an undesirable ADME and selectivity profile. Replacement of the tail group of 5d with a phenyl sulfonamide, N-methylhomopiperazine (5e), yielded a complete loss of bioactivity. However, maintaining this phenyl sulfonamide, N-methylhomopiperazine tail in the presence of a 3-chloropyridine headgroup (5f) resulted in moderate bioactivity recorded after 1 h, which remained consistent over time. In line with the structure–activity relationships (SAR) observed with respect to substitution on the headgroup (compounds 5a, 5b, 5d), the presence of a substituent at the para position of the headgroup appears to increase potency of the compounds, and the presence of the nitrogen within the ring appears to be beneficial for potent activity. However, 5f exhibited poor aqueous solubility and was rapidly cleared in human liver microsomes (HLM) as well as being toxic to HepG2 cells (TC₅₀ 1.8 μM). Analogs were tested that investigated headgroup replacements, including saturated groups matched with various tails, although this time at the 6-position of the core (Supporting Information, Table S11). No notable activity against schistosomes was recorded, with the exception of compound S3b (pyrimidine headgroup in combination with a phenyl sulfonyl morpholine tail at the 6-position), which displayed moderate activity after 1 h.

Table 4. Phenotypic Changes, Expressed as Severity Scores, in S. mansoni and HepG2 TC₅₀ for 2-Aminopyrazine Headgroup Replacement Analogs 5a–5f.

Isocryptolepine analogs were tested (Table 5), initially possessing an unsubstituted headgroup (R¹ = H), and the tail group was modified from a phenylmorpholine of 6a to the pyrimidine N-methylhomopiperazine of 6b, which both showed minimal bioactivity after 5 h, with 6b displaying potent activity after 48 h. Maintaining the pyrimidine N-methylhomopiperazine tail, methylation of the R¹ position (6c), resulted in severe bioactivity after 1 h. This result is in line with SAR trends observed previously where substitution on the headgroup appears to be beneficial to antischistosomal potency. However, 6c displayed undesirable toxicity against HepG2 cells.

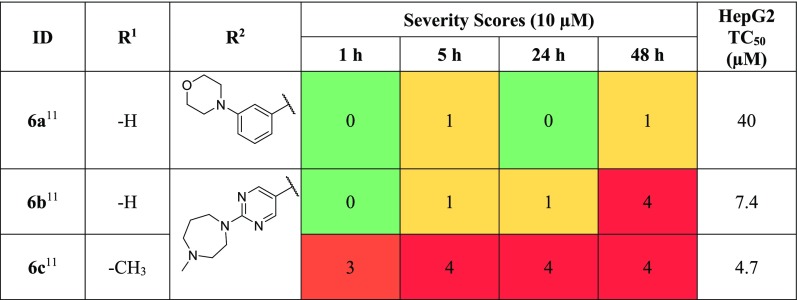

Table 5. Phenotypic Changes, Expressed as Severity Scores, in S. mansoni and HepG2 TC₅₀ for Isocryptolepine Analogs 6a–6c.

Pseudoring analogs matched to the bioactive 5d, possessing the 2-chloro-4-methoxy headgroup and varying tail groups, are presented in Table 6. The direct pseudoring matched pair (7b) showed minimal bioactivity after 5 h and potent activity after 48 h. Replacement of the N-methylhomopiperazine to the N-methylpiperazine tail (7a) resulted in a complete loss of activity. Further, replacement of the tail with the phenylsulfonamide N-methylpiperazine (7c) produced a phenotypic response after 5 h. The meta-substituted phenylmorpholine (7d) displayed a phenotypic response after 1 h which increased in severity over time. Replacement of the −OH functionality of 7d with the free amine yielded 7e, a compound that was not as potent as its counterpart but displayed bioactivity after 24 h nonetheless. In general, this series displayed poor aqueous solubility. Additional pseudoring analogs were explored with alternate head and tail group variations; however, there was no notable activity reported (Supporting Information, Table S13).

Table 6. Phenotypic Changes, Expressed as Severity Scores, in S. mansoni and HepG2 TC₅₀ for Pseudoring Analogs 7a–7e^a.

^ant = not tested.

Ortho-methylated core analogs were screened against S. mansoni, and the severity scores are presented in Table 7 with the ADME data of the series subsequently presented in Table 8. Installation of a methyl at the 6-position of the quinoline core (8a) resulted in a compound that showed a severe phenotypic response by 5 h that subsequently increased over time. However, this compound also exhibited a greater than 5-fold increase in toxicity against HepG2 cells and a >2200-fold decrease in aqueous solubility compared with 3. Alternatively, methylation at the 8-position of the quinoline (9a) provided a compound with moderate potency after 24 h; however, it exhibited poor physicochemical properties and toxicity against HepG2 cells. In an attempt to optimize the series, additional ortho-methylated analogs were designed to improve the antischistosomal activity and to exploit functionality that would improve the ADME and toxicity profile. We had already shown that replacement of the piperazine with a homopiperazine improved the ADME profile;¹⁰ as such, we substituted the piperazine for the homopiperazine and explored the effect of the length and presence of the alkyl chain.

Table 7. Phenotypic Changes, Expressed as Severity Scores, in S. mansoni and HepG2 TC₅₀ for ortho-Methylated Analogs 8a–8e and 9a–9e^a.

^ant = not tested.

Table 8. ADME Profile, Including Aqueous Solubility, Plasma Protein Binding, and Metabolic Stability, of ortho-Methylated Quinoline Analogs.

ID	aq sola (μM)	human PPBb (%)	HLMc Clintd (μL/min/mg protein)
3(8,9)	44	87	180
8a(10)	< 0.02	97	130
8b	670	82	260
8c	790	84	300
8d	480	88	300
8e	1000	70	13
9a(10)	5.0	97	120
9b	860	82	120
9c	580	88	160
9d	450	94	300
9e	465	76	41

^aaq sol = aqueous solubility.

^bPPB = plasma protein binding.

^cHLM = human liver microsomes.

^dCl_int = intrinsic clearance.

A general synthetic scheme that closely follows one we previously reported¹⁰ for novel ortho-methylated analogs is presented in the Supporting Information (Scheme S2).

Focusing on the 6-methyl core, replacement of the piperazine with the N-methylhomopiperazine (8b) resulted in the most potent compound to date, with a severe phenotypic response recorded after 1 h. Extension of the alkyl chain to an ethyl (8c) provided a similar phenotypic response, further extension to a propyl (8d) resulted in bioactivity being detected after 1 h, and a more severe phenotypic response was recorded after 24 h. These compounds showed the greatest antischistosomal activity of the series, with 8b possessing >33,500-fold improvement in solubility compared to 8a; however, clearance increased 2-fold, and no toxicity improvement was observed. The unsubstituted homopiperazine (8e) improved metabolic stability 10-fold in comparison to 8a and was modestly less toxic, though the compound was inactive against schistosomes.

The 8-methyl core was then explored. Although appreciably soluble, replacement of the N-methylpiperazine for the N-methylhomopiperazine (9b) and subsequent extension to the N-ethylhomopiperazine (9c) resulted in compounds that showed no bioactivity. Further extension of the alkyl chain improved potency, with the N-propylhomopiperazine (9d) strongly bioactive by 24 h. Unfortunately, this was accompanied by high HLM clearance and concerns with toxicity against HepG2 cells. Interestingly, the unsubstituted homopiperazine (9e) led to an analog with a phenotypic response after 5 h, which was not observed in its 6-methylated quinoline counterpart 8e. Analog 9e also exhibited improved metabolic stability.

A series of compounds designed to improve the physicochemical profile of an antitrypanosomal lead compound, NEU-1953 (3), were crossed-screened against adult S. mansoni. Four potent compounds of interest (5a, 5d, 6c, and 8a) were identified, with the most promising possessing an ortho-methylated quinoline core. Compounds of this series were further explored, optimizing for antischistosomal activity, which resulted in 8b–a promising lead–with 8a, 8c, and 9e presenting as potential backup leads for further assessment and optimization as antischistosomal compounds.

Glossary

Abbreviations

S. mansoni

Schistosoma mansoni

NTD

neglected tropical disease

SAR

structure–activity relationships

HLM

human liver microsomes

Cl_int

intrinsic clearance

aq sol

aqueous solubility

PPB

plasma protein binding

Supporting Information Available

The Supporting Information is available free of charge at https://pubs.acs.org/doi/10.1021/acsmedchemlett.9b00455.

• Details of biological assay protocols, chemistry experimental, in vitro ADME properties, and additional supplementary data (PDF)

Author Present Address

^∥ Department of Chemistry and Polymer Science, University of Stellenbosch, Private Bag X1, Matieland 7602, South Africa.

Material has been reviewed by the Walter Reed Army Institute of Research. There is no objection to its presentation and/or publication. The opinions or assertions contained herein are the private views of the author and are not to be construed as official or as reflecting true views of the Department of the Army or the Department of Defense.

The authors declare no competing financial interest.
