Pseudophedrine-Derived Myers Enolates: Structures and Influence of Lithium Chloride on Reactivity and Mechanism

Abstract

The structures and reactivities of pseudoephedrine-derived dianionic Myers enolates are examined. A combination of NMR and IR spectroscopic, crystallographic, and computational data reveal that the homoaggregated dianions form octalithiated tetramers displaying S₄-symmetric Li₈O₈ cores and overall C₂ symmetry. Computational and isotopic labeling studies reveal strong N–Li contacts in the carboxamide enolate moiety. The method of continuous variations proves deceptive, as octalithiated tetrameric homoaggregates afford hexalithiated trimeric heteroaggregates. A lithium diisopropylamide–lithium enolate mixed aggregate is found to be a C₂-symmetric hexalithiated species incorporating two enolate dianions and two lithium diisopropylamide (LDA) subunits. Structural and rate studies show that lithium chloride has little effect on the dynamics of the enolate homoaggregates but forms adducts of unknown structure. Rate studies of alkylations indicate that the aging of the aggregates can have effects spanning orders of magnitude. The LiCl–enolate adduct dramatically accelerates the reaction but requires superstoichiometric quantities owing to putative autoinhibition. Efforts and progress toward eliminating the requisite large excess of LiCl are discussed.

Graphical Abstract

Introduction

In 1994, Myers and co-workers reported that dianions of type 2 derived from acylated pseudoephedrines (1) undergo functionalizations with a range of electrophiles in high yields and selectivities (eq 1).¹ The products are deprotected by facile hydrolysis that appears to benefit from anchimeric assistance from the pendant hydroxy moiety noted previously by Evans using pyrrolidinol-derived amides.² A key observation was that ≥5.0 equiv of LiCl was essential for optimal yields. Although no direct evidence attests to the role of LiCl, an artist’s rendition (3) was offered to illustrate the opposite selectivities observed for alkyl halide and epoxides. Despite the need for large quantities of LiCl, which has the effect of imposing concentration limits, the alkylations have found applications in a number of pharmaceutical-scale drug syntheses.³ They are now part of the pantheon of methods used for asymmetric synthesis, and they display special value in generating quaternary centers in exceptional yields and selectivities.¹

(1)

Understanding reactivity and selectivity in solutions teeming with observable and fleeting species demands a sound understanding of solution structure. Challenges to determining the structures of Myers enolates promised to be especially daunting: (1) possible aggregate topologies illustrated in Chart 1 are representative but are by no means a comprehensive compilation of possible structural motifs⁴; (2) positional isomerism represented generically in eq 2 would amplify spectral complexity; and (3) the difficulty of characterizing dianions⁵ is exacerbated by the absence of observable scalar coupling of Li–O bonds.

(2)

Chart 1.

Selected possible topologies of Myers enolates.

We describe herein studies of the structure and reactivity of Myers enolates. We take unusual care to illustrate some of the trials and tribulations—the often unstated pain and suffering en route to the answer—while trying not to make the reader suffer proportionately. The story is one of tactics and strategies. Although we characterized several heteroaggregates and a lithium diisopropylamide (LDA)–enolate mixed aggregate spectroscopically (vide infra), our best efforts to understand the all-important homoaggregate of 2 left us with too many possible structures and too many niggling details that simply did not afford an unapologetic assignment. A low-resolution crystal structure that would be unpublishable in isolation provided us the answer key—the Rosetta stone. The crystallographic and spectroscopic data proved fully self-consistent. Which structure of the many under consideration was correct? In a word, none. We had many of the details right but missed the topology of the Li₈O₈ core that was, ironically, lurking in the Cambridge Structural Database.⁶

Dropping any pretense of presenting the data to the reader and then making the assignment, we provide the plot-spoiling solution structure of Myers enolate 2 as C₂-symmetric octalithiated prism 4 constituted from four dianionic subunits manifesting an S₄-symmetric core and overall C₂ symmetry. The four N–Li contacts were foreshadowed computationally. Although four coordinated THF ligands are omitted for clarity, they were the subject of considerable experimental focus. As part of our efforts to use the method of continuous variations (MCV)—a favorite of ours for studying solution structures of enolates⁷—we generated and characterized heteroaggregates containing subunits of opposite absolute configuration (heterochiral) that afforded hexalithiated prisms of type 5. In short, MCV failed to provide heteroaggregates that attest to the structures of the homoaggregates. Control experiments to understand the consequences of excess LDA revealed C₂-symmetric hexalithiated mixed aggregate 6 (comprising two LDA subunits and two dianionic subunits), which bears little relationship to the enolate homoaggregates but shares several unusual features with heteroaggregate 5. Rate studies of alkylations showed profound aging effects spanning orders of magnitude.⁸ As to the influence of LiCl, we observed nondescript lithium enolate–LiCl mixed aggregates.

Results

We confront the age-old problem of presenting data from a variety of sources that, taken in total, provide the assignments yet must be presented serially. We try to assist the reader by prefacing the results with a detailed survey of the methods, as well as the structural and stereochemical consequences of the polygonal prisms. The nonspecialist will find an adequate survey of the results in the Discussion.

Substrates.

Acylated pseudoephedrine-based enolates 2 and 7–22 (Chart 3) were prepared using standard protocols.¹ [¹⁵N](R,R)-2 and [¹⁵N](S,S)-2 to probe N–Li contacts originated from [¹⁵N]NH₄Cl, as shown in Scheme 1. [⁶Li]LDA and [⁶Li,¹⁵N]LDA were isolated as LiCl-free solids.⁹ Solvation was probed in several ways, including by using pyridine as a ⁶Li chemical shift reagent¹⁰ and [¹⁵N]isoquinoline (eq 3) as an inexpensive,¹¹ relatively nonvolatile pyridine surrogate.

(3)

Chart 3.

Myers enolates.

Scheme 1. Synthesis of ¹⁵N-labeled enolate precursors.

(a) PhC(=O)H, MgCl₂, TMSCl, NEt₃, EtOAc, 24 h, rt; (b) TFA, MeOH, 10 min, rt; (c) TBDMSCl, imidazole, DMF, 18 h, rt; (d) LiOH, H₂O₂, THF, 6 h, 0 °C to rt; (e) (COCl)₂, CH₂Cl₂, 2 h, rt; (f) ¹⁵NH₄Cl, NaOH, 30 min, 0 °C to rt; (g) [hydroxyl(tosyloxy)iodo]benzene, CH₃CN, 2 h, reflux; (h) acetic formic anhydride, CH₂Cl₂, 1 h, −30 °C; (i) LiAlH₄, THF, overnight, reflux; (j) propionyl chloride, NEt₃, THF, 10 min, 0 °C.

Myers enolates were generated at −78 °C with subsequent aging for 10 min at 25 °C owing to slow aggregate equilibration.⁸ Although we focused on aggregates 4–6 prepared from propionate enolate 2, we examined the behavior of 17 enolates that fall into several distinct categories: (1) enolates 8 and 11 bearing small aliphatic enolate substituents share common properties with enolate 2 that we comfortably assigned by analogy to homoaggregate 4; (2) 7, 9, 10, 12, 19, and 20, which manifest complex ensembles of otherwise sharp resonances suggesting isomerism is at play yet form well-defined heterochiral heteroaggregates sharing spectroscopic properties with 5; (3) arylated enolates 13–18, which are similar to one another but quite distinct from their aliphatic counterparts, yet again appear to form distinct type 5 heteroaggregates; and (4) enolate 21, which is insoluble, and enolate 22, which displays hopelessly broad resonances (possibly owing to instability mentioned by Myers).¹

MCV.

We have developed general protocols for using MCV in conjunction with NMR spectroscopy to characterize lithium enolates.⁷ In its simplest form, MCV involves mixing binary pairs of lithium enolate homoaggregates, A_n and B_n, of unknown aggregation state, n, to generate an ensemble of homo- and heteroaggregates (eq 4). In principle, the homo- and heteroaggregates can be monitored using ¹H, ⁶Li, ¹³C, ¹⁵N, or ¹⁹F NMR spectroscopies. In practice, only ⁶Li and ¹⁹F NMR spectroscopies played roles in this study. (Caveat: Large T₁’s for ⁶Li mandated up to 50 s pulse delays to attain accurate ⁶Li integrations.) ¹⁵N NMR spectroscopy has been useful in MCV when labeled substrates are available.¹² Despite the requisite resolution indicating that it would work well, [¹⁵N](R,R)-1 is simply too precious. Plotting the relative concentrations of different aggregates versus measured mole fraction of A_n (X_A) or B_n (X_B) affords a Job plot. (See Figure 7 for an example.)

(4)

Figure 7.

Job plot showing the relative integrations of octalithio homoaggregates (R₄/S₄) and hexalithio heteroaggregates (RS₂/R₂S) versus intended mole fractions²¹ of [⁶Li](R,R)-2 (X_R) for 0.10 M mixtures of enantiomeric lithium enolates [⁶Li](R,R)-2 (R) and [⁶Li](S,S)-2 (S) in neat THF at −80 °C monitored with ⁶Li NMR spectroscopy. The curves result from a parametric fit to a tetramer–trimer model.²⁰

Choosing the right pairing partners to ensure sufficient spectroscopic resolution of all homo- and heteroaggregates is critical and largely empirical and was particularly challenging in this case. The presumption is that the number and symmetries of the heteroaggregates attest to the aggregation number of homoaggregates A_n and B_n. For the first time in what is now hundreds of applications, the homo- and heteroaggregates did not share a common aggregation number. Therefore, we defer discussing MCV-based studies until after presenting a more conventional approach to assigning of the structure of homoaggregate 4.

Two-Dimensional NMR Spectroscopy.

Critical spatial relationships stem from a composite of NMR spectroscopies (COSY, TOCSY, HSQC, HMBC, and ROESY).¹³ Detailed discussions of the cross-correlations without a computer interface are poorly suited for print media. We only briefly allude to important correlations herein. In a pedagogically more tractable approach, a video tutorial in the supporting information walks the viewer through some of the assignments, as done in a previous paper.¹¹ Pulsed field-gradient spin echo NMR spectroscopy (PFGSE)—or diffusion NMR spectroscopy—was used semi-quantitatively to determine relative aggregate sizes.¹⁴

Computations.

Density functional theory (DFT) calculations were carried out at the B3LYP/6–31G(d) level with energies from single-point calculations at the MP2 level of theory.¹⁵ They largely showed plausibility of structural motifs, provided support to the correlation spectroscopies, and allowed us to probe experimentally elusive three-dimensional details. The energies proved unhelpful in distinguishing structural and stereoisomers owing to resulting narrow energetic ranges. The computations were crucial, however, in predicting strong N–Li contacts that were eventually confirmed spectroscopically and crystallographically. They also played a central role in developing mechanistic and stereochemical models.

Isomerism.

Three general classes of isomerism alluded to throughout the case studies required constant attention because of their implications for symmetry and spectral complexity. We also occasionally saw evidence of minor, lower symmetry isomers. The three major forms of isomerism are as follows.

1. Helical isomerism is exemplified by mirror-image fragments 23a and 23b, which become diastereomers when stereogenic centers are included. Asymmetry within the prismatic structure of 4 rendered concerns about helical isomerism moot, but the possibility of such isomerism lingered within our models for months.



2. Isomerism resulting from N–Li bond scission and reassociation to form different N–Li contacts (Scheme 2) is represented by isomeric pairs 24/25 and 26/27. Chelates in 24 and 26 have phenyl moieties on the concave chelate face, whereas 25 and 27 have them on the convex face. Two-dimensional spectroscopic probes of 4 and 5 show both types (vide infra). Should only one of the multiple subunits reverse chelate orientation, however, any existing symmetry would be lost and the resonance counts would spike as each ⁶Li becomes magnetically distinct.

3. Positional isomerism such as that manifested in 24/26 or 25/27 pairs in Scheme 2 results from reversal of the enolate and alkoxide roles. Such a transposition would break the high symmetry.

Scheme 2.

Isomerism arising from reversal of chelate orientation or enolate and alkoxide positioning.

Case 1: Homoaggregate of (R,R)-2.

Structural studies of the homoaggregate of propionate enolate (R,R)-2 are the focus of this paper. Applications of MCV are deferred to subsequent case studies.

⁶Li NMR spectra of (R,R)-2 generated at −78 °C show complex mixtures of resonances (Figure 1A). Full aggregate equilibration required aging at 25 °C for 10 min, affording two groups of ⁶Li resonances at chemical shift extremes in carefully measured 1:1:1:1 proportions (Figure 1B). (The details of this aging process are delineated below.) Varying the THF concentration between 2.0 equiv per Li and 12.3 M (neat THF) and the enolate concentration from 0.020 M to 0.20 M resulted in no change in relative integrations, indicating that the resonances arose from either a single aggregate with four magnetically inequivalent lithiums or two isomeric aggregates in a precise 1:1 proportion. Failure to achieve coalescence at >40 °C owing to slow inter- and intraaggregate exchange,¹⁶ in conjunction with requisite aging at ambient temperature, attested to the remarkable robustness of the aggregate core.

Figure 1.

⁶Li NMR spectra of a solution of 0.10 M [⁶Li](R,R)-2 in neat (12.3 M) tetrahydrofuran (THF) recorded at −80 °C. (A) Unaged; (B) aged at 25 °C for 10 min. Inset in (B) shows the resolution at −40 °C. (C) and (D) NMR spectra of an aged solution of 0.10 M [⁶Li ,¹⁵N](R,R)-2. (C) ⁶Li NMR spectrum recorded at −20 °C (to improve resolution). (D) ¹⁵N NMR spectrum recorded at −80 °C.

Early in the study, DFT computations of dianion subunits in isolation or as part of larger aggregates evidenced strong N–Li contacts, prompting us to insert an ¹⁵N label as shown in Scheme 1. [¹⁵N](R,R)-2 showed ⁶Li–¹⁵N coupling in the downfield resonances at 2.32 and 2.35 ppm (J_N–Li = 0.90 and 1.40 Hz, respectively), whereas the upfield resonances remained as sharp singlets (Figure 1C). The corresponding ¹⁵N NMR spectrum shows two 1:1:1 ¹⁵N triplets correlated by single-frequency decoupling (Figure 1D).

Studies of solvation showed that only two of the four lithiums—logically those lacking N–Li contacts—contain one ligated THF each. For example, titrations of toluene solutions of 2 with THF showed that only 0.5 equiv THF per lithium was required to convert broad mounds to the four characteristic sharp resonances; additional THF caused minimal further change. More surprisingly, free and bound THF were in slow exchange on the NMR timescale at room temperature (Figure 2A). Such slow ethereal solvent exchange on lithium is rarely observed¹⁷ and is without precedent at ambient temperature. Single-frequency decoupling of the β protons on the bound THF revealed a single AB quartet for the α protons (Figure 2B). Given that two magnetically inequivalent THF ligands would show as many as four distinct AB quartets, we presumed that a combination of free rotation about the Li–O bond and near magnetic equivalence is at play. The decoupling was mimicked using 3,3,4,4-tetradeuteriotetrahydrofuran (THF-d₄),¹⁸ affording the same AB quartet.

Figure 2.

Partial ¹H NMR spectra of an aged solution of 0.10 M (R,R)-2 in 0.44 M THF and 9.1 M toluene-d₈ at 20 °C. (A) Coupled; (B) single-frequency irradiated at 1.40 ppm.

Pyridine functions as a ⁶Li NMR chemical shift reagent, imparting large (>1 ppm) downfield shifts for pyridine-ligated ⁶Li nuclei and muted downfield shifts for more distal ⁶Li resonances.¹⁰ Indeed, serial additions of pyridine to 2 showed large (1.1–1.4 ppm) shifts of the formerly THF-bearing lithiums and small shifts (≈0.4 ppm) of the ⁶Li resonances coordinated by the carboxamide nitrogens. Readily available and relatively inexpensive [¹⁵N]isoquinoline¹¹ caused analogous shifts and showed two of the four ⁶Li resonances as doublets (J_N–Li = 3.9 and 3.6 Hz) and the remaining two as sharp singlets (Figure 3). ¹⁵N NMR spectra showed broad mounds rather than sharp resonances. Broad-band ¹⁵N decoupling caused the two ⁶Li doublets to collapse to singlets. The coupling constants are large compared with those of other ⁶Li-¹⁵N dative bonds.^17a

Figure 3.

⁶Li NMR spectra of aged solutions of 0.10 M [⁶Li](R,R)-2 at −95 °C. (A) 0.20 M THF; (B) 0.40 M [¹⁵N]isoquinoline and 0.20 M THF. The asterisk (*) flags THF–isoquinoline mixed-solvated 4.

The resonance count of the homoaggregate of 2 excludes a single hexalithiated form by symmetry. The remaining options shown in Chart 4 include: (1) a 1:1 mixture of isomeric dilithiated forms, such as isomers 28 and 29, displaying different convexity, each with two magnetically inequivalent lithium nuclei; (2) a 1:1 mixture of two high-symmetry tetralithio isomers, such as 30 and 31; (3) a single low-symmetry tetralithio form, such as 32 or 33; (4) either 30 or 31 paired with its helical isomer (not drawn but akin to 23a,b); (5) two high-symmetry hexalithio aggregates 34 and 35 (see below) or analogous pairs of octalithio or higher polygonal prismatic helical isomers; and (6) any one of a host of octalithio derivatives with a symmetry element affording a reduced resonance count (vide infra).

Chart 4.

Possible di-, tetra-, and hexalithio aggregates of enolate (R,R)-2.

The full gamut of two-dimensional NMR spectroscopies led to the assignment of all protons and carbons within the two magnetically inequivalent subunits of (R,R)-2 (Figure 4). The critical spatial correlations are as follows:

1. Multiple correlations between the two magnetically distinct dilithio subunits excluded all models based on pairs of isomers such as dilithio isomers 28 and 29, high-symmetry tetralithio isomers 30 and 31, and helical isomers 34 and 35.

2. Strong inter-subunit correlations resulting from Ph–Ph contacts (a) and Me–H contacts (b) exclude tetralithio isomers 30 or 31, as well as unsymmetrical tetralithio isomers 32 and 33.

3. Apparent intra-subunit correlations suggest opposite convexities, as drawn in Figure 4. The Me–Ph correlations (c) and Me–H correlation (d) place the phenyl moieties on the convex and concave faces, respectively. We hasten to add, however, that deception by inter-subunit interactions between two magnetically equivalent subunits was a persistent concern. Moreover, the isomer with the phenyl on the convex face, as in subunit 1, is also calculated using simple (dilithio) models to be >2.0 kcal/mol more stable.

4. Correlations a and b seem to exclude a number of plausible aggregates by showing that both faces of both subunits are proximate.

Figure 4.

Critical resonance correlations of the (R,R)-2-derived homoaggregate.

By eliminating all di-, tetra-, and hexalithio homoaggregates, we were left with octalithio derivatives. Additional support came from two independent measurements. A diffusion NMR spectrum¹⁴ showed that the homoaggregate is larger than a demonstrably hexalithio heteroaggregate (vide infra). We tried using mass spectrometry (MS) on a DART MS, but the crude effort suffered from considerable protonation problems and left us leery of potential for user bias.¹⁹

Considering all connectivities of octagonal prisms and stacked cubes consistent with two inequivalent subunits and four magnetically inequivalent lithium nuclei left eight prisms and 18 stacked cubes as possible structures. Including the restriction that subunits 1 and 2 have opposite convexities (Figure 4), the number of possibilities reduces to six prisms and 12 stacked cubes (Chart 5). The DFT-computed relative energies showed plausibility but would not make the assignment for us. The nastier problem was that none accounted for the concurrent correlations without some overtly optimistic interpretation.

Chart 5.

Renditions of DFT-computed structures showing a representative stacked cube and octagonal prism of octalithio homoaggregates of (R,R)-2.

We needed an X-ray crystal structure. Early efforts failed, but we eventually obtained a low-resolution crystal structure that provided the needed insight (Figure 5). The structure of 4 shows an S₄-symmetric core,⁶ which becomes a C₂-symmetric octalithiated aggregate with the chiral appendages. The lithium counts, N–Li contacts, and most importantly, through-space interactions match the resonance correlations without exception. Differential ⁶Li–¹⁵N coupling noted above is reflected in markedly different N–Li bond lengths. Even with a graphic interface, one has to look carefully to see two pairs of subunits of opposite convexity. The pairs of magnetically inequivalent THF ligands reside in environments that appear so similar that the spectroscopic detection of a single observable THF subunit is not surprising.

Figure 5.

Partial X-ray crystal structure of octalithiated enolate 4 showing the core with one subunit and the total structure missing four THF ligands.

Case 2: (R,R)-2–(R,R)-8 Homochiral Heteroaggregates.

The use of MCV to characterize homoaggregated enolates is based on the notion that mixtures of two homoaggregates will produce a highly characteristic ensemble of heteroaggregates (eq 4). Taking a cue from previous studies of chiral β-amino ester enolates,²⁰ we examined three pairing strategies. The first involved mixing combinations of enolates within a homochiral series—mixtures of (R,R)-2 and (R,R)-8, for example—to generate type-i heteroaggregates. Heteroaggregation was evidenced by intractable spectral complexity. This strategy was doomed from the start given that two structurally distinct Myers enolates can form seven distinct heteroaggregated analogs of homoaggregate 4 manifesting 48 ⁶Li resonances.

Case 3: (S,S)-2–(R,R)-2 Heterochiral Heteroaggregates.

Mixing enantiomers of a single enolate—systematically generating scalemic mixtures—affords type-ii heteroaggregates with heterochiral subunits. A substantial advantage of this strategy is that x:y and y:x heteroaggregates are mirror images, which makes them appear spectroscopically as a single species, thereby markedly reducing the resonance count and minimizing resolution problems. By chance, heterochiral enolates also optimize resolution and favor heteroaggregates relative to homoaggregates nonstatistically. The fundamental presumption of MCV for determining aggregation state fails, however. Scalemic mixtures of octalithiated homoaggregates of enolates afforded hexalithiated heteroaggregates without exception (eq 5).

$${\text{R}}_4+{\text{S}}_4\to {\text{R}}_2\text{S}+{\text{RS}}_{\text{2}}$$ (5)

For example, scalemic mixtures formed from (R,R)-2 and (S,S)-2 with requisite aging at 25 °C display six new ⁶Li resonances in equal proportions (Figure 6A). The resonance count precludes an octalithiated aggregate. Resonances with mid-range chemical shifts (1.0–2.0 ppm) proved to be hallmarks of such heterochiral aggregates.

Figure 6.

⁶Li NMR spectra of aged solutions of enolate mixtures in neat THF at −80 °C: (A) 0.050 M [⁶Li](S,S)-2 and 0.050 M [⁶Li](R,R)-2; and (B) 0.050 M [⁶Li,¹⁵N](S,S)-2 and 0.050 M [⁶Li,¹⁵N](R,R)-2. The resonance labeled “alkoxides” corresponds to monolithiated substrate.

Monitoring the proportions of homo- and heteroaggregates as a function of mole fraction X_(R,R)-2 afforded the Job plot in Figure 7. Although the data adequately fit to an all-hexalithio (trimer) model, the fit in Figure 7 corresponds to that derived for octalithio homoaggregates (tetramers) and hexalithio heteroaggregates (trimers).²⁰ (Recall that only two spectroscopically discrete species exist.) The requisite fitting protocols are in the supporting information. The maximum at 0.50 derives from the superposition of enantiomeric 2:1 and 1:2 heteroaggregates. One could easily imagine confusing the maximum as evidence of a tetralithio heteroaggregate (dimer) if not for the resonance count and poor fit.

The relative and absolute aggregation state of heteroaggregate 5 was supported by diffusion NMR spectroscopy showing that the hexalithio appeared to be smaller than the octalithio (Figure 8).¹⁴ In fact, showing the reverse—the octalithio is larger than the more easily characterized hexalithio—was more important.

Figure 8.

Plot of diffusion coefficient (D) from diffusion NMR spectroscopy versus molecular weight of an aged solution of 0.040 M (S,S)-2 and 0.060 M (R,R)-2 in neat THF at −60 °C; y = a + bx, a = −4.622, b = 0.443. This experiment assumes four coordinated THF ligands per homotetramer and four per heterotrimer.

The gamut of two-dimensional NMR spectroscopies provided the key resonance correlations for the three discrete subunits of 5 shown in Figure 9. The convexities as drawn derive from the correlations labeled a, d, and e. Notably, subunit 3 is isolated from subunits 1 and 2 and displays no intersubunit correlation.

Figure 9.

Critical resonance correlations of subunits in the hexalithiated heterochiral aggregate formed from (R,R)-2 and (S,S)-2.

Labeling studies showed that the hexalithio heteroaggregates represented an aggregate that was altogether different from that of octalithio homoaggregate 4. In mixtures of [¹⁵N](R,R)-2 and [¹⁵N](S,S)-2, the resonance at 1.95 ppm appeared as a doublet (J_N–Li = 1.25 Hz), whereas the resonance at 1.83 ppm appeared as a doublet of doublets (J_N–Li = 1.30 and 2.17 Hz). This result indicates that two nitrogens are bound to a common lithium (Figure 6B). The remaining four upfield resonances are singlets. The ¹⁵N NMR spectra showed three ¹⁵N triplets with correlations confirmed by single-frequency decoupling. Mixtures of (S,S)-2 and [¹⁵N](R,R)-2 in which only one substrate is ¹⁵N labeled caused the lithium central to the N–Li–N fragment to appear as a doublet at all proportions of the two enolates. Thus, the subunits forming the N–Li–N contact—subunits 1 and 2 in Figure 9—are necessarily heterochiral as drawn. From connectivities alone, we could draw six isomeric cores with a central N–Li–N contact. Including additional restrictions imposed by the heterochiral core and established convexities, we were left with two pseudo-octahedral partial structures, 36 and 37, displaying cores that would be delta isomers.²² There are eight possible isomers obtained by the placement of either (R,R)-2 or (S,S)-2 as the third subunit (with positional isomerism considered). The gross structure of hexalithiated aggregate 5 relied on ¹H and ¹³C correlation spectroscopy (supporting information). From the eight possible isomers, DFT computations suggested that the isomer shown as aggregate 5 with the 36 core is the most stable by >4 kcal/mol (Figure 10).

Figure 10.

DFT-computed structure of the most stable hexalithiated enolate aggregate, 5, showing the Li₆O₆ core (left) and distorted octahedral core described by 36 (right).

Case 4: (R,R)-8–(S,S)-11 Heterochiral Heteroaggregates.

Pairing enolates of opposite absolute configuration and containing different enolate substituents affords type-iii heteroaggregates displaying many of the properties of the heterochirality observed in case 3 but with magnetically distinct R′S₂ and R′₂S heteroaggregates (eq 6). Heterochiral binary combinations of 2, 8, and 11 were all tractable. Emblematically, mixtures of (S,S)-8 and (R,R)-11 displayed fully desymmetrized 2:1 and 1:2 heteroaggregates each with affiliated six equal-intensity resonances (Figure 11). Unlabeled debris in the spectra of both homo- and heteroaggregates is reproducible, implicating minor stereoisomers. Although detailed correlating spectroscopic analyses would offer marginal gain at great effort, monitoring the aggregates versus mole fraction of (R,R)-11, X_(R,R)-11, affords the Job plot shown in Figure 12. The use of measured rather than intended mole fraction²¹ is especially suited for such mixtures.

Figure 11.

⁶Li NMR spectra of 0.10 M solutions of [⁶Li](S,S)-8 (S) and [⁶Li](R,R)-11 (R′) in neat THF at −80 °C. The measured mole fractions of [⁶Li](R,R)-11 (X_R′) are 0.00, 0.40, 0.57, and 1.00 for A–D, respectively.

Figure 12.

Job plot showing the relative integrations of octalithio homoaggregates and hexalithio heteroaggregates versus measured mole fractions of [⁶Li](R,R)-11 (X_R′) for 0.10 M mixtures of lithium enolates [⁶Li](S,S)-8 (S) and [⁶Li](R,R)-11 (R′) in neat THF at −80 °C monitored with ⁶Li NMR spectroscopy (Figure 11). The curves result from a parametric fit to a tetramer–trimer model.²⁰

$${\text{R}\prime }_4+{\text{S}}_4\to {\text{R}\prime }_2\text{S}+\text{R}\prime {\text{S}}_2$$ (6)

Case 5: (R,R)-14–(S,S)-16 Heterochiral Heteroaggregates.

Myers enolates with sterically demanding yet anion-stabilizing aryl substituents show behaviors that are distinctly different from those of their aliphatic counterparts (see Figure 1A). Each displays a major upfield resonance accompanied by a minor resonance in ratios that vary from enolate to enolate (Figure 13). The intensities are invariant to changes in enolate concentration, suggesting that they are isomers.²³ The absence of downfield resonances shows that the aryls cause deep-seated structural changes. High steric demands and anion stabilization of the phenyl moiety would be expected to promote lower aggregates.²⁴ Diffusion NMR spectroscopy confirmed that the homoaggregate is smaller than the hexalithio heteroaggregate (vide infra). Attempts to obtain X-ray-quality crystals of the homoaggregates were unsuccessful.

Figure 13.

⁶Li NMR spectra of 0.10 M solutions of [⁶Li](S,S)-16 (S) and [⁶Li](R,R)-14 (R′) in neat THF at −80 °C at the ratios indicated on the spectra.

Heterochiral mixtures of arylated enolates (S,S)-14 and (R,R)-16 showed clear evidence of hexalithiated heteroaggregates, but spectral overlap precluded a Job plot using ⁶Li NMR spectroscopy. The single fluorine nucleus per subunit (as opposed to two ⁶Li nuclei) enables ¹⁹F NMR spectroscopy while cutting the resonance counts in half. The ¹⁹F NMR spectrum shows a single resonance (Figure 14) despite normally high-resolution of ¹⁹F NMR spectroscopy. Mixtures showed that the 1:2 and 2:1 ¹⁹F pairs are consistent with a hexalithiated species. Minor isomers of the 2:1 and 1:2 heteroaggregates also were observable. Monitoring the homo- and heteroaggregates versus X_(R,R)-14 and arbitrarily assigning the homoaggregates as hexalithio, tetralithio, or even dilithio afforded reasonable Job plots. The plot in Figure 15 arbitrarily assumes a tetralithiated homoaggregate.

Figure 14.

¹⁹F NMR spectra of 0.10 M solutions of [⁶Li](S,S)-16 (S) and [⁶Li](R,R)-14 (R′) in neat THF at −80 °C. The measured mole fractions of [⁶Li](R,R)-14 (X_R′) are 0.00, 0.34, 0.67, and 1.00 for A–D, respectively.

Figure 15.

Job plot showing the relative integrations of tetralithio homo- and hexalithio heteroaggregates versus measured mole fractions of [⁶Li](R,R)-14 (X_R′) for 0.10 M mixtures of lithium enolates [⁶Li](S,S)-16 (S) and [⁶Li](R,R)-14 (R′) in neat THF at −80 °C monitored with ¹⁹F NMR spectroscopy (see Figure 14). The curves result from a parametric fit to a dimer–trimer model.²⁰

Case 6: (R,R)-2–LDA Mixed Aggregate.

As a standard control experiment, lithium enolates were generated from [⁶Li,¹⁵N]LDA⁹ to identify any resonances attributable to LDA–enolate mixed aggregates. Although resulting LDA-derived mixed aggregate 6 bore little relationship to homoaggregate 4, it foreshadowed the unusual N–Li–N connectivity in heteroaggregate 5.

Mixtures of enolate (R,R)-2 with varying amounts of excess [⁶Li,¹⁵N]LDA included LDA homodimer, homoaggregate 4, and mixed dimer 6. The key characteristics of 6 were as follows: (1) four ⁶Li resonances appeared in a 1:2:2:1 ratio (Figure 16A), indicating a hexalithiated species with a symmetry element; (2) the two major ⁶Li resonances appeared as doublets (J = 5.45 and 5.45 Hz) owing to splitting by a single LDA-derived ¹⁵N nucleus (Figure 16B); (3) the mixed aggregate prepared from [¹⁵N](R,R)-2 and [⁶Li]LDA caused one of the minor resonances not connected to the LDA fragment to appear as a triplet (J = 2.4 Hz; Figure 16C), which correlated with one ¹⁵N triplet (1:1:1). The gamut of ¹H and ¹³C NMR spectroscopies showed a single subunit with the phenyl moiety in the convex face, as drawn for 6. The stoichiometry, symmetry, and coupling demanded a hexalithio mixed aggregate with a C₂ symmetry axis. The symmetry demanded that the dianions reside on opposite faces of 6. Although pyridine caused marked chemical shifts, attempts to probe solvation using [¹⁵N]-isoquinoline failed owing to decomposition. DFT computations showed that 6 is viable, revealed favorable N–Li contacts, and supported tetrasolvation, as displayed in Figure 17.

Figure 16.

⁶Li NMR spectra of 0.10 M solutions of [⁶Li](R,R)-2 and 0.20 M LDA in neat THF at −80 °C using (A) [⁶Li]LDA; (B) [⁶Li,¹⁵N]LDA; and (C) [⁶Li,¹⁵N]LDA and [¹⁵N](R,R)-2.

Figure 17.

Structure of enolate–LDA mixed aggregate 6. The four solvents supported by DFT computations have been omitted in the computed rendition for clarity.

Lithium Chloride: Influence on Structure.

Addition of LiCl to a pre-aged solution of aggregate 4 had no measurable effect (Figure 18A): aggregate 4 was observed along with free LiCl at the anticipated relative proportions. Warming the probe in 20 °C increments caused no broadening of the resonances of 4 or appearance of new resonances. Careful integration of the resonances, however, showed that the broad mound corresponding to LiCl increased at the expense of 4 (Figure 18, B–F). The mound appeared to include free LiCl in rapid exchange with a LiCl–enolate adduct(s) denoted nondescriptly as 2_LiCl. Assuming conservation of mass, the proportions of homoaggregate 4 and 2_LiCl could be teased out. Plotting the percent of enolate 2 that existed as homoaggregate 4 versus temperature (Figure 19) showed limited adduct formation at low temperatures and a marked change (a discontinuity) at ≈0 °C. Reversing the protocol—cooling the probe in 20 °C increments—did not reverse the changes; 2_LiCl remained dominant.²⁵ The spectrum re-recorded at −80 °C may include additional debris that corresponds to species in slow exchange at −80 °C, but it appears insignificant.¹ Adduct formation was confirmed by LiCl-dependent chemical shifts observed in the ¹H and ¹³C NMR spectra.²⁶ The time-averaged resonances may be concealing multiple LiCl adducts of varying LiCl stoichiometries as discussed below.¹ Although adduct 2_LiCl cannot be characterized, it is decidedly important (vide infra).

Figure 18.

⁶Li NMR spectra of a pre-aged 0.10 M solution of [⁶Li](R,R)-2 with subsequent addition of 0.20 M LiCl in neat THF-d₈ recorded at incrementally rising temperatures.

Figure 19.

Plot of percent enolate 4 in solutions of a pre-aged 0.10 M solution of [⁶Li](R,R)-2 with subsequent addition of 0.20 M LiCl in neat THF-d₈ versus temperature (Figure 18). Incremental temperature increases (black) were followed by incremental temperature decreases (blue).

Lithium Chloride: Influence on Subunit Exchange.

In a fairly crude experiment, kinetically formed (pre-aged) ensembles of 2 (see Figure 1A) were warmed in 20 °C increments with cooling to −80 °C at each temperature level to record the ⁶Li spectra. The spectra indicate that aging to form 4 becomes consequential at >0 °C. Repeating the experiment with added LiCl showed little or no effect on the rate of aging.

In a cleaner experiment, samples of (S,S)-2 and (R,R)-2 were separately and fully aged before mixing to form a racemic mixture of aggregate 4. Warming in 20 °C increments revealed hexalithiated heteroaggregate 5, evidencing that interaggregate subunit exchange on laboratory timescales emerges only at 40 °C. (Subunit exchange in the octalithiated homoaggregate is slower than exchange in unaged ensembles.) The same experiment with added LiCl showed that rate of conversion of the two antipodes of 4 to give 5 occurs at >0 °C. Thus, LiCl influences the aging rate on laboratory timescales but only marginally and, as we discuss below, much more slowly than the alkylation.

Aging Effects on Enolate Reactivity.

We now present some curious observations on how aggregate aging and the stabilities of the aggregates influence their reactivities. Alkylations using allyl bromide (eq 7) were monitored using in situ IR spectroscopy following the formation of the product alkoxide at 1610 cm⁻¹. (The enolate absorbance at 1640 cm⁻¹ was poorly resolved from an absorbance of the product alkoxide.) The apparent percent conversions were confirmed with workup and ¹H NMR spectroscopic analysis of the crude products. Fully aged homoaggregate 4 was marginally reactive toward allyl bromide at 0 °C for 1.0 h (Figure 20). Myers also noted such low conversions (10–13%). Varying the THF molarity offered no improvement. Elevated temperatures promoted O-alkylation byproducts. Reasoning that unaged samples contain structures that are less stable and, thus, more reactive, we found that addition of allyl bromide 1.0 min after enolization at −20 °C improved the conversion to 40%. Completely unaged samples kinetically formed at −78 °C (see Figure 1A) alkylated at −78 °C to 67% conversion before stalling. Surmising that the ensemble of unstable aggregates generated at −78 °C might depend on the source, we showed that metalation with lithium 2,2,6,6-tetramethylpiperidide increased the conversion to 78%, which proved to be the upper limit. Attempts to push the conversion of unaged samples through gentle warming failed, presumably because of competing aging to less reactive forms.

(7)

Figure 20.

Rates and percent conversions of alkylation of lithium enolate (R,R)-2 (0.040 M) in neat THF at −60 °C by allyl bromide (0.092 M) with various amounts of LiCl.

Influence of LiCl on Reactivity.

It is not surprising that homoaggregate 4 is inert; it looks inert. Addition of ≥5.0 equiv of LiCl as part of Myers’s optimized protocol is imperative. A more granular view obtained by adding various concentrations of LiCl to the allylation in eq 7 reveals a burst of reactivity followed by stalling to the rate that approximates the LiCl-free rate (Figure 20). Both the initial rates and the percent conversions were promoted by elevated LiCl concentrations. We attribute the acceleration to the nondescript adduct(s) denoted as 2_LiCl and the stalling to an equally nondescript autoinhibition resulting from a lithium alkoxide-–LiCl mixed aggregate that occludes the LiCl.²⁸ Monitoring the alkylation with ⁶Li NMR spectroscopy revealed only homoaggregate 4. The ⁶Li resonances of the product alkoxide were absorbed into the broad LiCl-derived mound in rapid time-averaged exchange.

Monitoring the initial alkylation rates proved instructive. The initial rates indicate a clean first-order dependence on allyl bromide (Figure 21) attesting to the general quality of the data and a rate-limiting alkylation.²⁹ Curvatures in the LiCl dependence (Figure 22) and enolate dependence (Figure 23) could be construed as fractional-order dependencies emblematic of dimer–monomer and tetramer–monomer dissociations.²⁸ Detection and quantitation of 2_LiCl, however, clearly supported the curvatures in Figures 22 and 23 as saturation kinetics.

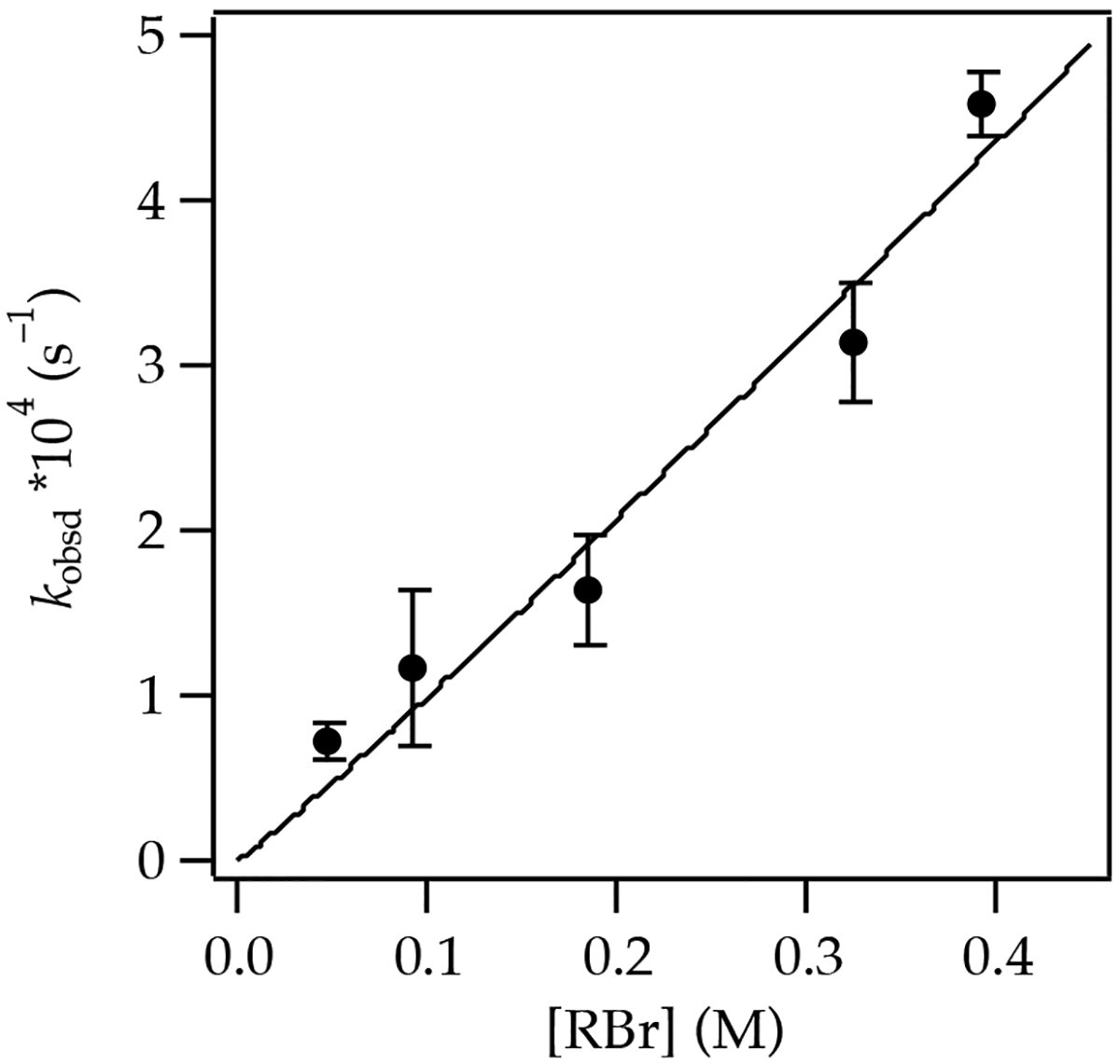

Figure 21.

Plot of initial rate constants (k_obsd) versus allyl bromide concentration for alkylation of 0.040 M (R,R)-2 and 0.040 M LiCl in neat THF at −60 °C. The curve depicts an unweighted least-squares fit to the function f(x) = axⁿ such that a = (1.2 ± 0.26) × 10⁻² and n = 1.1 ± 0.19.

Figure 22.

Plot of initial rate constants (k_obsd) versus LiCl equivalence (per enolate) for alkylation of 0.040 M (R,R)-2 and 0.092 M allyl bromide in neat THF at −60 °C. The red curve depicts an unweighted least-squares fit to the function f(x) = axⁿ/(bxⁿ + 1) such that a = (1.6 ± 0.34) × 10⁻⁴, b = 0.57 ± 0.25, and n = 1 (set value). The blue curve depicts an unweighted least-squares fit with n as an adjustable parameter such that a = (2.3 ± 0.86) × 10⁻⁴, b = 1.2 ± 0.52, and n = 2.1 ± 0.77.

Figure 23.

Plot of initial rate constants (k_obsd) versus the concentration of (R,R)-2 for allylation in eq 7 with 0.080 M LiCl and 0.18 M allyl bromide in neat THF at −60 °C. The asterisk (*) denotes a point at 0.010 M enolate; the absorbance at 0.010 M enolate is too low to be considered fully reliable. The curve depicts an unweighted least-squares fit to the function f(x) = ax^m/(bx^m + 1) such that a = 0.014 ± 0.0043, b = 48 ± 18, and m = 1 (set value).

The red curve in Figure 22 represents first-order saturation behavior required if the equilibrium in eq 8 affords 2_LiCl as a monomer-based tetralithiated mixed aggregate, (enolate)(LiCl)₂ (eq 8, 1/n = 1 and 1/m = 1/4). The blue curve shows a fit with n as an adjustable parameter and fits to a second-order LiCl saturation (1/n = 2 and 1/m = 1) consistent with 2_LiCl as a tetramer-based mixed aggregate, (enolate)₄(LiCl)₄. We hasten to add that the quality of the fits distinguishes the various possible structures for 2_LiCl in principle but, in our opinion, not in practice. The enolate dependence in Figure 23 is fit to a first-order saturation behavior (eq 8, 1/m = 1), but a fit to a fractional-order saturation behavior (1/m = 1/4) is, practically speaking, indistinguishable. Plotting the initial rates versus THF concentration in hexane (Figure 24) reveals an upward curvature suggesting intermediate first or second order.

Figure 24.

Plot of initial rate constants (k_obsd) versus THF concentration for alkylation of 0.040 M (R,R)-2 with 0.040 M LiCl by 0.092 M allyl bromide in hexanes cosolvent at −60 °C. The curve depicts an unweighted least-squares fit to the function f(x) = axⁿ such that a = (0.042 ± 0.020) × 10⁻⁴ and n = 1.5 ± 0.21.

The saturation behaviors are consistent with the generic rate law in eq 9. Two critical pieces of information remained outstanding: (1) the structure of 2_LiCl as described in eq 8 is unknown, leaving the values of m and n in eq 9 undefined; and (2) the reaction order in 2_LiCl could not be measured owing to solubility constraints; knowing this would provide an important clue about the structure of 2_LiCl. We consider three mechanisms in the Discussion.

(8)

$$\text{d[product]/dt}=k{\text{[RBr][LiCl]}}^{\text{1/}n}{\text{[enolate]}}^{\text{1/}m}\text{/(1 + }{k}^{\prime }{\text{[LiCl]}}^{\text{1/}n}{\text{[enolate]}}^{\text{1/}m}\text{)}$$ (9)

Discussion

Myers’s central insight, which made pseudoephedrine-derived enolates popular reagents for asymmetric alkylations, was that excess LiCl is critical to obtaining high yields. From a structural and mechanistic perspective, the dianionic enolates present a host of challenges outlined in the introduction that are unlike any we have confronted to date.

Structural Studies: Protocols.

The aggregate structures are summarized in Scheme 3, but they tell only a small part of the story. The number of analytical methods and tactics is unusual. These include a bevy of two-dimensional correlation spectroscopies, ⁶Li–¹⁵N double-labeling studies, diffusion NMR spectroscopy, mass spectrometry, IR spectroscopy, MCV, X-ray crystallography, and DFT computations. This breadth of effort was demanded by the elusiveness of the answers rather than by some predilection toward thoroughness.

Scheme 3.

Structural summary

Standard ¹H and ¹³C NMR two-dimensional correlation spectroscopies provided critical information but did not lead us to a definitive structural assignment. Attempts to use MS to determine aggregation¹⁹ presented potentially resolvable technical challenges that rendered the data from our first effort at risk of user-dependent interpretation. DFT computations often help resolve structural issues, but there were simply too many possible isomers in a narrow energetic range. After several years of study, a low-quality crystal structure provided the answer key: the solution structural studies came together into a fully coherent structural model. While we had obsessed over octagonal prisms and stacked cubes, the octalithiated aggregate proved to be 4, the core of which was known.⁶

MCV consumed considerable attention. By intent, mixtures of structurally similar homoaggregates afford ensembles of heteroaggregates with numbers and symmetries that attest to the structures of the homoaggregates. However, mixtures of octalithiated homoaggregates—dozens of combinations in total—afforded hexalithiated heteroaggregates. To the best of our knowledge, this failure of MCV is a first for us. A detailed study of two antipodes of enolate 2 revealed the heterochiral heteroaggregate of type 5. Aside from the different aggregation numbers of 4 and 5, the hexalithiated heteroaggregates include strikingly different structural details.

Structures.

Let us take a granular peek at structural details of the homo- and heteroaggregates and mixed aggregates³⁰ summarized in Scheme 3.

1. Aging Effects. Implicitly embedded in Myers’s alkylation protocols are aging effects—requisite warming cycles—that prove to have a firm structural basis and became a major focus of our studies. Enolization at −78 °C affords a complex mixture that converges to form octalithiated aggregate 4 only on warming to ambient temperatures. The same aging effects are observed during formation of heteroaggregates of type 5. Although aging to form 4 could be construed as the structural change that Myers addressed by warming the samples, this conclusion is incorrect. The aging was needed to generate LiCl adducts (below).

2. N–Li contacts. The N–Li contacts of carboxamide-derived enolates appear to have gone undocumented until now. We discovered them computationally and then took them seriously enough only to confirm them using ¹⁵N-labeled substrate. Contemporaneously, Williard and co-workers crystallographically detected a number of such N–Li contacts in structurally simple carboxamide enolates.³¹ As to how general they are in solution remains unknown; a simple ¹⁵N-labeled propionamide enolate affords no N–Li coupling.³² From the outset, the importance of the N–Li contacts and the resulting convexity in the Myers enolates seemed certain to underlie the stereocontrol.

3. Slow THF exchange. Slow exchange of lithium-bound THF on 4 with free THF at ambient temperatures is surprising. It is rare that THF can be observed in the slow exchange limit even at low temperatures.¹⁷ We suspect that the slow exchange on aggregate 4 derives, at least in part, from suppression of the associative pathway.^17a Although slow alkylations of 4 probably render rates of THF exchange irrelevant, highly reactive electrophiles could suffer consequentially (stereochemically) from restricted access to coordination sites.

4. Stereochemically sensitive aggregation. The formation of octalithiated homochiral aggregates of type 4 and hexalithiated heterochiral heteroaggregates of type 5 are, in one sense, an idiosyncratic artifact of using MCV to study aggregation. (We are likely the only group to intentionally study racemates of chiral lithium enolates used in asymmetric synthesis.)²⁰ Nonetheless, the hexalithiated heteroaggregates display a fundamentally different doubly chelated N–Li–N core (see 36 and 37). This structural feature is shared by LDA mixed aggregate 6 (Figure 17). The hexalithiated aggregates are also formed nonstatistically. The good news is that DFT studies suggest that the homochiral hexalithio derivatives prefer heterochirality (eq 10) and the octalithiated forms prefer homochirality (eq 11). The dubious result is that, when combined, DFT computations completely fail to predict hexalithiated aggregates of type 5 to be competitive with homoaggregate 4 (eq 12).

   (10)

   (11)

   (12)

Aging Effects on Reactivity.

If one supposes that all aggregated forms converge on a fleeting dilithiated (monomeric) intermediate, then aggregate stability and reactivity should correlate inversely (Scheme 4). Fully aged 4 reacts slowly at 0 °C and stalls at <10% conversion, whereas unaged aggregates—the complex ensemble of species formed kinetically at −78 °C—are orders of magnitude more reactive, eventually stalling at 67–78% conversion. Presumably, the kinetically formed ensemble contains aggregates of varying reactivities. One cannot help but worry that the depiction of 5 may be susceptible to correction in its detail.

Scheme 4.

Reactivity of Myers enolate 2 without added LiCl as measured by percent conversion after 1 h.

The Role of LiCl: Enolate Structure and Reactivity.

Adding excess LiCl is imperative, as noted by Myers,¹ and it serves the dual function of accelerating the alkylation and allowing the reaction to proceed to full conversion (Figure 20). We considered several possible roles for LiCl.

1. Catalyzed Deaggregation. One could imagine that LiCl catalyzes tetramer–monomer exchange, shifting the rate-limiting step from deaggregation to alkylation of the dissociated monomer.^28,34 LiCl-catalyzed deaggregation³³ was studied and documented in excruciating detail for LiCl-catalyzed deaggregation of LDA.²⁸ Presuming that a catalyzed deaggregation would affiliate with a catalyzed exchange of subunits, we probed the influence of LiCl on rates of subunit exchange from a number of angles. Minor accelerations of subunit exchanges occurring on laboratory timescales near ambient temperatures were observed, but they could not explain LiCl-mediated alkylations at −60 °C.

2. Mixed Aggregation. Lithium chloride forms a nondescript mixed aggregate denoted simply as 2_LiCl (eq 8). Formation of 2_LiCl is slow at −80 °C and occurs in earnest only near ambient temperatures on laboratory timescales (eq 13). It is the slow formation of 2_LiCl that Myers seems to have overcome by warming the enolate–LiCl mixtures before alkylating the enolates. An odd temperature dependence (Figure 19) shows that the formation of 2_LiCl is slow and irreversible. It also suggests, however, that other partial adducts at intermediate temperatures may exhibit limited reactivity. Once 2_LiCl forms, the time averaging of free and bound LiCl in the ⁶Li NMR spectra (eq 14) made it difficult to detect—we almost missed it—and difficult to characterize to date.³⁵ The potentially critical observation is that exchange of free and bound LiCl, as well as intraaggregate exchanges of the ⁶Li nuclei within 2_LiCl, are exceedingly facile on NMR timescales at −80 °C.

   (13)

   (14)
3. Autoinhibition. Alkylation of enolate 2 with allyl bromide stalls at percent conversions that qualitatively correlate with the added LiCl. In theory, this result could stem from incomplete formation of 2_LiCl, but we cannot push the percent conversions effectively even under conditions in which LiCl could be recycled. We surmise that the product of the reaction—an alkoxide (R′OLi)—occludes LiCl in a mixed aggregate (eq 15). Once again, strikingly fast LiCl exchange did not refute the existence of such an adduct but did preclude structural studies.

   (15)

It is instructive to ponder the structure of 2_LiCl (Chart 6). The deep-seated structural changes in LiCl adducts 38 and 39 are appealing in light of remarkably low rates of LiCl incorporation, although 39 contains one or two LiCl fragments depending on whether the counterion is a simple or a cationic triple ion.³⁶ Chloride-derived “ate” complexes analogous to 39 and 40, in which one could think of chloride as a hexamethylphosphoramide surrogate, have been observed³⁷ and are computationally viable (supporting information). Retention of the intact octalithio framework, as depicted in 40, cannot be rigorously excluded—it is a computational minimum—but the spectroscopic properties of 2_LiCl seem to argue against the intact Li₈O₈ core.

Chart 6.

Possible structures of enolate-LiCl adduct 2_LiCl.

Rate Studies and Mechanism.

Detailed rate studies reveal curvatures consistent with saturation kinetics reflecting the lithium enolate- and LiCl-dependent formation of 2_LiCl (Figures 22 and 23). The accompanying THF dependence (Figure 24) is compatible with almost any model with some imagination. We have considered a number of mechanisms for the alkylation that hinge on the structure of 2_LiCl with a focus on mixed aggregates 38 or 39. We present a working hypothesis based on 38 as described by eq 16 and delineated in Scheme 5.

Scheme 5.

Mechanism of alkylation of cubic mixed aggregates.

Computational studies suggest a preference for 38a relative to 38b, displaying the opposite convexity in the resting state that superficially follows through to the most stable transition structures 41a and 41b. The mechanism also includes no provisions for an additional THF suggested by the rate studies, but that does not trouble us too much. The more systemic flaw is that the preference for transition structure 41b predicts the wrong (minor) isomer compared with that observed experimentally.

$${\text{(enolate)(LiCl)}}_2+\text{RBr}\to {{\text{[(enolate)(LiCl)}}_{\text{2}}\text{(RBr)]}}^{‡}$$ (16)

An alternative mechanism that could account for THF-dependent rates (maybe too much so depending on the resting state of 2_LiCl) is based on LiCl ate complexes such as 39. Such ate complexes have been observed³⁷ as have simple ⁺Li(THF)_n and more complex triple-ion-based counterions.³⁶ The model reveals a strong (2.5 kcal/mol) preference for transition structure 42 relative to the second most stable of three other isomeric transition (supporting information). This model is consistent with the experimental results.

The third and simplest of the three mechanisms is based on direct alkylation via dilithiated monomer-based transition structure 43 stripped free of any LiCl influence. Although the model could readily account for the THF dependence, it also predicts a net inverse LiCl dependence of some form owing to requisite dissociation of LiCl from 2_LiCl. We can easily imagine such details evading our detection by being embedded in the saturation kinetics required to form 2_LiCl (Figure 22). This monomer-based transition structure 43 is computationally preferred relative to the three other choices (supporting information) and is consistent with experiment.

On first inspection, the notion that forming a LiCl adduct to simply dissociate it before alkylation seems to defy the Principle of Detailed Balance, which suggests that in such an ensemble the LiCl should impart a positive influence on rates only if it is included in the rate-limiting transition state.³⁸ Yet the Principle of Detailed Balance applies only to ensembles of species in equilibrium. The Myers enolate and its LiCl adduct (eq 17) are not at equilibrium; the reluctant formation of 2_LiCl requires ambient temperatures, affording 2_LiCl, which seems to be in rapid exchange with monomer but slow exchange with homoaggregate 4. The role of LiCl is to overcome the otherwise insurmountable barrier to dissociating octalithiated prismatic tetramer 4. An analogous example of aggregate ensembles in which not all species are at equilibrium was recently observed for Evans enolates in which facile dimer–monomer equilibration occurs concurrently with slow formation of the more stable and unreactive tetramer.^8d

(17)

Inspection of the transition structures (12 in total) with the aid of a graphical interface reveals no self-evident insight into the stereochemical preferences. There is no visibly discernible preference for a specific convexity of the chelated dianion or for an approach of the allyl bromide to the enolate that can be generalized. Notably, however, one can see a lengthening of the N–Li bond at the transition structure as the loss of the enolate character at the transition states that attenuates the Lewis basicity of the nitrogen ligand. IRC calculations indicate that the alkylation causes complete scission of the N–Li bond during the alkylation.

Omitting Lithium Chloride?

A potential impediment to using Myers enolates on pilot-plant or plant scales stems from the relatively high dilutions (0.10 M) imposed by the limited solubility (and cost) of the ≥5-fold LiCl excess. Evidence that precluding enolate aging markedly enhanced reactivities and percent conversions in halide free solutions offered reason for optimism, but we could not push past 78% conversion. Investigators at Merck were able to exclude LiCl in the alkylation of a highly stabilized enolate bearing an aryl group akin to enolates 13–18 using THF/TMEDA,^3e but we showed those are structurally quite different than the more standard Myers enolates. It would be tempting to add ligands to selectively extract LiCl from the putative product mixed aggregate by forming ⁺Li(ligand)//Cl⁻ (eq 18), but according to the Principle of Detailed Balance, such a side equilibrium would decrease the concentration of 2_LiCl as well. Nonetheless, we tried a few chelating ligands to no avail. We have, however, been making progress using a radically different strategy, but that story will have to wait.

(18)

Conclusions

Studies of dianionic Myers enolates certainly presented challenges and surprises. The influence of aging on aggregate structure and reactivity is profound and reinforces the notion that enolates age remarkably slowly compared with other organolithiums. The pseudoephedrine-derived Myers enolates are slower to equilibrate than most, but they are by no means unique.⁸ Indeed, limited solution structural studies of enolates to date suggest that most enolates—particularly the structurally complex variants—undergo aggregate exchanges so slowly that the unsuspecting user may be getting whipsawed by slow aggregate equilibrations without realizing it. Functionalizing an enolate under conditions in which aggregates have not equilibrated may be constructive or destructive. Worse, however, is when functionalizations of partially equilibrated aggregates wreak havoc on attempts to develop rational models to control and understand reactivity and selectivity.

In some ways, the study of Myers enolates is about refining protocols for characterizing complex organolithiums in solution. We are positioning to move our gaze to Myers’s second-generation enolates, derived from the 1,2-diphenyl-substituted amino ethanols. The new perspective might fill in some details that eluded us in the current investigation. Moreover, there are many dianionic enolates in which ancillary lithium alkoxides, lithiated sulfonamides, or lithiated Boc-amines are used in lieu of standard protecting groups. We are optimistic that we now have the tools to probe structure–reactivity relationships.

Experimental

Reagents and Solvents.

THF and toluene were distilled from solutions containing sodium benzophenone ketyl. Pyridine was distilled from solutions sodium benzophenone ketyl. LDA, [⁶Li]LDA, and [⁶Li,¹⁵N]LDA were prepared as described previously.⁹ Air- and moisture-sensitive materials were manipulated under argon using standard glove box, vacuum line, and syringe techniques. Myers enolate precursors were either purchased or prepared as described previously.¹ Several previously unreported precursors were prepared by acylating the pseudoephedrine as described in supporting information.

NMR Spectroscopy.

Individual stock solutions of substrates and LDA were prepared at room temperature. An NMR tube under vacuum was flame-dried on a Schlenk line and allowed to return to room temperature. It was then backfilled with argon and placed in a dry ice/acetone bath at −78 °C. The appropriate amounts of acylated pseudoephedrine and LDA (1.1 equiv) were added sequentially via syringe. The tube was sealed under partial vacuum and vortexed three times on a vortex mixer for 5 s. Samples could be stored indefinitely in a freezer −86 °C. Each sample routinely contained 0.10 M total enolate with a 0.005 M excess of LDA. Standard ¹H, ⁶Li, ¹³C, ¹⁵N, and ¹⁹F NMR spectra were recorded on a 500 MHz spectrometer at 499.92, 73.57, 125.72, 50.67, and 470.33 MHz, respectively. Quantitated ⁶Li integrations required the relaxation delay set to seven times the decay half-life. Integration of NMR signal was carried out using the peak area generated by a line-fitting method. The ⁶Li and ¹³C resonances are referenced to 0.30 M [⁶Li]LiCl/MeOH at −90 °C (0.0 ppm) and the CH₂O resonance of THF at −80 °C (67.57 ppm). Two-dimensional NMR spectroscopies (COSY, TOCSY, HSQC, HMBC, and ROESY) were recorded using standard pulse sequences.

IR Spectroscopic Analyses.

IR spectra were recorded using an in situ IR spectrometer fitted with a 30-bounce, silicon-tipped probe. The spectra were acquired in 16 scans at a gain of 1 and a resolution of 4 cm⁻¹. A representative reaction was carried out as follows: The IR probe was inserted through a nylon adapter and O-ring seal into an oven-dried, cylindrical flask fitted with a magnetic stir bar and a T-joint. The T-joint was capped with a septum for injections and a nitrogen line. After evacuation under full vacuum, heating, and flushing with nitrogen, the flask was charged with a stock solution of enolate 2 in THF or THF/hexane and LiCl in THF. The vessel was cooled to −60 °C in a constant-temperature bath controlled with a cold finger and prepared with fresh acetone. After a background spectrum was recorded, neat allyl bromide was added with stirring. IR spectra were recorded every 6 s with monitoring of the absorbance at 1610 cm⁻¹ over the course of the reaction.

MCV.

The mathematical treatment for creating Job plots using Mathematica has been described previously.²⁰ The specific case in which octalithiated homoaggregates (formally tetramers) afford hexalithiated heteroaggregates (trimers) required additional coding as described in the supporting information.

Chart 2.

Structurally characterized homo- and heteroaggregates and mixed aggregates (4–6) of Myers enolates.
