Diversity Oriented Preparation of Pillar[5]arene‐Containing [2]Rotaxanes by a Stopper Exchange Strategy

Abstract

Rotaxane building blocks bearing 3,5‐bis(trifluoromethyl) benzenesulfonate (BTBS) stoppers have been efficiently prepared from a pillar[5]arene derivative, 3,5‐bis(trifluoromethyl) benzenesulfonyl chloride (BTBSCl) and different diols, namely 1,10‐decanediol and 1,12‐dodecanediol. The BTBS moieties of these compounds are good leaving groups and stopper exchange reactions could be achieved by treatment with different nucleophiles thus affording rotaxanes with ester, thioether or ether stoppers.

Rotaxanes, just pop the stoppers: Rotaxane building blocks bearing 3,5‐bis(trifluoromethyl) benzenesulfonate (BTBS) stoppers have been efficiently prepared. The BTBS moieties of these compounds are good leaving groups allowing to perform stopper exchange by treatment with different nucleophiles to afford rotaxanes with ester, ether or thioether stoppers.

1. Introduction

Mechanically interlocked molecules (MIMs) are attractive building blocks for the preparation of molecular machines.1 The synthesis of MIMs such as rotaxanes remains however a challenge as the key supramolecular intermediates needed for their construction are not always stable under classical reaction conditions.2 The active template approach developed by Leigh and co‐workers is an interesting alternative to circumvent this problem but it remains limited to a few specific macrocyclic building blocks.3, 4 On the other hand, the preparation of rotaxanes based on stopper exchange reactions present also clear advantages.5, 6 In this particular case, a rotaxane building block equipped with activated stoppers has to be prepared first. The stopper exchange is then achieved to generate the final product. Importantly, this second step does not rely on the formation of a host‐guest intermediate. It therefore allows for the preparation of rotaxanes difficult or even impossible to prepare by a one‐step synthetic approach based on the direct introduction of stoppers. As part of this research, we have recently shown that a stopper exchange approach is particularly well suited for the synthesis of pillar[5]arene‐containing [2]rotaxanes.6, 7, 8 This methodology is based on the reaction of a [2]rotaxane with two 2,4‐dinitrophenyl ester stoppers with amines to afford the corresponding [2]rotaxane with amide stoppers (Figure 1). In this paper, we now report new building blocks allowing the preparation of pillar[5]arene‐containing [2]rotaxanes with a larger structural diversity. Specifically, the introduction of arylsulfonates as exchangeable stoppers allowed us to perform the stopper exchange with a wide range of nucleophiles (Figure 1). As these reactions occur through a concerted nucleophilic substitution mechanism (S_N2 reactions), unthreading of the axle is prevented thus leading to [2]rotaxanes with ester, ether or thioether stoppers.

Figure 1.

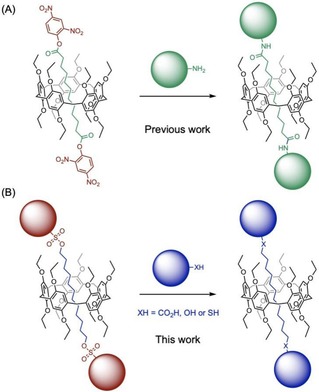

(A) Pillar[5]arene building block with activated ester stoppers and stopper exchange reaction resulting in rotaxanes with amide stoppers (Ref. 6). (B) Proposed building block with arylsulfonate stoppers allowing stopper exchange reactions with various nucleophiles.

2. Results and Discussion

2.1. Preparation of the Rotaxane Building Blocks

Pillar[5]arene‐containing rotaxanes incorporating an axle equipped with bulky leaving groups are in principle good candidates for further chemical transformations by stopper exchange reactions under S_N2 conditions. Sulfonates appear as perfectly suited for such a purpose as the reaction conditions used for their preparation from sulfonyl chloride derivatives and alcohols can be in principle used to produce pillar[5]arene‐containing rotaxanes. Classical leaving groups such as mesylates or tosylates are however too small to play the role of stoppers. Amongst all the commercially available sulfonyl chloride reagents, 3,5‐bis(trifluoromethyl) benzenesulfonyl chloride (BTBSCl) attracted our attention. The corresponding sulfonates should be effective stoppers for pillar[5]arene‐containing [2]rotaxane as they are bulky enough to prevent the macrocyclic moiety from escaping the thread. Moreover, the 3,5‐bis(trifluoromethyl) benzenesulfonates (BTBS) are expected to be good leaving groups owing to the electro‐deficient nature of their aromatic units. The preparation of the rotaxane building blocks with BTBS stoppers is shown in Scheme 1. Reaction of BTBSCl (2.2 equiv.) with diol 1 (1 equiv.) in the presence of pillar[5]arene 2 (3 equiv.) gave [2]rotaxane 3. The reaction was performed in CHCl₃, a solvent that does not compete with diol 1 for the formation of inclusion complexes with pillar[5]arene 2.9 To further favor the formation of pseudorotaxane intermediates, the reaction was performed at the highest possible concentration (0.49 M for 2) and at the lowest possible temperature (−15 °C).9 Under optimized conditions, compound 3 was obtained in 62 % yield.

Scheme 1.

Preparation of rotaxane building blocks 3 and 6 with BTBS stoppers. Reagents and conditions: (i) Et₃N, CHCl₃, −15 °C (62 %); (ii) BTBSCl, Et₃N, THF, 0 °C (57 %); (iii) 2, BTBSCl, Et₃N, CHCl₃, −15 °C (64 %).

Molecular modeling studies revealed however that the −(CH₂)₁₀− chain in 3 might be slightly too short (Figure S1) and steric hindrance may limit the yields in [2]rotaxane during the stopper exchange reactions. It was thus decided to also prepare the −(CH₂)₁₂− analogue from 1,12‐dodecanediol (4) and pillar[5]arene 2 (Scheme 1). Due to the very low solubility of 4 in CHCl₃, the direct preparation of rotaxane 6 could not be achieved under the experimental conditions used for the synthesis of 3. For this reason, mono‐BTBS 5 was prepared first from 4 and BTBSCl. Intermediate 5 was highly soluble in CHCl₃ thus allowing the preparation of rotaxane 6 under optimal conditions. Treatment of 5 (1 equiv.) with BTBSCl (1.4 equiv.) in the presence of pillar[5]arene 2 (3 equiv.) and Et₃N (1.5 equiv.) followed by filtration on SiO₂ and gel permeation chromatography (Biobeads SX‐1, CH₂Cl₂) furnished [2]rotaxane 6 in 64 % yield.

Rotaxanes 3 and 6 incorporating BTBS stoppers were thus easily prepared on a multigram scale. These compounds were found moisture sensitive and storage under an Ar atmosphere was essential to prevent partial hydrolysis of the BTBS stoppers. For both compounds, the NMR and mass spectra were consistent with the proposed structure. The structure of 6 was further confirmed by X‐ray crystallography. Crystals suitable for X‐ray crystal analysis were obtained by slow diffusion of CH₃CN into a solution of 6 in CH₂Cl₂. As shown in Figure 2, the macrocyclic component of [2]rotaxane 6 is not located at the center of the −(CH₂)₁₂− chain of its axel in the solid state. NMR studies revealed however a symmetrical structure in solution. Moreover the signals of all the methylene subunits of the axle are significantly upfield shifted owing to the ring current effect of the pillar[5]arene aromatic subunits. In other words, the different CH₂ groups are all located within the pillar[5]arene cavity for some time. All these observations show that gliding motions of the macrocycle along the axle are faster than the NMR timescale in solution. It is thus believed that the peculiar conformation adopted by 6 in the solid state allows for optimized intermolecular interactions in the crystal lattice but it does not necessarily represent an energetically favored conformation of the rotaxane.

Figure 2.

ORTEP plot of the structure of 6 (H: white, F: light green, O: red, S: yellow, C: gray for the dumbbell and dark green for the pillar[5]arene moiety; the disorder of one CF₃ unit has been omitted for clarity; thermal ellipsoids are shown at 30 % probability level).

2.2. Stopper Exchange Reactions

With building blocks 3 and 6 in hands, stopper exchange reactions were first carried out by using carboxylates as nucleophiles (Scheme 2). Under optimized conditions, treatment of 3 with carboxylic acids 7 a–c in the presence of K₂CO₃ and 18‐crown‐6 gave the corresponding [2]rotaxanes with ester stoppers (8 a–c) in 67–73 % yields. Similarly, [2]rotaxanes 9 a–c were obtained in 79–86 % yields under the same conditions starting from 6 and 7 a–c. Rotaxanes 8 d–e and 9 d–e with thioether stoppers were also obtained from the reaction of thiol reagents 7 d–e and BTBS‐stoppered rotaxanes 3 and 6, respectively.

Scheme 2.

Stopper exchange reactions. Reagents and conditions: (i) K₂CO₃, 18‐crown‐6, Acetone, Δ [from 3: 8 a (67 %), 8 b (73 %), 8 c (72 %), 8 d (44 %), 8 e 87(%); from 6: 9 a (86 %), 9 b (81 %), 9 c (79 %), 9 d (97 %), 9 e (99 %)]; (ii) K₂CO₃, DMF, 70 °C [from 3: 8 f (62 %), 8 g (63 %); from 6: 9 f (71 %), 9 g (77 %)].

The preparation of rotaxanes with ether stoppers was also attempted by reaction of 3 or 6 with 7 f–g under the same conditions (K₂CO₃, 18‐crown‐6, acetone, Δ). The yields were however only moderate. Better results were obtained by using a more polar solvent, namely DMF. Compound 8 f–g and 9 f–g were effectively obtained in satisfactory yields when the reaction of 3 or 6 with phenols 7 f–g was performed in DMF at 70 °C in the presence of K₂CO₃. As anticipated, the nucleophilic substitution reactions are sensitive to steric effects. The stopper exchange reactions performed from rotaxane 3 with the shortest axle were always significantly slower when compared to those carried out from 6. As a result, formation of by‐products originating from the slow decomposition of 3 (mainly hydrolysis) started to compete significantly with the formation of the desired products during the reactions and the final rotaxanes were obtained in lower yields when compared to those prepared from the ‐(CH₂)₁₂‐ analogue 6.

Rotaxanes 8 a–g and 9 a–g were all characterized by combination of analytical techniques. In all the cases, the expected molecular ion peak was detected in the MALDI‐TOF mass spectra. It can be noted that all the compounds are rotaxanes since the typical fragmentation pattern of MIMs10 was systematically observed. Specifically, all the MS spectra revealed a peak corresponding to the macrocyclic component ([M‐dumbbell]⁺). This peak results from the cleavage of the axel followed by the fast unthreading of the linear fragment. Importantly, no further fragments could be detected in the m/z range between the macrocycle and the molecular ion peak. The NMR spectra were also consistent with the proposed structures. Importantly, the interlocked structures of 8 a–g and 9 a–g were unambiguously demonstrated by the chemical shifts of the signals arising from the −(CH₂)₁₀− or −(CH₂)₁₂− chain of their axle. The methylene groups being located within the cavity of their pillar[5]arene moiety, they appear all dramatically upfield shifted in their ¹H NMR spectra. This is illustrated in Figure 3 with the ¹H NMR spectra recorded in CD₂Cl₂ for compounds 8 a and 9 a.

Figure 3.

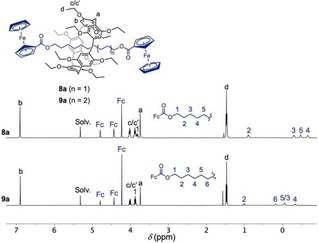

¹H NMR spectra (CD₂Cl₂, 25 °C, 500 MHz) of rotaxanes 8 a and 9 a.

Protons H(2‐5) for 8 a and H(2‐6) for 9 a are observed between δ=−0.7 and 1 ppm. These dramatic shielding is due to the ring current effect of the pillar[5]arene aromatic moieties on the CH₂ groups of the axle and represents a diagnostic signature for such rotaxanes. The three expected signals arising from the two equivalent ferrocene (Fc) stoppers are also observed. Finally, the ¹H NMR spectra of 8 a and 9 a show all the characteristic features of their pillar[5]arene component. It can be also noted that compounds 8 a and 9 a are D ₅‐symmetrical and therefore chiral. As a result, all the methylene groups are diastereotopic. This is particularly clear for H(c/c’) and explains the ABX₃ system observed in the spectra of both 8 a and 9 a for the ten equivalent ethyloxy substituents of their pillar[5]arene subunit.

X‐ray quality crystals were obtained for five rotaxanes (8 a, 8 d, 9 d, 9 e and 9 g). In all the cases, the compounds crystallized as racemates. The relative position of the pillar[5]arene moiety onto the alkyl chain of the axle is quite different from one system to the other (Figure 4). Nonetheless, two CH₂ moieties of the axle are always located within the cavity of the macrocycle. Careful analysis of the short C−H⋅⋅⋅ plane distances and angles revealed however rather variable orientations for the different rotaxanes thus suggesting that the dispersive forces between the two components must be rather weak. As already mentioned in the case of rotaxane 6, the position of the pillar[5]arene subunit observed for each of the rotaxanes in the solid state is most likely related to optimized intermolecular packing interactions in the crystal lattice rather than the result of an energetically favored conformation of the compounds.

Figure 4.

ORTEP plots of the structure of 8 a (A); 8 d (B); 9 d (C); the two conformers of 9 e present in the crystal lattice (D); and 9 g (E). The disorder (in the case of 9 e and 9 g) and the co‐crystalized solvent molecules (in the case of 9 e and 9 g) have been omitted for clarity; thermal ellipsoids are shown at 30 % probability level; colour code: H: white, Fe: orange, O: red, S: yellow, C: gray for the dumbbells and dark green for the pillar[5]arene moieties.

3. Conclusions

In conclusion, we have prepared pillar[5]arene‐containing [2]rotaxanes bearing two BTBS stoppers. These compounds are versatile building blocks and stopper exchange reactions have been efficiently achieved by treatment with various nucleophiles to afford rotaxanes with ester, thioether or ether stoppers. As the nucleophilic substitution occurs via a concerted mechanism (S_N2), the rotaxane structure is preserved during these chemical transformations. Given the structural diversity of the final products, this new methodology paves the way towards the preparation of new pillar[5]arene‐containing [2]rotaxanes for various applications. It may be also easily transferred to other families of macrocycles such as cyclodextrins or calixarenes for the preparation of unprecedented rotaxanes.

Experimental Section

General Methods

Reagents were purchased as reagent grade and used without further purification unless specified. Compound 2 was prepared according to a previously reported procedure.11 The carboxylic acid and phenol reagents were dried before use by three successive azeotropic distillations (51 mL of toluene and 35 mL of absolute ethanol) and subsequent drying over P₂O₅ in a vacuum. All reactions were performed in standard glassware under an inert Ar atmosphere. Evaporation and concentration were done at water aspirator pressure and drying in vacuo at 10⁻² Torr. Column chromatography: silica gel 60 (230–400 mesh, 0.040–0.063 mm) was purchased from E. Merck. Thin Layer Chromatography (TLC) was performed on aluminum sheets coated with silica gel 60 F₂₅₄ purchased from E. Merck. NMR spectra were recorded with a Bruker AC 400 or AC 500 spectrometer with solvent peaks as reference. The ¹H signals were assigned by 2D experiments (COSY and NOESY). IR spectra (cm⁻¹) were recorded with a Perkin‐Elmer Spectrum One spectrophotometer. Absorption spectral measurements were carried out with PerkinElmer Lambda 365 spectrophotometer equipped with PCB 1500 water peltier system. MALDI‐TOF mass spectra were recorded by the analytical service of the School of Chemistry (Strasbourg, France). Elemental analyses were performed by the analytical service of the Chemistry Department of the University of Strasbourg (France). X‐ray single crystal structure determinations were performed by the service of radiocristallography of the Fédération de Chimie Le Bel FR (Strasbourg, France).

Compound 3. A mixture of 1 (0.20 g, 1.15 mmol) and 2 (3.07 g, 3.44 mmol) in anhydrous CHCl₃ (6.0 mL) was stirred at −15 °C. After 30 min, a solution of BTBSCl (0.86 g, 2.75 mmol) and Et₃N (0.35 g, 3.44 mmol) in anhydrous CHCl₃ (1 mL) was added dropwise within 2 minutes. The resulting mixture was stirred during 4 h at −15 °C, then filtered through a short plug (SiO₂, CH₂Cl₂) and concentrated. Purification by gel permeation chromatography (Biobeads SX‐1, CH₂Cl₂) gave compound 3 (1.15 g, 62 %) as a pale‐yellow solid (dec.: 114 °C). ¹H NMR (500 MHz, CD₂Cl₂): δ=8.42 (s, 4H), 8.26 (s, 2H), 6.86 (s, 10H), 3.95–3.88 (m, 10H), 3.87–3.81 (m, 14H), 3.71 (s, 10H), 1.40 (t, J=7 Hz, 30H), 0.87 (m, 4H), −0.41 (m, 8H), −0.71 (broad s, 4H) ppm. ¹³C NMR (125 MHz, CD₂Cl₂): δ=149.6, 139.8, 133.1 (q, ² J _C‐F=34 Hz), 128.3, 128.1 (q, ³ J _C‐F=3.8 Hz), 127.4 (septet, ³ J _C‐F=3.8 Hz), 122.5 (q, ¹ J _C‐F=272 Hz), 114.0, 72.4, 63.4, 29.6, 29.2, 28.9, 28.5, 24.1, 15.2 ppm; ¹⁹F NMR (376 MHz, CD₂Cl₂): δ=−63.3 ppm. MALDI‐TOF‐MS: m/z=1616.54 (100 %, [M]⁺, calcd for C₈₁H₉₆F₁₂O₁₆S₂: 1616.59), 890.47 (10 %, [M‐dumbbell]⁺, calcd for C₅₅H₇₀O₁₀: 890.50). Anal. (%) calcd for C₈₁H₉₆F₁₂O₁₆S₂.CH₂Cl₂ (1702.67): C, 57.84; H, 5.80; Found: C, 57.36; H, 5.65.

Compound 5. A mixture of BTBSCl (1.00 g, 3.20 mmol), Et₃N (0.49 g, 4.80 mmol) and 4 (2.59 g, 12.80 mmol) in anhydrous THF (22 mL) was stirred at 0 °C. After 4 h, the resulting milky mixture was filtered through a short plug (SiO₂, CH₂Cl₂) and concentrated. Purification by column chromatography (SiO₂, CH₂Cl₂/EtOAc 9 : 1) followed by gel permeation chromatography (Biobeads SX‐1, CH₂Cl₂) gave compound 5 (0.87 g, 57 %) as a colorless solid (m.p.: 72 °C). IR (neat): 3410 (broad, O−H) cm⁻¹. ¹H NMR (500 MHz, CD₂Cl₂): δ=8.41 (s, 2H), 8.22 (s, 1H), 4.18 (t, J=7 Hz, 2H), 3.61 (t, J=7 Hz, 2H), 1.72 (m, 2H), 1.55 (m, 2H), 1.33–1.27 (m, 16H) ppm. ¹³C NMR (125 MHz, CD₂Cl₂): δ=139.2, 133.0 (q, ² J _C‐F=35 Hz), 128.3 (q, ³ J _C‐F=3.8 Hz), 127.4 (septet, ³ J _C‐F=3.8 Hz), 122.5 (q, ¹ J _C‐F=272 Hz), 72.7, 62.8, 32.9, 29.6, 29.5, 29.4, 29.3, 28.9, 28.8, 25.7, 25.3 ppm; ¹⁹F NMR (376 MHz, CD₂Cl₂): δ=−63.0 ppm. Anal. (%) calcd for C₂₀H₂₈F₆O₄S (478.49): C, 50.23; H, 6.00; Found: C, 50.23; H, 5.90.

Compound 6. A mixture of 5 (0.55 g, 1.14 mmol) and 2 (3.05 g, 3.42 mmol) in anhydrous CHCl₃ (10.0 mL) was stirred at −15 °C. After 30 min, a solution of BTBSCl (0.43 g, 1.67 mmol) and Et₃N (0.17 g, 1.71 mmol) in anhydrous CHCl₃ (1 ml) was added dropwise within 2 min. The mixture was stirred during 4 h at −15 °C, then filtered through a short plug (SiO₂, CH₂Cl₂) and concentrated. Purification by gel permeation chromatography (Biobeads SX‐1, CH₂Cl₂) gave compound 6 (1.20 g, 64 %) as a pale yellow solid (dec.: 118 °C). ¹H NMR (500 MHz, CD₂Cl₂): δ=8.39 (s, 4H), 8.23 (s, 2H), 6.84 (s, 10H), 3.94–3.88 (m, 10H), 3.85–3.79 (m, 14H), 3.69 (s, 10H), 1.39 (t, J=7 Hz, 30H), 0.88 (m, 4H), 0.44 (broad s, 4H), 0.06 (broad s, 4H), −0.36 (m, 4H), −0.50 (m, 4H) ppm. ¹³C NMR (125 MHz, CD₂Cl₂): δ=149.6, 139.8, 133.1 (q, ² J _C‐F=35 Hz), 128.2, 128.1 (q, ³ J _C‐F=3.8 Hz), 127.4 (septet, ³ J _C‐F=3.8 Hz), 122.5 (q, ¹ J _C‐F=271 Hz), 113.9, 72.5, 63.3, 30.6, 30.1, 29.0, 28.9, 28.4, 23.9, 15.2 ppm; ¹⁹F NMR (376 MHz, CD₂Cl₂): δ=−63.3 ppm. MALDI‐TOF‐MS: m/z=1644.59 (100 %, [M]⁺, calcd for C₈₃H₁₀₀F₁₂O₁₆S₂: 1644.63), 890.45 (6 %, [M‐dumbbell]⁺, calcd for C₅₅H₇₀O₁₀: 890.50). Anal. (%) calcd for C₈₃H₁₀₀F₁₂O₁₆S₂ (1645.79): C, 60.57; H, 6.13; Found: C, 60.53; H, 6.18.

General procedure for the preparation of [2]rotaxanes with ester stoppers (8 a–c and 9 a–c). A mixture of 3 (or 6) (1 equiv.), the appropriate carboxylic acid (7 a–c, 2.5 equiv.), K₂CO₃ (2.4 equiv.) and 18‐crown‐6 (0.8 equiv.) in acetone (5 mL/160 mg of 3 (or 6)) was heated under reflux. After 24 h (from 6) or 40 h (from 3), the resulting mixture was filtered through a short plug (SiO₂, CH₂Cl₂ containing 1 % of MeOH) and concentrated. The [2]rotaxanes were then purified by gel permeation chromatography (Biobeads SX‐1, CH₂Cl₂).

General procedure for the preparation of [2]rotaxanes with thioether stoppers (8 d–e and 9 d–e). A mixture of 3 (or 6) (1 equiv.), the appropriate thiol (7 d–e, 2.5 equiv.), K₂CO₃ (2.4 equiv.) and 18‐crown‐6 (0.8 equiv.) in acetone (5 mL/160 mg of 3 (or 6)) was heated under reflux. After 24 h (from 6) or 40 h (from 3), the reaction mixture was filtered through a short plug (SiO₂, CH₂Cl₂ containing 1 % of MeOH) and concentrated. The [2]rotaxanes were then purified by gel permeation chromatography (Biobeads SX‐1, CH₂Cl₂).

General procedure for the preparation of [2]rotaxanes with ether stoppers (8 f–g and 9 f–g). A mixture of 3 (or 6) (1 equiv.), the appropriate phenol (7 f–g, 2.5 equiv.), and K₂CO₃ (2.4 equiv.) in anhydrous DMF (4 mL/160 mg of 3 (or 6) was heated at 70 °C. After 24 h (from 6) or 40 h (from 3), the solvent was removed in vacuum. The resulting solid was diluted with H₂O (50 ml) and the product was extracted with Et₂O (4 x 40 mL). The combined organic layers were washed with H₂O (2×45 ml), dried (MgSO₄), filtered and concentrated. The [2]rotaxanes were then purified by gel permeation chromatography (Biobeads SX‐1, CH₂Cl₂).

Compound 8 a. Orange solid (0.099 g, 67 %, m.p.: 233 °C). UV/Vis (CH₂Cl₂) λ_max (ϵ): 291 (27000), 344 (sh, 660), 440 (broad, 450 M⁻¹cm⁻¹) nm. IR (neat): 1710 (C=O) cm⁻¹. ¹H NMR (500 MHz, CD₂Cl₂): δ=6.91 (s, 10H), 4.80 (broad s, 4H), 4.44 (broad s, 4H), 4.23 (s, 10H), 4.05–3.99 (m, 10H), 3.91–3.85 (m, 10H), 3.82 (t, J=8 Hz, 4H), 3.74 (s, 10H), 1.47 (t, J=7 Hz, 30H), 0.90 (m, 4H), −0.29 (m, 4H), −0.48 (broad s, 4H), −0.67 (broad s, 4H) ppm. ¹³C NMR (125 MHz, CD₂Cl₂): δ=170.9, 149.6, 128.0, 113.8, 72.1, 71.1, 70.0, 69.9 (2 peaks), 69.7, 64.8, 63.2, 29.9, 29.1, 29.0, 28.9, 25.0, 15.4 ppm. MALDI‐TOF‐MS: m/z=1488.57 (100 %, [M]⁺ calcd for C₈₇H₁₀₈Fe₂O₁₄: 1488.64), 891.38 (3 %, [M‐dumbbell+H]⁺, calcd for C₅₅H₇₁O₁₀ 891.50). Anal. (%) calcd for C₈₇H₁₀₈Fe₂O₁₄ (1489.47): C, 70.15, H, 7.31; Found: C, 70.24, H, 7.40.

Compound 9 a. Orange solid (0.127 g, 86 %, m.p.: 200 °C). UV/Vis (CH₂Cl₂) λ_max (ϵ): 295 (31030), 344 (sh, 666), 444 (broad, 470 M⁻¹cm⁻¹) nm. IR (neat): 1710 (C=O) cm⁻¹. ¹H NMR (500 MHz, CD₂Cl₂): δ=6.92 (s, 10H), 4.81 (m, 4H), 4.45 (t, J=1.9 Hz, 4H), 4.25 (s, 10H), 4.06–4.00 (m, 10H), 3.92–3.86 (m, 14H), 3.76 (s, 10H), 1.49 (t, J=7 Hz, 30H), 1.03 (m, 4H), 0.20 (m, 4H), −0.03 (m, 8H), −0.32 (m, 4H) ppm. ¹³C NMR (125 MHz, CDCl₃): δ=171.3, 149.6, 128.1, 113.9, 72.2, 71.6, 70.4, 70.0, 64.9, 63.2, 30.5, 30.2, 29.2, 29.0, 28.9, 25.1, 15.6 ppm. MALDI‐TOF‐MS: m/z=1516.68 (100 %, [M]⁺ calcd for C₈₉H₁₁₂Fe₂O₁₄: 1516.68), 891.19 (5 %, [M‐dumbbell+H]⁺, calcd for C₅₅H₇₁O₁₀ 891.50). Anal. (%) calcd for C₈₉H₁₁₂Fe₂O₁₄ (1517.53): C, 70.44, H, 7.44; Found: C, 70.37, H, 7.44.

Compound 8 b. Colorless solid (0.107 g, 73 %, m.p.: 193 °C). IR (neat): 1714 (C=O) cm⁻¹. ¹H NMR (500 MHz, CD₂Cl₂): δ=7.90 (d, J=1.9 Hz, 4H), 7.68 (t, J=1.9 Hz, 2H), 6.90 (s, 10H), 4.04–3.98 (m, 14H), 3.89–3.83 (m, 10H), 3.73 (s, 10H), 1.43 (t, J=7 Hz, 30H), 1.39 (s, 36H), 1.11 (m, 4H), −0.11 (m, 4H), −0.76 (m, 4H), −0.83 (m, 4H) ppm. ¹³C NMR (125 MHz, CD₂Cl₂): δ=167.0, 151.0, 149.6, 130.3, 128.0, 126.9, 123.5, 113.8, 65.6, 63.2, 34.9, 31.2, 29.5, 29.2, 29.0, 28.8, 25.5, 15.3 ppm. MALDI‐TOF‐MS: m/z=1497.01 (100 %, [M]⁺, calcd for C₉₅H₁₃₂O₁₄: 1496.96), 891.42 (15 %, [M‐dumbbell+H]⁺, calcd for C₅₅H₇₁O₁₀ : 891.50). Anal. (%) calcd for C₉₅H₁₃₂O₁₄ (1498.06): C, 76.17, H, 8.88; Found: C, 75.97, H, 8.87.

Compound 9 b. Colorless solid (0.120 g, 81 %, m.p.: 138 °C). IR (neat): 1715 (C=O) cm⁻¹. ¹H NMR (500 MHz, CD₂Cl₂): δ=7.91 (d, J=1.9 Hz, 4H), 7.69 (t, J=1.9 Hz, 2H), 6.90 (s, 10H), 4.08 (t, J=2 Hz, 4H), 4.04–3.98 (m, 10H), 3.89–3.84 (m, 10H) 3.74 (s, 10H), 1.44 (t, J=7 Hz, 30H), 1.39 (s, 36H), 1.24 (m, 4H), 0.18 (m, 4H), −0.10 (m, 4H), −0.30 (m, 8H) ppm. ¹³C NMR (125 MHz, CD₂Cl₂): δ=167.0, 151.1, 149.6, 130.3, 128.0, 126.9, 123.5, 113.8, 65.4, 63.2, 34.9, 31.2, 30.3, 30.0, 29.0, 28.9, 28.8, 25.5, 15.3 ppm. MALDI‐TOF‐MS: m/z=1525.04 (100 %, [M]⁺, calcd for C₉₇H₁₃₆O₁₄: 1524.99), 891.41 (5 %, [M‐dumbbell+H]⁺, calcd for C₅₅H₇₁O₁₀ : 891.50). Anal. (%) calcd for C₉₇H₁₃₆O₁₄ (1526.11): C, 76.34, H, 8.98; Found: C, 75.96, H, 8.97.

Compound 8 c. Colorless solid (0.106 g, 72 %, m.p.: 183 °C). IR (neat): 1734 (C=O) cm⁻¹. ¹H NMR (500 MHz, CD₂Cl₂): δ=7.34–7.27 (m, 16H), 7.24–7.21 (m, 4H), 6.87 (s, 10H), 4.59 (t, J=8 Hz, 2H), 3.95‐3.89 (m, 10H), 3.87‐3.81 (m, 10H), 3.71 (s, 10H), 3.49 (t, J=8 Hz, 4H), 3.05 (d, J=8 Hz, 4H), 1.41 (t, J=7 Hz, 30H), 0.58 (m, 4H), −0.26 (m, 4H), −0.51 (m, 4H), −0.58 (m, 4H) ppm. ¹³C NMR (125 MHz, CD₂Cl₂): δ=171.1, 149.5, 144.07, 144.02, 144.0, 128.6, 127.9, 127.6 (2 peaks), 126.5 (2 peaks), 113.6, 65.2, 63.1, 46.7, 40.3, 30.0, 29.1, 28.9, 28.4, 24.5, 15.2 ppm. MALDI‐TOF‐MS: m/z=1480.89 (100 %, [M]⁺, calcd for C₉₅H₁₁₆O₁₄: 1480.84), 891.46 (5 %, [M‐dumbbell+H]⁺, calcd for C₅₅H₇₁O₁₀: 891.50). Anal. (%) calcd for C₉₅H₁₁₆O₁₄ (1481.93): C, 77.00, H, 7.89; Found: C, 77.31, H, 8.18.

Compound 9 c. Colorless solid (0.116 g, 79 %, m.p.: 115 °C). IR (neat): 1733 (C=O) cm⁻¹. ¹H NMR (500 MHz, CD₂Cl₂): δ=7.34‐7.28 (m, 16H), 7.24‐7.20 (m, 4H), 6.87 (s, 10H), 4.59 (t, J=7.7 Hz, 2H), 3.97–3.91 (m, 10H), 3.88–3.82 (m, 10H), 3.72 (s, 10H), 3.54 (t, J=7.7 Hz, 4H), 3.06 (d, J=8 Hz, 4H), 1.42 (t, J=7 Hz, 30H), 0.66 (m, 4H), 0.40 (m, 4H), 0.11 (m, 4H), −0.34 (m, 8H) ppm. ¹³C NMR (125 MHz, CD₂Cl₂): δ=171.1, 149.5, 144.1 (2 C), 128.6, 127.9, 127.6, 126.5, 113.6, 65.2, 63.0, 46.8, 40.3, 30.7, 30.2, 28.9 (2 C), 28.3, 24.4, 15.3 ppm. MALDI‐TOF‐MS: m/z=1508.93 (100 %, [M]⁺, calcd for C₉₇H₁₂₀O₁₄: 1508.87), 891.36 (3 %, [M‐dumbbell+H]⁺, calcd for C₅₅H₇₁O₁₀: 891.50). Anal. (%) calcd for C₉₇H₁₂₀O₁₄ (1509.99): C, 77.16, H, 8.01; Found: C, 77.15, H, 7.90.

Compound 8 d. Colorless solid (0.069 g, 44 %, m.p.: 248 °C). ¹H NMR (500 MHz, CD₂Cl₂): δ=7.47–7.45 (m, 12H), 7.35–7.32 (m, 12H), 7.28–7.25 (m, 6H), 6.81 (s, 10H), 3.90–3.78 (m, 20H), 3.69 (s, 10H), 2.01 (t, J=8 Hz, 4H), 1.37 (t, J=7 Hz, 30H), 1.14 (m, 4H), 0.25 (m, 4H), −0.95 (m, 4H), −2.05 (m, 4H) ppm. ¹³C NMR (125 MHz, CD₂Cl₂): δ=149.5, 145.3, 129.5, 127.9, 127.8, 126.6, 113.7, 65.9, 63.2, 32.5, 30.5, 29.5, 29.3, 28.9, 27.9, 15.4 ppm. MALDI‐TOF‐MS: m/z=1580.73 (100 %, [M]⁺, calcd for C₁₀₃H₁₂₀O₁₀S₂: 1580.83), 890.42 (39 %, [M‐dumbbell]⁺, calcd for C₅₅H₇₀O₁₀: 890.50). Anal. (%) calcd for C₁₀₃H₁₂₀O₁₀S₂ (1582.18): C, 78.19, H, 7.65; Found: C, 78.15, H, 7.38.

Compound 9 d. Colorless solid (0.152 g, 97 %, m.p.: 191 °C). ¹H NMR (500 MHz, CD₂Cl₂): δ=7.46–7.44 (m, 12H), 7.35–7.31 (m, 12H), 7.28–7.24 (m, 6H), 6.81 (s, 10H), 3.90–3.77 (m, 20H), 3.69 (s, 10H), 2.07 (t, J=8 Hz, 4H), 1.38 (t, J=7 Hz, 30H), 1.26 (m, 4H), 0.64 (m, 4H), −0.15 (m, 4H), −0.95 (broad s, 4H), −1.28 (broad s, 4H) ppm. ¹³C NMR (125 MHz, CD₂Cl₂): δ=149.5, 145.2, 129.5, 127.9, 127.8, 126.6, 113.7, 66.1, 63.1, 32.3, 30.4, 30.2, 29.3, 29.2, 29.1, 28.9, 15.3 ppm. MALDI‐TOF‐MS: m/z=1608.68 (100 %, [M]⁺, calcd for C₁₀₅H₁₂₄O₁₀S₂: 1608.86), 890.39 (51 %, [M‐dumbbell]⁺, calcd for C₅₅H₇₀O₁₀: 890.50). Anal. (%) calcd for C₁₀₅H₁₂₄O₁₀S₂ (1610.24): C, 78.32, H, 7.76; Found: C, 78.22, H, 7.85.

Compound 8 e. Colorless glassy product (0.118 g, 87 %). ¹H NMR (500 MHz, CD₂Cl₂): δ=6.90 (s, 10H), 6.80–6.75 (m, 4H), 6.65–6.63 (m, 2H), 4.06–4.00 (m, 10H), 3.87‐3.81 (m, 16H), 3.79 (s, 6H), 3.73 (s, 10H), 2.37 (m, 4H), 1.41 (t, J=7 Hz, 30H), 0.58 (m, 4H), −0.24 (m, 8H), −0.41 (broad s, 4H) ppm. ¹³C NMR (125 MHz, CD₂Cl₂): δ=154.2, 150.6, 149.6, 129.0, 128.1, 114.4, 113.9, 110.6, 107.8, 63.4, 56.2, 55.4, 31.3, 30.1, 29.5, 29.0, 28.9, 28.4, 15.2 ppm. MALDI‐TOF‐MS: m/z=1368.62 (100 %, [M]⁺, calcd for C₈₁H₁₀₈O₁₄S₂: 1368.72), 891.38 (3 %, [M‐dumbbell+H]⁺, calcd for C₅₅H₇₁O₁₀: 891.51). Anal. (%) calcd for C₈₁H₁₀₈O₁₄S₂ (1369.85): C, 71.02, H, 7.95; Found: C, 70.83, H, 7.99.

Compound 9 e. Colorless solid (0.135 g, 99 %, m.p.: 91 °C). ¹H NMR (500 MHz, CD₂Cl₂): δ=6.90 (s, 10H), 6.80–6.77 (m, 4H), 6.65–6.63 (m, 2H), 4.05–3.99 (m, 10H), 3.87–3.81 (m, 16H), 3.79 (s, 6H), 3.73 (s, 10H), 2.42 (m, 4H), 1.42 (t, J=7 Hz, 30H), 0.70 (m, 4H), 0.30 (broad s, 4H), 0.11 (broad s, 4H), −0.03 (m, 4H), −0.16 (m, 4H) ppm. ¹³C NMR (125 MHz, CD₂Cl₂): δ=154.2, 150.7, 149.6, 128.8, 128.1, 114.4, 113.9, 110.7, 108.0, 63.4, 56.2, 55.5, 31.3, 30.6, 30.1, 29.4, 28.9, 28.7, 28.4, 15.2 ppm. MALDI‐TOF‐MS: m/z=1396.74 (100 %, [M]⁺, calcd for C₈₃H₁₁₂O₁₄S₂: 1396.75), 891.50 (4 %, [M‐dumbbell+H]⁺, calcd for C₅₅H₇₁O₁₀: 891.51). Anal. (%) calcd for C₈₃H₁₁₂O₁₄S₂ (1397.90): C, 71.31, H, 8.08; Found: C, 71.28, H, 8.16.

Compound 8 f. Colorless glassy product (0.104 g, 62 %). ¹H NMR (500 MHz, CD₂Cl₂): δ=7.30–7.25 (m, 24H), 7.23–7.20 (m, 6H), 7.14 (d, J=7 Hz, 4H), 6.89 (s, 10H), 6.76 (d, J=7 Hz, 4H), 3.94‐3.88 (m, 10H), 3.85‐3.80 (m, 10H), 3.72 (s, 10H), 3.22‐3.13 (m, 4H), 1.34 (t, J=7 Hz, 30H), 0.41 (m, 4H), 0.33 (m, 4H), −0.08 (m, 4H), −0.43 (m, 4H) ppm. ¹³C NMR (125 MHz, CD₂Cl₂): δ=157.5, 149.7, 147.3, 138.3, 131.9, 131.0, 128.1, 127.4, 125.8, 114.0, 113.0, 68.2, 64.4, 63.4, 30.7, 30.0, 29.0, 28.7, 24.6, 15.3 ppm. MALDI‐TOF‐MS: m/z=1700.84 (100 %, [M]⁺, calcd for C₁₁₅H₁₂₈O₁₂: 1700.94), 890.40 (4 %, [M‐dumbbell]⁺, calcd for C₅₅H₇₀O₁₀: 890.50). Anal. (%) calcd for C₁₁₅H₁₂₈O₁₂ (1702.24): C, 81.14, H, 7.58; Found: C, 81.16, H, 7.53.

Compound 9 f. Colorless glassy product (0.120 g, 71 %). ¹H NMR (500 MHz, CD₂Cl₂): δ=7.29–7.25 (m, 24H), 7.23–7.19 (m, 6H), 7.14 (d, J=7 Hz, 4H), 6.89 (s, 10H), 6.76 (d, J=7 Hz, 4H), 3.95‐3.89 (m, 10H), 3.86‐3.80 (m, 10H), 3.72 (s, 10H), 3.24‐3.15 (m, 4H), 1.36 (t, J=7 Hz, 30H), 0.86 (m, 4H), 0.58 (m, 4H), 0.45 (m, 4H), 0.04 (m, 4H), −0.36 (m, 4H) ppm. ¹³C NMR (125 MHz, CD₂Cl₂): δ=157.5, 149.6, 147.3, 138.3, 131.9, 131.0, 128.1, 127.4, 125.8, 113.9, 113.0, 68.2, 64.4, 63.3, 31.0, 30.5, 29.4, 29.0, 28.6, 24.3, 15.2 ppm. MALDI‐TOF‐MS: m/z=1728.89 (100 %, [M]⁺, calcd for C₁₁₇H₁₃₂O₁₂: 1728.97), 891.35 (10 %, [M‐dumbbell+H]⁺, calcd for C₅₅H₇₁O₁₀: 891.50). Anal. (%) calcd for C₁₁₇H₁₃₂O₁₂ (1730.30): C, 81.21, H, 7.69; Found: C, 81.11, H, 7.67.

Compound 8 g. Colorless solid (0.09 g, 63 %, m.p.: 157 °C). IR (neat): 1728 (C=O) cm⁻¹. ¹H NMR (500 MHz, CD₂Cl₂): δ=8.27 (t, J=1.5 Hz, 2H), 7.74 (d, J=1.5 Hz, 4H), 6.93 (s, 10H), 4.01–3.95 (m, 22H), 3.91–3.85 (m, 10H), 3.74 (s, 10H), 3.57–3.48 (m, 4H), 1.40 (t, J=7 Hz, 30H), 0.72 (m, 4H), 0.03 broad s, 4H), −0.36 (m, 8H) ppm. ¹³C NMR (125 MHz, CD₂Cl₂): δ=166.0, 159.5, 149.6, 131.9, 128.2, 122.3, 119.3, 114.1, 69.0, 63.4, 52.3, 30.3, 29.5, 29.2, 29.0, 24.4, 15.2 ppm. MALDI‐TOF‐MS: m/z=1448.77 (100 %, [M]⁺, calcd for C₈₅H₁₀₈O₂₀: 1448.74), 891.44 (3 %, [M‐dumbbell+H]⁺, calcd for C₅₅H₇₁O₁₀: 891.50). Anal. (%) calcd for C₈₅H₁₀₈O₂₀ (1449.76): C, 70.42, H, 7.51; Found: C, 70.19, H, 7.51.

Compound 9 g. Colorless solid (0.111 g, 77 %, m.p.: 137 °C). IR (neat): 1725 (C=O) cm⁻¹. ¹H NMR (500 MHz, CD₂Cl₂): δ=8.27 (t, J=1.5 Hz, 2H), 7.74 (d, J=1.5 Hz, 4H), 6.93 (s, 10H), 4.01–3.95 (m, 22H), 3.91–3.85 (m, 10H), 3.74 (s, 10H), 3.57–3.48 (m, 4H), 1.40 (t, J=7 Hz, 30H), 0.72 (m, 4H), 0.03 broad s, 4H), −0.36 (m, 8H) ppm. ¹³C NMR (125 MHz, CD₂Cl₂): δ=166.0, 159.5, 149.6, 131.9, 128.2, 122.3, 119.3, 114.1, 69.0, 63.4, 52.3, 30.3, 29.5, 29.2, 29.0, 24.4, 15.2 ppm. MALDI‐TOF‐MS: m/z=1476.77 (100 %, [M]⁺, calcd for C₈₇H₁₁₂O₂₀: 1476.77), 891.37 (5 %, [M‐dumbbell+H]⁺, calcd for C₅₅H₇₁O₁₀: 891.50). Anal. (%) calcd for C₈₇H₁₁₂O₂₀ (1477.81): C, 70.71, H, 7.64; Found: C, 70.59, H, 7.63.

X‐Ray Crystal Structures

The crystallographic data and the refinement parameters are reported in the supplementary material for all the compounds. The X‐ray crystal structures have been deposited at the Cambridge Structural Database (CCDC deposition numbers: 1980807 for 6, 1980808 for 8 a, 1980817 for 8 d, 1980881 for 9 d, 1980883 for 9 e and 1980886 for 9 g).
