Polyethyleneimine-Stabilized Platinum Nanoparticles as Peroxidase Mimic for Colorimetric Detection of Glucose

Yanshuai Cui †,‡, Xiang Lai ‡, Bo Liang †,*, Ying Liang ‡, Haotian Sun §, Longgang Wang ‡
PMCID: PMC7114613  PMID: 32258915

Abstract

graphic file with name ao0c00147_0010.jpg

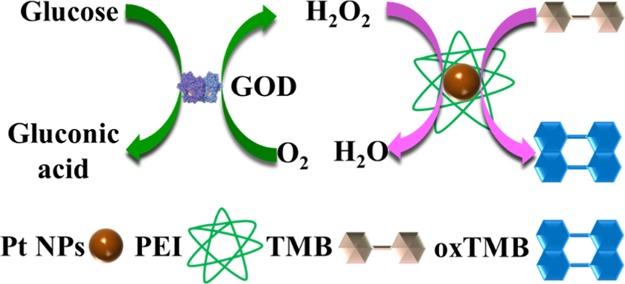

Colorimetric detection of glucose using enzyme-mimic nanoparticles (NPs) has been drawing great attention. However, many NPs lack good stability in solution, which results in reduced color change of substrates in colorimetric detection. Liner soluble macromolecules with high cationic density may be suitable candidates for the stabilization of NPs. Herein, we prepared polyethyleneimine-stabilized platinum NPs (Ptn-PEI NPs) for colorimetric detection of glucose. The platinum NPs (Pt NPs) used in this system had small size (from 3.21 to 3.70 nm) and narrow size distribution. Pt50-PEI NPs had high stability within one week with a hydrodynamic size of ∼25 nm and slightly positive zeta potential. Pt50-PEI NPs-catalyzed oxidation of 3,3′,5,5′-tetramethylbenzidine (TMB) in the presence of H2O2, generating blue oxidized TMB (oxTMB), which indicated the peroxidase-like property of Pt50-PEI NPs. The optimal condition for this reaction was pH = 4.0 at 30 °C. More importantly, Pt50-PEI NPs were successfully used to detect glucose concentration by a colorimetric method with high selectivity. The established method had a linear concentration range from 10 to 5000 μM with a detection limit of 4.2 μM. For example, the concentration of glucose in saliva was tested to be 0.15 mM using our method. The high stability of Pt50-PEI NPs enhanced the high accessibility of the active center of Pt NPs for substrates and consequent excellent catalytic property. This established method has great potential to be used in various applications for glucose detection in the future.

1. Introduction

Natural enzymes have high catalytic efficiency and excellent specificity.1 These properties lead to their wide application in detection,2 drug delivery,3 and the degradation of organic pollutants.4 As for the detection, natural horseradish peroxidase (HRP) has been used in the catalytic oxidation of colorless 3,3,5,5-tetramethylbenzidine (TMB) into blue oxidized TMB (oxTMB) in the bio-related detection, and oxTMB has a high molar absorption coefficient.5 However, natural enzymes are relatively expensive and easy to be inactivated by the surrounding environment. It is important to seek mimic enzymes to overcome the shortage and maintain the merit of natural enzymes. Gao and co-workers first reported that magnetic Fe3O4 nanoparticles (NPs) possessed peroxidase-like activity.6 Besides, many other nanomaterials have been demonstrated to exhibit good peroxidase-like properties, such as Co3O4,7 Co4N nanowires,8 Prussian blue,9 graphene oxide,10 and noble metal nanoparticle.11 These nanomaterials have more flexible structures and higher chemical stability compared with HRP. They are capable of catalyzing the oxidation of TMB into blue oxTMB, which have been further used to detect glucose concentration. For example, core–shell gold nanorods were used for the colorimetric determination of glucose in the range of 2.5–200 μM;12 TiO2-encapsulated Au (Au@TiO2) yolk–shell had a linear range in 5–100 μM and a detection limit of 4.0 μM.13 However, many nanomaterials lack high stability in solution, which restrains their catalytic efficiency.

Platinum element is widely used in chemical industries. Several platinum NPs (Pt NPs) possess mimetic activities.14−17 The improvement of the catalytic activity of Pt NPs still has received increasing attention.18−20 Smaller NPs often have larger specific surface areas. However, they are likely to form aggregation in aqueous solution because of their larger surface energy, which would restrict their catalytic efficiency. In fact, the catalytic efficiency of Pt NPs is dependent on the number of available active sites on the surface of NPs. Stable Pt NPs in aqueous solution tend to have more accessible active sites. Thus, many substances have been employed to stabilize the metal NPs, and a substantial fraction of the surface of the metal NPs participates in catalytic reactions.21,22 These substances include bovine serum albumin,23 yeast extract,24 sodium polyacrylate,25 polyvinylpyrrolidone (PVP),26 and dendrimers.27 Platinum NPs using bovine serum albumin have salt-resistant property.23 Small Pt nanoclusters were prepared using yeast extract as the reductant and stabilizer.24 Sodium polyacrylate-stabilized Pt NPs had 3.25 times higher hydrogen generation activity than that of Pt NPs without stabilization under the same conditions.25 Pt nanocubes were capped by PVP,28 and Pt NPs were prepared using dendrimers terminated with alkyl chains as the template.29 However, polyvinylpyrrolidone may cause cancers, and dendrimers are too expensive to be scaled up. In contrast, polyethyleneimine (PEI) has an affordable price and the highest cationic density among water-soluble polymers, providing its potential to stabilize metal NPs in large scale. In addition, the linear PEI molecule should keep most of the catalytic center of Pt NPs available. The higher amount of catalytic center could lead to the higher catalytic oxidation of TMB and obvious change. Pt NPs (12.9–70.7 nm) have been successfully prepared by PEI molecules with molecular weights from 300, 1200, and 10,000.30 However, the sizes of aforementioned Pt NPs are relatively big, and the stability of prepared NPs is not investigated. Thus, it is still necessary to obtain smaller Pt NPs with high stability in solution.

In this work, a facile method to prepare PEI (Mw 70,000)-stabilized platinum NPs (Ptn-PEI NPs) was developed. The monodispersed Ptn-PEI NPs were highly stable. Ptn-PEI NPs efficiently catalyzed TMB with H2O2 to produce blue oxTMB. More importantly, the blue color of this system was dependent on the concentration of glucose. Thus, a colorimetric method based on Ptn-PEI NPs to sensitively detect glucose concentration was established for the first time. The glucose concentration of saliva was measured, suggesting the great potential of Ptn-PEI NPs for bio-related detection.

2. Results and Discussion

2.1. Characterization of Ptn-PEI NPs

The Ptn-PEI NPs were prepared by mixing PEI solution (pH = 4.0, 1 mg/mL) and K2PtCl4 (2 mM) aqueous solution in PE tubes, where PEI was used as the template and NaBH4 was used as the reducing agent. All the tubes were located in a constant temperature metal mixer at 20 °C for 20 min. PtCl42– and nitrogen atom of the PEI formed a complex. The concentration of PtCl42– around nitrogen atoms of the PEI was much higher than that of bulk solution. Then, PtCl42– was very quickly reduced to zero-valent Pt atoms by the addition of strong reducing agent NaBH4. These Pt atoms gathered together to Pt NPs which stabilized by PEI. This reduction process was monitored by UV–vis spectra. Figure 1a showed that the K2PtCl4 had an obvious characteristic absorption peak at 320 and 383 nm corresponding to d–d transitions.31 Two peaks were weakened after incubation of K2PtCl4 with PEI. After the addition of NaBH4, a broad and continuous absorption appeared. In addition, as shown in Figure 1b, when the molar ratio of K2PtCl4 to PEI increased from 50 to 150, the absorbance of Ptn-PEI NPs gradually increased. The Ptn-PEI NPs were well dissolved in aqueous solution. PAMAM dendrimer-encapsulated Pt NPs also had similar results.29 Taken together, the results indicated the successful preparation of Ptn-PEI NPs.

Figure 1.

Figure 1

Open in a new tab

(a) UV–vis spectra of PEI, K2PtCl4, PEI + K2PtCl4, (b) UV–vis spectra, and photos of Ptn-PEI NPs.

As shown in Figure 2, PEI had several peaks from 2.45 to 2.74 ppm, which were assigned to the proton of −CH2–CH2– from the PEI skeleton. After the stabilization of Pt NPs by PEI, the 1H NMR spectrum of Pt50-PEI had a wider range from 2.45 to 3.28 ppm than that of PEI. The difference should be due to the encapsulation some proton peaks of −CH2–CH2– from the PEI skeleton by Pt NPs.

Figure 2.

Figure 2

Open in a new tab

1H NMR spectra of PEI and Pt50-PEI.

The size of metal NPs has a great impact on their catalytic efficiency. As shown in Figure 3, the sizes of prepared Pt NPs stabilized by PEI were examined by transmission electron microscopy (TEM). The sizes of Pt NPs for Pt50-PEI, Pt100-PEI, and Pt150-PEI were 3.21 ± 0.87, 3.38 ± 0.74, and 3.7 ± 0.75 nm, respectively. It should be noted that as the molar ratio of K2PtCl4 to PEI increased, the sizes of Pt NPs increased. Thus, Pt NPs had very small sizes with a narrow size distribution. They also had high dispersity without aggregation and high specific surface areas. However, the Pt NPs without stabilization by PEI showed obvious aggregation and big size (Figure S1). Thus, PEI with proper molecular weight was important for the high stability and size control of Pt NPs. One of the most common methods selected to synthesize Pt NPs involves the use of sodium polyacrylate25 and polyvinylpyrrolidone.26 The size of Pt NPs with sodium polyacrylate was about 50 nm with certain aggregation.25 PVP is a nonionic polymer, while PEI is a cationic polymer. Spherical Pt NPs are prepared within the size from 16 to 23 nm using Punica garanatum peel extract.32 The Pt NPs (10–50 nm) are synthesized using Prunus × yedoensis tree gum.33 In short, a facile method of preparation of Ptn-PEI was established, where PEI (70,000) was used to control the size of Pt NPs and enhance the stability of Ptn-PEI.

Figure 3.

Figure 3

Open in a new tab

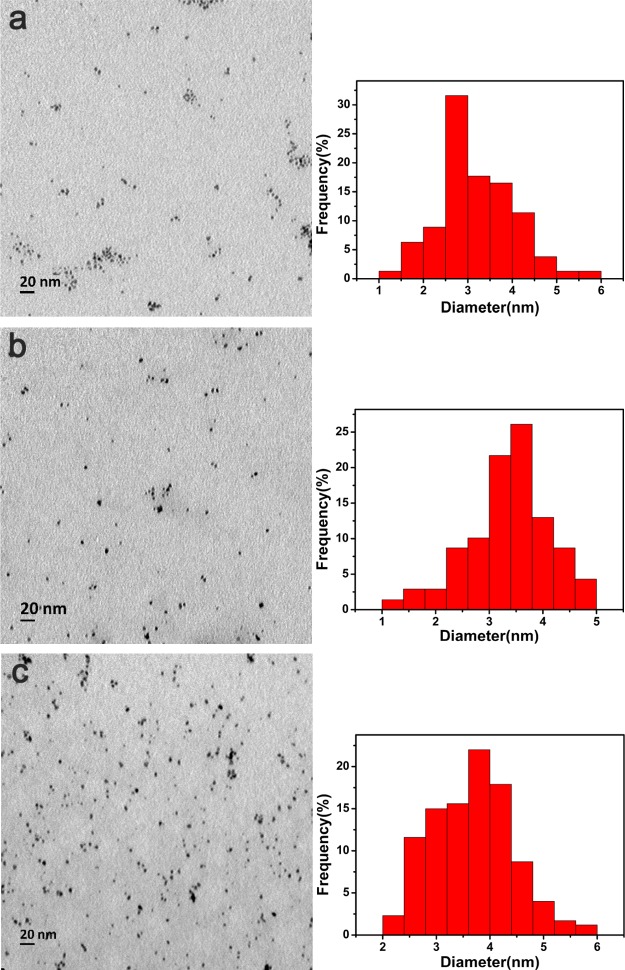

TEM images and relevant size distribution of Pt NPs inside of (a) Pt50-PEI, (b) Pt100-PEI, and (c) Pt150-PEI. Pt NPs stabilized by PEI had a small size from 3.21 to 3.70 nm.

X-ray photoelectron spectroscopy (XPS) is commonly used to study the surface element composition and valence state of metal composite materials.34 Herein, as shown in Figure 4a, the peaks at 284.6 and 398.9 eV were assigned to C 1s and N 1s, respectively. They were from PEI. The peak at 529.3 eV was attributed to O 1s indicating the presence of H2O, which was because of the strong binding water ability of PEI. Figure 4b further showed that the binding energy of the Pt 4f had two characteristic peaks at 72.6 and 75.8 eV, which belonged to the Pt 4f7/2 and Pt 4f5/2 orbits, respectively. Pt NPs with zero valence prepared by Natarajan Prabu had 72.21 and 75.81 eV. Thus, Pt(II) has been reduced by NaBH4 to generate Pt (0). The slight difference should be due to the different size of Pt NPs and surface properties.35 In short, XPS results demonstrated the successful preparation of Pt (0) stabilized by PEI.

Figure 4.

Figure 4

Open in a new tab

(a) XPS spectrum of Pt50-PEI NPs and (b) binding energy of Pt 4f. Pt NPs were successfully stabilized by PEI.

Furthermore, the hydration status and stability of Pt50-PEI NPs were measured using DLS technology. The changes of the hydrodynamic size of Pt50-PEI NPs under different pH from 4 to 9 were used to evaluate their stability. As shown in Figure 5a, the hydrodynamic size of Pt50-PEI NPs was about 25 nm within one week, indicating their high stability for a long time. In contrast, the Pt NPs without the stabilization of PEI gradually precipitated. The hydrodynamic size of Pt50-PEI NPs included the PEI molecule, which was bigger than the size of Pt NPs measured by using TEM. Furthermore, Figure 5b showed that the zeta potential of Pt50-PEI NPs changed from 9.4 ± 2.7 mV at pH 1 to 4.9 ± 2.6 mV at pH 10. The stability of NPs was dependent on the zeta potential and polymer template. High zeta potential of NPs (>30 mV) means their good stability.36,37 In addition, the polymer template inhibits agglomeration of NPs by steric effects.38,39 As for Pt50-PEI NPs, electrostatic repulsion and steric hindrance between Pt50-PEI NP result in their high stability which was beneficial to catalytic oxidation of TMB for a long time.40 In short, Pt50-PEI NPs had high stability with a hydrodynamic size of ∼25 nm and slightly positive charge.

Figure 5.

Figure 5

Open in a new tab

(a) Hydrodynamic size and (b) zeta potential of Pt50-PEI NPs in buffer. Pt50-PEI NPs had good stability and slightly positive charge.

2.2. Peroxidase-like Activity Assays

Many substrates such as TMB and 2,2′-azino-bis(3-ethylbenzothiazoline-6-sulfonic acid) diammonium salt (ABTS) can be effectively catalyzed by HRP. Herein, TMB was catalyzed by Pt50-PEI NPs in the presence of H2O2 at pH 4. Figure 6 showed that Pt50-PEI catalyzed the oxidation of TMB with H2O2 to generate a characteristic absorption peak at 652 nm (A = 0.488) which corresponded to blue oxTMB solution.41 However, other groups were still colorless and the absorbance (A = 0.046) was lower than 0.488, indicating the absence of oxTMB. These results demonstrated that the Pt50-PEI NPs catalyzed the oxidation of TMB in the presence of H2O2, indicating their peroxidase-like activity. In addition, the bottom of the bottle was clear, suggesting the high stability of Pt50-PEI NPs in the catalytic process. Stable Pt50-PEI NPs in aqueous solution tend to have more available active sites. TMB molecules and H2O2 molecules were absorbed on the active sites of Pt NPs. The free electron was transferred from TMB to H2O2 on the active sites of Pt NPs. Platinum NPs decorated on nickel- and nitrogen-doped graphene nanotubes also have peroxidase-like activity; the corresponding groups have obvious absorbance at 652 nm.42 In short, Pt50-PEI NPs had significant peroxidase-like activity.

Figure 6.

Figure 6

Open in a new tab

(a) Spectra of different solutions: [TMB + H2O2], [TMB + Pt50-PEI], [H2O2 + Pt50-PEI], and [TMB + Pt50-PEI + H2O2] and (b) corresponding solution. Pt50-PEI NPs had peroxidase-like activity.

2.3. Catalytic Activity

Generally, the catalytic activity of natural enzymes is dependent on their structure and conformation, which were influenced by the surrounding conditions (pH and temperature). Herein, the effects of pH values (from 2 to 12) and the temperature (from 10 to 60 °C) on the catalytic activities of Pt50-PEI were carefully investigated, respectively. As shown in Figure 7a, the maximum relative activity of Pt50-PEI was pH 4.0. Thus, pH 4.0 was optimal pH values for the TMB oxidation reaction, which was similar to those of other NPs.43,44 In addition, as shown in Figure 7b, when the temperature was from 10 to 60 °C, the catalytic reaction reached the highest relative activity at 30 °C. In short, pH 4.0 and temperature 30 °C were the optimal conditions and were chosen for subsequent experiments.45−47

Figure 7.

Figure 7

Open in a new tab

Effects of (a) pH and (b) temperature on the catalytic property of Pt50-PEI. The optimal conditions were pH for 4.0 and temperature for 30 °C.

2.4. Kinetic and Mechanism Study

Furthermore, the peroxidase-like catalytic performance of Pt50-PEI with H2O2 or TMB as substrates was measured using the steady-state kinetics. The enzymatic kinetic parameters were measured under conditions with altering concentrations of H2O2 or TMB while fixing the other one invariable. The initial reaction rate was calculated on the basis of the production of oxTMB over time. The molar absorption coefficient of oxTMB was 39,000 M–1·cm–1. As shown in Figure 8a and Figure 8b, the initial reaction rate (v) of Pt50-PEI was dependent on the substrate (TMB or H2O2) concentration. Both curves confirmed that the catalytic reaction of Pt50-PEI followed a typical Michaelis–Menten equation. MoS2–Pt74Ag26, Fe-doped CeO2 nanorods, and PVP-functionalized ultra-small MoS2 NPs also exhibit typical Michaelis–Menten kinetics.48−50 As shown in Figure 8c,d, the 1/v was proportional to 1/H2O2 concentration and 1/TMB concentration, respectively. The Michaelis constant (Vmax and Km) was shown in Table 1. The Vmax values toward TMB of Pt50-PEI NPs were much bigger than that of HRP, indicating that Pt50-PEI NPs had higher catalytic activity than HRP. The high catalytic activity should be due to free access to the active sites of NPs for the substrates. Water-soluble PEI enhanced the stability of small Pt NPs, while PEI should not occupy the active sites of Pt NPs. It has been reported that PVP was strongly adsorbed onto the surface of NPs, and surface-adsorbed PVP blocked reactant molecules to access the active sites of NPs.51 Chen and co-worker found that the peroxidase-like activity of graphene oxide–Fe3O4 magnetic nanocomposites follows a ping-pong mechanism.52 The peroxidase-like activity of Pt50-PEI NPs should also follow a ping-pong mechanism. In short, Pt50-PEI NPs had typical Michaelis–Menten equation for the catalytic oxidation of TMB.

Figure 8.

Figure 8

Open in a new tab

Effect of (a) H2O2 concentration and (b) TMB concentration on the initial reaction rate (v) and (c,d) double-reciprocal plots of (a,b), respectively.

Table 1. Kinetic Parameters of Pt50-PEI NPs and HRP.

catalyst substrate Km (mM) Vmax (10–8 Ms–1) reference
Pt50-PEI TMB 2.02 115 this work
Pt50-PEI H2O2 43.6 8.50 this work
HRP TMB 0.434 10.00 (6)
HRP H2O2 3.70 8.71 (6)
PtNPs/GO TMB 0.1864 10.20 (53)
PtNPs/GO H2O2 221.4 12.45 (53)
Open in a new tab

2.5. Glucose Detection

The Pt50-PEI-catalyzed TMB to generate blue oxTMB which had an obvious absorbance peak at 652 nm in the UV–vis spectra. Thus, the concentration of oxTMB can be calculated based on its absorbance at 652 nm. The concentration of oxTMB was proportional to H2O2 concentration. It has been reported that the H2O2 concentration was dependent on the glucose concentration in the glucose oxidase (GOD)-catalyzed reaction in the presence of glucose and oxygen. Thus, combining two catalytic reactions using Pt50-PEI and GOD, the concentration of oxTMB should be dependent on the glucose concentration. Figure 9a showed that the absorbance of oxTMB at 652 nm was positively correlated with the glucose concentration which was from 10–5000 μM. The standard response equation of glucose concentration was A = 0.0485Cglucose + 0.191. The detection limit was 4.2 μM, which was relatively small when it was compared with other reported NPs (Table 2). Cysteine-modified MoS2 nanoflakes (Cys–MoS2 NFs) were used for the colorimetric detection of glucose with a detection limit for 33.51 μM and the linear range from 0.05–1 mM.54 The high stability of Pt50-PEI NPs was good for the quick color change of TMB. Saliva was used as the real sample to test the glucose concentration. The glucose concentration was 0.15 mM, which was within a normal glucose concentration of human saliva (0.008–0.21 mM).55 This confirmed the validity of this method. Thus, a sensitive colorimetric method for glucose detection was established based on the peroxidase-like activity of Pt50-PEI NPs.

Figure 9.

Figure 9

Open in a new tab

Glucose detection by using Pt50-PEI (a) linear plot between the absorbance and the glucose concentration in the range of 0.01–5 mM. (b) Selectivity of detection of glucose.

Table 2. Linear Range and Detection Limit of Mimetic Enzyme.

mimetic enzyme linear range (μM) detection limit (μM) method reference
Pt50-PEI 10–5000 4.2 colorimetry yhis work
Pt200-JP NCs 10–1000 5.47 colorimetry (57)
Pt NPs 1–50 1 colorimetry (58)
GNRs-CQDs 10–2000 3.0 colorimetry (59)
NiFe-LDHNS 50–2000 23 colorimetry (60)
MoS2 NPs 15–135 7 colorimetry (61)
Por-ZnFe2O4 HSs 6–90 5.5 colorimetry (62)
Ag@Fabric 100–2000 80 colorimetry (63)
Cys-MoS2 NFs 50–1000 33.51 colorimetry (54)
PtPd/PHNG-2 100–4000 1.82 electrochemistry (64)
Pt–Pd nanoflakes 0–16,000 20.6 electrochemistry (65)
Pt–Pb bimetallic nanostructure/Au 0–12,000 8.4 electrochemistry (66)
Open in a new tab

Furthermore, selectivity of glucose detection was evaluated by using maltose, fructose, and lactose as control groups. The concentrations of glucose and other sugars were 5 and 10 mM, respectively. As shown in Figure 9b, the absorbance of control groups was much lower than that of glucose when the concentration of glucose was half of that of other sugars. Thus, this detection method had high selectivity toward glucose, which was because of the specificity of GOD toward the catalytic oxidation of β-d-glucose to gluconic acid using molecular oxygen.56 In addition, the developed method showed acceptable reproducibility. In short, a selective method using Ptn-PEI NPs was demonstrated. Compared with the electrochemical method, a colorimetric method using Ptn-PEI NPs has many merits such as convenience, low cost, simplicity, and practicality.

3. Conclusions

In summary, PEI (70,000) was used as a template to construct water-soluble, stable, and monodispersed Ptn-PEI NPs. Based on the peroxidase-like activity of Pt50-PEI NPs, a highly sensitive method for the detection of glucose concentration was established. The size of Pt NPs inside Ptn-PEI NPs ranged from 3.21 to 3.70 nm. Pt50-PEI NPs had a hydrodynamic size of ∼25 nm and slightly positive charge. Furthermore, Pt50-PEI NPs showed peroxidase-like reaction, which was used to detect the glucose concentration. This detective method had a linear glucose concentration range from 10 to 5000 μM, low detection limit, and high selectivity. The concentration of glucose in saliva was tested to be 0.15 mM. The suitable molecular-weight PEI was used to keep high stability of Pt NPs (3.21 nm) inside of Pt50-PEI NPs in solution. Pt50-PEI NPs could be prepared in large scale because of affordable price. This high stability of Pt50-PEI NPs was beneficial to the sensitive detection of glucose concentration in the solution system. Our future work will focus on the relationship between surface groups of soluble macromolecules and the catalytic ability of metal NPs. This established method has great potential to be used for glucose detection in the future.

4. Methods

4.1. Synthesis of Ptn-PEI NPs

The synthesis of Ptn-PEI NPs was as follows: as for Pt50-PEI NPs, 357 μL of K2PtCl4 (2 mM) aqueous solution and 1000 μL of PEI solution (pH = 4.0, 1 mg/mL) were mixed and added in a PE tube. As for Pt100-PEI NPs, 357 μL of K2PtCl4 (2 mM) aqueous solution and 500 μL of PEI solution (pH = 4.0, 1 mg/mL) were mixed and added in a PE tube. As for Pt150-PEI NPs, 535.5 μL of K2PtCl4 (2 mM) aqueous solution and 500 μL of PEI solution (pH = 4.0, 1 mg/mL) were mixed and added in a PE tube. The molar ratio of K2PtCl4 to PEI was 50:1, 100:1, and 150:1, respectively. All the tubes were located in a constant temperature metal mixer at 20 °C for 20 min. Then, NaBH4 (1 mg/mL) solution was dissolved in 0.3 M NaOH and added into each tube. The amount of NaBH4 was 135 μL for Pt50-PEI NPs, 135 μL for Pt100-PEI NPs, and 203 μL for Pt150-PEI NPs. After 10 min, the solution was tuned to a pH of 7 with 1 M HCl. The solution was shaken at 500 rpm for another 3 h. Each group solution was collected and dialyzed against ultrapure water to obtain Ptn-PEI NPs (n = 50, 100, 150).

4.2. Catalytic Activity

The catalytic activity of Pt50-PEI NPs under different pH (2.0–12.0) was evaluated as follows: 200 μL of Pt50-PEI (6 μM) and 800 μL of HAc-NaAc buffer (pH 2.0–12.0, 0.2 M) were incubated for 10 min; 200 μL of TMB (0.6 mM) was mixed for 10 min; Then, 200 μL of H2O2 (0.3 M) was added for 10 min. The absorbance was recorded at 652 nm. The catalytic activity of Pt50-PEI NPs under different temperatures (10–60 °C) was carried out with the same procedure at pH 4.0.

4.3. Michaelis–Menten Kinetic Analysis

The effect of the H2O2 concentration (0.039–0.177 mM) and TMB concentration (0.018–0.357 mM) on the catalytic activity of Pt50-PEI was studied at 30 °C, respectively. Briefly, the kinetic assays of Pt50-PEI with H2O2 as the substrate were performed by adding 25 μL of Pt50-PEI (2 μM), 1400 μL of TMB (0.8 mM), and different amounts of H2O2 (3 M). The kinetic assays of Pt50-PEI with TMB as the substrate were performed by adding 100 μL of Pt50-PEI (6 μM), 300 μL of H2O2 (0.3 M), and different amounts of TMB solution (0.2 M HAc-NaAc, pH 4.0). Catalytic parameters were determined based on Michaelis–Menten eq 1.

4.3. 1

4.4. Glucose Detection

(a) GOD (100 μL, 5 mg/mL) and glucose (200 μL) solutions with different concentrations were incubated at 37 °C for 30 min, the glucose was dissolved in HAc-NaAc buffer (pH = 5.2, 0.2 M); (b) 800 μL of TMB (0.6 mM) and 100 μL of the Pt50-PEI solution (6 μM) were mixed at 30 °C for 5 min. This (b) solution was added into 300 μL of (a) solution, the mixed solution was incubated at 30 °C for 30 min, and the absorbance was recorded at 652 nm. Glucose (5 mM) and other sugars (10 mM) were also measured to compare the selectivity of this method. The glucose concentration of saliva was measured using our method.

Acknowledgments

The authors appreciate financial support Natural Science Foundation of Hebei Province (B2017203229) and China Postdoctoral Science Foundation (2016M601284).

Supporting Information Available

The Supporting Information is available free of charge at https://pubs.acs.org/doi/10.1021/acsomega.0c00147.

  • Materials, characterization, peroxidase-like activity assays, and TEM images of Pt NPs without PEI (PDF)

Author Contributions

The manuscript was written through contributions of all the authors. All the authors have given approval to the final version of the manuscript.

The authors declare no competing financial interest.
