Surfing motility is a complex adaptation dependent on the stringent stress response in Pseudomonas aeruginosa LESB58

Daniel Pletzer; Evelyn Sun; Caleb Ritchie; Lauren Wilkinson; Leo T Liu; Michael J Trimble; Heidi Wolfmeier; Travis M Blimkie; Robert E W Hancock

doi:10.1371/journal.ppat.1008444

. 2020 Mar 24;16(3):e1008444. doi: 10.1371/journal.ppat.1008444

Surfing motility is a complex adaptation dependent on the stringent stress response in Pseudomonas aeruginosa LESB58

Daniel Pletzer ^1,^2,^*,^#, Evelyn Sun ^1,^#, Caleb Ritchie ¹, Lauren Wilkinson ¹, Leo T Liu ¹, Michael J Trimble ¹, Heidi Wolfmeier ¹, Travis M Blimkie ¹, Robert E W Hancock ^1,^*

Editor: Matthew C Wolfgang³

PMCID: PMC7122816 PMID: 32208458

Abstract

Cystic fibrosis (CF) is a genetic disease that affects mucin-producing body organs such as the lungs. Characteristic of CF is the production of thick, viscous mucus, containing the glycoprotein mucin, that can lead to progressive airway obstruction. Recently, we demonstrated that the presence of mucin induced a rapid surface adaptation in motile bacteria termed surfing motility, which data presented here indicates is very different from swarming motility. Pseudomonas aeruginosa, the main colonizing pathogen in CF, employs several stress coping mechanisms to survive the highly viscous environment of the CF lung. We used motility-based assays and RNA-Seq to study the stringent stress response in the hypervirulent CF isolate LESB58 (Liverpool Epidemic Strain). Motility experiments revealed that an LESB58 stringent response mutant (ΔrelAΔspoT) was unable to surf. Transcriptional profiling of ΔrelAΔspoT mutant cells from surfing agar plates, when compared to wild-type cells from the surfing edge, revealed 2,584 dysregulated genes. Gene Ontology and KEGG enrichment analysis revealed effects of the stringent response on amino acid, nucleic acid and fatty acid metabolism, TCA cycle and glycolysis, type VI secretion, as well as chemotaxis, cell communication, iron transport, nitrogen metabolic processes and cyclic-di-GMP signalling. Screening of the ordered PA14 transposon library revealed 224 mutants unable to surf and very limited overlap with genes required for swarming. Mutants affecting surfing included two downstream effector genes of the stringent stress response, the copper regulator cueR and the quinolone synthase pqsH. Both the cueR and pqsH cloned genes complemented the surfing deficiency of ΔrelAΔspoT. Our study revealed insights into stringent stress dependency in LESB58 and showed that surfing motility is stringently-controlled via the expression of cueR and pqsH. Downstream factors of the stringent stress response are important to investigate in order to fully understand its ability to colonize and persist in the CF lung.

Author summary

Cystic fibrosis (CF) is a progressive disease associated with excessive mucus build up in the lungs, blocking airways and facilitating bacterial persistence. CF affects >30,000 people in the US and currently there exists no cure. Bacterial infections such as the ones that involve Pseudomonas aeruginosa worsen treatment strategies because of the pathogens’ ability to evade not only the immune system but also antibiotic killing. In the CF lung, P. aeruginosa has been proposed to employ rapid surface motility adaptations in the form of swarming and the more recently identified surfing motility. Here, we demonstrate that surfing is indeed a novel form of motility that can be distinguished from swarming, and further demonstrate that surfing is dependent on the stringent stress response in an aggressive P. aeruginosa CF isolate. We discovered two novel downstream factors of the stringent response, a copper regulator and a quinolone synthase, that contribute to mediating surfing motility. Investigating adaptive behaviors such as surface motility is important to understand how these contribute to host-pathogen interactions.

Introduction

Pseudomonas aeruginosa is a ubiquitous Gram-negative pathogen that causes opportunistic and difficult-to-treat infections. It is strongly associated with chronic debilitating lung infections in individuals with cystic fibrosis (CF) [1]. A hallmark of pathogenic P. aeruginosa is their evolutionary adaption to challenging host conditions such as those found in the CF lung [2]. A particularly aggressive CF isolate is the transmissible Liverpool Epidemic Strain (LES), originally isolated from the sputum of a CF patient [3]. LES isolates are associated with enhanced virulence and greater patient morbidity [4], predominance in intra-species competition [5], stronger persistence in the bronchial lumen [6], increased biofilm formation, decreased motility, and elevated levels of antibiotic resistance [2].

P. aeruginosa possesses several virulence factors that facilitate invasion of the host, compromise immune defences, and ensure its survival and colonization in the host environment. To establish an infection, it has been proposed that Pseudomonas type IV pili are involved in binding to the apical epithelial surface, while flagellar-mediated motility is proposed to be important for the colonization of the basolateral surface of airway epithelium [7]. The type of motility can vary substantially depending on the viscosity and composition of the environment [8]. Recently, Abdullah et al. [9] showed that the reduced water content of the CF airways can trigger the misfolding of the MUC5B mucin protein that further contributes to the thick, viscous gel-like properties of the mucus in the CF lung. At the viscosity encountered in the mucous layer of the CF lung, Pseudomonas likely adopts complex surface growth and motility behaviours, such as swarming and biofilm formation using flagella and type-IV pili [10] or flagella-mediated surfing in the presence of the glycoprotein mucin [11].

P. aeruginosa employs a variety of adaptation mechanisms to cope with environmental stresses [12]. The stringent stress response signaling pathway, mediated by the second messenger molecule guanosine (penta)tetraphosphate (p)ppGpp, is an evolutionarily conserved response that is activated in various cellular stress conditions that restrict bacterial growth (e.g. nutrient or iron limitation). In P. aeruginosa, (p)ppGpp is synthesized through the two enzymes RelA and SpoT. Both enzymes can transfer pyrophosphate from ATP onto GTP to form guanosine pentaphosphate, which is rapidly converted to ppGpp. The accumulation of ppGpp remodels the RNA polymerase that leads to a switch from energetically-costly processes to energy-saving and stress coping mechanisms [13]. The stringent stress response has been previously studied in various Pseudomonas human and plant isolates and shown to be associated with twitching and swarming motility, biofilm formation, hemolytic capacity and abscess formation as well as growth in a murine skin infection model [6, 14–18].

The CF lung is considered a stressful environment due to increased oxidative stress levels [19], chronic activation of the innate immune system [20], and bacterial competition upon antibiotic exposure [12]. Therefore, here we aimed to characterize the role of the stringent stress response in relation to motility of the hypervirulent CF epidemic isolate LESB58. We present evidence that the stringent stress response is required for P. aeruginosa to adapt to environmentally challenging conditions. This stress response was shown to link the complex adaptive motile behaviour, surfing, with the strong involvement of the stringently-controlled copper regulator cueR and quinolone synthase pqsH.

Results

The P. aeruginosa LESB58 stringent response mutant was impaired in surfing

We confirmed literature reports [14, 15, 21] showing that the stringent response was required for swarming, adherence and biofilm formation, as well as pyoverdine and pyocyanin production, in the clinical isolate P. aeruginosa LESB58 (S1 Text, S1 Fig). Vogt et al. [14] demonstrated that ppGpp was not required for swimming in P. aeruginosa PAO1, as indeed we confirmed (S2 Fig), and despite the rather poor swimming motility of strain LESB58, ppGpp did not appear to be required for the weak swimming motility observed for this strain either (S1 Text, S2 Fig). To determine the role of the stringent stress response in other adaptive behaviours, we further investigated surfing motility. Surfing is a conserved form of surface motility that occurs when mucin, a high molecular weight glycoprotein present in mucus, is added to the medium [22]. It exhibits clear differences from swarming surface motility in that it is dependent on flagella but not pili or rhamnolipids (required for P. aeruginosa swarming), and can occur at a wide range of substrate viscosities under both nutrient-limiting or rich conditions (restricted in the case of swarming), and with certain other lubricating agents in place of mucin [11, 22, 23]. At the molecular level, surfing cells exhibit differential expression of more than a thousand genes, including many regulators, when compared to swimming, swarming and sessile cells [23].

Intriguingly, LESB58 showed excellent surfing capability (Fig 1). In contrast, a double deletion mutant of relA and spoT in the LESB58 background, ΔrelAΔspoT, was defective in surfing. This could be partially complemented with either the spoT or relA cloned genes, although the spoT complement was much more highly pigmented (Fig 1). There was no basic defect in flagella production due to any of these mutations, since we observed similar swimming zone sizes after 24 h for WT and all mutants in both the strains LESB58 and PAO1 (although the swimming colony morphology for strain LESB58 was somewhat unusual). Furthermore, all mutants appeared to show similar swimming ability when viewed in aqueous suspension using a light microscope. Nevertheless, to investigate if the loss of surfing involved flagella loss, we examined cell morphology of mutant cells on surfing agar plates and compared them to wild-type cells using transmission electron microscopy (TEM). The LESB58 wild-type showed two distinct morphologies with electron-dense thin rods and less dense enlarged cells at the edge and center, while the stringent response mutant only exhibited enlarged cells that were both longer and wider than wild-type cells (S3 Fig). Flagella could only be observed on cells at the centre of surfing plates, but not at the edge for WT, as previously described [11]. We were unable to detect flagella in the spots formed by the ΔrelAΔspoT double mutant (S4 Fig), although the large amount of extracellular material under these circumstances made observations difficult.

Since surface motility adaptations (i.e., swim, swarm, surf) utilize flagella for colony propagation, we examined the expression of some genes involved in flagella synthesis, chemotaxis, and quorum-sensing using qRT-PCR (Table 1). RNA was isolated from P. aeruginosa LESB58 stringent response mutant cells and compared to wild-type cells from the motility edge. Under swarming conditions, downregulation in the ΔrelAΔspoT stringent response mutant was observed for the chemotaxis gene cheY by 3.8-fold, the two-component response regulator of flagella synthesis fleR by 3.5-fold, and the rhamnosyltransferase rhlB (which is involved in the synthesis of rhamnolipid, a surfactant required for swarming) by 5.8-fold. We also observed downregulation of the quorum-sensing regulators lasR and rhlR by 4.3- and 3.5-fold respectively. In contrast under surfing conditions, most of these genes were relatively upregulated or unaltered in expression in the double mutant (Table 1).

Table 1. Alterations in LESB58 ΔrelA/ΔspoT mRNA transcripts under surfing, swarming, and swimming conditions.

The stringent response double mutant was compared to the edges of wild-type motility zones. All experiments were performed on KB agar plates.

Gene	Product Description	Fold change in ΔrelA/ΔspoT compared to WT
Gene	Product Description	Surfing	Swarming	Swimming
fleQ	Transcriptional regulator FleQ, a c-di-GMP responsive regulator that influences flagella synthesis	1.7	-1.0	1.1
fleR	Transcriptional response regulator FleR that controls flagella synthesis	1.1	-3.5	-1.4
cheY	Two-component response regulator CheY that modulates chemotaxis	1.7	-3.8	-1.5
rhlB	Rhamnosyltransferase chain B involved in the production of rhamnolipid surfactant required for swarming	3.2	-5.8	-2.1
lasR	Transcriptional regulator LasR for the quorum sensing system based on N-3-oxo-dodecanoyl-L-homoserine lactone	2.1	-4.3	1.8
rhlR	Transcriptional regulator RhlR for the quorum sensing system based on N-butanoyl-L-homoserine lactone	2.2	-3.5	-2.2
pqsH	FAD-dependent monooxygenase involved in synthesis of the quorum sensing effector Pseudomonas Quinolone Signal (PQS)	-2.8	-2.4	-1.1
pqsR / mvfR	Transcriptional regulator MvfR modulates quorum sensing	1.7	1.3	-1.0
cueR	Cu(I)-responsive transcriptional regulator CueR	-4.4	-1.9	-3.1

Open in a new tab

The LESB58 stringent stress response regulated surfing motility

To further understand the surfing deficiency of the stringent response mutant, the transcriptional profile of the LESB58 ΔrelAΔspoT (non-surfing) mutant cells from surfing agar plates was compared to wild-type cells isolated from the edge of the surfing colony. This revealed the massive dysregulation of 2,584 genes (±1.5-fold change, adjusted p-value<0.05), 43.6% of the genome, comprising 1,261 upregulated and 1,323 downregulated genes. KEGG pathway (Fig 2A) analysis and Gene Ontology (GO) enrichment (Fig 2B and 2C), revealed that downregulated ΔrelAΔspoT mutant genes were involved in amino acid, nucleic acid and fatty acid metabolism, TCA cycle and glycolysis, as well as type VI secretion. On the other hand, chemotaxis, cell communication, iron transport, and nitrogen metabolism were upregulated. A closer look at individual genes required for quorum sensing (QS) revealed that most genes in this pathway were downregulated (S5 Fig). Intriguingly, a significant upregulation of many genes involved in flagella biosynthesis and chemotaxis was evident (S6 Fig), which was not consistent with the explanation that a loss of flagella gene expression was responsible for the phenotype of the stringent response double mutant. Consistent with decreased adherence (S1C and S3B Figs), downregulation of many pilus genes, including a 11.4-fold decrease in the structural pilA gene, was observed (S7 Fig).

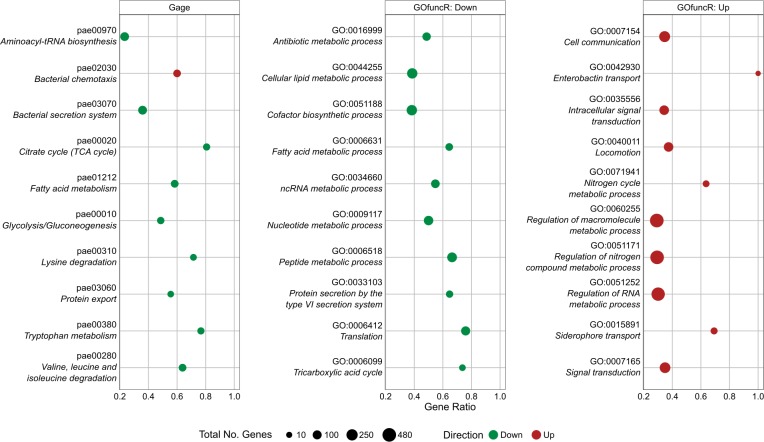

Fig 2 — The gene ratio on the x-axis represents the proportion of genes in the particular pathway/functions category that were dysregulated. A) KEGG enrichment of differential gene expression performed by GAGE analysis with a threshold of q-value ≤ 0.1. B, C) Results of selected GO term enrichment for Biological processes performed by GOfuncR on the list of differentially expressed genes with downregulated (B) and upregulated (C) GO terms. GO terms were considered significant with q-value ≤ 0.1. A-C) Dot size indicates total number of genes annotated to a particular term / pathway.

Furthermore, the expression of genes encoding 21 of the 38 cyclic-di-GMP modulating enzymes identified in P. aeruginosa were regulated by ppGpp as determined by their up (18 genes) or down (3 genes) regulation in the ΔrelAΔspoT stringent response mutant. These genes included PA0285, PA0290, PA0575, PA0847, rbdA, roeA, PA1181, PA1851, PA2072, PA2771, PA2870, PA3258, nbdA, PA3825, rocR, bifA, PA4396, gcbA, PA4959, dipA, and PA5442. Other related genes included the HD-Gyp PA2572, the PilZ regulators PA0012, PA2799, PA2989 and PA4608, and the MshEN PA3740 (all upregulated) (S8 Fig).

Identification of genes required for surfing motility and stringent dependency

To further characterize the genes that might underlie the effects of the stringent response double mutant, a group of genes that were required for surfing motility was determined by screening the ordered PA14 transposon library [24] under surfing conditions. This screen revealed 224 transposon mutants, including 25 regulatory mutants, that were either defective in surfing or had a non-surfing phenotype (S1 Table). Intriguingly there was very little overlap with mutants identified from an analogous screen performed to identify mutants involved in swarming [25].

To identify downstream mediators of the stringent stress response involved in surfing in LESB58, we focused on regulatory genes in the ppGpp-deficient ΔrelAΔspoT mutant. To extend this analysis, qRT-PCR was utilized to examine gene expression of 11 of the regulators for which mutants had a surfing defect (Table 2). Dysregulation of 9 of these by more than 2-fold was demonstrated and of these, four were demonstrated to be downregulated, including the copper-transport regulator cueR, a positive regulator of copper metabolism [26], that was strongly down regulated by 4.4-fold (Table 2).

Table 2. Relative fold-changes of LESB58 ΔrelA/ΔspoT mRNA expression compared to wild-type levels of expression.

11 regulators were investigated for which PA14 transposon mutant variants exhibited surfing deficiency (no motility or a different form of surfing). The stringent response double mutant was compared to the edges of wild-type motility zones. All experiments were performed on KB agar plates.

PAO1 Locus Tag	Gene	Product Description	qRT-PCR
PA0034		Two-component response regulator	-2.1
PA0520	nirQ	Denitrification regulatory protein nirQ	7.6
PA1003	pqsR	Transcriptional regulator MvfR / PqsR	2.0
PA1097	fleQ	Transcriptional regulator FleQ	2.2
PA1099	fleR	Transcriptional regulator/response regulator FleR	1.3
PA3477	rhlR	Transcriptional regulator RhlR	2.3
PA3599		Transcriptional regulator	1.8
PA3921		Transcriptional regulator	-2.1
PA4398		Two-component sensor	-2.0
PA4726	cbrB	Two-component response regulator CbrB	3.2
PA4778	cueR	Cu(I)-responsive transcriptional regulator CueR	-4.4

Open in a new tab

Interestingly, we observed upregulation in the stringent response double mutant of the two quorum sensing regulators rhlR and pqsR, which when mutated lead to surfing deficiency [22, 23] (S1 Table) and also mediate stress responses [12, 27]. Since both are involved in the regulation of Pseudomonas quinolone signal (PQS) synthesis during stress [27], downstream PQS genes were further investigated and it was shown that the pqsABCDE operon, pqsH and phnAB were all downregulated (by -1.6 to -3.5-fold) in the mutant (S5 Fig). The gene expressing FAD-dependent monooxygenase pqsH, involved in the last step of PQS synthesis, was confirmed by qRT-PCR to be 2.8-fold downregulated in the ΔrelAΔspoT mutant.

To determine the involvement of cueR and pqsH in stringent regulation of surfing motility in strain LESB58, the ΔrelAΔspoT mutant was complemented with each cloned gene. Intriguingly, overexpression of both cueR and pqsH separately restored surfing motility in the surfing-deficient ΔrelAΔspoT mutant (Fig 3).

Fig 3 — Surfing on KB 0.3% agar plates with 0.4% mucin and the strains were grown for 24 h at 37°C. Experiments were repeated 3–5 times with similar results.

Discussion

Microorganisms move on moist surfaces to enable them to survey new nearby ecological habitats and favourable environmental conditions or to avoid deleterious situations [28]. In response to specific chemical and physical cues sensed in the environment, microbes can adapt through physiological and morphological differentiation. The stringent stress response is a powerful set of mechanisms that enable bacteria to rapidly adjust to unfavourable environmental conditions and stressful circumstances. Here we demonstrated that the loss of the stringent response in the epidemic P. aeruginosa CF isolate LESB58 inhibited a mucin-induced rapid form of surface motility known as surfing. We investigated in more detail the role of ppGpp in surfing motility; a recently identified novel form of motility that requires the presence of mucin that abounds in the lungs of CF patients, contributes to broad-spectrum antibiotic resistance, and has been shown to be conserved in several bacterial species [11, 22].

To investigate the mechanisms underlying surfing impairment in the ΔrelAΔspoT stringent response mutant, the transcriptional profile of this non-surfing mutant was compared to that of wild-type cells isolated from the edge of a surfing colony. Intriguingly, flagella are required for surfing [11] and most flagellar biosynthesis and chemotaxis genes were upregulated in the non-surfing ΔrelAΔspoT mutant. This upregulation could be partially due to protein degradation and/or lack of surface flagella. To further identify a mechanism that might explain surfing deficiency, we screened the comprehensive ordered P. aeruginosa strain PA14 transposon mutant library, which revealed 224 surfing-deficient mutants. Interestingly, of the 233 mutants affecting swarming motility that were revealed in an analogous screen of the same library [25] there were only 28 mutants that overlapped between the two screens (PA066, rhlE, PA0475, epd, aphB, gacS, fliL, hcnC, gacA, pqsH (S9 Fig), PA2685, minD, rhlR, tli5, PA3628, PA3631, PA3749,PA4137, PA4144, PA4168, PA4398, PA4616, cbrAB, cueR (S9 Fig), pstC, cbcV, and rmd). This together with the limited overlap in genes with altered expression between swarming [8] and surfing edge [23] cells, indicates that these two surface motility adaptations, swarming and surfing, are very different.

Further investigation of the expression, in the LESB58 ΔrelAΔspoT stringent response mutant, of regulatory genes required for surfing revealed that the copper-responsive transcriptional regulator cueR was strongly downregulated. Copper is an essential trace element inside bacterial cells, acting as a reactive center for many enzymatic reactions that are important for numerous vital biological processes including respiration, iron uptake and transport, and superoxide detoxification; however too much copper is toxic [29]. In P. aeruginosa, CueR has been shown to directly bind to and activate five promoters controlling the expression of 11 genes, namely PA3515 to A3519, PA3520, efflux operon mexPQ-opmE, non-coding RNA PA3574.1, and a copper homeostasis P-type ATPase cueA (PA3920), the last of which was shown to be a virulence factor in a murine model and involved in dissemination to the liver [30]. Of these, PA3518, PA3519 and PA3520 were all upregulated during surfing [23]. Critically we showed here that when cueR was overexpressed in a ΔrelAΔspoT ppGpp-deficient strain, it restored surfing motility. The copper-responsive regulator cueR is therefore a new downstream effector of the stringent stress response required for surfing, as well as swarming motility [25].

Transcriptomic analysis also revealed a dysregulation of cell communication, which prompted us to look further into quorum-sensing (QS) signalling pathways. Our previous studies revealed the dependence of surfing motility on all three major QS pathways in P. aeruginosa [11, 22]. This was also confirmed by our mutant screen since we identified suppressed surfing motility in mutants in lasI, rhlR, rhlI, pqsA-E, pqsR, pqsH, phzA1, and hcnC. Interestingly, the expression of the transcriptional regulator pqsR and the acyl-homoserine-lactone responsive regulator rhlR was 2-fold upregulated in the ΔrelAΔspoT mutant, but other QS-depended genes, including the pqsABCDE operon that includes the quinolone signal response protein gene pqsE, pqsH, phnAB, as well as QS-regulated virulence factors lasAB, aprI, aprA/DEFX, phzA1/A2/H/M/S, hcnABC, and ambA/CDE were all downregulated in the stringent response mutant, by around 2.5-22-fold.

The Pseudomonas quinolone signal (PQS, 2-heptyl-3-hydroxy-4-quinolone) pathway depends on PqsR [31], which regulates the expression of the pqsA-E operon once activated by 2-heptyl-4-quinolone (HHQ). Further expression of pqsE upregulates virulence factors (e.g., phz, hcn) [31], which is in accordance with our study where we observed a downregulation of all those genes. PQS and pqsE have both been suggested to be required for Lectin A production in P. aeruginosa [32], however under surfing conditions lectin production appears to depend exclusively on the rhl QS system [12] as we found a 7-fold upregulation of lecA in the ΔrelAΔspoT. Together with the upregulation of the rhl system we found that two out of three AHL-acylases, hacB and pvdQ, both hydrolyse long-chain AHLs to prevent excessive signal build-up [33], were downregulated in the stringent response mutant by 1.7- and 3-fold, respectively. Schafhauser et al. [34] and Nguyen et al. [35] reported that the stringent response negatively regulates 4-hydroxy-2-alkylquinolines (HAQs) by reducing the expression of the rhl system, which leads to increased expression of the HAQ biosynthetic gene pqsA, the monooxygenase pqsH, and the positive regulator pqsR. Here, we observed an opposite regulation under surfing conditions, where the rhl system was upregulated and HAQ-associated genes were downregulated.

We further focused more closely on the effector functions (signalling molecules) and investigated the quinolone synthase pqsH gene that encodes the enzyme involved in the last step of synthesis to produce PQS from HHQ. Overexpression of this gene complemented the surfing deficiency of the ΔrelAΔspoT stringent stress response mutant. Our previous studies [22] demonstrated that a mutation in the pqs operon was surfing deficient and this could be complemented by adding exogenous PQS signalling molecule. This then indicates that the loss of signalling through PQS is one reason why the ppGpp-deficient double mutant ΔrelAΔspoT is surfing deficient. Thus, our data supports the conclusion that quorum sensing is stringently-controlled to influence surfing motility in LESB58.

Another intriguing feature of the data provided here is the apparent importance of cyclic di-GMP in regulating surfing. We identified four enzymes mediating the regulation of this messenger as being required for surfing motility including the diguanylate cyclases TpbB and SadC and phosphodiesterase FimX and DipA as well as one cyclic-di-GMP binding regulator FleQ (S1 Table). These genes separately regulate other complex adaptive processes including virulence, biofilm formation/dispersion and persistence, a form of adaptive resistance to antimicrobials, thus, contributing to a relatively large regulon [36–38]. Accordingly, several genes involved in the cyclic di-GMP pathway were found to be dysregulated in the stringent response mutant, including dipA which was shown to be essential in mediating surfing motility. Thus, the stringent response and surfing motility in general have a very substantial influence on second messenger activity in Pseudomonas.

In summary, we demonstrated that the ΔrelAΔspoT stringent stress response mutant of the P. aeruginosa clinical CF isolate LESB58 had pronounced deficiencies in adapting to environmental stress conditions, suggesting a potential role of the stringent stress response during pathogenesis. We identified two novel downstream effector genes, cueR and pqsH, both involved in stringent response regulation of surfing motility, and believe it is important to further identify other downstream factors of the stringent stress response, to fully understand its ability to colonize and persist in the CF lung.

Materials and methods

Bacterial strains, media, and growth conditions

Bacterial strains used in this study are listed in Table 3 and primers in S2 Table. Pseudomonas strains were cultured at 37°C in LB (Difco), 2xYT (Sigma), King’s B medium (KB), or synthetic cystic fibrosis medium (SCFM) [39]. Bacterial growth was monitored at an optical density at 600 nm (OD₆₀₀) using either a spectrophotometer or a 96-well microtiter plate reader (Synergy H1; BioTek). Cultures harboring individual plasmids were maintained by supplementation with 15 μg/ml gentamicin (Gm) for E. coli or 500 μg/ml Gm for P. aeruginosa LESB58.

Table 3. Pseudomonas aeruginosa strains used in this study.

Strain	Relevant characteristics	Reference
LESB58	Liverpool Epidemic Strain isolate	[3]
LESB58 ΔrelAΔspoT	Double deletion mutant of relA and spoT	[18]
LESB58 ΔrelAΔspoT/relA⁺	Double deletion mutant of relA and spoT chromosomally complemented with the native relA gene including its promoter region; gentamicin^r	[18]
LESB58 ΔrelAΔspoT/spoT⁺	Double deletion mutant of relA and spoT chromosomally complemented with the native spoT gene including the rpoZ and the rpoZ-spoT promoter region; gentamicin^r	[18]
LESB58 ΔrelAΔspoT (pBBR5.cueR⁺)	Double deletion mutant of relA and spoT transformed with pBBR1MCS-5 containing the cueR gene including its promoter region; gentamicin^r	This study
LESB58 ΔrelAΔspoT (pBBR5. pqsH⁺)	Double deletion mutant of relA and spoT transformed with pBBR1MCS-5 containing the pqsH gene including its promoter region; gentamicin^r	This study
PA14 MAR2xT7	PA14 transposon mutant library; gentamicin^r	[24]

Open in a new tab

Swarming motility assay

Swarming motility of P. aeruginosa strain LESB58 was examined as previously described [40], with slight modifications. Strains were scraped from overnight grown plates and suspended in sterile demineralized water to an OD₆₀₀ of 0.1. Ten μl of a bacterial cell suspension was applied onto KB plates containing 0.35% agar. Plates were then incubated at 37°C for 48 h. Experiments were repeated at least three times with three replicates for each strain.

Swimming and surfing motility assay

Swimming motility of P. aeruginosa LESB58 strains was examined on KB and SCFM plates containing 0.3% agar, while surfing motility was investigated on the same plates supplemented with 0.4% mucin from porcine stomach (Type II; Sigma-Aldrich). Briefly, P. aeruginosa strains were grown to mid-log phase (OD₆₀₀ = 0.5), and subsequently spotted (1 μl) onto the respective agar plate, further incubated at 37°C, and motility zones visually inspected after 15–48 h. The experiments were performed at least three times.

The P. aeruginosa PA14 transposon library [24] was screened on SCFM plates containing 0.3% agar and 0.4% mucin. Surfing deficiency was identified either as an inability to spread past the point of inoculation, >70% reduced surface spreading, or a switch to in agar growth/motility which is characteristic of swimming rather than surfing which occurs on the surface.

Growth curves experiments and pyoverdine production

LESB58 strains were grown overnight (16–18 h) at 37°C with shaking (250 rpm). Bacteria were pelleted (5000 g, 3 min) and suspended in the respective growth media: KB, dYT, MHB, or SCFM to an OD₆₀₀ of 0.1. Then 200 μl was transferred to a flat bottom 96-well polystyrene microtiter plate (Corning) and incubated at 37°C with continuous fast linear shaking at 567 cycles per minute (cpm) in a microplate reader (Synergy H1; BioTek). OD₆₀₀ and fluorescence [assessing pyoverdine production [41] at an excitation wavelength of 400 nm and emission wavelength of 460 nm] readings were taken every hour over a 24-hour period. Experiments were performed three times with at least three technical replicates.

Pyocyanin measurement

Overnight cultures of the LESB58 wild-type, ΔrelAΔspoT stringent response mutant, and its according relA and spoT complemented strains, were grown in LB medium, washed in SCFM and resuspended in SCFM at an adjusted OD₆₀₀ of 0.1 and further cultivated at 37°C with aeration (250 rpm) for 22 h. Pyocyanin was extracted from filter-sterilized supernatants and measured as previously described [42]. Briefly, 2.88 ml chloroform was added to 4.8 ml of culture supernatant and vortexed 10 times for 2 seconds. After centrifugation (14000 rpm, 8 min), 2.4 ml of the chloroform layer was transferred to a fresh tube and 1.2 ml of 0.2 N HCl was added and the mixture vortexed 10 times for 2 seconds. After centrifugation (14000 rpm, 2 min), 1 ml of the top layer (containing pyocyanin) was removed and its absorbance measured at 520 nm (OD₅₂₀). The OD₅₂₀ values were multiplied by the extinction coefficient of 17.072 [42] to obtain the pyocyanin concentrations (μg/ml) of the bacterial supernatants. Experiments were performed three times with at least two technical replicates.

Adherence experiments

Strains were streaked onto KB agar plates and grown overnight at 37°C. Bacteria were scraped from the plates and resuspended in KB medium to an OD₆₀₀ of 0.5. One hundred μl of a bacterial suspension was added into polystyrene round bottom 96-well microtiter plates (Falcon) and incubated at room temperature for 1 h. Then each well was washed three times with water, and adhered cells subsequently stained by adding 105 μl of 0.03% crystal violet. Staining was performed on a table top shaker (100 rpm) for 20 minutes at room temperature. Next, plates were washed three times with water and adhered crystal violet dissolved in 110 μl 70% ethanol at room temperature for at least 20 minutes. Absorbance was measured at 595 nm with a BioTek plate reader. Data analysis was performed to calculate the mean and standard deviation, after removal of outliers that were more than one standard deviation from the mean. Data was further normalized to the wild type. Experiments were performed at least three times with up to six technical replicates.

Biofilm formation under flow conditions and flow-cell imaging

Overnight grown cultures of the wild-type, ΔrelAΔspoT mutant, and complemented strains were cultivated for biofilm formation under flow conditions in chambers as described previously [43]. Briefly, flow-cells were inoculated with P. aeruginosa LESB58 strains at an OD₆₀₀ of approximately 0.005 in dYT broth and kept under static conditions for 3 h to enable adherence to the glass chambers after which continuous flow was applied for 3 days at 37°C. For imaging, the cells were stained with 1 μM SYTO 9, and images captured using a confocal laser scanning microscope (Zeiss, LSM 800) and analyzed using the Zeiss Zen software (v2.3, blue edition). Experiments were performed at least twice.

Antibiotic susceptibility

The MIC of antibiotics for P. aeruginosa LESB58 and stringent response mutants was determined at 37°C in Mueller-Hinton broth (MHB; Difco) using the broth microdilution assay in 96-well plates [44]. All tests were performed at least three times following the Clinical and Laboratory Standards Institute recommendations. Bacterial growth was examined by visual inspection after 24–48 h of incubation. The MIC was defined as the lowest concentration of a compound that completely prevented visible cell growth.

Construction of cueR and pqsH overexpression plasmids

A 501-bp fragment containing the cueR gene including its upstream promoter region was PCR amplified using the primers cueR_oe_fwd-Kpn/cueR_oe_rev-Hin. An 1,834-bp fragment containing the pqsH gene including its upstream promoter region was PCR amplified using the primers pqsH_oe_fwd-Apa/pqsH_oe_rev-Hin. Each PCR fragment was gel purified and cloned into KpnI/HindIII or ApaI/HindIII restriction sites of plasmid pBBR1MCS-5 [45], yielding pBBR5.cueR and pBBR5.pqsH with additional ability to be expressed from the lac promoter. All constructs were sequenced before transformation into P. aeruginosa LESB58 ΔrelAΔspoT mutant as previously described [40].

RNA isolation, quantitative real-time (qRT)-PCR, and RNA-Seq

RNA was isolated from wild-type cells (edge of surfing colony) and the stringent response double mutant (total colony) as previously described [18, 23]. Bacterial cells were collected (six biological replicates) and resuspended in a sterile water mixture with RNAprotect Bacteria Reagent (QIAGEN), isolated using the RNeasy Mini Kit (QIAGEN), and the RNA obtained was DNAse-treated (Ambion/Life Technologies). RNA was quantified using the Synergy H1 microplate reader (BioTek) and RNA integrity determined using the Agilent Bioanalyzer. Three biological replicates (S10 Fig) with the highest RIN score were selected for further analysis. Quantitative Real-Time (qRT-)PCR was performed as described previously [18] at least three times independently using rpoD for normalizing transcript levels.

Ribosomal RNA was depleted using the RiboZero Bacteria Kit (Illumina), and cDNA libraries were constructed using the KAPA Stranded Total RNA Kit (KAPA Biosystems). Sequencing was performed by the University of British Columbia Sequencing Consortium using an Illumina HiSeq-2500, generating single end reads (1×100 bp). The read quality of the sequencing samples was checked using FastQC v0.11.6 [46] and MultiQC v1.6 [47]. Alignment of transcriptomic reads to the LESB58 reference genome (obtained from the Pseudomonas Genome Database, ww.pseudomonas.com) was performed using STAR v2.6 [48]. Counts were generated using HTSeq v0.11.2 [49]. Differentially expressed (DE) genes between the double mutant and wild type were determined using DESeq2 v1.24.0 [50], with thresholds of adjusted p-value ≤ 0.05 and absolute fold change ≥ 1.5 (S1 Data).

Functional enrichment of DE genes

Enrichment of GO terms were performed using GofuncR, testing the DE genes against a custom set of GO annotations downloaded from the Pseudomonas Genome Database. The full list of 2,584 DE genes was split into up and down regulated, with GO enrichment being performed independently on each of these sets. Results were filtered using a significance threshold of family-wise error rate (FWER) ≤ 0.1. Enrichment of KEGG Pathways was done using Gage v2.3.0 on the full list of 2,584 DE genes. Results were filtered for significance based on q-value ≤ 0.2.

Enrichment of cellular functions, based on manually curated lists was performed on the full list of 2,584 DE genes using Fisher’s Exact Test, implemented via a custom script in R v3.6.0 (R Core Team, 2019). Multiple test correction was performed using the Benjamin-Hochberg method and filtered on a significance of ≤ 0.05.

Transmission electron microscopy (TEM)

Bacterial cells were picked from SCFM surfing plates and re-suspended in 10 μl dH₂O. Formvar/carbon TEM grids (200 mesh, copper; Ted Pella Inc.) were placed on top of the suspension for 30 s to allow for cell adherence. Excess liquid was removed using filter paper and grids were subsequently stained with 5 μl of 2% aqueous uranyl acetate for 30 s and then washed for 5 s in 10 μl dH₂O. Images from multiple grid sections were taken with a Hitachi H-7600 transmission electron microscope (UBC Bioimaging facility).

Statistical analysis

Statistical evaluations were performed using GraphPad Prism 7.0 (GraphPad Software, La Jolla). P-values were calculated using one-way ANOVA, Kruskal-Wallis multiple-comparison test followed by the Dunn procedure. Data was considered significant when p-values were below 0.05.

Supporting information

S1 Text. The P. aeruginosa LESB58 stringent response mutant was impaired in swimming, swarming, adherence, and biofilm formation, as well as being more susceptible to antibiotics.

(DOCX)

Click here for additional data file.^{(27.5KB, docx)}

S1 Table. PA14 transposon mutants that exhibited surfing deficiency.

Surfing deficiency was defined as either no motility, an alternative form of motility, or one-directional motility.

(DOCX)

Click here for additional data file.^{(35.7KB, docx)}

S2 Table. Primers used in this study.

(DOCX)

Click here for additional data file.^{(14.1KB, docx)}

S1 Fig. Other phenotypes of P. aeruginosa LESB58 wild-type, ΔrelAΔspoT stringent response mutant, and relA or spoT complemented mutant strains.

A) Swarming on plates with 0.4% agar in KB medium. Plates were incubated for 48 h at 37°C. Experiments were repeated at least three times with similar results. B) Bacterial growth in KB liquid broth in a 96-well microtiter plate reader at 37°C under shaking conditions (567 cpm) for 24 h. C) One-hour adherence to plastic in KB medium at room temperature. OD values were normalized to the wild-type absorbance. * indicates p-value < 0.05 compared to wild-type. Experiments were performed at least three times. Error bars indicate ± standard error. D) Biofilm formation under flow-cell conditions in dYT broth. Cells were stained after three days for one hour with 1 μM SYTO-9 and subsequently imaged using a Zeiss LSM800 confocal microscope. E) Pyoverdine production (fluorescence: excitation 400 nm; emission 460 nm) after 20 h incubation in KB broth in a 96-well plate under shaking conditions (567 cpm). F) Pyocyanin production after 22 h incubation in SCFM broth under shaking conditions (220 rpm). E, F) Analysis was performed using One-way ANOVA with Dunn correction. **, indicate p-value < 0.01 compared to wild-type. D-F) Experiments were performed 2–3 times. Error bars indicate ± standard deviation.

(PNG)

Click here for additional data file.^{(669.7KB, png)}

S2 Fig. Swimming phenotypes of P. aeruginosa LESB58 and PAO1 wild-type, ΔrelAΔspoT stringent response mutant, and relA or spoT complemented mutant strains.

Stringent response mutants and complements were tested under swimming conditions in KB 0.3% agar plates for 24 h (LESB58, top) and SCFM 0.3% agar plates for 15 h (PAO1, bottom) at 37°C.

(PNG)

Click here for additional data file.^{(472.3KB, png)}

S3 Fig. Transmission electron microscopy images of surfing P. aeruginosa LESB58 wild-type and ΔrelA/ΔspoT.

Representative images taken from the centre (left) and edge (middle) of a surfing (SCFM supplemented with 0.4% mucin agar plate) colony, and stringent response mutant (right). Experiments were repeated three times with similar results.

(PNG)

Click here for additional data file.^{(389.9KB, png)}

S4 Fig. Growth curves and adherence of P. aeruginosa LESB58 wild-type, ΔrelAΔspoT stringent response mutant, and relA or spoT complemented mutant strains in dYT and SCFM broth.

A) Bacterial growth in SCFM liquid broth in a 96-well microtiter plate reader at 37°C under shaking conditions (567 cpm) for 24 h. B) One-hour adherence to plastic in dYT and SCFM medium at room temperature. OD values were normalized to the wild-type absorbance. * indicates p-value < 0.05 compared to wild-type. Experiments were performed at least three times. Error bars indicate ± standard error.

(PNG)

Click here for additional data file.^{(91.1KB, png)}

S5 Fig. KEGG pathway—Quorum Sensing Pseudomonas.

Visualization of DE genes of the stringent response mutant vs. wild-type under surfing conditions. The quorum sensing pathway (pae02024) was visualized using Pathview. Green boxes indicate a downregulation; red boxes upregulation.

(PNG)

Click here for additional data file.^{(69KB, png)}

S6 Fig. Visualization of differentially expressed flagellar genes.

Visualization of DE genes of the stringent response mutant vs. wild-type under surfing conditions. Red bar plots indicate upregulation and green bars downregulation. The asterisks indicate genes with low confidence (adjusted p-value > 0.05). Dashed line shows significance threshold based on fold change. Gene list was downloaded from KEGG.

(PNG)

Click here for additional data file.^{(74.6KB, png)}

S7 Fig. Visualization of differentially expressed pilus genes.

(PNG)

Click here for additional data file.^{(38.4KB, png)}

S8 Fig. Visualization of differentially expressed c-di-GMP genes.

(PNG)

Click here for additional data file.^{(64.2KB, png)}

S9 Fig. Surfing motility of P. aeruginosa PA14 wild-type, the transposon insertion mutants cueR and pqsH and their corresponding complemented strains.

Surfing on 0.3% SCFM agar supplemented with 0.4% mucin. All strains were grown for 16–18 h at 37°C and experiments were repeated at least 3 times with similar results.

(PNG)

Click here for additional data file.^{(283.1KB, png)}

S10 Fig. PCA plot of LESB58 wild-type and stringent response mutant surfing samples.

(PNG)

Click here for additional data file.^{(7.3KB, png)}

S1 Data. Differentially expressed genes between the double mutant and wild type with thresholds of adjusted p-value ≤ 0.05 and absolute fold change ≥ 1.5.

(CSV)

Click here for additional data file.^{(469.6KB, csv)}

Acknowledgments

We thank Reza Falsafi for running the bioanalyzer and cDNA library preparation for RNA-Seq runs. We also thank the TEM technician Ross Bradford from the UBC Bioimaging Facility for his help with the imaging.

Data Availability

All fastq and count files are available under Gene Expression Omnibus (GEO) accession number GSE138716. The cDNA library for each sample was sequenced twice to obtain greater sequencing depth. The same steps for QC, alignment, and counts were followed in both cases. Counts were merged for each sample prior to all analyses. Library sizes representing merged counts from the two sequencing runs had a minimum of 670,007, median of 1,209,676, and maximum of 2,044,247. The full list of differentially expressed genes is included in S1 Data.

Funding Statement

Research reported in this publication was supported by grants from the Cystic Fibrosis Canada award number 2585 and Canadian Institutes for Health Research grant FDN-154287. DP is supported by an Alexander von Humboldt Feodor Lynen Postdoctoral Fellowship, a Cystic Fibrosis Canada Postdoctoral fellowship, and a fellowship from the Michael Smith Foundation for Health Research. CTR received a Summer Studentship award from the Centre for Blood Research, HW received an Early Postdoc Mobility fellowship from the Swiss National Science Foundation, and REWH holds a Canada Research Chair in Health and Genomics and a UBC Killam Professorship. The funders had no role in study design, data collection and analysis, decision to publish, or preparation of the manuscript.

References

1.Elkin S, Geddes D. Pseudomonal infection in cystic fibrosis: the battle continues. Expert Rev Anti Infect Ther. 2003;1(4):609–18. 10.1586/14787210.1.4.609 . [DOI] [PubMed] [Google Scholar]
2.Winstanley C, O'Brien S, Brockhurst MA. Pseudomonas aeruginosa evolutionary adaptation and diversification in cystic fibrosis chronic lung infections. Trends Microbiol. 2016;24(5):327–37. 10.1016/j.tim.2016.01.008 [DOI] [PMC free article] [PubMed] [Google Scholar]
3.Cheng K, Smyth RL, Govan JR, Doherty C, Winstanley C, Denning N, et al. Spread of beta-lactam-resistant Pseudomonas aeruginosa in a cystic fibrosis clinic. Lancet. 1996;348(9028):639–42. 10.1016/S0140-6736(96)05169-0 . [DOI] [PubMed] [Google Scholar]
4.Al-Aloul M, Crawley J, Winstanley C, Hart CA, Ledson MJ, Walshaw MJ. Increased morbidity associated with chronic infection by an epidemic Pseudomonas aeruginosa strain in CF patients. Thorax. 2004;59(4):334–46. 10.1136/thx.2003.014258 [DOI] [PMC free article] [PubMed] [Google Scholar]
5.McCallum SJ, Corkill J, Gallagher M, Ledson MJ, Hart CA, Walshaw MJ. Superinfection with a transmissible strain of Pseudomonas aeruginosa in adults with cystic fibrosis chronically colonised by P. aeruginosa. Lancet. 2001;358(9281):558–60. 10.1016/s0140-6736(01)05715-4 [DOI] [PubMed] [Google Scholar]
6.Kukavica-Ibrulj I, Bragonzi A, Paroni M, Winstanley C, Sanschagrin F, O'Toole GA, et al. In vivo growth of Pseudomonas aeruginosa strains PAO1 and PA14 and the hypervirulent strain LESB58 in a rat model of chronic lung infection. J Bacteriol. 2008;190(8):2804–13. 10.1128/JB.01572-07 [DOI] [PMC free article] [PubMed] [Google Scholar]
7.Bucior I, Pielage JF, Engel JN. Pseudomonas aeruginosa pili and flagella mediate distinct binding and signaling events at the apical and basolateral surface of airway epithelium. PLoS Pathog. 2012;8(4):e1002616 Epub 2012/04/13. 10.1371/journal.ppat.1002616 [DOI] [PMC free article] [PubMed] [Google Scholar]
8.Overhage J, Bains M, Brazas MD, Hancock REW. Swarming of Pseudomonas aeruginosa is a complex adaptation leading to increased production of virulence factors and antibiotic resistance. J Bacteriol. 2008;190(8):2671–9. 10.1128/JB.01659-07 WOS:000254773200005. [DOI] [PMC free article] [PubMed] [Google Scholar]
9.Abdullah LH, Evans JR, Wang TT, Ford AA, Makhov AM, Nguyen K, et al. Defective postsecretory maturation of MUC5B mucin in cystic fibrosis airways. JCI Insight. 2017;2(6):e89752 Epub 2017/03/30. 10.1172/jci.insight.89752 [DOI] [PMC free article] [PubMed] [Google Scholar]
10.Sampedro I, Parales RE, Krell T, Hill JE. Pseudomonas chemotaxis. FEMS Microbiol Rev. 2015;39(1):17–46. Epub 2014/08/08. 10.1111/1574-6976.12081 . [DOI] [PubMed] [Google Scholar]
11.Yeung AT, Parayno A, Hancock REW. Mucin promotes rapid surface motility in Pseudomonas aeruginosa. MBio. 2012;3(3). 10.1128/mBio.00073-12 [DOI] [PMC free article] [PubMed] [Google Scholar]
12.Moradali MF, Ghods S, Rehm BH. Pseudomonas aeruginosa lifestyle: a paradigm for adaptation, survival, and persistence. Front Cell Infect Microbiol. 2017;7:39 Epub 2017/03/07. 10.3389/fcimb.2017.00039 [DOI] [PMC free article] [PubMed] [Google Scholar]
13.Costanzo A, Nicoloff H, Barchinger SE, Banta AB, Gourse RL, Ades SE. ppGpp and DksA likely regulate the activity of the extracytoplasmic stress factor sigmaE in Escherichia coli by both direct and indirect mechanisms. Mol Microbiol. 2008;67(3):619–32. 10.1111/j.1365-2958.2007.06072.x . [DOI] [PubMed] [Google Scholar]
14.Vogt SL, Green C, Stevens KM, Day B, Erickson DL, Woods DE, et al. The stringent response is essential for Pseudomonas aeruginosa virulence in the rat lung agar bead and Drosophila melanogaster feeding models of infection. Infect Immun. 2011;79(10):4094–104. 10.1128/IAI.00193-11 WOS:000294951000026. [DOI] [PMC free article] [PubMed] [Google Scholar]
15.Chatnaparat T, Li Z, Korban SS, Zhao YF. The stringent response mediated by (p)ppGpp is required for virulence of Pseudomonas syringae pv. tomato and its survival on tomato. Mol Plant Microbe Interact. 2015;28(7):776–89. 10.1094/MPMI-11-14-0378-R WOS:000359434600004. [DOI] [PubMed] [Google Scholar]
16.Kostakioti M, Hadjifrangiskou M, Hultgren SJ. Bacterial biofilms: development, dispersal, and therapeutic strategies in the dawn of the postantibiotic era. Cold Spring Harb Perspect Med. 2013;3(4):a010306 10.1101/cshperspect.a010306 [DOI] [PMC free article] [PubMed] [Google Scholar]
17.Xu X, Yu H, Zhang D, Xiong J, Qiu J, Xin R, et al. Role of ppGpp in Pseudomonas aeruginosa acute pulmonary infection and virulence regulation. Microbiol Res. 2016;192:84–95. Epub 2016/09/25. 10.1016/j.micres.2016.06.005 . [DOI] [PubMed] [Google Scholar]
18.Pletzer D, Wolfmeier H, Bains M, Hancock REW. Synthetic peptides to target stringent response-controlled virulence in a Pseudomonas aeruginosa murine cutaneous infection model. Front Microbiol. 2017;8:1867 Epub 2017/10/13. 10.3389/fmicb.2017.01867 [DOI] [PMC free article] [PubMed] [Google Scholar]
19.Ntimbane T, Comte B, Mailhot G, Berthiaume Y, Poitout V, Prentki M, et al. Cystic fibrosis-related diabetes: from CFTR dysfunction to oxidative stress. Clin Biochem Rev. 2009;30(4):153–77. Epub 2009/12/17. [PMC free article] [PubMed] [Google Scholar]
20.Ralhan A, Laval J, Lelis F, Ballbach M, Grund C, Hector A, et al. Current concepts and controversies in innate immunity of cystic fibrosis lung disease. J Innate Immun. 2016;8(6):531–40. Epub 2016/11/02. 10.1159/000446840 [DOI] [PMC free article] [PubMed] [Google Scholar]
21.Sugisaki K, Hanawa T, Yonezawa H, Osaki T, Fukutomi T, Kawakami H, et al. Role of (p)ppGpp in biofilm formation and expression of filamentous structures in Bordetella pertussis. Microbiol-Sgm. 2013;159:1379–89. 10.1099/mic.0.066597-0 WOS:000322855700015. [DOI] [PubMed] [Google Scholar]
22.Sun E, Liu S, Hancock REW. Surfing motility: a conserved yet diverse adaptation among motile bacteria. J Bacteriol. 2018;200(23). Epub 2018/09/19. 10.1128/JB.00394-18 [DOI] [PMC free article] [PubMed] [Google Scholar]
23.Sun E, Gill EE, Falsafi R, Yeung A, Liu S, Hancock REW. Broad-spectrum adaptive antibiotic resistance associated with Pseudomonas aeruginosa mucin-dependent surfing motility. Antimicrob Agents Chemother. 2018;62(9). Epub 2018/07/04. 10.1128/AAC.00848-18 . [DOI] [PMC free article] [PubMed] [Google Scholar]
24.Liberati NT, Urbach JM, Miyata S, Lee DG, Drenkard E, Wu G, et al. An ordered, nonredundant library of Pseudomonas aeruginosa strain PA14 transposon insertion mutants. Proc Natl Acad Sci U S A. 2006;103(8):2833–8. 10.1073/pnas.0511100103 WOS:000235554900064. [DOI] [PMC free article] [PubMed] [Google Scholar]
25.Yeung AT, Torfs EC, Jamshidi F, Bains M, Wiegand I, Hancock REW, et al. Swarming of Pseudomonas aeruginosa is controlled by a broad spectrum of transcriptional regulators, including MetR. J Bacteriol. 2009;191(18):5592–602. Epub 2009/07/14. 10.1128/JB.00157-09 [DOI] [PMC free article] [PubMed] [Google Scholar]
26.Novoa-Aponte L, Ramirez D, Arguello JM. The interplay of the metallosensor CueR with two distinct CopZ chaperones defines copper homeostasis in Pseudomonas aeruginosa. J Biol Chem. 2019;294(13):4934–45. Epub 2019/02/06. 10.1074/jbc.RA118.006316 [DOI] [PMC free article] [PubMed] [Google Scholar]
27.Brouwer S, Pustelny C, Ritter C, Klinkert B, Narberhaus F, Haussler S. The PqsR and RhlR transcriptional regulators determine the level of Pseudomonas quinolone signal synthesis in Pseudomonas aeruginosa by producing two different pqsABCDE mRNA isoforms. J Bacteriol. 2014;196(23):4163–71. Epub 2014/09/17. 10.1128/JB.02000-14 [DOI] [PMC free article] [PubMed] [Google Scholar]
28.Verstraeten N, Braeken K, Debkumari B, Fauvart M, Fransaer J, Vermant J, et al. Living on a surface: swarming and biofilm formation. Trends Microbiol. 2008;16(10):496–506. 10.1016/j.tim.2008.07.004 . [DOI] [PubMed] [Google Scholar]
29.Li C, Li YJ, Ding C. The role of copper homeostasis at the host-pathogen axis: from bacteria to fungi. Int J Mol Sci. 2019;20(1). ARTN 175 doi: 10.3390/ijms20010175 WOS:000459747700175. [DOI] [PMC free article] [PubMed] [Google Scholar]
30.Schwan WR, Warrener P, Keunz E, Stover CK, Folger KR. Mutations in the cueA gene encoding a copper homeostasis P-type ATPase reduce the pathogenicity of Pseudomonas aeruginosa in mice. Int J Med Microbiol. 2005;295(4):237–42. Epub 2005/09/01. 10.1016/j.ijmm.2005.05.005 . [DOI] [PubMed] [Google Scholar]
31.Rampioni G, Falcone M, Heeb S, Frangipani E, Fletcher MP, Dubern JF, et al. Unravelling the genome-wide contributions of specific 2-Alkyl-4-Quinolones and PqsE to Quorum Sensing in Pseudomonas aeruginosa. PLoS Pathog. 2016;12(11):e1006029 Epub 2016/11/17. 10.1371/journal.ppat.1006029 [DOI] [PMC free article] [PubMed] [Google Scholar]
32.Rampioni G, Pustelny C, Fletcher MP, Wright VJ, Bruce M, Rumbaugh KP, et al. Transcriptomic analysis reveals a global alkyl-quinolone-independent regulatory role for PqsE in facilitating the environmental adaptation of Pseudomonas aeruginosa to plant and animal hosts. Environ Microbiol. 2010;12(6):1659–73. Epub 2010/04/22. 10.1111/j.1462-2920.2010.02214.x [DOI] [PMC free article] [PubMed] [Google Scholar]
33.Utari PD, Vogel J, Quax WJ. Deciphering physiological functions of AHL quorum quenching acylases. Front Microbiol. 2017;8:1123 Epub 2017/07/05. 10.3389/fmicb.2017.01123 [DOI] [PMC free article] [PubMed] [Google Scholar]
34.Schafhauser J, Lepine F, McKay G, Ahlgren HG, Khakimova M, Nguyen D. The stringent response modulates 4-hydroxy-2-alkylquinoline biosynthesis and quorum-sensing hierarchy in Pseudomonas aeruginosa. J Bacteriol. 2014;196(9):1641–50. 10.1128/JB.01086-13 [DOI] [PMC free article] [PubMed] [Google Scholar]
35.Nguyen D, Joshi-Datar A, Lepine F, Bauerle E, Olakanmi O, Beer K, et al. Active starvation responses mediate antibiotic tolerance in biofilms and nutrient-limited bacteria. Science. 2011;334(6058):982–6. Epub 2011/11/19. 10.1126/science.1211037 [DOI] [PMC free article] [PubMed] [Google Scholar]
36.Ciofu O, Tolker-Nielsen T. Tolerance and resistance of Pseudomonas aeruginosa biofilms to antimicrobial agents-how P. aeruginosa can escape antibiotics. Front Microbiol. 2019;10:913 Epub 2019/05/28. 10.3389/fmicb.2019.00913 [DOI] [PMC free article] [PubMed] [Google Scholar]
37.Moscoso JA, Jaeger T, Valentini M, Hui K, Jenal U, Filloux A. The diguanylate cyclase SadC is a central player in Gac/Rsm-mediated biofilm formation in Pseudomonas aeruginosa. J Bacteriol. 2014;196(23):4081–8. Epub 2014/09/17. 10.1128/JB.01850-14 [DOI] [PMC free article] [PubMed] [Google Scholar]
38.Roy AB, Petrova OE, Sauer K. The phosphodiesterase DipA (PA5017) is essential for Pseudomonas aeruginosa biofilm dispersion. J Bacteriol. 2012;194(11):2904–15. Epub 2012/04/12. 10.1128/JB.05346-11 [DOI] [PMC free article] [PubMed] [Google Scholar]
39.Palmer KL, Aye LM, Whiteley M. Nutritional cues control Pseudomonas aeruginosa multicellular behavior in cystic fibrosis sputum. J Bacteriol. 2007;189(22):8079–87. 10.1128/JB.01138-07 [DOI] [PMC free article] [PubMed] [Google Scholar]
40.Pletzer D, Braun Y, Weingart H. Swarming motility is modulated by expression of the putative xenosiderophore transporter SppR-SppABCD in Pseudomonas aeruginosa PA14. Anton Leeuw Int J G. 2016;109(6):737–53. 10.1007/s10482-016-0675-8 WOS:000376012300001. [DOI] [PubMed] [Google Scholar]
41.Chua SL, Hultqvist LD, Yuan M, Rybtke M, Nielsen TE, Givskov M, et al. In vitro and in vivo generation and characterization of Pseudomonas aeruginosa biofilm-dispersed cells via c-di-GMP manipulation. Nat Protoc. 2015;10(8):1165–80. 10.1038/nprot.2015.067 . [DOI] [PubMed] [Google Scholar]
42.Kurachi M. Studies on the biosynthesis of pyocyanine. Isolation and determination of pyocyanine. Bull Inst Chem Res Kyoto Univ 1958:36163–73. [Google Scholar]
43.de la Fuente-Nunez C, Reffuveille F, Haney EF, Straus SK, Hancock REW. Broad-spectrum anti-biofilm peptide that targets a cellular stress . PLoS Pathog. 2014;10(5). ARTN e1004152, 10.1371/journal.ppat.1004152 WOS:000337732300052. [DOI] [PMC free article] [PubMed] [Google Scholar]
44.Wiegand I, Hilpert K, Hancock REW. Agar and broth dilution methods to determine the minimal inhibitory concentration (MIC) of antimicrobial substances. Nat Protoc. 2008;3(2):163–75. 10.1038/nprot.2007.521 . [DOI] [PubMed] [Google Scholar]
45.Kovach ME, Elzer PH, Hill DS, Robertson GT, Farris MA, Roop RM, 2nd, et al. Four new derivatives of the broad-host-range cloning vector pBBR1MCS, carrying different antibiotic-resistance cassettes. Gene. 1995;166(1):175–6. 10.1016/0378-1119(95)00584-1 . [DOI] [PubMed] [Google Scholar]
46.Andrews S. FastQC: a quality control tool for high throughput sequence data. http://www.bioinformatics.babraham.ac.uk/projects/fastqc2010.
47.Ewels P, Magnusson M, Lundin S, Kaller M. MultiQC: summarize analysis results for multiple tools and samples in a single report. Bioinformatics. 2016;32(19):3047–8. Epub 2016/06/18. 10.1093/bioinformatics/btw354 [DOI] [PMC free article] [PubMed] [Google Scholar]
48.Dobin A, Davis CA, Schlesinger F, Drenkow J, Zaleski C, Jha S, et al. STAR: ultrafast universal RNA-seq aligner. Bioinformatics. 2013;29(1):15–21. Epub 2012/10/30. 10.1093/bioinformatics/bts635 [DOI] [PMC free article] [PubMed] [Google Scholar]
49.Anders S, Pyl PT, Huber W. HTSeq-a Python framework to work with high-throughput sequencing data. Bioinformatics. 2015;31(2):166–9. Epub 2014/09/28. 10.1093/bioinformatics/btu638 [DOI] [PMC free article] [PubMed] [Google Scholar]
50.Love MI, Huber W, Anders S. Moderated estimation of fold change and dispersion for RNA-seq data with DESeq2. Genome Biol. 2014;15(12):550 Epub 2014/12/18. 10.1186/s13059-014-0550-8 [DOI] [PMC free article] [PubMed] [Google Scholar]

PLoS Pathog. doi: 10.1371/journal.ppat.1008444.r001

Decision Letter 0

Alan R Hauser, Matthew C Wolfgang

16 Dec 2019

Dear Prof. Hancock,

Thank you very much for submitting your manuscript "Surfing motility is a complex adaptation that is different from swarming motility and requires the stringent stress response in Pseudomonas aeruginosa LESB58" (PPATHOGENS-D-19-01968) for review by PLOS Pathogens. Your manuscript was fully evaluated at the editorial level and by independent peer reviewers. The reviewers appreciated the attention to an important problem, but raised some substantial concerns about the manuscript as it currently stands. These issues must be addressed before we would be willing to consider a revised version of your study. We cannot, of course, promise publication at that time.

We therefore ask you to modify the manuscript according to the review recommendations before we can consider your manuscript for acceptance. Your revisions should address the specific points made by each reviewer.

In addition, when you are ready to resubmit, please be prepared to provide the following:

(1) A letter containing a detailed list of your responses to the review comments and a description of the changes you have made in the manuscript. Please note while forming your response, if your article is accepted, you may have the opportunity to make the peer review history publicly available. The record will include editor decision letters (with reviews) and your responses to reviewer comments. If eligible, we will contact you to opt in or out.

(2) Two versions of the manuscript: one with either highlights or tracked changes denoting where the text has been changed; the other a clean version (uploaded as the manuscript file).

While revising your submission, please upload your figure files to the Preflight Analysis and Conversion Engine (PACE) digital diagnostic tool, https://pacev2.apexcovantage.com. PACE helps ensure that figures meet PLOS requirements. To use PACE, you must first register as a user. Then, login and navigate to the UPLOAD tab, where you will find detailed instructions on how to use the tool. If you encounter any issues or have any questions when using PACE, please email us at figures@plos.org.

Additionally, to enhance the reproducibility of your results, PLOS recommends that you deposit your laboratory protocols in protocols.io, where a protocol can be assigned its own identifier (DOI) such that it can be cited independently in the future. For instructions see http://journals.plos.org/plospathogens/s/submission-guidelines#loc-materials-and-methods

We hope to receive your revised manuscript within 60 days. If you anticipate any delay in its return, we ask that you let us know the expected resubmission date by replying to this email. Revised manuscripts received beyond 60 days may require evaluation and peer review similar to that applied to newly submitted manuscripts.

[LINK]

We are sorry that we cannot be more positive about your manuscript at this stage, but if you have any concerns or questions, please do not hesitate to contact us.

Sincerely,

Matthew C Wolfgang

Associate Editor

PLOS Pathogens

Alan Hauser

Section Editor

PLOS Pathogens

Kasturi Haldar

Editor-in-Chief

PLOS Pathogens

orcid.org/0000-0001-5065-158X

Grant McFadden

Editor-in-Chief

PLOS Pathogens

orcid.org/0000-0002-2556-3526

***********************

Reviewer's Responses to Questions

Part I - Summary

Reviewer #1: The paper by Pletzer et al entitled " Surfing motility is a complex adaptation that is different from swarming motility and requires the stringent stress response in PA LESB58"

This is a well written paper that demonstrates that mutating the genes required for the stringent response in PA has multiple phenotypes for LESB58 related to surface behaviors. The authors then further explore surfing motility with transcriptional profiling of wt and stringent response mutants as well as transposon mutagenesis to identify genes required for surfing and that these have little overlap with swarming genes. In both of these experiments a large data set is generated and the authors complement cueR and pqsR specifically to show these are down-stream regulators of the stringent response that are required for surfing.

Strengths: Large data set generated with sound experimental design. The role of the stringent response in surfing is clear and further evidence is presented to differentiate surfing and swarming. The significance is that it offers new insight into the role of the stringent response in surface behaviors.

Opportunities: This is primarily a descriptive study with large amounts of genetic data and there is an opportunity as described below to better understand mechanism as well as how the different pieces of data connect. Some of the data such as the antibiotic susceptibility testing doesn't seem to fit with the rest of the manuscript and as an example no mechanism with regard tothe anitbiotic susceptibility is explained from additional transcriptional data or even discussed. Additional control experiments will help understand how much of the transcriptional change is specific to the stringent response defect compared with actual surfing.

Reviewer #2: The study reports on numerous aspects of a clinical isolate of Pseudomonas aeruginosa, strain LESB58, a previously identified CF lung isolate. Primarily, the manuscript reports upon phenotypes for a double- mutant of relA and spoT, where the stringent response is eliminated, are compared to WT and complemented strains. This research is very useful to elucidate how stringent response controls P. aeruginosa behavior.

The short title is a more fitting description than the full manuscript title.

However, the current version of the manuscript requires some work to establish a singular theme.

Reviewer #3: The manuscript entitled: Surfing motility is a complex adaptation that is different from swarming motility and requires the stringent stress response in P. aeruginosa, is an original and well written manuscript with well-planned experiments, careful analysis and novel data on invasion and virulence important in CF. The authors have used a systematic and well-described approach initially starting with phenotypic studies, transcriptome profiling with the LESB58 so-called hyper virulent strain and then moving on to the prototype PA14 strain having a wide pathogenicity profile, and finally qRT-PCR. In a classic analysis and as expected, the authors have used deletion mutants to support their initial observations that the stringent response may be involved. Also, these mutants were foundd to be susceptible to several antibiotics. Very well done and excellent data, overall.

One of the challenges of this type of study is to delineate clearly the surfing phenotype from swarming, twitching and swimming. The authors have shown this previously in different bacterial species using elegant strategies (J. Bacteriol., 2018). Here, the key challenge is the transcriptomics data.

One important item I may have missed: Were the samples done in at least triplicates in the RNASeq analysis? The authors have to address this.

I think the authors have to discuss the ramifications of the impact of 2 to 7.7 fold changes up or down in gene expression when doing transcriptomics in bacteria. It would be an opportunity to educate some of the readers that fold changes in bacteria remains a challenge. This is on page 9 line 2019 and applies even with qRT-PCR.

**********

Part II – Major Issues: Key Experiments Required for Acceptance

Please use this section to detail the key new experiments or modifications of existing experiments that should be absolutely required to validate study conclusions.

Generally, there should be no more than 3 such required experiments or major modifications for a "Major Revision" recommendation. If more than 3 experiments are necessary to validate the study conclusions, then you are encouraged to recommend "Reject".

Reviewer #1: There are experiments and analysis that would significantly strengthen the manuscript.

1) Most of the phenotypes attributed to the stringent response mutants can be attributed to loss or decrease of flagella function and possibly abnormal pilus function. Do these structures change on the cell surface in number or location? Are there more flagella that dont work as well to explain the upregulation of the fle genes? Is twitching motility intact? Are there phenotypic changes in rhamnolipid or exopolysaccharide production that can explain any of these surface changes, If one looks at the cells under the microscope with increasing viscosity what happens to swimming. Phenotypic data (such as transmission electron microscopy) would begin to suggest a mechanism for the changes and also when the CueR and PqsH are overexpressed, to correct surfing these phenotypes can be reexamined under these conditions.

2) The transcriptome compares surfing wt and surfing stringent response. It is unclear how many of these changes are specific to the surfing condition or general to the stringent response regardless of growth condition. I would consider a control experiment, if not for the transcriptome at least for specific genes of interest with RT-PCR 1) wt and stringent response mutant in liquid growth. A comparison of swarming wt and mutant stringent response conditions would also be interesting since under both conditions the phenotype is completely abolished and can you identify surfing specific genes that altered in the stringent response under surfing compared with swarming

3) The relationship between copper metabolism and other transcriptional changes. Quintana et al 2017 JBC show a major change in metabolism under copper stress. Could this explain some of the observed transcriptional changes. What happens to to the other copper homeostatic pathways and if copper levels are manipulated within non toxic ranges. This is another opportunity for mechanism

Reviewer #2: There are inconsistencies in data from the different assays, which make their interpretation complex. These include: 1) The coloration of LESB58 in Fig 1A is differs from that of Fig 1B. Since the authors highlight differences in both pyoverdine and pyocyanin production for the relA/spot mutant as noteworthy, some validation or explanation is needed to better define the basic surfing assay. Similarly, is the strong pigmentation for the spoT-complement singularly noteworthy in comparison to the relA, pqsH, and cueR complements? 2) The swimming assays shown in Figure 2A do not match swimming assays with which I am familiar. A swim phenotype should appear perfectly symmetrical as an expanding circle in the agar. These swim phenotypes are more circular than the swarm images above them, but have many irregularities. Further, the image shown suggests the growth is not uniform and may actually be on top of the agar. Given this, can the authors distinguish between swimming and surfing?

The authors use of different experimental conditions also makes data interpretation difficult. Most assays were conducted using KB medium. However, pyocyanin assays were performed in SCFM, MIC assays were performed in MHB, and flow cell assays used dYT broth. Most importantly, if the authors seek to explain the relation between stringent response and surfing, mucin should be added to all experiments, as this is required for the surfing phenotype.

The current manuscript oscillates between using the surfing phenotype as justification for stringent response experiments and using stringent response as justification for surfing experiments. Individually, many of these results are new and will be of interest to the field. However, the text presents a patchwork of data in search of a theme. Thus, the story requires more definition. If the point is to validate cueR and pqsH as important regulators of surfing, why not show how cueR and pqsH do (or do not) influence swarming, swimming, and antibiotic resistance?

Reviewer #3: One important item I may have missed: Were the samples done in at least triplicates in the RNASeq analysis? The authors have to address this.

**********

Part III – Minor Issues: Editorial and Data Presentation Modifications

Please use this section for editorial suggestions as well as relatively minor modifications of existing data that would enhance clarity.

Reviewer #1: page 7 table 1 tobramycin resistance is listed for the complemented mutants which are on a gentamicinR plasmid. These are both aminoglycosides and the plasmid level could contribute to tobramycin resistance.

page 9: minor point: How was a defect in surfing defined (what percent of wt diameter, change in morphology etc)

In the discussion new data are introduced and discussed for the first time such as cyclic di-GMP regulon genes. I would move the data to the results and then discuss in discussion

Figure 3. Would consider presenting the metabolic genes as a relational map to understand how the different changes and metabolic pathways relate to each other

Reviewer #2: 1. Line 84, How is the CF lung more stressful than a healthy lung to P. aeruginosa where P. aeruginosa infections are less prevalent? Is increased mucin, itself, an inducer of stringent response? Or is it the use of antibiotics, as a means to treat infections, that stimulates stringent response?

2. Line 212, It would be useful to show the surfing phenotype of PA14 in the supplemental materials.

Reviewer #3: Overall, all the critical experiments have been done. Careful analysis of the data and supplementary figures support this exciting manuscript.

Overall, I see no major issues.

I am looking forward to seeing this in print.

**********

PLOS authors have the option to publish the peer review history of their article (what does this mean?). If published, this will include your full peer review and any attached files.

If you choose “no”, your identity will remain anonymous but your review may still be made public.

Do you want your identity to be public for this peer review? For information about this choice, including consent withdrawal, please see our Privacy Policy.

Reviewer #1: No

Reviewer #2: No

Reviewer #3: No

PLoS Pathog. 2020 Mar 24;16(3):e1008444. doi: 10.1371/journal.ppat.1008444.r002

Author response to Decision Letter 0

16 Jan 2020

Attachment

Submitted filename: Pletzer_PlosPathogens_2020_response2reviewers.docx

Click here for additional data file.^{(216.9KB, docx)}

PLoS Pathog. doi: 10.1371/journal.ppat.1008444.r003

Decision Letter 1

Alan R Hauser, Matthew C Wolfgang

17 Feb 2020

Dear Prof. Hancock,

Thank you very much for submitting your manuscript "Surfing motility is a complex adaptation dependent on the stringent stress response in Pseudomonas aeruginosa LESB58" for consideration at PLOS Pathogens. As with all papers reviewed by the journal, your manuscript was reviewed by members of the editorial board and by several independent reviewers. The reviewers appreciated the attention to an important topic. Based on the reviews, we are likely to accept this manuscript for publication, providing that you modify the manuscript according to the review recommendations.

Please address the concerns of Reviewer 1 by clarifying the role of flagella in surfing motility. Also, in the revised manuscript, in text references to some of the supplemental data (e.g. Tables S1 and S2) have been removed. Please provide adequate text and references to this data in the manuscript or remove the supplemental information and renumber the existing tables/figures.

Please prepare and submit your revised manuscript within 30 days. If you anticipate any delay, please let us know the expected resubmission date by replying to this email.

When you are ready to resubmit, please upload the following:

[1] A letter containing a detailed list of your responses to all review comments, and a description of the changes you have made in the manuscript.

Please note while forming your response, if your article is accepted, you may have the opportunity to make the peer review history publicly available. The record will include editor decision letters (with reviews) and your responses to reviewer comments. If eligible, we will contact you to opt in or out

[2] Two versions of the revised manuscript: one with either highlights or tracked changes denoting where the text has been changed; the other a clean version (uploaded as the manuscript file).

Important additional instructions are given below your reviewer comments.

Thank you again for your submission to our journal. We hope that our editorial process has been constructive so far, and we welcome your feedback at any time. Please don't hesitate to contact us if you have any questions or comments.

Sincerely,

Matthew C Wolfgang

Associate Editor

PLOS Pathogens

Alan Hauser

Section Editor

PLOS Pathogens

Kasturi Haldar

Editor-in-Chief

PLOS Pathogens

orcid.org/0000-0001-5065-158X

Michael Malim

Editor-in-Chief

PLOS Pathogens

orcid.org/0000-0002-7699-2064

***********************

Reviewer Comments (if any, and for reference):

Reviewer's Responses to Questions

Part I - Summary

Please use this section to discuss strengths/weaknesses of study, novelty/significance, general execution and scholarship.

Reviewer #1: The revised manuscript "Surfing motility is a complex adaptation dependent on the stringent stress response

in Pseudomonas aeruginosa LESB58" has addressed the majority of questions raised by the reviewers. It is a well written manuscript that describes the roll of the stringent response in surfing motility and adds to the knowledge of Pseudomonas surface behaviors and motility.

Reviewer #2: This manuscript is much improved. The authors have provided very detailed comments to describe their changes in response to comments by all three initial reviews and this is well done. This revised manuscript tells a story that is much more clear.

**********

Part II – Major Issues: Key Experiments Required for Acceptance

Please use this section to detail the key new experiments or modifications of existing experiments that should be absolutely required to validate study conclusions.

Reviewer #1: The major experimental issues have been addressed. There is some confusion regarding the data that requires clarification prior to publication regarding the role of flagella regulation in the observed phenotype

Page 4 line 97 "In contrast to the studies of Vogt et al. [14] that suggested that ppGpp was not required for swimming in P. aeruginosaPAO1, as indeed we confirmed (Figure S2), we found that, in the strain LESB58, the stringent

response mutant was further impaired in swimming after prolonged incubation time, but not

completely defective"

The picture in Figure S2 suggests to me it is completely defective. I tried to find a zone of swimming but could not.

The authors then go on to state which is in direct contrast to both the figure and the previous statement.

"There was no basic defect in flagella production due to any of these mutations, since we observed similar swimming zone sizes after 24 h for WT and all mutants in both the strains LESB58 and PAO1 (although the swimming

colony morphology for strain LESB58 was somewhat unusual)"

In the results page 5 they state "We were unable to detect flagella in the spots formed by the relAspoT double mutant (Figure S4), although the large amount of extracellular material under these circumstances made observations difficult.

This information along with the swimming figure has to make one consider whether flagella are present on the surface under these conditions. An up-regulation of flagella genes could be in response to protein degradation and lack of surface flagella. If there is identical swimming in aqueous solution amongst the mutants then this may indeed represent a novel and intriguing form of motility regulation depending on the environment regulated by the stringent response.

Finally on page 13 of discussion this is a misleading sentence.

"One cannot infer anything about surface expression and gene expression and while we did not observe more flagella on the stringent response mutant cells in TEM, a possible explanation could be that the up-regulation of the fle genes could lead to hyper-flagellated cells that might impair motility"

In fact NO flagella were observed on the stringent response mutant cells. One can make no inference about surface protein and flagella structure expression based on gene expression alone. Although I agree that the extracellular material may make it difficult to see flagella, it is still a very sensitive technique. if the bacteria were hyper-flagellate it should be observable on TEM. There is no data to support this possible explanation and more data to support an opposite conclusion.

In summary the regulation of surface flagella and contribution to the observed phenotype is confusing and requires explanation.

Reviewer #2: No new major issues.

**********

Part III – Minor Issues: Editorial and Data Presentation Modifications

Please use this section for editorial suggestions as well as relatively minor modifications of existing data that would enhance clarity.

Reviewer #1: (No Response)

Reviewer #2: None.

**********

PLOS authors have the option to publish the peer review history of their article (what does this mean?). If published, this will include your full peer review and any attached files.

If you choose “no”, your identity will remain anonymous but your review may still be made public.

Do you want your identity to be public for this peer review? For information about this choice, including consent withdrawal, please see our Privacy Policy.

Reviewer #1: No

Reviewer #2: No

Figure Files:

Data Requirements:

Please note that, as a condition of publication, PLOS' data policy requires that you make available all data used to draw the conclusions outlined in your manuscript. Data must be deposited in an appropriate repository, included within the body of the manuscript, or uploaded as supporting information. This includes all numerical values that were used to generate graphs, histograms etc.. For an example see here: http://www.plosbiology.org/article/info%3Adoi%2F10.1371%2Fjournal.pbio.1001908#s5.

Reproducibility:

To enhance the reproducibility of your results, PLOS recommends that you deposit laboratory protocols in protocols.io, where a protocol can be assigned its own identifier (DOI) such that it can be cited independently in the future. For instructions see http://journals.plos.org/plospathogens/s/submission-guidelines#loc-materials-and-methods

PLoS Pathog. 2020 Mar 24;16(3):e1008444. doi: 10.1371/journal.ppat.1008444.r004

Author response to Decision Letter 1

19 Feb 2020

Attachment

Submitted filename: Pletzer_PlosPathogens_2020_response2reviewers _round2_v2.docx

Click here for additional data file.^{(1.2MB, docx)}

PLoS Pathog. doi: 10.1371/journal.ppat.1008444.r005

Decision Letter 2

Alan R Hauser, Matthew C Wolfgang

29 Feb 2020

Dear Prof. Hancock,

We are pleased to inform you that your manuscript 'Surfing motility is a complex adaptation dependent on the stringent stress response in Pseudomonas aeruginosa LESB58' has been provisionally accepted for publication in PLOS Pathogens.

Before your manuscript can be formally accepted you will need to complete some formatting changes, which you will receive in a follow up email. A member of our team will be in touch with a set of requests.

Please note that your manuscript will not be scheduled for publication until you have made the required changes, so a swift response is appreciated.

IMPORTANT: The editorial review process is now complete. PLOS will only permit corrections to spelling, formatting or significant scientific errors from this point onwards. Requests for major changes, or any which affect the scientific understanding of your work, will cause delays to the publication date of your manuscript.

Should you, your institution's press office or the journal office choose to press release your paper, you will automatically be opted out of early publication. We ask that you notify us now if you or your institution is planning to press release the article. All press must be co-ordinated with PLOS.

Thank you again for supporting Open Access publishing; we are looking forward to publishing your work in PLOS Pathogens.

Best regards,

Matthew C Wolfgang

Associate Editor

PLOS Pathogens

Alan Hauser

Section Editor

PLOS Pathogens

Kasturi Haldar

Editor-in-Chief

PLOS Pathogens

orcid.org/0000-0001-5065-158X

Michael Malim

Editor-in-Chief

PLOS Pathogens

orcid.org/0000-0002-7699-2064

***********************************************************

Reviewer Comments (if any, and for reference):

PLoS Pathog. doi: 10.1371/journal.ppat.1008444.r006

Acceptance letter

Alan R Hauser, Matthew C Wolfgang

17 Mar 2020

Dear Prof. Hancock,

We are delighted to inform you that your manuscript, "Surfing motility is a complex adaptation dependent on the stringent stress response in Pseudomonas aeruginosa LESB58," has been formally accepted for publication in PLOS Pathogens.

We have now passed your article onto the PLOS Production Department who will complete the rest of the pre-publication process. All authors will receive a confirmation email upon publication.

The corresponding author will soon be receiving a typeset proof for review, to ensure errors have not been introduced during production. Please review the PDF proof of your manuscript carefully, as this is the last chance to correct any scientific or type-setting errors. Please note that major changes, or those which affect the scientific understanding of the work, will likely cause delays to the publication date of your manuscript. Note: Proofs for Front Matter articles (Pearls, Reviews, Opinions, etc...) are generated on a different schedule and may not be made available as quickly.

Soon after your final files are uploaded, the early version of your manuscript, if you opted to have an early version of your article, will be published online. The date of the early version will be your article's publication date. The final article will be published to the same URL, and all versions of the paper will be accessible to readers.

Thank you again for supporting open-access publishing; we are looking forward to publishing your work in PLOS Pathogens.

Best regards,

Kasturi Haldar

Editor-in-Chief

PLOS Pathogens

orcid.org/0000-0001-5065-158X

Michael Malim

Editor-in-Chief

PLOS Pathogens

orcid.org/0000-0002-7699-2064

Associated Data

This section collects any data citations, data availability statements, or supplementary materials included in this article.

Supplementary Materials

S1 Text. The P. aeruginosa LESB58 stringent response mutant was impaired in swimming, swarming, adherence, and biofilm formation, as well as being more susceptible to antibiotics.

(DOCX)

Click here for additional data file.^{(27.5KB, docx)}

S1 Table. PA14 transposon mutants that exhibited surfing deficiency.

Surfing deficiency was defined as either no motility, an alternative form of motility, or one-directional motility.

(DOCX)

Click here for additional data file.^{(35.7KB, docx)}

S2 Table. Primers used in this study.

(DOCX)

Click here for additional data file.^{(14.1KB, docx)}

S1 Fig. Other phenotypes of P. aeruginosa LESB58 wild-type, ΔrelAΔspoT stringent response mutant, and relA or spoT complemented mutant strains.

(PNG)

Click here for additional data file.^{(669.7KB, png)}

S2 Fig. Swimming phenotypes of P. aeruginosa LESB58 and PAO1 wild-type, ΔrelAΔspoT stringent response mutant, and relA or spoT complemented mutant strains.

Stringent response mutants and complements were tested under swimming conditions in KB 0.3% agar plates for 24 h (LESB58, top) and SCFM 0.3% agar plates for 15 h (PAO1, bottom) at 37°C.

(PNG)

Click here for additional data file.^{(472.3KB, png)}

S3 Fig. Transmission electron microscopy images of surfing P. aeruginosa LESB58 wild-type and ΔrelA/ΔspoT.

(PNG)

Click here for additional data file.^{(389.9KB, png)}

S4 Fig. Growth curves and adherence of P. aeruginosa LESB58 wild-type, ΔrelAΔspoT stringent response mutant, and relA or spoT complemented mutant strains in dYT and SCFM broth.

(PNG)

Click here for additional data file.^{(91.1KB, png)}

S5 Fig. KEGG pathway—Quorum Sensing Pseudomonas.

(PNG)

Click here for additional data file.^{(69KB, png)}

S6 Fig. Visualization of differentially expressed flagellar genes.

(PNG)

Click here for additional data file.^{(74.6KB, png)}

S7 Fig. Visualization of differentially expressed pilus genes.

(PNG)

Click here for additional data file.^{(38.4KB, png)}

S8 Fig. Visualization of differentially expressed c-di-GMP genes.

(PNG)

Click here for additional data file.^{(64.2KB, png)}

S9 Fig. Surfing motility of P. aeruginosa PA14 wild-type, the transposon insertion mutants cueR and pqsH and their corresponding complemented strains.

Surfing on 0.3% SCFM agar supplemented with 0.4% mucin. All strains were grown for 16–18 h at 37°C and experiments were repeated at least 3 times with similar results.

(PNG)

Click here for additional data file.^{(283.1KB, png)}

S10 Fig. PCA plot of LESB58 wild-type and stringent response mutant surfing samples.

(PNG)

Click here for additional data file.^{(7.3KB, png)}

S1 Data. Differentially expressed genes between the double mutant and wild type with thresholds of adjusted p-value ≤ 0.05 and absolute fold change ≥ 1.5.

(CSV)

Click here for additional data file.^{(469.6KB, csv)}

Attachment

Submitted filename: Pletzer_PlosPathogens_2020_response2reviewers.docx

Click here for additional data file.^{(216.9KB, docx)}

Attachment

Submitted filename: Pletzer_PlosPathogens_2020_response2reviewers _round2_v2.docx

Click here for additional data file.^{(1.2MB, docx)}

Data Availability Statement

[ppat.1008444.ref001] 1.Elkin S, Geddes D. Pseudomonal infection in cystic fibrosis: the battle continues. Expert Rev Anti Infect Ther. 2003;1(4):609–18. 10.1586/14787210.1.4.609 . [DOI] [PubMed] [Google Scholar]

[ppat.1008444.ref002] 2.Winstanley C, O'Brien S, Brockhurst MA. Pseudomonas aeruginosa evolutionary adaptation and diversification in cystic fibrosis chronic lung infections. Trends Microbiol. 2016;24(5):327–37. 10.1016/j.tim.2016.01.008 [DOI] [PMC free article] [PubMed] [Google Scholar]

[ppat.1008444.ref003] 3.Cheng K, Smyth RL, Govan JR, Doherty C, Winstanley C, Denning N, et al. Spread of beta-lactam-resistant Pseudomonas aeruginosa in a cystic fibrosis clinic. Lancet. 1996;348(9028):639–42. 10.1016/S0140-6736(96)05169-0 . [DOI] [PubMed] [Google Scholar]

[ppat.1008444.ref004] 4.Al-Aloul M, Crawley J, Winstanley C, Hart CA, Ledson MJ, Walshaw MJ. Increased morbidity associated with chronic infection by an epidemic Pseudomonas aeruginosa strain in CF patients. Thorax. 2004;59(4):334–46. 10.1136/thx.2003.014258 [DOI] [PMC free article] [PubMed] [Google Scholar]

[ppat.1008444.ref005] 5.McCallum SJ, Corkill J, Gallagher M, Ledson MJ, Hart CA, Walshaw MJ. Superinfection with a transmissible strain of Pseudomonas aeruginosa in adults with cystic fibrosis chronically colonised by P. aeruginosa. Lancet. 2001;358(9281):558–60. 10.1016/s0140-6736(01)05715-4 [DOI] [PubMed] [Google Scholar]

[ppat.1008444.ref006] 6.Kukavica-Ibrulj I, Bragonzi A, Paroni M, Winstanley C, Sanschagrin F, O'Toole GA, et al. In vivo growth of Pseudomonas aeruginosa strains PAO1 and PA14 and the hypervirulent strain LESB58 in a rat model of chronic lung infection. J Bacteriol. 2008;190(8):2804–13. 10.1128/JB.01572-07 [DOI] [PMC free article] [PubMed] [Google Scholar]

[ppat.1008444.ref007] 7.Bucior I, Pielage JF, Engel JN. Pseudomonas aeruginosa pili and flagella mediate distinct binding and signaling events at the apical and basolateral surface of airway epithelium. PLoS Pathog. 2012;8(4):e1002616 Epub 2012/04/13. 10.1371/journal.ppat.1002616 [DOI] [PMC free article] [PubMed] [Google Scholar]

[ppat.1008444.ref008] 8.Overhage J, Bains M, Brazas MD, Hancock REW. Swarming of Pseudomonas aeruginosa is a complex adaptation leading to increased production of virulence factors and antibiotic resistance. J Bacteriol. 2008;190(8):2671–9. 10.1128/JB.01659-07 WOS:000254773200005. [DOI] [PMC free article] [PubMed] [Google Scholar]

[ppat.1008444.ref009] 9.Abdullah LH, Evans JR, Wang TT, Ford AA, Makhov AM, Nguyen K, et al. Defective postsecretory maturation of MUC5B mucin in cystic fibrosis airways. JCI Insight. 2017;2(6):e89752 Epub 2017/03/30. 10.1172/jci.insight.89752 [DOI] [PMC free article] [PubMed] [Google Scholar]

[ppat.1008444.ref010] 10.Sampedro I, Parales RE, Krell T, Hill JE. Pseudomonas chemotaxis. FEMS Microbiol Rev. 2015;39(1):17–46. Epub 2014/08/08. 10.1111/1574-6976.12081 . [DOI] [PubMed] [Google Scholar]

[ppat.1008444.ref011] 11.Yeung AT, Parayno A, Hancock REW. Mucin promotes rapid surface motility in Pseudomonas aeruginosa. MBio. 2012;3(3). 10.1128/mBio.00073-12 [DOI] [PMC free article] [PubMed] [Google Scholar]

[ppat.1008444.ref012] 12.Moradali MF, Ghods S, Rehm BH. Pseudomonas aeruginosa lifestyle: a paradigm for adaptation, survival, and persistence. Front Cell Infect Microbiol. 2017;7:39 Epub 2017/03/07. 10.3389/fcimb.2017.00039 [DOI] [PMC free article] [PubMed] [Google Scholar]

[ppat.1008444.ref013] 13.Costanzo A, Nicoloff H, Barchinger SE, Banta AB, Gourse RL, Ades SE. ppGpp and DksA likely regulate the activity of the extracytoplasmic stress factor sigmaE in Escherichia coli by both direct and indirect mechanisms. Mol Microbiol. 2008;67(3):619–32. 10.1111/j.1365-2958.2007.06072.x . [DOI] [PubMed] [Google Scholar]

[ppat.1008444.ref014] 14.Vogt SL, Green C, Stevens KM, Day B, Erickson DL, Woods DE, et al. The stringent response is essential for Pseudomonas aeruginosa virulence in the rat lung agar bead and Drosophila melanogaster feeding models of infection. Infect Immun. 2011;79(10):4094–104. 10.1128/IAI.00193-11 WOS:000294951000026. [DOI] [PMC free article] [PubMed] [Google Scholar]

[ppat.1008444.ref015] 15.Chatnaparat T, Li Z, Korban SS, Zhao YF. The stringent response mediated by (p)ppGpp is required for virulence of Pseudomonas syringae pv. tomato and its survival on tomato. Mol Plant Microbe Interact. 2015;28(7):776–89. 10.1094/MPMI-11-14-0378-R WOS:000359434600004. [DOI] [PubMed] [Google Scholar]

[ppat.1008444.ref016] 16.Kostakioti M, Hadjifrangiskou M, Hultgren SJ. Bacterial biofilms: development, dispersal, and therapeutic strategies in the dawn of the postantibiotic era. Cold Spring Harb Perspect Med. 2013;3(4):a010306 10.1101/cshperspect.a010306 [DOI] [PMC free article] [PubMed] [Google Scholar]

[ppat.1008444.ref017] 17.Xu X, Yu H, Zhang D, Xiong J, Qiu J, Xin R, et al. Role of ppGpp in Pseudomonas aeruginosa acute pulmonary infection and virulence regulation. Microbiol Res. 2016;192:84–95. Epub 2016/09/25. 10.1016/j.micres.2016.06.005 . [DOI] [PubMed] [Google Scholar]

[ppat.1008444.ref018] 18.Pletzer D, Wolfmeier H, Bains M, Hancock REW. Synthetic peptides to target stringent response-controlled virulence in a Pseudomonas aeruginosa murine cutaneous infection model. Front Microbiol. 2017;8:1867 Epub 2017/10/13. 10.3389/fmicb.2017.01867 [DOI] [PMC free article] [PubMed] [Google Scholar]

[ppat.1008444.ref019] 19.Ntimbane T, Comte B, Mailhot G, Berthiaume Y, Poitout V, Prentki M, et al. Cystic fibrosis-related diabetes: from CFTR dysfunction to oxidative stress. Clin Biochem Rev. 2009;30(4):153–77. Epub 2009/12/17. [PMC free article] [PubMed] [Google Scholar]

[ppat.1008444.ref020] 20.Ralhan A, Laval J, Lelis F, Ballbach M, Grund C, Hector A, et al. Current concepts and controversies in innate immunity of cystic fibrosis lung disease. J Innate Immun. 2016;8(6):531–40. Epub 2016/11/02. 10.1159/000446840 [DOI] [PMC free article] [PubMed] [Google Scholar]

[ppat.1008444.ref021] 21.Sugisaki K, Hanawa T, Yonezawa H, Osaki T, Fukutomi T, Kawakami H, et al. Role of (p)ppGpp in biofilm formation and expression of filamentous structures in Bordetella pertussis. Microbiol-Sgm. 2013;159:1379–89. 10.1099/mic.0.066597-0 WOS:000322855700015. [DOI] [PubMed] [Google Scholar]

[ppat.1008444.ref022] 22.Sun E, Liu S, Hancock REW. Surfing motility: a conserved yet diverse adaptation among motile bacteria. J Bacteriol. 2018;200(23). Epub 2018/09/19. 10.1128/JB.00394-18 [DOI] [PMC free article] [PubMed] [Google Scholar]

[ppat.1008444.ref023] 23.Sun E, Gill EE, Falsafi R, Yeung A, Liu S, Hancock REW. Broad-spectrum adaptive antibiotic resistance associated with Pseudomonas aeruginosa mucin-dependent surfing motility. Antimicrob Agents Chemother. 2018;62(9). Epub 2018/07/04. 10.1128/AAC.00848-18 . [DOI] [PMC free article] [PubMed] [Google Scholar]

[ppat.1008444.ref024] 24.Liberati NT, Urbach JM, Miyata S, Lee DG, Drenkard E, Wu G, et al. An ordered, nonredundant library of Pseudomonas aeruginosa strain PA14 transposon insertion mutants. Proc Natl Acad Sci U S A. 2006;103(8):2833–8. 10.1073/pnas.0511100103 WOS:000235554900064. [DOI] [PMC free article] [PubMed] [Google Scholar]

[ppat.1008444.ref025] 25.Yeung AT, Torfs EC, Jamshidi F, Bains M, Wiegand I, Hancock REW, et al. Swarming of Pseudomonas aeruginosa is controlled by a broad spectrum of transcriptional regulators, including MetR. J Bacteriol. 2009;191(18):5592–602. Epub 2009/07/14. 10.1128/JB.00157-09 [DOI] [PMC free article] [PubMed] [Google Scholar]

[ppat.1008444.ref026] 26.Novoa-Aponte L, Ramirez D, Arguello JM. The interplay of the metallosensor CueR with two distinct CopZ chaperones defines copper homeostasis in Pseudomonas aeruginosa. J Biol Chem. 2019;294(13):4934–45. Epub 2019/02/06. 10.1074/jbc.RA118.006316 [DOI] [PMC free article] [PubMed] [Google Scholar]

[ppat.1008444.ref027] 27.Brouwer S, Pustelny C, Ritter C, Klinkert B, Narberhaus F, Haussler S. The PqsR and RhlR transcriptional regulators determine the level of Pseudomonas quinolone signal synthesis in Pseudomonas aeruginosa by producing two different pqsABCDE mRNA isoforms. J Bacteriol. 2014;196(23):4163–71. Epub 2014/09/17. 10.1128/JB.02000-14 [DOI] [PMC free article] [PubMed] [Google Scholar]

[ppat.1008444.ref028] 28.Verstraeten N, Braeken K, Debkumari B, Fauvart M, Fransaer J, Vermant J, et al. Living on a surface: swarming and biofilm formation. Trends Microbiol. 2008;16(10):496–506. 10.1016/j.tim.2008.07.004 . [DOI] [PubMed] [Google Scholar]

[ppat.1008444.ref029] 29.Li C, Li YJ, Ding C. The role of copper homeostasis at the host-pathogen axis: from bacteria to fungi. Int J Mol Sci. 2019;20(1). ARTN 175 doi: 10.3390/ijms20010175 WOS:000459747700175. [DOI] [PMC free article] [PubMed] [Google Scholar]

[ppat.1008444.ref030] 30.Schwan WR, Warrener P, Keunz E, Stover CK, Folger KR. Mutations in the cueA gene encoding a copper homeostasis P-type ATPase reduce the pathogenicity of Pseudomonas aeruginosa in mice. Int J Med Microbiol. 2005;295(4):237–42. Epub 2005/09/01. 10.1016/j.ijmm.2005.05.005 . [DOI] [PubMed] [Google Scholar]

[ppat.1008444.ref031] 31.Rampioni G, Falcone M, Heeb S, Frangipani E, Fletcher MP, Dubern JF, et al. Unravelling the genome-wide contributions of specific 2-Alkyl-4-Quinolones and PqsE to Quorum Sensing in Pseudomonas aeruginosa. PLoS Pathog. 2016;12(11):e1006029 Epub 2016/11/17. 10.1371/journal.ppat.1006029 [DOI] [PMC free article] [PubMed] [Google Scholar]

[ppat.1008444.ref032] 32.Rampioni G, Pustelny C, Fletcher MP, Wright VJ, Bruce M, Rumbaugh KP, et al. Transcriptomic analysis reveals a global alkyl-quinolone-independent regulatory role for PqsE in facilitating the environmental adaptation of Pseudomonas aeruginosa to plant and animal hosts. Environ Microbiol. 2010;12(6):1659–73. Epub 2010/04/22. 10.1111/j.1462-2920.2010.02214.x [DOI] [PMC free article] [PubMed] [Google Scholar]

[ppat.1008444.ref033] 33.Utari PD, Vogel J, Quax WJ. Deciphering physiological functions of AHL quorum quenching acylases. Front Microbiol. 2017;8:1123 Epub 2017/07/05. 10.3389/fmicb.2017.01123 [DOI] [PMC free article] [PubMed] [Google Scholar]

[ppat.1008444.ref034] 34.Schafhauser J, Lepine F, McKay G, Ahlgren HG, Khakimova M, Nguyen D. The stringent response modulates 4-hydroxy-2-alkylquinoline biosynthesis and quorum-sensing hierarchy in Pseudomonas aeruginosa. J Bacteriol. 2014;196(9):1641–50. 10.1128/JB.01086-13 [DOI] [PMC free article] [PubMed] [Google Scholar]

[ppat.1008444.ref035] 35.Nguyen D, Joshi-Datar A, Lepine F, Bauerle E, Olakanmi O, Beer K, et al. Active starvation responses mediate antibiotic tolerance in biofilms and nutrient-limited bacteria. Science. 2011;334(6058):982–6. Epub 2011/11/19. 10.1126/science.1211037 [DOI] [PMC free article] [PubMed] [Google Scholar]

[ppat.1008444.ref036] 36.Ciofu O, Tolker-Nielsen T. Tolerance and resistance of Pseudomonas aeruginosa biofilms to antimicrobial agents-how P. aeruginosa can escape antibiotics. Front Microbiol. 2019;10:913 Epub 2019/05/28. 10.3389/fmicb.2019.00913 [DOI] [PMC free article] [PubMed] [Google Scholar]

[ppat.1008444.ref037] 37.Moscoso JA, Jaeger T, Valentini M, Hui K, Jenal U, Filloux A. The diguanylate cyclase SadC is a central player in Gac/Rsm-mediated biofilm formation in Pseudomonas aeruginosa. J Bacteriol. 2014;196(23):4081–8. Epub 2014/09/17. 10.1128/JB.01850-14 [DOI] [PMC free article] [PubMed] [Google Scholar]

[ppat.1008444.ref038] 38.Roy AB, Petrova OE, Sauer K. The phosphodiesterase DipA (PA5017) is essential for Pseudomonas aeruginosa biofilm dispersion. J Bacteriol. 2012;194(11):2904–15. Epub 2012/04/12. 10.1128/JB.05346-11 [DOI] [PMC free article] [PubMed] [Google Scholar]

[ppat.1008444.ref039] 39.Palmer KL, Aye LM, Whiteley M. Nutritional cues control Pseudomonas aeruginosa multicellular behavior in cystic fibrosis sputum. J Bacteriol. 2007;189(22):8079–87. 10.1128/JB.01138-07 [DOI] [PMC free article] [PubMed] [Google Scholar]

[ppat.1008444.ref040] 40.Pletzer D, Braun Y, Weingart H. Swarming motility is modulated by expression of the putative xenosiderophore transporter SppR-SppABCD in Pseudomonas aeruginosa PA14. Anton Leeuw Int J G. 2016;109(6):737–53. 10.1007/s10482-016-0675-8 WOS:000376012300001. [DOI] [PubMed] [Google Scholar]

[ppat.1008444.ref041] 41.Chua SL, Hultqvist LD, Yuan M, Rybtke M, Nielsen TE, Givskov M, et al. In vitro and in vivo generation and characterization of Pseudomonas aeruginosa biofilm-dispersed cells via c-di-GMP manipulation. Nat Protoc. 2015;10(8):1165–80. 10.1038/nprot.2015.067 . [DOI] [PubMed] [Google Scholar]

[ppat.1008444.ref042] 42.Kurachi M. Studies on the biosynthesis of pyocyanine. Isolation and determination of pyocyanine. Bull Inst Chem Res Kyoto Univ 1958:36163–73. [Google Scholar]

[ppat.1008444.ref043] 43.de la Fuente-Nunez C, Reffuveille F, Haney EF, Straus SK, Hancock REW. Broad-spectrum anti-biofilm peptide that targets a cellular stress . PLoS Pathog. 2014;10(5). ARTN e1004152, 10.1371/journal.ppat.1004152 WOS:000337732300052. [DOI] [PMC free article] [PubMed] [Google Scholar]

[ppat.1008444.ref044] 44.Wiegand I, Hilpert K, Hancock REW. Agar and broth dilution methods to determine the minimal inhibitory concentration (MIC) of antimicrobial substances. Nat Protoc. 2008;3(2):163–75. 10.1038/nprot.2007.521 . [DOI] [PubMed] [Google Scholar]

[ppat.1008444.ref045] 45.Kovach ME, Elzer PH, Hill DS, Robertson GT, Farris MA, Roop RM, 2nd, et al. Four new derivatives of the broad-host-range cloning vector pBBR1MCS, carrying different antibiotic-resistance cassettes. Gene. 1995;166(1):175–6. 10.1016/0378-1119(95)00584-1 . [DOI] [PubMed] [Google Scholar]

[ppat.1008444.ref046] 46.Andrews S. FastQC: a quality control tool for high throughput sequence data. http://www.bioinformatics.babraham.ac.uk/projects/fastqc2010.

[ppat.1008444.ref047] 47.Ewels P, Magnusson M, Lundin S, Kaller M. MultiQC: summarize analysis results for multiple tools and samples in a single report. Bioinformatics. 2016;32(19):3047–8. Epub 2016/06/18. 10.1093/bioinformatics/btw354 [DOI] [PMC free article] [PubMed] [Google Scholar]

[ppat.1008444.ref048] 48.Dobin A, Davis CA, Schlesinger F, Drenkow J, Zaleski C, Jha S, et al. STAR: ultrafast universal RNA-seq aligner. Bioinformatics. 2013;29(1):15–21. Epub 2012/10/30. 10.1093/bioinformatics/bts635 [DOI] [PMC free article] [PubMed] [Google Scholar]

[ppat.1008444.ref049] 49.Anders S, Pyl PT, Huber W. HTSeq-a Python framework to work with high-throughput sequencing data. Bioinformatics. 2015;31(2):166–9. Epub 2014/09/28. 10.1093/bioinformatics/btu638 [DOI] [PMC free article] [PubMed] [Google Scholar]

[ppat.1008444.ref050] 50.Love MI, Huber W, Anders S. Moderated estimation of fold change and dispersion for RNA-seq data with DESeq2. Genome Biol. 2014;15(12):550 Epub 2014/12/18. 10.1186/s13059-014-0550-8 [DOI] [PMC free article] [PubMed] [Google Scholar]

PERMALINK

Surfing motility is a complex adaptation dependent on the stringent stress response in Pseudomonas aeruginosa LESB58

Daniel Pletzer

Evelyn Sun

Caleb Ritchie

Lauren Wilkinson

Leo T Liu

Michael J Trimble

Heidi Wolfmeier

Travis M Blimkie

Robert E W Hancock

Roles

Abstract

Author summary

Introduction

Results

The P. aeruginosa LESB58 stringent response mutant was impaired in surfing

Fig 1. Surfing motility in P. aeruginosa LESB58 and ΔrelA/ΔspoT.

Table 1. Alterations in LESB58 ΔrelA/ΔspoT mRNA transcripts under surfing, swarming, and swimming conditions.

The LESB58 stringent stress response regulated surfing motility

Fig 2. KEGG analysis and GO enrichment of differentially expressed genes comparing the P. aeruginosa LESB58 stringent stress response mutant ΔrelA/ΔspoT to the wild-type strain under surfing conditions.

Identification of genes required for surfing motility and stringent dependency

Table 2. Relative fold-changes of LESB58 ΔrelA/ΔspoT mRNA expression compared to wild-type levels of expression.

Fig 3. Surfing motility in P. aeruginosa LESB58, ΔrelA/ΔspoT, and effects of overexpression of pqsH or cueR in the ΔrelA/ΔspoT mutant.

Discussion

Materials and methods

Bacterial strains, media, and growth conditions

Table 3. Pseudomonas aeruginosa strains used in this study.

Swarming motility assay

Swimming and surfing motility assay

Growth curves experiments and pyoverdine production

Pyocyanin measurement

Adherence experiments

Biofilm formation under flow conditions and flow-cell imaging

Antibiotic susceptibility

Construction of cueR and pqsH overexpression plasmids

RNA isolation, quantitative real-time (qRT)-PCR, and RNA-Seq

Functional enrichment of DE genes

Transmission electron microscopy (TEM)

Statistical analysis

Supporting information

Acknowledgments

Data Availability

Funding Statement

References

Decision Letter 0

Alan R Hauser

Matthew C Wolfgang

Roles

Author response to Decision Letter 0

Decision Letter 1

Alan R Hauser

Matthew C Wolfgang

Roles

Author response to Decision Letter 1

Decision Letter 2

Alan R Hauser

Matthew C Wolfgang

Roles

Acceptance letter

Alan R Hauser

Matthew C Wolfgang

Roles

Associated Data

Supplementary Materials

Data Availability Statement

ACTIONS

PERMALINK

RESOURCES

Similar articles

Cited by other articles

Links to NCBI Databases
