Methylene blue degradation by the VUV/UV/persulfate process: Effect of pH on the roles of photolysis and oxidation

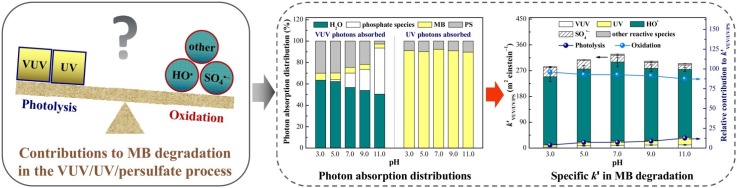

Graphical abstract

Highlights

• •VUV/UV/persulfate (VUV/UV/PS) process obviously enhanced methylene blue degradation.
• •Degradation and mineralization of methylene blue exhibited different trends with pH.
• •HO^• and SO₄ ^{• −} were proved to be the principal reactive oxygen species.
• •The application potential of VUV/UV/PS process was demonstrated in real waters.
• •Solution pH notably affected photon absorption distributions and reaction mechanism.

Abstract

This study investigated methylene blue (MB) degradation by the vacuum-ultraviolet/ultraviolet/persulfate (VUV/UV/PS) process using a mini-fluidic VUV/UV photoreaction system. Results show that MB degradation by the VUV/UV/PS process was significantly higher than that of the conventional UV/PS process, as the VUV photolysis of H₂O and PS generated more reactive oxygen species (ROSs). HO^• and SO₄^•−, identified as the main ROSs, were mostly consumed by dissolved organic carbon and Cl^‒ in real waters, respectively. Additionally, the impacts of solution pH and the concentrations of PS, humic acid, and inorganic ions (HCO₃^‒, Cl^‒, NO₃^‒, SO₄^2‒, Fe(II), and Fe(III)) were systematically evaluated. The solution pH significantly affected the photon absorption distributions, as well as the contributions of photolysis and oxidation to MB degradation, resulting in different variations in the degradation rate constant and total organic carbon removal ratio with increasing solution pH. At all tested pH levels (3.0–11.0), particularly under acidic conditions, HO^• and SO₄^•− were two predominant contributors to MB degradation, while VUV and UV photolysis contributed more when the solution pH increased. This study provides a highly efficient process for organic pollutant removal, which could be applied in water treatment.

1. Introduction

Advanced oxidation processes (AOPs) generating highly reactive species (such as HO^•, SO₄ ^{• −}, and Cl^•) are among the most efficient and promising chemical oxidation technologies for degrading harmful refractory pollutants that are resistant to conventional water treatment processes, including adsorption, sedimentation, coagulation/flocculation, and sand filtration (Hori et al., 2005; Ling et al., 2016).

Persulfate (PS, a precursor of SO₄ ^{• −}) has a relatively low cost (Lau et al., 2007), high stability in transportation (Waldemer et al., 2007), and an inert and harmless end-product (SO₄ ^2‒) (Weiner, 2000); thus, its popularity as a disinfectant or oxidant is increasing. AOPs involving PS activation have been successfully utilized to inactivate microorganisms (such as Coronavirus and Norwalk virus) (Thayer, 2003) and degrade a variety of organic pollutants (McCallum et al., 2000; Lau et al., 2007; Waldemer et al., 2007; Zhang et al., 2016). Ultraviolet (UV), a common disinfection and oxidation method, can activate PS (UV/PS process) to produce SO₄ ^{• −} (Eq. (1)) (Ike et al., 2018), which has a high redox potential ($E_{{{\mathrm{S}\mathrm{O}}_4}^{•-}}^{°}$= 2.5–3.1 V) (Neta et al., 1988) that is comparable to or slightly higher than that of HO^• ($E_{{\mathrm{H}\mathrm{O}}^{•}}^{°}$ = 1.9–2.7 V) (Buxton et al., 1988). The resulting chain reactions are summarized in Table S1 (Eqs. (S6)‒(S14)), and the generated secondary reactive oxygen species (ROSs) mainly include HO^•, HO₂ ^•/O₂ ^{• −}, SO₅ ^{• −}, and S₂O₈ ^{• −}.

$${\text{S}}_2{\text{O}}_8^{2-}+h{v}_{254}\to 2\text{S}{\text{O}}_4^{•-}({\Phi }_{\text{S}{\text{O}}_4^{•-}}=1.4)$$ (1)

Low-pressure (LP) mercury lamps are a highly efficient UV light source for water treatment, with a photon-energy efficiency of approximately 36% (Bolton, 2006). By using synthetic silica in the production of the lamp tube, LP mercury lamps can deliver two major resonance lines at 185 and 254 nm (i.e., vacuum-UV (VUV)/UV irradiation), and the manufacturing and operating costs of VUV/UV LP mercury lamps are close to those of a conventional LP mercury lamp (Li et al., 2016). VUV (185 nm) readily photolyzes H₂O into HO^• by homolysis and ionization (Eqs. (2) and (3)) (Gonzalez et al., 2004). Moreover, recent studies found that organic pollutant degradation in a UV/chlorine process when a VUV/UV lamp was used as the light source (VUV/UV/chlorine process) was more efficient than that of conventional UV irradiation (UV/chlorine process) owing to the additional formation of HO^• (Eqs. (2) and (3)) (Gonzalez et al., 2004) and the synergistic effect (Li et al., 2016). Therefore, VUV/UV LP mercury lamps could serve as a highly efficient light source for UV-based AOPs. However, the application of the VUV/UV/PS process in water treatment has not been studied. Thus, it is necessary to explore organic pollutant degradation by this highly efficient AOP.

$${\text{H}}_2\text{O}+h{v}_{185}\to \text{H}{\text{O}}^{•}+{\mathrm{H}}^{•}({\Phi }_{\text{H}{\text{O}}^{•}}=0.33)$$ (2)

$${\text{H}}_2\text{O}+h{v}_{185}\to \text{H}{\text{O}}^{•}+{\mathrm{H}}^{+}+e_{\text{aq}}^{-}({\Phi }_{\text{H}{\text{O}}^{•}}=0.045)$$ (3)

As a cationic dye, methylene blue (MB) that is hard to degrade by traditional technologies can cause various potential health risks to humans and induce significant problems to ecological systems (Bulut and Aydın, 2006; Bedin et al., 2016). The removal kinetics and mechanisms of MB under different conditions (such as various impact factors and real waters) using chemical (Qi et al., 2015; Li et al., 2016; Wolski and Ziolek, 2018; Ren et al., 2019) and physical technologies (Bulut and Aydın, 2006; Qi et al., 2015; Bedin et al., 2016; Wolski and Ziolek, 2018; Ren et al., 2019) have been discussed with drawbacks of the generation of iron sludge, difficulties in separation and regeneration of catalysts, membrane fouling, and high cost. UV-based AOPs were found to be highly efficient for removing MB, which is commonly used as a model organic pollutant (Bulut and Aydın, 2006; Qi et al., 2015; Bedin et al., 2016; Li et al., 2016; Wolski and Ziolek, 2018; Ren et al., 2019) with good stability under UV irradiation and easy detection. Moreover, when combined with the previously developed mini-fluidic VUV/UV photoreaction system (MVPS; Fig. S1) (Li et al., 2016), MB concentration can be measured precisely and rapidly with an online UV–vis spectrophotometer during its degradation in the UV-based AOPs, which could avoid sampling errors and reduce the workload.

In this study, we aimed to investigate MB degradation kinetics by the VUV/UV/PS process based on the MVPS, which was found to be suitable for estimating the impact of VUV on organic pollutant degradation during VUV/UV irradiation. The effects of solution pH and water matrix components were assessed, and the main ROSs and their consumption distributions in different types of real water were elucidated. Additionally, the pH impact on the photon absorption distributions was explored to understand the roles of direct photolysis (VUV and UV) and indirect oxidation by various oxidants at different pH levels. This study proposes a new UV-based AOP for water treatment, which could be used for highly efficient organic pollutant removal.

2. Materials and methods

2.1. Chemicals and water samples

All chemical reagents were of analytical grade or higher. Anisole (AS), methanol (MeOH), p-chlorobenzoic acid (pCBA), and potassium persulfate (K₂S₂O₈) were purchased from Thermo Fisher Scientific, Inc. (USA), while MB, tert-butyl alcohol (TBA), and uridine were supplied by Sigma-Aldrich, Inc. (USA). Humic acid (HA) and H₃PO₄ (≥ 85% w/w) were obtained from Aladdin Bio-Chem Technology Co., Ltd. (China). The other reagents were purchased from Sinopharm Chemical Reagent Co., Ltd. (China). All solutions were prepared with ultrapure water (resistivity > 18.2 MΩ cm) produced by a Milli-Q water purification system (Advantage A10, Millipore, USA).

Filtered water (FW), surface water (SW), and secondary wastewater effluent (WE) were collected from a local drinking water treatment plant, an urban river, and a municipal wastewater treatment plant, respectively (Beijing, China). All water samples were immediately transported to the laboratory in a portable refrigerator, vacuum-filtered through 0.45-μm membrane filters to remove any particles, and stored at 4 °C prior to analysis and testing.

2.2. Experimental procedures

All photochemical experiments were conducted at least thrice in the MVPS (Fig. S1), the structure of which was described in a previous study (Li et al., 2016). The flow rate was 60 mL min^–1 and the reaction solution temperature was maintained at 25 °C using a water recirculator (DHX-0515, Shunma Technology Co., China). The solution pH was adjusted using various solutions (H₃PO₄, NaH₂PO₄, Na₂HPO₄, and Na₃PO₄) with total phosphate concentrations of 2.0 mM, unless otherwise stated. During the total organic carbon (TOC) tests, solution samples were withdrawn and quenched with excess Na₂S₂O₃ before analysis. Using MeOH and uridine as chemical actinometers, the VUV $(E_{\text{p}}^{\text{o}}\text{,VUV})$ and UV $(E_{\text{p}}^{\text{o}}\text{,UV})$ photon fluence rates were measured to be 2.59 × 10⁻⁵ and 5.31 × 10^‒4 einstein m^‒2 s^‒1, respectively (Fig. S2). As the reaction solution was recirculated between unexposed (Teflon connection tube wrapped in black tape) and exposed (VUV/UV or UV tube) sections of the MVPS, a reduction equivalent exposure time (t _ree, s) was determined as the total reaction time (t, 600 s) multiplied by the ratio of the exposed volume of the operation tube (π r ² l, cm³) to the total volume of the reaction solution (V, 100 cm³) (Wen et al., 2018). Therefore, the VUV (F _p,VUV), UV (F _p,UV), and total (F _p,tot) photon fluences (einstein m^‒2) can be calculated as follows (Li et al., 2016):

$$t_{\text{ree}}=\frac{\pi r^{2}l}{V}t$$ (4)

$$F_{\text{p,VUV}}=E_{\text{p}}^{\text{o}}\text{,VUV}{t}_{\text{ree}}$$ (5)

$$F_{\text{p,UV}}=E_{\text{p}}^{\text{o}}\text{,UV}{t}_{\text{ree}}$$ (6)

$$F_{\text{p,tot}}=F_{\text{p,VUV}}+F_{\text{p,UV}}$$ (7)

where r and l are the radius and length of the VUV/UV or UV tube (cm), respectively.

2.3. Analytical methods

The solution pH was measured using an EF-20 K pH meter (Mettler, Switzerland). UV₂₅₄ and the concentrations of uridine and MB were quantified at 254, 262, and 664 nm, respectively, using a UV–vis spectrometer (UV-2600, Shimadzu, Japan). The alkalinity was determined using a DR6000 UV–vis spectrometer (Hach, USA) following the Hach method 8203. The TOC concentration was analyzed with a TOC analyzer (TOC-V_CPH/CPN, Shimadzu, Japan), while the Cl⁻, NO₂ ⁻, NO₃ ⁻, and SO₄ ^2‒ concentrations were determined by an ICS-2100 ion chromatograph (Dionex, USA) equipped with an AS19-HC anion-separation column (4.0 × 250 mm, 5 μm). The AS and MeOH concentrations were measured using a gas chromatograph equipped with a flame ionization detector (2010 Plus, Shimadzu, Japan) and an Rtx-Wax column (30 m × 0.25 mm, 0.25 μm) (Shimadzu, Japan) (Text S1). The pCBA concentration was quantified at 230 nm with a high-performance liquid chromatograph (Agilent 1200, USA) equipped with a UV detector and an Atlantis® dC18 column (4.6 × 250 mm, 5 μm) (Waters, USA) (Text S1). In all figures, the relative standard deviations for all data points is less than 5%, and the error bars represent the standard deviations (n = 3).

3. Results and discussion

3.1. MB degradation kinetics in the VUV/UV/PS process

Fig. 1 shows that the MB degradation of all five processes could be fitted well with pseudo-first-order kinetics. Although PS is typically considered as a strong oxidant ($E_{{{\mathrm{S}}_2}^{}{\mathrm{O}}_{8^{2-}}}^{°}=2.01\mathrm{V}$) (Gao et al., 2012) and MB has a high molar absorption coefficient at 254 nm (ε _MB,254 = 1.18 × 10⁴ M⁻¹ cm⁻¹; Fig. S3), MB degradation by both direct PS oxidation (k _PS = 2.3 × 10^‒4 s^‒1) and direct UV photolysis (k′_UV = 6.8 m² einstein^‒1) was very low. However, the UV/PS process significantly increased the reaction rate constant (k′_UV/PS = 78.3 m² einstein^‒1) because of the formation of SO₄ ^•‒ (Eq. (1)) (Ike et al., 2018) and HO^• (Eq. (S7); Table S1). Rapid MB degradation was observed in the VUV/UV process (k′_VUV/UV = 251.2 m² einstein^‒1), which generated HO^• from the VUV photolysis of H₂O (Eqs. (2) and (3)) (Gonzalez et al., 2004). After adding PS, MB degradation during the VUV/UV/PS process (k′_VUV/UV/PS) was significantly higher than that under VUV/UV irradiation owing to the additional indirect oxidation by SO₄ ^•‒ generated during the VUV and UV photolysis of PS. Additionally, k′_VUV/UV/PS (327.6 m² einstein^‒1) was 3.2 times higher than k′_UV/PS as more ROSs were produced by the VUV photolysis of H₂O and PS.

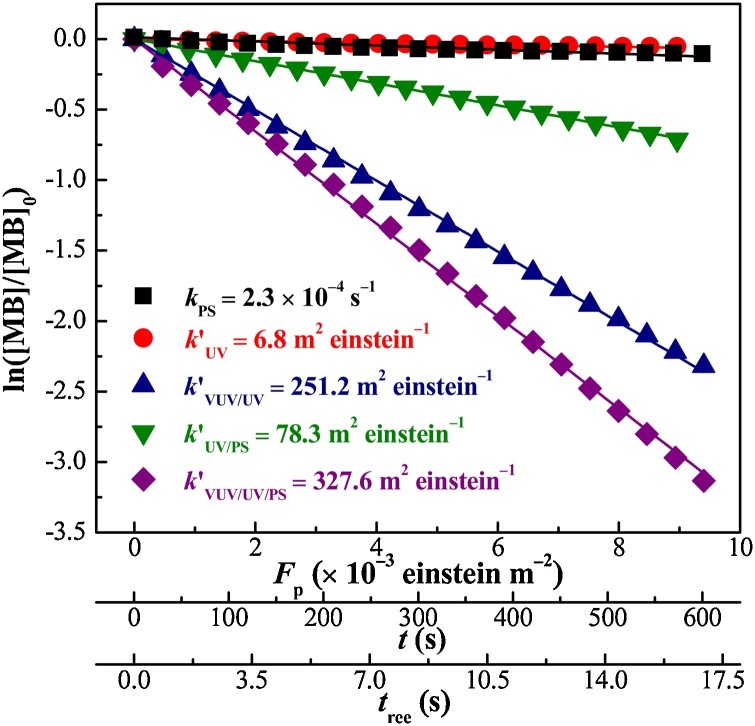

Fig. 1.

MB degradation in the PS, UV, VUV/UV, UV/PS, and VUV/UV/PS processes. Experimental conditions: [MB]₀ = 10 μM, [PS]₀ = 0.5 mM, pH = 7.0, temp. = 25 °C.

3.2. Effect of pH

As an important impact factor, the solution pH has been reported to notably affect the acid-base speciation of solutes (such as organic pollutants and oxidants) and other physicochemical properties of solution (Guan et al., 2011; Xie et al., 2015). Therefore, k′_VUV/UV/PS and TOC removal ratio in the VUV/UV/PS process at different pH levels were studied and are shown in Fig. 2 . k′_VUV/UV/PS increased within a pH range of 3.0–7.0, and then decreased as the solution pH further increased from 7.0 to 11.0; the highest k′_VUV/UV/PS was observed at pH 7.0. However, the TOC removal ratio steadily decreased with increasing solution pH. The required levels of target parent pollutant and TOC (or chemical oxygen demand) removal in practical water treatment differ. Therefore, it is necessary to elucidate the mechanisms behind the different trends of k′_VUV/UV/PS and TOC removal ratio at various pH levels, which could be useful for selecting an economic treatment strategy according to the specific requirements of a certain scenario (this is discussed in detail in Section 3.6).

Fig. 2.

Effect of pH on the degradation rate constants and mineralization of MB in the VUV/UV/PS process. Experimental conditions: [MB]₀ = 10 μM, [PS]₀ = 0.5 mM, temp. = 25 °C, reaction time =10 min.

3.3. Effects of PS and water matrix components

Fig. 3 shows that the k′_VUV/UV/PS obviously increased with increasing PS dose from 0.1 to 1.5 mM. With increasing PS dose, despite more HO^• and/or SO₄ ^{• −} were consumed (Eqs (S6), (S9), (S10), and (S11); Table S1), SO₄ ^{• −} formation by the photolysis (VUV and UV) of PS and the reaction of HO^• with PS (Eq. (S10); Table S1) was enhanced, thus leading to a higher k′_VUV/UV/PS value.

Fig. 3.

Effects of PS and water matrix components on MB degradation rate constants in the VUV/UV/PS process. Experimental conditions of control test: [MB]₀ = 10 μM, [PS]₀ = 0.5 mM, pH = 7.0, temp. = 25 °C, reaction time =10 min.

As shown in Fig. 3, all water matrix components inhibited MB degradation, excluding Fe(II) and Fe(III) at relatively low concentrations (≤ 5.0 μM). The level of inhibition by each component decreased in the following order: HA > Cl⁻ > NO₃ ⁻ > HCO₃ ⁻ > SO₄ ^2‒ > Fe(III) > Fe(II) (see the inset in Fig. 3).

HA greatly decreased k′_VUV/UV/PS by filtering VUV and UV light (ε _HA,185 < 2.13 × 10⁻⁵ and ε _HA,254 = 3.01 × 10⁻⁵ M_C ⁻¹ cm⁻¹; Fig. S4), consuming PS, and scavenging ROSs ($k_{\mathrm{H}\mathrm{A},{\mathrm{H}\mathrm{O}}^{•}}$ = 3.90 × 10⁸ and $k_{\mathrm{H}\mathrm{A},\mathrm{S}{\mathrm{O}}_4}\cdot -=2.35\times {10}^7{\mathrm{M}}_{\mathrm{C}}^{-1}{\mathrm{s}}^{-1}$; Table S2) (Brezonik and Fulkerson-Brekken, 1998; Xie et al., 2015). Although UV could activate HA to generate different reactive species (such as ¹O₂ and $e_{\text{aq}}^{-}$) (Latch and McNeill, 2006; Zhang and Hsu-Kim, 2010; Xie et al., 2015), their contributions to MB degradation were assumed to be ignored herein.

Four typical anions (HCO₃ ⁻, Cl⁻, NO₃ ⁻, and SO₄ ^2‒) were also found to inhibit MB degradation. All added anions and/or their transformations (such as H₂CO₃, CO₃ ^2‒, and NO₂ ⁻) rapidly reacted with HO^• and/or SO₄ ^•‒ at rate constants ranging from 2.1 × 10⁶ to 1.4 × 10¹⁰ M^‒1 s^‒1 (Table S2) (Buxton et al., 1988; Li et al., 2016), which could produce secondary reactive species (such as CO₃ ^•‒, Cl₂ ^•‒, and NO₃ ^•) with lower reactivities, thereby reducing MB removal. Additionally, anions and their transformations could also compete with other solution components (such as H₂O, MB, and PS) for VUV and UV photons (Fig. S4), hence weakening ROS generation and MB degradation by direct photolysis.

Iron is one of the most common transition metals in aquatic environments. Fig. 3 shows that the addition of 1.0–5.0 μM Fe(II) or 1.0–2.5 μM Fe(III) slightly increased k′_VUV/UV/PS, because more ROSs could be generated in the presence of low iron concentrations (Eqs. (S15)‒(S18); Table S1). However, higher Fe(II) (>5.0 μM) or Fe(III) (>2.5 μM) concentrations negatively affected k′_VUV/UV/PS, which could be attributed to the high level of HO^• and SO₄ ^•− scavenging by iron (Eqs. (S19) and (S20); Table S1) (Anipsitakis and Dionysiou, 2004; Rastogi et al., 2009) and competition for VUV and UV photons (Fig. S4).

3.4. Identification of the principal ROSs and the measurement of $k_{\mathrm{H}\mathrm{A},{\mathrm{H}\mathrm{O}}^{•}}$ and$k_{\mathrm{H}\mathrm{A},\mathrm{S}{\mathrm{O}}_4}\cdot -$

To identify the primary ROSs and quantify their contributions to MB degradation, specific quenching experiments were conducted. Four possible ROSs were formed during the VUV/UV/PS process (HO^•, HO₂ ^•/O₂ ^{• −}, SO₄ ^•−, and SO₅ ^•−; Eqs. (1)‒(3) and (S6)‒(S14); Table S1). MB degradation by indirect HO₂ ^•/O₂ ^{• −} and SO₅ ^{• −} oxidation was negligible because of their relatively low E ^o values $(E_{{\mathrm{H}\mathrm{O}}_{2^{•}}}^{\circ }>1.0,E_{{\mathrm{O}}_{2^{•-}}}^{\circ }1=0.57\pm 0.01,\mathrm{a}\mathrm{n}\mathrm{d}{E}_{\mathrm{S}{\mathrm{O}}_{5^{•-}}}^{\circ }=1.1\mathrm{V})$ (Rao and Hayon, 1973; Gilbert and Stell, 1990). TBA was selected as a scavenger for HO^• owing to its high rate constant with HO^• ((3.8–7.6) × 10⁸ M^‒1 s^‒1; Table S2) and low rate constant with SO₄ ^{• −} ((4.0–9.1) × 10⁵ M^‒1 s^‒1; Table S2) (Anipsitakis and Dionysiou, 2004). As it shares high rate constants with both HO^• (9.7 × 10⁸ M^‒1 s^‒1; Table S2) (Buxton et al., 1988) and SO₄ ^{• −} (2.5 × 10⁷ M^‒1 s^‒1; Table S2) (Neta et al., 1988), MeOH was used to effectively scavenge both of these ROSs.

Fig. S5a shows that k′_VUV/UV/PS considerably decreased from 327.6 to 52.4 and 29.2 m² einstein⁻¹ in the presence of 100 mM of TBA and 100 mM of MeOH, respectively. This indicates that HO^• and SO₄ ^•‒ were the two main ROSs accountable for MB degradation, and the former played a more significant role in the VUV/UV/PS process. However, as for the UV/PS process, SO₄ ^•‒ rather than HO^• was identified as the dominating ROS responsible for the degradation of pharmaceuticals and the formation of chlorate (Lian et al., 2017; Hou et al., 2018). During MB degradation in the VUV/UV/PS process, the relative contributions of HO^• and SO₄ ^•‒ oxidation were 84.0% and 7.1%, respectively, and the remaining 8.9% can be attributed to direct photolysis by VUV and UV irradiation, and oxidation by PS, HO₂ ^•/O₂ ^{• ‒} and SO₅ ^{• ‒}.

The second-order rate constants of MB with HO^• ($k_{\mathrm{M}\mathrm{B},{\mathrm{H}\mathrm{O}}^{•}}$) and SO₄ ^{• −} ($k_{\mathrm{M}\mathrm{B},{{\mathrm{S}\mathrm{O}}_{4^{•-}}}^{}}$) were determined by calculating the competition kinetics using pCBA ($k_{p^{\mathrm{C}\mathrm{B}\mathrm{A},{\mathrm{H}\mathrm{O}}^{•}}}$ = 5.0 × 10⁹ M^‒1 s^‒1; Table S2) (Kutschera et al., 2009) and AS ($k_{\mathrm{A}\mathrm{S},{{\mathrm{S}\mathrm{O}}_{4^{•-}}}^{}}$ = 4.9 × 10⁹ M^‒1 s^‒1; Table S2) (O’Neill et al., 1975) as reference compounds, respectively. Detailed information regarding this is provided in Text S2. Based on the reaction rate constant ratios of $k_{\mathrm{M}\mathrm{B},{\mathrm{H}\mathrm{O}}^{•}}$ to ${k_P{\mathrm{C}\mathrm{B}\mathrm{A},\mathrm{H}\mathrm{O}}^{•}}_{{}^{}}$(0.760) and $k_{\mathrm{M}\mathrm{B},{{\mathrm{S}\mathrm{O}}_{4^{•-}}}^{}}$ to $k_{\mathrm{A}\mathrm{S},{{\mathrm{S}\mathrm{O}}_{4^{•-}}}^{}}$ (0.623) (Fig. S5b),$k_{\mathrm{M}\mathrm{B},{\mathrm{H}\mathrm{O}}^{•}}$ and $k_{\mathrm{M}\mathrm{B},{{\mathrm{S}\mathrm{O}}_{4^{•-}}}^{}}$ were calculated to be 3.8 × 10⁹ and 3.1 × 10⁹ M^‒1 s^‒1, respectively.

3.5. Performance of the VUV/UV/PS process and ROS consumption distributions in various real waters

To assess the practical performance of the VUV/UV/PS process, MB was used as a model organic pollutant and added to three real waters (FW, SW, and WE), the sources and major water quality parameters of which are summarized in Table S3. Fig. S6 shows that k′_VUV/UV/PS in FW, SW, and WE were 0.6%, 6.4%, and 21.7% lower than that in Milli-Q water. This demonstrates that the VUV/UV/PS process would be feasible for organic pollutant degradation removal in practice.

The consumption distributions of HO^• and SO₄ ^•‒ among the major matrix components in different water samples during MB degradation by the VUV/UV/PS process were calculated using Eq. (8) (Lian et al., 2017) (Fig. 4 ).

$$R_{\text{i},\text{j}}=\frac{k_{\text{i},\text{j}}{C}_{\text{j}}}{\sum _{\text{j}=1}^{\text{j}}{k}_{\text{i},\text{j}}{C}_{\text{j}}}\times 100$$ (8)

where R _i,j and k _i,j are the ROS consumption fraction (%) and second-order rate constant (M⁻¹ s⁻¹ or M_C ⁻¹ s⁻¹) of a certain ROS (i) with a specific water component (j), respectively, and C _j is the molar concentration (M or M_C) of j.

Fig. 4.

Fractions of HO^• (a) and SO₄^•− (b) consumed by major matrix components during MB degradation in various waters using the VUV/UV/PS process. Experimental conditions: [MB]₀ = 10 μM, [PS]₀ = 0.5 mM, temp. = 25 °C.

Fig. 4a shows that 60.9%–75.5% of HO^• reacted with dissolved organic carbon (DOC), indicating the DOC of each water sample significantly affected the k′_VUV/UV/PS value. The addition of HA (1.0–3.0 mg_C L⁻¹) resulted in a larger decrease in k′_VUV/UV/PS (Fig. 3) than that caused by the DOC (2.9–7.1 mg_C L⁻¹; Table S3) contained in the water samples (Fig. S6). This could be due to the higher reaction rate constants between HA and ROSs (such as HO^• and SO₄ ^•‒) than those between the DOC contained in the water samples and ROSs (Xie et al., 2015; Li et al., 2018). Mckay et al. (2011) also observed that the reaction rate constants between organic matter and HO^• ranged from 1.21 × 10⁸ to 9.37 × 10⁸ M⁻¹ s⁻¹ because of variations in the properties of organic matter.

PS and HCO₃ ⁻ scavenged 2.0%–3.9% and 6.8%–10.2% of HO^• to generate SO₄ ^•‒ and CO₃ ^•‒, respectively. Although it was present in relatively high concentrations (0.318‒0.707 mM; Table S3), the fraction of HO^• consumed by Cl⁻ can be neglected as the reactions were reversible (Eqs. (9) and (10)) (Jayson et al., 1973; Yang et al., 2014), which had a net rate of 10³ M^‒1 s^‒1 at pH 7.0 that decreased by 90% per increasing pH unit (Von Gunten, 2003).

$$\text{C}{\text{l}}^{-}+\text{H}{\text{O}}^{•}\to \text{C}{\text{l}}^{•}+\text{O}{\text{H}}^{-}(k=4.3\times {10}^9{\text{M}}^{-1}{\text{s}}^{-1})$$ (9)

$$\text{C}{\text{l}}^{•}+\text{O}{\text{H}}^{-}\to \text{C}{\text{l}}^{-}+\text{H}{\text{O}}^{•}(k=6.1\times {10}^9{\text{M}}^{-1}{\text{s}}^{-1})$$ (10)

However, Fig. 4b shows that there was a considerable difference in the consumption distributions of SO₄ ^•‒ and HO^•. Cl^‒ (67.5%–82.2%) was the main component responsible for SO₄ ^•‒ consumption, followed by MB (11.4%–21.6%). DOC and HCO₃ ^‒ scavenged less than 10% of the SO₄ ^•‒. Additionally, the SO₄ ^•‒ fractions consumed by PS and NO₃ ^‒ with rate constants of 6.1 × 10⁵ and 2.1 × 10⁶ M^‒1 s^‒1 (Table S2) (Neta et al., 1988; Buxton et al., 1999), respectively, were negligible (0.2 %–1.0%).

3.6. Photon absorption distributions and degradation mechanisms at different pH levels

3.6.1. Photon absorption distributions at different pH levels

Fig. 2 shows that the trends of k′_VUV/UV/PS and TOC removal ratio differed as the solution pH increased. The solution pH can affect the dissociation of H₃PO₄/H₂PO₄ ⁻/HPO₄ ^2‒/HPO₄ ^3‒ (pK _a1 = 2.1, pK _a2 = 7.2, and pK _a3 = 12.3) (Pan et al., 2017) and MB⁺/MB⁰/MB⁻ (pK _a1 = 2.6 and pK _a2 = 11.2; MB⁺, MB⁰, and MB⁻ represent the cationic, neutral, and anionic species, respectively) (Huang et al., 2010), thereby altering their optical properties and reactivities. The VUV and UV photon absorption distributions among the solution components (H₂O, phosphate species, MB, and PS) at various pH levels were calculated following the methods that were described in a previous study (Wen et al., 2018), and are shown in Fig. 5 a.

Fig. 5.

Fractions of VUV and UV photons absorbed by each solution component (a) as well as contributions of photolysis (VUV and UV) and oxidation (HO^•, SO₄^•−, and other reactive species) to MB degradation (b) as a function of pH in the VUV/UV/PS process. Experimental conditions: [MB]₀ = 10 μM, [PS]₀ = 0.5 mM, temp. = 25 °C, reaction time =10 min [only for (b)].

Under a strongly acidic condition (pH 3.0), 63.4% of the VUV photons were trapped by H₂O due to its high concentration (approximately 55.6 M) and large ${\epsilon }_{{\mathrm{H}}_2\mathrm{O},185}$ (Zoschke et al., 2014), and 30.0 % of the VUV photons were absorbed by PS. Therefore, most of the VUV photons participated in the photodecomposition of H₂O and PS to yield HO^• and SO₄ ^•−, respectively, during the VUV/UV/PS process, rather than partaking in the direct photolysis of MB, which absorbed 6.6% of the VUV photons. As the solution pH increased from 3.0 and 7.0 to 11.0, the fractions of VUV photons absorbed by the phosphate species increased from 0% and 13.4%–43.1%, while the fractions of those absorbed by H₂O, MB, and PS decreased from 63.4% and 56.7%–50.4%, from 6.6% and 5.4% to 3.8%, and from 30.0% and 24.5% to 2.7%, respectively. As the photoactivation of phosphate species forms weak oxidants (H₂PO₄ ^• and HPO₄ ^{• −}) (Crittenden et al., 1999), this process was insignificant during MB degradation. Therefore, more VUV photons were captured by phosphate species with increasing solution pH, which resulted in the lower effective absorption of VUV photons by H₂O, MB, and PS at a higher pH.

Unlike the VUV photon absorption distributions, the UV photon absorption distributions were almost pH-independent. Neither H₂O nor phosphate species could consume UV photons. Approximately 89.6%–92.3% and 7.7%–10.4% of the UV photons were absorbed by MB and PS, respectively, indicating that most of the UV photons were utilized in the direct photolysis of MB, rather than the photoactivation of PS.

Taking into consideration the fractions of both VUV and UV photons absorbed by each solution component, it is reasonable to expect that the dominant degradation mechanism could differ at various pH levels (i.e., the solution pH would affect the contributions of direct photolysis and indirect oxidation to MB degradation).

3.6.2. Degradation mechanisms at different pH levels

To quantitatively estimate the roles of photolysis and oxidation in MB degradation at different pH levels, the specific reaction rate constants for MB degradation by VUV photolysis (k′_VUV), UV photolysis (i.e., k′_UV), HO^• oxidation ($k_{{\mathrm{H}\mathrm{O}}^{•}}^{\prime }$), SO₄ ^•‒ oxidation ($k_{{{\mathrm{S}\mathrm{O}}_4}^{•-}}^{\prime }$), and oxidation by other reactive species (k′_other) at various pH levels were determined (Fig. 5b) following the methods described in Text S3.

Fig. 5b shows that most of the MB was oxidized by SO₄ ^•‒ and HO^•. With an increase in the solution pH, $k_{{{\mathrm{S}\mathrm{O}}_4}^{•-}}^{\prime }$ significantly decreased from 33.4 to 15.0 m² einstein⁻¹; while $k_{{\mathrm{H}\mathrm{O}}^{•}}^{\prime }$ was 6.1–14.7 times higher than $k_{{{\mathrm{S}\mathrm{O}}_4}^{•-}}^{\prime }$ at each pH level, and initially increased (pH 3.0–7.0), but then decreased (pH 7.0–11.0). The acceleration of the reaction rate between SO₄ ^•‒and HO^‒ (Eq. (S8); Table S1) with increasing solution pH largely accounted for the decreased contribution of SO₄ ^•‒ (from 11.8% to 5.1%) to MB degradation. However, for $k_{{\mathrm{H}\mathrm{O}}^{•}}^{\prime }$, increasing solution pH enhanced HO^• generation by reducing SO₄ ^•‒ concentration (Eqs. (S7) and (S8); Table S1) and weakened the scavenging effect of H⁺ on HO^• (Tang and Huang, 1996). Meanwhile, $E_{{\mathrm{H}\mathrm{O}}^{•}}^{°}$declined as the solution pH increased (Kim and Vogelpohl, 1998). Additionally, the concentration of HPO₄ ^2‒, which could react with ROSs more rapidly than the reaction between H₂PO₄ ^‒ and ROSs (Table S2) (Pan et al., 2017), was higher under alkaline conditions, thereby decreasing the concentrations of ROSs. As a result, the minimum and maximum $k_{{\mathrm{H}\mathrm{O}}^{•}}^{\prime }$ (236.5 and 275.3 m² einstein⁻¹) values were observed at pH 11.0 and 7.0, respectively.

As shown in Fig. 5b, the k′_VUV and k′_UV values increased from 3.1 to 11.2 m² einstein⁻¹ and from 7.8 to 25.7 m² einstein⁻¹, respectively, with increasing solution pH. To evaluate the pH-dependence, ε _MB and the direct photolysis rate constants of MB (k′_d,MB) were determined at various pH levels (Fig. 6 ). ε _MB,185 clearly decreased within pH ranges of 3.2–4.8 and 9.4–11.3, but remained almost unchanged at other pH levels; while ε _MB,254 was almost pH-independent (Fig. 6a). The variations in ε _MB with the solution pH were modeled by assigning each existing species to a specific ε (${\epsilon }_{{\mathrm{M}\mathrm{B}}^{+},}{\epsilon }_{{\mathrm{M}\mathrm{B}}^0,}{\epsilon }_{{\mathrm{M}\mathrm{B}}^{-}}$). The apparent absorbance of MB solution was equal to the sum of absorbance attributed to each existing species (Eq. (11)) (Canonica et al., 2008).

$${\epsilon }_{\mathrm{M}\mathrm{B}}={\epsilon }_{\mathrm{M}{\mathrm{B}}^{+}}{\alpha }_{\mathrm{M}{\mathrm{B}}^{+}}+{\epsilon }_{\mathrm{M}{\mathrm{B}}^0}{\alpha }_{\mathrm{M}{\mathrm{B}}^0}+{\epsilon }_{\mathrm{M}{\mathrm{B}}^{-}}{\alpha }_{\mathrm{M}{\mathrm{B}}^{-}}$$ (11)

where ${\alpha }_{{\mathrm{M}\mathrm{B}}^{+}}$, ${\alpha }_{{\mathrm{M}\mathrm{B}}^{+}}$, and ${\alpha }_{{\mathrm{M}\mathrm{B}}^{-}}$ are the distribution coefficients of MB⁺, MB⁰, and MB⁻, respectively. The results in Fig. 6a indicate that the modeling results agreed well with the experimental data. ${\epsilon }_{{\mathrm{M}\mathrm{B}}^{+}}$, ${\epsilon }_{{\mathrm{M}\mathrm{B}}^0}$, and ${\epsilon }_{{\mathrm{M}\mathrm{B}}^{-}}$ were calculated and are shown in Table 1 .

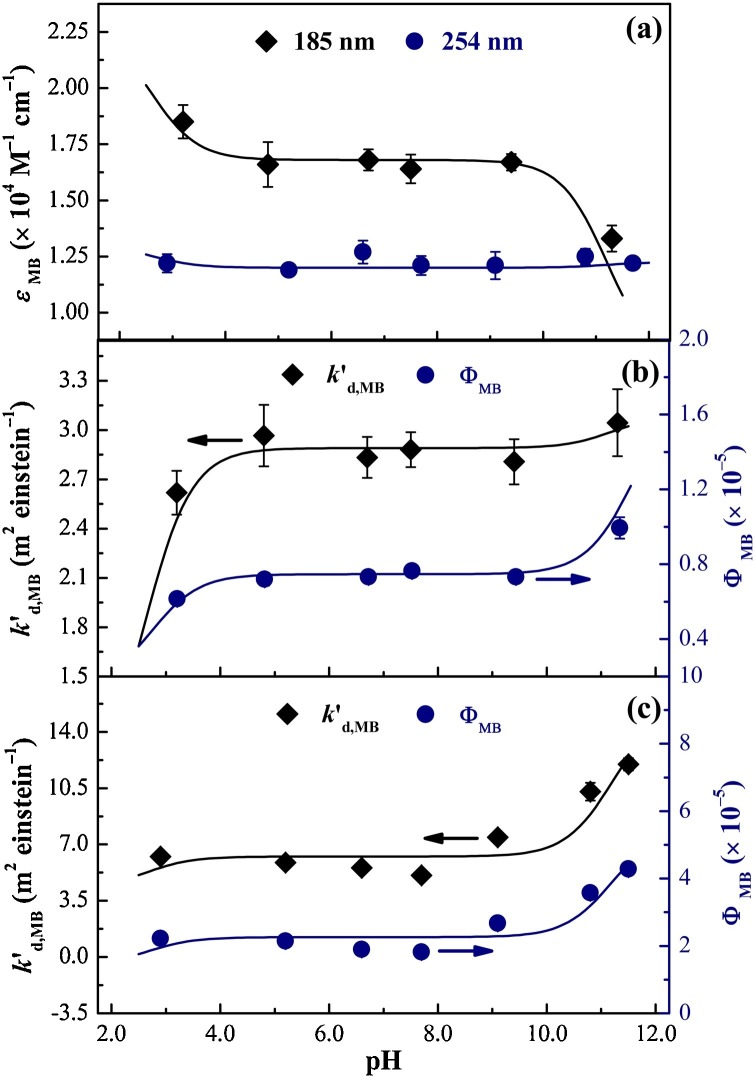

Fig. 6.

Molar absorption coefficients of MB (ε_MB) at both 185 and 254 nm (a) as well as pseudo-first-order rate constants (k′_d,MB) and quantum yields (Ф_MB) of MB by direct VUV (b) and UV (c) photolysis as a function of pH. Experimental conditions: [MB]₀ = 10 μM, [TBA]₀ = 100 mM [only for (b)], temp. = 25 °C, reaction time =10 min. The symbols and curves represent experimental data and model-fitting results, respectively.

Table 1.

Specific kinetic parameters for direct VUV and UV photolysis of MB in aqueous solution.

λ (nm)	ε (× 104 M−1 cm−1)			k′d (m2 einstein–1)			Ф (× 10–5)
	MB+	MB0	MB−	MB+	MB0	MB−	MB+	MB0	MB−
185	2.28	1.68	0.78	0.73	2.89	3.09	0.14	0.75	1.72
254	1.31	1.20	1.23	4.19	6.29	15.49	1.40	2.21	5.47

The k′_d,MB values determined under VUV and UV irradiation, which increased with increasing solution pH, are shown in Fig. 6b and c. The specific k′_d value of each existing species ($k_{\mathrm{d},{\mathrm{M}\mathrm{B}}^{+},}^{\prime }{k}_{\mathrm{d},{\mathrm{M}\mathrm{B}}^0,}^{\prime }{}_{}$and $k_{\mathrm{d},{\mathrm{M}\mathrm{B}}^{-}}^{\prime }$) was obtained by Eq. (12) (Lian et al., 2015) (Table 1).

$$k{\text{'}}_{\mathrm{d},\mathrm{M}\mathrm{B}}=k{\text{'}}_{\mathrm{d},\mathrm{M}{\mathrm{B}}^{+}}{\alpha }_{\mathrm{M}{\mathrm{B}}^{+}}+k{\text{'}}_{\mathrm{d},\mathrm{M}{\mathrm{B}}^0}{\alpha }_{\mathrm{M}{\mathrm{B}}^0}+k{\text{'}}_{\mathrm{d},\mathrm{M}{\mathrm{B}}^{-}}{\alpha }_{\mathrm{M}{\mathrm{B}}^{-}}$$ (12)

$k_{\mathrm{d},{\mathrm{M}\mathrm{B}}^{-}}^{\prime }$ was higher than $k_{\mathrm{d},{\mathrm{M}\mathrm{B}}^{+}}^{\prime }$ and $k_{\mathrm{d},{\mathrm{M}\mathrm{B}}^0,}^{\prime }{}_{}$ which was similar to the results of k′_UV and k′_VUV presented in Fig. 5b. The quantum yields (Ф) of each existing species (${}^{}{\mathrm{\Phi }}_{{\mathrm{M}\mathrm{B}}^{-}},{\mathrm{\Phi }}_{{\mathrm{M}\mathrm{B}}^0,}$ and ${\mathrm{\Phi }}_{{\mathrm{M}\mathrm{B}}^{+}}$) could be readily calculated using Eq. (13) (Bolton and Stefan, 2002), and are presented in Table 1. The Ф values at both 185 and 254 nm decreased in the order of: ${}^{}{\mathrm{\Phi }}_{{\mathrm{M}\mathrm{B}}^{-}}>{\mathrm{\Phi }}_{{\mathrm{M}\mathrm{B}}^0}{}_{}>{\mathrm{\Phi }}_{{\mathrm{M}\mathrm{B}}^{+}}{}_{}{}_{}$.

$$\Phi =\frac{k{\text{'}}_{\mathrm{d}}}{10\times \ln 10\times \epsilon }$$ (13)

The contributions of oxidation by PS and other reactive species to MB degradation could be ignored. Therefore, the maximum apparent k′_VUV/UV/PS value (i.e., the summation of various k′ values) was observed at pH 7.0. Under the tested pH of 3.0–11.0, indirect HO^• and SO₄ ^•‒ oxidation mainly contributed to MB degradation. However, with an increase in the solution pH, the roles of direct VUV and UV photolysis became more important. As indirect oxidation was more effective for mineralizing MB and its intermediate products than direct photolysis, the above analysis of the effect of pH on the degradation mechanism can explain the different trends of the variations in MB degradation (discoloration) and TOC removal with increasing solution pH (Fig. 2).

3.7. Potential applications

The results in Fig. 1 indicate that the k′_VUV/UV/PS was almost the same as the sum of k′_VUV/UV and k′_UV/PS, suggesting that the synergistic enhancement of organic pollutant degradation observed in the VUV/UV/chlorine process (Li et al., 2016, 2018) did not occur in the VUV/UV/PS process. However, owing to the similar manufacturing costs and power inputs of VUV/UV and conventional LP mercury lamps, the organic pollutant removal efficiency and water treatment cost of the VUV/UV/PS process could be better than those of the UV/PS process. The evaluation of energy consumption for various treatment processes was detailed in Text S4 and the electrical energy per order value of 0.347 kW h m⁻³ order⁻¹ (Table S4) suggest a good application potential of the VUV/UV/PS process in effectively degrading organic pollutants.

Additionally, it is found that the trends of k′_VUV/UV/PS and the TOC removal ratio with increasing solution pH in the VUV/UV/PS process differed (Fig. 2), and the mechanism was elucidated. This approach could be used to develop an economic treatment strategy (such as adjusting the solution pH before treating organic pollutants by the VUV/UV/PS process) in practical water treatment according to the specific requirements (parent compound or TOC elimination), target organic pollutant properties, and practical water matrices.

4. Conclusions

In this study, MB degradation in an aqueous solution by the VUV/UV/PS process was investigated. The following conclusions can be drawn from the experimental results:

• •MB degradation by the VUV/UV/PS process was more rapid than that in the conventional UV/PS process. Increasing PS dose enhanced MB degradation, while the addition of HA, HCO₃ ⁻, Cl⁻, NO₃ ⁻, and SO₄ ^2‒ inhibited MB degradation to different degrees. The effects of Fe(II) and Fe(III) were dependent on the iron concentrations.
• •Unlike the steady decrease in the TOC removal ratio, k′_VUV/UV/PS first increased and then decreased with increasing solution pH. This is because various pH levels induced different roles of photolysis and oxidation. Increasing solution pH increased the contributions of direct VUV and UV photolysis to MB degradation, but were ineffective in mineralizing MB and its intermediate products.
• •HO^• and SO₄ ^•‒ were identified as the two dominant ROSs and were mainly consumed by the DOC and Cl^‒ in real waters, respectively. The tests conducted in real waters demonstrate that the VUV/UV/PS process has a good potential for highly efficient removal of organic pollutant in practice.
• •As the parent compound and TOC are two different objects for removal in water treatment, this study may provide an economic treatment strategy that can be adjusted according to the specific requirements of a certain scenario.
