. 2020 Apr 20;8:e8955. doi: 10.7717/peerj.8955

Icariin protects against sodium azide—induced neurotoxicity by activating the PI3K/Akt/GSK-3β signaling pathway

Ying Zhang 1,2,#, Nanqu Huang 3,#, Hao Lu 1, Juan Huang 1,4, Hai Jin 5, Jingshan Shi 1, Feng Jin 1,✉
Editor: Jesús Campos-García
PMCID: PMC7179568  PMID: 32341897

Abstract

Background

Icariin (ICA) is one of the major active flavonoids extracted from the traditional Chinese herb Epimedium brevicornum Maxim and has been shown to have neuroprotective effects. This study was designed to investigate the effect of ICA on sodium azide (NaN3)-induced rat adrenal pheochromocytoma (PC12) cell damage and to further examine the underlying mechanisms.

Methods

To explore its possible mechanism, we used NaN3 (50 mM)-induced neuronal PC12 cell damage. Cell viability was evaluated by CCK-8 and lactate dehydrogenase (LDH) assays. Mitochondrial membrane potential (MMP) was detected by JC-1. Glucose concentration was assessed by the glucose oxidase method. The role of ICA in the PI3K/Akt/GSK-3β signaling pathway was explored by Western blotting.

Results

The results indicate that pretreatment with ICA reduced NaN3-induced cell damage and significantly reduced the leakage rate of LDH in PC12 cells. ICA pretreatment increased the MMP and a decrease in glucose concentration indicate increased glucose consumption. Furthermore, the protein levels of p-PI3K (p85), PI3K-110α, p-Ser473-Akt and p-Ser9-GSK-3β were markedly decreased in PC12 cells after NaN3 treatment for 24 h, whereas these effects were reverted after pretreatment with ICA. Tau phosphorylation at the Ser396/404 and Thr217 sites was significantly decreased by pretreatment with ICA.

Conclusions

These results suggest that ICA protects against NaN3-induced neurotoxicity in PC12 cells by activating the PI3K/Akt/GSK-3β signaling pathway.

Keywords: Neurodegenerative diseases, Alzheimer’s disease, Icariin, Sodium azide, Phosphoinositide 3-kinase, Protein kinase B, Glycogen synthase kinase-3β

Introduction

Mitochondria act as cellular power plants that provide approximately 95% of the energy required for cellular activity (Huang & Romani, 1991). The activities of various nerve cells, such as nerve conduction, synaptic transmission, axonal transport, rely mainly on mitochondria-generated adenosine 5′-triphosphate (ATP) to provide energy (Swerdlow & Khan, 2004). Therefore, mitochondrial dysfunction plays an important role in neurodegenerative diseases (especially Alzheimer’s disease (AD)) (Eckert et al., 2014; Shoshan-Barmatz et al., 2018). Furthermore, the level of amyloid β (Aβ) aggregation, abnormal phosphorylation of Tau protein, synaptic function and neuronal apoptosis are closely related to mitochondrial dysfunction (Swerdlow, Burns & Khan, 2010). An autopsy survey showed AD patient energy metabolism disorders and mitochondrial respiratory dysfunction in brain tissue and the activity of mitochondrial respiratory chain complex IV was significantly decreased (Garcia-Escudero et al., 2013). Disturbances in the energy metabolism of the brain only affects the functional state of the brain and mitochondrial function but also leads to increased production of mitochondrial reactive oxygen species (ROS), resulting in oxidative stress (Cheignon et al., 2018; Planel et al., 2004; Wang et al., 2014; Zhu et al., 2004). Long term severe oxidative stress causes abnormalities in the phosphoinositide 3-kinase/protein kinase B/glycogen synthase kinase-3β (PI3K/Akt/GSK-3β) signaling pathway (Ali et al., 2018; Wu et al., 2020). Inactivated Akt opens the mitochondrial permeability transition pore (mPTP) by promoting GSK-3β (Arrázola et al., 2017), and the opened mPTP triggers calcium overload and the uncoupling of the respiratory chain, resulting in a reduction in ATP production and a significant increase in ROS production (Yang et al., 2017). These reactions form a vicious cycle, leading to further exacerbation of mitochondrial dysfunction. It is interesting to note that GSK-3β is also the most important protein kinase that catalyzes the phosphorylation of Tau (Zhang et al., 2018). Therefore, the above process will also lead to Tau protein hyperphosphorylation, forming a neurofibrillary tangle, which causes a cellular process that kills neurons (Hallinan et al., 2019). Therefore, the strategy of protecting mitochondria by activating the PI3K/Akt/GSK-3β signaling pathway is an effective method for the treatment of neurodegenerative diseases.

Icariin (ICA) is extracted from the traditional Chinese herb Epimedium brevicornum Maxim and has been used to improve cognitive impairments through different mechanisms in diverse animal and cell models of AD, which is a neurodegenerative disease (Klingelhoefer & Reichmann, 2015; Mo et al., 2016; Xiong et al., 2016). Relevant research results have shown that ICA significantly improves mitochondrial structure and function in a triple-transgenic mouse model of AD (Chen et al., 2016). Therefore, we hypothesize that ICA improves disordered brain mitochondrial energy metabolism, and its mechanism may be related to the PI3K/Akt/GSK-3β signaling pathway.

Therefore, to verify our hypothesis, a mitochondrial damage model in PC12 cells (the PC12 cells used in this study are neuron-like cells that were derived from a transplantable adrenal pheochromocytoma, a commonly used nerve cell line (Huang et al., 2019)) induced by the mitochondrial complex IV inhibitor sodium azide (NaN3) (Chen et al., 2013; Ishiguro et al., 2001; Szabados et al., 2004) was used to evaluate the protective effect of ICA against NaN3-induced mitochondrial damage and its possible mechanisms were explored.

Materials and Methods

Reagents

Reagent grade ICA (purity ≥ 98% by HPLC analysis) was obtained from Nanjing Zelang Medical Technology Corporation Ltd. (Nanjing, China) and dissolved in dimethyl sulfoxide (DMSO); the final concentration of DMSO in the media was less than 0.1% (v/v). NaN3 (A0639) was purchased from Amresco (Solon, OH, USA). RIPA buffer (high) (R0010) and protein phosphatase inhibitor (P1260) were purchased from Solarbio Life Science (Beijing, China). A glucose oxidase assay kit (E10160) and antibodies against GSK-3β (9315), p-Ser9-GSK-3β (9323) and p-PI3K (p85) (4228) were obtained from Cell Signaling Technology (Beverly, MA, USA). Goat anti-mouse IgG-HRP (SA00001-1), goat anti-rabbit IgG-HRP (SA00001-2), and antibodies against GAPDH (60004-1-Ig), and PI3K p110α (21890-1-AP) were obtained from Proteintech Group (Wuhan, China). Antibodies against PHF1 (ab184951) and PI3K (ab86714) were obtained from Abcam (Cambridge, MA, USA). PageRuler prestained protein ladder (26616) and antibodies against p-T217 (44-744) and TAU-5 (MA5-12808) were obtained from Thermo Fisher Scientific (Waltham, MA, USA). RPMI 1640 HyClone™ cell culture medium (SH30809.01) was purchased from GE Healthcare (Chicago, IL, USA).

Cell culture and treatment

Rat adrenal pheochromocytoma PC12 cells were purchased from the American Type Culture Collection (Rockville, MD, USA).

The cells were cultured in RPMI 1640 medium supplemented with 10% horse serum (16050-122; Gibco™, Carlsbad, CA, USA), 5% FBS (16000-044; Gibco™, Carlsbad, CA, USA), penicillin (100 U/ml) and streptomycin (100 μg/ml) (P1400; Solarbio™, Beijing, China) and maintained at 37 °C and 5% CO2. The PC12 cells (1.5 × 105 cells/mL) were plated overnight at 37 °C for 24 h. The cells were pretreated with ICA for 2 h and thereafter exposed to 50 mM NaN3 (dissolved in saline) for an additional 24 h. Then, the cells were subjected to subsequent experiments and assays.

Cell viability determination

Cell viability was detected by CCK-8 assay (CA1210; Solarbio™, Beijing, China); which uses (2-(2-methoxy-4-nitrophenyl)-3-(4-nitrophenyl)-5-(2,4-disulfophenyl)-2H-tetrazolium, monosodium salt), to produces a water-soluble formazan dye upon bioreduction in the presence of an electron carrier. Briefly, PC12 cells (1.5 × 105 cells/mL) were seeded in each well of a 96-well plate for 24 h. After the end of the treatments, CCK-8 solution (10 μL) was added to each well of the 96-well plate and incubated for 2 h at 37 °C. The absorbance was measured at 450 nm with an automatic microplate reader (Multiskan™ GO, Waltham, MA, USA).

Measurement of lactate dehydrogenase release

The effects of ICA on the LDH leakage rate in NaN3-induced PC12 cells were detected by an LDH (C0016; Beyotime™, Beijing, China) assay kit. Briefly, according to the manufacturer’s instructions, after treatment, the supernatant of each well of a 96-well plate was collected. The positive control showing total release (100% LDH release) was treatment of cells with an LDH release agent (C0016-1). The optical density was measured at 490 nm with an automatic microplate reader (Multiskan™ GO, Waltham, MA, USA).

Detection of mitochondrial membrane potential

MMP was measured by using a JC-1 (a fluorescent cationic probe) kit (C2006; Beyotime™, Beijing, China). Briefly, PC12 cells (1.5 × 105 cells/mL) were seeded in 24-well plates, and after treatment, the cells were washed with PBS three times. A total of 0.5 ml culture medium and 0.5 ml JC-1 staining solution were added and incubated at 37 °C for 20 min. Carbonyl cyanide 3-chlorophenylhydrazone (CCCP) was used as the control of MMP decrease (Dong et al., 2016). The cells were rinsed with binding buffer twice and observed under an inverted fluorescence microscope (IX73; Olympus™, Shinjuku City, Tokyo, Japan).

Glucose consumption rate

The concentration of glucose was detected using the glucose oxidase method (Li et al., 2015). The assay kit (E1010; Applygen Technologies, Beijing, China) was purchased from Applygen Technologies (Beijing, China). After treatment, the PC12 cells were collected, and the concentration of total protein was extracted using a total protein extraction kit (P1250; Applygen, Beijing, China) and detected using a BCA protein assay kit (P0012; Beyotime, Beijing, China). Then, according to the instructions, the absorbance was measured at 570 nm with an automatic microplate reader and calculated against a glucose standard curve.

Western blot assay

After 24 h of treatment with different concentrations of ICA or 50 µM NaN3 at 37 °C, the cells were harvested and lysed with RIPA lysis buffer, followed by centrifugation at 14,000 rpm at 4 °C for 10 min. The total protein concentration was measured by BCA protein assay kit (P0012; Beyotime, Beijing, China). Then, the proteins were heat-denatured at 100 °C for 5 min. Equal amounts of total protein (15 µg per lane) were loaded. And we used 8–12% SDS-PAGE to separate the proteins. The gel was run at 60 V for the stacking gel and 100 V to separate the proteins until the dye ran off the bottom of the gel. Then, the sandwich was transferred to polyvinylidene difluoride (PVDF) membranes for western blot procedure at 4 °C in 1× buffer at 220 mA for 90 min. Following three washes with TBST. Then, 5% nonfat milk was used for blocking. Then, the cells were incubated with the following primary antibodies at 4 °C for 12 h: anti-PI3K-110α (1:1,000), anti-p-PI3K (p85) (1:1,000), anti-PI3K (1:1,000), anti-Akt (1:1,000), anti-p-Ser473-Akt (1:1,000) anti-p-GSK-3β-Ser9 (1:1,000), anti-GSK-3β (1:1,000), anti-PHF-1 (1:5,000), anti-p-T217 (1:1,000) and anti-TAU-5 (1:200). Following three washes with TBST, the membranes were incubated with secondary antibody goat anti-rabbit IgG-HRP (1:2,000) at room temperature for 1 h. Membranes were developed using hydrogen peroxide and Supersignal West Pico Luminol (Pierce; Thermo Fisher Scientific, Waltham, MA, USA). Finally, the membranes were visualized using chemiluminescence reagent ECL Plus (E003-100; 7Sea Biotech, Shanghai, China).

Statistical analysis

All data are expressed as the mean ± SEM. The data were analyzed statistically by SPSS 22.0 statistics software via one-way ANOVA. When ANOVA test results for all data were significant, post hoc least significant difference (LSD) tests were used to determine individual differences. Statistical significance was set as P < 0.05.

Results

ICA attenuated NaN3-induced damage in PC12 cells

Cell viability was detected by CCK-8 assay. First, based on our previous study (Huang et al., 2019) and OD/A450 of approximately 0.8, the appropriate cell seeding concentration was 1.5 × 105 cells/mL (Fig. 1A). Then, we determined that ICA (0.01–5 μM) had no significant toxic effects on PC12 cells, except for 10 μM ICA for 24 h (Fig. 1B). Combined with previous studies by our laboratory, ICA at concentrations of 0.01–1 μM was used in the subsequent experiments. As shown in Fig. 1C, NaN3 decreased cell viability, and the viability of PC12 cells decreased by approximately 50% compared with that of the control at a final concentration of 50 mM. Furthermore, we investigated whether ICA protected PC12 cells from NaN3-induced reductions in cell viability. The WST-8 contained in the CCK-8 reagent is reduced to a highly water-soluble yellow formazan product by dehydrogenase found in the mitochondria of living but not dead cells. Therefore, cell viability can be indirectly determined by detecting the absorbance of the lysed formazan. The results indicated that pretreatment with ICA reduced NaN3-induced cell damage (Fig. 1D).

Figure 1. Protective effect of ICA on NaN3-injured PC12 cells.

Figure 1

Open in a new tab

(A) PC12 cell growth curve. (B) Effects of simple ICA pretreatment on PC12 cells (*P < 0.05 vs. control). (C) Effects of different concentrations of NaN3 on PC12 cell activity (*P < 0.05 vs. control). (D) Effects of ICA on NaN3-inhibited growth of PC12. The data are shown as the mean ± SEM, n = 4 (*P < 0.05 vs. the control group, #P < 0.05 vs. the NaN3 group).

Effect of ICA on NaN3-induced LDH release in PC12 cells

We found that ICA pretreatment prevented NaN3-induced morphological damage (Figs. 2A–2E). LDH leakage is an indicator of cell membrane integrity. When the cell membrane is damaged, intracellular LDH is released into the cell culture medium. Therefore, the leakage rate of LDH reflects the level of cell damage. The results showed that LDH release was higher in NaN3-treated cells than in control cells, while ICA significantly reduced the LDH leakage rate in PC12 cells (Fig. 2F).

Figure 2. Effects of ICA on the LDH leakage rate of NaN3-injured PC12 cells.

Figure 2

Open in a new tab

(A) Control group. (B) Model group (NaN3 50 mM). (C) ICA-L group (NaN3 50 mM + ICA 0.01 μm). (D) ICA-M group (NaN3 50 mM + ICA 0.1 μm). (E) ICA-H group (NaN3 50 mM + ICA 1 μm) (representative images of PC12 cells, scale bar is 20 μm). (F) Effects of ICA on the LDH leakage rate of NaN3-injured PC12 cells. The data are shown as the mean ± SEM, n = 4 (*P < 0.05 vs. the control group, #P < 0.05 vs. the NaN3 group).

Effect of ICA on the NaN3-induced change in MMP in PC12 cells

The change in MMP was assessed by using JC-1. The change in MMP is detected by the change from red fluorescence to green fluorescence. As shown in Fig. 3, NaN3-treated cells showed a decrease in MMP in comparison with that of the control, which was consistent with the CCCP group. ICA pretreatment increased red fluorescence and decreased green fluorescence. These results suggest that ICA pretreatment increases the MMP of PC12 cells.

Figure 3. Effect of ICA on MMP in NaN3-injured PC12 cells.

Figure 3

Open in a new tab

Representative images of JC-1 staining in PC12 cells in the different groups. Red fluorescence represents increased MMP, green fluorescence represents reduced MMP and CCCP is a mitochondrial electron transport chain inhibitor that serves as a positive control for MMP depolarization (scale bar is 20 μm, n = 3).

ICA ameliorated the NaN3-induced reduction in the glucose consumption rate in PC12 cells

Mitochondria are cellular power plants and the energy required for the activity of neurons is mainly provided by the glucose metabolism of brain mitochondria. To investigate the glucose metabolism level, we examined the glucose content in PC12 cells. The NaN3-administered group exhibited a reduction in glucose consumption compared with that of the control group, leading to an increase in glucose concentration. However, ICA pretreatment ameliorated this effect (Fig. 4).

Figure 4. Effects of ICA on glucose levels in NaN3-injured PC12 cells.

Figure 4

Open in a new tab

The data are shown as the mean ± SEM, n = 4 (*P < 0.05 vs. the control group, #P < 0.05 vs. the NaN3 group).

ICA activated the PI3K/Akt/GSK-3β signaling pathway in PC12 cells

To determine whether the PI3K/Akt/GSK-3β signaling pathway is involved in the protective effects of ICA against NaN3-induced neuronal damage, we examined the expression of related proteins. As shown in Fig. 5, the protein levels of p-PI3K (p85), PI3K-110α, p-Ser473-Akt and p-Ser9-GSK-3β were markedly decreased in PC12 cells after NaN3 treatment for 24 h, whereas these effects were reverted after pretreatment with ICA. These results suggest that the protective effect of ICA on NaN3-induced mitochondrial dysfunction is related to the PI3K/Akt/GSK-3β signaling pathway (Fig. 5).

Figure 5. Effect of ICA on the PI3K/Akt/GSK-3β signaling pathway in NaN3-injured PC12 cells.

Figure 5

Open in a new tab

(A) Representative bands showing PI3K-110 α, p-PI3K (p85), PI3K, p-ser473-Akt, Akt, p-ser9-GSK-3β and GSK-3β in PC12 cells in the different groups. (B) Quantitative analysis of PI3K-110α levels. (C) Quantitative analysis of p-PI3K (p85) levels. (D) Quantitative analysis of p-Ser473-Akt levels. (E) Quantitative analysis of p-ser9-GSK-3β levels. The data are shown as the mean ± SEM, n = 45 (*P < 0.05 vs. the control group, #P < 0.05 vs. the NaN3 group).

ICA reduced the levels of tau phosphorylation

Excessive activation of GSK-3β promotes abnormal hyperphosphorylation of Tau. Therefore, we detected the phosphorylation level of Tau in PC12 cells at PHF-1 (identified Ser396/404 sites) and p-T217. As shown in Fig. 6, Tau phosphorylation at the Ser396/404 and Thr217 sites was significantly higher in NaN3-treated cells than in control cells. In contrast, the phosphorylation of Tau at Ser396/404 and Thr217 was decreased by pretreatment with ICA.

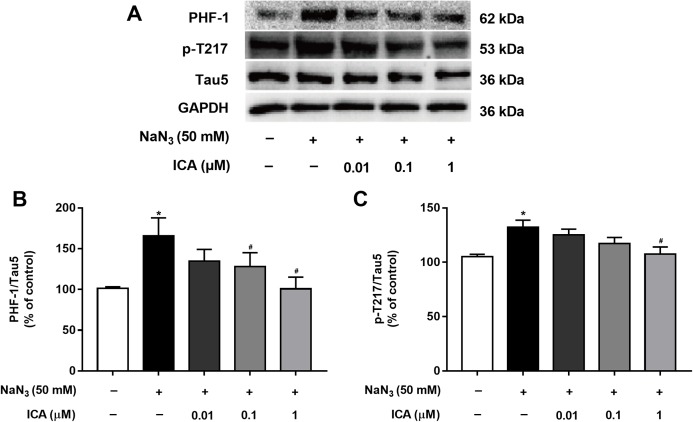

Figure 6. Effect of ICA on the phosphorylation level of Tau in NaN3-injured PC12 cells.

Figure 6

Open in a new tab

(A) Representative bands showing PHF-1 and p-T217 in PC12 cells in the different groups. (B) Quantitative analysis of PHF-1 levels. (C) Quantitative analysis of p-T217 levels. Phosphorylated Tau was normalized to total Tau. The data are shown as the mean ± SEM, n = 5 (*P < 0.05 vs. the control group, #P < 0.05 vs. the NaN3 group).

Discussion

NaN3 is a mitochondrial complex IV inhibitor and is often used as a tool for the preparation of mitochondrial damage models to study AD prevention (Chen et al., 2013; Szabados et al., 2004). Therefore, in this study, we first examined PC12 cell damage induced by NaN3 treatment at 25–100 mM. We chose 50 mM NaN3 for subsequent experiments (the cell viability inhibition rate was close to 50%). When the cell membrane is damaged, intracellular LDH is released into the cell culture medium. Therefore, the leakage rate of LDH reflects the level of cell damage. LDH assays showed that ICA protects against NaN3-induced neuronal PC12 cell injury. The formation of normal MMP is necessary to maintain mitochondrial function. In response to damage induced by various stimulating factors, the decrease in MMP is a specific early event in the mitochondrial apoptosis pathway. To this end, MMP levels were determined in this study. ICA pretreatment showed increased red fluorescence and decreased green fluorescence, suggesting that ICA pretreatment increased the MMP of PC12 cells. The results from the above show that ICA protects neurons against damage from NaN3-induced cytotoxicity. Mitochondria are key organelles for cellular energy production and are responsible for major glucose metabolism. Mitochondrial dysfunction is mainly caused by disordered mitochondrial energy metabolism due to glucose metabolism disorder (Abolhassani et al., 2017; Almeida et al., 2002). Our results demonstrate that NaN3 induced a reduction in glucose consumption, leading to an increase in glucose concentration. However, ICA pretreatment ameliorated this effect, further confirming that ICA protects against NaN3-induced PC12 cell damage through inhibition of mitochondrial dysfunction caused by glucose metabolism disorder.

The PI3K/Akt/GSK-3β signaling pathway plays an important role in the development, survival and function of neurons (Li et al., 2016; Zhang et al., 2016), which is critical for the regulation of mitochondrial function. We hypothesized that ICA improves brain mitochondrial energy metabolism disorder, and its mechanism is related to the PI3K/Akt/GSK-3β signaling pathway. Therefore, in this study, we detected the expression of proteins related to this pathway by Western blotting. The results demonstrated that exposure of PC12 cells to NaN3 downregulated PI3K, Akt and GSK-3β protein levels and activated PI3K-110α, p-PI3K (p85), p-Ser473-Akt and p-Ser9-GSK-3β site-specific phosphorylation in cells that were treated with ICA. The key to activating PI3K/Akt/GSK-3β to improve AD may be Tau protein (Hernandez, Lucas & Avila, 2013). Because GSK-3β and Tau are closely related, we can improve the abnormal hyperphosphorylation of Tau by regulating GSK-3β. Our findings confirmed that the phosphorylation level of Tau in NaN3-induced PC12 cells at PHF-1 and p-T217 was increased. ICA treatment decreased the phosphorylation level of Tau. These data suggest that ICA protects PC12 cells from NaN3-induced neuronal damage by activating the PI3K/Akt/GSK-3β signaling pathway to reduce Tau. Other studies have confirmed similar results: in vitro, asiatic acid (extracted from Centella asiatica) protects PC12 cells against Tau protein hyperphosphorylation by activating the PI3K/Akt/GSK-3β signaling pathway (Cheng et al., 2018). In vivo, intragastric administration of cornel iridoid glycoside (extracted from Cornus officinalis) inhibited Tau hyperphosphorylation in rats (intraventricular injection of wortmannin and GF-109203X) by inhibiting GSK-3β activity through promoting PI3K/Akt (Yang et al., 2018). Osthole (extracted from Cnidium monnieri (L.) Cusson) improves learning and memory function in mice by activating the PI3K/Akt/GSK-3β signaling pathway to reduce Tau (Yao et al., 2019).

Conclusions

These results suggest that ICA protects against NaN3-induced neurotoxicity in PC12 cells by activating the PI3K/Akt/GSK-3β signaling pathway.

Supplemental Information

Supplemental Information 1. Raw data.
Click here for additional data file. (21.1KB, xlsx)
DOI: 10.7717/peerj.8955/supp-1
Supplemental Information 2. Full-length uncropped blots.
Click here for additional data file. (407.2KB, docx)
DOI: 10.7717/peerj.8955/supp-2

Funding Statement

This work was supported by the National Natural Science Foundation of China (81660599, 81460548), the Postgraduate Education Foundation of Guizhou Province (KYJJ2017008), the Zunyi Medical University Funds (2013F-686, F-738), the Traditional Chinese Medicine Administration Funds of Guizhou Province (QZYY2010-59, D274), the Science and Technology Joint Funds of Zunyi Science and Technology Bureau (2018-160), and the Shijingshan’s Tutor Studio of Pharmacology (GZS-2016(07)). The funders had no role in study design, data collection and analysis, decision to publish, or preparation of the manuscript.

Additional Information and Declarations

Competing Interests

The authors declare that they have no competing interests.

Author Contributions

Ying Zhang conceived and designed the experiments, performed the experiments, analyzed the data, prepared figures and/or tables, authored or reviewed drafts of the paper, and approved the final draft.

Nanqu Huang conceived and designed the experiments, performed the experiments, analyzed the data, prepared figures and/or tables, authored or reviewed drafts of the paper, and approved the final draft.

Hao Lu performed the experiments, prepared figures and/or tables, authored or reviewed drafts of the paper, and approved the final draft.

Juan Huang analyzed the data, authored or reviewed drafts of the paper, and approved the final draft.

Hai Jin conceived and designed the experiments, authored or reviewed drafts of the paper, and approved the final draft.

Jingshan Shi conceived and designed the experiments, authored or reviewed drafts of the paper, and approved the final draft.

Feng Jin conceived and designed the experiments, authored or reviewed drafts of the paper, and approved the final draft.

Data Availability

The following information was supplied regarding data availability:

The raw measurements (including full-length uncropped blots) are available in the Supplemental Files.

References

  • Abolhassani et al. (2017).Abolhassani N, Leon J, Sheng Z, Oka S, Hamasaki H, Iwaki T, Nakabeppu Y. Molecular pathophysiology of impaired glucose metabolism, mitochondrial dysfunction, and oxidative DNA damage in Alzheimer’s disease brain. Mechanisms of Ageing and Development. 2017;161:95–104. doi: 10.1016/j.mad.2016.05.005. [DOI] [PubMed] [Google Scholar]
  • Ali et al. (2018).Ali T, Kim T, Rehman SU, Khan MS, Amin FU, Khan M, Ikram M, Kim MO. Natural dietary supplementation of anthocyanins via PI3K/Akt/Nrf2/HO-1 pathways mitigate oxidative stress, neurodegeneration, and memory impairment in a mouse model of Alzheimer’s disease. Molecular Neurobiology. 2018;55(7):6076–6093. doi: 10.1007/s12035-017-0798-6. [DOI] [PubMed] [Google Scholar]
  • Almeida et al. (2002).Almeida A, Delgado-Esteban M, Bolanos JP, Medina JM. Oxygen and glucose deprivation induces mitochondrial dysfunction and oxidative stress in neurones but not in astrocytes in primary culture. Journal of Neurochemistry. 2002;81(2):207–217. doi: 10.1046/j.1471-4159.2002.00827.x. [DOI] [PubMed] [Google Scholar]
  • Arrázola et al. (2017).Arrázola MS, Ramos-Fernández E, Cisternas P, Ordenes D, Inestrosa NC. Wnt signaling prevents the Aβ oligomer-induced mitochondrial permeability transition pore opening preserving mitochondrial structure in Hippocampal neurons. PLOS ONE. 2017;12(1):e0168840. doi: 10.1371/journal.pone.0168840. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • Cheignon et al. (2018).Cheignon C, Tomas M, Bonnefont-Rousselot D, Faller P, Hureau C, Collin F. Oxidative stress and the amyloid beta peptide in Alzheimer’s disease. Redox Biology. 2018;14:450–464. doi: 10.1016/j.redox.2017.10.014. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • Chen et al. (2013).Chen T-F, Tang M-C, Chou C-H, Chiu M-J, Huang R-FS. Dose-dependent folic acid and memantine treatments promote synergistic or additive protection against A β (25–35) peptide-induced apoptosis in SH-SY5Y cells mediated by mitochondria stress-associated death signals. Food and Chemical Toxicology. 2013;62:538–547. doi: 10.1016/j.fct.2013.09.015. [DOI] [PubMed] [Google Scholar]
  • Chen et al. (2016).Chen Y-J, Zheng H-Y, Huang X-X, Han S-X, Zhang D-S, Ni J-Z, He X-Y. Neuroprotective effects of icariin on brain metabolism, mitochondrial functions, and cognition in triple-transgenic Alzheimer’s disease mice. CNS Neuroscience & Therapeutics. 2016;22(1):63–73. doi: 10.1111/cns.12473. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • Cheng et al. (2018).Cheng W, Chen W, Wang P, Chu J. Asiatic acid protects differentiated PC12 cells from Aβ25–35-induced apoptosis and tau hyperphosphorylation via regulating PI3K/Akt/GSK-3β signaling. Life Sciences. 2018;208:96–101. doi: 10.1016/j.lfs.2018.07.016. [DOI] [PubMed] [Google Scholar]
  • Dong et al. (2016).Dong K, Yan Y, Wang P, Shi X, Zhang L, Wang K, Xing J, Dong Y. Biodegradable mixed MPEG-SS-2SA/TPGS micelles for triggered intracellular release of paclitaxel and reversing multidrug resistance. International Journal of Nanomedicine. 2016;11:5109–5123. doi: 10.2147/IJN.S111930. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • Eckert et al. (2014).Eckert A, Nisbet R, Grimm A, Götz J. March separate, strike together—Role of phosphorylated TAU in mitochondrial dysfunction in Alzheimer’s disease. Biochimica Et Biophysica Acta. 2014;1842(8):1258–1266. doi: 10.1016/j.bbadis.2013.08.013. [DOI] [PubMed] [Google Scholar]
  • Garcia-Escudero et al. (2013).Garcia-Escudero V, Martin-Maestro P, Perry G, Avila J. Deconstructing mitochondrial dysfunction in Alzheimer disease. Oxidative Medicine and Cellular Longevity. 2013;2013(12):162152. doi: 10.1155/2013/162152. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • Hallinan et al. (2019).Hallinan GI, Vargas-Caballero M, West J, Deinhardt K. Tau misfolding efficiently propagates between individual intact hippocampal neurons. Journal of Neuroscience. 2019;39(48):9623–9632. doi: 10.1523/JNEUROSCI.1590-19.2019. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • Hernandez, Lucas & Avila (2013).Hernandez F, Lucas JJ, Avila J. GSK3 and tau: two convergence points in Alzheimer’s disease. Journal of Alzheimers Disease. 2013;33(Suppl. 1):S141–144. doi: 10.3233/jad-2012-129025. [DOI] [PubMed] [Google Scholar]
  • Huang & Romani (1991).Huang LS, Romani RJ. Metabolically driven self-restoration of energy-linked functions by avocado mitochondria: general characteristics and phosphorylative aspects. Plant Physiology. 1991;95(4):1096–1105. doi: 10.1104/pp.95.4.1096. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • Huang et al. (2019).Huang N, Zhang Y, Chen M, Jin H, Nie J, Luo Y, Zhou S, Shi J, Jin F. Resveratrol delays 6-hydroxydopamine-induced apoptosis by activating the PI3K/Akt signaling pathway. Experimental Gerontology. 2019;124:110653. doi: 10.1016/j.exger.2019.110653. [DOI] [PubMed] [Google Scholar]
  • Ishiguro et al. (2001).Ishiguro H, Yasuda K, Ishii N, Ihara K, Ohkubo T, Hiyoshi M, Ono K, Senoo-Matsuda N, Shinohara O, Yosshii F, Murakami M, Hartman PS, Tsuda M. Enhancement of oxidative damage to cultured cells and Caenorhabditis elegans by mitochondrial electron transport inhibitors. IUBMB Life (International Union of Biochemistry and Molecular Biology: Life) 2001;51(4):263–268. doi: 10.1080/152165401753311816. [DOI] [PubMed] [Google Scholar]
  • Klingelhoefer & Reichmann (2015).Klingelhoefer L, Reichmann H. Pathogenesis of Parkinson disease—the gut–brain axis and environmental factors. Nature Reviews Neurology. 2015;11(11):625–636. doi: 10.1038/nrneurol.2015.197. [DOI] [PubMed] [Google Scholar]
  • Li et al. (2016).Li H, Kang T, Qi B, Kong L, Jiao Y, Cao Y, Zhang J, Yang J. Neuroprotective effects of ginseng protein on PI3K/Akt signaling pathway in the hippocampus of D-galactose/AlCl3 inducing rats model of Alzheimer’s disease. Journal of Ethnopharmacology. 2016;179:162–169. doi: 10.1016/j.jep.2015.12.020. [DOI] [PubMed] [Google Scholar]
  • Li et al. (2015).Li D, Song J-Z, Li H, Shan M-H, Liang Y, Zhu J, Xie Z. Storage lipid synthesis is necessary for autophagy induced by nitrogen starvation. FEBS Letters. 2015;589(2):269–276. doi: 10.1016/j.febslet.2014.11.050. [DOI] [PubMed] [Google Scholar]
  • Mo et al. (2016).Mo Z-T, Li W-N, Zhai Y-R, Gong Q-H. Icariin attenuates OGD/R-induced autophagy via Bcl-2-dependent cross talk between apoptosis and autophagy in PC12 cells. Evidence-Based Complementary and Alternative Medicine. 2016;2016(2):1–6. doi: 10.1155/2016/4343084. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • Planel et al. (2004).Planel E, Miyasaka T, Launey T, Chui DH, Tanemura K, Sato S, Murayama O, Ishiguro K, Tatebayashi Y, Takashima A. Alterations in glucose metabolism induce hypothermia leading to tau hyperphosphorylation through differential inhibition of kinase and phosphatase activities: implications for Alzheimer’s disease. Journal of Neuroscience. 2004;24(10):2401–2411. doi: 10.1523/JNEUROSCI.5561-03.2004. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • Shoshan-Barmatz et al. (2018).Shoshan-Barmatz V, Nahon-Crystal E, Shteinfer-Kuzmine A, Gupta R. VDAC1, mitochondrial dysfunction, and Alzheimer’s disease. Pharmacological Research. 2018;131:87–101. doi: 10.1016/j.phrs.2018.03.010. [DOI] [PubMed] [Google Scholar]
  • Swerdlow, Burns & Khan (2010).Swerdlow RH, Burns JM, Khan SM. The Alzheimer’s disease mitochondrial cascade hypothesis. Journal of Alzheimer’s Disease. 2010;20(Suppl. 2):S265–S279. doi: 10.3233/JAD-2010-100339. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • Swerdlow & Khan (2004).Swerdlow RH, Khan SM. A “mitochondrial cascade hypothesis” for sporadic Alzheimer’s disease. Medical Hypotheses. 2004;63(1):8–20. doi: 10.1016/j.mehy.2003.12.045. [DOI] [PubMed] [Google Scholar]
  • Szabados et al. (2004).Szabados T, Dul C, Majtenyi K, Hargitai J, Penzes Z, Urbanics R. A chronic Alzheimer’s model evoked by mitochondrial poison sodium azide for pharmacological investigations. Behavioural Brain Research. 2004;154(1):31–40. doi: 10.1016/j.bbr.2004.01.016. [DOI] [PubMed] [Google Scholar]
  • Wang et al. (2014).Wang X, Wang W, Li L, Perry G, Lee HG, Zhu X. Oxidative stress and mitochondrial dysfunction in Alzheimer’s disease. Biochimica Et Biophysica Acta. 2014;1842(8):1240–1247. doi: 10.1016/j.bbadis.2013.10.015. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • Wu et al. (2020).Wu Y, Qin D, Yang H, Wang W, Xiao J, Zhou L, Fu H. Neuroprotective effects of deuterium-depleted water (DDW) against H(2)O(2)-induced oxidative stress in differentiated PC12 cells through the PI3K/Akt signaling pathway. Neurochemical Research. 2020;45(5):1–11. doi: 10.1007/s11064-020-02978-4. [DOI] [PubMed] [Google Scholar]
  • Xiong et al. (2016).Xiong D, Deng Y, Huang B, Yin C, Liu B, Shi J, Gong Q. Icariin attenuates cerebral ischemia–reperfusion injury through inhibition of inflammatory response mediated by NF-kappaB, PPARalpha and PPARgamma in rats. International Immunopharmacology. 2016;30:157–162. doi: 10.1016/j.intimp.2015.11.035. [DOI] [PubMed] [Google Scholar]
  • Yang et al. (2017).Yang K, Chen Z, Gao J, Shi W, Li L, Jiang S, Hu H, Liu Z, Xu D, Wu L. The key roles of GSK-3β in regulating mitochondrial activity. Cellular Physiology and Biochemistry. 2017;44(4):1445–1459. doi: 10.1159/000485580. [DOI] [PubMed] [Google Scholar]
  • Yang et al. (2018).Yang C, Li X, Gao W, Wang Q, Zhang L, Li Y, Li L, Zhang L. Cornel iridoid glycoside inhibits tau hyperphosphorylation via regulating cross-talk between GSK-3beta and PP2A signaling. Frontiers in Pharmacology. 2018;9:682. doi: 10.3389/fphar.2018.00682. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • Yao et al. (2019).Yao Y, Wang Y, Kong L, Chen Y, Yang J. Osthole decreases tau protein phosphorylation via PI3K/AKT/GSK-3β signaling pathway in Alzheimer’s disease. Life Sciences. 2019;217:16–24. doi: 10.1016/j.lfs.2018.11.038. [DOI] [PubMed] [Google Scholar]
  • Zhang et al. (2018).Zhang Y, Huang N-Q, Yan F, Jin H, Zhou S-Y, Shi J-S, Jin F. Diabetes mellitus and Alzheimer’s disease: GSK-3beta as a potential link. Behavioural Brain Research. 2018;339:57–65. doi: 10.1016/j.bbr.2017.11.015. [DOI] [PubMed] [Google Scholar]
  • Zhang et al. (2016).Zhang B, Wang Y, Li H, Xiong R, Zhao Z, Chu X, Li Q, Sun S, Chen S. Neuroprotective effects of salidroside through PI3K/Akt pathway activation in Alzheimer’s disease models. Drug Design Development and Therapy. 2016;10:1335–1343. doi: 10.2147/dddt.s99958. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • Zhu et al. (2004).Zhu X, Raina AK, Perry G, Smith MA. Alzheimer’s disease: the two-hit hypothesis. Lancet Neurology. 2004;3(4):219–226. doi: 10.1016/S1474-4422(04)00707-0. [DOI] [PubMed] [Google Scholar]
