Magnetic Resonance Imaging Predicts Histopathological Composition of Ileal Crohn’s Disease

Abstract

Background and Aims

Recently, smooth muscle hypertrophy has been suggested to be a contributor to small bowel lesions secondary to Crohn’s disease [CD], in addition to inflammation and fibrosis. Here, we assess the value of magnetic resonance imaging [MRI] for the characterisation of histopathological tissue composition of small bowel CD, including inflammation, fibrosis, and smooth muscle hypertrophy.

Methods

A total of 35 consecutive patients [male/female 17/18, mean age 33 years] with ileal CD, who underwent small bowel resection and a preoperative contrast-enhanced MRI examination within 1 month before surgery, were retrospectively included. Image assessment included qualitative [pattern/degree of enhancement, presence of ulcerations/fistulas/abscesses] and quantitative parameters [wall thickness on T2/T1-weighted images [WI], enhancement ratios, apparent diffusion coefficient [ADC], Clermont and Magnetic Resonance Index of Activity [MaRIA] scores). MRI parameters were compared with histopathological findings including active inflammation, collagen deposition, and muscle hypertrophy using chi square/Fisher or Mann-Whitney tests and univariate/multivariate logistic/linear regression analyses.

Results

Forty ileal segments were analysed in 35 patients. Layered pattern at early-post-contrast phase was more prevalent (odds ratio [OR] = 8; p = 0.008), ADC was significantly lower [OR = 0.005; p = 0.022], and MaRIA score was significantly higher [OR = 1.125; p = 0.022] in inflammation grades 2–3 compared with grade 1. Wall thickness on T2WI was significantly increased [OR = 1.688; p = 0.043], and fistulas [OR = 14.5; p = 0.017] were more prevalent in segments with disproportionately increased muscle hypertrophy versus those with disproportionately increased fibrosis. MaRIA/Clermont scores, wall thickness on T1WI and T2WI, and ADC were all significantly correlated with degree of muscular hypertrophy.

Conclusions

MRI predicts the degree of inflammation, and can distinguish prominent muscle hypertrophy from prominent fibrosis in ileal CD with reasonable accuracy (area under receiver operating characteristic curve [AUROC] > 0.7).

1. Introduction

Crohn’s disease [CD] is a chronic inflammatory bowel disease that can involve any location within the gastrointestinal tract but most frequently the distal small bowel [terminal ileum].¹ It is characterised by transmural inflammation with remitting and relapsing episodes. Pathologically, involvement by CD is manifested by inflammation and fibrosis which may co-exist in stenotic lesions.^2,3 Assessment of bowel tissue composition in patients with CD, including the degree of inflammatory activity and fibrosis content particularly in stenotic lesions, is extremely important for directing appropriate management, as surgery may be the only option in cases of prominent fibrosis.⁴ Several pathology studies have reported that smooth muscle hypertrophy is a contributor to strictures in CD, sometimes described to be more predominant than fibrosis.^5–10 It is noteworthy that in some studies, the presence of smooth muscle hypertrophy was included in the histopathological fibrosis score in CD.^11,12

Imaging plays an important role at initial diagnosis, for assessing response to therapy, and for diagnosing complications in CD.^13–15 Diffusion-weighted imaging [DWI] is a magnetic resonance imaging [MRI] technique that quantifies the degree of Brownian water motion in tissues.¹⁶ It is established that highly cellular tissues such as neoplasms or inflammation/infection demonstrate restricted diffusion.¹⁶ The apparent diffusion coefficient [ADC] computed from DWI decreases in tissues with restricted diffusion such as in active inflammatory bowel disease.^17–20 There are a limited number of single-centre studies that have compared CT¹¹ or MRI with/without DWI with/without FDG-PET with surgical pathological findings in CD.^12,21–27 Wall thickness, pattern of enhancement [layered] and T2 signal intensity have been described as sensitive to inflammation.^21,23,24,27 The degree of wall enhancement has variable performance depending on the post-contrast phases and the studies.^21,23,24 The assessment of bowel wall fibrosis with MRI seems to be less accurate. Zappa et al. showed that wall thickness and hyperintensity on T2-weighted imaging [T2WI], as well as the presence of fistulous disease, are correlated with histopathological fibrosis score.²³ More recently, Rimola et al. showed that MRI is accurate for detecting the presence of severe fibrosis in CD lesions on the basis of delayed pattern of enhancement,¹² and Catalano et al. showed that ADC is not useful in detecting bowel wall fibrosis.²⁵ To our knowledge, there are no published data correlating MRI with small bowel smooth muscle hypertrophy in CD.

The objective of our study was to assess the value of MRI including DWI for the characterisation of histopathological tissue composition of small bowel CD, particularly including smooth muscle hypertrophy, as well as inflammation and fibrosis.

2. Methods

This retrospective Health Insurance Portability and Accountability Act [HIPAA]-compliant study was approved by our Institutional Review Board, and informed consent was waived.

2.1. Patients

A computerised search of our imaging database from March 2013 to October 2014 was conducted by the study coordinator, an abdominal radiologist with 5 years of experience in body MRI [MW], to identify patients who underwent MRI and surgery. Our inclusion criteria were: patients with CD involving the small bowel [proved by endoscopy and histological analysis at the time of the diagnosis], who underwent small bowel resection, with pre-surgical MRI including DWI within 1 month before surgery. The flowchart of the study is presented in Fig. 1. The final population included 35 patients with ileal CD [male/female 17/18, mean age 33 years]. The mean delay between MRI and surgery was 10.6 days [range, 1–30 days]. The indications for surgery, the administration of an anti-tumour necrosis factor [anti-TNF] treatment at the time of the surgery, and previous small bowel surgery were recorded.

Figure 1.

Flow chart of the study population [CD, Crohn’s disease].

Eleven of the 35 patients [31%] had previous small bowel surgery. Clinical indications for the current surgery were: disease refractory to medical therapy [n = 6, 17%]; stricturing disease [n = 12, 34%]; and penetrating complications [n = 17, 49%]; 21 [60%] of patients were on anti-TNF treatment at time of surgery.

2.2. MRI technique

Patients were asked to fast for 6 h before the examination. The MRI examinations were performed using clinical 1.5 or 3T systems [Avanto/Aera/Skyra, Siemens Healthineers, Germany; Optima/Discovery, General Electrics]. Thirty patients [86%] were imaged at 1.5T and five patients at 3.0T [14%]. To achieve adequate small bowel distension, three bottles of Volumen [EZ-E-M, Westbury, NY] were given orally, beginning 45 min before the MRI, and one bottle of water was given once the patient was in the scanner. To reduce bowel peristalsis, 1 mg of glucagon was administered intramuscularly before the beginning of the examination [except in diabetic patients].

For all sequences, we used parallel imaging factor 2 with a rectangular field of view of 300 x 400 mm, which was adjusted for patient’s body size. The protocol [Table 1] included axial and coronal T2-weighted single-shot fast spin echo [SS-FSE] without fat suppression, 2D and 3D axial T1-weighed in-phase and out-of-phase, axial T2-weighted fast spin echo with fat suppression, axial diffusion-weighted [DWI], and axial and coronal T1-weighted gradient echo with fat suppression images, all covering the abdomen and pelvis. After injection of gadoterate meglumine [Dotarem, Guerbet, France], axial fat-suppressed T1-weighted gradient echo [VIBE or LAVA] images at 25 s [early phase], and axial and coronal images at 60 s [parenchymal phase] and 180 s [delayed phase], were acquired. For DWI, we used free-breathing axial fat-suppressed single-shot echoplanar imaging sequence with 3 b values: 50, 500, and 1000 s/mm² or 50, 400, and 800 s/mm². ADC maps were generated by fitting a linear model to the logarithmic signal data at the different b-values, using a custom-written script in MATLAB R2015a [MathWorks Inc, Natick, MA, USA].

Table 1.

MR enterography protocol obtained on different MRI systems.

Parameter	T2 SS-FSE	T2 SS-FSE	T2 FSE with fat suppression	2D and 3D T1 in/out of phase	DWI	3D T1WI	3D T1WI
Acquisition plane	Axial	Coronal	Axial	Axial	Axial	Axial*	Coronal**
Repetition time [range, ms]	580-1300	582-1300	3000-5484	3.8-209	4000-8000	2.90-4.33	2.84-4.97
Echo time [range, ms]	82-228	80-91	83-116	1.23-2.39	69.6-94	1.24-2.12	1.3-2.48
Flip angle	90	90	90	10-80	90	10-15	10-15
Matrix [range]	256*256/ 512*512	256*256/ 512*512	256*256/ 512*512	288*288/ 512*512	256*256/ 391*384	256*256/ 512*512	256*256/ 512*416
Field of view [max]***	400*400	540*370	400*400	380*380	380*360	380*380	520*340
Slice thickness [mm]	4-6	4-7.2	6-7	3-7	6-7	2-5	2.8-5
Number of averages	1	1	1	1	1/2/2-4	1	1
Parallel imaging factor	2	2	2	2	2	2	2
b-Values	-	-	-	-	50, 400, 800, or 50,500,1000	-	-
Maximum acquisition time	1:40 min	1:38 min	3:48 min	56 s	4:23 min	36 s	34 s

SS-FSE, single-shot fast spin echo; FSE, fast spin echo; DWI, diffusion-weighted imaging; T1WI, T1-weighted imaging.

* Pre- and post-contrast injection, obtained at early phase [25 s], parenchymal phase [60 s], and delayed phase [180 s].

**Post-contrast acquisition obtained after 180 s.

***Adapted to patient size.

2.3. Image analysis

Two abdominal radiologists (observer 1 [BT] and observer 2 [MC], with 15 and 10 years of experience in Body MRI, respectively) reviewed images in consensus, blinded to clinical data, on a picture archiving and communication system [PACS] workstation. The readers knew that patients underwent surgery. For all involved ileal segments, they assessed: the length of the involved small bowel segment; the presence of ulceration[s], fistula[s], or abscess[es]; the presence of perivascular inflammatory infiltration of the mesentery [comb sign]; and the presence of upstream dilation [assessing for stenotic lesions], using both T2W images and post-contrast T1W images. The degree of enhancement T1W images on the parenchymal phase was scored as absent, mild, moderate, or marked, and the pattern of enhancement on the early, parenchymal, and delayed post-contrast phases was scored as layered [both mucosa-submucosa and serosa enhancing, with a central band of relatively reduced enhancement], mucosal [enhancement of the superficial layer only], or homogeneous [three layers of bowel wall]¹²

2.4. Quantitative image analysis

A third radiologist, an abdominal radiologist with 5 years of experience in Body MRI (observer 3 [CB]) performed the quantitative analysis using Osirix software [v 5.5.2, Geneva, Switzerland], for all involved ileal segments identified during the qualitative analysis by observers 1 and 2, who saved images with arrows targeting the segment to be analysed.

Bowel thickness [including both layers] was measured on T1W post-contrast and T2W images. Bowel wall signal intensity was measured on pre- and post-contrast T1W images, using a freehand-drawn region of interest [ROI], as large as possible, including both bowel wall layers. In case of stratification of the enhancement, the ROI included only the enhancing part. The enhancement ratio [ER] for each phase was computed using the following formula [WSI: wall signal intensity]:

$$\text{ER }(\text{\%})=100\times \frac{\text{WSI post contrast}-\text{WSI pre contrast}}{\text{WSI pre contrast}}$$

An approximately 5-cm2 ROI was also drawn in the background noise to measure standard deviation [SD] of noise, and compute the relative contrast enhancement [RCE], using the following formula²⁷:

$$RCE(\%)=ER\times \frac{SD noise pre-contrast}{SD noise post-contrast}$$

A freehand ROI was drawn on the ADC map to measure mean ADC for each involved bowel segment, including the largest part possible of the involved segment. If multiple ROIs were drawn on different slices, the ADC values of the ROIs were averaged. Two sets of b-values were used [50, 500, and 1000 s/mm² or 50, 400, and 800 s/mm²] but were very close, with the assumption that ADC differences were small. As the slice thickness was different between DWI and T1W imaging, the ROI were drawn separately on each sequence.

Finally, the MaRIA [Magnetic Resonance Index of Activity] and the Clermont scores were computed, using the following formulas^19,26,27:

$$MaRIA=1.5\times wall thickening \left(T1, mm\right)+0.02\times RCE+5\times edema+10\times ulceration$$

$$Clermont=1.646\times wall thicnening+1.321\times ADC+5.613\times edema+8.306\times ulceration+5.039$$

For MaRIA score computation, the wall thickness was measured on post-contrast T1W images. For oedema and ulceration, the score was multiplied by 1 in case of presence, and by 0 in case of absence, as described by Rimola et al.²⁷

2.5. Histopathological analysis

Histopathological analysis was performed retrospectively by a specialised gastrointestinal pathologist [HMK], on resected small bowel specimens. For each resection specimen, one section from the area of the ileum most involved by CD was selected. The most involved section was either derived from the pathology report, as a slide corresponding to the area designated as ‘stricture’, or an area of the bowel that appeared most thickened on examination of the slides. Sections involving fistulas were avoided, due to mural distortion by abscess component.

Active inflammation was assessed on haematoxylin and eosin staining [H&E] slides using a 3-point scale, based on the depth of neutrophil infiltrates: 1, none or in mucosa only; 2, submucosa; and 3, muscularis propria/subserosa/serosa. Bowel wall oedema [fluid within the interstitial spaces of the tissue] was assessed using a 2-point scale: 1, no oedema or minimal oedema; and 2, obvious oedema. Active inflammation and wall oedema were assessed separately because they are not always associated.

Immunostaining of smooth muscle actin [SMA] for muscular hypertrophy and Sirius red special staining for collagen deposition were performed.^28,29 Sirius red was chosen over Masson trichrome, because it has been shown that Sirius red is more specific and reliable for collagen staining than Masson trichrome.³⁰ Stained slides were digitally scanned and analysed using HALO morphometry software [v1.1, Indica Labs] by another pathologist [XZ]. Intramural areas of muscle and collagen were calculated for each affected full-thickness area. The area was normalised by dividing by the length of the section (mean of inner and outer measurements in each layer of wall [normalizsd SMA and normalized Sirius red]). The ratio between normalised SMA and normalised Sirius red was calculated [ratio <1: disproportionately increased fibrosis; ratio > 1: disproportionately increased muscular hypertrophy].

2.6. Imaging-pathology correlation

The study coordinator collected all the data and was responsible for the correlation between MRI and pathological findings. Pathological analysis was matched with MR images, based on surgical and pathology reports and MRI analysis, to ensure that the same bowel segments were analysed in case of patients with multifocal bowel involvement, according to location and length of involvement.

2.7. Statistical analysis

Quantitative variables are described as mean ± standard deviation [SD]. Qualitative variables are described as number of cases [percentage of cases]. MRI parameters were compared between affected and non-affected bowel segments stratified by histopathological inflammation score, edema score, and the ratio between normalised SMA and normalised Sirius red, using the chi square or the Fisher exact test for qualitative variables and the Mann-Whitney test for quantitative variables. Logistic regression univariate and multivariate analyses were also performed to compare the ability of MRI parameters, to predict inflammation/oedema and fibrosis/muscular hypertrophy. Linear regression analysis was performed between quantitative MRI parameters and histopathological scores. For significant quantitative parameters, a receiver operating characteristic curve analysis [ROC] was also performed. The tests were always two-sided, with a level of significance set at p <0.05. All analyses were performed using SPSS software [version 17.0, SPSS Inc., Chicago, IL].

3. Results

3.1. Histopathological findings

Forty ileal segments were analysed in the 35 included patients; 35 segments [87.5%] had a stricture on pathological examination. Inflammation was classified as grade 1 in 15 segments [37.5%], grade 2 in eight segments [20%], and grade 3 in 17 segments [42.5%]. Oedema was classified as grade 1 and grade 2 in 20 [50%] and 20 [50%] bowel segments, respectively.

Quantitative tissue morphometry showed that the smooth muscle component [normalised SMA area] and the fibrosis component [normalised Sirius red area] were both prominently increased in the diseased sections. The mean ± SD normalised SMA area was 1570 ± 666 mm² in involved bowel wall and 767 ± 409 mm² in uninvolved bowel wall. The normalised Sirius red area was 1160 ± 554 mm² in involved bowel wall and 764 ± 429 mm² in uninvolved bowel wall. However, the proportions of the muscle and fibrosis components were heterogeneous among the 40 segments. The mean ratio between normalised SMA and normalised Sirius red was 1.56 ± 0.74, with 31 [77%] segments with a ratio >1 [prominent smooth muscle hypertrophy] and nine [23%] segments with a ratio <1 [prominent fibrosis]. Six [15%] bowel segments showed inflammation grade 1 and prominent fibrosis, nine [22.5%] segments inflammation grade 1 and prominent muscle hypertrophy, three [7.5%] segments inflammation grade 2–3 and prominent fibrosis, and the majority [22 segments, 55%] showed inflammation grade 2–3 and prominent muscle hypertrophy.

3.2. MRI-pathology correlation

3.1.1. MRI findings according to the degree of inflammation

The length of the involved bowel was significantly greaterer in segments with grade 3 inflammation; however, the association was not significant and was weak [OR = 1.17]. A layered/mucosal only pattern of enhancement at 25 s and 60 s, and a marked degree of enhancement at 60 s, were more frequent in segments with higher inflammation grade. The layered/mucosal only pattern of enhancement at 25 s had the strongest association with inflammation [OR = 8; p = 0.008]. A higher percentage of ulcerations, fistulas, abscesses and comb signs were found in cases of inflammation [grades 2/3], without reaching significance [Tables 2–3, Figs 2–3]:

Table 2.

Imaging parameters stratified by histopathological inflammation grade [in 35 patients with CD and 40 ileal segments analysed].

Parameter	Grade 1 [n*** = 15]	Grade 2/3 [n*** = 25]	p
Length of involved bowel	5.93 ± 3.99	9.32 ± 5.79	0.035
Pattern of enhancement at 25 s*			0.01
• Homogeneous	10 [67%]	4 [20%]
• Layered/mucosal only	5 [33%]	16 [80%]
Pattern of enhancement at 60 s			0.05
• Homogeneous	11 [73%]	10 [40%]
• Layered/mucosal only	4 [27%]	15 [60%]
Pattern of enhancement at 180 s**			1
• Homogeneous	11 [79%]	19 [79%]
• Layered/mucosal only	3 [21%]	5 [21%]
Degree of enhancement at 60 s			0.024
• Mild-moderate enhancement	7 [47%]	3 [12%]
• Marked enhancement	8 [53%]	22 [88%]
Ulceration	6 [40%]	18 [72%]	0.09
Fistula	5 [33%]	16 [64%]	0.1
Abscess	3 [20%]	9 [36%]	0.47
Comb sign	2 [13%]	7 [32%]	0.44
Upstream dilation	10 [40%]	15 [60%]	0.749
Enhancement ratio at 25 s*	162.1 ± 98.4	184.9 ± 71.9	0.4
Enhancement ratio at 60 s	176.4 ± 67.1	200.4 ± 63.5	0.222
Enhancement ratio at 180 s**	173.2 ± 61.2	188.9 ± 55.1	0.455
ADC*	1.28 ± 0.27	1.07 ± 0.14	0.028
Wall thickness on T1W post-contrast	6.86 ± 2.65	9.22 ± 3.63	0.018
Wall thickness on T2WI	6.79 ± 2.22	7.79 ± 2.03	0.148
MaRIa score	23.3 ± 8.0	31.0 ± 13.5	0.013
Clermont score	28.5 ± 7.2	33.2 ± 8.2	0.115

Significant p-values are bolded. Quantitative data are presented as mean ± standard deviation. Qualitative data are presented as number of cases [percentage of cases].

*Not available in five patients.

**Not available in two patients.

***Number of bowel segments.

Table 3.

Univariate and multivariate logistic regression analyses between imaging parameters and inflammation grade [in 35 patients with CD and 40 ileal segments analysed].

Parameter	Univariate		Multivariate
	OR [CI 95%]	p	OR [CI 95%]	p
Length of involved bowel	1.17 [0.99-1.39]	0.068
Pattern of enhancement at 25 s*	8.000 [1.73-37.09]	0.008	3.901 [0.221-68.94]	0.353
Pattern of enhancement at 60 s	4.125 [1.02-16.67]	0.047	3.195 [0.13-79.54]	0.514
Pattern of enhancement at 180 s**	0.965 [0.192-4.84]	0.965
Degree of enhancement at 60 s	6.417 [1.33-3.03]	0.021	23.511 [1.22-453.71]	0.037
Ulceration	3.857 [1-14.92]	0.05
Fistula	3.556 [0.92-13.70]	0.065
Abscess	2.250 [0.59-10.14]	0.291
Comb sign	2.528 [0.45-14.20]	0.292
Upstream dilation	1.312 [0.36-4.78]	0.680
Enhancement ratio at 25 s*	1.003 [0.99-1.01]	0.421
Enhancement ratio at 60 s	1.006 [1.00-1.02]	0.260
Enhancement ratio at 180 s**	1.005 [0.99-1.02]	0.397
ADC*	0.005 [0-0.478]	0.022	0.001 [0-1.33]	0.060
Wall thickness on T1W post-contrast	1.439 [1.04-2]	0.030	1.048 [0.66-1.67]	0.844
Wall thickness on T2WI	1.289 [0.91-1.83]	0.157
MaRIa score	1.125 [1.02-1.25]	0.022
Clermont score	1.096 [0.98-1.23]	0.111

Significant p-values are bolded.

OR, odds ratio; CI 95%, 95% confidence intervals.

*Not available in five patients.

**Not available in two patients

Figure 2.

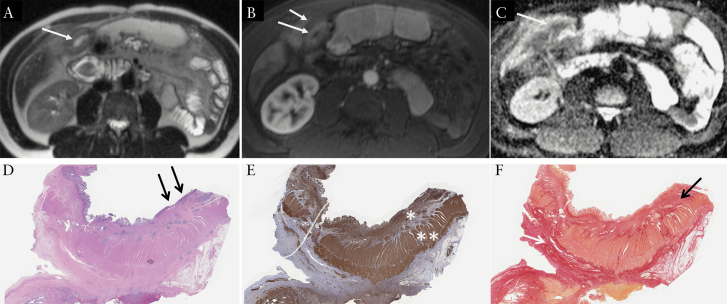

A 45-yearold male patient with ileal Crohn’s disease who underwent small bowel resection for bowel stricture. MRI demonstrates: A] thickened ileal wall [at 10.5 mm] on T2-weighted image [arrows]; B] layered pattern of enhancement [enhancement of the mucosa only [long arrow], with submucosal oedema [short arrow]] on early post-contrast T1-weighted image; C] corresponding low ADC [at 1.06 × 10-3 mm²/s] on the ADC map, which suggests the presence of inflammation; [D] on histopathology, the affected ileum shows mucosal ulcerations [black arrows] and prominent mural thickening in the bowel wall [x 2 H&E]; [E] smooth muscle actin immunostain [SMA] highlights muscle layers in the bowel wall, and there is marked expansion and increase in smooth muscle [coloured in brown] within the muscularis mucosae [*] and muscularis propria [**] layers; [F] Sirius red stain highlights collagen in red, which is predominantly in the submucosa [black arrow] and subserosa [white arrow]. The ratio between normalised SMA and normalized Sirius red was 2.29 [prominent muscle hypertrophy]. H&E, hamatoxylin and eosin.

Figure 3.

Left: 29-yearold female patient with ileal Crohn’s disease and prominent muscle hypertrophy on histopathology. Right: 17-yearold female patient with ileal Crohn’s disease and prominent fibrosis on histopathology. T2-weighted [A, E] and T1-weighted post-contrast [B, F] images demonstrate thicker bowel wall for the patient with prominent muscle hypertrophy [T2w/T1w: 8.2/9.1 mm versus 3.4/2.7 mm]. SMA [smooth muscle actin] stain highlights thickened muscularis mucosae [*] and muscularis propria [**] layers on the left [C], whereas these muscle layers are only minimally thickened on the right [G]. Sirius red stain highlights collagen in red [D, H]. Normalised SMA was higher than normalised Sirius red area in the ileum, showing prominent muscle hypertrophy [left], whereas the normalised area of Sirius red area was greater than nSMA in the ileum showing prominent fibrosis [right].

ADC was significantly lower, and wall thickness on T1W post-contrast imaging and MaRIA score were both significantly higher, in inflammation grades 2/3 compared with grade 1. On multivariate regression analysis, including all the significant parameters in univariate analysis [except MaRIA score which is not independent from the others], only the degree of enhancement was associated with inflammation.

3.1.2. MRI findings according to the degree of oedema

Significantly more ulcerations were found in segments with oedema; and MaRIA/Clermont scores were significantly higher in segments with oedema [Tables 4 and 5].

Table 4.

Imaging parameters stratified by degree of oedema [in 35 patients with CD and 40 ileal segments analysed].

Parameter	Grade 1 [n*** = 20]	Grade 2/3 [n*** = 20]	p
Length of involved bowel	8 ± 5.63	8.1 ± 5.30	0.779
Pattern of enhancement at 25 s*			0.739
• Homogeneous	7 [37%]	7 [44%]
• Layered/mucosal only	12 [63%]	9 [56%]
Pattern of enhancement at 60 s			0.527
• Homogeneous	9 [45%]	12 [60%]
• Layered/mucosal only	11 [55%]	8 [40%]
Pattern of enhancement at 180 s**			0.693
• Homogeneous	14 [74%]	16 [84%]
• Layered/mucosal only	5 [26%]	3 [16%]
Degree of enhancement at 60 s			0.344
• Mild-moderate enhancement	4 [20%]	1 [5%]
• Marked enhancement	2 [10%]	3 [15%]
Ulceration	14 [70%]	16 [80%]
Fistula	8 [40%]	16 [80%]	0.022
Abscess	8 [40%]	13 [65%]	0.205
Comb sign	4 [20%]	8 [40%]	0.301
Upstream dilation	4 [20%]	5 [25%]	1
Enhancement ratio at 25 s*	191.6 ± 93.1	155.6 ± 68.7	0.301
Enhancement ratio at 60 s	202.1 ± 73.6	180.6 ± 55.0	0.398
Enhancement ratio at 180 s**	191.4 ± 61.2	174.7 ± 53.1	0.369
ADC*	1.12 ± 0.25	1.16 ± 0.18	0.317
Wall thickness on T1W post-contrast	7.38 ± 2.29	9.29 ± 4.17	0.071
Wall thickness on T2WI	7.21 ± 1.96	7.62 ± 2.32	0.5
MaRIa score	24.9 ± 8.1	30.4 ± 9.0	0.033
Clermont score	27.7 ± 6.6	34.8 ± 7.8	0.005

Significant p-values are bolded. Quantitative data are presented as mean ± standard deviation. Qualitative data are presented as number of cases [percentage of cases]

*Not available in five patients.

**Not available in two patients.

***Number of bowel segments.

Table 5.

Univariate and multivariate logistic regression between imaging parameters and degree of oedema [in 35 patients with CD and 40 ileal segments analysed].

Parameter	Univariate		Multivariate
	OR [CI 95%]	p	OR [CI 95%]	p
Length of involved bowel	1.004 [0.89-1.13]	0.953
Pattern of enhancement at 25 s*	0.750[0.193-2.92]	0.678
Pattern of enhancement at 60 s	0.545 [0.16-1.91]	0.344
Pattern of enhancement at 180 s**	0.525 [0.11-2.60]	0.430
Degree of enhancement at 60 s	1.715 [0.66-4.44]	0.267
Ulceration	6.000 [1.46-24.69]	0.013	8.389 [1.55-45.50]	0.014
Fistula	2.786 [0.77-10.04]	0.117
Abscess	2.667 [0.65-10.97]	0.174
Comb sign	1.333 [0.30-5.93]	0.705
Upstream dilation	0.815 [0.23-2.86]	0.749
Enhancement ratio at 25 s*	0.994 [0.99-1.00]	0.208
Enhancement ratio at 60 s	0.995 [0.99-1.01]	0.296
Enhancement ratio at 180 s	0.995 [0.98-1.01]	0.354
ADC*	2.683 [0.11-66.91]	0.548
Wall thickness on T1W post-contrast	1.260 [0.96-1.66]	0.100
Wall thickness on T2WI	1.099 [0.816-1.48]	0.537
MaRIa score	1.088 [1-1.19]	0.063
Clermont score	1.184 [1.03-1.36]	0.015

Significant p-values are bolded.

OR, odds ratio; CI 95%, 95% confidence intervals.

*Not available in five patients

**Not available in two patients

3.1.3. MRI findings according to the degree of muscular hypertrophy and fibrosis

Bowel wall thickness on T2WI was significantly increased in bowel segments with prominent muscle hypertrophy compared with those with prominent fibrosis, whereas there was only a trend to increased bowel wall thickness on T1W post-contrast images. There was no difference in pattern of enhancement, degree of enhancement, and ADC between segments with prominent muscle hypertrophy versus those with prominent fibrosis, whereas there was a trend towards higher MaRIA and Clermont scores in bowel segments with prominent muscle hypertrophy. Bowel wall thickness on T2WI, T1WI, and MaRia and Clermont scores was significantly associated with the ratio between muscle hypertrophy and fibrosis [Tables 6–8, Figs 2 and 3]. The presence of fistulas was also significantly and independently associated with prominent muscle hypertrophy [OR = 14.5; p = 0.017]. ADC was significantly negatively correlated with normalised SMA, and wall thickness on T1WI and MaRIA and Clermont scores was significantly positively correlated with normalised SMA [Table 8]. Normalised SMA was significantly higher in cases of ulceration [p = 0.017] or fistula [p = 0.034], but showed no association with other qualitative parameters. None of the imaging parameters, either quantitative [Table 8] or qualitative [p >0.273], were significantly associated with normalised Sirius red.

Table 6.

Imaging parameters stratified by histopathological grading of prominent muscle hypertrophy or fibrosis [in 35 patients with CD and 40 ileal segments analysed].

	Prominent fibrosis [n*** = 9]	Prominent muscle hypertrophy [n*** = 31]	p
Length of involved bowel [cm]	5.22 ± 3.07	8.87 ± 5.68	0.052
Pattern of enhancement at 25 s*			0.432
• Homogeneous	5 [56%]	9 [35%]
• Layered/mucosal only	4 [44%]	17 [65%]
Pattern of enhancement at 60 s			0.457
• Homogeneous	6 [67%]	15 [48%]
• Layered/mucosal only	3 [33%]	16 [52%]
Pattern of enhancement at 180 s**			0.66
• Homogeneous	7 [87%]	23 [77%]
• Layered/mucosal only	1 [12%]	7 [23%]
Degree of enhancement at 60 s			0.061
• Mild	3 [33%]	2 [7%]
• Moderate	0 [0%]	5 [16%]
• Marked	6 [67%]	24 [77%]
Ulceration	3 [33%]	21 [68%]	0.12
Fistula	0 [0%]	9 [29%]	0.09
Abscess	0 [0%]	12 [39%]	0.037
Comb sign	1 [11%]	20 [65%]	0.007
Upstream dilation	13 [42%]	18 [58%]	1
Enhancement ratio at 25 s* [%]	196.4 ± 100.7	167.8 ± 77.9	0.516
Enhancement ratio at 60 s [%]	196.6 ± 73.5	189.9 ± 63.7	0.799
Enhancement ratio at 180 s** [%]	197.9 ± 66.0	178.7 ± 54.8	0.337
ADC [ × 10-3 mm2/s]*	1.22 ± 0.34	1.12 ± 0.17	0.658
Wall thickness on T1WI post-contrast [mm]	6.62 ± 2.79	8.83 ± 3.52	0.055
Wall thickness on T2WI [mm]	6.11 ± 1.85	7.79 ± 2.08	0.028
MaRIa score	23.1 ± 7.9	29.0 ± 8.8	0.059
Clermont score	26.7 ± 7.8	33.0 ± 7.7	0.056

Significant p-values are bolded. Quantitative data are presented as mean ± standard deviation. Qualitative data are presented as number of cases [percentage of cases].

*Not available in five patients.

**Not available in two patients.

***Number of bowel segments.

Table 8.

Univariate linear regression analysis between imaging parameters and normalised SMA [nSMA] staining, normalised Sirius red [nSirius red], and nSMA/nSirius red ratio [in 35 patients with CD and 40 ileal segments analysed].

Parameter	nSMA		nSirius red		nSMA/nSirius red ratio
	R	p	R	p	R	p
Length of involved bowel	0.221	0.171	0.004	0.983	0.170	0.205
Enhancement ratio at 25 s*	0.086	0.622	0.167	0.339	-0.026	0.882
Enhancement ratio at 60 s	0.132	0.419	0.112	0.491	0.057	0.725
Enhancement ratio at 180 s	0.075	0.645	0.138	0.395	-0.149	0.882
ADC*	-0.375	0.027	-0.126	0.470	-0.209	0.229
Wall thickness on T1W post-contrast	0.344	0.030	0.018	0.915	0.384	0.014
Wall thickness on T2WI	0.298	0.062	-0.062	0.703	0.376	0.017
MaRIa score	0.486	0.001	0.142	0.384	0.366	0.020
Clermont score	0.557	0.001	0.173	0.319	0.344	0.043

Significant p-values are bolded.

SMA, smooth muscle actin immunostain.

*Not available in five patients.

**Not available in two patients.

Table 7.

Univariate and multivariate logistic regression between imaging parameters and ratio between muscular hypertrophy and fibrosis [in 35 patients with CD and 40 ileal segments analysed].

Parameter	Univariate		Multivariate
	OR [CI 95%]	p	OR [CI 95%]	p
Length of involved bowel	1.226 [0.97-1.55]	0.086
Pattern of enhancement at 25 s*	2.361 [0.50-11.05]	0.275
Pattern of enhancement at 60 s	2.133 [0.45-10.10]	0.469
Pattern of enhancement at 180 s**	2.130 [0.22-20.41]	0.512
Degree of enhancement at 60 s	1.714 [0.34-8.68]	0.515
Ulceration	4.200 [0.87-20.33]	0.075
Fistula	14.545 [1.60-131.96]	0.017	9.794 [1.02-93.94]	0.048
Abscess	Infinity [0-infinity]	0.999
Comb sign	Infinity [0-infinity]	0.999
Upstream dilation	1.108 [0.248-4.94]	0.893
Enhancement ratio at 25 s*	0.996 [0.99-1.00]	0.376
Enhancement ratio at 60 s	0.998 [0.99-1.01]	0.783
Enhancement ratio at 180 s	0.994 [0.98-1.01]	0.375
ADC*	0.118 [0.003-4.19]	0.241
Wall thickness on T1W post-contrast	1.417 [0.98-2.05]	0.065
Wall thickness on T2WI	1.688 [1.02-2.80]	0.043	1.471 [0.84-2.57]	0.175
MaRIa score	1.101 [0.99-1.23]	0.08
Clermont score	1.150 [1-1.32]	0.051

Significant p-values are bolded.

OR, odds ratio; CI 95%, 95% confidence intervals.

*Not available in five patients.

**Not available in two patients.

3.1.4. Area under receiver operating characteristic curve analysis

For detection of inflammation grades 2/3 and grade 1, length of involved bowel, wall thickness on T1w post-contrast imaging, ADC and MaRIA score had significant areas under receiver operating characteristic curves [AUROC]. The association of an ADC lower than 1.11 x 10^–3 mm²/s and a MaRIA score higher than 26.1 reached sensitivity of 47% and a specificity of 92% for detecting inflammation grades 2/3; and the association of an ADC lower than 1.11 x 10^–3 mm²/s and a wall thickness on T1w post-contrast higher than 5.9 mm reached a sensitivity of 65% and a specificity of 83% for detecting inflammation grades 2/3. For identification of oedema, both MaRIA and Clermont scores had significant AUROC. For differentiation of wall with prominent fibrosis and muscular hypertrophy, only the wall thickness measured on T2WI had a significant AUC [Table 9].

Table 9.

ROC analysis for differentiating grade 1 versus grade 2/3 inflammation, oedema, and prominent muscle hypertrophy versus prominent fibrosis.

Parameter	Inflammation					Oedema					Prominent muscle hypertrophy versus prominent fibrosis
	AUC	p	Cut-off	Se	Sp	AUC	p	Cut-off	Se	Sp	AUC	p	Cutoff	Se	Sp
Length of involved bowel	0.7	0.036	4.5 mm	88%	60%	0.527	0.766				0.713	0.054
Wall thickness on T2WI	0.64	0.142				0.527	0.766				0.742	0.029	7.4 mm	61%	89%
Wall thickness on T1WI post-contrast	0.725	0.018	5.9 mm	72%	73%	0.651	0.102				0.711	0.056
ADC	0.728	0.029	1.11 × 10-3 mm2/s	70%	75%	0.602	0.305				0.556	0.637
MaRIA score	0.736	0.013	26.1	96%	53%	0.697	0.032	23.5	90%	50%	0.71	0.058
Clermont score	0.667	0.11				0.776	0.005	28.7	90%	63%	0.727	0.054

Significant p-values are bolded.

Se, sensitivity; Sp, specificity; AUC, area under the curve.

4. Discussion

Our results showed that MRI can predict histopathological composition of ileal CD, including inflammation/oedema and disproportionately increased muscular hypertrophy over fibrosis, with reasonable diagnostic performance. On pathology, stenotic lesions in CD are histopathologically characterised by reduced bowel lumen and thickened bowel wall secondary to fibromuscular hypertrophy, with possible concomitant inflammation. Several pathological studies have reported that smooth muscle hypertrophy contributes to stricture formation, particularly within the muscularis mucosae.^5–10 Because of the great variation of the relative composition of different components, CD lesions are highly heterogeneous both radiologically and histopathologically. Our results show that MRI can be useful in estimating the relative composition of the three most important components in ileal CD lesions, including inflammation/oedema, smooth muscle hypertrophy, and fibrosis.

Compared with computed tomography, CT, MRI has the advantage of lack of radiation exposure, higher soft-tissue contrast, and additional information relating to diffusion, enhancement/perfusion, and peristalsis.¹⁴ Consequently, MRI plays an important role in CD and is becoming the first-line imaging method for CD evaluation.^13–15 MRI is used in CD at every step of patient management: initial assessment for activity, extent of disease, diagnosis of complications [fistulas, abscesses], and follow-up after therapy.^13,14,31,32 There are a limited number of studies that have compared MRI with/without DWI with surgical pathological findings in CD.^{12,21–24,26} Even though used in many centres, the role of DWI in CD is not completely established.

Wall thickness, layered pattern of enhancement, T2 signal intensity, and ADC have been described to be sensitive to inflammation.^{19–21,23,24,27} In our study, a thicker bowel wall was associated with increased inflammation, with a 5.9-mm threshold on T1W post-contrast imaging, similar to what has been reported by Zappa et al. [reported threshold of approximately 6 mm].²³ As reported in previous studies, a layered pattern at the early and parenchymal phases was associated with inflammatory activity.^12,23,24 The degree of wall enhancement has variable performance for inflammation.^21,23,24 Zappa et al. found that the degree of enhancement at the parenchymal phase [90s after contrast injection] was not associated with inflammation, in contradiction to our findings which found that a marked enhancement at 60s is associated with inflammation.²³ The discrepancy may be by various acquisition times and evaluation methods of the degree of enhancement. Our study showed that diffusion was restricted [lower ADC] in bowel segments with inflammation in the context of CD, confirming previous studies in CD.^{17–19,33–35} For example, Oto et al. showed that mean ADC of inflamed bowel was significantly lower than in non-affected bowel segments [1.59 ± 0.45 versus 2.74 ± 0.45 × 10^-3 mm²/s].¹⁷ Similarly, Schmid-Tannwald et al. showed that mean ADC was lowest in bowel segments with active inflammation compared with chronically inflamed bowel segments and non-affected bowel segments [1.09 ± 0.18 versus 1.55 ± 0.21 versus 2.18 ± 0.37 × 10^-3 mm²/s, respectively].³³ Finally, as expected, because they were defined in order to identify the inflammation, higher Clermont and MaRIA scores were associated with inflammation.^19,27 This is related to the fact that these scores include wall thickness, enhancement ratio, and presence of ulcers and oedema, which are all markers of inflammation. Similarly those scores were higher in cases of oedema on pathology, which is also associated with inflammation.³⁶

There are conflicting data on imaging assessment of bowel wall fibrosis. Zappa et al. showed that wall thickness and hyperintensity on T2-weighted imaging [T2WI], as well as the presence of fistulous disease, are correlated with histopathological fibrosis score.²³ In our study, we did not correlate imaging findings to a semiquantitative fibrosis score, but with Sirius red staining, leading to a difficult comparison with other studies. Similarly to Rimola et al., who showed that the pattern of enhancement at 70 s was not associated with the histopathological fibrosis score, we did not find any relationship between the pattern of enhancement at the parenchymal phase and the Sirius red staining.¹² However, unlike in Rimola et al.,¹² we did not evaluate the pattern of enhancement at 7 min, as a delayed post-contrast acquisition at 7 min is not part of our routine MRI protocol. Finally, contrary to Tielter et al.,²⁴ we did not find any correlation between ADC and fibrosis. However, our pathological reference was different. Indeed, they used a qualitative score, which mixed fibrosis component and muscle hypertrophy component, whereas we correlated with quantitative Sirius red staining, which reflects only collagen deposition.

There are no published reports on the correlation between imaging and muscle hypertrophy versus fibrosis in CD. Our results suggest that wall thickness on T2w images was increased in bowel segments with prominent muscular hypertrophy, compared with those with prominent fibrosis, which is an intuitive finding, as there is considerable narrowing of the bowel lumen in these cases. The presence of fistulas was also significantly and independently associated with prominent muscle hypertrophy. We did not observe an association between homogeneous pattern of enhancement and prominent fibrosis, although the pattern of enhancement is associated with high fibrosis score in Zappa et al. and in Rimola et al..^12,23 However, the comparison between their studies and our study is difficult. Indeed, we used the Sirius red staining, assessed as a quantitative variable, and did not use a semiquantitative fibrosis score as in Zappa et al. and Rimola et al..^12,23 Moreover, the Sirius red staining only reflected the fibrosis component, whereas the semiquantitative score used by Rimola et al. mixed fibrosis and muscular hypertrophy. Important as the detection of active inflammatory disease is, we hypothesise that the estimation of the relative composition of smooth muscle and fibrosis is also important when selecting the optimal treatment. Both result from the proliferation of mesenchymal cells [including fibroblasts, myofibroblasts, and smooth muscle cells], followed by the differentiation of myofibroblasts linking to hypertrophy of smooth muscle cells and by the accumulation of excess extracellular matrix proteins [mostly collagen I, III, and V].³⁷

The composition of ileal lesions is important for treatment management. First, inflammation should be treated by medical therapy including anti-inflammatory treatment. Second, the presence of fibrosis and muscular hypertrophy can influence the treatment and surgical planning. Hypothetically, a stricture with prominent muscular hypertrophy will not likely respond to new antifibrotic agents any more than in those with excessive collagen deposition, and may be treated by surgery, whereas a stricture with prominent fibrosis may potentially benefit from new antifibrotic agents.^38,39

Besides its retrospective design, our study has several limitations. First, the sample size was relatively small, with only 35 patients and 40 analysed bowel segments. However, we used strict inclusion criteria in order to allow a better correlation between MRI and histopathological findings. Second, the quantitative analysis was performed by only one reader. However, the reproducibility of wall thickness measurement and ADC measurement were previously shown to be high.^19,40

In conclusion, MRI predicts the histopathological tissue composition of ileal CD, including inflammation and predominant muscular hypertrophy versus predominant fibrosis, with reasonable accuracy. These findings need to be verified in a prospective study.

Funding

This work was partially supported by the Sanford J Grossman Charitable Trust for Integrative Studies in IBD, Société Française de Radiologie [to MW], and U01 DK62429, U01 DK062422, R01 DK092235 [to JC].

Conflict of Interest

MW: consultant Olea Medical. J-FC: consultant AbbVie, Amgen, Boehringer-Ingelheim, Celgene Corporation, Celltrion, Enterome, Ferring, Genentech, Janssen and Janssen, Medimmune, Merck & Co., Pfizer, Protagonist, Second Genome, Seres, Shire, Takeda, Theradiag, speaker for AbbVie, Ferring, speaker’s bureau for Amgen, research grants AbbVie, Takeda, Janssen and Janssen. BT: grant support Guerbet, Bayer.

Author Contributions

MW: acquisition of data, data analysis, interpretation of data, drafting the article, revising critically the article, final approval of the submitted version. MHK: acquisition of data, data analysis, interpretation of data, drafting the article, revising critically the article, final approval of the submitted version. MC: acquisition of data, final approval of the submitted version. CB: acquisition of data, data analysis, interpretation of data, drafting the article, revising critically the article, final approval of the submitted version. JT: acquisition of data, final approval of the submitted version. XZ: acquisition of data, final approval of the submitted version. HP: acquisition of data, final approval of the submitted version. SH: data analysis, interpretation of data, revising critically the article, final approval of the submitted version. JC: concept and design of the study, final approval of the submitted version. JFC: concept and design of the study, revising critically the article, final approval of the submitted version. NH: concept and design of the study, interpretation of data, revising critically the article, final approval of the submitted version. BT: concept and design of the study, interpretation of data, drafting the article, revising critically the article, final approval of the submitted version.
