Ultra-low-dose Limited Renal CT for Volumetric Stone Surveillance

Abstract

Purpose:

To describe and validate a novel CT approach using volumetric analysis for renal stone surveillance.

Materials and Methods:

This prospective trial consisted of a standard low-dose non-contrast CT (SLD) of the abdomen and pelvis, immediately followed by an ultra-low-dose non-contrast CT (ULD) with reconstruction limited to the kidneys. A novel dedicated software tool was applied that automates stone volume, density, and maximum linear size. Manual linear stone size was measured by a radiology fellow and urology resident for comparison. CT dose and clinical charges were considered.

Results:

28 stones in 16 patients were analyzed. Mean effective dose of ULD CT was 0.57 mSv, an average 92% lower than the SLD CT dose. For SLD, mean size ± SD (range) (mm) was 7.9 ± 6.2 (2.6–30.5) for Reader 1, 7.3 ± 6 (2.4–30.7) for Reader 2, and 9.3 ± 6.4 (3.7–33.1) for the automated software. For ULD, mean size ± SD (range) (mm) was 7.3 ± 6 (2.5–30.5) for Reader 1, 7.2 ± 6.1 (2.1–30.7) for Reader 2, and 9.1 ± 6.4 (4.2–32.8) for the automated software. Automated stone diameters were larger than manual diameters for 27/28 stones (mean difference, 23%); difference was ≥2mm in 30%. Average variability between manual measurements was 8.6% (SLD) and 7.8% (ULD), but was 0% for the automated technique. Our institutional charge for ULD renal CT is slightly less than renal US, and >4x less than SLD CT. The Medicare global fee for the ULD renal CT is less than the SLD CT of the abdomen and pelvis.

Conclusions:

This focused stone surveillance CT protocol is lower cost and lower dose compared to the standard CT approach. Automated assessment of stone burden provides improved reproducibility over manual linear measurement and offers the advantages of 3D measurements and volumetry. We now offer and perform this protocol in routine clinical practice for stone surveillance.

Introduction

Routine surveillance imaging plays an important role in the management of asymptomatic renal stones. Evaluating stone burden can identify patients at risk for future stone events and evaluate for treatment success [1–3]. Despite having lower sensitivity and specificity than CT, KUB and US are commonly used for stone surveillance, due in part to cost and availability [1,4,5]. Historically, higher radiation dose was a disadvantage of CT, but modern iterative reconstruction algorithms have allowed for dose reduction without sacrificing diagnostic confidence for detecting stones [6].

Renal stone burden is typically assessed by measuring stone diameter on the orthogonal views, but obtaining accurate and reproducible measurements can be challenging in stones with complex three-dimensional shapes. Prior studies have shown that volumetric automated analysis provides a more accurate and reproducible assessment of stones when compared to manual linear measurements [7,8]. As a unique advantage to CT surveillance, volumetric assessment can quantify total renal stone burden, which has been shown to be an independent predictor of future stone events [3].

The purpose of this article is to describe and validate an ultra-low-dose, limited coverage CT approach to renal stone surveillance (i.e., the limited renal CT) supplemented by volumetric analysis that provides a reproducible assessment of stones. Because coverage of this renal CT protocol is limited to the kidneys, this approach is best suited for the non-acute evaluation of renal stones.

Methods

We performed a HIPAA-compliant, IRB-approved prospective imaging study comparing concurrent standard low-dose and ultra-low-dose CT series. All subjects signed informed consent.

Patient Population and CT Protocol

The study group included outpatient adults with renal stones undergoing noncontrast CT evaluation. All CT scans were performed on a 64-detector-row Discover CT750 HD scanner (GE Healthcare) at 120 kV with variable tube current modulation (Smart mA). Immediately following the standard low-dose (SLD) noncontrast CT of the abdomen and pelvis, an ultra-low-dose series (ULD) was obtained with reconstruction limited to the level of the kidneys. Aggressive dose reduction of the ultra-low-dose series (target ~90%) was achieved by adjusting tube current range, slice thickness, and noise index.

CT Reconstruction and Analysis

All images were reconstructed in 2.5 mm slice thickness at 1.25 mm intervals in the transverse (axial) and coronal planes. The SLD series was reconstructed using filtered-back-projection (FBP), and the ULD series was reconstructed using model-based iterative reconstruction (MBIR). The larger stones in each patient were selected as index stones for analysis.

On the SLD and ULD series, the diameter and density of the index stones were measured on soft tissue windows (window width/level: 400/50 HU) by an abdominal radiology fellow and a urology resident. The stone length was measured in the axial and coronal planes, and the larger of the two measurements was recorded as the maximum stone diameter. When measuring density, a region of interest was placed on the stone, and the maximum HU was recorded. For smaller stones, a single point HU was recorded when the region of interest included tissue outside the stone. Images were presented in random order and were reviewed independently by the readers in separate sessions, blinded to the reconstruction technique. A dedicated renal stone software tool (Ziosoft, Inc., Tokyo) was applied to each series and provided automated measurements of stone volume, maximum diameter, and density (clinical example in Figure 1). This software tool uses a fixed attenuation threshold of 200 HU to automatically segment stones selected by the user.

Fig 1.

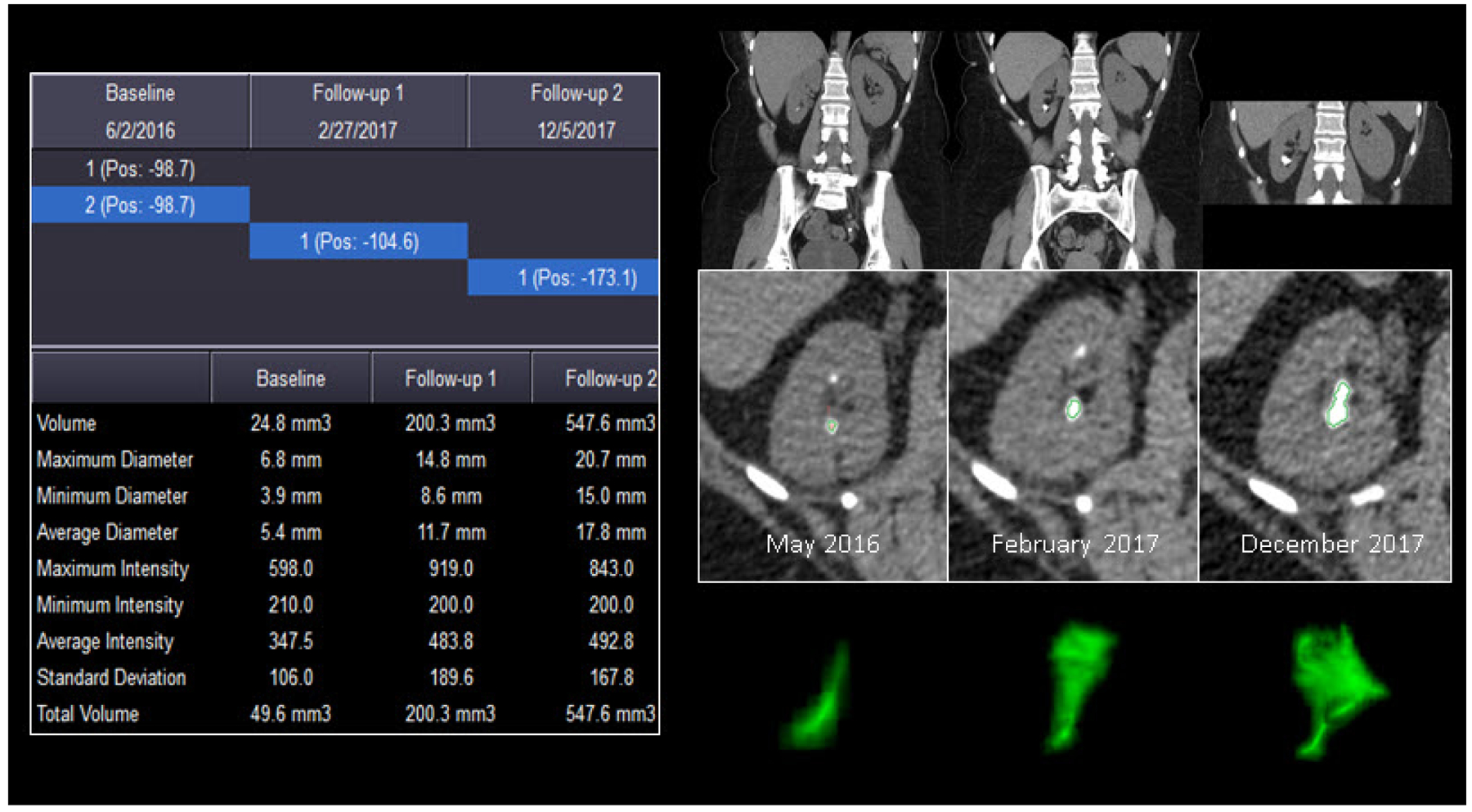

Clinical example. Using a dedicated renal stone software tool (Ziosoft, Inc., Tokyo), the growth of a renal stone over ten months is quantified (table, left) and spatially demonstrated with 3D volume renderings (green, bottom right). The standard low dose CT protocol was used for the exams in May 2016 and February 2017. When the stone diameter doubled (6.8 to 14.8 mm) on the February 2017 CT, stone volume increased by ~600% (49.6 to 200.3 mm³). The exam performed in December 2017 used the ultra-low-dose, limited coverage CT protocol and showed a 39% increase in linear size (14.8 to 20.7 mm) which corresponded to a 173% increase in volume (200.3 to 547.6 mm³)

Variability of measurements between reader 1 and reader 2 was assessed using the equation 100 × (|D₁ – D₂|)/D_avg, where |D₁ – D₂| is the absolute difference in measurements and D_avg is the average of D₁ and D₂. To assess the variability of the software tool, automated measurements were repeated for each stone and applied to the same equation. Variability of measurements between the SLD and ULD series was also calculated (100 × (|D_SLD – D_ULD|)/D_avg). Variability between the automated and manual measurements was calculated using the larger manual (LM) measurement between the two readers and the corresponding automated measurement (auto) (100 × (|D_LM – D_auto|/D_avg).

The volume CT dose index (CTDI_vol ,mGy) and dose-length product (DLP, mGy-cm) were recorded for the SLD and ULD series to demonstrate the level of dose reduction. Effective dose (mSv) was obtained from the dose-length product by use of the conversion factor of 0.015 mSv/(mGy × cm).

Institutional charges and Medicare reimbursement for noncontrast CT (limited abdominal and full abdominopelvic), renal US, and KUB were considered.

Results

Final cohort consisted of 28 renal calculi (mean size 7.7 mm; range, 2.1–33.1 mm) in 16 patients (mean age, 56.5 years; 8M/8F). The average effective dose of the ULD limited renal CT was 0.57 mSv, which is 92% lower than the SLD CT of the abdomen and pelvis (6.77 mSv) (Table 1).

Table 1.

Dose information for the standard low-dose (SLD) and ultra-low-dose (ULD) CT series

Patient	ULD Z-axis coverage (cm)	ULD CTDIvol (mGy)	ULD DLP (mGy-cm)	ULD Effective Dose (mSv)	SLD CTDIvol (mGy)	SLD DLP (mGy-cm)	SLD Effective Dose (mSv)	% Reduction in Effective Dose
1	14.13	1.42	25.89	0.39	10.31	435.40	6.53	94%
2	14.13	1.50	27.47	0.41	8.05	346.66	5.20	92%
3	12.63	1.58	26.49	0.40	7.31	294.36	4.42	91%
4	15.13	1.53	29.40	0.44	9.80	471.30	7.07	94%
5	12.13	1.52	24.74	0.37	5.97	242.67	3.64	90%
6	13.75	2.04	36.43	0.55	12.87	535.47	8.03	93%
7	14.00	1.48	26.87	0.40	7.72	339.89	5.10	92%
8	12.50	1.60	26.65	0.40	10.06	464.36	6.97	94%
9	13.00	1.47	25.22	0.38	7.85	350.56	5.26	93%
10	13.50	1.42	25.17	0.38	8.60	382.47	5.74	93%
11	11.50	4.82	75.57	1.13	29.63	1316.43	19.75	94%
12	12.38	5.34	88.64	1.33	13.47	573.82	8.61	85%
13	12.88	0.93	16.36	0.25	4.48	199.78	3.00	92%
14	10.88	3.56	53.83	0.81	9.09	361.30	5.42	85%
15	14.38	3.89	74.54	1.12	11.75	586.47	8.80	87%
16	9.75	1.76	24.52	0.37	7.17	317.69	4.77	92%
Mean	12.91	2.24	37.99	0.57	10.26	451.16	6.77	91%

Mean automated and manual stone diameter measurements are presented in Table 2. Variability of diameter measurements between the SLD and ULD series was higher for the manual technique (8.1% for Reader 1 and 8.2% for Reader 2, compared to 5.2% for the software tool). For the manual diameter measurements, variability between Reader 1 and Reader 2 was 8.6% on the SLD series and 7.8% on the ULD series. Variability was 0% for the automated software measurements on both series because repeated measurements of stones produced the same values.

Table 2.

(Top) Manual and automated stone diameter measurements, mean ± SD (range) (mm), with variability between the SLD/ULD series. (Bottom) Variability between manual measurements (Reader 1/Reader 2, left) and variability between automated measurements when repeated (Automated, right). SD = standard deviation

Stone Diameter
	Reader 1	Reader 2		Automated
SLD	7.9 ± 6.2 (2.6–30.5)	7.3 ± 6 (2.4–30.7)		9.3 ± 6.4 (3.7–33.1)
ULD	7.3 ± 6 (2.5–30.5)	7.2 ± 6.1 (2.1–30.7)		9.1 ± 6.4 (4.2–32.8)
SLD-ULD Variability	8.1%	8.2%		5.2%
	Reader 1/Reader 2 Variability		Automated Variability
SLD-SLD	8.6%		0%
ULD-ULD	7.8%		0%

Due to its 3D approach, the automated software diameter measurements were generally larger than the manual diameters. Figure 2 compares the larger manual diameter of the two readers and the automated diameter for each stone on the SLD and ULD series, demonstrating the size discrepancy between the two techniques (mean difference of 22.6% on SLD and 23.8% on ULD). Automated diameters were larger than manual diameters in 27/28 stones on both series with a difference of ≥2mm in 8/28 stones on the SLD series and in 7/28 stones on the ULD series. Additionally, this comparison only accounts for the larger of the manual diameters obtained by the readers, so the size discrepancy is underestimated.

Fig 2.

Comparison of manual and automated renal stone diameters on A. standard low-dose CT and B. ultra-low-dose CT

Mean±SD (standard deviation) of manual density was 725±636 HU (range, 275–1175). Mean±SD of automated density was 795±580 HU (range, 385–1204). Variability of density measurements between the SLD and ULD series was 18.1% for Reader 1, 16.9% for Reader 2, and 12.1% for the software tool. Both techniques produced the same density measurement on several stones (8/28 stones on SLD and 12/28 stones on ULD). Of the remaining stones, the automated density measurements were larger in roughly 50% (11/20 stones on SLD and 8/16 stones on ULD).

Mean±SD of automated stone volume was 464.3±1598 mm³ (range, 7.2–8279 mm³) on the SLD series and 452.2±1564 mm³ (range, 5.6–8083) on the ULD series. Variability of the automated stone volumes between the SLD and ULD series was 11.9%.

According to the current Medicare Physician Fee Schedule, the global service fee for a limited CT or “Cat scan follow-up study” (CPT 76380) is $147.96 for our institution’s geographic location. This CPT code is used for our ultra-low-dose renal stone follow-up CT in clinical practice. The Medicare global service fee is $195.96 for unenhanced abdominopelvic CT (CPT 74176), $152.64 for unenhanced abdominal CT (CPT 74150), $116.28 for renal US (CPT 76770), and $27.72 for a single view KUB (CPT 74018) [9]. Our institutional charge for a limited, ultra-low-dose renal stone follow-up CT is slightly less than the charge for a renal US, about half of the charge for an unenhanced abdominal CT, and one-fourth of the charge for an unenhanced abdominopelvic CT.

Discussion

We demonstrate several advantages of using this limited CT protocol for renal stone surveillance, especially when automated volumetric evaluation is included. In our study, the manual linear measurements were less than the automated measurements of stone diameter for the vast majority of stones, and this discrepancy in size likely relates to the 3D capabilities of the software tool. While the manual technique is restricted to conventional CT planes, the software tool can measure stones in any spatial plane, providing greater accuracy, and is particularly beneficial when evaluating stones of complex shapes [7,8]. The automated technique avoids the variability between readers because the software tool produces the same values when measurements are repeated on the same series. Integration of the automated technique into a surveillance program could potentially eliminate interobserver variability among radiologists and provide a more reproducible means for evaluating true interval change, the primary purpose of surveillance imaging.

Prior studies have shown the advantages of automated volumetric renal stone analysis [7,8,3]. Volumetric analysis offers a more precise approach to complex stones, and longitudinal assessments of stone growth can now be reliably quantified. Using this technique, small incremental changes in linear size are more likely to be detected because changes in volume are comparatively amplified. The clinical example in Figure 1 illustrates this concept where the doubling of stone size correlates with a volume increase of nearly 600%. Furthermore, stone volumetry may provide a metric with greater clinical implications than other radiographic measures. Selby et al. [3] found that automated total stone volume was more predictive of symptomatic stone events on multivariate analysis, independent of other imaging metrics, such as stone linear size and number. We include this analysis in our renal stone surveillance protocol, as it may be useful information when counseling patients with asymptomatic stones. Specifically, this information is useful in evaluating the success of medical management strategies [5].

Lowering CT dose is a priority in abdominal imaging, especially in stone patients who are often younger and will likely undergo serial exams. The lack of ionizing radiation is an advantage of US, but US does not provide the accuracy of CT [4] (Figure 3). Our average effective dose for ultra-low-dose CT was 0.57 mSv, which is less than the reported average effective dose of a KUB (0.7 mSv) [10] and is 92% lower than the standard low-dose CT of the abdomen and pelvis. Good agreement between measurements on both series supports preserved diagnostic quality. It should be noted that because coverage is limited to the kidneys, this surveillance technique is meant for assessing renal stone burden in asymptomatic follow-up. This protocol would not be suitable for patients with acute flank pain when full coverage through the ureters and bladder is necessary.

Fig 3.

Clinical example. A. 55-year-old female underwent a standard CT of the abdomen and pelvis showing calculi in the right ureteropelvic junction and right lower pole which were subsequently treated with ureteroscopy and laser lithotripsy. DLP for this standard CT was 707mGy-cm. Follow-up imaging was performed with B. US and C. KUB which demonstrated residual stones that were difficult to quantify by these modalities. D. Eventually, the patient underwent a limited ultra-low-dose renal CT for follow-up which showed a decreased stone burden with smaller punctate right renal calculi. This limited protocol had a lower DLP of 88 mGy-cm

Both the Medicare global fee and our institutional charge for the limited renal CT are less than unenhanced abdominal CT and unenhanced CT of the abdomen and pelvis. The Medicare global fee for renal ultrasound is less than the limited renal CT, but our institutional charge for renal ultrasound is slightly more compared to the limited renal CT charge. In non-Medicare patients, the limited renal CT may be the less costly imaging test of the two.

We acknowledge several limitations. Our study lacks a true reference standard, as actual stone diameter and volume were not measured, and this study involves a small number of patients. The selected index stones were clearly visualized on both the SLD and ULD CT series, and the size and attenuation thresholds for automated software analysis in stones ≤2mm were not assessed. It is possible that this ultra-low-dose protocol would not identify sub-2 mm stones at this aggressive level of dose reduction, which could lead to inaccuracies in reporting stone burden.

In summary, the limited renal stone CT protocol with automated analysis of stone burden that we describe provides a robust surveillance tool. This protocol maintains the benefits of CT evaluation but at a lower dose and lower cost compared with the standard CT approach. The addition of the automated volumetric analysis provides for a more reproducible stone assessment. For routine stone surveillance of asymptomatic individuals, we now offer and perform this CT protocol in clinical practice.
