How to ventilate preterm infants with lung compliance close to circuit compliance: real-time simulations on an infant hybrid respiratory simulator

Abstract

Circuit compliance close to lung compliance can create serious problems in effective and safe mechanical ventilation of preterm infants. We considered what ventilation technique is the most beneficial in this case. A hybrid (numerical–physical) simulator of infant respiratory system mechanics, the Bennett Ventilator and NICO apparatus were used to simulate pressure-controlled ventilation (PC) and volume-controlled ventilation with constant flow (VCV_CF) and descending flow (VCV_DF), under permissive hypercapnia (PHC) (6 ml kg⁻¹) and normocapnia (SV) (8 ml kg⁻¹) conditions. Respiratory rate (RR) was 36 or 48 min⁻¹ and PEEP was 0.3 or 0.6 kPa. Peak inspiratory pressure (PIP), mean airway pressure (MAP), and work of breathing by the ventilator (WOB) were lower (P < 0.01, 1 − β = 0.9) using the PHC strategy compared to the SV strategy. The WOB increased (P < 0.01; 1 − β = 0.9) when the RR increased. The PC, VCV_CF, and VCV_DF modes did not differ in minute ventilation produced by the ventilator (MV_V), but the PC mode delivered the highest minute ventilation to the patient (MV_T) (P < 0.01; 1 − β = 0.9) at the same PIP, MAP, and WOB. The most beneficial ventilation technique appeared to be PC ventilation with the PHC strategy, with lower RR (36 min⁻¹).

Graphical abstract.

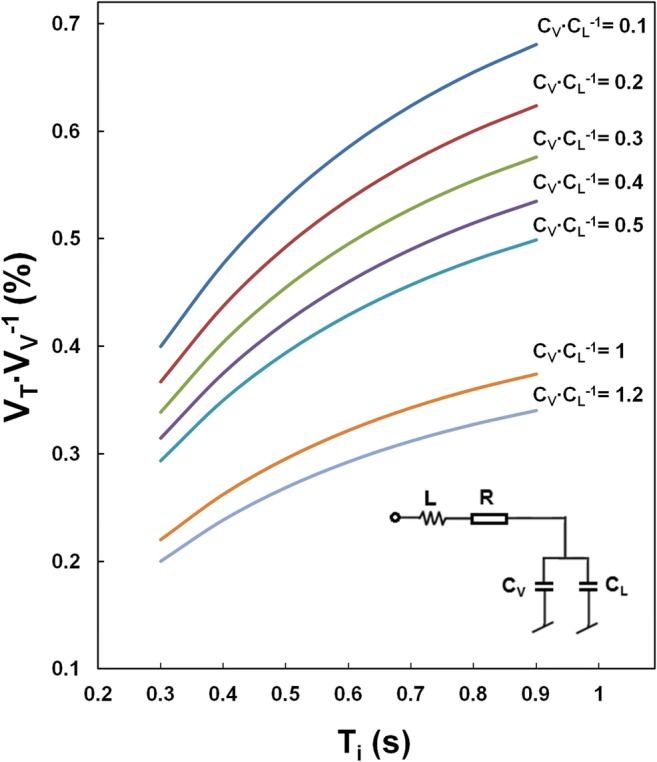

The effectiveness of an infant ventilation depending on circuit compliance to lung compliance ratio (C_v C_L

^-1) and inspiration time (T_i). V_V, V_T, tidal volume set on the ventilator and delivered to patient, respectively

Introduction

Lung protective ventilation, reducing barotrauma, ventilator-induced lung injury (VILI), and bronchopulmonary dysplasia (BPD) are key issues in modern respiratory therapy of preterm infants [1, 5, 7]. Barotrauma is lung tissue damage caused when the pressure provided to patient’s airway is too high. By VILI, we mean volume injury to the lungs leading to morphological and physiological lung changes [6]. Bronchopulmonary dysplasia (BPD) is a common chronic lung disease of preterm infants which develops as a consequence of mechanical ventilation and oxygen therapy influencing immature lungs [22], causing airway remodeling, fibrosis, bronchial epithelium hyperplasia, lung field heterogeneity, and abnormal lung maturation [8, 19, 29].

Permissive hypercapnia (PHC) is gaining ground in the ongoing discussion of infant lung protective ventilation. The strategy consists in keeping the CO₂ arterial partial pressure higher than normal (i.e., P_aCO₂ > 40 mmHg (5.3 kPa)). It is applied to decrease the risk of VILI and chronic lung diseases [6, 21, 27]. It may protect against hypocapnia-induced brain hypoperfusion and subsequent periventricular leukomalacia and improve patient outcome [23], e.g., of infants with congenital diaphragmatic hernia (CDH) [10]. According to a survey carried out in the USA a few years ago, 97% of neonatologists (of the 747 surveyed) were using PHC in their clinical practice [21]. Although PHC has clinical utility, caution must be taken to keep PaCO₂ in the safe range: 45–55 mmHg (6–7.3 kPa) on the first day of infant life and 55–65 mmHg (7.3–8.7 kPa) thereafter. Elevated PaCO₂ levels cause an increased risk of intracranial hemorrhage [28, 30]. PHC may also worsen white matter development in extremely low birth weight preterm infants (ELBW) [23]. Because of this risk, there is no general recommendation to use PHC in preterm infants [27]. However, the association between BPD, barotrauma, and volutrauma led to the use of PHC as a therapy to minimize lung injury [8] in preterm infants.

As a primary step in ventilation therapy of preterm infants, pressure-controlled ventilation (PCV) or high-frequency ventilation (HFV) is usually recommended [1, 12, 14]. Until recently, the use of volume-controlled ventilation (VCV) in preterm infants was a controversial issue, due to poor accuracy—a discrepancy between the volume of air reaching the patient’s lungs (V_T) and the volume generated by the ventilator (V_V) (Eq. 1) [9]. The discrepancy is due to circuit compliance (C_V) creating dead space in the breathing circuit (V_DC) and tidal volume being determined from flow measured close to the expiratory valve (in-ventilator) [9, 18]. However, only the most modern ventilators determine tidal volume from flow measured at patient airways [18].

$$\{{\displaystyle \begin{array}{c}{V}_{\mathrm{T}}=V_V-V_{\mathrm{D}\mathrm{C}}\\ V_{\mathrm{D}\mathrm{C}}=C_{\mathrm{V}}(\mathrm{P}\mathrm{I}\mathrm{P}-\mathrm{P}\mathrm{E}\mathrm{E}\mathrm{P})\end{array}}$$ 1

by multiplying both sides of the equations by breath frequency (f), we obtain:

$$\{{\displaystyle \begin{array}{c}{\mathrm{M}\mathrm{V}}_{\mathrm{T}}={\mathrm{M}\mathrm{V}}_{\mathrm{V}}-{\mathrm{M}\mathrm{V}}_{\mathrm{D}\mathrm{C}}\\ {\mathrm{M}\mathrm{V}}_{\mathrm{D}\mathrm{C}}=f{C}_{\mathrm{V}}(\mathrm{P}\mathrm{I}\mathrm{P}-\mathrm{P}\mathrm{E}\mathrm{E}\mathrm{P})\end{array}}$$ 2

where V_T and MV_T are the tidal volume and minute ventilation, respectively, that reach patient airways; V_V and MV_V are the volume and minute ventilation delivered by the ventilator; V_DC and MV_DC are the dead volume and ventilation of the ventilator circuit; C_V is the ventilator circuit compliance; PIP is the peak inspiratory pressure; and PEEP is the positive end-expiratory pressure.

Ventilation of preterm infants, regardless of mode, is particularly difficult when infant lung compliance (C_L) is comparable to circuit compliance (C_V). Such a specific situation (C_L ≈ C_V) occurs in the patient group [17] examined in this study and, of course, can occur in others, e.g., in preterm infants with BPD [1]. In consequence, delivery of the desired tidal volume (V_T) to the lungs requires a significantly larger volume produced by the ventilator (V_V).

This study explored how to deal with the problem of circuit compliance when the newest type of neonatal ventilator (measuring circuit compliance at patient airways) is unavailable. Pressure-controlled ventilation was compared to volume-controlled ventilation under permissive hypercapnia and normocapnia conditions, to assess any differences between the modes and strategies influencing patient’s ventilation parameters—PIP (peak inspiratory pressure), MAP (mean airway pressure), PIF (peak inspiratory flow), PEF (peak expiratory flow), C_dyn (total dynamic compliance of respiratory system), R_i (total inspiratory airway resistance), R_e (total expiratory airway resistance), and WOB (work of breathing by ventilator)—and to find the best method and strategy to achieve minute ventilation (MV_T) required by patients, minimizing MAP, PIP, and WOB, and thereby decreasing the risk of VILI [15].

The study tests were carried out using an infant respiratory simulator. This kind of study in the group of extremely low birth weight preterm infants, probably, would not be accepted by any ethical committee.

Methods

The infant respiratory simulator

The new infant hybrid respiratory simulator (Fig. 1) used in this study was described in detail in [26]. It is divided into two parts: numerical and physical. LabVIEW real-time software coordinates the work of the numerical and physical parts of the simulator and the interaction between the simulator and a ventilator. In this study, the numerical part of the simulator consisted of a three element (RLC) model of respiratory system mechanics, described by the inertance of central airways (L), total airway resistance (R), and lung compliance (C). The physical part of the simulator consisted of an impedance transformer (TR) of the piston–cylinder design, which converts numeric signals of pressure and gas flow (P_m, F_m), from the output of the numerical model of the respiratory system into real physical signals of pressure and flow (P, F) at the input of TR. The impedance transformer function is described by the following set of equations (Eq. 3):

$$\{{\displaystyle \begin{array}{c}Z=\frac{K{Z}_{\mathrm{m}}{Z}_{\mathrm{x}}}{K{Z}_{\mathrm{m}}+Z_{\mathrm{x}}}\\ \begin{array}{l}Z=\frac{P}{F}\\ Z=\frac{P_{\mathrm{m}}}{F_{\mathrm{m}}}\\ Z_{\mathrm{m}}=\sqrt{X^2+R^2}\\ X=\omega L-\frac{1}{\omega c_{\mathrm{L}}}\\ \omega =2\pi f\\ \end{array}\end{array}}$$ 3

where K is a constant value, ω is angular frequency, f is breath frequency, Z is the input impedance of the simulator, Z_m is the impedance of the numeric model of infant respiratory system, X and R are the imaginary and real (respectively) parts of the Z_m impedance, and Z_x is the impedance of the pneumatic capacitor representing gas compliance in the piston chamber. The compliance is a function of chamber volume, atmospheric pressure, and polytropic index (n = 1.3 ± 0.5). Total error of impedance transformation < 2.5%.

Fig. 1.

The setup used in the study: infant hybrid respiratory simulator (IHRS), ventilator, and NICO monitor connected to a tablet computer. The IHRS is composed of a real-time computer with a numerical model of the lungs, implemented in LabVIEW software, impedance transformer (TR), host personal computer with operator interface communicating via TCP/IP protocol with z real-time computer. PXI, personal computer-based platform of measurement and control systems; lung model: L, respiratory system inertance; R, total airway resistance; C_L, total respiratory system compliance; C_V, ventilator circuit compliance; P_m, F_m, pressure and flow in the input of the lung model, respectively; P, F, pressure and flow in the input of TR, respectively; DA, digital-to-analog converter; AD, analog-to-digital converter

Tests

The tests were carried out using a setup (Fig. 1) consisting of the infant hybrid numerical–physical respiratory simulator [26], the Puritan Bennett 840 Ventilator (Medtronic, Fridley, MN, USA), and a NICO 7300 monitor (Respironics Corp., Murrysville, PA, USA) fitted with a main stream sensor, neonatal flow adapter, and a probe placed between the simulator and the Y-piece of the ventilation circuit. Ventilator settings for the ventilation of an “artificial” preterm infant representing the clinical group of patients (Table 1) are shown in Table 2.

Table 1.

The characteristics of the patient group

Data	ELBW
Age (test)	5 ± 2 (days)
Gestation (weeks)	27.2 ± 1.2
Weigh (kg)	0.820 ± 0.107
Number of patients	21
ID ETT (mm)	2.5
R (kPa s l−1)	26.9 ± 5.6
CL (ml kPa−1)	8.6 ± 5
L (kPa s2 l−1)	0.002

The data are mean ± SD

ELBW, extremely low birth weight infants; ID ETT, internal diameter of endotracheal tube; R, total (patient + ETT) respiratory system resistance; C_L, respiratory system compliance; L, inertance of respiratory system; SD, standard deviation

Table 2.

Ventilation parameters and Reynolds number for different study cases

Mode	Ppeak (kPa)	RR (min−1)	I:E	PEEP (kPa)	Strategy (ml kg-1)	MVv (l)	PIF (l s−1)	PEF (l s−1)	$\stackrel{\cdot }{V}$insp (m s−1)	$\stackrel{\cdot }{V}$exp (m s−1)	Re (insp) (–)	Re(exp) (–)
PCV	0.8	36	01:01	0.3	PH (6)	0.18	0.012	0.036	0.123	0.123	89	89
PCV	0.8	36	01:02	0.6	PH (6)	0.18	0.014	0.033	0.143	0.143	104	104
PCV	0.8	36	01:01	0.3	PH (6)	0.18	0.012	0.039	0.123	0.123	89	89
PCV	1	36	01:02	0.6	PH (6)	0.19	0.018	0.044	0.193	0.193	141	141
PCV	1.1	48	01:01	0.3	PH (6)	0.24	0.023	0.045	0.242	0.242	176	176
PCV	1.2	48	01:02	0.6	PH (6)	0.28	0.025	0.041	0.261	0.261	190	190
PCV	1	48	01:01	0.3	PH (6)	0.23	0.017	0.042	0.174	0.174	127	127
PCV	0.9	48	01:02	0.6	PH (6)	0.23	0.013	0.038	0.140	0.140	102	102
PCV	1	36	01:01	0.3	SV (8)	0.26	0.018	0.051	0.193	0.193	141	141
PCV	1	36	01:01	0.6	SV (8)	0.27	0.018	0.047	0.193	0.193	141	141
PCV	1.1	36	01:02	0.3	SV (8)	0.26	0.027	0.052	0.283	0.283	206	206
PCV	1.1	36	01:02	0.6	SV (8)	0.27	0.025	0.051	0.266	0.266	194	194
PCV	1.1	48	01:01	0.3	SV (8)	0.31	0.013	0.042	0.141	0.141	103	103
PCV	1.1	48	01:01	0.6	SV (8)	0.31	0.013	0.042	0.140	0.140	102	102
PCV	1.3	48	01:02	0.3	SV (8)	0.32	0.020	0.045	0.214	0.214	156	156
PCV	1.3	48	01:02	0.6	SV (8)	0.31	0.019	0.040	0.202	0.202	147	147
Mode	Fmax (min−1)	RR (min−1)	PEEP (kPa)	Strategy (ml kg−1)		MVv (l)	PIF (l s−1)	PEF (l s−1)	$\stackrel{\cdot }{V}$insp (m s−1)	$\stackrel{\cdot }{V}$exp (m s−1)	Re(insp) (–)	Re(exp) (–)
VCVCF	2.3	36	0.3	PH (6)		0.18	0.024	0.026	0.255	0.277	185	201
VCVCF	2.3	36	0.6	PH (6)		0.18	0.025	0.032	0.260	0.332	190	242
VCVCF	2.1	48	0.6	PH (6)		0.18	0.023	0.032	0.247	0.336	180	244
VCVCF	2.1	48	0.3	PH (6)		0.23	0.022	0.032	0.235	0.333	171	243
VCVCF	2.7	48	0.3	SV (8)		0.33	0.029	0.043	0.309	0.452	225	329
VCVCF	2.7	48	0.6	SV (8)		0.33	0.027	0.039	0.281	0.414	204	301
VCVCF	2.8	36	0.6	SV (8)		0.25	0.028	0.044	0.291	0.464	212	338
VCVCF	2.8	36	0.3	SV (8)		0.25	0.030	0.042	0.313	0.442	228	321
Mode	Fmax (l min−1)	RR (min−1)	PEEP (kPa)	Strategy (ml kg−1)		MVv (l)	PIF (l s−1)	PEF (l s−1)	$\stackrel{\cdot }{V}$insp (m s−1)	$\dot{\mathrm{V}}$exp (m s−1)	Re(insp) (–)	Re(exp) (–)
VCVDF	3.2	36	0.3	PH (6)		0.18	0.022	0.026	0.231	0.274	168	200
VCVDF	3.2	36	0.6	PH (6)		0.19	0.023	0.028	0.241	0.294	175	214
VCVDF	2.5	48	0.3	PH (6)		0.22	0.018	0.027	0.193	0.280	141	204
VCVDF	2.7	48	0.6	PH (6)		0.23	0.020	0.026	0.210	0.275	153	200
VCVDF	3.2	36	0.3	SV (8)		0.23	0.025	0.038	0.263	0.402	191	293
VCVDF	3.2	36	0.6	SV (8)		0.24	0.024	0.038	0.252	0.404	183	294
VCVDF	2.9	48	0.6	SV (8)		0.32	0.022	0.038	0.228	0.403	166	293
VCVDF	3	48	0.3	SV (8)		0.32	0.023	0.037	0.246	0.386	179	281

PCV, pressure-controlled mode of ventilation; VCV_CF, VCV_DF, volume-controlled mode of ventilation with constant and descending flow, respectively; P_Peak, pressure limit; RR, respiratory rate; I:E, inspiration:expiration ratio; PEEP, positive end-expiratory pressure; STRATEGY, tidal volume per kilogram of body mass; PH, permissive hypercapnia (6 ml kg⁻¹); SV, standard ventilation (8 ml kg⁻¹); MV_V, minute ventilation set on the ventilator; F_max, flow limit set on the ventilator; Re_(insp), Re_(exp), Reynold’s number for inspiration and expiration, respectively; PIF, PEF, peak inspiratory flow and peak expiratory flow; ${\dot{V}}_{\mathit{\text{insp}}}$, ${\dot{V}}_{\mathit{exp}}$, mean linear velocity during inspiration and expiration, respectively

Data were obtained for pressure-controlled ventilation and volume-controlled ventilation with constant and descending flow, under permissive hypercapnia (PHC) (6 ml kg⁻¹) and normocapnia (SV) (8 ml kg⁻¹) conditions for two sets of respiratory rates (RR) (36 and 48 min⁻¹) and two sets of PEEP (0.3 and 0.6 kPa). The MV_V was calculated by the ventilator and displayed on the ventilator monitor, whereas MV_T, PIP, MAP, PIF, PEF, WOB, C_dyn, R_i, and R_e were collected by the NICO 7300 monitor connected to a tablet computer.

Statistical analysis

First, the Shapiro–Wilk normality test and the Levene test of variance homogeneity were carried out. The study results were then analyzed by parametric and nonparametric tests. The parametric tests used were two-way ANOVA/MANOVA tests, and the nonparametric tests were the Kruskal–Wallis analysis of ranks and Wilcoxon’s test.

Results

The influence of the simulations’ input parameters (MODE, STRATEGY, RR, and PEEP), which were set on the ventilator, on the output parameters (PIP, MAP, PIF, PEF, C_dyn, R_i, R_e, and WOB) was measured using the NICO monitor at the “patient” airway. The results are presented in Figs. 2, 3, 4, 5, 6, 7, and 8.

Fig. 2.

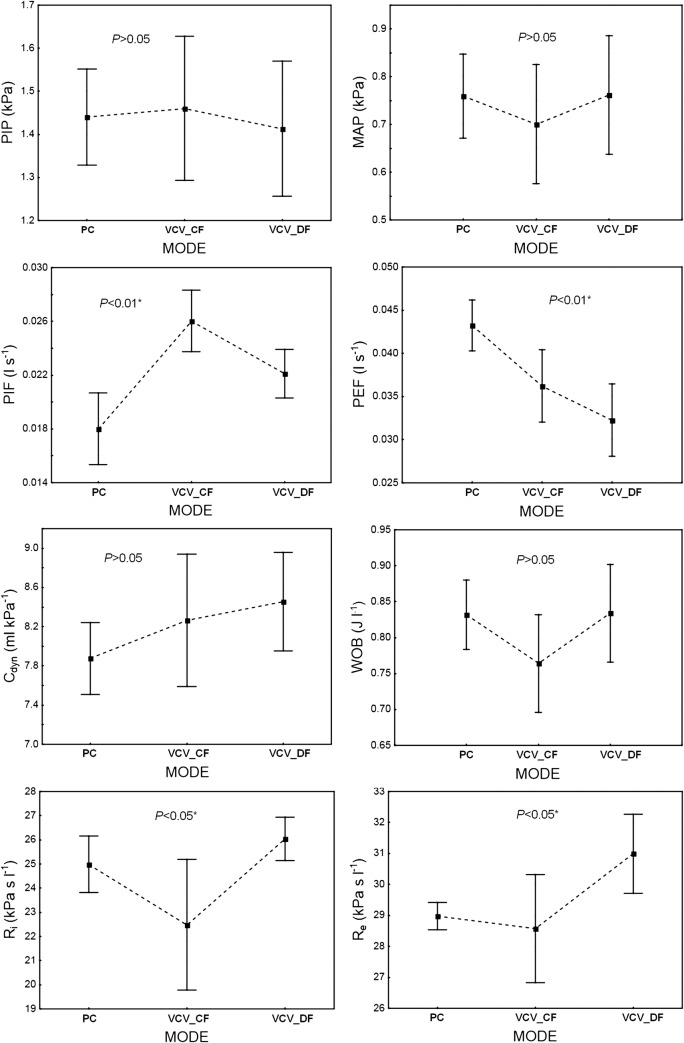

The influence of ventilation MODE (PC, VCV_CF, VCV_DF) on the infant’s ventilation parameters: PIP, MAP, PIF, PEF, C_dyn, WOB, R_i, and R_e (P < 0.01, 1 − β = 0.99). PC = PCV. The data are mean ± 95% CI

Fig. 3.

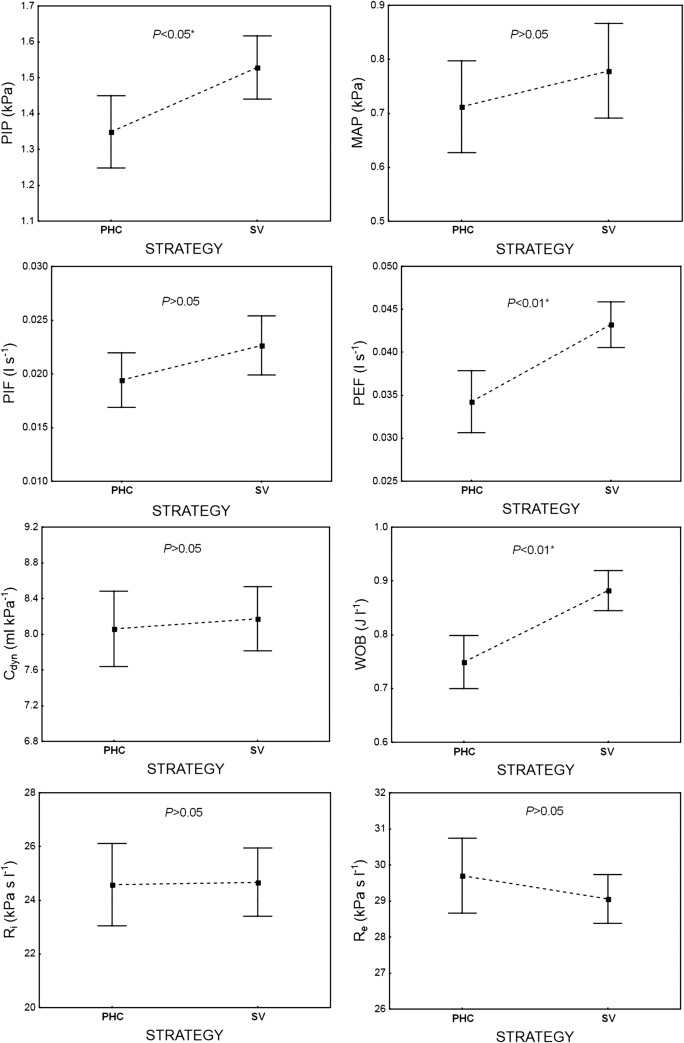

The influence of ventilation STRATEGY—permissive hypercapnia (PHC) versus normocapnia (SV) on the infant’s ventilation parameters: PIP, MAP, PIF, PEF, C_dyn, WOB, R_i, and R_e (P < 0.01, 1 − β = 0.99). The data are mean ± 95% CI

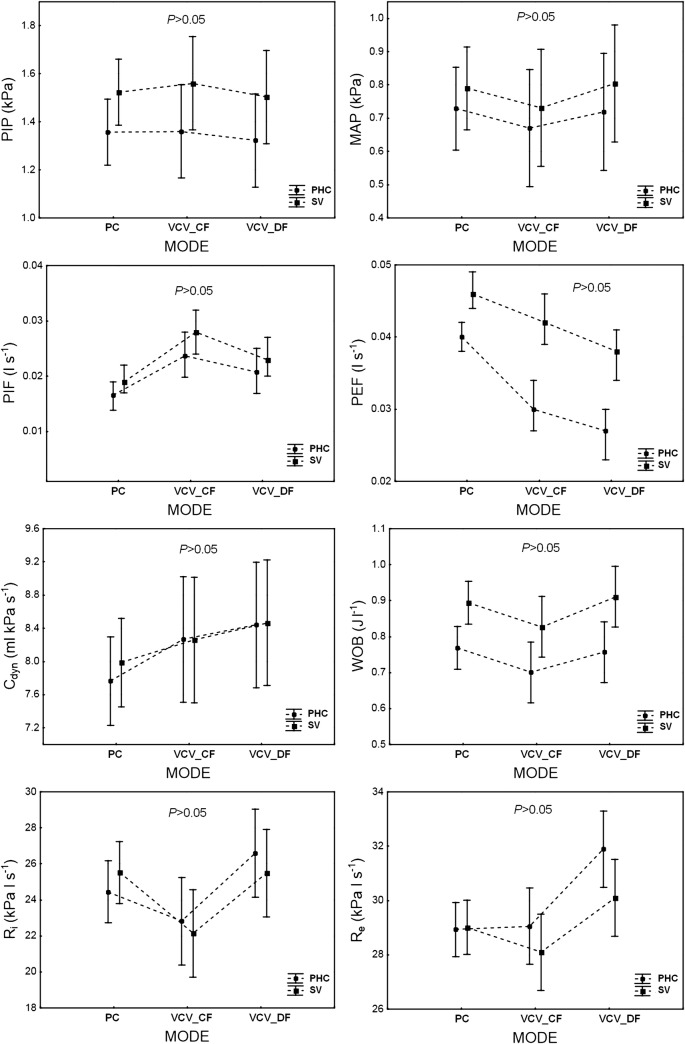

Fig. 4.

The infant’s ventilation parameters: PIP, MAP, PIF, PEF, C_dyn, WOB, R_i, and R_e, depending on ventilation MODE (PC, VCV_CF, VCV_DF) and ventilation STRATEGY—permissive hypercapnia (PHC) versus normocapnia (SV). PC = PCV. The data are mean ± 95% CI

Fig. 5.

The influence of the set respiratory rate (RR) on the infant’s ventilation parameters: PIP, MAP, PIF, PEF, C_dyn, WOB, R_i, and R_e (P < 0.05, 1 − β = 0.83). The data are mean ± 95% CI

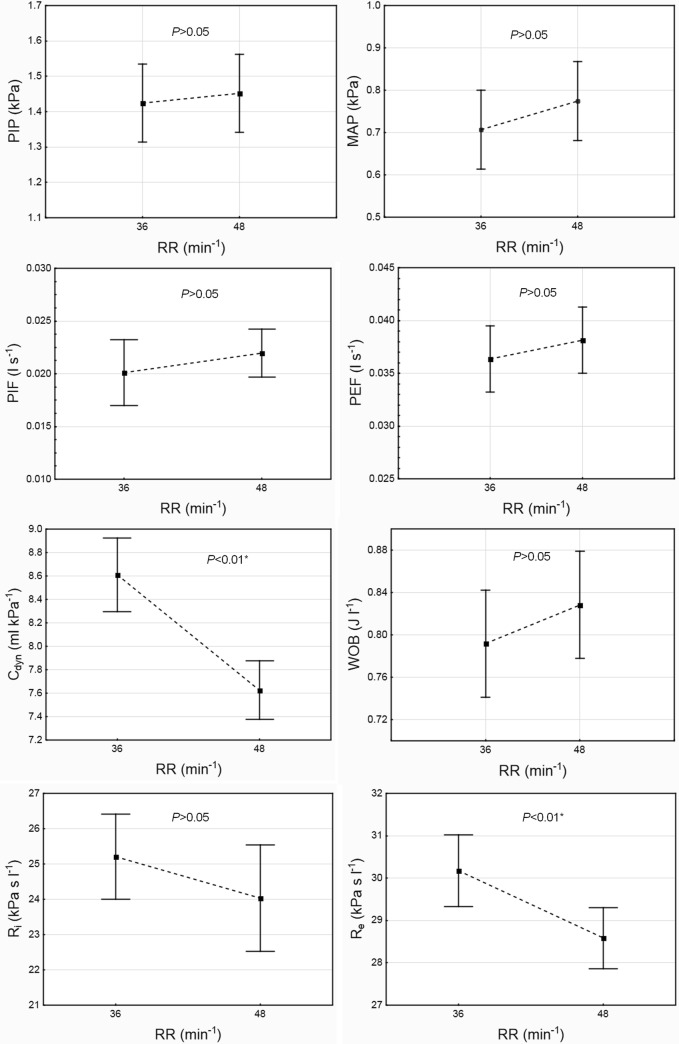

Fig. 6.

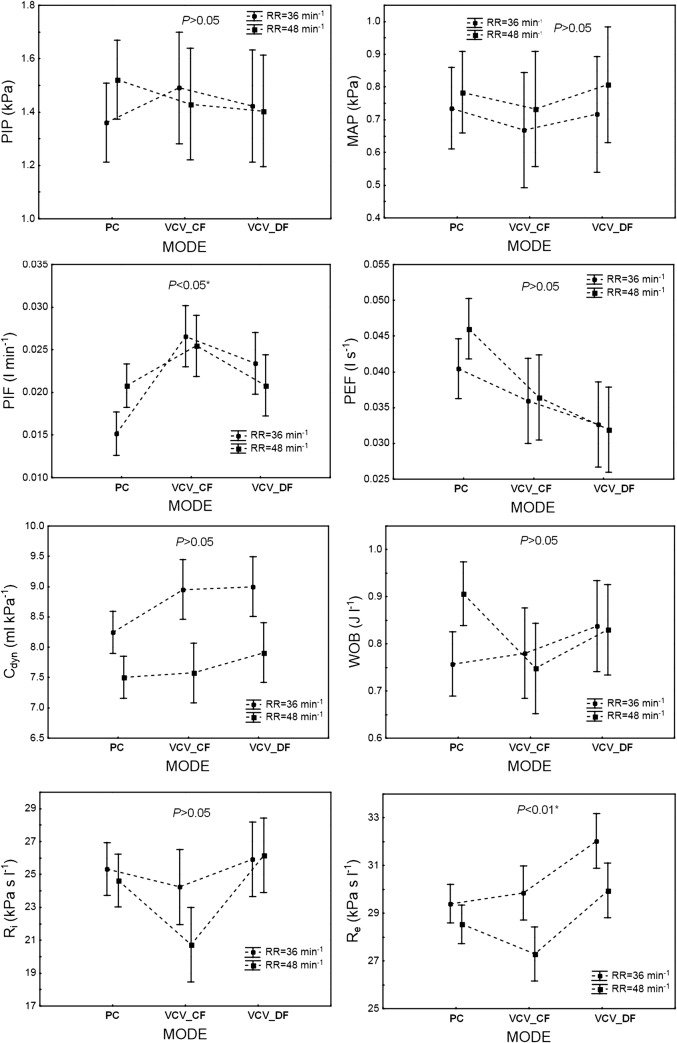

The infant’s ventilation parameters: PIP, MAP, PIF, PEF, C_dyn, WOB, R_i, and R_e, depending on ventilation MODE (PC, VCV_CF, VCV_DF) and respiratory rate RR (36, 48 min⁻¹). PC = PCV. The data are mean ± 95% CI

Fig. 7.

The influence of positive end-expiratory pressure (PEEP) on the infant’s ventilation parameters: PIP, MAP, PIF, PEF, C_dyn, WOB, R_i, and R_e (P < 0.01, 1 − β = 0.99). The data are mean ± 95% CI

Fig. 8.

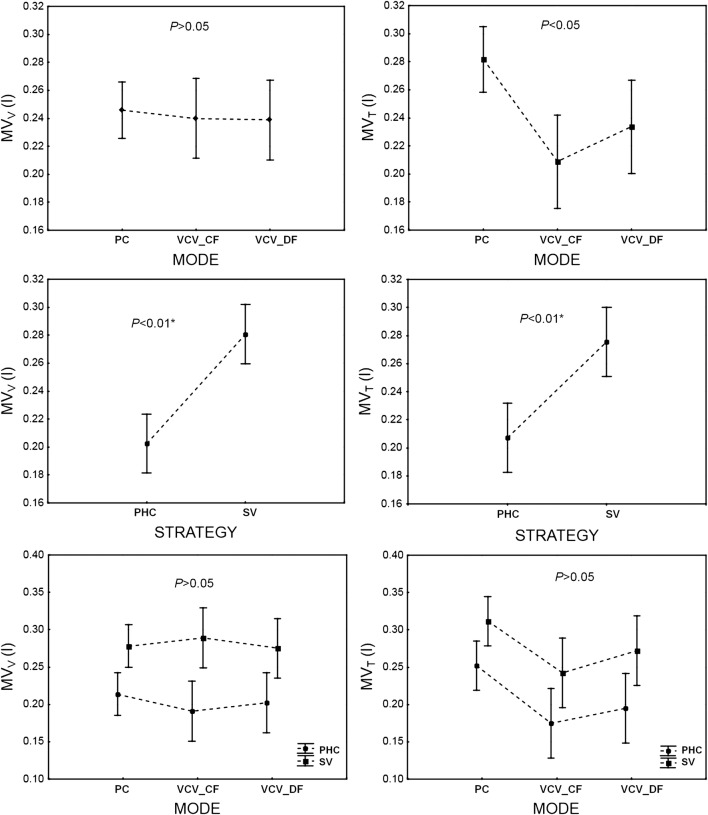

Minute ventilation set on the ventilator (MV_V) (a) and delivered to patient airways (MV_T) (b) depending on ventilation mode (PC, VCV_CF, VCV_DF) and ventilation strategy—permissive hypercapnia (PHC) versus normocapnia (SV). PC = PCV. The data are mean ± 95% CI

In the experiment, the three modes of ventilation were set: pressure-controlled ventilation, volume-controlled ventilation mode with constant flow, and volume-controlled ventilation with descending flow. During pressure-controlled ventilation, we adjusted the peak pressure (P_peak) to indirectly achieve the same minute ventilation (MV_V = f V_V) delivered by the ventilator with volume-controlled modes, where it was set directly. This kept the MV_V value constant for all experimental tests within a given STRATEGY, but different for permissive hypercapnia and normocapnia ventilation.

Generally, the influence of the ventilation mode (PCV, VCV_CF, and VCV_DF) on the patient’s ventilation parameters was statistically significant (P < 0.01, 1 − β = 0.99). Specifically, significant differences between these modes were observed for the PIF, PEF, R_i, and R_e parameters, whereas the levels of PIP, MAP, and WOB did not differ statistically between modes (Fig. 2).

Permissive hypercapnia and normocapnia, which were accomplished by setting the tidal volume delivered to the patient (6 or 8 ml kg^-1, respectively), significantly influenced the output ventilation parameters (P < 0.01, 1 − β = 0.99) (Fig. 3). The values of PIP, PIF, PEF, and WOB measured under permissive hypercapnia (6 ml kg^-1) were significantly lower than under normocapnia (8 ml·kg^-1). There was no difference between the two strategies in MAP, dynamic compliance of the respiratory system (C_dyn), and dynamic airway resistances (R_i and R_e). For these values, the interaction between ventilation MODE and STRATEGY appeared to be insignificant (Fig. 4).

Next, the independent variable RR had a significant influence on the ventilation parameters (P < 0.05, 1 − β = 0.83) (Fig. 5). However, the interaction of RR and MODE did not have a significant influence on these parameters (Fig. 6).

PEEP settings had a significant influence on the measured parameters of ventilation (P < 0.01, 1 − β = 0.99), too (Fig. 7). However, the interaction of PEEP with any other parameter was not significant. Similarly, all other interactions between considered independent variables of ventilation (MODE, STRATEGY, RR, PEEP) did not influence the output parameters of ventilation.

Finally, there were no significant differences among the minute ventilations (MV_V) produced by the ventilator in PCV, VCV_CF, and VCV_DF (Fig. 8). This shows that the study assumption was fulfilled (MV_V = const). Wilcoxon’s tests indicated that the difference between minute ventilation delivered by the ventilator (MV_V) and that measured at the patient airway (MV_T) was insignificant (P > 0.05).

On the other hand, a significant difference between the examined ventilation modes was observed for the minute ventilation (MV_T) delivered to patient airways. The PCV (compared to VCV_CF and VCV_DF ventilation modes) enabled delivery of a significantly higher (P < 0.01; 1 − β = 0.99) minute ventilation to the patient airway (MV_T) (Fig. 8), whereas the PIP, MAP, and WOB values did not differ statistically between modes.

Discussion

Ventilation therapy of preterm infants is aimed at reducing lung injury and avoiding BPD [20]. The latest clinical reports indicate that lung protective ventilation consists of limiting excessive expansion of the lung, applying PEEP, and using permissive hypercapnia [5, 7].

The higher risk of ventilator-induced lung injury in preterm infants compared to full-term infants is due to an insufficient amount of surfactant (or its inactivation) and lung inhomogeneity [6]. This impairs normal breathing and makes mechanical ventilation difficult in preterm infants [1, 11, 17]. Even though antenatal steroids and natural or synthetic surfactant administration after birth can increase lung compliance, it still remains comparable to circuit compliance [16]. The problem of the circuit compliance is extremely important when applying permissive hypercapnia as a lung protective ventilation method in preterm infants, due to the necessity of keeping the P_aCO₂ level in the safe range [1, 15, 27].

The difference between the tidal volume set on a ventilator and the actual tidal volume delivered to the patient is the dead space created by the circuit compliance. This can be a surprisingly large value in relation to patient’s respiratory system compliance. It means that accurate compensation for the circuit compliance is necessary [9], or optionally, the influence of the circuit compliance on flow measurement should be accounted for in some way [3, 18]. Most modern ventilators are equipped with special algorithms for circuit compliance compensation. They incorporate the contribution of circuit compliance to calculated expired tidal volume, utilizing circuit compliance determined by a pre-use self-test and actual measurement of pressure changes in the circuit. However, there are some crucial points in the compensation procedure [3, 9, 15, 18], which make the procedure ineffective in some conditions. These points are as follows: (1) ventilator circuit layout, its length and shape during pre-use self-test [9]; (2) the placement of flow sensors in the ventilator circuit, which influences the accuracy of tidal volume delivered to the patient [3, 18]; (3) the influence of heaters, humidifiers, water traps, and other equipment of the ventilator circuit [3]; and finally, (4) successive ventilation modes of the ventilator can differ in effectiveness of compensation [15].

As was demonstrated by Glenski et al. [9], to determine the correct circuit compliance and to entirely compensate for the dead space created by it when ventilating an infant weighing less than 10 kg, it is important to do a self-test with a circuit expanded as it is during patient ventilation. The reason for this is that the compliance of the expanded circuit is significantly higher than the compliance of a nonexpanded circuit. If the pre-use self-test is done with a nonexpanded circuit, the tidal volume displayed on the ventilator monitor can significantly overestimate the tidal volume delivered to the infant.

Then, most ventilators determine the expiratory tidal volume from the flow measured close to the expiratory valve (in-ventilator). Only a few ventilators (e.g., Hamilton Medical Galileo Ventilator) [18] calculate expiratory tidal volume from flow measured at the patient airway (between the Y-piece and the endotracheal tube); this allows them to avoid the influence of circuit compliance on flow and expiratory tidal volume. In this study, expiratory tidal volume was calculated from flow measurements made by the NICO sensor which was placed close to the patient airway between the Y-piece and the hybrid infant respiratory system (the physical part of the simulator, i.e., a cylinder with a piston).

Besides, it should be remembered that other circumstances or devices can influence the variation in ventilator circuit setup, such as heaters, humidifiers, water traps, in-line suction devices, condensation in the circuit, etc. In such a case, the expiratory V_T must be determined by pneumotachometer or other device (e.g., NICO monitor) so that the gas flow can be measured close to the patient airway, eliminating the problem with circuit compliance [3].

The simulations carried out indicate that, during ventilation of a preterm infant with respiratory system compliance close to circuit compliance, a ventilation method, ventilation strategy, and the recommended levels of P_aCO₂ should be chosen very carefully, due to their influence on obtained ventilation parameters and patient safety. It appeared that pressure-controlled ventilation is more effective than volume-controlled ventilation in reaching the targeted tidal volume and minute ventilation. This means that, under PCV, the required minute ventilation can be obtained more easily, with lower levels of PIP, MAP, and WOB. Thus, PCV of preterm infants with very low respiratory system compliance seems to be more “lung protective” than VCV. This agrees with data on ventilation of preterm infants in the literature [1, 5, 7]. For example, in the Masselli et al. paper [15], PCV and VCV were compared to determine which is more effective in compensating for breathing circuit compressible volume. This study showed that the PCV resulted in a more reliable compensation of dead space created by circuit compliance. Similarly, our results indicated that tidal volumes set on the ventilator were closer to those actually delivered to the patient during PCV.

The study results also show that permissive hypercapnia is more advantageous than standard ventilation, because PHC was connected with lower levels of PIP, PIF, PEF, and WOB. There is a lower risk of barotrauma with the PHC strategy. Additionally, PHC improves tissue oxygenation by promoting the dissociation of oxygen from hemoglobin [4]. Due to its protective function [24, 27], permissive hypercapnia is more and more popular in clinical use [21, 30]. A study from several years ago by van Kaam et al. [30] in 173 European neonatal intensive care units indicated that a strategy involving permissive hypercapnia was applied in 30% of patients. The Mu et al. survey from a few years before indicated that 70% of neonatologists from the USA were also using permissive hypercapnia [21].

An abnormal increase in P_aCO₂, if not followed by metabolic compensation, decreases pH and leads to respiratory acidosis (P_aCO₂ > 45 mmHg (6 kPa) and pH < 7.35). While a pH range of 7.35–7.45 reflects physiologically normal values, the “clinical” range that is targeted for care may differ, e.g. the range of 7.25–7.35 may be accepted during ventilatory support under PHC [2, 28]. European [28], US [10, 21], and Canadian [25] studies indicate that a P_aCO₂ range of 45–65 (70) mmHg (6–8.7 (9.3) kPa) is allowed under PHC as long as pH is > 7.25 and oxygen saturation is 80–93% [10, 25, 28]. PHC with pH > 7.25 has not been shown to increase the incidence of multiorgan failure or mortality. However, if circulatory system failure accompanies respiratory acidosis, it can lead to metabolic acidosis (HCO₃ < 20 mmol/l and pH < 7.35) and the pH decreases as a result of hyperlactatemia and alkali deficiency. As a compensation for acidosis, pulmonary vasoconstriction with risk of persistent pulmonary hypertension, saturation decrease, and WOB increase can occur. As a consequence, central nervous system (CNS) damage, multiorgan failure, and coagulation disorders are observed in some of the patients [2, 10, 28, 30].

Measurement of CO₂ is a fundamental evaluation in a neonatal intensive care unit (NICU), as both low and high values can impact neonatal morbidity and mortality [2]. The most accurate method to determine P_aCO₂ level is blood gasometry (as well as measuring pH). End-tidal CO₂ monitoring or transcutaneous CO₂ (tcCO₂) measurements enable the continuous noninvasive measurement of CO₂ values [2, 13]. The former, based on the CO₂ partial pressure measurement at the end of exhalation (P_etCO₂), facilitates the control of CO₂ values within the safe range during conventional ventilation under PHC [13]. However, this method is not reliable or accurate enough in some cases, for example, in the case of a leak due to an uncuffed tube, if the side-stream method is used, or under HFV. More recently, the latter method, based on CO₂ diffusion by body tissue and skin, has been shown to provide more accuracy. Additionally, it helps to reduce the frequency of blood sampling in extremely preterm infants [2].

The adverse effects of PHC remain unclear. A significant increase in CNS hemorrhage episodes in children treated with PHC has not been observed so far [10, 28]. However, hypercapnia causes vasodilation and a rise in intracranial flow, increasing the risk of intraventricular hemorrhage. For this reason, PHC should not to be applied in patients with cerebral edema and elevated intracranial pressure [10, 27]. Nonetheless, in most patients, mild hypercapnia seems to be safer than lung damage (which may occur at higher pressures and volumes during SV) or hypocapnia (leading to periventricular leukomalacia and distant neurologic deficits) [27].

To summarize, on the basis of the study results, we suggest ventilating preterm infants with respiratory system compliance close to circuit compliance using PCV rather than VCV, under hypercapnia rather than normocapnia conditions. Moreover, we recommend the lowest possible RR settings. However, the tidal volume delivered to the patient should be carefully controlled using some device like a pneumotachograph or special ventilator calculating expired tidal volume from flow measured at patient airways (not at the expiratory valve).

Conclusions

Considering the effectiveness of mechanical ventilation, energetic cost of respiratory support and patient safety, the most beneficial technique appears to be pressure control ventilation under permissive hypercapnia conditions, because it allows the largest minute ventilation at the lowest pressure levels in the circuit (PIP and MAP) and it requires the lowest WOB.

Abbreviations

1 − β

test power

BPD

Bronchopulmonary dysplasia

C_dyn

Total dynamic compliance (patient + ventilator circuit) (ml kPa⁻¹)

CI

Confidence interval

C_L

Compliance of patient respiratory system (ml kPa⁻¹)

C_V

Ventilator circuit compliance (ml kPa⁻¹)

ELBW

A group of extremely low birth weight preterm infants

f

Breath frequency (min⁻¹)

F

Flow at the input of TR (l s⁻¹)

F_m

Flow at the input of the numerical model of patient respiratory system (l s⁻¹)

I:E

Inspiration to expiration ratio

L

Inertance of patient respiratory system (kPa s² l⁻¹)

MAP

Mean airway pressure (kPa)

MV_T

Minute ventilation delivered do patient airways (l)

MV_V

Minute ventilation produced by ventilator (l)

P

Pressure at input of TR (kPa)

P < …

Level of significance of the difference between groups

P_aCO₂

Arterial partial pressure of carbon dioxide (mmHg, kPa)

P_etCO₂

Partial pressure of carbon dioxide at the end of exhalation (mmHg, kPa)

P_m

Pressure at the input of the numerical model of the patient respiratory system (kPa)

P_peak

Limit peak pressure set on the ventilator (kPa)

pH

Negative logarithm of hydrogen ion concentration (H⁺)

PCV, PC

Pressure-controlled ventilation

R

Total airway resistance of patient (kPa s l⁻¹)

PHC

Permissive hypercapnia, a strategy of ventilation with tidal volume 4–6 ml per kg of body mass

PEEP

Positive end-expiratory pressure (kPa)

PIP

Peak inspiratory pressure (kPa)

R_e

Total expiratory airway resistance of patient (kPa s l⁻¹)

R_i

Total inspiratory airway resistance of patient (kPa s l⁻¹)

RR

Respiratory rate (min⁻¹)

SD

Standard deviation

SV

Standard strategy of infant ventilation with tidal volume 8–10 ml per kg of body mass

TR

Impedance transformer

VCV

Volume-controlled ventilation

VCV_CF

Volume-controlled ventilation with constant flow pattern

VCV_DF

Volume-controlled ventilation with descending flow pattern

WOB

Total work of breathing by the ventilator (J l⁻¹)

Z

Input impedance of the simulator (kPa s l⁻¹)

Z_m

Impedance of the numeric part of the simulator (kPa s l⁻¹)

Z_x

Impedance of pneumatic capacitor representing gas compliance in piston chamber of TR
