Palmitoylation of the K_ATP channel Kir6.2 subunit promotes channel opening by regulating PIP₂ sensitivity

Significance

Protein diversity is substantially increased by posttranslational modifications of amino acid residues. Lipidation is poorly characterized for ion channels. We found regulated S-palmitoylation to occur in certain K⁺ channels (Kir3.4, Kir6.1, and Kir6.2). For Kir6.2, lipidation at Cys¹⁶⁶ (or gene variants associated with diabetes) increases the channel open state. Experimental and molecular modeling studies show this due mainly to an increased sensitivity to PIP₂, which results in altered regulation of K_ATP channels by α1-adrenoceptor signaling in cardiomyocytes. Our data demonstrate complexity in the regulation of K_ATP channels by long-chain acyl-CoA esters, which can be both acute and direct, but also be mediated through regulated S-palmitoylation. Strategies aimed at regulating the palmitoylation state of K_ATP channels may represent new therapeutic opportunities.

Abstract

A physiological role for long-chain acyl-CoA esters to activate ATP-sensitive K⁺ (K_ATP) channels is well established. Circulating palmitate is transported into cells and converted to palmitoyl-CoA, which is a substrate for palmitoylation. We found that palmitoyl-CoA, but not palmitic acid, activated the channel when applied acutely. We have altered the palmitoylation state by preincubating cells with micromolar concentrations of palmitic acid or by inhibiting protein thioesterases. With acyl-biotin exchange assays we found that Kir6.2, but not sulfonylurea receptor (SUR)1 or SUR2, was palmitoylated. These interventions increased the K_ATP channel mean patch current, increased the open time, and decreased the apparent sensitivity to ATP without affecting surface expression. Similar data were obtained in transfected cells, rat insulin-secreting INS-1 cells, and isolated cardiac myocytes. Kir6.2ΔC36, expressed without SUR, was also positively regulated by palmitoylation. Mutagenesis of Kir6.2 Cys¹⁶⁶ prevented these effects. Clinical variants in KCNJ11 that affect Cys¹⁶⁶ had a similar gain-of-function phenotype, but was more pronounced. Molecular modeling studies suggested that palmitoyl-C166 and selected large hydrophobic mutations make direct hydrophobic contact with Kir6.2-bound PIP₂. Patch-clamp studies confirmed that palmitoylation of Kir6.2 at Cys¹⁶⁶ enhanced the PIP₂ sensitivity of the channel. Physiological relevance is suggested since palmitoylation blunted the regulation of K_ATP channels by α1-adrenoreceptor stimulation. The Cys¹⁶⁶ residue is conserved in some other Kir family members (Kir6.1 and Kir3, but not Kir2), which are also subject to regulated palmitoylation, suggesting a general mechanism to control the open state of certain Kir channels.

On average, each protein-coding gene produces several unique proteins due to processes, such as alternative RNA splicing. The protein diversity is even higher when considering that the functional state can be significantly altered by posttranslational modifications (PTM), which is such a fundamentally important aspect of protein regulation that ∼5% of the proteome are enzymes that perform more than 200 types of PTMs. These enzymes include kinases, phosphatases, transferases, and ligases that reversibly add and remove functional groups, proteins, lipids, or sugars at specific amino acid side chains. The best studied PTM involves phosphorylation of specific serine, threonine, tyrosine, or histidine residues. Lipid moieties can also posttranslationally be attached to specific amino acids (often referred to as lipidation). Examples include glycosyl phophatidylinositol anchoring, N-terminal myristoylation, S-myristoylation, and S-prenylation.

S-palmitoylation (also known as S-acylation) most commonly occurs when palmitoyl acyltransferases (PATs or DHHC enzymes) attach the C16 palmitoyl group from palmitoyl-CoA to the thiolate side chain of a cysteine residue (SI Appendix, Fig. S1). The reverse process, depalmitoylation, is mediated by two acyl-protein thioesterases, APT1 and APT2 (1), and recently characterized α/β-hydrolase domain-containing protein 17 members (2). The large, hydrophobic palmitate moiety can serve as a membrane lipid anchor in the target protein and the reversible nature of the reaction lends itself to dynamic changes in protein function and localization. Intracellular trafficking of Ras proteins was one of the first examples of a nontransmembrane protein that requires palmitoylation to reach the membrane (3). More recently, palmitoylation has been identified as a common mechanism that underlies the subcellular distribution and polarized trafficking of several proteins within cells (4, 5).

ATP-sensitive K⁺ (K_ATP) channels open when the ADP:ATP ratio increases, thus coupling the intracellular energy metabolism to membrane excitability. The channel is composed of four inward rectifier K⁺ (Kir6.x) channel subunits and four sulfonylurea receptor (SURx) subunits. The Kir6 and SUR subfamilies each has two members, respectively, Kir6.1 and Kir6.2, and SUR1 and SUR2, with the latter present as one of two splice variants (SUR2A or SUR2B) (6). The pancreatic β-cell K_ATP channel (Kir6.2/SUR1) has a key role in regulating the first phase of insulin secretion and is the target of antidiabetic sulfonylureas, whereas the cardiac K_ATP channel (Kir6.2/SUR2A) regulates action potential adaptation with elevated heart rates and participates in cardioprotection (6).

Several ion channels have been described to be regulated by palmitoylation and the underlying mechanism often involves changes in channel subcellular trafficking, cell-surface expression, and clustering (7). Although K_ATP channels are targets of receptor signaling and PTM by protein phosphorylation (8), it is currently unknown how lipidation affects these channels or their regulation. Circulating palmitate is transported into cells and converted to palmitoyl-CoA, which can serve as the substrate for palmitoylation. A physiological role for long-chain acyl-CoA esters to activate K_ATP channels has been known for almost two decades (9, 10) and it is possible that some or all of these effects are due to S-palmitoylation. The purpose of these studies was therefore to investigate regulation of K_ATP channels by S-palmitoylation. We found that long-chain acyl-CoA and palmitoylation activate K_ATP channels in a similar manner, but through different mechanisms. The Cys¹⁶⁶ residue of Kir6.2 is specifically modified by regulated palmitoylation, which leads to an increased open state without affecting trafficking effects or surface expression. Palmitoylation at this residue—or mutations at Cys¹⁶⁶ that are associated with developmental delay, epilepsy, and neonatal diabetes—lead to molecular conformational changes that impact PIP₂ binding. These data point to K_ATP channel regulation by acyl-CoAs through semiredundant mechanisms. Strategies aimed at regulating the palmitoylation state of certain Kir channels (such as K_ATP channels) may represent new therapeutic opportunities for altering the channel open state, with clinical relevance in diabetes and heart disease.

Results

Kir6.2, but Not SUR, Is Palmitoylated.

To examine regulated palmitoylation (i.e., altering the palmitoylation state when modulating the S-palmitoylation pathway), 2-bromo-palmitate (2-BP) is often employed as an S-palmitoylation inhibitor (11). However, our data show that 2-BP irreversibly blocks a variety of K⁺ channels, including K_ATP channels, Kir2.1 and Kv4.3 (SI Appendix, Fig. S2), suggesting nonspecificity. We therefore employed alternative strategies to study regulated palmitoylation (SI Appendix, Fig. S1B). In one group of experiments, cells were preincubated with micromolar concentrations of C16:0 palmitic acid (PA), an intervention that promotes protein palmitoylation (12). In a complementary approach, depalmitoylation was prevented by inhibiting the thioesterases APT1 and APT2 with ML348 plus ML349 (ML) (13). To determine whether K_ATP channel subunits are S-palmitoylated, we performed acyl-biotin exchange assays to detect thioester-linked protein acyl-modifications in lysates of HEK-293 cells cotransfected with Kir6.2-myc and Flag-SUR1 (14). Kir6.2 displayed low basal levels of palmitoylation, which was significantly increased in cells preincubated with ML or PA. Regulated palmitoylation was not observed in negative control reactions or with SUR1 (Fig. 1A). Endogenous Kir6.2 in rat cardiomyocytes was also palmitoylated, and palmitoylation levels were increased by PA or ML (Fig. 1 B and C). Since both palmitate incubation and APT inhibition promoted palmitoylation, these data suggest that acyl-CoA synthetases and the acyl-transfereases are substrate-limited in these cellular assays. Caveolin, which is palmitoylated under basal conditions (15), was used as a positive control (Fig. 1 B and D). Calmodulin, which contains no cysteine residues and cannot be palmitoylated, was used as a negative control (Fig. 1B). These data demonstrate that the Kir6.2 subunit, but not SUR1, of the K_ATP channel is subject to regulated palmitoylation.

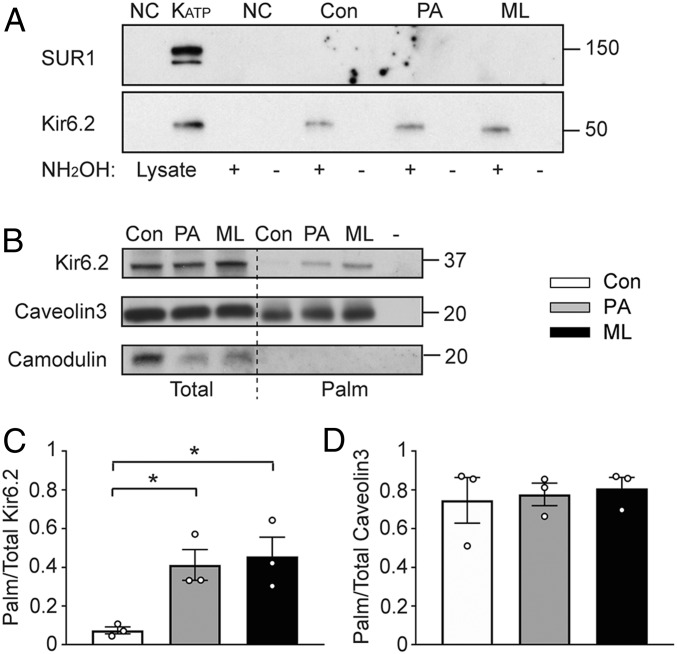

Fig. 1.

K_ATP channels are palmitoylation targets. (A) The Kir6.2 but not SUR1 subunit is palmitoylated. Lysates of HEK-293 cells cotransfected with Kir6.2-myc/Flag-SUR1 were subjected to acyl-biotin exchange assays. Negative control reactions included untransfected cells (NC) or reactions without hydroxylamine (NH₂OH), in which the Cys-palmitoyl thioester linkages remain intact and cannot bind to biotin. Representative immunoblot of biotinylated proteins to detect SUR1 (with an anti-Flag antibody) or Kir6.2 (with an anti-myc antibody). The left two lanes are cell lystes. (B) Acyl-biotin exchange assay showed Kir6.2 subunit is palmitoylated in cultured rat adult cardiomyocytes, where “-” indicates a Tris-treated group as the negative experimental control and hydroxylamine was applied to control, PA, and ML groups. Caveolin3 and camodulin were used as positive and negative control, respectively. (C) Summary data of the stoichiometry of palmitoylated Kir6.2 to total Kir6.2. (D) Summary data of the stoichiometry of palmitoylated to total caveolin3. n = 3 blots per group. *P < 0.05 vs. control determined by Dunnett’s test following the ANOVA with repeated measures. Note that wild-type Kir6.2 migrates at ∼37 kDa (e.g., in B), whereas Kir6.2-myc, which has six C-terminal myc epitopes, migrates at a ∼50 kDa (e.g., in A).

Palmitoylation Positively Regulates K_ATP Channels.

To determine the functional consequences of palmitoylation, recordings of K_ATP channel activity were made using inside-out membrane patches in ATP-free conditions using cells that were preincubated with either PA or ML for 24 h. Both of these interventions led to a significant increase in the mean patch current of native K_ATP channels in isolated cardiac myocytes (Fig. 2), rat insulin-secreting INS-1 cells, and HEK-293 cells transfected with Kir6.2/SUR1 or Kir6.2/SUR2A subunit combinations (SI Appendix, Fig. S3 A–C). Moreover, higher ATP concentrations were needed to block channel activity, illustrated by a rightward shift of the ATP-sensitivity curves (Fig. 2B and SI Appendix, Fig. S3 A–C). We next used a truncated Kir6.2ΔC36 subunit, in which the endoplasmic reticulum retention motif is deleted to allow expression by itself (16), to determine if Kir6.2 can be palmitoylated in the absence of SURx. Patch-clamp data demonstrated that PA and ML increased the Kir6.2ΔC36 mean patch current and caused an apparent right-shift in the ATP-sensitivity curve (SI Appendix, Fig. S3D). Overall, these data demonstrate that K_ATP channel activity is positively regulated by S-palmitoylation and that palmitoylation of Kir6.2 is sufficient to recapitulate the functional effects observed with the full channel.

Fig. 2.

Palmitoylation modulates endogenous K_ATP channels. (A) Representative inside-out current recordings obtained from cardiac myocytes in control, PA, and ML groups. ATP concentrations were switched as indicated. The mean patch current was recorded at a membrane potential of −80 mV and defined by the current component blocked by 1 mM ATP applied to the cytosolic face of the patch. The ATP-sensitivity of K_ATP channels was determined by plotting the K_ATP current (normalized to the maximum current) as a function of the cytosolic ATP concentration. Data from individual patches were subjected to curve fitting to a modified Boltzmann equation, yielding IC₅₀ values for ATP inhibition. (B) Summary data of mean patch currents and IC₅₀ of ATP-sensitivity for control, PA, and ML groups in cardiomyocytes. n ≥ 6 patches in each group. *P < 0.05, **P < 0.01 vs. the control group determined by Dunnett’s test following the ANOVA with repeated measures.

Micromolar concentrations of long-chain acyl-CoAs, such as oleoyl-CoA and palmitoyl-CoA, activate K_ATP channels functionally similar to regulated palmitoylation (e.g., in part by reducing the channel’s ATP sensitivity) (9, 10, 17). The underlying mechanism has not been fully resolved. Our data (SI Appendix, Fig. S4) suggest that palmitoyl-CoA activates K_ATP channels independently of palmitoylation. Arguments include: 1) The rapid time course of activation (preincubation with palmitate is needed to activate K_ATP channels); 2) acute application of palmitoyl-CoA (1 µM), but not palmitate (10 µM), activates K_ATP channels; and 3) “spontaneous” nonenzymatic palmitoylation of cysteine residues may occur at millimolar concentrations of palmitoyl-CoA, but has not been demonstrated at micromolar concentrations. Moreover, two separate DHHC inhibitors, tunicamycin or cerinurien, failed to prevent activation of K_ATP channels by palmitoyl-CoA. Therefore, overall these data demonstrate a complexity of K_ATP regulation by low physiological concentrations of acyl-CoAs that depend both on palmitoylation and direct effects (possibly direct lipid effects). Subsequent experiments focus on mechanisms by which S-palmitoylation activates K_ATP channels.

Palmitoylation of Kir6.2 at Cys¹⁶⁶ Regulates K_ATP Channel Function.

We next determined the specific intracellular Kir6.2 cysteine residues that are S-palmitoylated. Kir6.2 has seven cysteine residues that are highly conserved across species, of which five are within intracellular domains (SI Appendix, Fig. S5). Bioinformatic analysis with CSS-Palm 3.0 predicted Cys¹⁶⁶ as a likely candidate, which is further supported by the proximity of this residue to the inner membrane interface (18) (Fig. 3A). The active site of DHHC palmitoyl acyltransferases is positioned close to the membrane–cytosol interface (SI Appendix, Fig. S1) (19), and S-palmitoylation is therefore governed primarily by the proximity and accessibility of the transferase to target cysteine residues located near the membrane cytosolic face. Although the sequences surrounding the target cysteine are involved in recognition by specific DHHCs (20), a recent cysteine-scanning mutagenesis study demonstrated that S-palmitoylation can occur at any cysteine residue near the inner membrane interface, without an apparent need for an amino acid “consensus” sequence (21). The same study demonstrated that palmitoylation can occur up to 8 Å (e.g., approximately five to six residues/1.5 turn of an α-helix) into the membrane (21), most likely due to the ability of DHHC enzymes to locally reshape the membrane (22). Several of the ion channel palmitoylation sites identified to date are in fact near a membrane interface (7). Attempts have previously been made to explore the biochemical nature of residue Cys¹⁶⁶ as a modifier of channel gating (23). Mutagenesis of Cys¹⁶⁶ in Kir6.2 to leucine, serine, threonine, alanine, methionine, or phenylalanine all greatly increase the open state of Kir6.2-ΔC26 channels, whereas substitution with a valine lacked this effect. To avoid confounding effects on gating in data interpretation, we generated a C166V mutation, which prevented palmitoylation of Kir6.2 by ML or PA (Fig. 3 B and C), thus demonstrating that Kir6.2 Cys¹⁶⁶ is the major regulated palmitoylated site of K_ATP channels.

Fig. 3.

Palmitoylation of Kir6.2 at position Cys¹⁶⁶ regulates K_ATP channel function. (A) Side view of Kir6.2 tetramer, with one Cys¹⁶⁶ highlighted in red (PDB ID code 6C3P). (B) Representative immunoblots of acyl-biotin exchange assay and (C) The normalized ratios of palmitoylated Kir6.2 to total Kir6.2 are shown for wild-type and C166V mutated K_ATP channels transfected in HEK-293 cells. n = 3 blots per group. *P < 0.05 vs. control determined by Dunnett’s test following the ANOVA with repeated measures. Summary data of mean patch currents for Kir6.2-ΔC36 (D) and Kir6.2/SUR1 (E) channels carrying C166V mutation. n ≥ 11 patches in each group.

We performed patch clamping to verify the functional relevance of Cys¹⁶⁶. Similar to the previous report (23), the C166V mutation by itself did not significantly affect the mean patch current or ATP sensitivity, either when expressed by itself (Kir6.2-C166VΔC36) or with SUR1 (SI Appendix, Fig. S6). The Kir6.2-C166VΔC36 or Kir6.2-C166V/SUR1 channels, however, became unresponsive to PA or ML (Fig. 3 D and E). These data demonstrate that Kir6.2 Cys¹⁶⁶ is the sole residue that mediates the positive regulation of K_ATP channels by palmitoylation.

Palmitoylation Does Not Increase the K_ATP Channel Surface Expression.

The hydrophobic nature of the palmitate moiety can anchor target proteins to specific membranes or subcellular compartments (4, 5). Indeed, the surface expression of several G protein-coupled receptors, ion channels, and transporters is promoted by palmitoylation (7). To investigate whether the increased mean patch K_ATP channel current is due to enhanced membrane targeting, we biochemically assessed the surface expression of K_ATP channels. As in our previous study (24), we performed surface biotinylation of Kir6.2 with an extracellular Avi tag (Avi-Kir6.2), which functions and traffics similar to wild-type Kir6.2. The Avi-Kir6.2/SUR1 channels were expressed in HEK-293 cells and we confirmed that they are palmitoylated similarly to the wild-type channel (SI Appendix, Fig. S7A). Pretreatment with PA or ML affected neither the total Kir6.2 protein level nor the surface expression of K_ATP channels (SI Appendix, Fig. S7B). Thus, it appears likely that palmitoylation regulates the K_ATP channel open probability.

Palmitoylation Positively Regulates the K_ATP Channel Open Probability.

To investigate whether palmitoylation affects K_ATP channel dwell kinetics, we studied Kir6.2ΔC36 in the absence of SUR in inside-out membrane patches. We found the unitary current amplitude to be unaffected by PA or ML (SI Appendix, Fig. S8). Event detection and dwell-time kinetic analysis was performed with recordings obtained immediately after patch excision to avoid confounding effects of rundown. Open-time histograms were subjected to curve fitting with a single exponential function and closed-time histograms with a sum of three exponential functions. This analysis showed that the mean open times were unchanged by PA or ML. Similarly, the short and intermediate closed states were unaffected. In contrast, the time constant of the longest closed state, which represents the interburst closed time, was significantly reduced by PA and ML (Table 1 and SI Appendix, Fig. S8). To examine bursting behavior, we fitted the burst duration distribution with a sum of two exponential functions (SI Appendix, Fig. S8). The interburst interval was significantly reduced (Table 2), demonstrating that bursting occurred more frequently with PA or ML treatment. Thus, palmitoylation destabilizes the closed state, leading to an overall increase in K_ATP channel open probability. PA or ML treatment also led to an increased open probability of endogenous K_ATP channels in INS-1 cells, without having an effect on the unitary current amplitude (SI Appendix, Fig. S9).

Table 1.

Single channel kinetics of K_ATP channels

	τOpen (ms)	τClose1 (ms)	τClose2 (ms)	τClose3 (ms)	αClose1	αClose2	αClose3	Po
Control	0.99 ± 0.02	0.37 ± 0.01	46.6 ± 6.6	1,043 ± 141	0.56 ± 0.01	0.41 ± 0.01	0.02 ± 0.003	0.02 ± 0.002
PA	0.95 ± 0.02	0.39 ± 0.01	38.9 ± 3.8	583.1 ± 122*	0.55 ± 0.03	0.43 ± 0.03	0.01 ± 0.005	0.05 ± 0.007*
ML	1.05 ± 0.07	0.41 ± 0.01	28.5 ± 3.8	425.5 ± 145*	0.65 ± 0.05	0.32 ± 0.04	0.01 ± 0.005	0.05 ± 0.007*

Summary of data from experiments depicted in SI Appendix, Fig. S8. PA and ML refer to cells preincubated for 24 h, respectively, with 10 μM palmitic acid or with a combination of 10 μM ML348 and 10 μM ML349, n ≥ 4 patches in each group.

^*P < 0.05 vs. control determined by Dunnett’s test following the ANOVA with repeated measures.

Table 2.

Burst analysis of K_ATP channels

	τburst1 (ms)	τburst2 (ms)	αburst1	αburst2	Tinterburst (ms)
Control	2.15 ± 0.64	189 ± 17.0	0.19 ± 0.01	0.80 ± 0.01	409 ± 25.5
PA	1.35 ± 0.28	232 ± 48.4	0.22 ± 0.03	0.77 ± 0.03	279 ± 43.4*
ML	0.89 ± 0.06	175 ± 55.2	0.19 ± 0.03	0.80 ± 0.03	189 ± 39.1*

PA and ML refers to cells preincubated for 24 h, respectively, with 10 μM palmitic acid or with a combination of 10 μM ML348 and 10 μM ML349, n ≥ 4 patches in each group.

^*P < 0.05 vs. control determined by Dunnett’s test following the ANOVA with repeated measures.

Palmitoylation of Cys¹⁶⁶ Sensitizes the K_ATP Channel to PIP₂.

PIP₂ promotes the transition of the K_ATP channel from closed state to open state. Since the palmitoylated K_ATP channel had an increased open probability and reduced ATP sensitivity, we next tested the hypothesis that palmitoylation of Cys¹⁶⁶ affects K_ATP channel PIP₂ sensitivity. Ca²⁺-induced rundown of K_ATP channels in excised patches occurs from the hydrolysis of PIP₂ by activation of an endogenous Ca²⁺-dependent phospholipase C (PLC) (25, 26) and can be partially restored by PIP₂-diC8 (26). We found that PIP₂ more effectively reactivated K_ATP channel current after Ca²⁺-induced rundown in patches from ventricular myocytes when preincubated with ML or PA (Fig. 4 A and B). Similar data were obtained with wild-type Kir6.2/SUR2A, but not with Kir6.2-C166V/SUR2A (Fig. 4 C and D). These data demonstrate that at any given PIP₂ level, palmitoylation of Kir6.2 at Cys¹⁶⁶ increased the open probability of both transfected and native K_ATP channels.

Fig. 4.

Palmitoylation enhances K_ATP channel PIP₂ sensitivity. (A) Representative inside-out current recordings obtained from cardiomyocytes in control, PA, and ML groups. PIP₂–diC8 concentrations were switched as indicated right after Ca²⁺ induced rundown. (B) Fractional currents (recovered currents normalized by the baseline current) for control, PA, and ML groups in cardiomyocytes was plotted as a function of PIP₂–diC8 concentration and subjected to curve fitting to a modified Hill equation. Summary data of fractional currents for 1 µM (C) and 10 µM (D) PIP₂–diC8 in HEK-293 cells transfected with either wild-type or C166V mutated K_ATP channels. n ≥ 6 patches in each group. *P < 0.05, **P < 0.01 vs. control determined by Dunnett’s test following the ANOVA with repeated measures.

Physiological Relevance: Palmitoylation Blunts α1-Adrenoreceptor Regulation of K_ATP Channels.

Membrane PIP₂ levels, a key regulator of K_ATP channel activity (25, 27, 28), are determined by a balance between PLC-mediated hydrolysis and replenishment by PI kinases (29). Signaling of several hormone receptors converges on regulating PLC activity, including muscarinic, α1-adrenergic (AR), endothelin, and angiotensin receptors (30), which all inhibit Kir channels (31–33). We previously demonstrated that α1-AR stimulation inhibits cardiac K_ATP channel activity by depleting membrane PIP₂ levels (34), which we directly measured with a fluorescent PIP₂ reporter protein (PLCδ PH-GFP). Since lipidation sensitizes the K_ATP channel to PIP₂, we hypothesized that lipidated channels will become less responsive to α1-AR–mediated PIP₂ hydrolysis. As expected, the α1-adrenoreceptor agonist methoxamine (MTX; 300 µM) reversibly inhibited pinacidil-evoked whole-cell K_ATP current in cardiac ventricular myocytes (34). The degree of MTX-induced inhibition was significantly reduced by PA or ML (Fig. 5B). This finding could be recapitulated when using HEK-293 cells cotransfected with Kir6.2, SUR2A, and α1-adrenoreceptor cDNAs (Fig. 5C). Notably, the lipidation response was lost in the palmitoylation-negative Kir6.2-C166V channel (Fig. 5 A and C), demonstrating that the change of K_ATP channel sensitivity to membrane PIP₂ is entirely attributed to an action on Kir6.2-C166.

Fig. 5.

Palmitoylation desensitizes K_ATP channel to membrane PIP₂ change. (A) Representative whole-cell K_ATP current recordings from PA treated HEK-293 cells transfected with α1-adrenoreceptor and either wild-type or C166V mutated K_ATP channels (Kir6.2/SUR2A). Pinacidil and MTX are applied as indicated. Percentage of remaining (minimum current recorded at the presence of MTX normalized by the maximum current with pinacidil only) for control, PA, and ML groups in cardiomyocytes (B) and HEK-293 cells transfected with either wild-type or C166V mutated K_ATP channels (C). n ≥ 3 patches in each group. *P < 0.05, **P < 0.01 vs. control determined by Dunnett’s test following the ANOVA with repeated measures.

KCNJ11 Variants at Cys¹⁶⁶ Associated with Genetic Disorders also Regulate K_ATP Channel Open Probability.

Variants in KCNJ11 and ABCC8 (the genes coding for Kir6.2 and SUR1) are commonly associated with diabetes (35). Interestingly, there are two KCNJ11 variants (p.Cys166Phe and p.Cys166Tyr) at the palmitoylated Cys¹⁶⁶ residue associated with cases of developmental delay, epilepsy, and neonatal diabetes (ClinVar accession numbers: VCV000021197.1 and VCV000008679.1). Kir6.2-C166F-ΔC26 has previously been shown to increase the K_ATP channel open probability (23) but Kir6.2-C166Y has not been characterized. Here we functionally characterized both mutants in HEK-293 cells when coexpressed with SUR1. Each of the variants reduced the mean patch current (Fig. 6A), but strongly mitigated the apparent sensitivity of the channel to intracellular ATP, with IC₅₀ values increasing by two orders-of-magnitude (Fig. 6B), which overall represents a gain-of-function and potentially clinically relevant phenotype. As expected, both mutants were insensitive to interventions that promote palmitoylation (SI Appendix, Fig. S10). Moreover, Ca²⁺-dependent PIP₂ depletion led to significant “rundown” of wild-type Kir6.2/SUR1 channels, which could be partially restored by PIP2-diC8 (Fig. 6C). In contrast, Kir6.2-C166Y/SUR1 channels were relatively insensitive to Ca²⁺ under the same experimental conditions, but could be blocked by the nonspecific Kir channel pore blocker, Ba²⁺ (Fig. 6 C and D). These data demonstrate that the open state of Kir6.2-C166Y can be maintained at significantly lower PIP₂ concentrations compared to wild-type.

Fig. 6.

KCNJ11 variants at Cys¹⁶⁶ associated with genetic disorders also regulate K_ATP channel activity. (A) Summary data of mean patch currents for wild-type K_ATP channel and channels carrying C166F and C166Y mutations. (B) Fractional currents (normalized by the mean patch current in the absence of ATP) were plotted as a function of ATP concentration and subjected to curve fitting to a modified Hill equation for wild-type K_ATP channel and channels carrying C166F and C166Y mutations. n ≥ 3 patches in each group. *P < 0.05, **P < 0.01, ***P < 0.005 vs. wild-type determined by Dunnett’s test following the ANOVA with repeated measures. (C) Representative inside-out current recordings from wild-type and C166Y K_ATP channels, perfused with 100 μM Ca²⁺, 10 μM PIP₂-diC8 and 1 mM Ba²⁺. Dashed lines indicate closed state. (D) Summarized data of percentage of Ca²⁺-induced rundown for wild-type and C166Y K_ATP channels. n ≥ 4 patches in each group. ***P < 0.005 vs. wild-type determined by unpaired t test.

The Palmitoyl Moiety of Palmitoyl-Cys¹⁶⁶ Makes Direct Hydrophobic Contact with PIP₂ in a 3D Model, Potentially Promoting the K_ATP Channel Open State.

An X-ray crystallographic structure of mouse Kir3.1 (PDB ID code 3SYQ; 3.44 Å) bound to PIP₂ in the channel’s open conformation and a low-resolution cryogenic electron microscopy (cryo-EM)-derived structural model of Kir6.2 in its closed, ATP-bound conformation (PDB ID code 6C3P; 5.6 Å) have been reported (36, 37). We recently published a new method to model ion channels to maximal atomic-detail accuracy from low-resolution X-ray and cryo-EM data (38), which enables accurate 3D modeling of ion channels. With these structure coordinates as templates, we generated 3D models of the Kir6.2-palmitoyl-C166, Kir6.2-C166V, Kir6.2-C166F, and Kir6.2-C166Y homotetramers in both the open and closed states. In both states, the palmitoyl moiety of palmitoyl-C166 of one monomer extends directly toward the hydrophobic ether moieties of the C8-PIP₂ ligand (present in the 3SYQ high-resolution structure) bound to an adjacent monomer, with the open state placing the palmitoyl, Phe, or Tyr, slightly closer (Fig. 7). The distance is just great enough that the large hydrophobic palmitoyl, Phe, or Tyr, can span the solvent cavity between the Cys¹⁶⁶ peptide backbone and the PIP₂ molecular surface, but the smaller Val cannot. As hydrophobic contacts are the driving force of binding affinity, this structural model predicts increased PIP₂ sensitivity with Kir6.2-palmitoyl-C166, Kir6.2-C166F, and Kir6.2-C166Y, since a new hydrophobic contact with the PIP₂ ligand is made with these modifications, but absence of increased binding with Kir6.2-C166V. Since Cys¹⁶⁶ is at the cytosolic end of the inner helix of one monomer and PIP₂ is at the cytosolic end of the outer helix of the adjacent monomer, the model also predicts that palmitoyl/Phe/Tyr binding to PIP₂ brings these two helices closer together, which, from inspection of the structure, is predicted to straighten them slightly and opening the connected, adjacent inner helix gate.

Fig. 7.

C166-bound palmitate chain can directly contact PIP₂. (A) Side view of the Kir6.2 pore-forming tetramer (each monomer is displayed in ribbon depiction in a different color: Purple, yellow, green and gray) in the open conformation (PDB ID code 3SYQ) with Cys¹⁶⁶ from the green monomer palmitoylated and the PIP₂ binding site from the purple monomer displayed. The carbon chain of palmitoyl-C166 contacts the hydrophobic ether moeities of PIP₂. A model of the green monomer based on the closed state (PDB ID code 63CP) is superimposed. (B) Magnified same view as in A of the palmitoyl-C166 interaction with PIP₂, showing the expected projections of C166F, Y, and V. (C) View perpendicular to the membrane from the intracellular face of the pore of Kir6.2 showing the proximity of the inner helix gate to the palmitoyl-C166 interaction with PIP₂ at the cytosolic membrane interface.

Palmitoylation of Other Kir Channels.

Multiple sequence alignment of human Kir channels show that the Kir6.2-C166 is conserved in Kir6.1 and Kir3.x, but not in other Kir channels (Fig. 8A). We therefore tested if this specific cysteine is a conserved palmitoylation site in these Kir channels. HEK-293 cells were transfected with Kir2.1, Kir6.1/SUR2A, or Kir3.4 and subjected to an acyl-biotin exchange assay, which demonstrated that (as with Kir6.2) palmitoylation was induced by PA for Kir6.1 and Kir3.4, but not with Kir2.1, which lacks a cysteine residue at the corresponding site (Fig. 8B). When introducing a cysteine at this position in Kir2.1 (Kir2.1-A178C), palmitoylation can be forced, which demonstrates the relevance of the cysteine residue in proximity to the inner membrane interface for lipidation to occur.

Fig. 8.

Conserved palmitoylation site across Kir channels. (A) Of the human inward rectifier K⁺ channel (Kir) subunits, only the Kir3.x and Kir6.x subfamilies have a conserved cysteine residue at the inner membrane interface (dark box). Shown are sequence alignments of Kirx.x subunits of selected regions that span the inner membrane interface. The light blue boxes, respectively, indicate the start and end of the M1 and M2 transmembrane helixes. Shading is by group conservation. The boxed Cys is the putative palmitoylation site. (B) Representative acyl-biotin exchange assay immunoblots and the ratios of palmitoylated to total Kir subunits for Kir6.1, Kir3.4, Kir2.1, and Kir2.1-A178C. n ≥ 3 blots per group. *P < 0.05 vs. control determined by unpaired t test.

Discussion

Our data demonstrate that physiologically relevant low concentrations of long-chain acyl-CoAs and interventions that promote palmitoylation similarly increase K_ATP channel activity by causing an apparent decrease in the channel’s sensitivity to ATP. There are at least two underlying mechanisms, with long-chain acyl-CoAs having rapid (and possibly direct) effects, whereas enzymatic regulation of the K_ATP channel by S-palmitoylation occurs over a slower time scale. Our studies have focused on studying the mechanism of the latter and we show that S-palmitoylation occurs at residue Cys¹⁶⁶ of Kir6.2, which is sufficient for functional activation. The K_ATP channel surface expression is unaffected by palmitoylation, but the dwell times are significantly altered as to destabilize the channel’s closed state. Molecular modeling predicts an underlying mechanism of a new tertiary structural contact being formed between the C166 position and PIP₂, which is hypothesized to result in enhanced PIP₂ binding. The new tertiary contact, in turn, is predicted to alter helical packing around the pore to favor the open state. Enhanced PIP₂ sensitivity, consistent with this predicted model, was demonstrated by independent patch clamp studies. Disease-causing mutations of Cys¹⁶⁶ may promote channel opening by a similar mechanism. A wider screen of Kir channels showed that a specific cysteine near the membrane–cytosol interface beneath the second transmembrane domain is a conserved palmitoylation site in several Kir channels.

Palmitoylation as a Regulator of Channel Surface Density.

Lipid modifications of proteins can increase membrane targeting since the hydrophobic moiety can serve as a membrane anchor. Ras, for example, requires palmitoylation to reach the membrane (3). Palmitoylation as a mechanism for protein delivery is emerging as a common process for membrane targeting, subcellular distribution, and polarized trafficking within cells (4, 5). Palmitoylation also increases the subcellular trafficking, cell-surface expression, and clustering of several ion channels (7). In contrast, we have not observed changes in K_ATP channel surface membrane expression by palmitoylation when measured with surface biotinylation assays. Moreover, there were no significant alterations in the subcellular localization of K_ATP channels in cardiac ventricular myocytes (SI Appendix, Fig. S11). The effects of palmitoylation on K_ATP channels therefore appear to be primarily due to changes in gating.

Palmitoylation as a Regulator of Channel Gating.

Palmitoylation has not generally been shown to be a major regulatory mechanism of the intrinsic activity or as a gating modifier of ion channels. An exception worth noting is that Kv1.1 was shown to be palmitoylated at residue Cys²⁴³ under basal conditions (39). Mutagenesis of this residue (C243A) reduces current density (consistent with trafficking defects) and also caused a 20-mV hyperpolarizing shift in the voltage-dependence of activation, but is not clear whether this effect was caused by eliminating effects of palmitoylation or whether this result occurred because of the mutation. Another example is that incubation of neonatal cardiomyocytes with palmitate causes a relatively small depolarizing shift (by ∼7 mV) of the steady-state inactivation curve of the Na⁺ current with an increase in the “late” current, without affecting the I_Na inactivation rates or Na⁺ current amplitude (12). 2-BP had much more pronounced effects in the latter study, but this finding should be interpreted with caution since we found this compound to rapidly (within seconds) and irreversibly lead to inactivation of several classes of K⁺ channels, including the inward rectifying Kir2.1 channel, which is not palmitoylated. Moreover, these effects of 2-BP were likely not related to palmitoylation since they could not be reversed by palmitate. Overall, the published literature therefore does not make a strong case for palmitoylation as a significant regulator of channel gating. In contrast, our present data demonstrate that palmitoylation significantly increases the stability of the open state of the K_ATP channel, with increased open probability and reduced ATP sensitivity, which leads to overall increase in channel activity. It is not clear whether the reduced ATP sensitivity represents a real change (e.g., in ATP binding affinity) or whether this is an apparent change resulting from the fact that ATP binds to the channel in the closed state, which is less readily available after palmitoylation.

Kir6.2 Residue Cys¹⁶⁶ as a Regulator of Channel Function.

A variety of approaches led us to conclude that Cys¹⁶⁶ is the key residue that is palmitoylated and responsible for transduction of functional alterations of the K_ATP channel. First, Kir6.2 currents are increased regardless of whether it is expressed by itself (Kir6.2-ΔC36) or in the presence of SUR1 or SUR2A. Using bioinformatics, acyl-biotin exchange assay, and mutagenesis, we have established that Cys¹⁶⁶ is a palmitoylation target. Mutagenesis of Cys¹⁶⁶ eliminates the functional effects of palmitoylation, even when Kir6.2 is coexpressed with SURx subunits, demonstrating the importance of this residue and the absence of functionally relevant palmitoylation sites in SURx. Attempts have previously been made to explore the biochemical nature of residue Cys¹⁶⁶ as a modifier of channel-gating (23). Mutagenesis of Cys¹⁶⁶ in Kir6.2 to leucine, serine, threonine, alanine, methionine, or phenylalanine were shown all to greatly increase the open state of Kir6.2-ΔC26 channels, whereas substitution with a valine lacked this effect. In the present study, we found that a phenylalanine or a tyrosine residue at the 166 position also greatly increases K_ATP channel open probability. A palmitate group (which also increases channel activity) adds bulk and hydrophobicity but does not affect charge. Overall, there is no consistent side-chain property of the residue at position 166 that can adequately explain the effect on channel kinetics. We therefore turned to molecular modeling in an attempt to clarify the mechanisms by which modification of Cys¹⁶⁶ alters gating.

For hERG and Ca²⁺-activated K⁺ channels, gating occurs at the selectivity filter. For many eukaryotic Kv and Kir channels, however, gating occurs near the intracellular membrane interface at the helix bundle crossing (HBC) (SI Appendix, Fig. S12). The restriction point is mediated by a conserved phenylalanine, F168 or F181, respectively, for Kir6.2 or Kir3.1 (40) (SI Appendix, Fig. S12), and only a slight shift of the M2 helix distinguishes the closed and open conformations. Kir6.2-C166 is located in the hydrophobic protein core in close proximity to this gate and modification of the cysteine at Kir6.2-C166 by mutagenesis or palmitoylation can potentially affect HBC gating by a variety of hypothesized mechanisms. 1) Abrogating disulfide bonds at this cysteine: This can largely be ruled out since there are no other cysteines adjacent to Cys¹⁶⁶ (SI Appendix, Fig. S13). 2) Disrupt the tight packing of Cys¹⁶⁶ with other hydrophobic residues in the protein core and lead to conformational changes and repositioning of the HBC gate due to protein instability. 3) Other, as yet undiscovered, mechanisms: Palmitoylation has been reported to modify the relationship of membrane proteins with PIP₂ (41, 42). Our 3D model reveals a clear mechanism by which modification of Cys¹⁶⁶ could hypothetically lead to repacking of helices lining the pore by way of increased contact with PIP₂. Such a contact is also predicted to result in increased PIP₂ binding, which may modulate the sensitivity of the channel to this activator (43). In contrast, C166V had no such effect, consistent with its lack of functional effects in the patch-clamp studies. The computational approaches yield predictions that can be tested experimentally, and we have shown that (as predicted), the channel’s sensitivity to PIP₂ and to α1-adrenoreceptor stimulation is significantly affected by palmitoylation or side-chain alterations at Cys¹⁶⁶. These data highlight a key role for Kir6.2-C166, lipidation of this residue or generic variants affecting this residue, in human health and disease.

Physiological and Pathophysiological Relevance.

Regulation of K_ATP channels by acyl-CoAs is well established. For example, K_ATP channel activation has been reported by intracellular accumulation of acyl-CoA, which occurs in high glucose conditions and in response to inhibition of acyl-carnitine transferease by etomoxir (9). Our data show that in addition to the acute regulation of the channel by acyl-CoAs, enzymatic regulated S-palmitoylation is an additional mechanism that mediates the function of long-chain acyl-CoAs. The roles of palmitoylation in human health and disease remains incompletely characterized. We show here that palmitoylation of Kir6.2 modulates the sensitivity of K_ATP channels to α1-adrenoreceptor stimulation. A potential role of palmitoylation may also exist during reoxygenation following an anoxic period in cardiomyocytes, which causes massive endocytosis that coincides with activation of K_ATP channels (44). Modification of the Kir6.2-C166 palmitoylation site is also associated with insulin secretion disorders and Cantú syndrome. Genetic variants in both KCNJ11 and ABCC8 (the genes that, respectively, encode the Kir6.2 and SUR1 subunits) are associated with several types of insulin secretion disorders and diabetes (35). Interestingly, at the Cys¹⁶⁶ residue that we have identified as a palmitoylation target, two KCNJ11 variants have been reported to be associated with developmental delay, epilepsy and neonatal diabetes. The missense variants, NM_000525.3(KCNJ11):c.497G > T (p.Cys166Phe) and NM_000525.3(KCNJ11):c.497G > A (p.Cys166Tyr), are both predicted to be pathogenic by American College of Medical Genetics standards, but both lacked assertion criteria. These variants are absent in the GenomeAd database, which represents over 200,000 alleles. Given their potential pathogenicity and that these variants are novel, we characterized them functionally. Patch-clamp studies showed that both variants caused a reduction in K_ATP channel density, which was offset by an ∼100-fold reduction of the ATP sensitivity of the channel.

These data suggest an overall gain-of-function phenotype since significant K_ATP currents can be present even when the intracellular ATP levels are high. Since palmitoylation of Cys¹⁶⁶ also elevates K_ATP channel opening, it is possible that this lipid posttranslational modification may be involved in inhibiting insulin secretion. This argument is supported by the finding that chronic palmitate exposure decreases glucose-induced insulin secretion from pancreatic islets (45). Even though the latter studies attributed the effect to alteration in fatty acid oxidation, our data suggest a potential contribution by palmitoylation, which may represent a new therapeutic target. Multiple sequence alignment of human Kir channels show that the Kir6.2-C166 is also conserved in Kir6.1 (Cys¹⁷⁶), and we demonstrated that Kir6.1 is also a palmitoylation target (Fig. 8). Interestingly, a mutation at the conserved cysteine (Kir6.1-C176S), resulting in gain of K_ATP channel function, has been characterized to induce Cantú syndrome (46), which may indicate a potential role of palmitoylation in this syndrome.

Limitations.

So far, there are no specific antibodies or assays for palmitoylation detection. Acyl-biotin exchange assays are widely used, but as it detects palmitoylated proteins through detection of the palmitoyl–cysteinyl thioester linkage, any proteins or posttranslational modifications that utilize thioesters for chemistries other than palmitoylation may also be purified by this assay. The assay readout therefore potentially includes other types of lipid modifications, although palmitoylation is dominant. We noticed that Kir6.2-C166V mutation was still marginally detectible with this assay (Fig. 3B), which may represent another thioester-mediated modification on Kir6.2, or possibly a stable form of palmitoylation at another cysteine residue that is not regulated by PA or ML.

SwissPalm is a web-based resource that lists identified and predicted palmitoylated proteins (47). Kir6.1, Kir6.2, and Kir3.4 (and most other ion channels shown experimentally to be palmitoylated) are not present in this database. A major limitation of the SwissPalm database, however, is that the majority of tissue and cell types represented (COS cells, HEK cells, B cells, yeast, and so forth) do not express K_ATP channels. In terms of tissue/cells that do express K_ATP channels, this database is particularly limited. Heart, for example, has a total of two hits in Release 3 (2019-09-08), whereas ventricular myocytes show one hit (a different protein), which is far fewer than the number of palmitoylated proteins identified experimentally in cardiac tissue. Thus, although useful in many cases, experimental approaches are needed to supplement this database.

Materials and Methods

cDNA Constructs and Mutagenesis.

Tagged K_ATP channel subunit constructs used are Avi-Kir6.2, Kir6.2-myc, Flag-SUR1, and Flag-SUR2A. The Kir3.4 construct is a kind gift from D. Logothetis, Northeastern University Bouvé College of Health Sciences, Boston, MA. Kir6.2 mutations (C166V, C166F and C166Y) and Kir2.1 mutation (A178C) were performed commercially and sequenced (Genscript).

Cell Culture and Transfection.

HEK-293 cells were cultured in EMEM with 10% FBS. Lipofectamine 2000 was used to transfect K_ATP channel subunit cDNAs. INS-1 rat insulin-secreting cells were cultured in RPMI-1640 supplemented with 10% FBS, 10 mM Hepes, 1 mM sodium pyruvate, and 0.05 mM 2-mercaptoethanol. Rat ventricular cardiomyocytes were enzymatically isolated as previously described (48). Cells were plated on laminin-coated coverslips and cultured in EMEM. To induce palmitoylation, HEK-293 and INS-1 cells were incubated for 24 h with either 10 μM palmitic acid or with 10 μM ML348 plus 10 μM ML349. Particularly, rat cardiomyocytes were treated with palmitate–albumin complex (49) (working concentrations are 500 µM palmitate and 125 µM albumin, at a ratio of 4), and same amount of albumin was applied in control and ML groups.

Electrophysiology.

We performed inside-out K_ATP current patch-clamp recordings as previously described in our recent study (50). After baseline subtraction, channel openings were detected by event detection using Clampfit 10.5, with the threshold set to 50% of the unitary current amplitude. Events with a duration shorter than 0.15 ms were not included in analysis. Burst analysis was performed as described previously (51). In whole-cell K_ATP current recordings, the pipettes (2∼3 MΩ) were filled with: 110 mM potassium aspartic acid, 10 mM KCl, 5 mM NaCl, 1 mM MgCl₂, 5 mM EGTA, 5 mM NaATP, 10 mM Hepes, and pH 7.2. The bath solution consisted of: 137 mM NaCl, 0.33 mM NaH₂PO₄, 5.4 mM KCl, 1 mM CaCl₂, 1 mM MgCl₂, 10 mM glucose, 10 mM Hepes, and pH 7.4. Whole-cell current–voltage relationships were obtained using a ramp protocol (−5 mV to −105 mV at −25 mV·s⁻¹, applied every 30 s).

Biotinylation Assay.

HEK-293 cells expressing Avi-tagged Kir6.2 were incubated with 0.33 mM biotin for 1 h at 4 °C. After washing with PBS, cells were homogenized in RIPA buffer. Equal amounts of biotinylated proteins were incubated with Neutravidin agarose beads (Thermo Scientific) at 4 °C overnight. The supernatants were discarded and biotinylated proteins were eluted by a mixture of loading buffer and 200 mM DTT. Western blots were quantified using ImageJ.

Acyl-Biotin Exchange Assay.

Acyl-biotin exchange assay was performed as previously described (14) with minor modifications. Briefly, cell lysate was prepared in lysis buffer (150 mM NaCl, 50 mM Tris, 5 mM EDTA, pH 7.4) with 10 mM N-ethylmaleimide, 1.7% Triton X-100, and protease inhibitors. After a brief low-speed centrifugation to remove particles and unbroken cells, 10% of the sample was kept as total lysate for Western blots. The remaining sample was chloroform–methanol-precipitated and redissolved in 300 µL 4% SDS buffer with 10 mM N-ethylmaleimide under 37 °C. After adding 900 µL lysis buffer with 1 mM N-ethylmaleimide, 0.2% Triton X-100, and protease inhibitors, samples were incubated overnight at 4 °C with gentle rocking. The next day, N-ethylmaleimide was removed by three sequential chloroform–methanol precipitation steps. The protein pellet was dissolved and divided into two equal groups. In one group, Cys-palmitoyl thioester linkages were cleaved with 700 mM hydroxylamine (NH₂OH), whereas the negative-control group used Tris instead. Any remaining chemicals were removed by one chloroform–methanol precipitation and exposed thiols of the resolubilized proteins were labeled with 200 µM biotin-HPDP (14). Biotinylated proteins in buffer with 0.1% SDS and 0.2% Triton X-100 were captured by streptavidin beads, washed four times by lysis buffer with 0.1% SDS and 0.2% Triton X-100, and subjected to SDS/PAGE.

Immunocytochemistry.

As previously described (24), isolated rat cardiomyocytes were plated on glass coverslips and fixed with 4% paraformaldehyde. Cells were permeabilized with 0.1% Triton X-100 and blocked with 5% donkey serum in PBS. Kir6.2 and secondary antibodies buffered in blocking solution were sequentially applied. After washing and mounting, images were obtained by Zeiss 700 confocal microscope (Zeiss).

Antibodies.

Primary antibodies used were: mouse anti-GAPDH (G8795, Sigma-Aldrich; 1:10,000), mouse anti-c-Myc (M4439, Sigma-Aldrich; 1:6,000), rabbit anti-Flag (F7425, Sigma; 1:4,000), mouse anti-HA (901502, Biolegend; 1:10,000), rabbit anti-Kir6.2 (Lee62; 1:1,000), and chicken anti-Kir6.2 (C62; 1:50). Secondary antibodies used were donkey anti-mouse-HRP (715-035-150, Jackson, 1:20,000), goat anti-rabbit HRP (65-6120, Thermo Scientific; 1:20,000), and donkey anti-chicken Alexa Fluor488 (703-545-155, Jackson Laboratories; 1:200).

Molecular Modeling.

All molecular modeling, alignments, and computational simulations were performed with the Internal Coordinates Mechanics software, (ICM-Pro, Molsoft). For the open-conformation K_ATP channel homology model, zero-end gap global sequence alignment between the human Kir6.2 sequence (Uniprot: Q14654) and the Kir3.2 3D structure (PDB ID code 3SYQ) produced a P value of 10⁻³² for 3D structural similarity. In prior work, precise homology modeling produces 3D structural models of equivalent accuracy to the experimental template structure (3.44 Å) when the P value is so low (52). A homology model of the human Kir6.2 channel was thus built as previously described (53), by using PDB ID code 3SYQ as a structural template. For the closed conformation of K_ATP channel, we used PDB ID code 6C3P, which was resolved by cryo-EM at 5.6 Å, as the starting point for a 3D model. Missing side chains were built into the model, followed by biased probability Monte Carlo energy minimization in order to optimize the structure (54). For point mutations, individual models exhibiting palmiotylation or mutations of cysteine-166 (Cys¹⁶⁶) were generated using the “modify” command in ICM-Pro, which replaces, in the open-conformation homology model or the closed-conformation refined model, a specified side-chain atom group and bonding pattern (in this case Cys¹⁶⁶) with the side chain atoms and bonding pattern of a different specified amino acid. The newly introduced side chain, neighboring side chains, and the local backbone are then all subjected to Monte Carlo energy minimization as a single ensemble.

Statistics.

When comparing two groups, we used the Student’s t test. A one-way or two-way ANOVA was used for comparison of multiple groups, followed by the Dunnett's t test for comparisons to a single control. A value of P < 0.05 was considered significant. The statistical model underlying the homology modeling alignments has previously been described (52).

Data Availability Statement.

All relevant material is contained within the main text or SI Appendix.
