. 2020 May 12;11:671. doi: 10.3389/fphar.2020.00671

Metabolomic Analysis Identifies Glycometabolism Pathways as Potential Targets of Qianggan Extract in Hyperglycemia Rats

Mingzhe Zhu 1,2, Meng Li 1, Wenjun Zhou 1, Guangbo Ge 3, Li Zhang 1,*, Guang Ji 1,*
PMCID: PMC7235344  PMID: 32477136

Abstract

Qianggan formula, a designed prescription according to the Traditional Chinese Medicine (TCM) theory, is widely used in treating chronic liver diseases, and indicated to prevent blood glucose increase in patients via unknown mechanisms. To unravel the effects and underlying mechanisms of Qianggan formula on hyperglycemia, we administrated Qianggan extract to high fat and high sucrose (HFHS) diet rats. Results showed that four-week Qianggan extract intervention significantly decreased serum fasting blood glucose, hemoglobin A1c, and liver glycogen levels. Gas chromatography-mass spectrometry (GC-MS) approach was employed to explore metabolomic profiles in liver and fecal samples. By multivariate and univariate statistical analysis (variable importance of projection value > 1 and p value < 0.05), 44 metabolites (18 in liver and 30 in feces) were identified as significantly different. Hierarchical cluster analysis revealed that most differential metabolites had opposite patterns between pair-wise groups. Qianggan extract restored the diet induced metabolite perturbations. Metabolite sets enrichment and pathway enrichment analysis revealed that the affected metabolites were mainly enriched in glycometabolism pathways such as glycolysis/gluconeogenesis, pentose phosphate pathway, fructose, and mannose metabolism. By compound-reaction-enzyme-gene network analysis, batches of genes (e.g. Hk1, Gck, Rpia, etc) or enzymes (e.g. hexokinase and glucokinase) related to metabolites in enriched pathways were obtained. Our findings demonstrated that Qianggan extract alleviated hyperglycemia, and the effects might be partially due to the regulation of glycometabolism related pathways.

Keywords: Qianggan extract, hyperglycemia, glycometabolism, metabolomics, gas chromatography-mass spectrometry

Introduction

Traditional Chinese medicine (TCM) has been used in clinical applications for thousands of years (Zhang et al., 2016b). TCM formulae are mainly composed of herbs and widely used to treat metabolic diseases, such as hepatic steatosis and type 2 diabetes (Liang et al., 2018; Yu et al., 2018). Herbal extracts from traditional Chinese medicines such as curcumin, capsaicin and ginsenosides have been effectively employed in preventing obesity and other metabolic diseases (Yu et al., 2018). Qianggan formula is a patent TCM drug, and composed of 16 ingredients. Qianggan formula has been implicated in clinical practice and proved to be effective in improving metabolic disease (Li et al., 2010; Gu and Huang, 2011; Wang et al., 2011). However, little has been reported the mechanisms underlying the efficacy, which needs to be clarified.

TCM is a holistic system, which comprises multicomponent complexes and has multiple therapeutic targets (Li et al., 2017). It would be helpful to apply systemic approaches to elucidate the underlying mechanisms. Metabolomics is an important part of systems biology and provides global information of small molecule metabolites in complex biological processes (Crowther et al., 2018). It offers a powerful platform to investigate metabolic pathways, identify biomarkers for diagnosing and monitoring diseases, and predict therapeutic targets of drugs (Guo et al., 2018; Procopet et al., 2018). Gas chromatography-mass spectrometry (GC-MS), which possesses high resolution, sensitivity, and available database, is one of the powerful and popular tools in metabolomics studies (Shackleton et al., 2018). It has been extensively applied to assess the effects and explore metabolic mechanisms of TCM in treating diseases. By GC-MS based plasma metabolomics, Feng D, et al. identified potential biomarkers and established metabolic networks to explain the efficacy of Xuefu Zhuyu Decoction on traumatic brain injury (Feng et al., 2017). Gou XJ, et al. employed GC-MS to elucidate the underlying mechanisms of Qushi Huayu Decoction in a fatty liver rat model and obtained 23 potential biomarkers and several regulating metabolic pathways (Gou et al., 2017). Another study using GC-MS implicated the important roles of three carbohydrate metabolism pathways of Hedyotis diffusa decoction in preventing acute liver injury (Dai et al., 2017).

In the present study, GC-MS based metabolomics (liver and fecal samples) was employed to evaluate metabolic alterations of high fat and high sucrose (HFHS) diet fed rats, and obtain Qianggan extract affected metabolites. With the aid of pattern recognition, metabolite set enrichment analysis (MSEA), pathway enrichment analysis and compound-reaction-enzyme-gene network analysis, potential candidate metabolites, and relevant metabolic pathways were identified. Our study inferred the mechanisms of Qianggan extract on hyperglycermia and suggested a new pattern for studying TCM formula on metabolic diseases.

Material and Methods

Preparation of Qianggan Extract

Qianggan formula is a marketed TCM, which was prepared by 16 herbal materials. In this study, the Qianggan extract was prepared as previously reported (Zhu et al., 2019). Briefly, all of the ingredients: Artemisia scoparia Waldst. & Kitam. (Yin-Chen) 250 g, Isatis tinctoria L. (Ban-Lan-Gen) 125 g, Angelica sinensis(Oliv.)Diels. (Dang-Gui) 125 g, Paeonia lactiflora Pall. (Bai-Shao) 125 g, Salvia miltiorrhiza Bunge. (Dan-Shen) 250 g, Curcuma wenyujin Y.H.Chen et C.Ling. (Yu-Jin) 125 g, Astragalus membranaceus(Fisch.)Bunge. (Huang-Qi) 250 g, Codonopsis pilosula(Franch.)Nannf. (Dang-Shen) 125 g, Alisma orientale(Sam.)Juz. (Ze-Xie) 125 g, Polygonatum kingianum Collett& Hemsl. (Huang-Jing) 125 g, Rehmannia glutinosa (Gaertn.) DC. (Shen-Di) 125 g, Dioscorea oppositifolia L. (Shan-Yao) 125 g, Crataegus pinnatifida Bunge.(Shan-Zha) 100 g, Medicated Leaven Massa Medicata Fermentata (Liu-Shen-Qu) 100 g, Gentiana macrophylla Pall.(Qin-Jiao) 100 g, Glycyrrhiza uralensis Fisch. (Gan-Cao) 100 g were mixed and soaked in water, and then boiled for 2 h. These herbal materials were extracted by hot-water for three times, then mixed and filtrated to get the supernatants. After then, the pH of the supernatants was adjusted to 8.0, and concentrated the solution to a density ratio of 1.35 to obtain the Qianggan water extract. The extract was re-dissolved in acetonitrile-water (1:1, v/v) for chemical profiling analysis. A Agilent 1290 UPLC system (Agilent Technologies, Palo Alto, USA) coupled with Sciex TripleTOF 4600® quadrupole-time of flight mass spectrometer (AB Sciex, Darmstadt, Germany) equipped with a DuoSpray source was used for profiling the chemical constituents in Qianggan extract. Chromatographic separation was achieved on an Acquity UPLC® HSS T3 column (2.1×100 mm, 1.7 μm; Waters, Milford, MA, USA). The mobile phase consisted of water containing 0.1% formic acid (A) and acetonitrile (B). The following gradient condition was used: 0–3.0 min, 0% B; 3.0–5.0 min, 0% B-5% B; 5.0–7.0 min 5% B-15% B; 7.0–21.0 min, 15% B-30% B; 21.0-24.0 min, 30% B–48% B; 24.0-30.0 min, 48% B–60% B; 30.0-34.0 min, 60% B-95% B; 34.0–36.0 min, 95% B; 36.0–36.1 min, 95% B-0% B; 36.1–40.0 min, 0% B. The injection volumes for all samples were 5 μl. Column oven temperatures was set at 30 °C, while the flow rate was 0.3 ml/min. Ionization was conducted using an electrospray ionization (ESI) source. Data were collected under both positive and negative ion modes. The mass spectrometer was operated in full-scan TOF-MS at m/z 100-1500 and information-dependent acquisition (IDA) MS/MS modes, the collision energy was 40 ± 20 eV. Both ion source gas 1 and 2 were set 50 psi. Curtain gas was 35 psi. The temperature and ionspray voltage floating were 500°C and 5000/-4500 V, respectively. Data recording and processing was performed by Analyst Ver. 1.6 software (AB Sciex, USA).

Animal Experiments and Sample Collection

Six-week-old male Wistar rats were purchased from Shanghai SLAC Laboratory Animal Co. Ltd, China, and maintained in specific pathogen free (SPF) environment. According to the body weight, 24 rats were randomly divided into normal group (n=8), fed with chow diet, and HFHS group (n=16), fed with a diet composing 68% chow diet, 15% lard, 15% sucrose, and 2% cholesterol; After 6-week feeding, HFHS rats were further divided into untreated group (HFHS, n=8), and Qianggan extract intervened group (n=8) that fed with HFHS diet and administered with Qianggan extract that dissolved in distilled water (1.2 g/kg/d) via gavage. The rats were allocated with 4 per cage, and fed and/or intervened for another 4 weeks. At the end, animals were weighed after 12 h-fasting, euthanized with 2% pentobarbital sodium, and sacrificed. Blood was collected and serum was separated. The livers were weighed, divided into portions, and stored at -80°C.

The study was carried out in accordance with the recommendations of National Institutes of Health Guidelines for the Care and Use of Laboratory Animals. The protocol was approved by the Animal Ethics Committee of Shanghai University of Traditional Chinese Medicine (PZSHUTCM191227006).

Serum Biochemical Analysis

Serum alanine transaminase (ALT), aspartate transaminase (AST), triglyceride (TG), total cholesterol (TC), low density lipoprotein cholesterol (LDL-c), and blood glucose (BG) were analyzed using the Hitachi full-automatic system. Serum insulin and hemoglobin A1c (HbA1c) were analyzed by enzyme-linked immunosorbent assay (ELISA). Serum insulin and BG were used to calculate the homeostasis model assessment of insulin resistance (HOMA-IR).

Detection of Liver Glycogen

Liver glycogen was measured by commercial kit (Jiancheng Tech, Nanjing, China) according to the instructions of the manufacturer. Briefly, 25 mg of liver tissue were pretreated with 30% KOH, ethanol, and saturated sodium sulfate. After collecting the supernatants, reagent anthrone and neutralized hydrolysate were added. The final solutions of reaction were read in microplate reader at 620 nm.

GC-MS Based Metabolomics Analysis

Sample preparation, GC-MS metabolomics analysis, and metabolite identification of liver tissue and feces were conducted by Shanghai Profleader Biotech Co., Ltd (Shanghai, China). After adding 20-fold volume (μl/mg) of chloroform/methanol/water solvent (v/v/v=2:5:2) containing 10 μg/ml of L-norvaline and freezing at -40°C for 30 min, the frozen liver tissue samples were ground immediately by using a TissueLyser (type JX-24, Jingxin, Shanghai, China) with zirconia beads for 3 min at 50 Hz. The homogenates were incubated at -20°C for an hour, followed by vortex and centrifugation at 14,000 g and 4°C for 15 min. The extraction was repeated with methanol as solvent and the supernatants from the two extractions were combined. The combined supernatants (100 μl) and 13C6-15N-L-isoleucine (10 μl) were blended and dried under nitrogen gas. For the extraction of feces sample, a frozen feces sample was strongly vortexed in 10-fold volume (μl/mg) of ice-cold deionized water containing 10 μg/ml of 13C4-succinic acid, and then incubated at 4°C for 30 min. Following centrifugation at 16,000 g and 4°C for 15 min, the supernatant was collected. The extraction was repeated with deionized water as solvent and the supernatants from the two extractions were combined, followed by protein precipitation with four-fold volume (v/v) of methanol. After centrifugation, 500 μl combined supernatants were mixed and evaporated to dryness under nitrogen stream. The dried residues of liver or feces were dissolved in 30 μl methoxyamine hydrochloride in pyridine (20 mg/ml) and then incubated at 37°C for 90 min. After an addition of 30 μl BSTFA (with 1% TMCS), the sample was derivatized at 70°C for 60 min prior to GC-MS analysis. Quality control (QC) sample pooled from all samples were prepared and analyzed with the same procedure as those of the experiment samples. Blank samples were also prepared where sample was replaced by deionized water so as to monitor and remove the contaminants introduced during sample preparation and column bleeds.

Metabolomics analysis was conducted on an Agilent 7890A gas chromatography system coupled to an Agilent 5975C inert MSD system (Agilent Technologies Inc., CA, USA). The experiments were performed following the previously described protocol (Liu et al., 2018). Raw data were obtained in a full scan mode. The samples were run at random, and blank samples and QC samples were inserted during sample analysis.

Data Processing, Pattern Recognition, and Metabolites Structure Identification

GC-MS raw data were processed by TagFinder software (Luedemann et al., 2008) according to previously published methods (Gao et al., 2010). The final data was obtained, which included sample names, variables (rt_mz), and peak abundances. The added internal standards were utilized to monitor the GC-MS signal fluctuation during sample analysis. The metabolite peaks with relative standard deviation (RSD) value of abundances in QC samples larger than 30% were filtered out. After filtering, the qualified data were performed median normalization before performing further univariate and multivariate statistics.

Fold change was calculated as binary logarithm of average normalized peak intensity ratio between groups. To better understand the pattern of differential metabolites among groups, hierarchical clusters were performed by Cluster 3.0 software. Venn diagram of identified metabolites between liver and feces samples was visualized by a web tool (bioinformatics.psb.ugent.be/webtools/Venn/).

To identify the structure of differential metabolites, GC-MS raw data were imported to AMDIS software and the purified mass spectra were compared to an in-house standard library, Golm Metabolome Database, and Agilent Fiehn GC-MS Metabolomics RTL Library.

Metabolite Set Enrichment Analysis (MSEA) and Pathway Analysis

To identify biologically meaningful patterns and most relevant metabolic pathways of the differential metabolites, MSEA and pathway enrichment analysis were performed by MetaboAnalyst 4.0 (http://www.metaboanalyst.ca/) as previously described (Chong et al., 2018). To demonstrate the relationships among genes, proteins, and metabolites in related pathways, Compound-Reaction-Enzyme-Gene network was constructed by Cytoscape software plug-in Metscape (Karnovsky et al., 2012).

Statistical Analysis

By SIMCA software (version 14.1, Umetrics, Umeå, Sweden), principle component analysis (PCA) and orthogonal partial least squares discriminant analysis (OPLS-DA) were conducted for multivariate statistical analysis, where the data were preprocessed by unit variance (UV) scaling and mean centering. The model quality is estimated by R2X or R2Y and Q2 values. To avoid OPLS-DA model over-fitting, 200 times permutation tests were carried out. Then variable importance of projection (VIP) values were visualized in OPLS-DA model. For univariate statistical analysis, Welch's t test was conducted on the data of normal distribution, while Wilcoxon Mann-Whitney test was conducted on the data of abnormal distribution. Finally, the metabolites with VIP > 1 and p < 0.05 were identified as different metabolites.

Data were expressed as mean ± SD and were analyzed by one-way analysis of variance (ANOVA) by SPSS v22.0 software. P value less than 0.05 was considered as statistically different.

Results

Chemical Profiling of Qianggan Extract

The complexity of MS data acquired in both mass spectrometry (MS) and tandem mass spectrometry (MS/MS) mode requires reliable peak identification tools. In this work, SCIEX natural products HR-MS/MS Spectral Library was used for identification. The library contains additional compound entries with structural information and MS/MS spectra for 1,300 selected natural compounds. The assignment of each constitute was performed by comparing the retention times (Rt), MS data (accurate mass, isotopic distribution, and fragmentation pattern) of each constitute from Qianggan extract with SCIEX natural products HR-MS/MS Spectral Library (involving compound name, molecular formula, chemical structure, CAS No, accurate MS/MS spectra, ect.) and previously reported literature (Cao et al., 2011). With the help of PeakView 1.2 and MasterView 1.1, a total of 90 constitutes have been identified or tentatively characterized in Qianggan extract (compounds of 16 herbs) under positive or negative ion mode ( Figure 1 and Table 1 ). Among them, 4 constitutes attributed to Cynanchum otophyllum, 6 attributed to Radix isatidis, 6 attributed to Radix Angelicae sinensis, 10 attributed to Radix Paeoniae Alba, 17 attributed to Radix Salviae miltiorrhizae, 2 attributed to Curcuma aromatic, 10 attributed to Astragalus membranaceus, 2 attributed to Codonopsis pilosula, 2 attributed to Rhizoma alismatis, 2 attributed to Rehmannia glutinosa, 7 attributed to Rhizoma Dioscoreae, 3 attributed to Hawthorn, 7 attributed to Medicated Leaven, 10 attributed to Fraxinus bungeana, 23 attributed to Radix liquiritiae. Un-expectably, no metabolite was detected from Rhizoma polygonat ( Table 1 ).

Figure 1.

Figure 1

Open in a new tab

Total ion chromatogram of constitutes in Qianggan extract. Agilent 1290 UPLC system was applied to analyze the chemical profiling of Qianggan extract, data were collected under both negative ion mode (A) and positive ion mode (B), and processed by Analyst Ver. 1.6 software.

Table 1.

The detected ion chromatogram of constitutes in Qianggan extract.

No. Retention time (min) Name Formula Ion Measured m/z Calculated m/z Error (ppm) Product ion (m/z) Attribution
1 0.84 Arginine C6H14N4O2 [M+H]+ 175.1194 175.1190 2.6 175.1197; 116.0707; 70.0646; 60.0558 Radix isatidis, Rhizoma Dioscoreae
2 1.01 Gentianose C18H32O16 [M+FA-H]- 549.1685 549.1672 2.3 549.1627; 503.1618; 341.1129; 221.0645; 179.0583; 143.0365; 89.0232; 59.0125 Fraxinus bungeana
3 1.09 Stachyose tetrahydrate C24H42O21 [M-H]- 665.2150 665.2146 0.6 665.2138; 485.1512; 443.1401; 383.1181; 341.1066; 221.0651; 179.0551; 161.0443; 101.0234 Radix Salviae miltiorrhizae
4 1.39 Sucrose C12H22O11 [M-H]- 341.1072 341.1089 -5.1 341.1068; 179.0541; 149.0442; 115.0031; 89.0228; 71.0129 Radix Paeoniae Alba, Radix Paeoniae Alba
5 1.76 inulin C24H42O21 [M+FA-H]- 711.2177 711.2201 -2.2 711.2218; 665.2181; 485.1483; 383.1194; 341.1081; 179.0551; 89.0233 Codonopsis pilosula
6 1.95 Maltotriose C18H32O16 [M-H]- 503.1605 503.1618 -2.5 503.1569; 341.1056; 281.0862; 221.0631; 179.0540; 89.0234 Radix Salviae miltiorrhizae
7 1.99 uracil C4H4N2O2 [M+H]+ 113.0344 113.0346 -1.4 / Radix Paeoniae Alba
8 2.34 Raffinose C18H32O16 [M-H]- 503.1604 503.1618 -2.7 503.1556; 341.1020; 221.0641; 179.0526; 143.0338; 119.0318; 89.0228; 59.0132 Codonopsis pilosula, Radix Salviae miltiorrhizae
9 2.94 Citric acid C6H8O7 [M-H]- 191.0190 191.0197 -3.8 191.0184; 111.0070; 87.0065 Hawthorn, Radix Paeoniae Alba
10 3.54 2-O-a-D-glucopyranuronosyl-D-Galactose C12H20O12 [M-H]- 355.0863 355.0882 -5.4 355.0873; 181.0726; 173.0070; 111.0073; 87.0072; 57.0359 Radix Salviae miltiorrhizae
11 3.82 tyrosine C9H11NO3 [M+H]+ 182.0817 182.0812 2.9 / Rhizoma Dioscoreae
12 5.16 Uridine C9H12N2O6 [M-H]- 243.0611 243.0623 -4.8 243.0625; 200.0559; 152.0357; 110.0234; 82.0315 Radix isatidis
13 5.17 verbascotetraose C24H42O21 [M+FA-H]- 711.2186 711.2201 -2.1 711.2238; 665.2139; 485.1462; 323.0960; 179.0536; 143.0337 Rhizoma alismatis
14 6.39 Adenosine C10H13N5O4 [M+H]+ 268.1043 268.1040 1.0 268.1026; 136.0617; 119.0363 Radix Angelicae sinensis, Radix Paeoniae AlbaRadix Paeoniae Alba, Medicated Leaven
15 6.53 verbascose or isomer C30H52O26 [M-H]- 827.2659 827.2674 -1.8 827.2655; 665.2270; 647.1999; 503.1571; 485.1452; 383.1153; 341.1031; 179.0544; 161.0431; 143.0331 Rehmannia glutinosa, Rhizoma alismatis
16 6.63 Dicaffeoyl quinic acid glucoside C31H34O17 [M-H]- 677.1776 677.1723 6.5 677.1765; 479.1077; 341.1034; 173.0074; 111.0064; Cynanchum otophyllum
17 6.84 Guanosine C10H13N5O5 [M-H]- 282.0827 282.0837 -6.0 282.0837; 150.0415; 133.0151; 108.0182 Radix isatidis, Medicated Leaven
18 6.99 Rehmannioside D C27H42O20 [M+Cl]- 721.1911 721.1963 -7.3 721.1913; 263.0765; 221.0662; 179.0565; 149.0448; 119.0346; 89.0216 Rehmannia glutinosa
19 7.48 L-Alanine C15H24N4O5 [M+H]+ 341.1814 341.1819 -1.6 341.1809; 281.1604; 222.1125; 194.1171; 108.0798; 87.0443 Radix Angelicae sinensis, Rhizoma Dioscoreae
20 7.54 6'-O-acetylscopolin C18H20O10 [M-H]- 385.0966 395.0984 -4.5 197.0440; 179.0334; 135.0443; 123.0437; 72.9932 Hawthorn
21 7.86 (1,2,4-Triazolo[4,3-a]pyrazine-3,7(8H)-dicarboxylic acid, 5,6-dihydro-, 7-(1,1-dimethylethyl) 3-ethyl ester) C13H20N4O4 [M+H]+ 297.1560 297.1557 0.9 297.1514; 279.1415; 219.1114; 192.1014; 232.0799; 117.0562; 108.0448; 70.0650 Radix Angelicae sinensis
22 8.07 NeoChlorogenic acid C16H18O9 [M-H]- 353.0885 353.0878 2.0 353.0904; 191.0553; 179.0336; 135.0447; 85.0289 Radix Angelicae sinensis
23 8.18 Loganic acid or isomer C16H24O10 [M-H]- 375.1298 375.1297 0.3 375.1325; 213.0779; 169.0874; 113.0248; 59.0137 Fraxinus bungeana
[M+Na]+ 399.1262 399.1262 0.1 399.1256; 381.1205; 279.0706; 237.0698; 219.0615; 185.0417; 112.0864
24 8.21 Desbenzoylpaeoniflorin C16H24O10 [M-H]- 375.1289 375.1297 -2.1 375.1290; 213.0773; 169.0885; 151.0766; 113.0254; 89.0247; 69.0344 Radix Paeoniae Alba
25 8.65 salicylicacid C7H6O3 [M-H]- 137.0238 137.0244 -4.5 137.0244; 92.0274 Radix isatidis
26 8.67 ArillatoseB C22H30O14 [M+FA-H]- 563.1626 563.1618 1.5 563.1598; 517.1596; 341.1119; 251.1756; 221.0637; 179.0552; 161.0438; 119.0344; 89.0243 Fraxinus bungeana
[M+Na]+ 541.1526 541.1528 -0.3 541.1537; 497.1683; 393.1005; 365.1040; 347.0938
27 8.74 Chlorogenic acid C16H18O9 [M-H]- 353.0880 353.0878 0.5 191.0563; 85.0292 Radix Angelicae sinensis
28 8.84 Swertiamain C16H22O10 [M+FA-H]- 419.1196 419.1195 0.2 375.0668; 179.0551; 141.0186; 119.0382; 89.0253 Fraxinus bungeana
29 8.90 Chlorogenic acid isomer C16H18O9 [M-H]- 353.0881 353.0878 0.6 353.0908; 191.0573; 173.0466; 135.0460; 93.0343; 85.0300 Radix Angelicae sinensis
30 9.42 Kaempferol 3-rutinoside C27H30O15 [M-H]- 593.1498 593.1512 -2.4 593.1508; 575.1468; 503.1116; 473.1058; 383.0763; 353.0642 Radix isatidis, Medicated Leaven
31 9.44 Gentiopicroside C16H20O9 [M+FA-H]- 401.1098 401.1089 2.2 401.1064; 193.0480; 179.0577; 149.0597; 113.0239; 89.0234; 59.0122 Fraxinus bungeana
[M+Na]+ 379.0999 379.1000 -0.1 379.1004; 217.0469; 199.0358; 185.0442; 155.0456
32 9.73 Artemisinin C15H22O5 [M-H]- 281.1377 281.1394 -6.2 / Medicated Leaven
33 9.94 Albiflorin C23H28O11 [M+FA-H]- 525.1629 525.1614 2.9 525.1586; 479.1544; 283.0819; 121.0290; 77.0390 Radix Paeoniae Alba
[M+Na]+ 503.1523 503.1524 -0.2 503.1534; 341.0989
34 10.45 Paeoniflorin C23H28O11 [M+FA-H]- 525.163 525.1614 3.1 525.1695; 449.1462; 431.1358; 327.1094; 309.0994; 165.0553; 121.0295; 113.0237; 77.0402 Radix Paeoniae Alba
[M+Na]+ 503.1527 503.1524 0.6 503.1531; 341.1050
35 10.86 5-Hydroxy ferulic acid C10H10O5 [M-H]- 209.0447 209.0455 -4.1 209.0458; 165.0536; 121.0273; 76.0302 Fraxinus bungeana
36 11.28 Agarotetrol C17H18O6 [M+H]+ 319.1174 319.1176 -0.7 319.1163; 301.1055; 283.0968; 255.1025; 227.1084; 192.0403; 164.0483; 125.0259; 91.0548 Medicated Leaven
37 11.65 Calycosin-7-O-D-glucoside C22H22O10 [M+H]+ 447.1285 447.1286 -0.2 447.1251; 343.0117; 285.0749; 270.0521; 225.0553 Curcuma aromatic
38 11.81 Rutin C27H30O16 [M-H]- 609.1468 609.1461 1.1 / Medicated Leaven
39 11.93 Isoliquiritin apioside C26H30O13 [M-H]- 549.1624 549.1614 1.9 549.1608; 429.1245; 255.0668; 135.0098; 119.0500 Radix liquiritiae
[M+Na]+ 573.158 573.1579 0.2 573.1611; 441.1097; 317.0843
40 12.1 Liquiritin C21H22O9 [M-H]- 417.1196 417.1191 1.2 417.1188; 255.0652; 135.0091; 119.0506 Radix liquiritiae
[M+Na]+ 441.1158 441.1156 0.4 441.1152
41 12.55 Galloylpaeoniflorin C30H32O15 [M-H]- 631.1675 631.1668 1.0 631.1697; 613.1596; 465.1354; 399.0920; 313.0558; 271.0492; 211.0313; 169.0139 Radix Paeoniae Alba
42 13.47 1,5-Dicaffeoyl quinic acid C25H24O12 [M-H]- 515.1204 515.1195 1.7 515.1171; 353.0843; 335.0722; 191.0566; 179.0353; 173.0573; 161.0240; 135.0451 Cynanchum otophyllum
43 13.59 Verbascoside C29H36O15 [M-H]- 623.1963 623.1981 -3.0 623.1894; 461.1569; 161.0238; 133.0329 Curcuma aromatic
44 14.01 3,5-Dicaffeoyl quinic acid C25H24O12 [M-H]- 515.1201 515.1195 1.2 355.0894; 191.0565; 179.0359; 135.0444 Cynanchum otophyllum
45 14.61 2-O-Caffeoyl arbutin C21H22O10 [M-H]- 433.1128 433.1140 -2.8 433.1067; 271.0576; 177.0185; 151.0028;119.0500 Fraxinus bungeana
46 14.84 4,5-Dicaffeoyl quinic acid C25H24O12 [M-H]- 515.1205 515.1195 1.9 515.1185; 353.0891; 191.0581; 179.0346; 173.0454; 135.0462 Cynanchum otophyllum
47 14.93 Salvianolic acid E C36H30O116 [M-H]- 717.1466 717.1461 0.7 717.1361; 519.0920; 339.0496; 321.0396; 295.0579; 279.0427; 197.0415 Radix Salviae miltiorrhizae
48 15.02 Paeoniflorin isomer C23H28O11 [M+FA-H]- 525.1604 525.1614 -1.8 525.1603; 479.1536; 121.0291 Radix Paeoniae Alba
[M+Na]+ 503.1529 503.1524 1.0 503.1536; 381.1242; 341.1002; 219.0640
49 15.36 Rosmarinic acid C18H16O8 [M-H]- 359.0774 359.0772 0.4 359.0757; 197.0443; 179.0371; 161.0230; 133.0293; 72.9927 Radix Salviae miltiorrhizae
50 15.88 Salvianolic acid A isomer C26H22O10 [M-H]- 493.1146 493.1140 1.2 493.1211; 313.0726; 295.0628; 253.0502; 185.0271; 159.0460; 109.0288 Radix Salviae miltiorrhizae
51 16.17 Licuraside C26H30O13 [M-H]- 549.1594 549.1614 -3.6 549.1611; 417.1174; 255.0661; 135.0072; 91.0184 Radix liquiritiae
52 16.28 Buddleoside C28H32O14 [M-H]- 591.1721 591.1719 0.3 591.1748; 549.1602; 459.1312; 255.0652; 135.0089 Radix isatidis
53 16.45 Ononin C22H22O9 [M+FA-H]- 475.1252 475.1246 1.3 267.0649; 2224.0498 Curcuma aromatic
[M+Na]+ 431.1337 431.1337 0.1 269.0809; 254.0543; 213.0892
54 16.85 Liquiritin isomer C21H22O9 [M-H]- 417.1188 417.1191 -0.7 417.1189; 255.0643; 148.0160; 135.0091; 119.0491; 92.0246 Radix liquiritiae
[M+H]+ 419.1336 419.1337 -0.1 257.0812; 239.0707; 147.0437; 137.0221
55 17.19 Salvianolic acid B C36H30O16 [M-H]- 717.1482 717.1461 2.9 739.1302; 559.0863; 515.0974; 335.0553; 291.0662; 159.0476 Radix Salviae miltiorrhizae
[M+Na]+ 741.1413 741.1426 -1.8 741.1432; 561.1045; 543.0893; 517.1098; 381.0592; 363.0459; 337.0685; 221.0402
56 17.84 Licorice-giycoside B C35H36O15 [M-H]- 695.1981 695.1981 -0.1 695.1943; 549.1603; 399.1013; 255.0625 Radix liquiritiae
57 17.89 Licorice-giycoside A C36H38O16 [M-H]- 725.2089 725.2087 0.3 725.2075; 549.1691; 531.1523; 399.1117; 255.0649; 193.0486; 119.0499; 72.9902 Radix liquiritiae
58 18.14 Methylnissolin-3-O-glucoside C23H26O10 [M+FA-H]- 507.1500 507.1508 -1.6 / Curcuma aromatic
59 18.15 Liquiritigenin C15H12O4 [M-H]- 255.0668 255.0663 2.0 255.2316; 219.8452; 201.8352; 166.8654; 119.0503; 91.0173 Radix liquiritiae
[M+H]+ 257.0810 257.0808 0.6 257.0820; 242.0593; 153.0696; 147.0458; 137.0233; 119.0495; 81.-334
60 18.46 9,10-DiMP-3-O-acetyl-Glc C25H28O11 [M+Na]+ 521.1077 521.1054 -0.5 521.1135; 493.1161; 341.0643; 323.0554; 295.0588; 277.0514; 249.0541; 181.0483; 163.0387; 139.0385; 111.0480 Curcuma aromatic
61 18.58 Salvianolic acid L C36H30O16 [M-H]- 717.1478 717.1461 2.4 717.1490; 519.0934; 339.0504; 321.0401; 295.0603; 279.0275; 185.0240 Radix Salviae miltiorrhizae
62 18.9 Pectolinarin C29H34O15 [M+H]+ 623.1970 623.1970 -0.1 623.2009; 477.1407; 315.0876; 300.0637 Curcuma aromatic
63 18.94 Salvianolic acid Y C36H30O16 [M-H]- 717.1476 717.1461 2.2 717.1451; 673.1693; 519.0950; 339.0534; 321.0403; 295.0644; 249.0569; 185.0238; 109.0279 Radix Salviae miltiorrhizae
64 18.98 Salvianolic acid C C26H20O10 [M-H]- 491.0994 491.0984 2.1 491.1013; 311.0580; 293.0470; 267.0648; 250.0631; 197.0463; 135.0456 Radix Salviae miltiorrhizae
65 19.05 Salvianolic acid A or isomer C26H22O10 [M-H]- 493.1128 493.1140 -2.5 493.1165; 313.0737; 295.0611; 185.0238; 159.0442; 109.0287 Radix Salviae miltiorrhizae
[M+Na]+ 517.1101 517.1105 -0.8 517.1129; 319.0485; 297.0763; 251.0721; 223.0743; 221.0433; 205.0626; 152.0622; 131.0527
66 19.24 Calycosin C16H12O5 [M-H]- 283.0615 283.0612 1.1 283.0622; 268.0406; 239.0352; 211.0388; 197.9039; 148.02229 Curcuma aromatic
[M+H]+ 285.0763 285.0758 1.9 285.0742; 270.0505; 253.0485; 213.0542; 197.0594; 137.0230; 89.0370
67 19.37 Quercetin C15H10O7 [M-H]- 301.0337 301.0354 -5.6 301.0323; 151.0022 Fraxinus bungeana, Hawthorn, Medicated Leaven
68 22.20 22-hydroxyl-licorice-saponin G2 C42H62O18 [M-H]- 853.3820 853.3805 1.8 853.3850; 351.0586 Radix liquiritiae
69 22.90 Licoricesaponin A3 C48H72O21 [M-H]- 983.4447 983.4449 -4.7 983.4515; 821.4051; 351.0644; 175.0356 Radix liquiritiae
70 23.54 Glyyunnanprosapogenin D or isomer C42H62O17 [M-H]- 837.3920 837.3914 0.7 837.3943; 351.0601 Radix liquiritiae
71 24.20 Glyyunnanprosapogenin D or isomer C42H62O17 [M-H]- 837.3874 837.3914 -4.8 837.3881; 351.0565 Radix liquiritiae
72 24.46 Glyyunnanprosapogenin D or isomer C42H62O17 [M-H]- 837.3934 837.3914 2.4 837.3960; 351.0556 Radix liquiritiae
73 24.53 16-Oxoalisol A C30H48O6 [M+H]+ 505.3529 505.3524 1.1 505.3522; 415.2821; 353.2462; 191.1445; 107.0845 Rhizoma alismatis
74 24.7 Glycyrrhizic Acid C42H62O16 [M-H]- 821.3988 821.3965 2.8 821.3988; 351.0554 Radix liquiritiae
[M+Na]+ 845.3940 845.3930 1.2 845.3945; 669.3590; 493.3277; 375.0511
75 24.94 alisol C 23-acetate C32H48O6 [M+H]+ 529.3525 529.3524 0.3 / Rhizoma alismatis
76 25.03 Licorice saponin B2 C42H64O15 [M-H]- 807.4134 807.4172 -4.8 807.4152; 351.0538 Radix liquiritiae
77 25.18 Uraisaponin B C42H62O16 [M-H]- 821.3988 821.3965 2.8 821.4015; 351.0589 Radix liquiritiae
78 25.16 Glycyrrhetinic acid Monoglucuronide C36H54O10 [M+H]+ 647.3785 647.3790 -0.7 647.3812; 453.3368; 435.3196; 407.3384; 253.1876; 217.1558; 177.1634; 149.1341 Radix liquiritiae
79 25.38 Glycyrrhizic Acid isomer C42H62O16 [M-H]- 821.3981 821.3965 1.9 821.4016; 351.0611 Radix liquiritiae
80 25.63 alisol C 23-acetate C32H48O6 [M+H]+ 529.3525 529.3524 0.3 529.3536; 511.3355; 469.3326; 451.3232; 415.2877; 217.1586 Rhizoma alismatis
81 26.31 Demethoxycurcumin C20H18O5 [M-H]- 337.1060 337.1081 -6.4 / Curcuma aromatic
82 26.48 curcumin C21H20O6 [M-H]- 367.1172 367.1187 -4.1 367.1182; 309.-398; 241.0083; 203.-723; 173.0237; 59.0105 Curcuma aromatic
83 26.80 alisol C C30H46O5 [M+H]+ 487.3418 487.3418 0.1 487.3419; 451.3200; 433.3082; 397.2727; 353.2452; 175.1108; 147.1156 Rhizoma alismatis
84 27.36 Astragaloside I C45H72O16 [M-H]- 913.4825 913.4802 2.5 913.4793; 867.4743 Curcuma aromatic
85 27.63 Licoisoflavone A C20H18O6 [M-H]- 353.1021 353.1031 -2.7 353.0998; 125.0346 Radix liquiritiae
86 27.94 Dimethyldibenzylidene Sorbitol C24H30O6 [M+H]+ 415.2120 415.2115 1.2 119.0853; 115.0516; 91.0545 Rhizoma alismatis
87 28.05 tanshinoneII A C19H20O3 [M+H]+ 297.1488 297.1485 0.9 297.1413; 253.1594; 222.0666; 1666.0784; 128.0643; 73.0466 Radix Salviae miltiorrhizae
88 28.77 dihydrotanshinone I C18H14O3 [M+H]+ 279.1020 279.1020 1.5 279.0990; 261.0918; 233.0961; 190.0759; 169.0641; 141.0687; 115.0537 Radix Salviae miltiorrhizae
89 30.50 alisol B C30H48O4 [M+H]+ 473.3628 473.3625 0.6 / Rhizoma alismatis
90 31.54 cryptotanshinone C19H20O3 [M+H]+ 297.1490 297.1485 1.6 297.1471; 268.1102; 236.1164; 209.0977; 165.0714; 155.0923 Radix Salviae miltiorrhizae
Open in a new tab

The Effect of Qianggan Extract on Hyperglycemia in Rats

Rats feeding HFHS diet showed hyperglycemia, as the blood glucose was significantly increased compared with chow diet control rats ( Figure 2A ). Four-week Qianggan extract treatment restored the blood glucose increase to normal level ( Figure 2A ). Similar trend was also observed in HbAlc levels ( Figure 2B ). Although the insulin level has no statistical difference among groups ( Figure 2C ), HOMA-IR was significantly increased in HFHS rats ( Figure 2D ), and Qianggan extract treatment markedly reduced HOMA-IR value. Glucose can be stored in the form of glycogen in liver, and liver glycogen is critical in maintaining glucose homeostasis (von Wilamowitz-Moellendorff et al., 2013). We found obviously decreased liver glycogen in HFHS rats, and Qianggan extract treatment significantly increased liver glycogen content ( Figure 2E ). Qianggan extract treatment also partially restored the increased serum ALT and AST levels in HFHS rats, however, the body weight, liver weight, and serum lipids did not show statistical difference among groups ( Table 2 ).

Figure 2.

Figure 2

Open in a new tab

Effects of Qiangggan extract on hyperglycemia. Hyperglycemia was induced by HFHS feeding, Qianggan extract were treated for 4 weeks. (A) Fasting blood glucose (B) HbA1c, (C) Insulin, (D) HOMA-IR, (E) Liver glycogen. Data were presented as mean ± SD, * p < 0.05, ** p < 0.001.

Table 2.

Phenotypic parameters of the rats.

Parameters Control HFHS Qianggan
Body weight (g) 385.90 ± 27.29 403.50 ± 29.24 381.90 ± 26.48
Liver weight (g) 9.17 ± 0.92 9.49 ± 0.71 8.97 ± 1.13
Serum ALT 34.93 ± 5.32 56.01 ± 31.07* 30.61 ± 7.46‡
Serum AST 150.50 ± 19.39 191.00 ± 45.92* 118.60 ± 19.21‡
Serum TG 0.88 ± 0.31 0.61 ± 0.26** 0.52 ± 0.19
Serum TC 1.42 ± 0.17 1.29 ± 0.08 1.50 ± 0.15
Serum HDL-c 0.57 ± 0.06 0.51 ± 0.03* 0.52 ± 0.09
Serum LDL-c 0.13 ± 0.17 0.02 ± 0.01 0.17 ± 0.05
Open in a new tab
*

P < 0.05, **P < 0.05, HFHS vs control; ‡P < 0.05 Qianggan vs HFHS.

Metabolite Profile and Differential Metabolites Identification

To unravel the mechanisms under the efficacy of Qianggan extract, metabolomics were conducted to obtain metabolite profiles and identify differential metabolites in liver tissue and fecal samples. The GC-MS chromatograms of liver and fecal samples were presented in Supplemental Figure 1 . PCA and OPLS-DA models were established to visualize clusters and different metabolic patterns among groups. For liver tissues, PCA model did not clearly separate control, HFHS and Qianggan groups ( Figure 3A ). However, OPLS-DA model revealed good separation among three groups ( Figure 3B ). Parameters of R2X=0.512, R2Y= 0.913, and Q2 = 0.277, indicating the good quality and accurate prediction of the model. Two hundred permutation tests were further performed, with R2 = 0.72 and Q2=-0.605, suggesting the reliability of the OPLS-DA model ( Figure 3C ). To identify differential metabolites between HFHS diet and Qianggan treated groups, PCA and OPLS-DA models were built. PCA did not clearly discriminate the two groups, but a good separation was observed by OPLS-DA plots ( Figures 3D, E ), implicating Qianggan extract improved metabolite perturbations induced by HFHS diet. Permutation test implicated the validity of OPLS-DA model with R2 = 0.992 and Q2=-0.264 ( Figure 3F ). Moreover, metabolites with VIP value > 1 were obtained. Coupled with univariate statistical analysis (p < 0.05), 18 metabolites (e.g. glucose-6-phosphate, fructose-6-phosphate and ribose-5-phosphate) were identified to be significantly different between HFHS diet and Qianggan treated groups ( Table 3 ).

Figure 3.

Figure 3

Open in a new tab

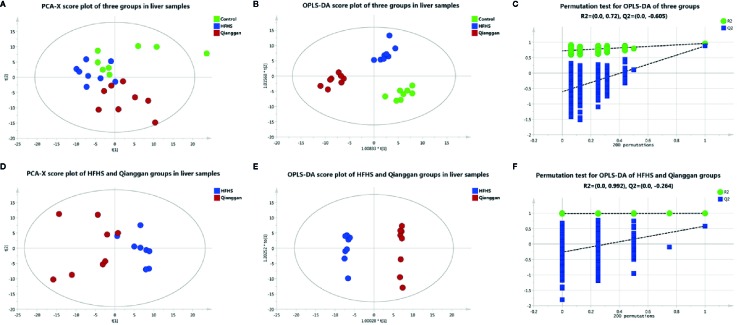

Multivariate analysis based on metabolomics of liver samples. (A) PCA score plot among control, HFHS diet, and Qiangggan groups. R2X=0.648, Q2 = 0.277; (B) OPLS-DA score plot among three groups. R2X=0.512, R2Y= 0.913, Q2 = 0.277; (C) 200 permutation tests validation of OPLS-DA among three groups. R2 = 0.72, Q2=-0.605; (D) PCA score plot between HFHS diet and Qiangggan groups. R2X=0.622, Q2 = 0.149; (E) OPLS-DA score plot between HFHS diet and Qiangggan groups. R2X=0.584, R2Y= 0.998, Q2 = 0.582; (F) 200 permutation tests validation of OPLS-DA between HFHS diet and Qiangggan groups. R2 = 0.992, Q2=-0.264.

Table 3.

Significantly different metabolites in liver tissues.

rt/min m/z metabolites VIP P value Log2(fold change) Qianggan vs HFHS
17.26 174 gamma-aminobutyric acid 1.313 0.038 0.559
22.22 103 fructose 1.774 0.038 -0.969
22.38 319 mannose 1.723 0.026 -0.735
22.92 205 mannitol 1.579 0.029 -0.651
28.42 361 lactose 1.495 0.038 -0.745
20.89 357 glycerol-3-phosphate 1.554 0.026 -0.290
12.5 174 glycine 1.854 0.029 0.413
6.96 219 lactic acid 1.733 0.030 0.572
26.37 387 glucose-6-phosphate 1.603 0.026 -1.447
26.29 315 fructose-6-phosphate 1.478 0.033 -0.930
7.32 177 glycolic acid 1.557 0.019 0.685
22.92 333 glucuronic acid 1.676 0.026 -0.662
27.69 387 sedoheptulose-7-phosphate 1.646 0.019 -0.974
24.65 315 ribose-5-phosphate 1.383 0.019 -0.493
8.43 131 2-hydroxybutyric acid 1.707 0.026 0.717
24.61 441 uric acid 1.614 0.037 1.727
28.6 361 maltose 1.673 0.026 -0.753
23.08 333 galacturonic acid 1.581 0.050 -0.486
Open in a new tab

Same analyses in fecal samples were performed ( Figure 4 ). OPLS-DA plots demonstrated clear separations among three groups (control, HFHS diet and Qianggan treated groups) and in pairwise groups (HFHS diet vs Qianggan intervened groups). Permutation test showed good prediction of the model. By the cutoff of VIP > 1 and p < 0.05, we obtained 30 differential metabolites (e.g. maltose, glycolic acid, and 4-hydroxyproline), suggesting Qianggan extract ameliorated HFHS diet induced metabolite disturbance in feces. Detailed metabolite information was listed in Table 4 .

Figure 4.

Figure 4

Open in a new tab

Multivariate analysis based on metabolomics of fecal samples. (A) PCA score plot among control, HFHS diet and Qiangggan groups. R2X=0.612, Q2 = 0.327; (B) OPLS-DA score plot among three groups. R2X=0.634, R2Y= 0.976, Q2 = 0.858; (C) 200 permutation tests validation of OPLS-DA among three groups. R2 = 0.795, Q2=-0.52; (D) PCA score plot between HFHS diet and Qiangggan groups. R2X=0.581, Q2 = 0.204, (E) OPLS-DA score plot between HFHS diet and Qiangggan groups. R2X=0.527, R2Y= 0.968, Q2 = 0. 802; (F) 200 permutation tests validation of OPLS-DA between HFHS diet and Qiangggan group. R2 = 0.894, Q2=-0.391.

Table 4.

Significantly different metabolites in fecal samples.

rt/min m/z metabolites VIP P value Log2(fold change) Qianggan vs HFHS
9.61 187 heptanoic acid 1.565 0.007 -1.943
28.58 361 maltose 1.383 0.017 -1.576
17.97 267 3-hydroxybenzoic acid 1.340 0.018 -1.491
19.9 260 N-methylglutamic acid 1.372 0.009 -1.477
19.29 103 lyxose 1.439 0.015 -1.382
19.54 103 arabinose 1.296 0.043 -1.378
16.56 202 p-hydroxybenzaldehyde 1.487 0.010 -1.376
25.96 144 spermidine 1.505 0.007 -1.284
23 333 glucuronic acid 1.516 0.007 -1.187
14.98 104 hydrocinnamic acid 1.383 0.027 -1.059
20.92 292 lyxonic acid 1.337 0.043 -0.961
16.06 218 aminomalonic acid 1.391 0.019 -0.873
17.22 230 4-hydroxyproline 1.332 0.024 -0.866
20.3 117 rhamnose 1.236 0.015 -0.807
11.7 174 ethanolamine 1.241 0.033 0.481
24.88 352 guanine 1.267 0.026 0.555
24.52 217 myo-inositol 1.475 0.006 0.698
25.08 327 heptadecanoic acid 1.371 0.026 0.725
21.61 273 citric acid 1.342 0.020 0.750
7.67 205 glycolic acid 1.197 0.041 0.840
9.08 219 3-hydroxypropanoic acid 1.518 0.009 0.860
15.83 174 3-aminoisobutanoic acid 1.121 0.033 0.962
17.29 304 gamma-aminobutyric acid 1.597 0.006 1.067
8.82 219 oxalic acid 1.663 0.004 1.071
20.77 142 ornithine 1.386 0.026 1.186
23.26 299 pentadecanoic acid 1.458 0.015 1.267
19.64 202 asparagine 1.549 0.006 1.417
31.5 329 cholesterol 0.985 0.026 1.771
9.27 165 p-cresol 1.502 0.007 1.827
30.76 370 coprostanol 1.169 0.009 1.845
Open in a new tab

To better visualize the patterns of differential metabolites, hierarchical clusters were performed. As shown in Figures 5A, B , distinct discrimination can be observed in pairwise groups in both liver and fecal samples. Of interest, most metabolites are in opposite pattern between HFHS vs Control and Qiangggan vs HFHS. For instance, glucose-6-phosphate and fructose-6-phosphate levels were higher in HFHS diet group compared to control group, but significantly decreased in Qiangggan intervened group. The data implicated that Qianggan extract markedly restored HFHS diet induced metabolites disturbance, and the affected metabolites might be potential targets of the compound. By Venn diagram ( Figure 5C ), we observed four overlapped metabolites between liver and fecal samples. In all, we obtained 44 potential metabolites used for further analysis.

Figure 5.

Figure 5

Open in a new tab

Significantly different metabolites among groups. (A) Hierarchical cluster analysis between pairwise groups (HFHS vs control and Qianggan vs HFHS) for identified metabolites from liver samples. (B) Hierarchical cluster analysis of identified metabolites between pairwise groups (HFHS vs control and Qianggan vs HFHS) in fecal samples. (C) Venn diagram to reveal overlapped and gross metabolites obtained from liver and fecal samples. Red color represents up-regulation and green represents down-regulation.

MSEA and Metabolic Pathway Analysis

To understand the biological meaning and relevant metabolic pathways of the identified 44 metabolites, comprehensive MSEA and pathway enrichment analysis were performed. As shown in Figure 6 , these metabolites were enriched in 43 metabolic pathways, and the top 10 were all glycometabolism related pathways (e.g. glycolysis/gluconeogenesis, pentose phosphate pathway, fructose and mannose metabolism, etc), and the alteration of these pathways might account for the efficacy of Qianggan extract on hyperglycemia. Of note, these metabolic pathways interconnected with each other and formed a complex network. Furthermore, to understand the complicated correlations among genes, enzymes, and metabolites in enriched pathways, we constructed the compound-reaction-enzyme-gene network ( Figure 7 ). For instance, the metabolite glucose-6-phosphate was disturbed by HFHS diet and improved by Qiangggan extract, and predictably, related genes (e.g. Gck, Hk1, Hk2, etc) and enzymes (e.g. glucokinase, hexokinase, etc) in glycolysis/gluconeogenesis pathway were involved in the regulation process.

Figure 6.

Figure 6

Open in a new tab

MSEA and pathway enrichment overview. (A) MSEA overview obtained through MetaboAnalyst 4.0 by plotting -log of p-values from pathway enrichment analysis on the y-axis, and pathway impact values from pathway topology analysis on the x-axis. (B) Pathway interaction network graph obtained by MetaboAnalyst 4.0 enrichment analysis. Nodes represent different enriched pathways and edges represent correlations.

Figure 7.

Figure 7

Open in a new tab

Compound-reaction-enzyme-gene network analysis for enriched pathways. (A) Network in glycolysis/gluconeogenesis, (B) Network in Pentose phosphate pathway, (C) Network in other related pathways. Yellow hexagons represent identified differential metabolites in relevant metabolic pathways. Red hexagons represent intermediates might related with the identified metabolites. Green squares represent enzymes which might regulate the identified metabolites. Blue circles represent genes encoding those enzymes. Grey diamonds represent reactions catalyzed by those enzymes.

Discussion

In the present study, we illustrated the effect of Qiangggan extract on diet induced hyperglycemia, and through the analysis of metabolomics, we identified glycometabolism related pathways were involved in the metabolic disturbance and under the benefit effects of Qianggan extract.

Metabolomics has been extensively employed in detecting metabolites profiles to explore the pathophysiology of diseases, predict potential biomarkers, and identify drug targets (Sun et al., 2014). The balance of glucose metabolism was impaired in patients with liver injury (Guo et al., 2015) and steatosis (Hu et al., 2018).

Glycolysis and gluconeogenesis are critical pathways in keeping glucose balance (Petersen et al., 2017). Glycolysis is a glucose utilization process, which converts glucose into pyruvate or lactate. Gluconeogenesis is opposite to that of glycolysis, which synthesizes glucose from other metabolites like pyruvate, lactate, and glucogenic amino acids (Tang et al., 2018). Glycolysis and gluconeogenesis possess several reversible enzyme-catalyzed reactions and share a series of common intermediates such as glucose-6-phosphate, fructose-6-phosphate, fructose-1, 6-bisphosphate, lactate, etc (Sharabi et al., 2015). The net flux toward glycolysis or gluconeogenesis may be regulated by the key enzymes or their related metabolites which could be influenced by multi-factors such as nutrients and drugs. Using metabolomics approach, Wan et al. reported several intermediates including fructose 6-phosphate and 6-phospho-gluconate were elevated in high fat diet fed rats liver, and the alteration was reversed by vine tea, which implicated the efficacy partially by altering glycolysis or gluconeogenesis (Wan et al., 2017). It is also reported that HFHS diet could induce accelerated gluconeogenesis to yield glucose (Commerford et al., 2001). Our data were in accordance with previous studies to some extent. We noticed that glycolysis or gluconeogenesis intermediates glucose-6-phosphate and fructose-6-phosphate were raised after HFHS diet feeding. Qianggan extract administration restored the increase of glucose-6-phosphate and fructose-6-phosphate and raised lactic acid, implicating that Qiangggan extract improved glucose metabolism disorders partially by accelerating glycolysis or suppressing gluconeogenesis. Similar results were also exhibited in another insulin resistance rat model, which reported that coreopsis tinctoria flowering tops (traditionally employed to improve hyperglycemia) could reduce the increase of fructose 6-phosphate and 6-phosphogluconate induced by high fat diet (Jiang et al., 2015).

Pentose phosphate pathway branches from glycolysis via glucose-6-phosphate at the first committed step (Cho et al., 2018). Dong et al. employed metabolomics to explore biomarkers of different stage of nonalcoholic fatty liver disease (NAFLD) and demonstrated that pentose phosphate pathway was involved in the progress of NAFLD (Dong et al., 2017). Another study reported that pentose phosphate pathway was related to diabetes retinopathy and relevant metabolites were increased (Chen et al., 2016). In the present study, hyperglycemia status showed elevated metabolites that related to pentose phosphate pathway, such as glucose-6-phosphate, ribose-5-phosphate, and sedoheptulose-7-phosphate, which were attenuated by Qianggan extract. Our data were partly in line with previous studies (Hong et al., 2017), suggested the alteration of pentose phosphate pathway more or less account for the efficacy of Qiangggan extract. Besides, glycogenesis (glycogen synthesis) is reliant on glycolysis and starts with glucose-6-phosphate, is the process of glucose storage and vital in the maintenance of glucose concentration (Han et al., 2016). It was reported that glycogen content was decreased in high fat diet induced obese rats, and improved by octreotide which might serve as a novel treatment of obesity (Wang et al., 2017). Our data showed that the level of glycogen was significantly lowered in hyperglycemia and improved after Qiangggan extract intervention, which were consistent with the previous studies.

In addition, fructose and mannose metabolism also disturbed under metabolic dysfunctions. Zhang et al. found metabolites fructose and mannose were markedly elevated, which were deemed to be potential biomarkers of type 2 diabetes in patients (Zhang et al., 2016a). Boztepe et al performed microarray analysis to explore molecular responses to high glucose, and identified fructose and mannose metabolism was altered (Boztepe and Gulec, 2018). The data suggested that fructose and mannose metabolism play a role in metabolic diseases. Consistently, we also observed increased metabolites of fructose, mannitol, and mannose in hyperglycemia group compared to control group, whereas, Qiangggan extract significantly lowered the expression of these metabolites, suggesting potential targets of Qianggan extract.

A compound-reaction-enzyme-gene network was visualized to help in understanding the complex relations among metabolites, proteins, or genes in relevant metabolic pathways. For instance, we noticed that hexokinase (encoded by genes Hk1, Hk2 and Hk3) and glucokinase (encoded by Gck) might regulate glucose-6-phosphate. Besides hexokinase, many other enzymes such as fructose-bisphosphatase (encoded by Fbp1 and Fbp2) and mannose-6-phosphate isomerase (encode by Mpi) were related to the regulation of fructose-5-phosphate. Several enzymes such as ribokinase (encoded by Rbks) and ribose-5-phosphate isomerase (encoded by Rpia) may play a role in modulating the level of ribose-5-phosphate. Our findings were corroborated by abundant previous studies. For example, the activators of the enzyme glucokinase which converts glucose to glucose-6-phosphate in glycolysis, could ameliorate hyperglycemia and have been used as novel glucose-lowering drugs in diabetic models (Erion et al., 2014; Rubtsov et al., 2015). The enzyme ribose-5-phosphate isomerase was correlated with live cancer and has been identified as potential target of therapy (Ciou et al., 2015). Further investigations on identified metabolites and their related enzymes may ascertain Qiangggan extract targets and obtain novel therapies to treat high glucose related diseases.

Notably, the dosage of Qianggan extract for alleviating hyperglycemia was two times of the dosage used for improving fatty liver disease in rats, but the proper dosage for human needs to be optimized in the clinical settings. Our data were based on GC-MS metabolomics. We identified potential metabolites, relevant pathways, and key enzymes, however, we did not detect the expressions of correlated genes or enzymes in specific metabolic pathways. Comprehensive investigation of transcriptomics or proteomics and drug-metabolites interactions should be performed to mutually validate our finding from metabolomics (Ge, 2019; Zhou et al., 2019). In addition, our findings were obtained from animal models, and massive experiments and clinical investigations should be employed to further verify the data and for later clinical translation.

Conclusion

Qiangggan extract restored diet-induced glucose metabolism perturbations. The efficacy might partially due to the regulation of relevant glycometabolism pathways such as glycolysis or gluconeogenesis, pentose phosphate pathway, glycogenesis, fructose, and mannose metabolism. Our findings may infer the potential mechanisms of Qianggan extract on hyperglycemia.

Data Availability Statement

The raw data supporting the conclusions of this article will be made available by the authors, without undue reservation, to any qualified researcher.

Ethics Statement

All animal procedures were approved by the Animal Experiment Ethics Committee of Shanghai University of Traditional Chinese Medicine, and the approval number is PZSHUTCM191227006.

Author Contributions

GJ and LZ designed the study. ML, WZ, and LZ performed the experiment. GG performed the chemical profiling. MZ analyzed the data. MZ, LZ, and GJ wrote the manuscript.

Funding

This work was supported by National Natural Science Foundation of China (No. 81620108030, 81774084). The funders had no role in study design, data collection and analysis, decision to publish, or preparation of the manuscript.

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Acknowledgments

We thank Dr. Xiaoyan Huang for her help in animal experiment.

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fphar.2020.00671/full#supplementary-material

Click here for additional data file. (887.8KB, docx)

References

  1. Boztepe T., Gulec S. (2018). Investigation of the influence of high glucose on molecular and genetic responses: an in vitro study using a human intestine model. Genes Nutr. 13, 11.   10.1186/s12263-018-0602-x [DOI] [PMC free article] [PubMed] [Google Scholar]
  2. Cao G., Shan Q., Li X., Cong X., Zhang Y., Cai H., et al. (2011). Analysis of fresh Mentha haplocalyx volatile components by comprehensive two-dimensional gas chromatography and high-resolution time-of-flight mass spectrometry. Analyst 136 (22), 4653–4661.   10.1039/c1an15616k [DOI] [PubMed] [Google Scholar]
  3. Chen L., Cheng C. Y., Choi H., Ikram M. K., Sabanayagam C., Tan G. S., et al. (2016). Plasma Metabonomic Profiling of Diabetic Retinopathy. Diabetes 65 (4), 1099–1108.   10.2337/db15-0661 [DOI] [PubMed] [Google Scholar]
  4. Cho E. S., Cha Y. H., Kim H. S., Kim N. H., Yook J. I. (2018). The Pentose Phosphate Pathway as a Potential Target for Cancer Therapy. Biomol. Ther. (Seoul) 26 (1), 29–38.   10.4062/biomolther.2017.179 [DOI] [PMC free article] [PubMed] [Google Scholar]
  5. Chong J., Soufan O., Li C., Caraus I., Li S., Bourque G., et al. (2018). MetaboAnalyst 4.0: towards more transparent and integrative metabolomics analysis. Nucleic Acids Res. 46 (W1), W486–W494.   10.1093/nar/gky310 [DOI] [PMC free article] [PubMed] [Google Scholar]
  6. Ciou S. C., Chou Y. T., Liu Y. L., Nieh Y. C., Lu J. W., Huang S. F., et al. (2015). Ribose-5-phosphate isomerase A regulates hepatocarcinogenesis via PP2A and ERK signaling. Int. J. Cancer 137 (1), 104–115.   10.1002/ijc.29361 [DOI] [PubMed] [Google Scholar]
  7. Commerford S. R., Bizeau M. E., McRae H., Jampolis A., Thresher J. S., Pagliassotti M. J. (2001). Hyperglycemia compensates for diet-induced insulin resistance in liver and skeletal muscle of rats. Am. J. Physiol. Regul. Integr. Comp. Physiol. 281 (5), R1380–R1389.   10.1152/ajpregu.2001.281.5.R1380 [DOI] [PubMed] [Google Scholar]
  8. Crowther L. M., Poms M., Plecko B. (2018). Multiomics tools for the diagnosis and treatment of rare neurological disease. J. Inherit Metab. Dis. 41 (3), 425–434.   10.1007/s10545-018-0154-7 [DOI] [PMC free article] [PubMed] [Google Scholar]
  9. Dai M., Wang F., Zou Z., Xiao G., Chen H., Yang H. (2017). Metabolic regulations of a decoction of Hedyotis diffusa in acute liver injury of mouse models. Chin. Med. 12, 35.   10.1186/s13020-017-0159-4 [DOI] [PMC free article] [PubMed] [Google Scholar]
  10. Dong S., Zhan Z. Y., Cao H. Y., Wu C., Bian Y. Q., Li J. Y., et al. (2017). Urinary metabolomics analysis identifies key biomarkers of different stages of nonalcoholic fatty liver disease. World J. Gastroenterol. 23 (15), 2771–2784.   10.3748/wjg.v23.i15.2771 [DOI] [PMC free article] [PubMed] [Google Scholar]
  11. Erion D. M., Lapworth A., Amor P. A., Bai G., Vera N. B., Clark R. W., et al. (2014). The hepatoselective glucokinase activator PF-04991532 ameliorates hyperglycemia without causing hepatic steatosis in diabetic rats. PloS One 9 (5), e97139.   10.1371/journal.pone.0097139 [DOI] [PMC free article] [PubMed] [Google Scholar]
  12. Feng D., Xia Z., Zhou J., Lu H., Zhang C., Fan R., et al. (2017). Metabolomics reveals the effect of Xuefu Zhuyu Decoction on plasma metabolism in rats with acute traumatic brain injury. Oncotarget 8 (55), 94692–94710.   10.18632/oncotarget.21876 [DOI] [PMC free article] [PubMed] [Google Scholar]
  13. Gao X., Pujos-Guillot E., Sebedio J. L. (2010). Development of a quantitative metabolomic approach to study clinical human fecal water metabolome based on trimethylsilylation derivatization and GC/MS analysis. Anal. Chem. 82 (15), 6447–6456.   10.1021/ac1006552 [DOI] [PubMed] [Google Scholar]
  14. Ge G. B. (2019). Deciphering the metabolic fates of herbal constituents and the interactions of herbs with human metabolic system. Chin. J. Nat. Med. 17 (11), 801–802.   10.1016/S1875-5364(19)30098-6 [DOI] [PubMed] [Google Scholar]
  15. Gou X. J., Feng Q., Fan L. L., Zhu J., Hu Y. Y. (2017). Serum and Liver Tissue Metabonomic Study on Fatty Liver in Rats Induced by High-Fat Diet and Intervention Effects of Traditional Chinese Medicine Qushi Huayu Decoction. Evid. Based Complement Alternat. Med. 2017, 6242697.   10.1155/2017/6242697 [DOI] [PMC free article] [PubMed] [Google Scholar]
  16. Gu S., Huang M. X. (2011). [Clinical observation of Qianggan capsule in the treatment of non-alcoholic of non-alcoholic fatty liver fibrosis]. Zhonghua Gan Zang Bing Za Zhi 19 (10), 791–792. [PubMed] [Google Scholar]
  17. Guo C. H., Sun T. T., Weng X. D., Zhang J. C., Chen J. X., Deng G. J. (2015). The investigation of glucose metabolism and insulin secretion in subjects of chronic hepatitis B with cirrhosis. Int. J. Clin. Exp. Pathol. 8 (10), 13381–13386. [PMC free article] [PubMed] [Google Scholar]
  18. Guo W., Tan H. Y., Wang N., Wang X., Feng Y. (2018). Deciphering hepatocellular carcinoma through metabolomics: from biomarker discovery to therapy evaluation. Cancer Manag Res. 10, 715–734.   10.2147/CMAR.S156837 [DOI] [PMC free article] [PubMed] [Google Scholar]
  19. Han H. S., Kang G., Kim J. S., Choi B. H., Koo S. H. (2016). Regulation of glucose metabolism from a liver-centric perspective. Exp. Mol. Med. 48, e218.   10.1038/emm.2015.122 [DOI] [PMC free article] [PubMed] [Google Scholar]
  20. Hong M., Jung J., Park H. S., Lee S. M., Jeong N. J., Kim S. H., et al. (2017). Shaofu Zhuyu decoction ameliorates obesity-mediated hepatic steatosis and systemic inflammation by regulating metabolic pathways. PloS One 12 (6), e0178514.   10.1371/journal.pone.0178514 [DOI] [PMC free article] [PubMed] [Google Scholar]
  21. Hu Y. B., Liu X. Y., Zhan W. (2018). Farnesoid X receptor agonist INT-767 attenuates liver steatosis and inflammation in rat model of nonalcoholic steatohepatitis. Drug Des. Devel. Ther. 12, 2213–2221.   10.2147/DDDT.S170518 [DOI] [PMC free article] [PubMed] [Google Scholar]
  22. Jiang B., Le L., Wan W., Zhai W., Hu K., Xu L., et al. (2015). The Flower Tea Coreopsis tinctoria Increases Insulin Sensitivity and Regulates Hepatic Metabolism in Rats Fed a High-Fat Diet. Endocrinology 156 (6), 2006–2018.   10.1210/en.2015-1015 [DOI] [PubMed] [Google Scholar]
  23. Karnovsky A., Weymouth T., Hull T., Tarcea V. G., Scardoni G., Laudanna C., et al. (2012). Metscape 2 bioinformatics tool for the analysis and visualization of metabolomics and gene expression data. Bioinformatics 28 (3), 373–380.   10.1093/bioinformatics/btr661 [DOI] [PMC free article] [PubMed] [Google Scholar]
  24. Li L., Zhang X. J., Lan Y., Xu L., Zhang X. Z., Wang H. H. (2010). Treatment of non-alcoholic fatty liver disease by Qianggan Capsule. Chin. J. Integr. Med. 16 (1), 23–27.   10.1007/s11655-010-0023-1 [DOI] [PubMed] [Google Scholar]
  25. Li X., Zhang Y., Wang Y., Xu J., Xin P., Meng Y., et al. (2017). The Mechanisms of Traditional Chinese Medicine Underlying the Prevention and Treatment of Parkinson's Disease. Front. Pharmacol. 8, 634.   10.3389/fphar.2017.00634 [DOI] [PMC free article] [PubMed] [Google Scholar]
  26. Liang S., Zhang Y., Deng Y., He Y., Liang Y., Liang Z., et al. (2018). The Potential Effect of Chinese Herbal Formula Hongqijiangzhi Fang in Improving NAFLD: Focusing on NLRP3 Inflammasome and Gut Microbiota. Evid. Based Complement Alternat. Med. 2018, 5378961.   10.1155/2018/5378961 [DOI] [PMC free article] [PubMed] [Google Scholar]
  27. Liu Y., Wu S., Sun W., Chen S., Yang X., Yang X. (2018). Variation in proteomics and metabolomics of chicken hepatocytes exposed to medium with or without folic acid. J. Cell Biochem. 119 (7), 6113–6124.   10.1002/jcb.26810 [DOI] [PubMed] [Google Scholar]
  28. Luedemann A., Strassburg K., Erban A., Kopka J. (2008). TagFinder for the quantitative analysis of gas chromatography–mass spectrometry (GC-MS)-based metabolite profiling experiments. Bioinformatics 24 (5), 732–737.   10.1093/bioinformatics/btn023 [DOI] [PubMed] [Google Scholar]
  29. Petersen M. C., Vatner D. F., Shulman G. I. (2017). Regulation of hepatic glucose metabolism in health and disease. Nat. Rev. Endocrinol. 13 (10), 572–587.   10.1038/nrendo.2017.80 [DOI] [PMC free article] [PubMed] [Google Scholar]
  30. Procopet B., Fischer P., Farcau O., Stefanescu H. (2018). Metabolomics: From liver chiromancy to personalized precision medicine in advanced chronic liver disease. World J. Hepatol. 10 (3), 371–378.   10.4254/wjh.v10.i3.371 [DOI] [PMC free article] [PubMed] [Google Scholar]
  31. Rubtsov P. M., Igudin E. L., Tiulpakov A. N. (2015). [Glucokinase and glucokinase regulatory proteins as molecular targets for novel antidiabetic drugs]. Mol. Biol. (Mosk) 49 (4), 555–560.   10.7868/S002689841504014X [DOI] [PubMed] [Google Scholar]
  32. Shackleton C., Pozo O. J., Marcos J. (2018). GC/MS in Recent Years Has Defined the Normal and Clinically Disordered Steroidome: Will It Soon Be Surpassed by LC/Tandem MS in This Role? J. Endocr. Soc. 2 (8), 974–996.   10.1210/js.2018-00135 [DOI] [PMC free article] [PubMed] [Google Scholar]
  33. Sharabi K., Tavares C. D., Rines A. K., Puigserver P. (2015). Molecular pathophysiology of hepatic glucose production. Mol. Aspects Med. 46, 21–33.   10.1016/j.mam.2015.09.003 [DOI] [PMC free article] [PubMed] [Google Scholar]
  34. Sun H., Zhang S., Zhang A., Yan G., Wu X., Han Y., et al. (2014). Metabolomic analysis of diet-induced type 2 diabetes using UPLC/MS integrated with pattern recognition approach. PloS One 9 (3), e93384.   10.1371/journal.pone.0093384 [DOI] [PMC free article] [PubMed] [Google Scholar]
  35. Tang Y., Zhang Y., Wang C., Sun Z., Li L., Cheng S., et al. (2018). Overexpression of PCK1 Gene Antagonizes Hepatocellular Carcinoma Through the Activation of Gluconeogenesis and Suppression of Glycolysis Pathways. Cell Physiol. Biochem. 47 (1), 344–355.   10.1159/000489811 [DOI] [PubMed] [Google Scholar]
  36. von Wilamowitz-Moellendorff A., Hunter R. W., Garcia-Rocha M., Kang L., Lopez-Soldado I., Lantier L., et al. (2013). Glucose-6-phosphate-mediated activation of liver glycogen synthase plays a key role in hepatic glycogen synthesis. Diabetes 62 (12), 4070–4082.   10.2337/db13-0880 [DOI] [PMC free article] [PubMed] [Google Scholar]
  37. Wan W., Jiang B., Sun L., Xu L., Xiao P. (2017). Metabolomics reveals that vine tea (Ampelopsis grossedentata) prevents high-fat-diet-induced metabolism disorder by improving glucose homeostasis in rats. PloS One 12 (8), e0182830.   10.1371/journal.pone.0182830 [DOI] [PMC free article] [PubMed] [Google Scholar]
  38. Wang H., Yang L. M., Huang L. (2011). [Clinical effects of qianggan capsule on the liver tissue pathology and PDGF-BB, TGF-beta1, TIMP-1, and MMP-1 factors in patients with chronic hepatitis B]. Zhongguo Zhong Xi Yi Jie He Za Zhi 31 (10), 1337–1340. [PubMed] [Google Scholar]
  39. Wang X. X., Ye T., Li M., Li X., Qiang O., Tang C. W., et al. (2017). Effects of octreotide on hepatic glycogenesis in rats with high fat dietinduced obesity. Mol. Med. Rep. 16 (1), 109–118.   10.3892/mmr.2017.6586 [DOI] [PMC free article] [PubMed] [Google Scholar]
  40. Yu X., Xu L., Zhou Q., Wu S., Tian J., Piao C., et al. (2018). The Efficacy and Safety of the Chinese Herbal Formula, JTTZ, for the Treatment of Type 2 Diabetes with Obesity and Hyperlipidemia: A Multicenter Randomized, Positive-Controlled, Open-Label Clinical Trial. Int. J. Endocrinol. 2018, 9519231.   10.1155/2018/9519231 [DOI] [PMC free article] [PubMed] [Google Scholar]
  41. Zhang N., Geng F., Hu Z. H., Liu B., Wang Y. Q., Liu J. C., et al. (2016. a). Preliminary study of urine metabolism in type two diabetic patients based on GC-MS. Am. J. Transl. Res. 8 (7), 2889–2896. [PMC free article] [PubMed] [Google Scholar]
  42. Zhang Q., Yang H., An J., Zhang R., Chen B., Hao D. J. (2016. b). Therapeutic Effects of Traditional Chinese Medicine on Spinal Cord Injury: A Promising Supplementary Treatment in Future. Evid. Based Complement Alternat. Med. 2016, 8958721.   10.1155/2016/8958721 [DOI] [PMC free article] [PubMed] [Google Scholar]
  43. Zhou Q. H., Zhu Y. D., Zhang F., Song Y. Q., Jia S. N., Zhu L., et al. (2019). Interactions of drug-metabolizing enzymes with the Chinese herb Psoraleae Fructus. Chin. J. Nat. Med. 17 (11), 858–870.   10.1016/S1875-5364(19)30103-7 [DOI] [PubMed] [Google Scholar]
  44. Zhu M., Li M., Zhou W., Yang Y., Li F., Zhang L., et al. (2019). Qianggan extract improved nonalcoholic steatohepatitis by modulating lncRNA/circRNA immune ceRNA networks. BMC Complement Altern. Med. 19 (1), 156.   10.1186/s12906-019-2577-6 [DOI] [PMC free article] [PubMed] [Google Scholar]

Associated Data

This section collects any data citations, data availability statements, or supplementary materials included in this article.

Supplementary Materials

Click here for additional data file. (887.8KB, docx)

Data Availability Statement

The raw data supporting the conclusions of this article will be made available by the authors, without undue reservation, to any qualified researcher.

Articles from Frontiers in Pharmacology are provided here courtesy of Frontiers Media SA

RESOURCES
